LIFELINE CENTRO STORICO
The system is part of the SD76 TYPE C range and has been designed to minimise visual impact, making it ideal for settings where preserving the aesthetic of buildings is essential, such as historic town centres.

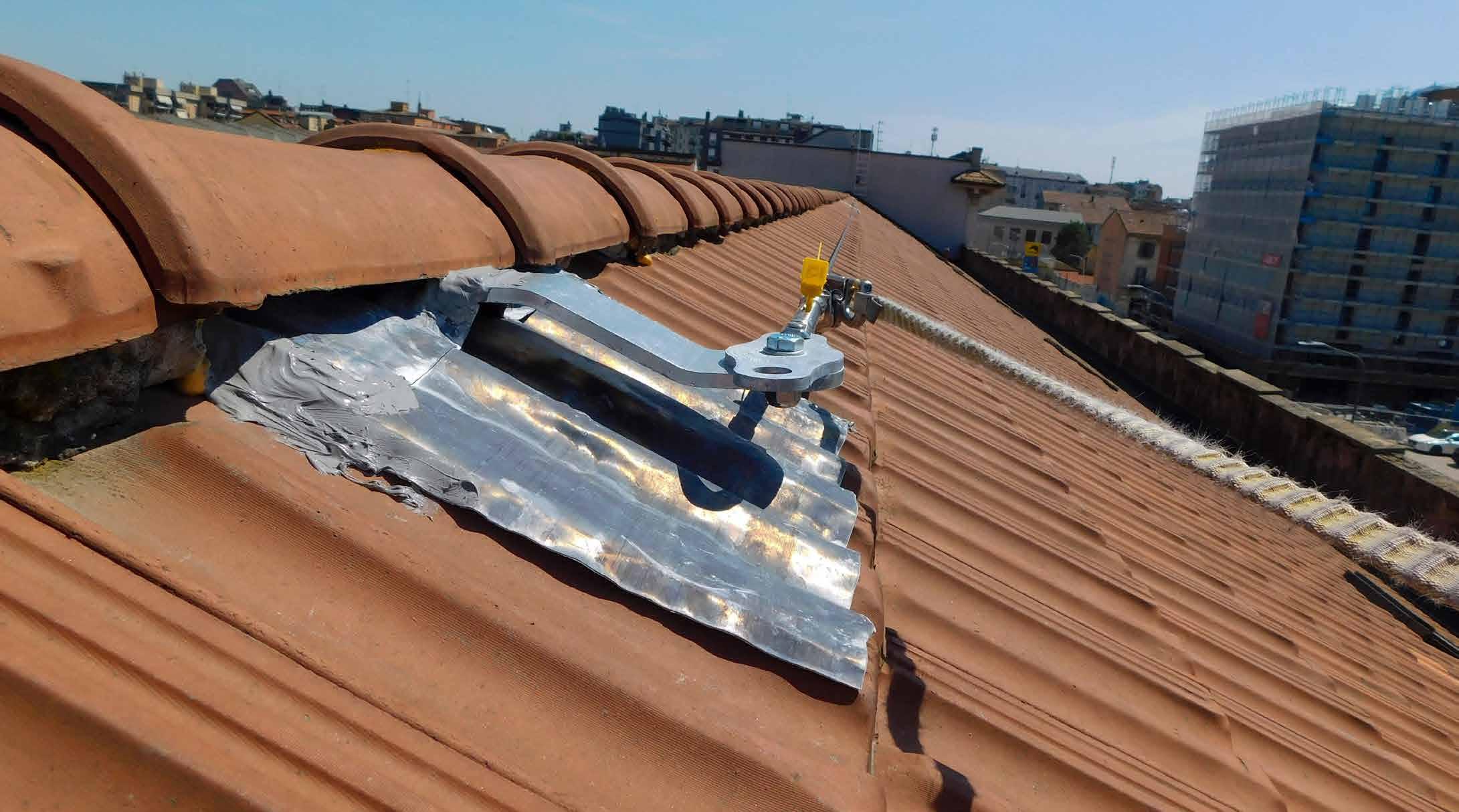

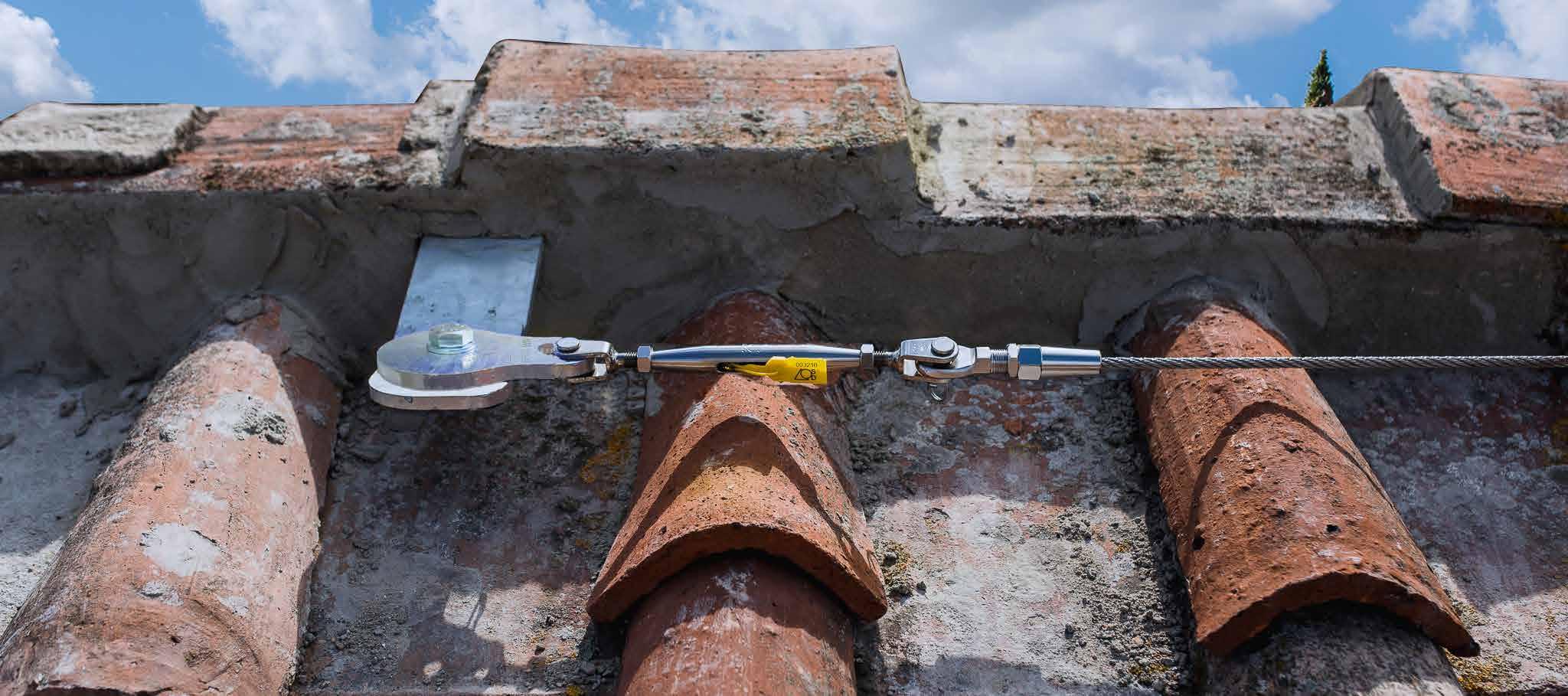

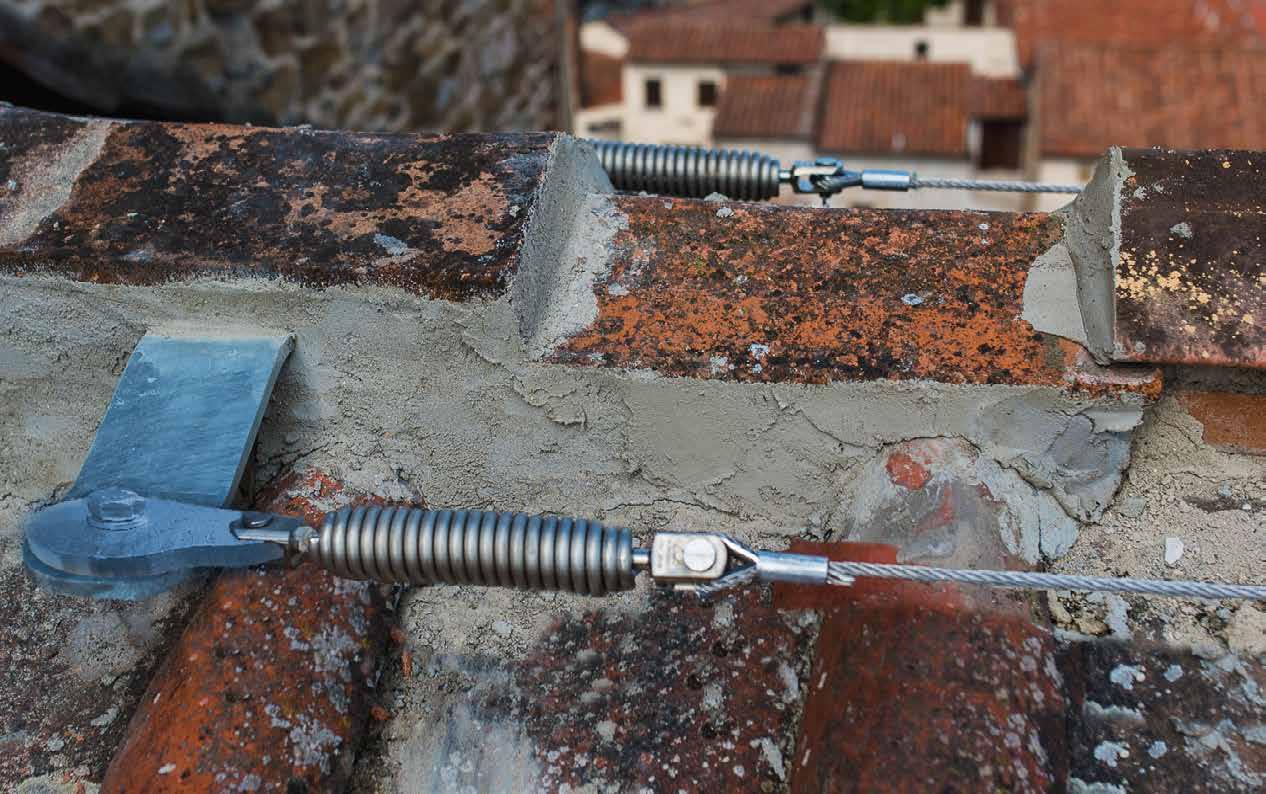

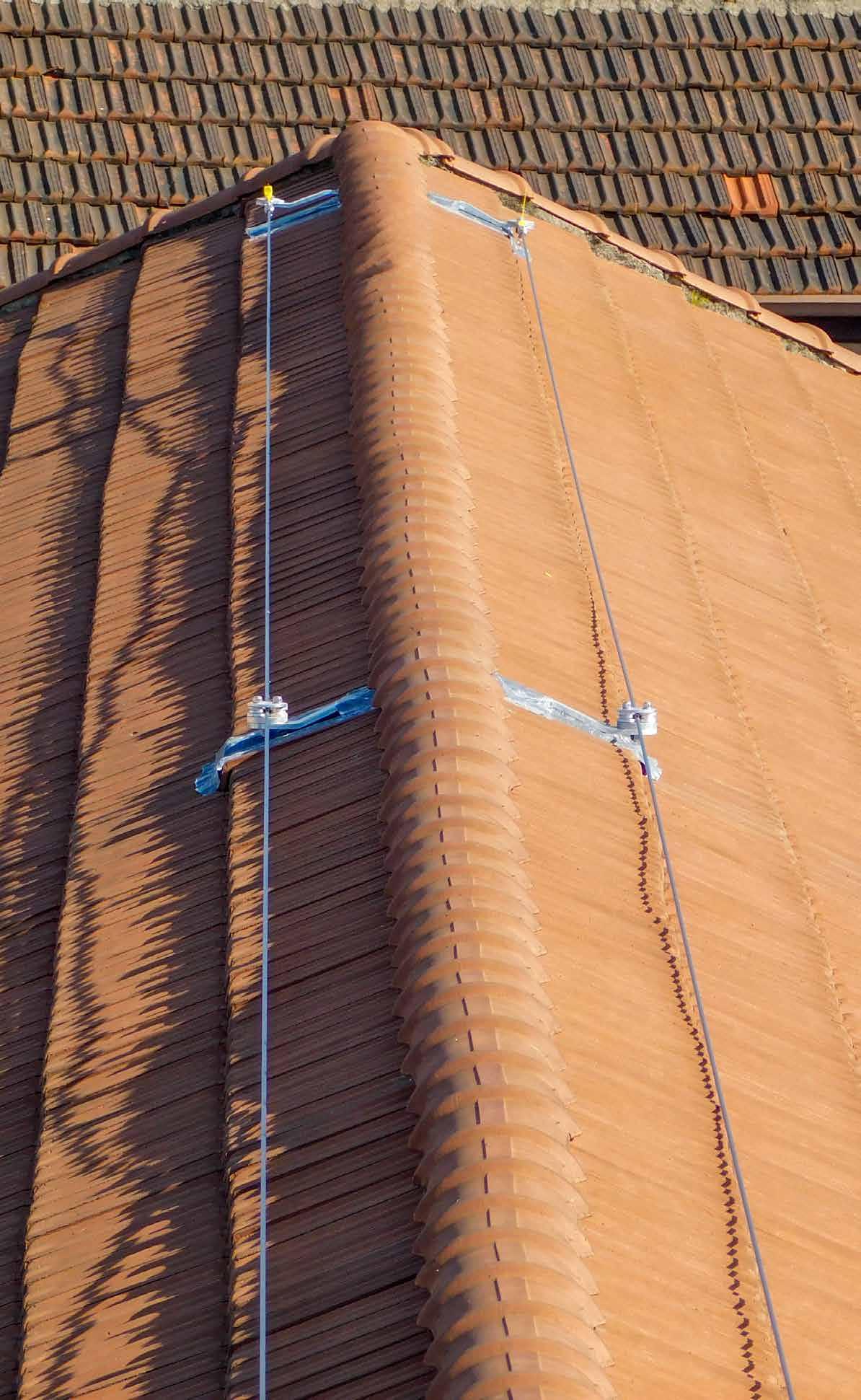

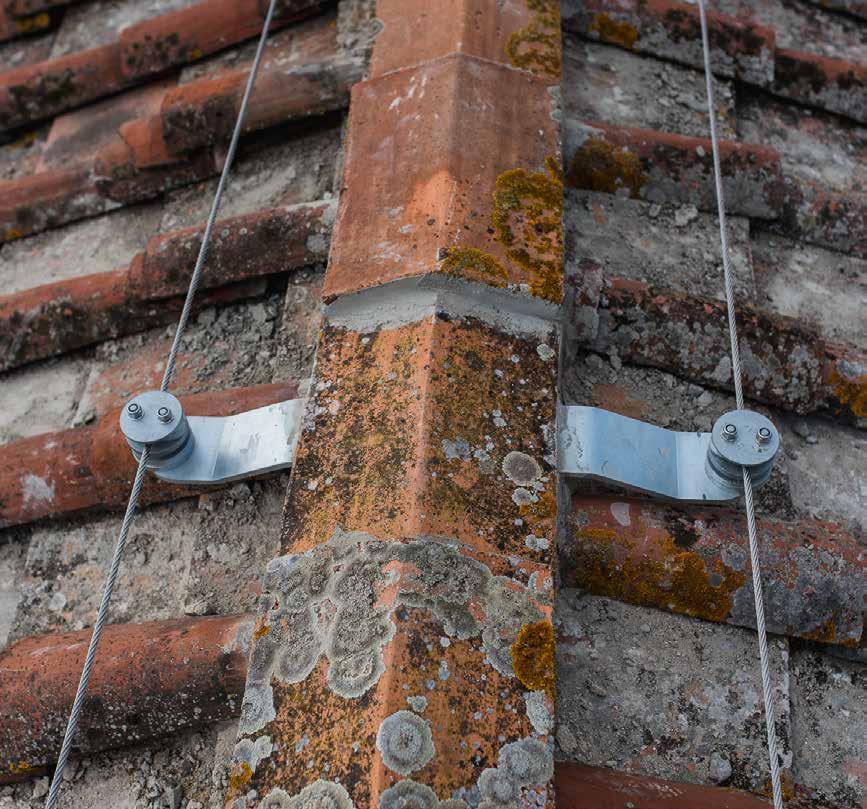

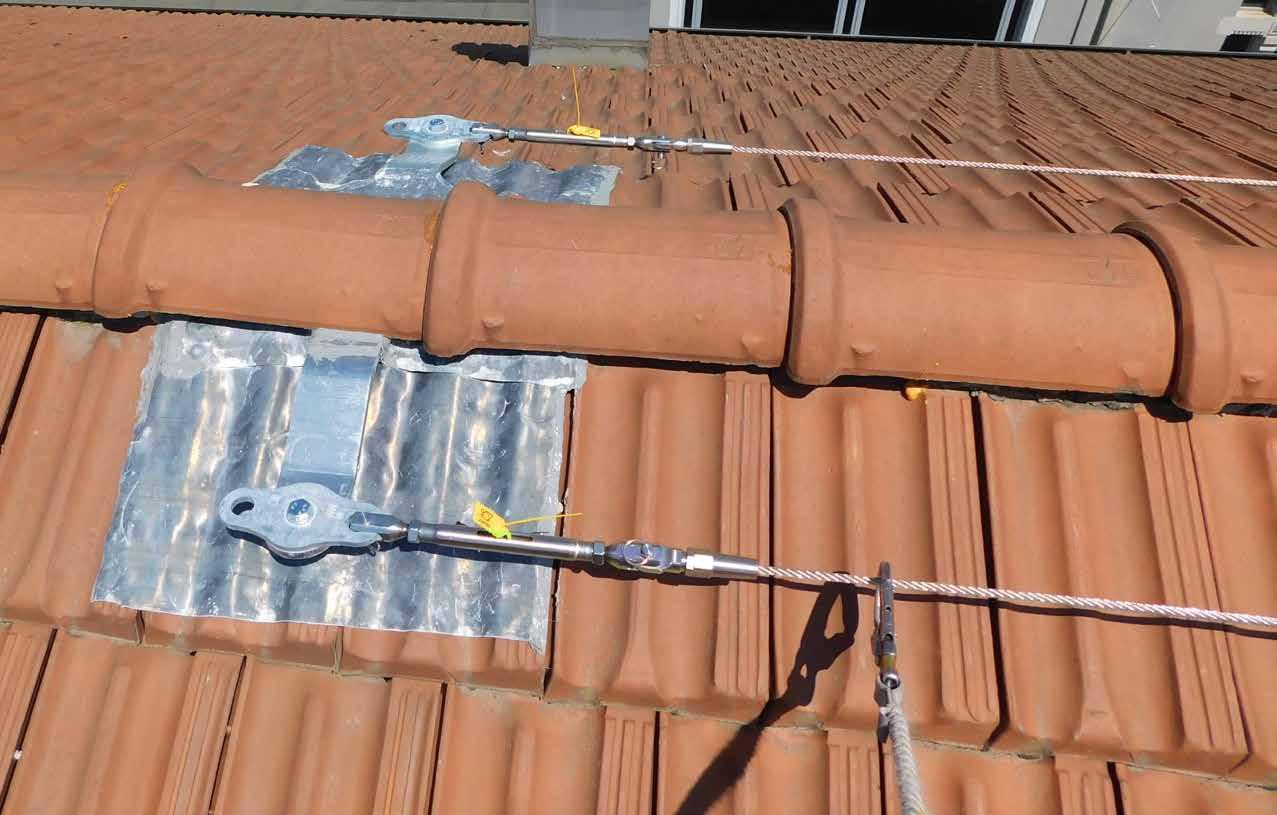

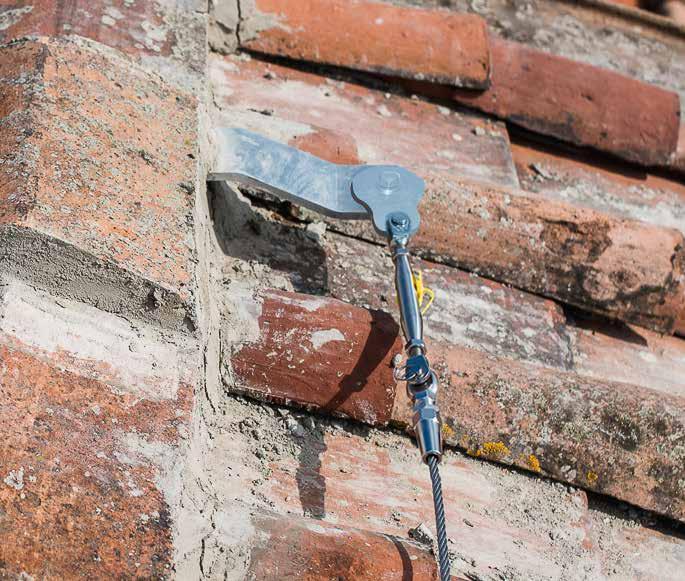

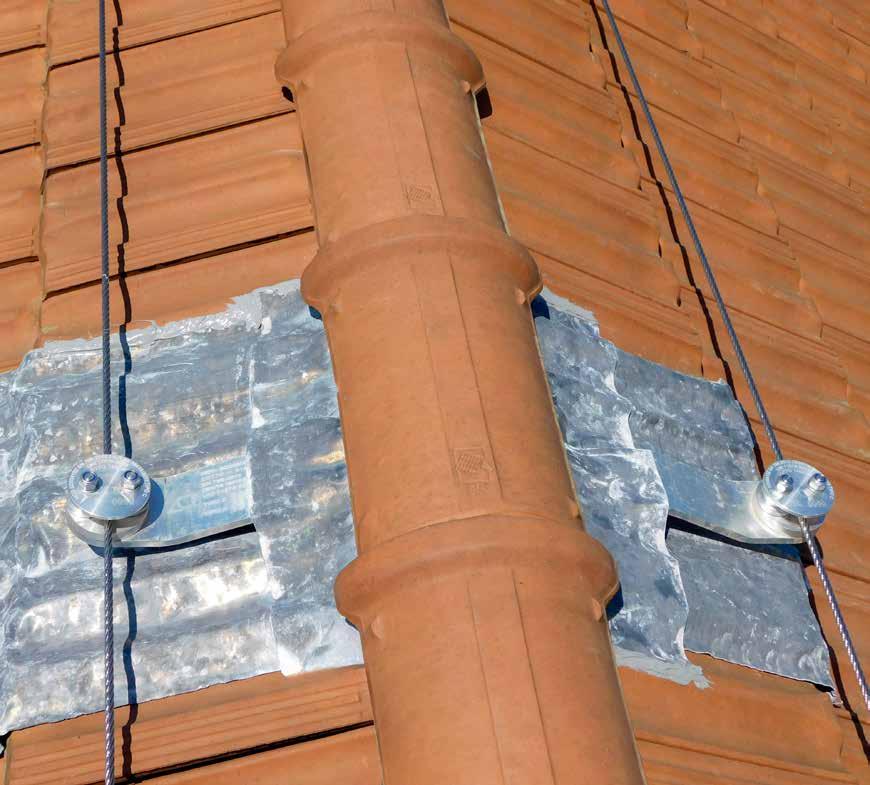

It is designed to be installed on roof ridges and can be fixed directly to steel, timber or reinforced concrete structures.

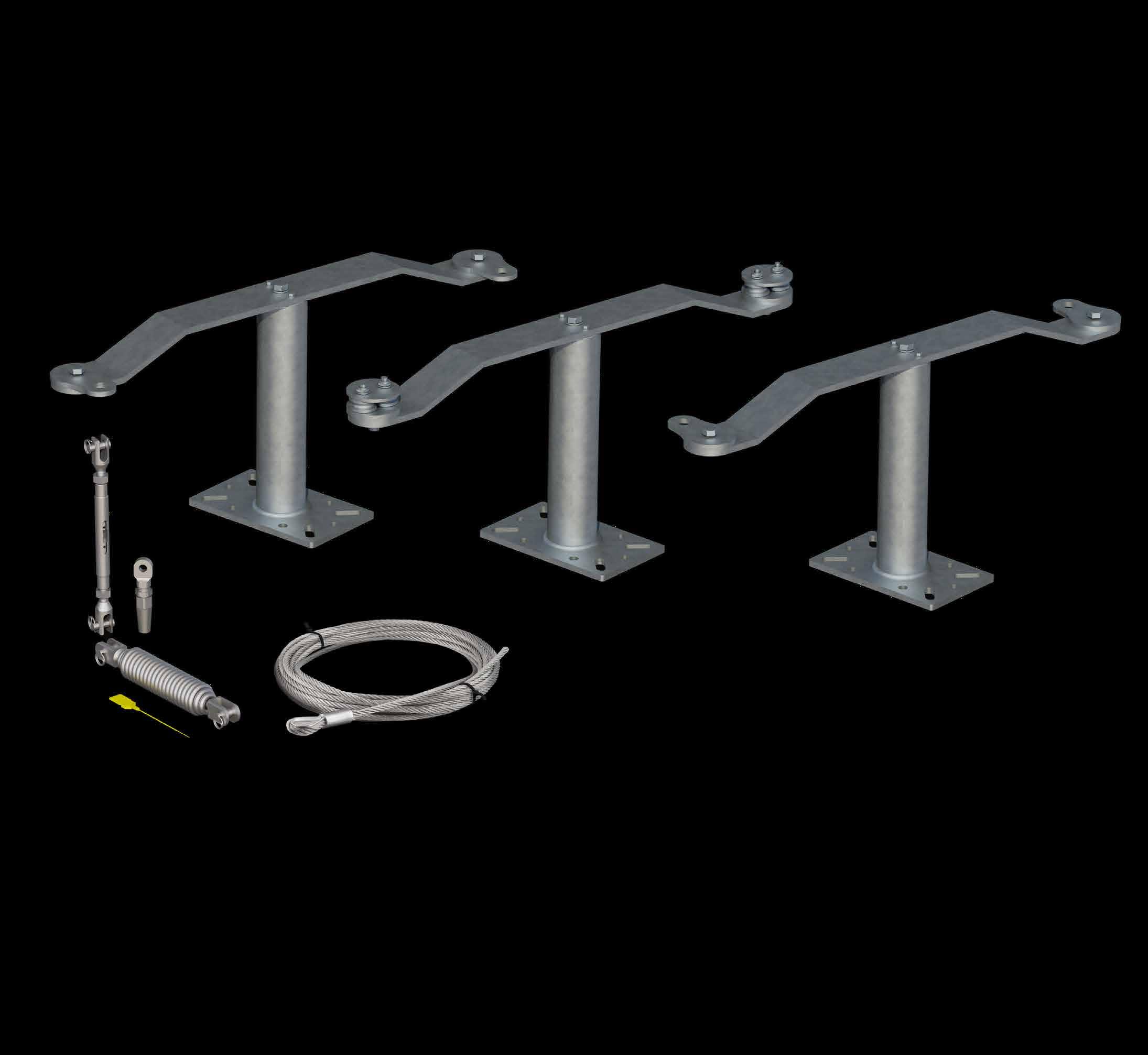

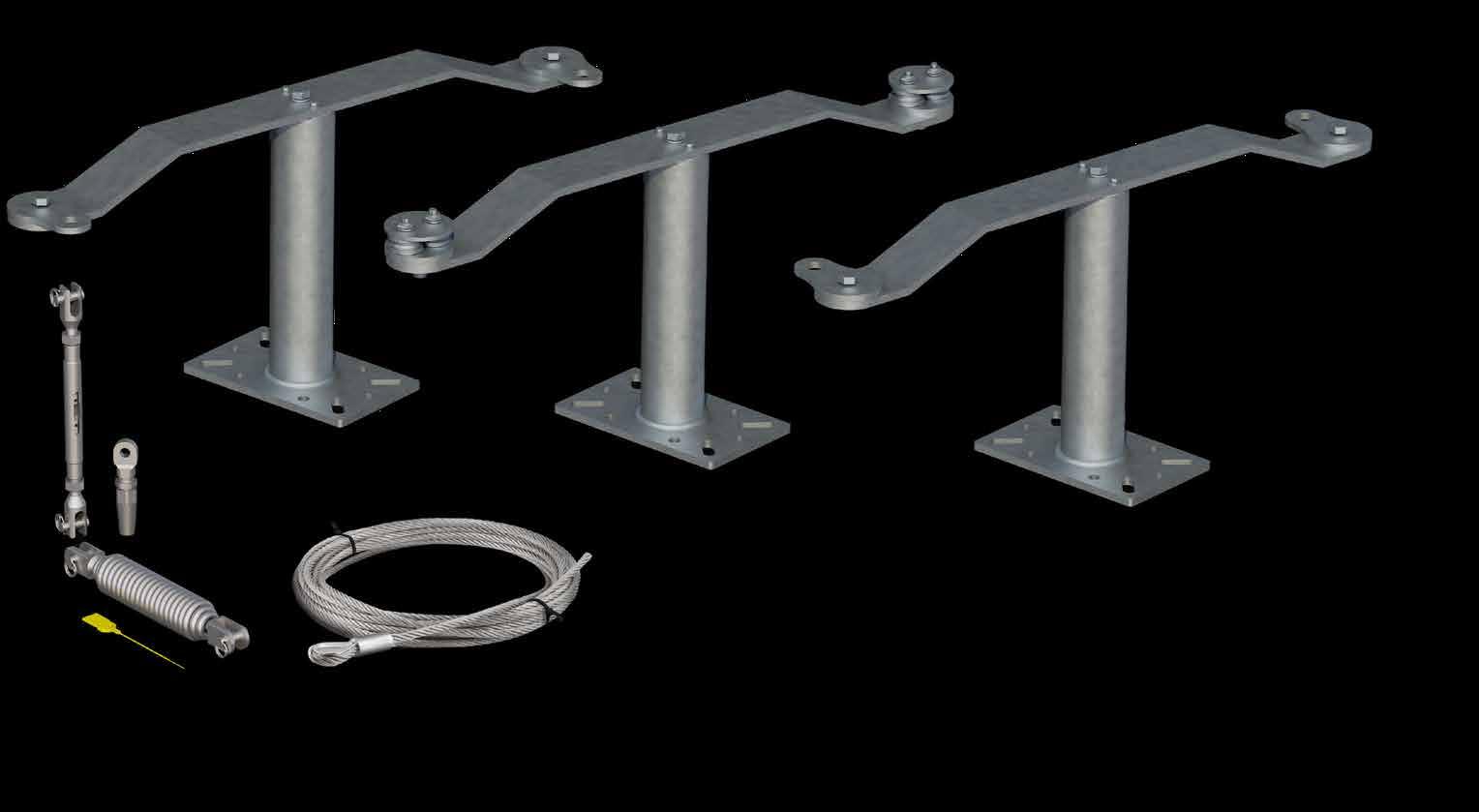

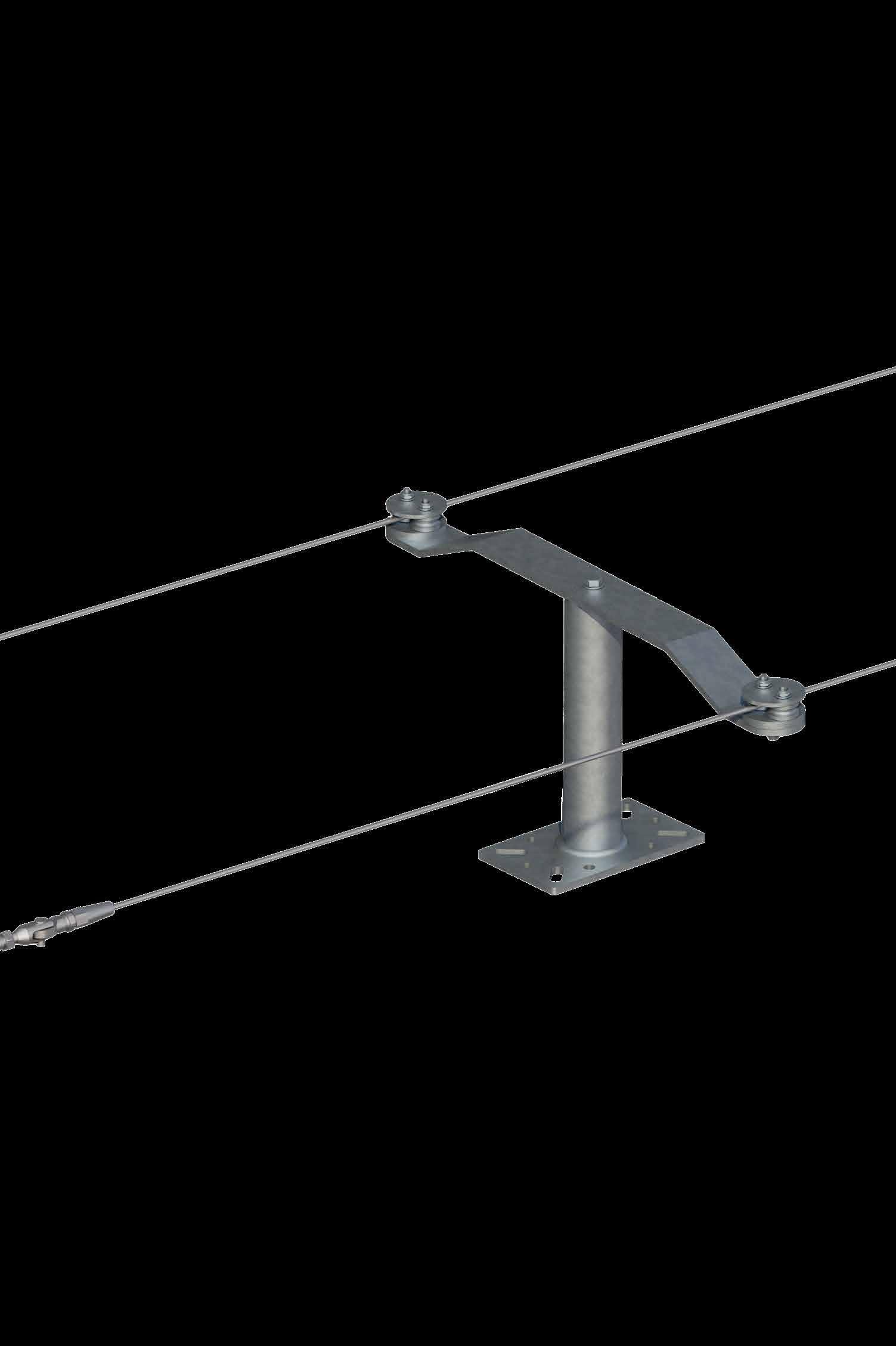

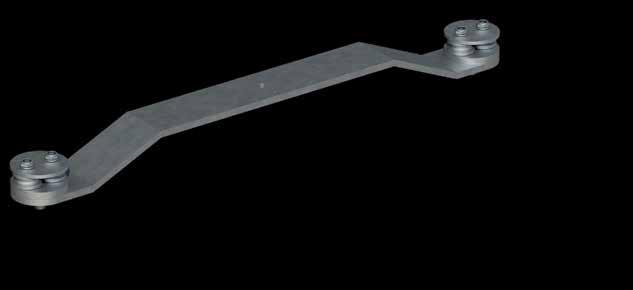

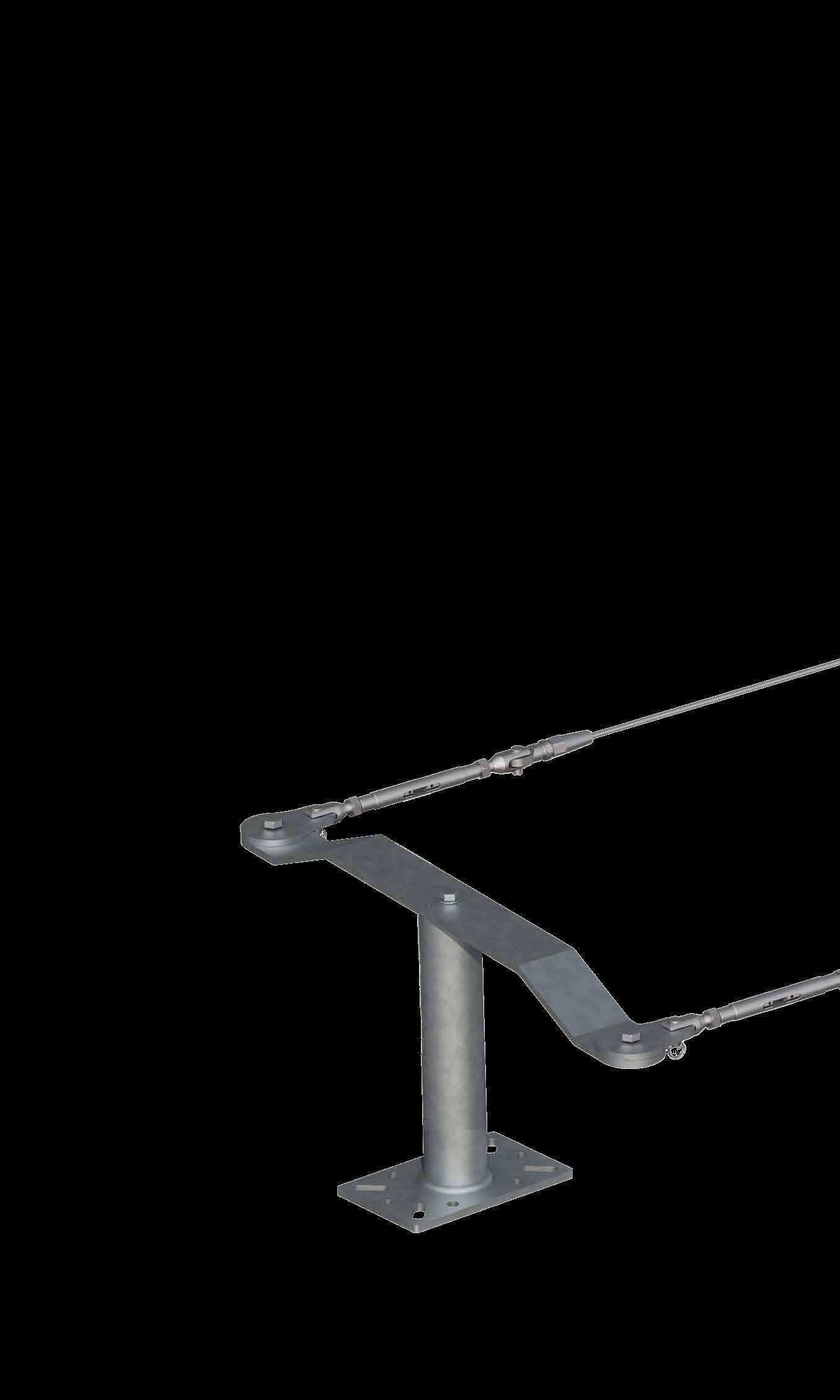

The minimum single span length is 3 metres up to a maximum of 15 metres; for longer runs, intermediate supports every 15 metres max are sufficient, configuring the line in multiple spans. The head supports can be end type both single and double or intermediate. Available heights for the supports are 15, 35, 50 and 60 cm.
It is manufactured in S235 hot-dip galvanised steel and can be used by a maximum of four operators at the same time.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
