Advanced conductor accessories Green line series
Sicame Group is one of the key players in the electrical equipment business worldwide. It has been able to adapt and develop to support the continuous evolution of electricity infrastructure in France and around the world, and become the largest independent entity in its sector.
A true player in the energy transition, it offers its customers new products and services to improve energy efficiency, deal with environmental risks and support the development of electric vehicle and solar power plant markets.
70
638 M€
3,600
Our fields of activity
Sicame Group is specialised in products and services related to transmission and distribution of electrical energy, renewables, electro-mobility, safety equipment and industrial applications.
With decades of history and recognized expertise, the Transmission business unit is specialized in designing, manufacturing and producing comprehensive ranges of transmission lines and systems connectors, damping systems, hardware and most advanced substation fitting solutions, adapted to the most technical configurations such as 8-bundle spacer dampers, UHV HVDC connectors and innovative high temperature conductor’s accessories.
Evolution of grid
Energy transition brings new challenges for the utilities in managing the grid.
• Managing capacity congestion
• Clean energy integration
• Reduce losses & down time Strengthening the Sub-Transmission network is a necessity for future.
Transmission
Substation
Sub-Transmission
Substation
Distribution

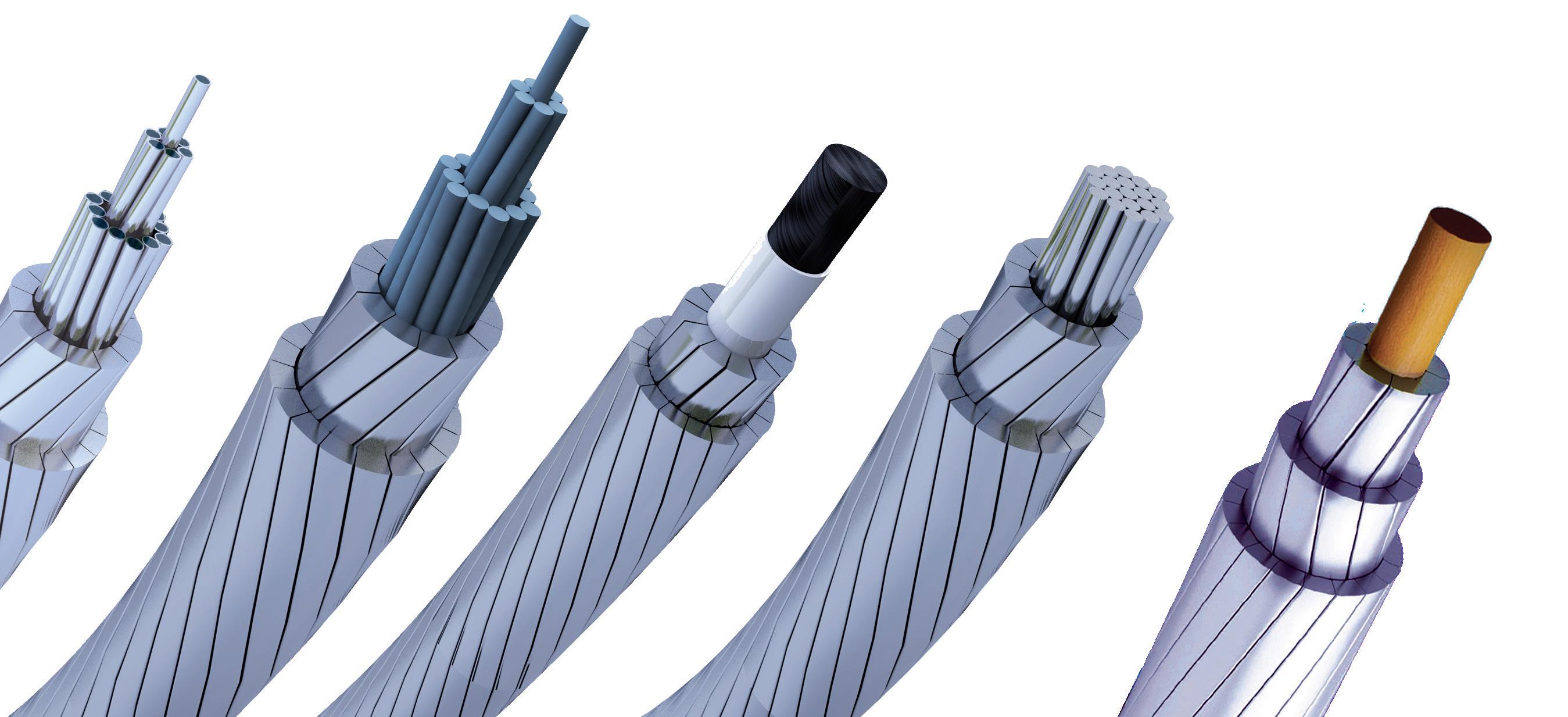

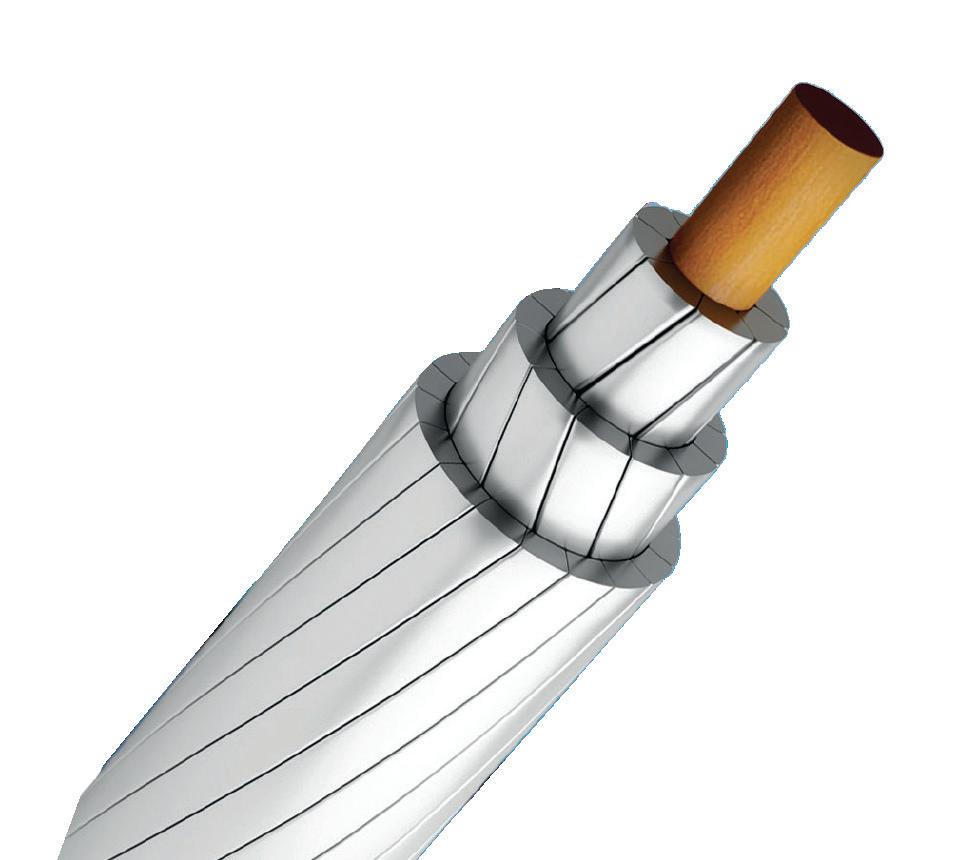

Advanced conductor
Advanced Conductor shall substantially contribute to global decarbonisation objectives in energy network which includes but not limited to:
• Fastest and most cost-effective way to increase line capacity
• Achieve sustainability goals
• Improve reliability & resilience

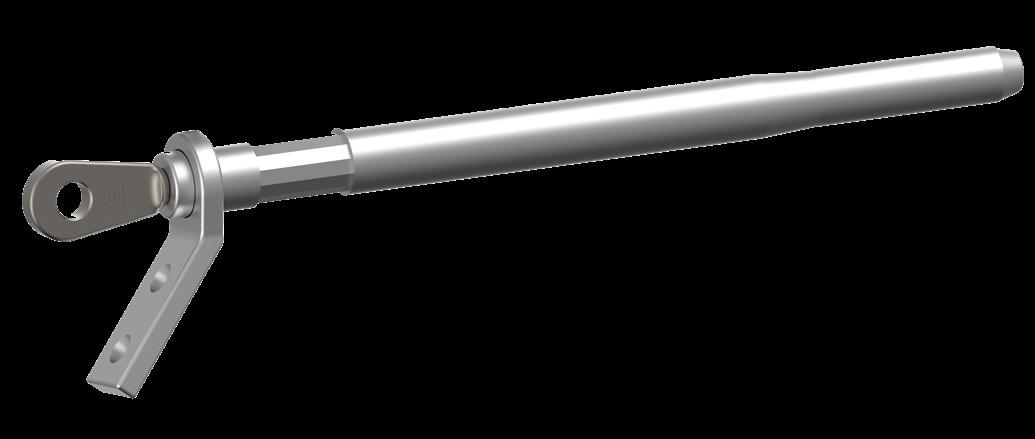

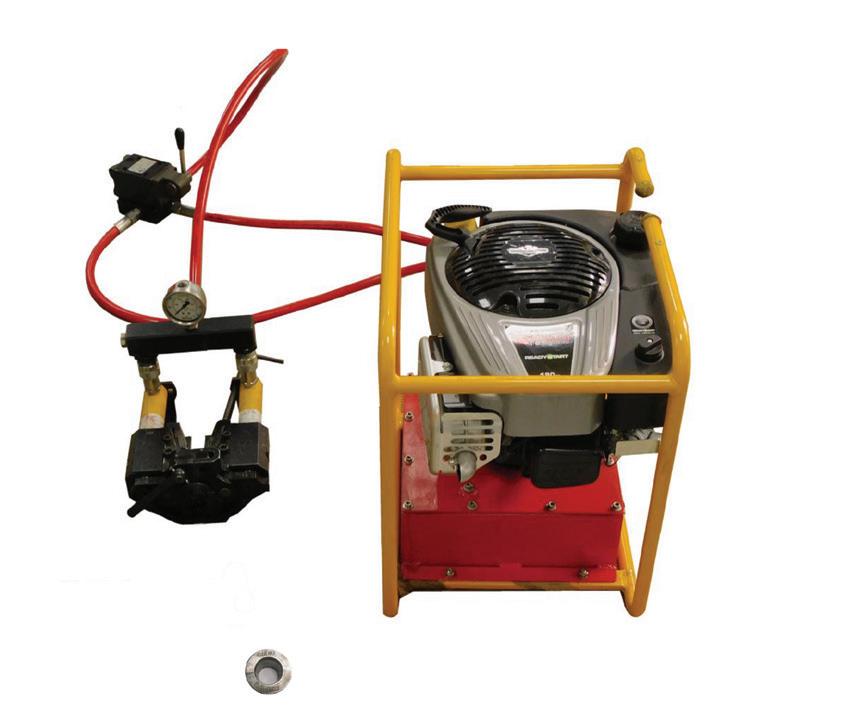

Advanced end fittings with
Swage Drawing Technology (SDT)
Key features
Dead end clamp
Conductor accessories
Key network products
Greener grid
Energy transmission networks

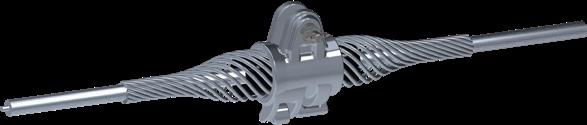

Suspension clamp

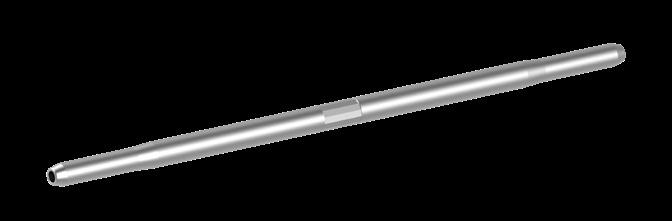

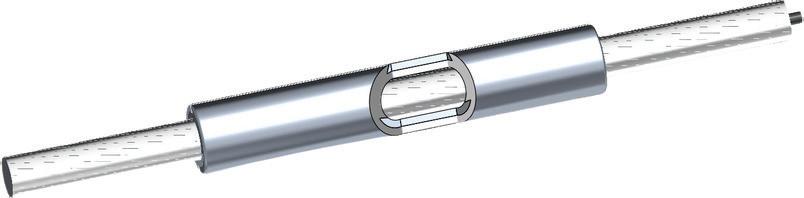

Mid span joint
Tie solution

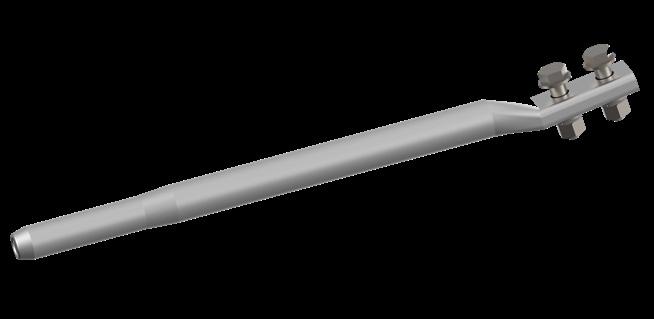

Terminal jumper
Dead end clamp

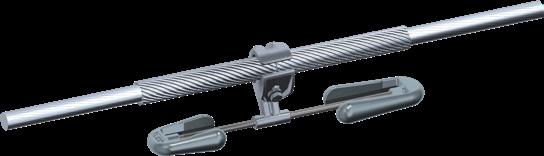

Vibration damper
Controlled lengthening device

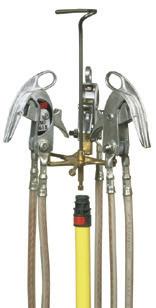

Mv short circuiting and earthing system
MV & HV voltage detectors
LT-110EUR & R400D

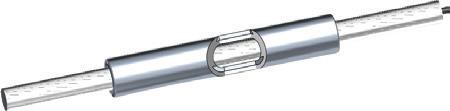

Repair sleeve
Mechanical protection devices

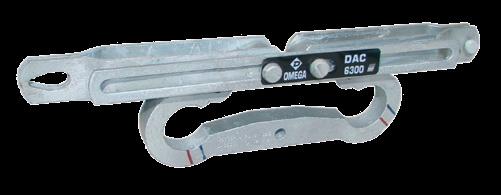

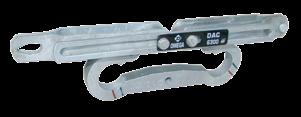

Controlled Lengthening Device DAC Omega:
• Protect lines against mechanical impact overloading such as storm related fallen trees, tree limbs and ice by smoothly providing extra slack prevent from pole breaking.

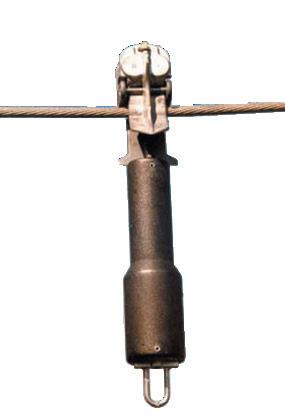

Anti-gyrational counterweight MAG:
• Increased reliability of overhead lines in case of wet snow by raising torsional rigidy of conductors
• Decrease formation of wet snow sleeves that might cause overloads on conductors
Insulating ring against conductor contact Dervaspire:
• Avoids mid-span phase conductor contact from wind effect or mechanical load changes such as ice, drop or birds fly off
• Live line hot stickable

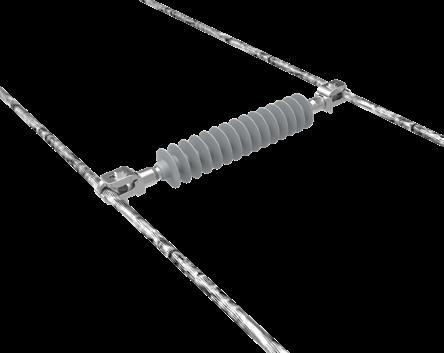

DSIL Insulating spacer:
• Maintains rigid spacing between phases in a rigid way to avoid conductor contact
Smart solutions
Operating process
All our IoT devices are configurated to detect fault locations, reduce on-site repair times, avoid maintenance and alert any abnormality. They communicate in real time the mechanical status of your device.
Data acquisition
Low frequency communication system LoRaWan, SigFox & GSM
Data transmission to the cloud
Data reception and transcribing on online platform
Several configurations are available that will report alerts

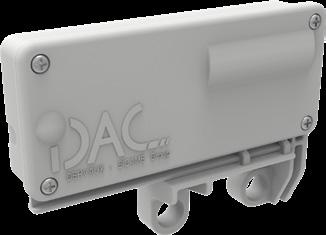

iDAC
Combined with the DAC, it will communicate and alert in real time the mechanical status of your DAC.

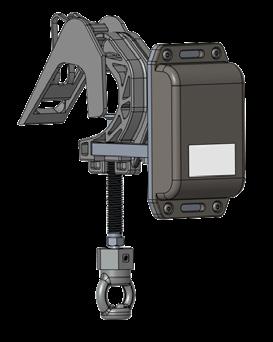

iLine
Line monitoring device that detect any unsual movement on the line such as overload, broken, fallen or oscillating lines.

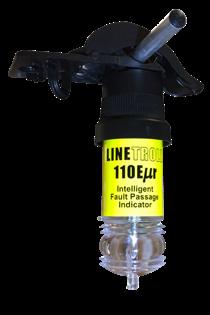

LT-110EUR & R400D
Fault detection and localization.

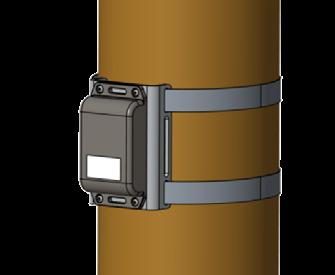

iPole
Pole tilting device that detects any pole inclinaison movement.

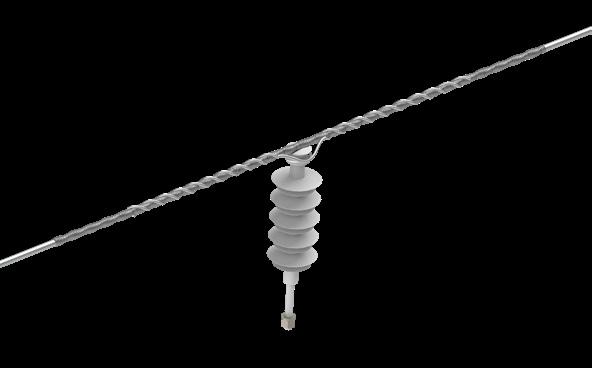

Surge arrester monitoring device for lightning strike dectection. Available in 50 and 60 MHz.
MX-482
HTLS | Credentials

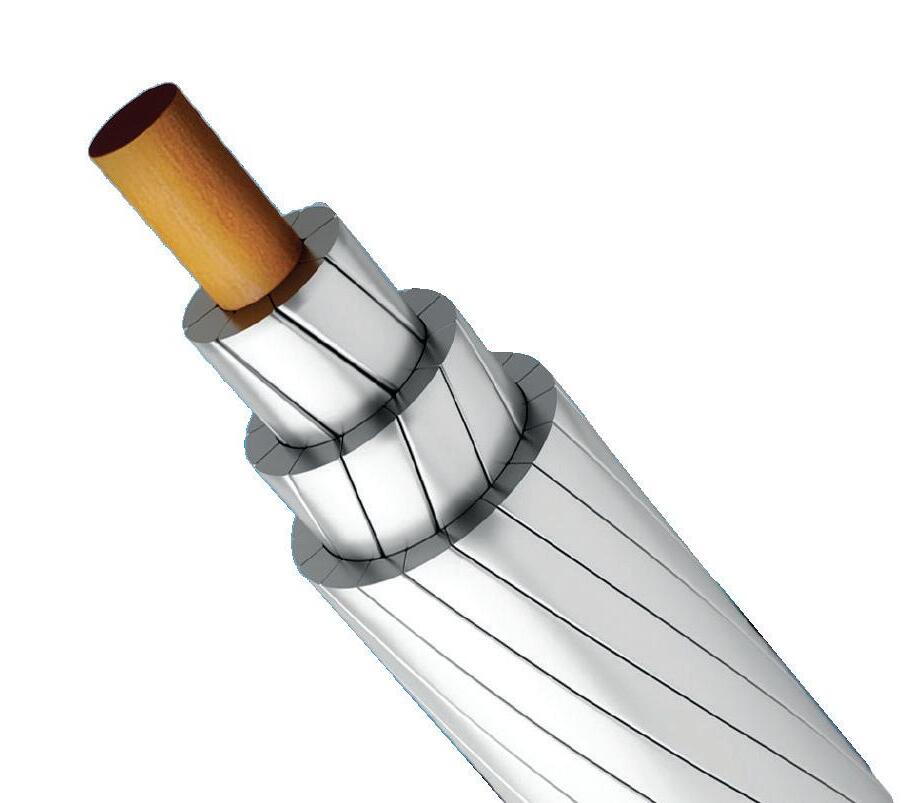

High temperature low sag cable line hardware
Since 2001, Sicame Group has been working closely with the French electricity grid (RTE: Réseaux de Transport d’Electricité) and other major Utilities, to successfully qualify HTLS conductor sets and accessories.
Sicame Group has confirmed for many years now, its strong technical capacity to design line hardware suitable to the HTLS conductors characteristics requirements:
• Maximum operating temperature (up to 250°C)
• Fully annealed aluminium for conductor strands
• Gauges according to the required outputs
These specific Conductor characteristics require the study and qualification of line hardware that result in safe, durable installations, whether new or existing lines.
A testing laboratory able to characterize and qualify HTLS conductors & accessories
Our Transmission has test resources among the best, which means that low sag / high ampacity conductors and accessories can be fine-tuned and qualified. These studies and trials are performed according to the power, environmental, and configuration parameters of the line to be fitted.
The tests comply with the requirements of standard IEC 61284*:
*Tests compliant with the specifications of each country can be performed by the Sicame Group Transmission Laboratories.
Laboratory testing & Industrial manufacturing processes
High temperature low sag cable line hardware
Laboratories capabilities worldwide
• Certified laboratories
• State of art equipment
• 3rd party services
• Expertise
• University partnership

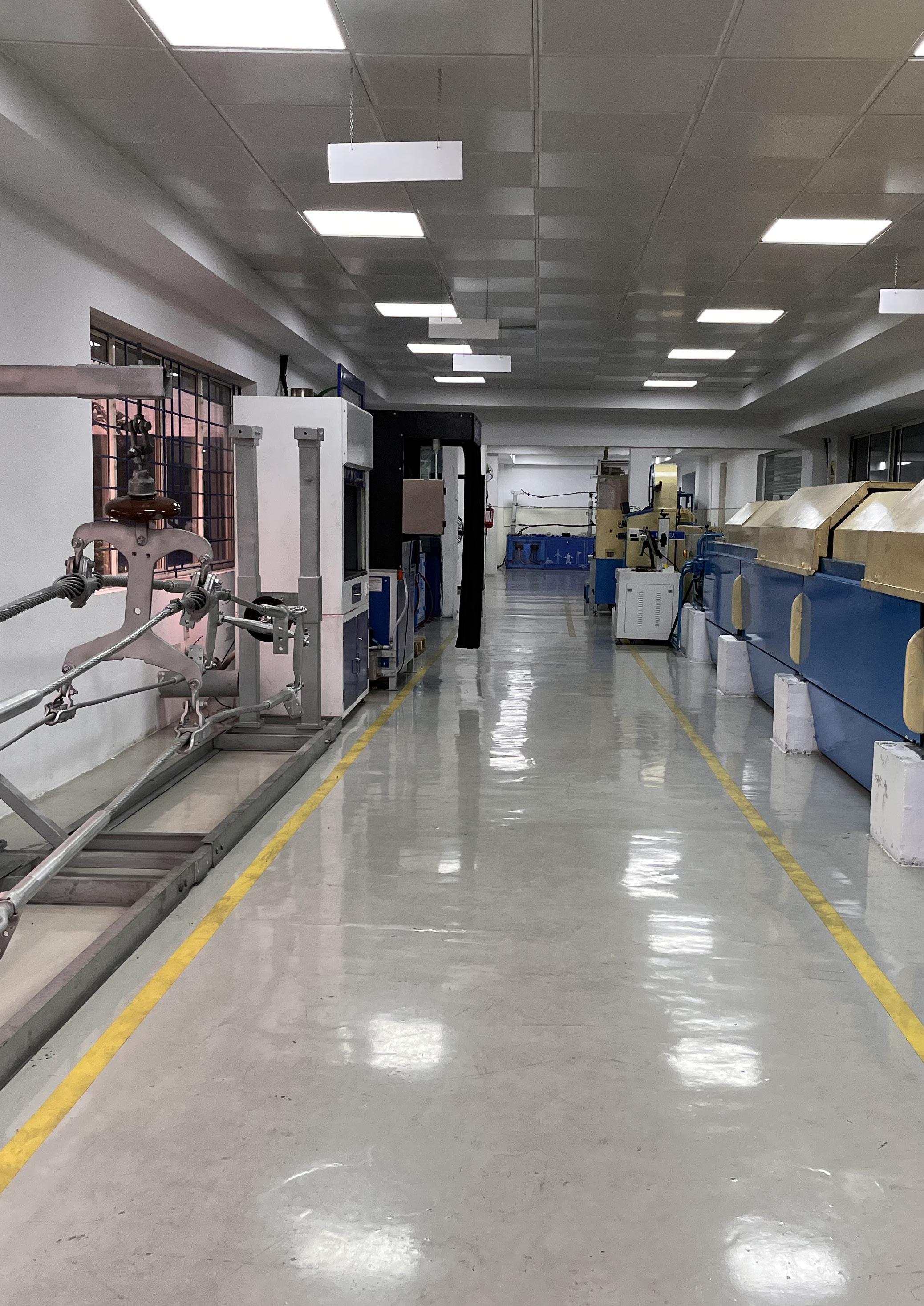

Tests and R&D
Our transmission laboratory is assisting both design activities and product verification. in the design stage it is supporting the technical department in its activity of research and development while in the product verification stage all quality control mechanical verifications and tests are carried out including batch acceptance tests.
Components mechanical tests:
Are performed at our laboratories worldwide that are fully equipped for all kind of destructive and non-destructive tests.
Full scale mechanical tests:
We are also capable to carry out full scale mechanical tests in independent and accredited laboratories so as to verify the real mechanical behavior of the full strings.
Electrical tests on complete strings:
RIV and Corona, Power Arc and Short Circuit are carried out in independent laboratories according to international standards and prescriptions of project technical specifications.

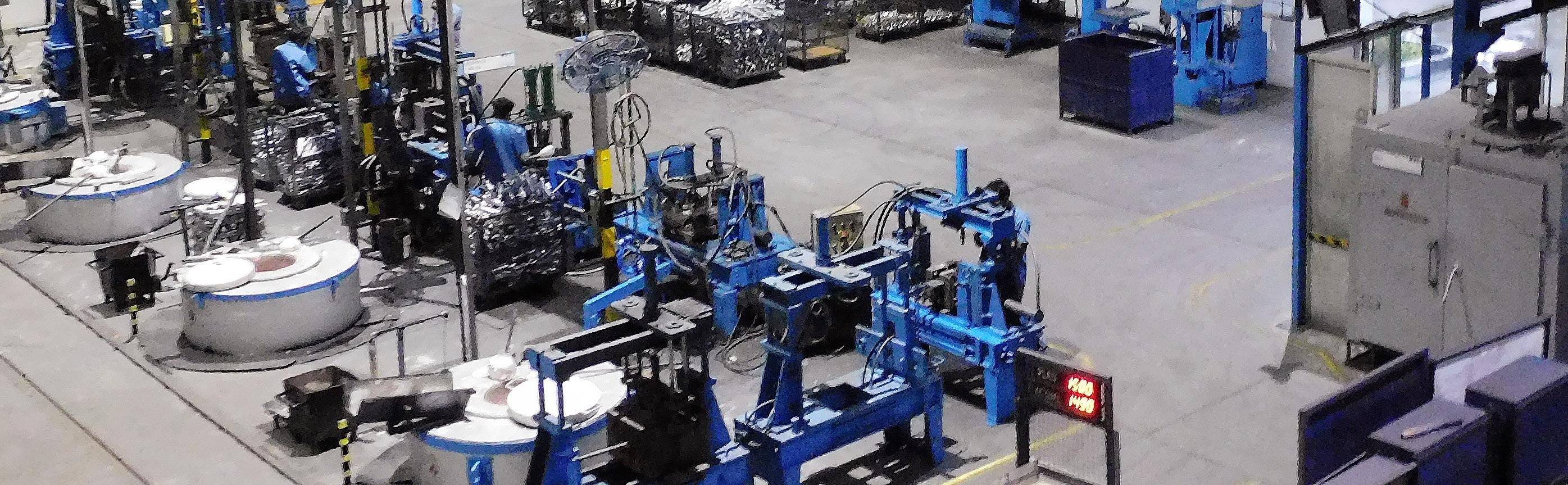

Manufacturing
Manufacturing activities are carried out in our factories directly or through our sub-suppliers and partners whithin Sicame Group.
• Manufacturing processes excellence centers
• Interconnected supply chain among business unit net work
• Complete manufacturing processes inside business unit
