K I V U L O D G E

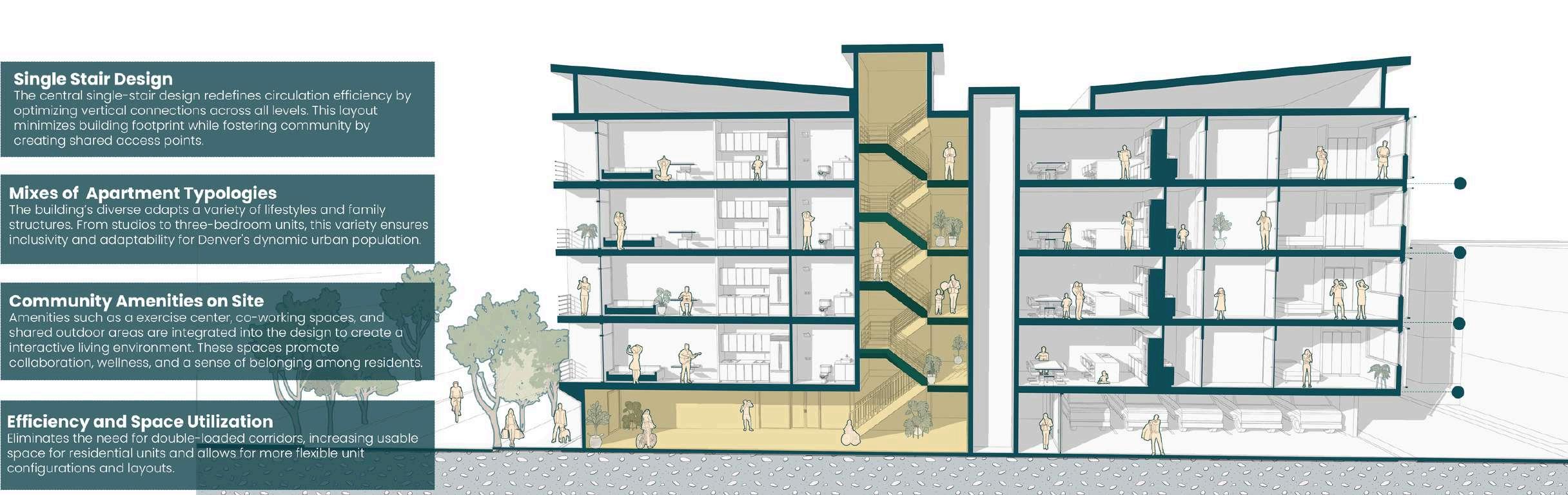

D E N V E R S I N G L E S T A I R

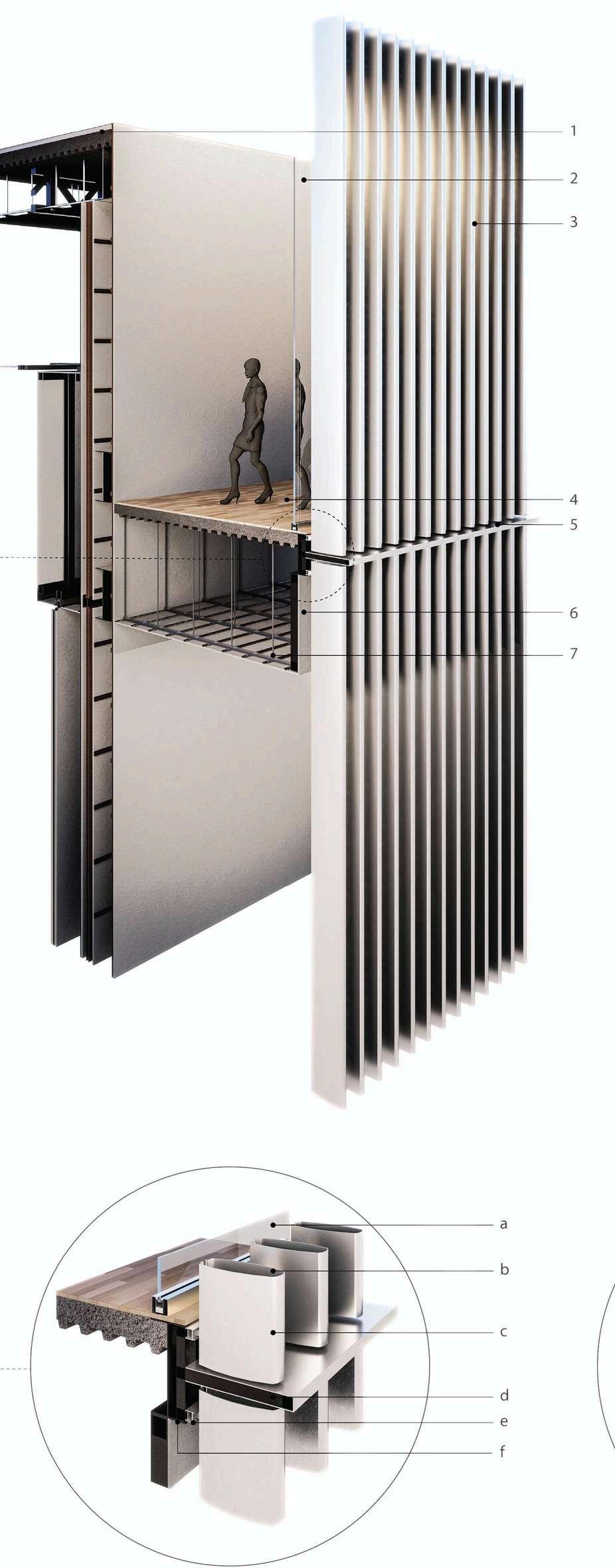

DETAIL A
1 STRUCTURAL STEEL BEAM
2 24 GA STEEL FLASHING
3 WEATHER RESISTANT WOOD
SUBSTRUCTURE W/ LIGHT GA. STEEL STUDS
4 WEATHER RESISTANT PANEL W/ PAINT
FIN SH ATTACHED TO STEEL STRUCTURE
5 STEEL TRUSS
6 SOFF T SYSTEM W/ LIGHT GA STEEL STUDS + USG CE LING BOARD
7 WEATHER RESISTANT FASCIA
8 STRUCTURAL STEEL BEAM FOR ROOF SUPPORT
9 WEATHER AND VAPOR BARRIER + 1/2” PLYWOOD SUBSTRATE
10 METAL ROOF
DETAIL B
1 CONCRETE EXTERIOR STRUCTURAL FRAME
2 POST-TENSIONED CONCRETE SLAB
3 24 GA STEEL FLASHING
4 WEATHER RESISTANT PANEL W/ PAINT
FIN SH ATTACHED TO SLAB
5 WEATHER RESISTANT WOOD
SUBSTRUCTURE W/ PEDESTALS
6 ORIENTED STRAND BOARD
7 LIGHT GA. STEEL STRUCTURE FOR SLOPED SOFF T ATTACHED TO SLAB
8 RAILINGS
9 GLASS DOOR W/ ALUMINUM FRAME FINISH TO MATCH CURTAIN WALL
10 CURTAIN WALL SYSTEM DOUBLE GLAZED
11 TREAD
12 THERMAL INSULATION
13 STRUCTURE W/ LIGHT GA STEEL STUDS + USG CEIL NG BOARD
14 SOFF T SYSTEM W/ LIGHT GA STEEL
STUDS + USG CE LING BOARD
15 STRUCTURAL STEEL BEAM
16 REINFORCED CONCRETE SLAB
17 LEVELING SCREED
18 LAMINATE WOOD FINISH + LEVELING SCREED
