Concealed Hinges
PAS 24 & Secured by Design

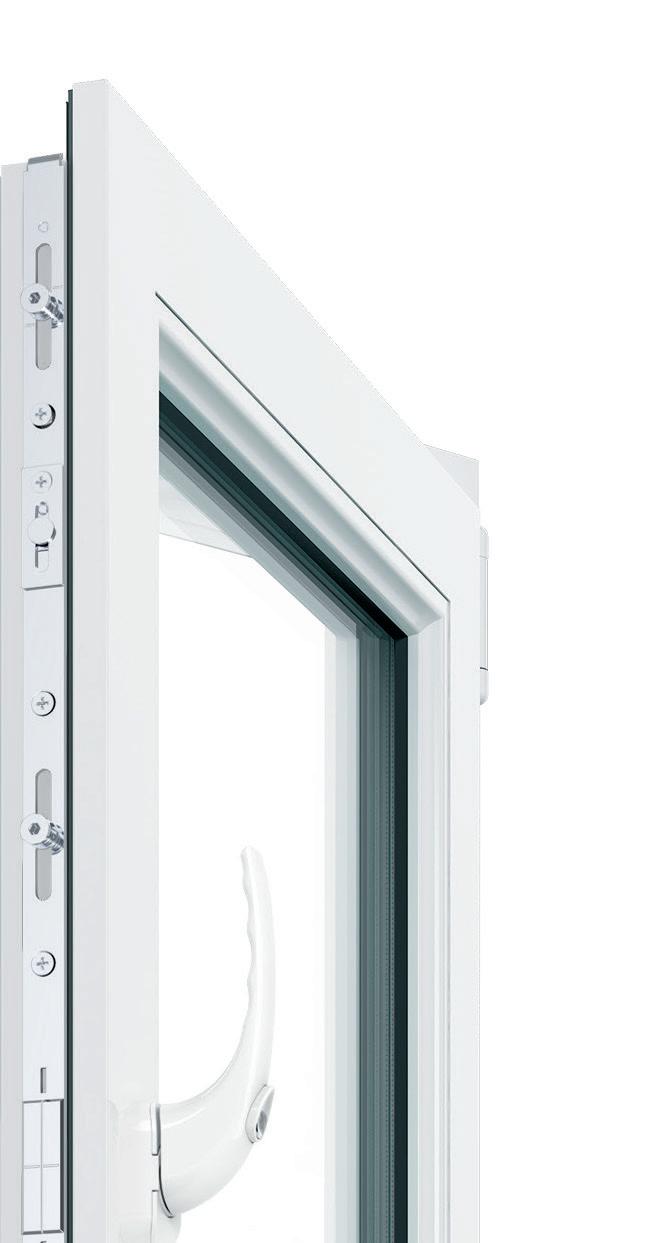

ProSecure TBT Window Locking System with concealed hinges
ProSecure TBT gearing is a Police Preferred Specification product and is available with concealed hinges.
The concealed system is profile related and it’s jigless design is simple to install, enabling the sash to open to 100° for ease of fabrication
The system has an anti-blow back feature and carries 130kg sash weight as standard
ProSecure TBT gear has been independently tested to the latest European and British Standards including at IFT Rosenheim to all of the required endurance and corrosion standards The range has also been security tested to PAS24 at Mila’s UKAS accredited test centre, is Secured by Design and is backed with a market-leading 10 year guarantee
Quality, not compromise.

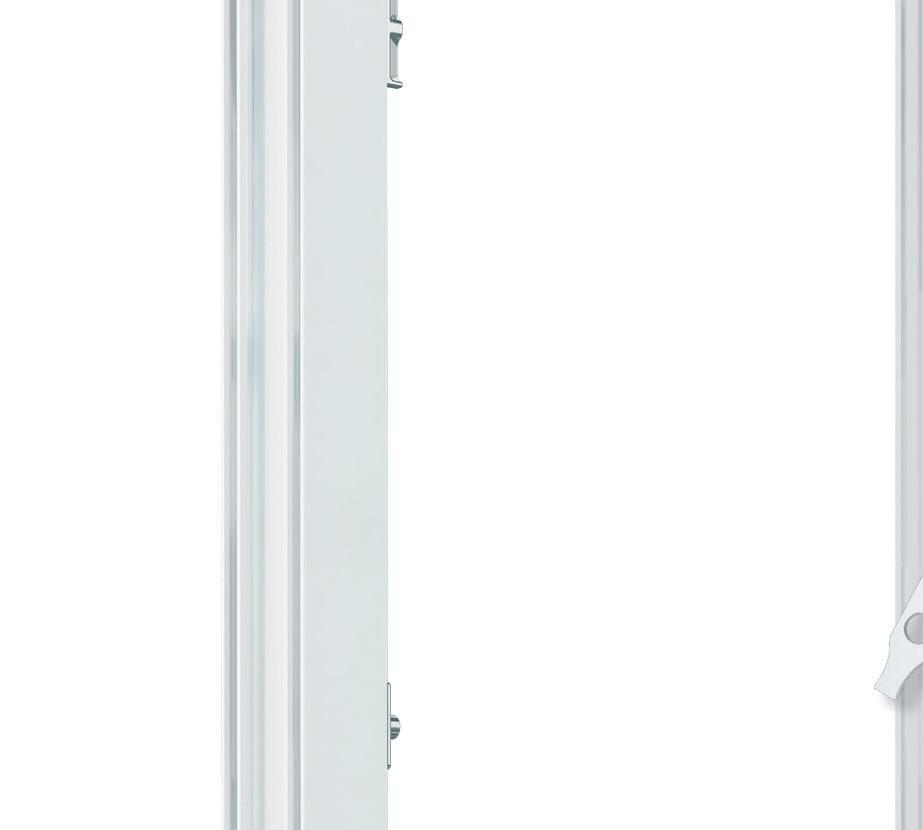

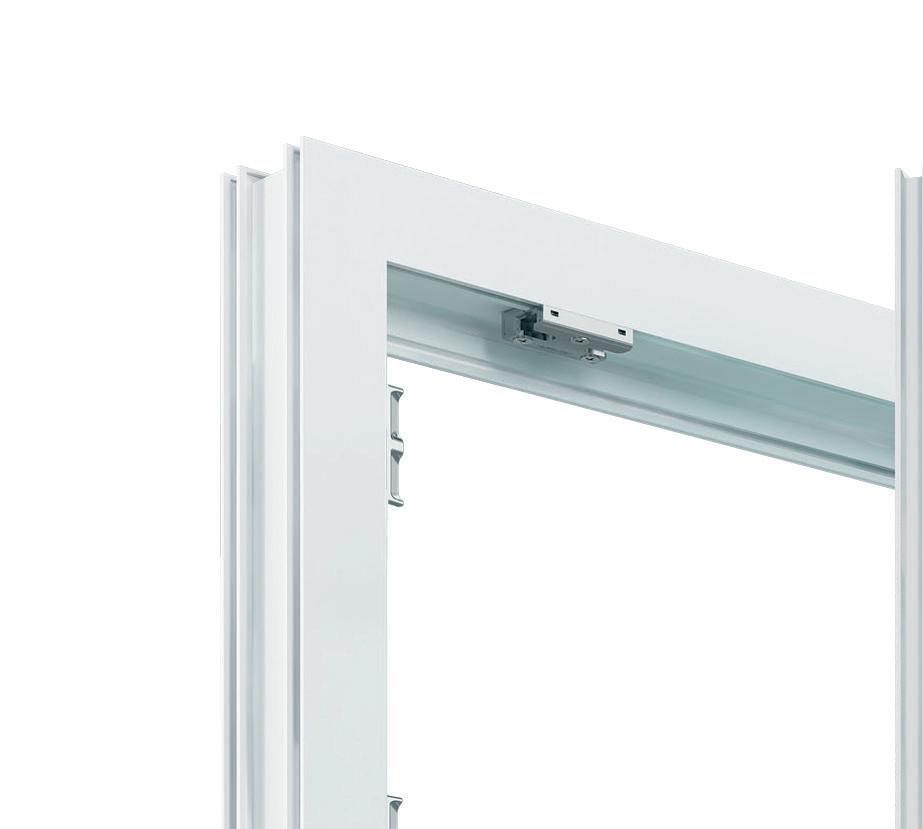

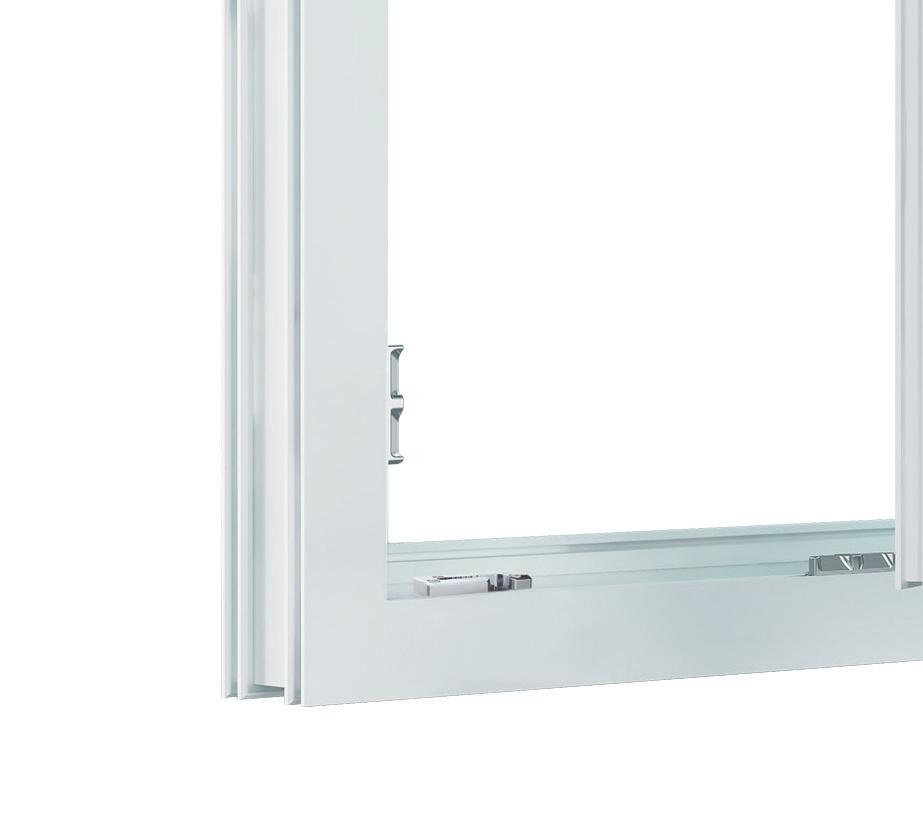

Concealed hinges for improved sight-lines

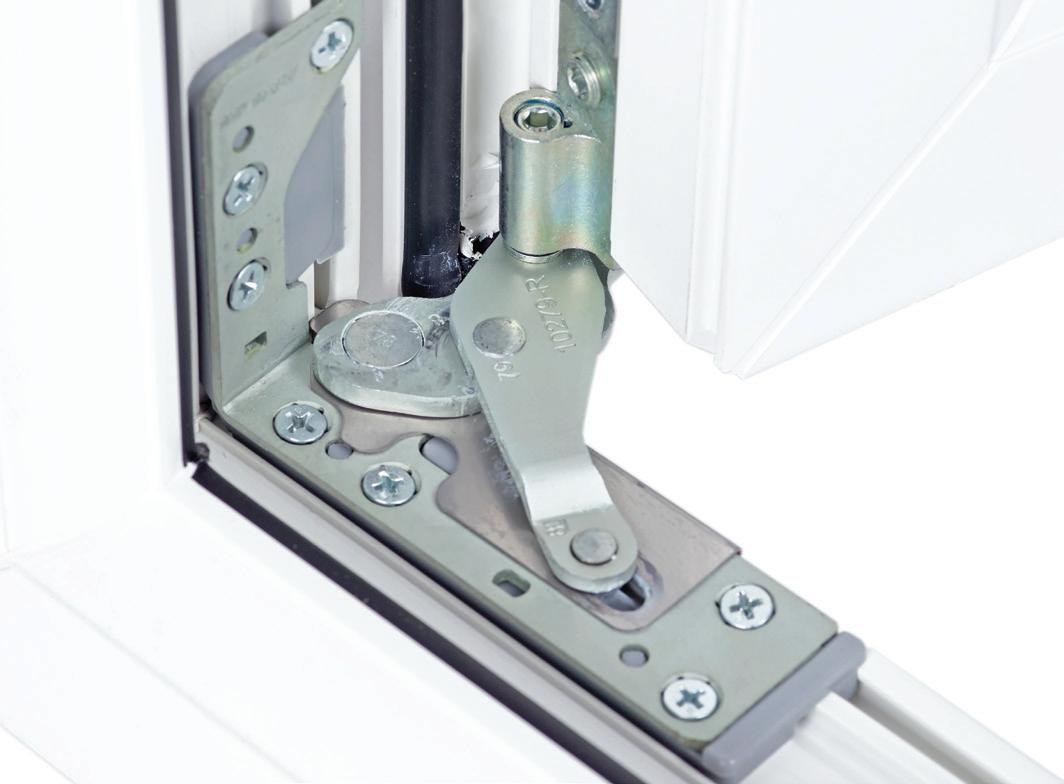

Easy to assemble corner hinges and adjustment point

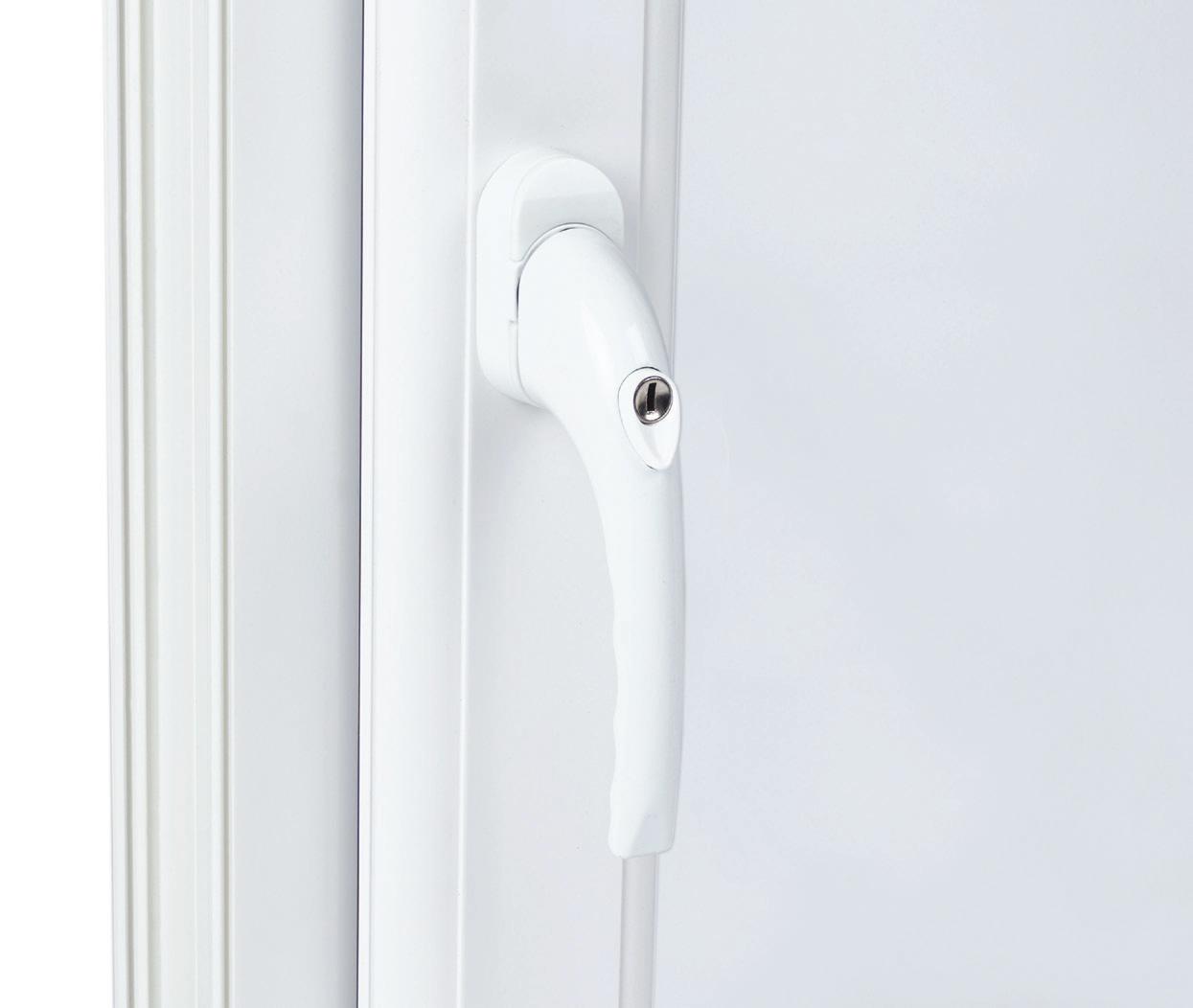

High security locking as standard
Steel Strikers for enhanced security as standard
Intelligent Design

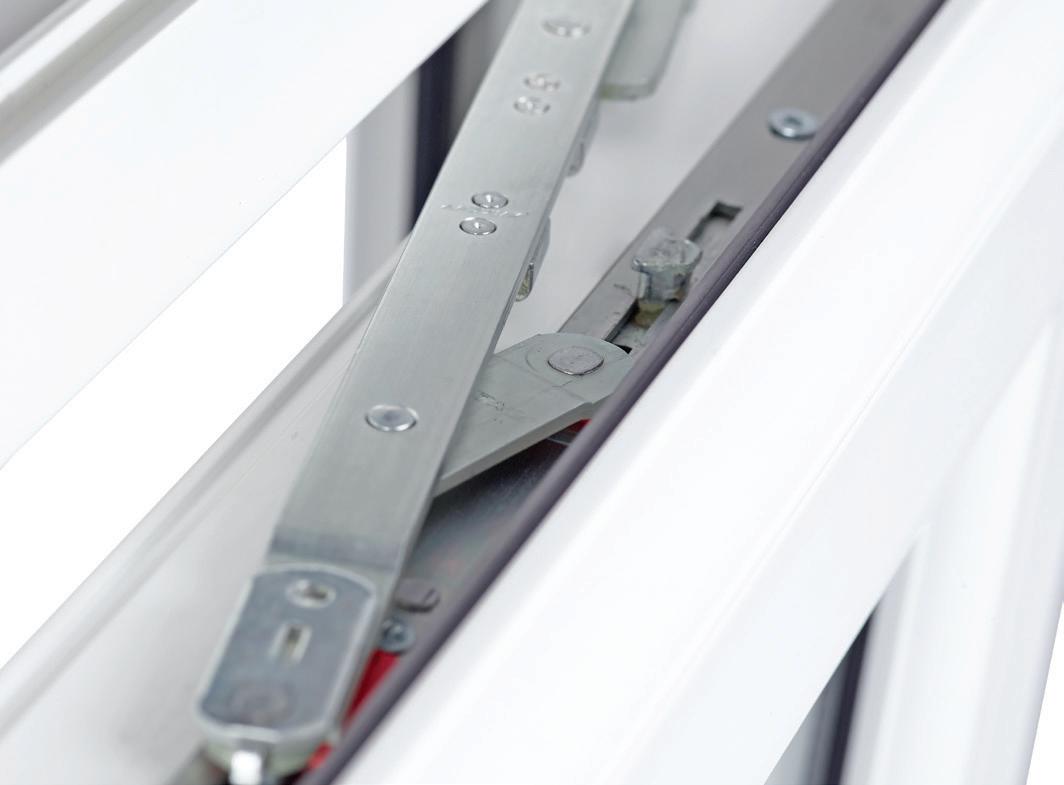

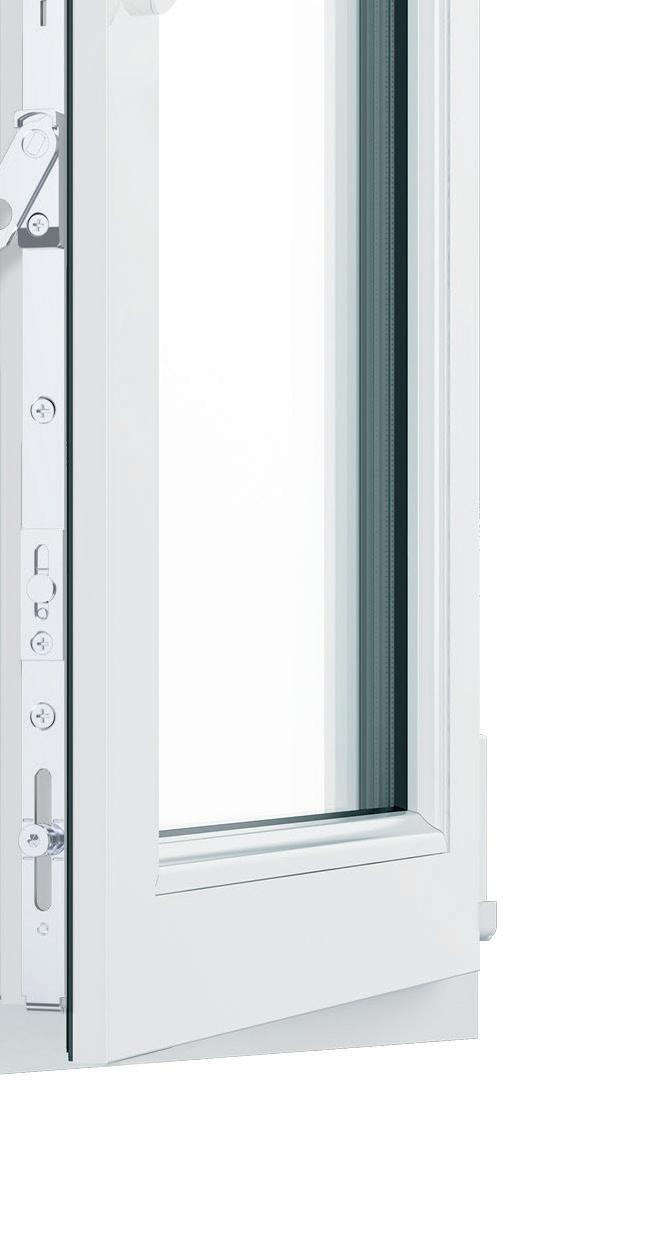

The stay arm has 2 smart design features - a mishandling device to prevent handle operation when in the tilt position and an anti blowback latch
Security Locking Points

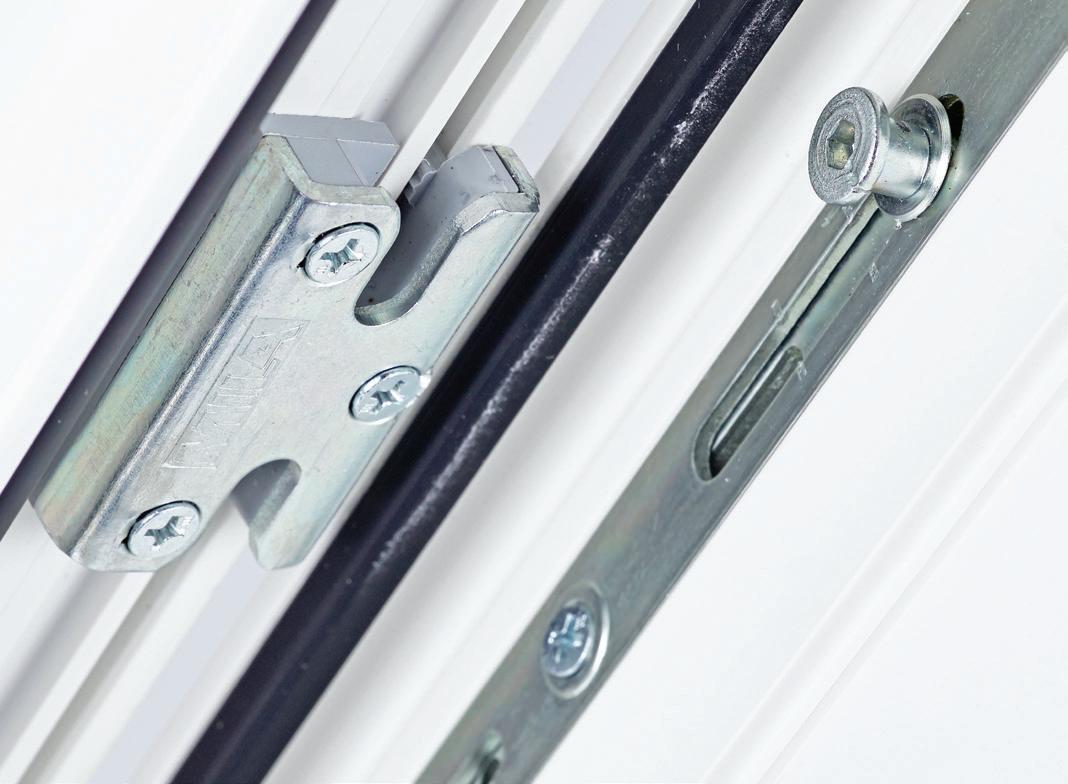

Steel mushroom cam multi-locking points for enhanced security as standard
Mishandling Device & Sash Lifter
Prevents handle operation when in the tilt or turn position and acts as a sash lifter to ensure precise engagement of the sash when closing
Total Protect Technology

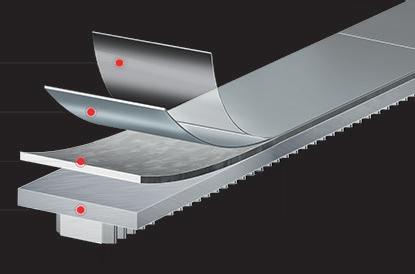

A patented coating ensures the highest corrosion resistance to BS EN 1670 grade 5, 480 hours salt spray resistance
Heavy Duty Hinges
130kg sash weight capacity as standard
Colour-matched Covers
4 UV stable colours available including black, cream, white and brown for visible hinge version
Total Protect Technology Varnish
Passivation & chromatizing Zinc Steel
ProSecure TBT Window Locking System with
concealed hinges
Application range:
Width: 380mm - 1520mm
Height: 450mm - 2390mm
Weight: 130kg
Maximum opening angle: 100°
Width: 380* mm - 1520 mm
Height: 450 mm - 2390 mm
Weight: 130 kg
Maximum opening angle: 100¡
* with narrow corner transmission
1 Gear variable 0, L=250, 450-550
1 Gear variable 1, L=450, 551-750 - 551-750 K1131-04-N03
1 Gear variable 2, L=930, 751-1230, 1 ML, security - 751-1230 K1131-09-N03
1 Gear variable 3, L=1130, 950-1430, 1 ML, security
1 Gear variable 4, L=1410, 1231-1710, 2 ML, security -
1 Gear variable 5, L=1610, 1431-1910, 2 ML, security - 1431-1910
1 Gear variable 6,L=2090, 1911-2390, 3 ML, security
3 K3 Concealed Stay Arm Connecting Plate L=565
3 K3 Concealed Stay Arm Connecting Plate L=685
3 K3 Concealed Stay Arm Connecting Plate L=925
Concealed
Mila has partnered with award-winning European hardware manufacturer AXOR to develop the ProSecure TBT system with security as standard. AXOR is a world renown hardware manufacturer based in Ukraine and has one of the industry’s largest plants in Eastern Europe.
