ECCO
Since 1965, Equipment Controls Company (ECCO) has been focused on delivering innovative solutions driven by everyday challenges. ECCO’s growth can be attributed to providing complete customer satisfaction with professionalism, ethical standards, and exceptional product knowledge.
Equipment Controls Company represents and distributes quality products from established manufacturers such as Pietro Fiorentini, Sensus, ROMET®, and EAGLE RESEARCH CORPORATION®
Headquartered in Norcross, GA, ECCO is one of the largest North American distributors of natural gas measurement, control and data acquisition products and services. ECCO has you covered with office and warehouse locations in Houston, TX, Indianapolis, IN, and Salt Lake City, UT with additional sales offices in Georgia, Illinois, Michigan, West Virginia, Florida, Louisiana, Tennessee, and Kansas.
SAFE, SUSTAINABLE, AND PROVEN SOLUTIONS FOR GAS TRANSMISSION AND DISTRIBUTION
We deliver high-volume, high-accuracy solutions built on proven technology, with superior quality, a self-sustained supply chain, and shorter lead times—offering competitive pricing, hydrogen-ready designs, and reliable overpressure protection.
From the main line to the meter, we provide a complete range of gas pressure regulators and related products for both transmission and local distribution companies (LDCs). Our balanced valve designs ensure efficient downstream flow, while superior materials and manufacturing minimize maintenance, reduce emissions, and extend service life. Working exclusively with approved-vendor manufacturers, we deliver solutions that address critical challenges—such as high sulfur content—while maintaining the accuracy, reliability, and safety your operations demand.
Visit our website for detailed product information.
Regulators—Pietro Fiorentini
Overpressure Protection—Pietro Fiorentini
Regulators—USG, Sensus
REGULATORS

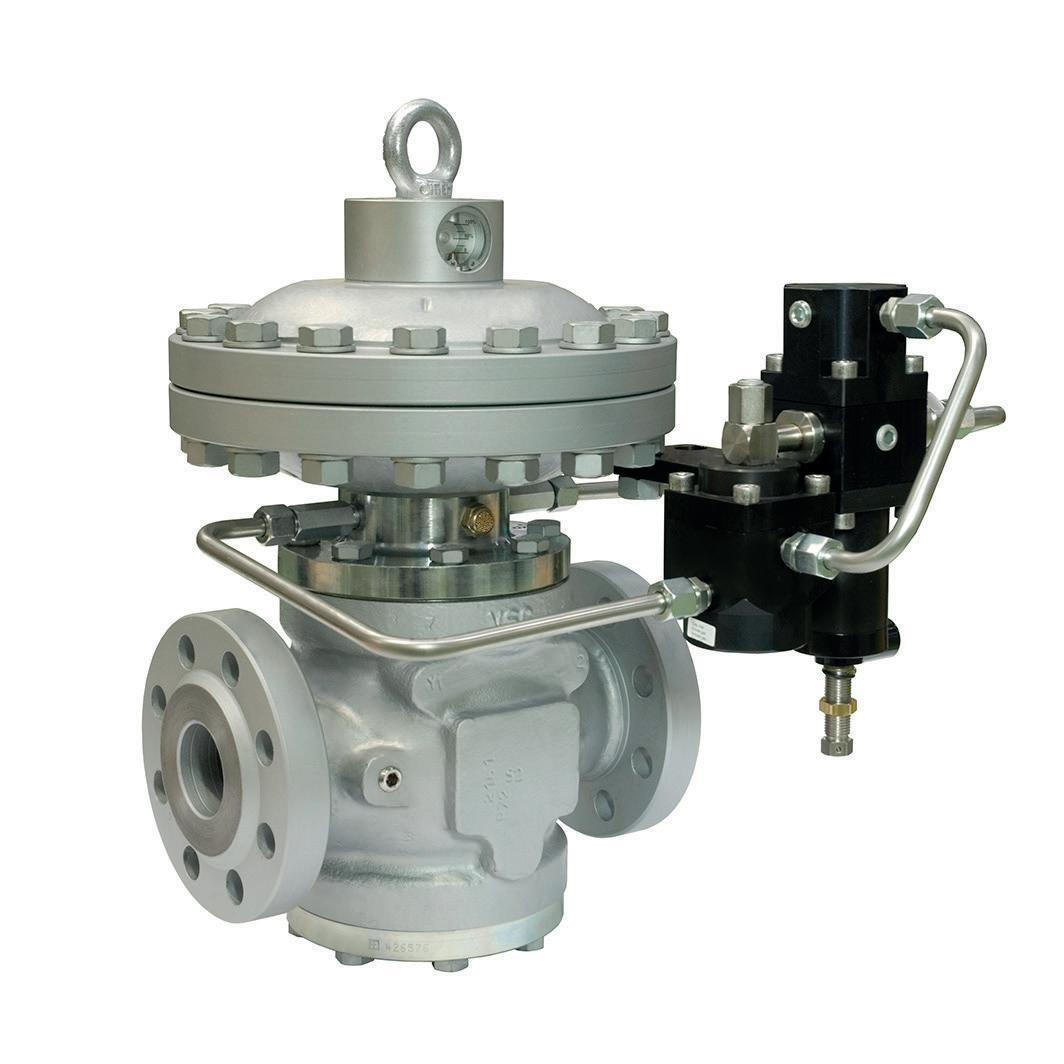

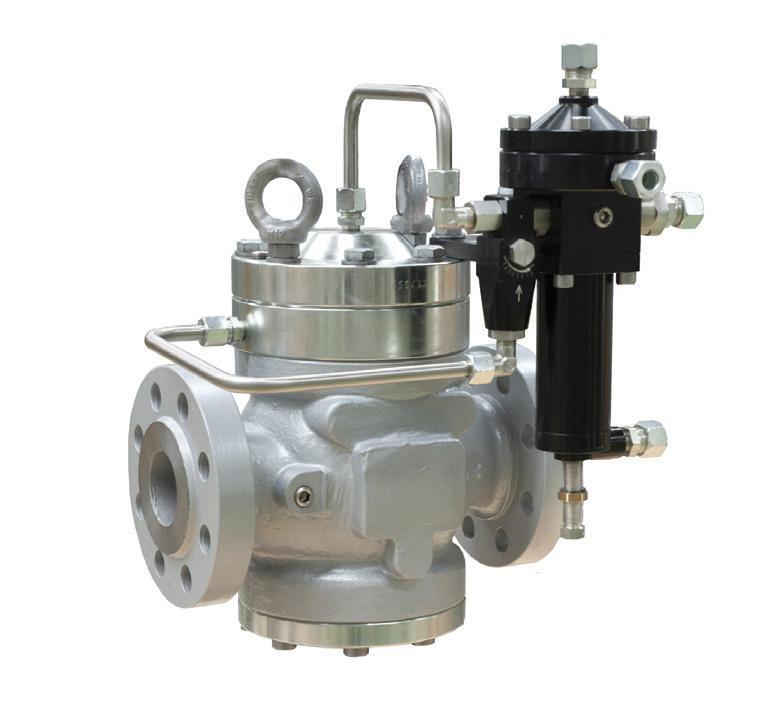

PF Aperflux 851
High Medium Pressure Gas Regulator
Aperflux 851 is one of the pilot-operated gas pressure regulators by Pietro Fiorentini. This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for high-pressure transmission systems and for medium pressure natural gas distribution networks. According to the European Standard EN 334, it is classified as Fail Open.
Aperflux 851 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 2.5
Nominal sizes DN: 1”, 2”, 3”, 4”, 6”, 8”, 10”
Lock-up pressure class SG: up to 10
Design pressure: up to 102 bar
Design temperature: from -20 °C to +60 °C (higher or lower temperatures on demand)
Connections: class 150, 300, 600 RF or RTJ according to ASME B16.5 or PN 16, 25, 40 according to ISO 7005
PF Aperflux 101
High Medium Pressure Gas Regulator
Aperflux 101 is a piloted-operated pressure regulator.
Particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks, it can be used with previously filtered non-corrosive gases.
It is classified as Fail Open according to the European Standard EN 334.
FEATURES
Accuracy class AC: up to 2.5
Nominal sizes DN: 2”, 3”, 4”
Lock-up pressure class SG: up to 10
Design pressure: up to 85 bar
Design temperature: from -20 °C to +60 °C (higher or lower temperatures on demand)
Connections: class 300 and 600 RF or RTJ according to ASME B16.5
PF Aperval
Medium-Low Pressure Gas Regulator
Aperval is a pilot-operated gas pressure regulator. Particularly suitable for medium and low pressure natural gas distribution networks, it can be used with previously filtered non-corrosive gases. It is classified as Fail Open according to the European Standard EN 334.
FEATURES
Accuracy class AC: up to 5 | up to 1% absolute (depending on working conditions)
Nominal sizes DN: 1”, 2”, 2 1/2”, 3”, 4”
Lock-up pressure class SG: up to 10
Design pressure: up to 25 bar
Design temperature: from -20 °C to +60 °C (higher or lower temperatures on demand)
Connections: class 150 RF or RTJ according to ASME B16.5 and PN16 according to ISO 7500
PF Aperval 101
Medium - Low Pressure Gas Regulator
Aperval 101 is a pilot-operated gas pressure regulator. This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for medium and low pressure natural gas distribution networks.
FEATURES
Accuracy class AC: up to 5 | up to 1% absolute (depending on working conditions)
Nominal sizes DN: 2”, 3”, 4”
Lock-up pressure class SG: up to 10
Design pressure: up to 18.9 bar
Design temperature: from -10 °C to +60 °C (higher or lower temperatures on demand)
Connections: class 125FF, 125 RF and 150 RF according to ASME B16.1, and PN 16 according to ISO 7005-2
Minimum working differential pressure: 480 mbar
PF Reflux 819
High Medium Pressure Gas Regulator
Reflux 819 is a pilot-operated gas pressure regulator. It is particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks, and it can be used with previously filtered non-corrosive gases.
According to the European Standard EN 334, it is classified as Fail Close (pilot series 200/A) or Fail Open (pilot series 210/A) according to the installed pilot (except for the PM819 monitor).
Design temperature: from -20 °C to +60 °C (higher or lower temperatures on demand)
Connections: class 150, 300, 600 RF or RTJ according to ASME B16.5 and PN 16 according to ISO 7005
PF Reval 182
Medium Low Pressure Gas Regulator
This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for medium and low pressure natural gas distribution networks.
According to the European Standard EN 334, it is classified as Fail Close (pilot series 200/A) or Fail Open (pilot series 210/A) according to the installed pilot (except for the PM/182 monitor).
Reval 182 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 2.5 | up to 1% absolute (depending on working conditions)
Connections: class 150 RF according to ASME B16.5 and PN 16 according to ISO 7005
PF Dival 500
Medium Low Pressure Gas Regulator
Dival 500 by Pietro Fiorentini is a direct-operated gas pressure regulator controlled by a diaphragm and contrasting regulated spring action.
Suitable for use with previously filtered gaseous fluids, it is mainly used for medium and low pressure natural gas distribution networks.
It is classified as Fail Open according to the European Standard EN 334.
Dival 500 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 10 | up to 1% absolute (depending on working conditions)
Nominal sizes DN: 1” x 1”, 1” x 1 1/2”
Lock-up pressure class SG: up to 20 (depending on version and set point)
Design pressure: up to 10 bar for BP, up to 20 bar for MP and TR
Design temperature: from -20 °C to +60 °C
Minimum differential pressure: 0.1 bar
PF Dival 600
Medium Low Pressure Gas Regulator
Dival 600 is one of the direct-operated gas pressure regulators controlled by a diaphragm and contrasting regulated spring action by Pietro Fiorentini.
Mainly used for medium and low pressure natural gas distribution networks, it ca be used with previously filtered gaseous fluids.
According to the European Standard EN 334, it is classified as Fail Open.
Dival 600 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 5 | up to 1% absolute (depending on working conditions)
Nominal sizes DN: 1”, 1 1/2”, 2”
Lock-up pressure class SG: up to 10
Design pressure: up to 20 bar
Design temperature: from -20 °C to +60 °C
PF Cirval
Medium Low Pressure Gas Regulator
The Cirval is a lever-operated gas pressure regulator controlled by a diaphragm and setting spring which controls the valve.
Mainly used for medium and low pressure natural gas distribution networks, as well as commercial applications. It should to be used with previously filtered non-corrosive gases.
According to the European Standard EN 334, it is classified as Fail Open.
The Cirval is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 10
Nominal sizes DN: 3/4”, 1 1/2”
Lock-up pressure class SG: up to 20
Design pressure: up to 8.6 bar
Design temperature: from -20 °C to +60 °C
Connections: 1 1/4”, 1 1/2”, 2” according to ANSi B1.20.1 and 2” S.125FF according

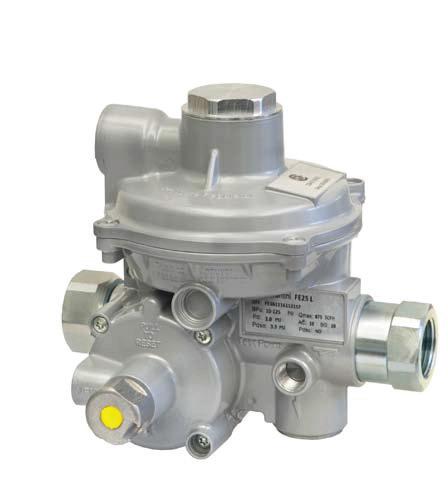

PF FE
Low Pressure Gas Regulator
FE is a double-stage self-operated pressure regulator for civil and industrial applications and it is suitable for use with gaseous fluids such as natural gas, LPG and non-corrosive gases. These regulators are designed to be installed directly on utility meters or on riser mains for civil uses. They can be installed in any position and in environments or spaces protected against weather. The discharge of the internal relief valve can be conveyed outside in case of installation in closed rooms or underground installations.
FEATURES
Inlet pressure range bpu: 4.3 – 125 PSIG
Max allowable pressure: PS: 125 PSIG
Outlet pressure range BP: 5 – 72.3” W.C.
Accuracy class AC: up to 5%
Lock up pressure class: up to 10%
Temperature: Gas Temperature -4°F +140°F and Ambient Temperature -40 to +140 °F
PF FT 518
High Medium Pressure Gas Regulator
Pietro Fiorentini’s FT 518 is a lever-operated regulator controlled by a diaphragm and setting spring which controls the valve. It is mainly used for farm tap applications, high-pressure transmission systems and for medium pressure natural gas distribution networks with previously filtered non-corrosive gases. According to the European Standard, it is classified as Fail Open.
FEATURES
Accuracy class AC: up to 10 (depending on working conditions)
Nominal sizes DN: 3/4”, 1”, 2”
Lock-up pressure class SG: up to 20 (depending on working conditions)
Design pressure: up to 69.4 bar
Design temperature: from -40 °C to +60 °C
Connections: threaded NPT, flanged or SW (available soon)
OVERPRESSURE PRODUCTS
PF Staflux 185
High Medium Pressure Gas Regulator
The Staflux 185 is one of the direct-operated gas pressure regulators designed and manufactured by Pietro Fiorentini. This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for high-pressure transmission systems and for medium pressure natural gas distribution networks.
According to the European Standard EN 334, it is classified as Fail Open.
The Staflux 185 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 5 (depending on working conditions)
Nominal sizes DN: 1”, 2”, 3”
Lock-up pressure class SG: up to 10 (depending on working conditions)
Design pressure: up to 100 bar
Design temperature: from -20 °C to +60 °C
Connections: class 300 and 600 RF or RTJ according to ASME B16.5

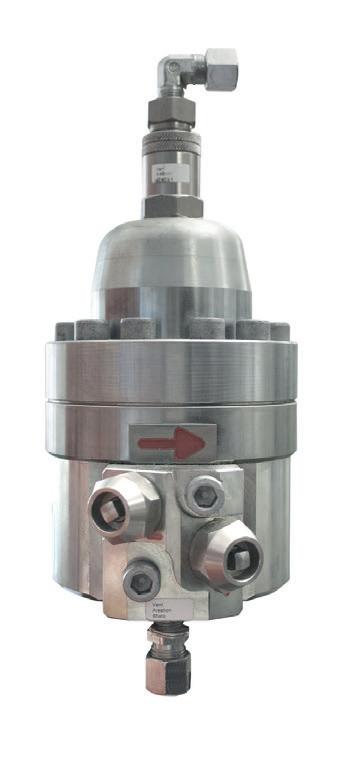

PF Staflux Mini
High Medium Pressure Gas Regulator
The Staflux Mini is a direct-operated pressure regulator controlled by a diaphragm and contrasting regulated counter pressure action.
Mainly used for CNG trailers, high-pressure transmission systems and for medium pressure natural gas distribution networks, it can be used with previously filtered non-corrosive gases.
According to the European Standard EN 334, it is classified as Fail Close.
The Staflux Mini is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 10 (depending on working conditions)
Nominal sizes DN: 1”
Lock-up pressure class SG: up to 10 (depending on working conditions)
Design pressure: up to 250 bar
Design temperature: from -20 °C to +60 °C
Connections: class 1500 RF o RTJ secondo ASME B16.5

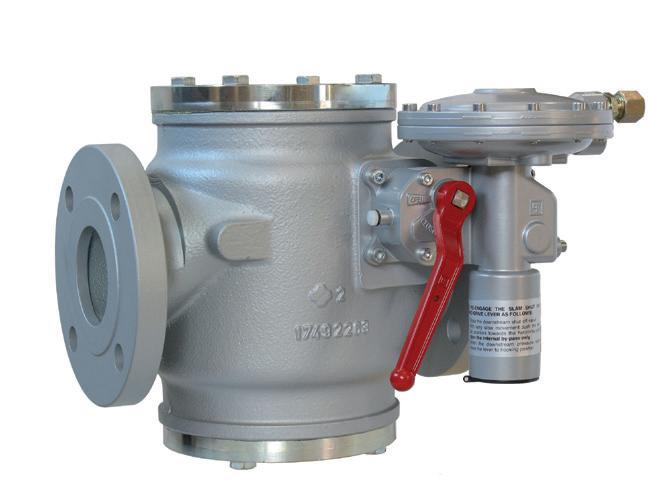

PF SBC 782 Safety Device
Slam Shut Valves
The slam shut valve SBC 782 by Pietro Fiorentini is a safety device which quickly intercepts gas flow when the pressure it is monitoring reaches a pre-set limit due to any anomaly in the system, or when required by the operator at the installation point or from a remote point.
Particularly suitable for high-pressure transmission systems and for medium and low pressure gas distribution networks, this device can be used with natural gas and previously treated, non corrosive gaseous fluids.
BC 782 is Hydrogen Ready for NG-H2 blending.
FEATURES
Design pressure: up to 102 bar
Design temperature: from -20 °C to +60 °C
Nominal sizes DN: up to 10”
Connections: Class 150, 300, 600 RF or RTJ according to ASME B 16.5 or PN16/25/40 according to EN 1092-1
End to end dimensions: according to EN 334, EN 14382
Intervention for overpressure and/or underpressure
Manual push-button control at installation point
3-way solenoid valve for remote control (available on request)
Manual resetting
Internal bypass for pressure equalization before resetting
Possibility of application of devices for remote signal information (contact switches or proximity switches)
PF SCN
Slam Shut Valve
The slam shut valve SCN by Pietro Fiorentini is a compact safety device which quickly intercepts gas flow whenever the pressure under monitoring reaches a pre-set limits, or whenever manually required by operator on-site or through a remote command (optional device).
Suitable for use with natural gas and previously filtered non-corrosive gases, this device is strongly recommended for medium and low pressure gas distribution networks.
SCN is Hydrogen Ready for NG-H2 blending.
FEATURES
Design pressure: up to 16 bar
Design temperature: from -20 °C to +60 °C
Sizes DN: up to 8”
Flanges: ANSI 150 according to ASME B16.5 and PN 16 according to ISO 7005
End to end dimensions: according to EN 334, EN 14382
Intervention for overpressure (OPSO) and/or underpressure (UPSO)
Manual push-button control at installation point
3 way solenoid valve for remote control (available on request)
Manual re-setting
Internal bypass for pressure equalization before resetting
Possible installation in any position although installation on horizontal pipes is recommended
OVERPRESSURE PRODUCTS
PF DILOCK
Slam Shut Valve
The slam shut valve Dilock by Pietro Fiorentini is a safety device which quickly intercepts gas flow when the controlled pressure reaches a pre-set limit due to any anomaly in the system, or when required by the operator at the installation point or from a remote point. Strongly recommended for medium and low pressure gas distribution networks, this device can be used with natural gas and previously filtered non-corrosive gases.
FEATURES
Design pressure: up to 20 bar
Design temperature: from -20 °C to +60 °C
Sizes DN: up to 2”
Flanges: ANSI 150 according to ASME B16.5 and PN 16 according to EN 1092 End to end dimensions: according to EN 334, EN 14382

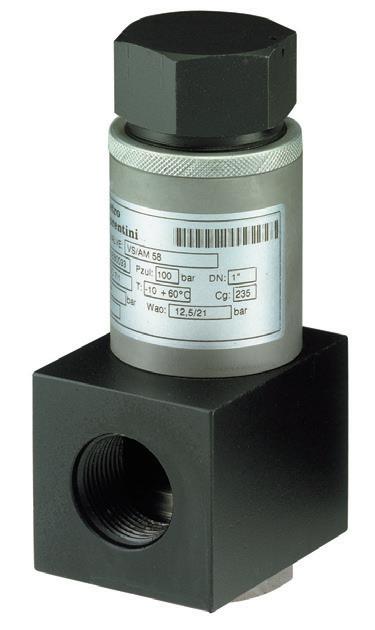

PF VS/AM 58
Spring Relief Valves
The direct-operated relief valve VS/AM 58 by Pietro Fiorentini is a safety device which vents gas when the system pressure exceeds the set value due to temporary events, such as expansion due to rise in gas temperature or downstream pressure shocks caused by sudden changes of flow rate.
Particularly suitable in high-pressure transmission systems and in medium pressure gas distribution networks, this device can be used with natural gas and previously treated, non corrosive gaseous fluids.
Click here to see the product page in the 100% hydrogen version.
FEATURES
Design pressure: up to 100 bar
Design temperature: from -20 °C to +60 °C
Rangeability: up to 1:100
Nominal sizes DN: 1”
Connections: Rp according ISO 7/1, NPT, ANSI 300 and 600 according to ASME B16.5
PVS 803
Safety Relief Valve
PVS 803 is the pilot-operated relief valve by Pietro Fiorentini in which the opening and the closing of the main plug is controlled by a pilot device which is very sensitive to the variations of the in-line pressures. Mainly used in high-pressure transmission systems and in medium pressure gas distribution networks, this device can be used with natural gas and previously treated, non corrosive gaseous fluids.
FEATURES
Design pressure: up to 102 bar
Design temperature: from -20 °C to +60 °C
Rangeability: 200:1
Nominal sizes DN: up to 6”
Connections: ANSI 150, 300 and 600 according to ASME B16.5 and PN 16 according EN 1092 End to end dimensions: according to EN 334, EN 14382

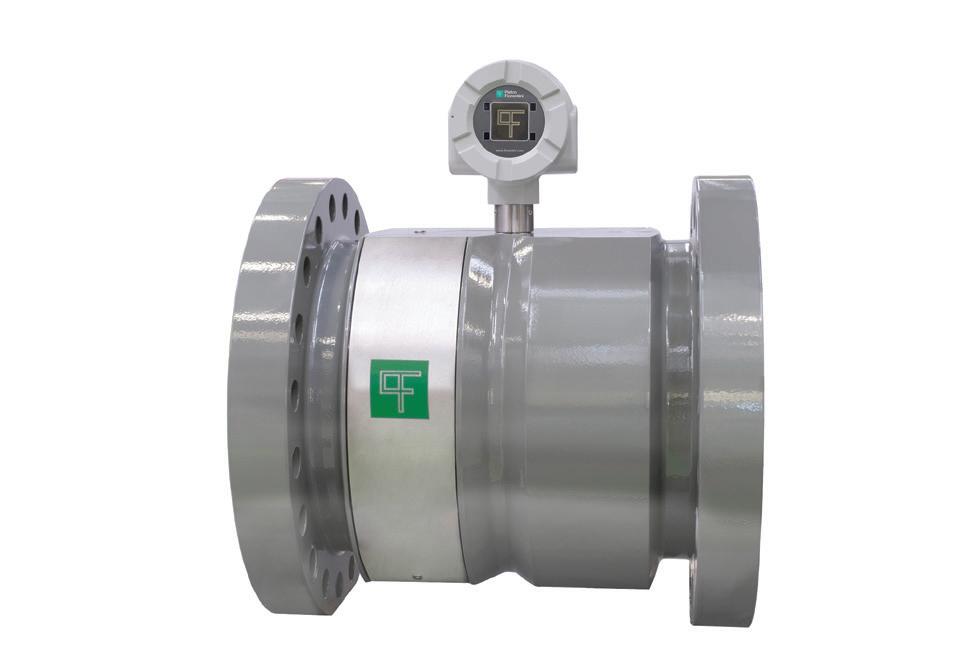

FioSonic
Industrial Metering
FioSonic, the Ultrasonic Flow Meter for gas transmission networks, completes Pietro Fiorentini range of products dedicated to the industrial sector. With its multi path-chordal technology, it provides real time diagnostics, high accuracy and redundancy for fiscal gas flow measurement.
Suitable for use with dry, wet, corrosive and abrasive gases, but also with gas such as sour gas or biogas with H2S, it is mainly used for high-pressure transmission systems and for medium pressure natural gas distribution networks.
FioSonic is Hydrogen Ready for NG-H2 blending.
FEATURES
Body: forged steel ASTM A350 LF Cl.1, other materials on request
Pressure range: up to 153 bar
Working gas temperature: from -30 °C to +80 °C
Connections: ANSI 150/300/900 RF/RTJ according to ASME B16.5, PN16/25/40 according to EN 1092-1
Accuracy: up to 0.5% with factory calibration, up to 0.2% with high pressure flow calibration

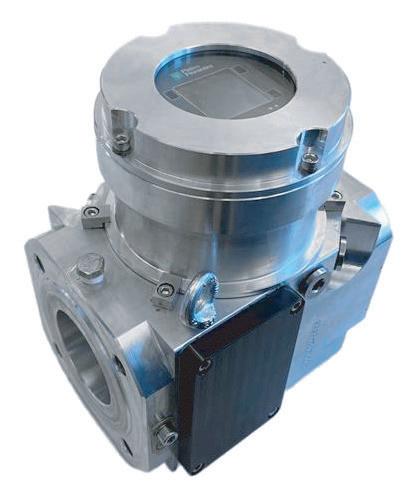

FioSonic Mini
Industrial Metering
Fiosonic Mini is Pietro Fiorentini’s industrial ultrasonic gas flow meter designed for custody transfer applications in gas distribution networks. Its multi-path chordal technology provides real-time diagnostics, high accuracy, and redundancy.
Fiosonic Mini is suitable for use with dry gases and is also Hydrogen Ready for NG-H2 blending up to 30%.
FEATURES
Body material: Aluminium 6082
Design pressure: 20 bar(a)
Working gas temperature: from -30 °C to +75 °C
Ambient temperature: Non custody Transfer from -40 °C to +60 °C
Custody Transfer (MID and OIML certified) from -25 °C to +55 °C
Connections: ANSI 150 RF/RTJ according to ASME B16.5, PN16 according to EN 1092-1
REGULATORS

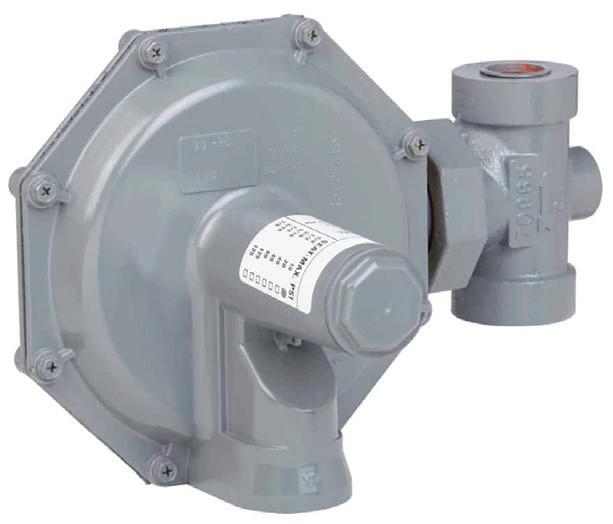

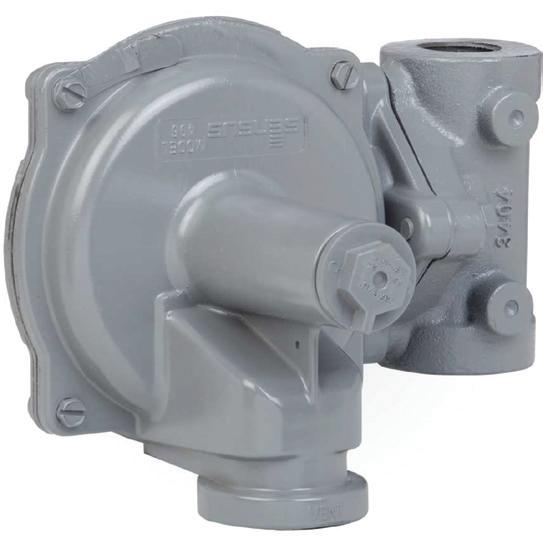

USG 143-80
Domestic Gas Regulator
Like others in our family of service regulators, our Domestic 143-80 models are built to perform. They feature precise pressure control and outstanding performance and dependability. These residential gas regulators are also available with a low-pressure cut-off. The Domestic 143-80 design offers smart features, including an internal relief valve as well as union nut connection, which does not require bolts or screws to connect the body to the diaphragm assembly. This enables the regulators to be set in virtually any position for excellent field versatility. They are simple, rugged and precise residential gas regulators that deliver outstanding performance.
USG/Sensus Domestic 143-80 service regulators are used for both residential and small commercial and industrial applications, such as burners, furnaces, ovens, heaters, gas engines and others. They are available with a variety of body sizes, loading springs and orifice sizes. These compact regulators provide the outlet pressure ranges and the capacities to fit most applications for a 6 service diaphragm regulator.
BENEFITS
Installs in numerous mounting positions
Delivers precise pressure control
FEATURES
Low-pressure cut-off available
Internal relief valve available
Seven outlet pressure ranges

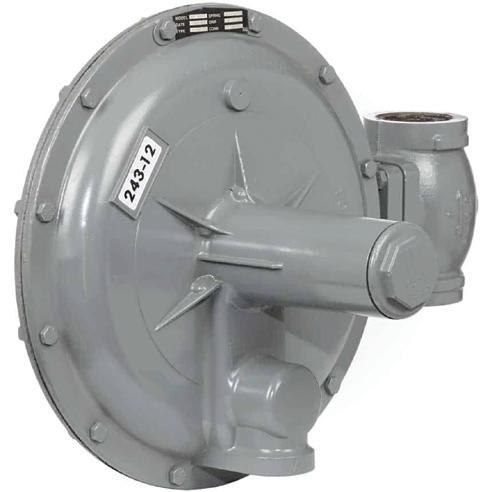

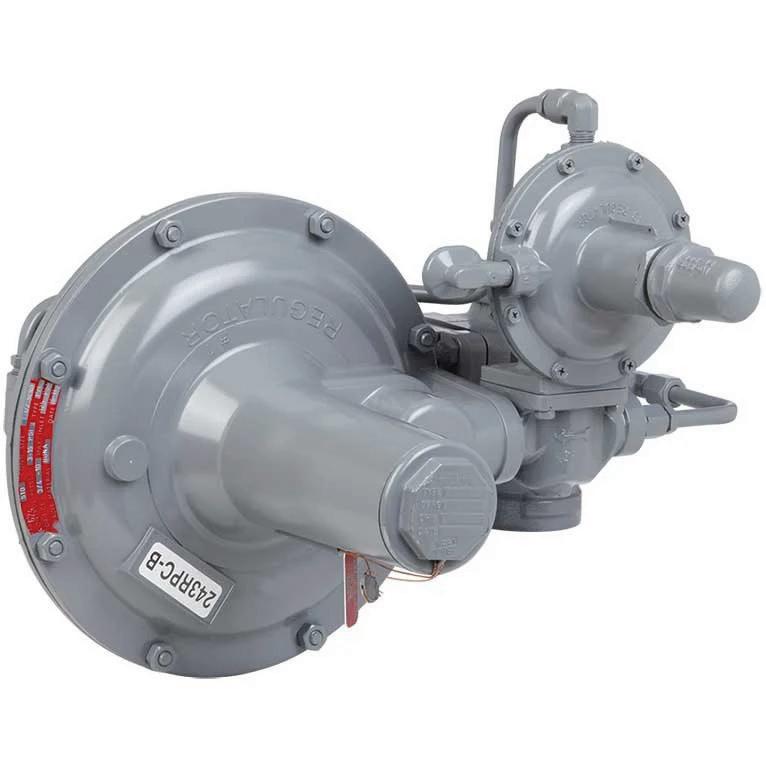

USG 243
Commercial Gas Regulator
243 commercial industrial service regulators are large capacity and designed for a wide range of commercial, industrial and gas distribution applications. They are ideal for pressure factor measurement, pressure compensated metering, fixed-factor billing and more. Their smart design offers great field versatility. With a union connection between the fully interchangeable bodies and the diaphragm case, these natural gas regulators are easy to install, adjust, inspect and service in all piping arrangements.
243 commercial regulators can be found in factories, foundries, district regulator stations, commercial laundries and laundromats. These versatile natural gas regulators are ideal for commercial use such as apartments, restaurants, schools and hospitals. Their design works well for all types of gas-fueled equipment, too. This includes: boilers, burners, furnaces, ovens, heaters, kilns and engines.
BENEFITS
Installs and adjusts easily
Allows for pressure factor measurement, pressure compensated metering and fixed factor billing.
FEATURES
Special material available for certain corrosive gases
Available with low-pressure cut-off
Available with internal relief valve
Interchangeable bodies and diaphragm-case assemblies
High-pressure model available
Pilot-operated model available

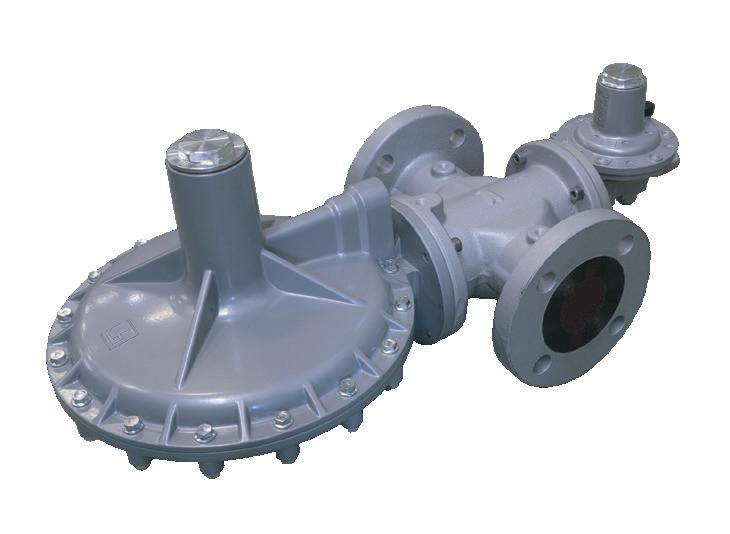

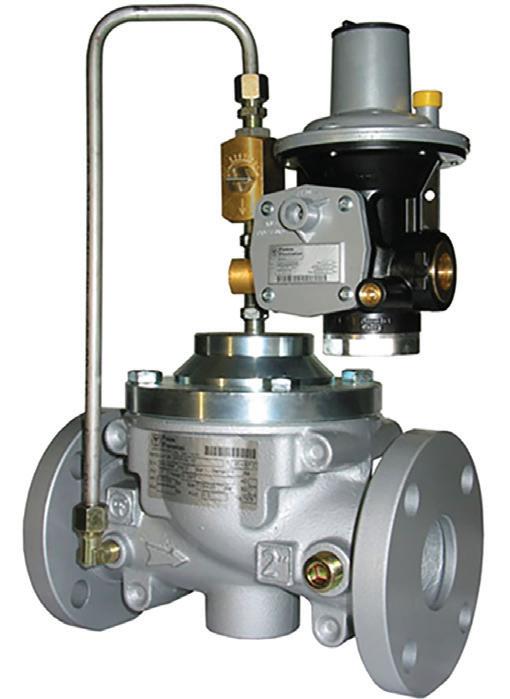

USG 243-RPC
Commercial Gas Regulator

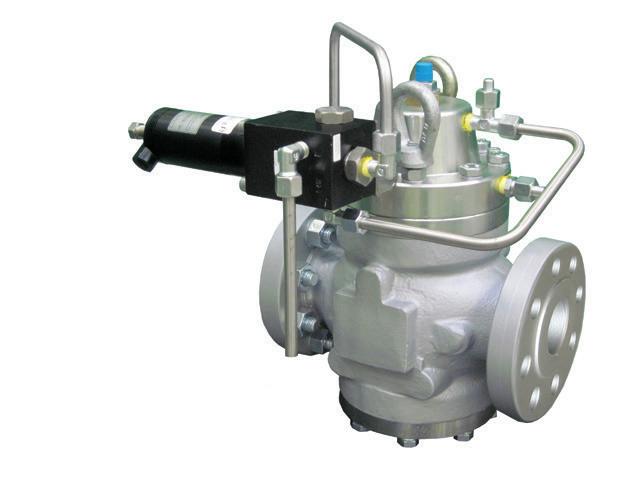

The Model 243-RPC regulators are based on our rugged Model 243 regulator with a smaller, secondary control regulator that senses regulated pressure and then operates the main valve to control the overall flow of gas. They offer exceptionally precise regulation and are accurate to within ± 0.5% (absolute outlet pressure) from minimum to wide-open flow.
The 243-RPC pilot-operated regulator is designed for fixed factoring, pressure factor measurement, pressure compensated metering and other applications requiring exceptionally precise pressure control. Although these regulators are used mainly for natural gas service, they perform equally well with LP gas, nitrogen, air, dry CO2 and other inert gases.
FEATURES
Available Pipe Sizes: 1-1/4”, 1-1/2”, 2” NPT Screwed and 2” Flanged
Interchangeable Orifices: 1/4” – 1-1/4”
Body: Cast Iron (ASTM A126 Class B)
Diaphragm case: Die Cast Aluminum Alloy
Orifice and Stem: Brass
USG 496
Domestic Gas Regulator

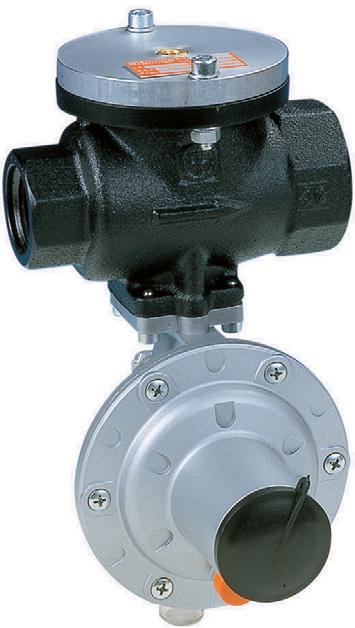

Like others in our family of service regulators, our 496 Domestic service regulators offer rugged construction for a lifetime of reliable service. They feature precise pressure control and outstanding performance and dependability.
496 Domestic service regulators can be used for residential meter sets as well as small commercial and industrial applications, including burners, furnaces, ovens, heaters, gas engines and others. They offer a variety of body and orifice sizes and load springs settings. The 4” roll-out diaphragm offers exceptional performance, and it provides capacities that normally require 6” diaphragm regulators. This domestic gas regulator is available with an internal relief valve as a standard feature.
Designed for Broad Output Pressure Ranges
BENEFITS
Installs in numerous mounting positions
Delivers precise pressure control
FEATURES
Five different outlet pressure ranges
Angled or straight configuration

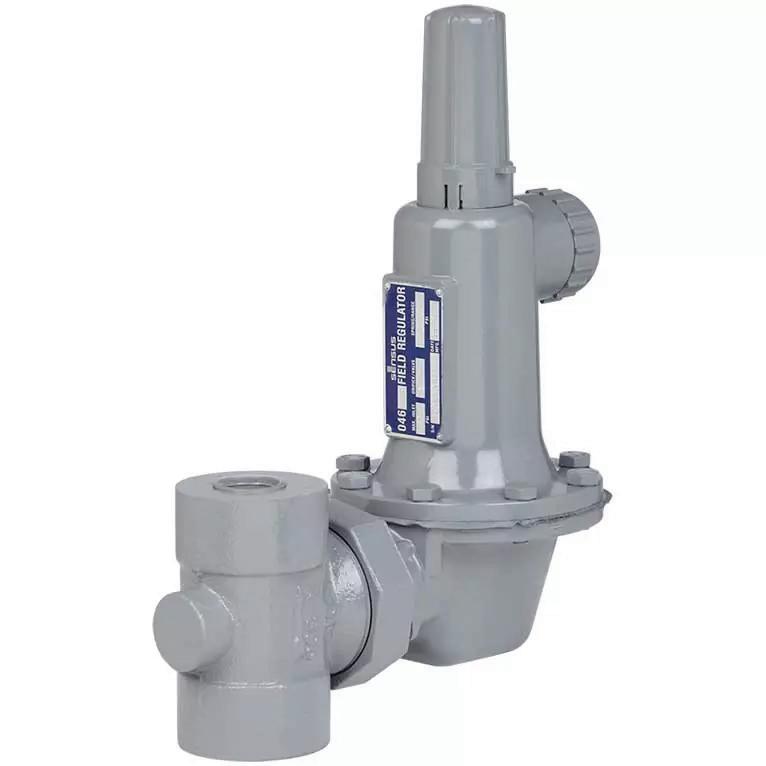

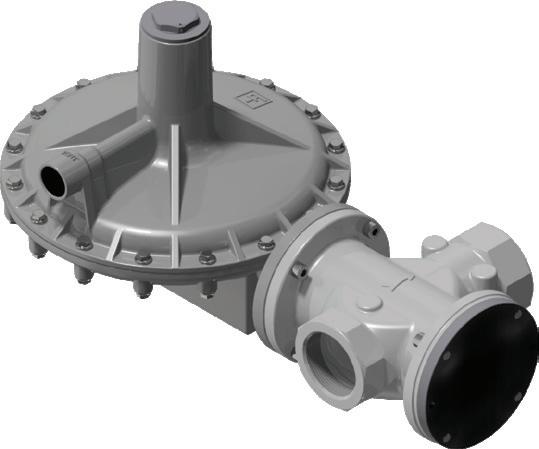

USG 046
Industrial Combustion Regulators
Our 046 field and high-pressure gas regulators combine simple design and rugged construction for exceptional performance and operational safety. They feature dependable, flexible and economical answers for pounds-to-pounds pressure regulation applications.
The 046 family of high-pressure gas regulators are easy to install, adjust, inspect and service in all piping arrangements. Typical applications include farm taps, field regulator applications, high-pressure industrial air or gases and gas blanketing systems.
Model 046 regulators are available with standard construction, an internal relief valve, blocked throat and a control-line tap for remote monitoring. They are available with aluminum or cast iron diaphragm cases.
Although these regulators are used mainly for natural gas service, they perform equally well with nitrogen, air, dry CO2 and other inert gases.
BENEFITS
Supports a variety of pressure settings and mounting positions
Compatible with indoor or outdoor environments
Quick installation and simplified service access
Available with internal relief and remote monitoring options
Wide range of configurations for diverse field conditions
FEATURES
Aluminum or cast iron diaphragm cases
Ductile iron body with increased capacity boost tube (standard model)
Optional internal relief valve (IRV) models
Remote sensing/monitoring variants available
Integral union connection for easy mounting and servicing
Pressure control range: 3–200 psig
Inlet pressure range: 5–1000 psig
Operating temperature: -20°F to +150°F

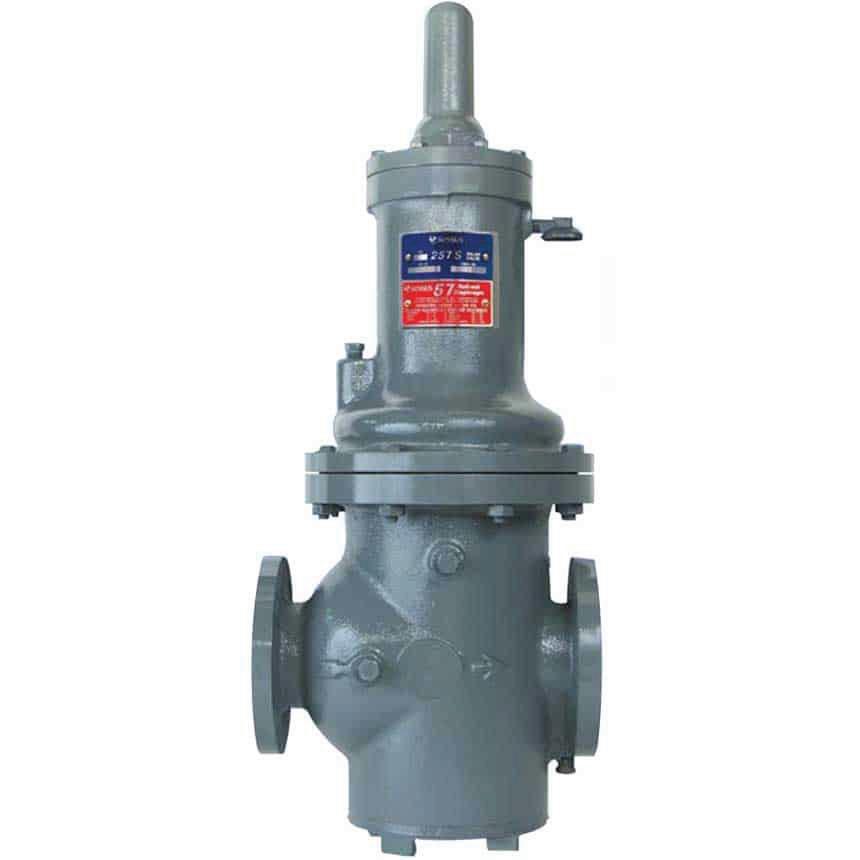

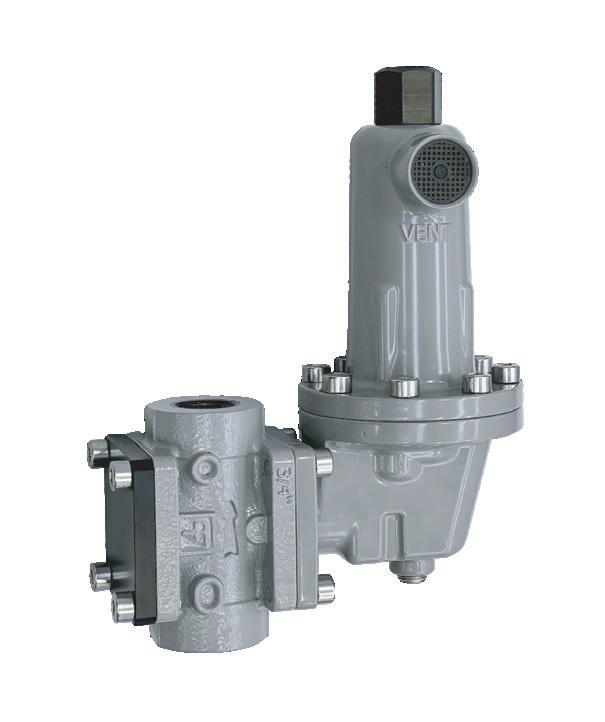

Sensus 250-S, 250-DW, 257-S
Safety Relief Valves
Our Safety Relief valves offer an economical installation for large capacity relief applications. And that’s exactly the solution you need when other devices in the system don’t relieve dangerous overpressure in the transmission, distribution and use of gas. Leaking bypass valves can sometimes permit pressure to build during off-peak hours. Pressure regulators with damaged valves or seats are not able to effectively shut off when required, possibly leading to dangerous conditions.
Our mechanical safety relief valves are an economical solution with large relieving capacity. The Model 257-S features a “roll-out” diaphragm with a double-ported single valve in which diaphragm action is constantly matched with spring action. This design offers large capacity, tight seating and reseating, sturdy construction and easy servicing with no adjustments needed.
The Model 250-S and 250-DW valves incorporate a deep molded diaphragm and offer an angled body with a large exit area for a high flow rate.
BENEFITS
Increases safety Installs easily
Applies to gas distribution systems, metering sets and C&I
FEATURES
Performs on natural gas, LP gas, nitrogen, dry CO2 and air
Weatherproof
Watertight
INSTRUMENTATION

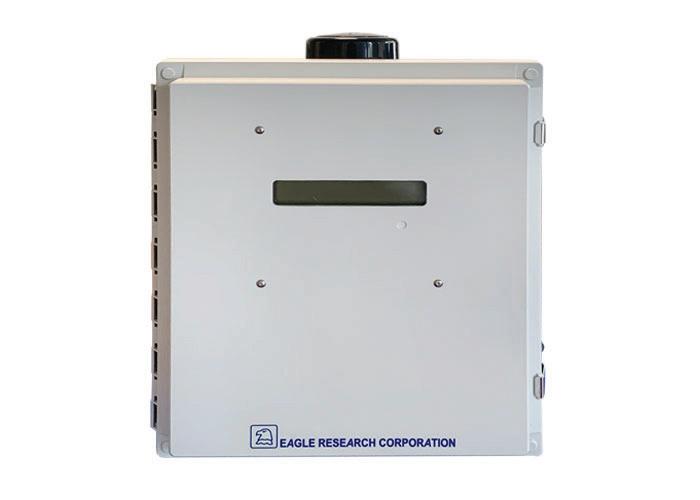

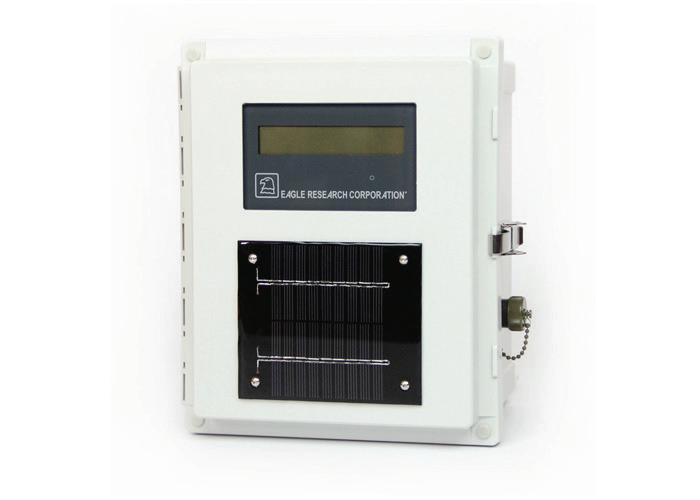

Eagle E-Series EPR
Electronic Pressure Recorder
BENEFITS
Live pressure and temperature
Multi pressure capable
Battery, solar, and ups options
Small footprint for easy locating
Live, Min/Max, and historical archiving
BENEFITS
Circular charting with Field Manager Plus
Flexible configuration & ease of operation
Simple start-up for fast ROI
Cross platform compatible and programmable
Regulator station monitoring chart replacement
System end point monitoring for load study
Pressure control at critical points
System alarming for pressure and temperature
Automated pressure control from one station to another using TALON™ family software and point transfer feature
MPplusII Series MPM
Pressure Monitor
The MPplus II MPM Pressure Monitor, with an ultra-low power processor and high accuracy digital transducer, makes the MPM the most efficient and accurate pressure monitoring device ever produced by Eagle Research Corporation. With multiple enclosure sizes the MPM’s capabilities range from a single pressure chart recorder to a four pressure, one temperature chart recorder with remote communications for monitoring stations in real time.
BENEFITS
Live, Min/Max, and Historical Archiving
Ultra-Low-Power processor for extended battery life (Up to 10 years – life based on configuration)
High-Accuracy digital pressure transducer(s)
Optional Low-Power cellular modem or other IoT connectivity
Versatile IoT sockets for a future-proof design
Simple start-up for fast ROI
Circular Charging with Field Manager™
Flexible mounting options: Pole or Wall Mount

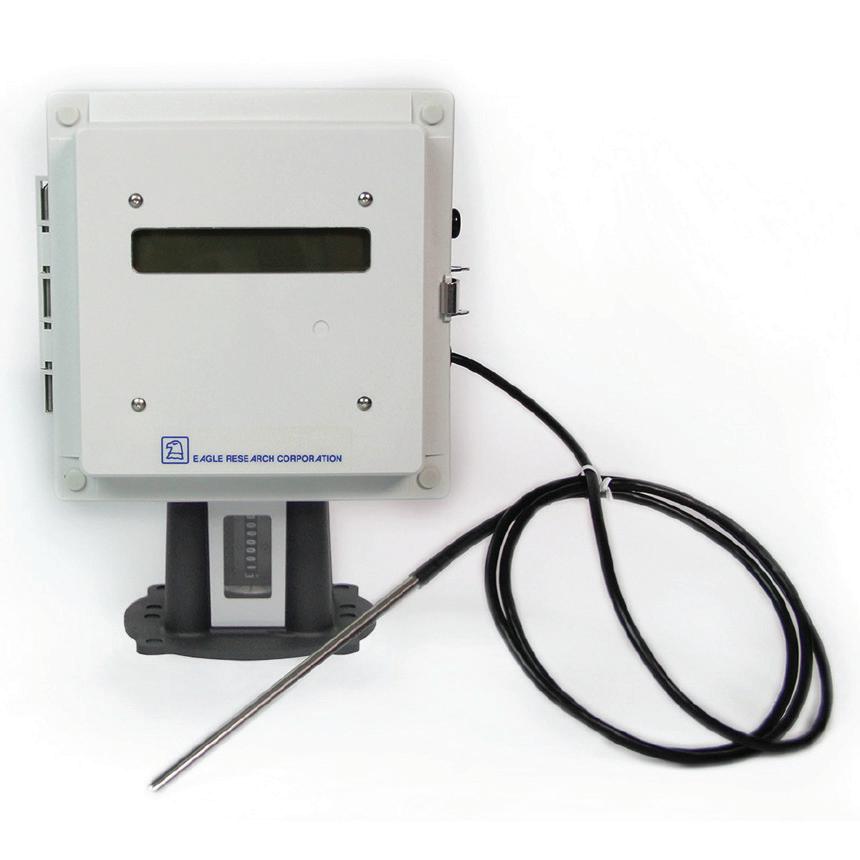

Eagle MPplus II Series
Volume Corrector
BENEFITS
Ultra-Low-Power processor for extended battery life (Up to 10 years - life based on configuration)
High-Accuracy digital pressure transducer(s)
Optional Low-Power cellular modem for IoT connectivity
Versatile IoT sockets for a future-proof design
Fully programmable
Simple start-up for fast Return on Investment (ROI)
AMI/AMR compatibility with industry leading companies
Measurement based on AGA and API standards
Support for ERC-HexASCII and MODBUS protocols without adding additional hardware

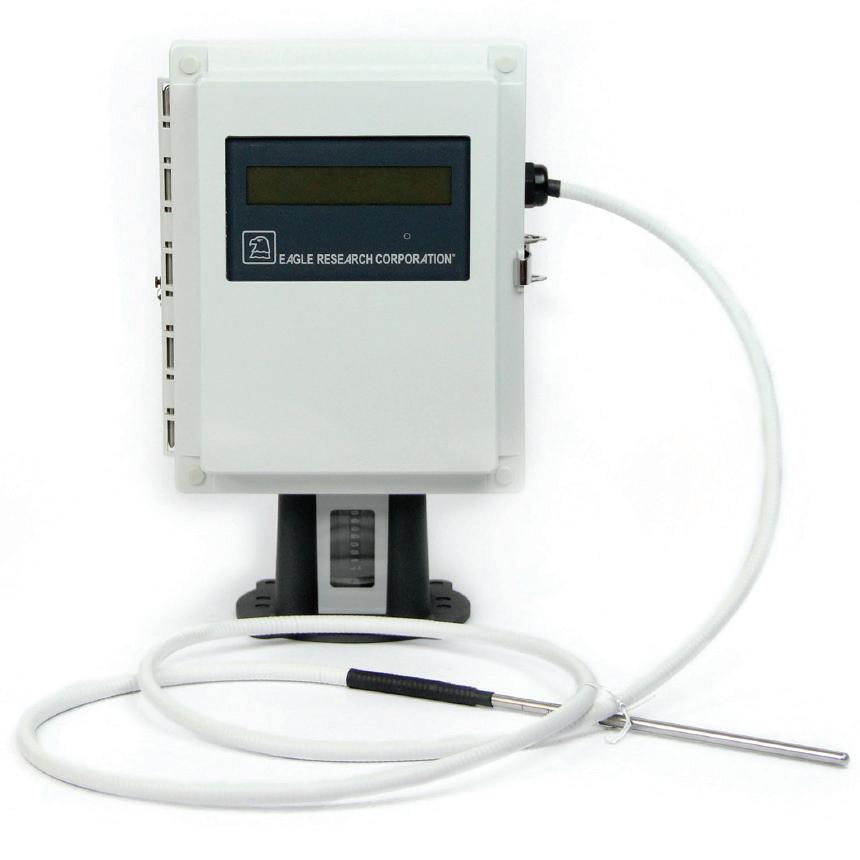

Eagle MPplus II Series
Volume Corrector
BENEFITS
Ultra-Low-Power processor for extended battery life (Up to 10 years - life based on configuration)
High-Accuracy digital pressure transducer(s)
Optional Low-Power cellular modem for IoT connectivity
Versatile IoT sockets for a future-proof design
Fully programmable
Simple start-up for fast Return on Investment (ROI)
AMI/AMR compatibility with industry leading companies
Measurement based on AGA and API standards
Support for ERC-HexASCII and MODBUS protocols without adding additional hardware
XARTU1 AAT
Corrector
The XARTU/1™-LDVI-AAT Volume Corrector is applicable to the Sensus Auto-Adjust™ Turbine meter. Features of this configuration include: Embedded Sensus Auto-Adjust™ Algorithms certified by Sensus™
The XARTU/1™-LDVI-AAT Volume Corrector is applicable to the Sensus Auto-Adjust™ Turbine meter.
FEATURES
Embedded Sensus Auto-Adjust™ Algorithms certified by Sensus™
Live GC inputs
AGA 5, AGA 7, AGA 8 Detailed and Gross Methods I & II, & NX-19 Calculation When Required
Optional live 4-20mA or Frequency Output for Instantaneous Flow Rate
Live Graphing of Main/Sense Frequencies in Field Manager™
XARTU1
Volume Corrector
The XARTU/1-LDVI™ Volume Corrector is the core product in the volume corrector line. This unit runs on the proven XARTU/1™ SBC61 circuit board, heart of all products in the Eagle XA/1 series. The VC-LDVI includes an internal pressure transducer, an internal RTD (resistance temperature detector), external display and 2400 bps modem in the standard product offering. An optional Low Drag Vertical Index (LDVI™) provides the user with a low cost mechanical backup to the electronic device.eds
FEATURES
Low Drag Vertical Index (LDVI)
Single and Bi-Directional Versions Available
AGA 7, AGA 8 (Detail & Gross Method I & II), & NX-19
Digital Outputs for Corrected/Uncorrected Volumes
Configurable for Forward, Reverse and Net Volumes
Multi-Run Configurations Available Using a Transducer Interface or XDI
INSTRUMENTATION
XARTU1
Cathodic Protecter
The XARTU/1-CP™ is designed to provide pipeline operators with a complete range of functions for remote monitoring, data acquisition, and control of cathodic protection systems used on buried steel pipelines.
The XA™ Series Cathodic Protection Monitor provides for reliable monitoring and control of CP rectifiers and test points. The XARTU/1-CP™ greatly reduces me spent doing periodic checks of rectifiers by allowing remote monitoring of rectifier station voltage, rectifier current, pipe/structure-to-soil potentials and critical bonds. Monitor status is reported using any of today’s wide variety or wireless methods of communications including LEO Satellite, CDMA, GPRS/GSM Cellular, Spread Spectrum Radio or Cellular. An optional on-board modem is available as well for land-line telephone service.
FEATURES
Embedded Sensus Auto-Adjust™ Algorithms certified by Sensus™
Live GC inputs
AGA 5, AGA 7, AGA 8 Detailed and Gross Methods I & II, & NX-19 Calculation When Required
Optional live 4-20mA or Frequency Output for Instantaneous Flow Rate
The MPplus™ Volume Corrector is a cost reduced version of the XARTU/1™-LDVI series of volume corrector products. It is an intelligent, compact, rugged, and reliable industrial microprocessor-controlled computer designed for measurement applications. It can execute multiple processes including complex math functions or control algorithms without host intervention.
FEATURES
Large Easy-to-Read LCD Display with Magnetic Scroll
Optional Pulse Output Board for AMR—AMI Applications to Extend Battery Life
Electronic Recording Solution
Historical Archiving and Trending
Easy Graphical Viewing of Pressure Fluctuations at Regulator Stations
Load Analysis of the System Used by Engineering Departments
POWER OPTIONS Eagle MPlus
1 Watt Solar Panel with 6V 4.5Ah rechargeable battery
6 C-Cell replaceable battery pack
Tri “D” Lithium battery pack
Other power options available as user needs dictate

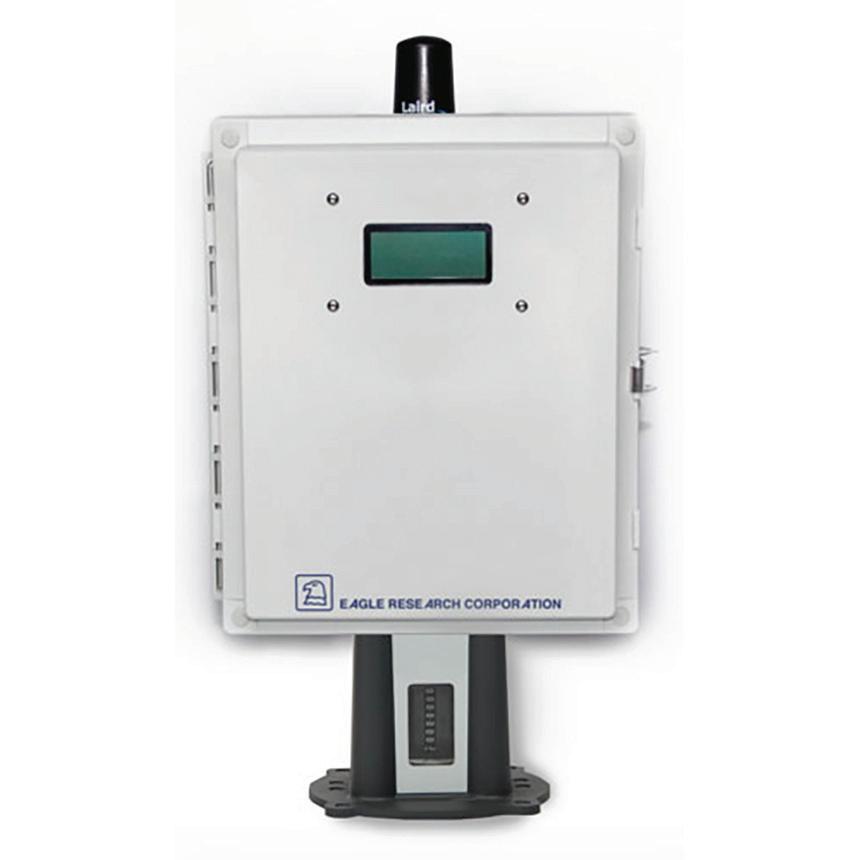

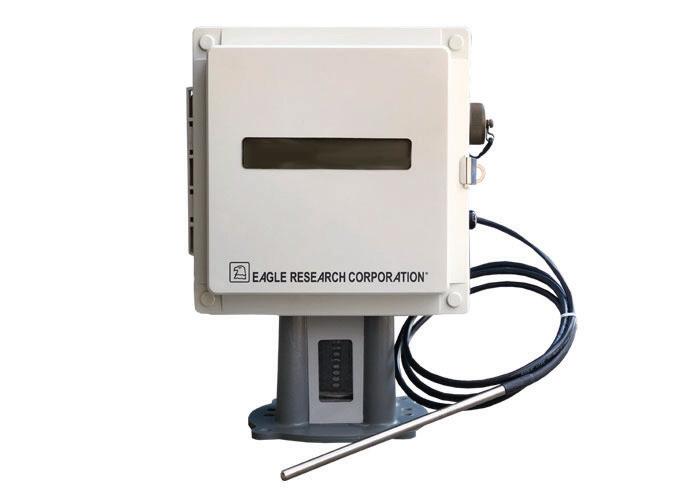

Eagle E-Series EFC
Electronic Flow Corrector
FEATURES
Measurement based on AGA & API standards
Universal Meter Mounting Plate
Uni & Bi Directional Flow Accumulation
Live pressure and temperature
Multi-Meter run capable
Battery, solar, and UPS options
Live, Min/Max, and historical archiving
Flexible configuration and ease of operation
simple start-up for fast ROI
APPLICATIONS
Custody Transfer Integrity
Commercial & Industrial Metering Flow, Pressure, and Sequencing Control
Complete Gate Station Automation
System Alarming for Pressure, Flow, Volume
Fully Programmable Process Library Support
Eagle E-Series EFC
Electronic Flow Corrector
FEATURES
Measurement based on AGA & API standards
Universal Meter Mounting Plate
Uni & Bi Directional Flow Accumulation
Live pressure and temperature
Multi-Meter run capable
Battery, solar, and UPS options
Live, Min/Max, and historical archiving
Flexible configuration and ease of operation
simple start-up for fast ROI
APPLICATIONS
Custody Transfer Integrity
Commercial & Industrial Metering Flow, Pressure, and Sequencing Control
Complete Gate Station Automation
System Alarming for Pressure, Flow, Volume
Fully Programmable Process Library Support

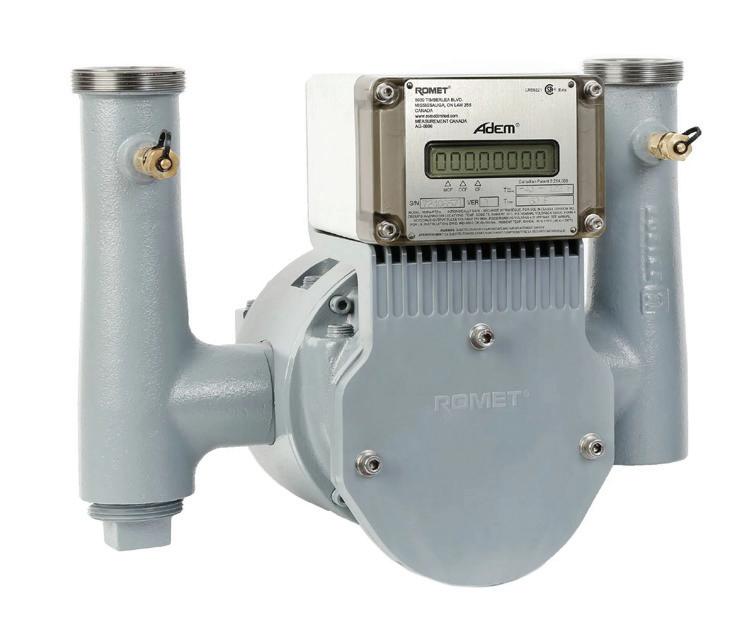

ROMET ® Hub Configuration
Rotary Gas Meter
The Romet Hub Configuration is designed to fit any application where an eleven inch (11") centre-to-centre hub connection meter would be utilized (800/1000 class diaphragm, ultrasonic, enclosed rotary cartridge). The Romet Hub Configuration leverages the robust and accurate measurement capabilities of Romet's trusted and proven rotary meter technology.
Seamless integration with Adem and BrightLync provides a wealth of serial data for gas volume, flow, pressure, temperature, and alarm limits — all communicated wirelessly in near real-time. This configuration setup is a small, lightweight package that can easily be installed by a single technician.
FEATURES
Integrated Adem-T or Adem-PTZ
Serial communications
BrightLync compatible
4 available pulse outputs
Full audit trail data log
11" centre-to-centre connection (45Lt.)
175 PSIG MAOP
Built-in debris sump
Inlet and outlet pressure plugs
Reverse flow option (right/left meter set)

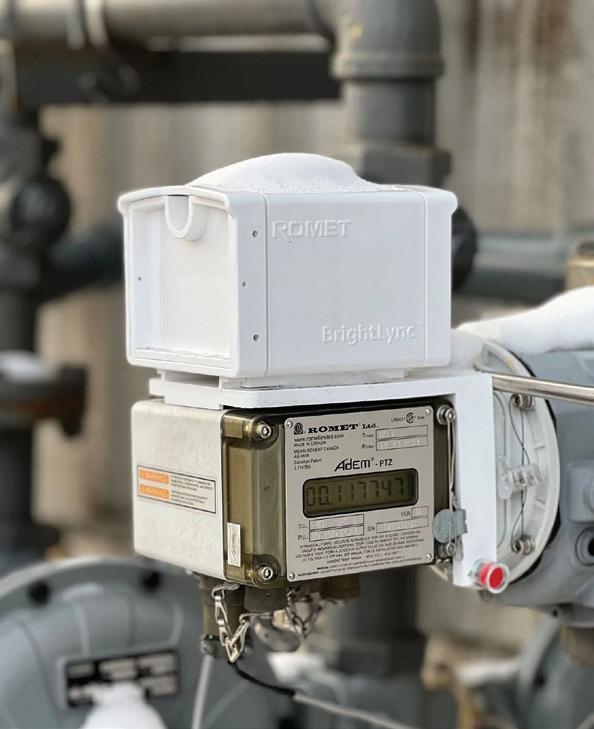

ROMET ® AdEM-PTZ
Advanced Electronic Module
An electronic counter module with the capability for live compensation for Pressure, Temperature and Supercompressibility (Z). The AdEM-PTZ is a direct mount module for seamless integration with ROMET® and other popular rotary meters. Some features of the AdEM-PTZ include a full audit trail, four available output pulses, serial communication and a 15 year nominal battery life. This state-of-the-art corrector is also available as a remote mount variation- AdEM-PTZ-r.
The AdEM-PTZ is an electronic counter module with the capability for live compensation for Pressure, Temperature and Supercompressibility (Z). The AdEM-PTZ is a direct mount module for seamless integration with ROMET and other popular rotary meters. Some features of the AdEM-PTZ include a full audit trail, four available output pulses, serial communication and a 15 year nominal battery life. This state-of-the-art corrector is also available as a remote mount variation- AdEM-PTZ-r.
One Size Fits All- upgrade your rotary meters with the latest electronics in a matter of a click.
ROMET has developed a single adapter plate that will allow our AdEM-PTZ to be installed on ROMET RM 600-56000 rotary meters and RMT 600-23000 rotary meters. We also offer a single adapter plate for Dresser B3 meters ranging from 8C to 56000 and LMMA meters ranging from 1500-16000. The AdEM-PTZ comes standard with ROMET’s patented AdEM Click technology allowing for seamless installation between Romet and Dresser rotary meters.
With the AdEM Click you can carry one electronic corrector to fit all sizes and brands of rotary meters in your system.

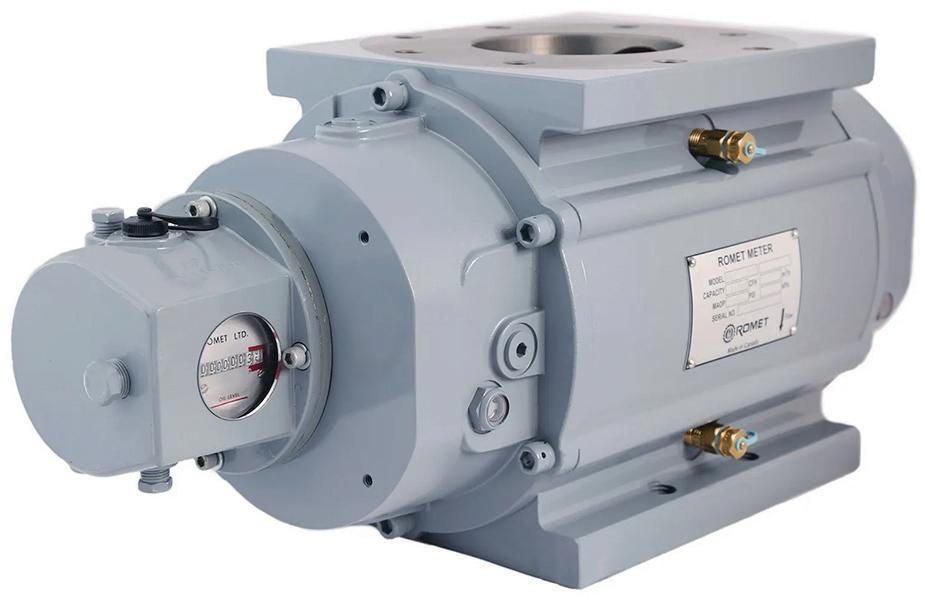

ROMET ® RMT
Rotary Gas Meters
The RMT meter is ROMET’s most advanced meter body. The extruded aluminum body along with our proprietary impeller profile provides improved rangeability while maintaining the highest levels of accuracy and precision through our patented pinned timing gear design. An integral mechanical backup counter comes standard on the entire RMT size range providing our customers with the peace of mind that accurate and reliable measurement will be maintained throughout the life of the meter.
RUGGED
All meters are pressure tested up to 4x MAOP to ensure only the toughest meters leave our facility.
RESPONSIVE
Each meter is individually factory tested and certified for measurement accuracy meeting or exceeding ANSI B109.3 rotary gas meter requirements.
RELIABLE
RMT meters come standard with an integral mechanical backup counter to give our customers confidence that reliable measurement will always be achieved.

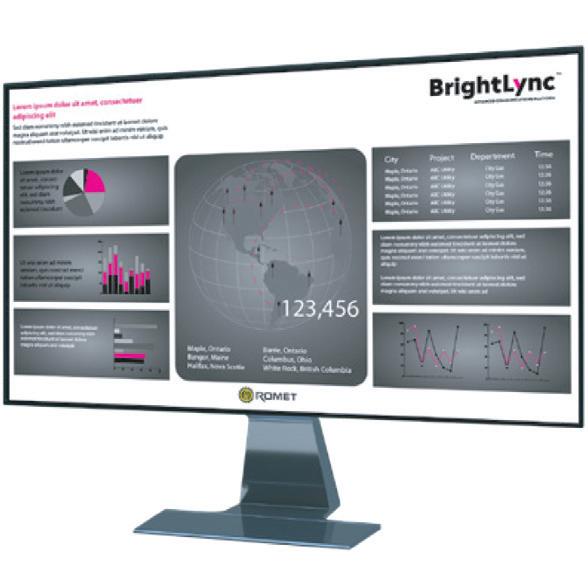

In a world where operational efficiency and energy cost control are paramount, Romet’s BrightLink™ Energy Management System delivers a cutting-edge, turnkey solution to help commercial and industrial facilities take control of their energy usage and performance.
KEY BENEFITS AND CAPABILITIES
BrightLink™ seamlessly integrates gas measurement, real-time monitoring, data acquisition, and intelligent analytics into a unified platform designed for today’s energy-intensive environments. Whether you're managing a single facility or a multi-site operation, BrightLink™ empowers your team with actionable insights and tools to:
• Monitor Natural Gas Flow & Pressure in real time with precision and reliability.
• Track Energy Consumption Trends across multiple sites, departments, or equipment types.
• Automate Data Logging and Compliance Reporting to meet regulatory requirements with ease.
• Identify Cost-Saving Opportunities through smart analytics and custom alerts.
• Enhance Operational Efficiency by integrating with SCADA, DCS, or building automation systems.
Built on Romet’s proven legacy of measurement and control, BrightLink™ supports a full suite of hardware and software tools tailored to your facility’s needs, including remote telemetry units (RTUs), cloud dashboards, and API integration for enterprise-level energy management.
Whether you're looking to reduce energy waste, optimize load management, or enhance sustainability metrics, Romet BrightLink™ offers the clarity, control, and confidence to power smarter decisions.
YOUR FACILITY. YOUR DATA. YOUR ADVANTAGE.
Choose Romet BrightLink™ and unlock the full potential of your energy infrastructure.
LEAK DETECTION

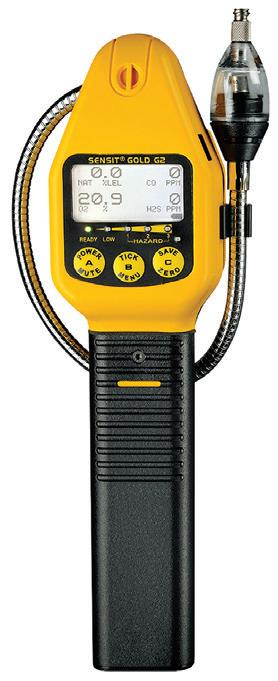

SENSIT® GOLD G2
Combustible Gas Leak Detector
SENSIT GOLD G2 is a next generation instrument that is ideal for locating gas leaks and confined space applications. This instrument can also be used for inert gas operations to detect combustible gases in oxygen-free environments.
SENSIT GOLD G2 can be configured for combustible gas readings in PPM, LEL and/or percent volume, as well as, a variety of toxic gases and oxygen.
KEY BENEFITS AND CAPABILITIES
• Accurate
• Durable
• Easy to Use
• Easy to Maintain
•••••••••••••••••••••••••••••••••••••

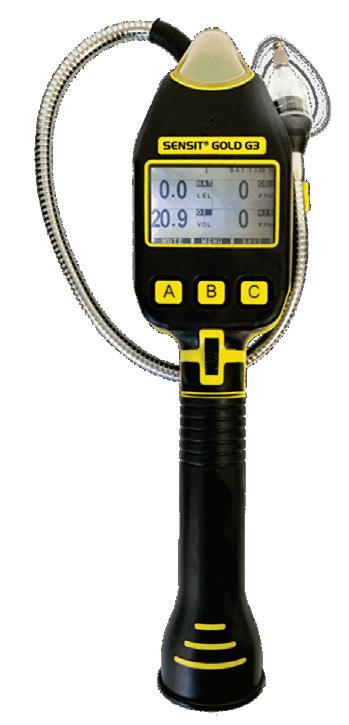

SENSIT® GOLD G3
Multi Gas Detector
Meets NEW Proposed 5ppm PHMSA Requirement
SENSIT GOLD G3 makes gas detection faster and more accurate than ever. Designed for worker productivity, the SENSIT GOLD G3 features improved durability, sensor and pump performance monitoring and unmatched data logging and mapping capabilities.
SENSIT GOLD G3 is ideal for locating above and below-ground gas leaks, confined space monitoring, pipeline purging, leak surveys, and other applications.
SENSIT GOLD G3 multi-gas detector can be configured with up to 5 sensors for combustible and toxic gases and oxygen.

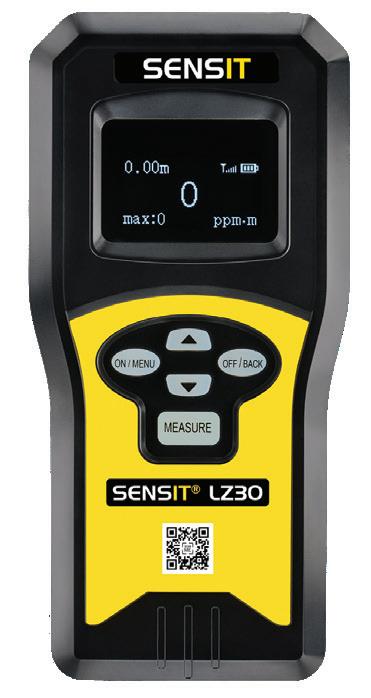

SENSIT® LZ30
Remote Methane Leak Detector
SENSIT LZ30 is a compact remote methane leak detector that provides fast and accurate readings at distances up to 100 feet. The SENSIT LZ30 utilizes TDLAS (tunable diode laser absorption spectroscopy) technology to provide instantaneous and accurate responses to the presence of methane.
The SENSIT LZ30‘s competitive price makes it an ideal solution for remote methane detection in hard-to-reach areas. It eliminates the need to access the gas plume directly, climb to elevated areas, access fenced-in properties, and potentially hazardous situations via windows, thereby providing a safe and cost-effective solution.
THE NEW SMART-LINK LIVE application meets the growing demand for tracking and traceability. With the SENSIT LZ30, the user can keep their eyes on the target while the SMART-LINK LIVE application captures streaming data. The app logs date, time, GPS coordinates, and gas measurements, and sessions can be exported in multiple formats from the phone/tablet. The built-in picture capture feature associates readings with pictures or reports of corrosion issues.

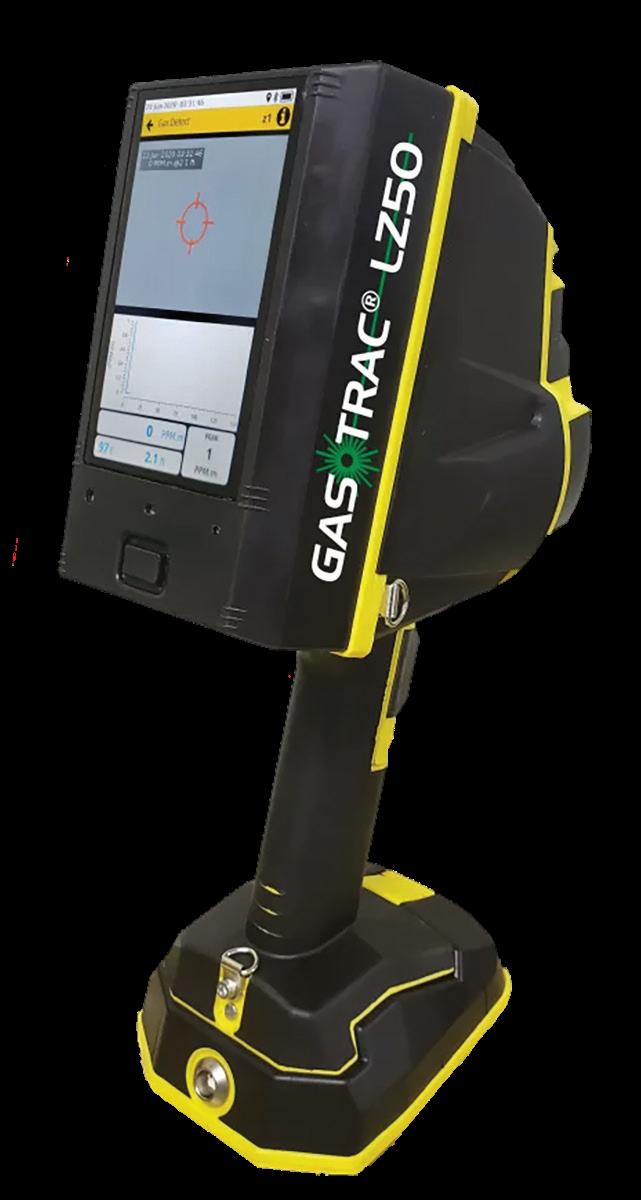

SENSIT ® GAS•TRAC ® LZ50
Hand-Held Laser Remote Gas Leak Detector
LZ50 is an innovative handheld methane gas detector that provides instantaneous readings from a distance to the target of up to 164’. Its revolutionary laser photonics combined with break-through technology, TARGET GPS, makes it the clear choice in remote laser methane detection.
Lightweight and easy to use, GAS•TRAC LZ50 features an on-board camera for photos and videos. Data is captured at the rate of 10 readings per second and can be visualized via SENSIT Technologies GIS 360 software. SENSIT’s exclusive TARGET GPS technology improves the accuracy of reporting and tracking methane emissions.
Detect fugitive methane emissions and leaks quickly, without entering the gas plume.
FEATURES
• Continuous Methane Selective Detection
• Integrated Target GPS
• Camera for Photos/Videos with Digital Zoom
• Calibration/Bump Test Cell Integrated in Carrying Case
• Visual, Audible and Tactile Alarms
• Rechargeable Li-ion Battery
• Integrated Data Collection with Wireless Data Transfer (Wi-fi Direct)
• Ergonomic Design
• Intrinsically Safe Design
• Rubberized Over Molded Housing

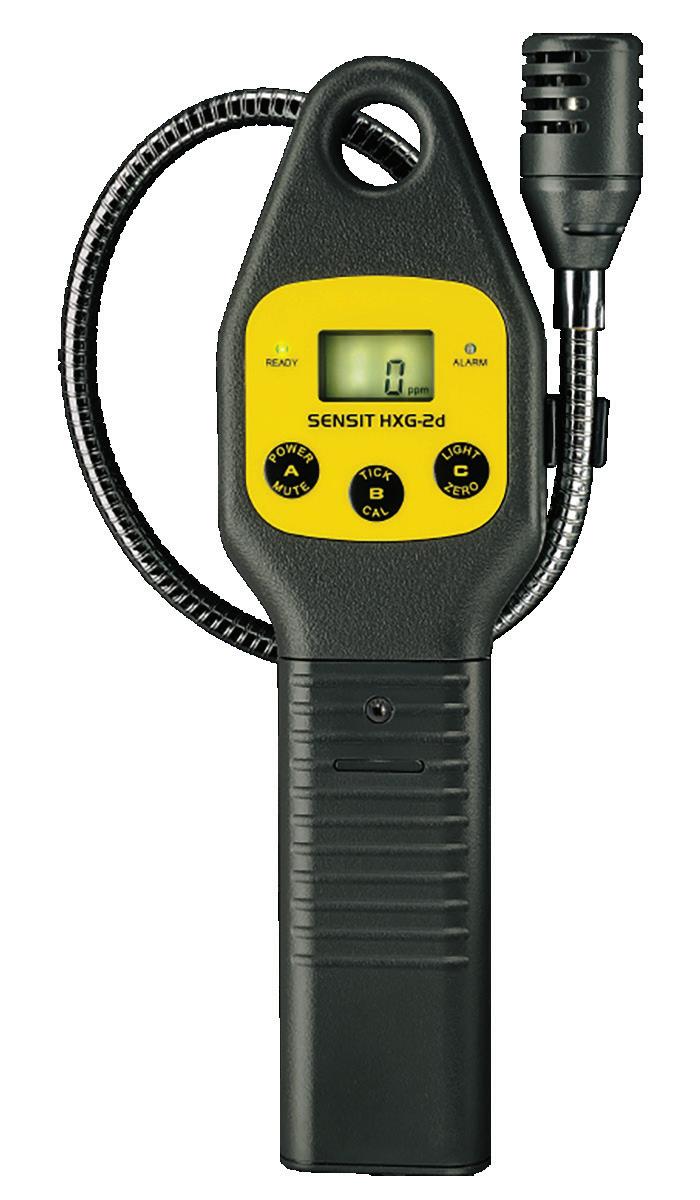

SENSIT ® HXG-2D
Combustible Gas Leak Detector
SENSIT HXG-2d Combustible gas leak detector is a hand held instrument ideal for detecting and finding the source of natural gas, methane or propane gas leaks.
SENSIT HXG-2d incorporates an advanced low power semiconductor sensor to measure and display combustible gases in parts per million.
The instrument auto ranges to percent LEL (Lower explosive limit) when concentrations exceed 990 parts per million.
SENSIT HXG-2d also features our unique audible tick control that helps find the source of gas leaks fast. The tick can be easily heard through the speaker located in the back of the instrument.
FEATURES
• Accurate
• Durable
• Easy to Use
• Easy to Maintain
LEAK DETECTION

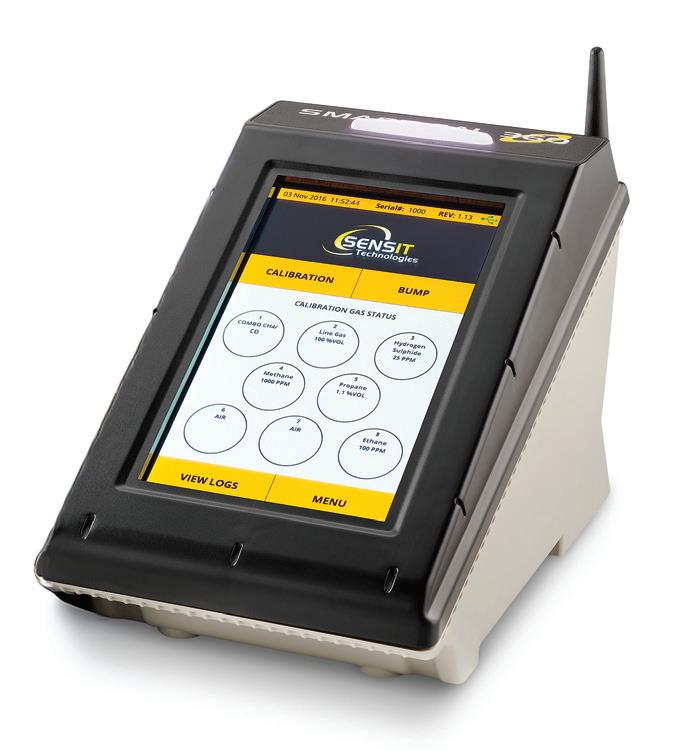

SENSIT® SMART-CAL 360
Desktop Calibration Station with Pump
SMART-CAL 360 takes calibrating SENSIT instruments to the next level.
In addition to logging calibration data, time, date, sensor and pump performance, SMART-CAL 360 pushes firmware updates to selected SENSIT instruments without the need to return the instrument to the factory. SMART-CAL 360 tracks sensor life, and gives an early warning when it’s time to replace calibration bottles.
Improved data management software provides automatic data transfer for compliance reports and notifications of overdue or failed calibrations. Logs can be viewed on the large touchscreen display or reports via emailed spreadsheet or pdf. SMART-CAL 360 communicates over LAN and Wi-Fi, so that the station can be positioned where it is most convenient and accessible, and it works with any SMART-CAL compatible instrument.
FEATURES
• 7” Touchscreen
• IR/NFC/Bluetooth Communications
• Automatic Upload or Records
• Calibration/Bump Memory Storage
• LED Status Indicator
• Automatic Date Adjustment
• Gas Bottle Supply Monitoring
• Configurable Valves
• Wi-Fi/LAN Network Stations
SENSIT® PMD
Portable Methane Detector
• USB Desktop Stations
• Wireless Firmware Updates
• SD Card:
• Database Backup
• Configuration Backup
• Station Firmware Updates

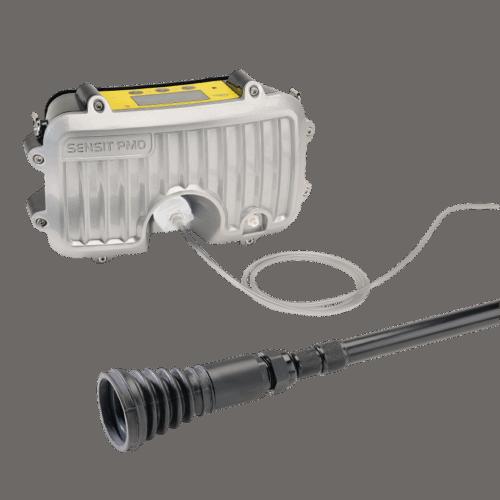

The SENSIT PMD is a small, lightweight, battery operated instrument used to survey, pinpoint and grade leaks wherever they occur.
SENSIT PMD is among the best performing and lowest cost optical instruments that can be used for both walking and vehicle applications.
The SENSIT PMD is methane selective and filters out other gases in PPM range. High sensitivity of 1 PPM detects leaks faster. Detection range of 0-100% volume allows for faster leak classification.
FEATURES
• Large Backlit Display
• Simple 3-Button Operation
• Powerful Pump
• Infrared Communication
• Data Logging with Event Capture
• Tick-Style Leak Detection
• Adjustable Alarms
• Lithium-ion Rechargeable Battery
• Bar Hole Test
• Smart-Cal Compatible
BENEFITS
• Methane selective. PMD filters out other gases in PPM range.
• Powerful pump provides fast methane detection.
• High sensitivity of 1 PPM detects methane leaks faster.
• Detection range of 0-100% volume for faster natural gas leak classification.
• Walking or vehicle operation allows for greater user survey flexibility.
• Designed to be Intrinsically safe. PMD can be used indoors or outdoors.
• Simple calibration compliance using Smart-Cal.

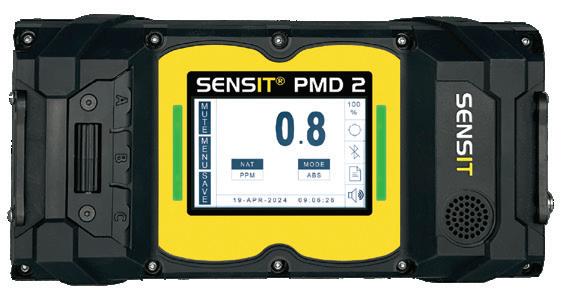

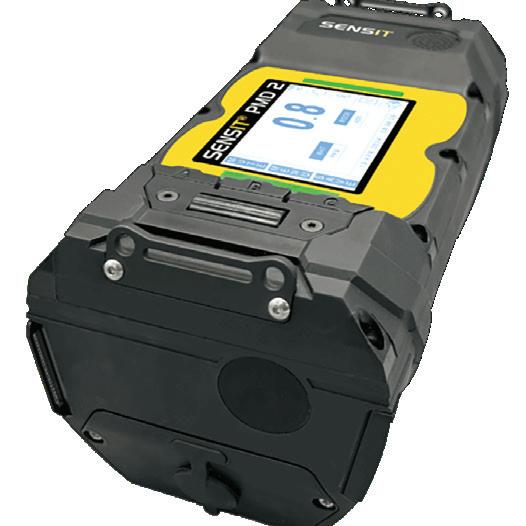

SENSIT® PMD2
Portable Methane Detector
The SENSIT PMD2 is a small, lightweight precision instrument used to survey, pinpoint, and grade methane leaks. With laser TDLAS technology, the SENSIT PMD2 is methane-selective and perfect for walking or vehicle applications.
With on-board GPS, datalogging, mapping, and the best sensitivity in its class, the SENSIT PMD2 improves productivity without sacrificing safety or accuracy—better leak surveys, with the data trail to back it up.
Compatible with SMART-CAL 360 Calibration Station | Service 360 | Smart-Link 360 | GIS 360
FEATURES
• Methane selective. PMD2 filters out other gases in PPM range.
• Powerful pump provides fast methane detection.
• High sensitivity of 1 PPM detects methane leaks faster.
• Detection range of 0-100% volume for faster natural gas leak classification.
• Walking or vehicle operation allows for greater user survey flexibility.
• Designed to be Intrinsically safe. PMD2 can be used indoors or outdoors.
• Simple calibration compliance using Smart-Cal 360.
• GPS, Pump, Battery, Data-Stream, Audible Alarms, Flow-Blocked & Bluetooth Status Indicators
