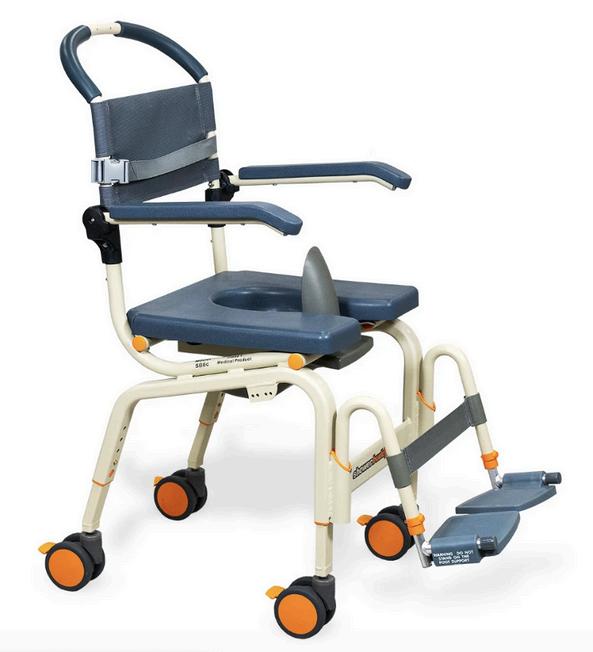

SB6c

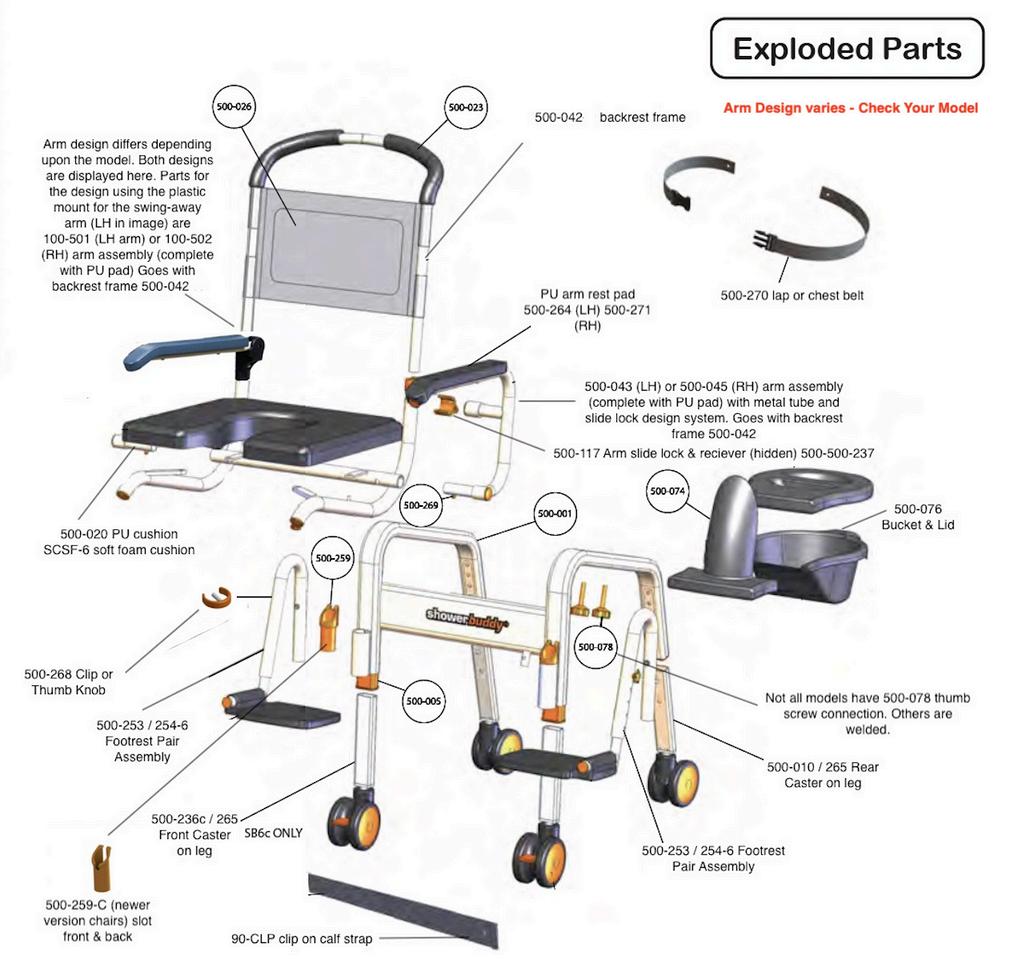

Parts may be common to SB6c and SB6w
SB6c and SB6w
WARNING
Always lock ALL wheels before you transfer a person to the chair.

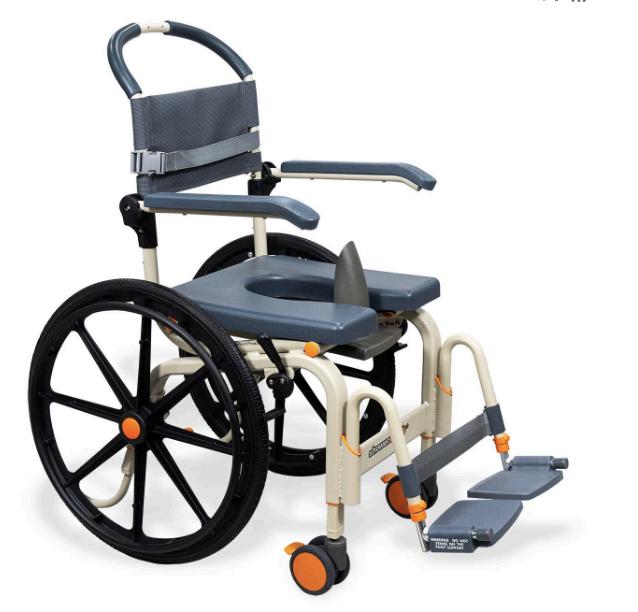

SB6w

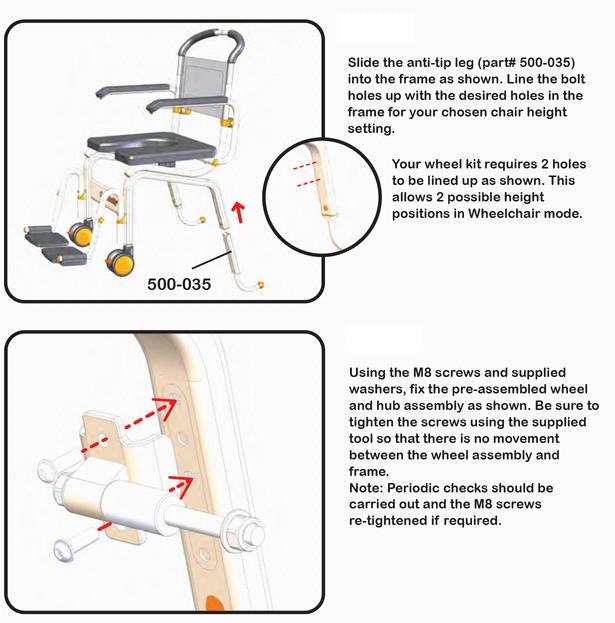

The rear axle has 2 height options. When bolted through the top threaded hole in the rear leg - the seat height will be 555mm (21.75 inch). This means you are bolting the axle to the top hole and 3 hole down in the rear leg, as shown above. Option 2 is to lower the axle down 1 hole lower (2 from top + bottom hole) giving a seat height of 580mm (22.75 inch). Consideration also needs to be given to toilet clearance height. Adjust the front caster legs height to obtain a level seat cushion, after you have fitted the large wheels. Adjust the hand brake if necessary.
WARNING - Ensure the axle bolts are tightened before use. Check 3-monthly.
Front caster wheels can be swapped out for 125mm (5") casters to traverse thresholds etc. Accessory Order Code SB6c-125

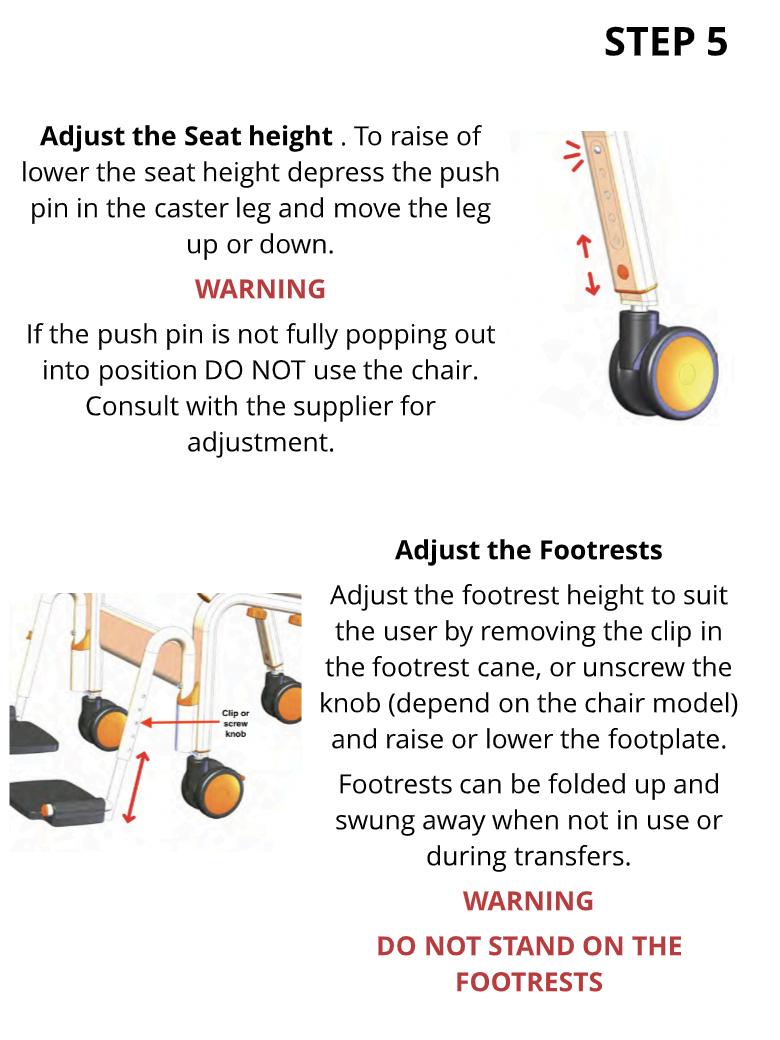

Set front and rear legs to give a level seat cushion.

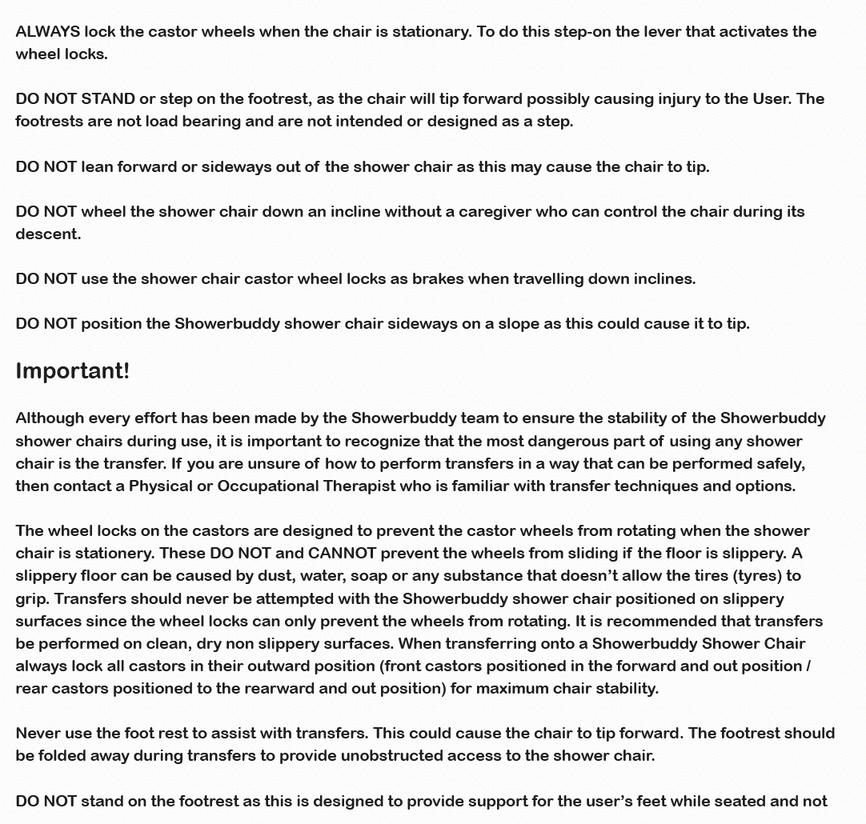

to act as a load bearing componentwhenthe usermounts or alightsfromthe chair. Standing on the footrests could cause thechairtoUpforward.
The fasteners- Knobs, nuts, bolts, washers -should bechecked periodicallyto ensure thatthey are securelyfastened. Your dealer should be called to check thefasteners and other components atleastonce peryear.
This Showerbuddy showerchairis supplied with chest restraining belttoensure the correct and safe operation of the shower chairfor boththeuser(s) and the caregiver. llt is importantthatthe strapsare used every time the shower chairis operated. Your Showerbuddy shower chair is equipped with fitting points sothatthese can be easily and effortlessly attached. Important!
ADJUSTMENTS SHOULD NEVER BEATTEMPTED WITHTHE USER(S) IN THECHAIR!
Yourauthorized Showerbuddydealer can help you with any adjustmentsyou maywantto make on your Showerbuddy shower chair orcan provide clarification onanyof the information contained herein.
AWARNING
Heavy Object
Toavoidmusclestrainorback injury,useliftaidsandproper liftingtechniqueswhen liftingormovingthisproduct.

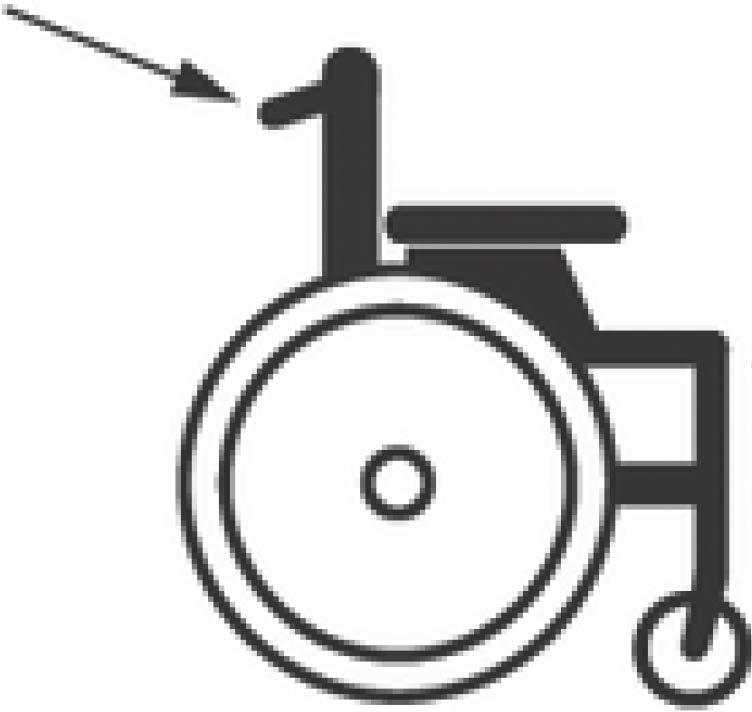

Howto Uftthe chair
Liftthewheelchairupusingthepustlhandlesandthefrontupper ..,,,,,--- corn.ersofthewheelchairframe,wherethefootrestsareplaced.
WAR.NtNG! ItisnotaUowedtoHftthewheelchairupbygripping thefootrestsorarmrests!Werecommendtodetachfootrests beforeliftingthechair
