SAXBY ELECTRICAL
Low profile design
Projection of just 6.5mm
Screw cap covers Included as standard, for a clean look
USB ports
USB options available
Double pole switches On selected products for additional safety
Dimensions
Single plate: 86mm x 86mm
Double plate: 86mm x 146mm
High quality earthing
Twin earth terminals where appropriate
Angled terminals
For quick and easy installation with etching on the poles for quick identification
Captive terminals
Appropriate terminal capacities and captive terminals to prevent screws falling out

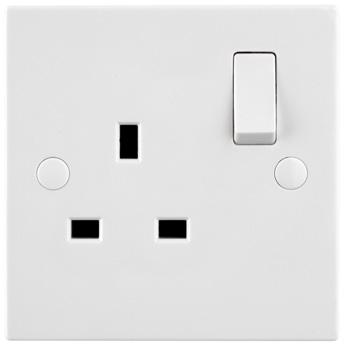

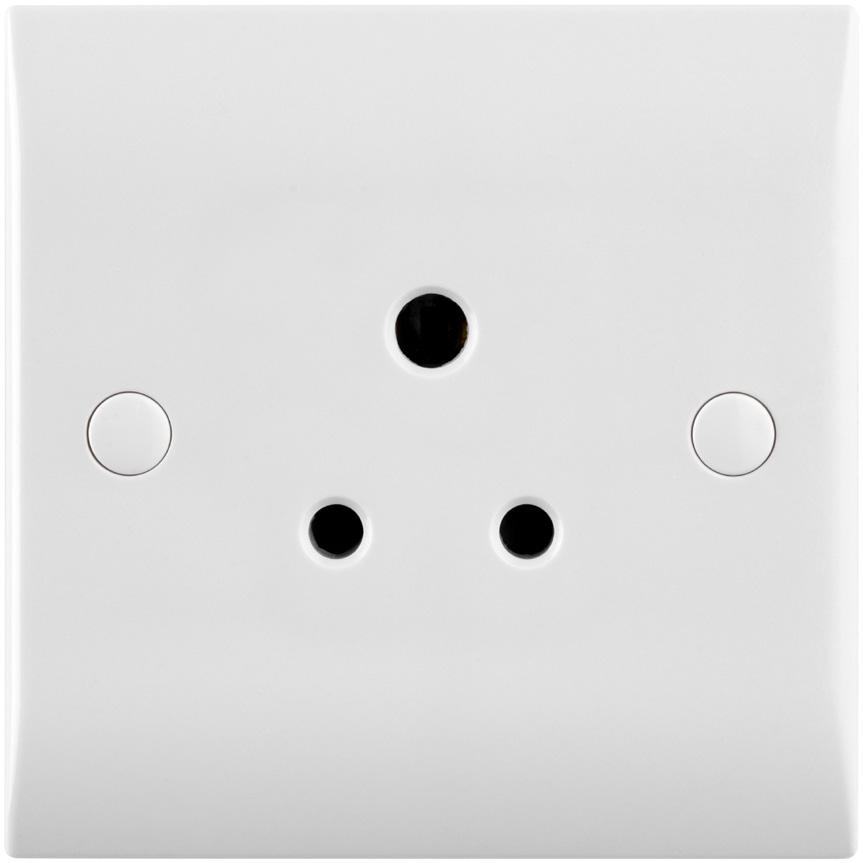

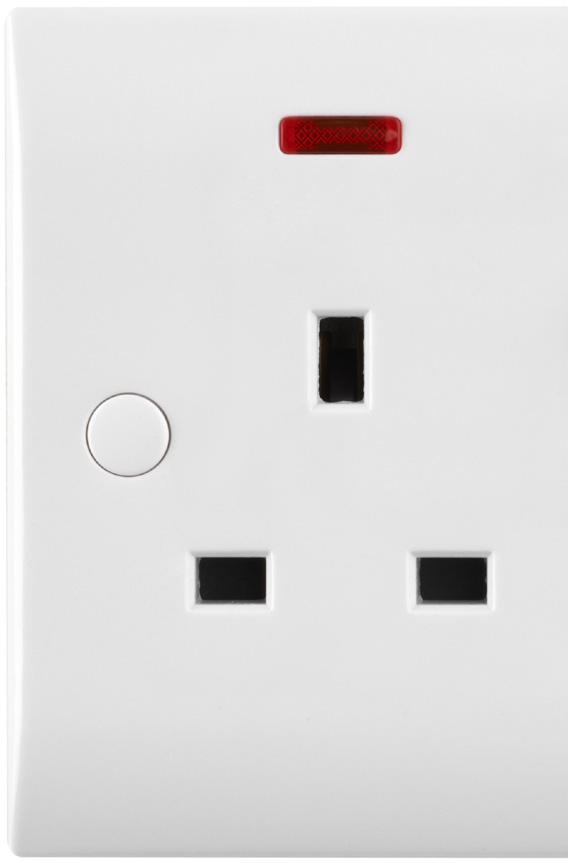

13A 1G SOCKETS
•
•

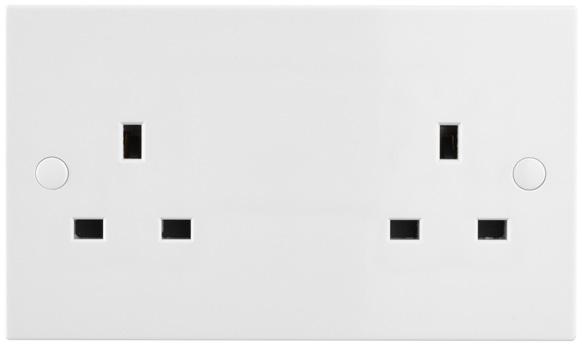

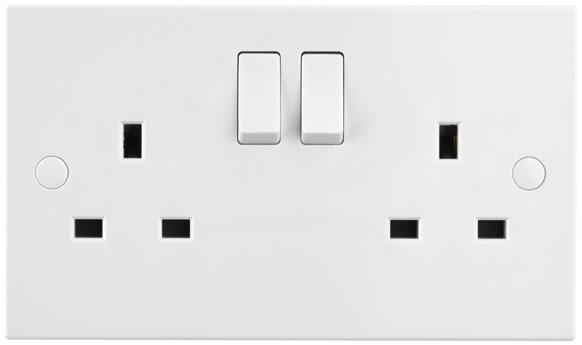

13A 2G SOCKETS
•
•

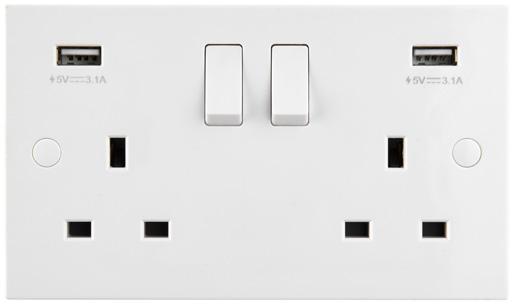

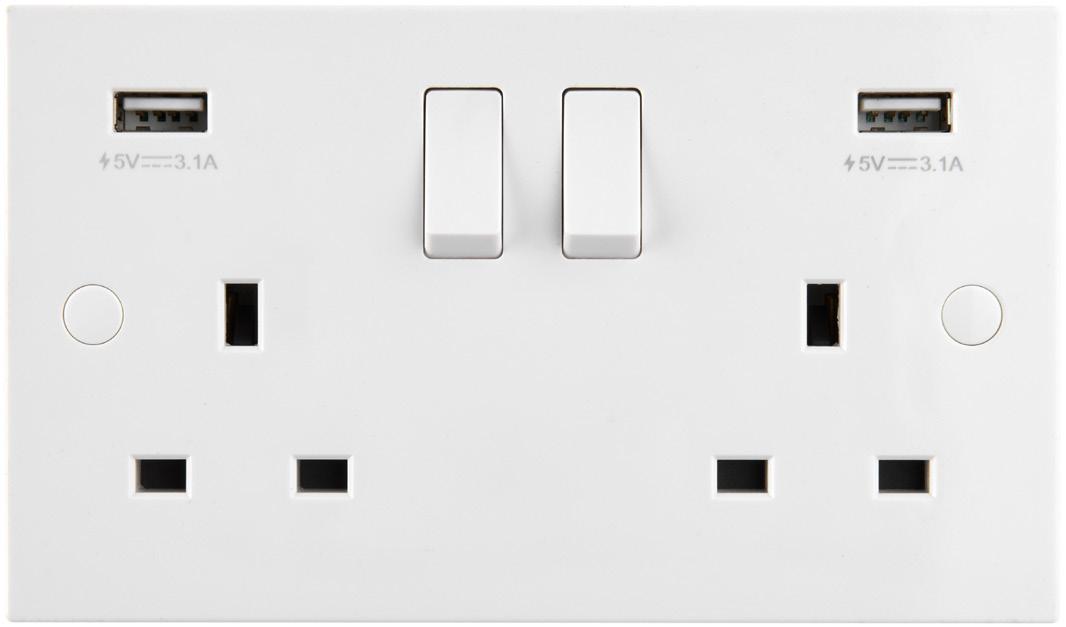

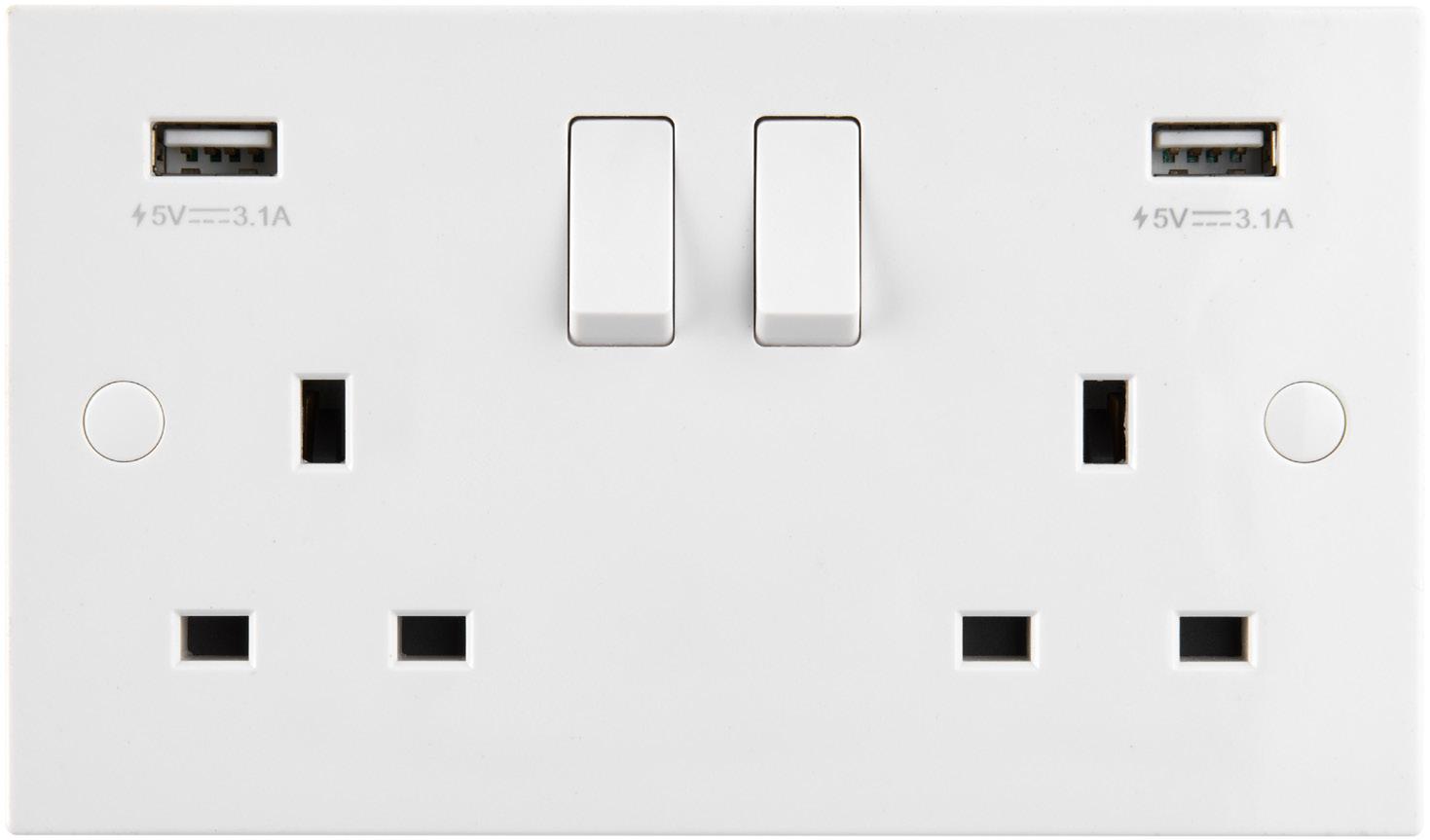

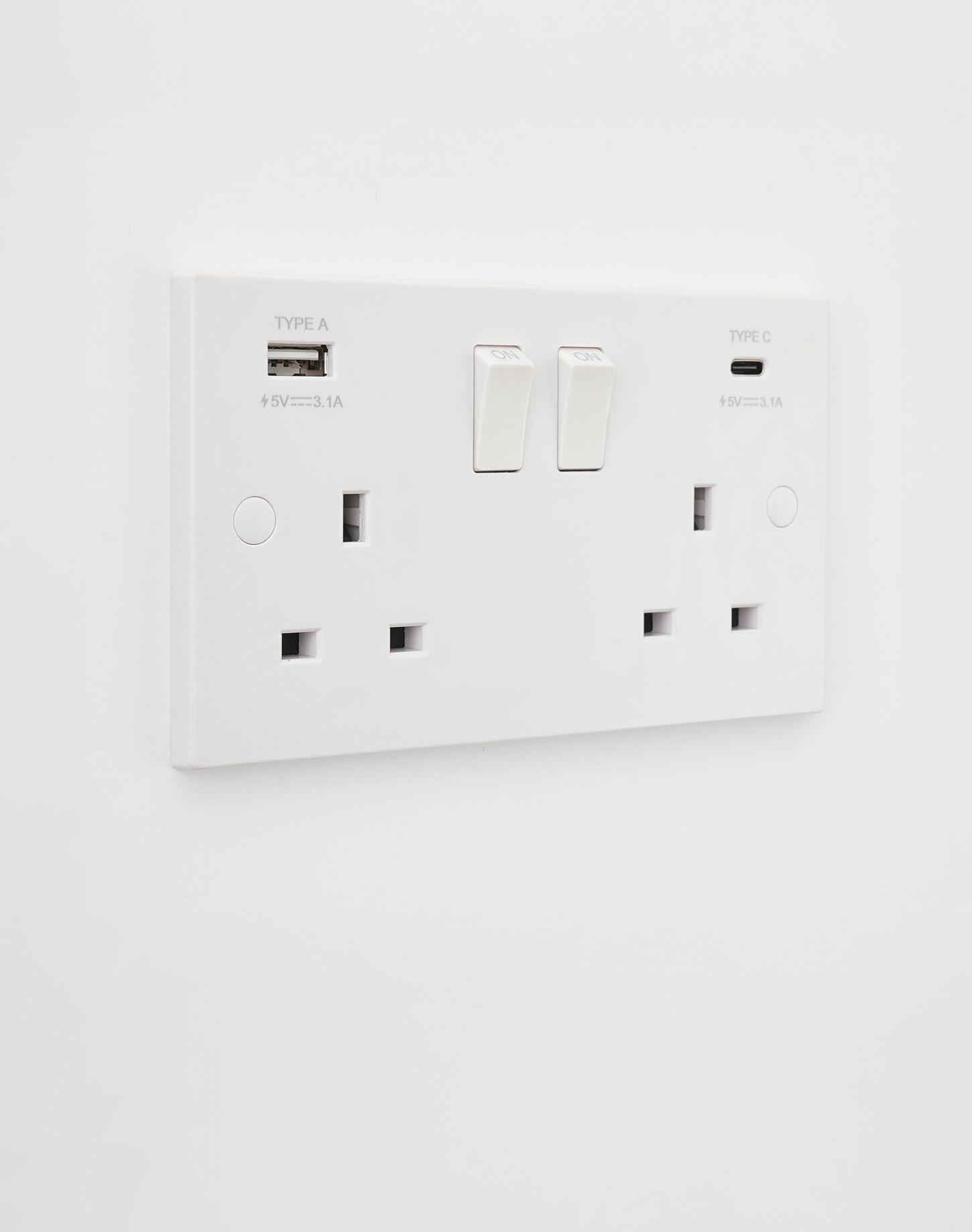

13A SWITCHED SOCKETS WITH USB

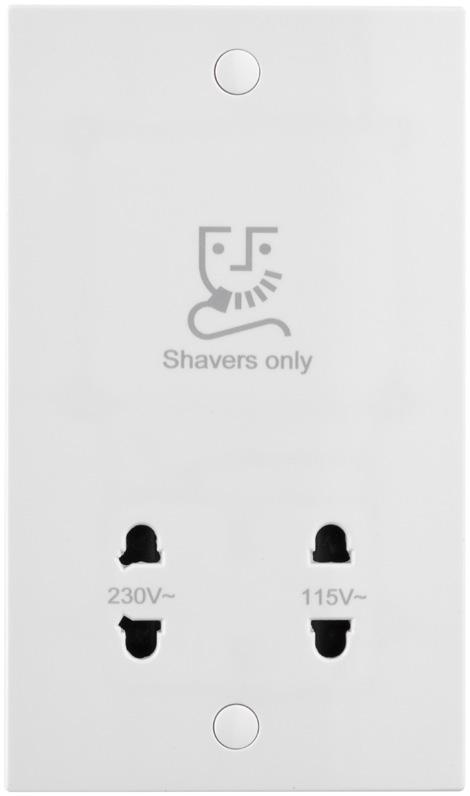

DUAL VOLTAGE SHAVER SOCKET
• Standards: BS EN 61558-2-5
• Min mounting box depth: 47mm

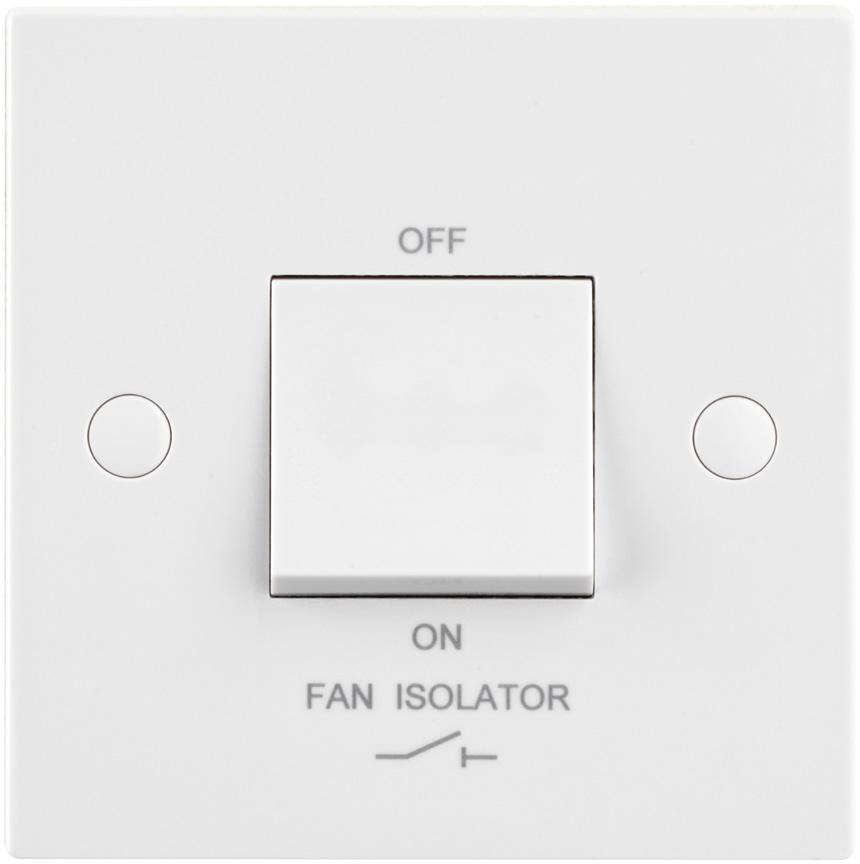

10AX FAN ISOLATOR SWITCH
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm

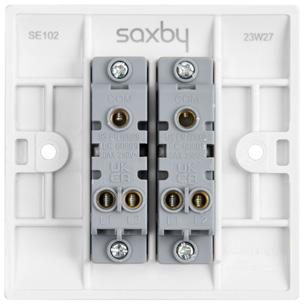

Back of plate
10AX SWITCHES
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm
• Easy to remove 2 way switch module and replace with intermediate CE109M

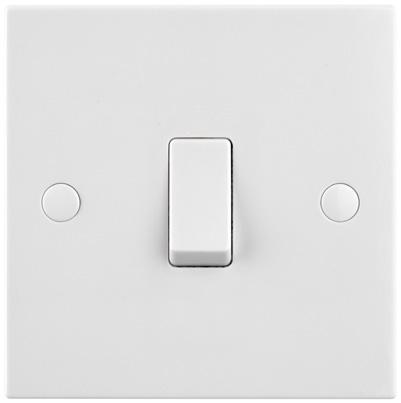

SE100 10AX 1G 1-Way Switch
86mm W: 86mm D: 21.2mm SE101 10AX 1G 2-Way Switch

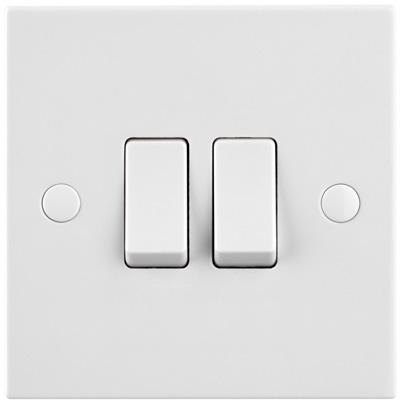

86mm W: 86mm D: 21.2mm SE102 10AX 2G 2-Way Switch

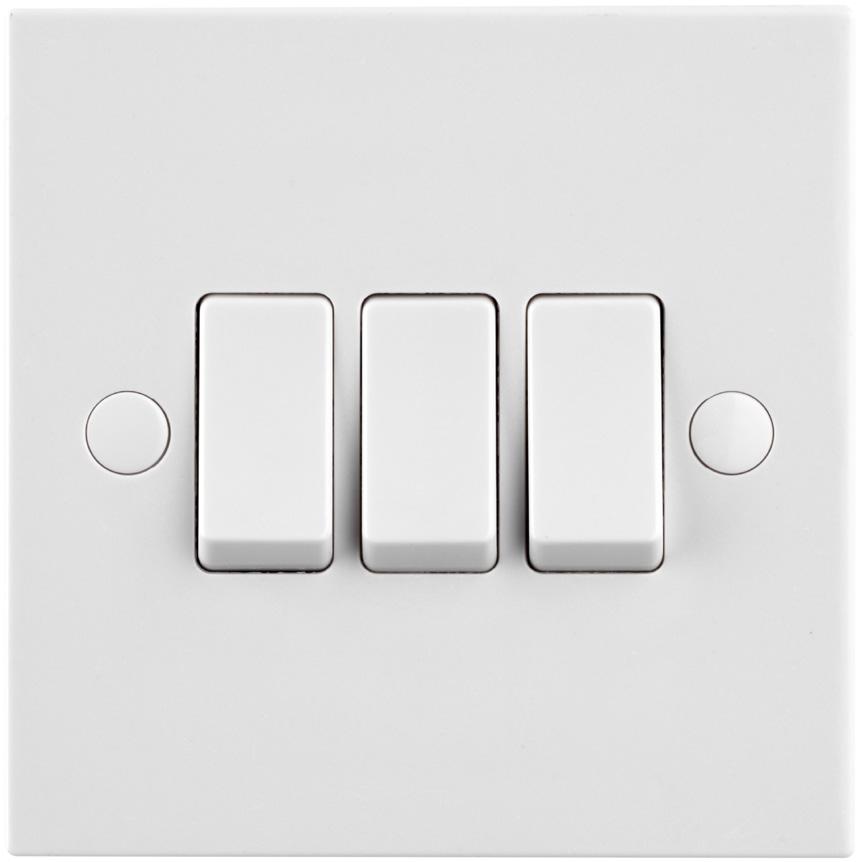

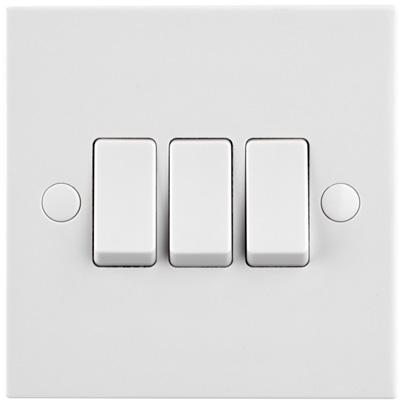

86mm W: 86mm D: 21.2mm SE103 10AX 3G 2-Way Switch

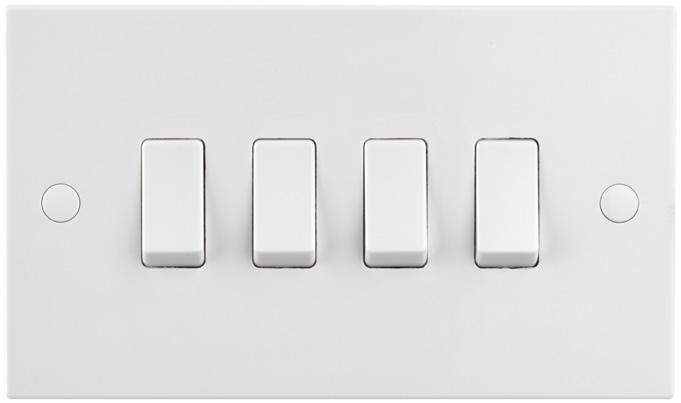

86mm W: 86mm D: 21.2mm SE104 10AX 4G 2-Way Switch

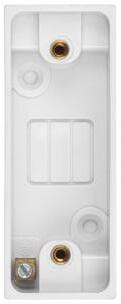

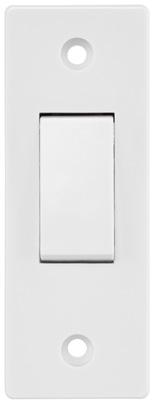

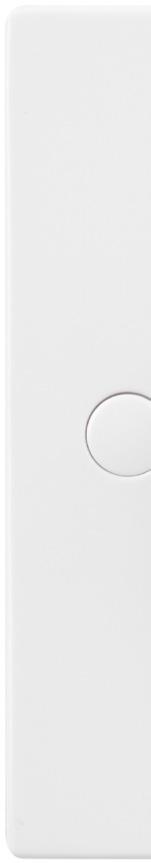

W: 86mm D: 21.5mm SE105 10AX 1G 2-Way Architrave Switch

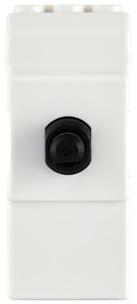

86mm W: 32mm D: 20mm CE109M 10AX 1G Intermediate Switch Module
60mm W: 16.1mm D: 26.1mm
SE104
Back of plate
SE105
CE109M
20A SWITCHES
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm

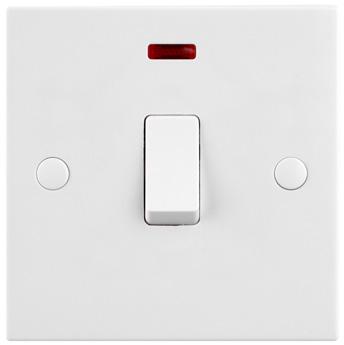

20A 1G DP Switch With Neon

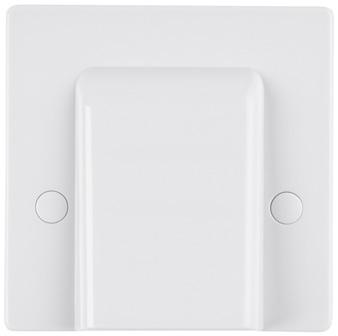

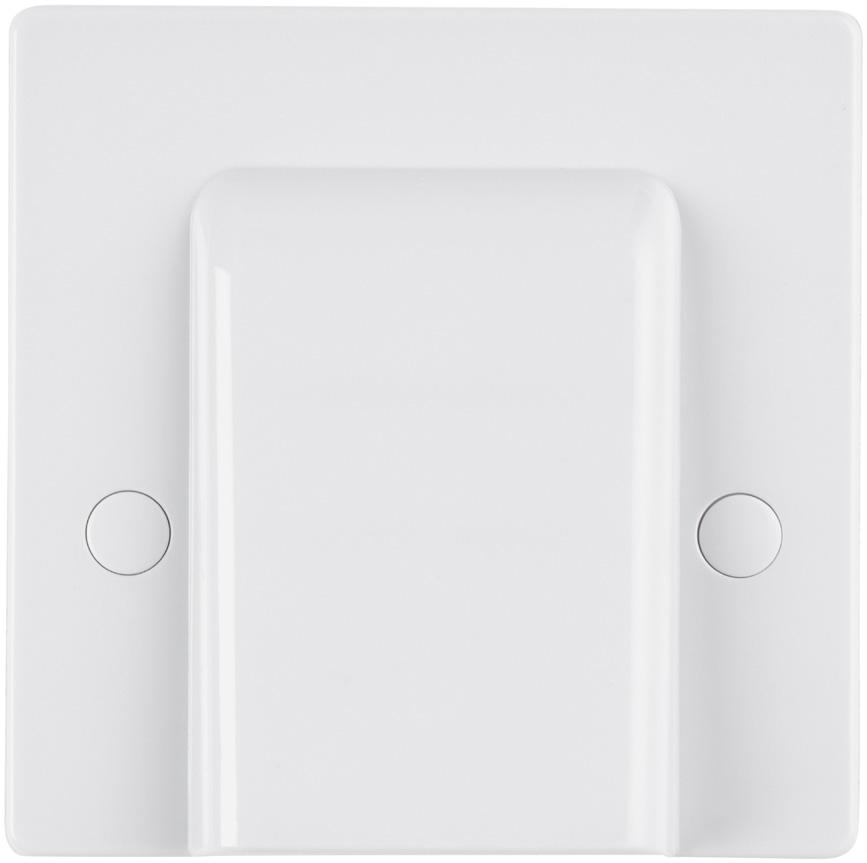

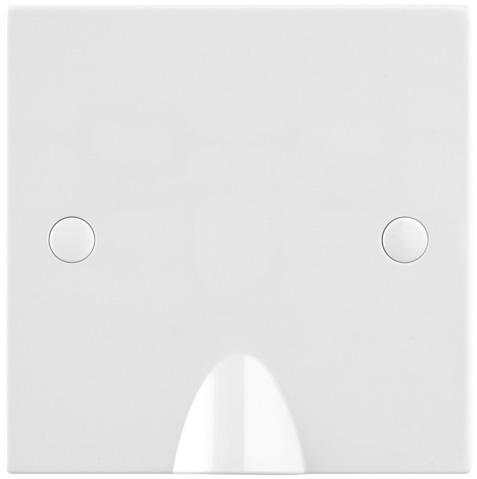

20A FLEX OUTLET PLATE
• Min mounting box depth: 25mm

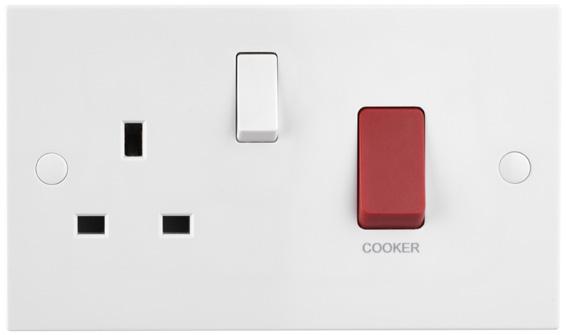

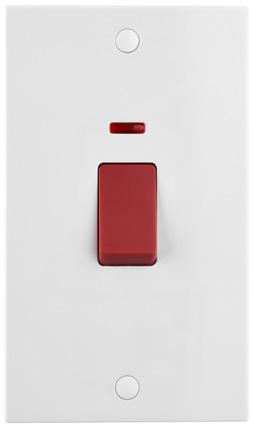

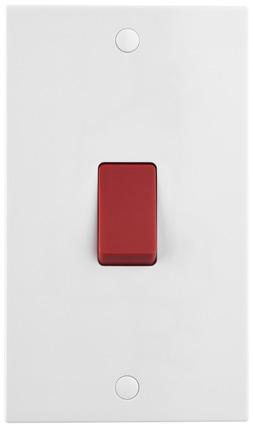

45A COOKER SWITCHES
• Standards: BS 4177
• Min mounting box depth: 35mm
• H: 86mm W: 146mm D: 29.1m •
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm

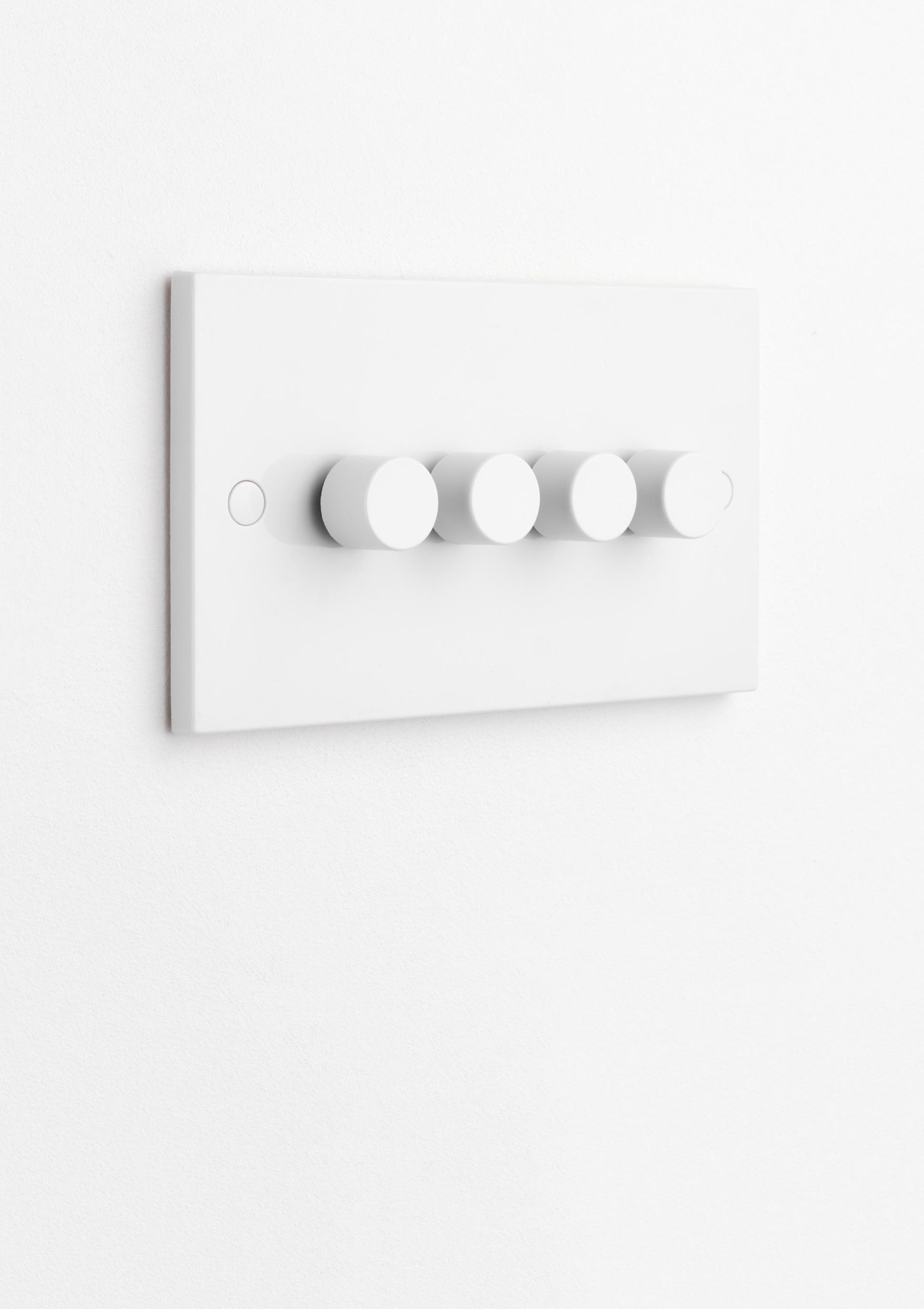

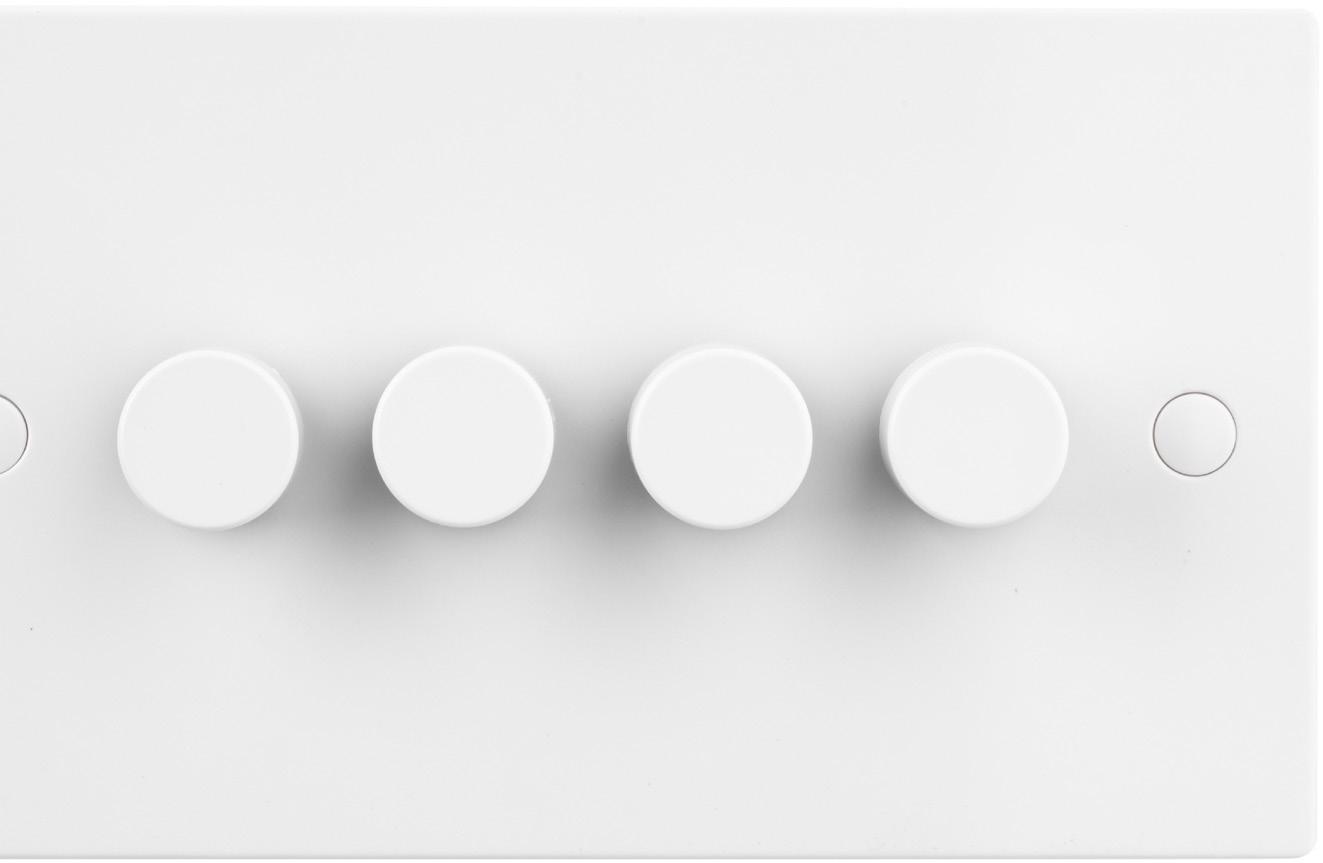

LED DIMMERS
• Standards: IEC/BS EN60669 • Min mounting box depth: 25mm
SE661 SE662
SE664
SE663
3YR WARRANTY
Code

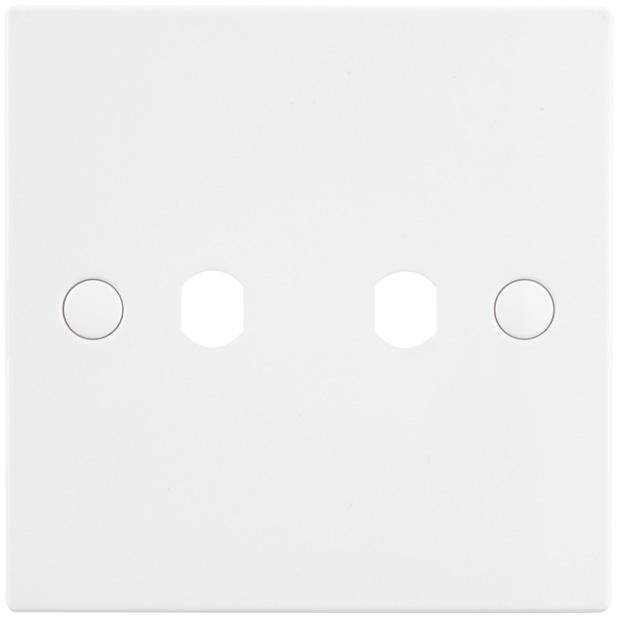

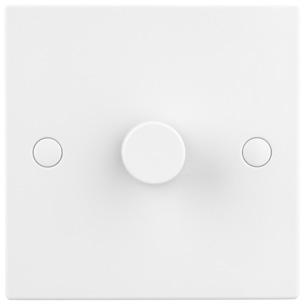

SE81DIM 1G Dimmer Plate With Dimmer Cap H: 86mm W: 86mm D: 6.5mm

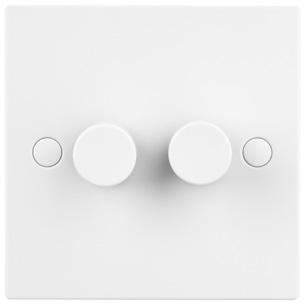

SE82DIM 2G Dimmer Plate With Dimmer Caps H: 86mm W: 86mm D: 6.5mm
SE6DUMDIM Dummy Dimmer H: 55mm W: 41mm D: 23.4mm
SE6CAPCOV Cap Covers - 2 Pack -
SE81DIM
SE6DUMDIM
SE82DIM

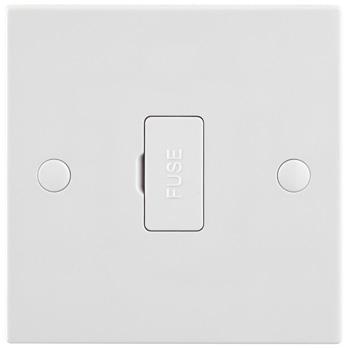

13A UNSWITCHED FUSED SPUR UNITS
•
•

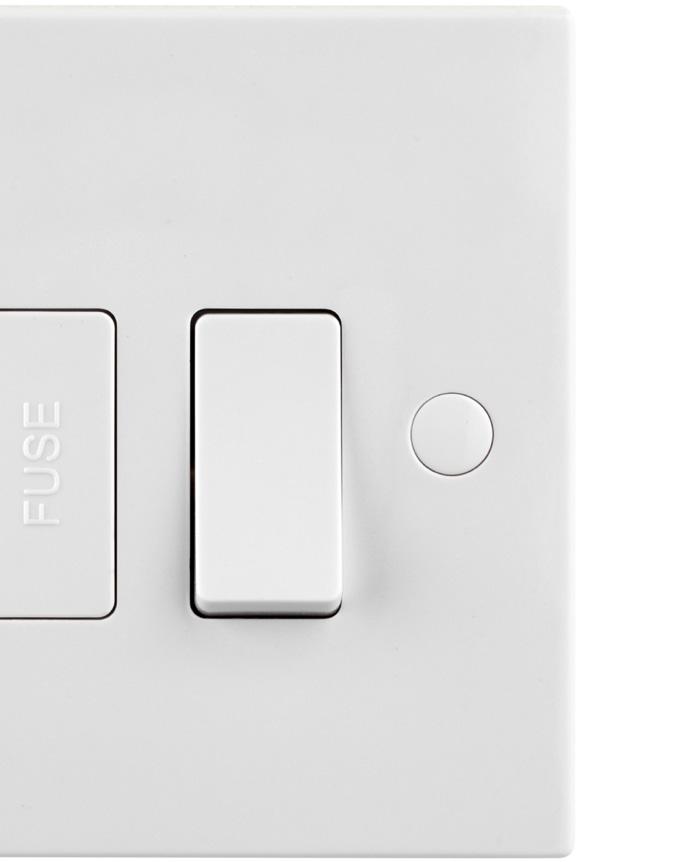

13A SWITCHED FUSED SPUR UNITS
• Standards: BS 1363-4
•
OUR PRODUCTS
SAFE, FAST FIX INSTALLATION
THE RIGHT PRODUCT FOR THE JOB
MORE FUNCTIONALITY THE RIGHT PRICE
INDUSTRY LEADING WARRANTIES
OUR SERVICE
SAXBY TRADE EXCLUSIVE PORTAL TECHNICAL SUPPORT TEAM
NEXT DAY DELIVERY 4PM CUT OFF MARKETING SUPPORT

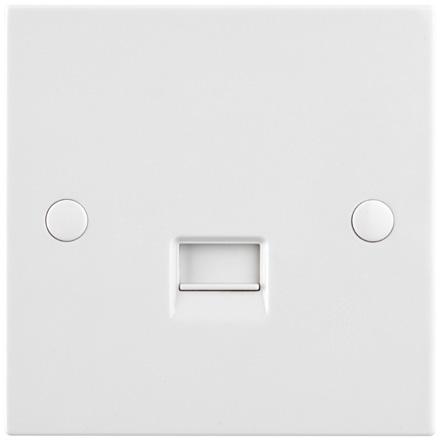

TELEPHONE SOCKETS
• Standards: BS 5733
• Min mounting box depth: 25mm

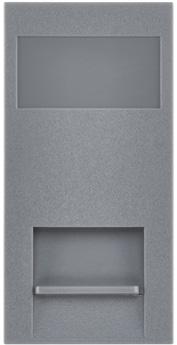

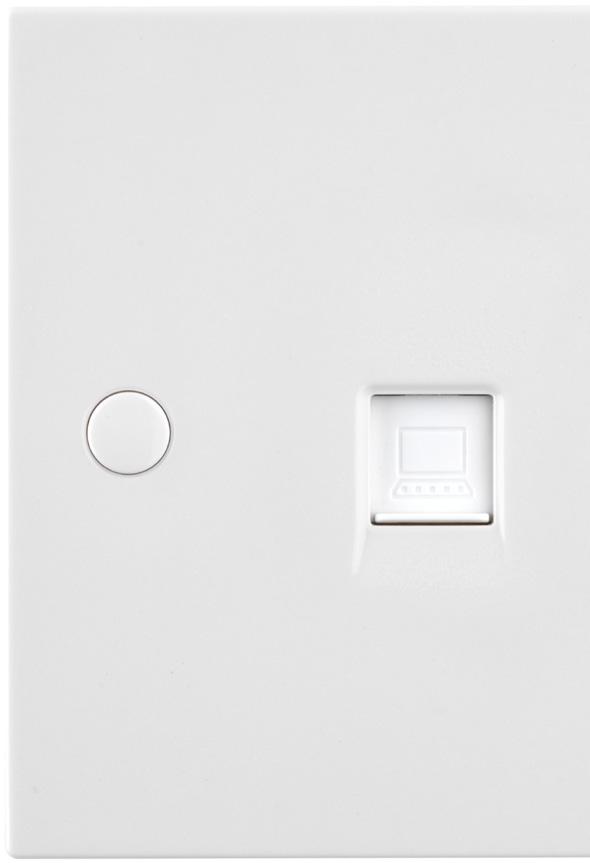

RJ45 DATA SOCKET

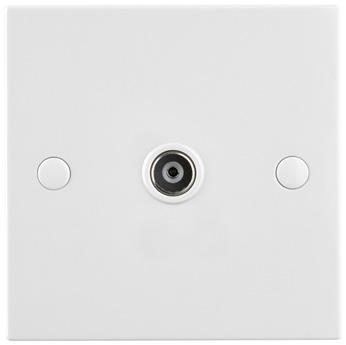

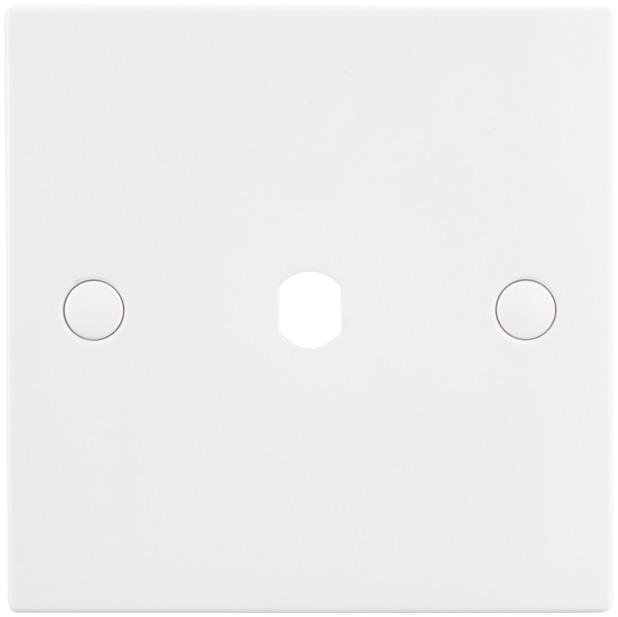

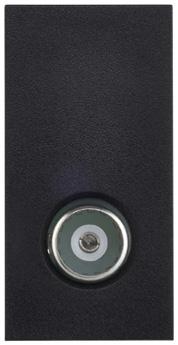

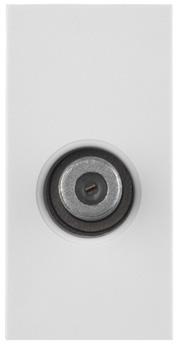

COAX TV SOCKETS
• Standards: BS 5733
• Min mounting box depth: 35mm
• H: 86mm W: 86mm D: 37mm
• Standards: BS 5733
• Min mounting box depth: 25mm
• H: 86mm W: 86mm D: 17.1mm

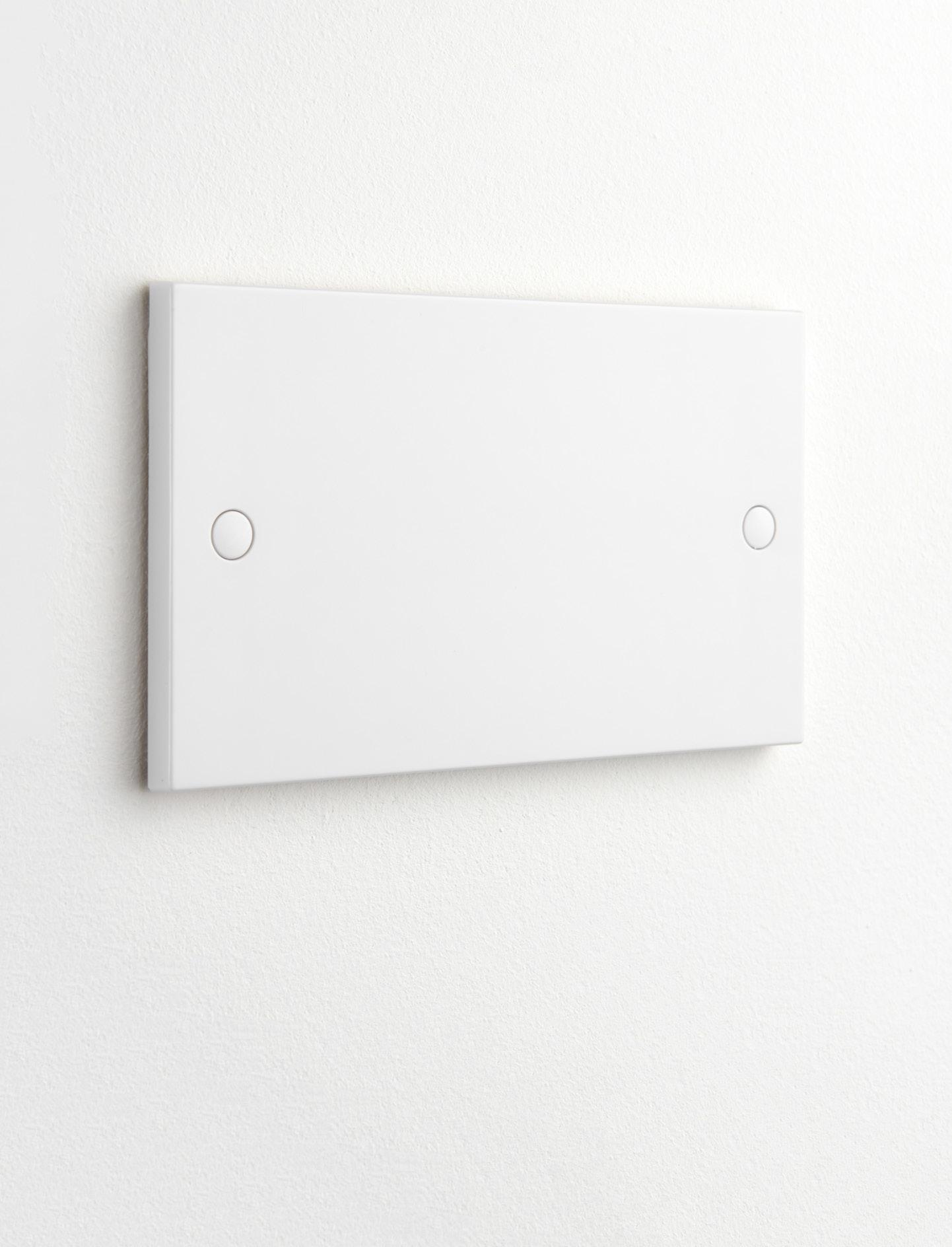

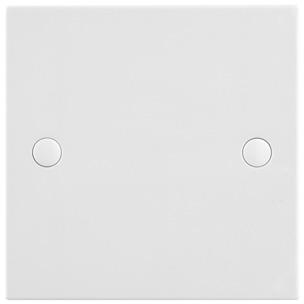

BLANKING PLATES
25YR WARRANTY
• Standards: BS 5733
SE881
SE882
SE881
MODULAR FACEPLATES
• Standards: BS 5733 25YR WARRANTY
Euro Modules
Full range of Euro Modules can be found in the full catalogue
Code
Dimensions

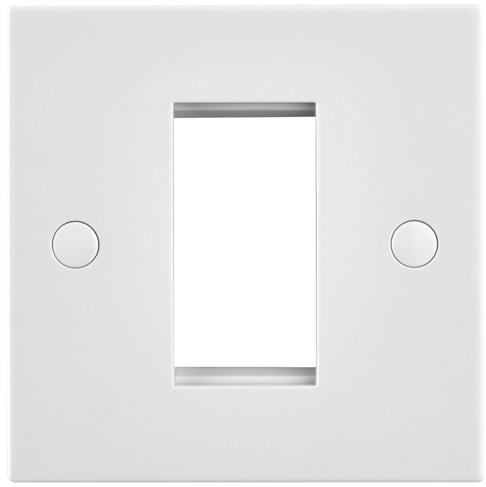

SEMFP1 1G Modular Faceplate (1 Module) H: 86mm W: 86mm D: 6.5mm
SEMFP2 2G Modular Faceplate (2 Modules)
H: 86mm W: 86mm D: 6.5mm

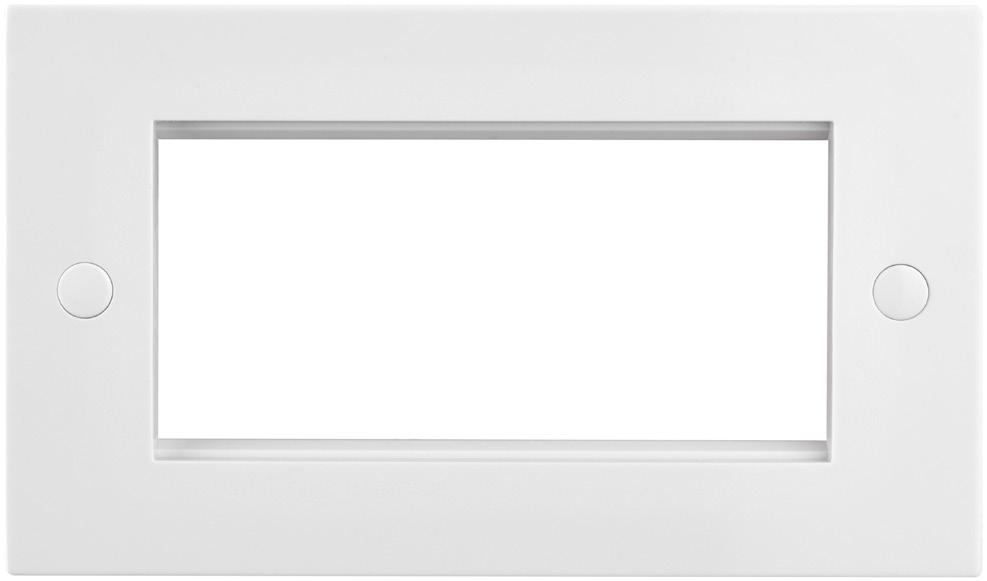

SEMFP4 4G Modular Faceplate (4 Modules) H: 86mm W: 146mm D: 6.5mm
SEMFP1
SEMFP2
SEMFP4

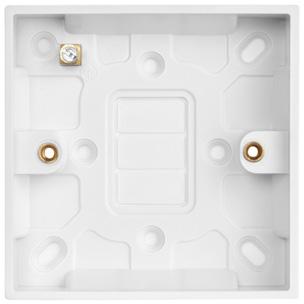

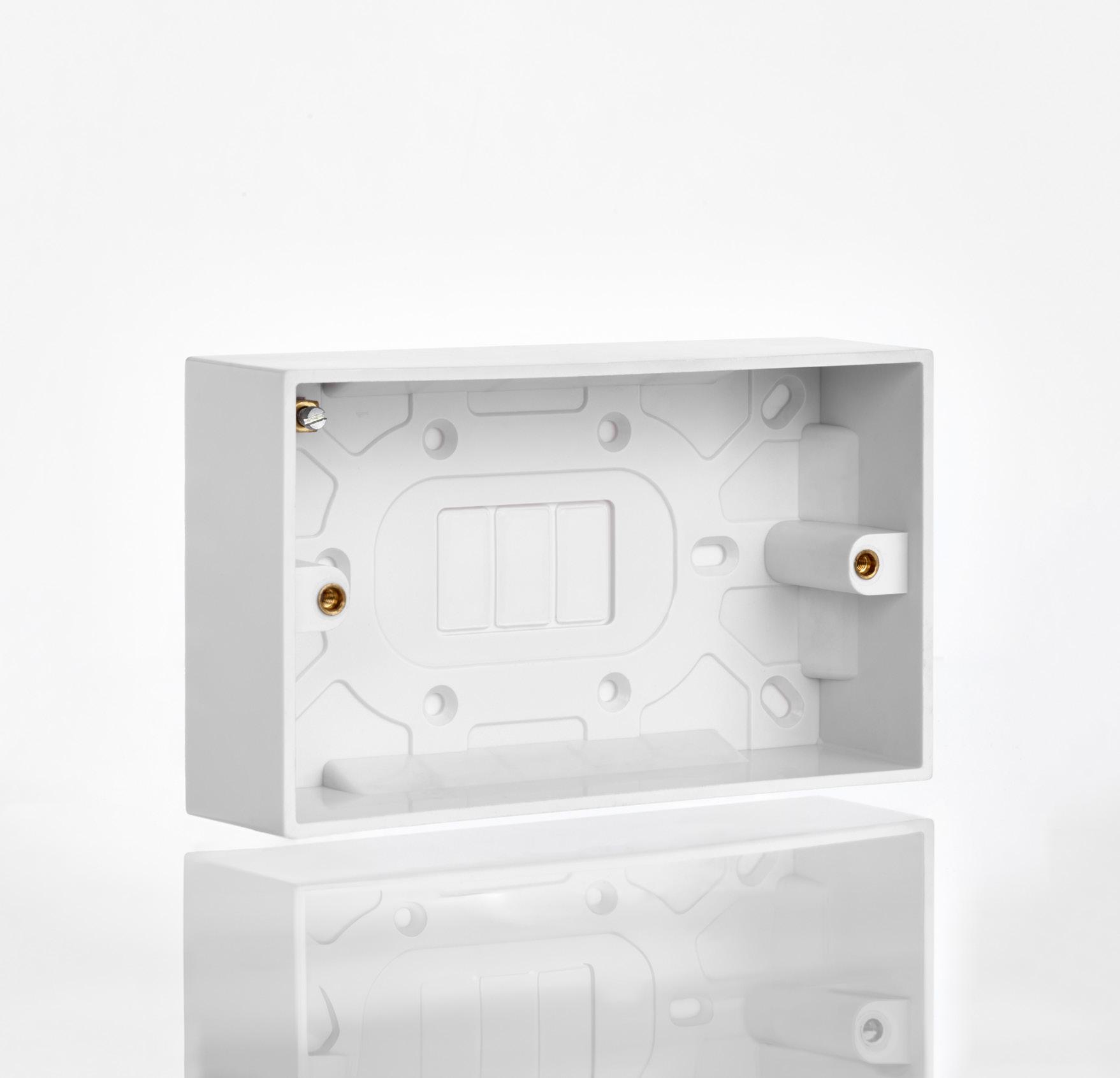

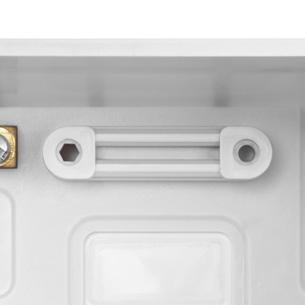

PATTRESS BOXES
Cable restraint on 47mm
Single box
box
Double box
