SAXBY ELECTRICAL

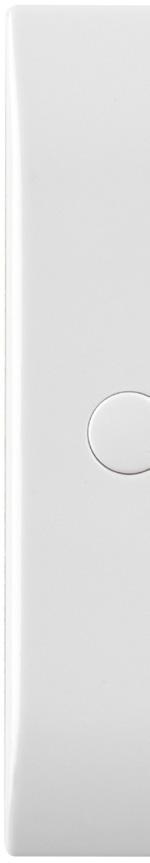

Low profile design
Projection of just 6.5mm
Screw cap covers Included as standard, for a clean look
USB A & C ports
Standard USB and fast charge options available
Double pole switches On selected products for additional safety
Dimensions
Single plate: 86mm x 86mm
Double plate: 86mm x 146mm
High quality earthing Twin earth terminals where appropriate
Angled terminals
For quick and easy installation with etching on the poles for quick identification
Captive terminals
Appropriate terminal capacities and captive terminals to prevent screws falling out
WHITE MOULDED CURVED EDGE
25YR WARRANTY*
DUAL USB OPTIONS
ANTI MICROBIAL PROPERTY
45W TYPE C USB

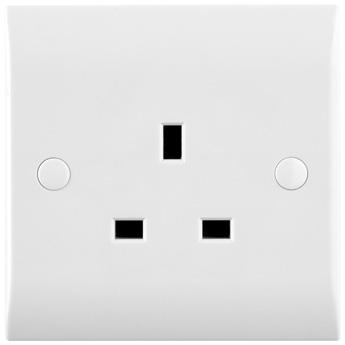

13A 1G SOCKETS
•
•

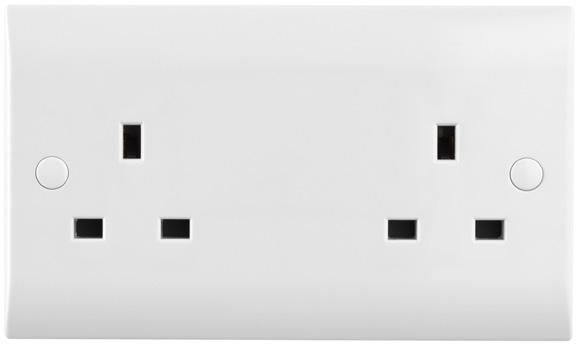

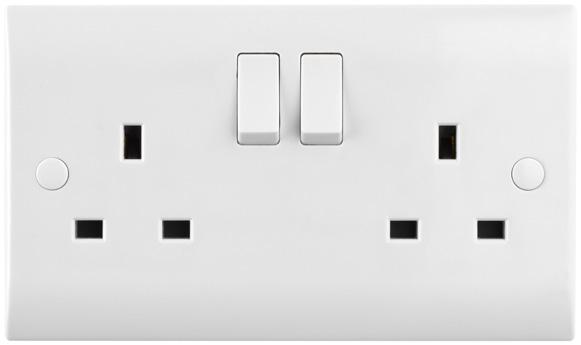

13A 2G SOCKETS
•
•

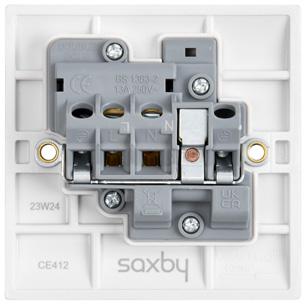

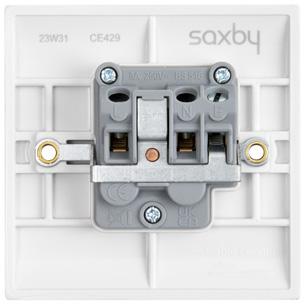

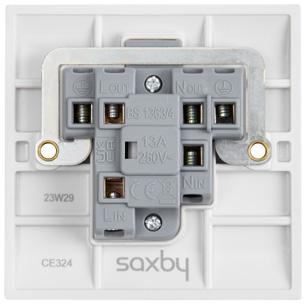

Back of plate

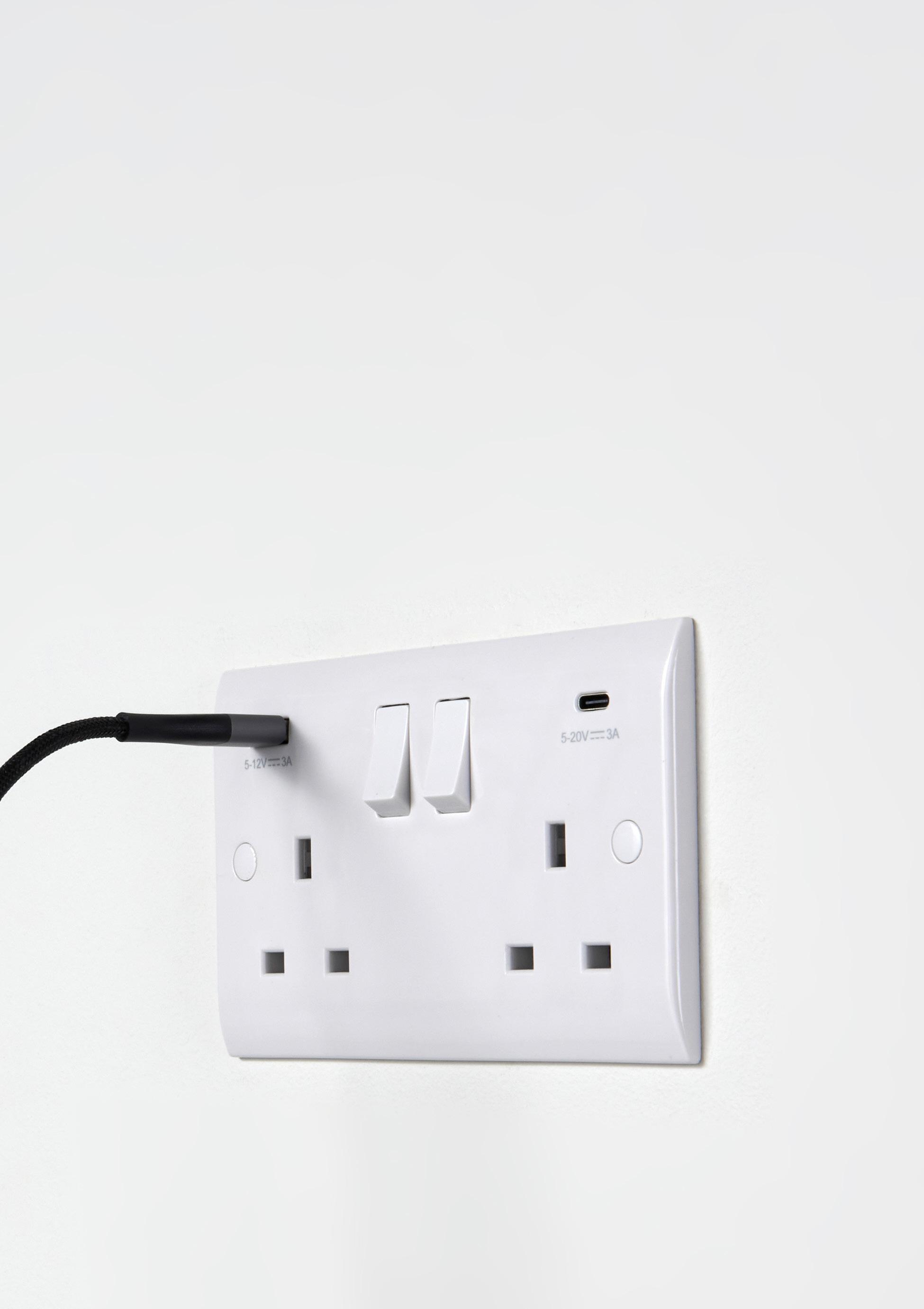

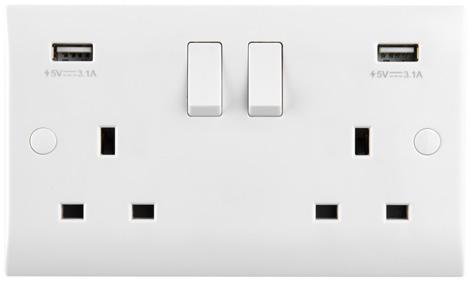

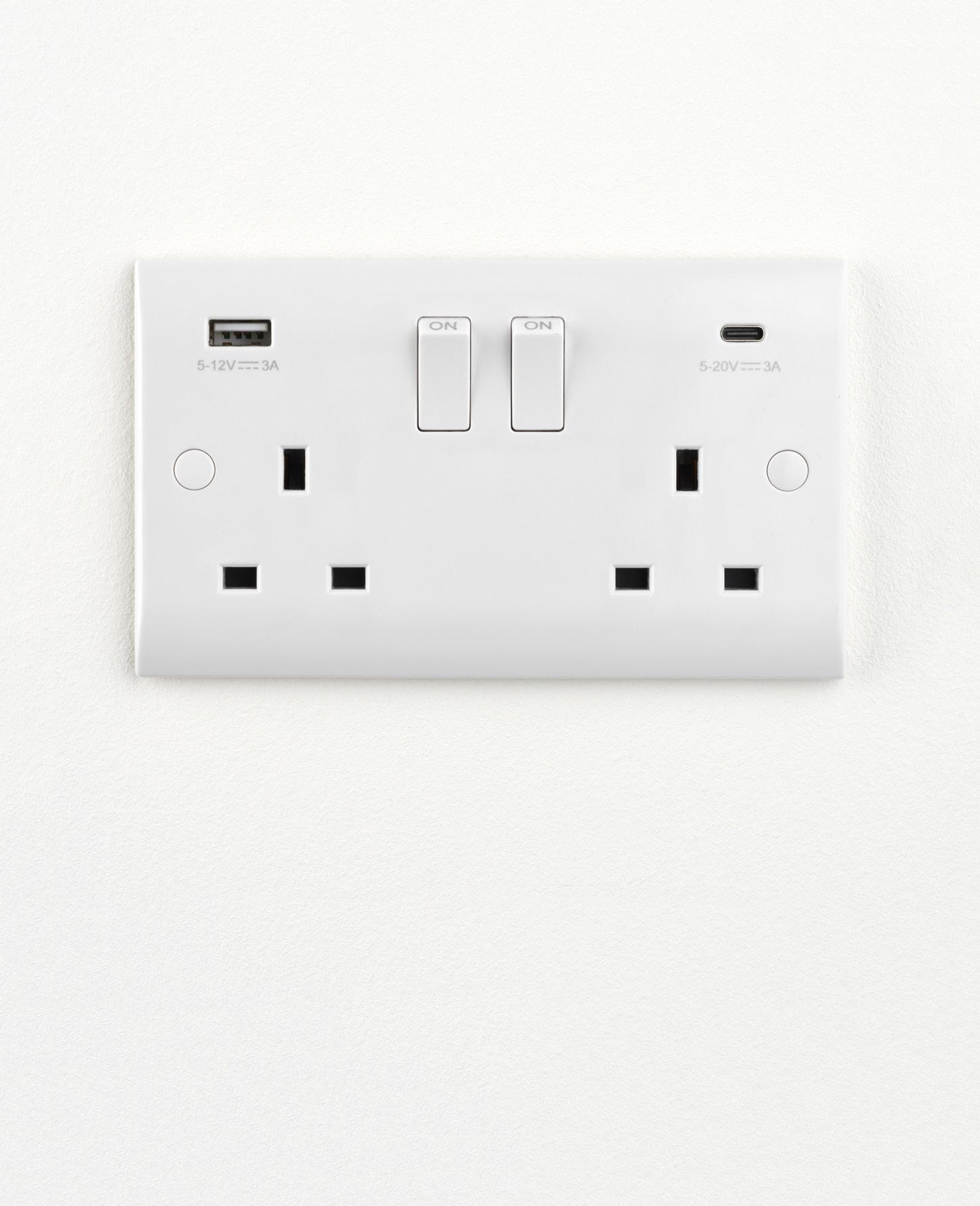

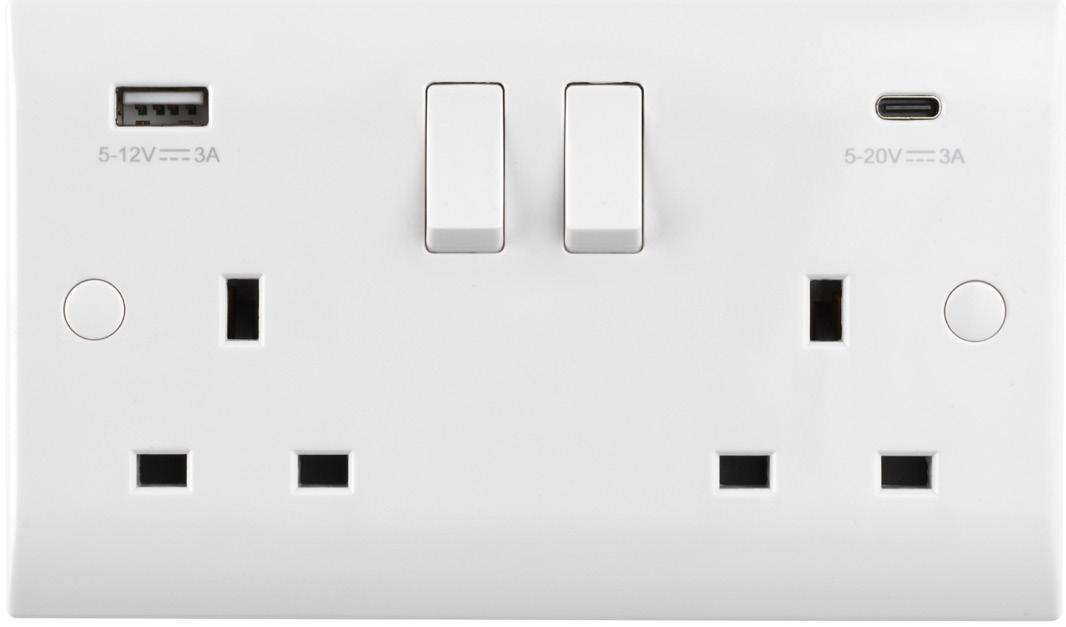

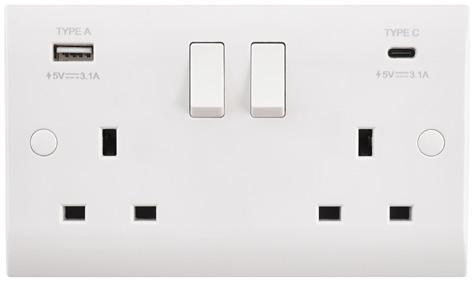

13A SWITCHED SOCKETS WITH USB
• Standards: BS 1363-2 & BS EN 62368
• Min mounting box depth: 25mm, 35mm for CE413
CE413
CE425
CE423
CE424

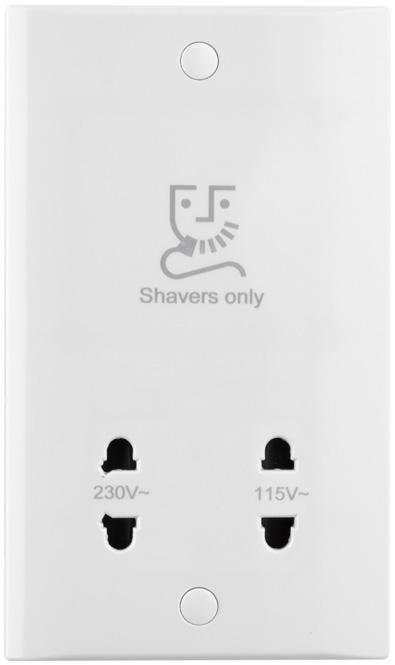

DUAL VOLTAGE SHAVER SOCKET
•
•

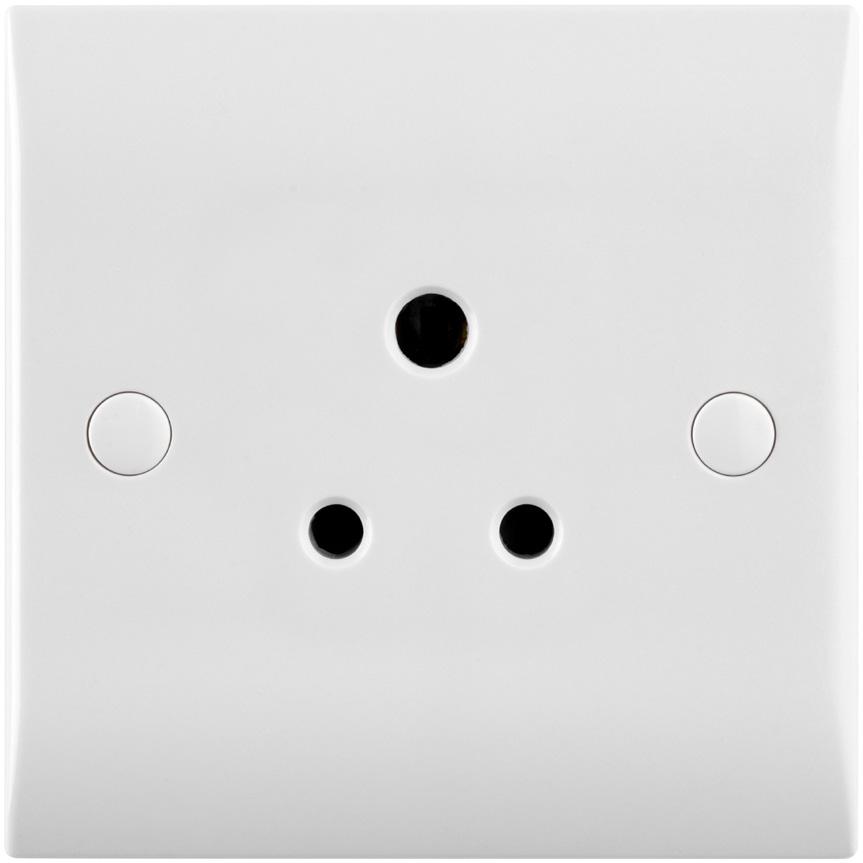

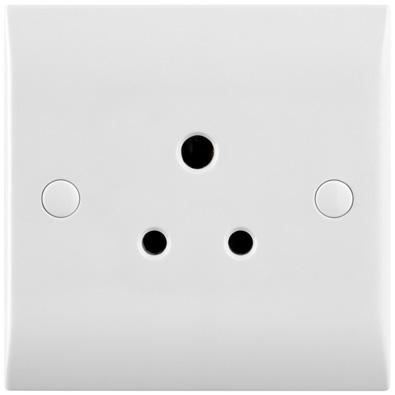

5A UNSWITCHED SOCKET
•
•
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm
• Easy to remove 2 way switch module and replace with intermediate CE109M

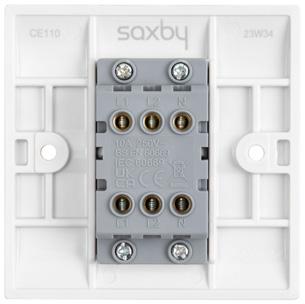

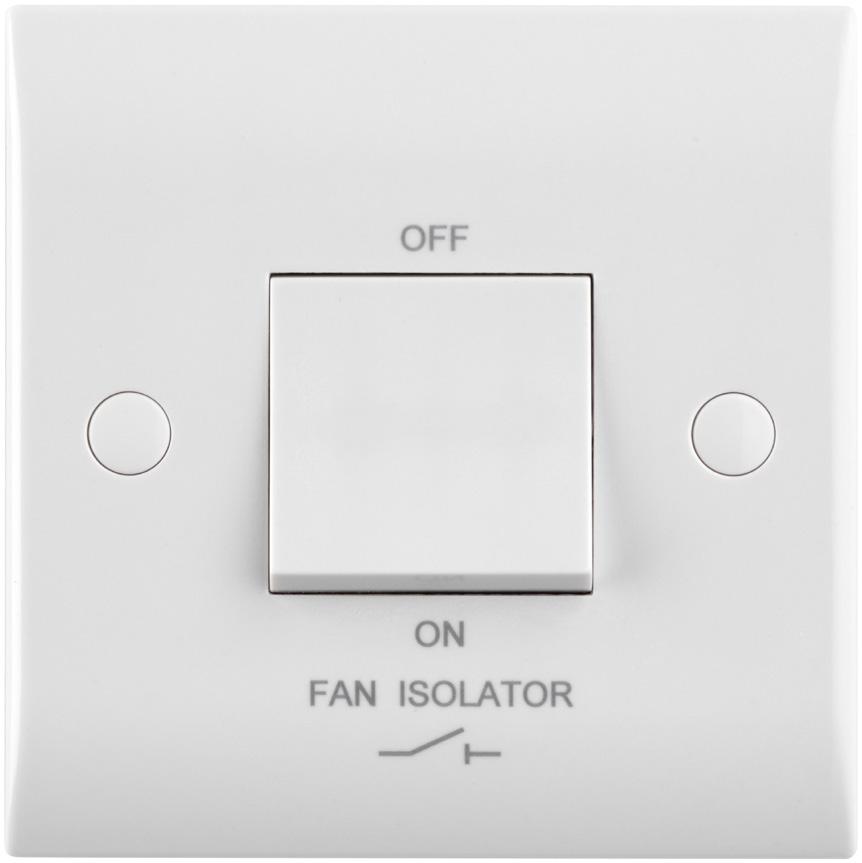

10AX FAN ISOLATOR SWITCH
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm

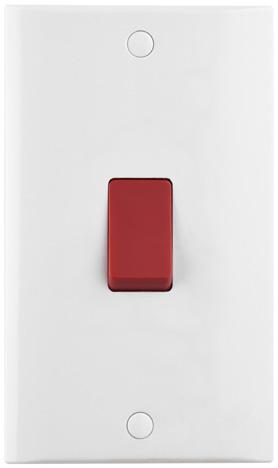

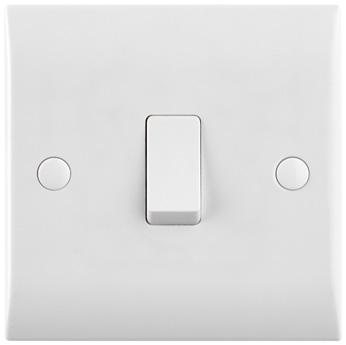

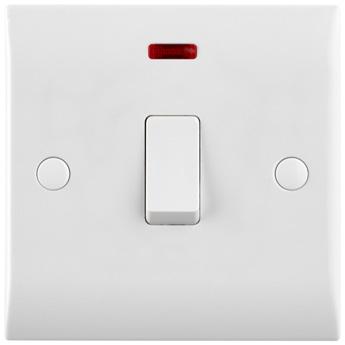

20A SWITCHES
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm

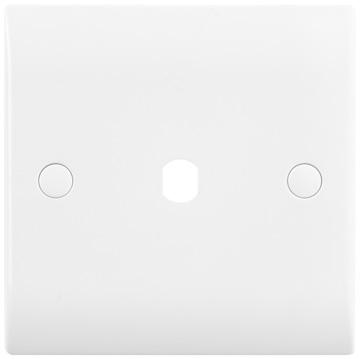

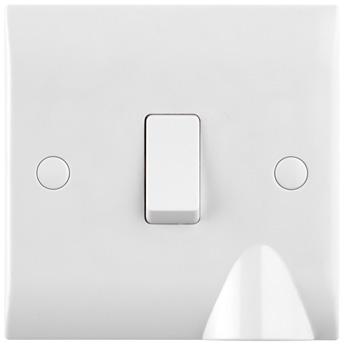

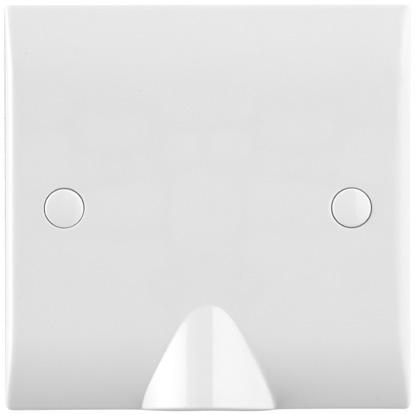

20A FLEX OUTLET PLATE
• Min mounting box depth: 25mm
Back of plate

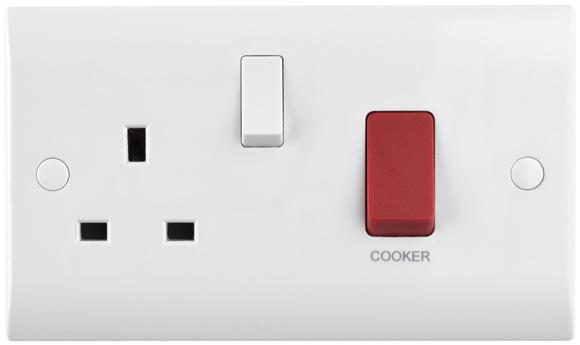

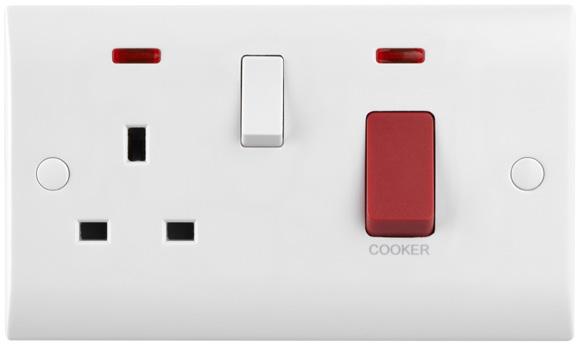

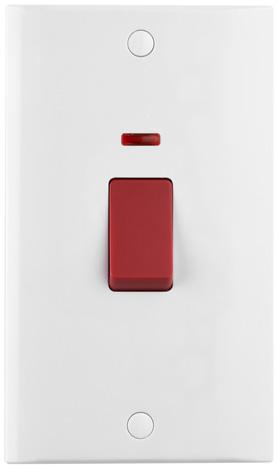

45A COOKER SWITCHES
• Min mounting box depth: 35mm 25YR
• Standards: BS 4177
• Standards: IEC/BS EN60669
• Min mounting box depth: 35mm
CE553

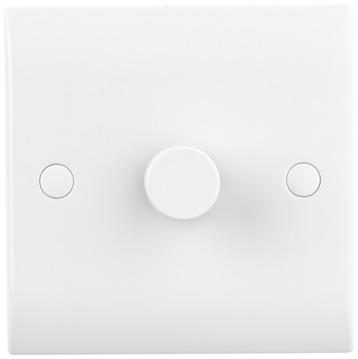

LED DIMMERS
3YR WARRANTY
• Min mounting box depth: 25mm
CE661 1G LED Dimmer 5-100W H: 86mm W: 86mm D: 26.3mm IEC/BS EN60669

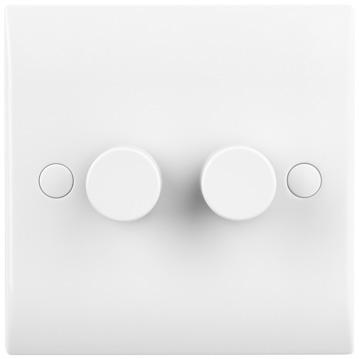

CE662 2G LED Dimmer 5-100W H: 86mm W: 86mm D: 26.3mm IEC/BS EN60669

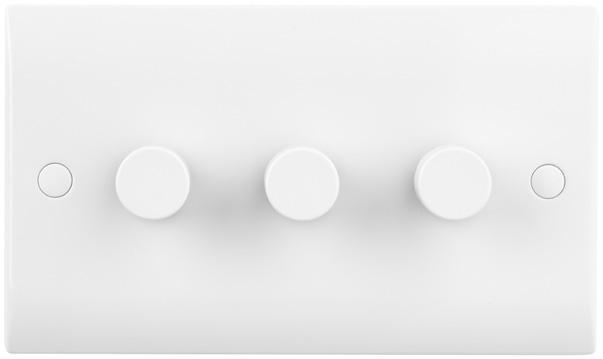

CE663 3G LED Dimmer 5-100W H: 86mm W: 146mm D: 26.3mm IEC/BS EN60669

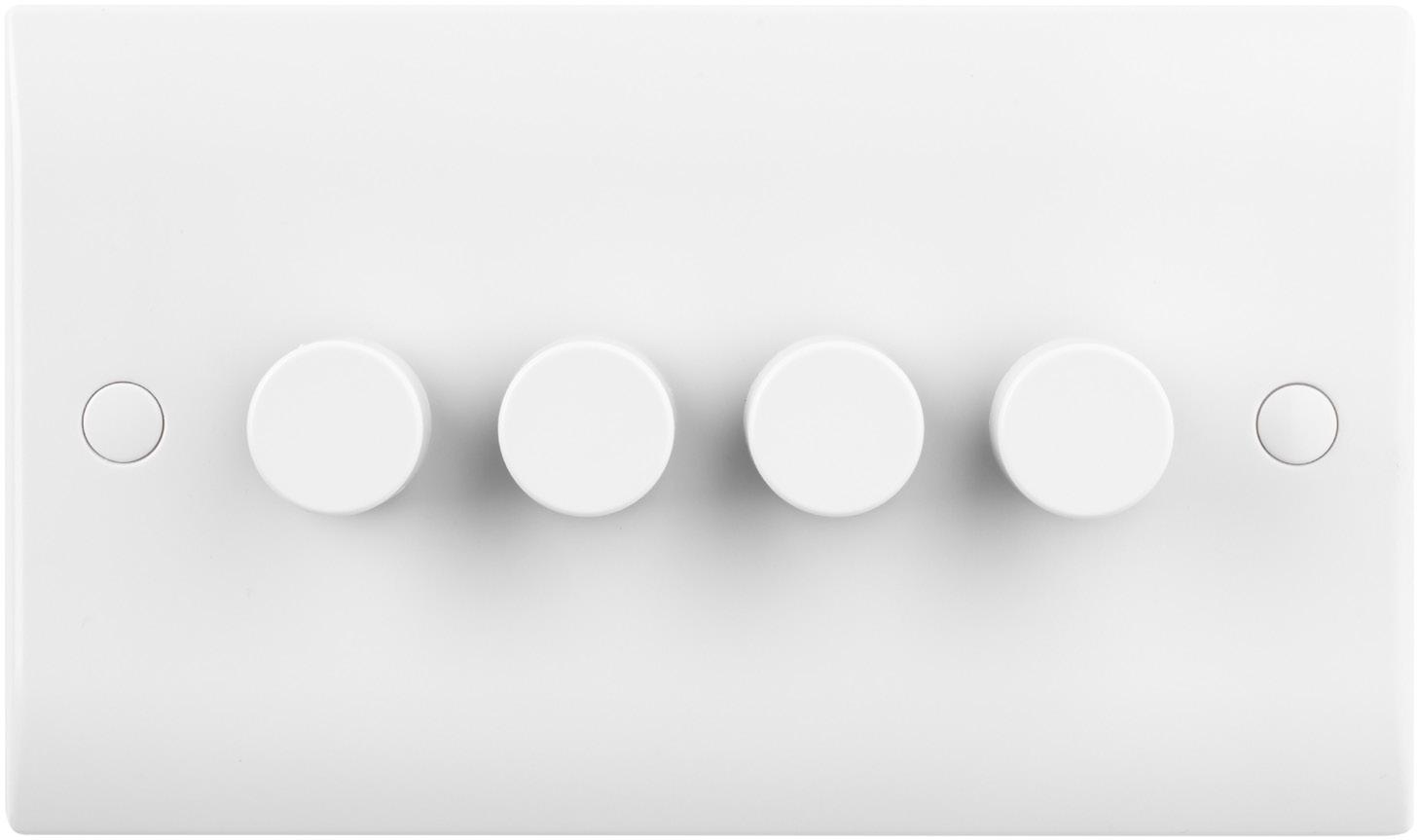

CE664 4G LED Dimmer 5-100W H: 86mm W: 146mm D: 26.3mm IEC/BS EN60669
CE81DIM 1G Dimmer Plate With Dimmer Cap H: 86mm W: 86mm D: 6.5mm -
CE82DIM 2G Dimmer Plate With Dimmer Caps H: 86mm W: 86mm D: 6.5mmSE6DUMDIM Dummy Dimmer H: 55mm W: 41mm D: 23.4mm -
CE661
CE662
CE663
CE664

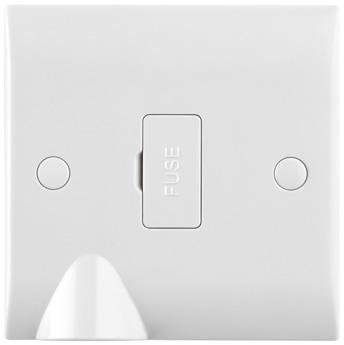

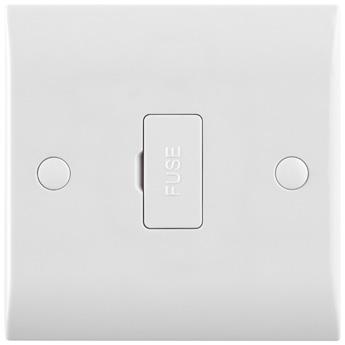

13A UNSWITCHED FUSED SPUR UNITS
•
•

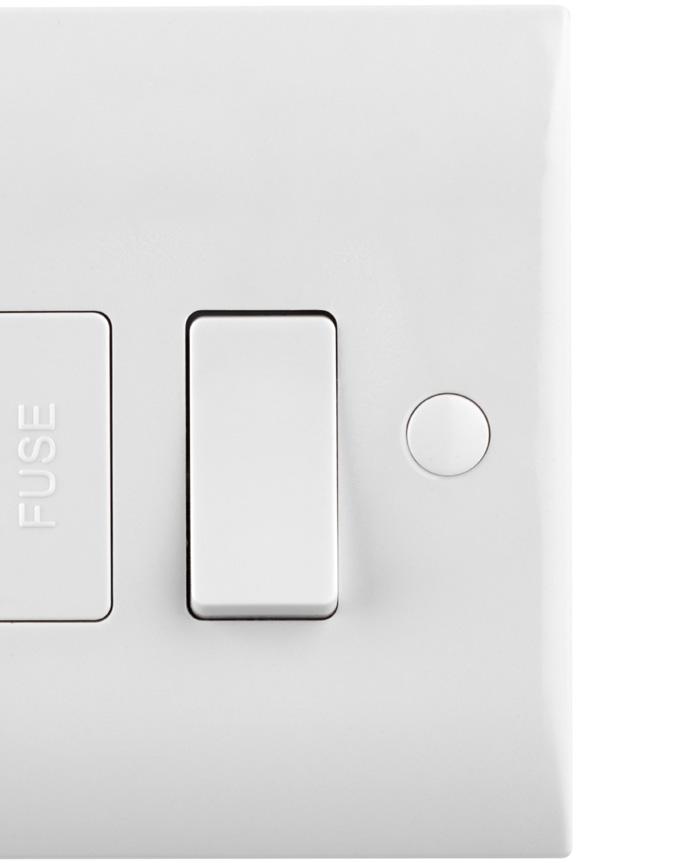

13A SWITCHED FUSED SPUR UNITS
•
•

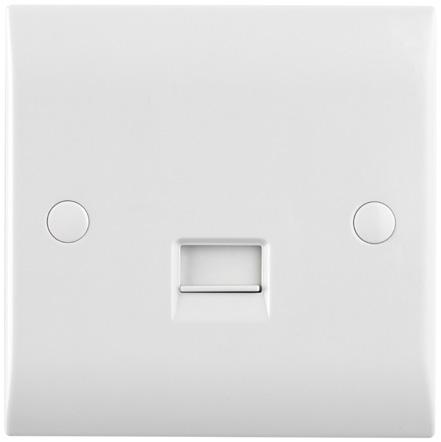

TELEPHONE SOCKETS
• Standards: BS 5733
• Min mounting box depth: 25mm
Telephone Master Socket
Telephone Secondary Socket

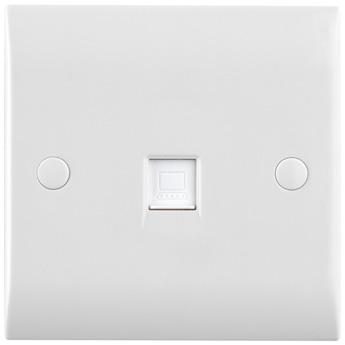

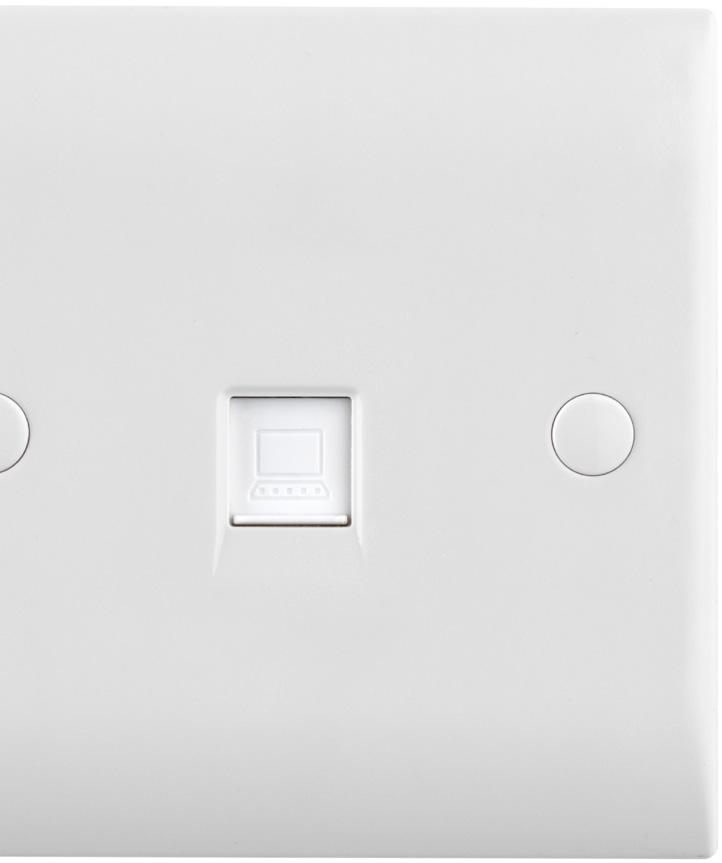

DATA SOCKET

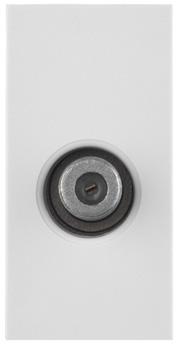

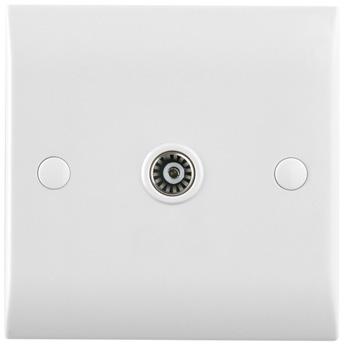

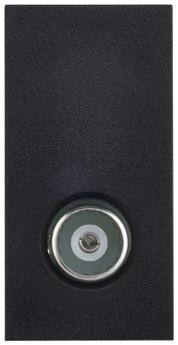

COAX TV SOCKETS
• Standards: BS 5733
• Min mounting box depth: 35mm
• H: 86mm W: 86mm D: 37mm
• Standards: BS 5733
• Min mounting box depth: 25mm
• H: 86mm W: 86mm D: 17.1mm
• Standards: BS 5733 25YR WARRANTY

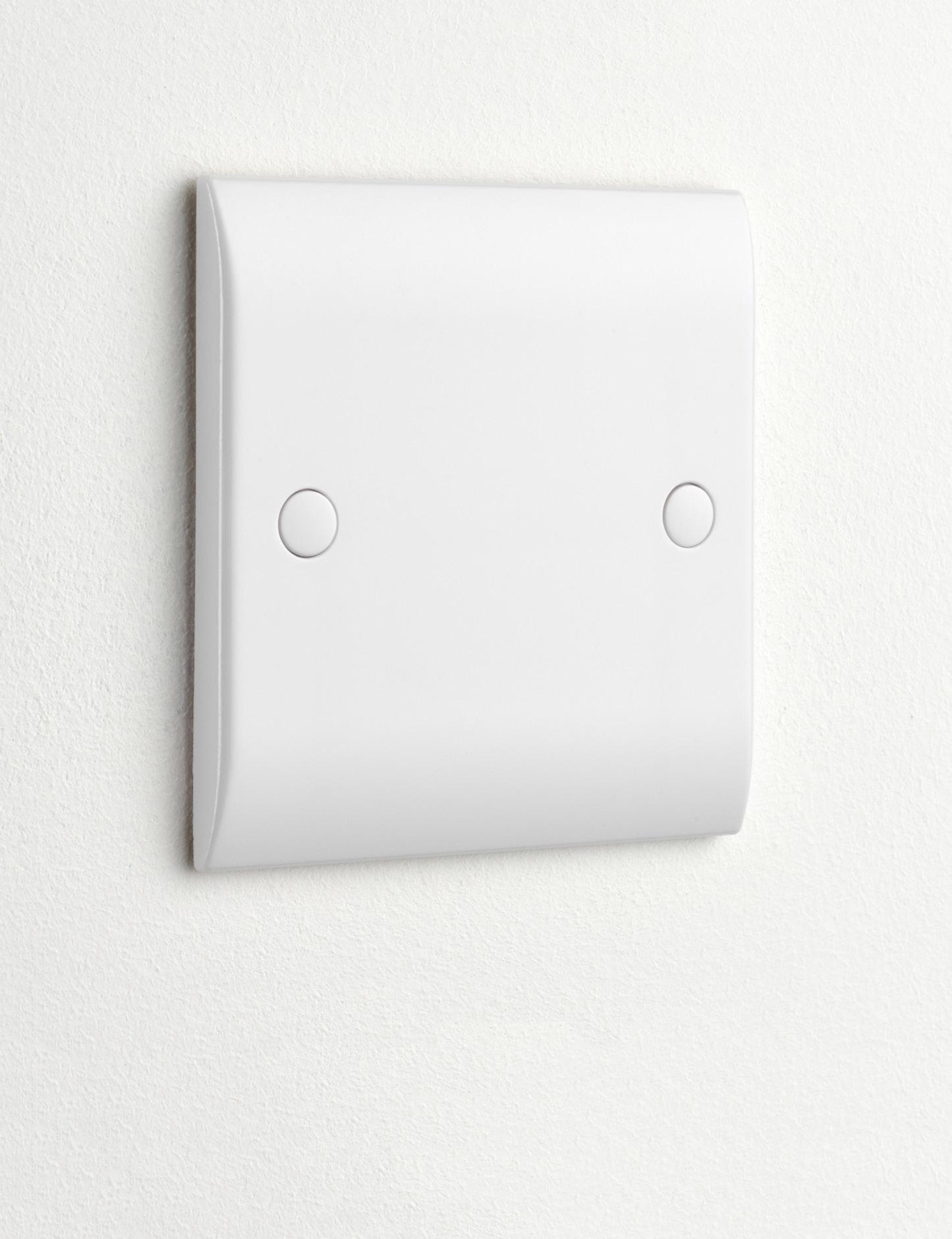

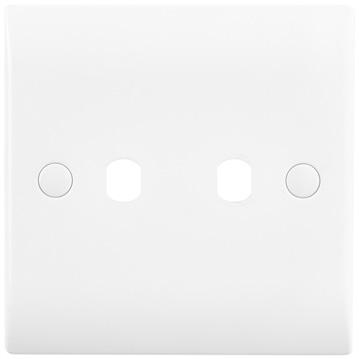

BLANKING PLATES
CE882
CE881

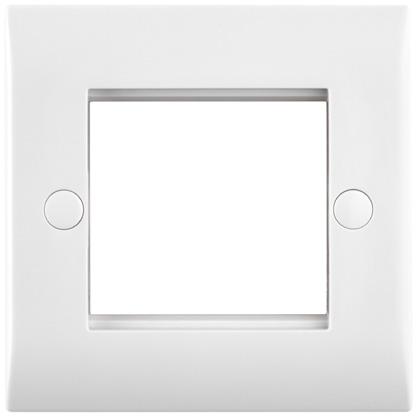

MODULAR FACEPLATES
25YR WARRANTY
• Standards: BS 5733

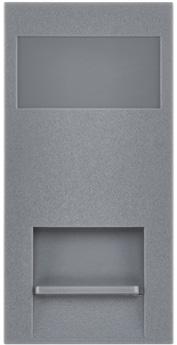

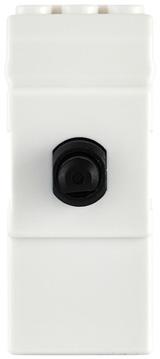

Euro Modules
Full range of Euro Modules can be found in the full catalogue
Code

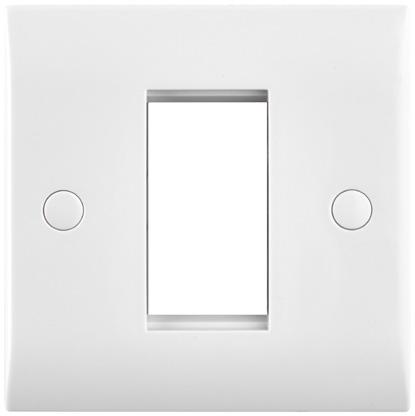

1G Modular Faceplate (1 Module)
2G Modular Faceplate (2 Modules) H: 86mm W: 86mm D: 6.5mm

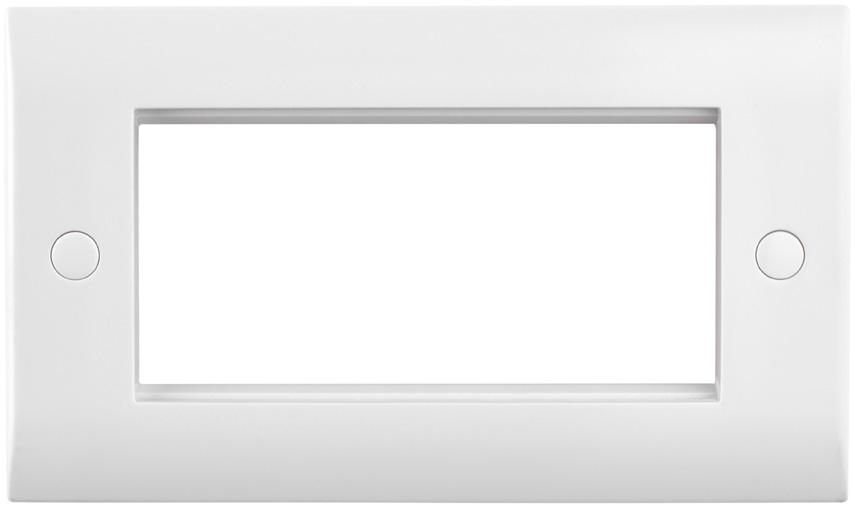

4G Modular Faceplate (4 Modules) H: 86mm W: 146mm D: 6.5mm
CEMFP1
CEMFP2
CEMFP4
CEMFP1
CEMFP2
CEMFP4

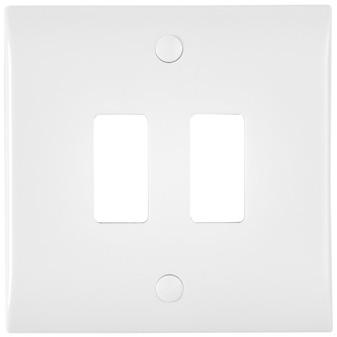

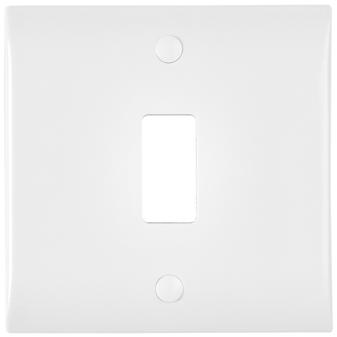

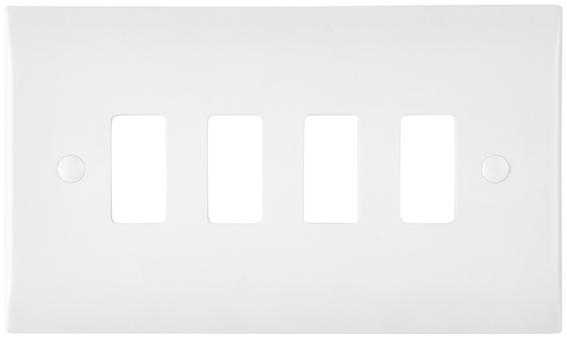

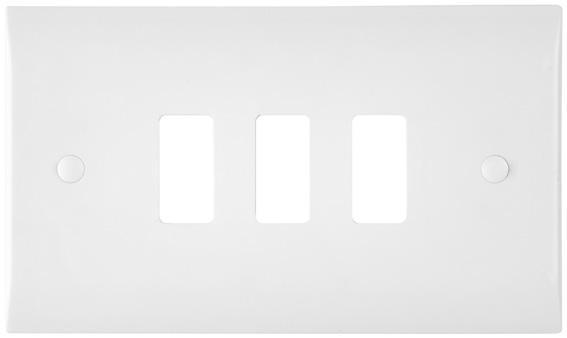

GRID FRONT PLATES

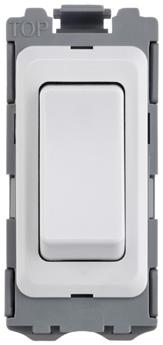

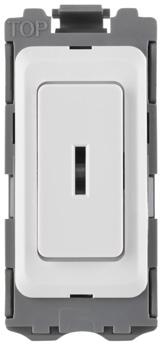

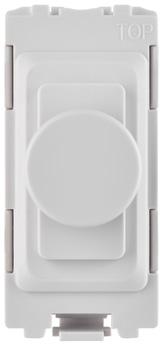

Grid Modules
Full range of Grid Modules can be found in the full catalogue
CEGFP1
CEGFP2
CEGFP3
CEGFP4
CEGFP6
CEGFP1
CEGFP3
CEGFP6
CEGFP4
CEGFP8 Back of plate
CEGFP2
