Saxby Electrical Grid

SAXBY ELECTRICAL

Versatile modules

The white grid modules can be only on the white grid plates. The metal grid modules can be used only on the metal grid plates.

Variety of combinations

A vast range of grid modules to build your own configurations

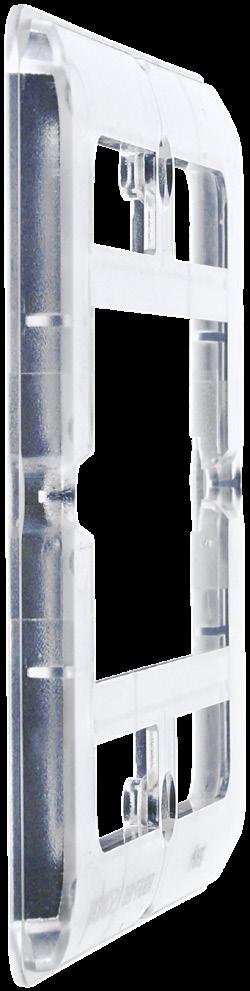

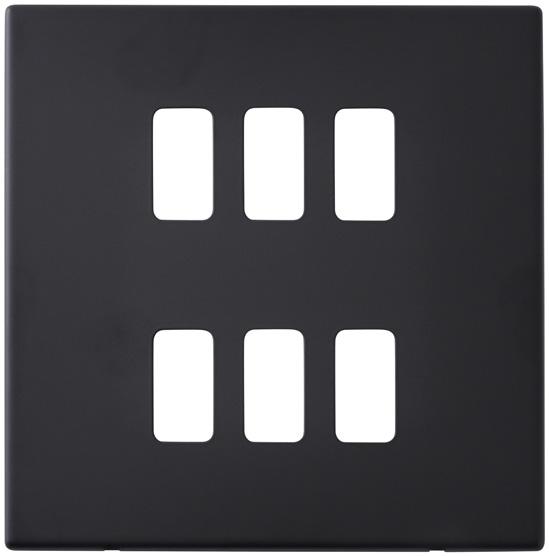

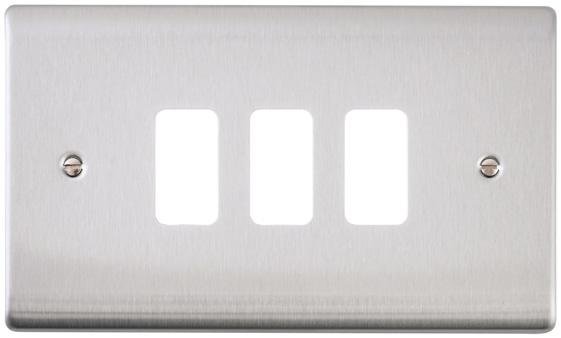

Stylish grid plates

A variety of grid plates to suit every style, available in white moulded, raised screwed and screwless

Available in different colour finishes White, brushed steel, matt black or polished chrome. All brushed steel modules come with grey inserts as standard. Black and white inserts are also supplied.

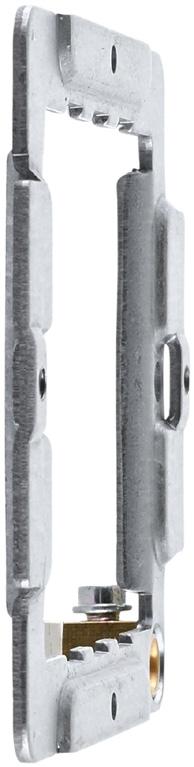

Yoke

Yoke supplied as standard with every grid plate

Integrated moisture gasket Prevents any moisture transfer to decorative front plate

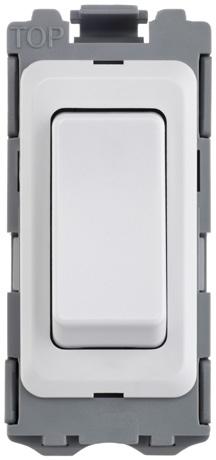

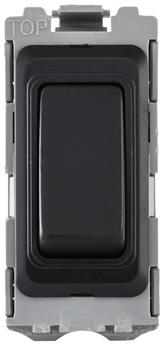

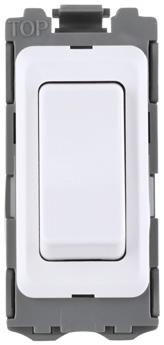

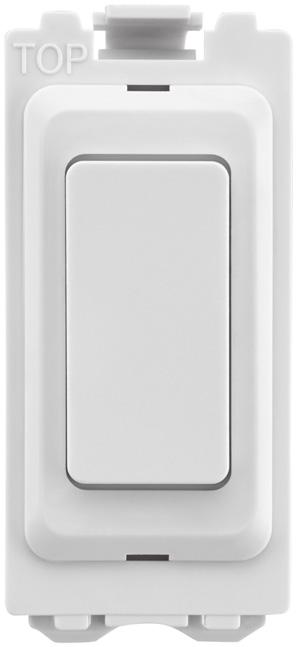

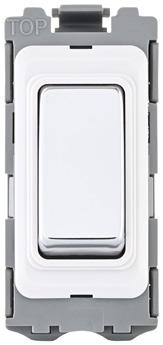

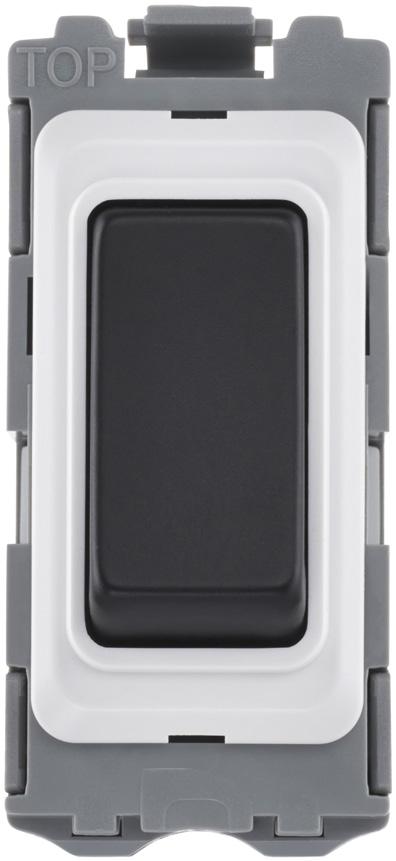

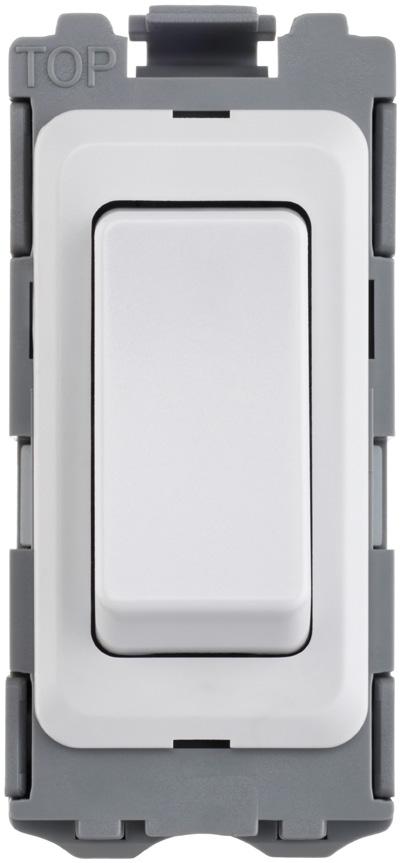

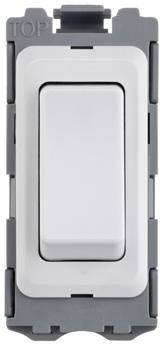

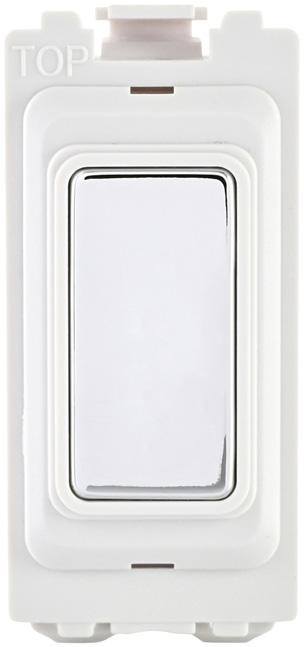

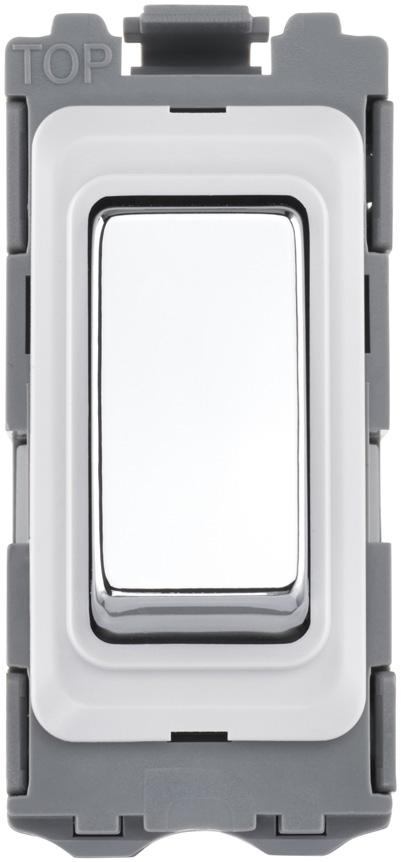

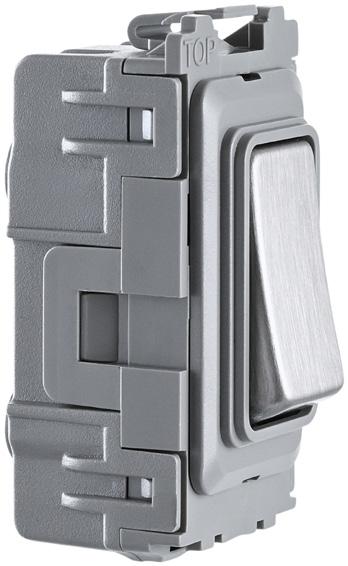

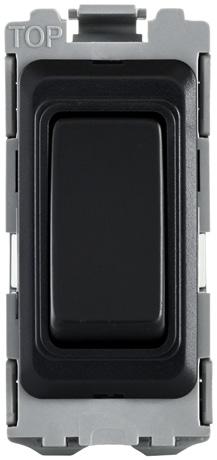

20A SP GRID SWITCH MODULES

•

•

20A DP GRID SWITCH MODULES

•

•

20A INTERMEDIATE GRID SWITCH MODULES

• Standards: IEC/BS EN60669

• Min mounting box depth: 25mm

Grid Plates

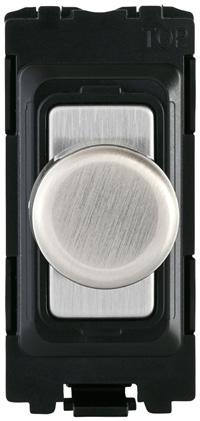

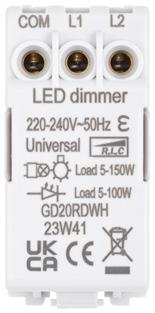

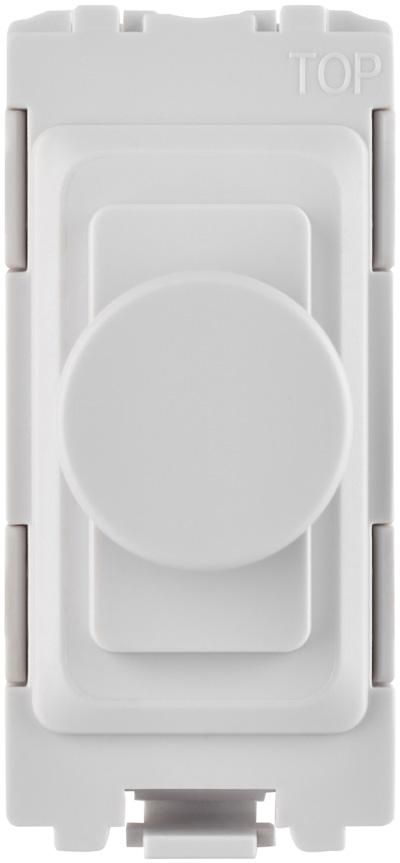

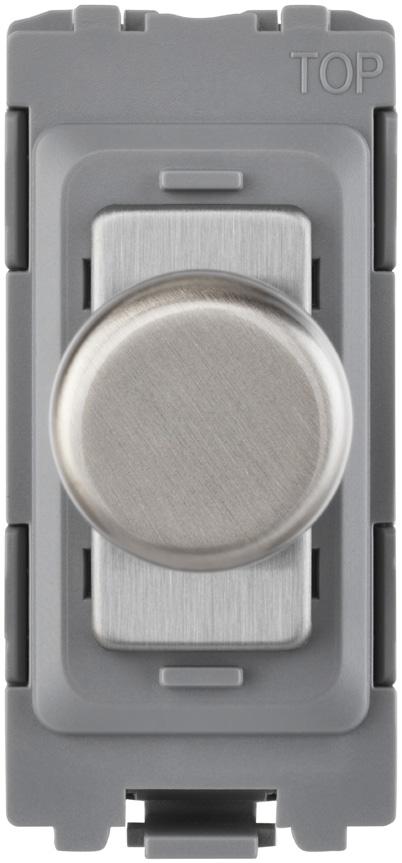

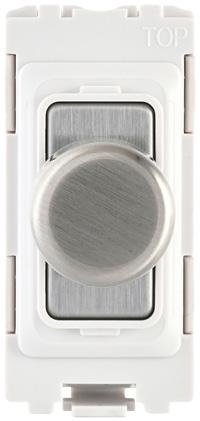

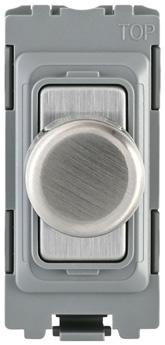

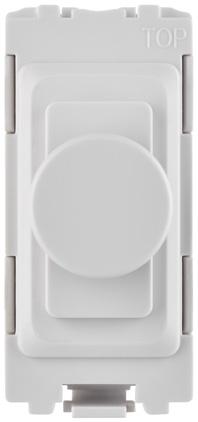

1G DIMMER MODULES

• Standards: IEC/BS EN60669

• Min mounting box depth: 25mm

• H: 54mm W: 24.8mm D: 19mm

Versatile Modules

The white grid modules can be used on the white grid plates only, see the full catalogue. The metal grid modules can be used on Raised Screwed and Screwless grid plates only, see the full catalogue.

25YR WARRANTY

• Standards: IEC/BS EN60669

• Min mounting box depth: 25mm

• H: 54mm W: 24.8mm D: 22.2mm

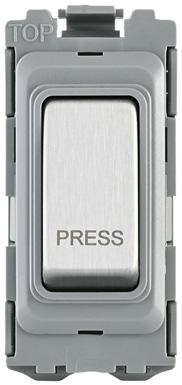

20A RETRACTIVE SWITCHES

GD20RWH 20A SP Retractive (Press) Grid Switch Module White

GD20RBS 20A SP Retractive (Press) Grid Switch Module Brushed steel

GD20RBL 20A SP Retractive (Press) Grid Switch Module Matt black

GD20RPC 20A SP Retractive (Press) Grid Switch Module Polished chrome

20A CENTRE ON/OFF SWITCH

25YR WARRANTY

• Standards: IEC/BS EN60669

• Min mounting box depth: 25mm

• H: 54mm W: 24.8mm D: 22.2mm

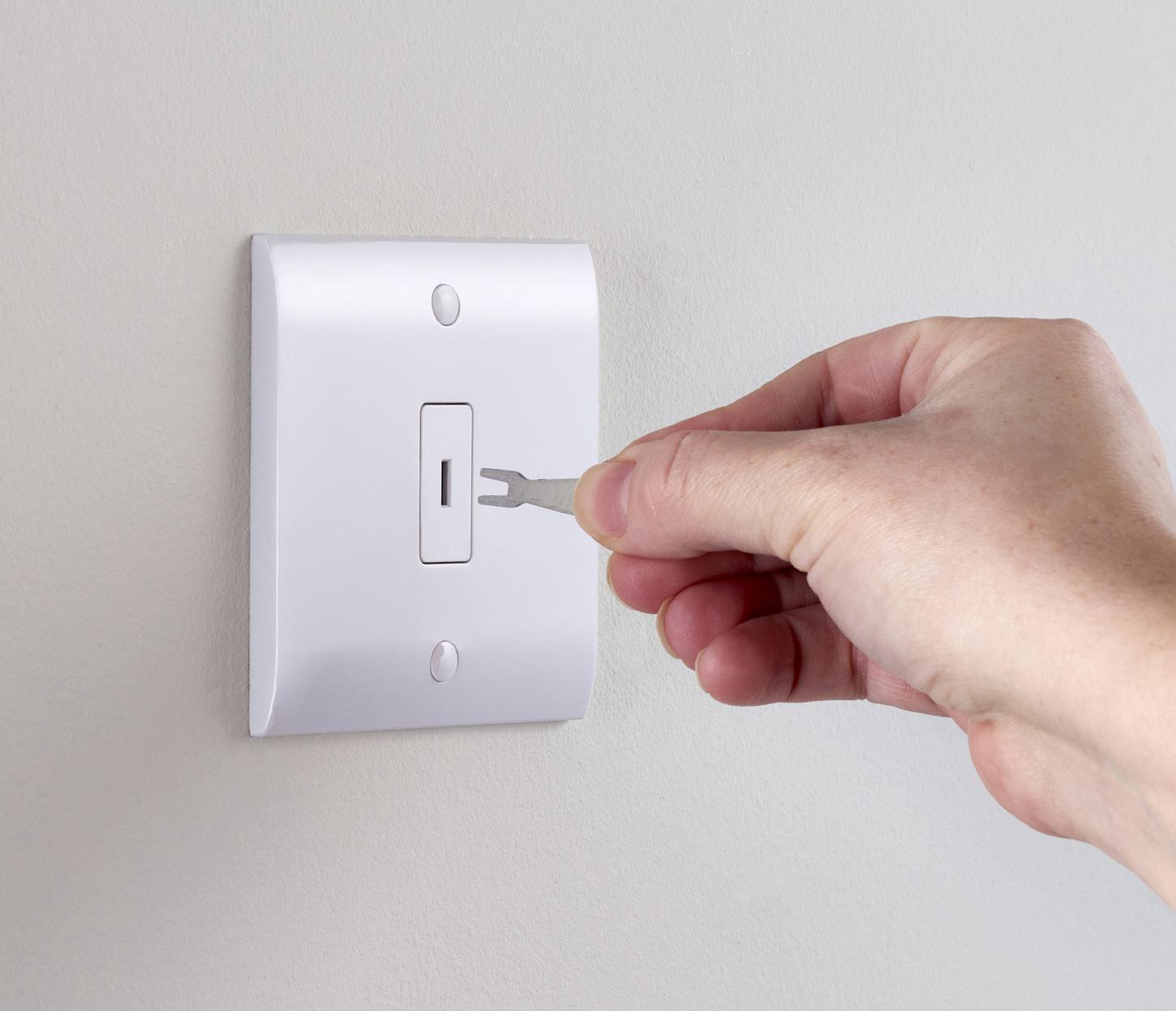

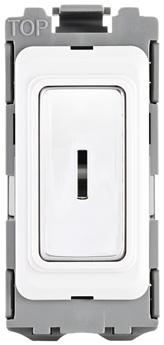

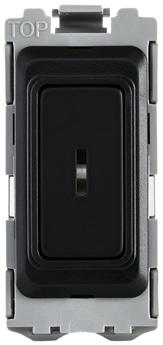

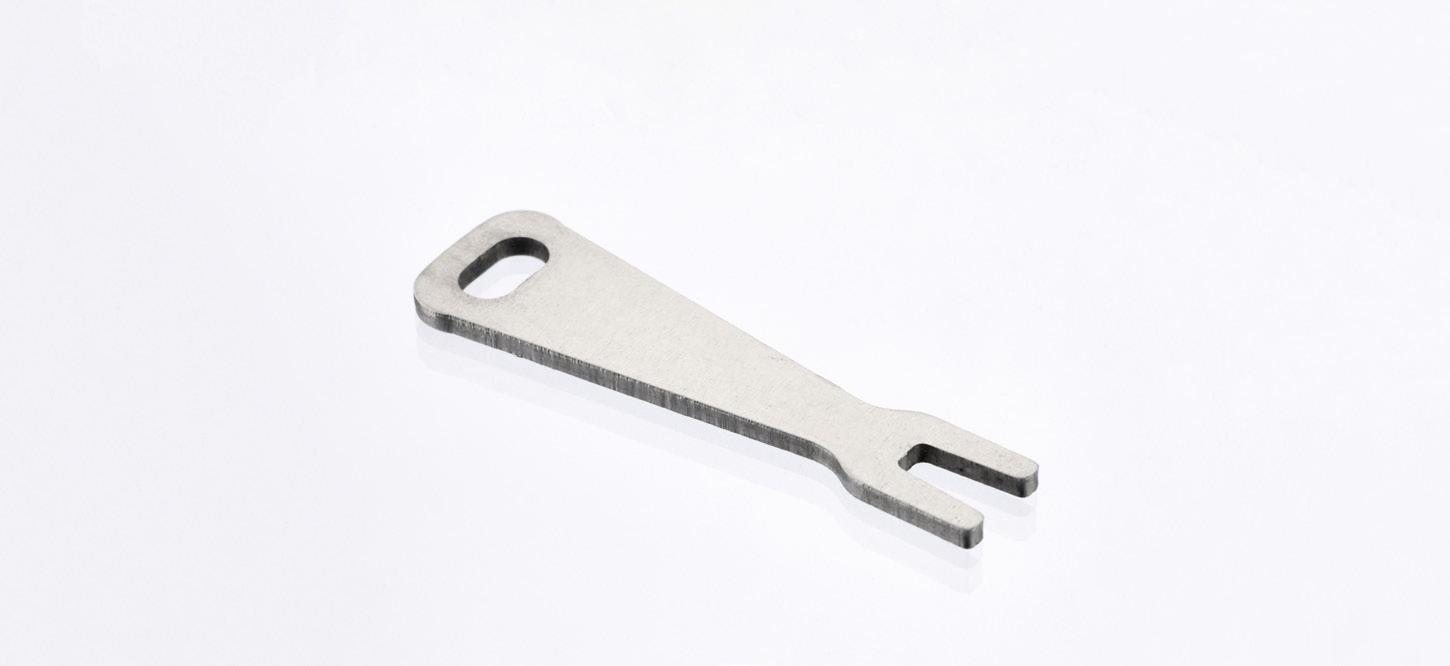

20A KEY MODULES

• Standards: IEC/BS EN60669

•

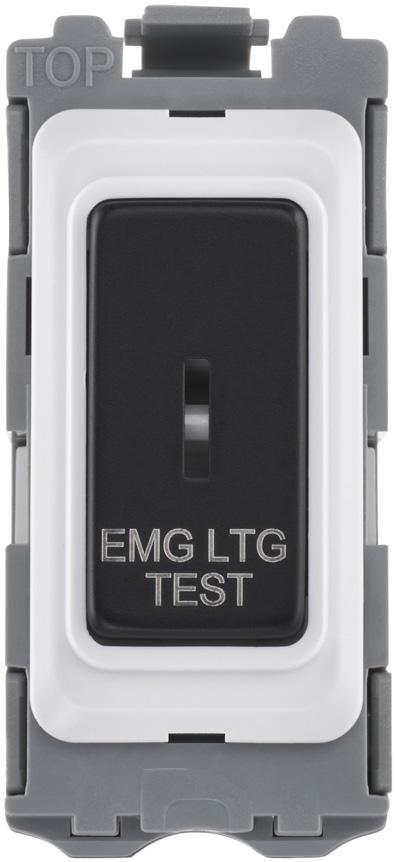

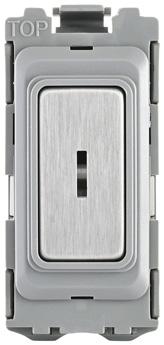

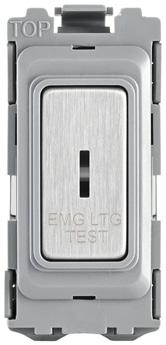

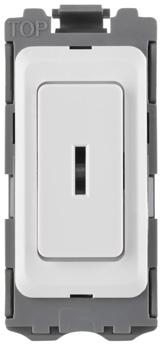

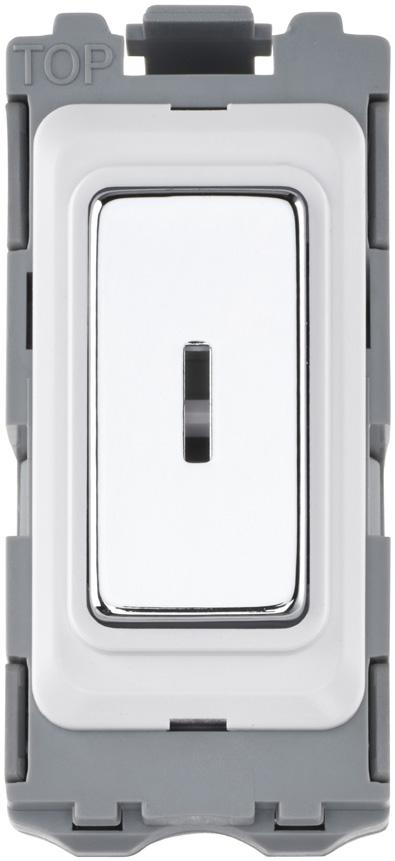

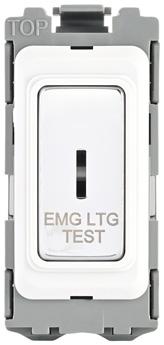

20A GRID KEY SWITCH MODULES

• Standards: IEC/BS EN60669

• Min mounting box depth: 25mm

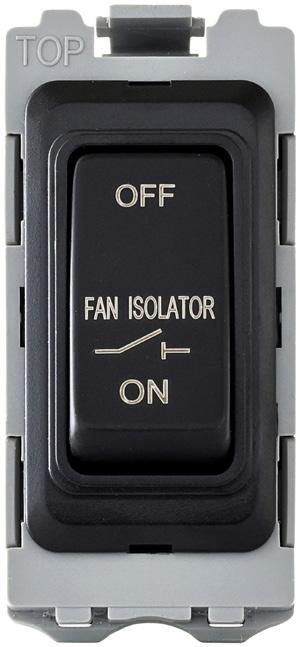

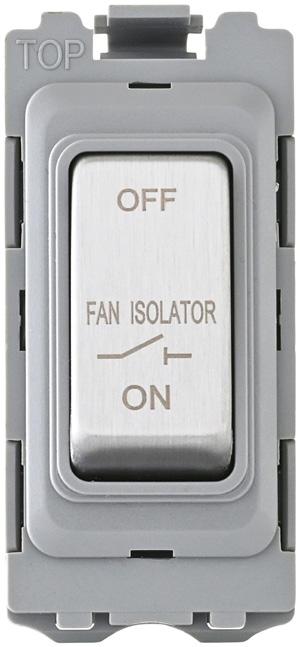

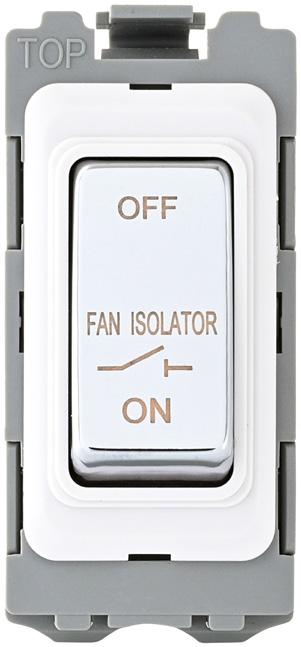

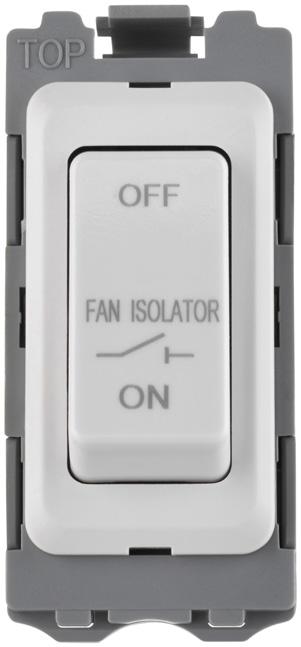

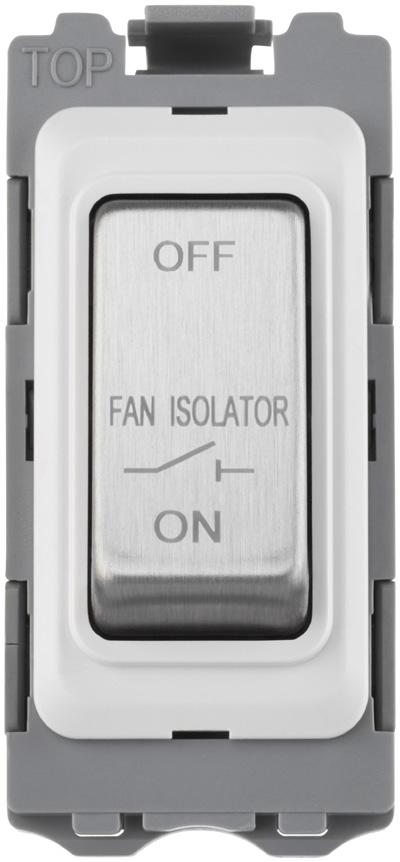

10AX FAN ISOLATOR GRID MODULES

Shown to scale

• Standards: IEC/BS EN60669

• Min mounting box depth: 25mm

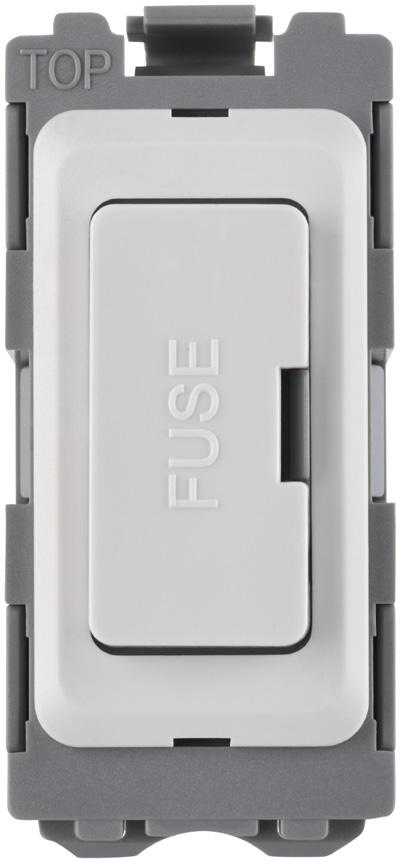

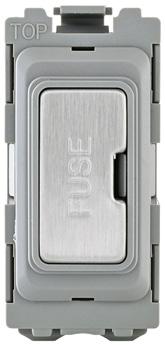

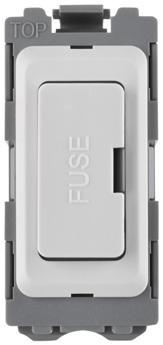

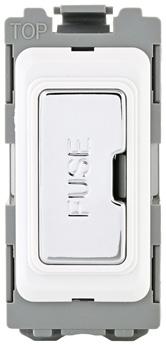

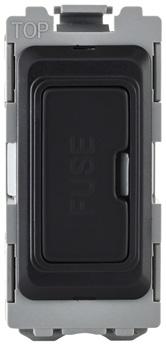

13A FUSE HOLDERS

•

•

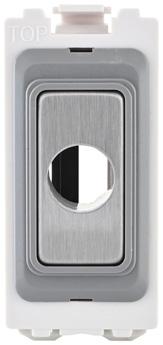

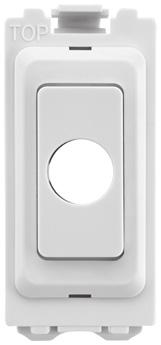

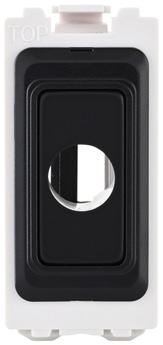

13A FLEX OUTLETS

•

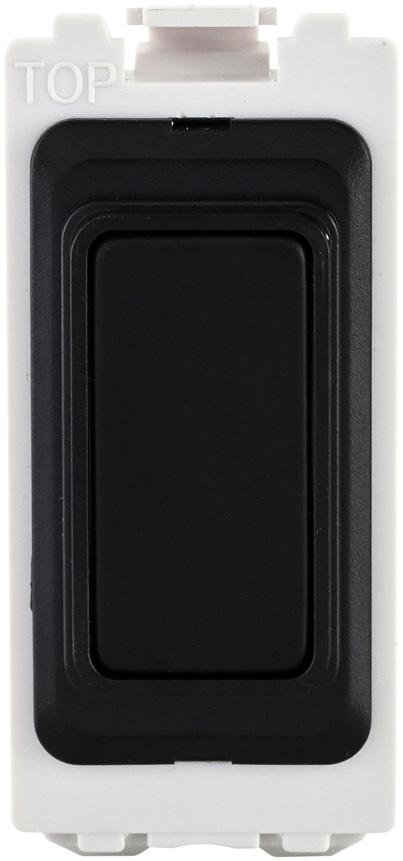

BLANKING GRID MODULES

25YR WARRANTY ANTI MICROBIAL PROPERTY

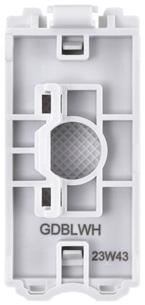

Back of module

• Min mounting box depth: 25mm

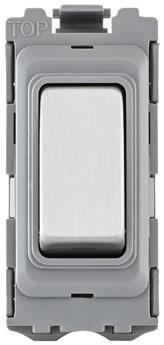

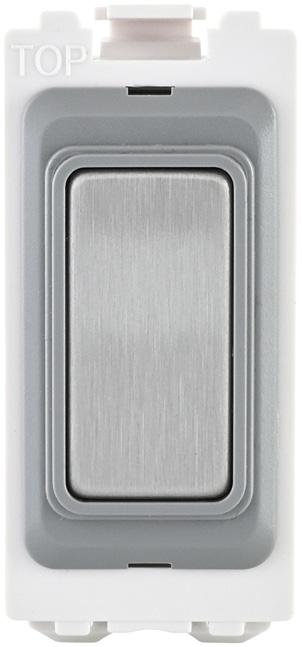

Interchangeable Inserts

All Brushed steel modules come with grey insert as standard. Black and white inserts also supplied.

Code Description

GDBLWH Blanking Grid Module

GDBLBS Blanking Grid Module

GDBLBL Blanking Grid Module

GDBLPC Blanking Grid Module

Shown to scale

H: 54mm W: 24.8mm D: 14.9mm

steel H: 54mm W: 24.8mm D: 14.9mm

black H: 54mm W: 24.8mm D: 14.9mm

chrome H: 54mm W: 24.8mm D: 14.9mm

OUR PRODUCTS

SAFE, FAST FIX INSTALLATION

THE RIGHT PRODUCT FOR THE JOB

MORE FUNCTIONALITY THE RIGHT PRICE

INDUSTRY LEADING WARRANTIES

OUR SERVICE

SAXBY TRADE EXCLUSIVE PORTAL TECHNICAL SUPPORT TEAM

NEXT DAY DELIVERY 4PM CUT OFF MARKETING SUPPORT

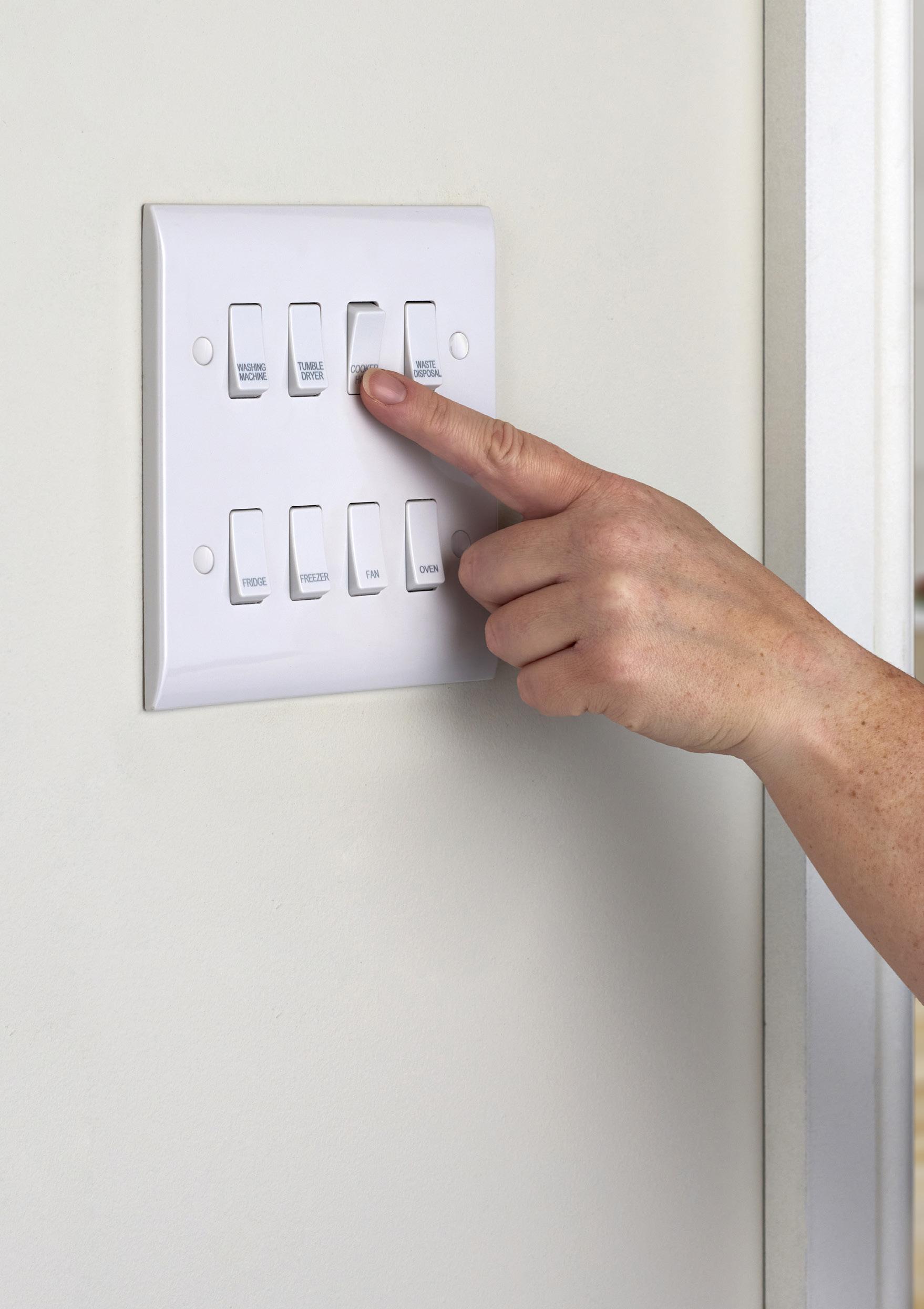

GRID ROCKERS

25YR WARRANTY ANTI MICROBIAL PROPERTY ANTI FINGERPRINT LACQUER

GDRBOWH GDRFFWH GDRCHWH

GDRHBWH GDRDWWH GDRMWWH GDRFANWH GDROVWH GDRFREWH GDRTDWH GDRFRIWH GDRWMWH GDRWDWH GDRBLWH

• H: 28.7mm W: 13.7mm D: 12.15mm

• White covers have Anti Fingerprint Lacquer

GDRBOWH GDRBOBS GDRBOBL GDRBOPC

Brushed steel (BS) Matt black (BL) Polished chrome (PC)

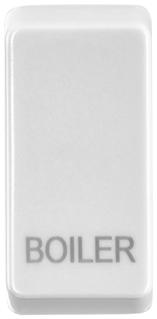

“BOILER”

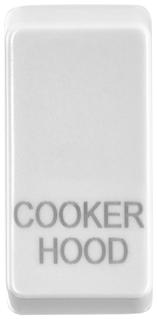

GDRCHWH GDRCHBS GDRCHBL GDRCHPC Grid Rocker Cover Marked “COOKER HOOD”

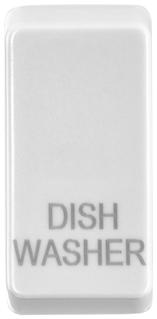

GDRDWWH GDRDWBS GDRDWBL GDRDWPC Grid Rocker Cover Marked “DISHWASHER”

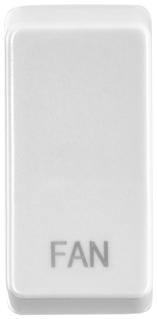

GDRFANWH GDRFANBS GDRFANBL GDRFANPC Grid Rocker Cover Marked “FAN”

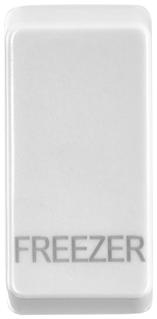

GDRFREWH GDRFREBS GDRFREBL GDRFREPC Grid Rocker Cover Marked “FREEZER”

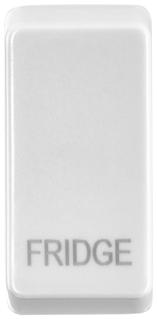

GDRFRIWH GDRFRIBS GDRFRIBL GDRFRIPC Grid Rocker Cover Marked “FRIDGE”

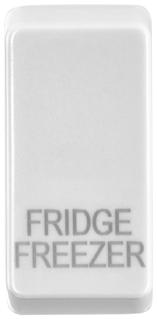

GDRFFWH GDRFFBS GDRFFBL GDRFFPC Grid Rocker Cover Marked “FRIDGE FREEZER”

GDRHBWH GDRHBBS GDRHBBL GDRHBPC

GDRMWWH GDRMWBS GDRMWBL GDRMWPC

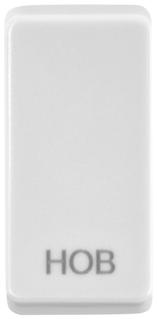

“HOB”

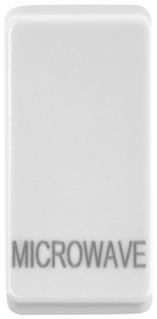

“MICROWAVE”

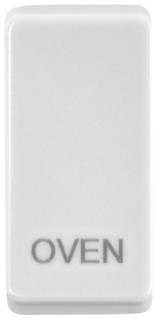

GDROVWH GDROVBS GDROVBL GDROVPC Grid Rocker Cover Marked “OVEN”

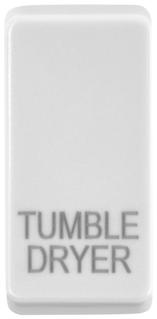

GDRTDWH GDRTDBS GDRTDBL GDRTDPC Grid Rocker Cover Marked “TUMBLE DRYER”

GDRWMWH GDRWMBS GDRWMBL

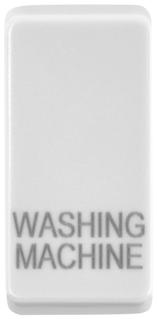

Grid Rocker Cover Marked “WASHING MACHINE”

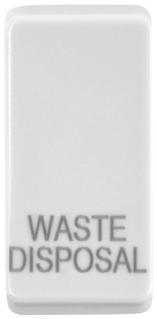

GDRWDWH GDRWDBS GDRWDBL GDRWDPC Grid Rocker Cover Marked “WASTE DISPOSAL”

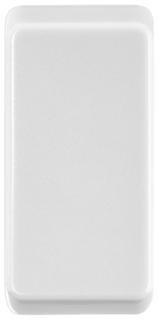

GDRBLWH GDRBLBS GDRBLBL GDRBLPC Grid Rocker Plain
