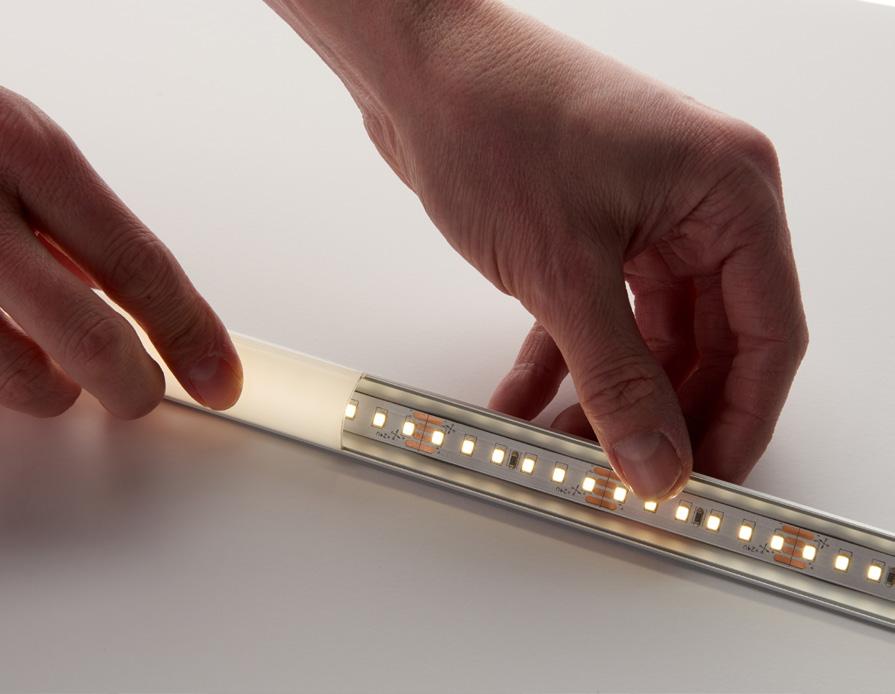

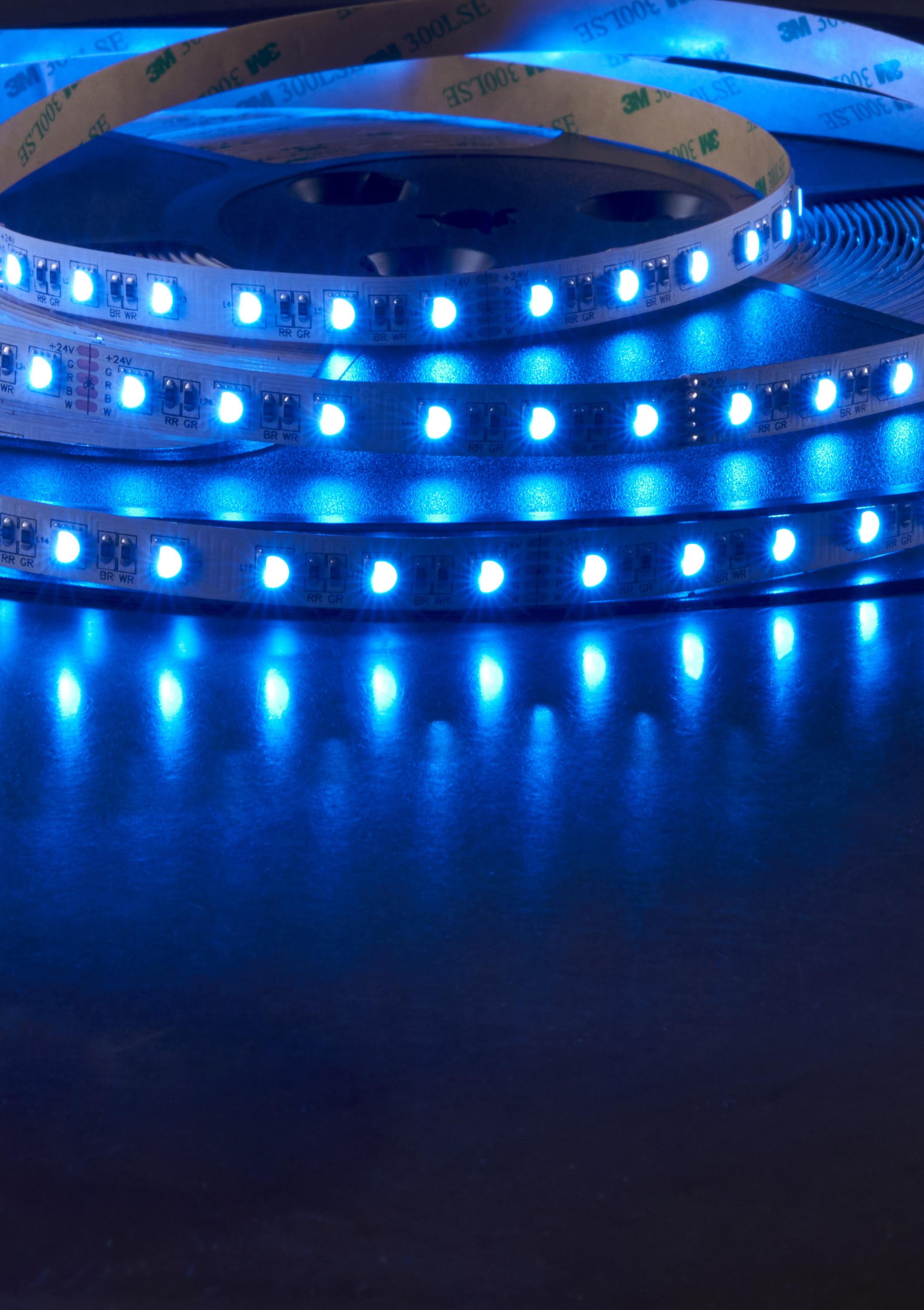

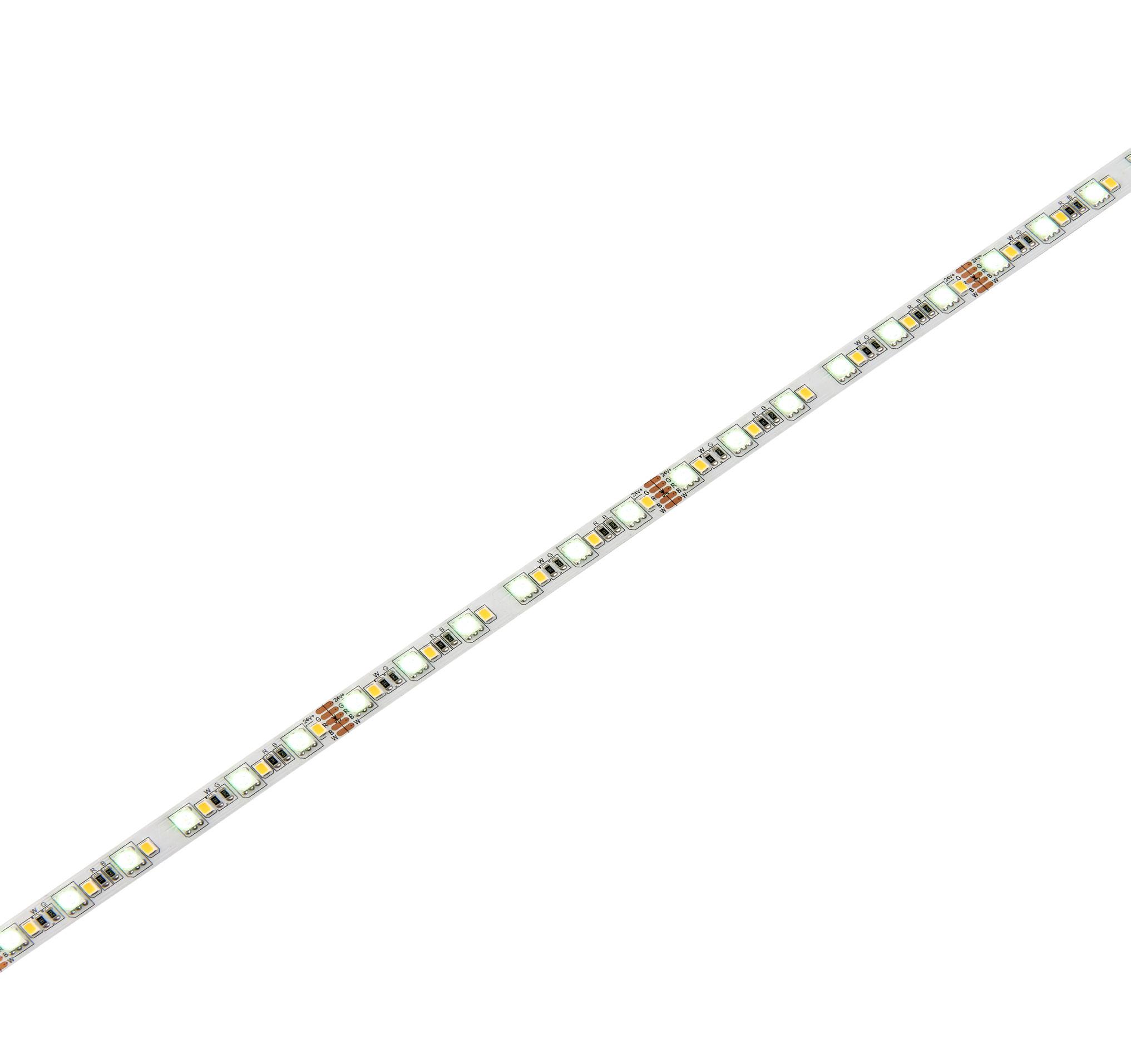

OrionLED is Saxby’s ever-growing signature tape range, offering a wide variety of options including IP20, IP65, IP67, Flexible ‘S’ shape, COB, RGB, and RGBW reels. Available in 24V or 48V, with power options from low to high, the range also includes warm and cool white options, various LEDs per metre, and 5m to 30m reel lengths. A 3M self-adhesive backing ensures quick installation, and an extensive range of accessories is available to complete any setup.

WELCOME TO ORION SAXBY’S SIGNATURE LED TAPE RANGE

GETTING STARTED

OrionLED from Saxby includes a wide range of options to suit a variety of applications, making it the ideal choice for domestic, commercial, or retail installations.

It is essential to identify the right product to achieve the desired effect, as well as ensuring suitability for the installation environment, so we have put together some key points to support you in selecting the right products for your customer or project.

Orion20 and Orion65 are available in a range of colour temperatures and brightness, with the number in their name relating to their IP rating, allowing you to select the correct level of water protection.

OrionPRO, OrionFLEX AND OrionRGB are all offered at IP20 for indoor use with various features and benefits. OrionRGBW is available in different voltages and IP ratings, whilst OrionPro Neon Flex is fully IP67 rated.

To achieve the desired brightness Orion is available in standard (60 LEDs per metre) and high (120 LEDs per metre) using highly efficient SMD LED (5050 or 2835) and COB LED with very high CRI.

All products are covered by a 3 year warranty (2 years standard + 1 year extension).

WHY CHOOSE ORION FROM SAXBY?

The range is supported by a comprehensive collection of control components including drivers, controllers, and accessories. An extensive series of aluminium extrusions are offered in the Rigel/RigelSLIM range from page 32.

SELECTING THE RIGHT PRODUCT

The following two pages have been created to support wholesalers and electricians in making the right product selection from Saxby’s Orion range. Point of sale and additional literature is also available to Saxby stockists, please speak to your account manager for details.

HOW TO CHOOSE THE CORRECT DRIVER FOR YOUR ORION LED STRIP LIGHT

Let’s look at an example:

If you would like to use 5m of the OrionPRO 10W/m, 24V LED, you will need to use a driver that has a rating of at least 50W. If the driver’s capacity is higher than the LED strips power draw (for example a 60W driver), you can safely power your Orion LED Tape. If you’re using 48V tape, make sure to use a 48V driver.

Please be aware: You should never use driver with capacity that is smaller than maximum power of LED strip used, as this will damage the Orion LED strip.

HOW TO DETERMINE THE POWER DRAW OF THE FLEXI-STRIP

In our example the Orion LED tape is ”10W/m 5M LED Strip”. The Orion LED strip has a total wattage of 50 Watts, or 10 Watts per meter (10 Watts/meter x 5 meters = 50 Watts)

Please see guide below to determine which driver should be used for different Orion LED strip types and lengths (listed minimum driver capacity required):

WHAT YOU NEED TO CONSIDER BEFORE CHOOSING OUR ORION STRIP

SELECTING THE DESIRED VOLTAGE OF TAPE FOR YOUR PROJECT

Saxby offer both 24V and 48V tape. The higher voltage 48V LED tape allows you to use longer continuous runs without visible voltage drop.

SELECTING THE DESIRED BRIGHTNESS FOR A PROJECT OR INSTALLATION

Lumens is the measurement of brightness as perceived by the human eye. Different projects require a certain amount of brightness to achieve a desired look. For example:

OrionPRO 5m 10W/m will produce 100LM per meter. The higher the lumens, the brighter the effect will be.

SELECTING THE DESIRED COLOUR TEMPERATURE

The Orion LED range offers the following options, 3000K (warm white), 4000K (cool white), 6000K (daylight white), RGB (full colour spectrum) and RGBW (full colour spectrum plus white). The colour of light is measured in degrees Kelvin (K). The temperature rating directly affects what the white light will look like. Your choice of colour temperature will depend on the effect that is required for each project.

COMPARE LED STRIP LENGTH AND NUMBER OF LEDS ON THE STRIP

When comparing common LED densities there are 3 types 30/60/120 LEDs per meter. The total light output of an LED strip is simply the sum of the light output from the individual LEDs on the LED strip. LED density has a direct impact on the total amount of light output, the more LEDs per meter, the more light per meter (when comparing situations where the LED is the same). LED density affects light distribution, because the LEDs are individual “point sources” depending on how they are installed. The individual LEDs on an LED strip may create a “dotted” effect or what is also sometimes called “spotting”. A higher density LED strip will have a lower chance of “spotting” and the individual LEDs cannot be seen.

WHAT DO THE NUMBERS OF THE LED CHIPS MEAN?

The different numbers on the SMD correlate to the different physical dimensions of the chip. The numbers 5050, 3528, 2835, etc. correlate to the size of the chip in millimetres. Some LEDs are brighter than others and some give off more light per watt. Saxby use SMD 5050 and SMD 2835.

COMPARE WATTAGE CONSUMED PER STRIP OF LEDS AND OPERATING VOLTAGE

The wattage will tell us how much power we are consuming while these lights are on and in turn how much the running cost will be at the end of each month. When comparing the different LED strip options be sure to verify if the wattage is given per meter or reel before you buy.

Please note: An LED strip light that uses 24 volts will not work if you purchase a 12 volt driver and may also result in risk of fire. When selecting the driver for you desired strip light, if unsure please seek guidance from a competent electrician.

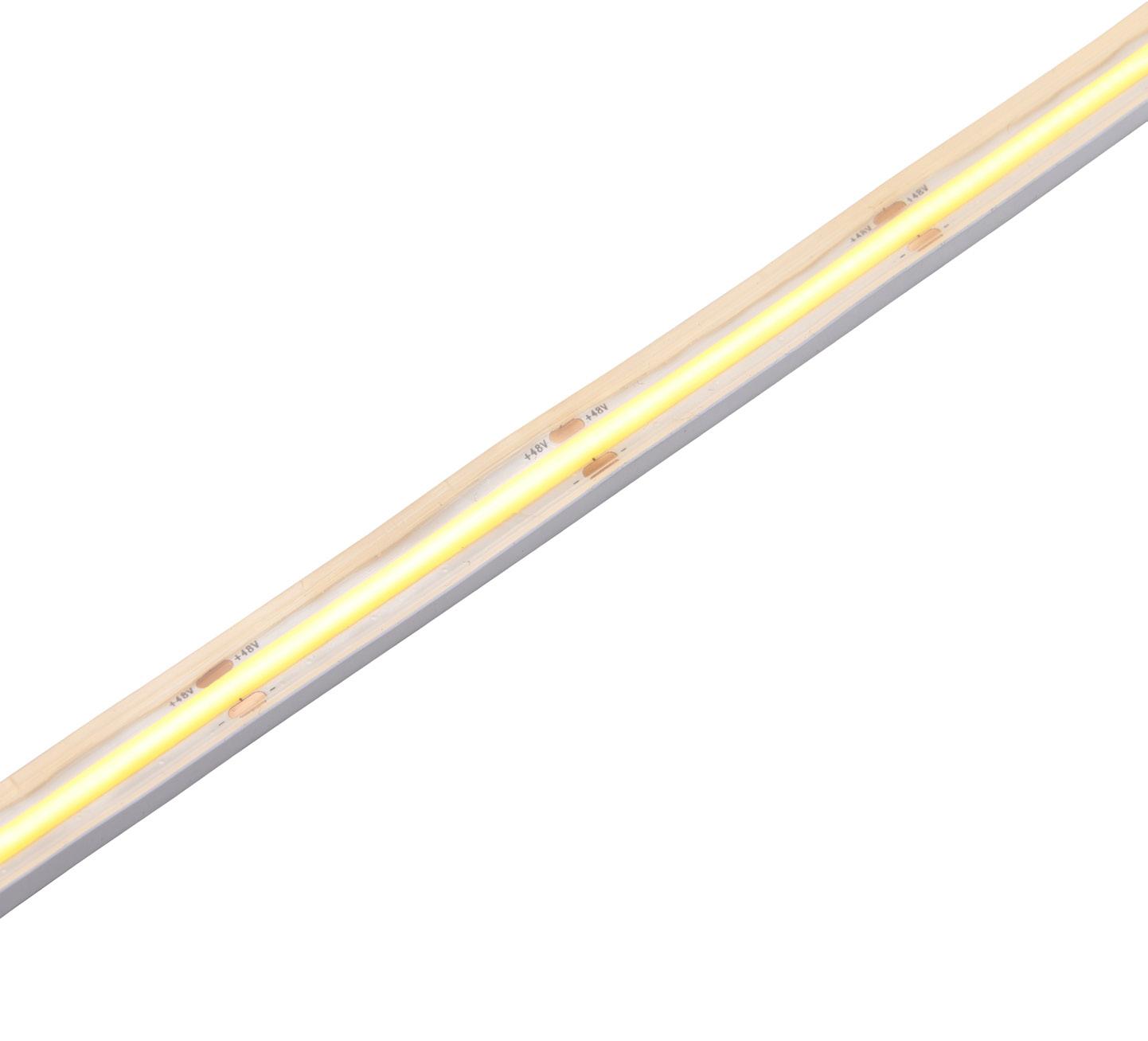

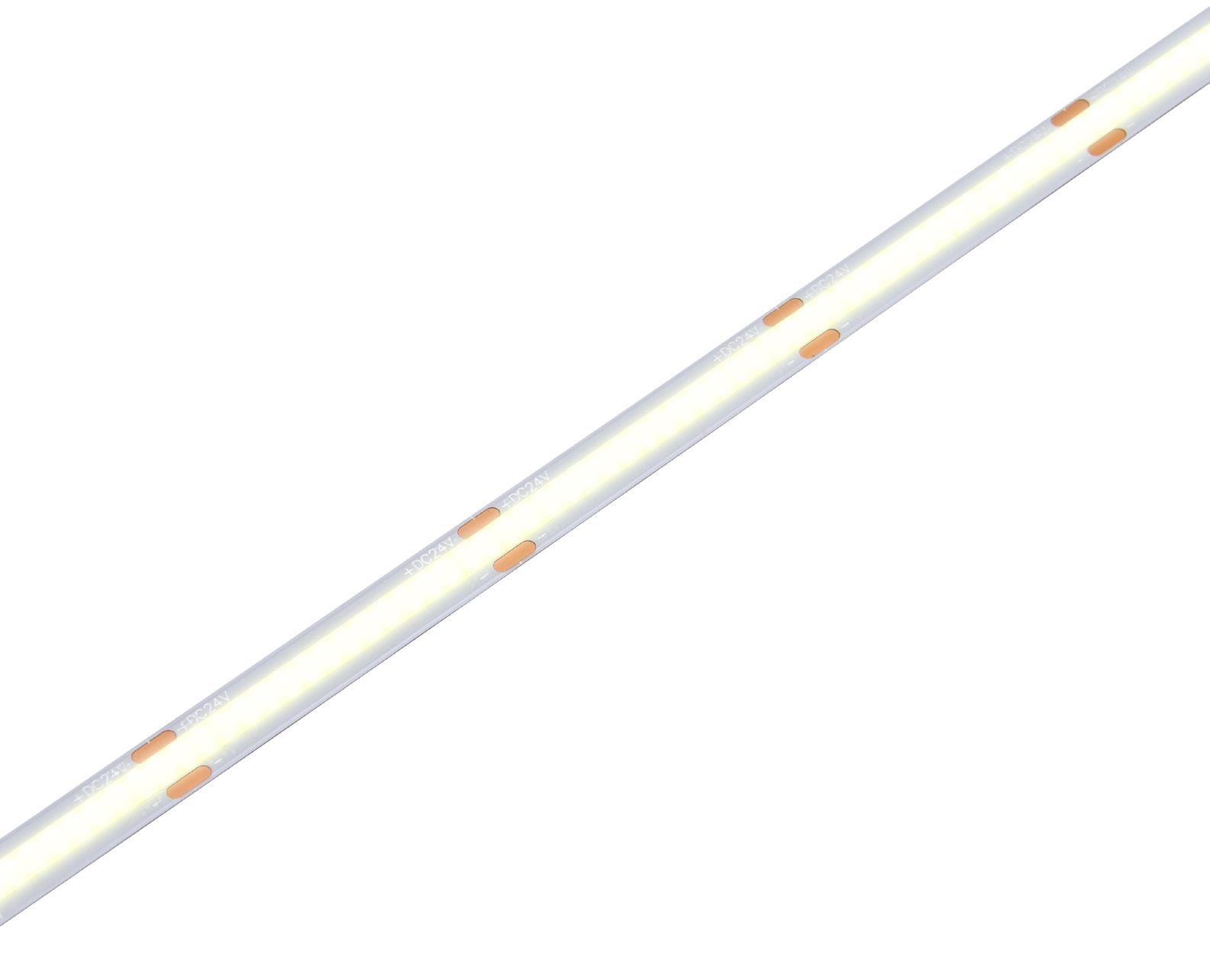

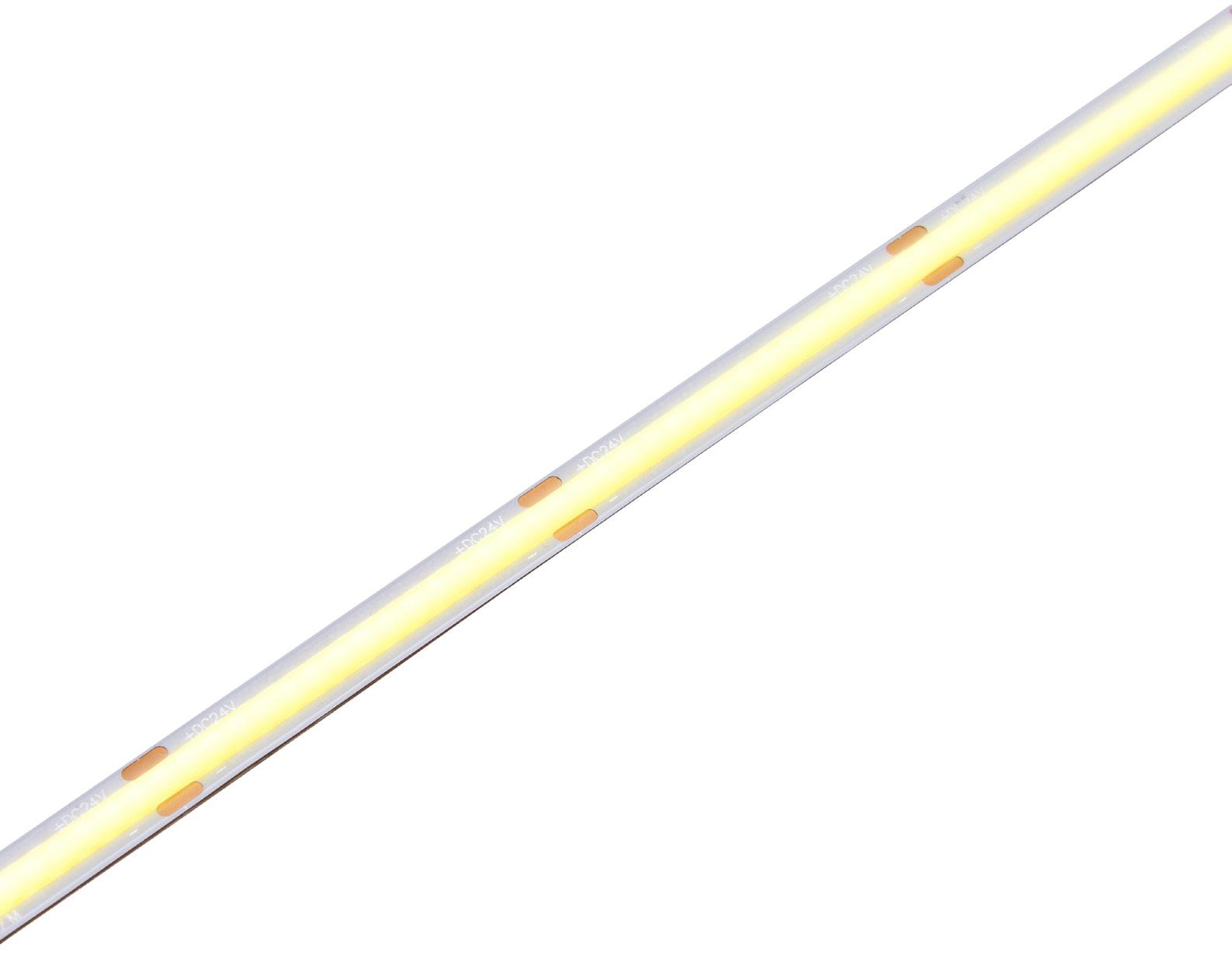

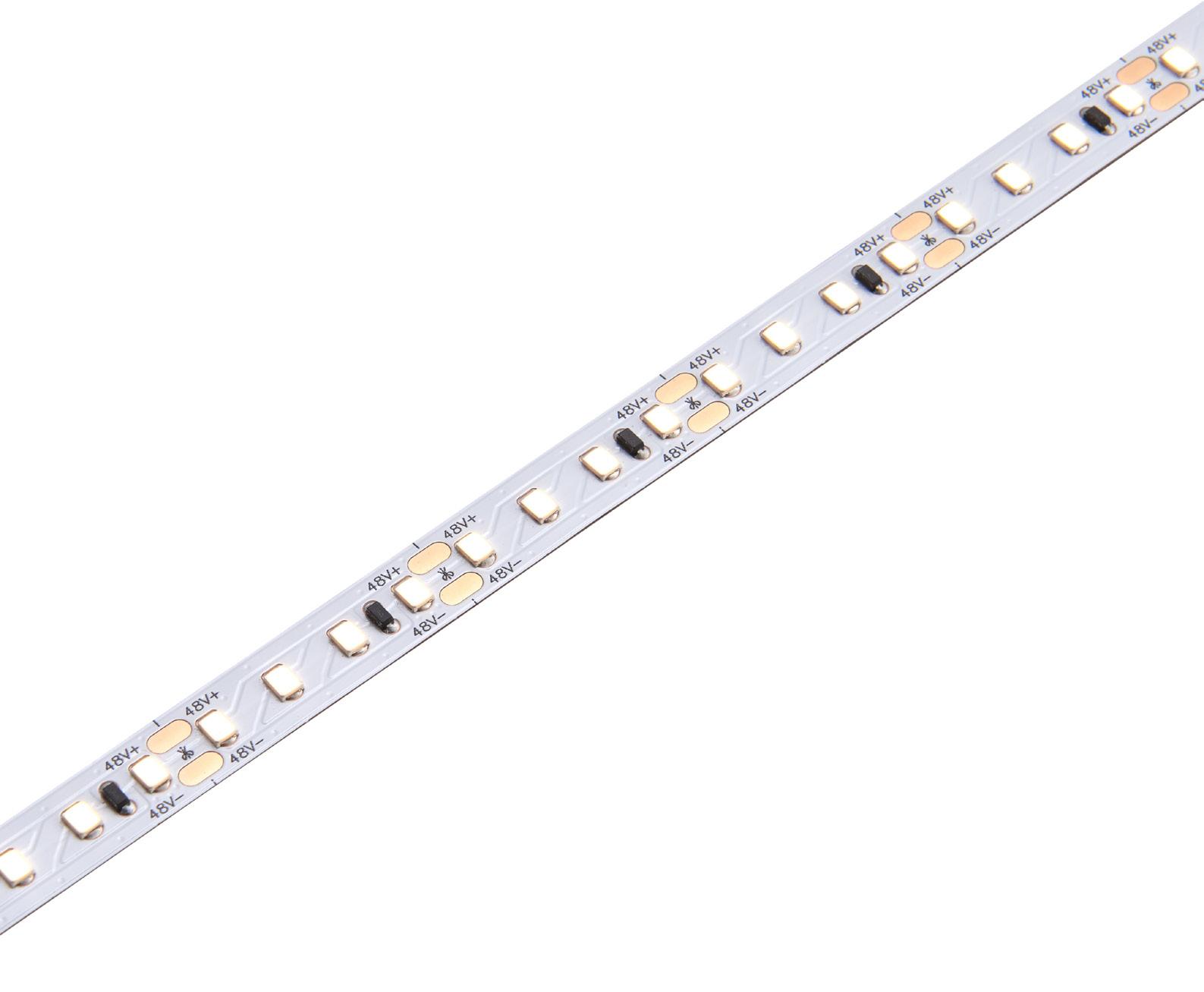

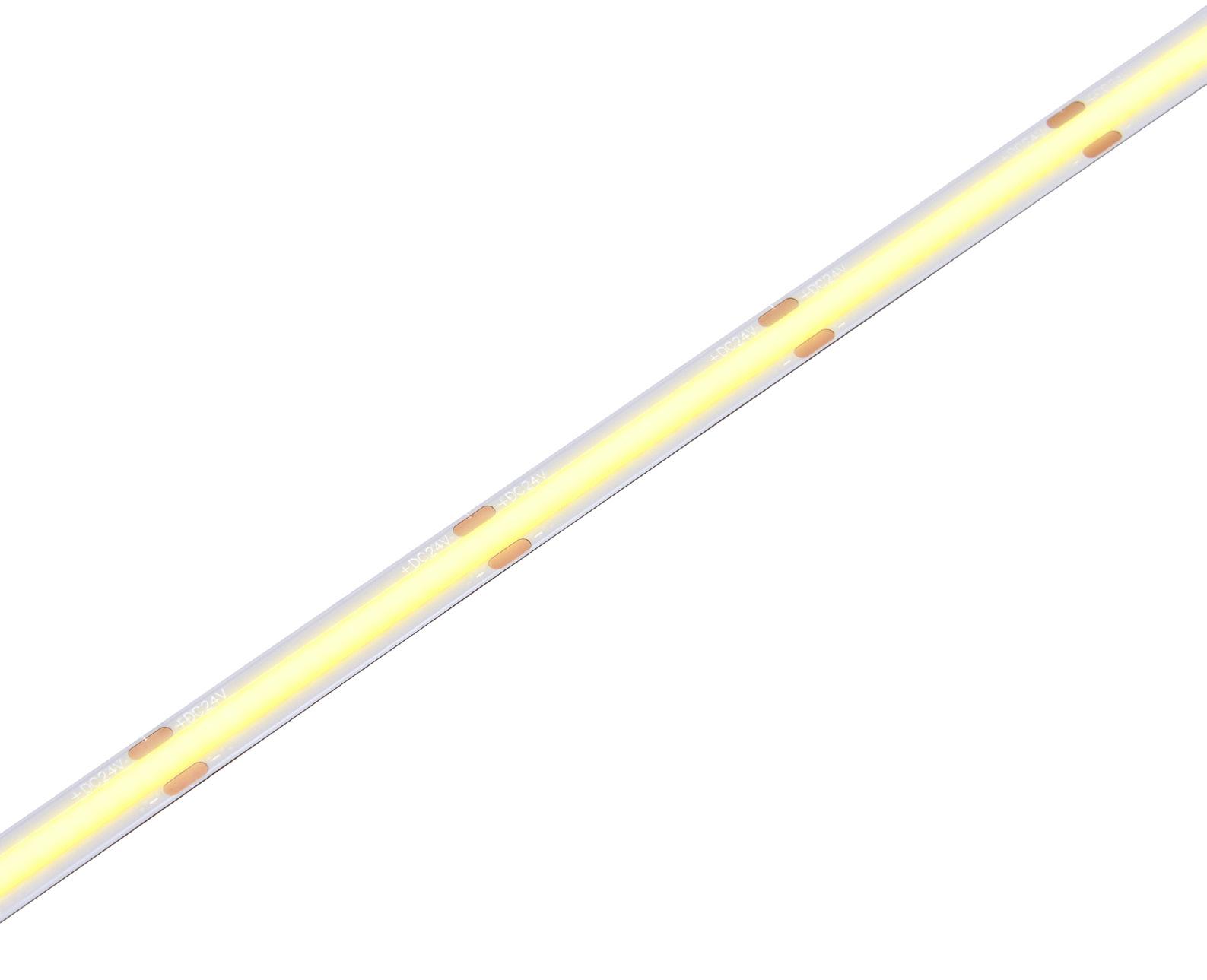

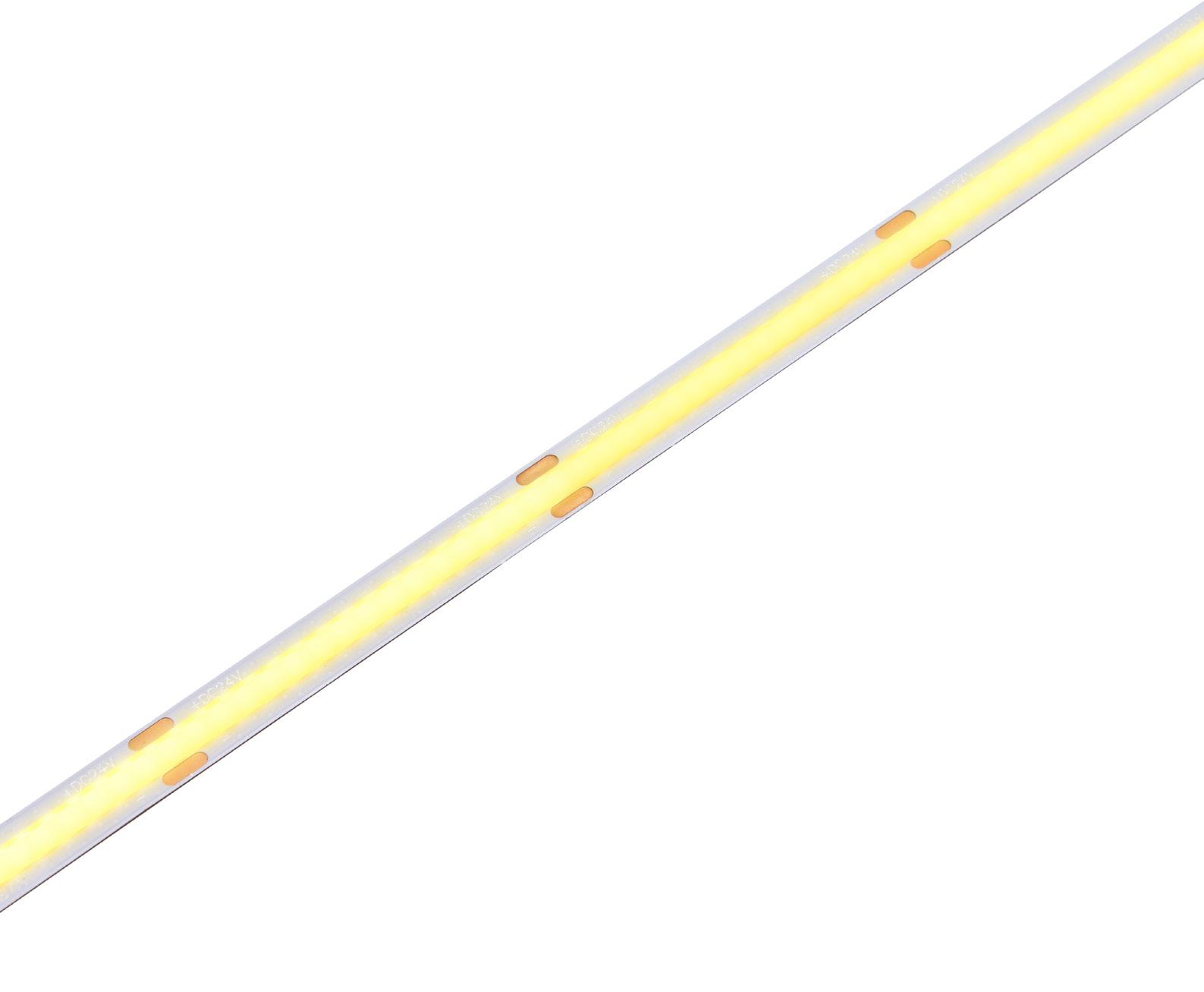

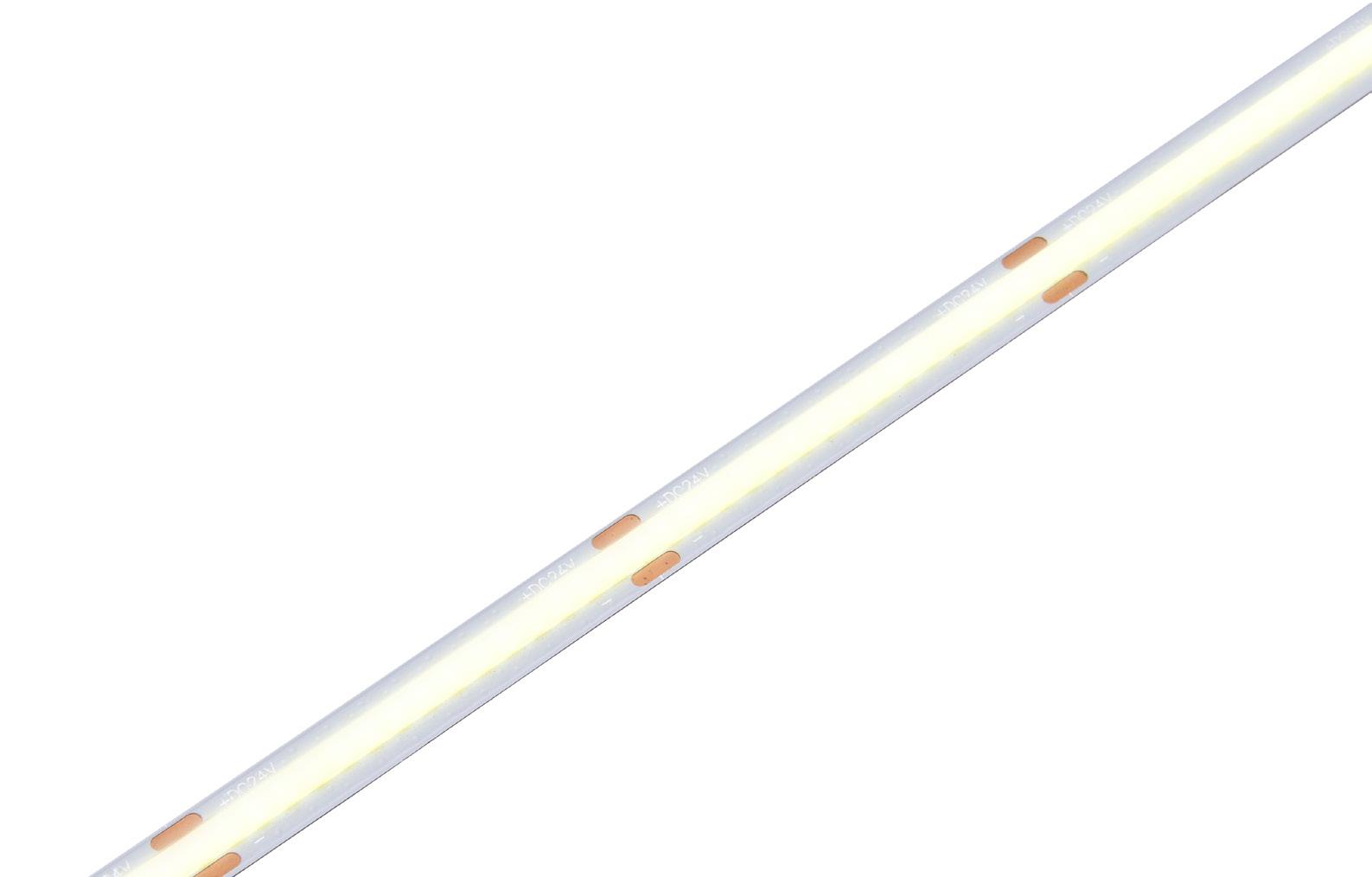

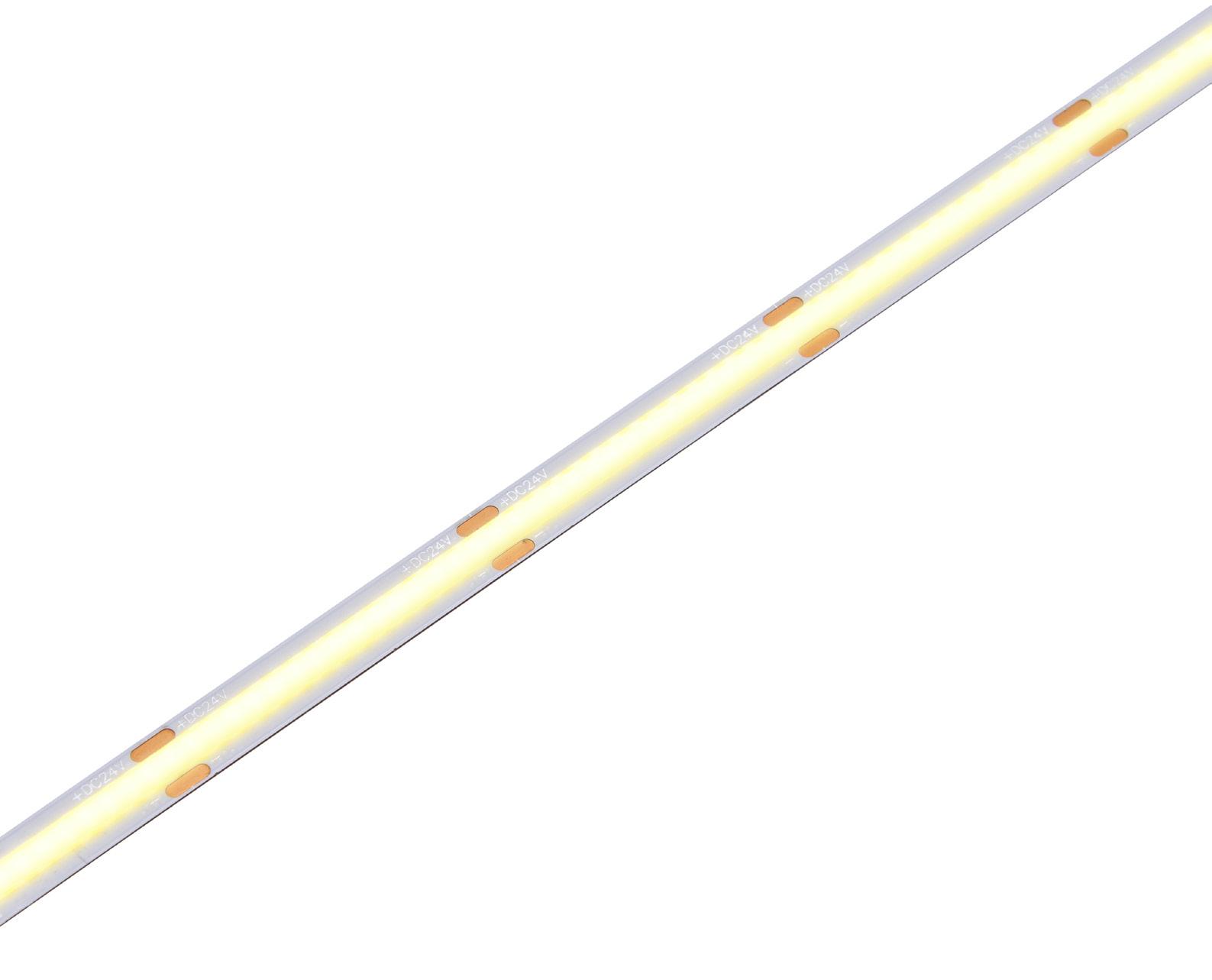

ORION20 48V

Saxby’s signature LED tape range

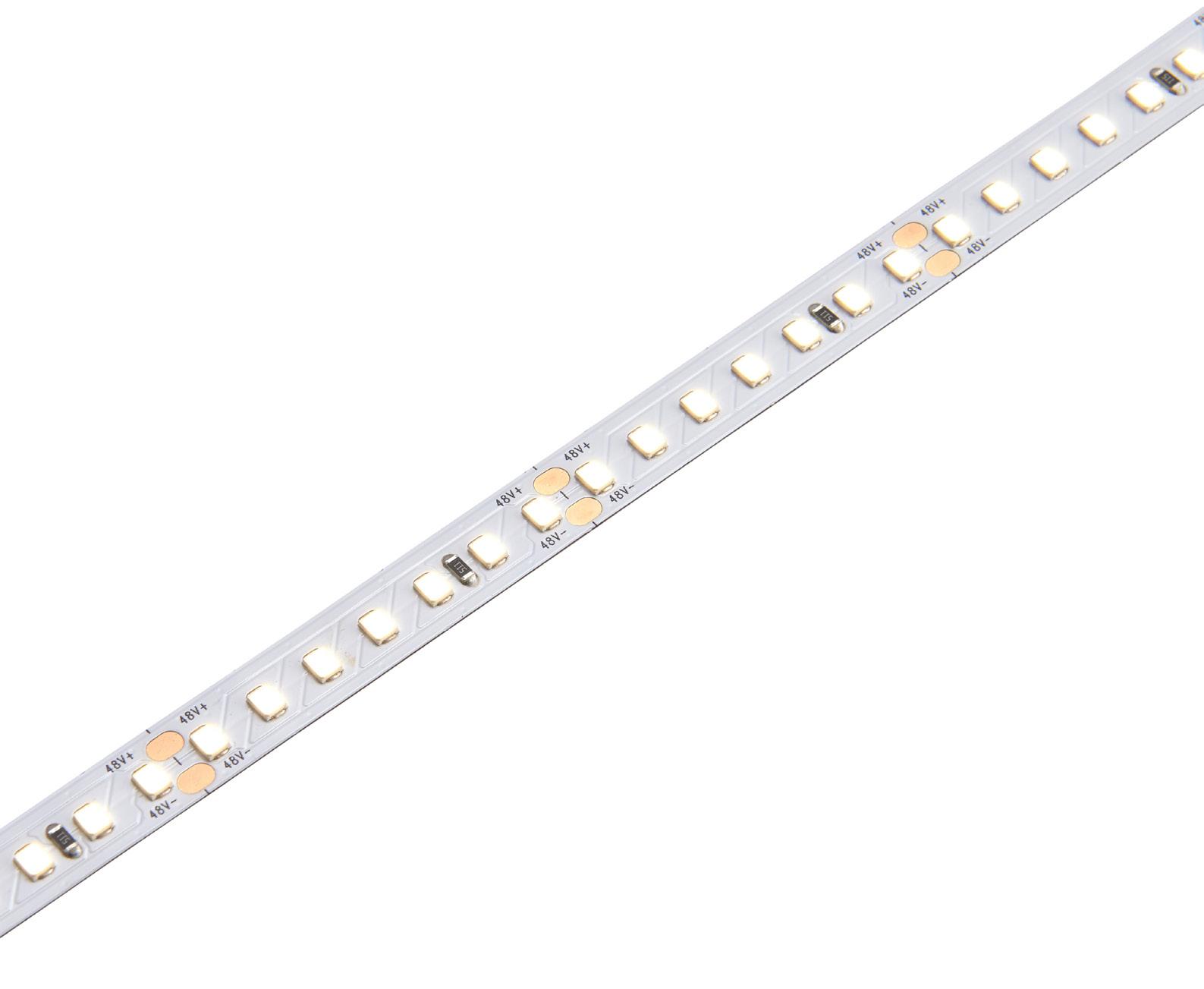

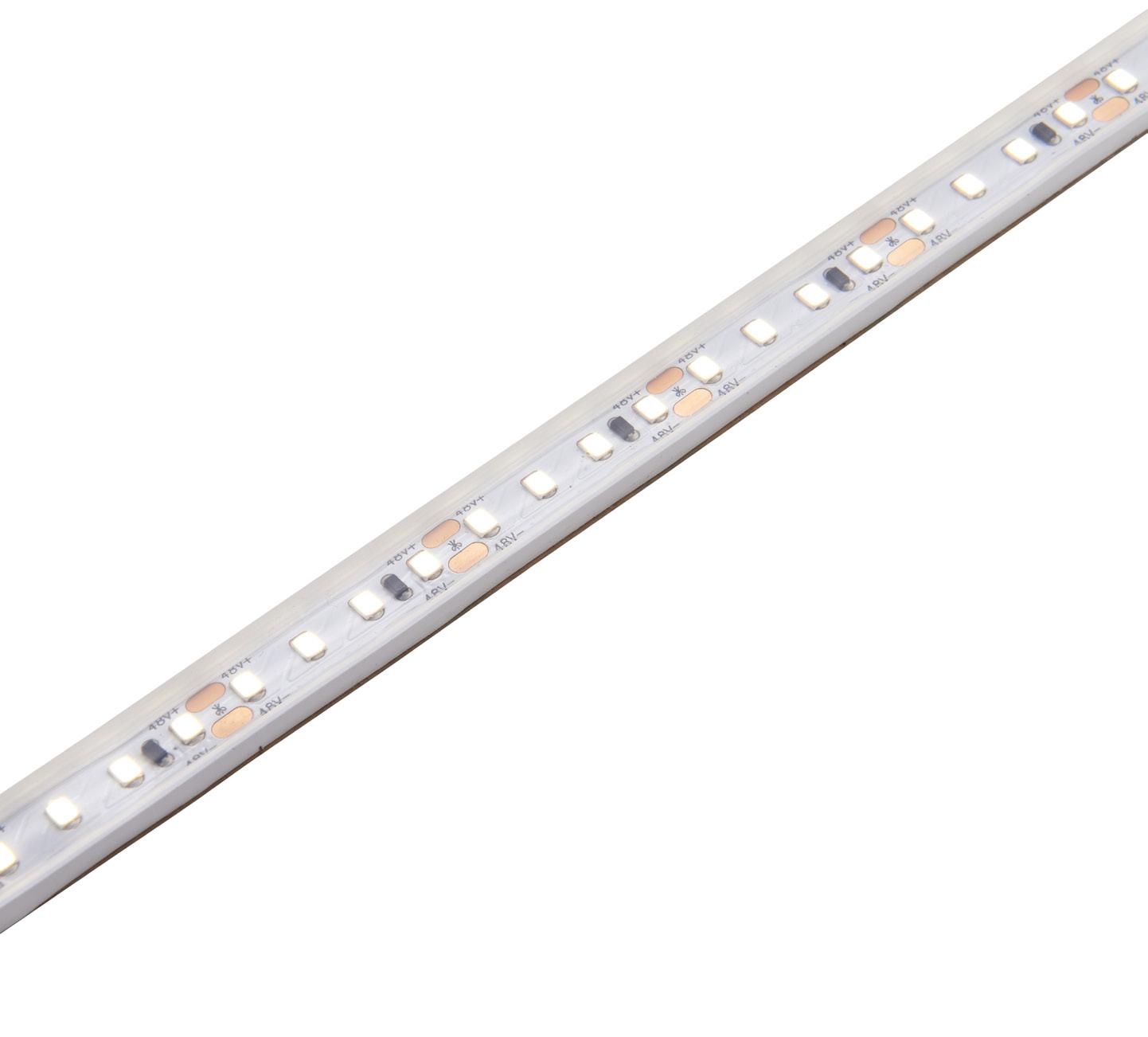

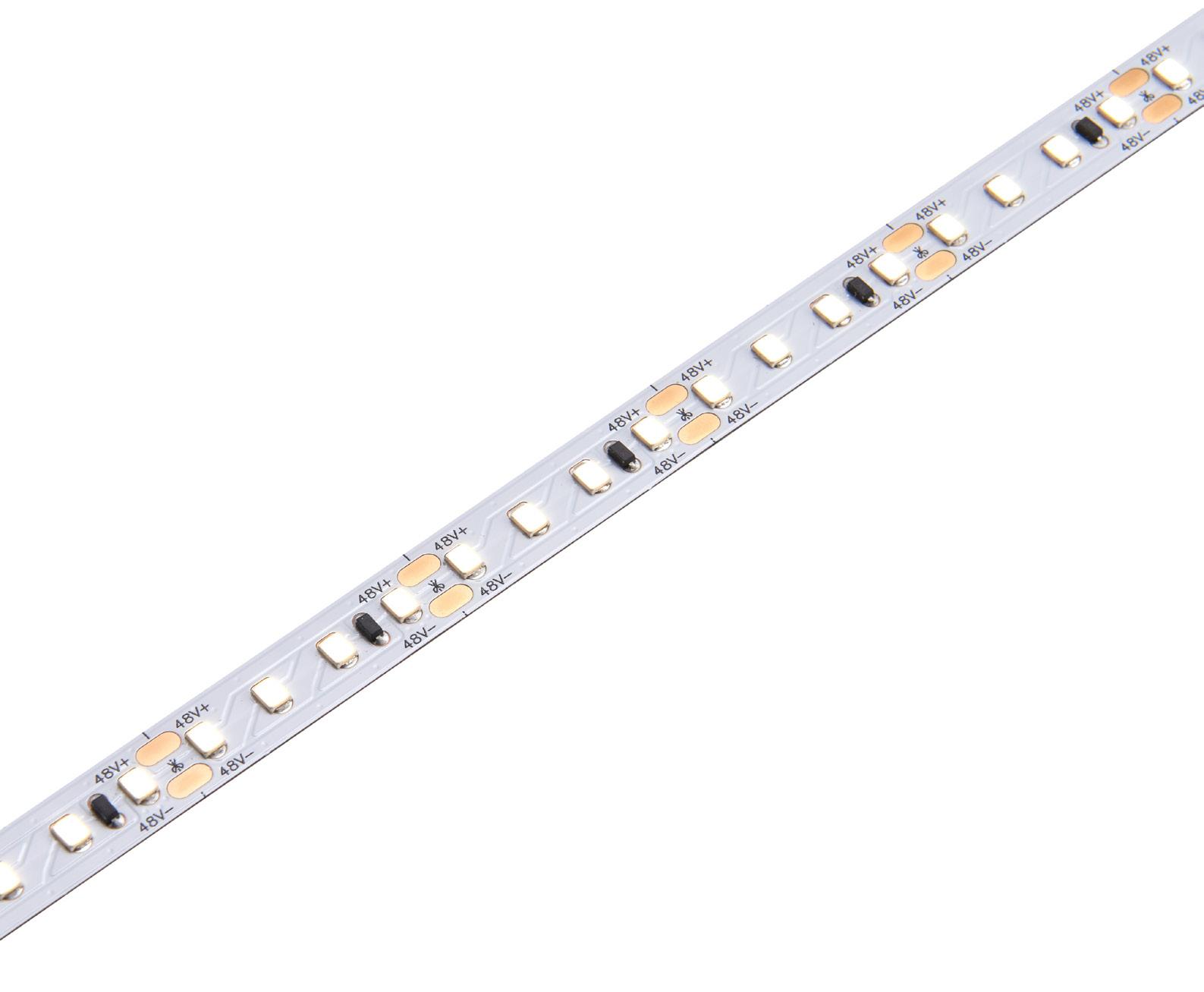

NEWOrion2048V/7.2W/3000K/118822

NEWOrion2048V/7.2W/4000K/118823

NEWOrion2048V/18W/3000K/120338

NEWOrion2048V/18W/4000K/120339

• White plastic

• Constructed from polymer film

• 118822/118823 - Max. 35M per run

• 120338/120339 - Max. 15M per run

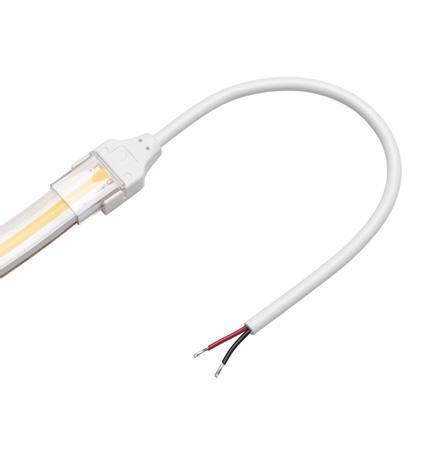

• Pre wired 300mm 18AWG

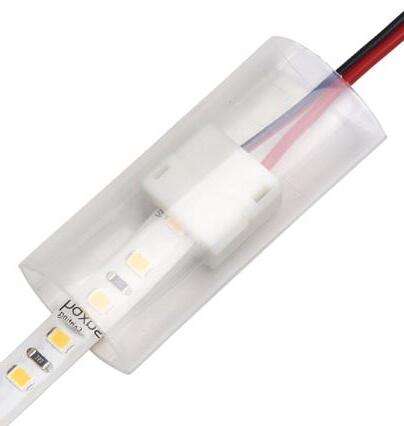

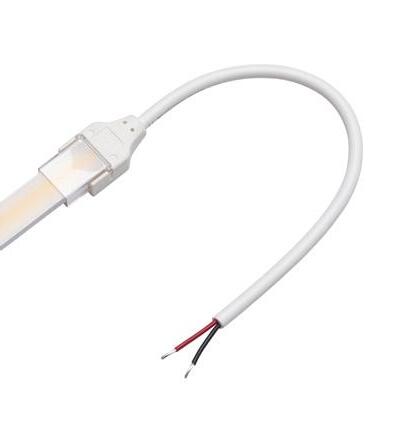

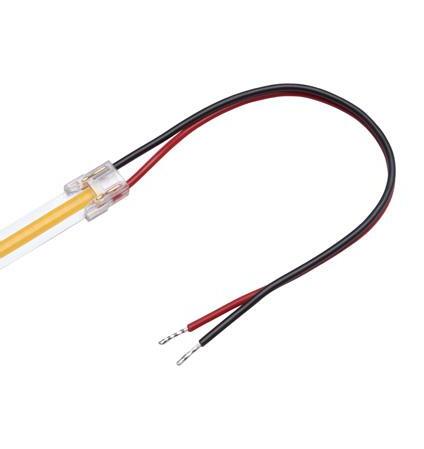

Compatible accessories for Orion20 48V range

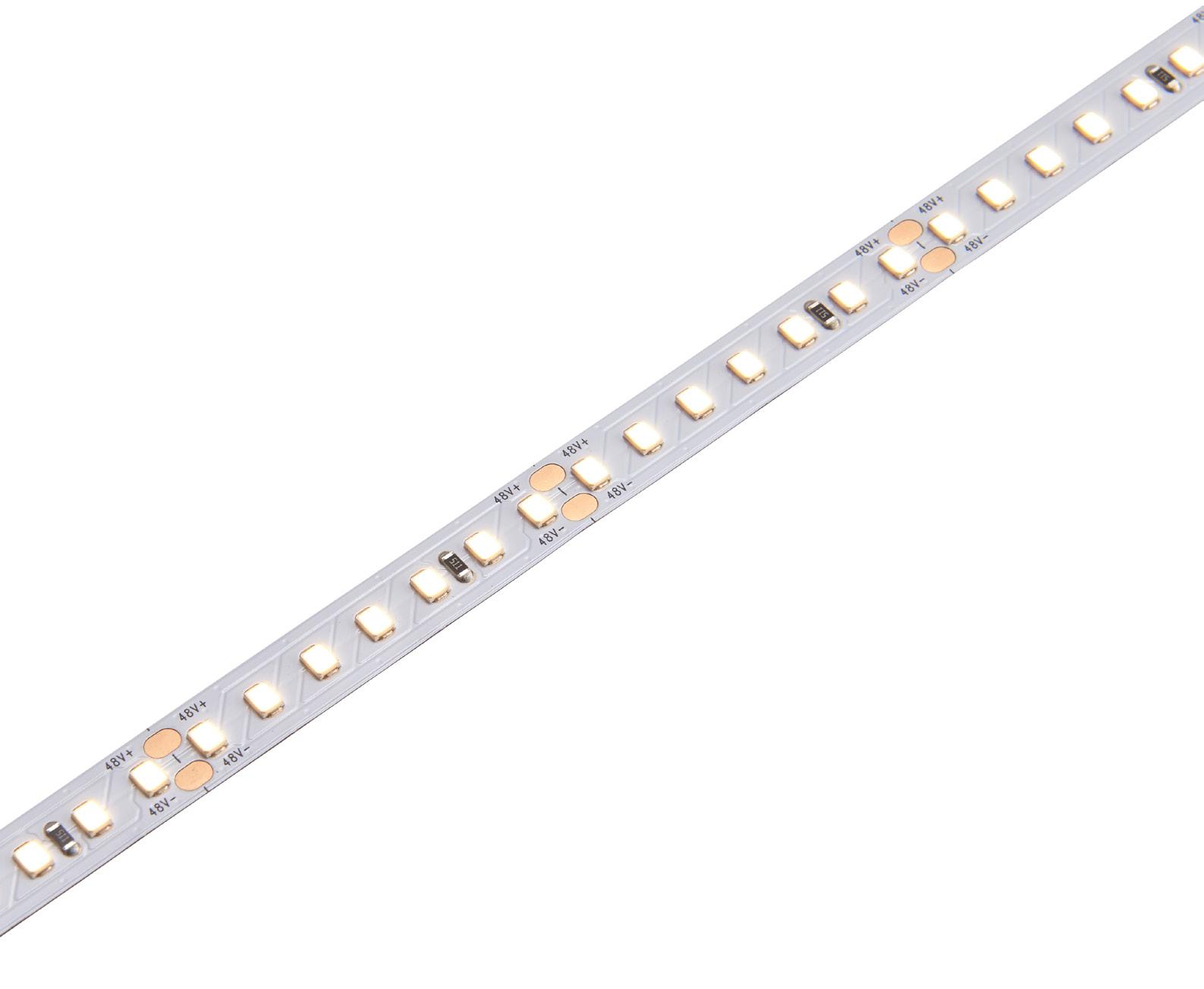

ORIONPRO 48V IP20

Saxby’s signature LED tape range

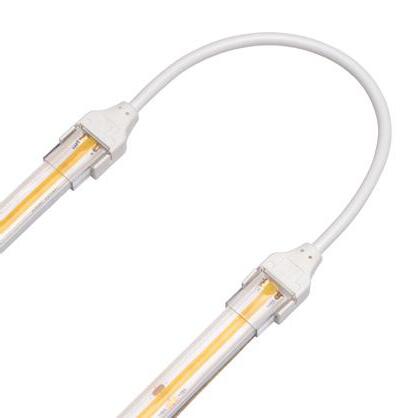

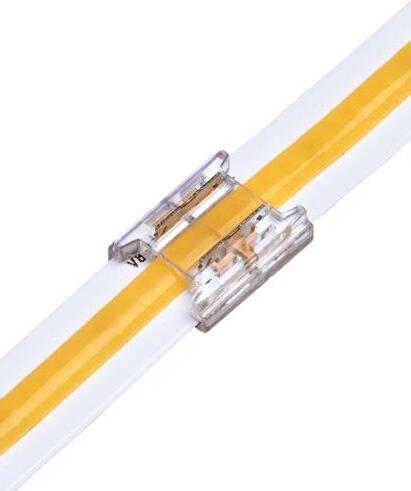

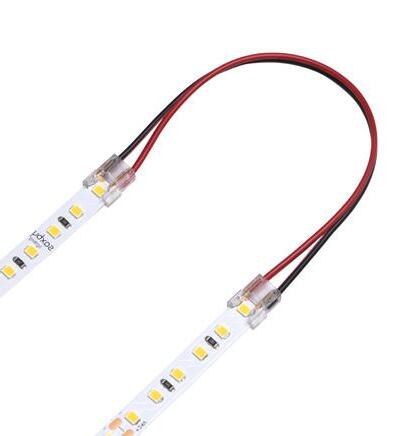

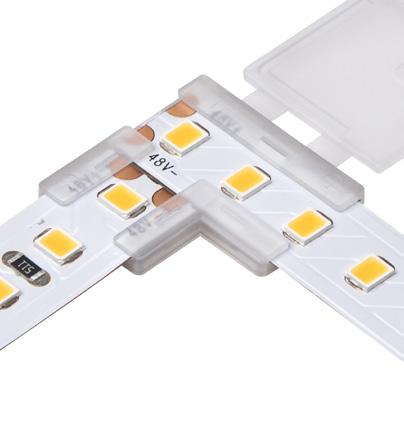

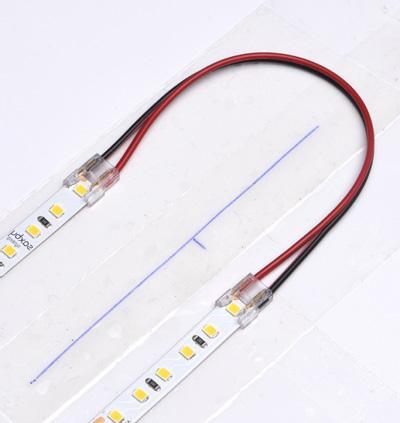

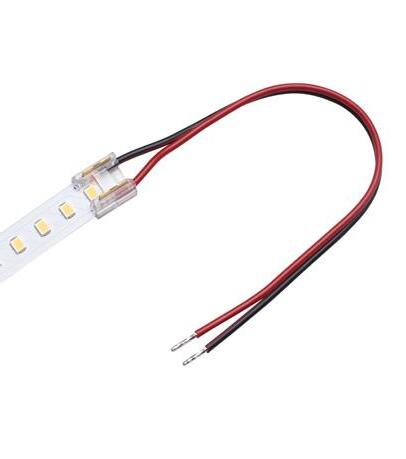

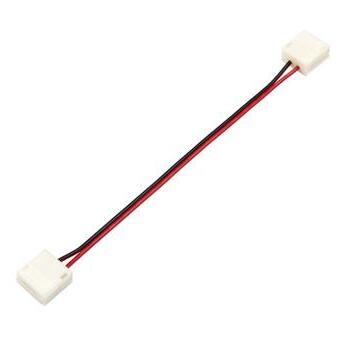

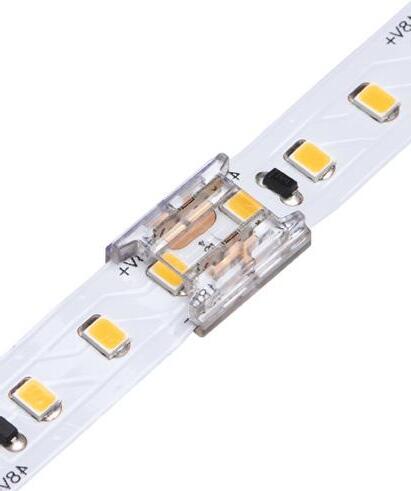

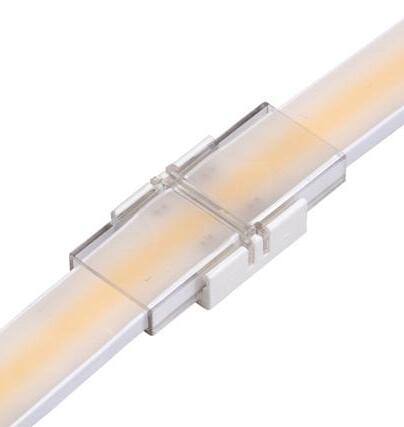

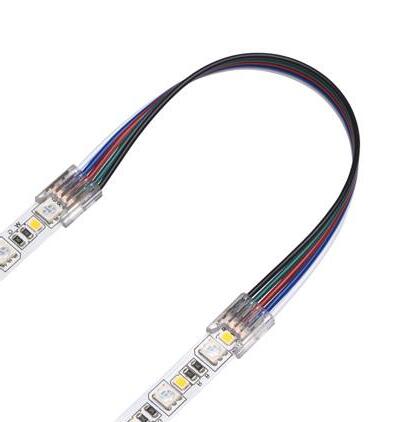

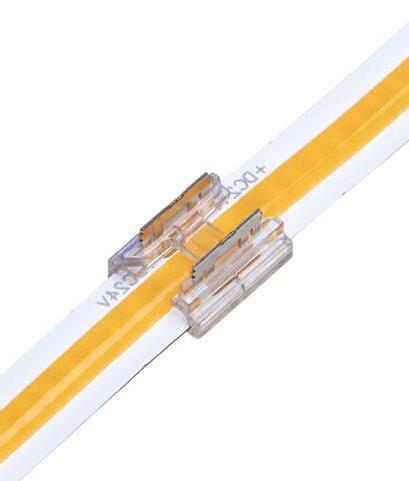

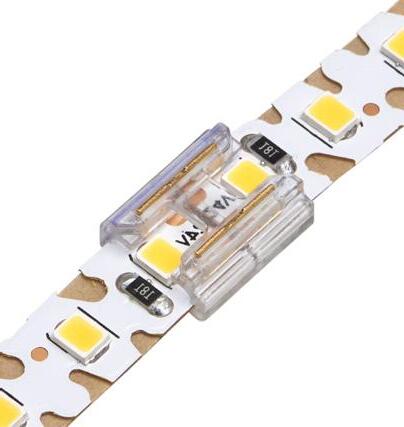

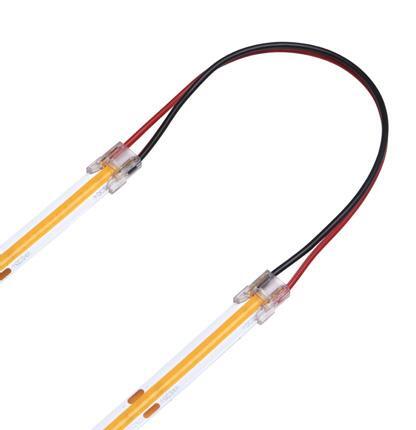

24V/48V | Tape to Tape Connector IP20

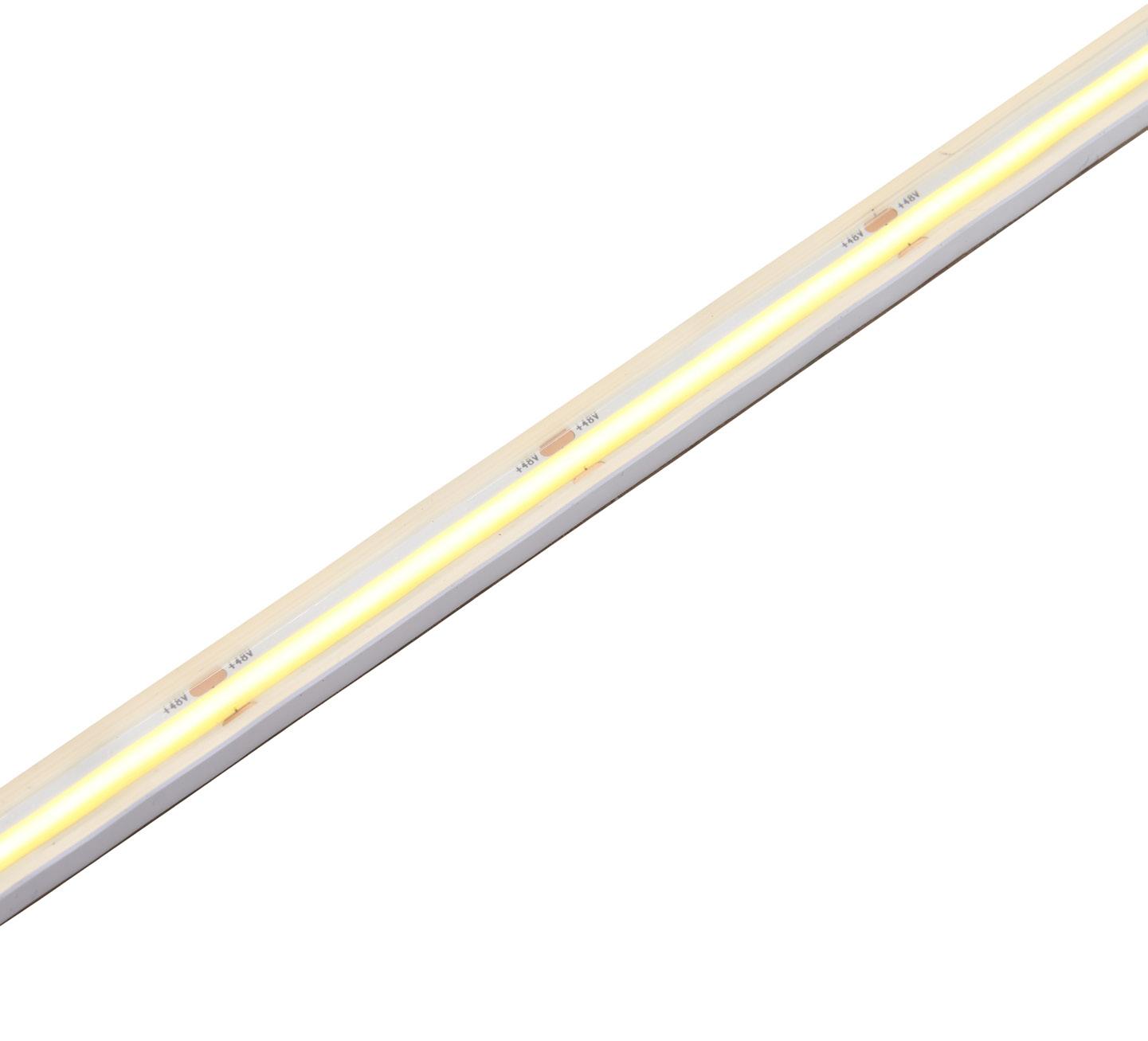

ORIONPRO 67 / ORION67 48V

Saxby’s signature LED

118820

118821

118824

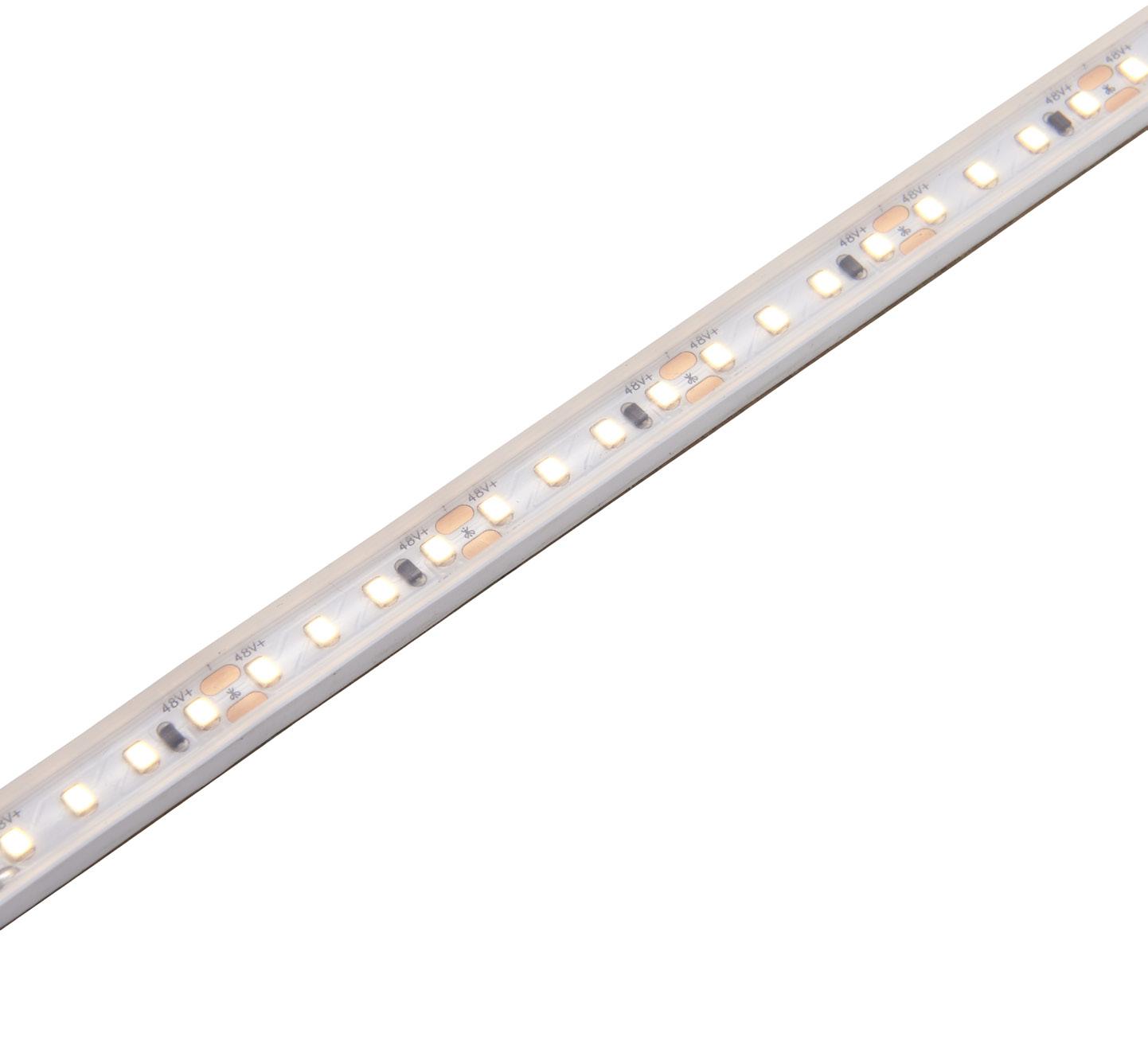

OrionPRO6748V/7.2W/4000K/118825

• White plastic

• Constructed from polymer film

• 118820/118821 - Max. 20M per run

• 118824/118825 - Max. 35M per run

• Pre wired 300mm 18AWG

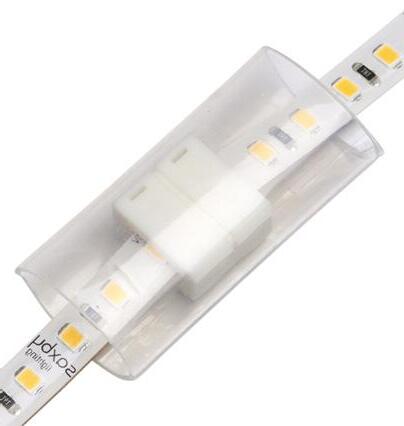

accessories for OrionPRO 67 & Orion67 48V ranges

Saxby’s signature LED tape range

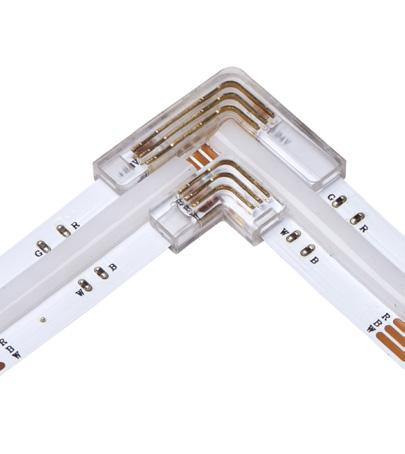

Compatible accessories for OrionRGBW 48V range Code

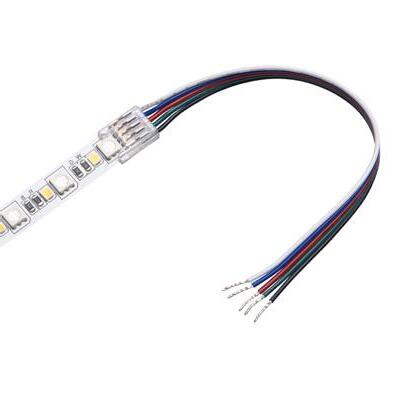

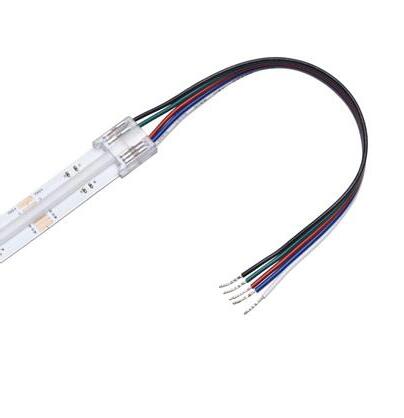

OrionRGBW 24V/48V | Flexible Tape to Controller Connector IP20 Proj: 5mm W: 11mm L: 163mm

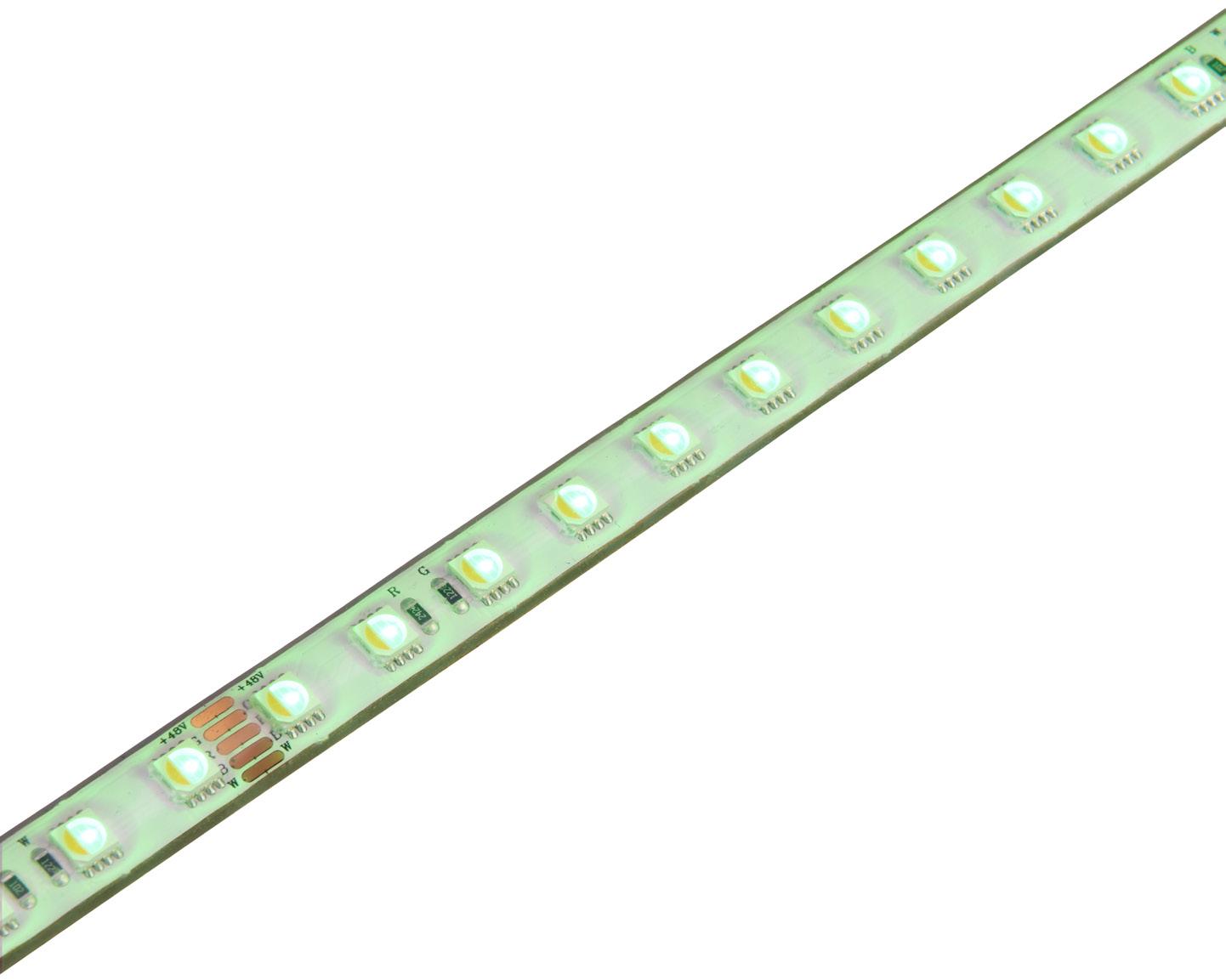

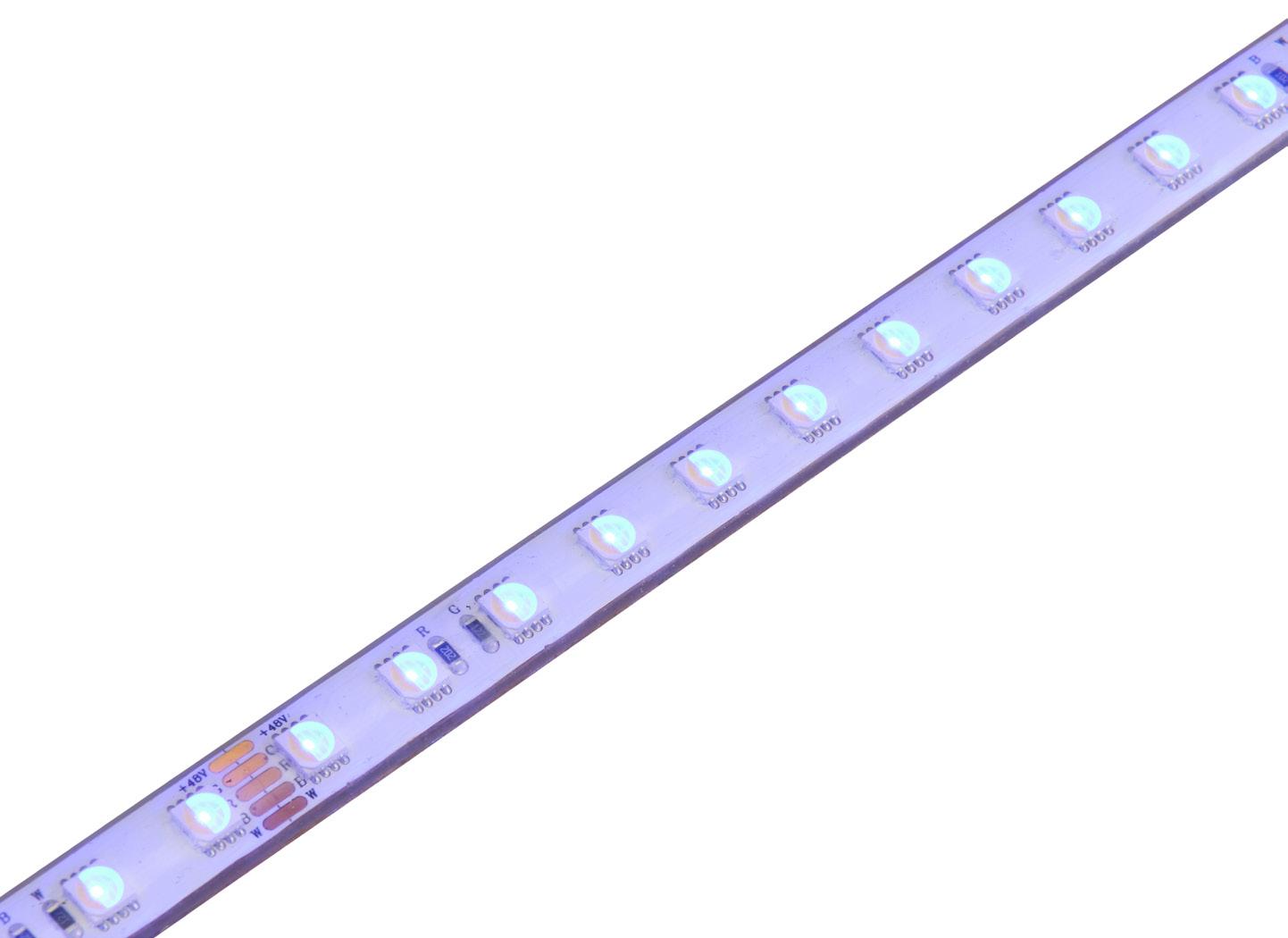

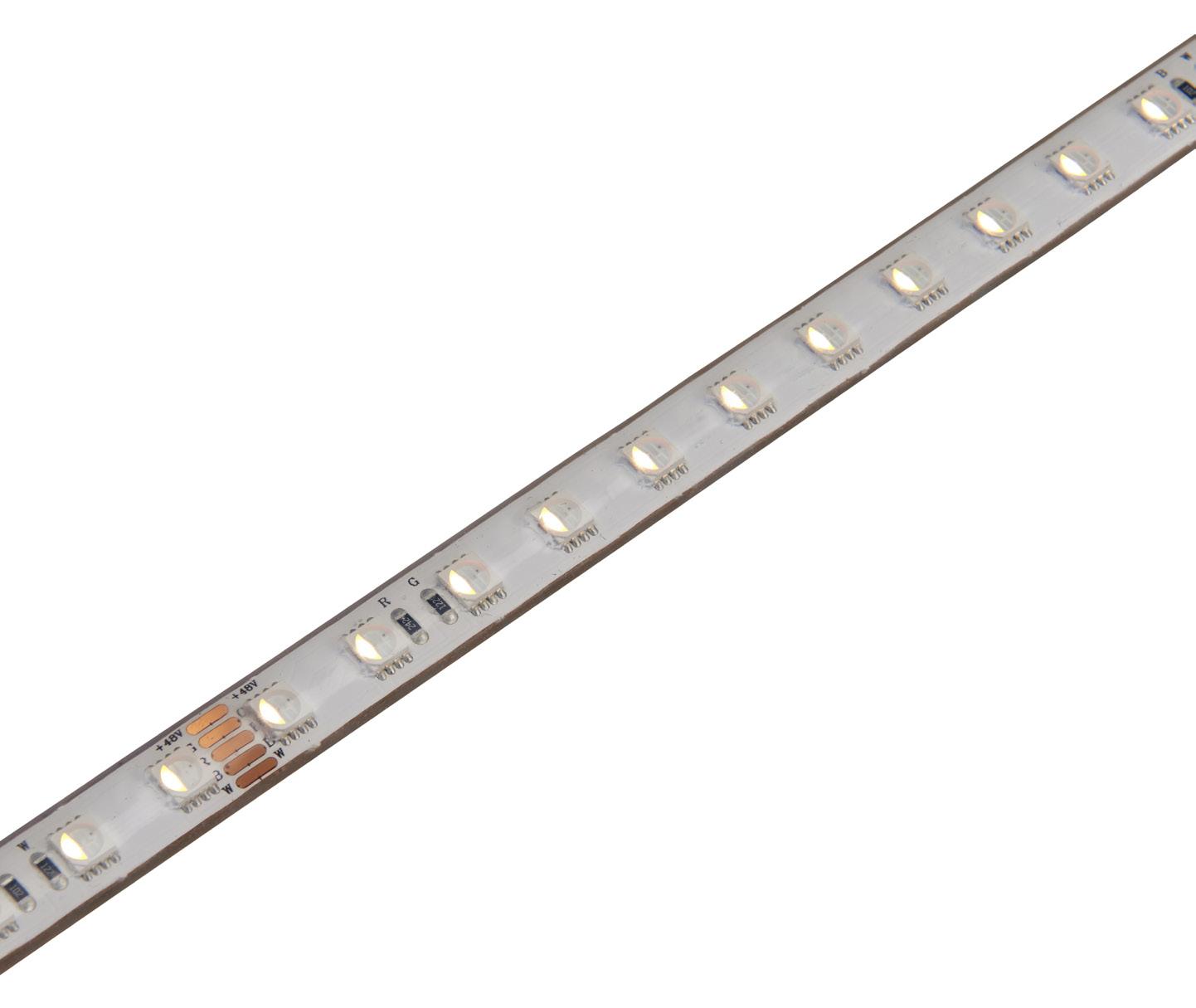

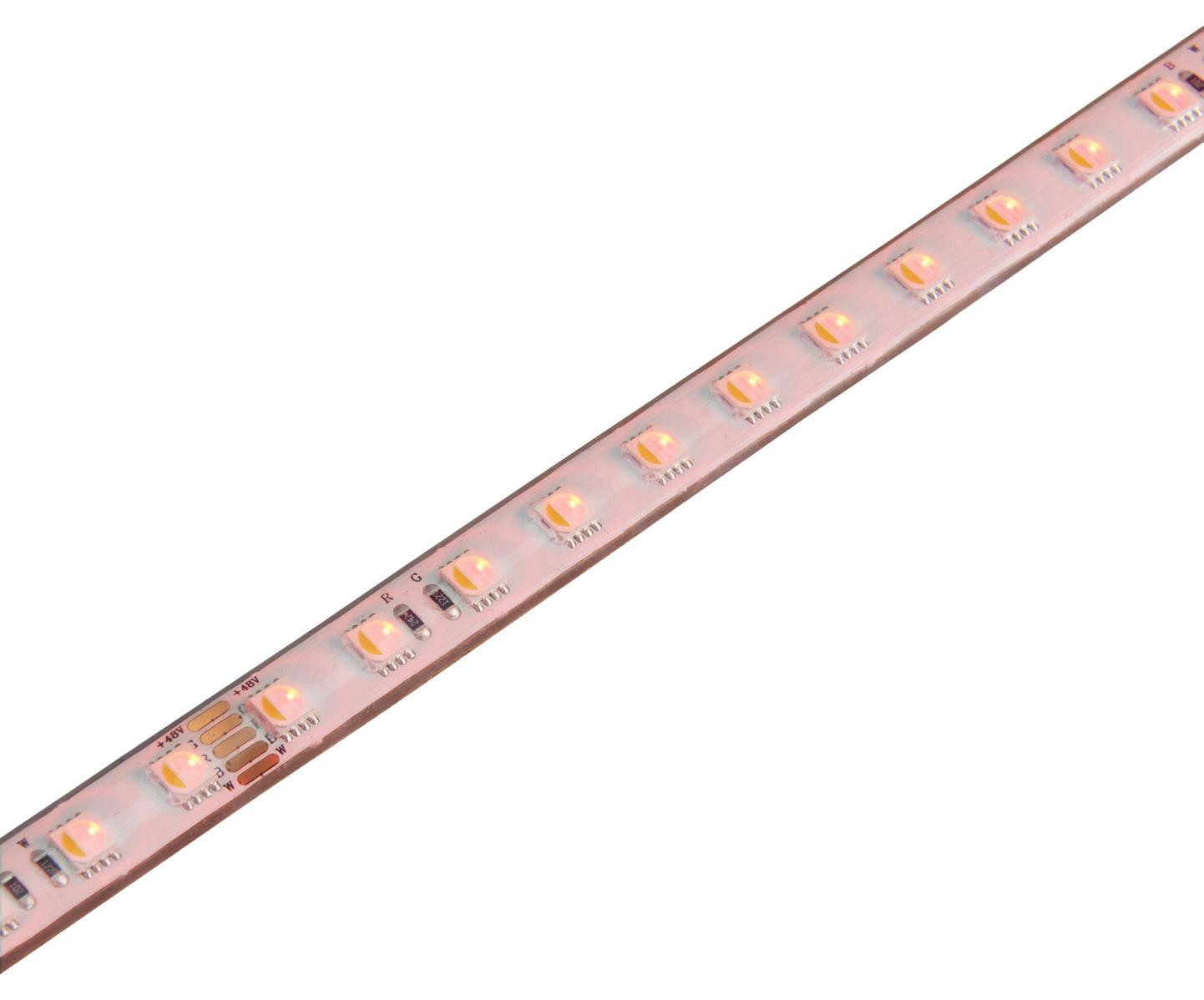

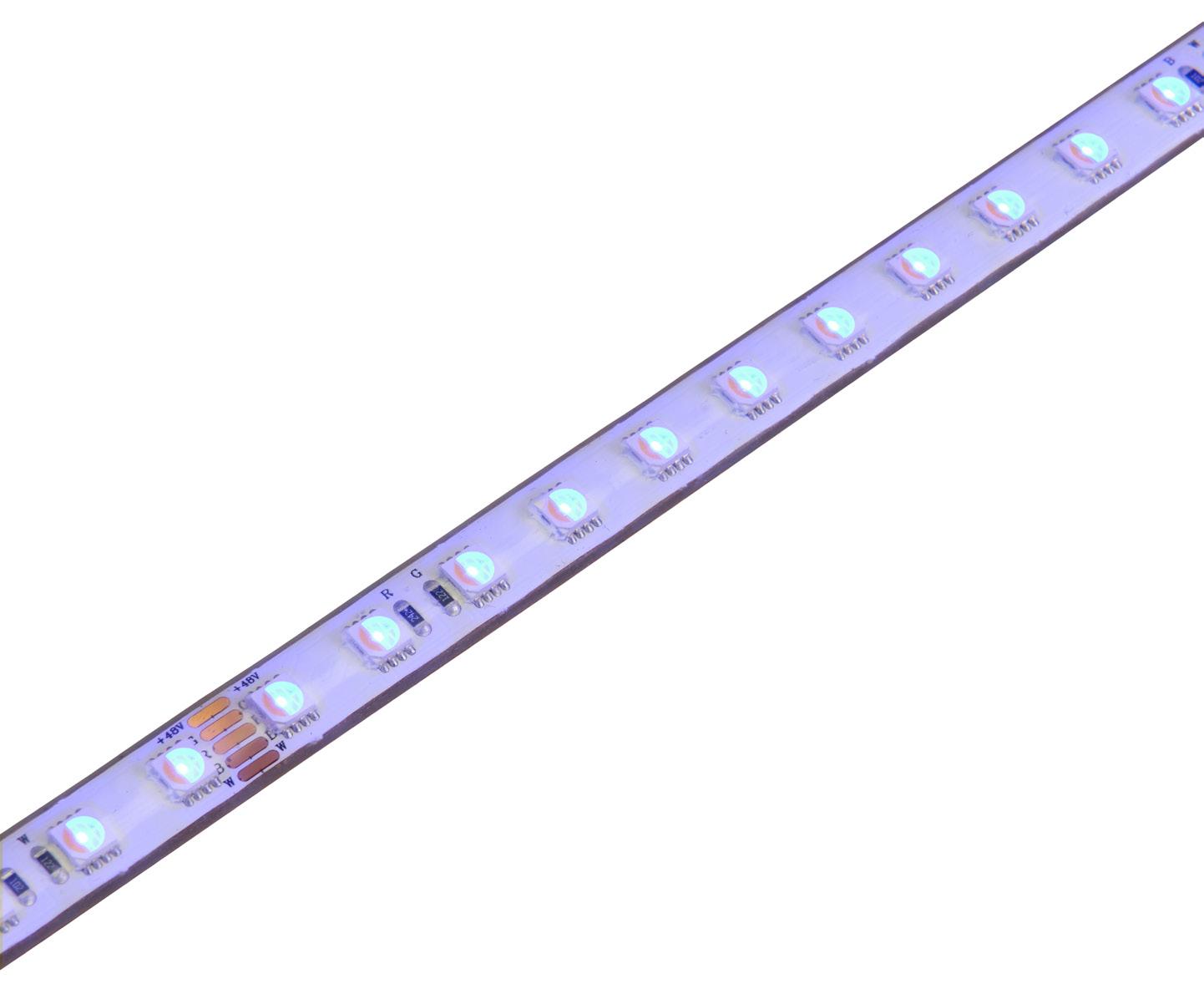

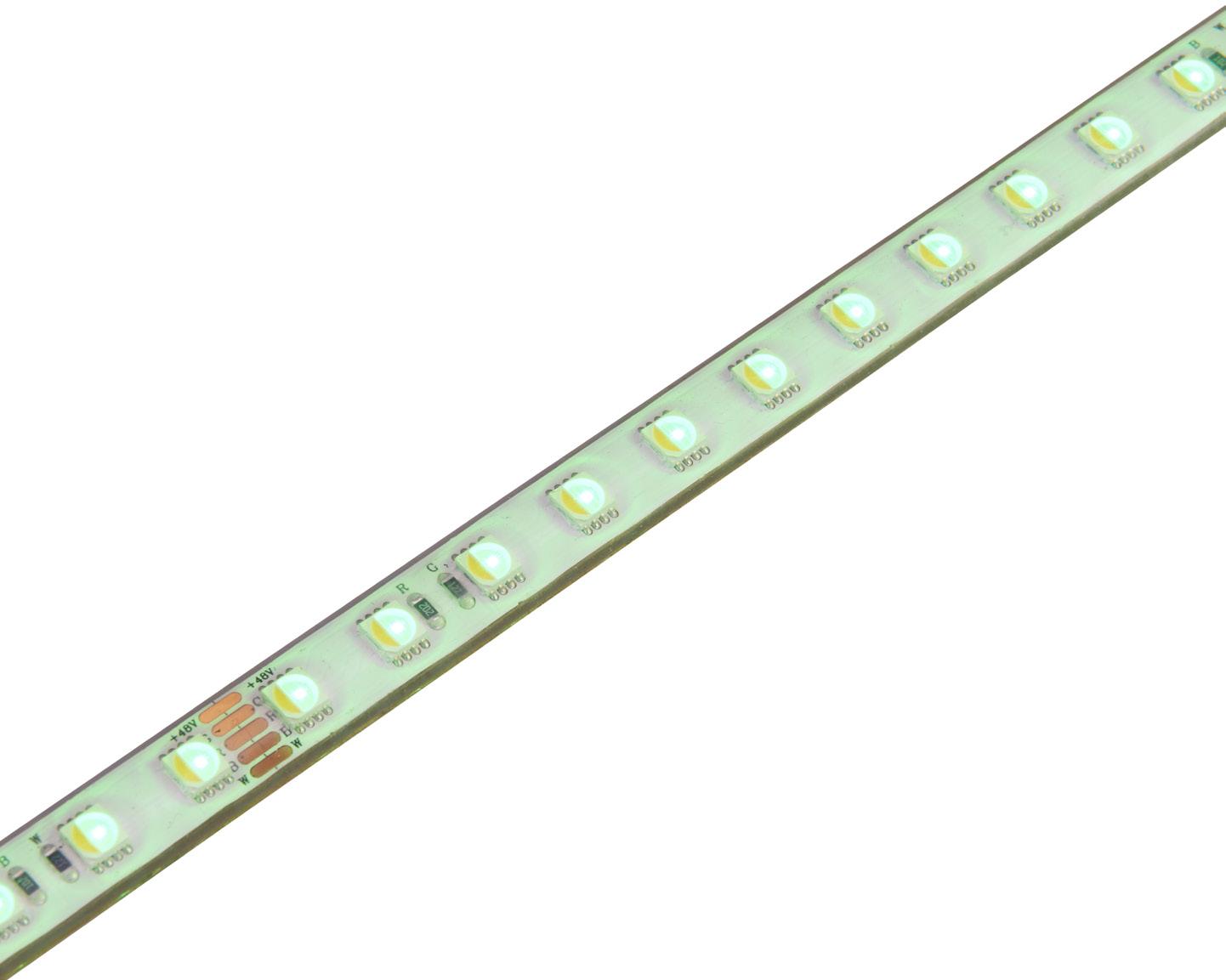

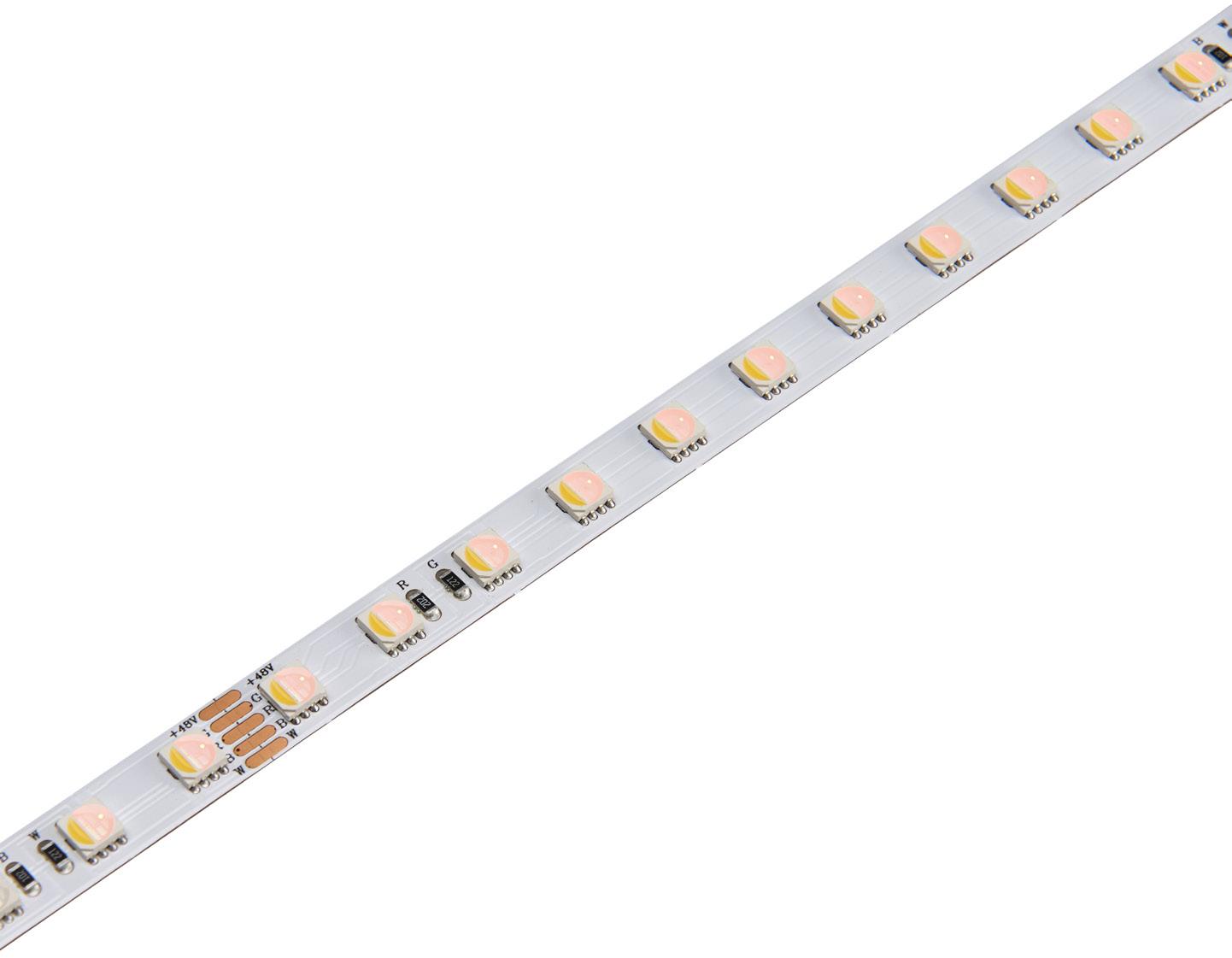

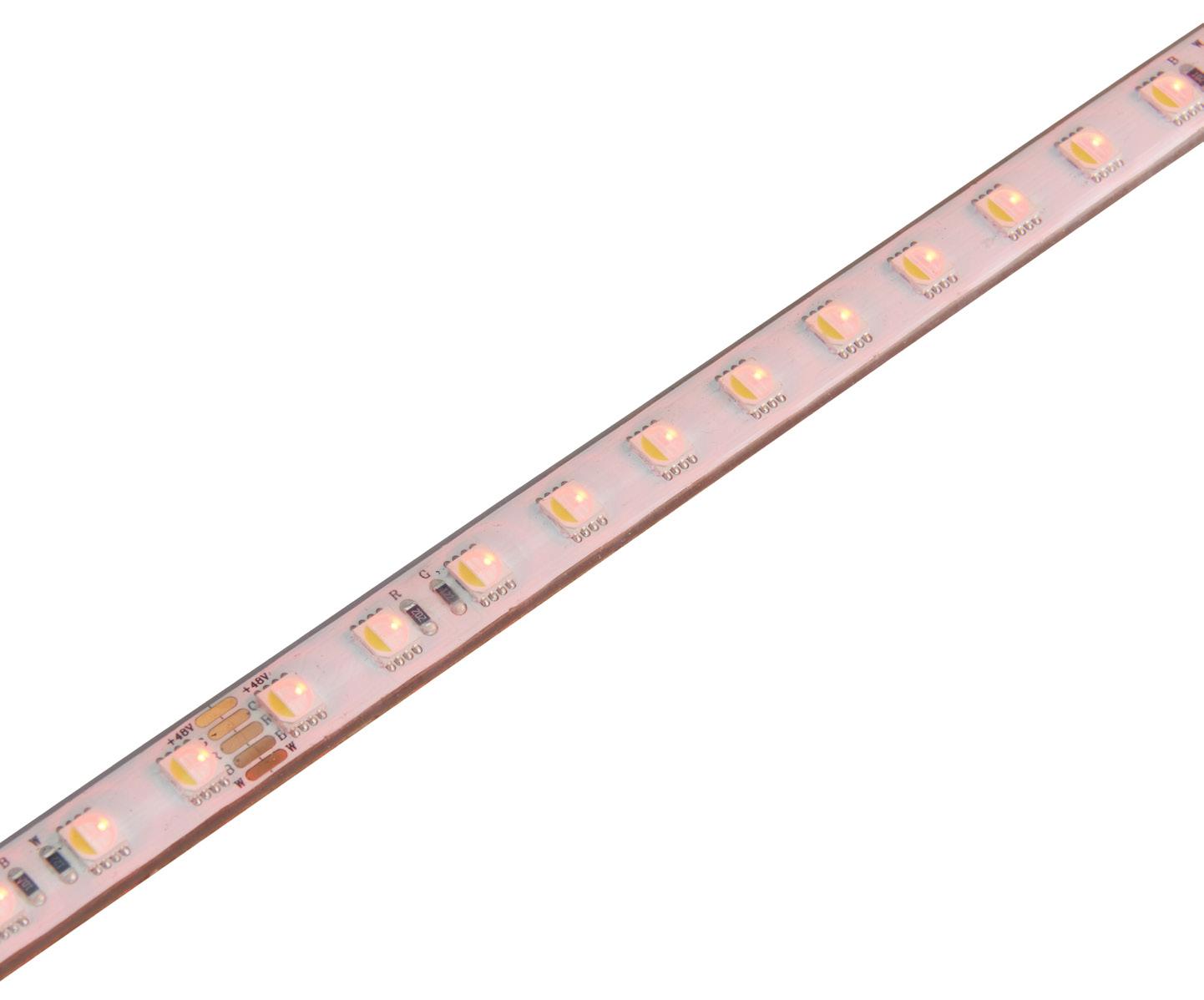

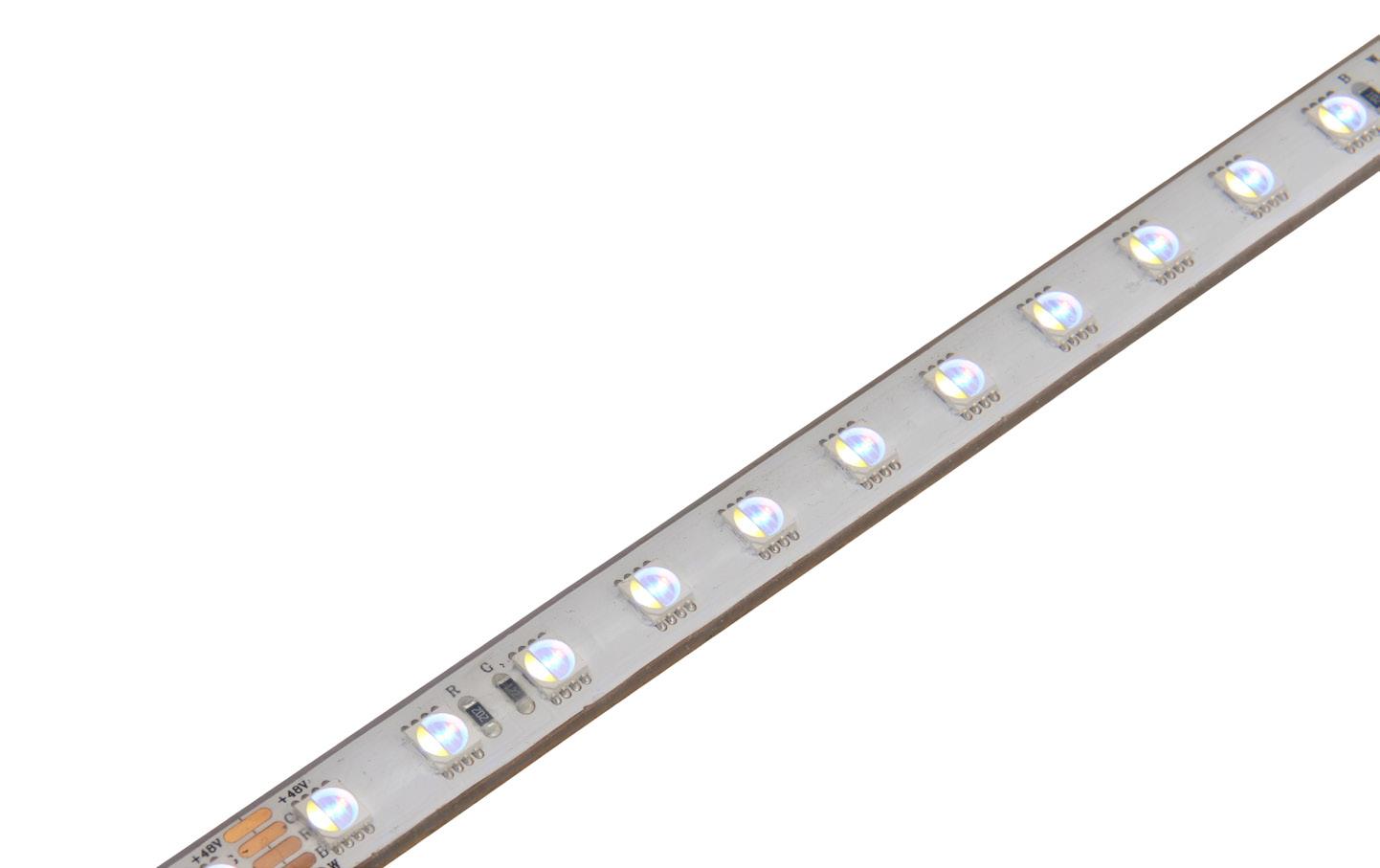

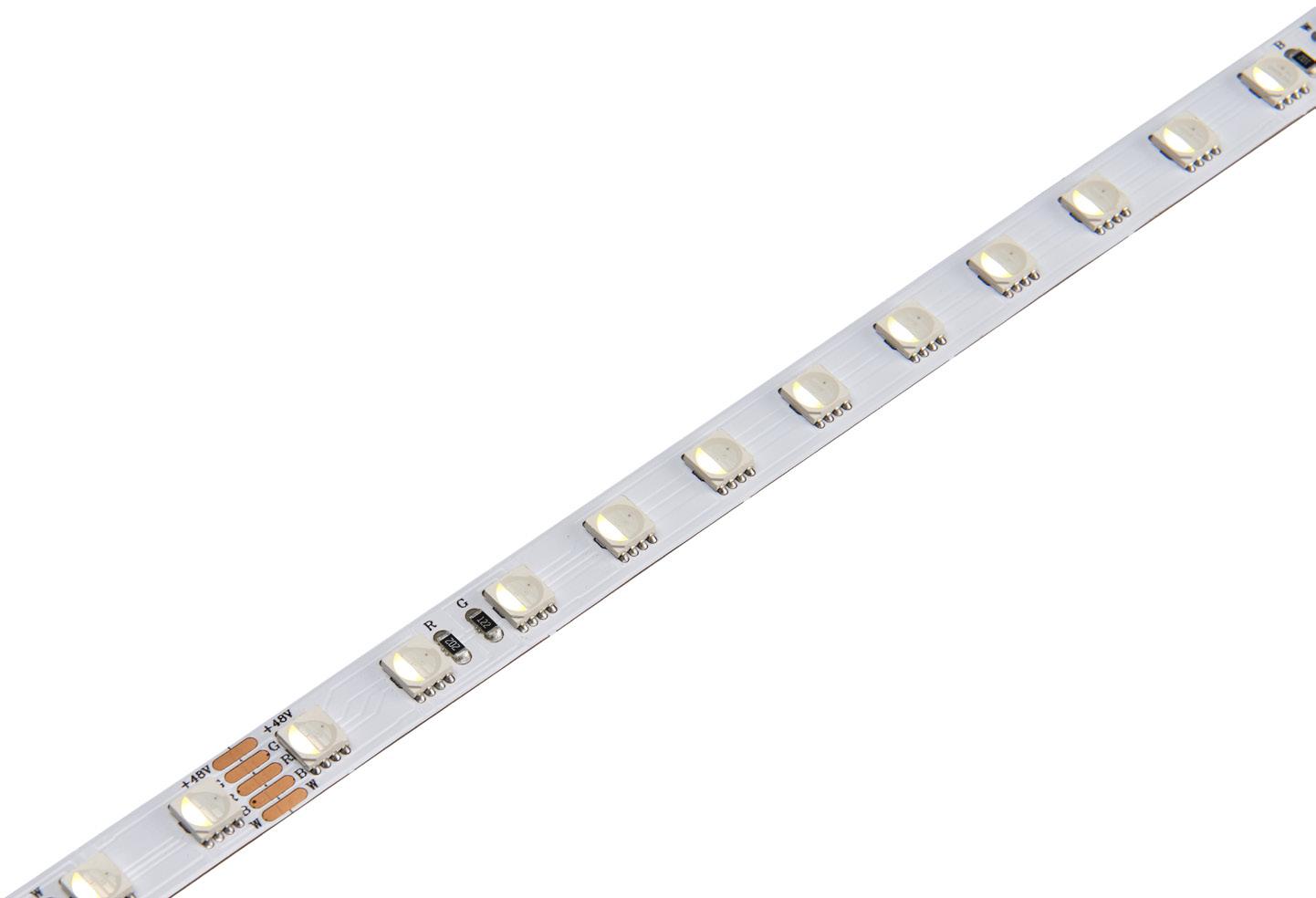

ORIONRGBW 48V IP67

Saxby’s signature LED tape range

• White plastic

• Constructed from polymer film

• Max. 15M per run

• Pre wired 300mm 22AWG

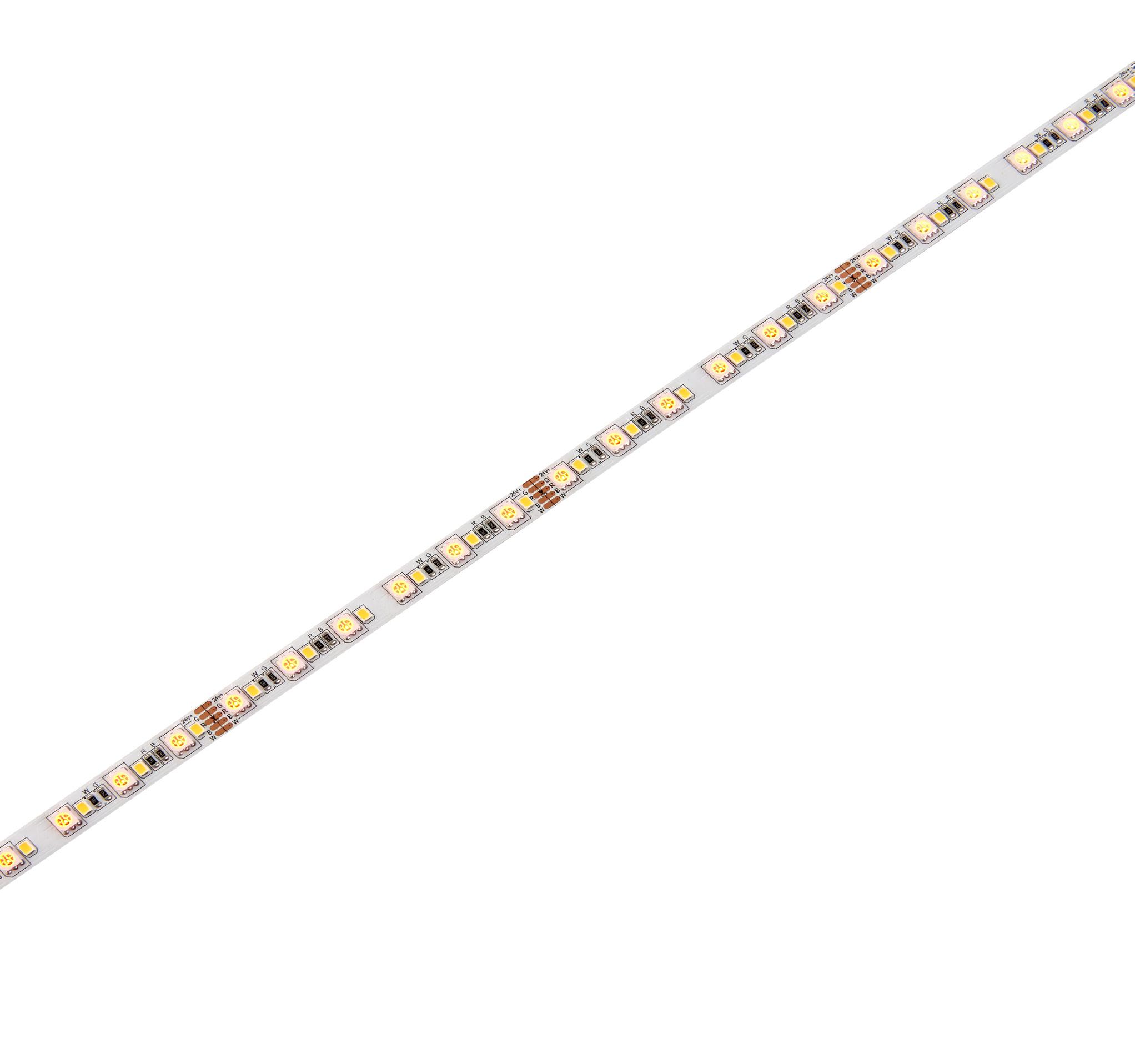

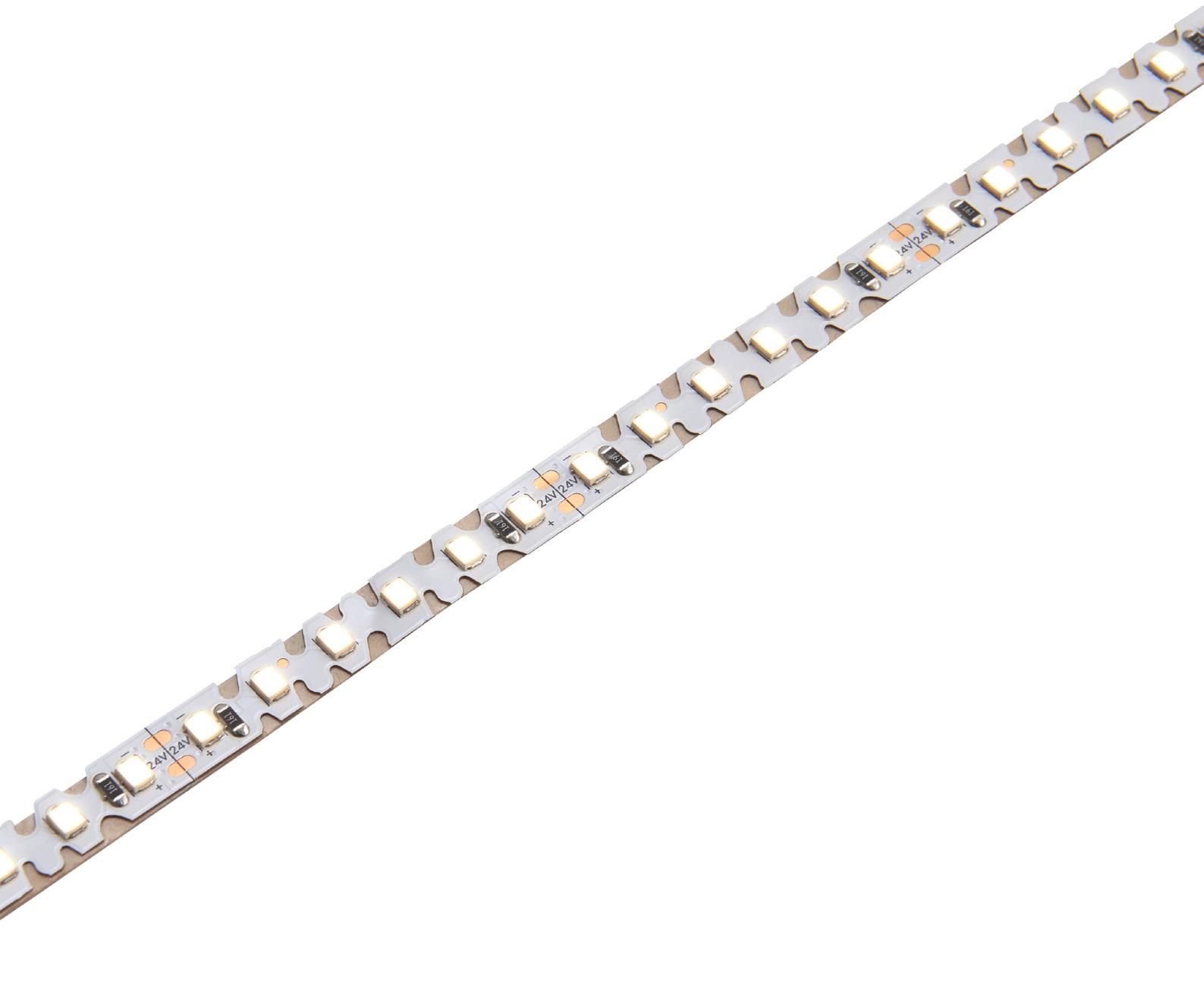

ORIONPRO 24V

Saxby’s signature LED tape range

3YR DIMMABLE

• White plastic

• Constructed from polymer film

• Max. 12M per run, powered at both ends

• Pre wired 150mm 18AWG

Orion2024V/10W/3000K/99013

Orion2024V/10W/4000K/99014

Orion2024V/10W/6000K/101624

Orion2024V/8W/3000K/102659

Orion2024V/8W/4000K/102660

Orion2024V/8W/6000K/102661

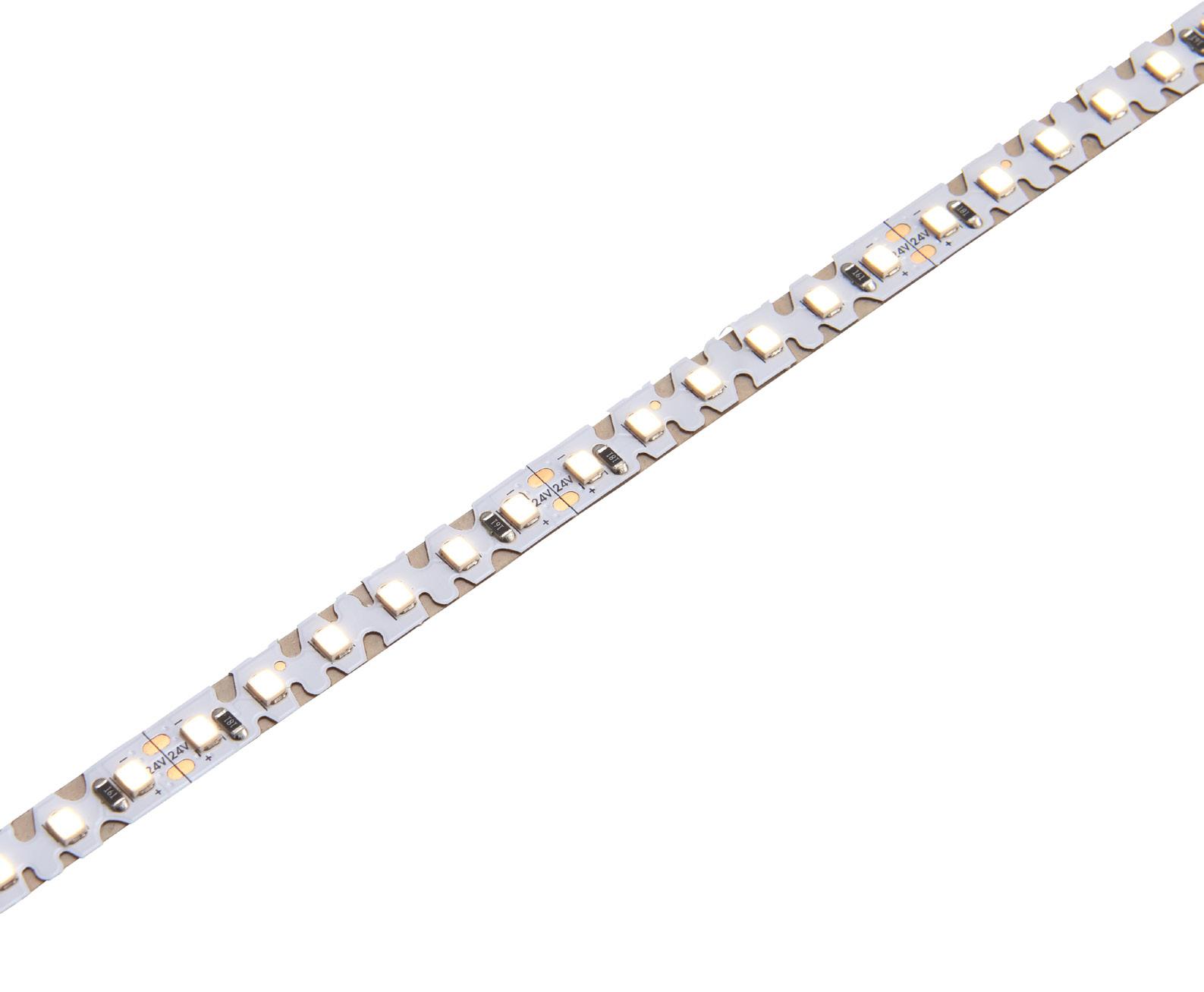

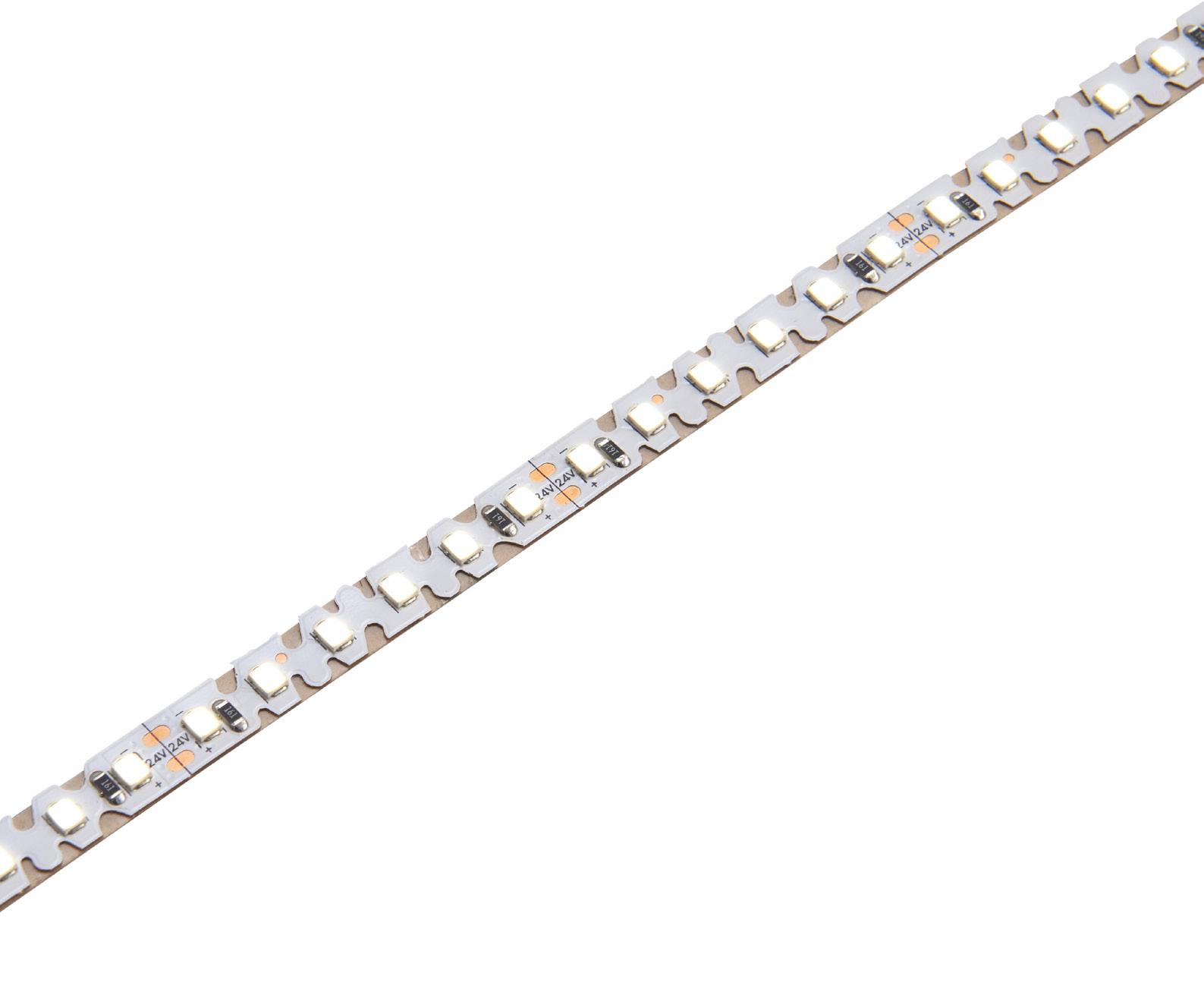

ORIONFLEX 24V

Saxby’s signature LED tape range

OrionFLEX24V/9.6W/3000K/113267

OrionFLEX24V/9.6W/4000K/113268

OrionFLEX24V/9.6W/6000K/113269

• White plastic

• Constructed from polymer film

• Max. 10M per run

• Pre wired 150mm 18AWG

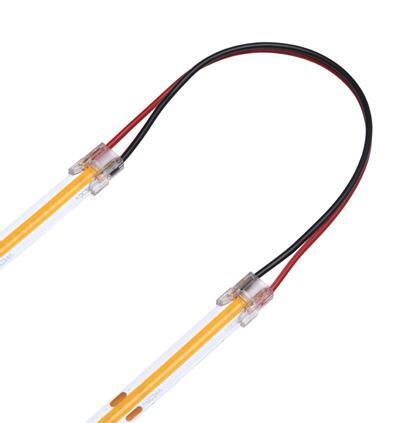

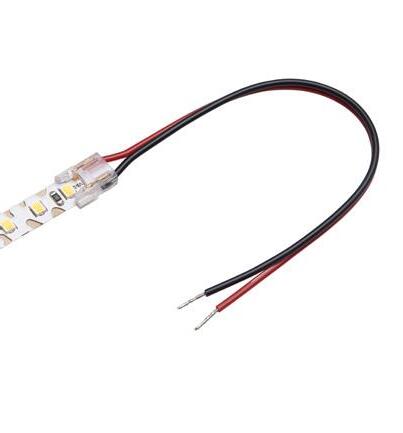

Compatible accessories for OrionFlex 24V range

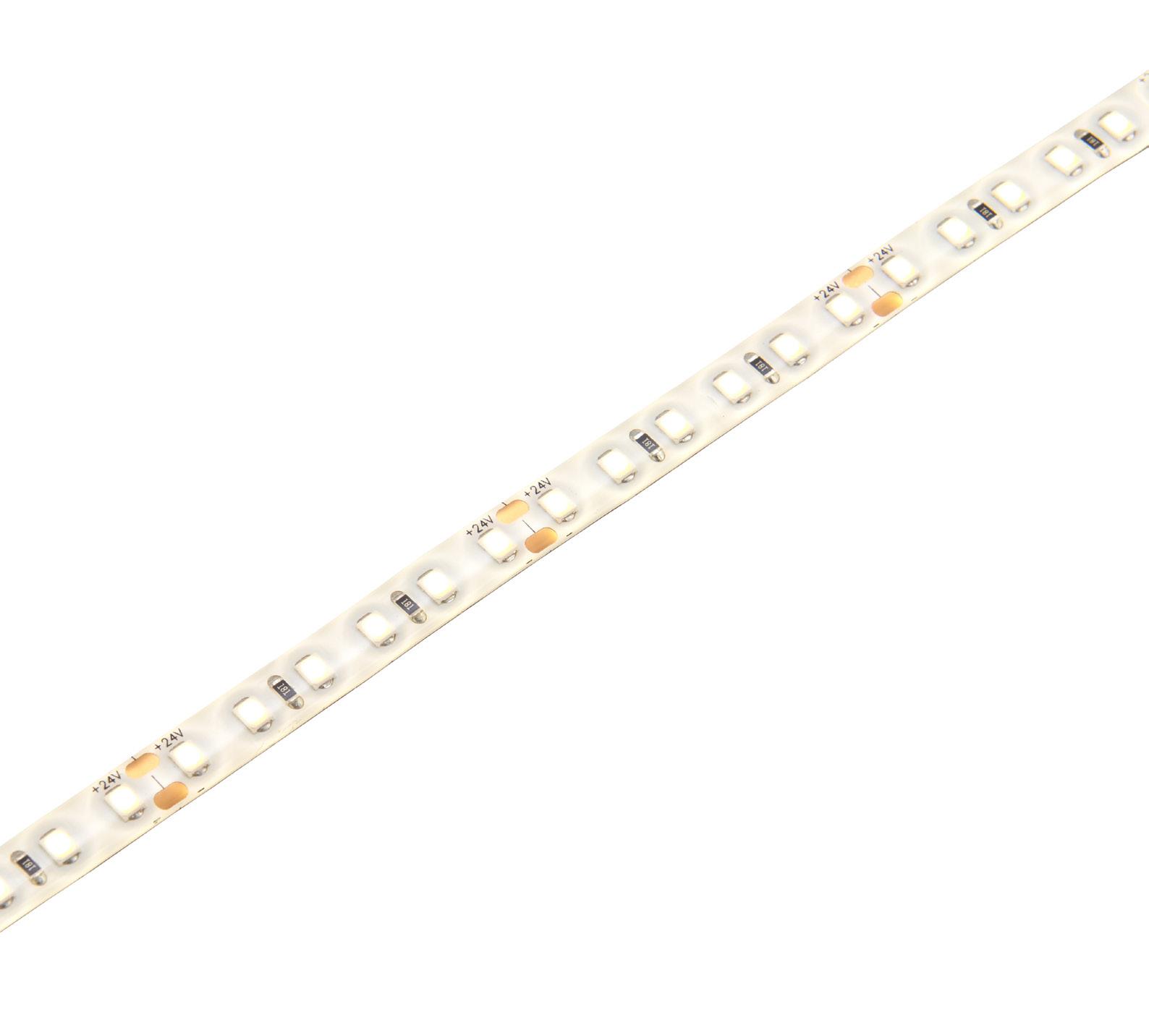

ORION65 24V

Saxby’s signature LED tape range

Orion6524V/9.6W/3000K/99022

Orion6524V/9.6W/4000K/99023

Orion6524V/9.6W/3000K/99024

Orion6524V/9.6W/4000K/99025

• White plastic

• Constructed from polymer film

• Max. 10M per run

• Pre wired 150mm 18AWG

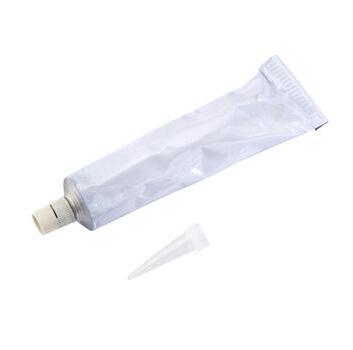

Compatible accessories for Orion65 24V range

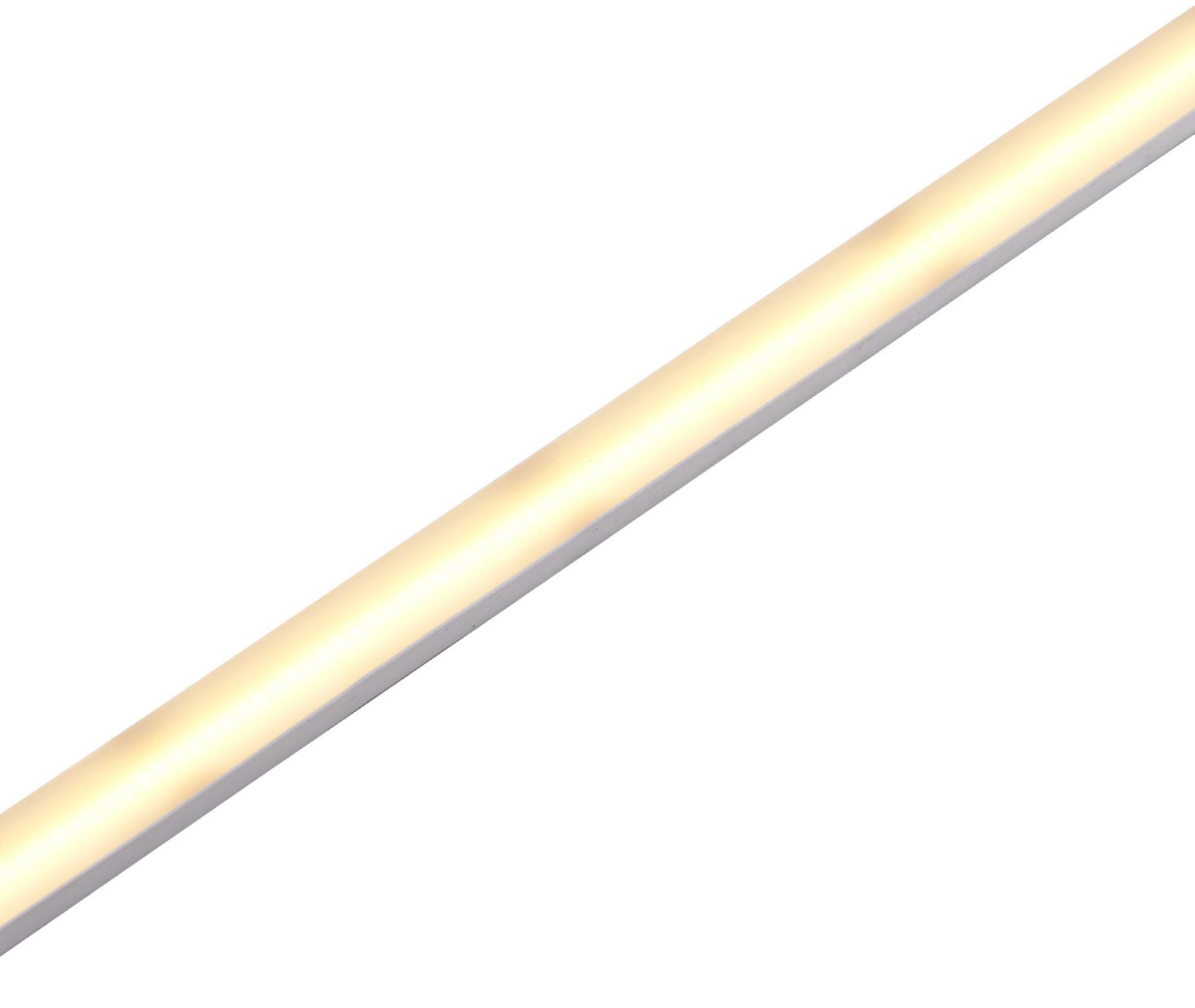

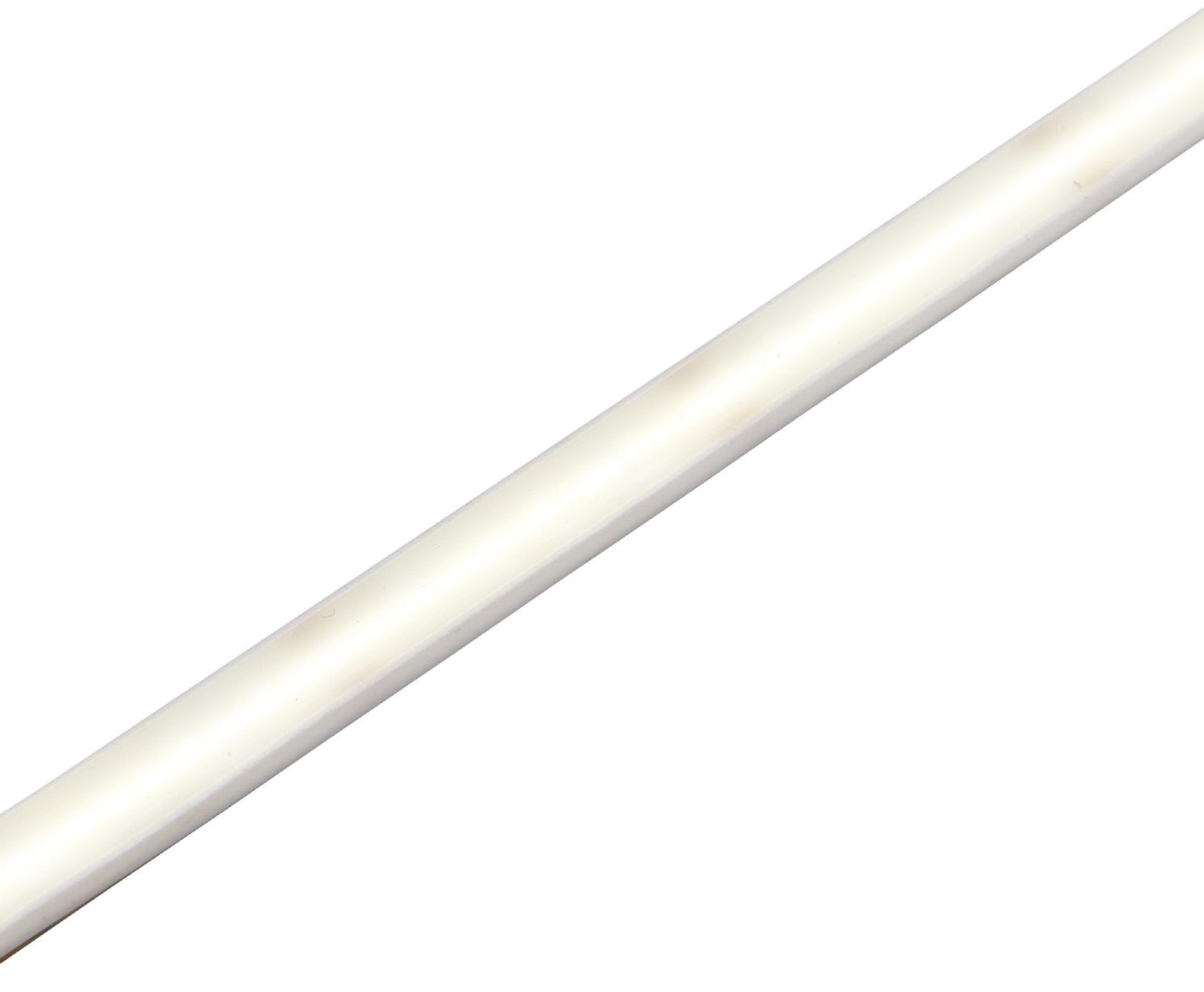

ORIONPRO NEON FLEX 24V

Saxby’s signature LED tape range

ACCESSORIES

Compatible accessories for OrionRGBW 24V range

Code

103841

103842

Description

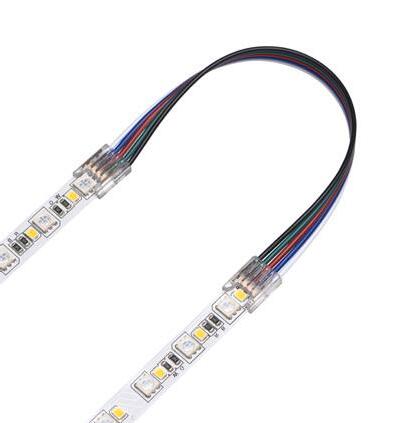

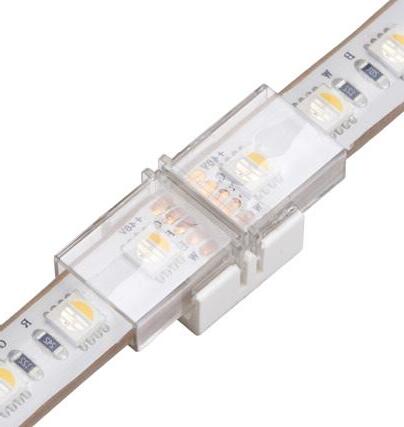

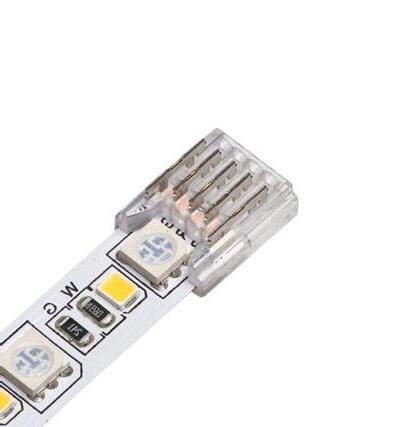

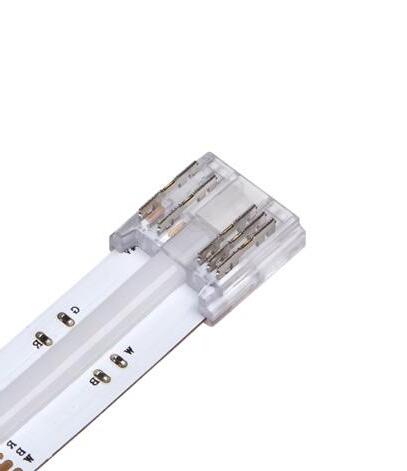

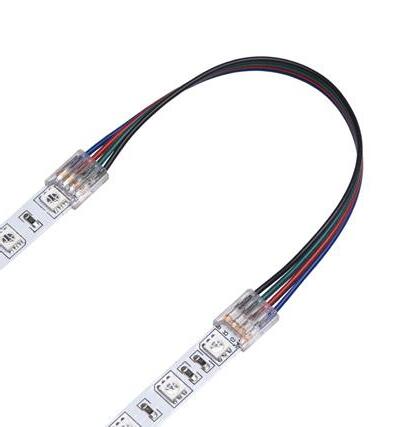

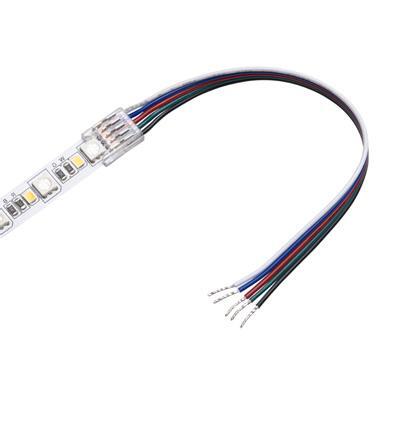

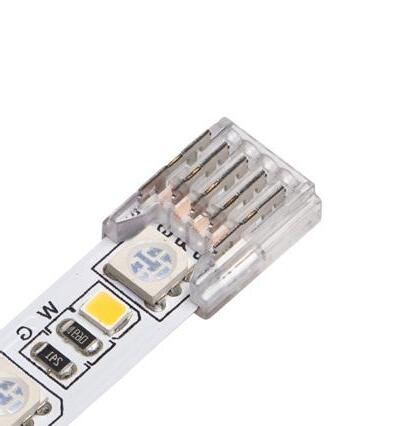

OrionRGBW 24V/48V | Flexible Tape to Controller Connector IP20

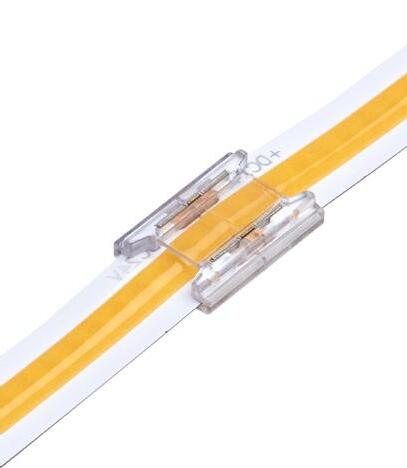

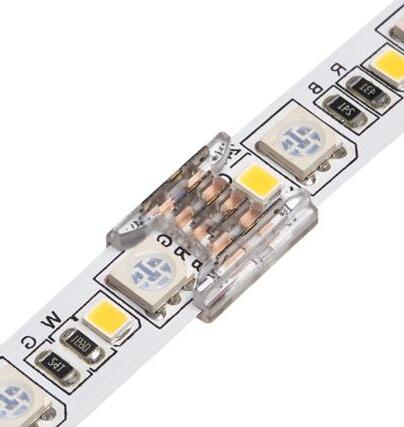

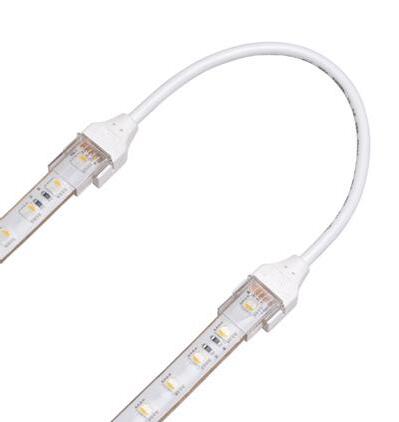

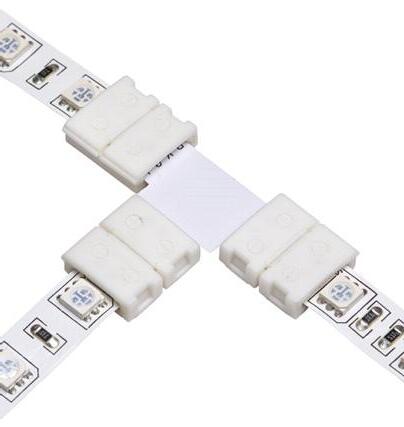

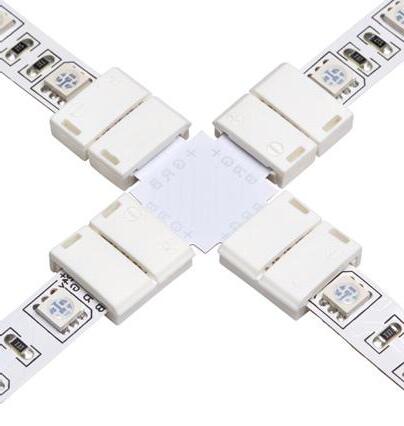

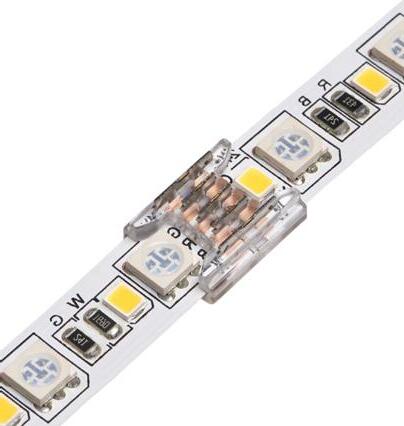

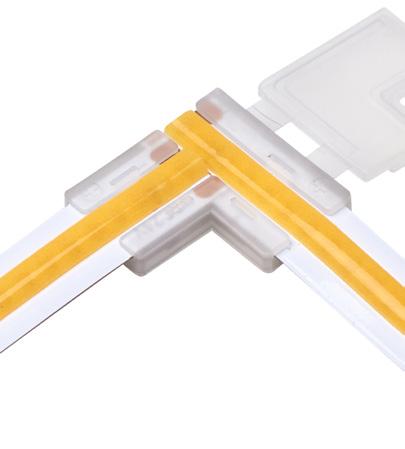

OrionRGBW 24V/48V | Tape to Tape Connector IP20

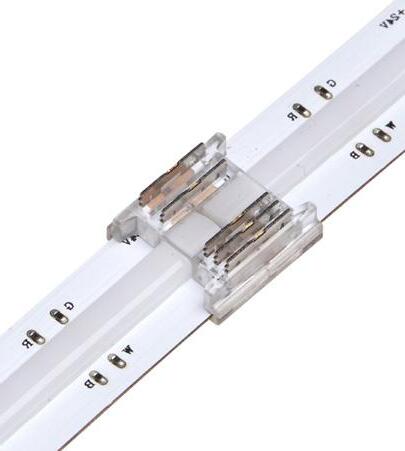

103843 OrionRGBW 24V/48V | Flexible Tape to Tape Connector IP20

111672 OrionRGBW 24V/48V | Tape to Controller Connector IP20

Dimensions

Proj: 5mm W: 11mm L: 163mm

Proj: 5mm W: 11mm L: 13mm

Proj: 5mm W: 11mm L: 176mm

Proj: 5.3mm W: 13.8mm L: 13.5mm

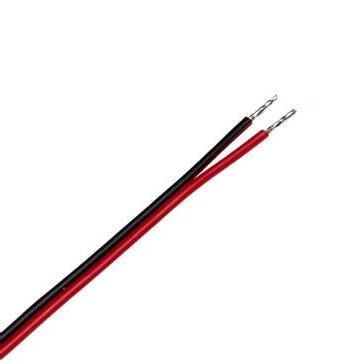

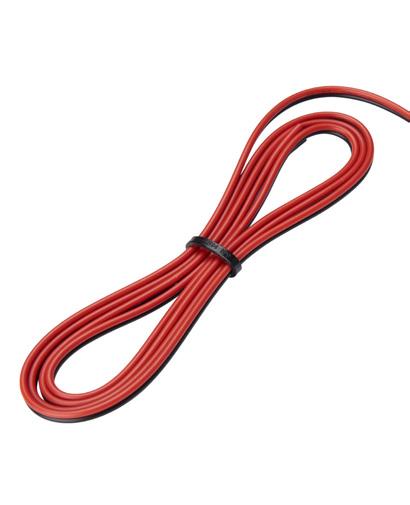

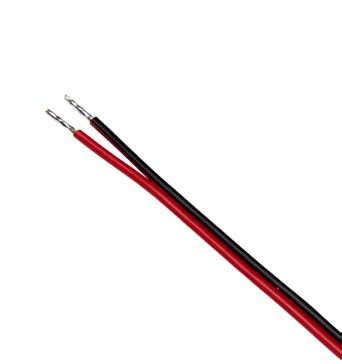

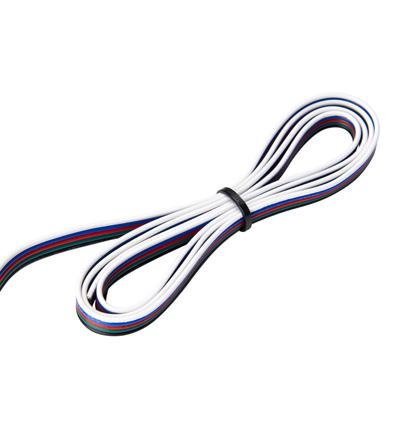

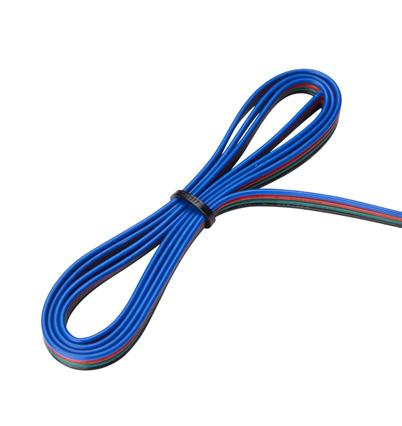

99054 OrionRGBW 24V/48V | 30M Extension Cable | COB & SMD L: 30000mm

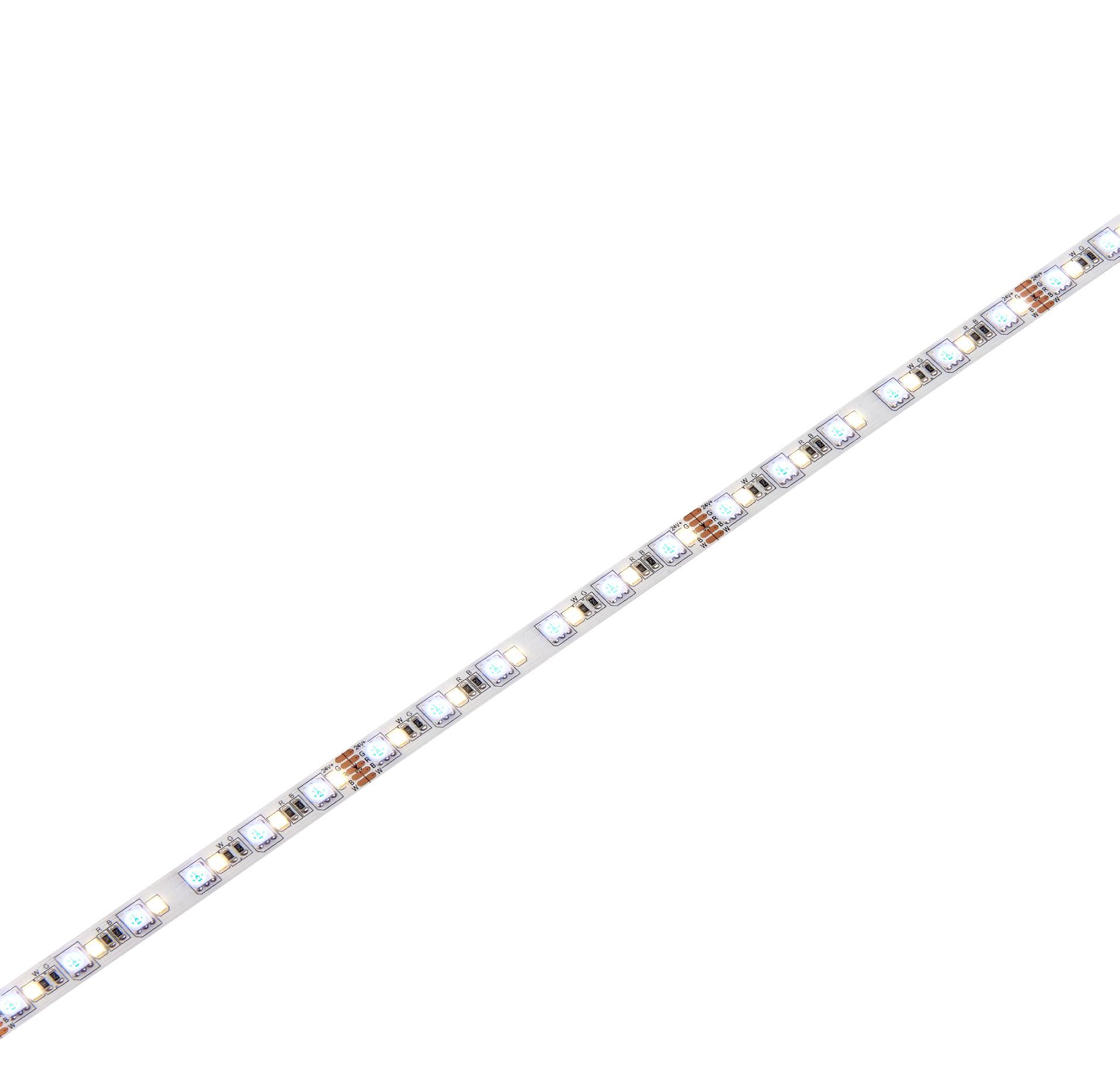

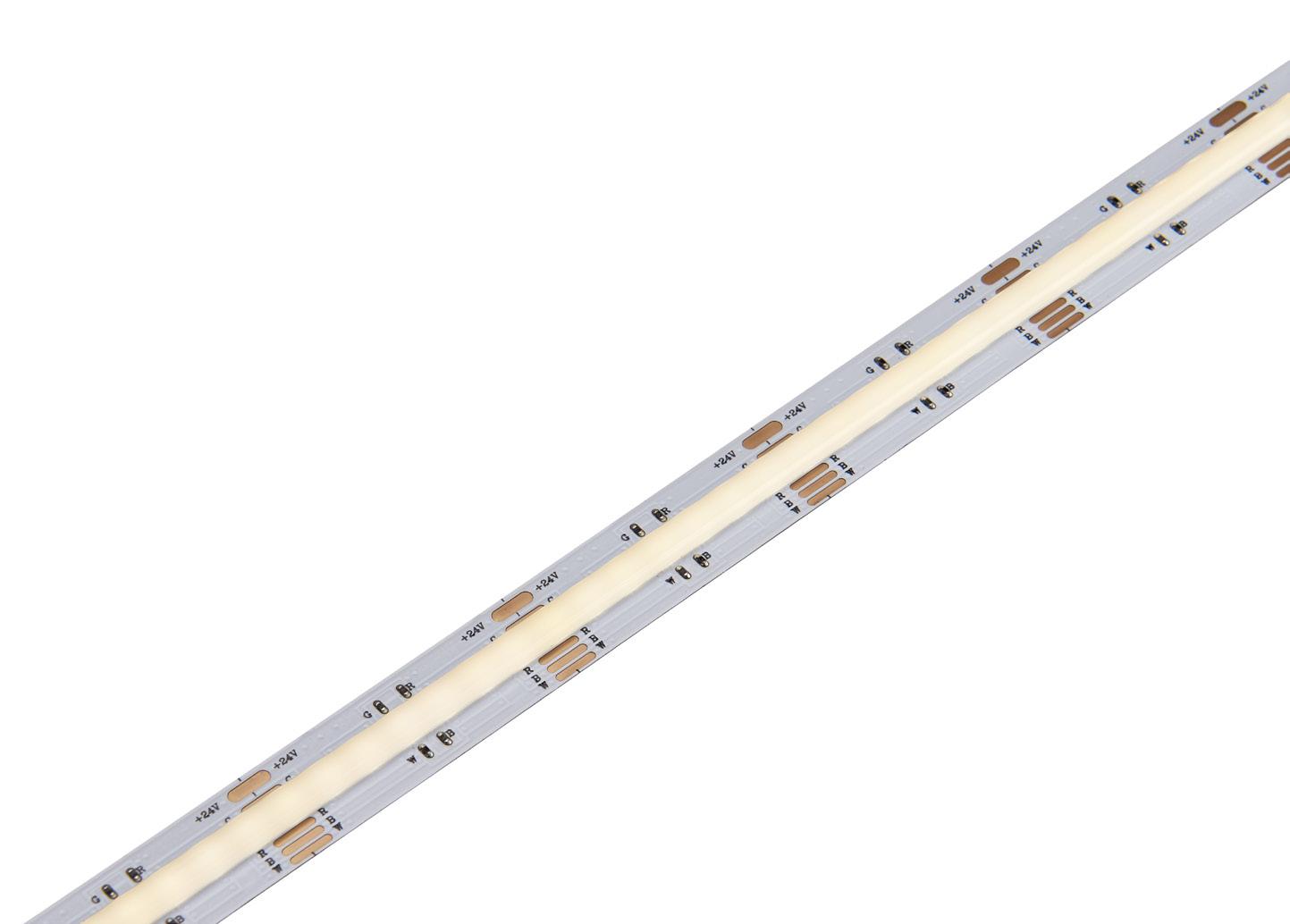

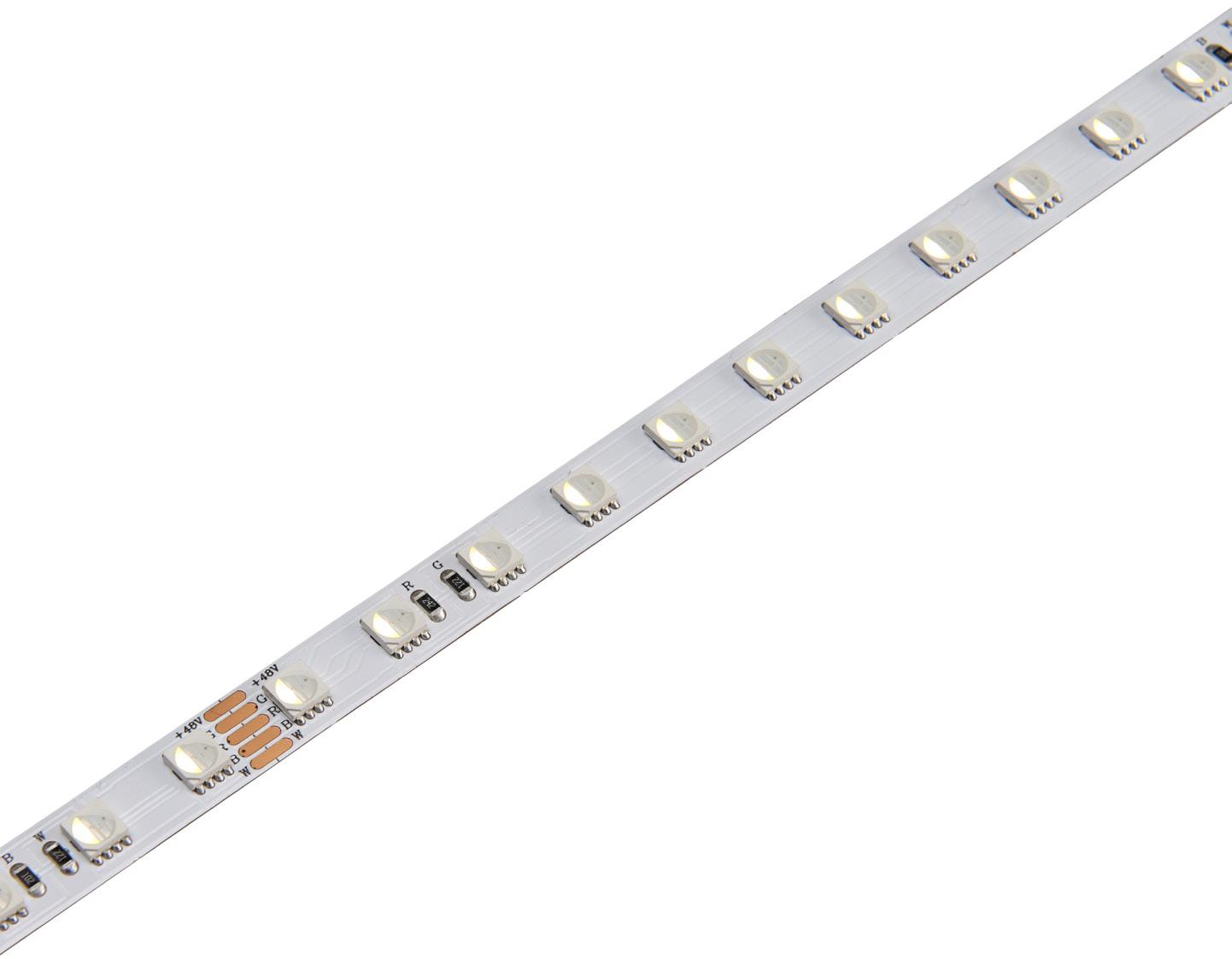

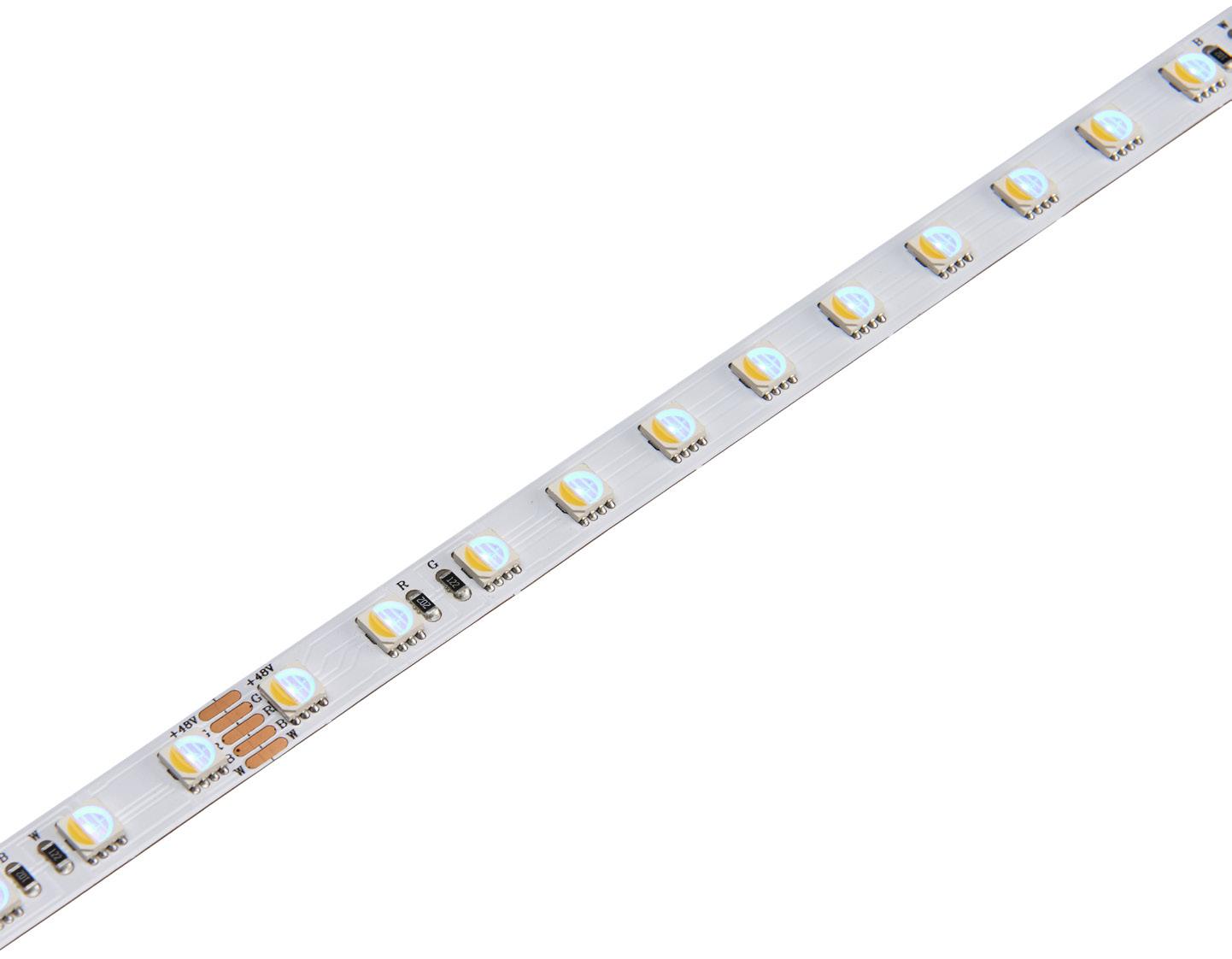

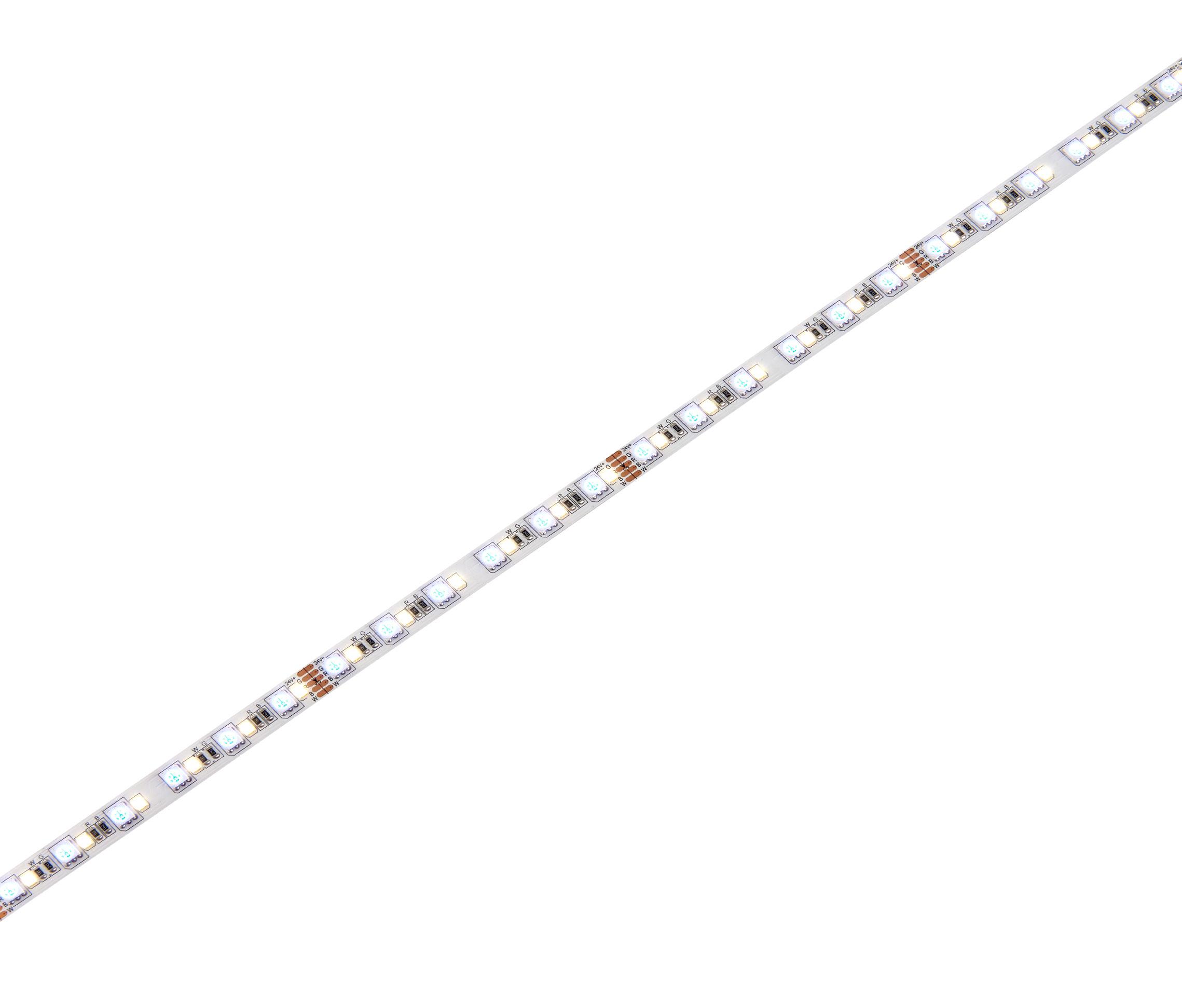

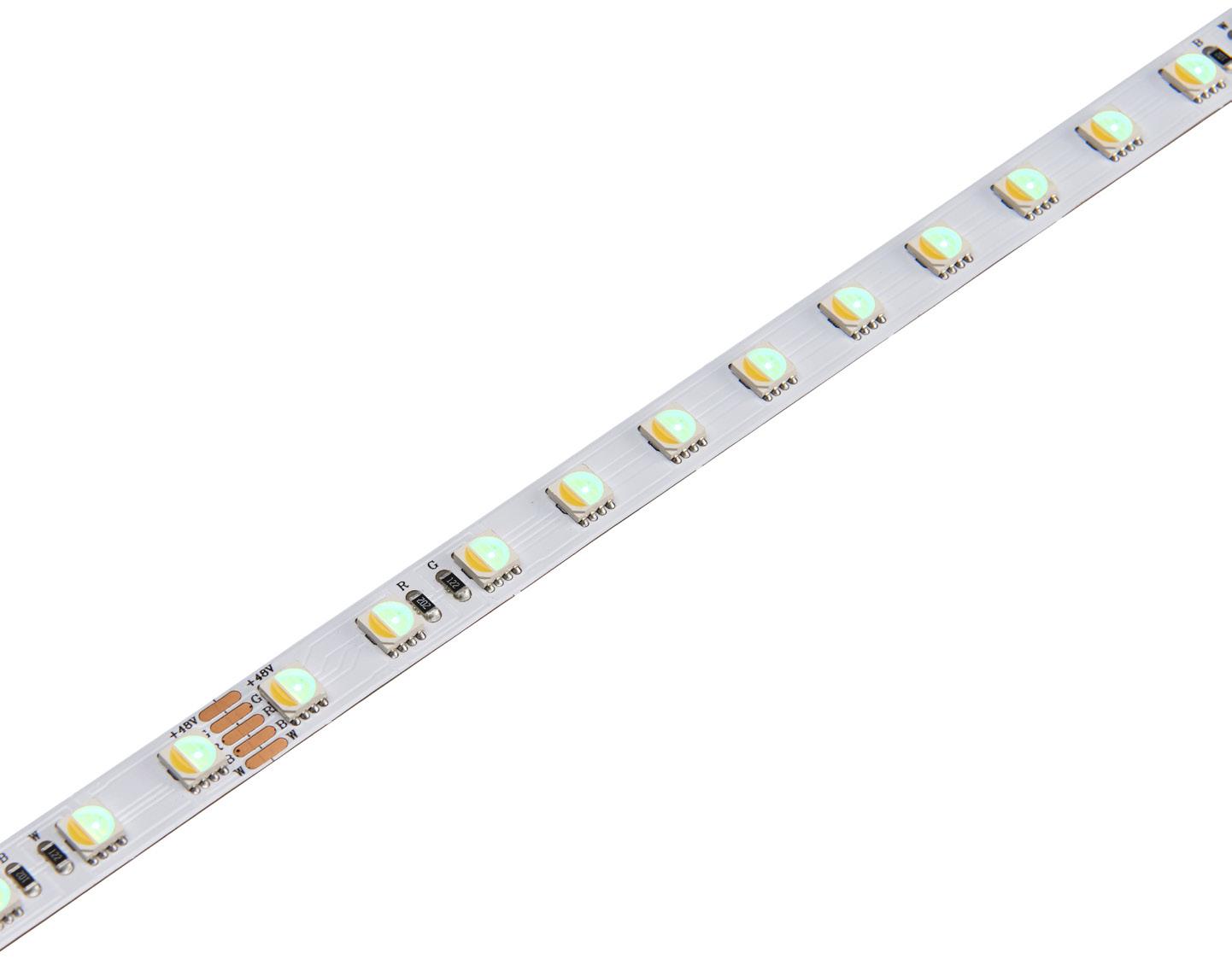

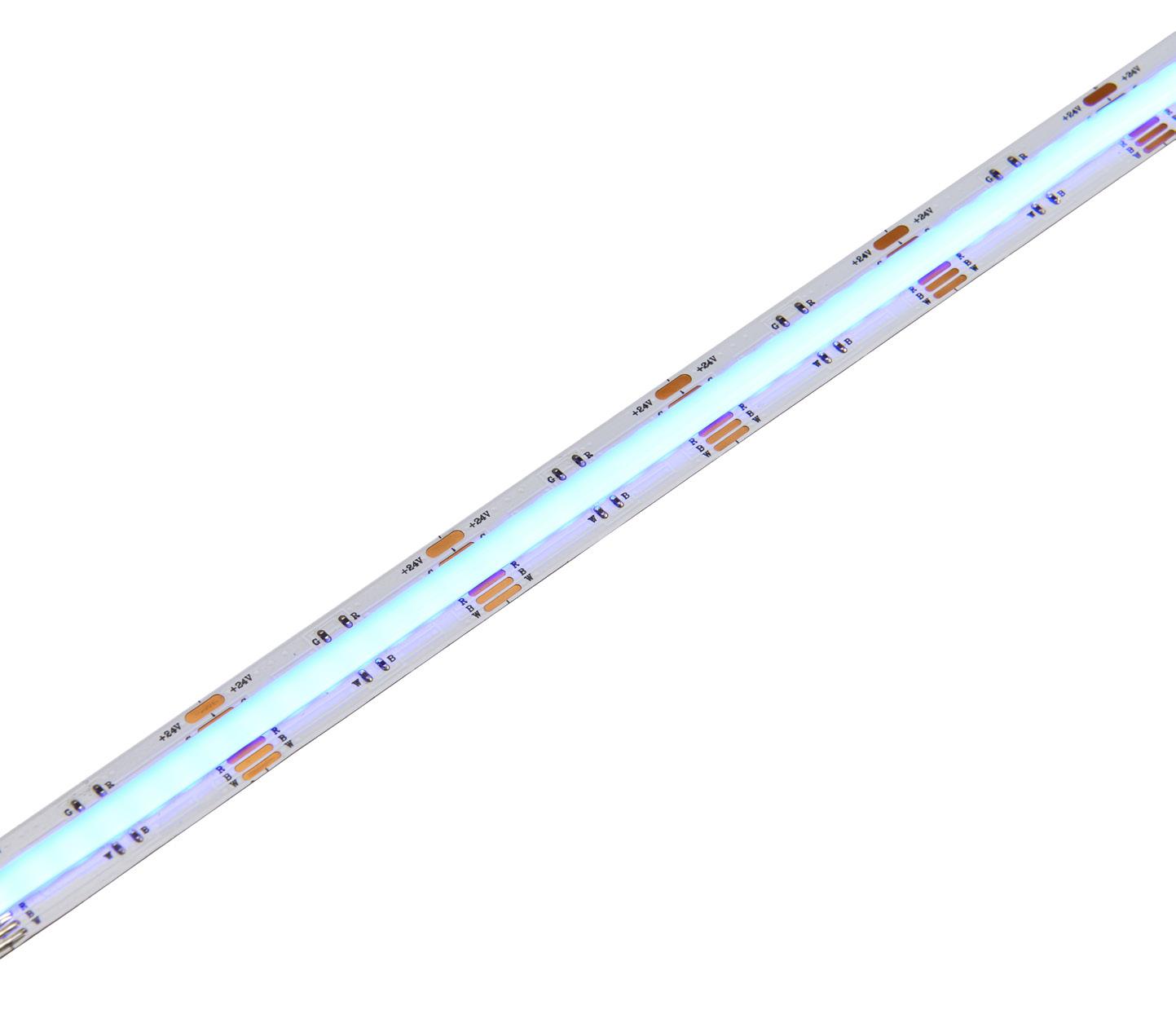

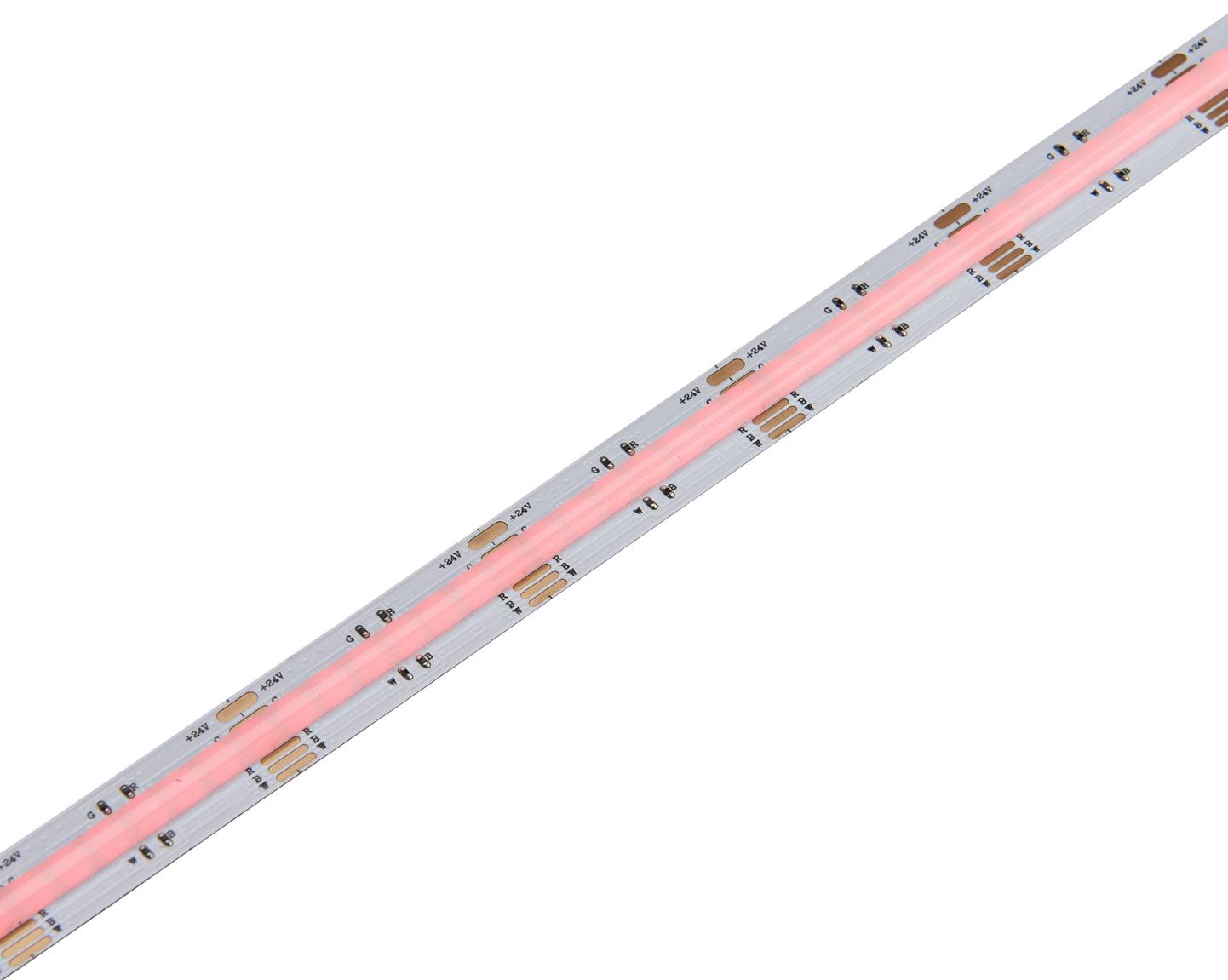

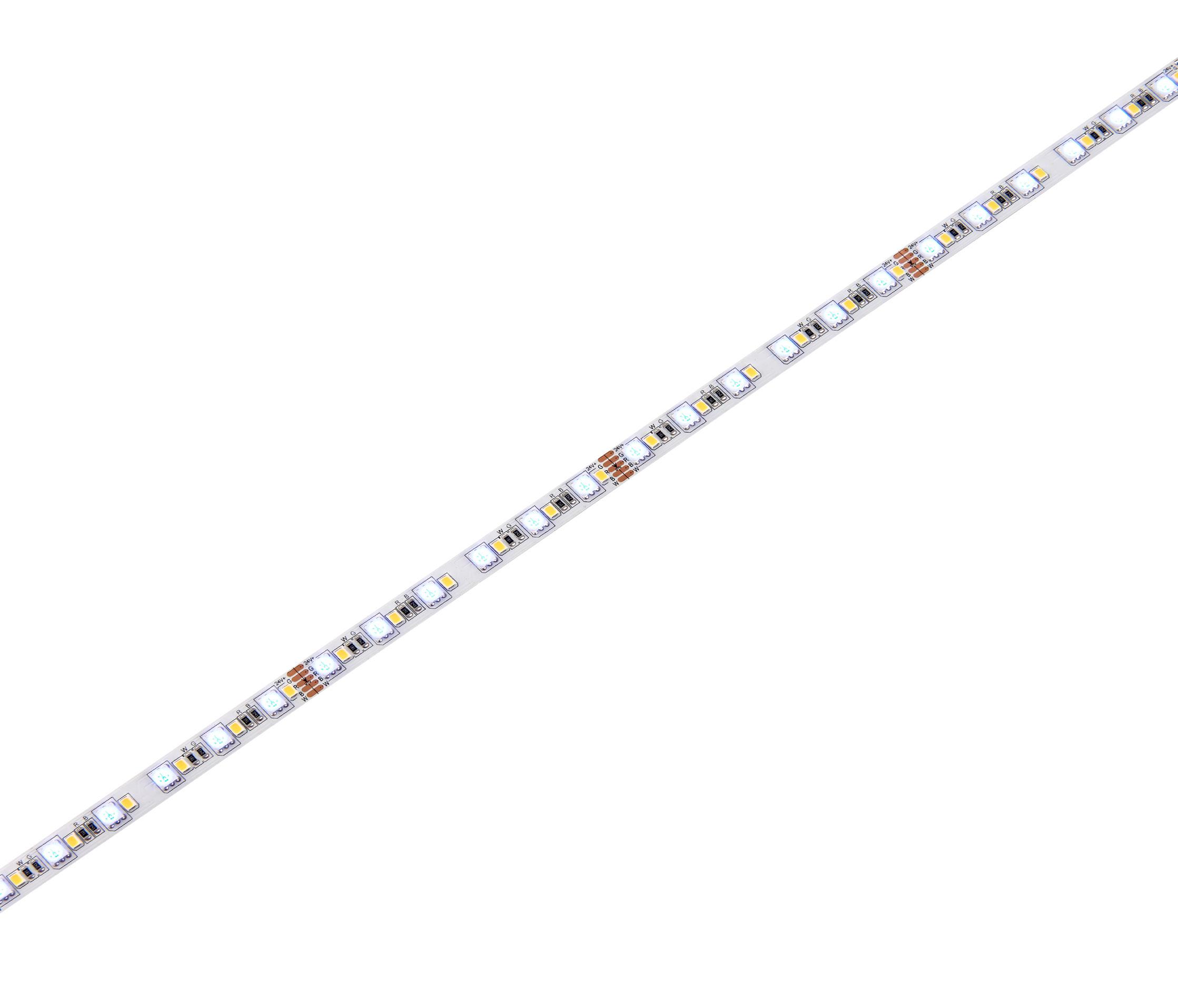

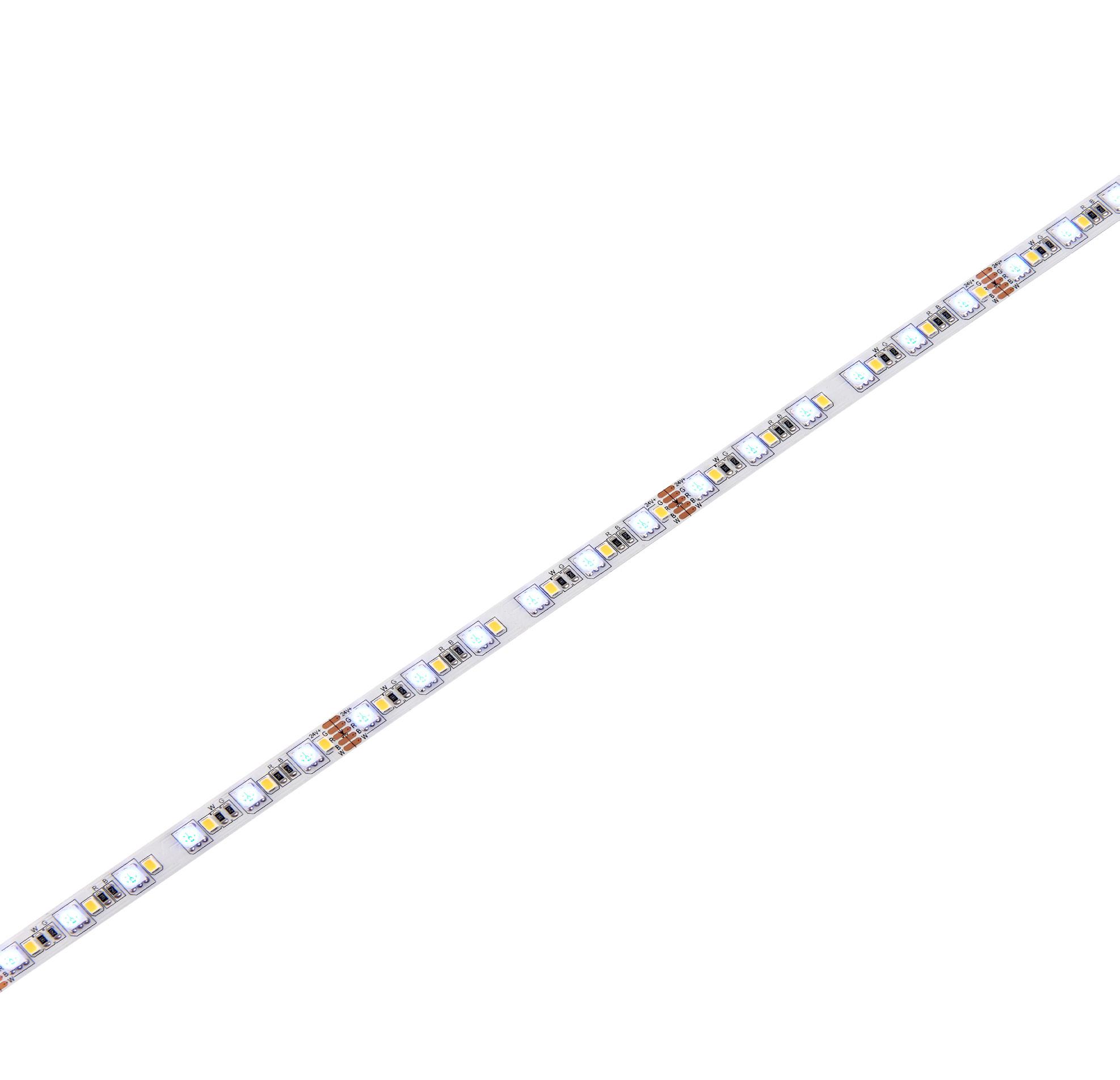

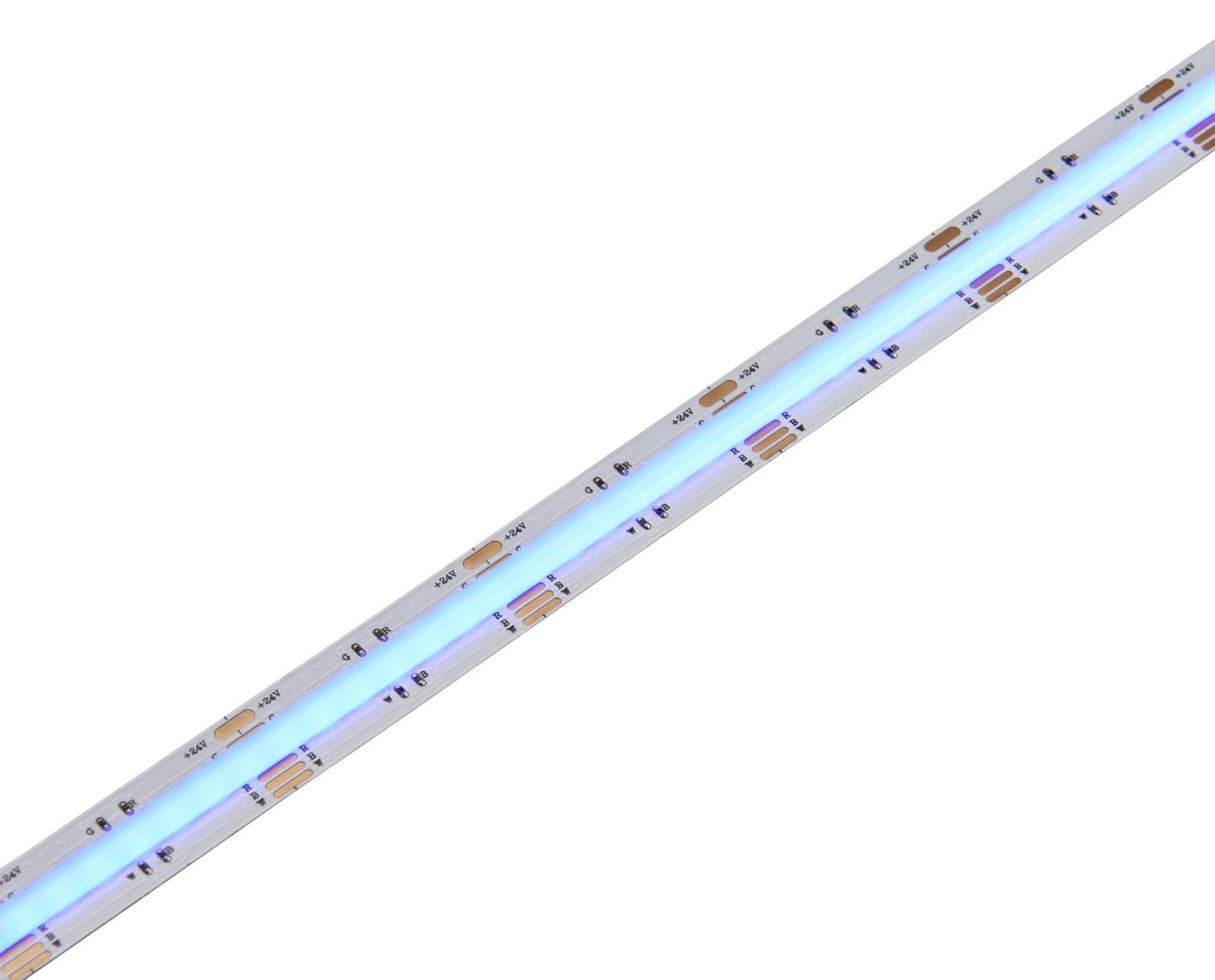

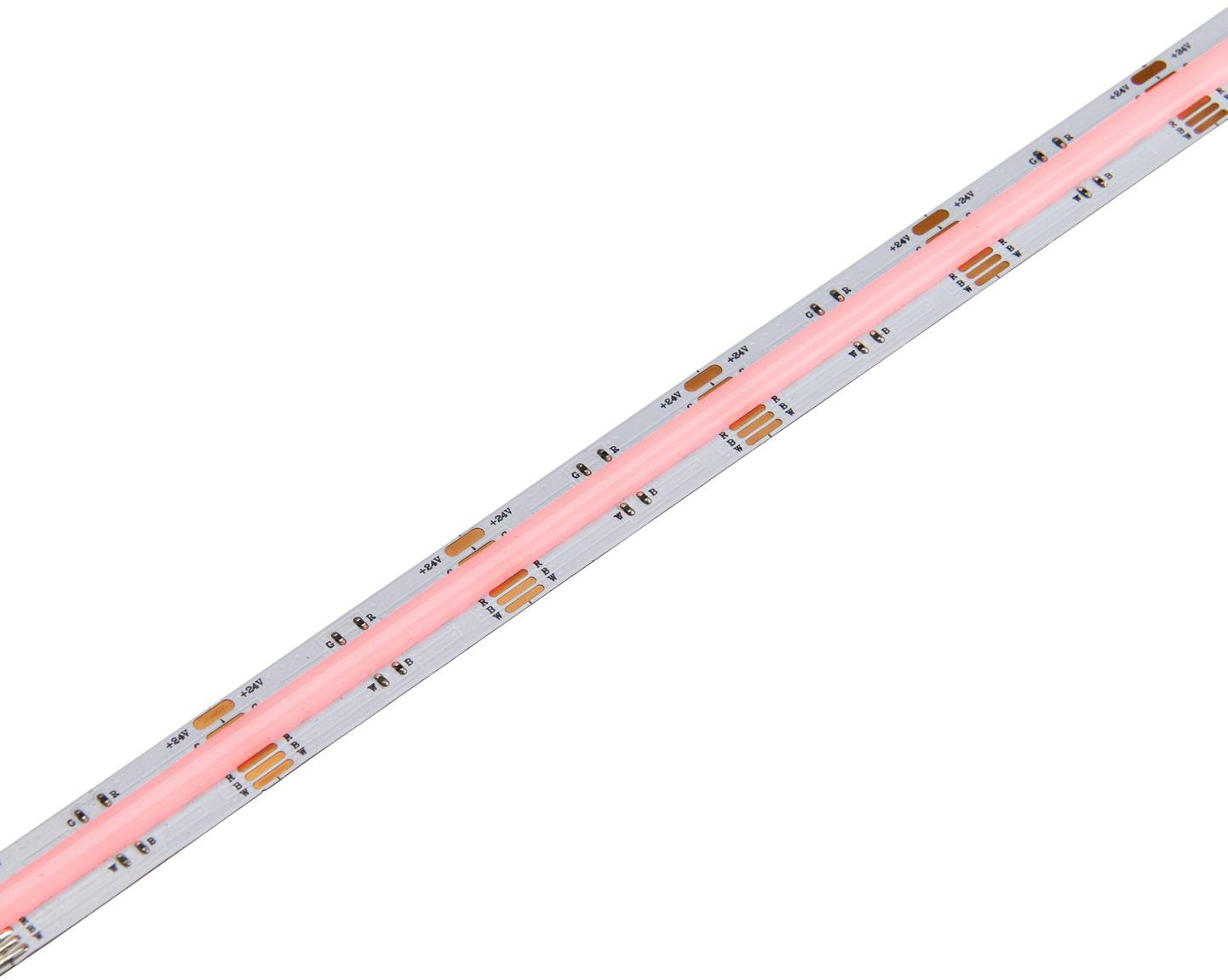

ORIONPRO RGBW 24V

Saxby’s signature LED tape range

• White plastic

• Constructed from polymer film

• Max. 5M per run

• Pre wired 150mm 22AWG

Compatible accessories for OrionPRO RGBW 24V range

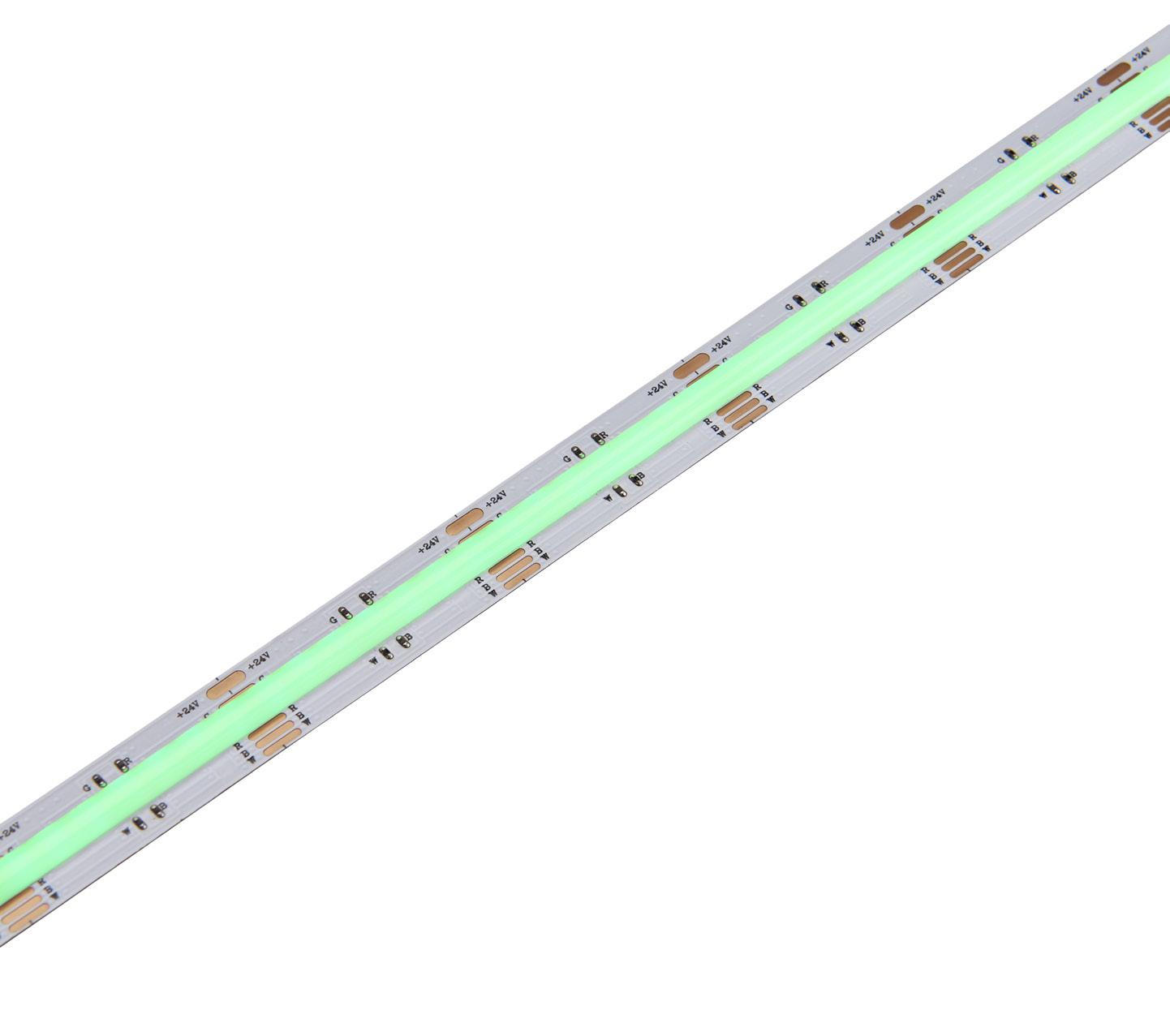

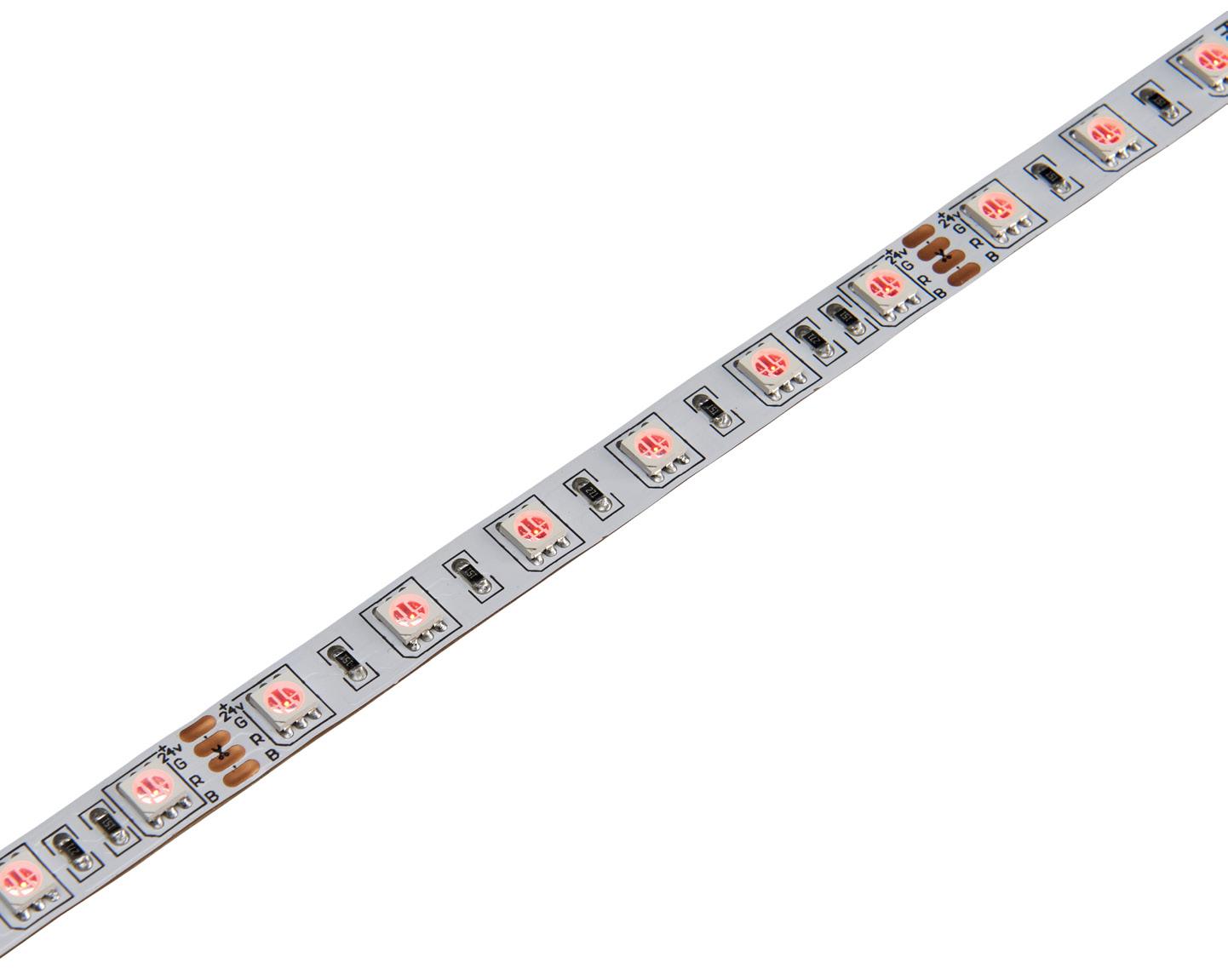

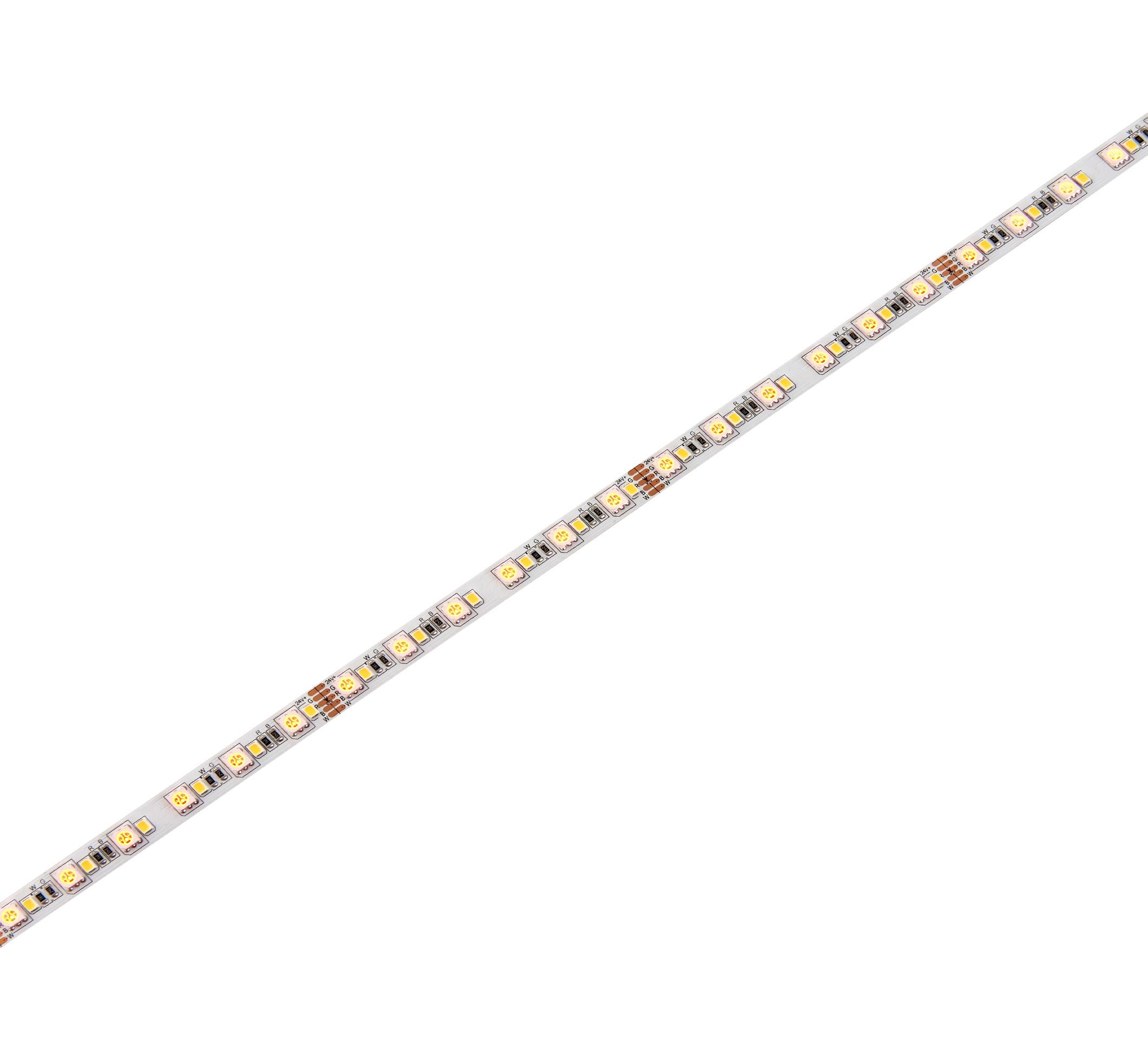

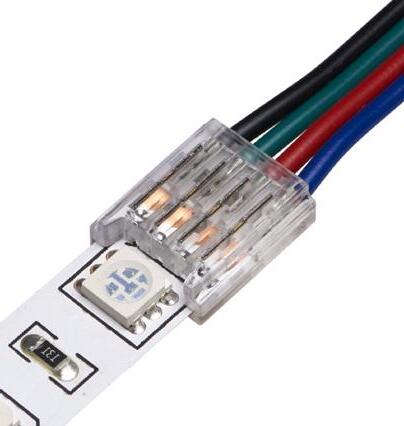

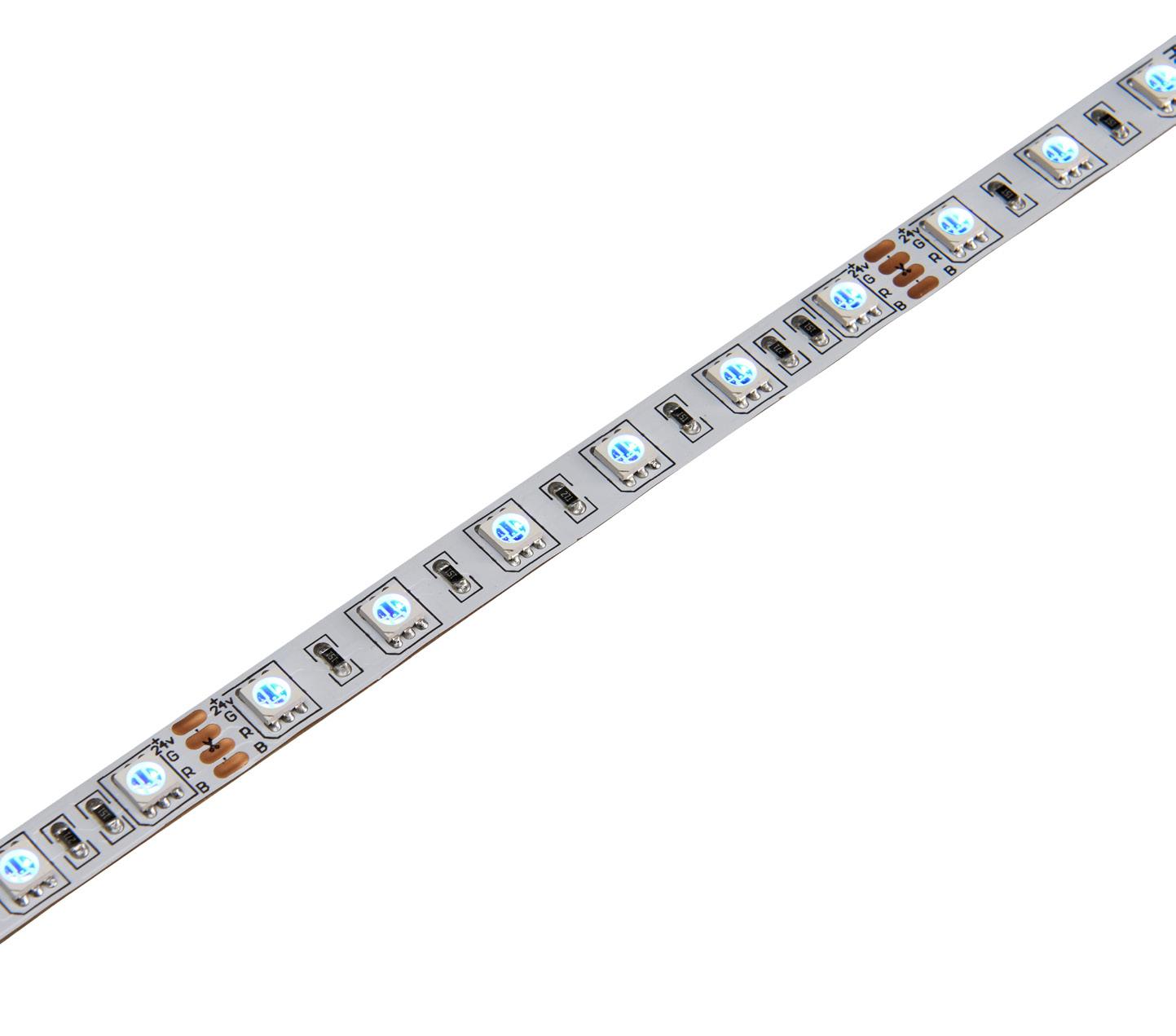

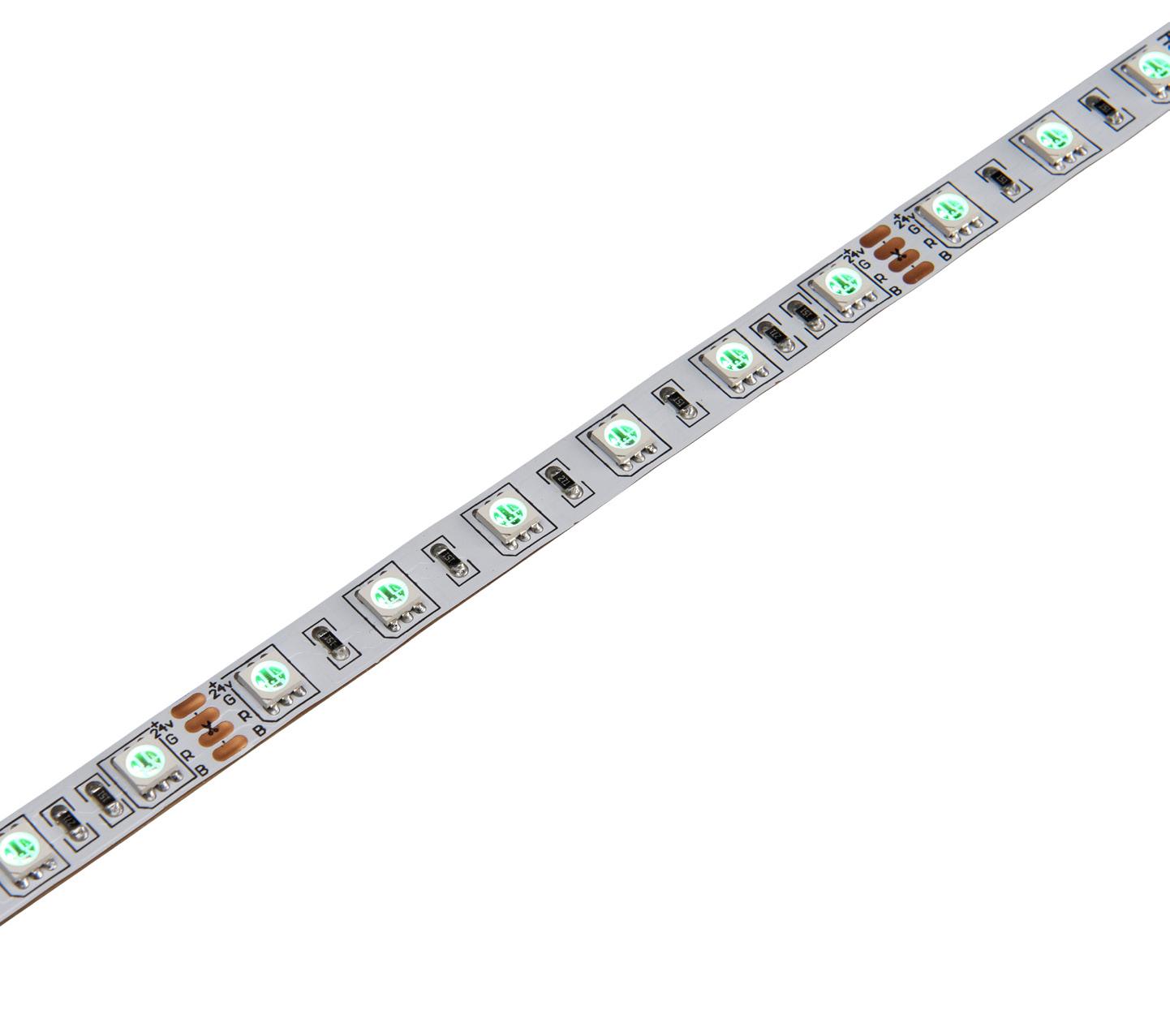

ORIONRGB 24V

Saxby’s signature LED tape range

ACCESSORIES

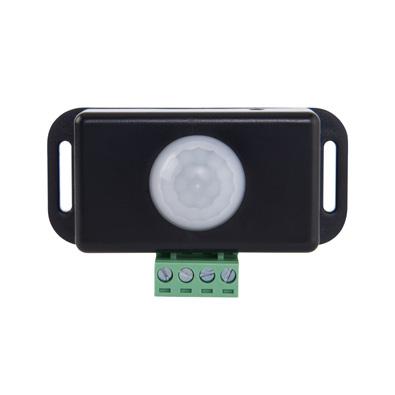

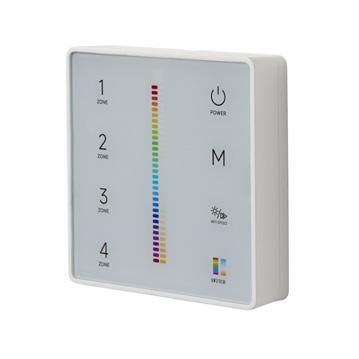

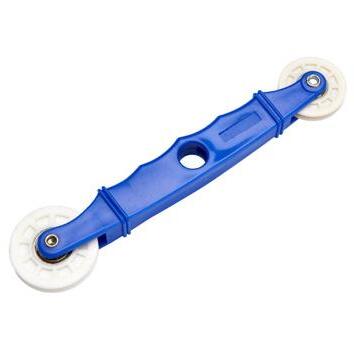

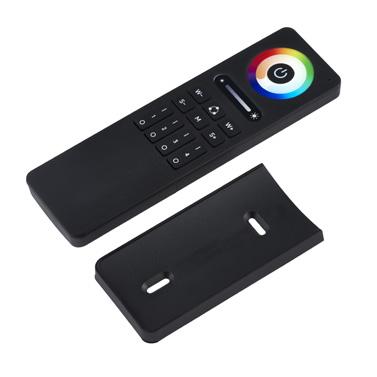

Orion accessories compatible with all tapes in the range

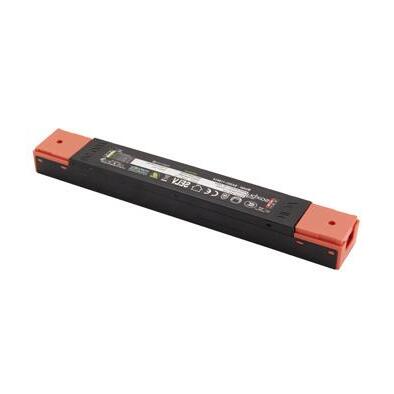

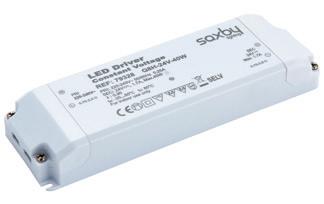

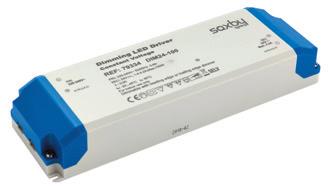

LED DRIVER CONSTANT VOLTAGE

79328, 79329, 98994, 98995, 98996

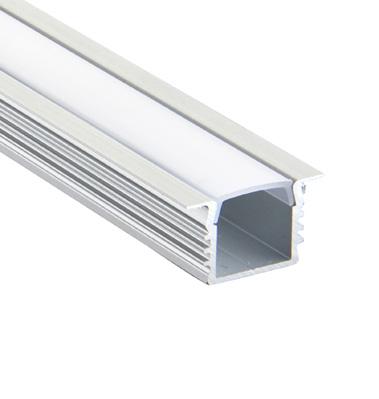

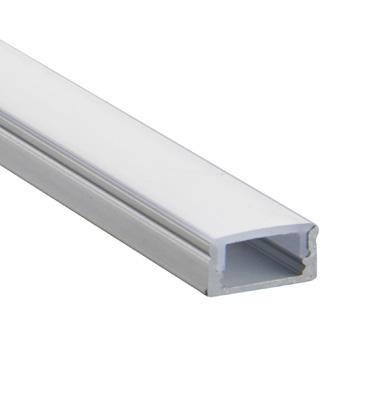

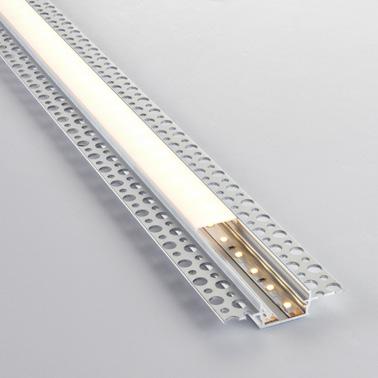

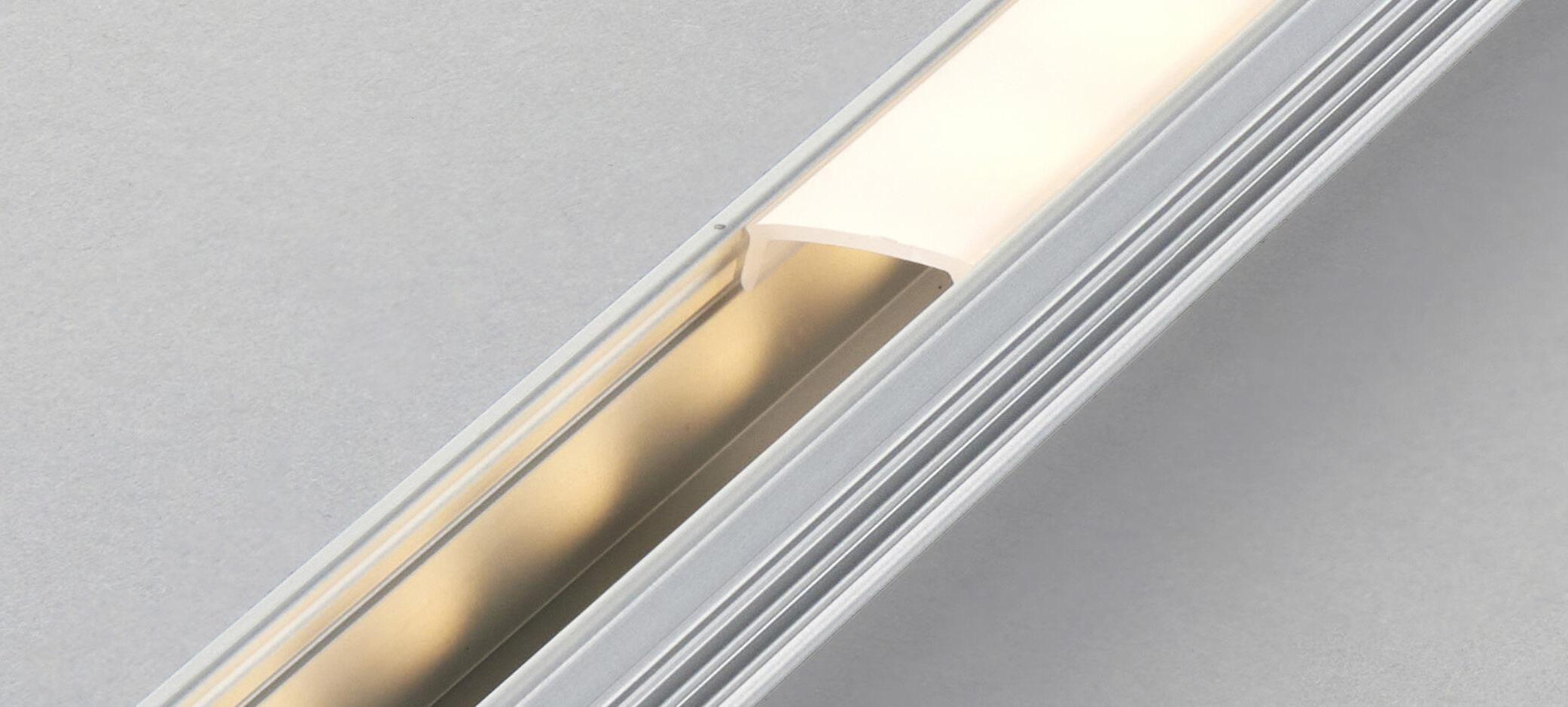

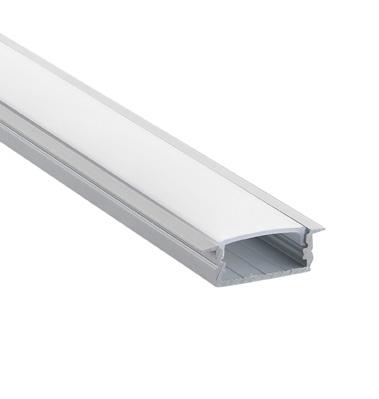

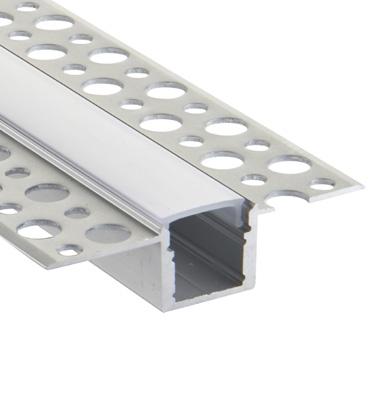

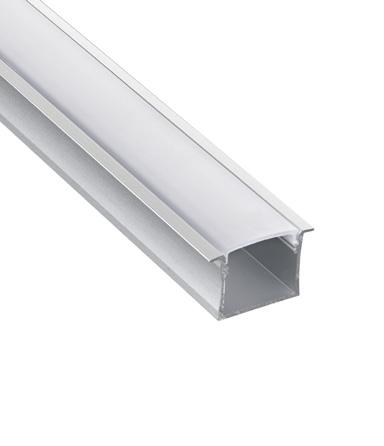

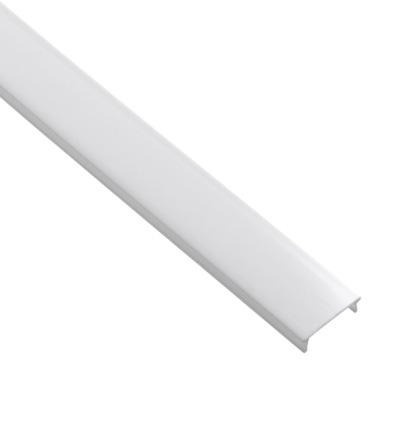

RIGEL RECESSED

Extrusion accessories and options with a 2 year warranty

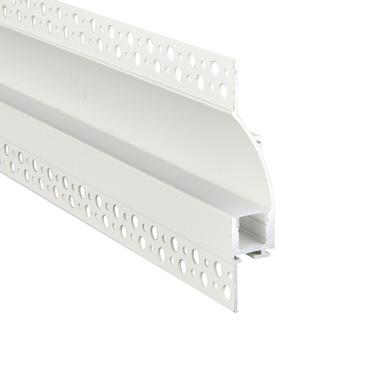

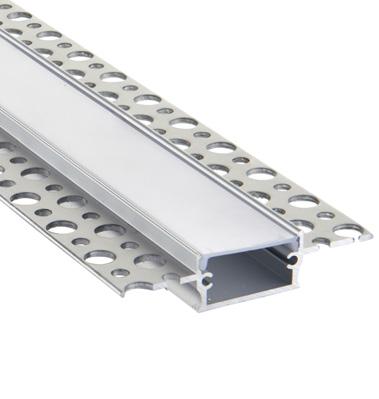

RIGEL PLASTER-IN

Extrusion accessories and options with a 2 year warranty

• Constructed from aluminium alloy & polycarbonate

• Supplied with fitting clips & end caps, with and without holes

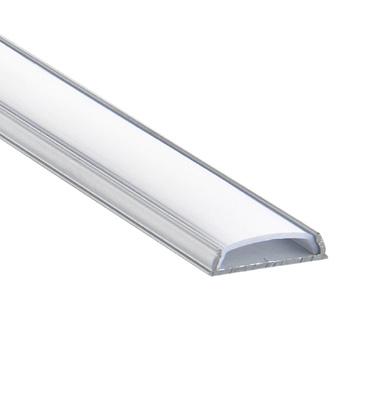

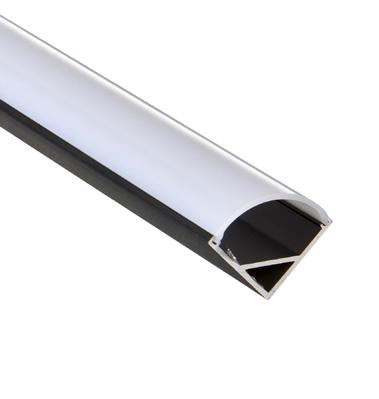

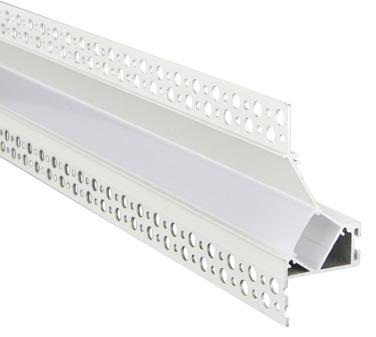

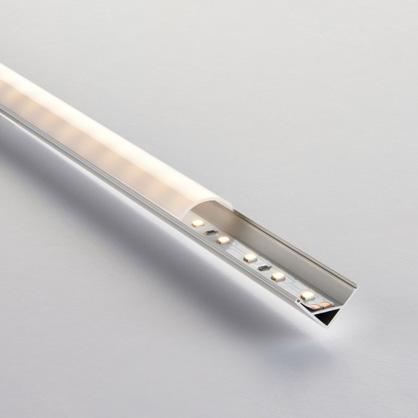

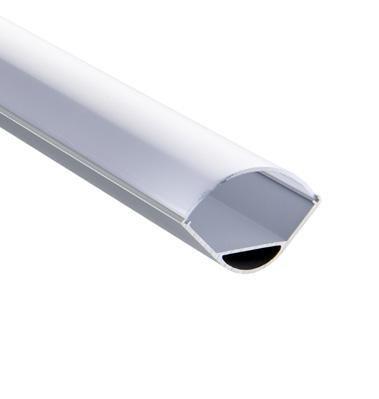

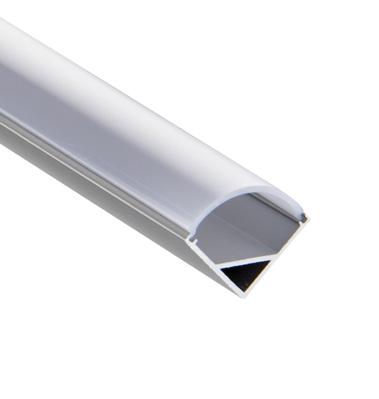

RIGEL CORNER & BENDABLE

Extrusion accessories and options with a 2 year warranty

ORION TAPE

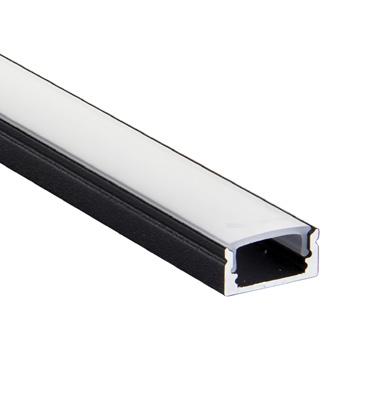

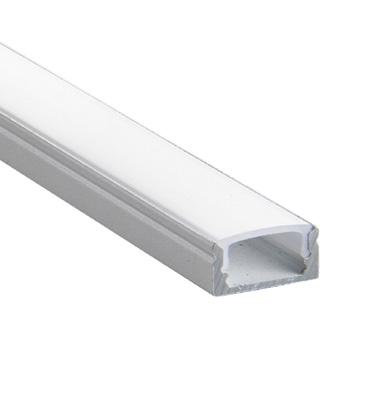

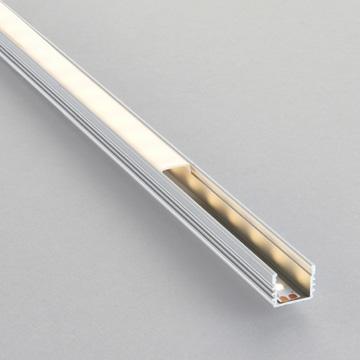

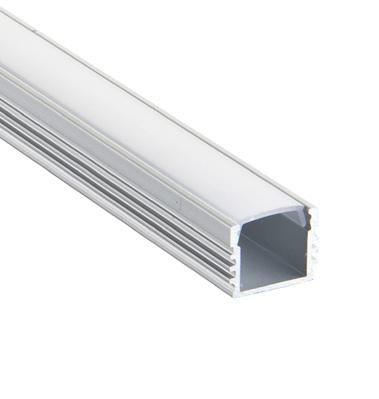

RIGEL SURFACE
