Saxby has been designing and manufacturing lights and accessories for commercial and domestic use for over 30 years. Our team of product design specialists combine a wealth of knowledge with a passion for innovation to create solutions. We listen to customers’ feedback and design our products to meet the needs of our users; that means safe, efficient installation and products you can trust. We are immensely proud of our industry relationships and pride ourselves on being a consistent and supportive partner to our wholesalers. We are delighted to extend our range to include wiring accessories, using the same ethos applied to our lighting ranges: product quality you can trust, customer service you can rely on, and unbeatable value for money.
The white grid modules can be only on the white grid plates. The metal grid modules can be used only on the metal grid plates.
Variety of combinations
A vast range of grid modules to build your own configurations

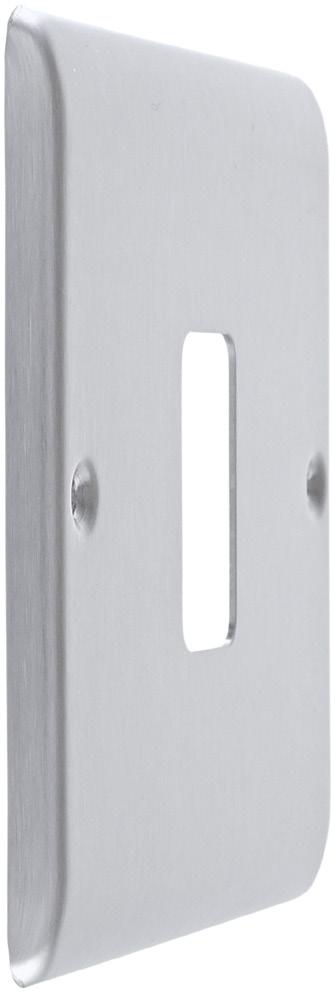

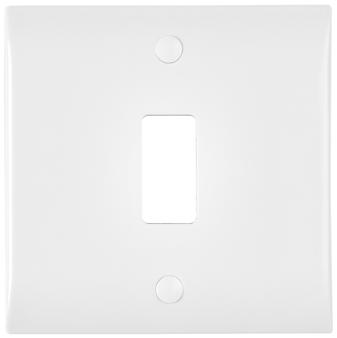

Stylish grid plates
A variety of grid plates to suit every style, available in white moulded, raised screwed and screwless

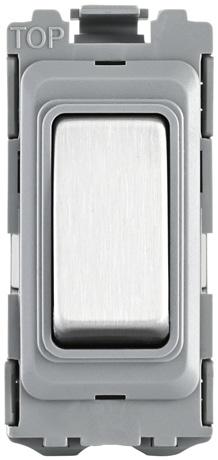

Available in different colour finishes White, brushed steel, matt black or polished chrome. All brushed steel modules come with grey inserts as standard. Black and white inserts are also supplied.
Yoke
Yoke supplied as standard with every grid plate
Integrated moisture gasket Prevents any moisture transfer to decorative front plate

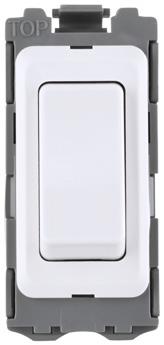

20A SP GRID SWITCH MODULES
•
•
20A DP GRID SWITCH MODULES
•
•

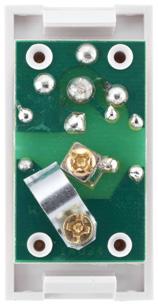

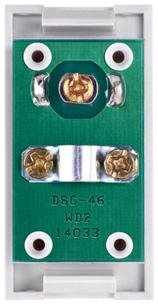

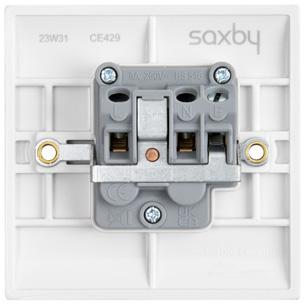

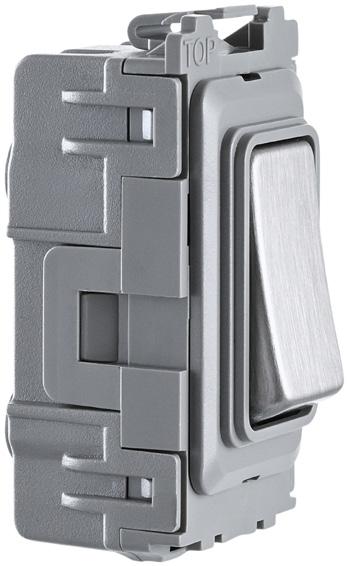

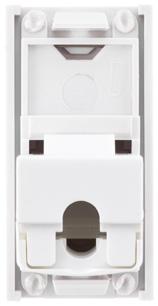

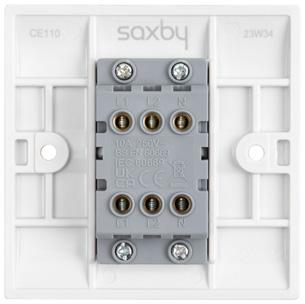

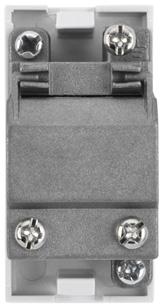

Back of module

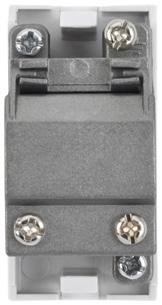

Back of module
20A INTERMEDIATE GRID SWITCH MODULES
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm

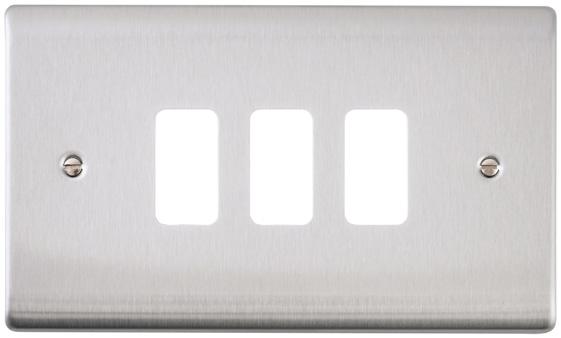

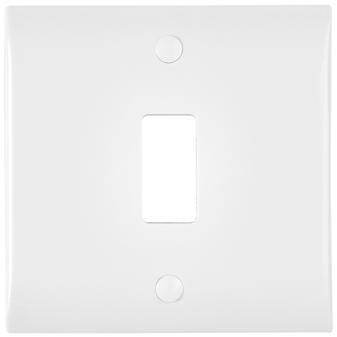

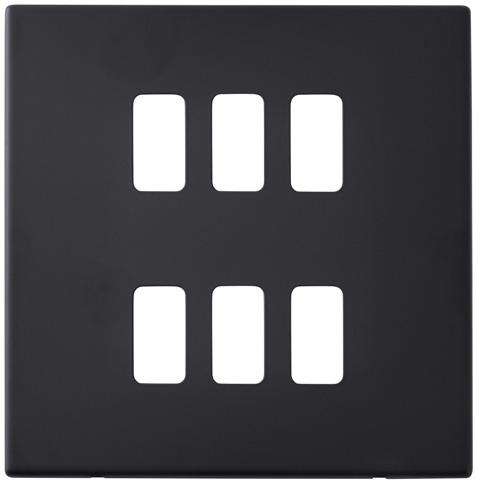

Grid Plates
GD20IMWH

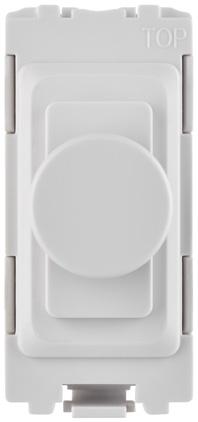

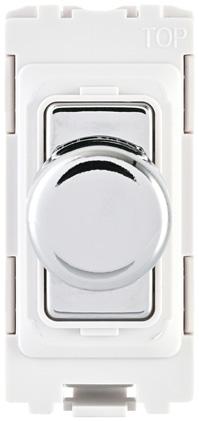

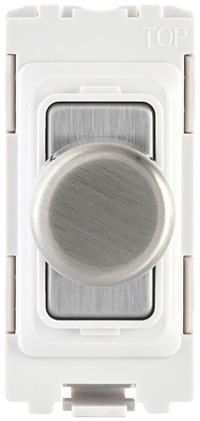

1G DIMMER MODULES
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm
• H: 54mm W: 24.8mm D: 19mm
Versatile Modules
The white grid modules can be used on the white grid plates only, see page 39. The metal grid modules can be used on Raised Screwed and Screwless grid plates only, see pages 62 & 88.
Back of module
25YR WARRANTY
• Standards: IEC/BS EN60669
• Min mounting box depth: 25mm
• H: 54mm W: 24.8mm D: 22.2mm
20A RETRACTIVE SWITCHES

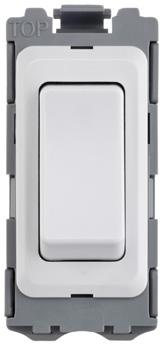

GD20RWH 20A SP Retractive (Press) Grid Switch Module White
Available in different colour finishes White, grey and black
Easy installation
Simply snap and lock the module into the modular front plate
Versatile solutions
With many different module options, it’s ideal for domestic and commercial applications
Variety of combinations
A vast range of euro modules allowing you to build your own configurations
Multiple faceplate options
Use in conjunction with any of the modular faceplates in the range
Matching modular plates
A variety of modular front plates for your chosen module finish. Available in white moulded, raised screwed and screwless ranges
3YR WARRANTY ANTI MICROBIAL PROPERTY SNAP LOCK DESIGN FINISH OPTIONS

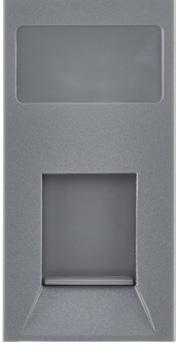

RJ45 CAT5E MODULES
•
•
RJ45 CAT6E MODULES
•
•

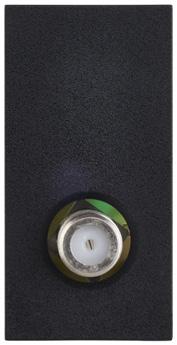

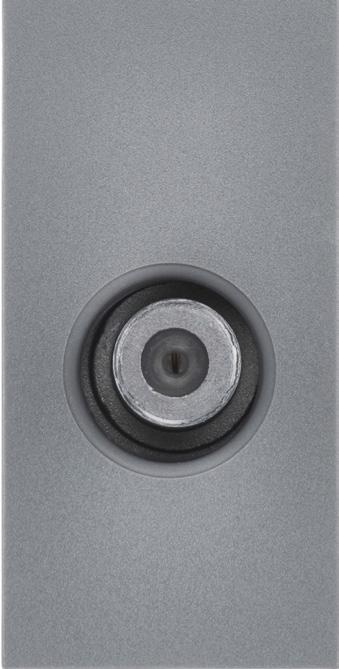

SATELLITE MODULES
• Standards: BS 5733
• Min mounting box depth: 25mm
SATELLITE SCREENED MODULES
• Standards: BS 5733
• Min mounting box depth:
MOSATGR
QUADPLEX MODULES
• Standards: BS 5733
• Min mounting box depth: 25mm
MOQUADWH
MOQUADGR
MOQUADBL Back of module

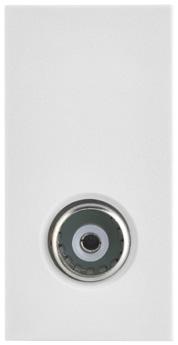

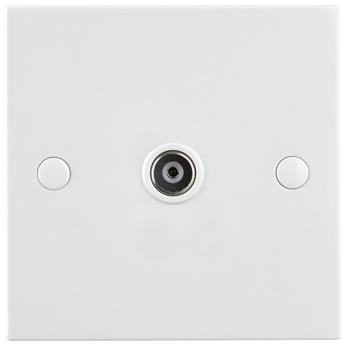

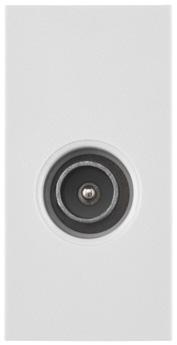

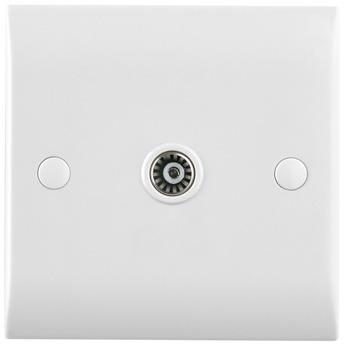

TV MODULES
3YR WARRANTY
• Standards: BS 5733
MICROBIAL PROPERTY
• Min mounting box depth: 25mm
TV SCREENED MODULES
3YR WARRANTY CLASS 3 CLASS 3
• Standards: BS 5733
• Min mounting box depth: 25mm
TELEPHONE MASTER MODULES
•
•
TELEPHONE SECONDARY MODULES
•
•
MOTMWH
Back of module

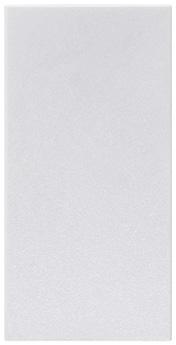

HALF BLANK MODULES
• Standards: BS 5733
• Min mounting box depth: 25mm

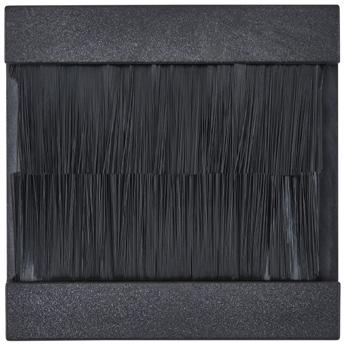

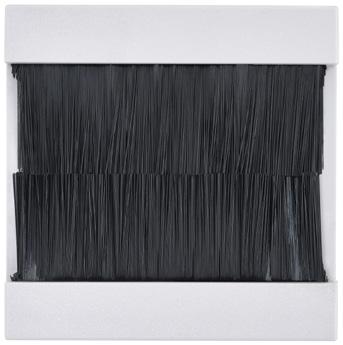

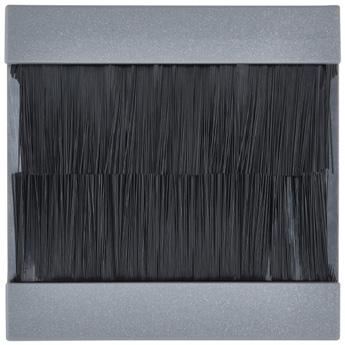

BRUSH MODULES
• Standards: BS 5733
• Min mounting box depth: 25mm
Back of module
Back of module
• Standards: BS 5733
• Min mounting box depth: 47mm

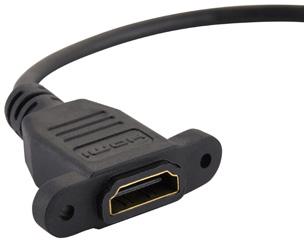

HDMI MODULE
SAXBY ELECTRICAL

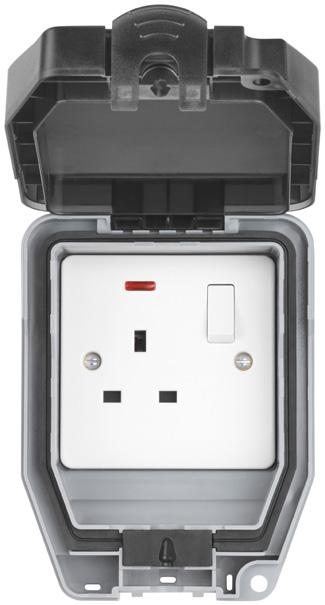

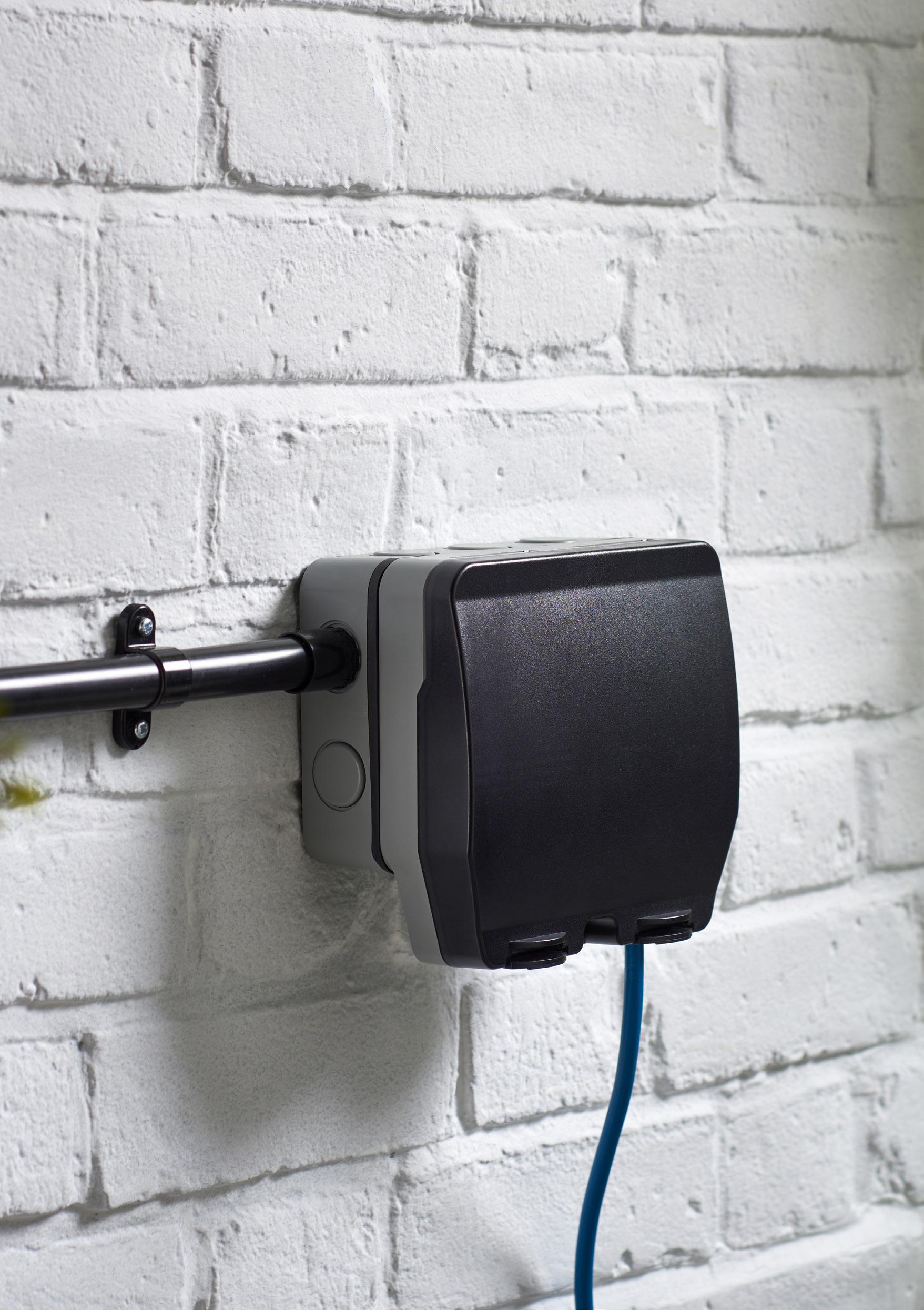

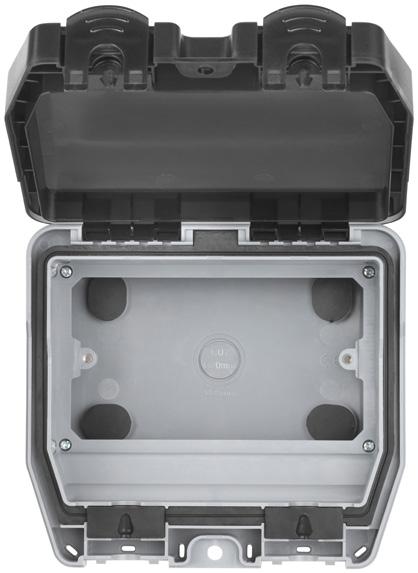

Cable entry
This allows for an extension lead to be plugged in but still the ability to close and lock the lid
Rubber gasket seal
A robust gasket to ensure the maximum IP rating on the product
Interchangeable front plate
Simply unscrew the current plate and insert with your desired option
Drainage
holes
The fitting has four draining holes which can be drilled out depending on your requirements
Robust cover
The cover lid has a press to release locking mechanism tab for secure closure
20mm knockouts
Multiple pop out knockouts for a versatile installation
Hole to secure closed
You can add your own padlock or cable tie through the hole to ensure the fitting stays closed and prevent tampering
Screw mounting locations
Four adjustable screw locations to allow for movement when levelling the product during mounting

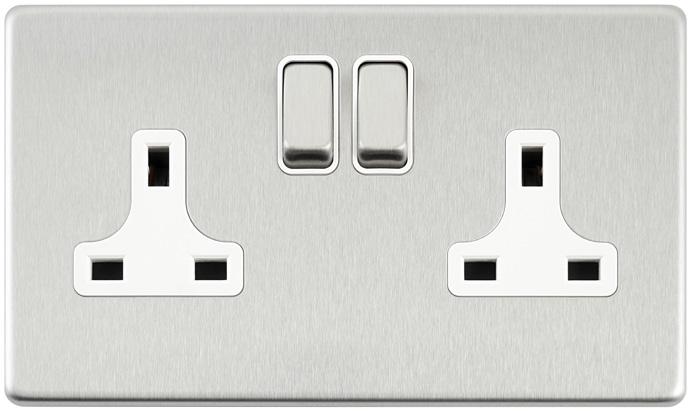

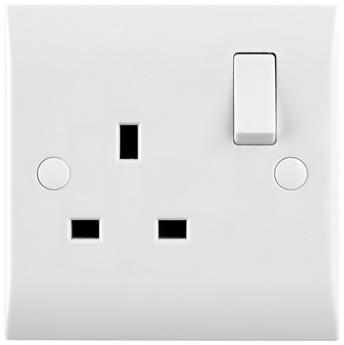

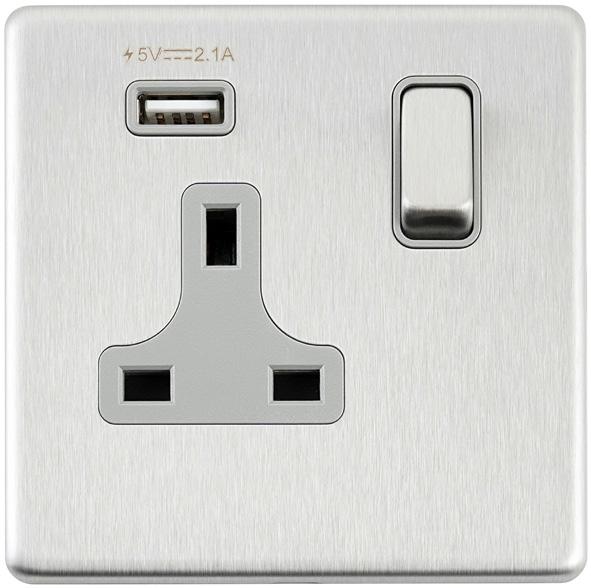

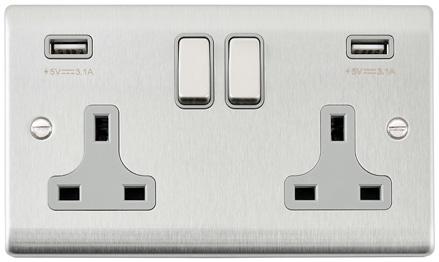

13A 1G SWITCHED SOCKETS
• Standards: BS 1363-2

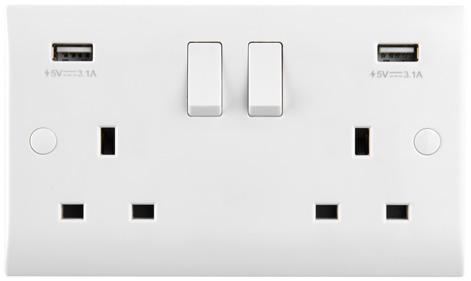

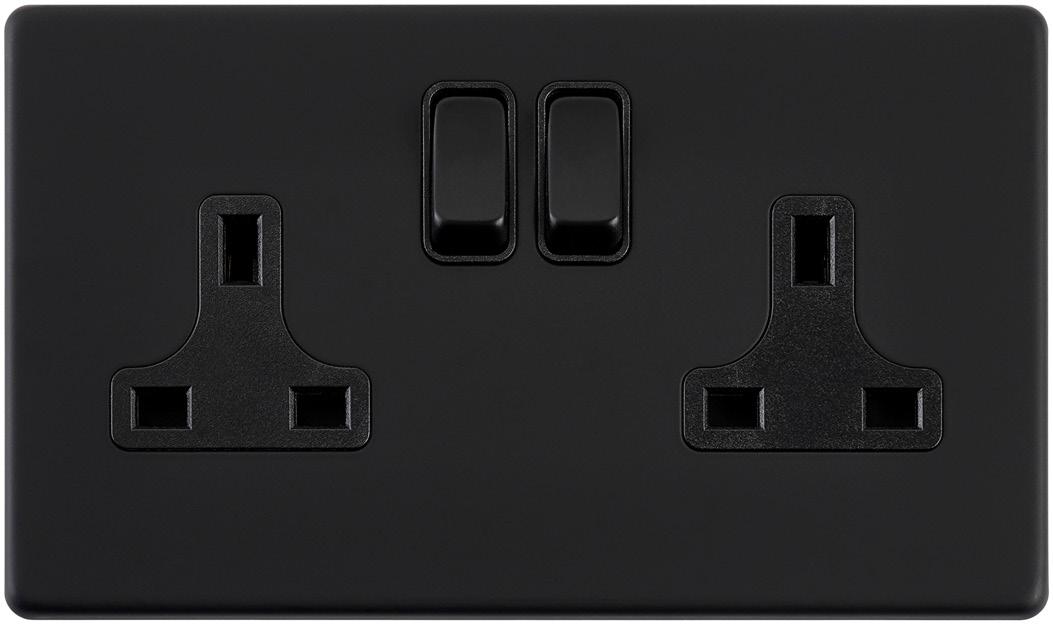

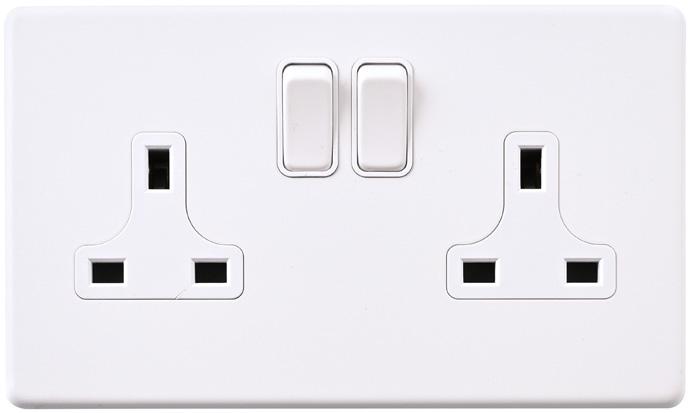

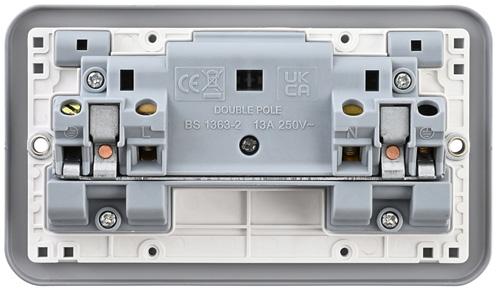

13A 2G SWITCHED SOCKETS
20AX SWITCHES WITH INDICATOR
WP201
WP202

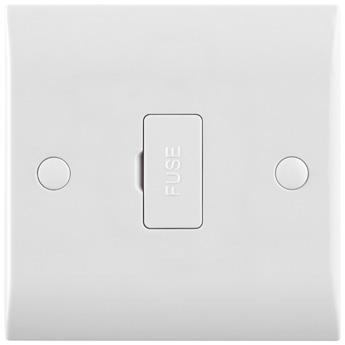

13A SWITCHED FUSED SPUR UNIT
Ingress Protection (IP) Rating
IP ratings are relevant to anywhere that moisture is prevalent, such as exterior environments. Written as IPxx, the first x defines the level of protection offered from dust; the second x defines the level of protection offered from moisture. The higher the numbers are, the better the protection will be.
INGRESS PROTECTION
SOLID OBJECT
Protected against a solid object greater than 50mm such as a hand
Protected against a solid object greater than 12.5mm such as a finger
Protected against a solid object greater than 2.5mm such as a screwdriver
Protected against a solid object greater than 1mm such as a wire
Dust protected. Limited ingress of dust permitted. Will not interfere with operation of the equipment
Dust tight. No ingress of dust
MOISTURE
Protected against vertical falling drops of water. Limited ingress permitted
Watertight against the effects of immersion in water under pressure for long periods 1 2 3 4 5 6 7 8 1 2 3 4 5 6
Protected against vertical falling drops of water with enclosure tilted up to 15 degrees from the vertical. Limited ingress permitted
Protected against sprays of water up to 60 degrees from the vertical. Limited ingress permitted
Protected against water splashes from all directions. Limited ingress permitted
Protected against jets of water. Limited ingress permitted
Protected against powerful jets of water. Limited ingress permitted
Watertight against the effects of immersion in water between 15cm and 1m for 30 minutes
Icons Guide
Each of our products have appropriate icons displayed against them. Our handy icon guide helps to explain what each of our icons mean.
25 year warranty, exceptions apply
Anti microbial property 25YR WARRANTY
ANTI MICROBIAL PROPERTY
Class 1, earthed product
Anti fingerprint lacquer CLASS 1
ANTI FINGERPRINT LACQUER
Class 2, double insulated product
USB charging CLASS 2
USB CHARGING
Class 3, super extra low voltage product (driver required)
Fast charge CLASS 3
FAST CHARGE
IP66 RATED
Denotes IP rating (see page 142)
Antimicrobial Properties
Neon indicator
NEON INDICATOR
Saxby Electrical white moulded wiring accessories promote a healthy environment by facilitating up to 99% reduction in bacterial development on touch point surfaces. Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including E-Coli, Salmonella, MRSA and Klebsiella Pneumonia bacteria.
