Valves and Actuators

SAUTER Actuators – Reliable and Energy-Efficient HVAC Control

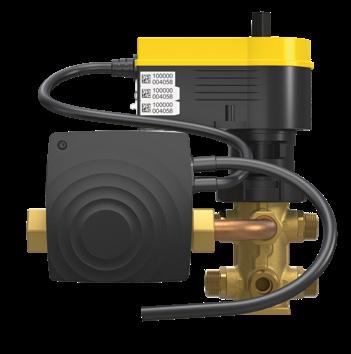

Smart Actuator, 3 in 1: Actuator and controller with IoT integration.

Smart energy control for modern buildings. Controlling and monitoring heating and ventilation systems or their subsystems usually requires complex automation systems. Planning, installation and commissioning of these systems is not only timeconsuming, but also costly. Digitalisation of building operation now makes it possible for the first time to perform these tasks directly and autonomously using a single device: the Smart Actuator. Tested, pre-programmed applications in the Smart Actuator system enable easy commissioning and remote access for monitoring and maintenance via cloud services.

• Decentralised, autonomous control without a cabinet and automation station

• Applications from the SAUTER solution library for heating, ventilation and room automation

• Error-free, inexpensive wiring thanks to plug system

• Commissioning via smartphone app

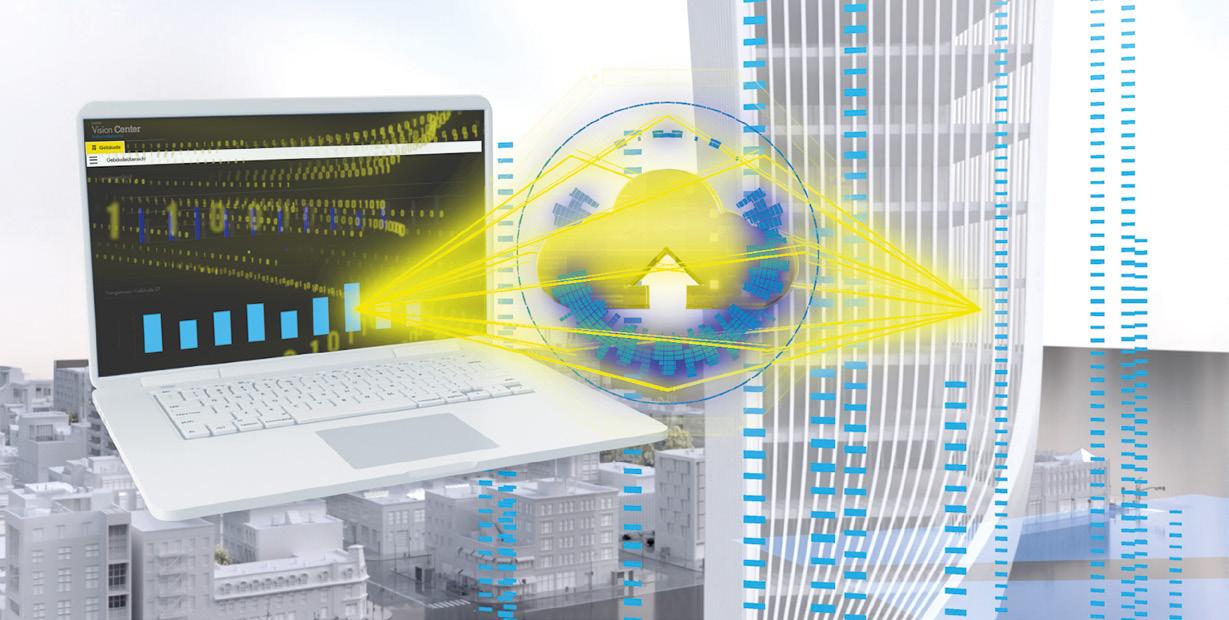

• Remote access to applications and operating settings via the SAUTER Cloud

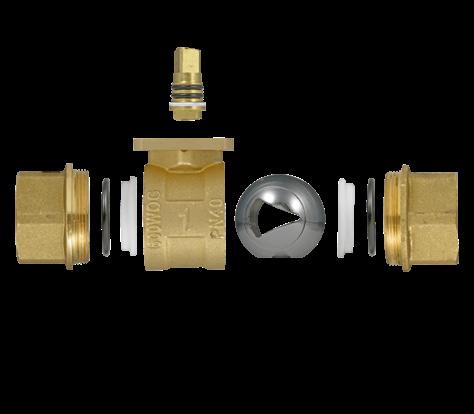

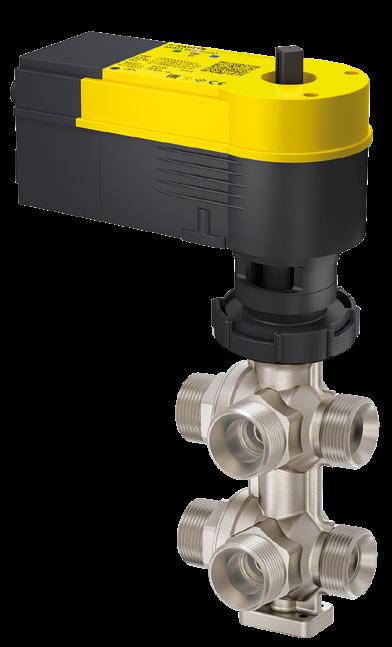

6-way ball valve with electric rotary actuator

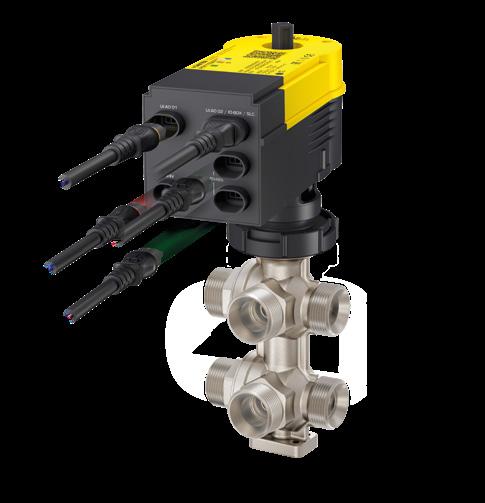

Compact, reliable and easy to install –the SAUTER 6-way ball valve.

Heating and cooling with just one regulating ball valve.

The 6-way ball valve from SAUTER provides a compact, precise alternative for controlling heated and chilled ceilings and fan coils in 4-pipe systems. It doubles as a regulating and changeover ball valve. Conventional solutions may need as many as four 2-way valves, four actuators and two controllers. The SAUTER solution has just one 6-way ball valve and an actuator. Their compact design enables the devices to be installed in false ceilings without difficulty.

Precise selection of the flow rate.

The 6-way ball valve, with a nominal diameter of DN 15 or DN 20, consists of two mechanically connected ball valves. The bores of the two balls are set at right angles, ensuring that the heating and cooling systems do not leak into each other. Varying apertures enable the maximum flow rate (Kvs) to be specified precisely. It is possible to select different Kvs values in a regulating ball valve for cooling and heating and flexibly adapt them to operating conditions. The result is more accurate and reliable control.

For more precise regulation, the 6-way ball valve from SAUTER can be combined with the SAUTER Valveco Compact (VDL) dynamic regulating valve. This is the ideal solution for hydronic balancing and provides more planning reliability, easier installation and increased energy efficiency.

6-way brass ball valve with electric rotary actuators

Model series

V AC

1) Optional accessory 05306031105 – Cable for Smart Actuator, I/O, 0...20 mA, L = 5.0 m, open end, 3-wire, 3-pin plug (blue)

6-way ball valve with male thread in cast brass (F400) and DZR cast brass (F4x1) PN16

6-way

1) Different apertures can be built into the same ball valve.

Important accessories for the 6-way ball valve

Type Description

0378133 015 1 screw fitting, brass, flat-sealing G ¾" – R ½", for B2KL015 and B2KL020F411

0378134 015 1 screw fitting, brass, flat-sealing G ¾" – solder nipple, for B2KL015 and B2KL020F411

0580240 002 Insulation shell for B2KL015

0580240 003 Insulation shell for B2KL020F411

0580090 001 Pliers for changing orifice plate on B2KL015 and B2KL020F411

0580240 001 Fitting bracket for B2KL015 and B2KL020F411

0560332 015 Strainer, gunmetal, -10…150 °C, PN16, DN 15

0560332 020 Strainer, gunmetal, -10…150 °C, PN16, DN 20

0560332 025 Strainer, gunmetal, -10…150 °C, PN16, DN 25

Accessories for AKM actuators

Type Description

0510480001 Single auxiliary change-over contact for AKM 105/115 ball valve actuators

0510480002 Double auxiliary change-over contact for AKM 105/115 ball valve actuators

Accessories for AKM115SAF Smart Actuator

Type Description

SAIO100F020 I/O module, 5 × UI/AO, 3 × relay

05393601000 Dummy plug spare part set IP54

EY-PS031F011 Power supply, 110…240 VAC/24 VDC, 1.25 A, 30 W, DIN rail mounting

EY-PS031F021 Power supply, 110…240 VAC/24 VDC, 2.5 A, 60 W, DIN rail mounting

EY-PS031F041 Power supply, 110…240 VAC/24 VDC, 4 A, 100 W, DIN rail mounting

EY-RU355* Operating device, LCD, NTC, 5B

053060200** Cable for Smart Actuator, 24 V, open end, 2-wire, 2-pin plug (red)

053060310** Cable for Smart Actuator, U-I/O, open end, 3-wire, 3-pin plug (yellow)

053060320** Cable for Smart Actuator, Ni1000, -35…100 °C, 3-pin plug (white)

053060340** Cable for Smart Actuator, RS485, open end, 3-wire, 3-pin plug (green)

053060341** Cable for Smart Actuator, RS485, 3-wire, 3-pin plug (green)

053060510** Cable for Smart Actuator, U-I/O, open end, 3-wire, 5-pin plug (yellow)

053060530** Cable for Smart Actuator, connection to I/O box, 5-pin plug (blue)

053060535** Cable for Smart Actuator, SLC, open end, 5-wire, 5-pin plug (green)

! For available cable lengths, see PDS 53.100

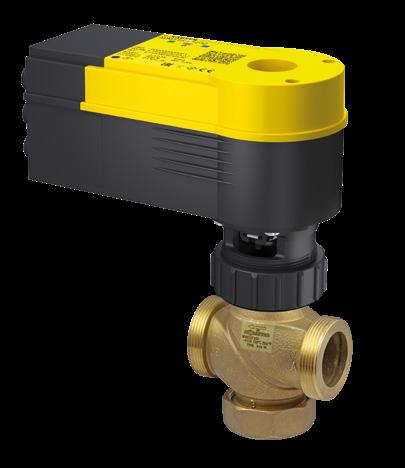

Unit valves with thermal or motorised actuators

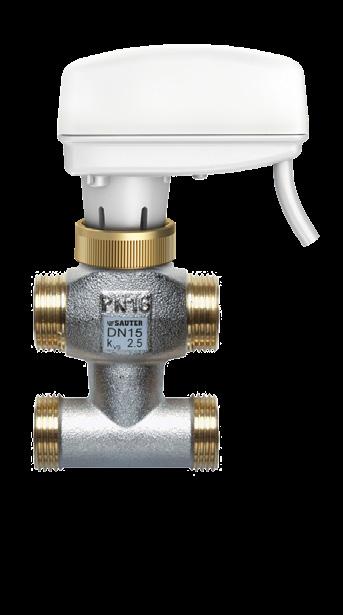

Compact design for energy-efficient control.

Actuator for unit valves with SAUTER quality.

The SAUTER AXT represents the logical evolution of thermal actuator technology. It has pulse-pause control and is absolutely reliable, even with a small pulse ratio in the order of seconds. Together with valves with an equal percentage characteristic, it can provide quasi-continuous control. It is used for controlling and regulating unit valves and underfloor distributors within room automation.

Installed in a single click.

The SAUTER AXS features integrated electrical protection and automatic stroke adjustment. It also has a first-open function, making it quick and easy to install. The SAUTER AXS is compatible with most valves of previous generations as well as third-party valves. This actuator for unit valves incorporates product intelligence which, with its wide range of accessories, enables it to be equipped for specific applications.

VUL/BUL unit valves in cast brass with AXT, AXS, AXM thermal or motorised actuators

Failsafe position

1) AXT301F100/102: Connection cable available as accessory

Unit valves in cast brass PN16 with equal percentage characteristic

VUT/BUT unit valves in cast brass with AXT, AXS, AXM thermal or motorised actuators

Failsafe position

properties

1) AXT301F100/102: Connection cable available as accessory

Unit valves in cast brass PN16 with equal percentage characteristic

Important accessories for unit valves

Strainer, PN16, -10…150 °C

Type Description

0560332015 Strainer, gunmetal, mesh aperture 0.5 mm, PN16, -10…150 °C, female G½"

0560332020 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G¾"

Accessories for VUL and BUL unit valves

Type Description

0378133010 1 screw connecting fitting, brass, flat-sealing, female G½" – male R¾"

0378133015 1 screw connecting fitting, brass, flat-sealing, female G¾" – male R½"

0378133020 1 screw connecting fitting, brass, flat-sealing, female G1" – male R¾"

0378134010 1 solder fitting d = 12 mm, flat-sealing, female G½"

0378134015 1 solder fitting d = 15 mm, flat-sealing, female G¾"

0378134020 1 solder fitting d = 22 mm, flat-sealing, female G1"

0378135010 1 compression fitting d = 15 mm, flat-sealing, female G½"

0378145015 1 compression fitting d = 15 mm, flat-sealing, female G¾"

0378145020 1 compression fitting d = 22 mm, flat-sealing, female G1"

Accessories for AXT 301/311 actuators

Type Description

0550389K008 Adapter VA80, set of 5, off-white, M30x1.5, SM = 10.5 mm, for AXT 3/AXS 3

0550389K010 Adapter VA41, set of 5, dark green, M30x1.5, SM = 9.5 mm, for AXT 3/AXS 3

0550389K908 Protective cap incl. adapter VA 80H-SK (0550389K008), for AXT 301

0550600202 Connection cable, PVC, 2 m, for AXT301F10, white

0550600212 Connection cable, halogen-free, 2 m, for AXT 301 F10, white

0550600502 Connection cable, PVC, 5 m, for AXT 301 F10, white

0550600512 Connection cable, halogen-free, 5 m, for AXT 301 F10, white

Accessories for AXS 315 actuators

Type Description

0550389K008 Adapter VA 80, set of 5, off-white, M30 x 1.5, SM = 10.5 mm, for AXT 3/AXS 3

0550389K010 Adapter VA 41, set of 5, dark green, M30 x 1.5, SM = 9.5 mm, for AXT3/AXS 3

0550600103 Connection cable, PVC, 1 m, for AXS 315S, white

0550600113 Connection cable, halogen-free, 1 m, for AXS 315S, white

0550600114 Connection cable, halogen-free + feedback, 1 m, for AXS 315S, white

0550600203 Connection cable, PVC, 2 m, for AXS 315S, white

0550600213 Connection cable, halogen-free, 2 m, for AXS 315S, white

0550600214 Connection cable, halogen-free + feedback, 2 m, for AXS 315S, white

0550600503 Connection cable, PVC, 5 m, for AXS 315S, white

0550600513 Connection cable, halogen-free, 5 m, for AXS 315S, white

0550600514 Connection cable, halogen-free + feedback, 5 m, for AXS 315S, white

Accessories for AXM 217 actuators

Type Description

0550603001 Cable 24 V, PVC, pluggable, 3 m for AXM 217F

0550603003 Cable 230 V, PVC, pluggable, 3 m for AXM 217F

0550603004 Cable 230 V, PVC, pluggable, 7 m for AXM 217F

Accessories for AXM 217S actuators

Type Description

0550603009 Cable 24 V, PVC, pluggable, 3 m for AXM 217S

0550603012 Cable 24 V, halogen-free, pluggable, 7 m for AXM 217S

Accessories for AXF 217S actuators

Type Description

0550360010 Configurator for AXF217S actuators for unit valves (positioning signal, direction of operation, characteristic, emergency position)

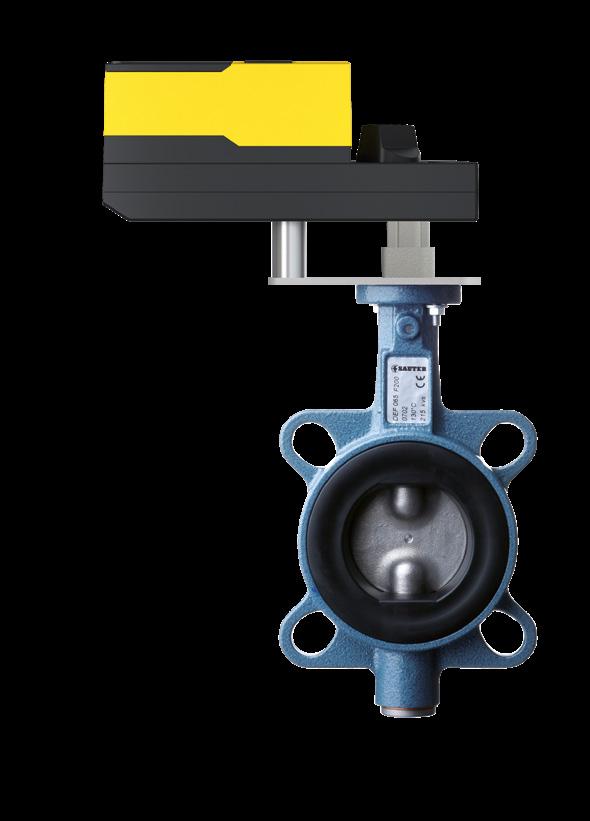

SAUTER Valveco compact: The all-rounder valve.

Compensate pressure fluctuations. Adjust hydraulic conditions.

SAUTER Valveco compact valves are indispensable when it comes to ensuring a hydraulically balanced system. These regulating valves are true all-rounders, combining three functions in a single compact unit, whether simply shutting off the flow or maintaining a constant set flow rate. SAUTER Valveco compact reliably withstands pressure fluctuations and, as a variable resistance, ensures hydraulically balanced conditions in your system.

Combined with the AXT / AXS / AXM / AXF / AVM thermal or motorised actuators, this is a future-proof solution for a wide range of heating and cooling applications.

Little installation and maintenance work required.

Thanks to the 3-in-1 design, you reduce the total number of valves needed and thus the labour time for installation and maintenance. The automatic hydronic balancing means that no manual recalibration is necessary. For easy on-site inspection and adjustment of the optimum differential pressure, SAUTER Valveco compact valves are available with pressure measurement nipples.

Our multi-function valves ensure exact temperature control and a precise control characteristic. This guarantees that there is no excess supply and increases the energy efficiency of your system.

PN16, PN25

SAUTER Valveco compact

VDL dynamic regulating valves with AXT, AXS, AXM, AXF, AVM thermal or motorised valve actuators

properties

1) Optional accessory 05306031105 – Cable for Smart Actuator, I/O,

2) BACnet MS/TP, MQTT communication

3) BACnet/IP, MQTT communication

4) For fitting on VDL010...VDL032, also order accessory 0510390067

5) AXT301F100/102: Connection cable available as accessory

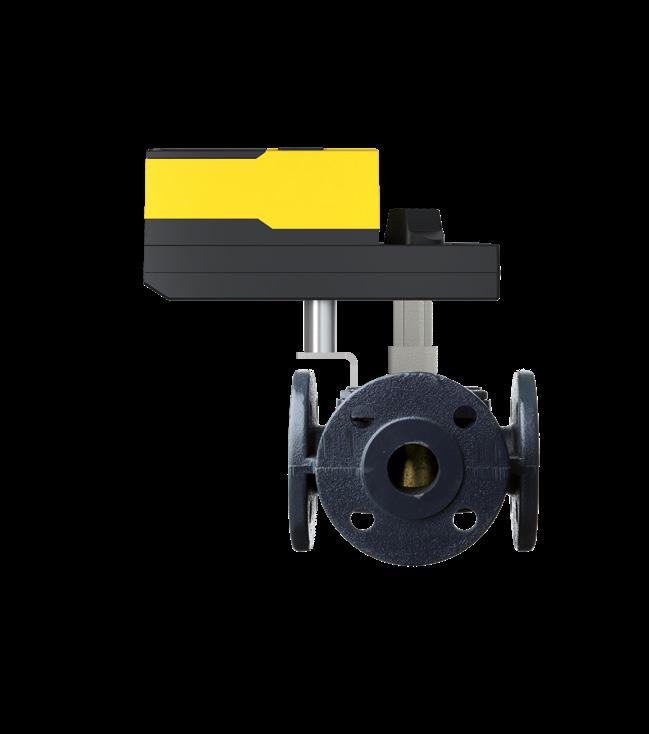

Dynamic regulating valve in

SAUTER Valveco compact

VDL dynamic regulating valves with electrical linear actuators

Stroke [mm]

Further properties

1) For fitting on VDL040/VDL050F201, also order accessory 0510390029

2) For fitting on VDL040/VDL050F201, also order accessory 0510390041

3) For fitting on VDL050...VDL080F601*, also order accessory 0510390028

4) Optional accessory 0500570003 230 V module for valve actuators AVM321S and AVM322S

5) Optional accessory 0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

6) Optional accessory 0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

Dynamic regulating valve in ductile cast iron PN25 with linear characteristic

Important accessories for Valveco compact

Strainer, PN16, -10…150 °C

Type Description

0560332015 Strainer, gunmetal, mesh aperture 0.5 mm, PN16, -10…150 °C, female G½"

0560332020 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G¾"

0560332025 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1"

0560332032 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1¼"

0560332040 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1½"

0560332050 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G2"

Accessories for AVM215...R, AVM322...R and AVM234S actuators

Type Description

0510390028 Mounting set for SAUTER VDL valves up to 20 mm stroke, flange DN50 to DN80 with AVM322(S)..R

0510390029 Mounting set for SAUTER VDL valves, 15 mm stroke, thread DN40 and DN50 with AVM215(S)..R

0510390041 Mounting set for SAUTER VDL valves, 15 mm stroke, thread DN40 and DN50 with AVM322(S)..R

0510390053 Mounting set for SAUTER VDL valves, 48 mm stroke, flange DN100 and DN300 with AVM/AVF234S

0500570003 230 V module for valve actuators AVM321S and AVM322S

0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

Accessories for AVM115SAF

Smart Actuator

Type Description

SAIO100F020 I/O module, 5 × UI/AO, 3 × relay

EY-PS031F011 Power supply, 110…240 VAC/24 VDC, 1.25 A, 30 W, DIN rail mounting

EY-PS031F021 Power supply, 110…240 VAC/24 VDC, 2.5 A, 60 W, DIN rail mounting

EY-PS031F041 Power supply, 110…240 VAC/24 VDC, 4 A, 100 W, DIN rail mounting

EY-RU355* Operating device, LCD, NTC, 5B

0510390067 Mounting set for SAUTER VDL valves, 5.0 and 5.5 mm stroke with AVM105 and AVM115SAF (max. 250 N)

053060200** Cable for Smart Actuator, 24 V, open end, 2-wire, 2-pin plug (red)

053060310** Cable for Smart Actuator, U-I/O, open end, 3-wire, 3-pin plug (yellow)

053060320** Cable for Smart Actuator, Ni1000, -35…100 °C, 3-pin plug (white)

053060340** Cable for Smart Actuator, RS485, open end, 3-wire, 3-pin plug (green)

053060341** Cable for Smart Actuator, RS485, 3-wire, 3-pin plug (green)

053060510** Cable for Smart Actuator, U-I/O, open end, 3-wire, 5-pin plug (yellow)

053060530** Cable for Smart Actuator, connection to I/O box, 5-pin plug (blue)

053060535** Cable for Smart Actuator, SLC, open end, 5-wire, 5-pin plug (green)

05393601000 Dummy plug spare part set IP54

! For available cable lengths, see PDS 53.100

Accessories for AXT 301/311 actuators

Type Description

0550389K008 Adapter VA80, set of 5, off-white, M30x1.5, SM = 10.5 mm, for AXT 3/AXS 3

0550389K010 Adapter VA41, set of 5, dark green, M30x1.5, SM = 9.5 mm, for AXT 3/AXS 3

0550389K908 Protective cap incl. adapter VA 80H-SK (0550389K008), for AXT 301

0550600202 Connection cable, PVC, 2 m, for AXT301F10, white

0550600212 Connection cable, halogen-free, 2 m, for AXT 301 F10, white

0550600502 Connection cable, PVC, 5 m, for AXT 301 F10, white

0550600512 Connection cable, halogen-free, 5 m, for AXT 301 F10, white

Accessories for AXS 315 actuators

Type Description

0550389K008 Adapter VA 80, set of 5, off-white, M30 x 1.5, SM = 10.5 mm, for AXT 3/AXS 3

0550389K010 Adapter VA 41, set of 5, dark green, M30 x 1.5, SM = 9.5 mm, for AXT3/AXS 3

0550600103 Connection cable, PVC, 1 m, for AXS 315S, white

0550600113 Connection cable, halogen-free, 1 m, for AXS 315S, white

0550600114 Connection cable, halogen-free + feedback, 1 m, for AXS 315S, white

0550600203 Connection cable, PVC, 2 m, for AXS 315S, white

0550600213 Connection cable, halogen-free, 2 m, for AXS 315S, white

0550600214 Connection cable, halogen-free + feedback, 2 m, for AXS 315S, white

0550600503 Connection cable, PVC, 5 m, for AXS 315S, white

0550600513 Connection cable, halogen-free, 5 m, for AXS 315S, white

0550600514 Connection cable, halogen-free + feedback, 5 m, for AXS 315S, white

Accessories for AXM 217 actuators

Type Description

0550603001 Cable 24 V, PVC, pluggable, 3 m for AXM 217F

0550603003 Cable 230 V, PVC, pluggable, 3 m for AXM 217F

0550603004 Cable 230 V, PVC, pluggable, 7 m for AXM 217F

Accessories for AXM 217S actuators

Type Description

0550603009 Cable 24 V, PVC, pluggable, 3 m for AXM 217S

0550603012 Cable 24 V, halogen-free, pluggable, 7 m for AXM 217S

Accessories for AXF 217S actuators

Type Description

0550360010 Configurator for AXF217S actuators for unit valves (positioning signal, direction of operation, characteristic, emergency position)

SAUTER eValveco: Maximum comfort with minimum energy costs.

Keeping hydraulic system dynamics under control – SAUTER eValveco Increasing energy efficiency in heating and cooling systems through constant volume flows and thus providing the required amount of energy is often difficult due to widely branched networks. The SAUTER eValveco flow control system is the solution for this task.

The combination of a 2-way valve or 6-way ball valve and a precise real-time ultrasound flow measurement can be easily integrated into the building automation system via Modbus or BACnet. Parameters are set via the central building management system. On a computer, tablet or mobile phone, overviews of the actual energy consumption per room can be called up in real time. Online access to all relevant system data simplifies troubleshooting, among other things.

SAUTER eValveco offers major benefits for all user groups. The highly transparent status of the system and its low energy consumption fulfil all the requirements of stateof-the-art energy management. From the construction of a building and through its entire life cycle, SAUTER eValveco cuts costs and energy consumption and is therefore a future-oriented investment.

SAUTER eValveco

Dynamic flow control system with 2-way or 6-way valve and energy monitoring

Dynamic flow control system PN16

1) Minimum flow rate that can still be controlled.

2) Maximum flow rate is achieved at a differential pressure of 1 bar (100 kPa).

Important accessories for eValveco

Strainer, PN16, -10…150 °C

Type

Description

0560332015 Strainer, gunmetal, mesh aperture 0.5 mm, PN16, -10…150 °C, female G½"

0560332020 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G¾"

0560332025 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1"

Accessories for UVC102 MF065 and UVC102 MF080

Type Description

0500240001 Adapter for media temperature above 100 °C up to 150 °C for AVM322(S) 0378369101 Complete replacement stuffing box for DN 65...150

Precise control and high flow rate –2-way and 3-way ball valves from SAUTER.

The perfection of a tried and tested principle.

The body of the ball valves from SAUTER is made of top-quality DZR brass. This enables them to be used in a wide range of applications. Due to the outstanding physical properties of the dezincification-resistant, chrome-plated brass ball with its polished surface, these valves enable the highest control accuracy and a modular, flexible concept.

Versatile and functions in a wide operating range:

• Combination with or without spring return

• Easy assembly without tools

• Push the actuator onto the ball valve, turn the bayonet ring to lock – done

• The running time can be changed and the characteristic adjusted

• Detection of 2-point, 3-point or continuous actuators

• Anti-blocking function

• Actuators with spring return fitted as “normally closed” or “normally open”

VKR/BKR regulating ball valve with female thread in DZR brass with electric rotary actuators

Failsafe position

Running

Further properties

1) BACnet MS/TP, MQTT communication

2) BACnet/IP, MQTT communication

3) For fitting on ball valve, also order accessory 0510240001

4) Optional accessory 05306031105 – Cable

Ball valve with ISO female thread in DZR cast brass PN40 and equal percentage characteristic

Cut-off/changeover ball valve with female thread in DZR brass with electric rotary actuators

1) BACnet MS/TP, MQTT communication

2) BACnet/IP, MQTT communication

3) For fitting on ball valve, also order accessory 0510240001

4) Optional accessory 05306031105 – Cable for Smart Actuator, I/O,

3-wire, 3-pin plug (blue)

Cut-off/changeover ball valve with ISO female thread in DZR cast brass PN40

VKRA/BKRA regulating ball valve with male thread in DZR brass with electric rotary actuators

1) BACnet MS/TP, MQTT communication

2) BACnet/IP, MQTT communication

3) For fitting on ball valve, also order accessory 0510240001

4) Optional accessory 05306031105 – Cable for Smart Actuator, I/O,

Ball valve with ISO female thread in DZR cast brass PN40 and equal percentage characteristic

Cut-off/changeover ball valve in DZR brass with electric rotary actuators

Running

Further properties

1) BACnet MS/TP, MQTT communication

2) BACnet/IP, MQTT communication

3) For fitting on ball valve, also order accessory 0510240001

4) Optional accessory 05306031105 – Cable for Smart Actuator, I/O, 0...20 mA, L = 5.0 m, open end, 3-wire, 3-pin plug (blue)

Cut-off/changeover ball valve with ISO male thread in DZR cast brass PN40

Important accessories for ball valves

Strainer, PN16, -10…150 °C

Type DN Description

0560332 015 15 Strainer, gunmetal, mesh aperture 0.5 mm, PN16, -10…150 °C, female G½"

0560332 020 20 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G¾"

0560332 025 25 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1"

0560332 032 32 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1¼"

0560332 040 40 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1½"

0560332 050 50 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G2"

Accessories for VKx and BKx ball valves with female thread

Type DN Description

0560284 015 15 1 screw fitting, brass, flat-sealing, female G½" – male R½"

0560284 020 20 1 screw fitting, brass, flat-sealing, female G¾" – male R¾"

0560284 025 25 1 screw fitting, brass, flat-sealing, female G1" – male R1"

0560284 032 32 1 screw fitting, brass, flat-sealing, female G1¼" – male R1¼"

0560284 040 40 1 screw fitting, brass, flat-sealing, female G1½" – male R1½"

0560284 050 50 1 screw fitting, brass, flat-sealing, female G2" – male R2"

Accessories for VKx and BKx ball valves with male thread

Type DN Description

0361951 015 15 1 screw connecting fitting, brass, flat-sealing, female Rp½" – female G1"

0361951 020 20 1 screw connecting fitting, brass, flat-sealing, female Rp¾" – female G1¼"

0361951 025 25 1 screw connecting fitting, brass, flat-sealing, female Rp1" – female G1½" 0361951 032 32 1 screw connecting fitting, brass, flat-sealing, female Rp1¼" – female G2"

0361951 040 40 1 screw connecting fitting, brass, flat-sealing, female Rp1½" – female G2¼"

0361951 050 50 1 screw connecting fitting, brass, flat-sealing, female Rp2" – female G2¾"

Accessories for AKM 105 and AKM 115 (S) actuators

Type Description

0510240 019 Cold adapter for media temp. < 5 °C for VKR/BKR ball valve with AKM ball valve actuator

0510240 011 Cold adapter for media temp. < 5 °C for VKR/BKR ball valve with AKF ball valve actuator

0510420 001 Temperature adapter for media temp. > 100 °C for VKR/BKR with AKM and AKF

0510480 001 Single auxiliary change-over contact for AKM 105/115 ball valve actuators

0510480 002 Double auxiliary change-over contact for AKM 105/115 ball valve actuators

Accessories for AKM115SAF Smart Actuator

Type Description

SAIO100F020 I/O module, 5 × UI/AO, 3 × relay

05393601000 Dummy plug spare part set IP54

EY-PS031F011 Power supply, 110…240 VAC/24 VDC, 1.25 A, 30 W, DIN rail mounting

EY-PS031F021 Power supply, 110…240 VAC/24 VDC, 2.5 A, 60 W, DIN rail mounting

EY-PS031F041 Power supply, 110…240 VAC/24 VDC, 4 A, 100 W, DIN rail mounting

EY-RU355* Operating device, LCD, NTC, 5B

053060200** Cable for Smart Actuator, 24 V, open end, 2-wire, 2-pin plug (red)

053060310** Cable for Smart Actuator, U-I/O, open end, 3-wire, 3-pin plug (yellow)

053060320** Cable for Smart Actuator, Ni1000, -35…100 °C, 3-pin plug (white)

053060340** Cable for Smart Actuator, RS485, open end, 3-wire, 3-pin plug (green)

053060341** Cable for Smart Actuator, RS485, 3-wire, 3-pin plug (green)

053060510** Cable for Smart Actuator, U-I/O, open end, 3-wire, 5-pin plug (yellow)

053060530** Cable for Smart Actuator, connection to I/O box, 5-pin plug (blue)

053060535** Cable for Smart Actuator, SLC, open end, 5-wire, 5-pin plug (green)

! For available cable lengths, see PDS 53.100

Male-threaded and flanged valves with electrical linear actuators

High-performance models and flexible combinations for all requirements –Threaded and flanged valves from SAUTER.

The complete product range of regulating valves.

The wide product range at SAUTER comprises threaded valves in DZR cast brass and flanged valves in grey cast iron, ductile cast iron or cast steel. In combination with actuators with 2- or 3-point actuation or with the innovative SAUTER Universal Technology (SUT), they create compact control units.

Installation and commissioning are no problem for you as the two components are easy to fit and adapt automatically to the stroke of the valve. All nominal diameters up to DN 50 are equipped with a high quality seal in the plug. The nominal diameters starting from DN 65 are distinguished by a precise sealing surface of metal or stainless steel. This meets even the most stringent requirements for regulating and shut-off functions.

Versatile operation and flexible handling.

The reliability of SAUTER valves is ensured over the long term, even at high differential pressures. In addition, they remain flexible when you make the required settings on your SUT actuator: As well as selecting the characteristic, you can adjust the running time and specify the input signal. Therefore, SAUTER offers you a complete range of valve actuators with actuating power ranging from 250 N to 2500 N and suitable valves for every application.

VUN/BUN male threaded valves in cast brass with electric linear actuators

1) Optional accessory 05306031105 – Cable for Smart Actuator, I/O, 0...20 mA, L = 5.0 m, open end, 3-wire, 3-pin plug (blue).

2) Can be switched to 500 N via software.

3) Optional accessory 0500570003 230 V module for valve actuators AVM321S, AVM322S

4) Optional accessory 0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

Male threaded valve in cast brass, PN16, equal percentage (F3**) and linear (F2**) characteristic

Area of use of SAUTER control valves in combination with electric actuators

Actuator model series

with anti-freeze (glycol 20...55%)

Steam

100...115 °C

116...130 °C

131...180 °C

181...200 °C 201...220 °C

°C

l PTFE stuffing box 0560260001 can only be used up to DN

Accessories Type

K1 0378284100

K2 0378284102

H1 0372249001

H2 0372249002

H3 0372336180

H4 0372336240

H5 0500240001

H6 0500240002

H10 0510240011

H11 0510420001

H12 0510240019

Description

Stuffing box heater for VU./BU. valves, 230 V, 15 W

Stuffing box heater for VU./BU. valves, 24 V AC, 15 W

Temperature adapter for media temp. > 100 °C for AVM1./AVF12.

Temperature adapter for media temp. > 130 °C for AVM1./AVF12.

Adapter for media temperature above 130 °C up to 180 °C for valve actuators AVM/AVF234S and AVN224S

Adapter for media temperature above 180 °C up to 240 °C for valve actuators AVM/AVF234S and AVN224S

Adapter for media temperature above 100 °C up to 150 °C for AVM322(S)

Adapter for media temperature above 130 °C up to 200 °C for AVM322(S)

Cold adapter for media temp. < 5 °C for VKR/BKR ball valve with AKF ball valve actuator

Temperature adapter for media temp. > 100 °C for VKR/BKR with AKM and AKF

Cold adapter for media temp. < 5 °C for VKR/BKR ball valve with AKM ball valve actuator

VUD/VQD/BUD/BQD flanged valves in grey cast iron with electric linear actuators

1) Optional accessory 05306031105 – Cable for Smart Actuator, I/O, 0...20 mA, L = 5.0 m, open end, 3-wire, 3-pin plug (blue)

2) Can be switched to 500 N via software.

3) Optional accessory 0500570003 230 V module for valve actuators AVM321S, AVM322S

4) Optional accessory 0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

5) Optional accessory 0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

Flanged valves in grey cast iron, PN6, linear (F2**) and equal percentage (F3**) characteristic

VUE/VQE/BUE/BQE flanged valves in grey cast iron with electric linear actuators

1) Optional accessory 05306031105 – Cable for Smart Actuator, I/O, 0...20 mA, L = 5.0 m, open end, 3-wire, 3-pin plug (blue)

2) Can be switched to 500 N via software.

3) Optional accessory 0500570003 230 V module for valve actuators AVM321S, AVM322S

4) Optional accessory 0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

5) Optional accessory 0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

Flanged valves in grey cast iron, PN16/10, equal percentage (F3**) characteristic

2-way with flange

3-way with flange

VUG/BUG flanged valves in ductile cast iron with electric linear actuators

1) Optional accessory 0500570003 230 V module for valve actuators AVM321S, AVM322S

2) Optional accessory 0372332001

3)

AVM321S/AVM322S and AVM321F112/AVM322F122 Flanged valves in ductile cast iron, PN25/16, equal percentage (F3**)

VUP flanged valves, pressure-compensated, in ductile cast iron with electric linear actuators

1) Optional accessory 0500570003 230 V module for valve actuators AVM321S, AVM322S

2) Optional accessory 0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

3) Optional accessory 0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

Flanged valves in ductile cast iron, PN25, pressure-compensated, equal percentage (F3**) characteristic

2-way with flange -10

1) Optional accessory 0500570003 230 V module for valve actuators AVM321S, AVM322S

2) Optional accessory 0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

3) Optional accessory 0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

Flanged valves in cast steel, PN40, equal percentage (F3**) and linear (F2**) characteristic

Important accessories for male threaded and flanged valves

Strainer, PN16, -10…150 °C

Type Description

0560332 015

Strainer, gunmetal, mesh aperture 0.5 mm, PN16, -10…150 °C, female G½"

0560332 020 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G¾"

0560332 025

Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1"

0560332 032 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1¼"

0560332 040 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G1½"

0560332 050 Strainer, gunmetal, mesh aperture 0.8 mm, PN16, -10…150 °C, female G2"

Accessories for valves with 8 mm stroke

Type Description

0361951 015 1 screw connecting fitting, brass, flat-sealing, female Rp½" – female G1"

0361951 020 1 screw connecting fitting, brass, flat-sealing, female Rp¾" – female G1¼"

0361951 025 1 screw connecting fitting, brass, flat-sealing, female Rp1" – female G1½"

0361951 032 1 screw connecting fitting, brass, flat-sealing, female Rp1¼" – female G2"

0361951 040 1 screw connecting fitting, brass, flat-sealing, female Rp1½" – female G2¼"

0361951 050 1 screw connecting fitting, brass, flat-sealing, female Rp2" – female G2¾"

Type Description

0372249 001

0372249 002

0378284 100

0378284 102

Temperature adapter for media temp. > 100 °C for AVM1./ AVF12.

Temperature adapter for media temp. > 130 °C for AVM1./ AVF12.

Stuffing box heater for VU./BU. valves, 230 V, 15 W

Stuffing box heater for VU./BU. valves, 24 V AC, 15 W

0372240 001 Manual adjuster for valves with 8 mm stroke, VUD/BUD, VUE/BUE, VUN/BUN

Accessories for valves starting from 20 mm stroke

Type Description

0372336 180 Adapter for media temperature above 130 °C up to 180 °C for valve actuators AVM/AVF234S and AVN224S

0372336 240 Adapter for media temperature above 180 °C up to 240 °C for valve actuators AVM/AVF234S and AVN224S

0378284 100

0378284 102

Stuffing box heater for VU./BU. valves, 230 V, 15 W

Stuffing box heater for VU./BU. valves, 24 V AC, 15 W

0500240 001 Adapter for media temperature above 100 °C up to 150 °C for AVM322(S)

0500240 002 Adapter for media temperature above 130 °C up to 200 °C for AVM322(S)

Accessories for AVM 234S, AVF 234S and AVN 224S actuators

Type Description

0372332 001 230 V module for valve actuators AVM/AVF234S and AVN224S

0372332 002 110 V module for valve actuators AVM/AVF234S and AVN224S

0372333 001 2 auxiliary change-over contacts, infinitely adjustable, for valve actuators AVM/AVF234S and AVN224S

0372461 001 Forced operation module for valve actuators AVM/AVF234S and AVN224S

Accessories for AVM 321 and AVM 322 actuators

Type Description

0500420 002 4…20 mA feedback module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0500570 001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

0500570 003 230 V module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0510480 003 Dual auxiliary switch unit for valve actuators AVM215(S), AVM321(S) with 8 mm stroke

0510480 004 Dual auxiliary switch unit for valve actuators AVM215(S), AVM322(S) with 20 mm stroke

0510600 001 Plug module, 1.2 m cable, 3-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600 002 Plug module, 1.2 m cable, 3-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600 003 Plug module, 1.2 m cable, 6-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600 004 Plug module, 1.2 m cable, 6-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600 005

0510600 006

0510600 007

0510600 008

Plug module, 5 m cable, 3-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

Plug module, 5 m cable, 3-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

Plug module, 5 m cable, 6-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

Plug module, 5 m cable, 6-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

Accessories for AVM 105 and AVM 115 actuators

Type Description

0372145 001

0372145 002

Single auxiliary change-over contact for actuators ASM/AVM 105/115

Double auxiliary change-over contact for actuators ASM/AVM 105/115

0372320 001 Hex key for manual adjustment of ASM/AVM 105/115, 215

Accessories for AVF 124 and AVF 125S actuators

Type Description

0370881 001

Single auxiliary contact for valve actuators AVM/AVF 124/125

Accessories for AVM115SAF Smart Actuator

Type Description

SAIO100F 020

I/O module for Smart Actuator, 6 x U-I/O (0…10 V, Ni1000, Pt1000, 100…2500 Ω), 3 x relays (changeover contact, 10 A capacitive/5 A inductive)

0530570010D Power supply module with 230 V/24 V DC, 15 VA power supply for Smart Actuator

05305700 20D Distributor module with 230 V/24 V DC, 100 VA power supply for Smart Actuator

EY-RU355F 052

05306020 001

Operating device, LCD, NTC, 5B (+, -, UP, DOWN, PRES), white

Cable for Smart Actuator, 24 V, L = 1.0 m, open end, 2-wire, 2-pin plug (red)

05306031 001 Cable for Smart Actuator, U-I/O, L = 1.0 m, open end, 3-wire, 3-pin plug (yellow)

05306032 001 Cable for Smart Actuator, Ni1000, -35…100 °C, L = 1.0 m, 3-pin plug (white)

05306034 001

05306034 105

05306051 001

05306053 001

05306053 505

Cable for Smart Actuator, RS485, L = 1.0 m, open end, 3-wire, 3-pin plug (green)

Cable for Smart Actuator, RS485, L = 5.0 m, 3-wire, 3-pin plug (green)

Cable for Smart Actuator, U-I/O, L = 1.0 m, open end, 3-wire, 5-pin plug (yellow)

Cable for Smart Actuator, connection to I/O box, L = 1.0 m, 5-pin plug (blue)

Cable for Smart Actuator, SLC, L = 5.0 m, open end, 5-wire, 5-pin plug (green)

Butterfly valves with electric rotary actuators

Reliable in every medium – tightly sealing butterfly valves from SAUTER.

Versatile and energy-efficient.

SAUTER butterfly valves are versatile wafer-type valves that are used for control or shut-off functions. Their tight seal reduces energy consumption. Heaters and coolers are connected to boilers or cooling systems as required. If this is not required or a changeover has to be performed, the SAUTER butterfly valve isolates the circuits completely and reliably.

Good equipment for flexibility and tightness.

Butterfly valves can be combined perfectly with SAUTER rotary actuators. They are so smooth-running that even actuators with only 15 or 30 Nm can be used. The hole pattern of the butterfly valve is designed to suit PN6, PN10 or PN16 flanges.

An EPDM collar ensures the tightness of the valve so that different media, such as water, brine, water with additives etc., can be used.

DEF butterfly valves in grey cast iron with ADM, ASM and ASF rotary actuators

1) Optional accessory 0500420002 4...20 mA feedback module

Tight-sealing butterfly valve PN16,

Important accessories for butterfly valves and actuators

0510240014

0510240015

Mounting set for SAUTER DEF butterfly valves DN25 to DN65 with ADM322

Mounting set for SAUTER DEF butterfly valves DN80 and DN100 with ADM322

0500420002 4…20 mA feedback module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0500570003 230 V module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0510240031

0510240032

0510240033

0510240041

0510240042

0510240043

0510420020

0510510010

0510510012

0372455001

0372455002

0372455003

0370990001

0370990002

0378113001

Mounting set for SAUTER DEF butterfly valves DN25 to DN65 with ADM333

Mounting set for SAUTER DEF butterfly valves DN80 to DN125 with ADM333

Mounting set for SAUTER DEF butterfly valves DN150 and DN200 with ADM333

Mounting set for SAUTER DEF butterfly valves DN25 to DN65 with ADM333 and hand lever

Mounting set for SAUTER DEF butterfly valves DN80 to DN125 with ADM333 and hand lever

Mounting set for SAUTER DEF butterfly valves DN150 and DN200 with ADM333 and hand lever

Parallel relay for 3-point actuation of multiple ADM333F

Heating resistor 3 W, 230 V, for ADM333

Heating resistor 3 W, 24 V, for ADM333

Mounting set for SAUTER DEF butterfly valves DN25 to DN65 with ASM124/134

Mounting set for SAUTER DEF butterfly valves DN80 and DN100 with ASM124 and DN80 to DN125 with ASM134

Mounting set for SAUTER DEF butterfly valves DN150 and DN200 with ASM134

Single auxiliary change-over contact for damper actuators ASM124/134

Double auxiliary change-over contact for damper actuators ASM124/134

Mounting set for SAUTER DEF butterfly valves DN25 to DN100 with ASF122/123

Control valves with electric rotary actuators

For heating installations, single-family homes and community heating –rotary actuators and control valves from SAUTER.

Control valves: reliability for trouble-free heating functions.

SAUTER control valves are used to control heating and cooling systems in buildings. The 3-way version is suitable for controlling and change-over functions, while the 4-way version is used for higher temperatures in the return circuit. All variants are available either with thread in DN 15 to DN 50 made of brass or with flange connection in DN 20 to DN 150 made of grey cast iron. To improve control accuracy when setting the supply temperature and while achieving maximum energy efficiency, we recommend using weather-dependent heating control with the ASM115SAF Smart Actuator or the EQJW heating controller.

Ideally combined: control valves with rotary and damper actuators from SAUTER.

A complete family of actuators is available from SAUTER – with actuating power ranging from 5 Nm to 18 Nm. All SAUTER actuators are equipped with a manual adjuster.

Control valves in grey cast iron MH and cast brass M3R/M4R with ADM or ASM rotary actuators

Further properties

1) Optional accessory 0500420002 4...20 mA feedback module

contacts

2) Optional accessory 05306031105 – Cable for Smart Actuator, I/O, 0...20 mA, L = 5.0 m, open end, 3-wire, 3-pin plug

Important accessories for control valves and actuators

Type Description

0560284015 1 screw fitting, brass, flat-sealing, female G½" – male R½"

0560284020 1 screw fitting, brass, flat-sealing, female G¾" – male R¾"

0560284025 1 screw fitting, brass, flat-sealing, female G1" – male R1"

0560284032 1 screw fitting, brass, flat-sealing, female G1¼" – male R1¼"

0560284040 1 screw fitting, brass, flat-sealing, female G1½" – male R1½"

0560284050 1 screw fitting, brass, flat-sealing, female G2" – male R2"

0510240013 Mounting set for SAUTER M3R/M4R/MH32/MH42 control valves with ADM322

0500420002 4…20 mA feedback module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0500570003 230 V module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0361977002 Mounting set for SAUTER M3R/M4R/MH32/MH42 control valves with ASM105/115

0372145001 Single auxiliary change-over contact for actuators ASM/AVM 105/115

0372145002 Double auxiliary change-over contact for actuators ASM/AVM 105/115

0361977001 Mounting set for SAUTER M3R/M4R/MH32/MH42 control valves with ASM124

0370990001 Single auxiliary change-over contact for damper actuators ASM124/134

0370990002 Double auxiliary change-over contact for damper actuators ASM124/134

0370992001 Potentiometer, 2000 Ω for damper actuators ASM124/134

0370992002 Potentiometer, 130 Ω for damper actuators ASM124/134

modulo 6, ecos 5

Multi-core CPU for precise control and fast response times in building automation.

Designed to meet the growing demands of connected building systems.

The new generation of SAUTER modulo 6 and ecos 5 combines a state-of-the-art multi-core architecture with advanced cybersecurity features for secure and future-oriented building automation.

• High system performance thanks to a multi-core CPU architecture with large memory capacity for long-term data storage.

• High system scalability (decentralised I/O topologies)

• Enhanced service continuity through rapid system recovery

• Integration into existing SAUTER building and room automation solutions

• Smoother operation of moduWeb Unity on modulo 6 automation stations

With modulo 6 and ecos 5, SAUTER offers an enhanced platform for secure and connected building automation.

SAUTER modulo 6 and ecos 5 combine updated system architecture with current requirements for security and connectivity.

Replacement made easy.

Ideal for retrofitting projects.

SAUTER makes your HVAC installation fit for the future. Our modern, energyefficient actuators can be fitted onto practically all existing valves. This means they are also ideally suited for retrofitting projects. SAUTER valve actuators are powerful and economical. They are versatile, quick to install and ready for use straight away.

The electric linear actuators.

The electric valve actuators from SAUTER offer optimum operating convenience and high energy efficiency. In stand-by mode, in particular, the energy consumption of the actuators is minimal. The patented automatic valve coupling enables fast, uncomplicated fitting of the actuator onto the valve and easy, safe commissioning. The sturdy construction guarantees durability without any additional maintenance work. The high-quality mechanical transmission system ensures a high level of precision and quiet operation.

AVM

and retrofitting

Belimo H6..R 15...65 0510390027 0510390012

H7..R 15...65 0510390027 0510390012

H4..B 15...50 0510390027 0510390012

H5..B 15...50 0510390027 0510390012

H6..N 15...65 0510390027 0510390012

H7..N 15...65 0510390027 0510390012

Danfoss VRB – VRG 15…50 0510390040

VFS/VL/VF 15…50 0510390039

VEFS2 25…50 0510390039

Frese OPTIMA Compac Threaded 40…50 0510390029 0510390041

OPTIMA Compac Flange 50...80 0510390038 0510390028

15...25 0510390055

KV/KVP 15...50 0510390055 RBV 50...65 0510390055

Honeywell V5013R 15…50 0510390024 0510390008 V5016A 15…80 0510390024

15…80 0510390024

KTM512 65...100 0510390037 KTM512 15...50 0510390036 CV 15...50 0510390035

0510390033

0510390034

V6F/B6F 65…150 0372338002

V6G/B6G 65…150

VQD/BQD 65…80 0510390020

VQE/BQE 65…80 0510390020

VUG/BUG 15…50 0510390020

VUS/BUS 15…50 0510390020

V66N 15…50 0510390020

V6R/B6R 15…50 0510390021

V6F/B6F 15…50 0510390021

V6G/B6G 15…50 0510390021

V6S/B6S 15…50 0510390021

VXD/BXD 15…50 0510390021

VXE/BXE 15…50 0510390021

VUN/BUN 15…50 0510390030

VUD/BUD 15…50 0510390030

VUE/BUE 15…50 0510390030

VQD/BQD 65…80 0510390031

VQE/BQE 65…80 0510390031

VUG/BUG 15…50 0510390031

VUS/BUS 15…50 0510390031

V66N 15…50 0510390031

15…40 0510390022 0510390006

15…40 0510390022 0510390006

VPF52 (E/F) 15…40 0510390022 0510390006 0372376010

VVG44/VXG44 15…50

VVG48/VXG48 15…50

VVF/VXF 61.65...61.92

Important accessories for AVM 322 and AVM 215 linear actuators

Type Description

0500420002 4…20 mA feedback module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0500570001 Energy module for valve actuators AVM321S/AVM322S and AVM321F112/AVM322F122

0500570003 230 V module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0510480003 Dual auxiliary switch unit for valve actuators AVM215(S), AVM321(S) with 8 mm stroke

0510480004 Dual auxiliary switch unit for valve actuators AVM215(S), AVM322(S) with 20 mm stroke

0510600001

Plug module, 1.2 m cable, 3-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600002 Plug module, 1.2 m cable, 3-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600003 Plug module, 1.2 m cable, 6-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600004 Plug module, 1.2 m cable, 6-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600005 Plug module, 5 m cable, 3-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600006 Plug module, 5 m cable, 3-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600007 Plug module, 5 m cable, 6-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600008 Plug module, 5 m cable, 6-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

Important accessories for AVM 1*5, AVF 12* and AV* 234 linear actuators

Description AVM 234S AVF 234S

0372332001 230 V module for valve actuators AVM/AVF234S and AVN224S

0372332002 110 V module for valve actuators AVM/AVF234S and AVN224S

0372333001 2 auxiliary change-over contacts, infinitely adjustable, for valve actuators AVM/AVF234S and AVN224S

0372333002 2 auxiliary change-over contacts with gold-plated contact, infinitely adjustable, for valve actuators AVM/AVF234S and AVN224S

0372334001 Potentiometer, 2000 Ω, 1 W, 24 V, for valve actuators AVM/AVF234S and AVN224S

0372334006 Potentiometer, 1000 Ω, 1 W, 24 V, for valve actuators AVM/AVF234S and AVN224S

0372461001 Forced operation module for valve actuators AVM/AVF234S and AVN224S

retrofitting

VVG44/VXG44 15...50 0372273001

VVG48/VXG48 15...50 0372273001

VVP459/VXP459 15...40 0372273001

Sauter VDL (from 5 mm stroke, max. 250 N) 10…32 0510390067

Important accessories for AVM 1*5 linear actuators Type

0372145001

AVM 105 AVM 115

Single auxiliary change-over contact for actuators ASM/AVM 105/115

0372145002 Double auxiliary change-over contact for actuators ASM/AVM 105/115

0372320001 Hex key for manual adjustment of ASM/AVM 105/115, 215

vialoq ADM322 electric rotary actuator for non-SAUTER valves and retrofitting

013

013

014

015

0510390 002

0510390 002

003

003

0510390 005

Important accessories for ADM 322 rotary actuator Type

0500420002 4…20 mA feedback module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0500570003 230 V module for valve actuators AVM321S, AVM322S and rotary actuator ADM322SF152

0510600001 Plug module, 1.2 m cable, 3-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600002 Plug module, 1.2 m cable, 3-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600003 Plug module, 1.2 m cable, 6-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600004 Plug module, 1.2 m cable, 6-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600005 Plug module, 5 m cable, 3-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600006 Plug module, 5 m cable, 3-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

0510600007 Plug module, 5 m cable, 6-wire, PVC, for valve actuators AVM3 and rotary actuators ADM322

0510600008 Plug module, 5 m cable, 6-wire, halogen-free, for valve actuators AVM3 and rotary actuators ADM322

The compact solution: Damper actuators and VAV controllers from SAUTER.

The innovation.

SAUTER has developed an integrated compact solution for room-pressure control, fume-cupboard control and air conditioning based on its extensive know-how in the field of critical environments and classic volume flow control. Thanks to the combination of the high-precision static differential pressure sensor and the tried and tested actuator and control technology, all the required ventilation applications can be provided with one device.

High precision and reliability.

With innovative control algorithms and precise positioning of the damper actuator, the integrated compact solution from SAUTER ensures precise volume flow control in offices, sealed clean rooms and laboratories. The commissioning with sophisticated SAUTER software tools helps save time and money.

ASV2*5 VAV controller

1) Configurable as input or output via software

2) Two SAUTER bus interfaces enable the connection of accessories and direct integration into a BMS

3) static membrane sensor

Important accessories for ASV2* volume flow controllers

Type Description

0372301001 Spindle adapter for squared-end hollow profile (× 15 mm), collective packaging, 10 pieces

XAFP100F001 Flow probe to measure flow rates in ventilation ducts

0300360001 USB connection set

0297867001 Reference pressure container

0430360100 IP30 protection set

0430360200 Replacement LP connectors

0372129001 Anti-torsion device

ASM electric air damper actuators

1) Optional accessory 0372145001 – Single auxiliary contact/0372145002 – Double auxiliary contact

2) Optional accessory 0372286001 – Pot. 130 Ω/0372286002 – Pot. 1000 Ω/0372286003 – Pot. 5000 Ω

3) Optional accessory 05306031105 – I/O cable (I), 3-pin, L = 5.0 m, open cable end, 3-wire

4) Optional accessory 0370990001 – Single auxiliary contact/0370990002 – Double auxiliary contact

5) Optional accessory 0370992001 – Pot. 130 Ω/0370992002 – Pot. 2000 Ω

Important accessories for ASM1*5 air damper actuators

Type Description

0313529001

Split-range unit module for setting sequences 0...10 V

0361977002 Mounting set for SAUTER M3R/M4R/MH32/MH42 control valves with ASM105/115

0372145001 Single auxiliary change-over contact for actuators ASM/AVM 105/115

0372145002 Double auxiliary change-over contact for actuators ASM/AVM 105/115

0372286001 Potentiometer, 130 Ω for actuators ASM/AVM 105/115

0372286002 Potentiometer, 1000 Ω for actuators ASM/AVM 105/115

0372286003 Potentiometer, 5000 Ω for actuators ASM/AVM 105/115

0372300001 Fixing bracket as anti-torsion device for ASV115/205/215 and ASM105/115, 230 mm long

0372320001 Hex key for manual adjustment of ASM/AVM 105/115, 215

Important accessories for ASM124 and ASM134 air damper actuators

Type Description

0313529001

Split-range unit module for setting sequences 0...10 V

0361977001 Mounting set for SAUTER M3R/M4R/MH32/MH42 control valves with ASM124

0370059000 Clamping lever for shaft d = 8...18 mm

0370990001

Single auxiliary change-over contact for damper actuators ASM124/134

0370990002 Double auxiliary change-over contact for damper actuators ASM124/134

0370992001 Potentiometer, 2000 Ω for damper actuators ASM124/134

0370992002

Potentiometer, 130 Ω for damper actuators ASM124/134

0372152001 Accessory for ASM124 for short spindle

0372200001 Fixing bracket for damper actuators ASM124/134

0372201001 Spindle extension for damper actuators ASM124/134

0372202001

Lever and fixing strap for damper actuators ASM124/134

0372203001 Carrier stem for auxiliary contact 0370990...

0372204001 Spindle for clamping lever 0370059000

0372455003 Assembly part; DEF DN 150...200 for ASM 134

0372455001

0372455002

0372455003

Mounting set for SAUTER DEF butterfly valves DN25 to DN65 with ASM124/134

Mounting set for SAUTER DEF butterfly valves DN80 and DN100 with ASM124 and DN80 to DN125 with ASM134

Mounting set for SAUTER DEF butterfly valves DN150 and DN200 with ASM134

Accessories for AKM115SAF Smart Actuator

Type Description

SAIO100F020 I/O module, 5 × UI/AO, 3 × relay

05393601000 Dummy plug spare part set IP54

EY-PS031F011 Power supply, 110…240 VAC/24 VDC, 1.25 A, 30 W, DIN rail mounting

EY-PS031F021 Power supply, 110…240 VAC/24 VDC, 2.5 A, 60 W, DIN rail mounting

EY-PS031F041 Power supply, 110…240 VAC/24 VDC, 4 A, 100 W, DIN rail mounting

EY-RU355* Operating device, LCD, NTC, 5B

053060200**

053060310**

053060320**

053060340**

053060341**

053060510**

053060530**

053060535**

Cable for Smart Actuator, 24 V, open end, 2-wire, 2-pin plug (red)

Cable for Smart Actuator, U-I/O, open end, 3-wire, 3-pin plug (yellow)

Cable for Smart Actuator, Ni1000, -35…100 °C, 3-pin plug (white)

Cable for Smart Actuator, RS485, open end, 3-wire, 3-pin plug (green)

Cable for Smart Actuator, RS485, 3-wire, 3-pin plug (green)

Cable for Smart Actuator, U-I/O, open end, 3-wire, 5-pin plug (yellow)

Cable for Smart Actuator, connection to I/O box, 5-pin plug (blue)

Cable for Smart Actuator, SLC, open end, 5-wire, 5-pin plug (green) ! For available cable lengths, see PDS

ASF electric air damper actuators with spring return

Important accessories for ASF air damper actuators

Type Description

0370997001 Lever adapter for converting rotation into stroke for ASF12.

0370998001 Lever adapter for converting rotation into stroke with support plate for ASF

0372245001 Lever adapter for converting rotation into stroke for damper actuators ASF112/124(S)

0372245002 Lever adapter for converting rotation into stroke with support plate for damper actuators ASF112/124(S)

0378113001 Mounting set for SAUTER DEF butterfly valves DN25 to DN100 with ASF122/123

0510240001 Mounting set for SAUTER VKR/BKR ball valves with ASF112/ASF113

Smart Sensor viaSens

The new dimension in room automation

The SAUTER viaSens Smart Sensor enables demand-based control of heating, ventilation, air conditioning and lighting – for energy-efficient and comfortable spaces.

• Measurement of temperature, humidity, air quality, CO2, presence, brightness and sound levels

• Demand-based room control through presence detection

• LED light ring for intuitive indication of room conditions

• Dynamic constant-light control through brightness detection

• Wireless communication via Bluetooth Mesh

• Integration via IP and MQTT secured through TLS as an IoT device

• Easy commissioning via app

• Flexible installation for new builds and modernisation projects

Smart sensor technology for intelligent buildings.

With viaSens, SAUTER provides the foundation for energy-efficient, flexible and future-ready room automation – delivering greater comfort, optimised operations and intelligent building usage.

Overview table of applications

Graphical overview/application profiles

The numbering relates to the Schema and Position columns in the table of application profiles shown opposite.

1 Ventilation and air-conditioning

2 Chilled ceilings, underfloor heating and radiators

3 Underfloor units

4 Static heating

5 Cooling towers

6 Multi-boiler installations

7/8 Local heating, district heating

9 4-pipe system

Valve selection –calculation using SAUTER tools.

SAUTER valve slide rule.

SAUTER has further developed its practical valve slide rule. You can use it to determine the valve nominal diameter based on the flow rate for liquids and saturated steam. You can order the slide rule from your sales partner or sales consultant.

SAUTER VALVEDIM software.

SAUTER provides installers and project engineers with its SAUTER VALVEDIM PC software, a proven tool for convenient valve and actuator selection. The tool comprises three functional levels:

1. Valve and actuator determination

• on the basis of recommended values to determine the required designs and sizes;

• on the basis of existing or specified system data to definitively determine the required designs and sizes.

2. Selection of the valve and the appropriate actuator based on specific characteristics.

3. Direct transfer of the results to the project documentation.

VALVEDIM is available from your SAUTER subsidiary or as a download at https://www.sauter-controls.com/en/produkt/case-suite/.

Valve selection – manual calculation

Here you will find all the information you need for manual valve selection.

Variables, constants and formulas

V Volume flow

Q zu Heat quantity supplied per time (heat flow)

Temperature difference K

kJ/h

Specific heat capacity of water 4.19 = 1.164·10–3 kJ/(kg·K) kWh/(kg·K)

Density of water Assumption : ρw = const. = 1000 kg/m3

Maximum admissible pressure difference over the valve bar, kPa

Calculated flow parameter for the valve m3/h

Actual flow value of the valve at nominal stroke, selected according to table or diagram m3/h

DN50 k =40m³/h VS DN40 k =25m³/h VS DN32 k =16m³/h =16m³/h VS DN25 k =10m³/h VS DN20 k =6,3m³/h VS DN15 k =4,0m³/h =4,0m³/h VS DN15/1 k =2,5m³/h =2,5m³ VS DN15/2 k =1,6m³/h =1,6m³/h VS

DN150 k =340m³/h VS DN125 k =250m³/h VS DN100 k DN100 =160m³/h =160m³/h VS VS DN80 k =100m³/h =100m³/h VS DN65 k =63m³/h m³/h VS DN15/3 k =1m³/h =1m³/h VS DN15/4 k =0,63m³/h =0,63m³/ VS DN15/5 k =0,4m³/h =0,4m³/h VS DN15/5 k =0,25m³/h VS DN15/6 k DN15/ =0,16m³/h =0,16m³/ VS

The following are given: Q ˙ zu = 130 kW ≈ 468.000 kJ/h Δt = 20 K Δpv = 150 mbar = 15 kPa (corresponds to 1.5 m water column)

We are looking for: V, kv

Approximate calculation of V Assumption:

Calculation of Kv

Determination of flow rate

Determination of kv from the chart kvs = 16 m3/h

Example plotted: given a volume flow (5.6 m³/h) and a desired Δpv of 150 mbar, this results in a Kv value of 14.4 m³/h. The Kvs values entered are deliverable values. Selected: a valve with kvs = 16 m³/h, which results in a pressure difference Δpv of 122 mbar.

Category

Heating applications

Basic hydraulic circuits

Quick overview and areas of use

SAUTER provides installers and project engineers with its SAUTER VALVEDIM PC software, a proven tool for convenient valve and actuator selection. The tool comprises three functional levels:

• Throttling circuits are highly flexible and have a wide range of uses, particularly in air handling and storage applications.

• Diversion circuits are especially effective in air handling, domestic hot water and heat recovery applications.

• Injection circuits are well suited to systems with a more constant secondary circuit and variable temperature control.

• Mixing circuits are particularly suitable for simple heating circuits and lower supply temperatures.

Ventilation

Heating applications Ventilation

Cooling applications Ventilation

Cooling applications Ventilation

Cooling applications Ventilation

Heating applications District heating

Cooling applications District heating

Heating applications Primary heating

Air heaters without risk of freezing

Air heaters with risk of freezing

Air coolers with dehumidification

Air coolers without dehumidification

Heat recovery systems

Direct or indirect (with heat exchanger) district and local heating connections

Direct or indirect (with heat exchanger) district and local cooling connections

Low-temperature boiler systems

Heating applications Primary heating Condensing boilers

Heating applications Primary heating Systems with condensing boilers

Heating applications Primary heating/cooling

Heating applications Primary heating/cooling

Cooling applications Primary heating/cooling

Heat pumps and thermal storage tanks

Charging/discharging of storage tanks

Cooling generation

Heating applications Primary heating Simple heating circuits

Heating applications Intelligent unitary control

Radiator heating

Heating applications Intelligent unitary control Underfloor heating

Heating applications Intelligent unitary control Zone control

Heating applications Intelligent unitary control Intelligent unitary control

Heating applications Hot water supply Domestic water heating

Heating applications Hot water supply Domestic hot water storage

Throttling circuit with static control valve

Description

The throttling circuit provides a simple, robust and flexibly adaptable solution for systems with variable demand.

Capacity is controlled by adjusting the flow rate using a 2-way control valve.

Throttling affects the flow rate in both the secondary circuit and the primary circuit.

The resulting differential pressure changes affect adjacent circuits and consumers.

The control valve can be installed in either the supply line or the return line.

Installation in the return line is preferred in order to minimise thermal stress caused by high or low media temperatures.

Characteristics

• Variable flow rates in both the secondary and primary circuits

• Reduced flow rates and flow velocities at partial load (temperature stratification in the consumer)

• Approximately constant supply temperatures in the secondary circuit

• High temperature differential between supply and return at partial load (low return temperatures in heating mode)

• Pressurised manifold required (or a separate pump in the circuit)

• Risk of freezing with air heaters

Throttling circuit with dynamic control valve (PICV)

Description

The throttling circuit with a dynamic control valve (PICV) combines flexible flow control with high stability and precise control performance.

Capacity is controlled by adjusting the flow rate using a dynamic 2-way control valve.

Throttling affects the flow rate in both the secondary circuit and the primary circuit.

The control valve can be installed in either the supply line or the return line.

Installation in the return line is preferred in order to minimise thermal stress caused by high or low media temperatures.

Characteristics

• Variable flow rates in both the secondary and primary circuits

• Reduced flow rates and flow velocities at partial load (temperature stratification possible in the consumer)

• Approximately constant supply temperatures in the secondary circuit

• High temperature differential between supply and return at partial load (low return temperatures in heating mode)

• The flow rate remains constant across the dynamic valve in the event of pressure fluctuations and high differential pressures

• Pressurised manifold required (or a separate pump in the circuit)

• Risk of freezing with air heaters

Diversion circuit

Description

The diversion circuit provides fast response times for convenient control.

Capacity is controlled by adjusting the flow rate using a 3-way control valve in the secondary circuit. The flow rate on the primary side remains constant. At partial load, a portion of the supply flow is diverted directly to the consumer return line via the bypass of the 3-way control valve.

Adjacent circuits are not affected, thanks to decoupling via the bypass.

The 3-way control valve should preferably be installed in the return line as a mixing valve. This avoids mechanical stress caused by unfavourable flow conditions within the valve.

Characteristics

• Variable flow rates in the secondary circuit

• Constant flow rates in the primary circuit

• Reduced flow rates and flow velocities at partial load in the secondary circuit (temperature stratification in the consumer)

• Approximately constant supply temperatures in the secondary circuit

• Equalisation of the primary-side return temperature to the supply temperature at partial load (return temperature increase in heating mode)

• Pressurised manifold required

• Risk of freezing with air heaters

Injection circuit with static 2-way control valve

Description

The injection circuit with a 2-way control valve provides a high level of control comfort through constant flow rates in the secondary circuit.

Capacity is controlled by adjusting the supply temperature in the secondary circuit.

The flow rate on the primary side is controlled using the 2-way control valve. At the mixing point, the required amount of medium is injected into the secondary circuit according to the valve position. The same amount is reduced via the bypass, resulting in a constant flow rate in the secondary circuit. Changes in the primary-side flow rate lead to differential pressure fluctuations that affect adjacent circuits.

Characteristics

• Constant flow rates in the secondary circuit (no temperature stratification in the consumer)

• Variable flow rates in the primary circuit

• Variable supply temperatures in the secondary circuit

• High temperature differential between supply and return at partial load on the primary side (low return temperatures in heating mode)

• Pressurised manifold required

Injection circuit with dynamic 2-way control valve (PICV)

Description

The injection circuit with a dynamic 2-way control valve provides precise, convenient control with constant flow rates in the secondary circuit.

Capacity is controlled by adjusting the supply temperature in the secondary circuit.

The flow rate on the primary side is controlled using the dynamic 2-way control valve. At the mixing point, the required amount of medium is injected into the secondary circuit according to the valve position. The same amount is reduced via the bypass, resulting in a constant flow rate in the secondary circuit.

Characteristics

• Constant flow rates in the secondary circuit (no temperature stratification in the consumer)

• Variable flow rates in the primary circuit

• Variable supply temperatures in the secondary circuit

• High temperature differential between supply and return at partial load on the primary side (low return temperatures in heating mode)

• The flow rate remains constant across the valve in the event of pressure fluctuations and high differential pressures

• Pressurised manifold required

Mixing circuit

Description

The mixing circuit provides a proven and cost-effective solution for reliable temperature control. Capacity is controlled by adjusting the supply temperature in the secondary circuit.

The flow rate on the primary side is controlled using the 3-way control valve. In the mixing valve, medium from the return flow is added according to the valve position. The same amount is reduced in the primary circuit, resulting in a constant flow rate in the secondary circuit.

The zero-loss or low-loss header prevents the circuits from affecting each other. A zero-loss or low-loss header is necessary for reliable control.

The 3-way control valve should preferably be installed in the supply line as a mixing valve. This avoids mechanical stress caused by unfavourable flow conditions within the valve.

Characteristics

• Constant flow rates in the secondary circuit (no temperature stratification in the consumer)

• Variable flow rates in the primary circuit

• Variable supply temperatures in the secondary circuit

• High temperature differential between supply and return at partial load on the primary side (low return temperatures in heating mode)

• Zero-loss or low-loss header required

Vision Center

Rethinking Smart Building Management

SAUTER Vision Center enables efficient and sustainable building management – with demand-based control, energy management and building analytics.

With SAUTER Vision Center, buildings can be controlled and monitored efficiently, intuitively and securely – from individual sites to complex smart-building infrastructures.

• Centralised visualisation and operation of all functions

• Intuitive user interface for efficient operation of technical installations

• Scalable platform from standalone buildings to large real estate complexes

• Real-time monitoring, alarm management and trend analysis

• Integration of open standards such as BACnet, MQTT and OPC

• Secure remote access and modern web technology

SAUTER Vision Center combines modern building automation with intelligent facility management – for sustainable, energy-efficient and future-proof buildings.
