Efficient and Eco-Friendly Fans for Air-Conditioning and Mechanical Ventilation Systems
SANMU (SG) PTE LTD

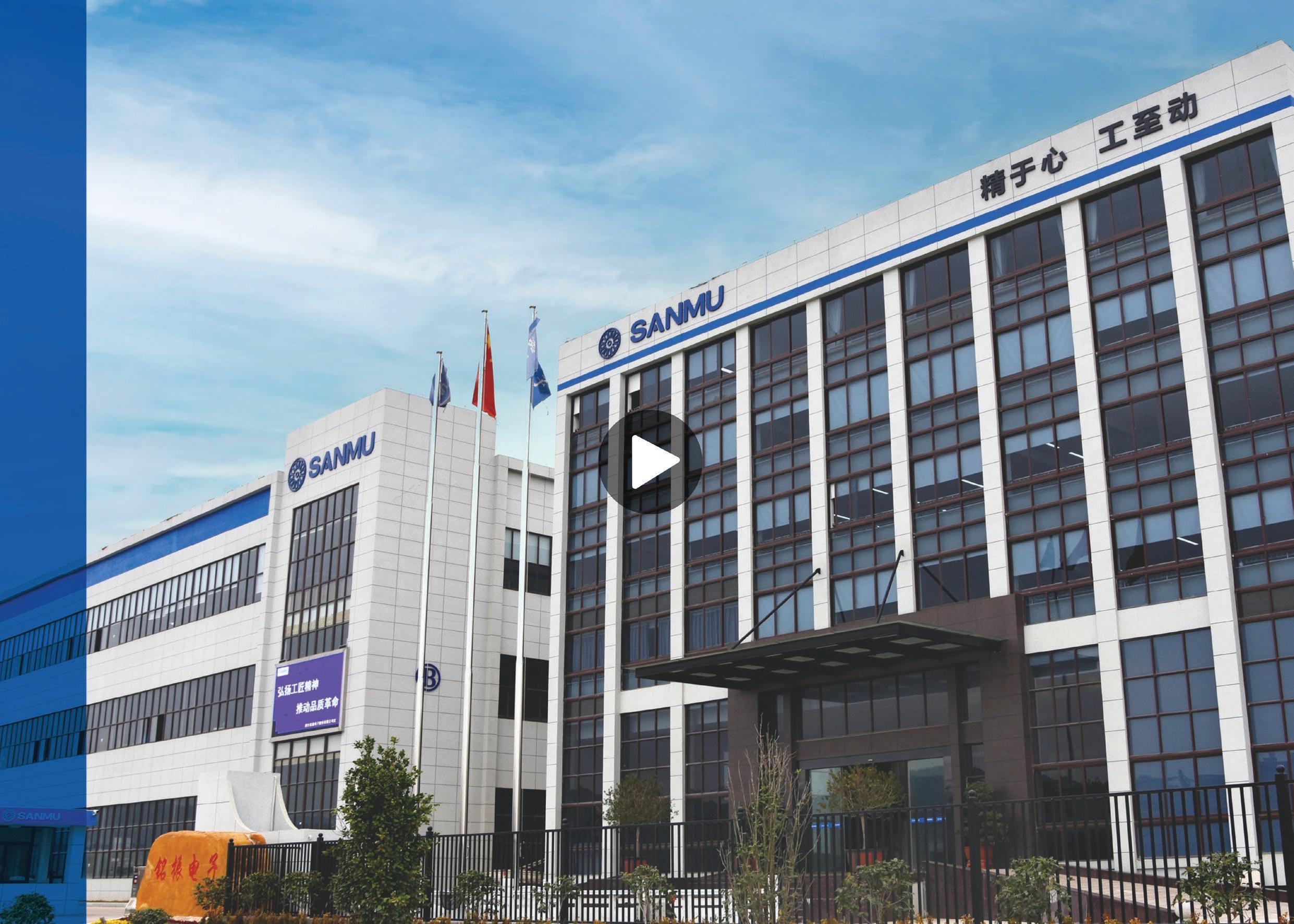

About Sanmu
Sanmu (SG) Pte Ltd is the Southeast Asia subsidiary of Zhejiang Mingzhen Electric & Electronic Co., Ltd (formerly Wenling Sanmu Electronic Co., Ltd). Headquartered in Singapore, Sanmu (SG)’s mission is to enhance service and support throughout the Southeast Asia region.
Established in 1996, Zhejiang Mingzhen is a renowned leader in the manufacturing of ventilation fans globally. Our expertise lies in the production of axial fans, centrifugal fans, duct fans, and more, all distinguished for their exceptional quality and reliability.
Our energy-efficient ventilation fans are exported worldwide, including Europe, America, the Middle East, and Southeast Asia, catering to a diverse range of applications such as Air Handling Units, Cooling Towers, Fan Coil Units in buildings and facilities for various market segments.
We pride ourselves on our cutting-edge production facilities, featuring advanced production lines and rigorous quality control measures. Our commitment to quality is reflected in our adherence to the ISO 9001:2000 quality management system and our possession of certifications such as CCC, CE, UL, and ROHS.
At Sanmu, we are driven by passion and inspired by artistry. Our team of engineers is dedicated to innovation, continuously engaged in pioneering new product developments. We are devoted to delivering premium solutions and exceptional service to our valued customers.
Our EC Technology
Electronically Commutated (EC) technology represents a significant advancement in the realm of electric motors, especially in applications requiring high efficiency and precision.
What Sets EC Motors Apart?
EC motors eliminate the mechanical brushes and commutators used in conventional motors. Instead, they leverage electronic commutation to control the motor’s magnetic field. This means that the motor’s speed and torque are precisely regulated by electronic controls, ensuring optimal performance and significantly minimizing energy waste. Additionally, the absence of brushes and mechanical commutators reduces wear and tear, resulting in a longer operational lifespan for EC motors. This durability translates to lower maintenance costs and reduced downtime, making EC motors a cost-effective choice for a wide range of applications.
By integrating EC technology, Sanmu is committed to driving innovation and enhancing operational capabilities across diverse applications. Our EC plug fans not only offer immediate benefits in terms of performance and cost savings but also contribute to a more sustainable future.
Key Benefits of EC Technology
Energy Efficiency
Significant energy savings from precise control and minimized energy waste.
Enhanced Control & Flexibility
Higher flexibility and superior performance with precise speed and torque control.
Extended Lifespan
Extended operational lifespan due to the elimination of mechanical brushes and commutators.
Sustainability
Lower energy use leads to reduced carbon footprint, aligning with green initiatives and sustainability goals.

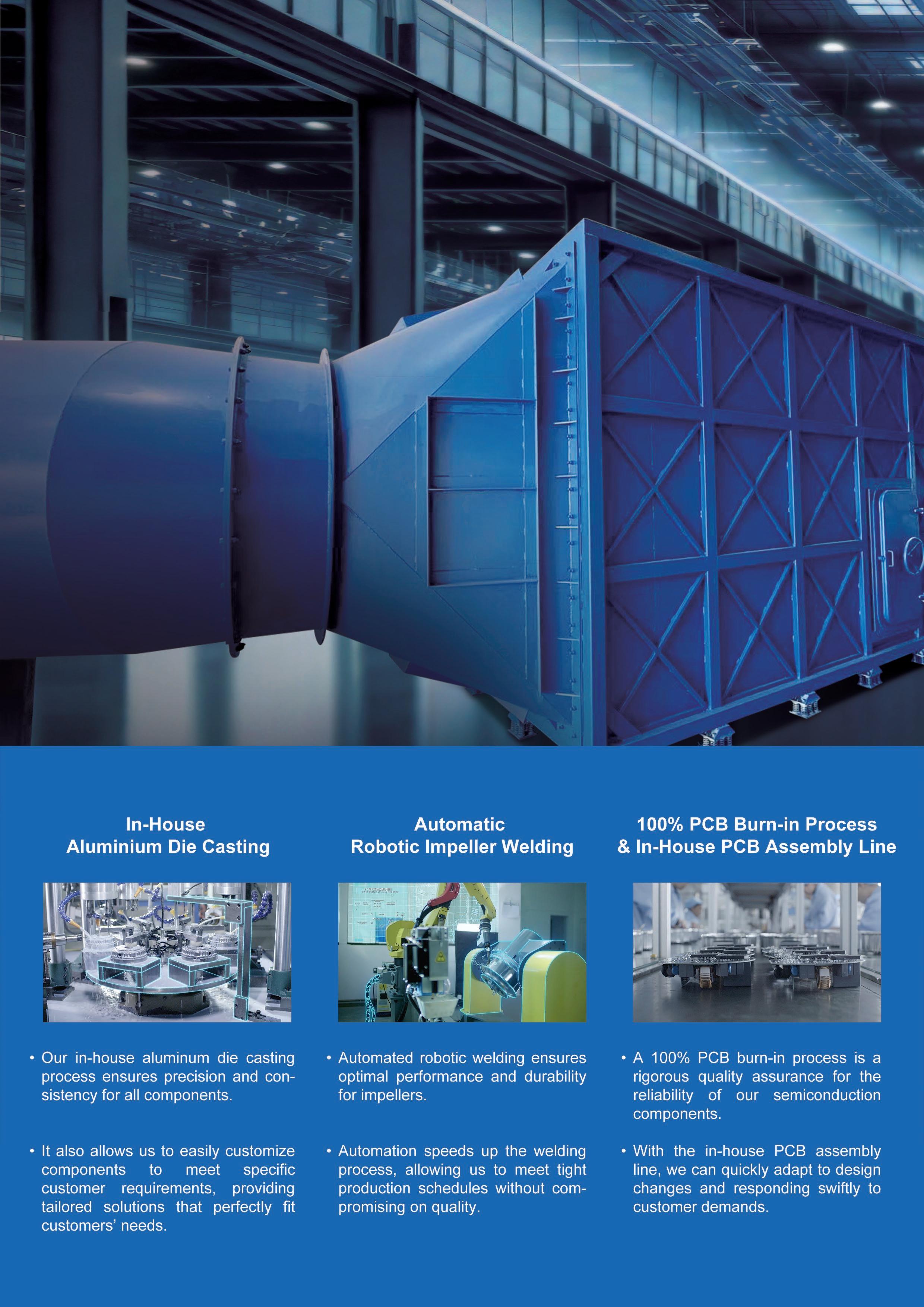

Vertical Integrated Manufacturing
At Sanmu, we take pride in our comprehensive vertical integrated manufacturing process. Our commitment to excellence is in every step of production, ensuring that our EC fans meet high standards of quality, consistency and reliability from start to finish.
Key Advantages of Our Vertical Integrated Manufacturing:
Streamlined Workflows:
Enhanced efficiency and reduced lead times.
Improved Quality Control:
Higher standards of product reliability and performance.
Flexibility and Stability:
Quick adaptation to market changes and sustained growth.

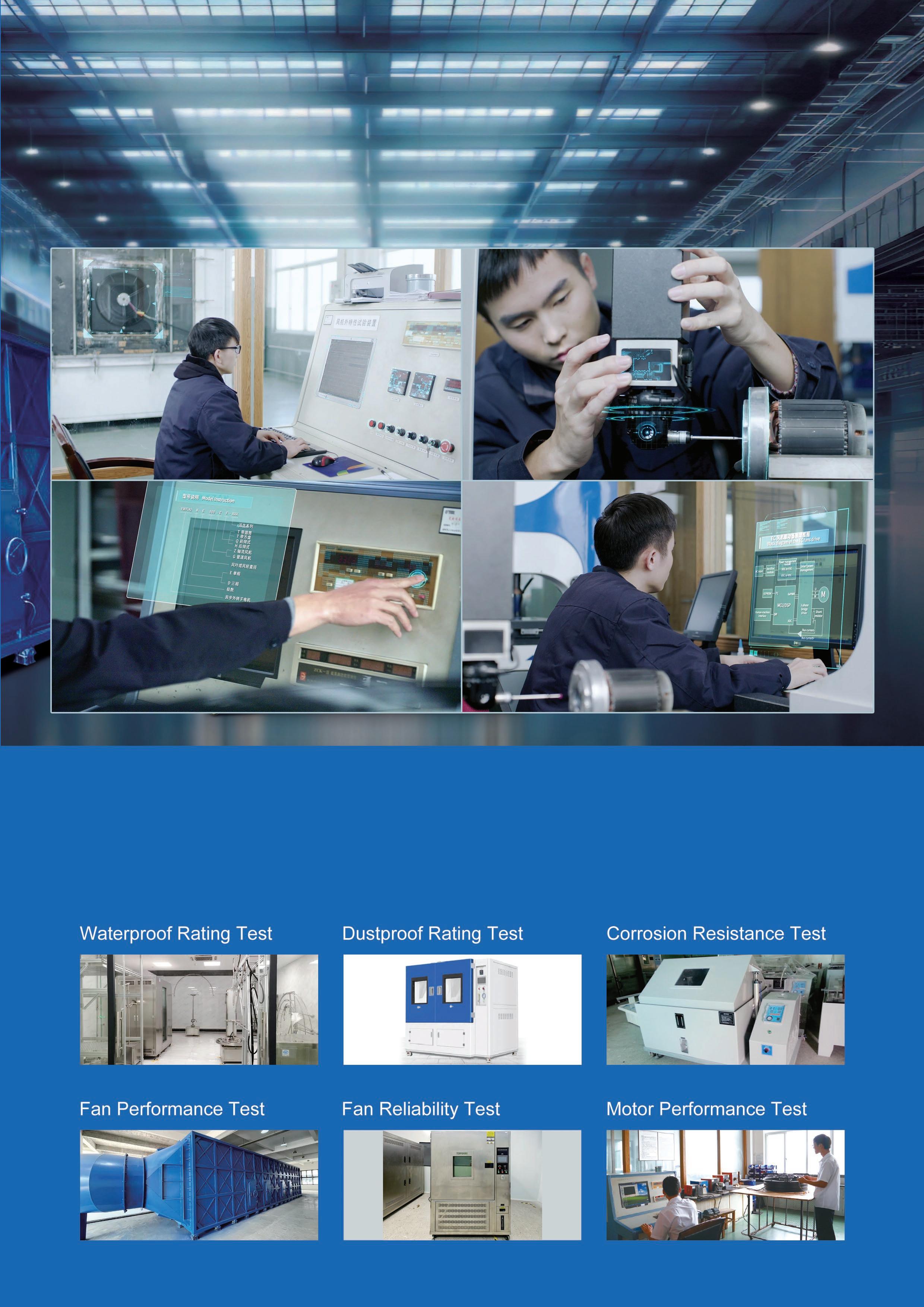

R & D Center and Testing Facilities
Our formidable Research and Development team works tirelessly to innovate in the fields of EC motors and fans. Collaborating with top universities and research institutions in China, we stay at the forefront of technological advancements.
Our testing center is certified by the China National Accreditation Service for Conformity Assessment (CNAS) and is internationally recognized for meeting stringent standards in technical competence and quality management. We conduct essential tests to ensure the reliability, safety, and performance of our EC fans, ensuring they meet the highest standards across various applications.
EC Plug Fans VS. AC Axial Fans
When it comes to selecting fans for Air Handling Units (AHUs), the choice between EC plug fans and AC axial fans can significantly impact performance, energy efficiency, and operational costs. Here’s a comprehensive comparison between EC plug fans and AC axial fans.
Motor IE5 Level EC motor (brushless DC motor) Conventional AC motor
Components**
Integrated design. 100% speed control. An external VFD* is not needed.

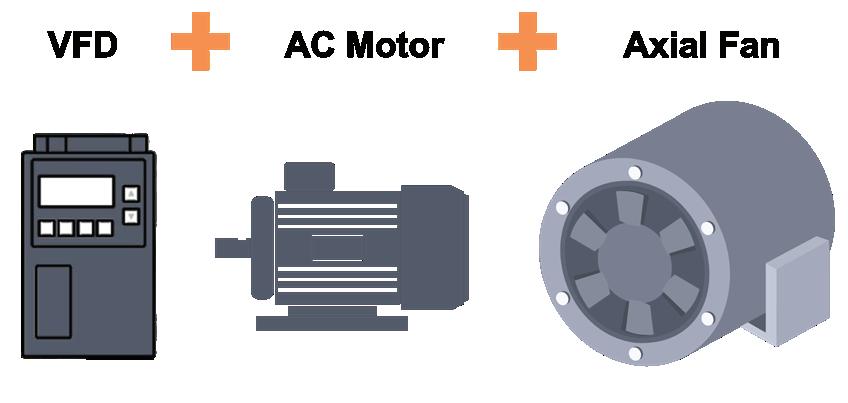

Not integrated. Requires an external VFD* to adjust frequency/speed.
Air Directions Delivers airflow diagonally to the axis. Provides airflow parallel to the axis.
Size Compact and light
Application
Ideal for various applications requiring positive pressure plenum.
* VFD: A Variable Frequency Drive (VFD) is a device that controls the speed of AC induction motors by adjusting the frequency (Hz) of the power supply.
Normal control range: 25~50Hz ; Up to 50% speed control
Large and Heavy
Good for ducted mechanical ventilation applications.
** While some AC axial fans in the market may include “EC” in their names, it’s crucial to differentiate them based on their motor types and control mechanisms. Authentic EC plug fans feature integrated EC motors and do not require an external VFD for speed control. This distinction ensures you benefit from the true efficiency and performance advantages of EC technology

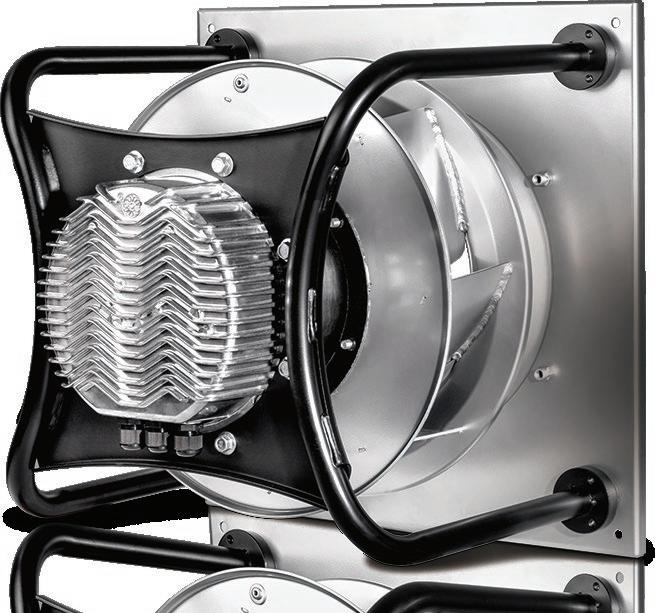

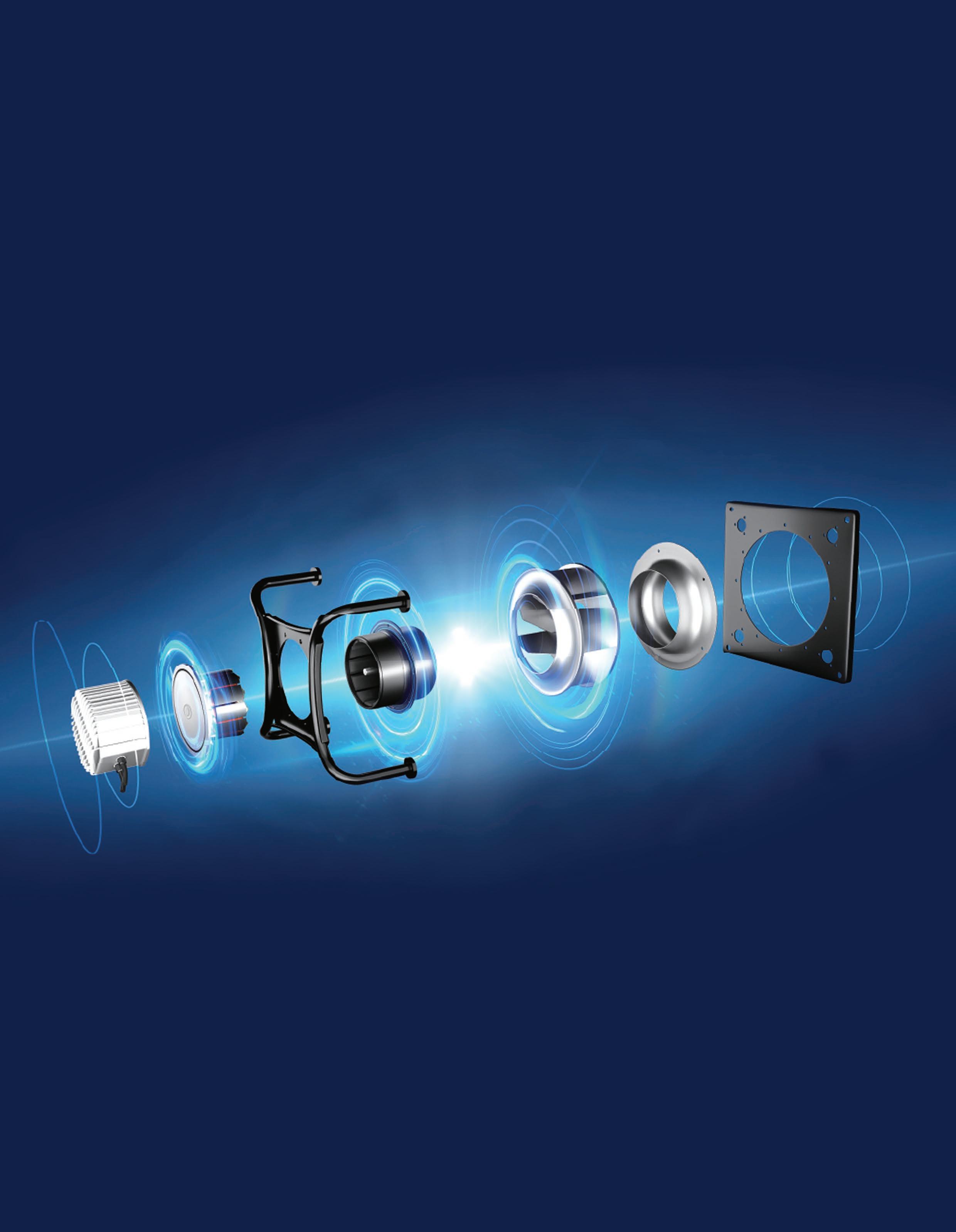

EC Plug Fan

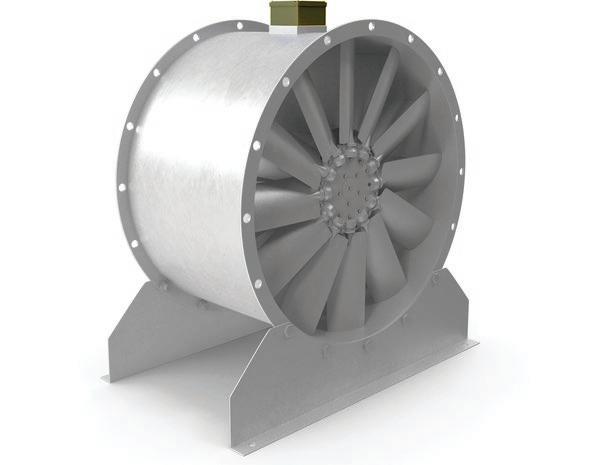

AC Axial Fan
EC Plug Fans VS. AC Axial Fans

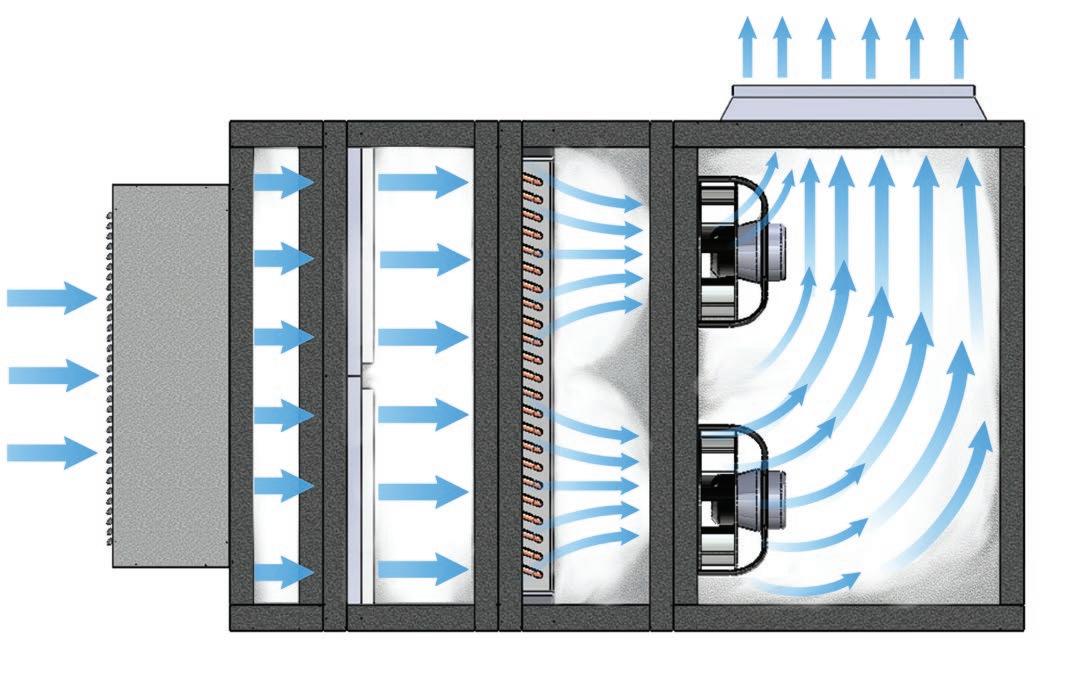

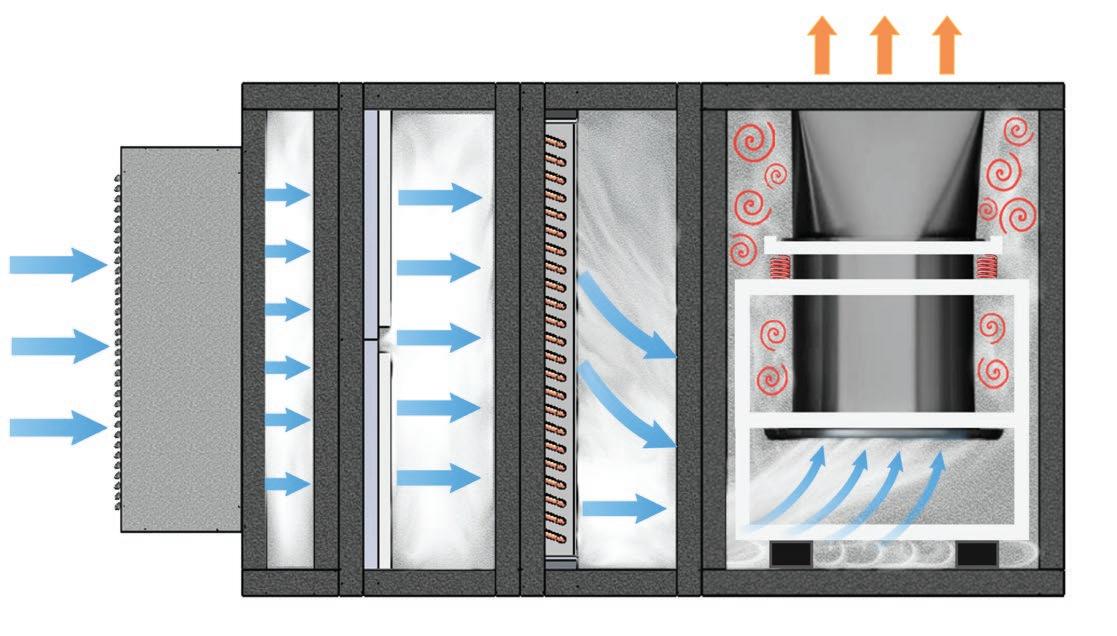

Fan Performance in an Air Handling Unit (AHU)
AHU Set-up
Air Velocity
Airflow across Cooling Coil
Installation
Operational Redundancy
Noise
Maintenance

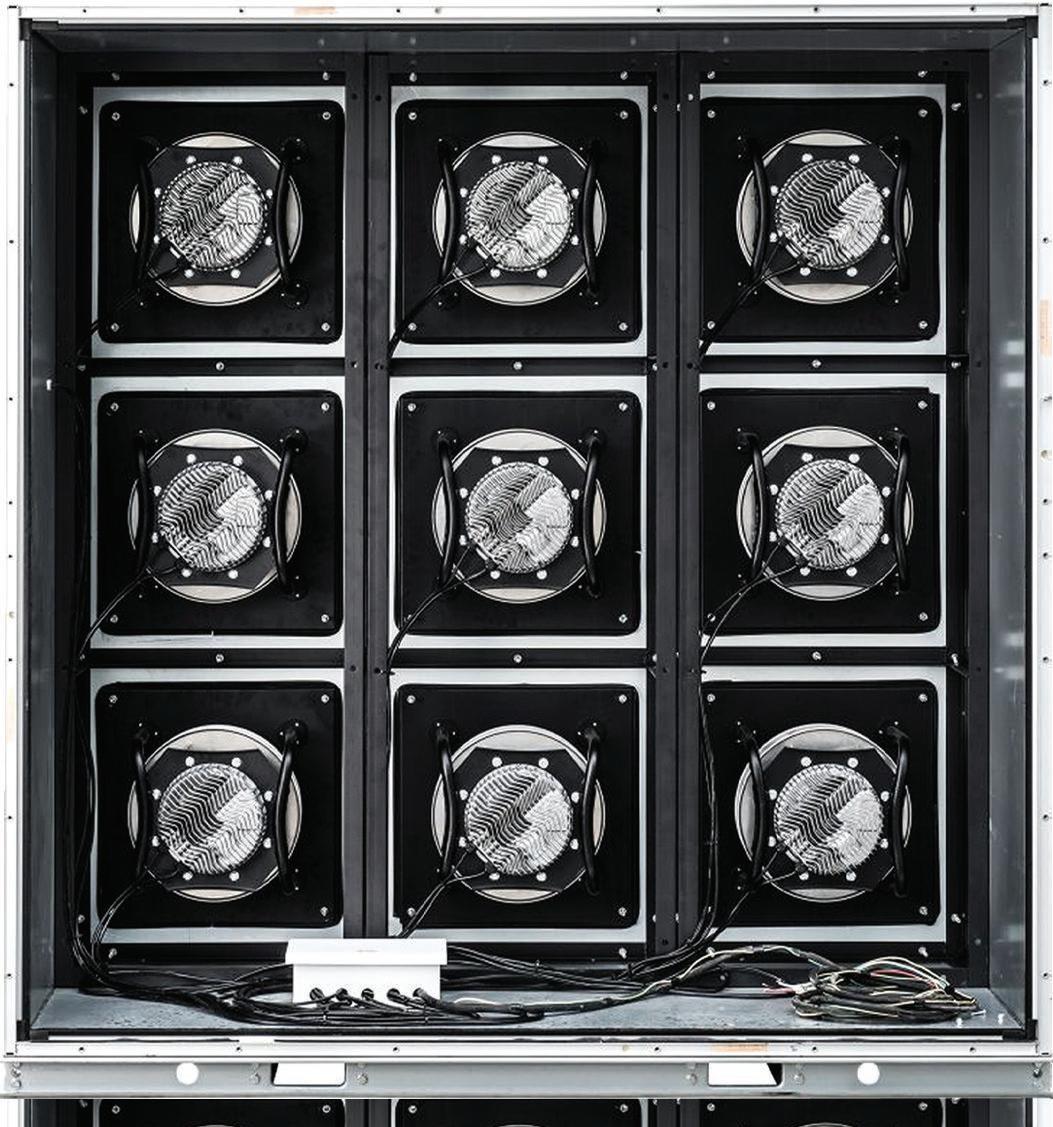

Multiple fans (free partial redundancy with minimum two fans).
Lower velocity increases flexibility in mounting direction and results in higher static pressure with lower turbulence loss.
More uniform laminar airflow. Thus, improve cooling coil efficiency.
Compact size allows multiple fan designs in plenum walls.
Multiple fan design provides redundancy; Auto airflow compensation if one fan fails.
Lower velocity operation results in less noise and heat loss.
Longer lifetime with minimum maintenance needs.
Conclusion
Typically a single fan.
Higher velocity reduces flexibility in mounting direction and produces higher dynamic pressure.
Non-uniform airflow, concentrated at the bottom, leading to low cooling coil efficiency.
Optimal performance requires horizontal mounting, which is often impractical due to space constraints, leading to increased turbulence.
Lack of redundancy in single-fan systems; AHU ceases operation if any component fails.
Higher RPM operation generates more noise, heat, and turbulence; often requires a silencer.
Requires frequent maintenance on numerous components.
Deploying EC plug fans for your AHU offers numerous advantages over conventional AC axial fans. From energy efficiency and performance to ease of installation and environmental benefits, By choosing EC plug fans, you’re not only enhancing the operational efficiency of your AHU but also contributing to a more sustainable future.
EC Plug Fans
AC Axial Fan

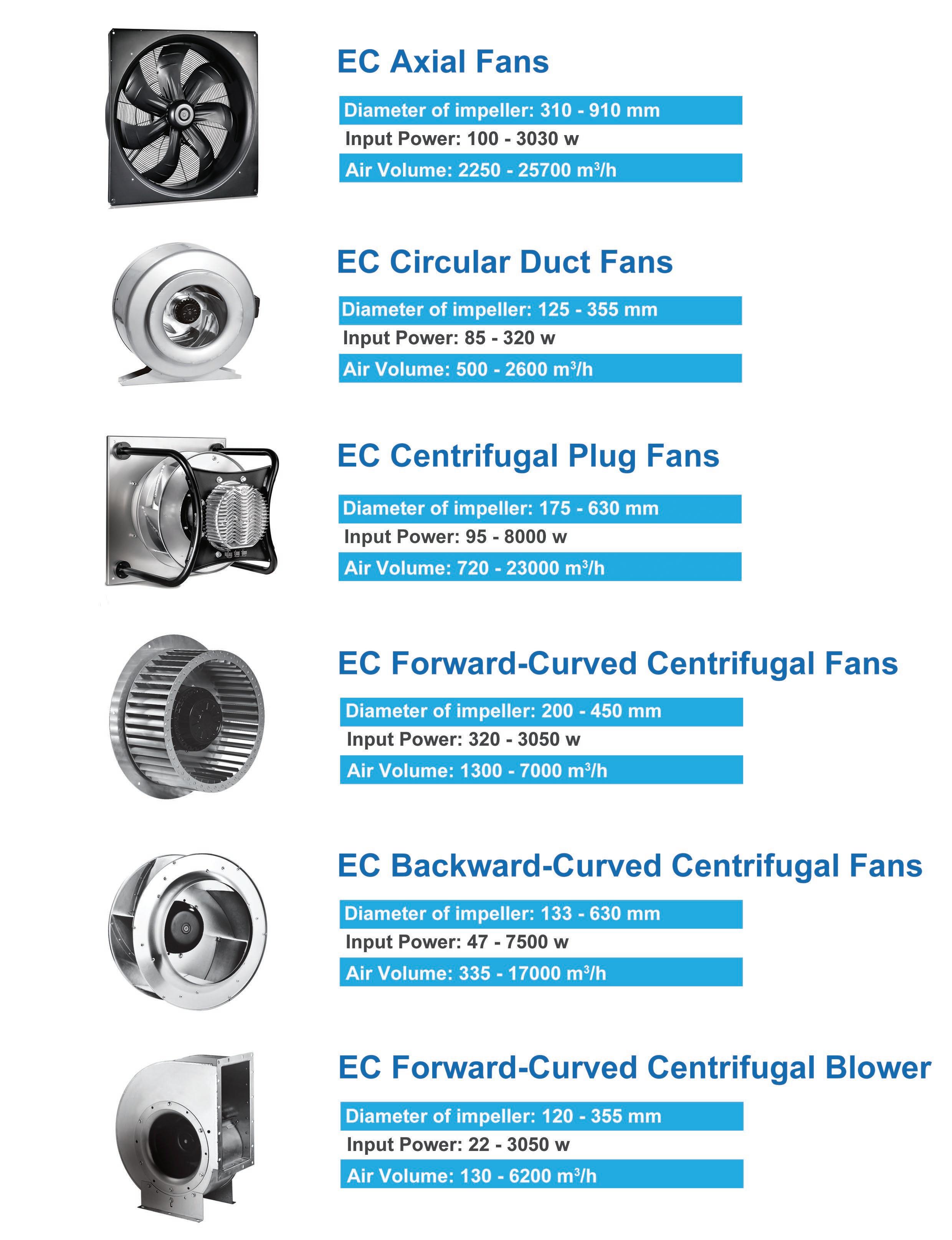

Our EC Products

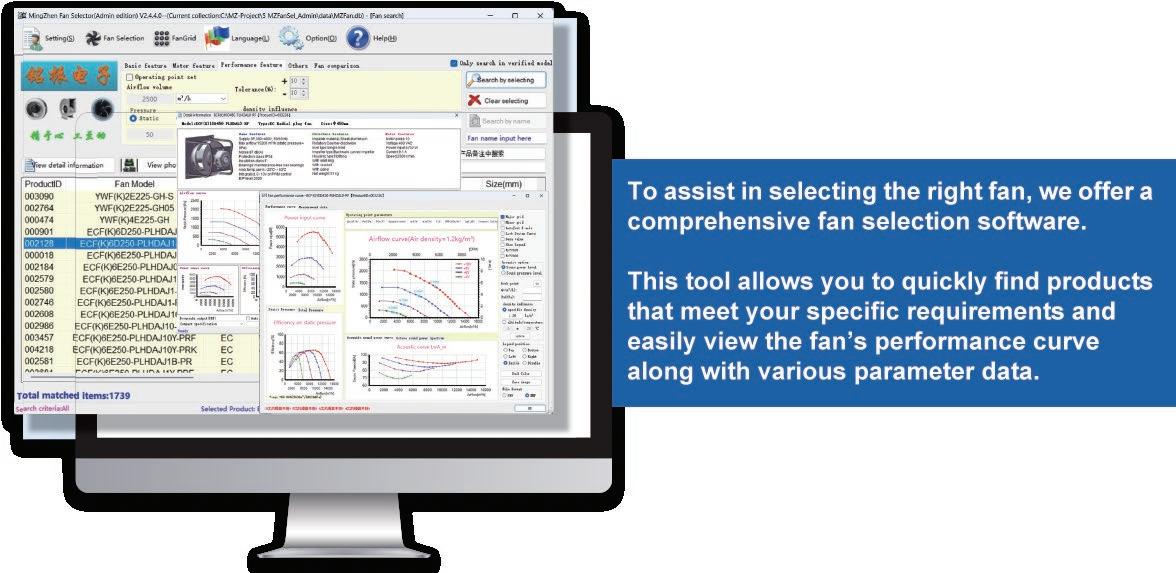

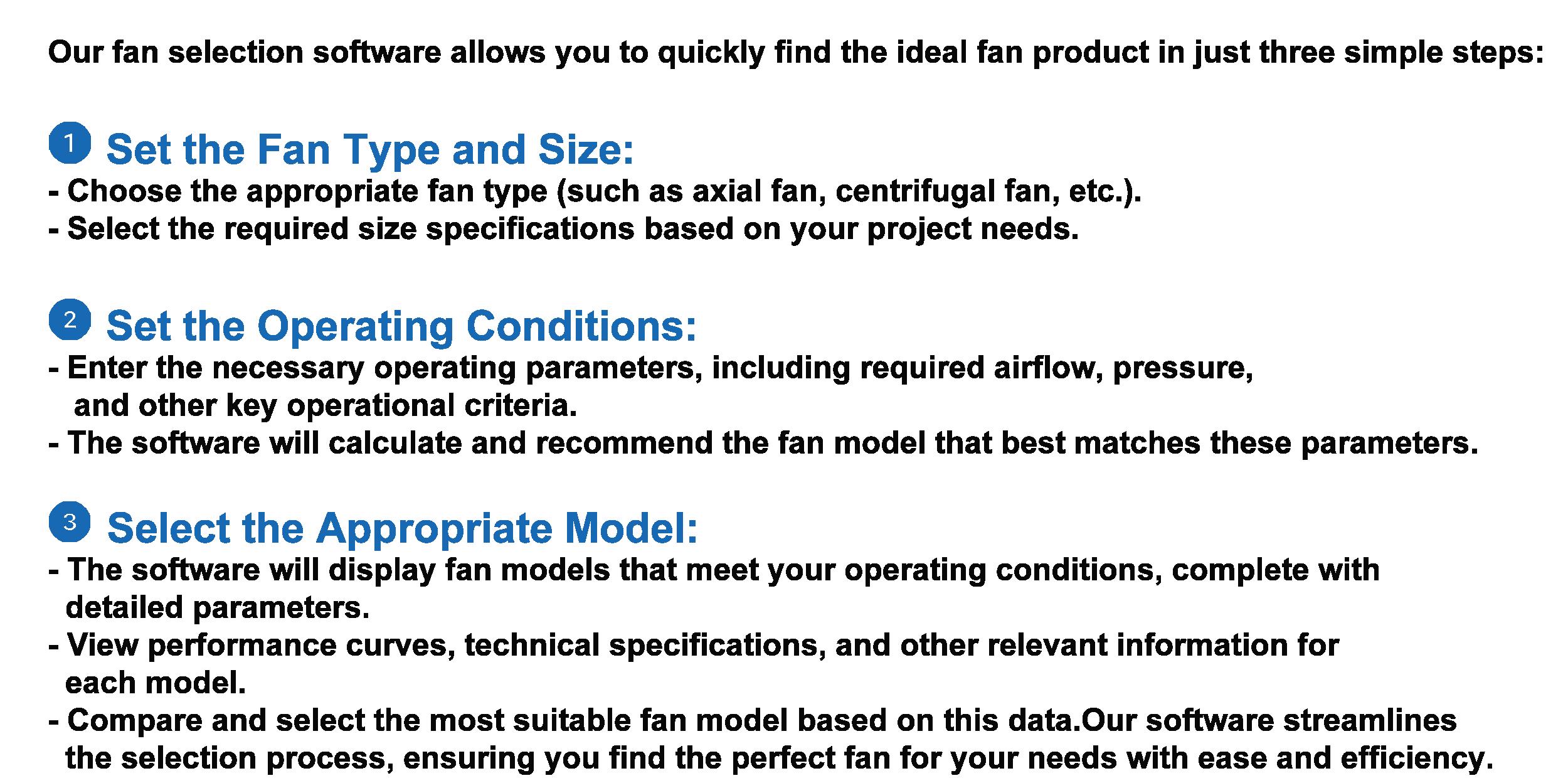

Fan Selection Software

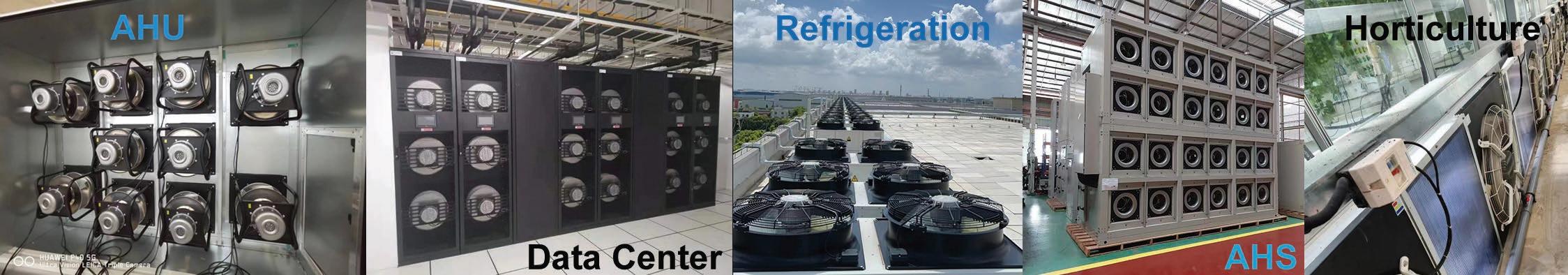

Industry Applications
EC fans are versatile and efficient, ideal for a wide range of industry applications. Their advanced technology ensures superior performance, energy savings, and reliability across various sectors.
Case Studies

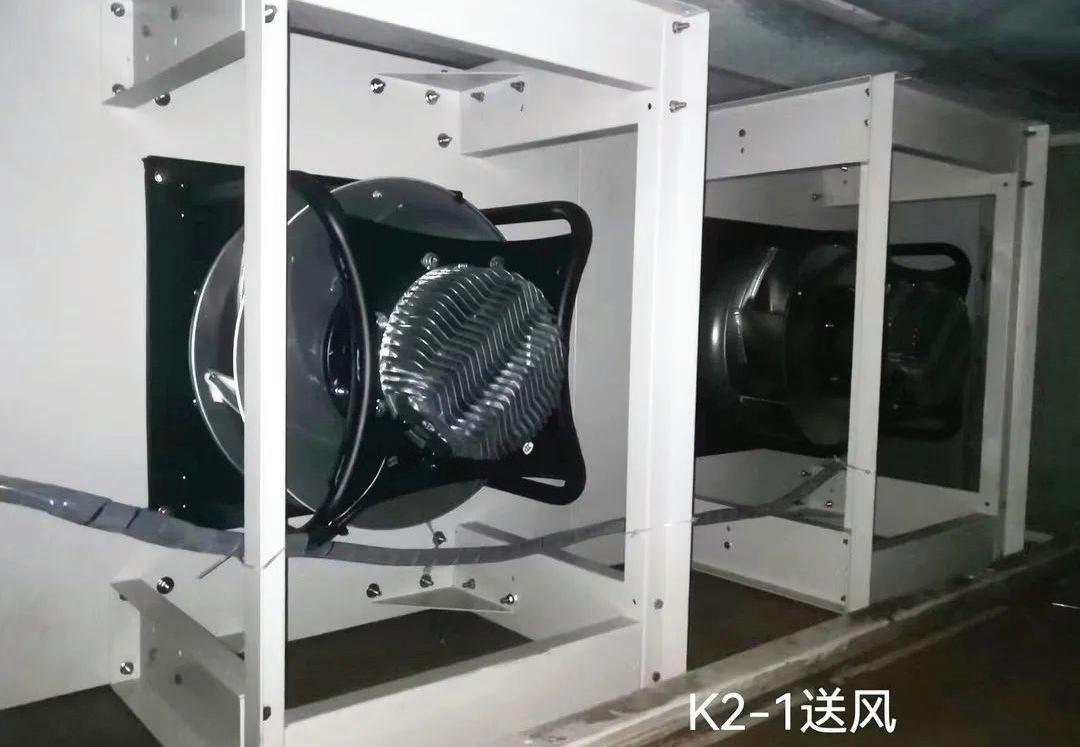

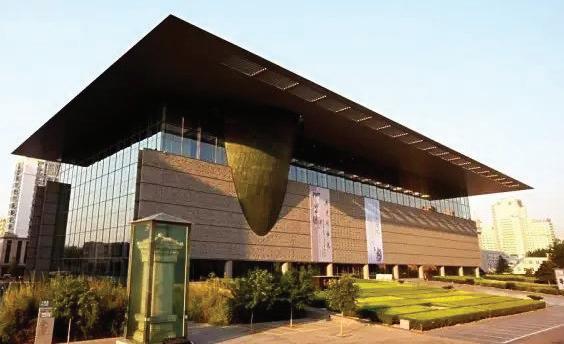

Driving the Future: EC Fans in China Capital Museum
The China Capital Museum, with a total construction area of 63,390 square meters, is a renowned institution featuring five above-ground floors and two underground levels.
As a National First-Class Museum, it requires strict control over temperature and humidity levels to preserve artifacts. Factors such as temperature, humidity, particulates, and gaseous pollutants can damage the valuable artifacts. It is also particularly important to maintain a stable environment 24/7.
Thus, the selection of ventilation fans becomes critical. The museum needed features such as dual-effect energy savings, precise environmental control, and enhanced stability. This is where Sanmu EC fans stood out and were chosen for the central air conditioning system’s retrofit project at the Capital Museum.
After the installation of Sanmu EC fans, the museum immediately began to benefit from dual-effect energy savings as EC fans provide direct energy savings through their efficient motor design and indirect savings by reducing the load on other HVAC components
The dual-effect energy saving is especially advantageous in museums, where managing energy consumption is a major concern.
Moreover, the high stability of our EC fans, achieved through features like low torque soft start, reduces wear and tear on the system. This reliability is essential for museums, where any disruption in the HVAC system can lead to potential harm to the exhibits.
On top of that, EC fans offer closed-loop precise airflow control, ensuring that the environmental conditions remain consistent. This helps in protecting sensitive items from damage caused by fluctuating conditions.
By choosing Sanmu’s EC fans, the China Capital Museum not only enhanced its environmental quality but also set a new standard for energy efficiency and artifact preservation. This success story highlights the importance of advanced ventilation systems in maintaining the integrity of worldclass institutions.
