Seats & Pedestals

Contents Commercial Seats

141

Seats

143

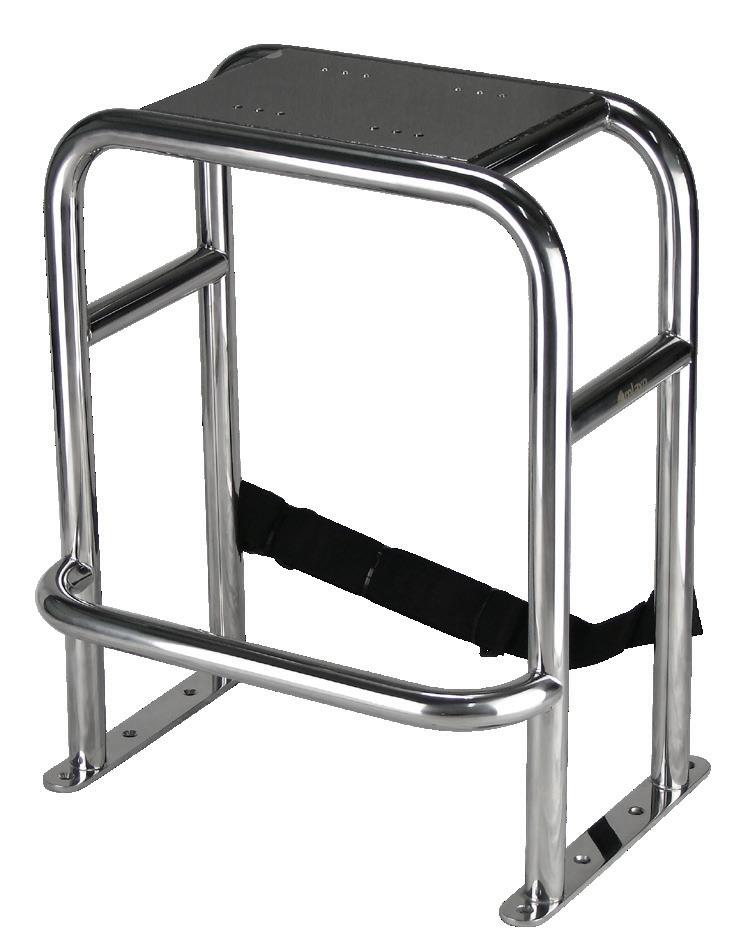

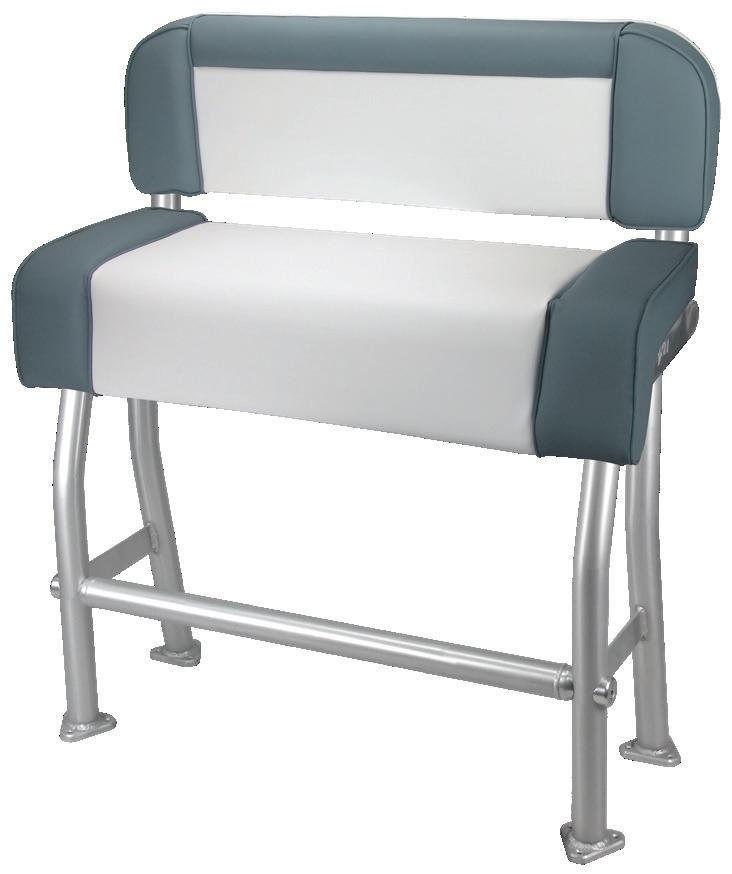

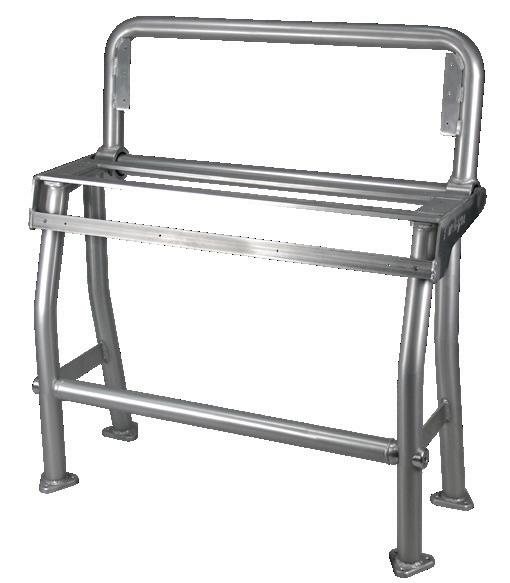

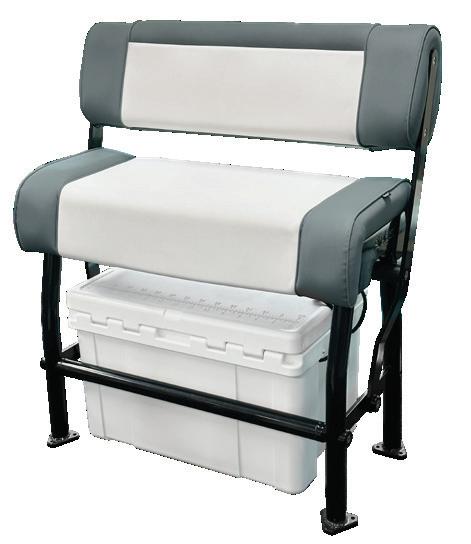

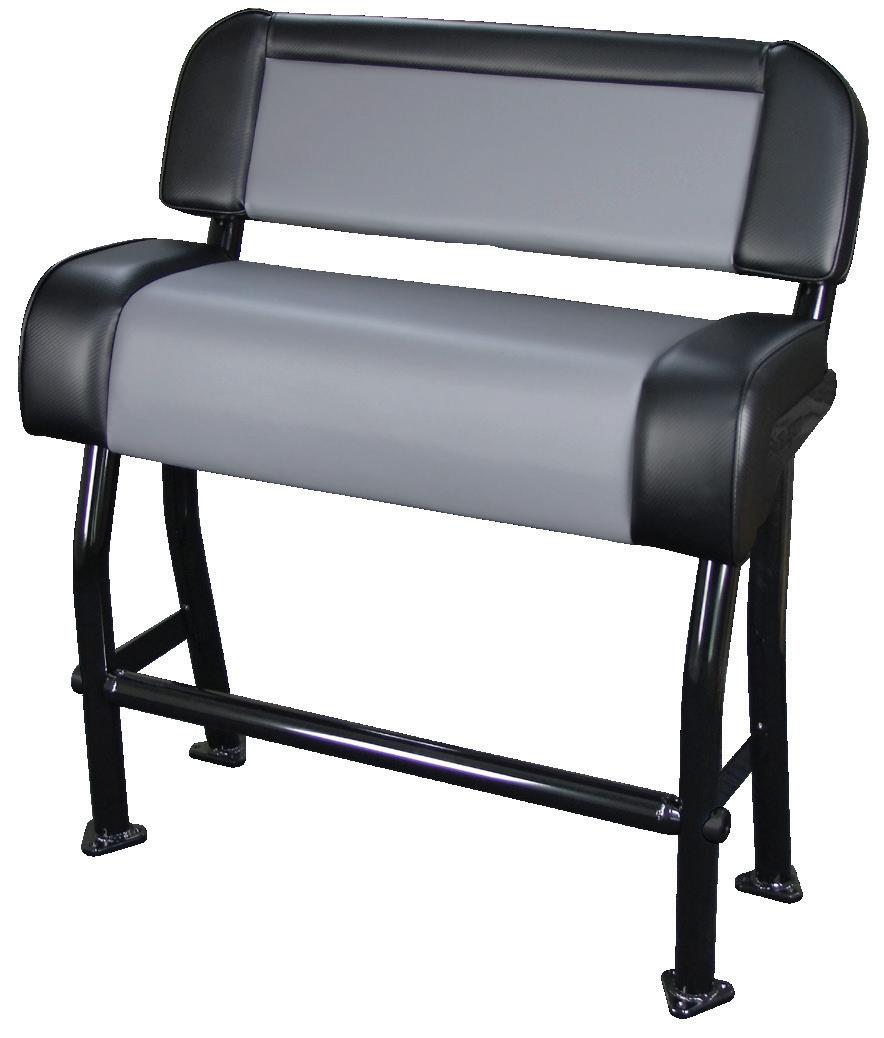

Alloy Leaning Posts

154

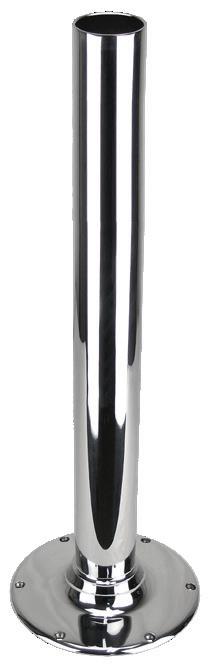

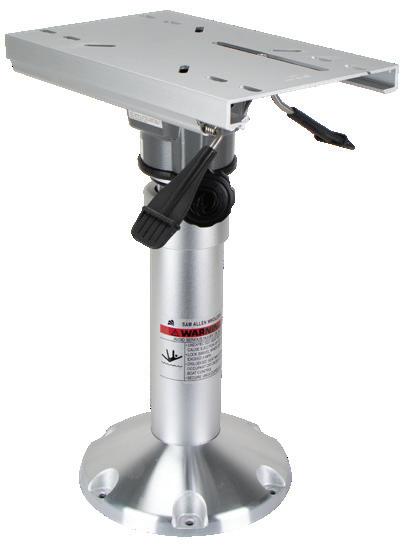

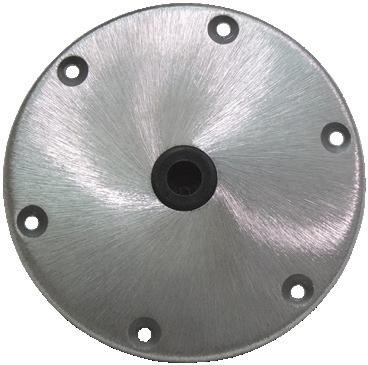

Pedestals

157

Pilot Seats . . . . . . . . . . . . . 141-142

Nautilus Series Seats . . . . . . . . . 143-144 Cruiser Series Seats . . . . . . . . . . . 145 Cruiser Series Seats Double. . . . . . . . . 146 Mako Series Bucket Seats . . . . . . . . 147-148 Bucket Seats. . . . . . . . . . . . . . 149 Bucket & Framed Seats. . . . . . . . . . 150 Tinnie Seats . . . . . . . . . . . . . . 151 Tinnie Seats & Vinyl Rolls . . . . . . . . . 152 Bucket Seats. . . . . . . . . . . . . . 152 Flip-Back Seats. . . . . . . . . . . . . 153 Alloy Leaning Posts . . . . . . . . . . 154-156 SpaceFrame. . . . . . . . . . . . . . 157 Double SpaceFrame . . . . . . . . . . . 158 Adjustable & Fixed Pedestals . . . . . . . . 159 Fixed Pedestals, Swivel & Slide Mounts. . . . . 160 Swivel & Slide Mounts. . . . . . . . . . 161 Plug-In Pedestals & Accessories. . . . . . . 162 KingPin Pedestals & Accessories. . . . . . . 163 Fold Down Brackets. . . . . . . . . . . 164 Lay Flat Folding Lounge & Folding Legs. . . . .165 Bean Bags & Vinyl Cleaner . . . . . . . . . 166

Please Note: Table pedestals & tables can be found in Deck Fittings & Hardware section of the catalogue.

www.samallen.com.au

140

Commercial Seats Pilot Seats

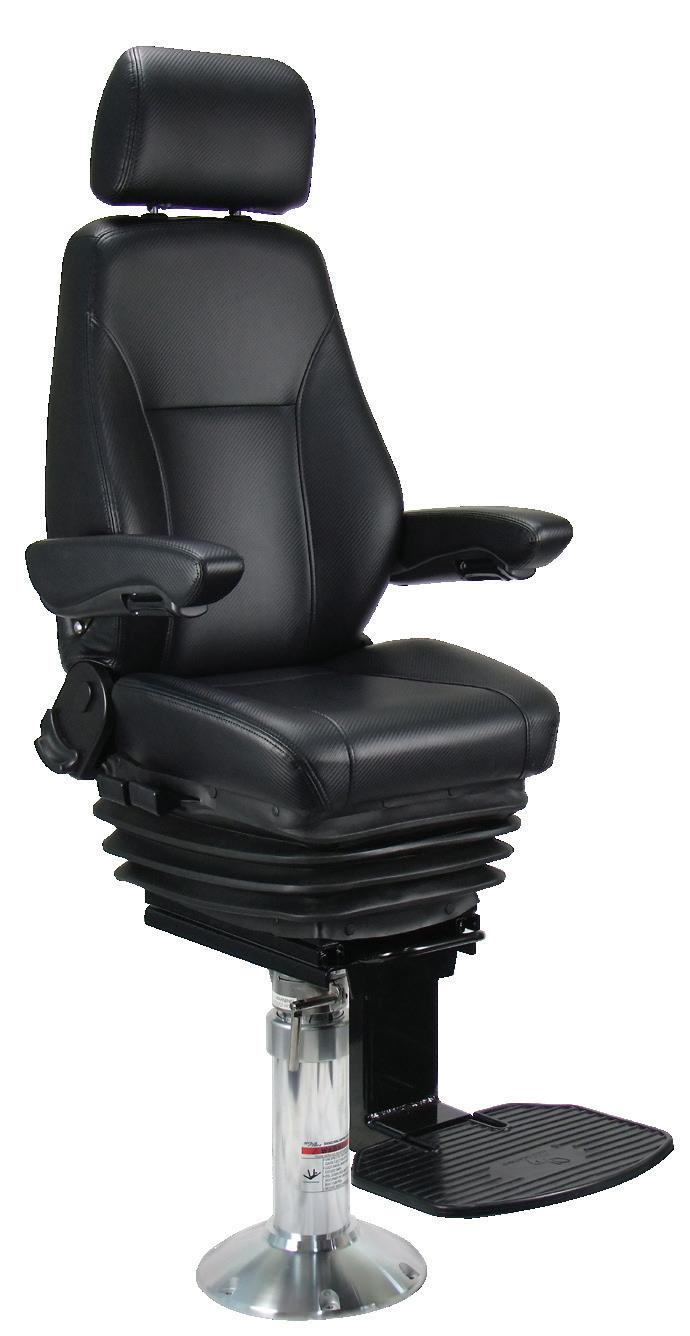

Pilot Seats - Relaxn Seafarer

he Relaxn Seafarer Seat is stylish with a sleek profile. Each Relaxn Seafarer Seat uses plush, high-density foam cushions covered in premium grade vinyl. The high backrest, headrest, foot rest and armrests are all adjustable, giving complete customisation. Ergonomically designed to provide optimal posture, with lateral and lumbar support reducing fatigue and improving comfort. The suspension system absorbs wave impact and allows the seat to move with the occupant increasing stability and safety.

293600 / 293621

Starting at the base, the aluminium pedestal assembly is height adjustable with a full-length foldable footrest, commercial slide and swivel top with 360° rotation. Each Relaxn Seafarer Seat is built to the toughest standards, using weather, water and corrosion-resistant material. Available in Black Carbon vinyl as standard or custom colour options. An optional, floor mounting slide is available to optimise access and seating position. Part No.

Description

Seafarer Pilot Seat with Air Ride Pedestal & Footrest Seafarer Seat with Air Ride Pedestal & 293621-C Footrest Pilot - Custom Colour

Black Carbon

035

Custom

Choose Swatch

293600

Seafarer Pilot Seat Only

Black Carbon

035

293601

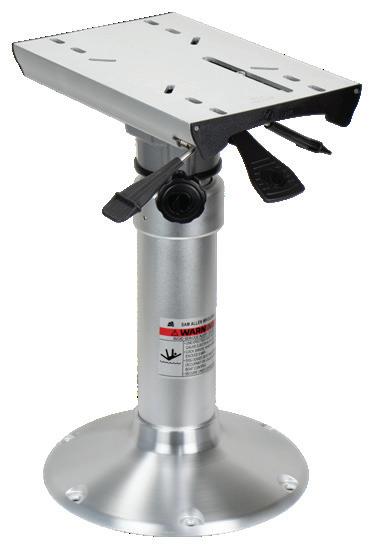

Air Ride Pedestal & Footrest Only - Suits Seafarer Seat

293598

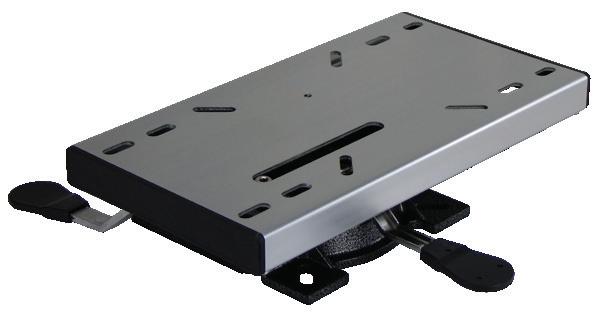

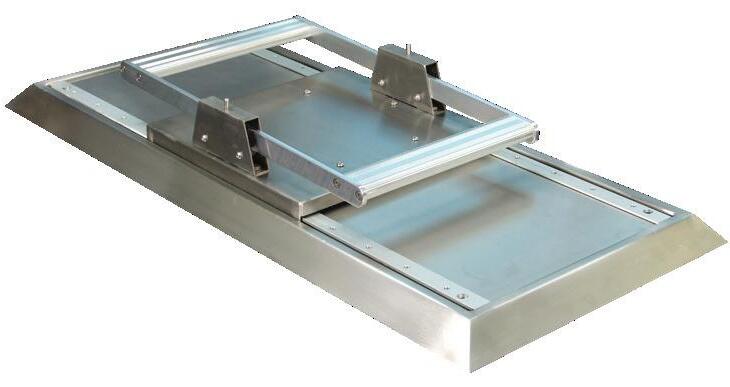

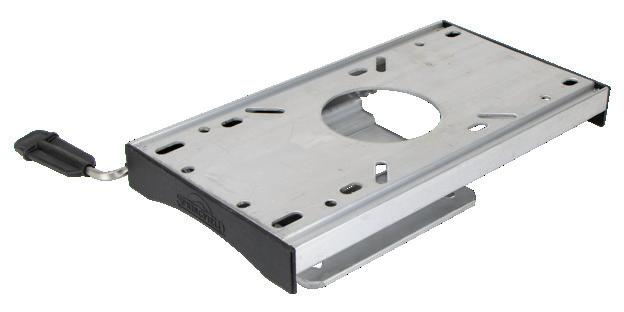

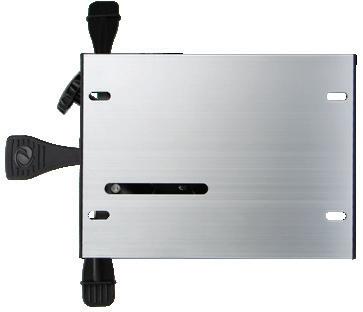

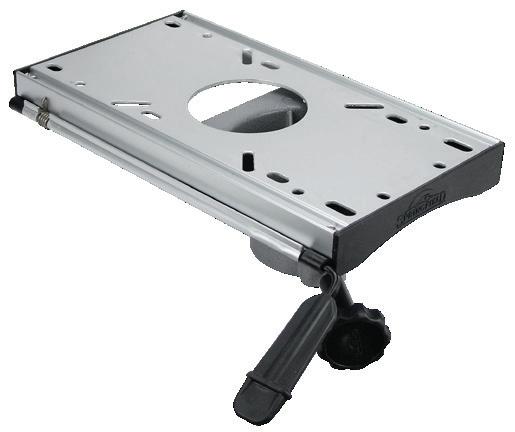

Stainless Steel Seat Slide Pilot Floor Mount Relaxn 600mm Travel

293621

Seats & Pedestals

293601

• Plush high-density foam padding providing ultimate comfort. • Premium quality UV stabilised upholstery. • Robust reinforced frame. • Adjustable backrest, headrest, seat rest and armrests. • High back and contoured sides offer excellent support and comfort. • Height adjustable Air Ride Pedestal. • Pedestal top, fore and aft seat slide with 360° swivel. • Full-length foldable footrest integrated into the seat base. NOTE: For custom colours (293621-C) allow up to 4 months lead time. Email sales@samallen.com.au to confirm availability. 585mm

800mm

450mm

Travel

600mm

Slide Dimensions

480mm x 1050mm

Frame

Carbon Steel/304G Stainless Steel

Upholstery

Marine Grade Vinyl

Weight

50 Kg

190mm 710mm

90°

70° to 150°

150-220mm

150mm to 220mm L 800mm x W 585mm x H 1780mm 480mm to 650mm

365mm

Base Ø 307mm & Shaft Ø 100mm

Ø340mm

480-650 mm

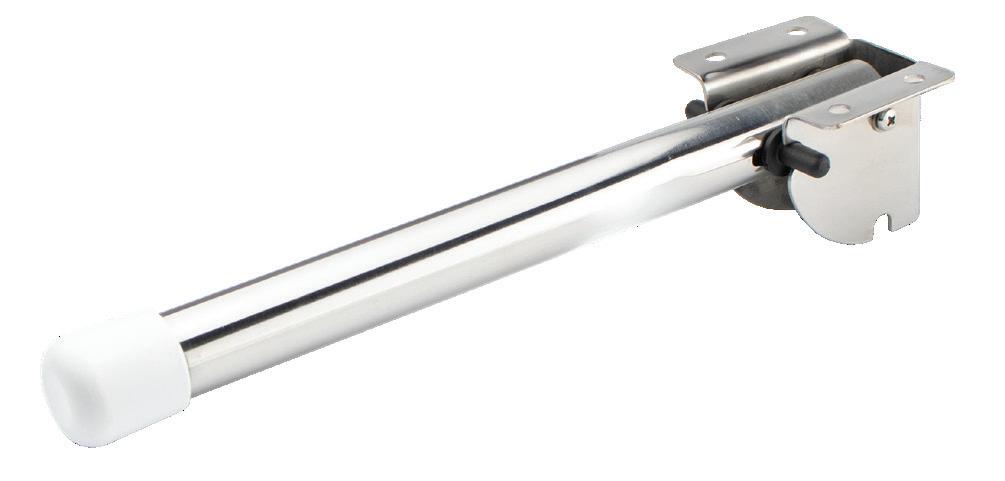

Seat Pedestal Foot Rest

Adjustable Angle Footrest Dimensions

0° to 110°

380mm

285mm

270mm

Slide

Air Ride®

900mm

Suspension

710mm

141

Adjustable Height 140mm

550mm

300mm

293598

Adjustable Head Rest Adjustable Armrest Adjustable Backrest Adjustable Height Overall Dimensions Adjustable Height Pedestal Dimensions

Vinyl Swatch No.

Colour

150mm

480mm

1050mm

L 285 mm x W 365mm

Bluish Grey Crosshatch 050-5

White 018

Beige 033

Camel Tan 060

Ivory White 010

Grey 017

Dark Grey 023

Navy 025

Black 016

Dark Grey Black Carbon Grey Carbon Blue Carbon White Carbon Carbon 035 046 047 037 036 NOTE: Every attempt has been made to match the Upholstery Swatch Colour, however this is a guide and should not be a substitute for using a real swatch panel. Also note the Stitching is colour matched to each swatch. For more custom options please contact your local Sam Allen Wholesale Representative.

www.samallen.com.au

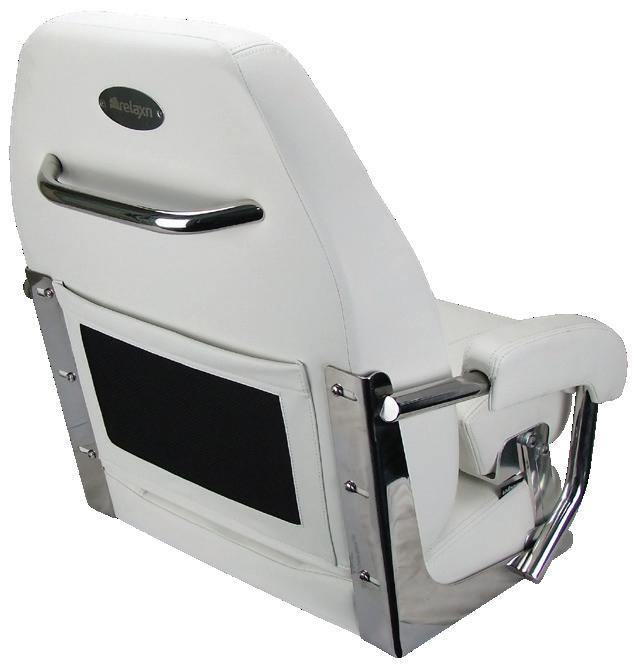

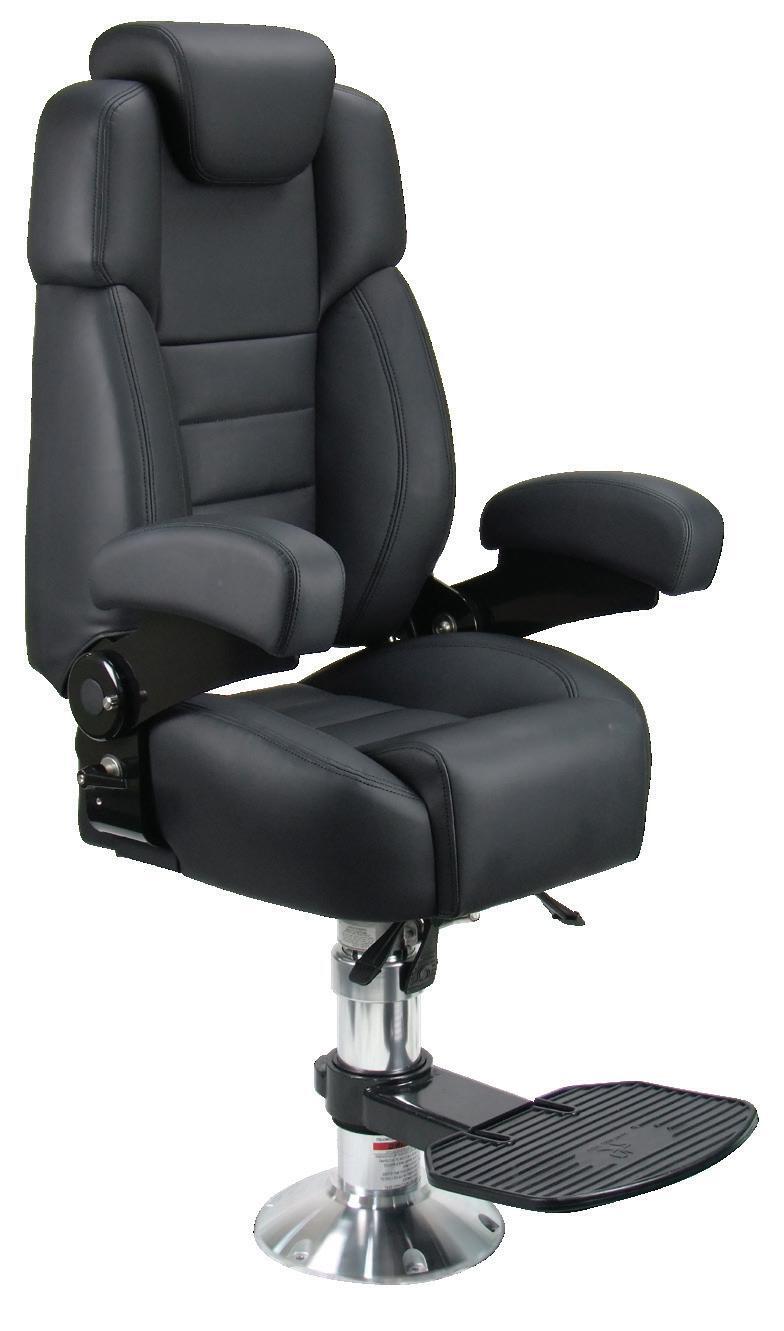

Pilot Seats Pilot Seats - Relaxn Voyager

he Relaxn Voyager Seat is designed for palatial comfort with a touch of elegance. Each Voyager Seat utilises deluxe, high-density foam cushions covered in premium grade vinyl. The backrest includes an overlapping style headrest. The backrest, seat rest and armrests are all adjustable providing complete customisation, immersing you in luxurious comfort. The back rest includes and over lapping style headrest. The aluminium pedestal assembly is height adjustable with a full-length foldable footrest, commercial fore and aft slide and swivel top with 360° rotation. Each Relaxn Voyager Seat is built to the toughest marine standards, using weather, water and corrosion-resistant material. Available in plush premium black vinyl as standard or custom colour options. An optional, floor mounting slide is available to optimise access and seating position.

Part No.

Description

Colour

Vinyl Swatch No.

Voyager Pilot Seat with Air Ride Pedestal & Footrest Voyager Seat with Air Ride Pedestal & 293623-C Footrest Pilot - Custom Colour

Black

016

Custom

Choose Swatch

293602

Voyager Pilot Seat Only

Black

016

293603

Air Ride Pedestal & Footrest Only - Suits Voyager Seat

293598

Stainless Steel Seat Slide Pilot Floor Mount Relaxn 600mm Travel

293623

700mm

Seats & Pedestals

• Deluxe, high-density foam padding providing the ultimate comfort. • Premium quality UV stabilised upholstery. • Robust reinforced frame. • Adjustable backrest, head rest, seat rest and armrests. • High back and contoured sides offer excellent support and comfort. • Height adjustable Air Ride Pedestal incorporating full-length foldable footrest. • Pedestal top, fore and aft seat slide with 360° swivel. NOTE: For custom colours (293623-C) allow up to 4 months lead time. Email sales@samallen.com.au to confirm availability.

780mm

550mm

620mm

293598 340mm

Seat

960mm

365mm

205mm

560mm

480-680mm

Pedestal

Ø100mm

310mm

Ø307mm

Foot Rest

1050mm

Slide

480mm

Bluish Grey Crosshatch 050-5

Beige 033

White 018

Ivory White 010

Grey 017

Dark Grey 023

Navy 025

Black 016

Adjustable Head Rest Adjustable Armrest Adjustable Backrest Overall Dimensions Adjustable Height Pedestal Dimensions

Adjustable Height 140mm

Suspension

Air Ride®

Adjustable Angle Footrest Dimensions

90°

Travel

600mm

Slide Dimensions

480mm x 1050mm

Frame

Carbon Steel/304G Stainless Steel

Upholstery

Marine Grade Vinyl

Weight

51 Kg

0° to 100° 90° to 115° L 620mm x W 700mm x H 1610mm 480mm to 680mm Base Ø307mm & Shaft Ø100mm

L 285 mm W 365mm

Camel Tan 060

www.samallen.com.au

142

Seats

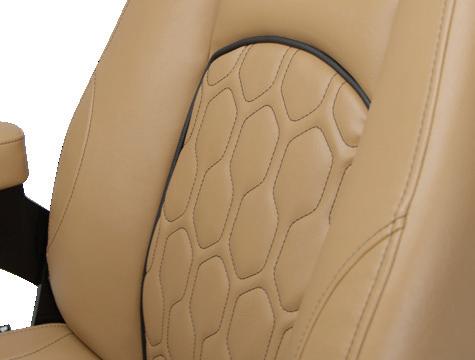

Nautilus Series Seats Introducing Relaxn’s new Nautilus Series Seat. Cruise the oceans in comfort and style, the Nautilus features high-density thick foam padding with UV stabilised vinyl delivering comfort, support and durability. The heavy-duty high back rest with side support gives lateral support over long distances of travel and the stainless steel thigh rise hinges will last the ages. Flip up arms offer more space when it is needed. The dual point ergonomic flip-up bolster offers more space and comfort whilst standing.

Plush Foam Padding Plush foam padding providing complete comfort when in use.

High Quality Vinyl High quality UV stabilised upholstery.

Perfectly Moulded High back and contoured sides offer excellent support.

Flip Up Thigh Support Flip up thigh support, giving more space and comfort while standing.

Robust Frame Heavy-duty poly board and alloy frame with robust stainless steel hinges on the thigh support.

Seats & Pedestals Scan me!

143

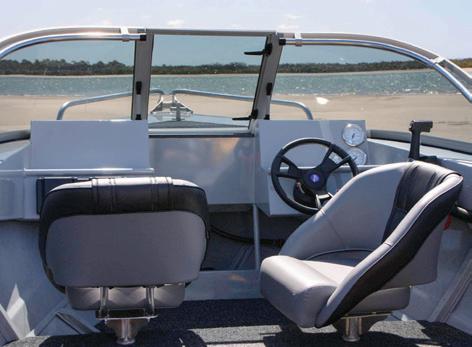

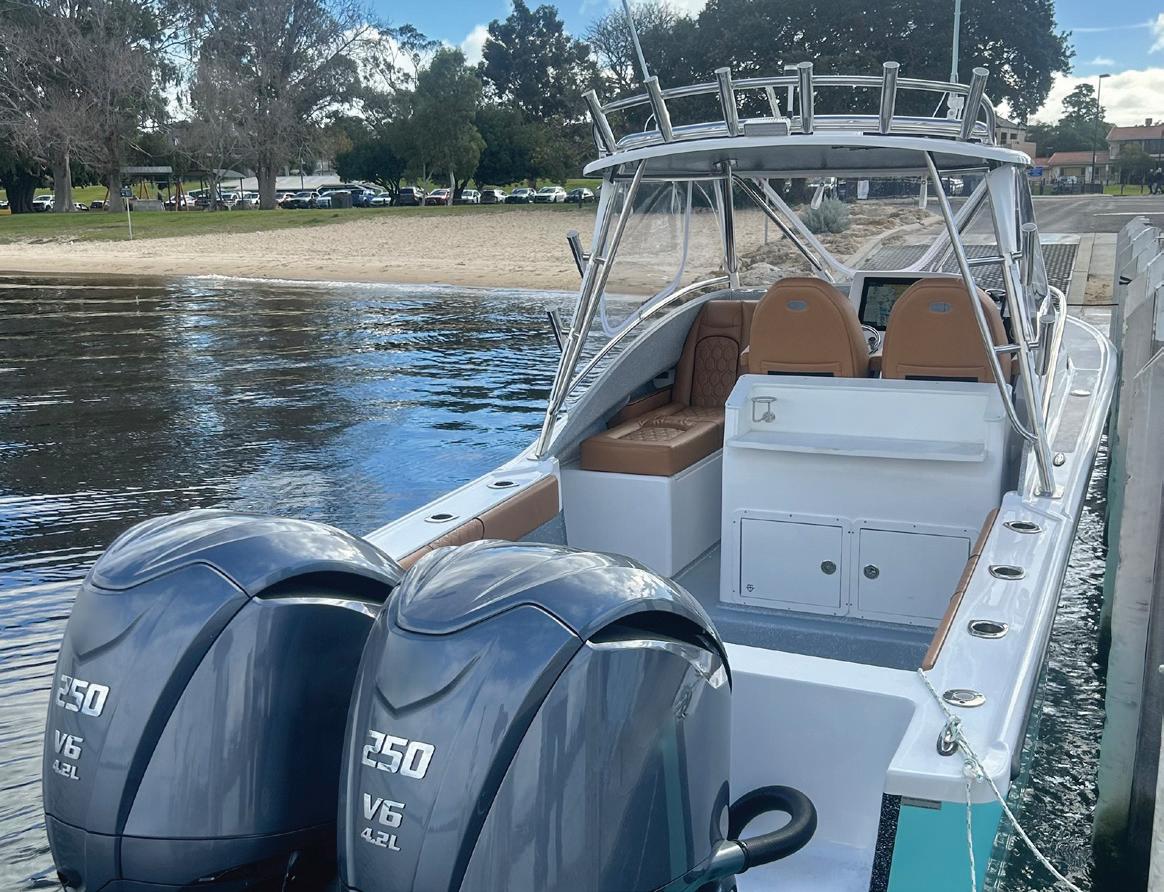

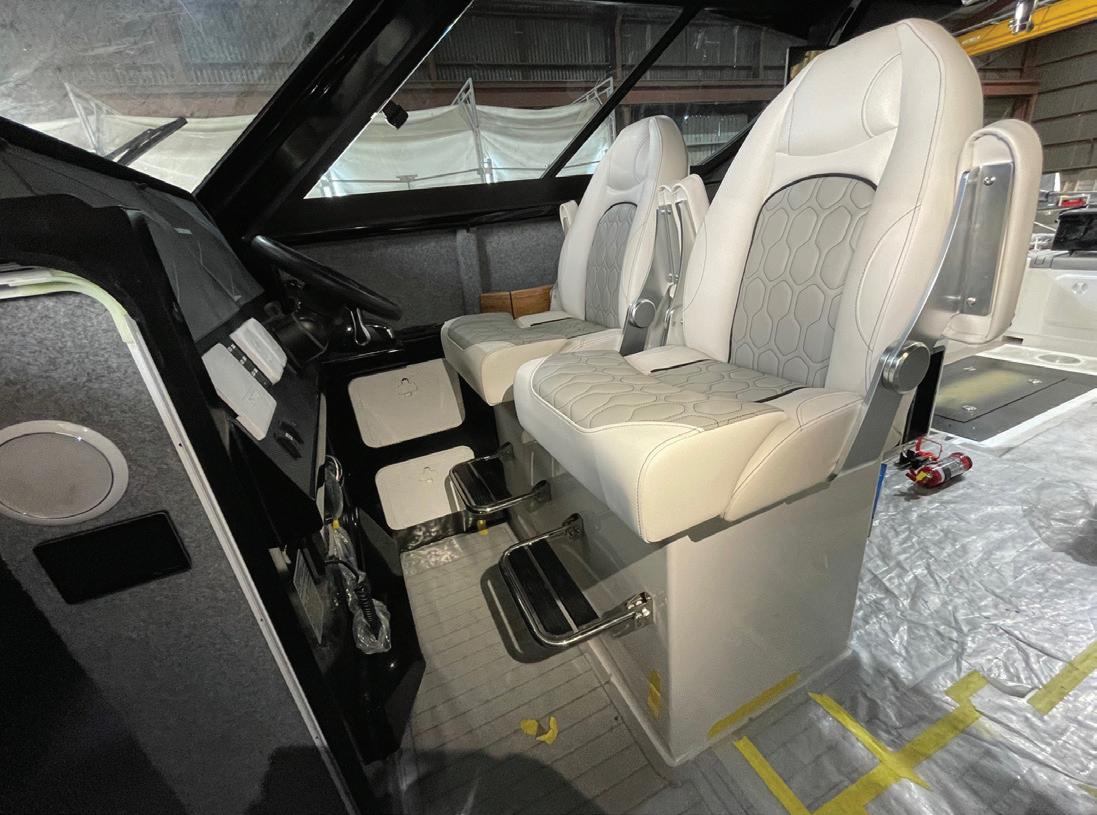

Photo courtesy of Tidal Marine

www.samallen.com.au

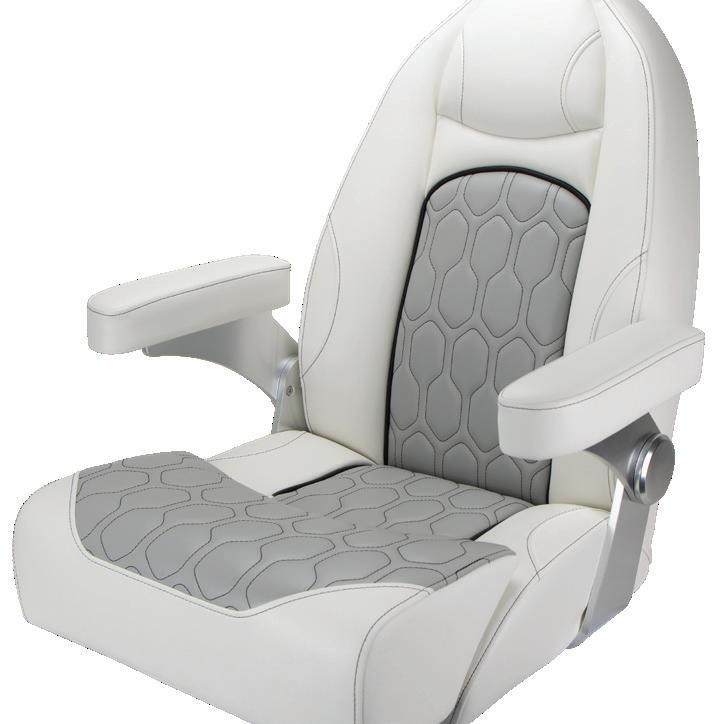

Nautilus Series Seats Seats - Nautilus Series Seat Colour

Vinyl Swatch No.

Overall Dimensions W x D x H (mm)

Nautilus Seat

Camel Tan

060 / 060-P

640 x 650 x 710

Nautilus Seat

White/Grey

018 / 017-P

640 x 650 x 710

293943

Nautilus Seat

Black

016 / 016-P

640 x 650 x 710

293944

Replacement Seat Cover

Part No.

Description

293940 293942

Overall (W x D x H)

640 x 650 x 710

Back (W x H)

495 x 620

Cushion Base (W x D)

495 x 480

Base (W x D)

470 x 420

Thigh Rise (W x D)

485 x 260

Mounting Style

Universal Slide Mount

Frame

Marine Board & Alloy

Upholstery

Marine Grade Vinyl

Thigh Rise Hinge

Stainless Steel

Weight (Kg)

Mounting Hardware

4 x Stainless Steel Mounting Screws

White 018

Grey 017

Camel Tan 060

Seats & Pedestals

Materials

Seat

• Thick plush foam padding providing the ultimate comfort. • High quality Marine grade UV stabilised upholstery and stitching. • High back and sides offer excellent support. • Flip up thigh support, giving more space and comfort while standing. • Large storage pocket on the back. • Robust reinforced back rest and base. • Stainless steel thigh rise hinge. • Alloy arm rest hinge, black powder coat (Camel Tan version) or brushed alloy (White/Grey version). • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty. SAW recommends the 293590 Heavy-Duty slide for installation on top of a seat box.

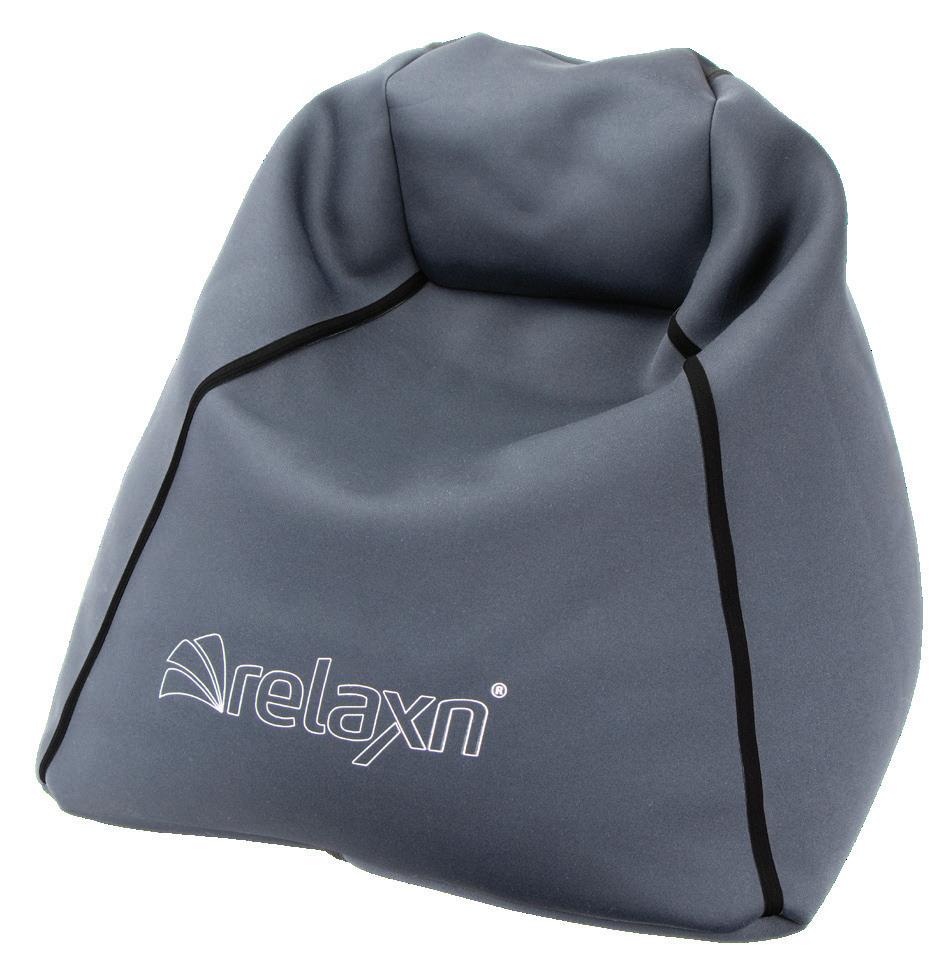

Grey seat cover

Mount Pattern

Black 016

Camel Tan 060-P

Grey 017-P

Black 016-P

710

640

Photo courtesy of Reefrunner Boats

650

Stainless steel thigh rise hinges

495

Contoured sides offer excellent support

Plush foam padding

www.samallen.com.au

144

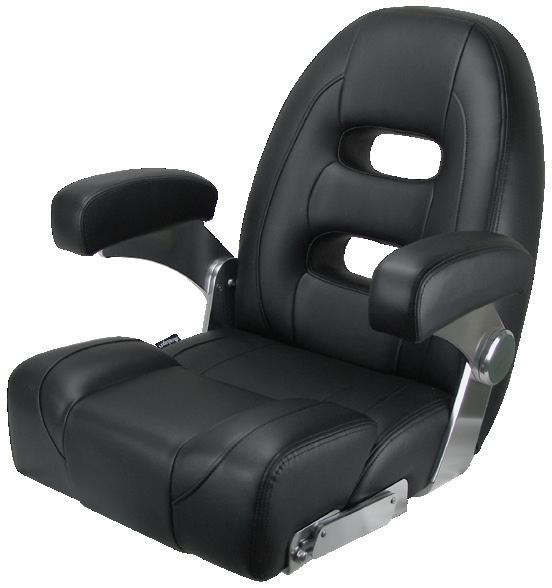

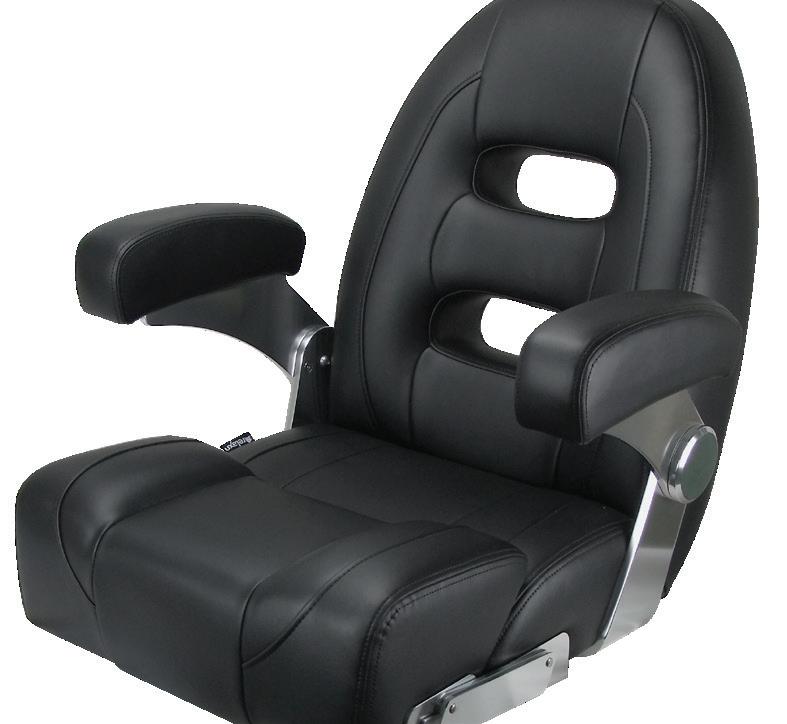

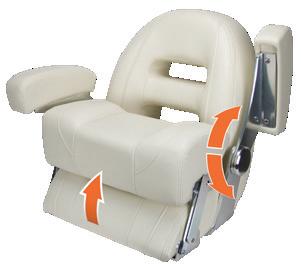

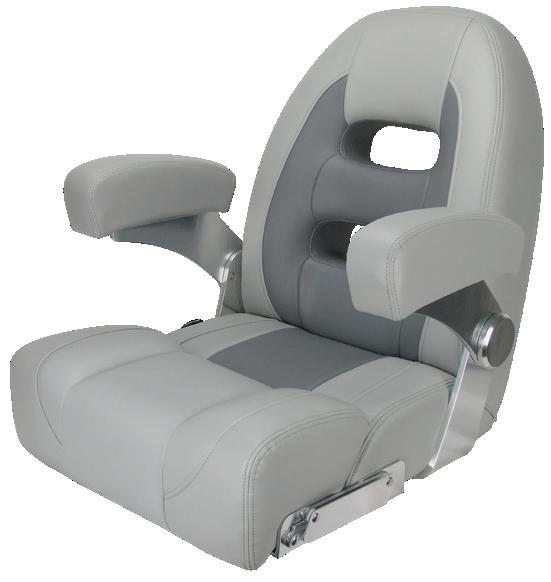

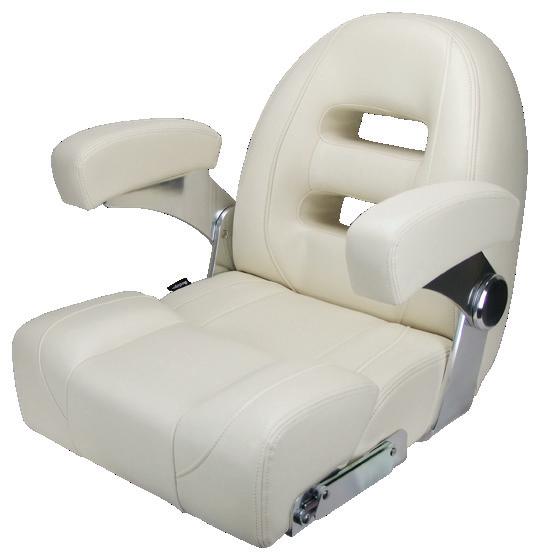

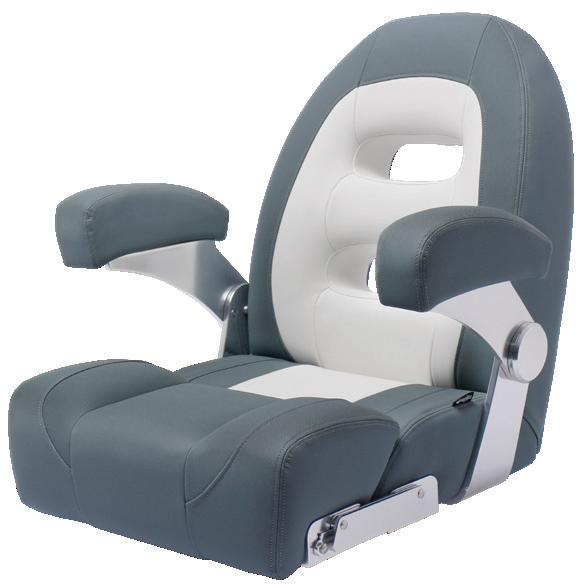

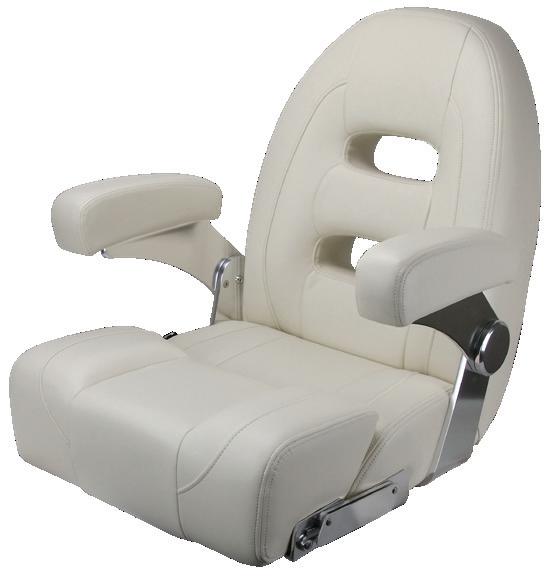

Cruiser Series Seats Seats - Cruiser Series - High Back Part No.

Description

Colour

Vinyl Swatch No.

Overall Dimensions W x D x H (mm)

293714

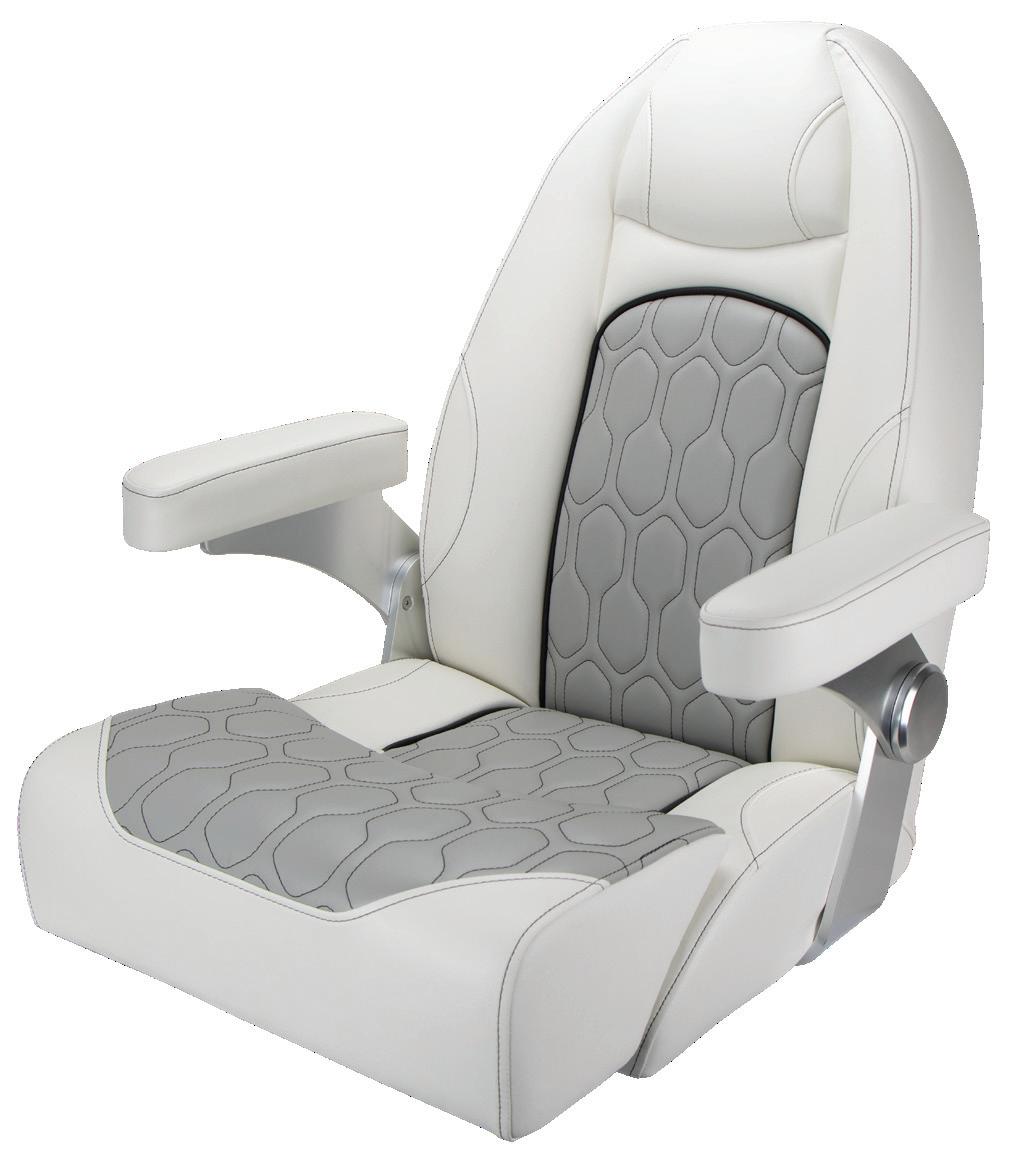

Cruiser High Back

Ivory White

010

640 x 690 x 625

High Back 293714WW Cruiser (No Relaxn Badge)

293714

White

018

640 x 690 x 625

Grey/Dark Grey

017 / 023

640 x 690 x 625

293715

Cruiser High Back

293716

Cruiser High Back

Black

016

640 x 690 x 625

293717

Cruiser High Back

White/Bluish Grey

018 / 050-5

640 x 690 x 625

293712

Replacement Seat Cover

293691

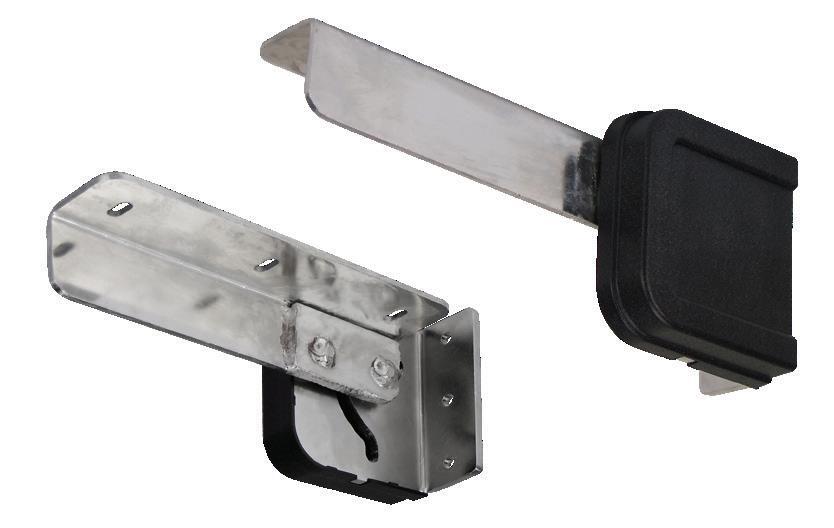

Replacement Thigh Rise Hinge

• High-density foam padding. • Marine grade UV stabilised upholstery and stitching. • Flip up thigh support, provides more space and comfort while standing. • Marine grade anodised alloy, parallel hinged mechanism with silicon pivot washers on thigh rise. • Flip up padded armrests on heavy-duty anodised alloy frame with silicon pivot washers. • High back support for extra comfort. • Laser etched stainless steel Relaxn® badge. • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty. SAW recommends the 293590 Heavy-Duty slide for installation on top of a seat box.

293715

293717

690

Dark Grey 023

Grey 017

Ivory White 010

Bluish Grey Crosshatch 050-5

Black 016

640

White 018

285 625

Seats & Pedestals

293716

Mount Pattern

170

545

Grey seat cover

476

Thigh rise & arm rest rise

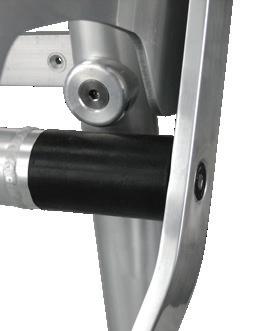

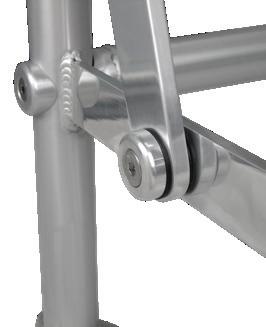

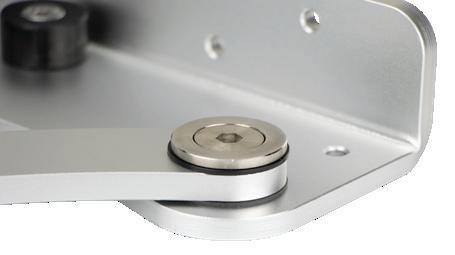

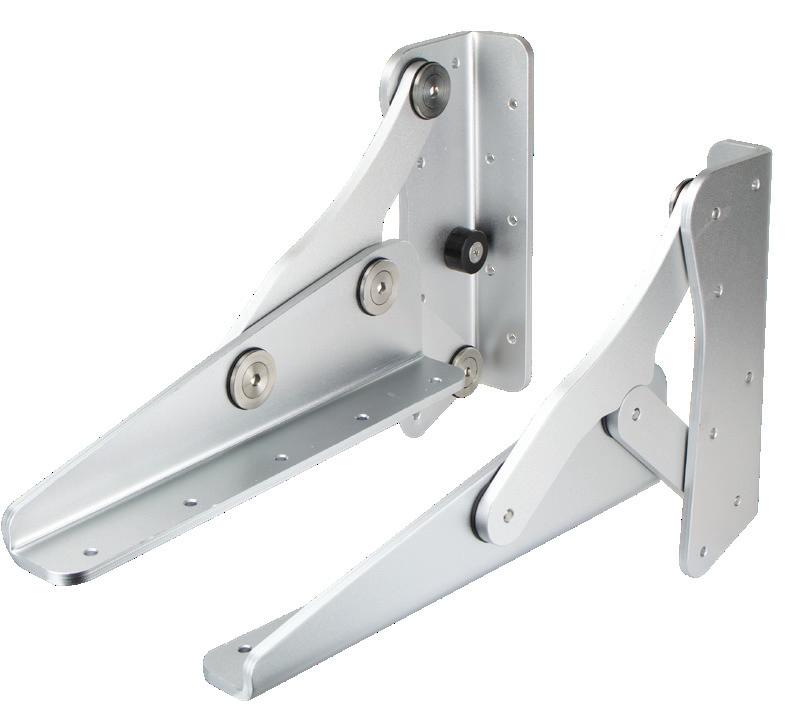

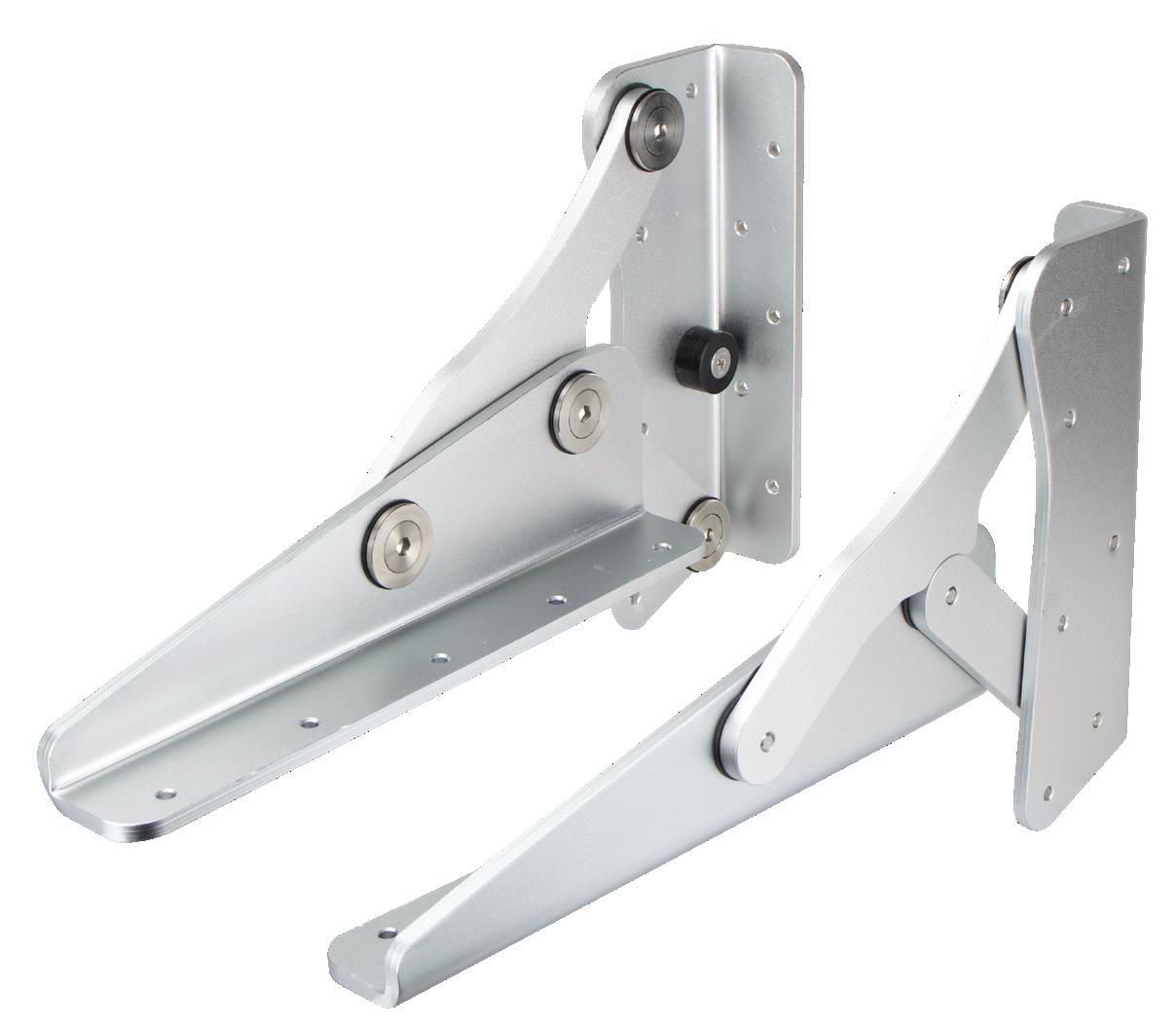

Machined alloy hinging mechanism

Seats - Cruiser Series - Low Back Part No.

Machined alloy hinging mechanism

650

640

170

145

545

Colour

Ivory White

293713

Cruiser Low Back

293709

Replacement Seat Cover

293691

Replacement Thigh Rise Hinge

Vinyl Overall Dimensions Swatch No. W x D x H (mm)

010

640 x 650 x 530

530

285

Description

Mount Pattern

476

www.samallen.com.au

Ivory White 010

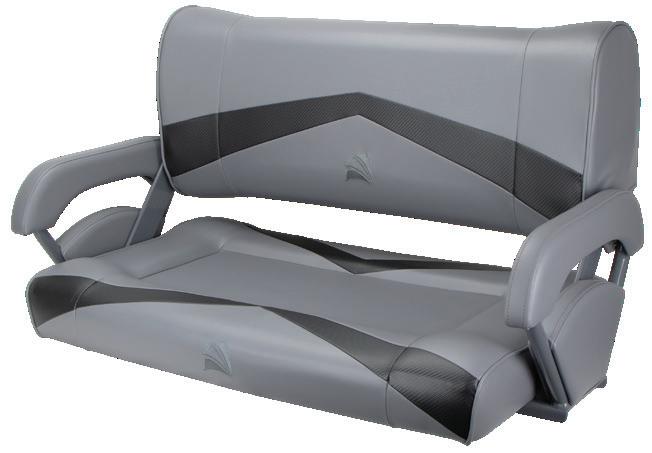

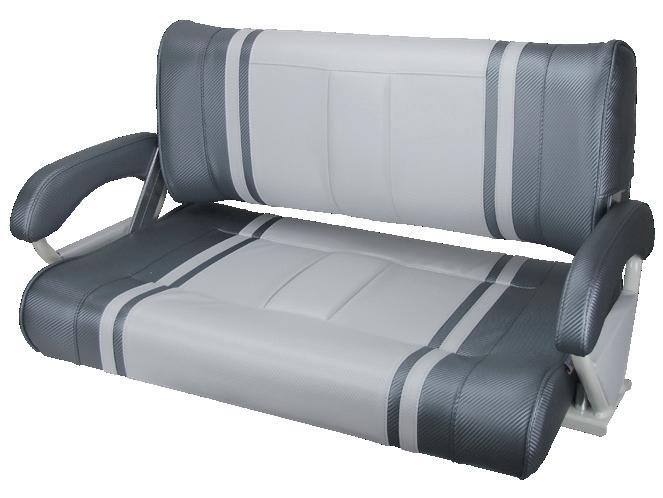

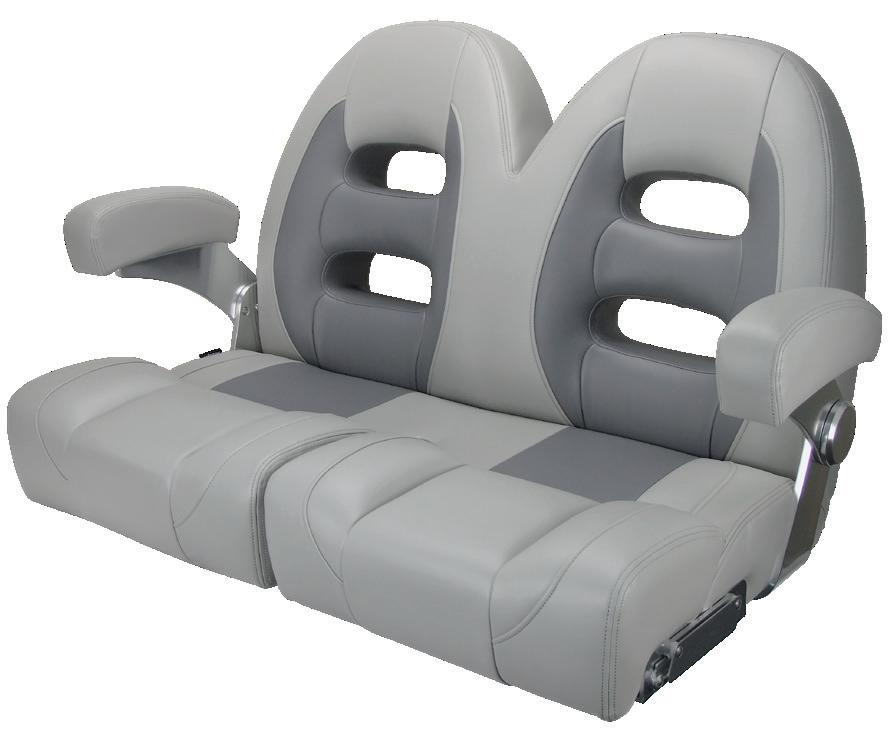

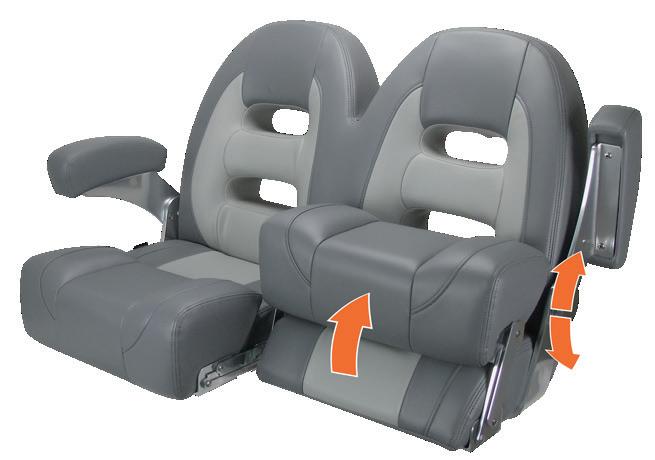

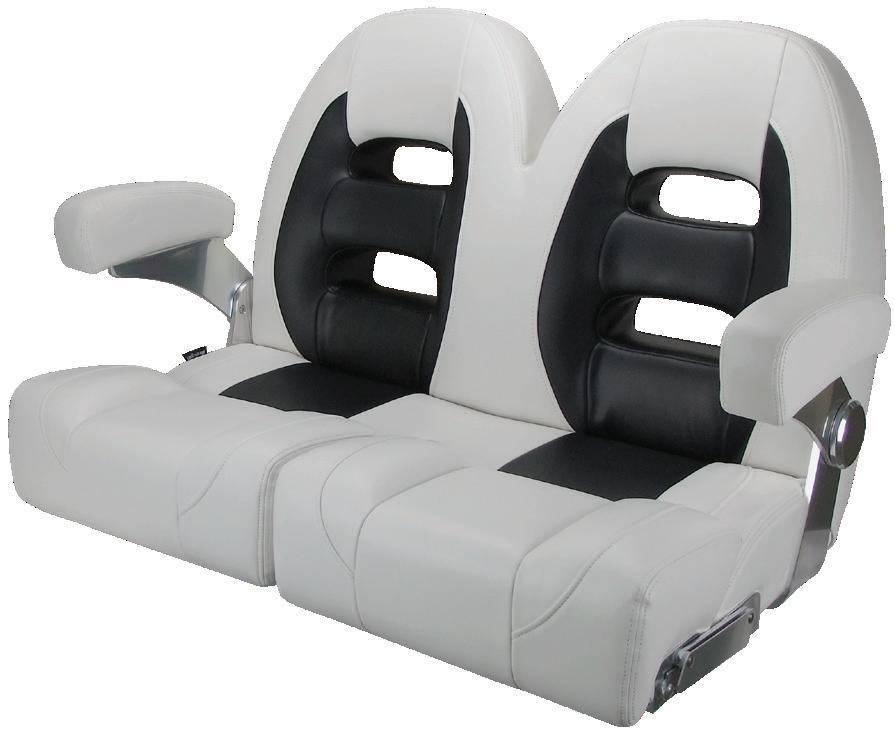

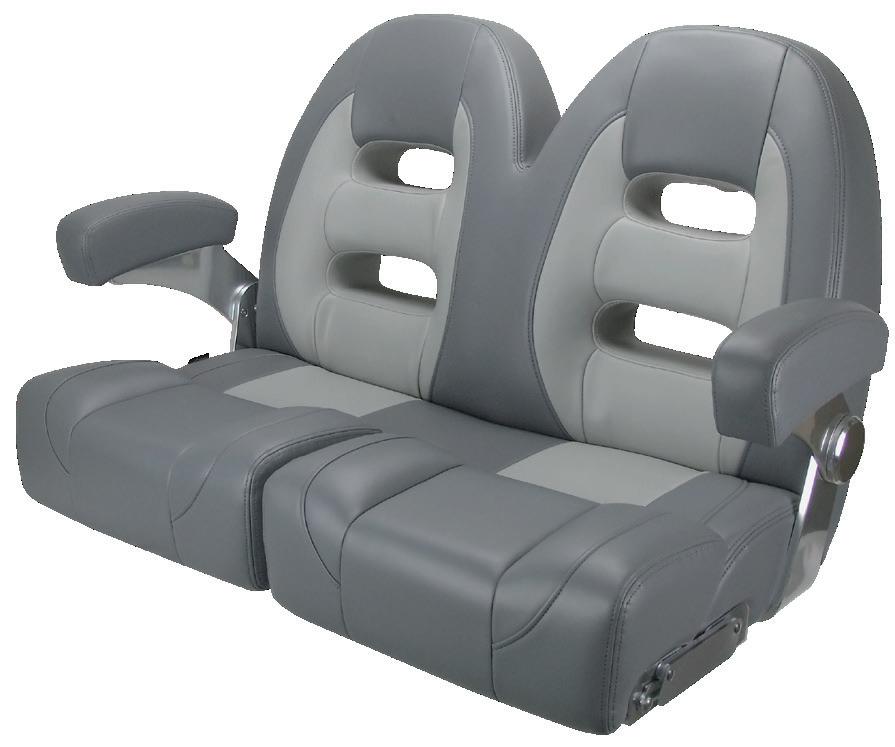

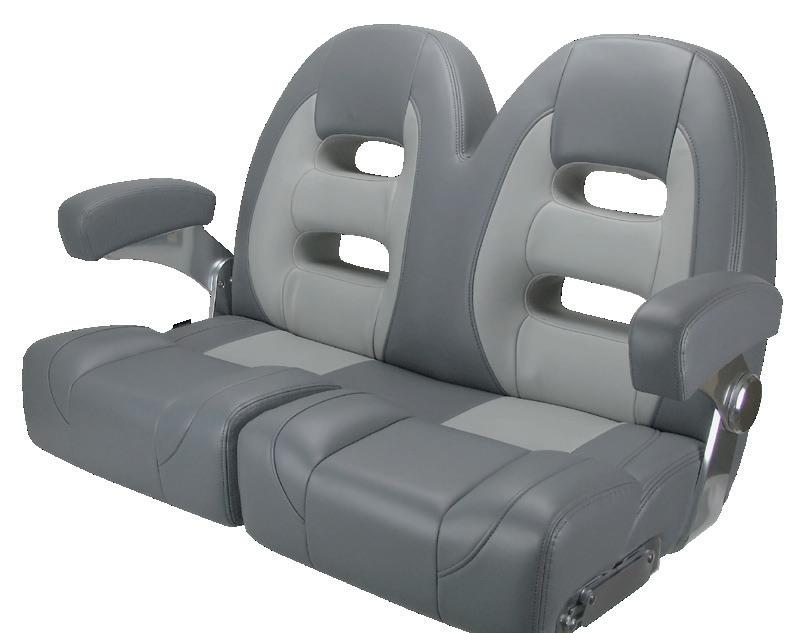

Cruiser Series Seats Double Seats - Double Cruiser Series - High Back Part No.

Description

Colour

Vinyl Overall Dimensions W x D x H (mm) Swatch No.

293620

Double Cruiser High Back

Grey/Dark Grey

017 / 023 1075 x 690 x 625

293627

Double Cruiser High Back

White/Black 018 / 016 1075 x 690 x 625

293628

Double Cruiser High Back

Dark Grey/ Light Grey

293631

Replacement Seat Cover

293691

Replacement Thigh Rise Hinge

023 / 017 1075 x 690 x 625

Dark Grey 023

Grey 017

Black 016

White 018

293620

Seats & Pedestals

• Ideal for centre console boats. • Deluxe twin seat designed for two passengers. • High-density foam padding. • Marine grade UV stabilised upholstery and stitching. • Flip up thigh support, provides more space and comfort while standing. • Marine grade anodised alloy, parallel hinged mechanism with silicon pivot washers on thigh rise. • Flip up padded armrests on heavy-duty anodised alloy frame with silicon pivot washers. • High back support for extra comfort. • Laser etched stainless steel Relaxn® badge. • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Mount Pattern x 2 293627

690

1075

625

285

170

545

920

255mm

293628

127mm

310mm

Machined alloy hinging mechanism

Photo courtesy of Hooker Boats

www.samallen.com.au

146

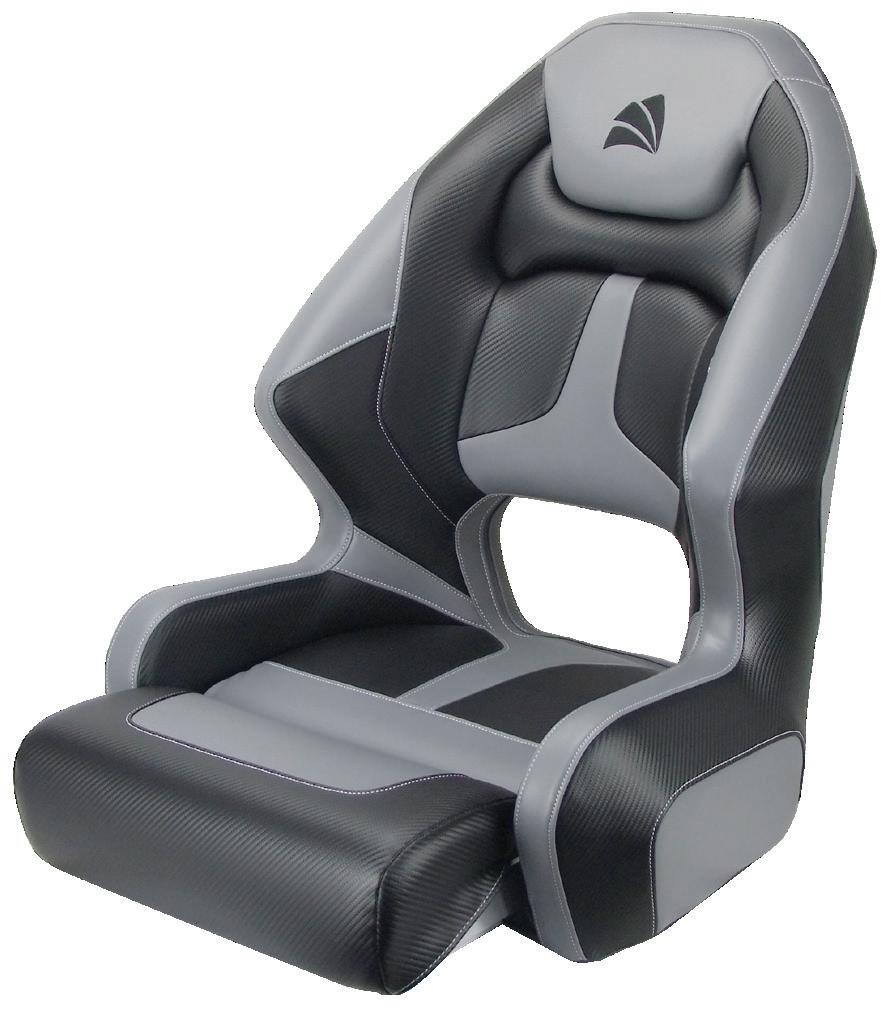

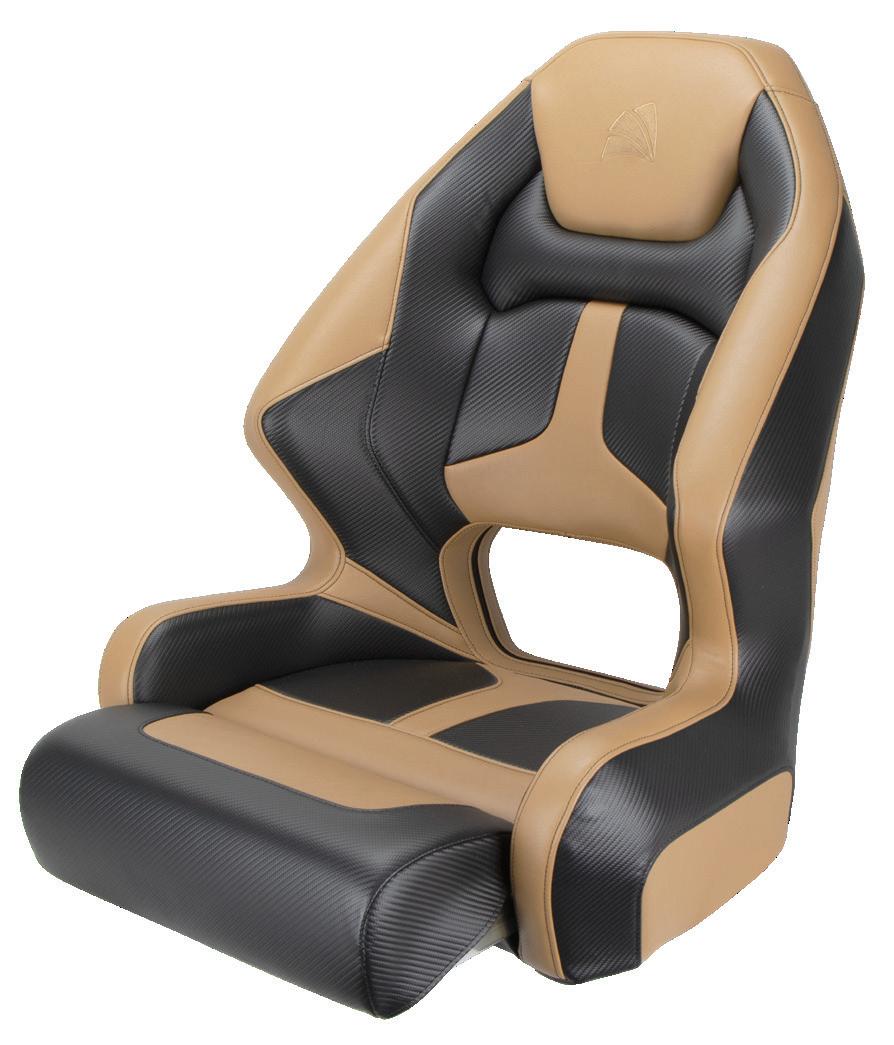

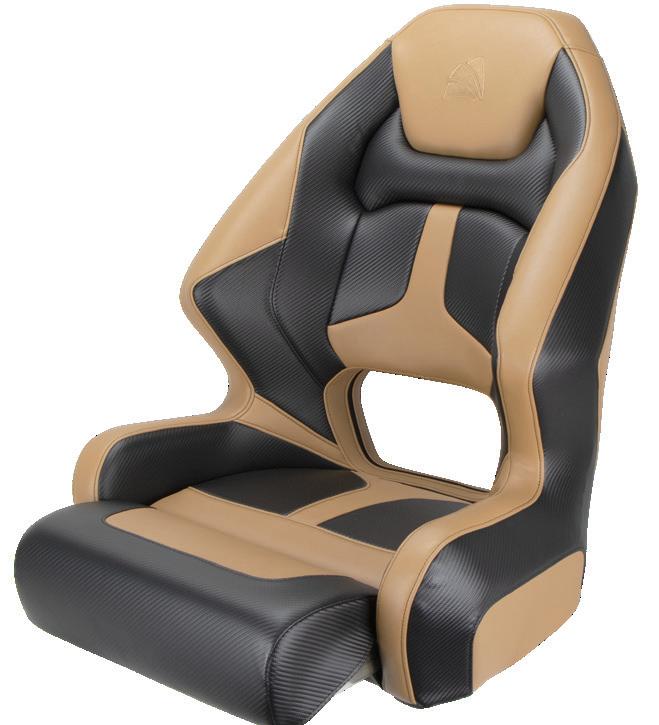

Mako Series Bucket Seats Introducing Relaxn’s Mako Series Bucket Seat. The Mako Series Bucket Seat is the apex of bucket seats, featuring high-density and high-quality foam padding, and covered with premium UV stabilised vinyl which delivers the ultimate in comfort, support and durability. The heavy-duty frame with perfectly moulded contoured sides and high back support offers exceptional lateral support, giving you outstanding comfort when spending a solid day on the water. The Mako Series Bucket Seat features a two-position robust ergonomic flip-up bolster for more space and comfort whilst standing. Bag yourself a Mako today and be the envy of all your mates!

Plush Foam Padding Plush foam padding providing complete comfort when in use.

High Quality Vinyl High quality UV stabilised upholstery developed for the marine environment.

Perfectly Moulded High back and contoured sides offer excellent support.

Flip Up Thigh Support Flip up thigh support, giving more space and comfort while standing.

Robust Frame Heavy-duty frame and robust anodised alloy hinges on the thigh support.

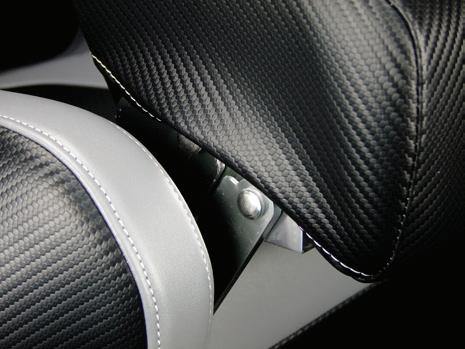

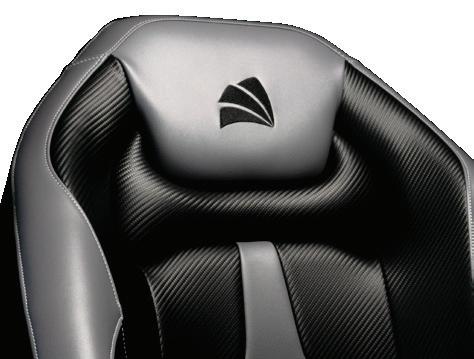

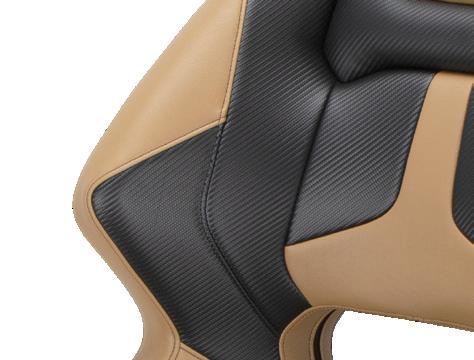

Carbon Fibre Vinyl

Seats & Pedestals

Carbon fibre vinyl accents for a stylish design.

Scan me!

147

www.samallen.com.au

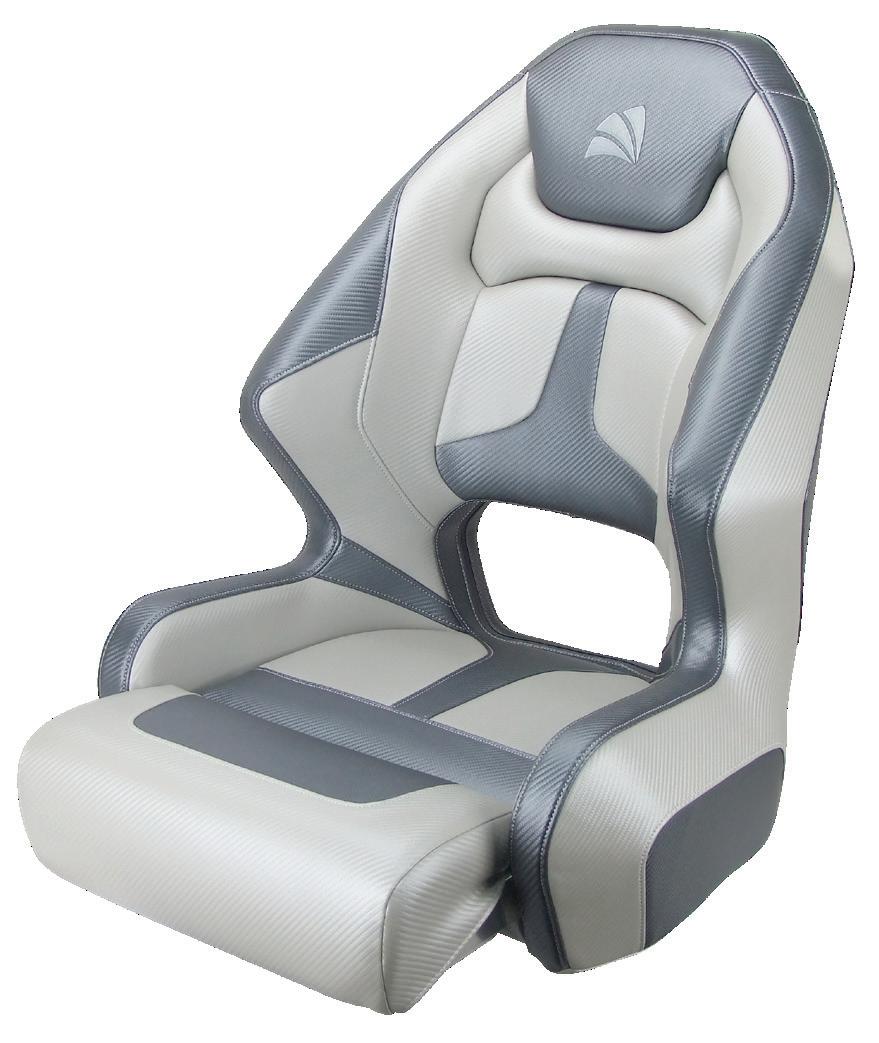

Mako Series Bucket Seats Seats - Mako Bucket Series Part No.

Description

Vinyl Overall Dimensions Swatch No. W x D x H (mm)

Colour

Camel Tan/ Black Carbon Dark Grey Carbon/Grey Carbon Black Carbon/ Dark Grey

293950

Mako Bucket Seat

293952

Mako Bucket Seat

293954

Mako Bucket Seat

293709

Replacement Seat Cover

293693

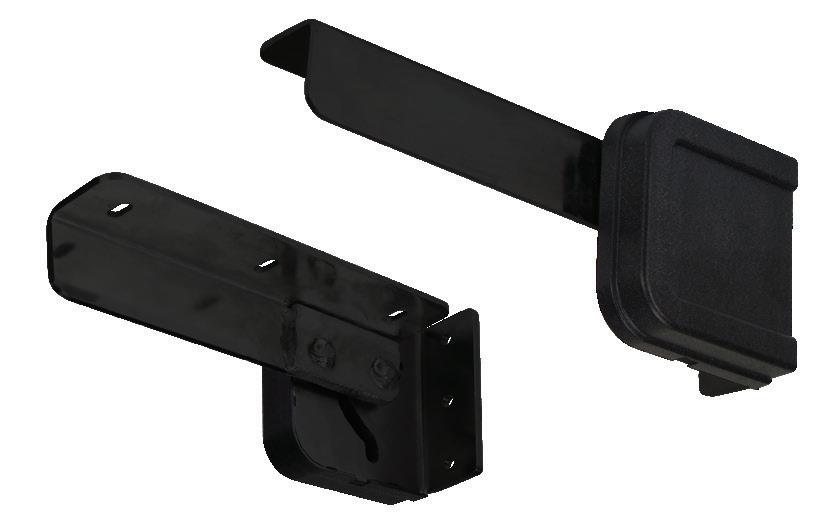

Replacement Thigh Rise Hinge

060 / 035

585 x 710 x 695

036 / 046

585 x 710 x 695

023 / 035

585 x 710 x 695

Overall (W x D x H)

585 x 710 x 695

Inner Back (W x H)

450 x 610

Cushion Base (W x D)

400 x 500

Base (W x D)

540 x 390

Thigh Rise (W x D)

397 x 185

Mounting Style

Universal Slide Mount

Frame

Marine Poly Board & Alloy

Upholstery

Marine Grade Vinyl

Weight (Kg)

9.5

Mounting Hardware

4 x Stainless Steel Mounting Screws

Grey Carbon 046

Dark Grey Carbon 036

Dark Grey 023

Black Carbon 035

Seats & Pedestals

Materials

Seat

• Thick plush foam padding providing the ultimate comfort. • High quality UV stabilised upholstery and stitching. • High back and contoured sides offer excellent support. • Flip up thigh support, giving more space and comfort while standing. • Robust reinforced ribbed base. • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Camel Tan 060

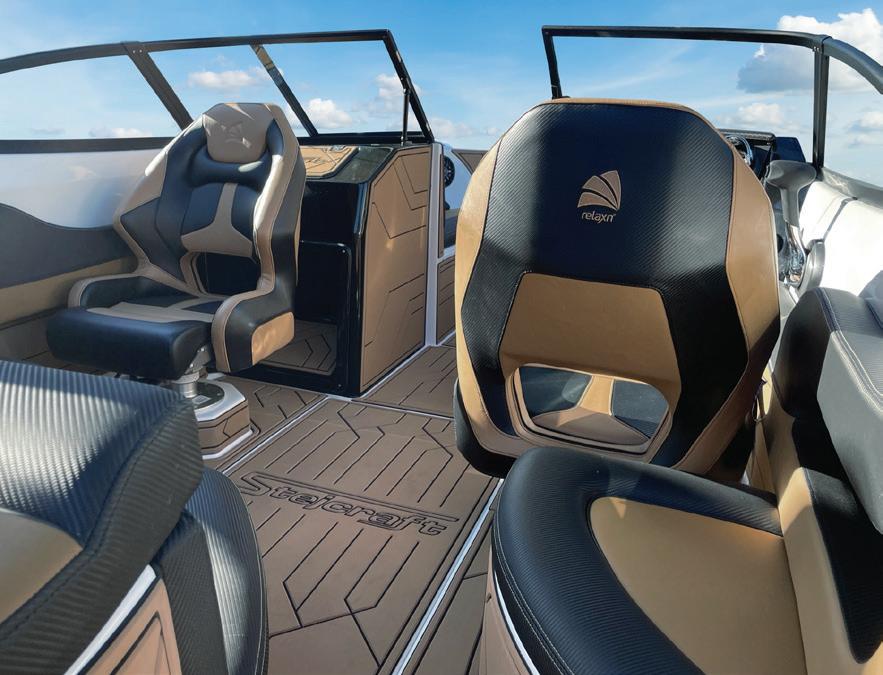

Mount Pattern Photo courtesy of Stejcraft

695mm

430mm

Thigh Rise up position

570mm 710mm

Robust alloy thigh rise hinges

400mm 585mm

Contoured sides offer excellent support

Plush foam padding

www.samallen.com.au

148

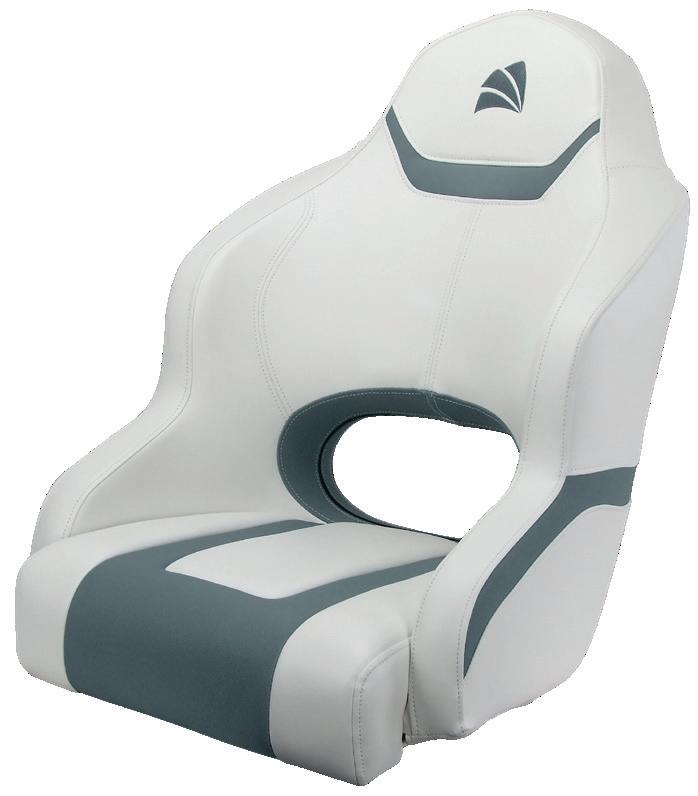

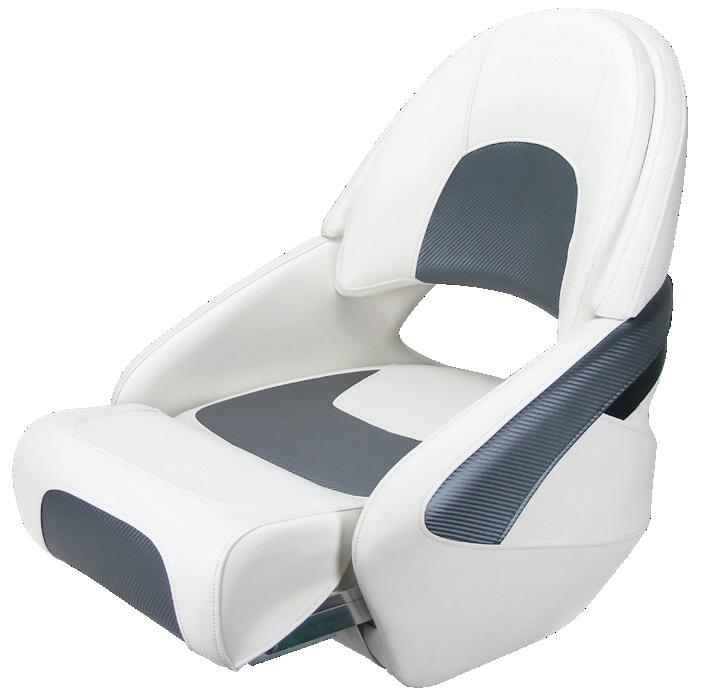

Bucket Seats Seats - Reef Sport Series Colour

Vinyl Swatch No.

Overall Dimensions W x D x H (mm)

White/ Bluish Grey Crosshatch

018 / 050-5

520 x 515 x 610

Part No.

Description

293704

Reef Sport Seat

293709

Replacement Seat Cover

• Thick plush foam padding. • High quality UV stabilised upholstery and stitching. • High back and contoured sides offer excellent support. • Robust reinforced base. • Includes bolts, washers and spring washers for mounting. • Seat cover included.

293709

Mount Pattern

White 018

Bluish Grey Crosshatch 050-5

Seats - Deluxe Reef Series

Seats & Pedestals

293709

Part No.

Description

Colour

293707

Deluxe Reef Seat

293709

Replacement Seat Cover

293693

Replacement Thigh Rise Hinge

Vinyl Swatch No.

Overall Dimensions W x D x H (mm)

Dark Grey/ Grey/Black 023 / 017 / 035 520 x 640 x 610 Carbon

• Thick plush foam padding. • High quality UV stabilised upholstery and stitching. • High back and contoured sides offer excellent support. • Flip up thigh support, giving more space and comfort while standing. • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Mount Pattern

Dark Grey 023

Grey 017

Black Carbon 035

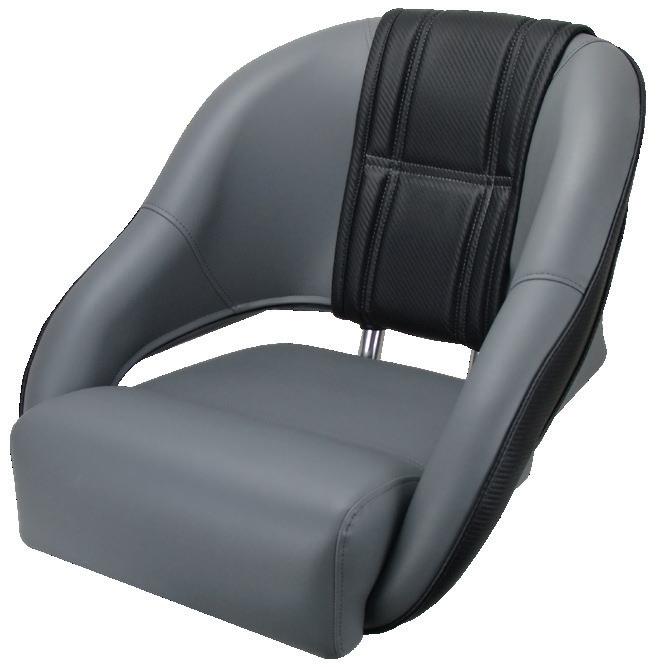

Seats - Sea-Breeze Series Part No.

Description

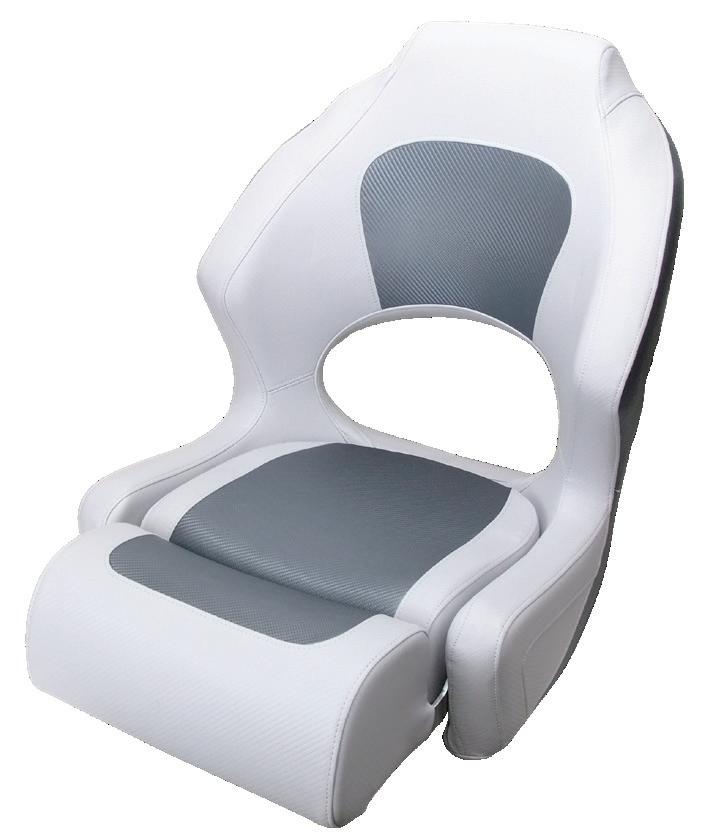

293708

Sea-Breeze Seat

293712

Optional Seat Cover

Colour

Overall Dimensions W x D x H (mm)

Arctic White Carbon / Grey Carbon

525 x 650 x 625

• Plush foam padding providing. • High quality UV stabilised upholstery and stitching. • High back and contoured sides offer excellent support. • Flip up thigh support, giving more space and comfort while standing. • Robust aluminium frame with heavy-duty bolster hinges on the thigh support. • Carbon fibre print vinyl. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

DELETED Mount Pattern

149

Arctic White

www.samallen.com.au

Grey Carbon

Bucket & Framed Seats Seats - Off Shore Series Part No.

Description

Vinyl Swatch No.

Colour

Overall Dimensions W x D x H (mm)

293706

White/Dark Grey/ 018 / 036 / 035 555 x 665 x 630 Off Shore Seat Black Carbon Trim

293712

Replacement Seat Cover

293690

Replacement Thigh Rise Hinge

• Thick plush foam padding. • High quality UV stabilised upholstery and stitching. • Flip up thigh support, giving more space and comfort while standing. • Marine grade machined alloy parallel hinging mechanism on thigh rise. • High back and contoured sides offer excellent support. • Soft rubber covering a stainless steel handle on the back. • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Mount Pattern Dark Grey Carbon - 036

Black Carbon 035

White 018

Part No.

Description

293711

Bluewater Seat

293709

Seat Cover

Colour

Overall Dimensions W x D x H (mm)

Grey Carbon/Arctic White Carbon

625 x 710 x 715

• Thick plush foam padding. • High quality UV stabilised upholstery and stitching. • High back offers excellent support. • Grab rail on the back • Back pocket for extra storage. • Aluminium powder coated frame.

Grey Carbon

Arctic White Carbon

Seats & Pedestals

Seats - Bluewater Series

293709

Mount Pattern

Seats - Pelagic Series - High Back Part No.

Description

293696 293697

Pelagic High Back Seat Pelagic High Back Seat

293712

Replacement Seat Cover

293695

Replacement Thigh Rise Hinge

Vinyl Overall Dimensions W x D x H (mm) Swatch No.

Colour

White

018

585 x 710 x 635

Black / Dark Grey Carbon

016 / 036

585 x 710 x 635 293712

• Thick plush foam padding. • High quality UV stabilised upholstery and stitching. • Flip up thigh support, giving more space and comfort while standing. • Silicon washers provides smooth movement of the thigh support. • Marine grade machined alloy parallel hinging mechanism on thigh rise. • High back support for extra comfort and lateral support. • Back pocket for extra storage. • Stainless steel grab handle. • 316G stainless steel frame. • Laser etched stainless steel Relaxn® badge. • Includes bolts, washers and spring washers for mounting. • Seat cover included. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

293697

293696 Dark Grey Carbon - 036

Black 016

White 018

Mount Pattern

www.samallen.com.au

150

Tinnie Seats Seats - Snapper Series Part No.

Description

Colour

Vinyl Overall Dimensions Swatch No. W x D x H (mm)

Dark Grey/ Black Carbon 023 / 035 560 x 565 x 460

293694

Snapper Seat

293709

Optional Seat Cover

• Plush foam padding. • High quality UV stabilised upholstery and stitching. • Offers contoured support for extra comfort while in use for long periods of time. • Robust aluminium frame. • Includes bolts, washers and spring washers for mounting.

Mount Pattern

Dark Grey 023

Black Carbon 035

Seats - Deluxe Bay Series

Seats & Pedestals

293701

Part No.

Description

Colour

293703

Deluxe Bay Seat

293701

Optional Seat Cover

Vinyl Overall Dimensions Swatch No. W x D x H (mm)

Dark Grey/ Black Carbon 023 / 035 470 x 530 x 596

• Plush foam padding. • High quality UV stabilised upholstery and stitching. • Back pocket for added storage. • High back support offers extra comfort and lateral support. • Robust black powder coated alloy hinges. • Folds down when not in use. • Includes bolts, washers and spring washers for mounting. • Ensure the seat is installed using a slide mount only.

Mount Pattern

Dark Grey 023

Black Carbon 035

Seats - Barra Series

293701

Part No.

Description

Colour

Vinyl Swatch No.

Overall Dimensions W x D x H (mm)

293692

Barra Fold Down Seat

Dark Grey/ Black Carbon

023 / 035

460 x 470 x 535

293701

Optional Seat Cover

• Plush foam padding. • High quality UV stabilised upholstery and stitching. • Reinforced ribbed poly base. • High back support offers extra comfort. • Folds down when not in use. • Includes bolts, washers and spring washers for mounting.

Mount Pattern

151

Dark Grey 023

www.samallen.com.au

Black Carbon 035

Tinnie Seats & Vinyl Rolls Seats - Bay Series Part No.

Description

Colour

Overall Dimensions W x D x H (mm)

293700

Bay Seat - Fold Down

Grey/Light Grey/ Black Pipping

475 x 575 x 560

293701

Optional Seat Cover

• Plush foam padding. • High quality UV stabilised upholstery and stitching. • Reinforced ribbed poly base. • High back support offers extra comfort. • Robust grey powder coated alloy hinges. • Includes bolts, washers and spring washers for mounting.

293701

Grey

Mount Pattern

Light Grey

Tinnie Cushions Part No.

Colour

Vinyl Swatch No.

Dimensions W x H x D (mm)

293651

Grey/Dark Grey Carbon

017 / 036

600 x 50 x 300

293652

Grey/Dark Grey Carbon

017 / 036

1200 x 50 x 300

293653

Grey/Dark Grey Carbon

017 / 036

600 x 50 x 400

293654

Grey/Dark Grey Carbon

017 / 036

1200 x 50 x 400

293655

Grey/Dark Grey Carbon

017 / 036

1500 x 50 x 400

Seats & Pedestals

• Fully upholstered tinnie seat cushion is perfectly designed for bench seats or even ice box lids. • High quality UV stabilised upholstery and stitching. • High density foam. • Supplied with stainless steel press studs for mounting and for easy removal when cleaning. • Press stud mounting flap - 55mm both sides. D H

Light Grey 017

Dark Grey Carbon 036

Vinyl Rolls Part No.

Bluish Grey Crosshatch 050-5

Dark Grey 023

Grey Carbon 046

Camel Tan 060

Dark Grey Carbon 036

Blue Carbon 035

Ivory White 010

Black Carbon 035

White 018

Grey 017

Beige 033

Black 016

Dark Grey 023-P

Dimensions W x L (m)

Bluish Grey Crosshatch

050-5

1.4m x 40 Yards

293827

Vinyl Roll

Black

016

1.4m x 40 Yards

293830

Vinyl Roll

Camel Tan

060

1.4m x 40 Yards

293831

Vinyl Roll

Ivory White

010

1.4m x 40 Yards

293832

Vinyl Roll

Grey

017

1.4m x 40 Yards

293833

Vinyl Roll

Dark Grey

023

1.4m x 40 Yards

293834

Vinyl Roll

Dark Grey Carbon

036

1.4m x 40 Yards

293835

Vinyl Roll

Black Carbon

035

1.4m x 40 Yards

293836

Vinyl Roll

Grey Carbon

046

1.4m x 40 Yards

293837

Vinyl Roll

Beige

033

1.4m x 40 Yards

293838

Vinyl Roll

Blue Carbon

047

1.4m x 40 Yards

293839

Vinyl Roll

White

018

1.4m x 40 Yards

293946

Vinyl with 5mm foam & Gauze Vinyl with 5mm Foam & Gauze Vinyl with 5mm Foam & Gauze Vinyl with 5mm Foam & Gauze

Camel Tan

060-P

1.4m x 40 Yards

Grey

017-P

1.4m x 40 Yards

Black

016-P

1.4m x 40 Yards

Dark Grey

023-P

1.4m x 40 Yards

293949 Black 016-P

Vinyl Swatch No.

Vinyl Roll

293948

Grey 017-P

Colour

293829

293947

Camel Tan 060-P

Description

• Ideal for matching your trim to your seat for a complete theme. • UV stabilised upholstery suitable for all marine environments. NOTE: Sold in complete rolls, no cuts.

www.samallen.com.au

152

Flip-Back Seats Seats - Tasman Series - Single Flip Back Part No.

Description

293614

Tasman Seat

Colour

Dark Grey Carbon/White

Vinyl Overall Dimensions Swatch No. W x D x H (mm)

018 / 036

530 x 590 x 510

• Perfect for multipurpose boats that require flexible fore and aft facing positions along with a design which allows side by side mounting. • Plush foam padding providing the complete comfort. • High quality UV stabilised upholstery and stitching. • Robust aluminium swing arms. • Silicon washers and sleeves provide effortless hinge movement. • Includes bolts, washers and spring washers for mounting.

Mount Pattern

White 018

Dark Grey Carbon - 036

Seats - Deluxe Tasman Series - Single Flip Back Part No.

Description

Colour

Vinyl Overall Dimensions Swatch No. W x D x H (mm)

293617

Deluxe Tasman Seat

Dark Grey Carbon/White

018 / 036 575 x 630 x 545

Seats & Pedestals

• Perfect for multipurpose boats that require flexible fore and aft facing positions. • Plush foam padding providing the ultimate comfort. • High quality UV stabilised upholstery and stitching. • Fully padded arm rests. • Flip up thigh support, giving more space and comfort while standing. • Silicon washers and sleeves provide effortless hinge movement. • Includes bolts, washers and spring washers for mounting. NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Mount Pattern

White 018

Dark Grey Carbon 036

Seats - Console Series - Double Flip Back Part No.

Description

Vinyl Overall Dimensions Swatch No. W x H x D(mm)

Colour

Double Flip Back Grey Carbon/Blue 293625 Console Seat with Arm Rests Carbon Console Double Flip Back Grey Carbon/Dark 293626 Seat with Arm Rests Grey Carbon Console Double Flip Back Dark Grey/Black 293618 Seat with Arm Rests Carbon Double Flip Back Dark Grey/Black 293619 Console Seat Carbon

293625

046 / 047 1025 x 595 x 525 046 / 036 1025 x 595 x 525 023 / 035 1025 x 595 x 525 023 / 035

940 x 595 x 525

• Perfect for multipurpose boats that require flexible fore and aft facing positions. • Plush foam padding providing. • High quality UV stabilised upholstery and stitching. • High strength composite substrate base. • Powder coated alloy frame. • Includes bolts, washers and spring washers for mounting. Note: Can be installed onto "Pedestal - Double SpaceFrame" on page 158

293626

Mount Pattern x 2 293618

153

293619

Dark Grey 023

www.samallen.com.au

Black Carbon 035

Grey Carbon 046

Dark Grey Carbon 036

Blue Carbon 047

Alloy Leaning Posts Alloy Leaning Posts

Centre Console - Leaning Post - Flip Back - Small Part No.

Description

Frame Colour

293459

Flip Back Centre Console Seat

White

293460

Flip Back Centre Console Seat

White

293471

Flip Back Centre Console Seat

Silver

293472

Flip Back Centre Console Seat

Silver

293484

Flip Back Centre Console Seat

Black

293485

Flip Back Centre Console Seat

Black

Vinyl Swatch No

Colour

Overall Dimensions W x H x D (mm)

Dark Grey Carbon/ Grey Carbon/White 036 / 046/ 018 905 x 1145 x 495 White

018

905 x 1145 x 495

Dark Grey Carbon/ Grey Carbon/White 036 / 046/ 018 905 x 1145 x 495 White

018

905 x 1145 x 495

Dark Grey Carbon/ Grey Carbon/White 036 / 046/ 018 905 x 1145 x 495 White

018

905 x 1145 x 495

White 018

Grey Carbon 046

Dark Grey Carbon 036

The cushion extends down both sides of the frame.

293484

218mm

217mm

293485

212mm

520mm

715mm

1100mm

217mm

Seats & Pedestals

• Perfect for multipurpose boats that require fore and aft positioning. • Engineered and built to last, using aerospace 6061 aluminium. • Strong and rugged 2" (50.8mm) tubing. • Thick plates offer generous cross bracing and structural support. • Black or white powder coated finished frame. • Rubber stoppers to prevent rattling. • Washers provide smooth travel of the back rest front and back. • Rear bar can be removed and used as a cooler box storage area. • Easy to install.

710mm

495mm

865mm Dimensions - Frame Only

218mm

217mm

1100mm

217mm

520mm

715mm

293460

710mm

Fits up to an 80ltr cooler box with rear bar removed

865mm Dimensions - Frame OnlyDimensions - Frame Only

www.samallen.com.au

154

Alloy Leaning Posts Centre Console - Leaning Post - Flip Back - Large Centre Console Flip Back Part No.

Description

Frame Colour

293900 Centre Console Flip Back

Silver

293902 Centre Console Flip Back

Silver

293905 Centre Console Flip Back

Black

293907 Centre Console Flip Back

Black

Vinyl Swatch No.

Colour

White/Bluish Grey Crosshatch 018 / 050-5 Dark Grey/Black 023 / 035 Carbon White/Bluish Grey Crosshatch 018 / 050-5 Dark Grey/Black 023 / 035 Carbon

Dimensions W x H x D (mm)

1035 x 1190 x 596 1035 x 1190 x 596 1035 x 1190 x 596 1035 x 1190 x 596

• Perfect for multipurpose boats that require fore and aft positioning. • Engineered and built to last, using aerospace 6061 aluminium. • Strong and rugged 2" (50.8mm) tubing. • Thick plates offer generous cross bracing and structural support. • Anodised aluminium or black powder coat finish. • Rubber stoppers to prevent rattling. • Washers provide smooth travel of the back rest front and back. • Fits up to an 80ltr cooler box with rear bar removed. • Easy to install.

293902

Frame Only Part No.

Seats & Pedestals

White 018

Bluish Grey Crosshatch 050-5

Dark Grey 023

Black Carbon 035

Description

Dimensions W x H x D (mm)

293906

Alloy Flip Back Leaning Post - Frame Only

Silver

1020 x 1155 x 495

293904

Alloy Flip Back Leaning Post - Frame Only

Black

1020 x 1155 x 495

Cushion Set Part No.

Vinyl Swatch No.

Description

293901

White/Bluish Grey Crosshatch Cushion Set Only

018 / 050-5

293903

Dark Grey/Black Carbon Cushion Set Only

023 / 035

293906 Anodised

Fits up to an 80ltr cooler box with rear bar removed

Frame Colour

293904 Black Powder Coat

The cushion extends down both sides of the frame.

253mm

292mm

285mm

Solid construction

Heavy-duty mounting plates

1020mm Dimensions - Frame Only 293906 / 293904

www.samallen.com.au

520mm 865mm

495mm

155

253mm

1155mm

Washers provide smooth travel 757mm

Rubber stoppers to prevent rattling

Alloy Leaning Posts Centre Console - Leaning Post Centre Console Seat Frame Colour

Cushion Colour

293908 Centre Console Seat

Silver

293910 Centre Console Seat

Silver

293916 Centre Console Seat

Black

293918 Centre Console Seat

Black

White/Bluish Grey Crosshatch 018 / 050-5 Dark Grey/Black 023 / 035 Carbon White/Bluish Grey Crosshatch 018 / 050-5 Dark Grey/Black 023 / 035 Carbon

Part No.

Description

Vinyl Swatch No

Dimensions W x H x D (mm)

1030 x 1130 x 517 1030 x 1130 x 517 1030 x 1130 x 517 1030 x 1130 x 517

• Back rest mounting bar allows accessories to be mounted like the Alloy Rocket Launcher Rod Rack. • Engineered and built to last, using aerospace 6061 aluminium. • Strong and rugged 2" (50.8mm) tubing. • Thick plates offer generous cross bracing and structural support. • Anodised aluminium or black powder coat finish. • Adjustable and removable back rest. • Foot rest bar also doubles as a cooler box holder. • Easy to install.

293908

Frame Colour

Dimensions W x H x D (mm)

293914 Centre Console Seat - Frame Only

Silver

1020 x 1100 x 415

293920 Centre Console Seat - Frame Only

Black

1020 x 1100 x 415

Part No.

Description

Black Carbon 035

Cushion Set Part No.

Dark Grey 023

Vinyl Swatch No.

Description

293909 White/Bluish Grey Crosshatch Cushion Set (Only)

018 / 050-5

293911 Dark Grey/Black Carbon Cushion Set (Only)

023 / 035

Bluish Grey Crosshatch 050-5

White 018

Rocket Launcher Part No.

Description

293404 Rocket Launcher suits 5 Rods - Black 293405 Rocket Launcher suits 5 Rods - White 293406 Rocket Launcher suits 5 Rods - Silver

Seats & Pedestals

Frame Only

293406

293918

293920 Black Powder Coat

253mm

292mm

253mm

285mm

759mm

1100mm

63mm

293914 Anodised

865mm 415mm

1020mm Dimensions - Frame Only 293914 / 293920

www.samallen.com.au

Photo courtesy of Cruise Craft

156

Pedestals

SpaceFrame Pedestal - SpaceFrame Description

293815

293814

SpaceFrame Pro 500 304G S/S Black Powder Coated with Footrest & Strap SpaceFrame Pro 500 304G S/S with Footrest & Strap SpaceFrame Pro 304G S/S with Front & Rear Straps

293813

Replacement Webbing Strap to suit 293815 & 293816

293816

Precision welded heavyduty frame offers years of trouble free use.

Highly polished 32mm stainless steel frame.

Adjustable height in 20mm increments provides perfect seat positioning.

Heavy-duty 6mm thick mounting base with rounded ends.

Inner Dimensions (mm)

Part No.

50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

LxW

Overall Dimensions (mm) LxW

498 x 348 448 to 558 570 x 380

480 to 590

498 x 348 448 to 558 570 x 380

480 to 590

498 x 247 448 to 558 570 x 330

480 to 590

• The seat frame is designed as a space saver which economically utilises space under the frame. • Heavy-duty highly polished 32mm 304G stainless steel frame. • The seat plate has 20mm increment mounting holes for optimal positioning when mounting a seat. The seat can be mounted direct to plate or used with a seat slide or swivel*. • Adjustable height in 20mm increments provides perfect seat positioning. • Footrest bar also doubles as a cooler box holder (293816 only). • 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment. • Mounting holes - 8 x 8mm countersunk. • Patented - Australian Registered Design. *NOTE: The 293809 slide/swivel or 293804 slide mount are recommended for slide/swivel adjustments on the Relaxn SpaceFrame. All measurements are approximate and may vary slightly.

293816

448 - 558

293815

480 - 590

Seats & Pedestals

Mount pattern

300 20

498 570

348 380

All dimensions in mm

293816

448 - 558

480 - 590

293814

300 20

498 570 All dimensions in mm 293814

157

www.samallen.com.au

247 330

Double SpaceFrame Pedestal - Narrow SpaceFrame Inner Dimensions Overall Dimensions (mm) (mm)

Part No.

Description

293817

Narrow SpaceFrame with Footrest & Strap

WxH

WxDxH

416 x 568

490 x 380 x 600

• The seat frame is designed as a space saver which economically utilises space under the frame. • Heavy-duty highly polished 32mm 304G stainless steel frame. • The seat plate has 20mm increment mounting holes for optimal positioning when mounting a seat. The seat can be mounted direct to plate or used with a seat slide or swivel*. • Footrest bar also doubles as a cooler box holder. • 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment. • Mounting holes - 8 x 8mm countersunk. • Patented - Australian Registered Design. *NOTE: The 293809 slide/swivel or 293804 slide mount are recommended for slide/swivel adjustments on the Relaxn SpaceFrame. All measurements are approximate and may vary slightly. 97

Mount pattern

416 490

348 380

All dimensions in mm

Pedestal - Double SpaceFrame Part No.

Description

293819

Double SpaceFrame

Inner Dimensions (mm) LxW

Overall Dimensions (mm)

LxW

836 x 298 544 to 644 900 x 330

Seats & Pedestals

300

568

600

640 to 740

• The Relaxn double seat frame is ideal for the centre console boat market. • The seat frame is designed as a space saver which economically utilises space under the frame. • Heavy-duty highly polished 32mm 304G stainless steel frame. • Adjustable height in 20mm increments provides perfect seat positioning. • Footrest bar also doubles as a cooler box holder. • 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment. • Mounting holes - 8 x 8mm countersunk. • Patented - Australian Registered Design. NOTE: All measurements are approximate and may vary slightly. 97

333

219 240

836

126

544 - 644

640 - 740

240

126

900 All dimensions in mm 298 330

www.samallen.com.au

Mount pattern

158

Adjustable & Fixed Pedestals Pedestal - Adjustable - Air Ride Part No.

Ø InnerØ Description Base (mm) Post (mm)

293859 Universal Pedestal 293860 Universal Pedestal 293863 Universal Pedestal 293861 Cruiser Pedestal 293862 Cruiser Pedestal 293865 Universal Pedestal

Height (mm)

Pedestal - Adjustable - Slide/Swivel Top Ø InnerØ Description Base (mm) Post (mm)

Seat Mount

Mount Plate L x W (mm)

Part No.

230

72.6 320 - 405 Universal A

331 x 207

230

72.6 465 - 600 Universal A

331 x 207

Manual 293850 Adjustable Pedestal

230

72.6 600 - 720 Universal A

331 x 207

230

72.6 470 - 600

Cruiser

290 x 207

305

72.6 500 - 650

Cruiser

297 x 217

305

72.6 500 - 650 Universal A

293868 Cruiser Seat Slide/Locking Swivel Only 293869 Universal Slide/Swivel Only

337 x 217

Cruiser

297 x 217

Universal A

331 x 207

• Heavy-duty cast anodised aluminium base with 6 x 8 mm mounting holes. • Slide provides optimum fore - aft positioning. • Anodised aluminium post. • Adjustable height. • Air Ride cushioning system. • Cast aluminium swivel top with friction locking clamp. • 293862 & 293865 include swivel locking handle.

230

Height (mm)

Seat Mount

Mount Plate L x W (mm)

72.6 455 - 600 Universal A

331 x 207

• Heavy-duty cast aluminium base with 6 x 8mm mounting holes. • Slide provides optimum fore - aft positioning. • Mechanical height adjustment in 30mm increments. • Anodised aluminium post. • Cast aluminium swivel top with friction locking clamp.

DELETED

Mount Pattern Universal A

Pedestal - Fixed - Slide/Swivel Top Part No.

Description

Seats & Pedestals

293782 Fixed Pedestal 293779 Fixed Pedestal 293781 Fixed Pedestal 293783 Fixed Pedestal

293860 / 293861 / 293863 293859

Base Ø (mm)

Inner Post Ø (mm)

Height (mm)

Seat Mount

Mount Plate L x W (mm)

230

72.6

305

Universal A

331 x 207

230

72.6

515

Universal A

331 x 207

230

72.6

600

Universal A

331 x 207

230

72.6

760

Universal A

331 x 207

• Heavy-duty cast aluminium base with 6 x 8mm mounting holes. • Slide provides optimum fore - aft positioning. • Anodised aluminium post. • Cast aluminium swivel top with friction locking clamp.

293869

Locking Swivel

Mount Pattern Universal A Mount Pattern Universal A

293865

Pedestal - Fixed - Columbia - Slide/Swivel Top Part No.

Description

293780 Fixed Pedestal Locking Swivel Suits Cruiser Only

293868 Locking Swivel Suits Cruiser Only

Base Ø (mm)

Inner Post Ø (mm)

Height (mm)

Seat Mount

Mount Plate L x W (mm)

230

72.6

465

Universal B

340 x 195

Locking Swivel

DELETED 293862 Mount Pattern Cruiser

159

www.samallen.com.au

Mount Pattern Universal B

Fixed Pedestals, Swivel & Slide Mounts Pedestal - Stainless Steel - Fixed Height

Pedestal - Regatta - Low Profile

Base Ø (mm)

Post Ø Height (mm) (mm)

293874 Stainless Steel Pedestal

235

72.6

600

293875 Stainless Steel Pedestal

235

72.6

750

Description

• Highly polished 316G stainless steel pedestal and base. • Strong and durable construction. • Fixed height. • Stainless steel base with 6 x 6mm countersunk mounting holes. • Fits all non-locking handle, 73mm swivel and universal slide seat mounts.

DELETED

Part No.

Ø InnerØ Height Seat Mount Mount Plate Description Base (mm) Post L x W (mm) (mm) (mm)

293784 Swivel Top

228

72.6

150

140 x 140

293786 Slide/ Swivel Top

228

72.6

160

Universal B 340 x 195

• Low profile base with 6 x 8mm countersunk mounting holes for a solid support. • Anodised aluminium base.

Locking Swivel

293784

293874

168 x 168

293786

Locking Swivel

Mount Pattern Universal B

293875

Pedestal Seat Slide - 72.6mm

Pedestal - Columbia - Swivel Top Part No. Description

Base Ø (mm)

Inner Seat Mount Mount Plate Post Ø Height Centres L x W (mm) (mm) (mm) (mm)

293770 Swivel Top

228

72.6

305

140 x 140 190 x 170

293772 Swivel Top

228

72.6

400

140 x 140 190 x 170

293774 Swivel Top

228

72.6

600

140 x 140 190 x 170

293776 Swivel Top

228

72.6

760

140 x 140 190 x 170

• Heavy-duty cast aluminium base with 6 x 8mm countersunk mounting holes. • Anodised aluminium post. • Cast aluminium swivel top with friction clamp. • Standard square seat mount pattern.

Part No. Description

293794 Universal Slide Universal 293778 Slide

Slide Travel (mm)

Suits Post Ø (mm)

Seat Mount

130

72.6

Universal B 340 x 195 x 110

150

72.6

Universal C 330 x 210 x 120

Mount Plate L x W x H (mm)

• High-strength aluminium swivel with powder coated finish and friction locking clamp. • Slide provides optimum fore - aft positioning. • Moulded nylon cup insert provides smooth swivel performance. • 360° rotation.

Seats & Pedestals

Part No.

DELETED 293794

Mount Pattern Universal B

Pedestal Seat Base - Swivel

Pedestal Seat Slide - 60.3mm

Suits Seat Mount Mount Plate Post Ø Centres L x W (mm) (mm) (mm)

Part No.

293797 Clamp Swivel

60.3

140 x 140 190 x 170

293797A Clamp & Locking Swivel

72.6

140 x 140 168 x 168

293801 Universal Slide

293798 Clamp Swivel

72.6

140 x 140 190 x 170

Part No.

Description

• High-strength aluminium powder coated finish. • Friction clamp locking swivel. • Moulded nylon cup insert provides smooth swivel performance and a tight fit. • Rotates 360°. • 293797A includes swivel locking handle. • Increases height of the pedestal by 19mm. • Standard square mount pattern.

Description

Slide Suits Travel Post Ø (mm) (mm)

Seat Mount

130

Universal C 340 x 202 x 110

60.3

Mount Plate L x W x H (mm)

293797A

293797/293798

www.samallen.com.au

Mount Pattern Universal C

160

Swivel & Slide Mounts Seat Slide

Seat Slide & Swivel Part No.

Description

293809 Seat Slide & Swivel Mount

Slide Travel (mm)

Mount Plate L x W x H (mm)

Part No.

120

340 x 180 x 72

• Designed for salt water use with a rust resistant powder coated base and anodised slide. • Zero degree tilt. • 360° rotation. • 8 position side locking swivel lever (45°) increments. • Universal A slide mount pattern. • Lower plate dimensions: 168mm x 168mm.

Slide Travel (mm)

Mount Plate L x W x H (mm)

293804 Universal Slide

114

340 x 195 x 50

293806 Mount Adaptor Plate

330 x 185 x 20

Description

• High strength aluminium. • Suits most seats and pedestals. • 293804: Moves in 10mm increments. Adds 50mm in height. • Universal B slide mount pattern.

Universal A

Universal B

293804

Bottom View

293806

Seats & Pedestals

Slide - Heavy-Duty Part No.

Slide Travel (mm)

Description

293590 Heavy-Duty Slide

Seat Mount Plate Base Mount Plate Overall Dimensions L x W (mm) L x W (mm) L x W x H (mm)

150

330 x 280

355 x 280 x 64

• Heavy-Duty aluminium slide. • Suits mounting on seat boxes • 5mm thick mounting plates • Extra wide seat plate for support and stability. • 150mm slide travel with seven locking positions in 25mm increments. • Nylon washer for smooth, quite operation. • Universal slide mount pattern. • Base mounting hole centres - 232 x 159 mm. 135

260 232

330 299

355

280

260

Ø176

235

89 127 Top

Seat Mount (top)

Base Mount (bottom)

Adjustment Handle

150 mm slide travel with 7 locking positions. Pull handle up to adjust side position.

161

Photo courtesy of Moda Marine

www.samallen.com.au

159 280 Bottom

Plug-In Pedestals & Accessories Seat Swivel - Standard Mount Locking

Seat Swivel - Standard Mount Part No.

Mount Mount Plate Height Seat Centres (mm) L x W (mm) (mm)

Description

293791 Black EDC Coating

140 x 140

168 x 168

293795 Stainless Steel

140 x 140

168 x 168

Part No.

Description

Lock Style

Steel Lock Swivel 293800 with Black EDC Lever Coating Steel Lock Lever 293802 Stainless Swivel

• 360° rotation. • Nylon slide runners for smooth and silent performance. • Non-locking. • Standard mount pattern.

Mount Height Seat Plate Centres Mount (mm) L x W (mm) (mm)

140 x 140 168 x 168

• Locking handle extends out 175mm from swivel providing an easy to reach lock. • Nylon slide runners for smooth and silent performance. • Fits most standard seats and pedestals. • 12 lock positions.

293791 293800

293795 293802

Seat Swivel - Clamp-On Height Mounting Clamp Mount Plate (mm) L x W (mm) Min Max

Description

Clamp and 293790 Seat Swivel

220

500

Pedestal Footrest

168 x 168

Part No.

• Designed for quick and easy removal, repositioning and storage. • 8mm anti-rattle rods. • Nylon slide runners for smooth and silent performance. • Rugged all steel construction with black EDC coating making it suitable for all marine environments. • Wing nuts allow quick installation that adjusts from 220mm - 500mm widths. • Supplied with mounting brackets.

293808

Description

Footrest

Extends Out Step Width Suits Post Ø (mm) (mm) (mm)

279

431

72.6

• Split design allows mounting without the removal of the post. • Internal nylon bushing prevents the footrest from scratching the post and acts as a friction lock. • Bottom ring provides height adjustment. • Swivels out of the way when required. • Heavy-duty cast aluminium.

Seats & Pedestals

Part No.

Bottom ring provides height adjustment and support while the top ring can rotate the footrest when not in use

Plug-In Pedestals 293762

Plug-In Post Part No.

Description

Height (mm)

Post Ø (mm)

293762

Anodised Aluminium Post - Only

415

60.2

Plug-In Post & Swivel Part No.

Description

Height (mm)

Post Ø (mm)

Seat Mount L x W (mm)

293754

Pedestal with Swivel Top

300

60.2

180 x 180

293756

Pedestal with Swivel Top

375

60.2

180 x 180

293758

Pedestal with Swivel Top

600

60.2

180 x 180

Seat Post Base Depth

Base (mm)

Mount Screws (mm)

Ø 228

8 c/s

Cut Out (mm)

Part No.

Description

Base Type

Finish

293748

Aluminium Base

Round

Anodised

293749

Aluminium Base

Flat Side

Satin

293754

228 x 133 8 c/s

• Anodised. • Posts have a moulded groove to stop movement. • Swivel is high-strength aluminium with a powder coated finish. • Friction locking swivel. • Heavy-duty cast aluminium base for a solid support in the cabin or cockpit. • Base has a 1 way mounting lock position. • Suit Ø 60mm plug-in Pedestal post only.

www.samallen.com.au

293748

293749

162

KingPin Pedestals & Accessories Pedestals - KingPin KingPin Seat Mount Part No.

293738

Description

Pin Base Type Mount (mm)

Cut Out (mm) Ø

Depth

Mount Plate L x W (mm)

Square

175 x 175

Seat Mount - Black

293738

KingPin Posts Part No.

Mount Pin (mm)

Description

Height (mm)

Post Ø (in)

(mm)

293740

Anodised Aluminium Post

280

1-3/4"

44.45

293742

Anodised Aluminium Post

330

1-3/4"

44.45

293744

Anodised Aluminium Post

380

1-3/4"

44.45

293746

Adjustable Anodised Aluminium Post

590 - 790

1-3/4"

44.45

KingPin Bases Part No.

Description

Base Type

293730

High Strength Aluminium

Round

Cut Out (mm)

Mount Screws (mm)

Seats & Pedestals

Depth

Base (mm)

Satin

Ø 203

6 c/s

177 x 177

6 c/s

Ø 203

6 c/s

177 x 177

6 c/s

Finish

293732

Mild Steel

Square

293734

High Strength Aluminium

Round

Powder Coat Powder Coat

293736

Stainless Steel

Square

Satin

• 293738 Seat mount is constructed with black autophoretic coating. • 293746 has a Posi-Lock (spring loaded) lever to adjust height. • Heavy-duty cast aluminium base for a solid support in a cabin or cockpit. • Nylon sleave in mounting hole provides anti rattle and smooth performance. • Rotates 360°.

293740 - 293744

293746

293730

293732

293734

293736

Seat - Stand-Up Part No.

293629

Description

Stand-Up Seat

Colour

Dimensions W x H x D (mm)

Light Grey

390 x 360 x 210

• Plush foam padding. • High quality UV stabilised upholstery and stitching. • Substrate completely covers all stitching and staples. • Perfect for fly fishing or lure casting. • High-strength composite base. • Can only be used with the Kingpin Pedestals (above).

Light Grey

163

www.samallen.com.au

Fold Down Brackets Fold Down Seat Bracket Part No.

Description

293828

Fold Down Seat Bracket

Maximum Overall Size Hinge Bracket Weight (kg) L x H (mm)

Mounting Bracket Size W x H (mm)

Mounting Arm Size L x H (mm)

Mounting Screws (mm)

Aluminium

50 x 270

362 x 100

6.8

200

462 x 290

293828BRK Mounting Bracket to Suit 293828 • Robust 8mm CNC machined alloy. • Anodised finish. • Self supporting. • No support legs needed. • Clears floor space. • Stainless steel hardware for strength and durability. • Nylon bushes offer a smooth folding action. • Folds up when not in use. • Easy installation. • 293828BRK allows 293828 to become removable. NOTE: Sold in pairs.

Seats & Pedestals

Scan me

293828BRK

Stainless steel hardware offers strength and durability

Nylon washers provide a smooth close and open action

Fold Down Table & Seat Bracket Maximum Overall Size Hinge Bracket Weight (kg) L x H (mm)

Mounting Bracket Size L x H (mm)

Mounting Mounting Arm Bracket Mounting Arm Size Hole Centres Mounting Hole Screws L x H (mm) (mm) Centres (mm) (mm)

Part No.

Description

293803

90° Table Bracket

Black PPG Coated Steel

180

230 x 95

95 x 95

200 x 43

293805

92° Seat Bracket

S/S

180

230 x 95

95 x 95

200 x 43

293803BRK Mounting Bracket to Suit 293803 & 293805 • Ideal for jump seats and tables. • Robust construction. • Spring loaded hinges. • Black plastic protective covers. • Stows in down position. • Extra room without sacrificing comfort and support. • Easy installation. • Patent pending new J hook design. • 293803BRK allows the table and seat bracket to become removable. NOTE: Sold in pairs. 293803 is designed for internal use only.

Scan me 293805

Simply lift front to release lock, then press seat or table back and down into stow position

293803BRK

www.samallen.com.au

164

Lay Flat Folding Lounge & Folding Legs Lounge - Lay Flat - Folding Part No.

Description

Colour

Dimensions L x W (mm)

293643

Lay Flat Folding Lounge - Small

Navy

1050 x 425

293644

Lay Flat Folding Lounge - Large

Navy

1435 x 460

• Plush foam padding providing the ultimate comfort. • Heavy-duty UV stabilised marine grade fabric. • Water repellent fabric. • 6 adjustable back rest settings. • Lays flat for easy transport and storage. • Carry handle. • Back pocket for extra storage. • Nylon under lay with non-slip base. • Galvanised frame. • Hinged back rest.

293643

293644

Non-slip Base

Carry Handle

Back Pocket

Seat Leg - Folding - Aluminium

Seats & Pedestals

29851

29852

Part No.

Description

Dimensions L x Ø (mm)

29860

Aluminium Folding Seat Leg

337 x 25

29866

Aluminium Folding Seat Leg

670 x 25

29851

Replacement Bracket Only

29852

Flush Mount Seat Leg Socket - 25mm

25168

Replacement Tube End Cap Only - 25mm suits 1-3mm Wall

• Alloy leg with heavy-marine grade plastic hinge with a moulded lock. • Suitable for the marine environment. • Plastic end cap for stability. • Replacement Bracket suits O.D. 25mm Seat Leg.

25168

29860/29866

Folding Seat Leg - Stainless Steel Part No.

Description

Dimensions L x Ø (mm)

293822

Stainless Steel Folding Leg

300 x 25

293824

Stainless Steel Folding Leg

360 x 25

293826

Stainless Steel Folding Leg

670 x 25

• 316G stainless steel folding leg suitable for the marine environment. • Spring loaded catch. • Rubber base cap for stability.

165

www.samallen.com.au

Bean Bags & Vinyl Cleaner Bean Bag - Neoprene Part No.

Size

Dimensions WxHxD

Description

Colour

293391

Neoprene Bean Bag

Black

Large

700 x 300 x 670

293392

Neoprene Bean Bag

Grey

Large

700 x 300 x 670

Seats & Pedestals

• Ideal for lounging around the deck, pool, beach or long trips on the boat. • Floats. • 3mm neoprene material. • Heavy-duty threads and tapes. • Heavy-duty safety zip. • UV resistant. • Easy to clean. NOTE: Requires 150 to 200 litres of bean bag filling (not included). This is not a floatation device and will absorb water over a period of time. Children can suffocate if bean bag filling is swallowed or inhaled. Do not let children climb inside the bean bag. A bean bag is not a safe sleeping surface for an infant under 12 months of age.

Vinyl Cleaner - Arco Part No.

Description

Size

322042

Arco Vinyl & Leather Cleaner

RLMF

Relaxn Microfibre Cloth

293990

500ml Arco Cleaner with Microfibre Cloth Seat Care Kit

500ml 285mm x 285mm

• Ideal for cleaning chrome, polished wood, venetian blinds, grained plastics, plastic, vinyl and leather. • Contains no bleaching agents, ammonia, acids, alkalies or abrasives. • Does not discolour. • Safe on hands. • Wipe on, wipe off. • No need for water. 293990 Kit Includes: • 2 x Premium microfibre cloth. • 1 x 500ml Arco Cleaner.

www.samallen.com.au

166
