Inflatable Boat Accessories
Inflatable Boat Accessories
Contents Inflatable Boat Pumps
131
Inflatable Boat Attachments
135
Inflatable Boat Accessories
136
Electric Pumps. . . . . . . . . . . 131-132 Foot & Hand Pumps . . . . . . . . . . . 133 Hand Pumps, Valves, Adaptors . . . . . . . 134 Snap Davits, Spares & Accessories . . . . . .
135
Dolly Wheels . . . . . . . . . . . . . 136 Handles . . . . . . . . . . . . . . . 136 Rope Guides. . . . . . . . . . . . . . 136 Stops. . . . . . . . . . . . . . . . 136 Drain Plug . . . . . . . . . . . . . . 136 Bollard. . . . . . . . . . . . . . . . 137 Cleats . . . . . . . . . . . . . . . . 137 Steps. . . . . . . . . . . . . . . . 137 Rowlocks. . . . . . . . . . . . . . . 137 Paddles. . . . . . . . . . . . . . . 138 Boat Hook . . . . . . . . . . . . . . 138 Transom Pads. . . . . . . . . . . . . 138 Ladder. . . . . . . . . . . . . . . . 138 Please Note: Due to the multiple methods of installation of inflatable boat accessories please contact your local inflatable boat specialist for the best way to apply Inflatable Boat Attachments.
www.samallen.com.au
130
Inflatable Boat Pumps Electric Pumps

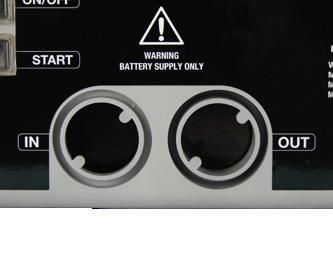

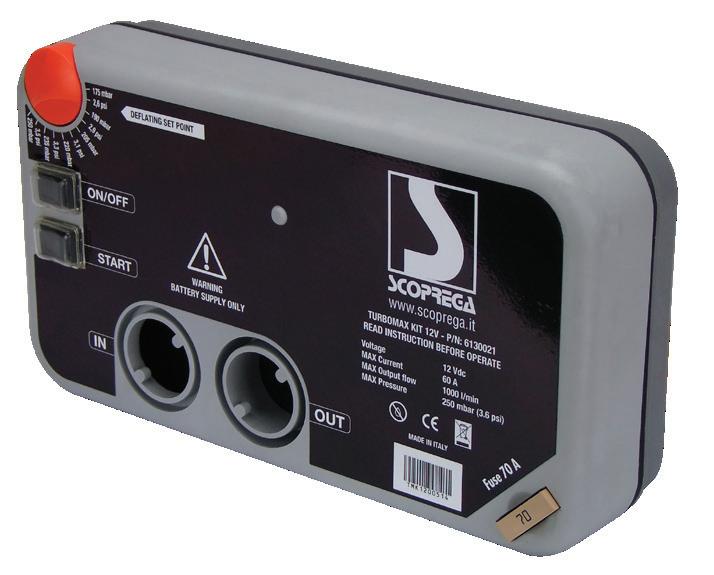

Air Pump - Turbo Max - Hard Wired Part No.
Max Output (Amps) Pressure Volts (Ltr/min) (PSI)
Weight (kg)
Dimensions L x W x D (mm)
39218
Turbo Max
12
1000
60
3.6
3.5
290 x 160 x 127
39218A
Turbo Max
24
1000
35
3.6
3.5
290 x 160 x 127
39218B

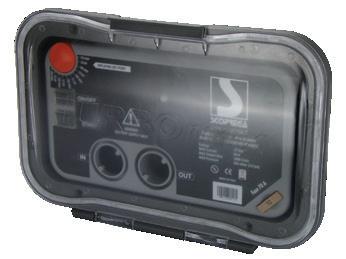

Turbo Max Recessed Box (Only)
39222
Pump Air Hose Fitting Suits Scoprega Turbo Max & 1" ID Hose
39225

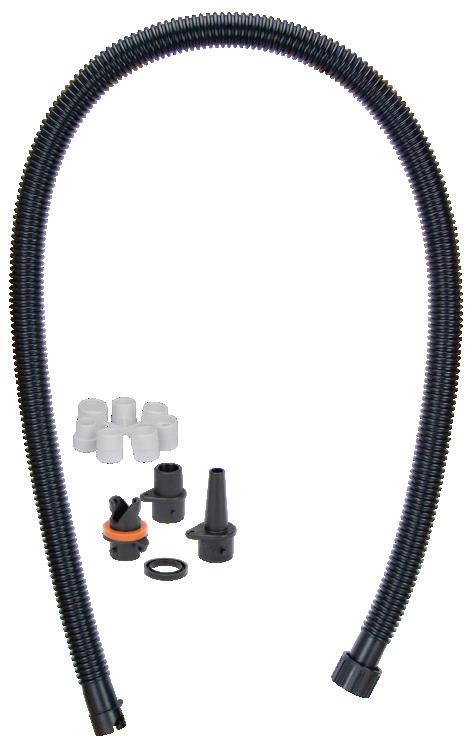

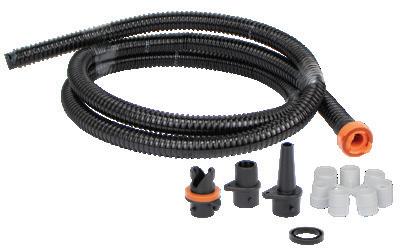

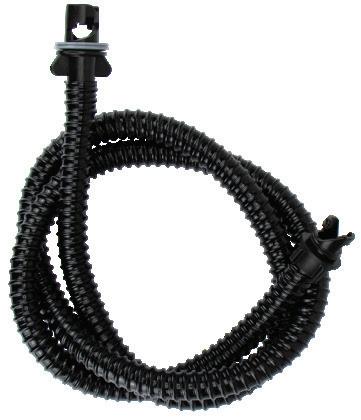

3m x 25mm ID Hose with Connectors • Inflates large rigid inflatables up to 14 metres. • Inflates average 7m inflatable boat in approximately 6 mins. • Pressure can be regulated up to 3.6psi with automatic shutoff. • Inflates and deflates. • Hard wired with Deutsch Plug supplied. • Supplied with hose connector fittings to suit 25mm ID hose. • Includes universal adaptor kit. • Bulkhead mount. NOTE: Hose not included with 39218 & 39218A
39218
Inflatable Boat Accessories
39222
Type
39225 39218B - Pump not included
Multiple pressure ranges
Hose lock-in adaptor included

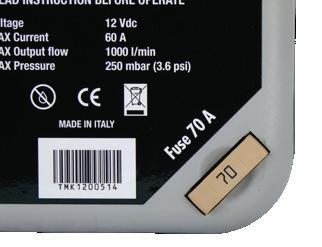

Fuse included

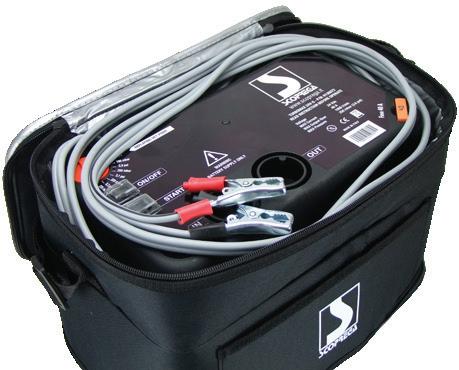

Air Pump - Turbo Max - Portable Max Output (Amps) Pressure Volts (Ltr/min) (PSI)
Part No.
Type
39217A
Turbo Max
12
1000
60
24
1000
35
Weight (kg)
Dimensions L x W x D (mm)
3.6
3.5
310 x 180 x 190
3.6
3.5
310 x 180 x 190
39217
Turbo Max
39222
Pump Air Hose Fitting Suits Scoprega Turbo Max & 1" ID Hose
39224

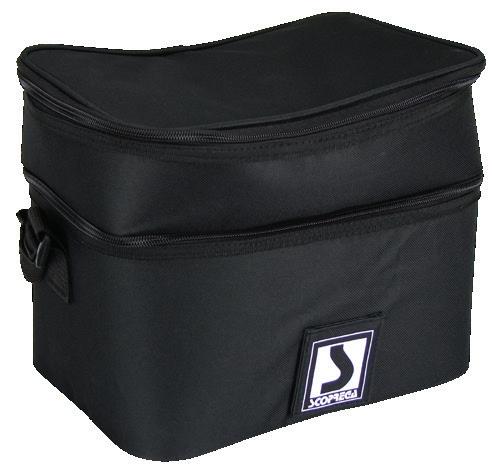

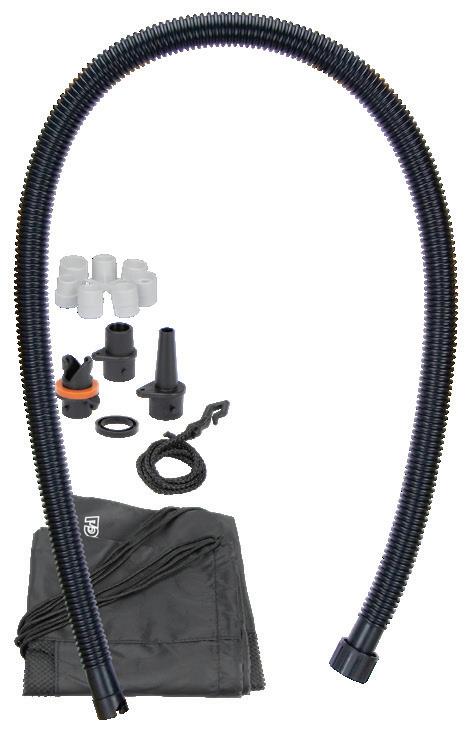

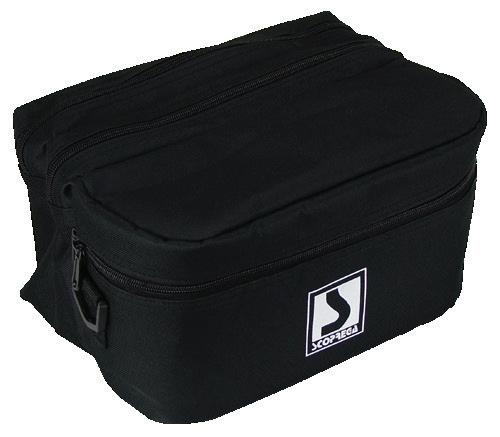

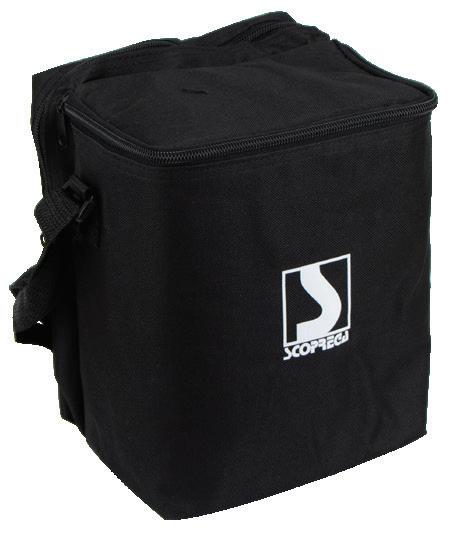

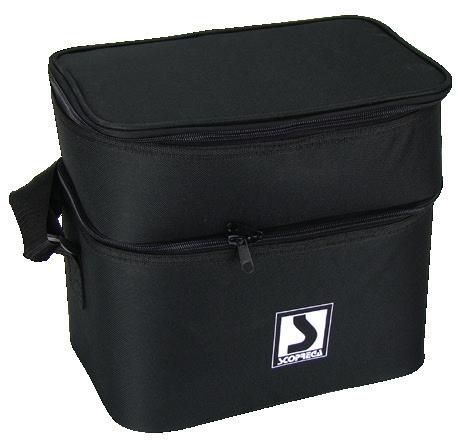

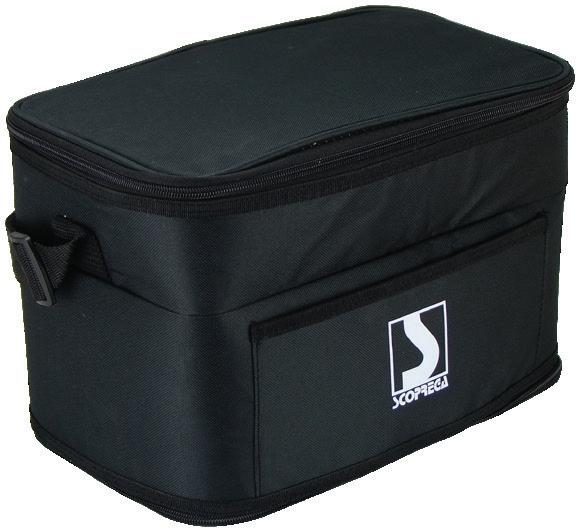

Replacement Carry Bag
39225
3m x 25mm ID Hose with Connectors • Inflates large rigid inflatables up to 14 metres. • Inflates average 7m inflatable boat in approximately 6 mins. • Pressure can be regulated up to 3.6psi with automatic shutoff. • Inflates and deflates. • Connects directly to battery via 3m lead with alligator clips. • Supplied with hose, connectors and adaptor kit. • Carry bag included.
39222
39225
39224

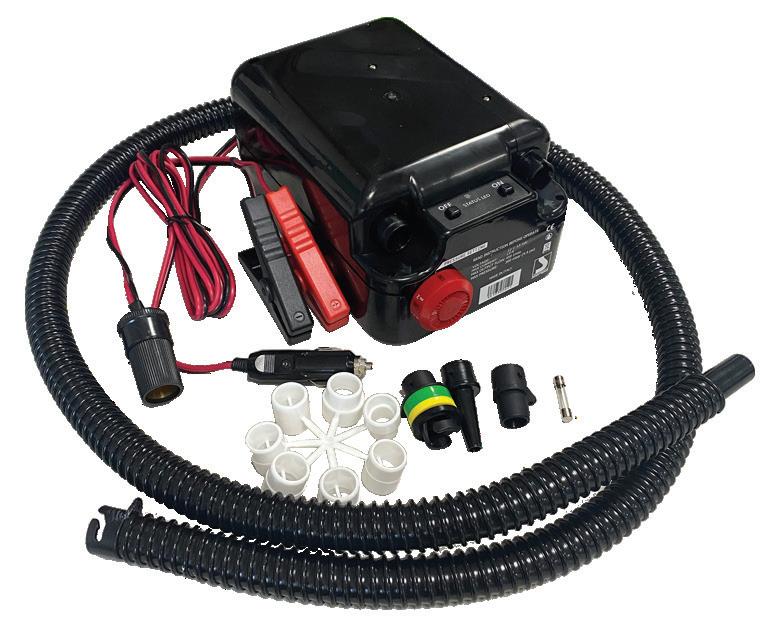

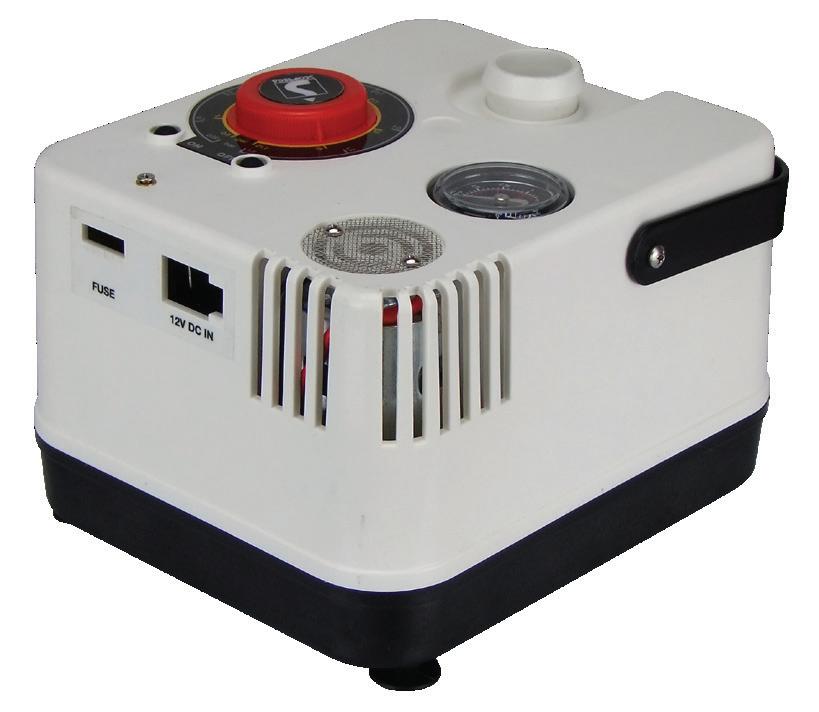

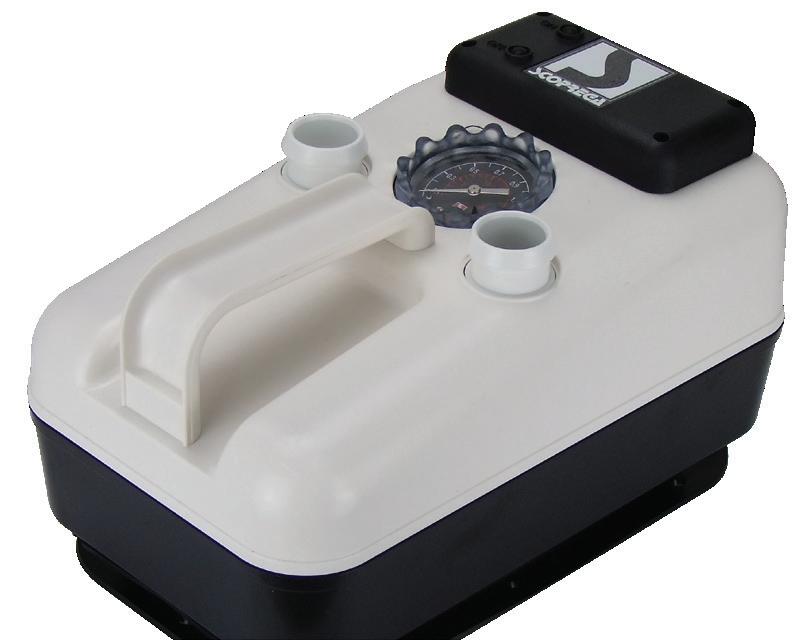

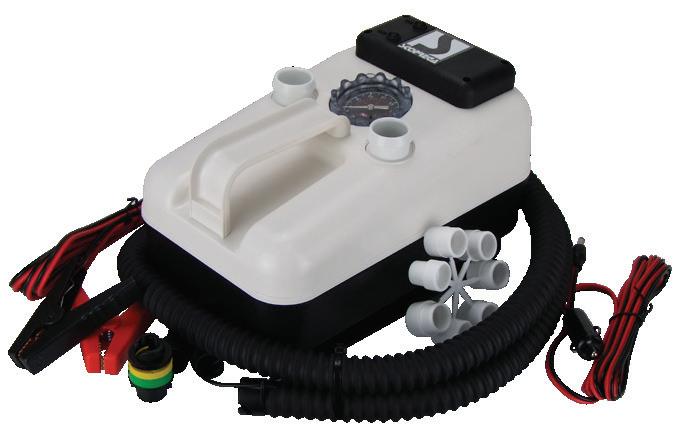

Air Pump - GE20-2 Part No.
Type
Volts
39250
GE20-2
12
Max Output Weight (Ltr/min) Pressure (kg) (PSI)
125
22
Dimensions L x H x D (mm)
6.65 200 x 320 x 220
• Portable electric inflator for high pressure applications. • High efficiency and suppressed noise. • Double piston pump. • Integral pressure gauge. • Automatic stop at preset pressure. • LED indicators for battery status. • Supplied with alligator clip and cigarette lighter plug leads for direct power supply from external 12V batteries, plus 240V charge adaptor. • Built in rechargeable and replaceable 12V battery. • Protective filtering system. • Inflates only. • Hose, connectors, adaptors and carry bag included.
131
www.samallen.com.au
Electric Pumps Air Pump - GE21-1 Part No.
Type
Volts
39252
GE21-1
12
Max Weight Output (Ltr/min) Pressure (kg) (PSI)
125
22
6.4
Dimensions L x H x D (mm)
220 x 320 x 220

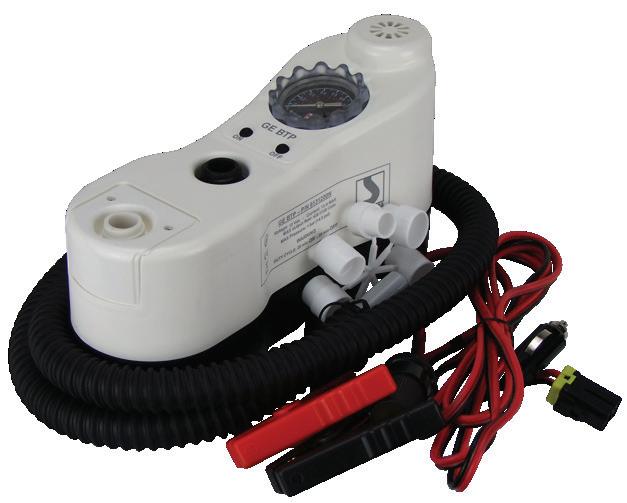

Air Pump - GE BTP Part No.
Type
Volts
Max Weight Output (Ltr/min) Pressure (kg) (PSI)
Dimensions L x H x D (mm)
39221
GE BTP
12
120 - 420 14.5
190 x 100 x 130
2.6

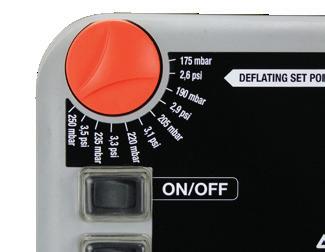

• Integral pressure gauge. • Automatic stop at preset pressure. • Inflates and deflates. • Contains low pressure fan and high pressure pistons. • Swaps between fan and pistons automatically. • Variable output capacity: 120L/min - When operating on high pressure pistons. 420L/min - When operating on low pressure fan. • Includes 1.3m hose, connectors and adaptor kit. • Includes 2.5m 12V power lead with cigarette lighter plug and alligator clip adaptor. • Built-in protective filters. • Carry bag included.
Inflatable Boat Accessories
• Portable electric inflator for high pressure applications. • Robust construction. • Integral pressure gauge. • Automatic stop at preset pressure. • Built-in rechargeable and replaceable 12V battery. • Includes 2.5m 12V power supply/charging lead with cigarette lighter plug and 240V charge adaptor. • Inflates only. • Includes 1.6m high pressure hose with connectors and adaptors. • Includes 240V battery charging adaptor. • Carry bag included.
Air Pump - GE10-8 Part No.
Type
Volts
39226
GE10-8
12
Max Weight Output (Ltr/min) Pressure (kg) (PSI)
450
11.6
1.9
Dimensions L x H x D (mm)
180 x 200 x 240
• Automatic stop at preset pressure. • Inflates and deflates. • Includes hose, connectors and adaptor kit. • Includes 2.5m 12V power lead with cigarette lighter plug and alligator clip adaptor. • Built-in protective filters. • Carry bag included.
www.samallen.com.au
132

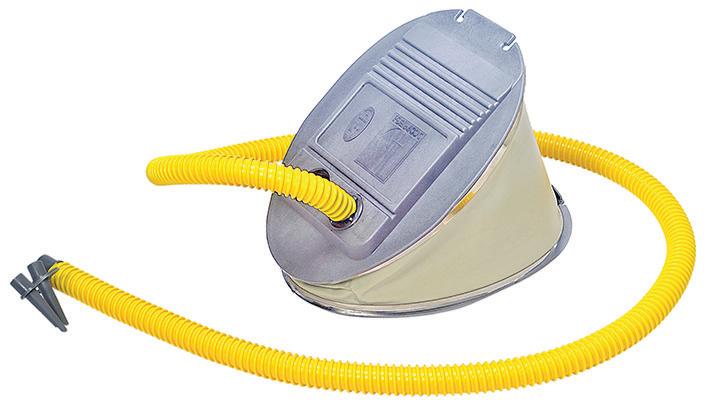

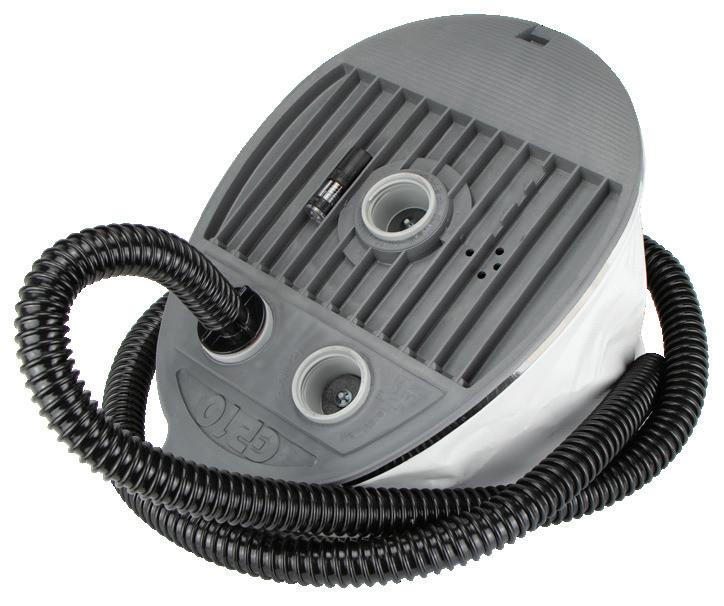

Foot & Hand Pumps Air Pumps - Bravo - Foot

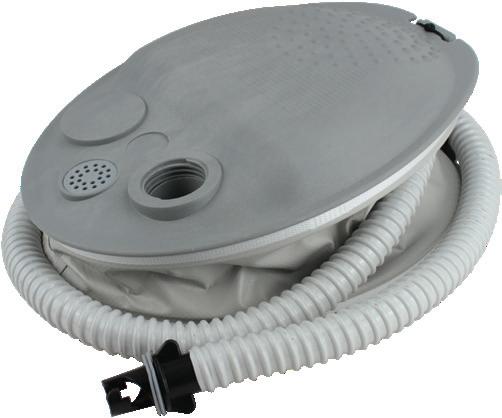

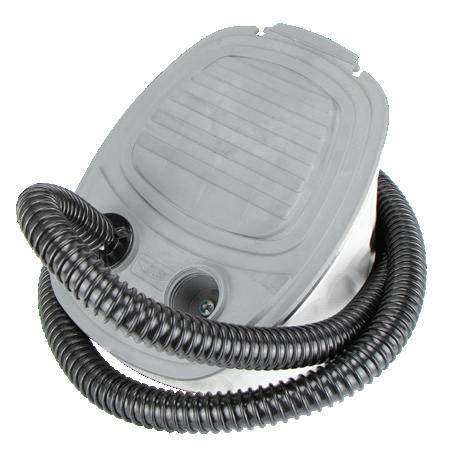

Air Pump - Foot
Single Chamber Width (mm)
Closed Height (mm)
260
200
80
290
220
80
Bellows Pressure Length Capacity (PSI) (mm)
Part No.
Type
39208
Bravo 1
4
7.2
39240
GP5
5
5.8
• Single chamber with reinforced bellows. • Glass filled nylon body. • Anti-slip feet provides greater stability. • Compact size makes them suitable for boats, life rafts, kayaks and SUPs. • Inflates and deflates. • Includes 1.7m hose and universal adaptors. • Italian made.
Part No.
Type
23156
Foot Pump
Bellows Pressure Length Capacity (PSI) (mm)
5
2.9
Width (mm)
Closed Height (mm)
240
110
310
• Single chamber. • Strong glass-filled nylon body. • Includes 1.25m flexible, kink resistant hose with screw connector to pump and bayonet adaptor to suit most common inflatable watercraft valves. • Inflation only. • Italian Made.
Inflatable Boat Accessories

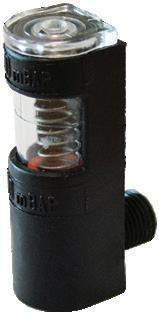

Air Pumps - Hand with Gauge 39240
39208
Double Chamber High
Bellows Pressure/ Capacity Low Vol
Low Closed Pressure/ Length Width High Vol (mm) (mm) Height (mm) (PSI/Ltr)
Part No.
Type
39210
Bravo 10
39213
Over Pressure Indicator suits 39210
(PSI/Ltr)
5.5
11.6/1.6 4.4/5.5
350 250
80
• Double chamber with reinforced bellows. • Glass filled nylon body. • Anti-slip feet provides stability. • High pressure/low volume and low pressure/high volume options makes them ideal for both dinghies with inflatable floors and SUPs. • Inflates and deflates. • Includes 1.7m hose and universal adaptors. • Italian made . • Includes a visual over pressure indicator.
Capacity (ltr)
Pressure (PSI)
Height (mm)
Type
39232
Bravo 100-D
4
27.5
655
75
39233
Bravo 101
3
27.5
590
75
39234
GM 6
5
14.5
580
100
• Selectable double/single action inflates faster or with less effort. • Ergonomic handle and large base provide stability. • Built in pressure gauge. • ABS and aluminium construction. • Main shaft contains protective filter. • Includes 1.25m flexible, kink resistant hose with screw connector to pump and bayonet adaptor to suit most common inflatable watercraft valves. • Italian Made. • 39232: Inflates and deflates Includes universal adaptor kit. • 39233: Inflates and deflates Includes universal adaptor kit. • 39234: Inflates and deflates. Includes carry bag and universal adaptor kit.
39232 / 39233
DELETED 39210
39213
133
Cylinder � (mm)
Part No.
Over pressure indicator
www.samallen.com.au
39234

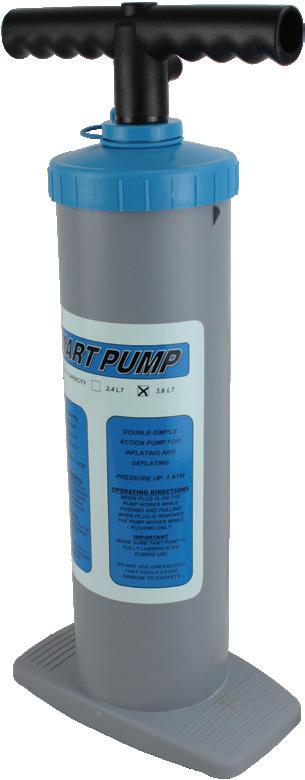

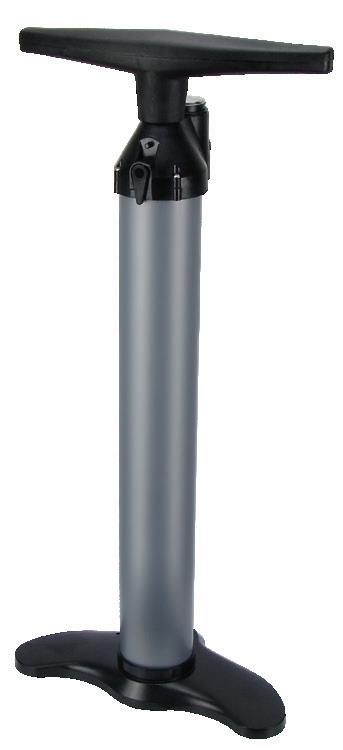

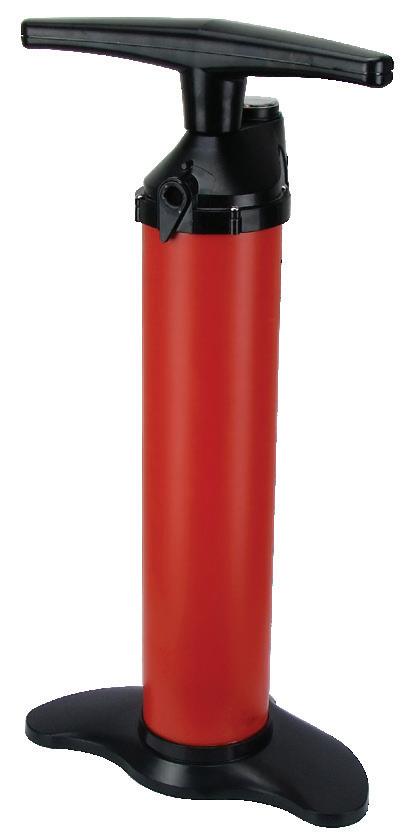

Hand Pumps, Valves, Adaptors Air Pump - Hand
Inflation Pressure Relief Valve
Type
23152
Hand Pump
3.6
14.5
Height (mm)
Cylinder � (mm)
Part No.
Description
Suits Hose ID (mm)
Max Pressure (PSI)
490
115
39159
Inflation Pressure Relief Valve
16 & 20
3.52
• Selectable double/single action inflates faster or with less effort. • Inflates and deflates. • Ergonomic handle and broad base provide stability. • Includes 1.45m flexible, kink resistant hose with screw connector to pump and bayonet adaptor to suit most common inflatable watercraft valves. • Italian made.
• Prevents over inflation. • Fits most common inflators and watercraft valves with bayonet connections. • Includes stepped inflator tails to suit 16mm and 20mm ID hoses. NOTE: Has to be inserted between the inflatable boat and the air source. Insert the pressure relief valve into the inflation/deflation valve & the surplus air will be released.

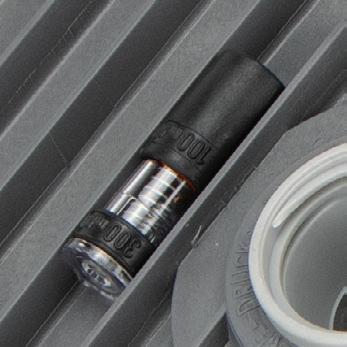

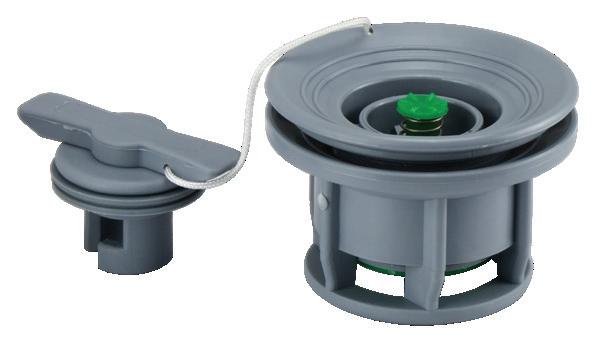

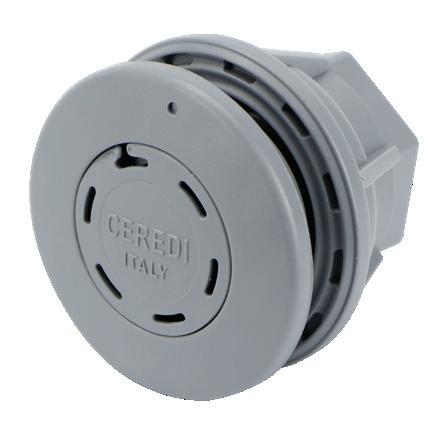

Pressure Gauge Inflatable Boat - Valve Part No.
Description
39154
Inflate/Deflate Valve
Face
Diameter (mm)
T Handle
62
• Spring loaded inflate/deflate valve. • Twist lock mechanism. • 2 piece - screws together. • Suits 36mm � cutout.
Part No.
Description
39182

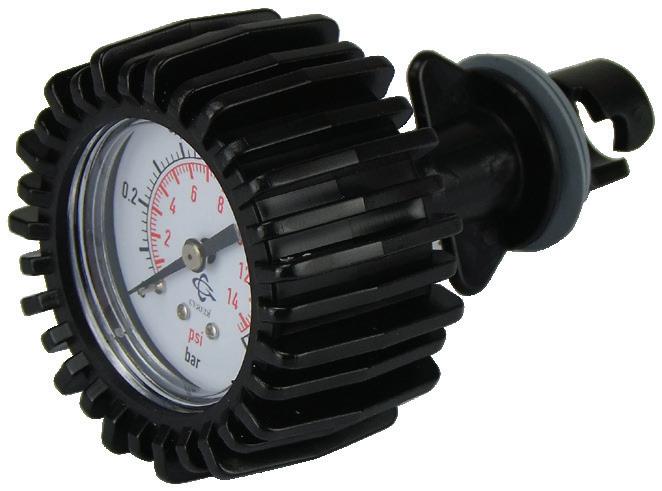

Pressure Gauge
Pressure Body Type Diameter (mm) Measurement
ABS
63
Bar 0-1 PSI 1-14.5
• Connects directly into most common bayonet type inflatable watercraft valves. • Rubber armoured.
Inflatable Boat Accessories
Capacity Pressure (ltr) (PSI)
Part No.
39154
Pressure Relief Valve Part No.
39152
Description
Pressure Relief Valve
Size Ø (mm)
55

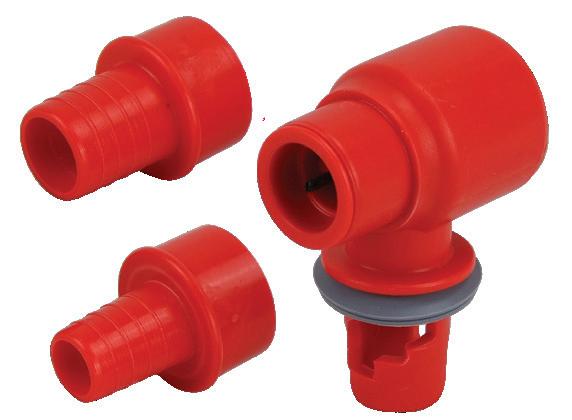

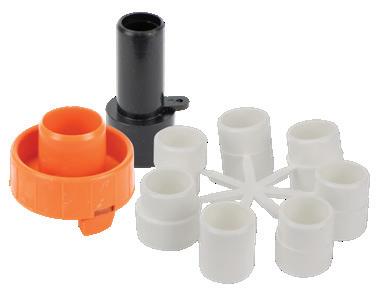

Air Pump - Hose Adaptor Max Cut Out Ø Pressure (mm) (PSI)
36
3.52
• Suitable for all types of inflatable watercraft. • Designed to regulate inflation pressure due to air expanding. • Prevents over inflation.

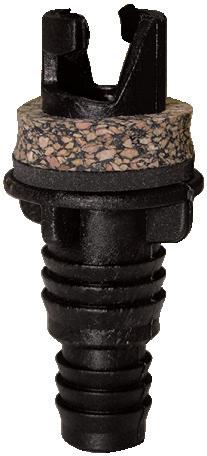

Part No.

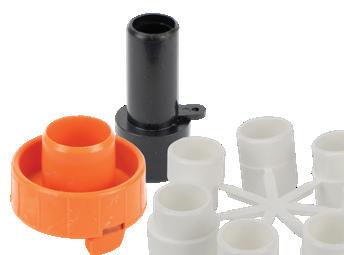

39204
Description
Bravo Pump Hose Adaptor
• Inflating adaptor suits most common bayonet style valves. • Stepped tails suit 17mm and 22mm ID foot and hand pump inflator hoses. 21mm 16mm
8mm
10mm
46mm
17mm 27mm
www.samallen.com.au
134
Inflatable Boat Attachments

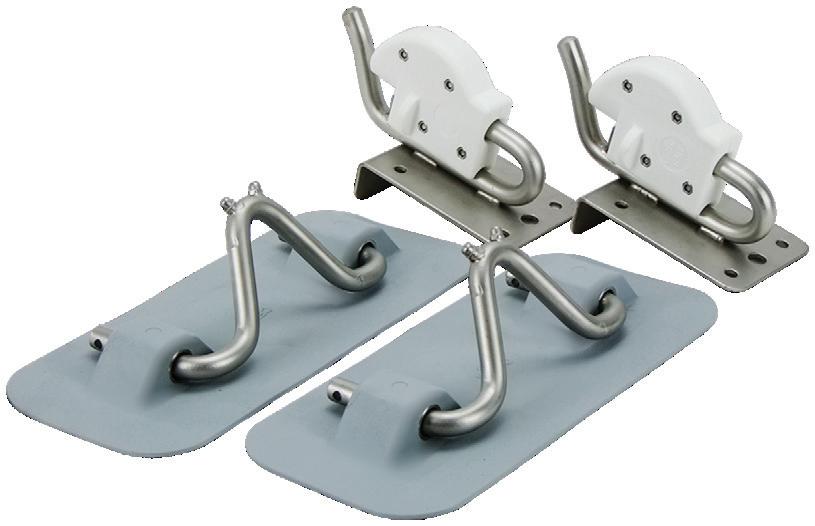

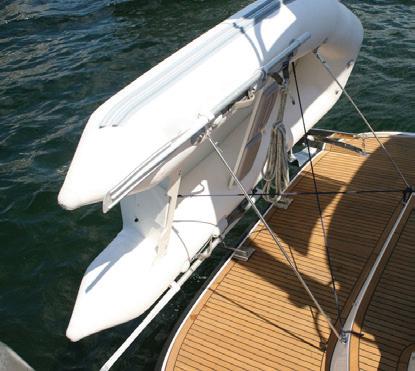

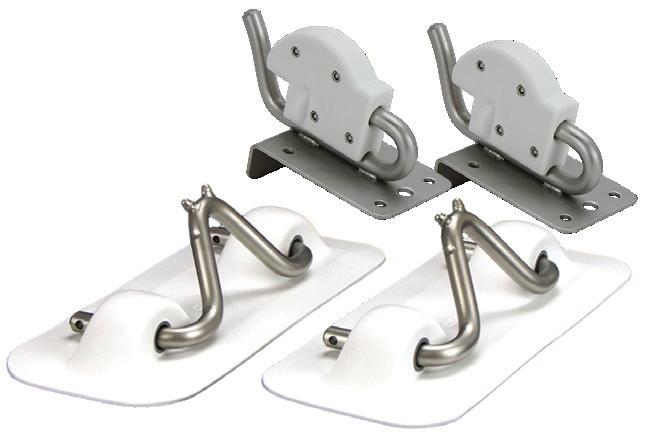

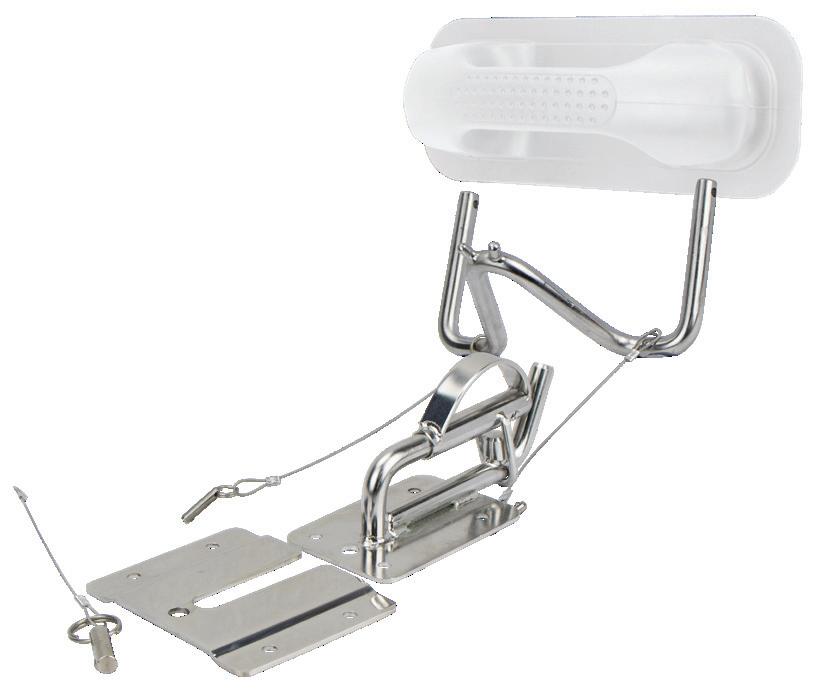

Snap Davits, Spares & Accessories Inflatable Boat - Snap Davit Kits - Ceredi Part No.
39190 39192
Material Colour
Mounting Holes (mm)
Snap Davit Kit suits PVC PVC White Inflatables Snap Davit Kit suits Hypalon/CSM Inflatables Rubber Grey
4xØ7 1 x Ø 10 4xØ7 1 x Ø 10
Description
Clip Base (mm)
Pad Base (mm)
110 x 74 267 x 120 110 x 74 267 x 120

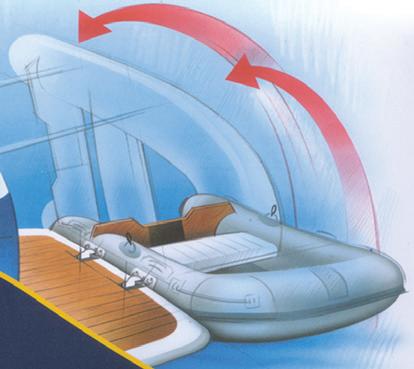

• Models to suit PVC or Hypalon/CSM inflatables. • Facilitates hinged storage of inflatable dinghy on duckboard. • Nylon and stainless steel components. • UV resistant. • 'W' bar pins are 150mm centres. • Does not fit Weaver branded davits. • Italian made.
39192
Inflatable Boat Accessories
39190 CEREDI

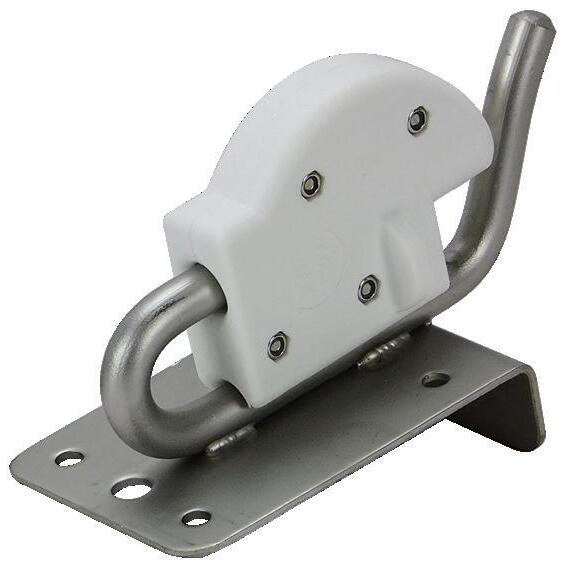

Inflatable Boat - Snap Davit Accessories & Spare Parts - Ceredi Part No. 39199 39193
39195
39194
Width (mm)
39193
White PVC Snap Davit Pad Only (Each)
14
267
120
Grey Rubber Snap Davit Pad Only (Each)
14
267
120
39194
4 x Ø 7.8
125
110
4xØ7 1 x Ø 10
110
74
39198

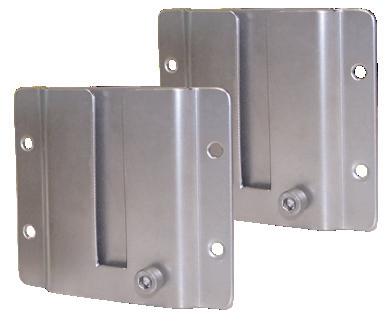

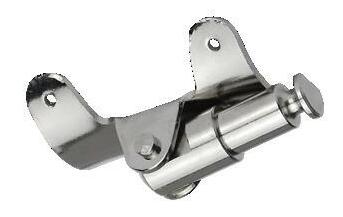

Stainless Steel Snap Davit Quick Release Plates (Pairs) Snap Davit Platform Clip Assembly (Each) Stainless Steel Snap Davit Telescopic Holding Bars (Pairs)
-
450-750
Ø 22
39199
Clips Only to Suit Snap Davits (Each)
-
54
20
39197

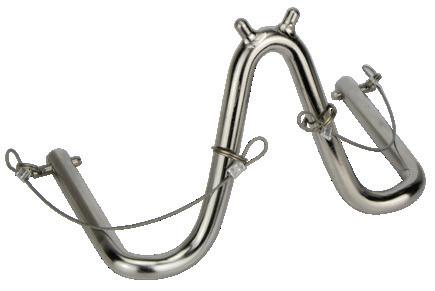

Stainless Steel W Bar Suits Snap Davit Pad with Clips (Each)
39196
CEREDI
Length (mm)
39195
39196
39197
Mounting Holes (mm)
Description
39198

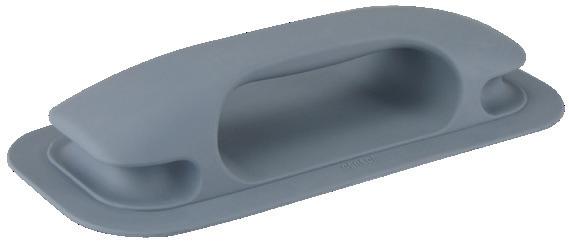

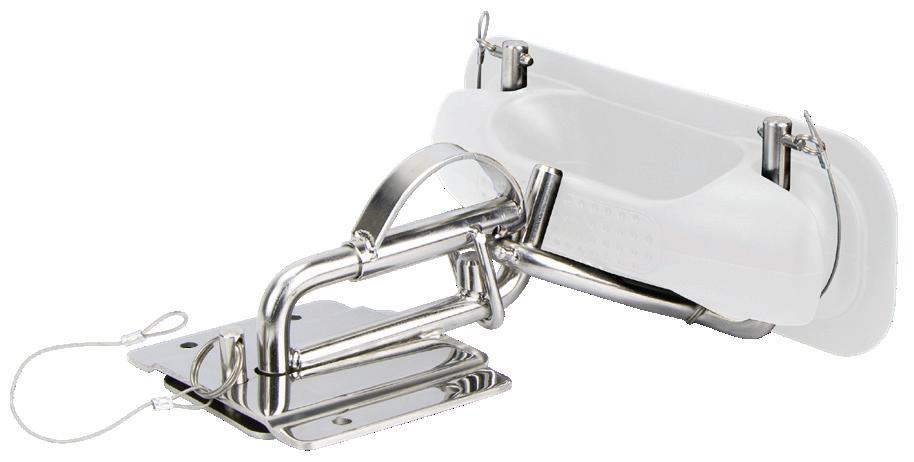

Inflatable Boat - Snap Davit Kit - Relaxn Quick Fit
L
W
L W
135
39103
Size Material L Base x W (mm)
Part No.
Description
39106

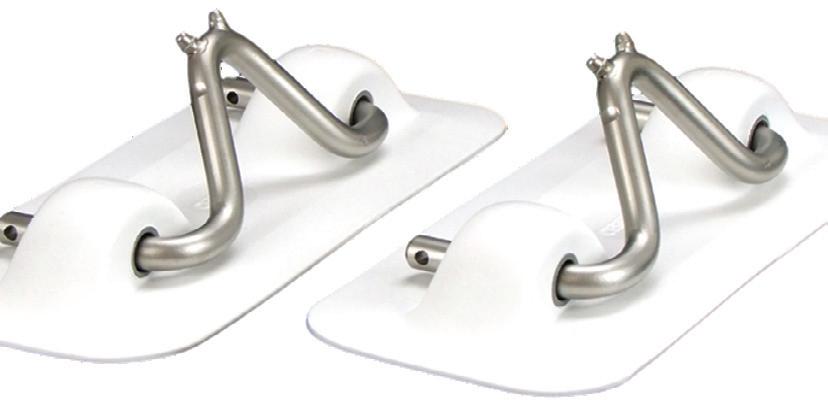

Inflatable Dinghy Snap Davit Kit Relaxn Quick Fit with White Pads
S/S
122 x 100
39105
'W'-Bar Stainless Steel with Clips suit 39106 (Each)
S/S
-
39102

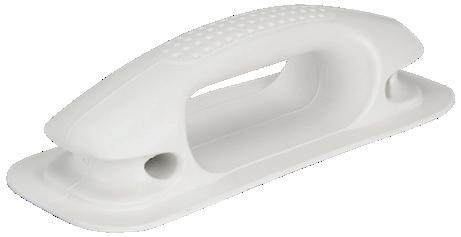

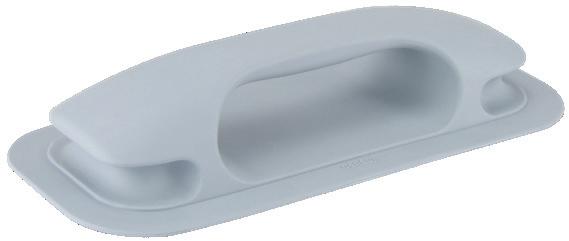

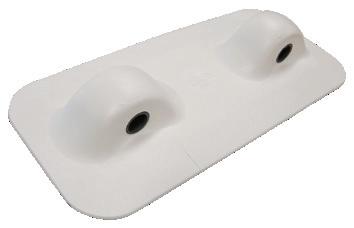

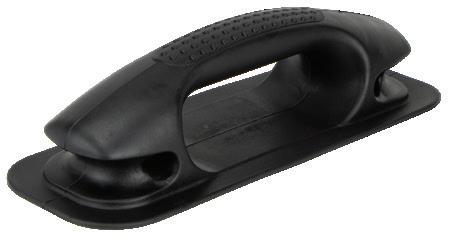

Inflatable Snap Davit Pad/Handle Black PVC
PVC
256 x 92
39103
Inflatable Snap Davit Pad/Handle White PVC
PVC
256 x 92
39107
Inflatable Snap Davit Pad/Handle Grey PVC
PVC
256 x 92
• Facilitates hinged storage of inflatable dinghy on duckboard. • Polished stainless steel components. • 'W' bar pins are 157 mm centres and suits 39102, 39103 or 39107 handles. • 39106 kit includes: 2 x Snap Davit Quick Release Plates. 2 x Snap Davit Platform Clip Assembly. 2 x 'W' Bars Assembly. 2 x 29103 White Pad/Handles. Mounting hardware.
39107
www.samallen.com.au
39102
39105
Inflatable Boat Accessories

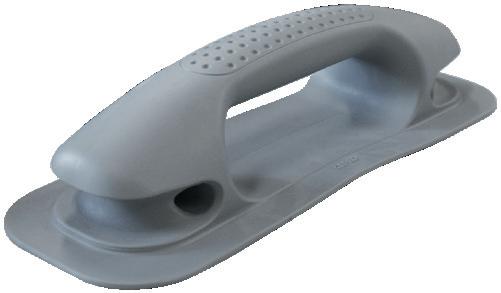

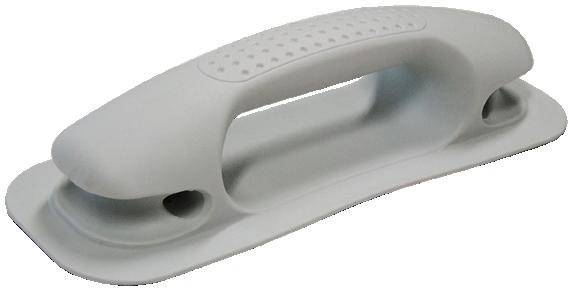

Dolly Wheels, Handles, Rope Guides, Stops & Drain Plug Inflatable Boat - Dinghy Handles - Glue On Part No.
Material
Colour

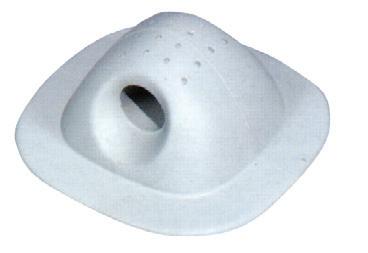

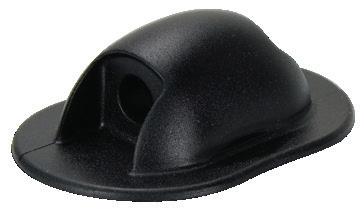

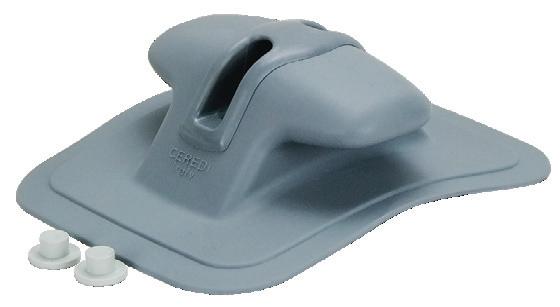

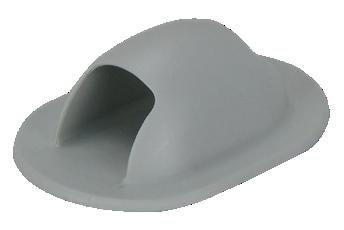

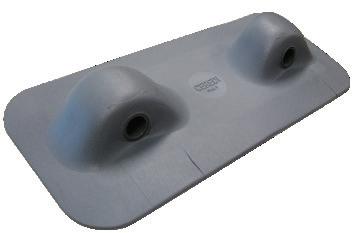

Rope Guide - Glue On
Lifeline Holes Ø
Dimensions L x W x H (mm)
39100
Evolution Rubber Light Grey 2 x 12mm
262 x 93 x 60
39104
Evolution Rubber
Grey
2 x 12mm
262 x 93 x 60
39112
Evolution Rubber
Grey
No holes
240 x 105 x 45
39120
Synthesis Rubber Light Grey No holes
230 x 95 x 45
Part No.
Material
Colour
Hole Diameter (mm)
Length (mm)
Width (mm)
Height (mm)
39124
Rubber
Grey
12
95
95
45
• Manufactured for inflatable boats. • UV resistant.
• Manufactured for inflatable boats. • High quality. • UV resistant. • Designed to retain shape.
39100
39104
Colour
Length (mm)
Width (mm)
Height (mm)
PVC
Grey
100
70
33
PVC
Black
100
70
33
Part No.
Material
39142 39143
• Manufactured for inflatable boats. • UV resistant. • Suitable for rope: 8mm - 12mm Ø. 39142
39112 39120

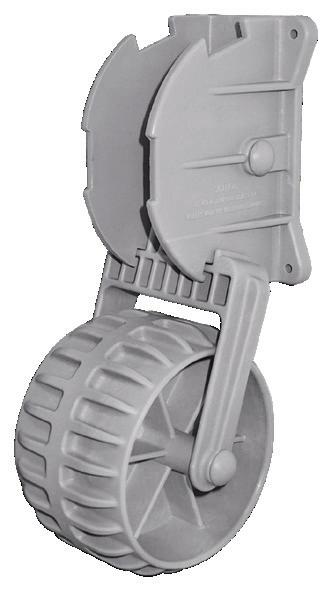

Inflatable Boat - Transom Wheel - Kit Part No.
Description
39143
Rope knot slides into back pocket at opposite end
Overall Wheel Wheel Wheel Hole Length A xBase Height Ø Width Centres B (mm) (mm) C (mm) (mm) D (mm) E x F (mm)

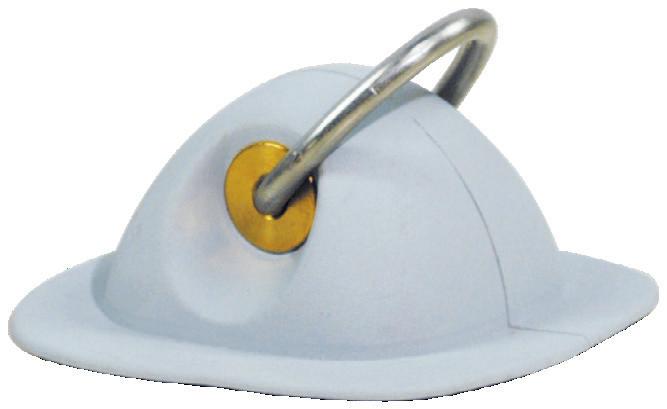

D Ring Block - Glue On Part No.
Material
Colour
D Ring WxHxØ (mm)
Length (mm)
Width (mm)
Height (mm)
Replacement Dolly Wheel (Each)
39128
Rubber
Grey
45 x 40 x 5
95
95
40
Axle Repair Kit suits 39186
• Manufactured for inflatable boats. • UV resistant. • Stainless steel D ring.
39186
Dinghy Dolly Wheel Kit (Pair) 310 100 x 150 160
39187 39188
140
85
82 x 132
• Suits small tinnies, inflatables, car toppers and tenders up to 100kg. • 3-position design: wheels flip down for transport and up when in the water. • UV-stabilised, maintenance-free, non-corrosive and lightweight. • Kit includes mounting hardware.
Inflatable Boat Accessories

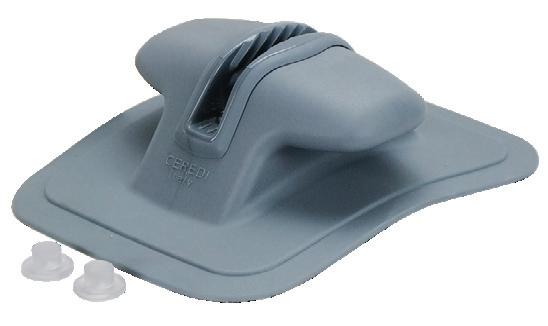

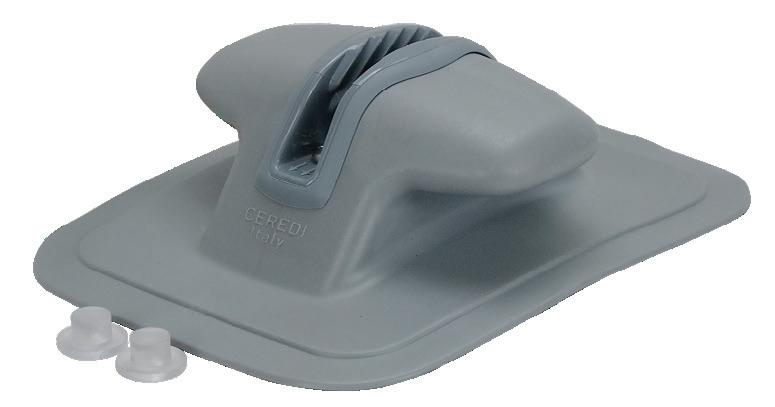

Rope Stop - Glue On
A

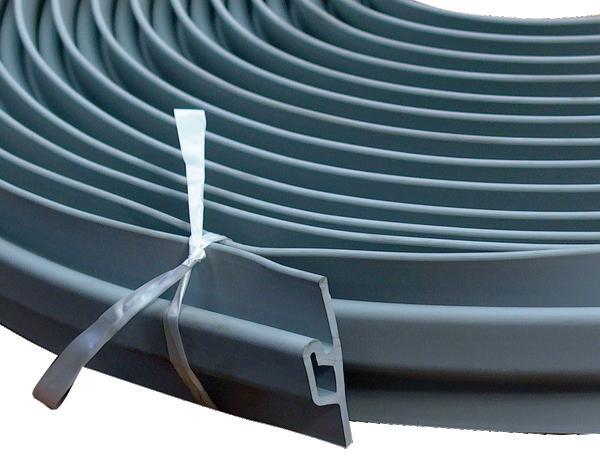

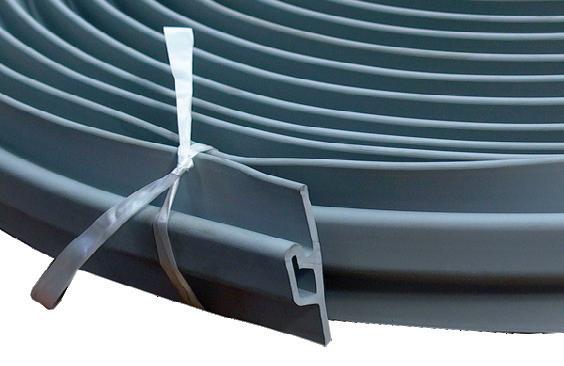

Protection Strip - Glue On
E B 39188
F
Part No.
Material
Colour
Roll Length (m)
Width (mm)
Height (mm)
39164
Rubber
Grey
24
60
16
• UV resistant. C
39186
D

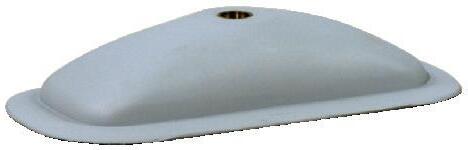

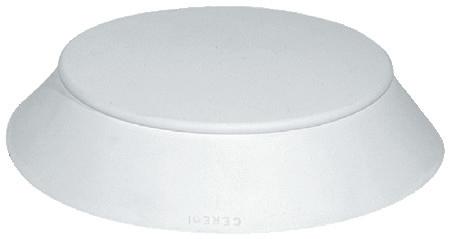

Pontoon End Cone - Glue On Part No.
Material
Colour
Diameter Top / Bottom (mm)
Height (mm)
39116
Rubber
Grey
125 / 165
40
• Manufactured for inflatable boats. • UV resistant.

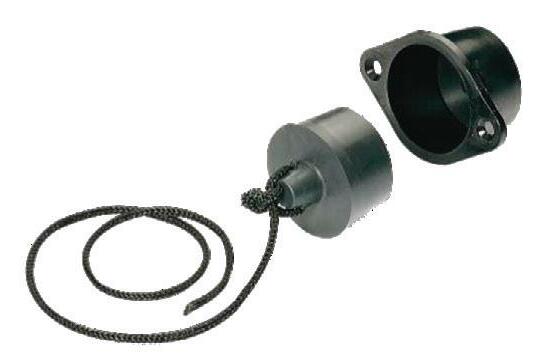

Drain Plug Assembly Part No.
Material
Colour
Length (mm)
Width (mm)
Height (mm)
Cut Out Ø (mm)
23628
Nylon
Black
41
65
45
40
• Drain plug assembly black nylon. • Supplied to suit external mounting. • Flapper valve can be reversed to facilitate internal mounting
www.samallen.com.au
136

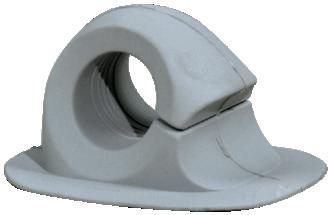

Bollard, Cleats, Steps & Rowlocks Rowlock - Glue On

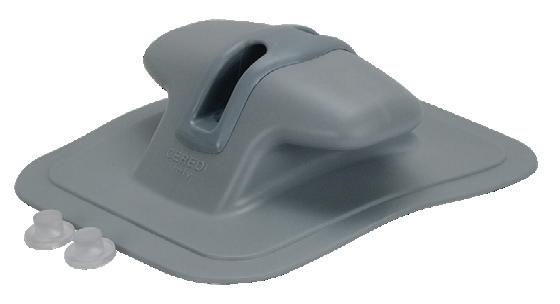

Inflatable Boat - Pulley / Bollard - Glue On Part No.
Material
Colour
Length (mm)
Width (mm)
Height (mm)
Part No.
Material
Colour
Length (mm)
Width (mm)
Height (mm)
Hole Ø (mm)
39144
Rubber
Grey
240
192
70
39132
Rubber
115
95
55
35
39145
PVC
Grey
240
192
70
Medium Grey
• Can be used as an anchor rope pulley or bollard. • Manufactured for inflatable boats. • UV resistant. • Suitable for rope: 8mm - 14mm Ø.
• Manufactured for inflatable boats. • UV resistant. • Slotted to facilitate removal of oar. • Suits telescopic paddle 39170.
Rowlock Socket - Glue On 39144 39145
Inflatable Boat Accessories

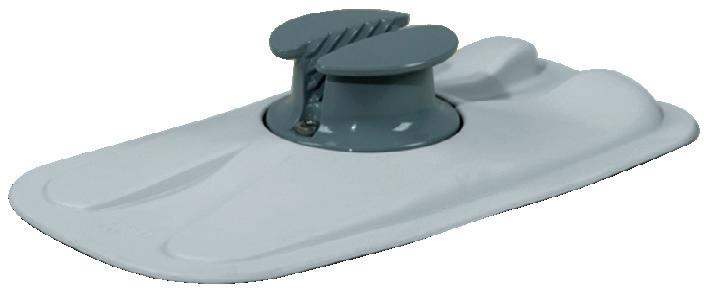

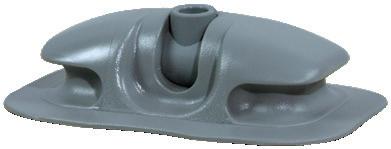

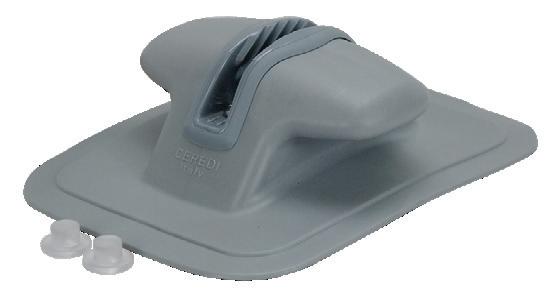

Inflatable Boat - Bollard/Cleat - Glue On Part No.
Material
Colour
Length (mm)
Width (mm)
Height (mm)
39138
Rubber
Grey
240
192
70
39140
PVC
Grey
240
192
70
Part No.
Material
Colour
Length (mm)
Width (mm)
Height (mm)
Hole Ø (mm)
39108
Rubber
Medium Grey
115
95
55
12
39136
Rubber
Grey
200
95
35
12
• Manufactured for inflatable boats. • UV resistant. • Suit rowlocks 39201 and 39202.
• Manufactured for inflatable boats. • Can be used as a V-jamb cleat or bollard. • UV resistant. • Suitable for rope: 8mm - 12mm Ø.
39136
39108

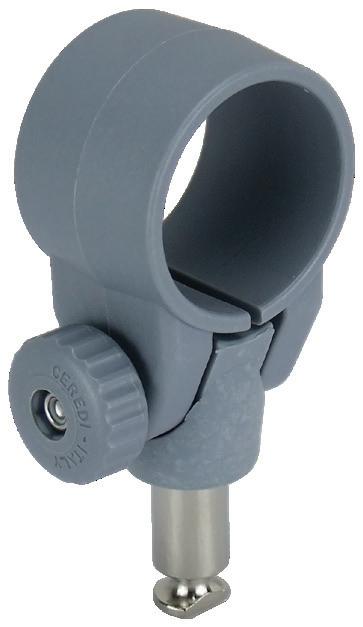

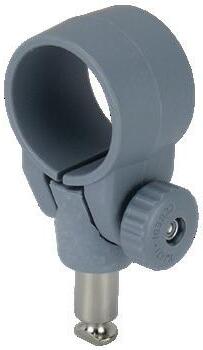

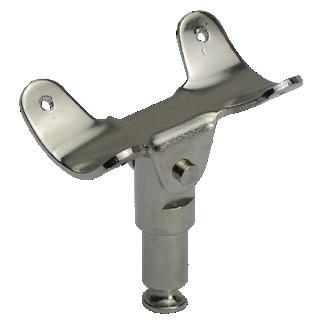

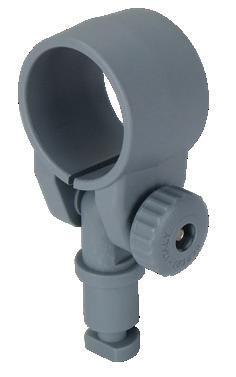

Rowlock - Adjustable with S/S Post
39138
39140
Material
Colour
Length (mm)
Width (mm)
Height (mm)
39147
Rubber
Light Grey
320
160
60
39148
PVC
Light Grey
320
160
60
Material
Colour
Hole Height Post Ø I.D. (mm) (mm) (mm)
39201
Nylon/ Stainless Steel
Grey
35
92
12
• UV resistant. • Stainless steel post. • Suits 39136 and 39108 sockets.
Inflatable Boat - Cleats - Glue On Part No.
Part No.
Rowlock - Fixed - Chrome Plated Brass
• Manufactured for inflatable boats. • Versatile bollard cleat for mooring. • UV resistant. • Suitable for rope: 8mm - 14mm Ø.
Mounting SuitsØ Holes (mm) Oar (mm)
Part No.
Material
39202
Chrome Plated Brass
4xØ3
38-40
Post Ø (mm)
12
• Manufactured in chrome plated brass material. • Suits most brands of inflatable boats. • Suits 39136 and 39108 sockets.

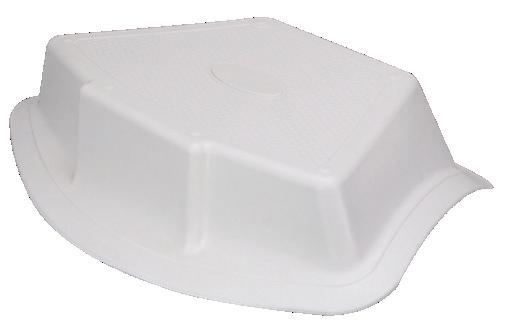

Inflatable Boat - Step - Glue On Part No.
Colour
Material
Dimensions L x W (mm)
39113
White
PVC
460 x 340

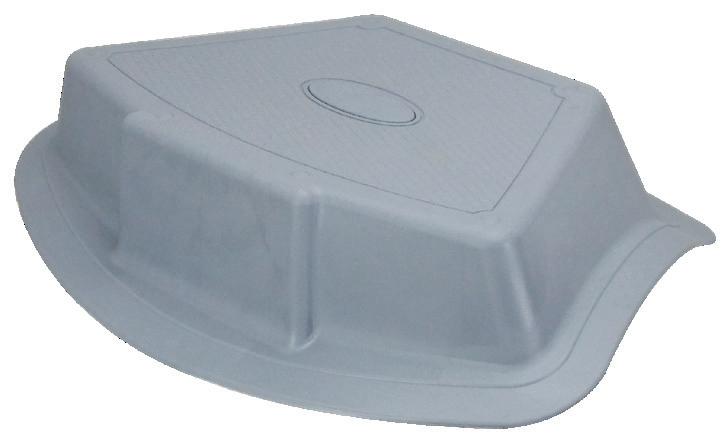

39114
Grey
PVC
460 x 340
• Bow step for inflatable boats in PVC material. • Suitable for tubes from Ø 350 to 650mm. • The rigid inner core allows Installation of lights, cleats, handles, hinges for ladders, supports and others accessories.
Rowlock - Adjustable Part No. Material Colour
Hole I.D. (mm)
Post Ø (mm)
Height (mm)
39200
35
14.2
95
Nylon
Grey
• UV resistant. • Suits inflatables with 15mm ID twist to lock rowlock plates. NOTE: Does not fit 39136 and 39108 sockets.
137
39113
39114
www.samallen.com.au
Paddles, Boat Hook, Transom Pads & Ladder Paddles Part No.
Type

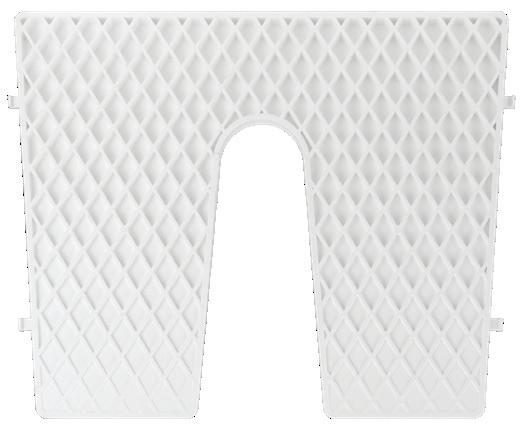

Transom Pads - Tapered
Min./Max. Shaft Dia. Blade Size Length (m) Ø (mm) (mm)
Unit
39170 Telescopic Shaft 1.15 - 1.53 35 / 30
610 x 125
Each
44114
610 x 125
Pair
Fixed Shaft
1.6
35
• Blades detach from shaft providing easy storage. • Lightweight, durable aluminium.
Part No.
Description
Colour
A (mm)
B (mm)
C (mm)
D-E Taper (mm)
941600 Transom Pad White
445
380
360
19.5 - 2.5

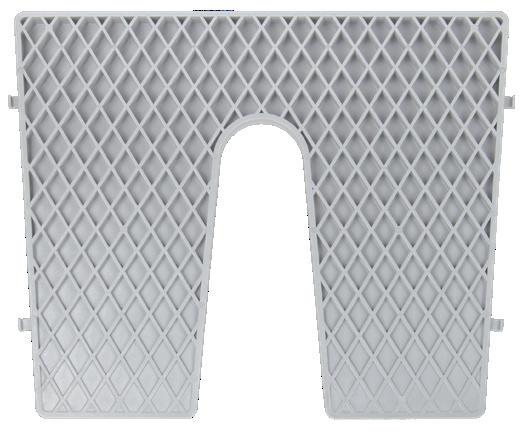

941601 Transom Pad Grey
445
380
360
19.5 - 2.5

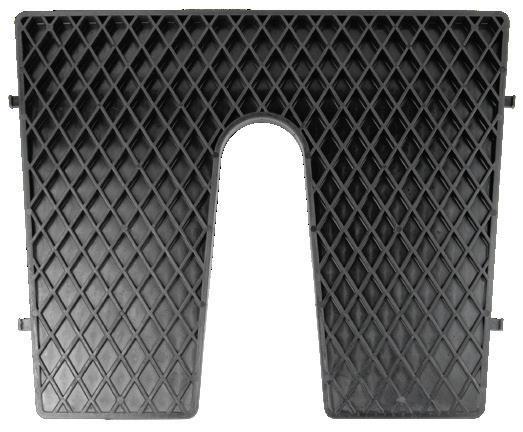

941602 Transom Pad Black
445
380
360
19.5 - 2.5
• For Inflatable boats and small powerboats. • UV and weather resistant. • Transom pad tapers from 19.5 mm thickness to 2.5 mm.
A
D
C
E
B
Inflatable Boat Accessories

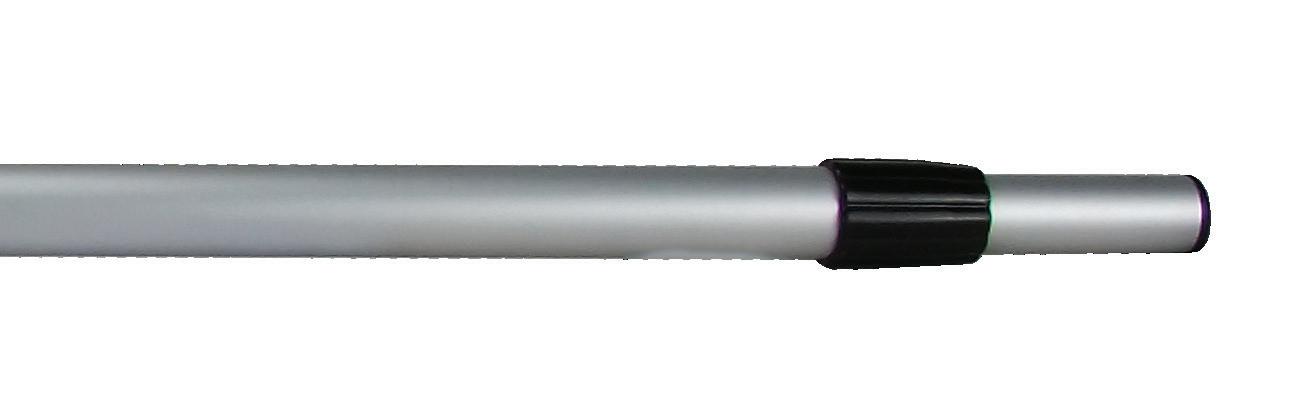

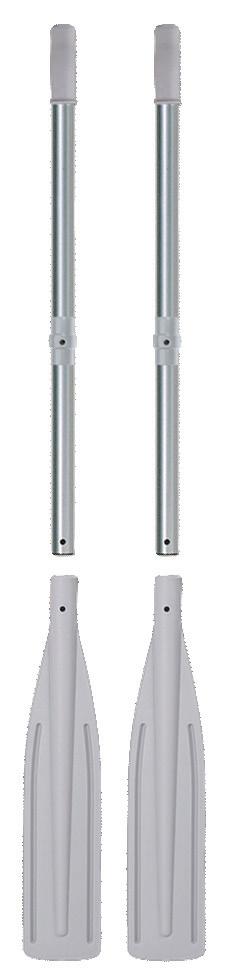

39170 - Twist to lock/unlock
39170
d
se
Clo Ex

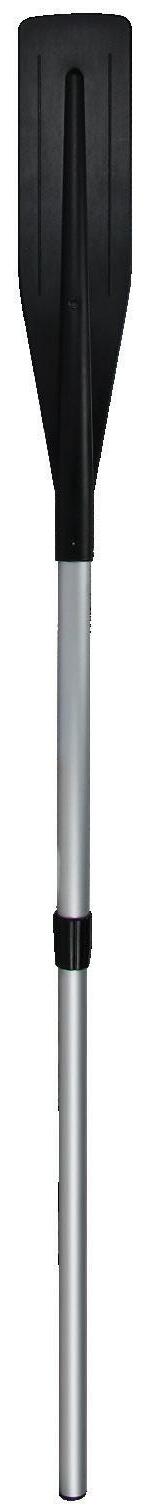

44114
d
de
ten

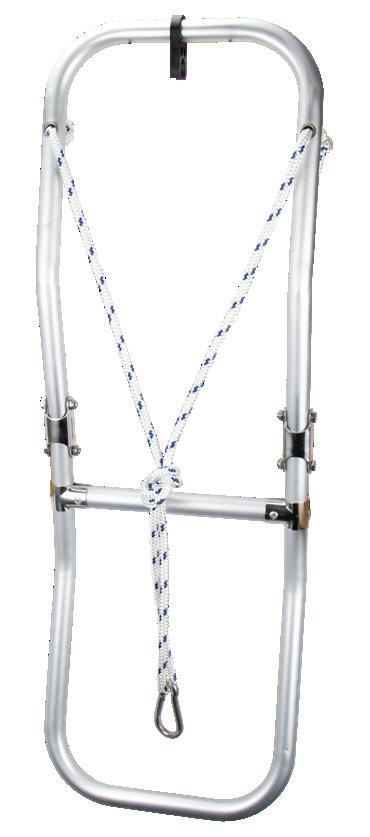

Ladder - Inflatable Boat Folding Part No.
Steps
Tube Ø (mm)
Overall Extended L x W (mm)
Overall Folded L x W (mm)
47283
2
25
890 x 352
442 x 352

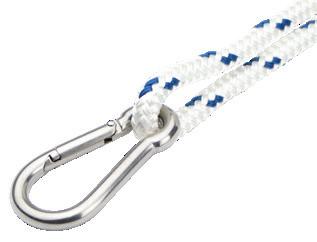

• Manufactured in anodised aluminium. • 2 step folding ladder for inflatable boats. • Fastened to the boat using rope lanyard and hook.

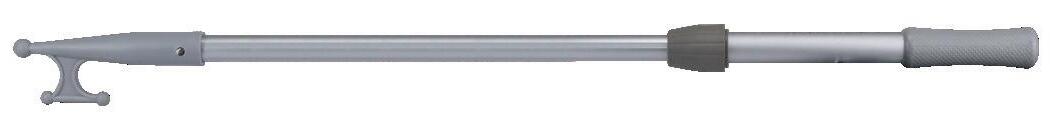

Boat Hook - Telescopic Part No.
Description
Dia. Ø (mm)
Min. Length (mm)
Max Length (mm)
50914
Telescopic Boat Hook
30 / 25
700
1000
• Anodised aluminium shaft. • Nylon head. • Rippled PVC hand grip. • Twist to lock mechanism. • Designed to fit into small spaces.
www.samallen.com.au
138
