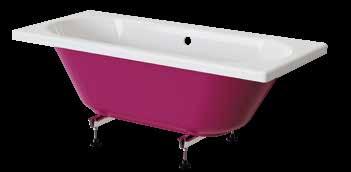

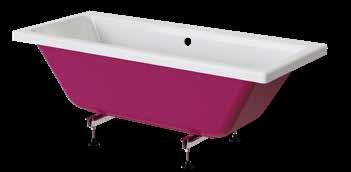

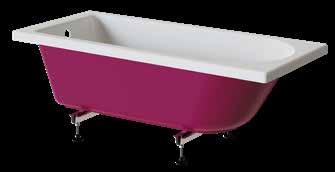

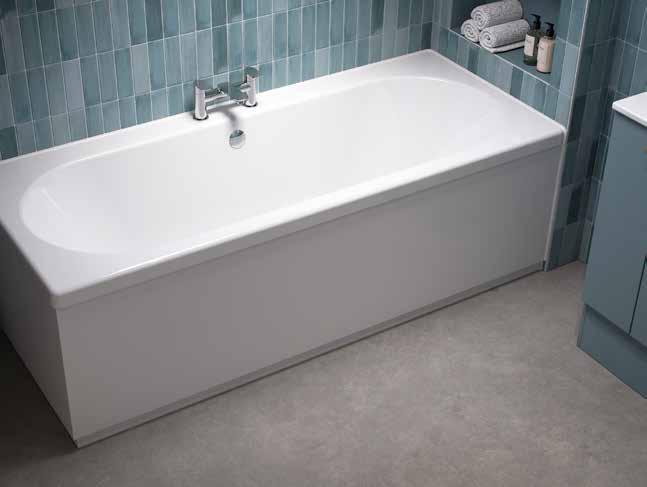

ROBUST CONSTRUCTION RELIABLE
MULTI-LAYERED REINFORCED STRENGTH WITH 5MM ACRYLIC SINGLE / DOUBLE ENDED OPTIONS
SQUARE / ROUND PROFILE OPTIONS
DELIVERS SUPERIOR STRENGTH, ENHANCED INSULATION & LONGLASTING DURABILITY.
FREE TO ATTEND
DISCOVER THE TRADE BREAKFAST ROADSHOW
Our Trade Breakfast Roadshow is heading to a merchant near you! Bringing Golf, Football & Darts Challenges, the latest product innovations and a free breakfast to kick start your day. Drop in, get involved and don’t miss your shot to win
FIND THE NEXT ROADSHOW NEAR YOU
DESIGNED WITH THE TRADE IN MIND
Designed & engineered for professional installation. From Brassware and Sanitaryware to Bathroom Furniture and Concealed Cisterns, built for ease of fitting, long-term reliability and consistent performance, backed by guarantees you can depend on.

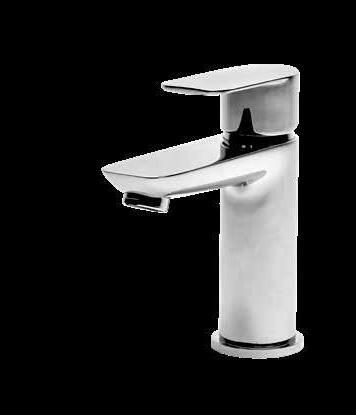

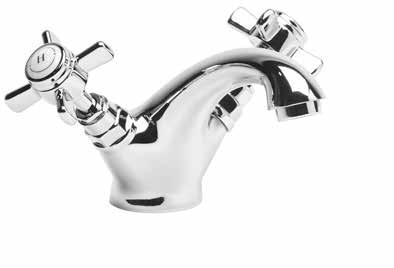

TAP & SHOWER SHOWERS
Our taps and shower valves are built to meet relevant UK performance standards, helping you install with confidence and giving your customers dependable performance over time.
TESTED FOR ENDURANCE
Our handles and valves are cycle tested up to 100,000 operations for long-term durability under repeated daily use.
SAFER SHOWER CONTROL
Our shower valves are tested for temperature stability when inlet pressures change. This helps reduce the risk of sudden temperature spikes and supports compliance with BS EN 1111 & BS EN 1287 to prevent scalding.
WRAS APPROVED
We hold WRAS approvals across several tap ranges and use WRAS-approved components

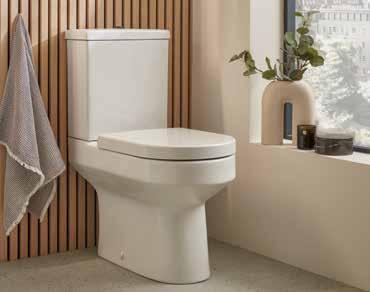

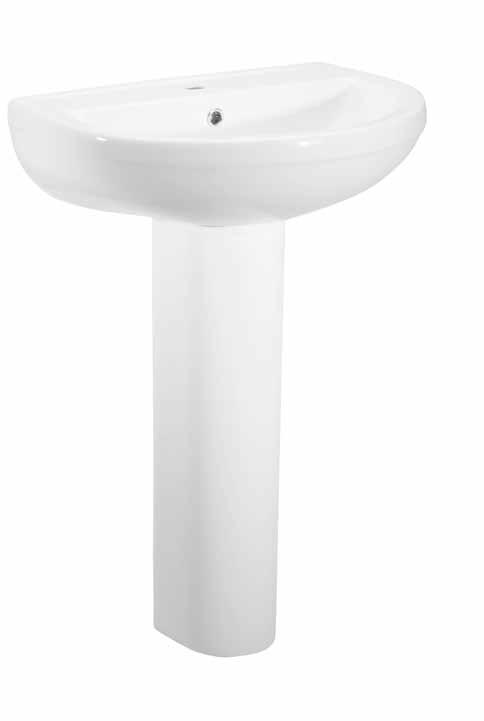

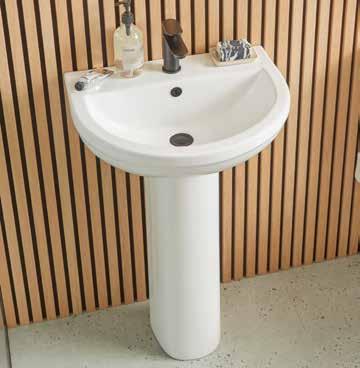

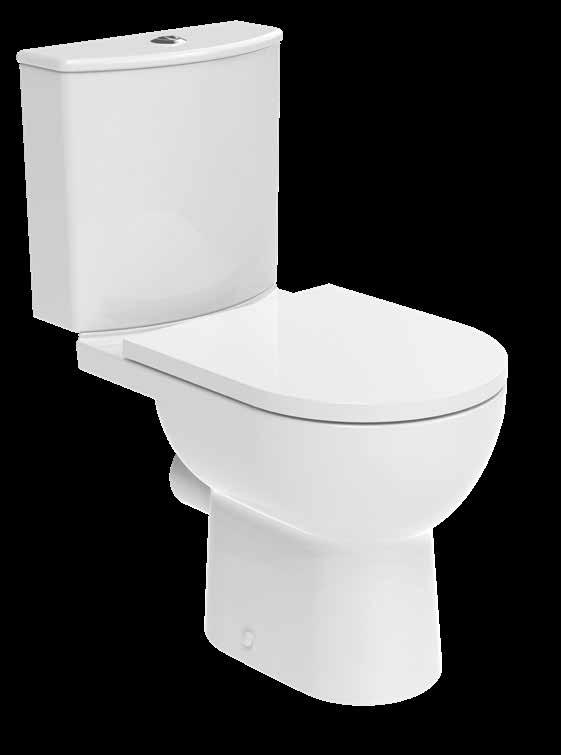

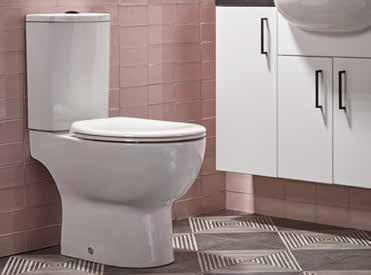

SANITARYWARE
Our sanitaryware collection is tested with fit & forget in mind.

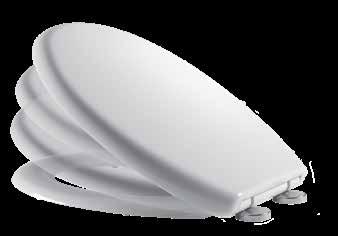

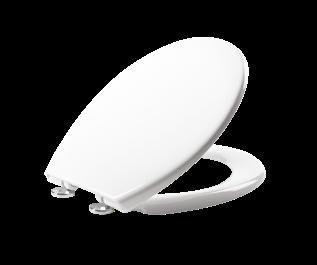

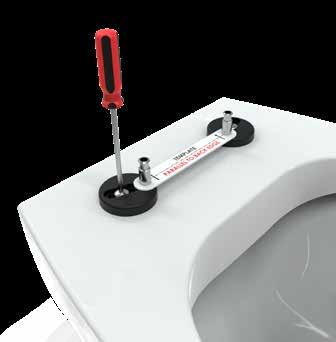

SEAT DURABILITY
Our toilet seats are tested through 10,000 forced opening and closing cycles, while soft-close seats are tested through 30,000 cycles to help prove long-term hinge durability and smooth, controlled performance.
CISTERNS BUILT TO LAST
200,000 CYCLE ENDURANCE TESTED
Tested in accordance with British & European standards meaning our cisterns have passed a 200,000 cycle endurance test.
MAXIMUM PERFORMANCE
200,000 CYCLE ENDURANCE TESTED
Water saving cisterns featuring an adjustable dual flush (6/3litres) providing the option of flushing more efficiently. Tested in accordance with British & European standards meaning the cisterns have passed a 200,000 cycle endurance test and are subject to a performance test prior to packaging to give you total confidence in our product.

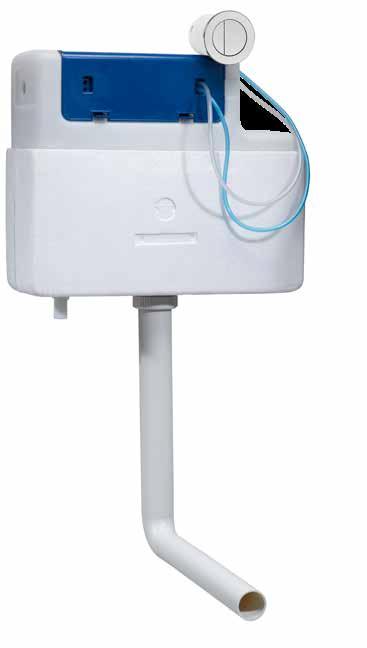

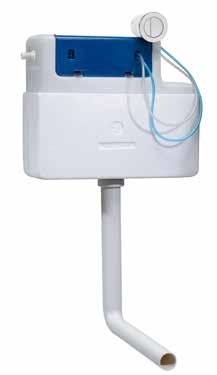

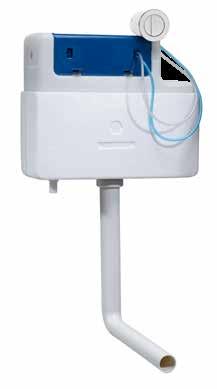

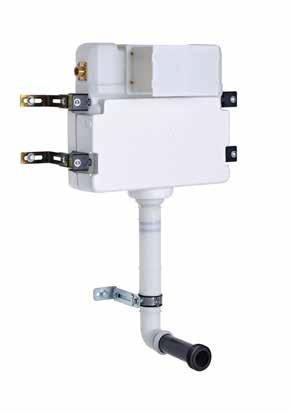

TORRENT CONCEALED CISTERN - BOTTOM INLET TR9001
FLUSH BUTTON
dual flush chrome button supplied with cistern
BOTTOM INLET entry valve
200,000 CYCLE endurance tested
OVER 850,000 INSTALLED IN UK HOMES
AIR GAP TECHNOLOGY
AIR GAP technology
PNEUMATIC flush operation
POLYSTYRENE insulation jacket
135mm DEEP designed to work with low height and slim depth furniture units
Air gap arrangement for back flow prevention. Type AG Air Gap inside cisterns. AUK1 arrangement possible on all cisterns. Meets latest water regulation enforcements. WRAS approved inlet valve. Built-in silencer to reduce water fill noise levels.
• 6/3 litres
• Air Gap technology
• Bottom entry inlet valve
• Top or front flush plate mounting
• ½” BSP connection
• Polystyrene insulation jacket
• Pneumatic flush valve
• with chrome flush button
434(W) X 365(H) X 135 (D)mm

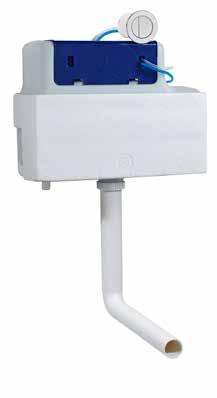

CONCEALED
• 6/3 litres
• Air Gap technology
• Side entry inlet valve
• 1/2” BSP connection
• Polystyrene insulation jacket
• Pneumatic flush valve
• Supplied with chrome flush button
464(W) X 365(H) X 135(D)mm
to allow
FOR TILED IN APPLICATIONS
All parts serviceable through flush plate aperture. 150mm height adjustment
• 6/3 litres
• Air Gap technology
• Bottom entry inlet valve
• Developed specifically to allow comfort height back to wall pans to be used in 820mm high furniture
• Top or front flush plate mounting
• ½” BSP connection
• Polystyrene insulation jacket
• Pneumatic flush valve
• with chrome flush button
437(W) X 324(H) X 165(D)mm
• 6/3 litres
• Air Gap technology
• Ideal for tiled in applications
• ½” BSP connection
• Polystyrene insulation jacket
• Pneumatic flush valve
• All parts serviceable through flush plate aperture
• Internal isolation valve, 150mm height adjustment
• Top or front flush plate mounting
• Requires flush plate/button, or contactless sensor (available separately) 600(W) X 595-745max(H) X 138-194(D)mm
FLUSHING UPGRADES
Alternative flush buttons, plates and sensors are available to pair with our cisterns, see page 16.
200,000 CYCLE ENDURANCE TESTED
WATER SAVING
Our concealed cisterns and wall hung WC frames feature an adjustable dual flush (6/3 litres) providing the option of using less water and flushing more efficiently
ENDURANCE TESTING
All cisterns are tested in accordance with British & European standards meaning they have passed a 200,000 cycle endurance test
STRENGTH & STABILITY
All wall hung WC frames are designed and tested to 400KG
100% QUALITY ASSURANCE
All cisterns are subject to performance testing prior to packing to give you peace of mind
SPACE SAVING
Our wall hung WC frames are slim depth allowing you to maximise space within the bathroom
GUARANTEES For concealed cisterns For WC frame components
PERFORMANCE & RELIABILITY
Ideal for a seamless wall hung installation. Our WC frames come complete with a 6/3 litre dual flush cistern with anti-condensation jacket for insulation, and are tested in accordance with British & European standards meaning they have passed a 200,000 cycle endurance test. All our frames are WRAS approved and come with a 10 year guarantee on the frames and 5 years for the concealed cistern components.

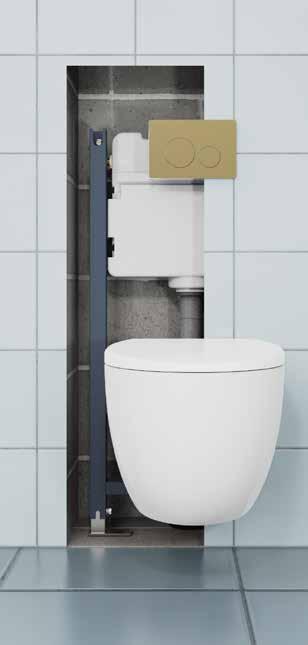

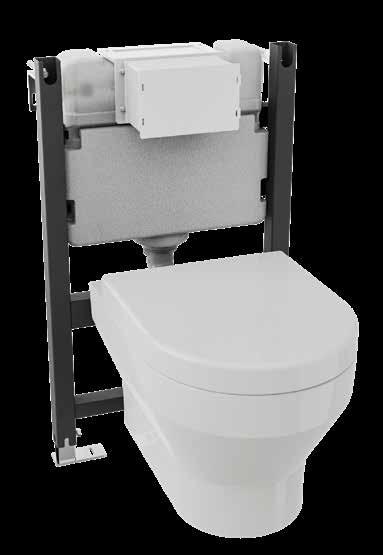

WALL HUNG WC FRAME SOLUTIONS
WORKING PRESSURES
0.2-10.0bar working pressure
½” BSP brass connections
ADJUSTABLE DEPTH
EASY ACCESS
internal brass isolation valve to facilitate easy maintenance
INSULATION
polystyrene insulation jackets to minimise condensation and noise levels
TESTED
one piece blow moulded HDPE cistern tanks 100% leak tested at factory
COMPATIBILITY
180mm or 230mm fixing centres to suit all WCs designed to BS EN 33
FIXINGS SUPPLIED
all fixing hardware supplied, including Fischer fixings
SPACE SAVING slim depth to maximise room space
CHOICE
choice of flush plates or remote sensor available see pages 14-15
ADJUSTABLE
adjustable flush plate mounting to cover a variety of finished wall thickness
ADJUSTABLE

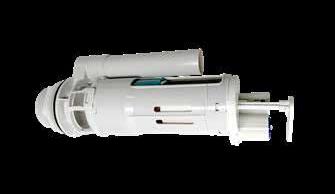

adjustable pneumatic dual flush valves, factory set at 6 & 3L
STRENGTH
strong metal frames designed to support up to 400KG
PROTECTION
all first fix protectors supplied to protect during application of wall finishes
ADJUSTABLE LEGS
COMPATIBILITY
waste pipe elbow and adaptor supplied, compatible with 90mm and 110mm waste
DON’T FORGET
Flush plates and sensors are available to pair with the WC frames, see page 15.

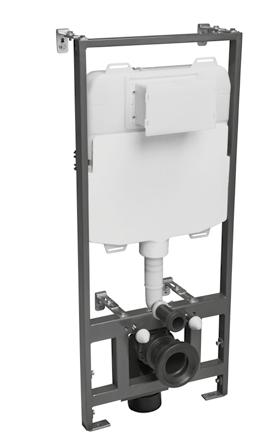

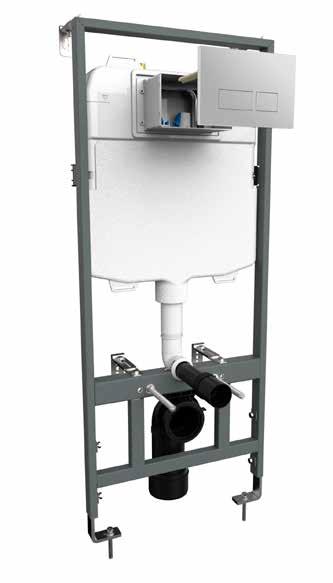

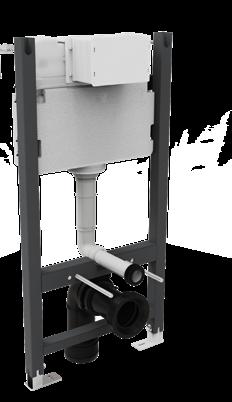

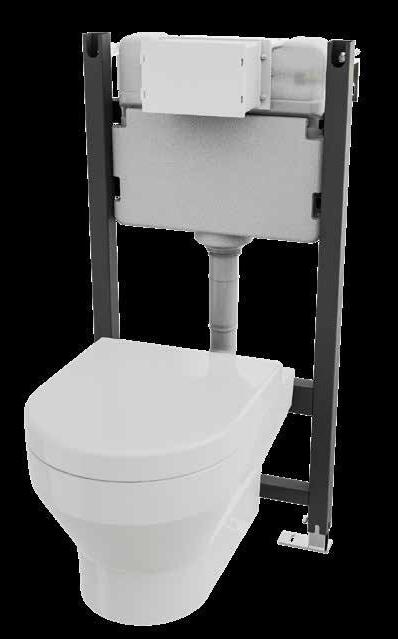

TORRENT 1.17M WALL HUNG WC FRAME TR9006
Use for in-wall applications
• 6/3 litres
• Includes fittings
• Requires flush plate/button, or contactless sensor (available separately)
• 200mm height adjustment
500(W) X 1168(H) X 140-200(D)mm
ENDURANCE TESTED
TORRENT 1.0M WALL HUNG WC FRAME TR9015
Ideal for boxed in applications, especially under windows
• 6/3 litres
• Requires flush plate/button, or contactless sensor (available separately)
• 70mm height adjustment
500(W) X 1000-1100(H) X 167-215(D)mm
WALL HUNG FRAME SOLUTIONS
SCAN NOW FOR MORE TECHNICAL INFORMATION
For WC frame components
For WC frame components
For concealed cisterns

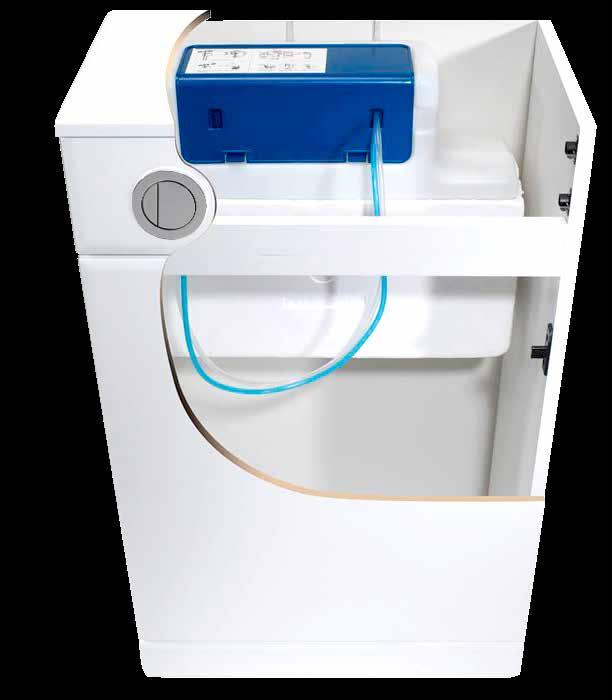

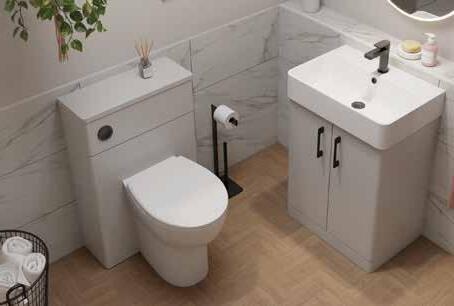

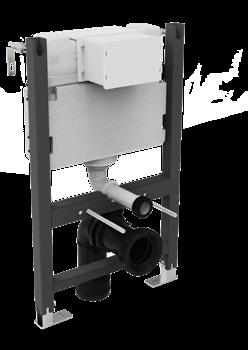

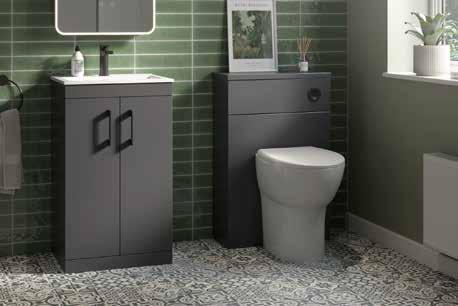

Can be used with 600mm & wider furniture WC units
• 6/3 litre
• Optional Furniture Adaptor Kit
• Requires flush plate/button, or contactless sensor (available separately)
• 70mm height adjustment.
500(W) X 812(H) X 170-215(d)mm

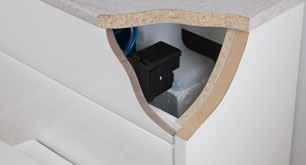

For use with the 0.82M wall hung WC frame TR9005 when used in furniture to prevent play from furniture main fascias.
SCAN NOW FOR MORE TECHNICAL INFORMATION
Compact half height WC frame suitable for use in narrow back to wall units including 500mm wide
• For use with bottom entry, side entry or comfort height cisterns
• Can also be used for bidets
• 200mm height adjustment
• Use with the comfort height cistern to allow wall hung pans to be set at a higher position
400(W) X 400-600(H) X 200-335(D)mm
FLUSH PLATES
Flush plates and sensors are available to pair with the WC frames, see page 15.
• 1.0M WC Frame Ideal for boxed in applications, especially under windows
• 0.82M WC Frame Can be used with 600mm & wider furniture WC units
• 70mm height adjustment for both WC frames.
• Flush plate not included, see page 15
FLUSHING SOLUTIONS
Pair with a wall hung frame or upgrade your cistern flush to a dual flush plate
FLUSHING SOLUTIONS

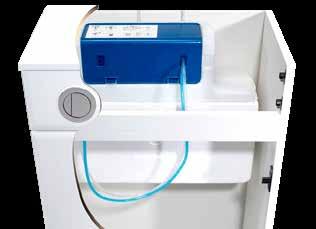

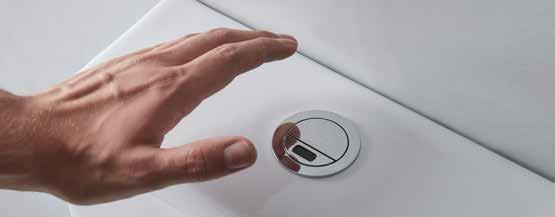

A small and discreet contactless flush upgrade option for concealed cisterns.
Simply wave your hand in front of the sensor to activate the flush, or hold your hand in place to activate the long flush.
• Provides a touchless flush, with just the wave of a hand.
• Powered by 4x AA batteries (easy to change, no tools required).
• Low battery power alarm.
• Battery life in excess of 1 year (normal domestic conditions, good quality batteries).
• Hold hand for two beeps for long flush.
• Works through surfaces up to 25mm thick including ceramic tiles, fascias & worktops.
• Includes Black, Brushed Brass, Chrome, Gunmetal "buttons" to indicate sensor location.
Please Note: Brushed Nickel & Brushed Bronze are sold separately.
CONCEALED CISTERNS
Take

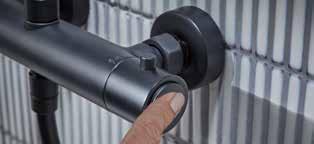

COOL TOUCH TECHNOLOGY
ENSURES THE BAR VALVE IS NOT HOT TO TOUCH

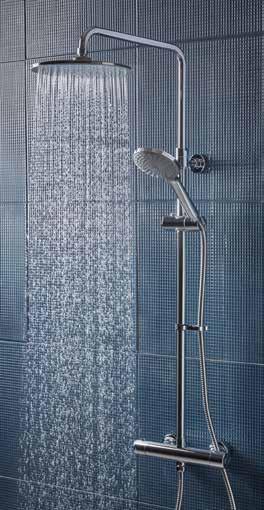

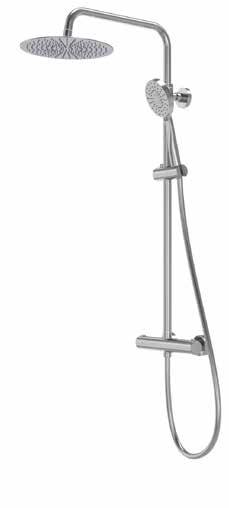

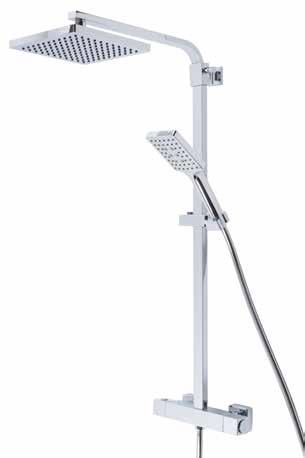

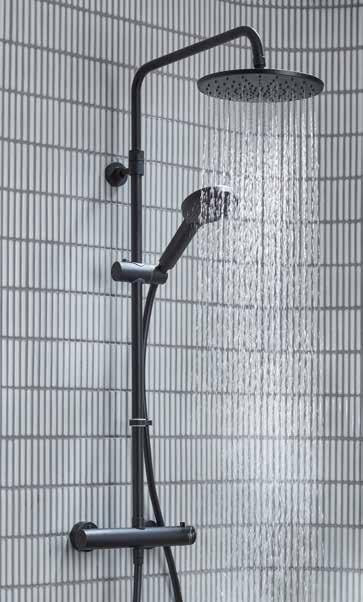

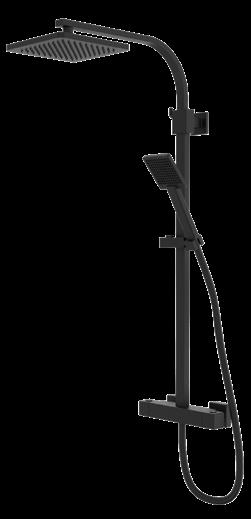

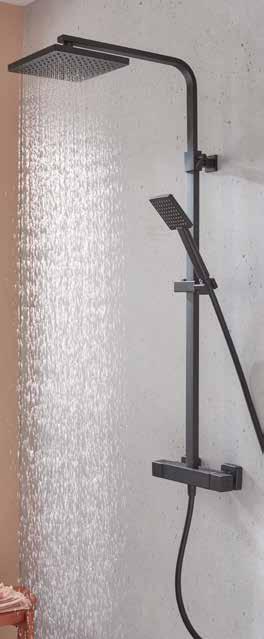

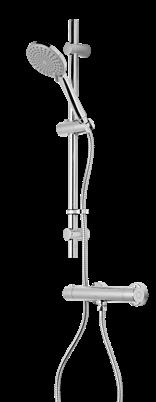

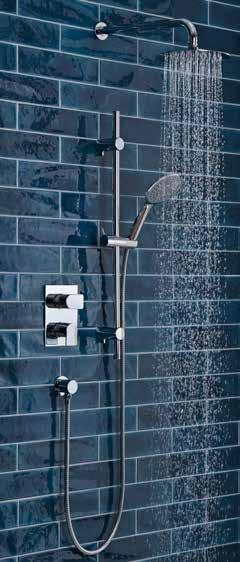

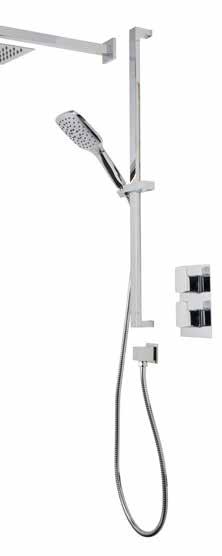

STYLE & ENGINEERING
Our selection of modern bar valve shower systems have simple single function or dual function configurations, which control 2 water outlets that complement the flow of water with precision and power. Easy to install, these systems bring performance and style together.
TEMPERATURE CONTROL precision control allows you to set your desired temperature
TURN HANDLE for flow control
PUSH BUTTON simple on/off control

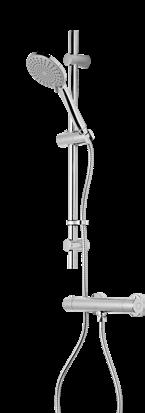

SIMPLE MODERN TECHNOLOGY
Our choice of push button showers provide the easiest showering experience yet with set and forget temperature and flow control. This also makes showering even easier for those with limited mobility.
• Cool Touch technology ensuring the valve is not hot to the touch during use.
• Temperature and flow volume control including on/off button

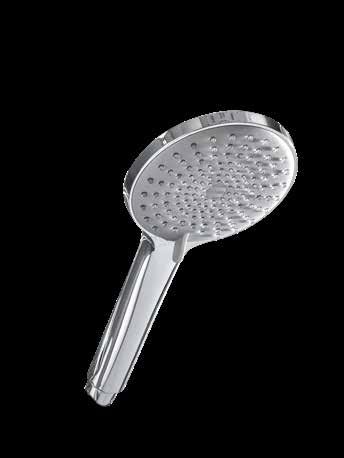

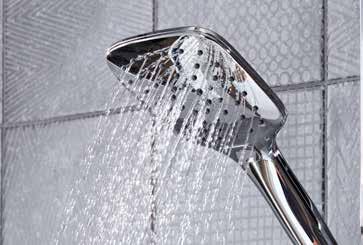

• 110mm 3 function push button control shower handset
• Anti-Scald thermostatic control for safe showering

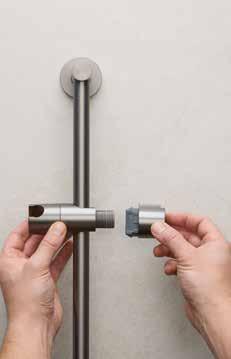

• Adjustable riser rail brackets to suit existing wall fixings
• Includes bar valve compression quick fixing kit
• Min pressure 0.2bar

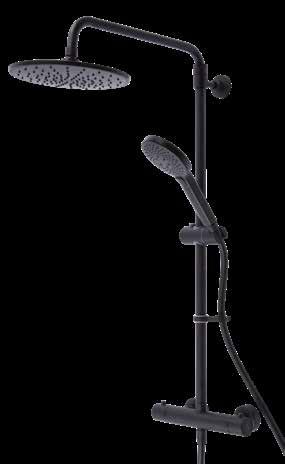

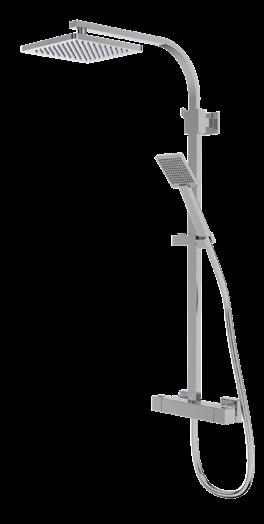

• Cool Touch technology ensuring the valve is not hot to the touch during use.
• Temperature and flow volume control including on/off button
• 225mm overhead shower
• 110mm 3 function push button control shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Min pressure 0.5bar

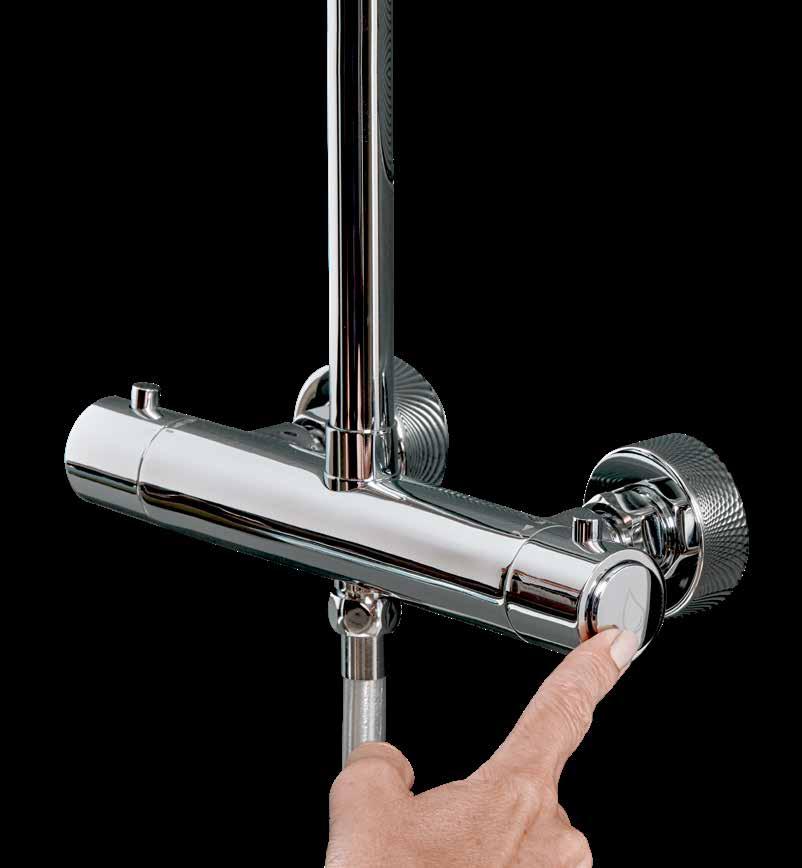

Easy to use on/off push button, turn handle for flow control

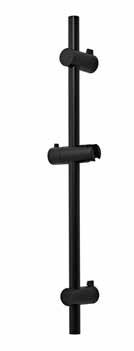

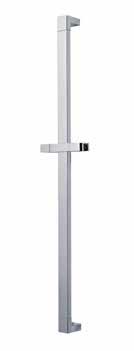

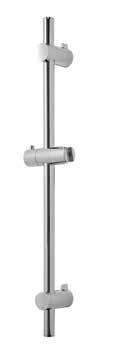

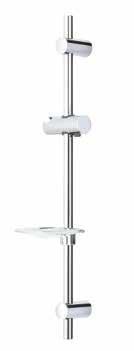

Height adjustable riser rail
Shower
PUSH BUTTON BAR SHOWERS
EASY TO INSTALL
Complete with a bar valve compression quick fixing kit for easy installation

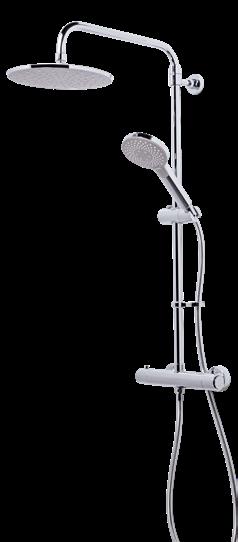

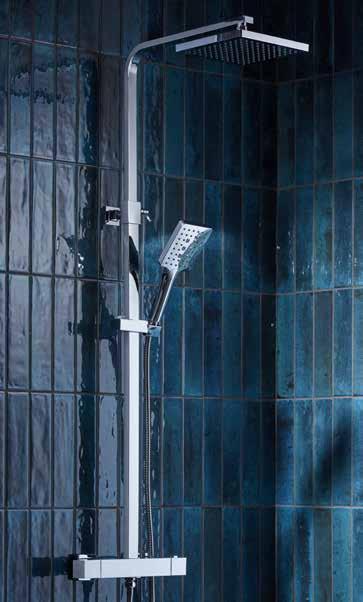

JOY PUSH BUTTON DUAL FUNCTION BAR SHOWER SYSTEM TR3038
SCAN NOW FOR MORE TECHNICAL INFORMATION
• Cool Touch technology ensuring the valve is not hot to the touch during use.
• Temperature and flow volume control including on/off button
• 225mm overhead shower
• 110mm 3 function push button control shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Min pressure 0.5bar
COORDINATING TAPS
For coordinating taps to match the shower system please see page 40.

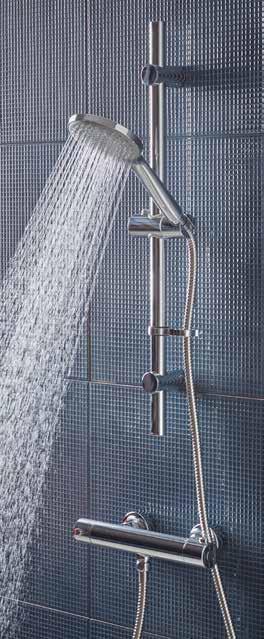

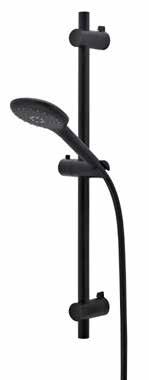

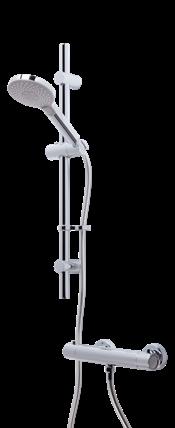

BAR SHOWERS
•

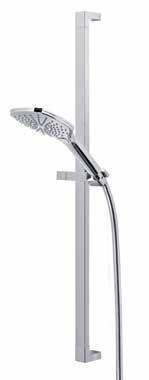

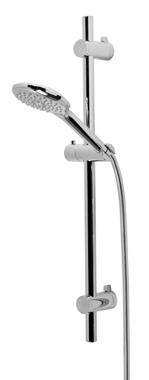

• Height adjustable riser rail
• Includes bar valve
•
ECO BAR SHOWERS
• Includes water saving regulator
• Cool Touch technology ensuring the valve is not hot to the touch during use
• 115mm 3 function shower handset
• Anti-Scald thermostatic control for safe showering
• Adjustable riser rail brackets to suit existing wall fixings
• Includes bar valve compression quick fixing kit
• Reduce water flow without compromising shower experience
• Min pressure 0.2bar
• Includes water saving regulator
• Cool Touch technology ensuring the valve is not hot to the touch during use
• 225mm overhead shower
• 115mm 3 function shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Reduce water flow without compromising shower experience
• Min pressure 0.5bar
COORDINATING TAPS
For coordinating taps to match the shower system please see page 40.
•
•
•
•

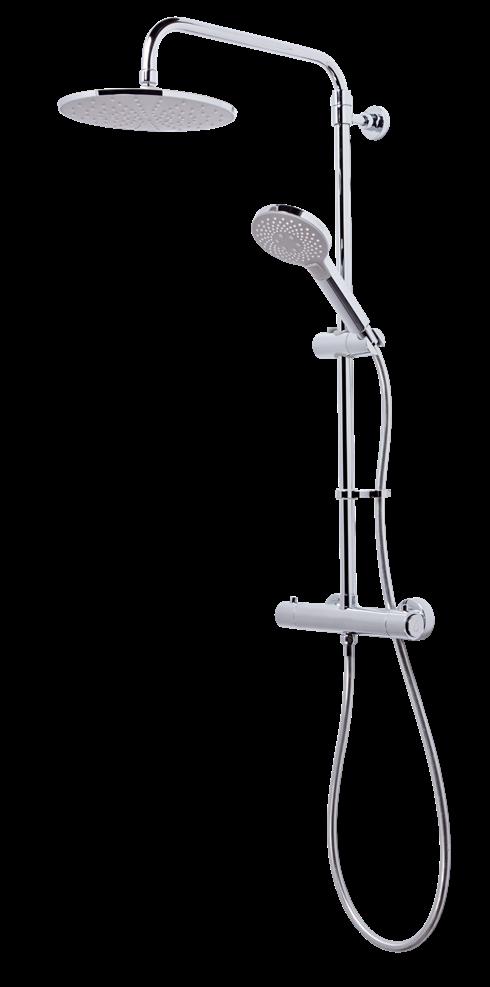

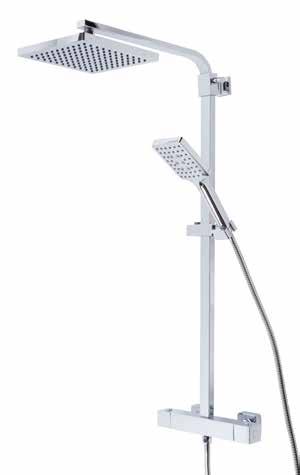

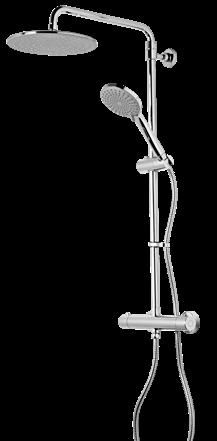

• Cool Touch technology ensuring the valve is not hot to the touch during use.
• 200mm overhead shower
• 85mm x 120mm 3 function shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Min pressure 0.5bar
For coordinating taps to match the shower system please see pages 38-41.
• Cool Touch technology ensuring the valve is not hot to the touch during use
• 250mm overhead shower
•
•
•
•
•
• Multi function shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Min pressure 1.0bar

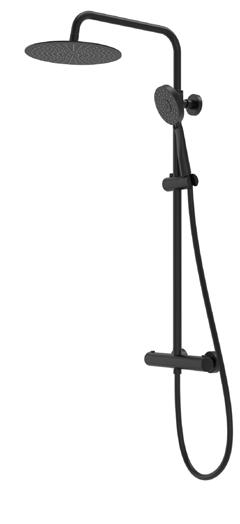

• Cool Touch technology ensuring the valve is not hot to the touch during use
• 200mm overhead shower
• 65mm x 85mm Single function shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Min pressure 1.0bar
• Cool Touch technology ensuring the valve is not hot to the touch during use
• 200mm overhead shower
• 80mm x 95mm Air-drive single function shower handset
• Anti-Scald thermostatic control for safe showering
• Height adjustable riser rail
• Includes bar valve compression quick fixing kit
• Min pressure 1.0bar

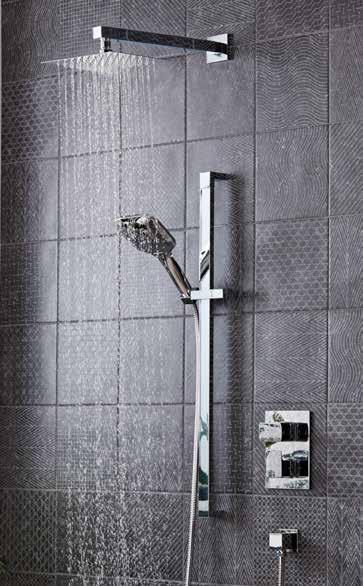

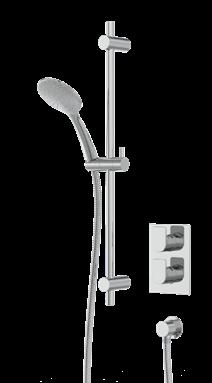

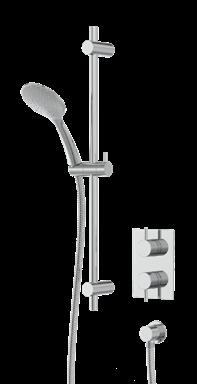

CONCEALED DUAL FUNCTION SHOWER SYSTEMS
JOY CONCEALED DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET TR3011
CREW CONCEALED DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET TR3006
SCAN NOW FOR MORE TECHNICAL INFORMATION
• Separate flow & temperature controls
• 200mm stainless steel overhead shower
• 125mm 3 function push button control shower handset
• Anti-Scald thermostatic control for safe showering
• Quick fix riser rail, allowing easy removal for cleaning
• Includes easy fix brass shower arm and elbow
• Min pressure 1.0bar
SCAN NOW FOR MORE TECHNICAL INFORMATION
• Separate flow & temperature controls
• 200mm stainless steel overhead shower
• 125mm 3 function push button control shower handset
• Anti-Scald thermostatic control for safe showering
• Quick fix riser rail, allowing easy removal for cleaning
• Includes easy fix brass shower arm and elbow
• Min pressure 1.0bar
• Separate flow & temperature controls
• 200mm stainless steel overhead shower
• 120mm x 120mm 3 function push button control shower handset
• Anti-Scald thermostatic control for safe showering
• 826mm long riser rail
• Includes easy fix brass shower arm and elbow
• Min pressure 1.0bar
COORDINATING TAPS
For coordinating taps to match the shower system please see pages 38-41.

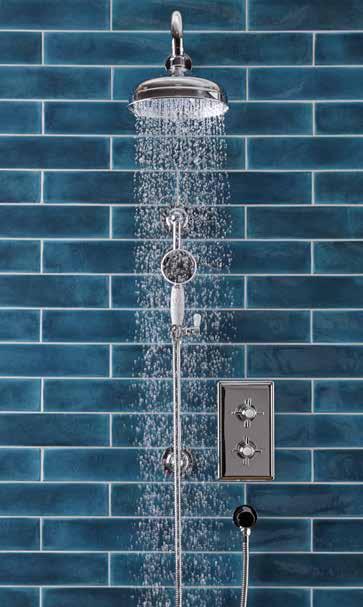

TRADITIONAL CONCEALED SHOWER

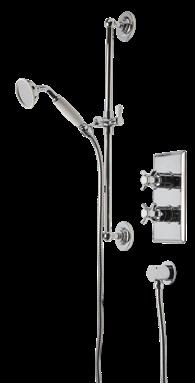

REGATTA CONCEALED DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET TR3013
SCAN NOW FOR MORE TECHNICAL INFORMATION
• Separate flow & temperature controls
• 200mm overhead shower
• 70mm single function shower handset
• Anti-Scald thermostatic control for safe showering
• 710mm long riser rail
• Includes easy fix brass shower arm and elbow
• Min pressure 1.0bar
TRADITIONAL EXPOSED SHOWER

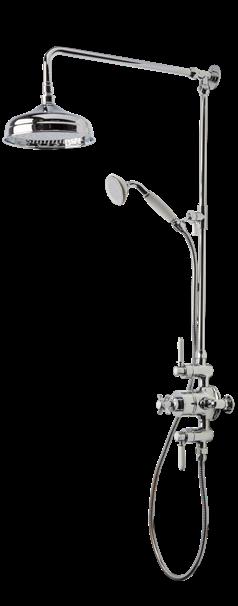

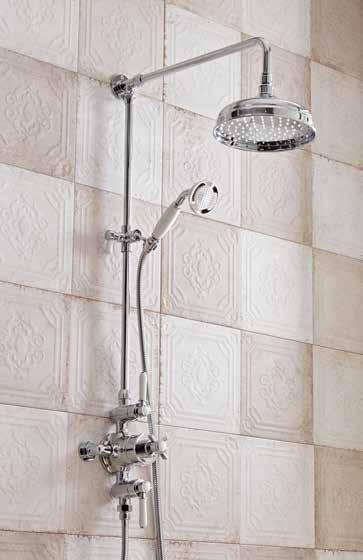

REGATTA EXPOSED DUAL FUNCTION SHOWER SYSTEM WITH SHOWER HEAD & HANDSET TR3015
SCAN NOW FOR MORE TECHNICAL INFORMATION
• Separate flow & temperature controls
• 200mm overhead shower
• 70mm single function shower handset
• Anti-Scald thermostatic control for safe showering
• Riser rail and shower arm can be cut to length to suit installation
• Includes 15mm compression fixing kit
• Min pressure 1.0bar
For coordinating taps to match the shower system please see page 42.

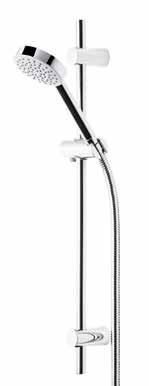

SHOWER ACCESSORIES
ROUND FIVE FUNCTION HANDSET
SVHEAD23
ROUND MICROPHONE HANDSET WITH ELBOW OUTLET & HOSE
MATT
SVACS41

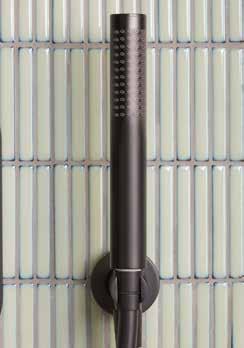

ROUND SINGLE FUNCTION HANDSET
ROUND MICROPHONE HANDSET WITH ELBOW OUTLET & HOSE
CHROME SVACS19
AIR-DRIVE SQUARE SINGLE FUNCTION HANDSET SVHEAD28
SVHEAD24 ROUND
CHROME
SVACS03
& SHOWER HANDSET HOLDER SVACS11

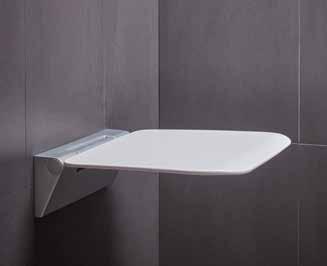

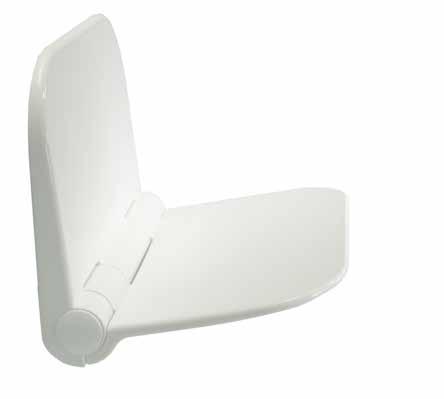

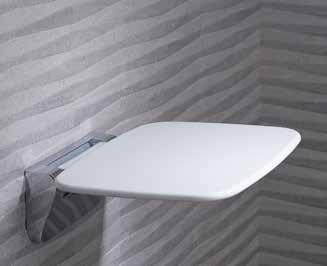

SHOWER SEATS
• Durable thermoset design
• Soft close seat
• Ideal for shower cubicles
• Folds up flat to the wall when not in use
• Durable thermoset plastic design
• Easy to install
• Holds up to 200kg
365(W) x 360(H)mm unfolded
• Compact design
• Ideal for shower cubicles
• Folds up flat to the wall when not in use
• Durable thermoset plastic design
• Chrome plated trim
• Easy to install
• Holds up to 160kg
350(W) x 328(H)mm unfolded
350(W) x 328(H)mm unfolded
381W) x 287(H)mm unfolded
Compact polypropylene design
Folds up flat to the wall when not in use

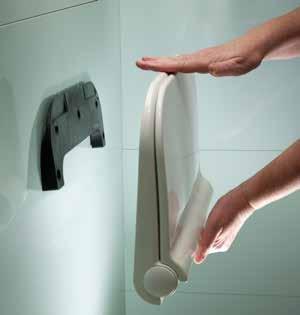

Detachable from wall bracket
Fixings supplied / Easy to install
Holds up to 160kg

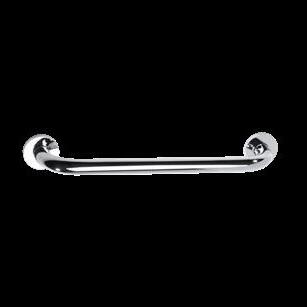

DON’T FORGET GRAB BARS
Sturdy grab bars designed to provide additional support, see page 81 for options.
QUALITY TAPS AT GREAT PRICES
Our eco TR1135 chrome basin mixer combines efficient water flow with a stylish design to reduce water usage and conserve resources.
The Act TR1135 tap’s cold Start feature reduces energy use, saving around 305.5 kWh annually.
Basin mixers & mini basin mixers are supplied with click waste. Act basin and mini basin mixer are now installed with a FR06 flow restrictor see page 43 for futher details on flow restrictors.
QUALITY TAPS AT GREAT PRICES

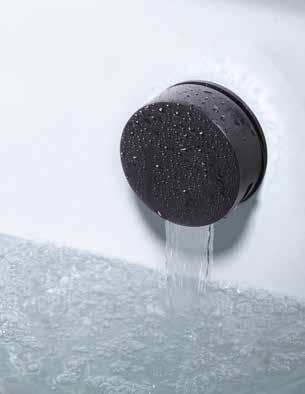

ALTERNATIVE BATH FILLING SOLUTIONS
Smartflow Bath Filler (square) SVACS07 Chrome
Smartflow bath filler
• Click waste
• Extendable overflow tube
• One or two inlets
Smartflow Bath Filler (square) SVACS39 Matt Black
Smartflow Bath Filler (round) SVACS02 Chrome
Smartflow bath filler (round) SVACS23 Matt Black
Traditional Smartflow Bath Filler SVACS12 Chrome
SHOWER WATER SAVERS
Mount between the valve & hose for shower valves with handsets or your bath shower mixer. Mount between head & arm on your fixed shower heads. We do not recommend the use of regulators with bath taps or fillers as you will want your bath to fill as quickly as possible.
BASIN MIXER WATER SAVERS
Produce aerated water flow. Simple to install into the aerator housing of basin mixer. Available in a range of flow ratings.
BASIN TAP WATER SAVERS
Install into the inlet of the tap. One required for each tap, therefore please purchase in pairs. Available in a range of flow ratings.
Universal
Universal
2
Weight 1.5KG, seat, Cover & barrel made from 100% post-consumer polypropylene recycled plastic, standard size replacement WC seat, single button quick release hinges, soft close Secure-Fix QR hinges keeps the seat firmly in place, top & under fixings, universal seat, 45% Reduction in product carbon emissions over a thermoset seat alternative of the same weight
Weight 1.8kg, compatible with most WCs, highly durable thermoset plastic, adjustable hinges with Secure-Fix QR technology keep seat firmly in place, non-slip buffers, extremely hard wearing impact resistant surfaces, under-fix fixings also supplied for compatibility with older WCs.
Weight 2.7kg, highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges with Secure Fix-QR technology keeping the seat firmly in place, top & under fixings, hard wearing, impact resistant.
OEM REPLACEMENT SEAT COMPATIBILITY
IMEX - ARCO, WAVE, BLADE, SKEAN, IVAN, TULLA
KARTELL - BIJOUX, ECLIPSE
ROUND, OZONE, ZARA ROUND
LAUFEN PRO
MYLIFE - EDISON, FINLEY, FOYE
PJH - CILANTRO, LAURUS
RAK - FEELING, RESORT, TONIQUE, VALET
ROCA - NEXO
ROPER RHODES - WIDCOMBE
R2 - LANGFORD, DEBUT
TAVISTOCK - MICRA EVO, LANSDOWN
SANEUX – AUSTEN, UNI
SCUDO - MIDDLETON, SPA
SONAS - BASE, EDEN
V&B - O-NOVO
VADO - CAMEO ROUND
VITRA - S50, SENTO, ZENTRUM
OEM REPLACEMENT SEAT COMPATIBILITY
IMEX
ESSENCE, XCITE, FLITE, SUBURB
VITRA S20
ROCA INSPIRA SQUARE
LAUFEN PALOMBA
RAK SERIES 600
TWYFORDS
E100 SQUARE
Weight 2.1kg, highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges with Secure Fix-QR technology keeping the seat firmly in place, top fixings, hard wearing, impact resistant.
Weight 2.3kg, highly durable thermoset plastic, quick release for ease of cleaning, soft close hinges with top fixings, hard wearing, impact resistant.
OEM REPLACEMENT SEAT COMPATIBILITY
IDEAL STANDARD – I.LIFE IDEAL STANDARD CONCEPT, FREEDOM, CONCEPT AIR, CONTOUR 21, PROFILE 21, SANDRINGHAM 21
HARDWEARING SEATS
SEAT 8903WSC-SF
Weight 2.3kg, highly durable thermoset plastic, single button quick release for ease of cleaning, adjustable hinges with Secure-Fix QR technology keep seat firmly in place, nonslip buffer, extremely hard wearing impact resistant surfaces with anti-bacterial protection, under-fix fixings also supplied for compatibility with older WCs.
Weight 2.3kg, highly durable thermoset plastic, single button quick release for ease of cleaning, adjustable hinges with Secure-Fix QR technology keep seat firmly in place, non-slip buffer, extremely hard wearing impact resistant surfaces, under-fix fixings also supplied for compatibility with older WCs.
OEM REPLACEMENT SEAT COMPATIBILITY
IMEX ARCO, BLADE, DURO, IVAN
VILLEROY & BOCH
SUBWAY, SUBWAY 2.0, SUBWAY 3.0, ARCHITECTURA, AVENTO, O.NOVO
VITRA
S50, ZENTRUM, INTEGRA ROCA
INSPIRA ROUND, ONA, MERIDIAN-N, NEXO
DURAVIT
D-NEO, DURAVIT NO. 1
LAUFEN
SONAR, KARTELL, PRO TWYFORDS E100 ROUND
RAK
RESORT, TONIQUE, COMPACT R2 RADAR, DEBUT
TAVISTOCK MICRA EVO
OEM REPLACEMENT SEAT COMPATIBILITY
IMEX
ARCO, BLADE, DURO, IVAN
VILLEROY & BOCH
SUBWAY, SUBWAY 2.0, SUBWAY 3.0, ARCHITECTURA, AVENTO, O.NOVO
VITRA S50, ZENTRUM, INTEGRA ROCA
INSPIRA ROUND, ONA, MERIDIAN-N, NEXO
DURAVIT
D-NEO, DURAVIT NO. 1
LAUFEN
SONAR, KARTELL, PRO TWYFORDS E100 ROUND
RAK
RESORT, TONIQUE, COMPACT
R2 RADAR, DEBUT
TAVISTOCK MICRA EVO
OEM REPLACEMENT SEAT COMPATIBILITY
RAK
COMPACT, COMPACT DELUX, RESORT, TONIQUE
VITRA S50, ZENTRUM
PURA
ARCO, FLITE, ICE
V&B
ARCHITECTURA, SUBWAY, SUBWAY2.0, O.NOVO
ROCA
MERIDIAN-N, NEXO
LAUFEN - PRO
Weight 2.5kg, wrap around design, highly durable thermoset plastic for strength and longevity, soft close hinges with secure-fix technology keeping the seat firmly in place, extremely hard wearing impact resistant surfaces with anti-bacterial protection.
HARDWEARING, IMPACT RESISTANT SURFACES
OEM
COMPATIBILITY
IDEAL STANDARD
CALIA, iLIFE A, iLIFE B
IMEX
ESSENCE, SUBURB DURAVIT
DURASTYLE, HAPPY D2
KARTELL OPTIONS 600
PJH TILIA RAK
Weight 2.5kg, highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges with secure-fix technology keeping the seat firmly in place, top fixings, hard wearing, impact resistant.
OEM REPLACEMENT SEAT COMPATIBILITY
IMPERIAL - ASTORIA
SONAS - WESTBURY
BAYSWATER - FITZROY
HERITAGE - GRANLEY
TAVISTOCK - MARSTON, VITORIA
ROPER RHODES
HARROW, HAMPTON
BURLINGTON
ARCADE, REGAL, RIMLESS
IDEAL STANDARD - WAVERLEY
LEFROY BROOKS
BELLE AIRE,CLASSIC,LISSA DEAN
Weight 2.1kg, highly durable thermoset plastic, single button quick release for ease of cleaning, soft close hinges with Secure Fix QR technology keeping the seat firmly in place, top fixings, hard wearing, impact resistant.
Weight 2.4kg, contemporary wrap over lid design, highly durable thermoset plastic for strength and longevity, extremely hard wearing impact resistant surfaces with anti-bacterial protection.
HARDWEARING SEATS
Weight 1.8kg, highly durable thermoset plastic for strength and longevity, adjustable hinges with Secure Fix-QR technology keep seat firmly in place, top fixings, extremely hard wearing, impact resistant surface, universal seat.
Weight 2.2KG, compatible with most WCs, wrap-over design, highly durable thermoset plastic for strength and longevity, adjustable hinges with Secure-Fix QR technology keep seat firmly in place, non-slip buffers, extremely hard wearing impact resistant surfaces with an anti-bacterial finish
Weight 2.4kg. a heavy duty sandwich seat which fits most standard shaped toilets, supplied with stainless steel hinges. Extremely hard wearing impact resistant surfaces.
Weight 1.4kg, thermoset plastic, slim design, top fix soft close hinges, single button quick release for easy cleaning.
Weight 1.7kg, highly durable thermoset plastic, adjustable under fix stainless steel hinges, hard wearing, impact resistant, universal size.
Weight 2.8kg, highly durable moulded wood with polyurethane high gloss painted finish.
CLOSE COUPLED FLUSHING SENSOR UPGRADE
CLOSE COUPLED SENSOR FLUSH KITS
With a simple wave of the hand, hygienic, contactless flushing is now here for close coupled WCs.
• Two sizes are available depending on the size of the flush button hole in the cistern lid.
• The button kits have been designed to retro-fit to existing WCs which have paddle operated flush valves.
• For cisterns which have pneumatic or cable operated flush valves, or where the button “screws in” directly to the flush valve, then the flush valve will also need to be swapped to our TR9033 valve which has a 2” base.
• Use TR9031 to upgrade a Debut Close Coupled WC page 54
• Use TR9032 to upgrade a Coast Comfort Close Coupled WC page 56
CLOSE COUPLED WCS
Pair the sensor with a close coupled cistern making the WC more hygienic see pages 54 & 56
WC BUNDLE OPTIONS
Pan height 400mm excluding seat, rimless design, cistern and fixings included, price also includes thermoset seat DC4044-SF
376(W) x 770(H) x 625(D)mm
Pan height 400mm excluding seat, rimless design 360(W) x 400(H) x 625(D)mm
Pan height 400mm excluding seat, rimless design, cistern and fixings included, price also includes PP seat DC4043 376(W) x 770(H)x 625(D)mm
Concealed fixings, 6/4L flush, Supplied with chrome flush button, ø38mm flush button upgrades available.See page 59. 376(W) x 360(H) x 160(D)mm
WALL HUNG WC DEBUT 4 PIECE SET DC14070
Complete 4 piece bathroom set including:
Open back WC pan, 6/4L cistern, Soft close seat DC4044-SF, 540 basin with single tap hole & overflow, full height pedestal
BUNDLE DEAL
DEBUT STANDARD CLOSE COUPLED WC
Concealed fixings, 6/4L dual flush inc air gap, rimless design, Contactless flush button upgrades available see page 59.
360(W) x 810(H) x 650(D)mm
DCCTNK Seat DSCTS2
DEBUT COMFORT HEIGHT CLOSE COUPLED WC
COMFORT HEIGHT
Pan height 460mm excluding seat, open back design, concealed fixings, 6/4L dual flush inc air gap, Contactless flush button upgrades available see page 59.
360(W) x 870(H) x 650(D)mm
Concealed fixings included, rimless design, compatible with wall hung WC frames.
360(W) x 345(H) x 510(D)mm
DEBUT FULLY ENCLOSED CLOSE COUPLED WC
Fully enclosed WC pan, concealed fixings inc air gap, 6/4L dual flush, Flush button upgrades available see page 59.
360(W) x 835(H) x 650(D)mm
Code Pan DFFPAN Cistern DCCTNK
DEBUT COMFORT HEIGHT FULLY ENCLOSED WC
Pan height 460mm excluding seat, fully enclosed WC pan, concealed fixings inc air gap, 6/4L dual flush, rimless design, Flush button upgrades available see page 59.
360(W) x 875(H) x 650(D)mm
SPACE SAVING SOLUTIONS
Pan height 460mm excluding seat, concealed fixings, compatible with concealed cisterns.
360(W) x 460(H) x 520(D)mm
Concealed fixings , compatible with concealed cisterns, rimless design.
360(W) x 400(H) x 515(D)mm
Weight 2.4kg, thermoset plastic, top fix, lift off quick release hinges for easy cleaning, soft close hinges. See page 59 for cover cap upgrade options.
369(W) x 427(D)mm
Weight 1.8kg, slim design, Highly durable thermoset plastic, single button quick release for ease of cleaning, soft close secure fix hinges keeps seat firmly in place, top & under fixings. See page 59 for cover cap upgrade options.
363(W) x 426(D)mm
10 year gurantee excludes
& cistern fittings which
Weight 2.4kg, thermoset plastic, slim design, top fix, adjustable hinges with Secure Fix-QR technology keeps the seat firmly in place, easy one button quick release hinges, soft close hinges. See page 59 for cover cap upgrade options.
360(W) x 450(D)mm
COAST STANDARD HEIGHT CLOSE COUPLED WC
Pan height 410mm excluding seat, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 59.
370(W) x 825(H) x 640(D)mm
COAST COMFORT HEIGHT CLOSE COUPLED WC
Pan height 460mm excluding seat, open back design, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 59.
370(W) x 875(H) x 640(D)mm
Pan height 410mm excluding seat, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 59.
370(W) x 825(H) x 640(D)mm
COASTCOMFORT HEIGHT FULLY ENCLOSED CLOSE COUPLED WC
Pan height 460mm excluding seat, fully enclosed design, concealed fixings, 5/3L dual flush inc air gap technology, rimless design, contactless flush button upgrades available see page 59.
370(W) x 875(H) x 640(D)mm
Pan height 355mm excluding seat, concealed fixings, Fastening holes to sides of WC, concealed fixings included.
370(W) x 355(H) x 490(D)mm
SPACE SAVING SOLUTIONS
Pan height 410mm excluding seat, concealed fixings , compatible with concealed cisterns, rimless design.
370(W) x 410(H) x 490(D)mm
Pan height 460mm excluding seat, concealed fixings, compatible with concealed cisterns, rimless design.
370(W) x 460(H) x 490(D)mm
Premium slim look wrap over toilet seat, Weight 2Kg, thermoset plastic, top fix lift-off quick release hinge for ease of cleaning, soft close hinges. See page 59 for cover cap upgrade options.
369(W) x 418(D)mm
Weight 1.8kg, compatible with most WCs, highly durable thermoset plastic, adjustable hinges with Secure-Fix QR technology keep seat firmly in place, non-slip buffers, extremely hard wearing impact resistant surfaces, under-fix fixings also supplied for compatibility with older WCs.
See page 47 for cover cap upgrade options.
455(W) x 445(D)mm 10 year gurantee excludes seats
& cistern fittings which are covered
CONTACTLESS FLUSH
Upgrade the close coupled cistern to a contactless flush button see page 51.

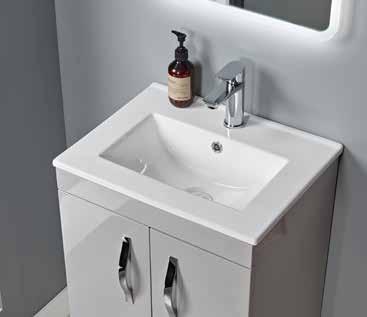

UNIVERSAL BASINS
Single tap hole, overflow 450(W) x 515(H) x 375(D)mm
Single tap hole, overflow 545(W) x 525(H) x 440(D)mm
Single tap hole, overflow
x 870(H) x 440(D)mm
Suitable for standard depth furniture minimum depth 275mm, supplied with cutting template for worktop and fascia, single tap hole, overflow.
480(W) x 150(H) x 420(D)mm
Suitable for slim depth furniture, min depth 218mm, supplied with cutting template for worktop and fascia, single tap hole, overflow. 475(W) x 150(H) x 383(D)mm
ø38mm
Coast Flush Buttons ø48mm
Brushed Nickel TR9055
Brushed Bronze TR9052
Debut ø38mm Close Coupled Sensor Flush Button Kit Coast ø48mm Close Coupled Sensor Flush Button Kit
For use with Debut Seat DSCTS2 p55 For use with Coast Seat COSCTS p57 For use with Debut Seat DSLSCTS-SF p55 For use with Dana Seat DC4044-SF p53
Matt Black DC4011
Debut & Dana Flush Buttons
Ultra core Reinforced 5mm Acrylic

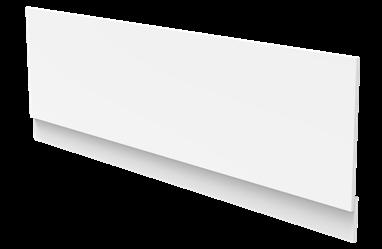

100% WATERPROOF ISOCORE BATH PANELS
Gloss white painted finish, top lip to secure under bath Panel 455(H) - 12mm thick
Plinth 140(H) - 12mm thick
Gloss white painted finish Panel 520(H) - 9mm thick
PEACE OF MIND

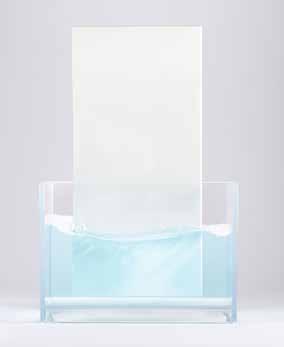

A revolutionary, 100% waterproof material which will not degrade with exposure to moisture.
A lightweight material which is 30% lighter than MDF.
Easy to cut without the need to re-seal, and do not need to be fully sealed during installation.
Lifetime guarantee for all Isocore bath panels
GREAT VALUE BATH PANELS
Gloss
Edge banded
Panel 460(H) - 15mm thick
Plinth 120(H) - 15mm thick
700mm End Bath Panel DC5020
750mm End Bath Panel DC5021
800mm End Bath Panel DC5022
1700mm Front Bath Panel DC5023
1800mm Front Bath Panel DC5024
Gloss
Panel 457(H) - 12mm thick
Plinth 140(H) - 9mm thick
Gloss white painted finish Panel 1695(W) 520(H) - 9mm thick

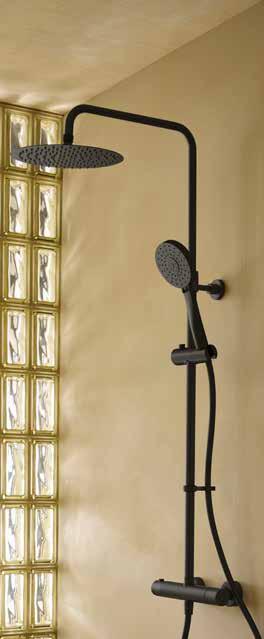

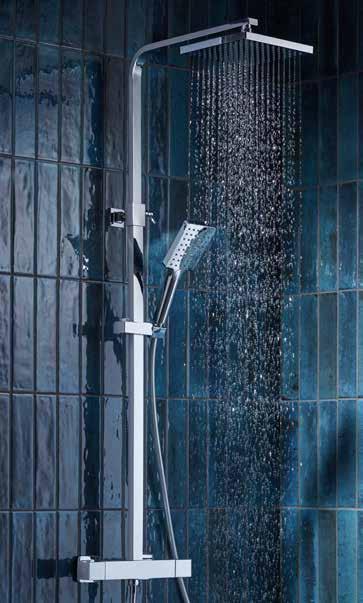

Check out our range of bath fillers and bath shower mixers available in black & chrome, See pages 38-42.

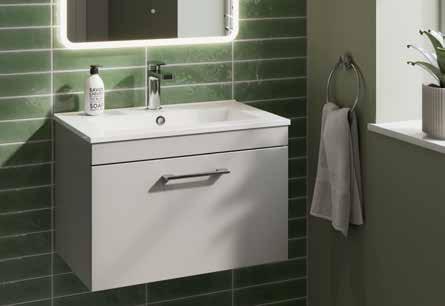

CURVED EDGE MODULAR FURNITURE
SQUARE EDGE MODULAR FURNITURE

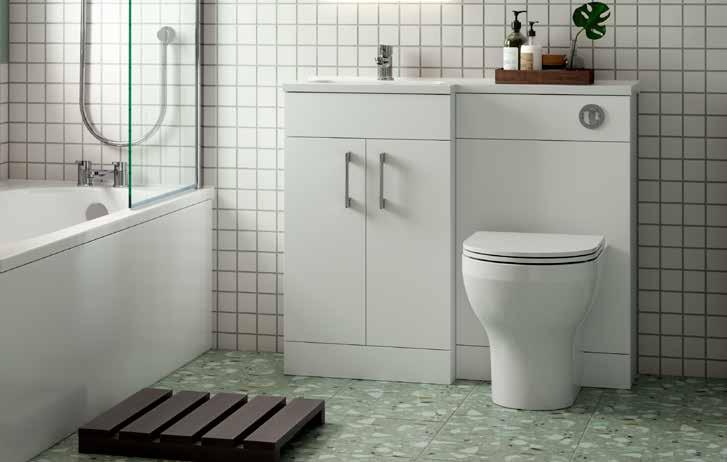

L-SHAPE BATHROOM FURNITURE
Left

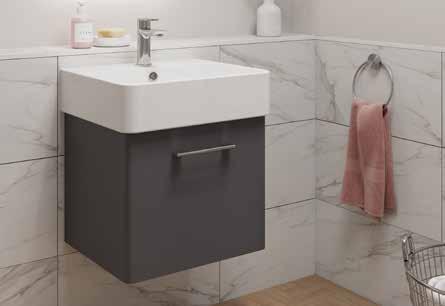

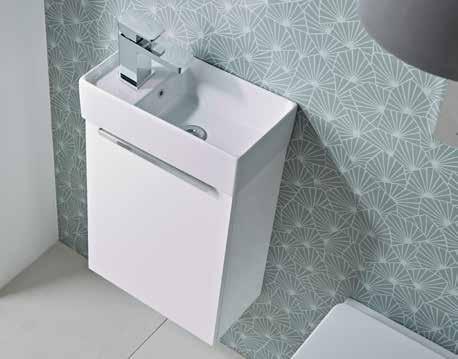

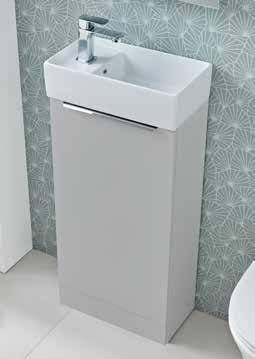

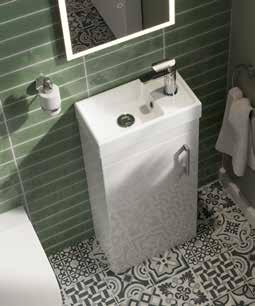

CLOAKROOM FURNITURE
Chrome handles supplied as standard, or upgrade to a matt black handle details below.

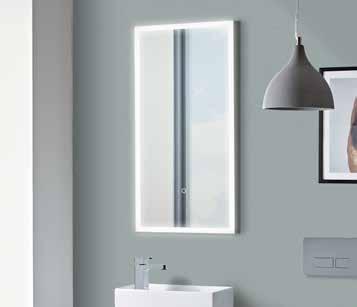

All Trade Solutions Mirrors come with a 5 year guarantee against manufacturing defects and a 2 year guarantee for electrical components.
Ambient backlighting LEDs with colour changing technology, contactless controls, heated demister pad, can be hung landscape or portrait, IP44
Super bright LED perimeter, CCT technology, mirrored side panels, charging socket, touch sensor, heated demister pad, IP44
ILLUMINATED CABINET OPTIONS
SINGLE DOOR CABINET
FWC050
LED lighting, touch sensor, mirrored sides, heated demister, charging socket, double sided mirror door with soft close, surface mounted or recessed, 2 smoked glass shelves, IP44
500(W) x 664(H) x 131(D)mm
SINGLE
LED lighting, rocker switch, shaver socket, soft close door,2 internal shelves (adjustable), IP44
514(W) x 650(H) x 137(D)mm
DOUBLE DOOR CABINET
FWC060
LED lighting, touch sensor, mirrored sides, heated demister, charging socket, double sided mirror door with soft close, surface mounted or recessed, 2 smoked glass shelves, IP44
600(W) x 664(H) x 131(131D)mm
Gloss white finish, soft close doors, 2 internal shelves (non adjustable)
600(W) x 650(H) x 120(D)mm
EXTRA STORAGE - PRACTICAL DESIGN
REFLECT SINGLE DOOR CABINET
RFC045
MIRROR SIDES
Double sided mirror door, dark grey interior, soft close doors, 2 internal shelves (adjustable)
450(W) x 650(H) x 140(D)mm
REFLECT SINGLE DOOR CABINET
RFC040
MIRROR SIDES
Double sided mirror door, dark grey interior, soft close doors, 2 internal shelves (adjustable)
400(W) x 800(H) x 140(D)mm
REFLECT SINGLE DOOR CABINET
RFC050
MIRROR SIDES
Double
500(W) x
x
REFLECT DOUBLE DOOR CABINET
RFC060
MIRROR SIDES
Double sided mirror doors, dark grey interior, soft close doors, 2 internal shelves (adjustable)
600(W) x 650(H) x 140(D)mm
000' S SPARE PARTS
We hold stock of thousands or spare parts, giving you total assurance should you require to use this service. Please get in touch with our customer support experts, who can assist with any spare part queries - sales@roperrhodes.co.uk
ACCESSORIES
ACCESSORIES

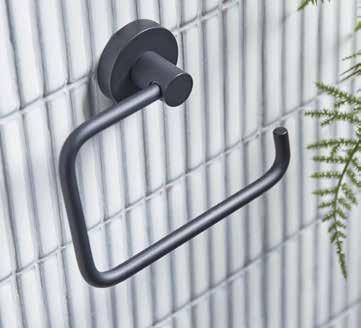

BATHROOM ACCESSORIES
MADISON SMALL BASKET
WB10.02
x
x
MADISON BOTTLE BASKET
WB80.02
MADISON LARGE CORNER BASKET
WB40.02
x 50(H) x 190(D)mm

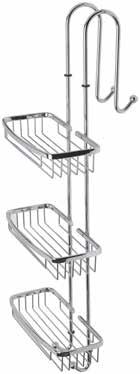

MADISON DOUBLE BOTTLE BASKET
WB90.02
MADISON DOUBLE CORNER BASKET
WB50.02 MADISON SHOWER CADDY WB70.02
AFTER SALES SERVICE
CUSTOMER SUPPORT TEAM
We have a dedicated customer service team on hand to help with any of your product queries. We have built an excellent reputation over the 40 years we’ve been in business. By choosing Trade Solutions you can be assured of the very best support for your products. Call us today from 8am on 01225 303900 or alternatively email us sales@roperrhodes.co.uk
000’s SPARE PARTS
We hold stock of thousands of spare parts, giving you total assurance should you require to use this service. Please get in touch with our customer support experts, who can assist with any spare part queries, email us at sales@roperrhodes.co.uk or alternatively visit our website to view our spares brochure - tradesolutions.roperrhodes.co.uk/spares-repairs
EXTRA ONLINE PRODUCT INFO
Additional technical product information including fitting instructions and how to guides can be viewed on our website, head to our dedicated Trade Solution section for further information - tradesolutions.roperrhodes.co.uk
