F3 Design Features
• Direct to busbar single module T2 SPD (no MCB required)
• Accessory pack with reinforced grommet strip included
• Earth and neutral terminal bars at the top
• Removable and raised DIN rail
• Round knock-outs on all faces
• Extra height for RCBO’s
• 1mm Steel
• RAL 9001 powder-coated finish
• Tail clamp fixed to the din rail (exception F3014DT)
• Circuit identification labels
• Captive screws on front cover
• IP2XC
• BS EN61439-3

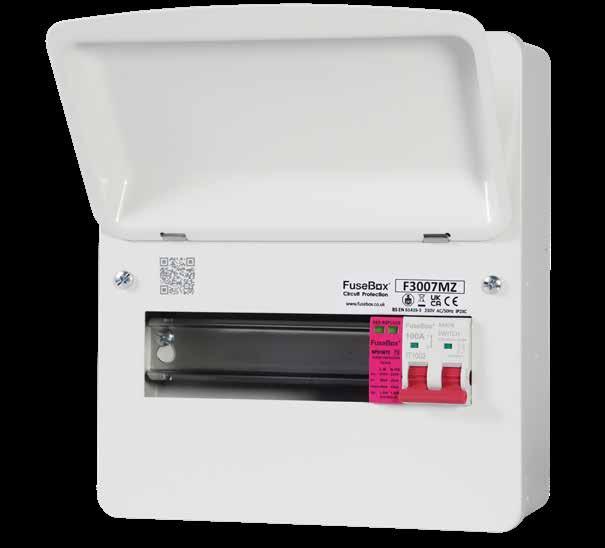

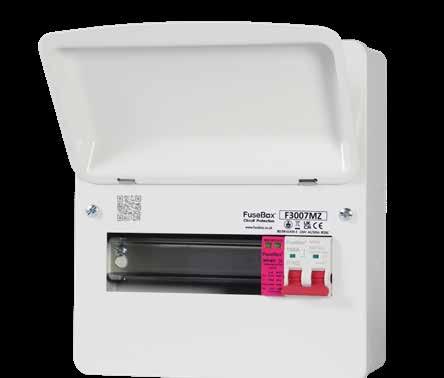

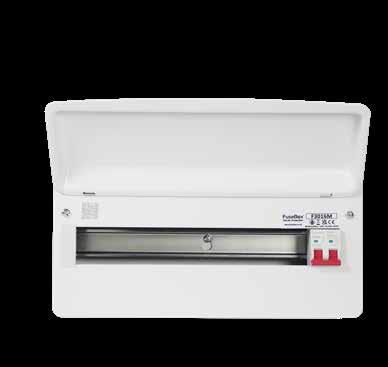

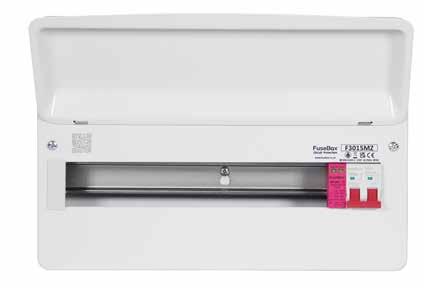

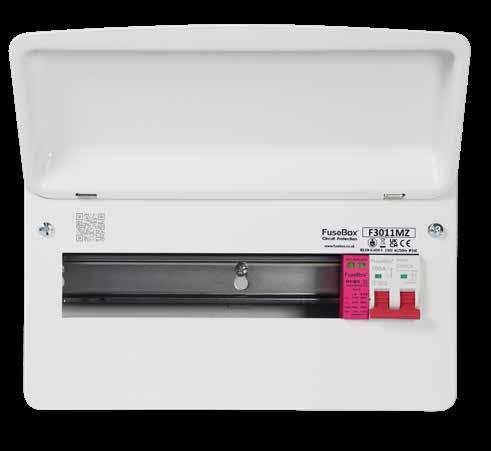

* Example shown F3011MZ

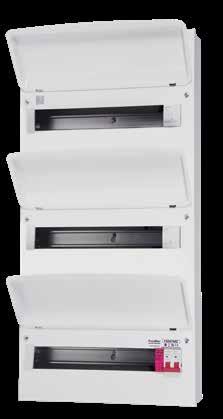

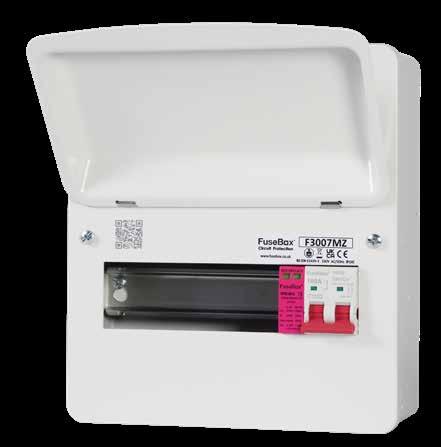

F3 SERIES Surge Protection Consumer Units
F3 SERIES Surge Protection Consumer Units
BS EN 61439-3

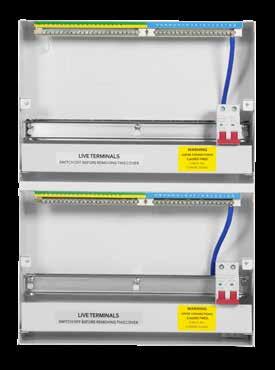

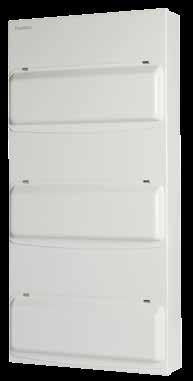

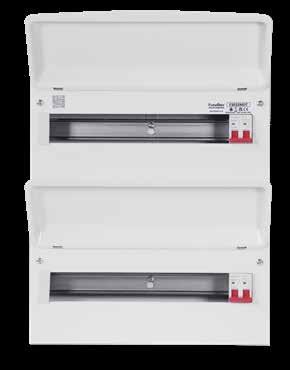

Double bank and Triple bank boards complete with Type 2 Surge Protection Device offers a maximum of 31 usable ways on a two row layout and 47 usable ways on three rows. Ideal for housing all din modular accessories such as a bell transformer and installation contactors.
Main Switch Incomer (100A) With T2 Surge (Double Bank)
F3023MZ
F3047MZ
F3 Consumer Units
BS EN 61439-3
Main Switch Incomer (100A)

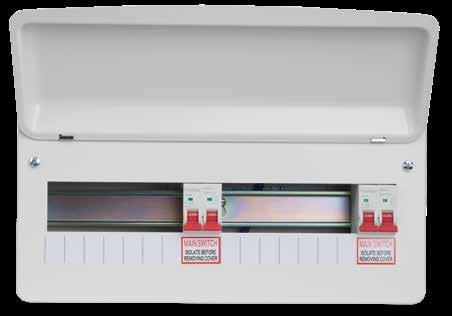

Main Switch Incomer (100A) (Double Bank)

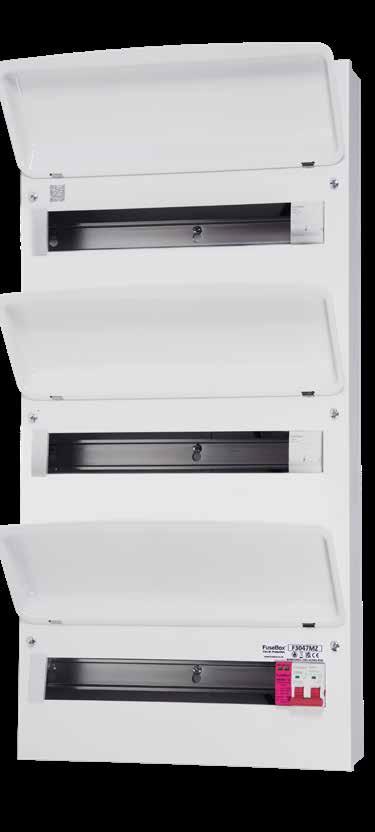

Main Switch Incomer (100A) (Triple Bank)
Dual RCD
Dual RCD with T2 Surge
Dual RCD
Populated
RCD (Type A)
RCD (Type B)
Dual Tariff
Dual Tariff (Double Bank)
Flush Mounting Frames
Surface Spacers
Metal Enclosures
F3004E 4 MOD ENCLOSURE (EARTH & NEUTRAL TERMINAL BARS)
F3054E 54 MODULE ENCLOSURE 3 BANK (E+N TERMINALS)
Surge Protection
Suitable for TN, TNC-S, TNC and TT systems
Surge Protection (Retro Fit) Enclosed Part
F2MSPD1

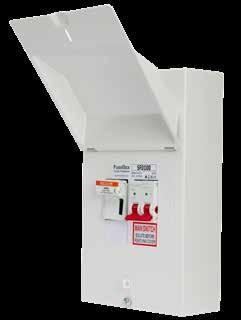

IN LINE T1 SPD & 100A MAIN SWITCH IN A METAL ENCLOSURE

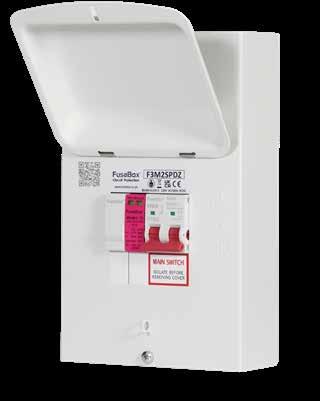

F3M2SPDZ IN LINE T2 SPD & 100A MAIN SWITCH IN A METAL ENCLOSURE 6P
Surge Protection Consumer Unit Kits
Part No.

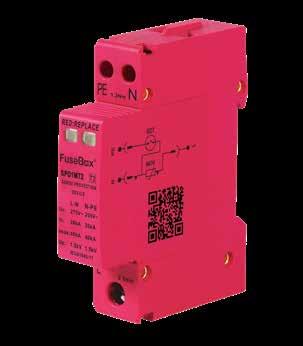

SPD1MT2 DIRECT TO BUSBAR, SINGLE MODULE T2 SPD

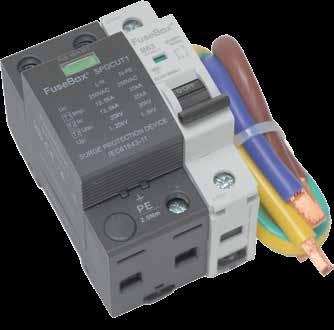

SPDCUKITT1 T1 SPD DEVICE (36mm) with 63A MCB and CABLES
EV Charger Distribution
EV Charger Distribution With T2 SPD
EV32ABDZ 100A M/S 32A (30mA 1P+N (SW) BD RCBO TYPE A + SPD T2) 6P
EV40ABDZ 100A M/S 40A (30mA 1P+N (SW) BD RCBO TYPE A + SPD T2) 6P
EV Charger Distribution (Type B)
Garage Unit (Type A)
EV32B 63A (30mA TYPE B RCD + 32A MCB) 6P
EV40B 63A (30mA TYPE B RCD + 40A MCB) 6P

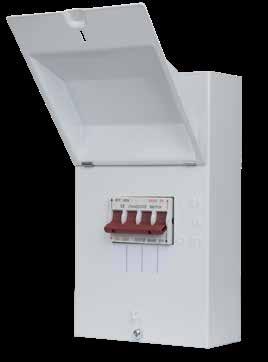

Meter Isolator Switch (2 POLE)
F300GRA 63A 30mA RCD + 6A & 16A MCB’s TYPE A
F300GRAZ 63A 30mA RCD + 6A & 16A MCBs TYPE A + SPD T2
Meter Isolator Switch (4 POLE)
E2PMSH 2 POLE 100A MAIN SWITCH
E2 2MODULE SPLIT LID ENCLOSURE (36mm) IP20
E4PMSH 4 POLE 100A MAIN SWITCH
E4T2SPD 2 POLE 100A MAIN SWITCH T2 SPD
E4 4MODULE SPLIT LID ENCLOSURE (72mm) IP20
Enclosure
Empty Enclosures
Distribution (Main Switch)
A65E06MGY IP65 GREY ENC 6MOD: BUSBAR, N CABLE AND ACC PACK
A65E06MWH IP65 WHITE ENC 6MOD: BUSBAR, N CABLE AND ACC PACK
Garage Unit
A65GRAWH 63A 30MA RCD 6A/16A MCBS WHITE BD
A65GRAXWH
Changeover Switch
RCD 2P BS EN 61008-1
Type A
Part No. Description

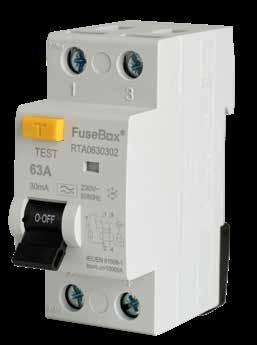

RTA250302 TYPE A 25A 30mA 2P RCD
RTA400302 TYPE A 40A 30mA 2P RCD
RTA630302 TYPE A 63A 30mA 2P RCD
RTA800302 TYPE A 80A 30mA 2P RCD
RTA801002 TYPE A 80A 100mA 2P RCD
RTA100302 TYPE A 100A 30mA 2P RCD
* Example shown
RTA1001002S
TYPE A 100A 100mA 2P RCD “S” TYPE Time Delayed
RTA1001002 Type A 100A 100mA 2P RCD
Type B
Part No. Description

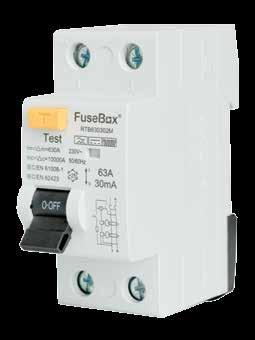

RTB630302M TYPE B 63A 30mA 2P RCD (36mm)
Type F
Part No. Description
RTF250302 TYPE F RCD 25A 30MA 2P
RTF400302 TYPE F RCD 40A 30MA 2P
RTF630302 TYPE F RCD 63A 30MA 2P
RTF800302 TYPE F RCD 80A 30MA 2P
RTF1000302 TYPE F RCD 100A 30MA 2P
RTA630302
MCB 6kA 1P
BS EN 60898-1
B Curve
Part No. Description
MT06B061 6A B CURVE MCB 6kA 1P
MT06B101 10A B CURVE MCB 6kA 1P
MT06B161 16A B CURVE MCB 6kA 1P
MT06B201 20A B CURVE MCB 6kA 1P
MT06B251 25A B CURVE MCB 6kA 1P
MT06B321 32A B CURVE MCB 6kA 1P
MT06B401 40A B CURVE MCB 6kA 1P
MT06B451 45A B CURVE MCB 6kA 1P
MT06B501 50A B CURVE MCB 6kA 1P
MT06B631 63A B CURVE MCB 6kA 1P
C Curve
Part No. Description
MT06C061 6A C CURVE MCB 6kA 1P
MT06C101 10A C CURVE MCB 6kA 1P
MT06C161 16A C CURVE MCB 6kA 1P
MT06C201 20A C CURVE MCB 6kA 1P
MT06C251 25A C CURVE MCB 6kA 1P
MT06C321 32A C CURVE MCB 6kA 1P
MT06C401 40A C CURVE MCB 6kA 1P
MT06C451 45A C CURVE MCB 6KA 1P
MT06C501 50A C CURVE MCB 6kA 1P
MT06C631 63A C CURVE MCB 6kA 1P

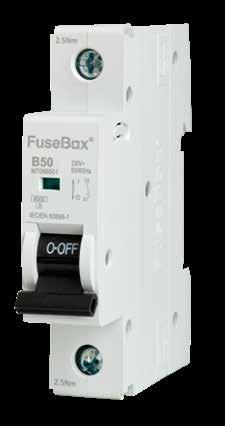

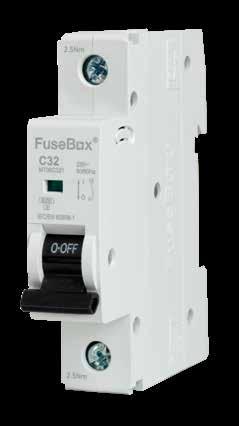

* Examples shown MT06B501 & MT06C321
Bi-directional RCBO (1P+N Switched)
B Curve Description

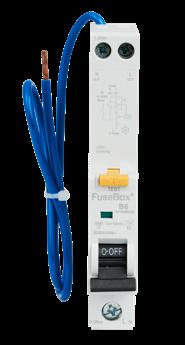

RTAMB06BD MINI 6A B RCBO 1P+N (SW) 30mA
6kA TYPE A BIDIRECTIONAL
RTAMB10BD MINI 10A B RCBO 1P+N (SW) 30MA
6KA TYPE A BIDIRECTIONAL
RTAMB16BD MINI 16A B RCBO 1P+N (SW) 30MA
6KA TYPE A BIDIRECTIONAL
RTAMB20BD MINI 20A B RCBO 1P+N (SW) 30MA
6KA TYPE A BIDIRECTIONAL
RTAMB25BD MINI 25A B RCBO 1P+N (SW) 30MA
6KA TYPE A BIDIRECTIONAL
RTAMB32BD MINI 32A B RCBO 1P+N (SW) 30MA
6KA TYPE A BIDIRECTIONAL
RTAMB40BD MINI 40A B RCBO 1P+N (SW) 30MA
6KA TYPE A BIDIRECTIONAL
RCBO 6kA (Type A)
BS EN 61009-1

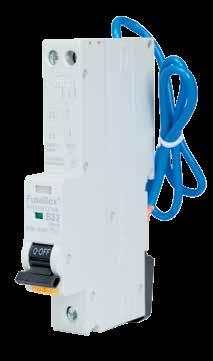

* Examples shown RTAMB06BD
C Curve Description
RTAMC06BD C6 MINI RCBO 6kA 1P+N (SW)
6A C TYPE A BIDIRECTIONAL
RTAMC10BD C10 MINI RCBO 6KA 1P+N (SW)
10A C TYPE A BIDIRECTIONAL
RTAMC16BD C16 MINI RCBO 6KA 1P+N (SW)
16A C TYPE A BIDIRECTIONAL
RTAMC20BD C20 MINI RCBO 6KA 1P+N (SW)
20A C TYPE A BIDIRECTIONAL
RTAMC25BD C25 MINI RCBO 6KA 1P+N (SW)
25A C TYPE A BIDIRECTIONAL
RTAMC32BD C32 MINI RCBO 6KA 1P+N (SW)
32A C TYPE A BIDIRECTIONAL
RTAMC40BD C40 MINI RCBO 6KA 1P+N (SW)
40A C TYPE A BIDIRECTIONAL
RTA060630B 6A B RCBO 30mA 6kA TYPE A
RTA061030B 10A B RCBO 30mA 6kA TYPE A
RTA061630B 16A B RCBO 30mA 6kA TYPE A
RTA062030B 20A B RCBO 30mA 6kA TYPE A
RTA062530B 25A B RCBO 30mA 6kA TYPE A
RTA063230B 32A B RCBO 30mA 6kA TYPE A
RTA064030B 40A B RCBO 30mA 6kA TYPE A
RTA064530B 45A B RCBO 30mA 6kA TYPE A
RTA065030B 50A B RCBO 30mA 6kA TYPE A
Mini Arc Fault Detection Device (AFDD)
• FuseBox combined AFDD/ RCBO (1P+N) SWITCHED
• Fully compliant and 3rd party tested to BS EN 62606 / IEC 61009-1
• LED Fault indication
• Fits all FuseBox consumer units
• Replaces any FuseBox RCBO where additional ARC protection may be required
• Used for the protection against ARC FAULTS (SERIES AND PARALLEL), overload, short circuit and earth leakage
• Type A for AC and pulsating DC sensitivity
• Short circuit capacity of 6kA with a maximum rating of 40A
B Curve
MAFDD060630B Mini AFDD RCBO 6A 30mA 1P+N TYPE A
MAFDD061030B Mini AFDD RCBO 10A 30mA 1P+N TYPE A
MAFDD061630B Mini AFDD RCBO 16A 30mA 1P+N TYPE A
MAFDD062030B Mini AFDD RCBO 20A 30mA 1P+N TYPE A
MAFDD062530B Mini AFDD RCBO 25A 30mA 1P+N TYPE A
MAFDD063230B Mini AFDD RCBO 32A 30mA 1P+N TYPE A
MAFDD064030B Mini AFDD RCBO 40A 30mA 1P+N TYPE A

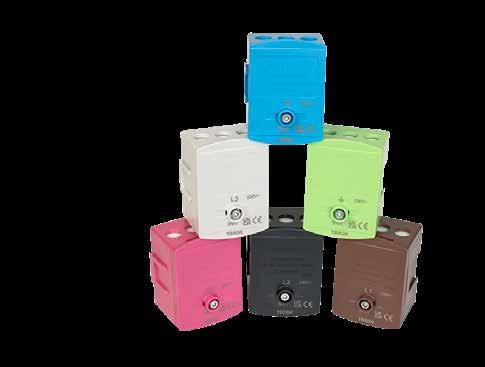

100A 5 Pole Connector Block
Part No. Description
TB5BR 100A 5 Pole Connector Block, Brown
TB5BK 100A 5 Pole Connector Block, Black
TB5BL 100A 5 Pole Connector Block, Blue
TB5GN 100A 5 Pole Connector Block, Green
TB5GR 100A 5 Pole Connector Block, Grey
TB5PK 100A 5 Pole Connector Block, Pink
BB07M BUSBAR FOR F3008M/F3007MZ
BB11M BUSBAR
BB15M BUSBAR FOR F3016M/F3015MZ
BB21M BUSBAR FOR F3022M/F3021MZ
Glands
Part No. Description
AGSW GROMMET STRIP (5M)
APIMG PUSH IN MEMBRANE GROMMET (QTY 12 MIXED)
AREG REAR ENTRY GLAND (QTY 5)
G32T 32mm TAIL GLAND FOR 25mm2 LIVE & NEUTRAL, AND 16mm2 EARTH (QTY 1)
G50T IP68 50MM TAIL GLAND (1 PC)

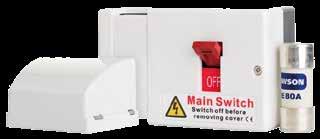

Main Switch / Isolator
kWH Meter (MID Approved)
Fused Switch
Part No. Description

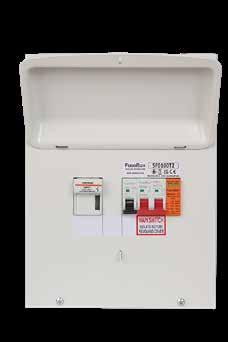

SF0100 100A FUSED SWITCH (inc. 63A, 80A, 100A gG Fuses)
SF0100RA 100A 100mA Time delayed RCD Type A + Fuse Holder (inc. 63A, 80A, 100A gG Fuses)
SF0100T2 100A FUSED SWITCH + T2 SPD (inc. 63A, 80A, 100A gG Fuses)
FMS080 80A FUSED SWITCH (inc. cable shroud and ME080A Fuse)
Installation Contactors
Supplied With 2x9mm Heat Dissipation Spacers (+1)
6P, 10P, 14P, 18P & 24P
28P & 36P
