RRD Y25 WINDSURFING ENG

WINDSURFING

ROBERTO RICCIDESIGNS.

25 YEARS LATER

Water, wind, body, equipment.

The parameters are still the same. It’s like having a blank sheet in front of you, and you can play with them to create your own canvas.

Freedom of expression starts to flow and you truly become part of a special universal order.

There is nothing like it, so simple yet so complete.

Water has endless rides to offer.

Enjoy. Respect. Share.

25 years have passed, at the speed of 25 summers.

THE QUARTER CENTURY COLLECTION

ATTITUDE

ALEX MUSSOLINI

When I’m in the water, my mind leaves the earthly world, everyday life and I forget time. I feel free, completely connected with the sea and with all of myself I am naturally driven to do better.

WAVECULT LTD

WINDSURF BOARD COLLECTION

BIAXIAL

Semi custom / Biaxial innegra carbon deck and 88 grams spread tow carbon bottom. This technology gives the lightest feel under your feet and adds a superb finishing level. Even more reactive and alive thanks to the 88 grams carbon fibers on the bottom, this board rides without compromise. Using black as a distinctive colour, it’s the most exclusive and eye catching.

Semi custom / Biaxial innegra carbon deck and glass bottom.

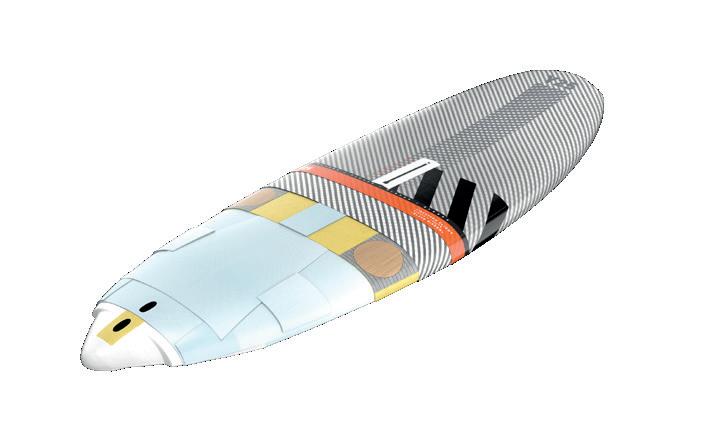

The LTD is our “industry benchmark” for high performance boards and is now improved thanks to the new deck laminate that reduces weight and increases impact resistance.

The Biaxial Carbon innegra fibers guarantee an impressive strength and long life. By mixing layers of innegra and carbon we also got a superb distinctive look. The bottom is built with 5 mm PVC foam 100 Kgs/m3, covered with a 160 grams glass full length and a half bottom length glass layer.

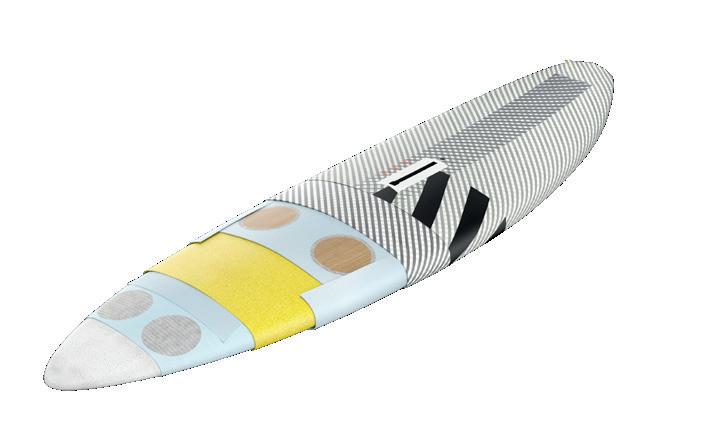

BLACK RIBBON LIMITED EDITION TECHNOLOGY

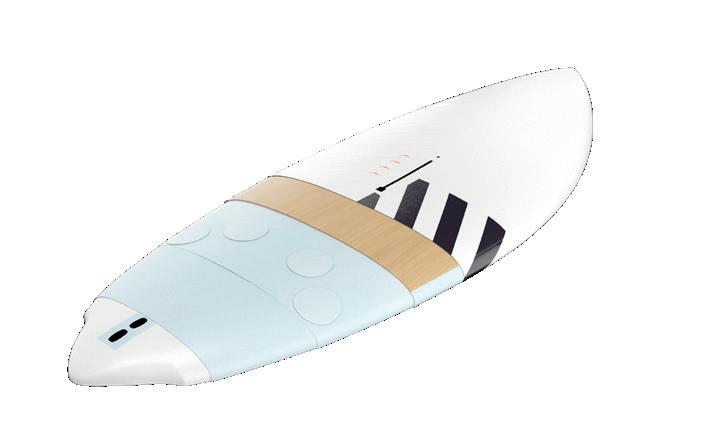

The LTE is our wood technology which combines strength and lightness by adding specific reinforcements and perfectly combining them underneath the wood laminate. Those layers are combined together and placed very efficiently to reinforce the most stressed parts, leaving a lighter weight in less stressed areas. Both deck and bottom are laminated using a 0,6 mms wood veneer and Biaxial Glass fibers with a solid PVC reinforced bottom.

Glass epoxy skin top and bottom

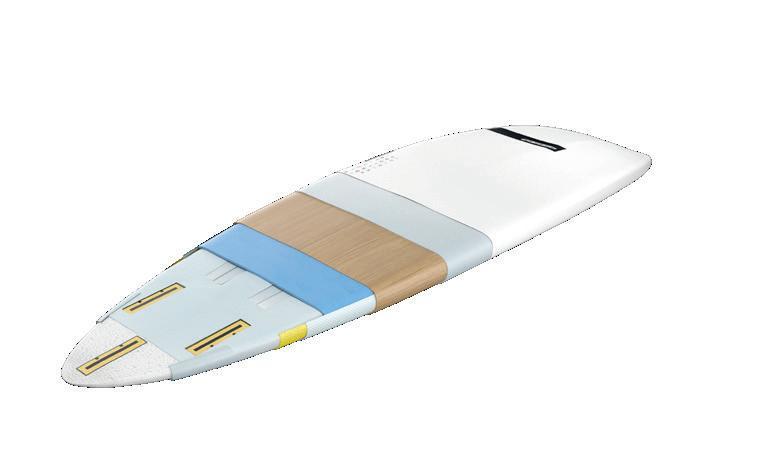

Our strongest technology, the E-TECH is made for those entering or starting windsurfing. Suitable for schools and centers that want maximum durability.

On the deck it combines 2 glass layers of 300gr and 400gr together with the Wood 0,6 mm which is the most resistant material available. The bottom has a thick glass layer of 450 gr and reinforcements on both nose and tail for maximum impact resistance.

LIGHT TOUGH EDITION EPOXY TECHNOLOGY TECHNOLOGY

FE ATU RE S

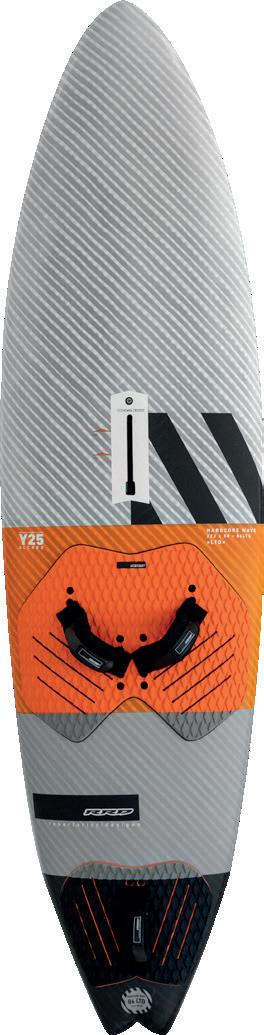

HARDCORE WAVE WAVE PRO

The Hardcore Wave is our pure wave board. Designed to excel in proper wave conditions when you need excellent turning characteristics and control just like a surf board. This shape lets you ride critical sections of the wave with incredibile ease. Inspired by the boards shaped for Alex Mussolini, each HCW size will make your session or trip an unforgettable one. It comes with a thuster fin setup and 5 fin boxes to switch to a quad configuration.

• Designed for bigger surf

• Compact shape to keep balanced floatation

• Ideal for “float & ride sessions”

• For advanced level riders

•Scoopline: flatter in the front section for improved speed and tail with pronounced kick for turning ability

•Fish tail to add drive to the turns and pin nose to ease top snaps

•Biaxial Carbon Innegra fibers on the deck and glass bottom

•All the boards come with 5 fin slot boxes to be able to switch from Thruster to Quad set up and are provided with exclusive K4 for RRD fins in orange fiberglass loaded polymer

INCLUDED FINS

2x K4 SHARK II SIDE SLOTBOX

1x K4 SCORCHER CENTER SLOTBOX

RECOMMENDED SAILS

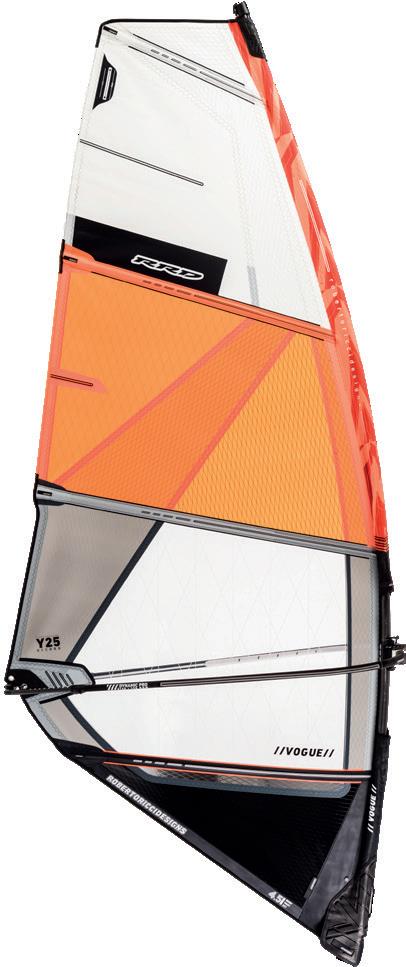

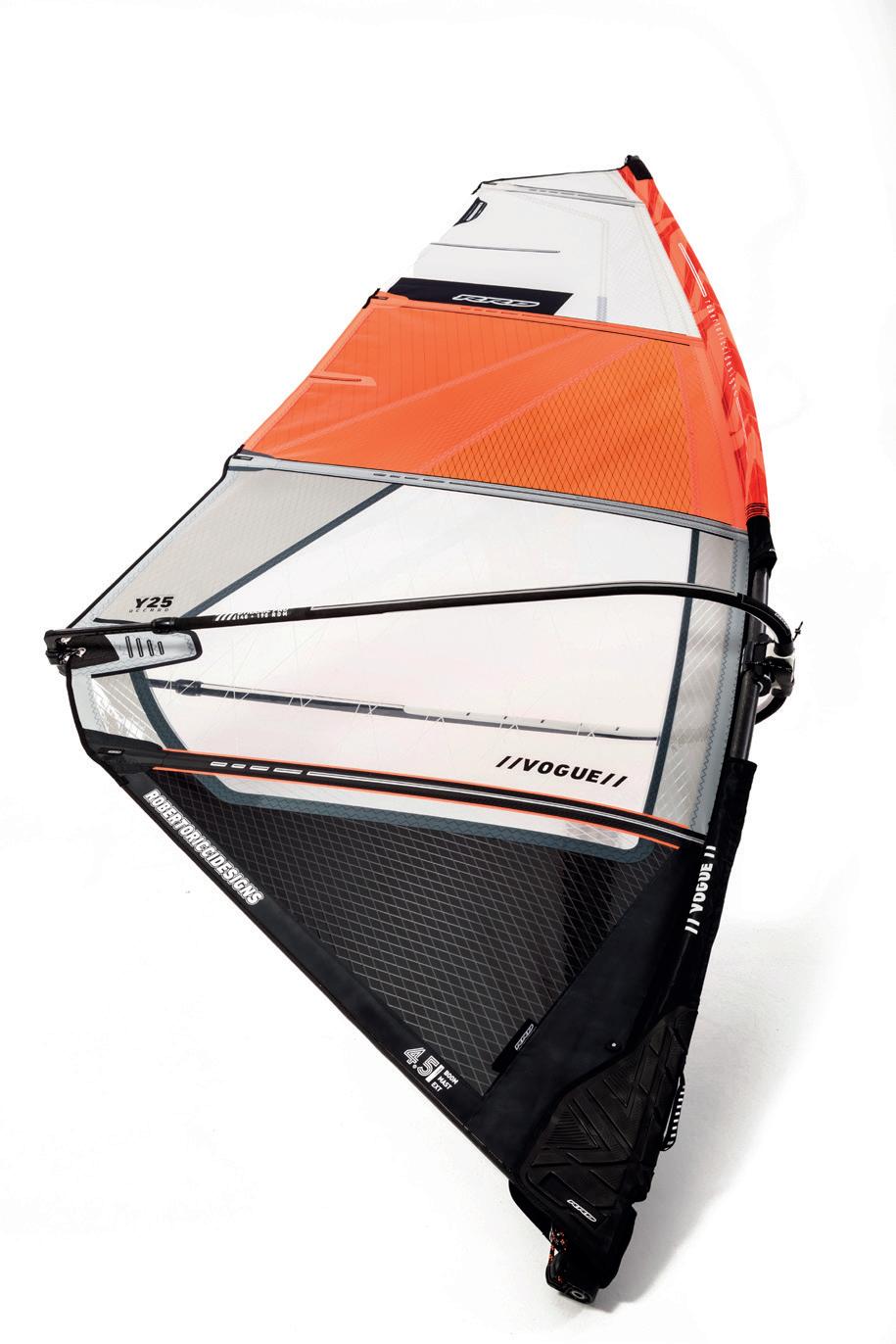

VOGUE PRO / HD

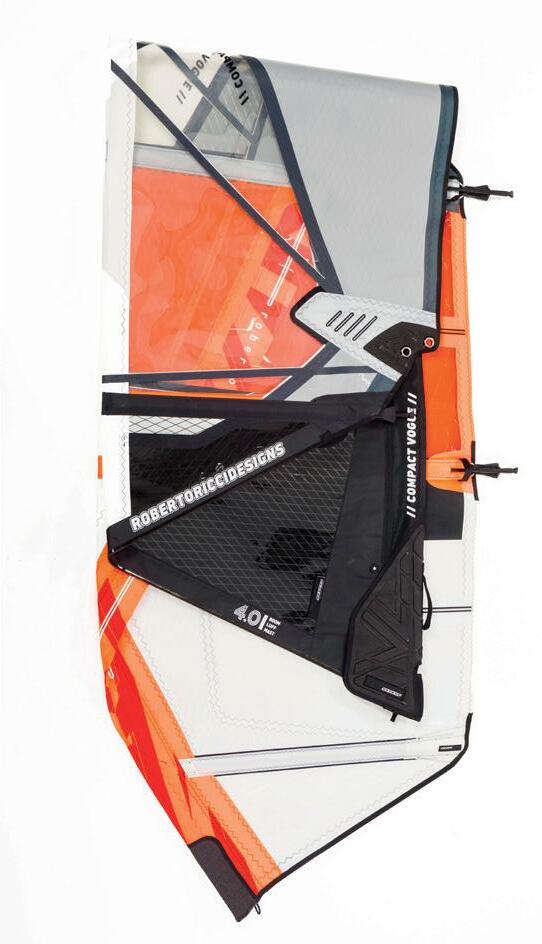

COMPACT VOGUE

GRIP

BIG WAVES

SMALL WAVES

FLOAT + RIDE

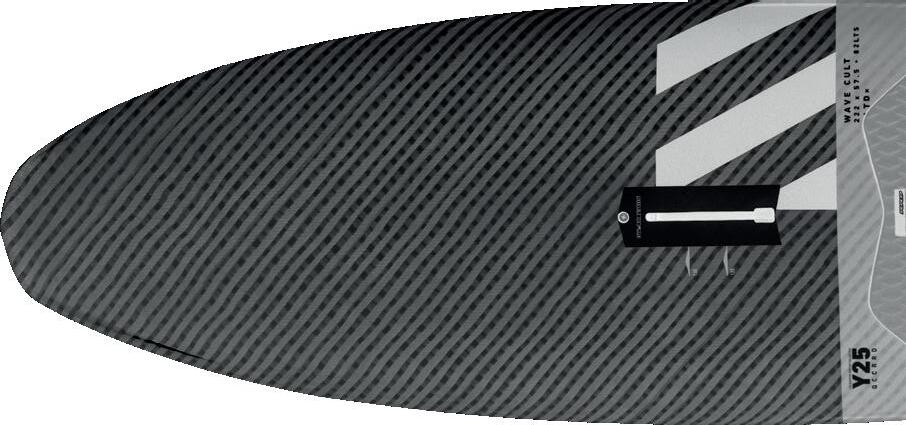

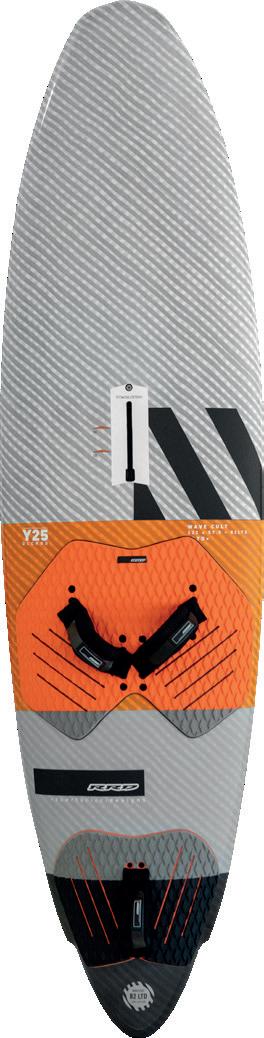

WAVE CULT

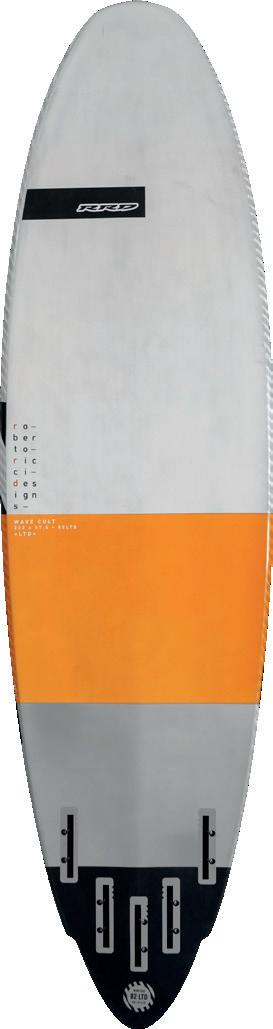

The Wave Cult is a board for both side, on-shore conditions and any wave size. This board lets you enjoy every session, even when the conditions are not ideal. It planes earlier than any other wave board and turns tight on the pocket. Due to its versatility it provides a blissful ride for the advanced rider, yet comfort and support for the less experienced. Ride it on a thruster or quad configuration and it will perform as a custom board.

• Wide range of use in waves of any size

• Fast rocker for early planing

• Round pin winger tail to improve tight turns

•Short outline and with more volume concentrated in the central section

•Tail with wingers and soft diamond nose

•Biaxial Carbon Innegra fibers on the deck and glass bottom

•5 slotboxes for both thruster and quad set ups, with the exception of the 104 lts and 114 lts which are only for a thruster fin use

INCLUDED FINS

2x K4 SHARK II SIDE SLOTBOX

1x K4 SCORCHER CENTER SLOTBOX

LTD

TWINTIP FREESTYLE

The TwinTip V7 is the ultimate freestyle board for progressive and radical riders. It makes sure to transform each gust in your most stylish move thanks to an unique acceleration and pop. The TwinTip V7 is all you need to go beyond your level and get an exciting and mind-blowing ride. Whether it is throwing a double culo or a single spock this board supports you on every level.

• Super short board to improve air rotations

• Super Fast Rocker

• Impressive pop

•Only 219cm long and therefor easier to be swung around during air moves

•Straight rocker line in the tail area to make the board quicker to plane

•Narrow tail makes it faster and improves the pop

•13mm Duo Density EVA pad with 2x layers to improve heel comfort and hi-impact resistance FE ATU RE S

•Biaxial Carbon Innegra fibers on the deck and glass bottom

•Fins: MFC GE G10 in 20cm and 21 cm sizes

INCLUDED FIN MFC GE G-10 POWERBOX

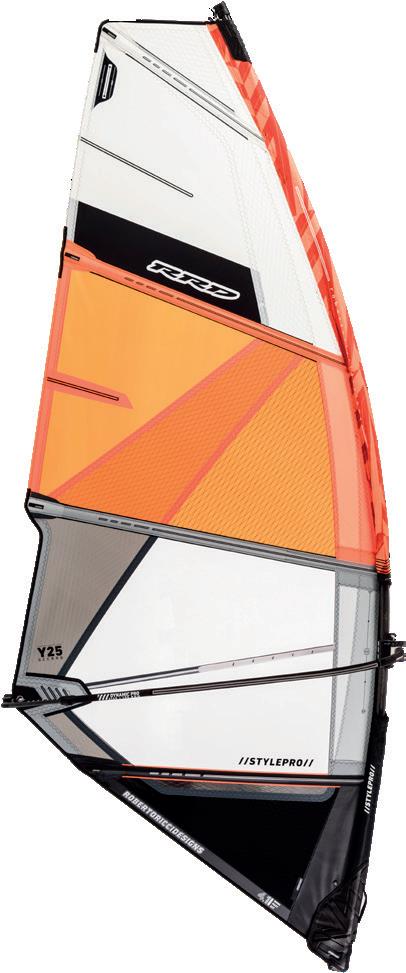

RECOMMENDED SAIL STYLE PRO

LTD

X-FIRE

RACE PRO

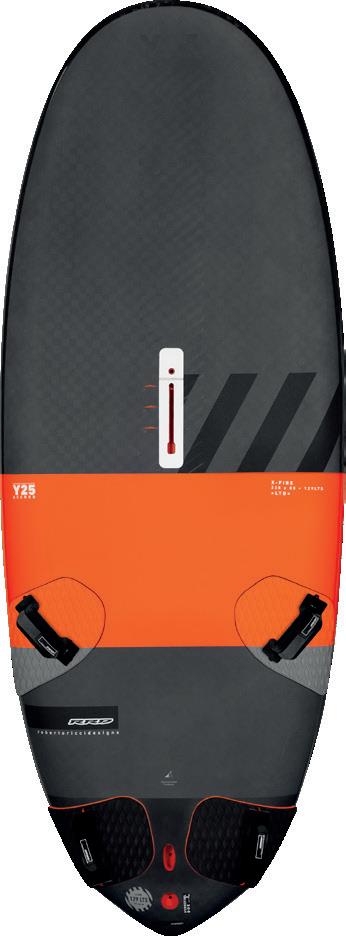

Many years of experience in shaping, tuning, testing and multiple World Titles have brought us to this point.

The X-FIRE is without a doubt a solid winner but above all an incredibly fast race board. Each size is studied individually and in detail to achieve top notch performance. The new 129 ltd and 122 lts have been re-designed to really get the most out of lightwind days. Choose your size and set yourself up on race mode!

• Extreme acceleration

• Specific cut outs to improve speed and control when powered up

• Spread tow 88 grms carbon deck and bottom to make it as light as a feather

•The 129 lts and 122 lts: all new outline, scoop line and cut outs. Best sail sizes 129 lts10.0 to 7.8; 122 lts - 9.5 to 7.8

•The 118 lts is based on the X-Fire 114 shape but a bit bigger and wider. It takes a huge range of sail sizes and wind conditions yet remains extremely fast and easy in all of them. Best Sail sizes- 9.0-7.0

•The 114 lts: we wanted to maintain the advantage of using a bigger sail than our competitors in light wind and, at the same time, improve it in high wind and comfort abilities. The result is a success! Best sail size: 8.6-7.0

•All the boards from the 108 lts up are foil ready thanks to a specific reinforced deep tuttle foil box

LTD

It is a continuous challenge, the position of the body, arms, legs and then the trim of the equipment. Everything is studied in detail to reach maximum speed. This time I was in Llundando and I was in the water alone. The X-FIRE allows you to enter the water and reach your limit in an instant.

KITEBOARDING CYRIL MOUSSILMANI LLANDUDNO SESSION

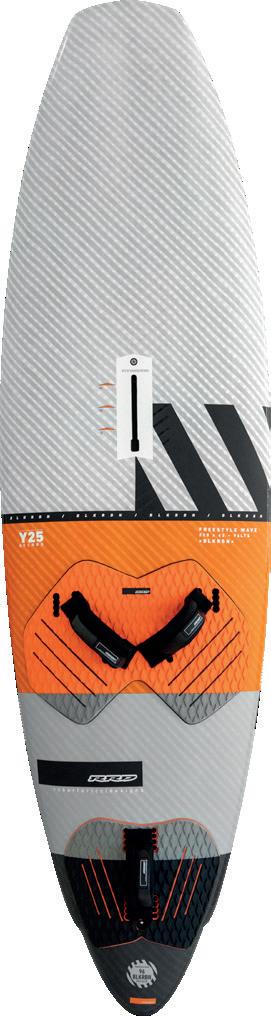

FREESTYLE WAVE

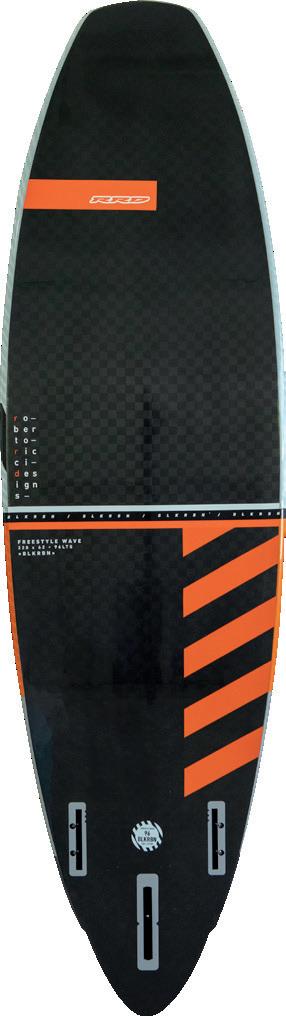

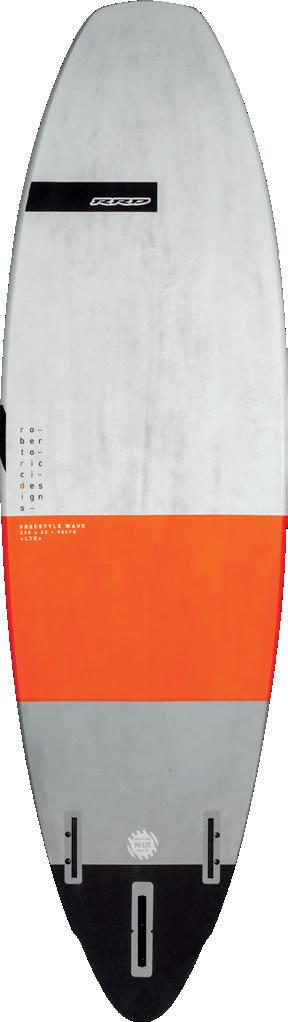

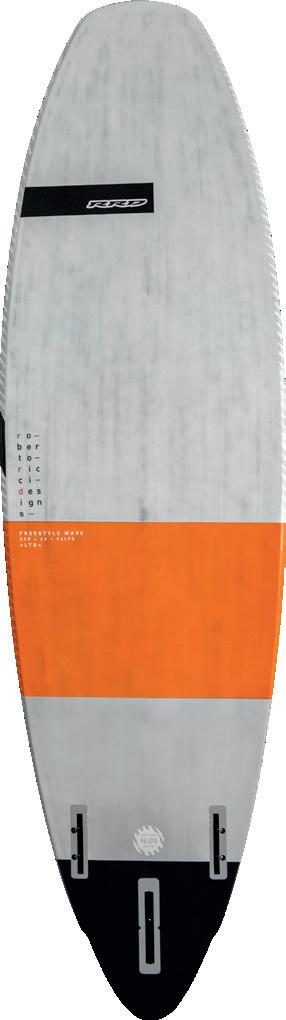

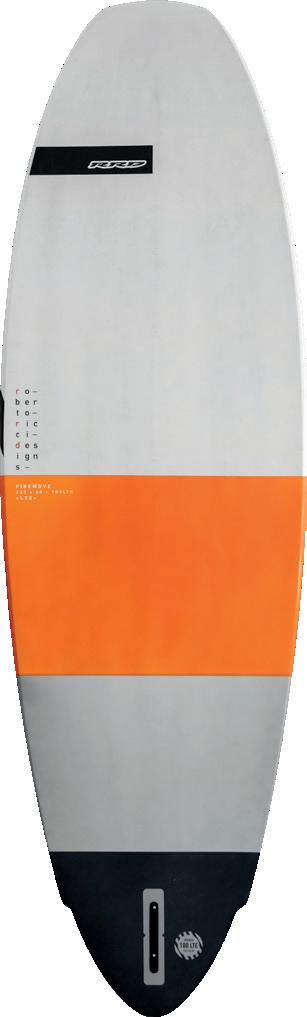

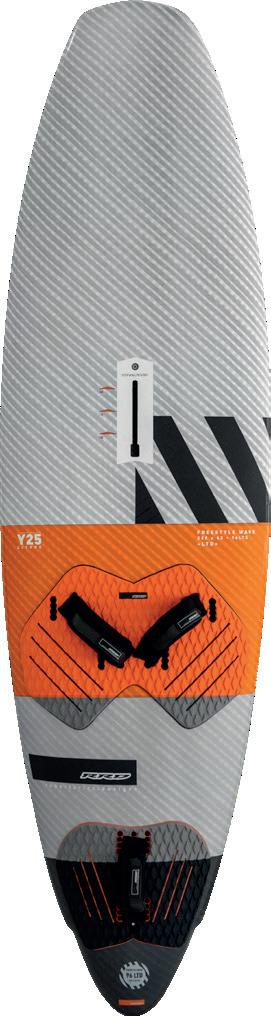

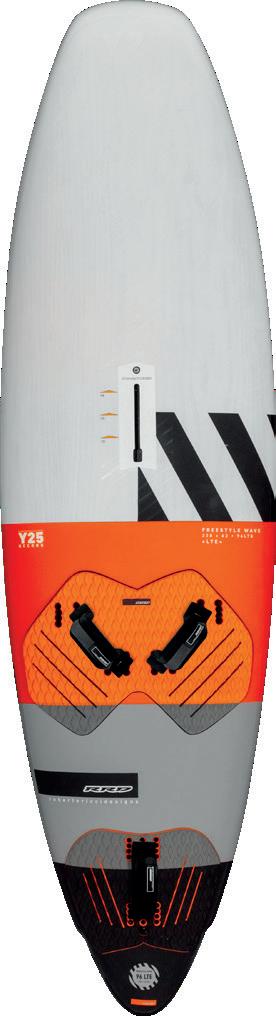

The Freestyle Wave is your every day board. The most versatile board in our range will always make you rejoice whether if you are riding it in flatwater or waves. What you get is an excellent planing, easy-going pure pleasure fast ride and great maneuverability. The Freestyle Wave’s reference bottom shape offers an extraordinary feeling of comfort and accessibility, but then it reacts quickly once it is put into proper action. It adapts to all wave and flatwater conditions due to both single or thruster fin uses.

• Fast rocker, double concave hull shape for top planing and manouverability

• Single or thruster fin set up

• The one board that does it all

• Straight Rocker until the mid section and slight double concave configuration.

• All the boards come with the “Power Box” fin system in combination with the 2 side slot box to allow to find the best trim.

• The 78lts, 84lts and 90 lts are equipped with K4 for RRD 3SW center and SHARK II side while the bigger sizes (the 96lts, 104lts and 114 lts) come with a single K4 for RRD 3SW. FE

INCLUDED FINS

2x K4 SHARK II SIDE SLOTBOX 1x K4 3SW CENTER POWERBOX

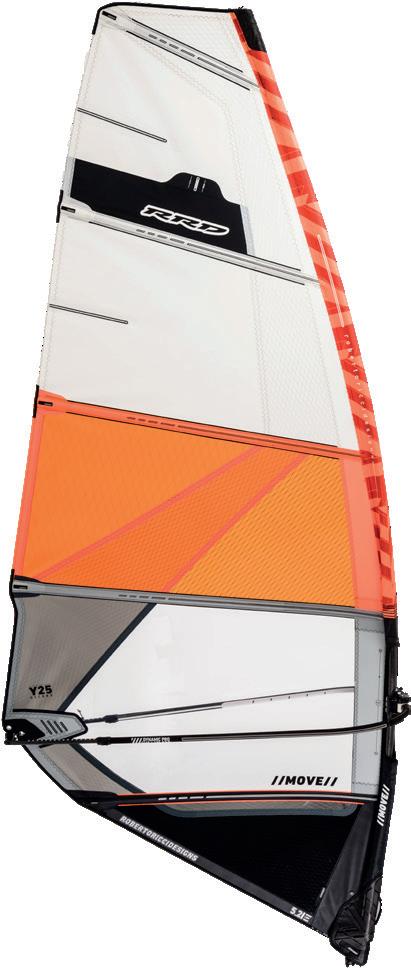

RECOMMENDED SAILS MOVE VOGUE STYLE PRO

BLKRBN / LTD / LTE

BLACK RIBBON

LTD

FREESTYLEWAVE

WINDSURF BOARDS

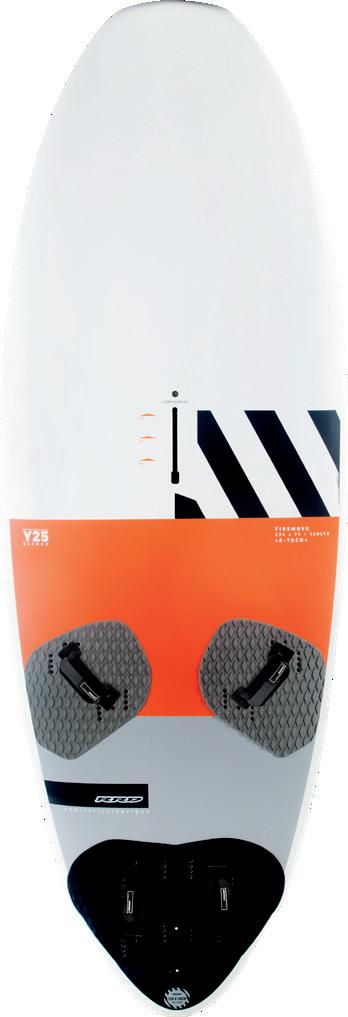

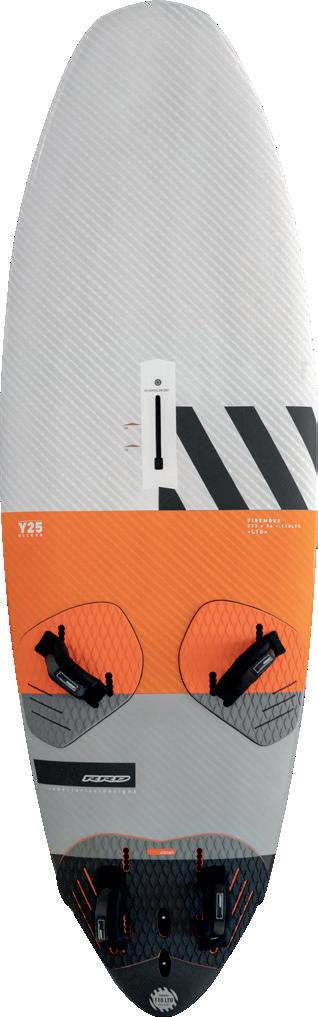

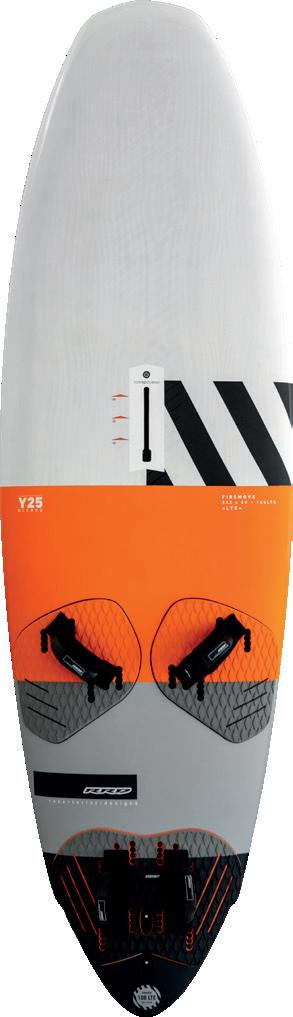

FIREMOVE FREERIDE / FREEMOVE

The Firemove is known for its plug and play and superior feel from the first time you try it; early planing, acceleration, maneuverability and a lightweight feel over the water. Once you step on it you’ll instantly feel confident and will never get tired of this magic board. The rails of the Firemove have been thinned down, up to the point of being thinner than a Hardcore wave shape, a real boost for maneuverability and foot steering ease. This year we added 2 new shapes to the line, the 135 and 155 lts in order to expand the range and meet heavier sailors needs.

• Short and Wide outline for a comfortable ride

• Thin rails for a boost in maneuverability

• Round/pin winger tail improving carving at hi-speed

•All sizes come with wide winger tail and a wide rounded diamond compact nose shape.

•Specific hydrofoil resistant deep tuttle FOIL box on big sizes (120, 135 and 155) and tuttle fin box on small sizes.

•Multiple straps set up: outboard for blast and jibe; inboard for added maneuverability or hydrofoil use.

•Available in 3 technologies: the LTD, LTE and E-TECH:

LTD: with Biaxial Carbon Innegra fibers deck and glass bottom LTE: light and tough: wood deck and bottom

E-Tech: HD glass epoxy skin on top and bottom with glass crossed fibers laminated

INCLUDED FINS

MFC LIQUID PRO G-10 TUTTLE HEAD (LTD/LTE)

RRD FREERIDE TUTTLE HEAD (E-TECH)

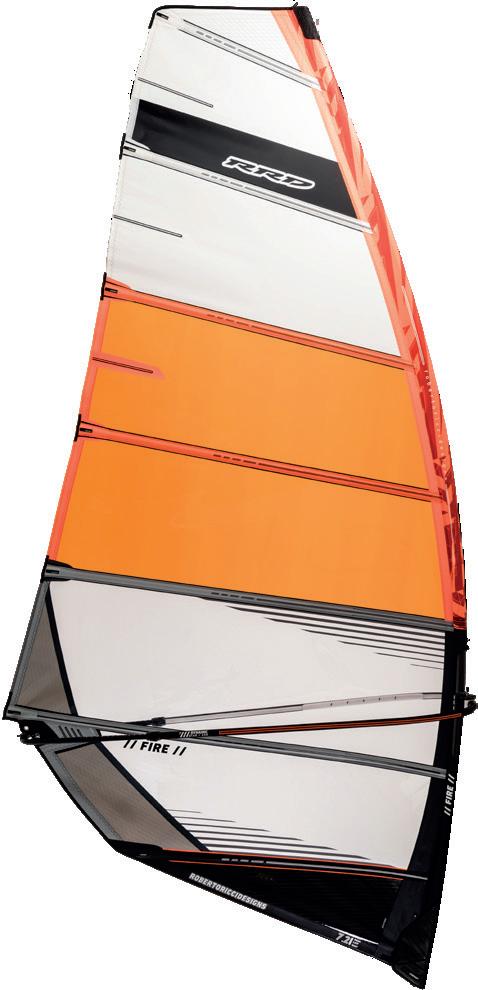

RECOMMENDED SAILS FIRE

E-TECH

LANGEBAAN SESSION

KITEBOARDINGMATTEO GUAZZONI & FRANCESCO CAPPUZZO

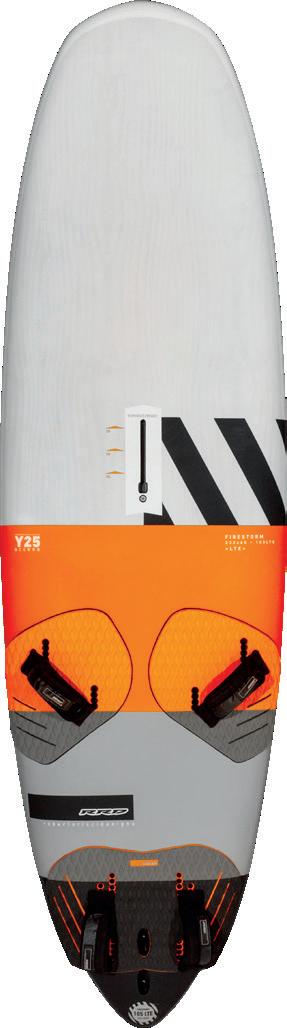

FIRESTORM FREERACE

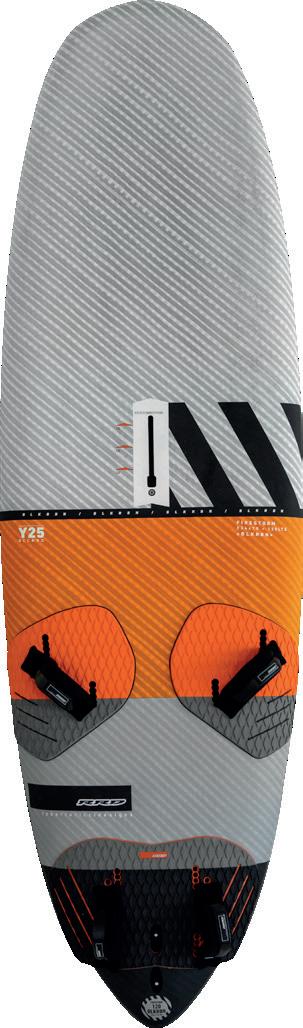

The Firestorm is a killer freerace machine with a pure blooded slalom DNA. You’ll easily find a perfect trim over any type of water surface to allow you being on the tip of your top speed potential at all times.

With its parallel lines in the mid/front section, smaller cut-outs and dedicated wingered/toro tail, the Firestorm results more controllable and easy to jibe than a slalom board and consequently excels with both freerace and cam race sails. Push your turbo button and harness in!

FE ATU RE S_

• A pure blooded Slalom board combining PWA performances without stress on your legs

• Wide nose to track upwind with impressive speed

• Specialized on full planing jibes

•Modern outline with parallel lines from the mid to the front section and a wide nose.

•SLALOM DNA assured by the use of the X-Fire 114 scoop rocker line.

•Specific hydrofoil resistant Deep Tuttle Foil Box.

RECOMMENDED SAILS

BLKRBN / LTD / LTE

LTD

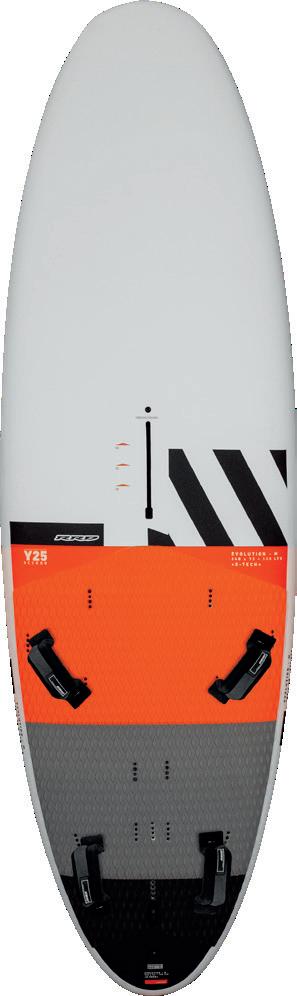

EVOLUTION EASY FREERIDE

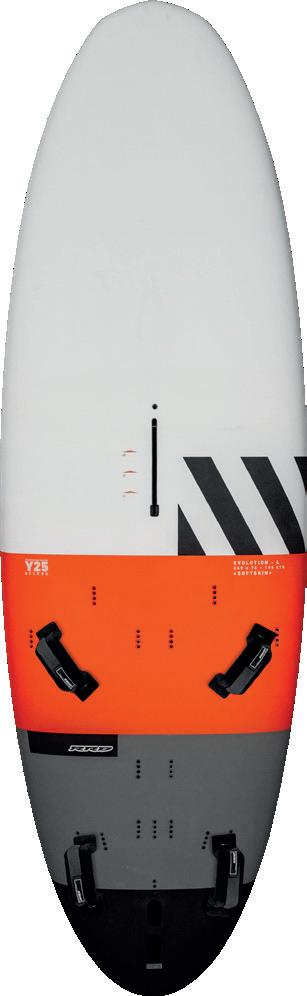

The new Evolution has the broadest range of use of our freeride line. Ideal for schools and centers, it suits all level riders due to its comfortable ride, floating and planing capabilities. This freeride board is longer and with full rails from tail to nose gets you on a classic and unforgettable fun ride. It perfectly adapts to windfoiling especially when learning for the first time.

• Long and stable classic freeride shape

• Multiple use: from schools to pure freeriding

• Suitable for windfoiling lessons

•4 shapes to maximize fun and versatility of use.

•Full V double concave hull with flat tail end to maximize stability, early planing and easy jibing.

•Adaptable to wind foil thanks to the FOIL BOX which is available on both technologies.

•Available in both E-Tech and Softskin technology.

TUTTLE HEAD

INCLUDED ONLY ON “L” SOFTSKIN SLALOM FIN 34 + ALGEIER DAGGERBOARD

SOFTSKIN

E-TECH / SOFTSKIN

EASY RIDE

SCHOOL

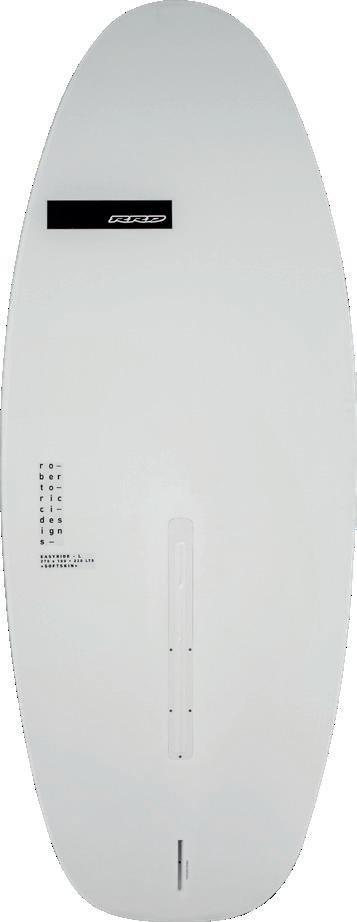

The Easy Ride boards represent the perfect set to equip any school and center around the world. 3 sizes that correspond to the different weights and sailors level. Strong and comfortable to learn on. The Easyride is simply the best board to use for your learning process.

• First board to start with

• Softskin deck to resist shocks and gentle on the knees

• Strong and durable construction for schools

•Carry handle inserts on nose. FE ATU RE S _

•Colour coded for easy recognition on the water.

•Heavy duty construction for use and abuse.

SLALOM FIN + ALGEIER DAGGERBOARD

RECOMMENDED SAILS

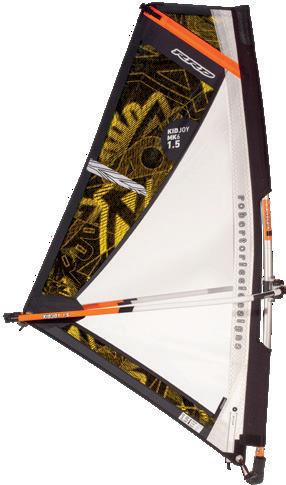

KID JOY

EASYRIDE INCLUDED FINS

SOFTSKIN

LONGRIDER LONGBOARD

The performance of a freeride board with the accessibility of a starter board. This board takes you back to the same feeling we had in the 80’s, but with the advantage of modern technology.

• Perfect starter and re-starter

• Huge range of use from zero to any wind

• Multiple straps positions to adapt to any rider / type of use

•Full EVA deck

•Step tail to switch into a full planing hull

ALGEIER DAGGERBOARD

RECOMMENDED SAILS EVOLUTION

COMPACT X-TRA EASYRIDE

BEGINNER

SOFTSKIN

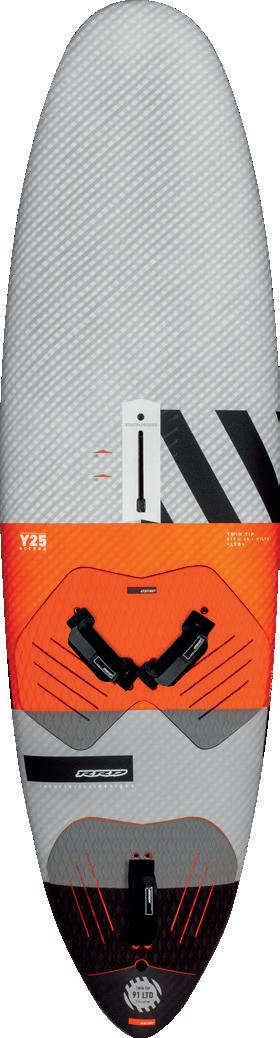

FIRE RACE 120 IFCA RACE

The FIRERACE 120 is a race board based on the X-FIRE shape, which has collected countless victories in the world cup! For several years it has been the board used by the French Sailing Federation (FF Voile) for the youth slalom activity. Starting from 2018 the Firerace 120 has been selected as well by the Italian Sailing Federation (FIV) for the slalom under 20 activity.

The FIRERACE 120 Y25 is a mix of excellent speed, incredible early planing and upwind abilities. It has been recently updated introducing the Foil Box in order to make it usable with hydrofoil.

• Incredible planing abilities and top speed potential

• Wide range sail sizes

• Suitable for race windfoiling

•Sensational top-end speed and effortless gybing.

•Innovative cut-out design giving an increased control and better acceleration.

•2 different fins, the 40 and the 44, it always behaves properly in various conditions.

•Equipped with the FOILBOX for both hydrofoil and standard fin to multiply your sessions.

•PS/ HD glass/ wood sandwich skin on top and bottom with a glass crossed fibers laminated in single shot moulding process.

INCLUDED FINS

1x MFC KP RC G-10 40 TUTTLE HEAD

1x MFC KP RC G-10 44 TUTTLE HEAD

RECOMMENDED SAILS

F-WING

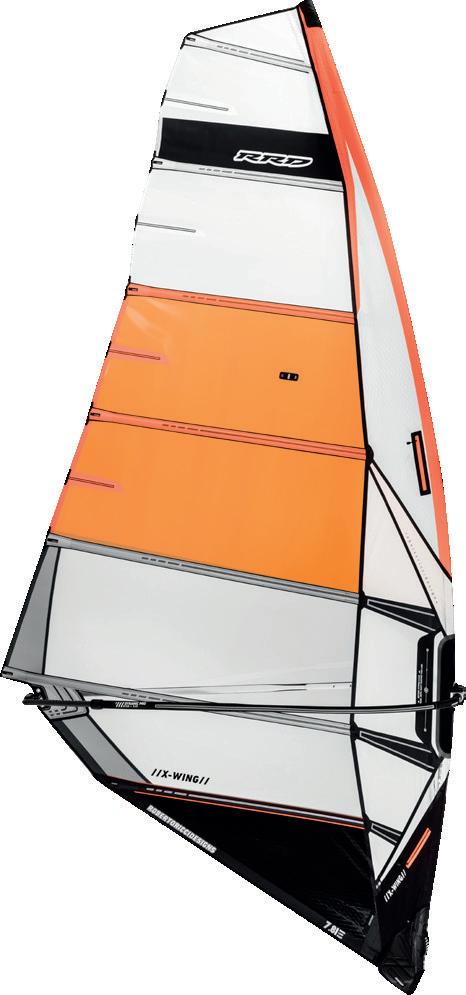

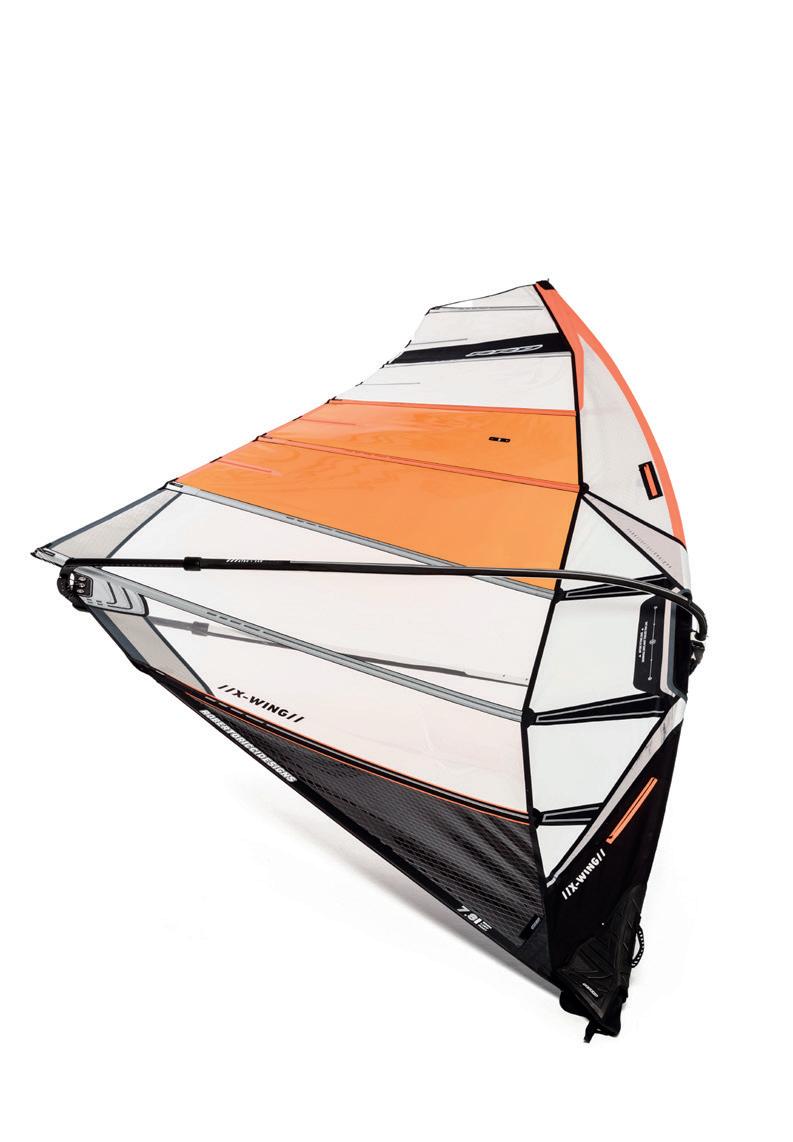

X-WING

JIBING CONTROL

SPEED

EARLY PLANING

MANEUVERABILITY

RACE

FOIL

LTE

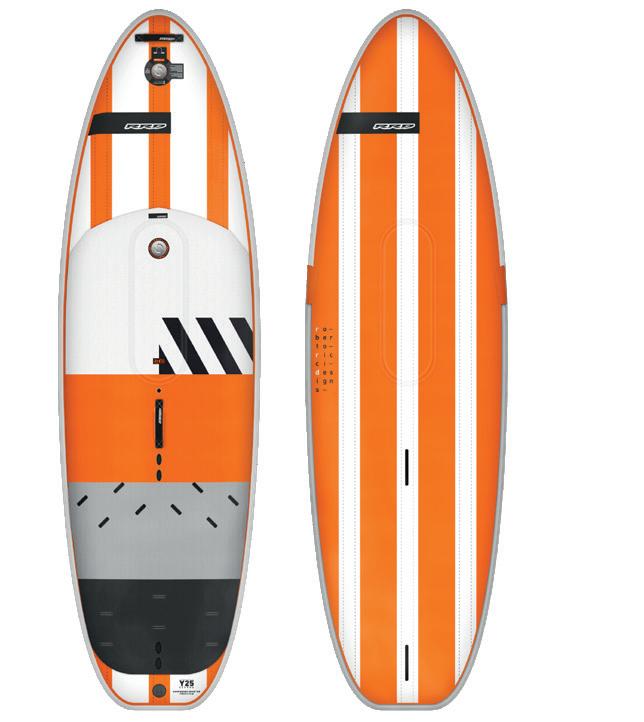

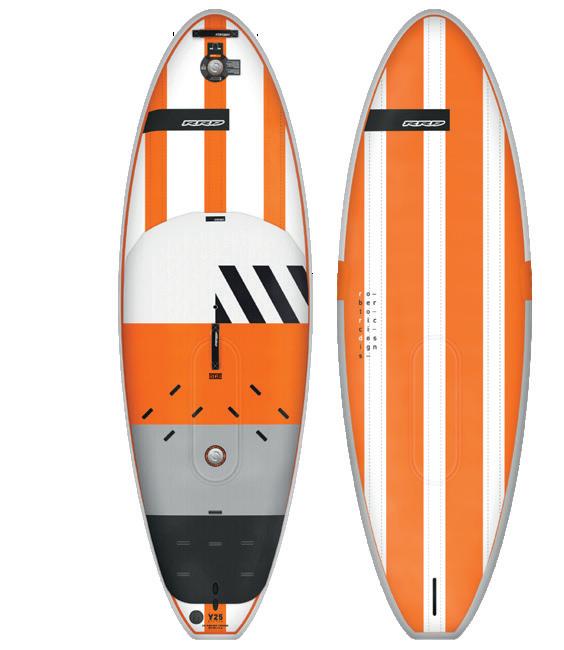

AIR WINDSURF FREERIDE

INFLATABLE PLANING FREERIDE BOARD

The new Air windsurf Freeride is an unbeatable board that will make you enthusiastic about the way it planes, accelerates and reaches incredible top speeds! Equipped with a simple backpack, you will have a hassle-free toy that guarantees the performance to challenge your friends. Put it together with one of our compact sails and rig and you will be a trendsetter.

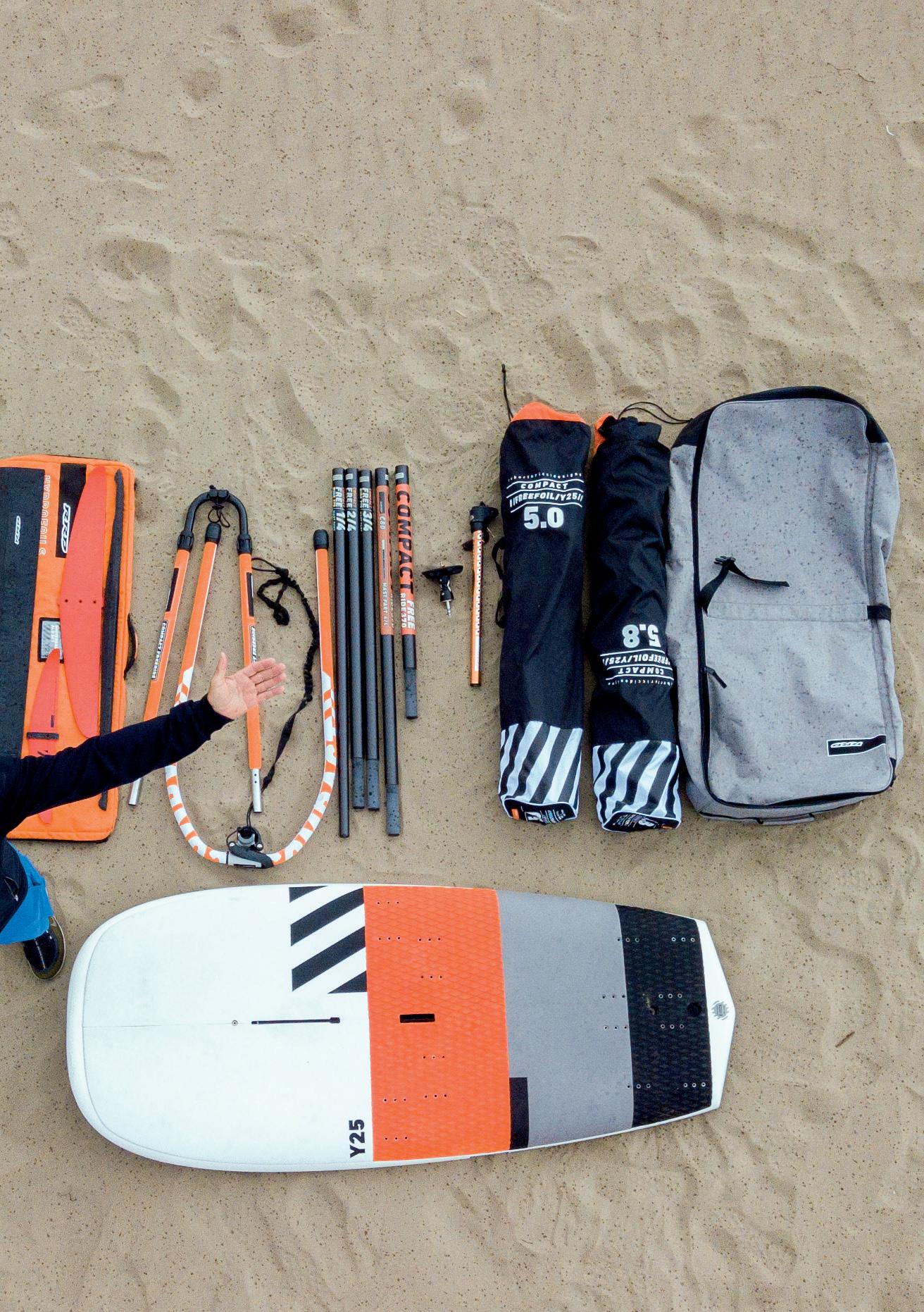

AIR WINDSURF EVOLUTION

INFLATABLE ENTRY LEVEL FREERIDE BOARD

The Airwindsurf Evolution is the best entry level windsurf board to travel with. Once you step on it you’ll be surprised for its stability, all-round maneuverability and sensation of glide. The wide outline makes it the most comfortable to learn on and incredibly accessible for everyone that wants to improve. Ideal for the ones moving their first steps into windsurfing and for schools as it is practically indestructible.

• Comfortable to ride and easy to carry around into a backpack

• Fantastic boards to have fun with your family and friends

•The 3x Sandwich Dyneema belts mean stiffness and performance.

•The exclusive ITB (Integrated Tuttle Box) system ensures planing and acceleration.

•Carry bag with wheels, accessory compartments and shoulder straps to carry your board anywhere with you. FE ATU RE S

•The SPSP Soft PVC Sharp rail Profile improves water release and allows planing at low speed.

INCLUDED FINS

K4 x

RECOMMENDED SAILS

COMPACT X-TRA

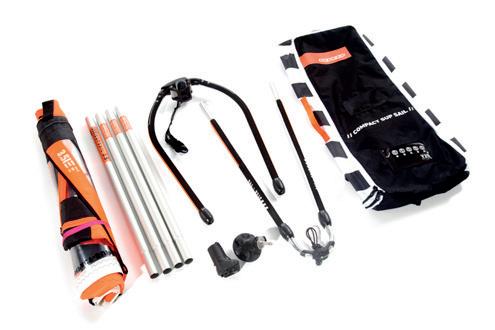

COMPACT SUP SAIL

EASY RIDE

KID JOY

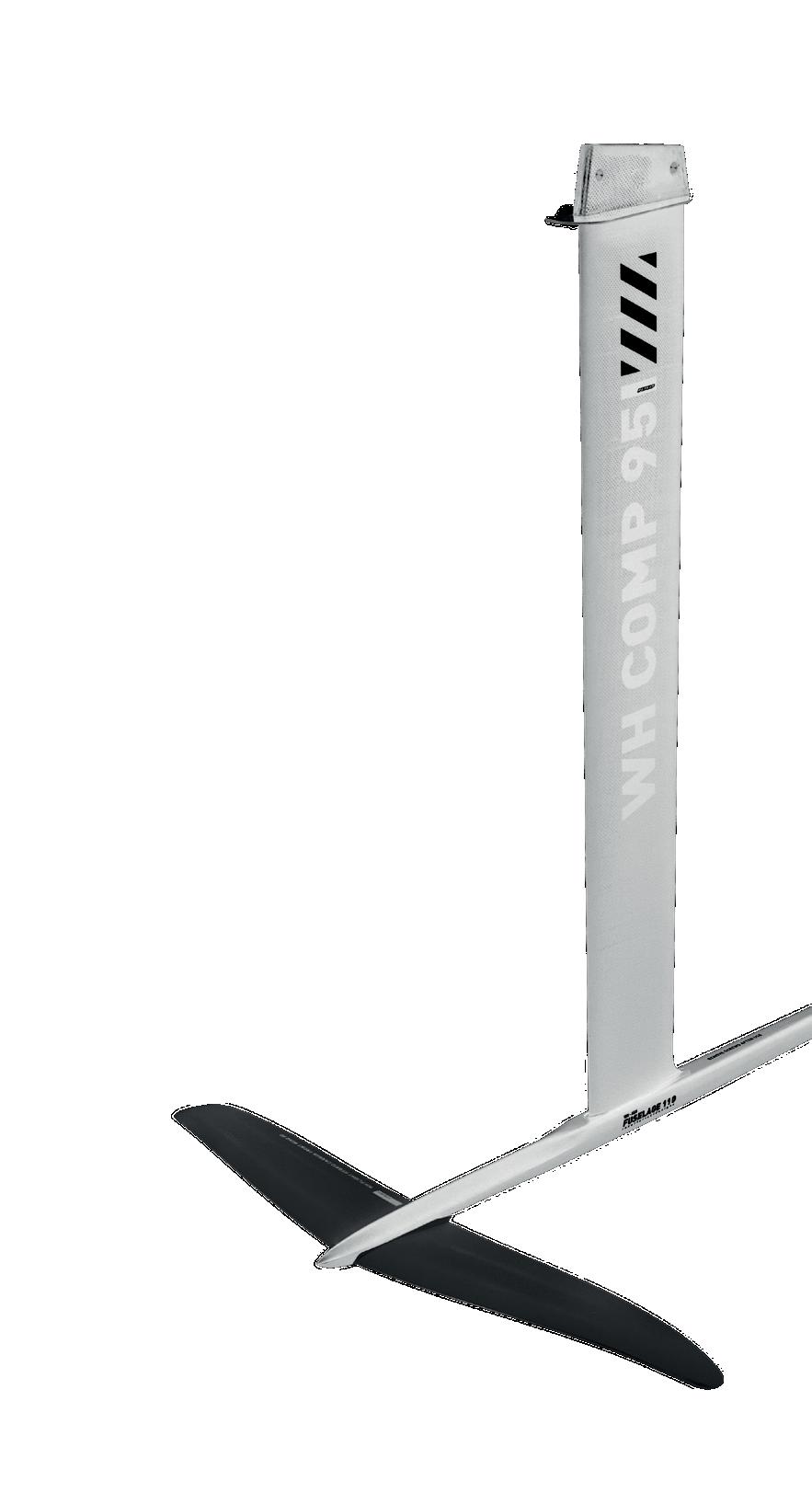

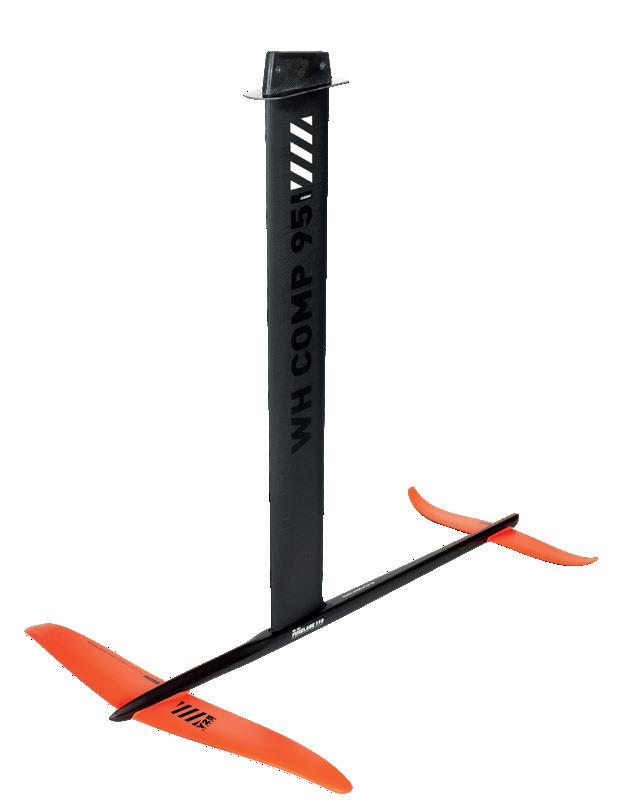

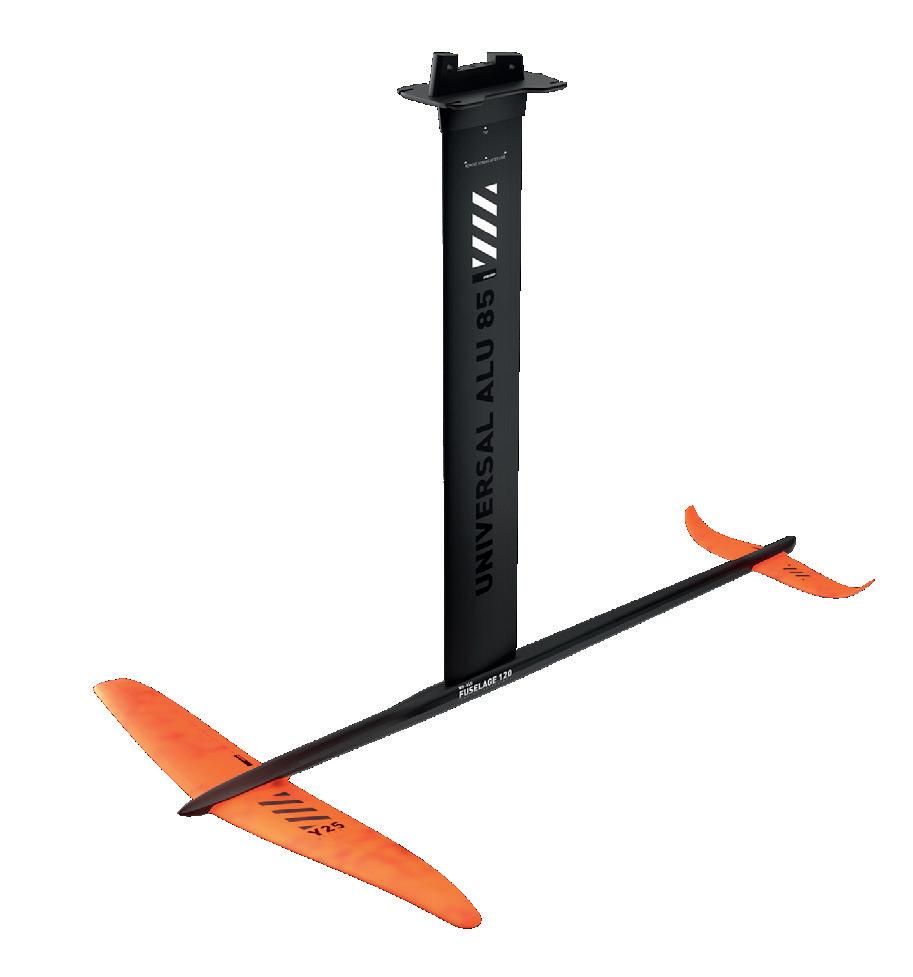

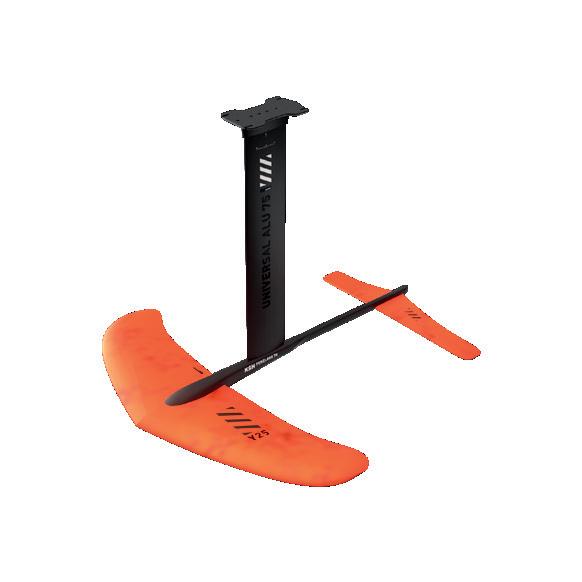

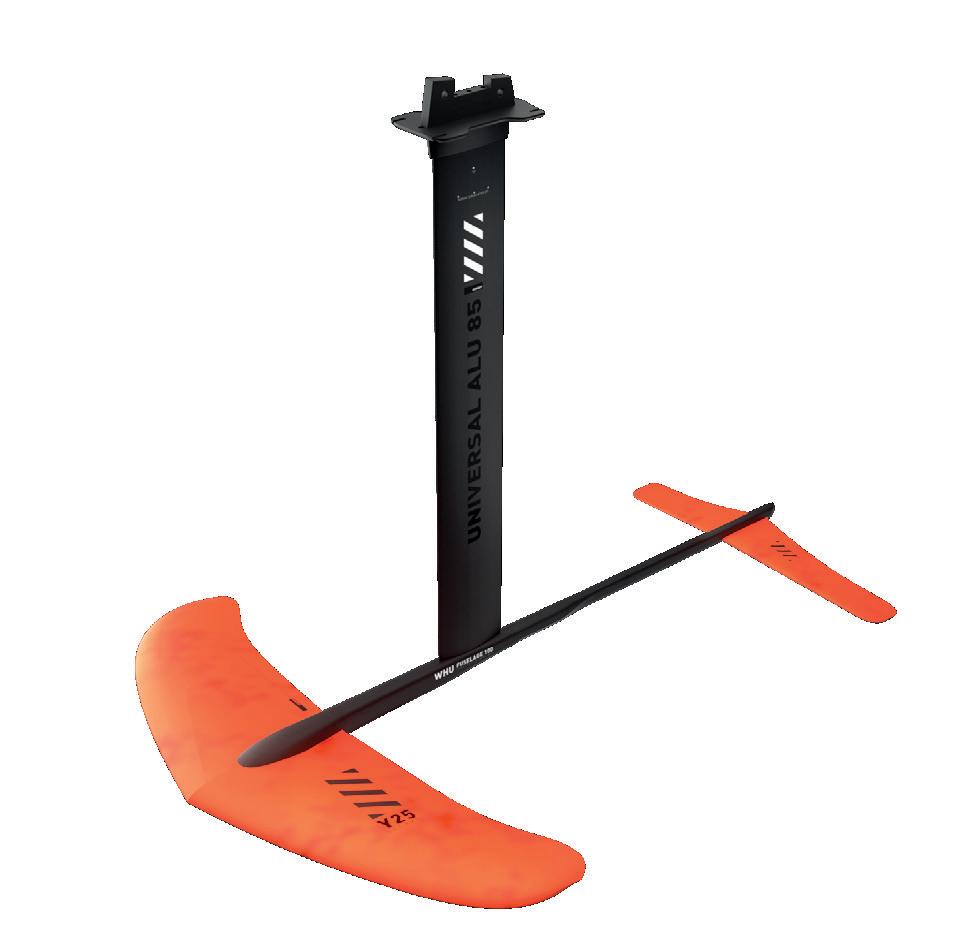

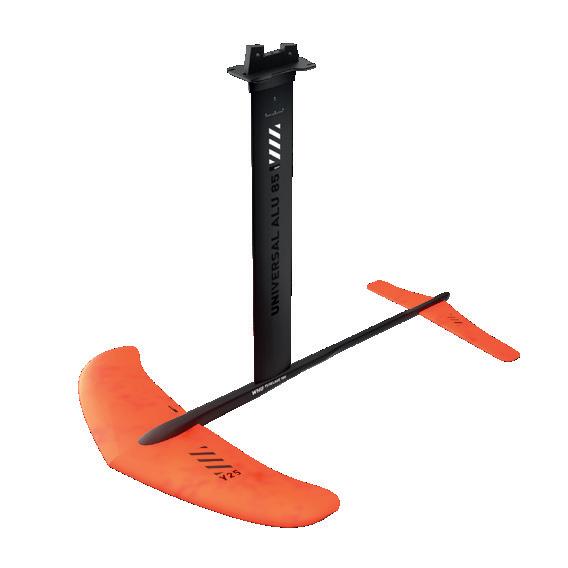

WINDFOIL BOARD + HYDROFOIL COLLECTION

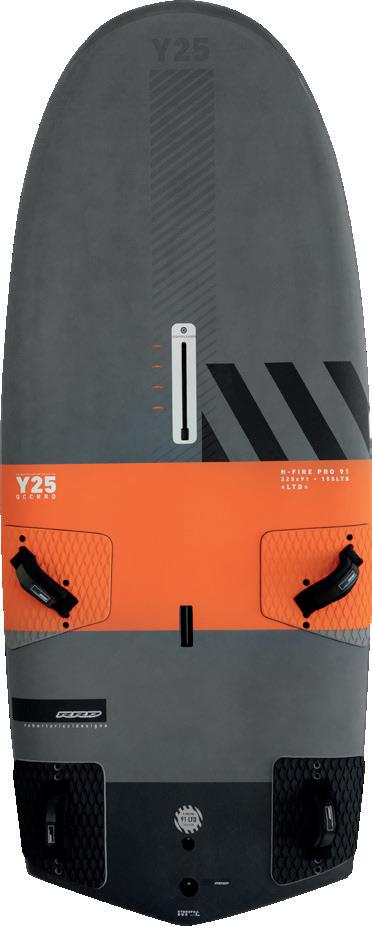

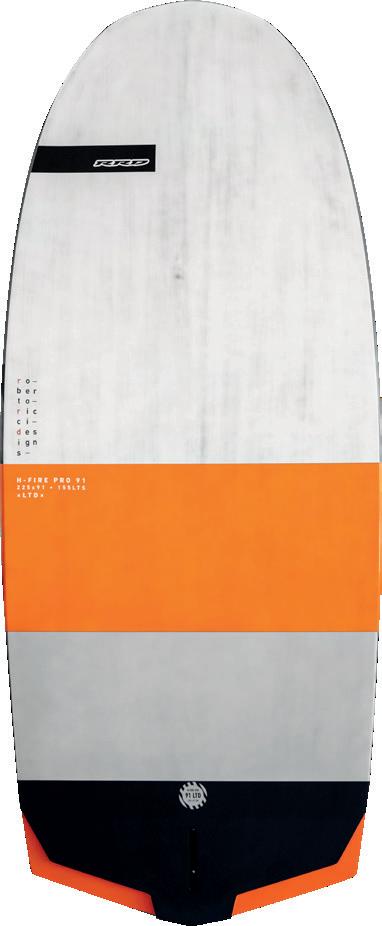

H-FIRE 91 PRO

WS FOIL RACE PRO

The H-FIRE PRO 91 is a no-compromise race board for foiling. From 5 to 30 knots this is the board to have if you want to be the first one on the course. Early take off, control at hi speed and outstanding upwind performance, this board has an enormous potential for those who want to go beyond their limit.

The rocker is optimized for early planing and with specific boxy rails and a wide tail area, the H-FIRE 91 PRO provides a superior pressure potential onto the front wing of the hydrofoil to improve stability at top speeds.

• Control at top speed

• Wide tail and boxy rails for ultimate upwind performance

• Early planing even with smaller sails

• Special short/wide tail cutouts to improve foil take off

•Short and wide (225 cm x 91 cm) and with 155 liters is able to take big sails in the lightest wind without any effort.

•Reduced pad area for maximum lightness and grip.

•Available in 2 technologies: LTD and LTE

LTD : as light as possible yet durable for racing. Custom laminated with industry excellence SIGMATEX™ Spread Tow Carbon 88grms/sqmt on deck and bottom.

LTE: light and tough edition; wood deck and bottom.

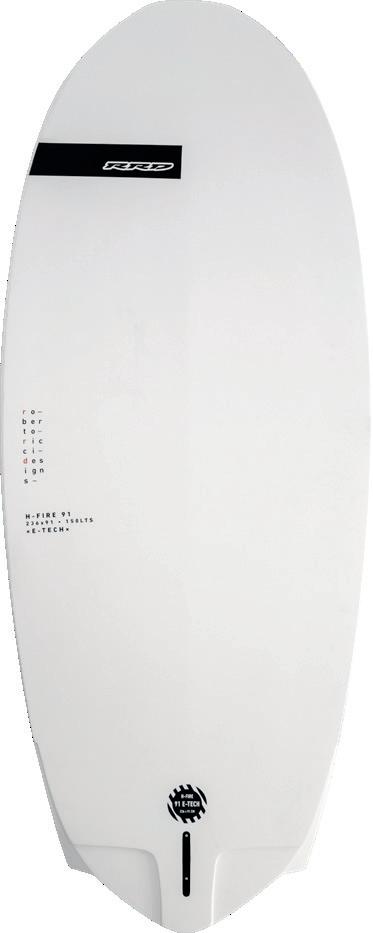

H-FIRE 91

WS FOIL FREERIDE

The H-Fire 91 has all the features for a great foiling experience at any level. The board is 236 x 91cms of width, with a wide tail area that makes it easy to get up on the foil and control it. The 236cms length will make your learning process an easy one and will become extra functional once you try your first jibes. This board is also very handy when foiling at high speed when you need control during touch downs and works well also for a standard fin windsurfing ride.

• Accessible to any rider. Best foilboard to start with

• 236 cm in length to keep control in speed and during touch downs

• 91 cm of width for great stability

•Wide tail and deck shape for an easy ride while in the air or in the water

•Specific hydrofoil resistant Deep Tuttle Fin Box, also usable with standard fins

•Full pad for maximum comfort and grip all over the stepping area

•Middle carry handle for an easier transport to the water

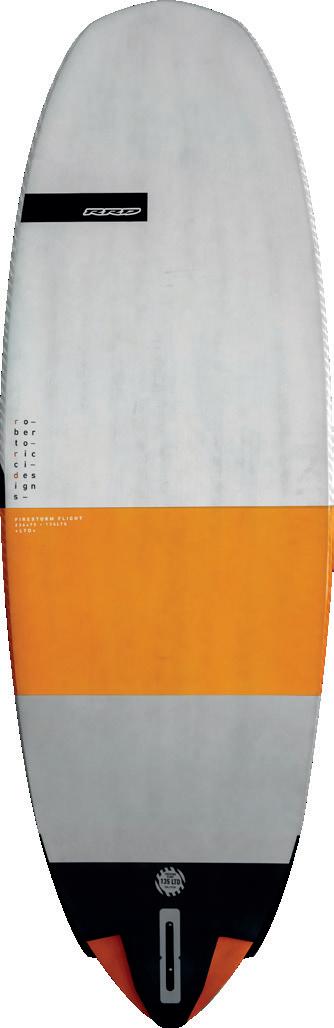

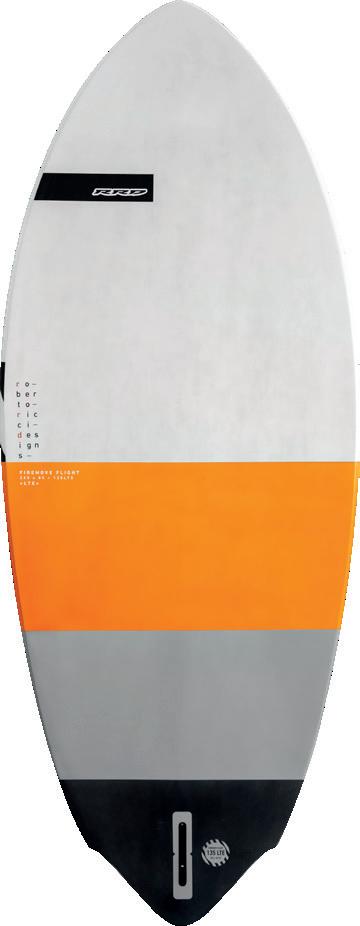

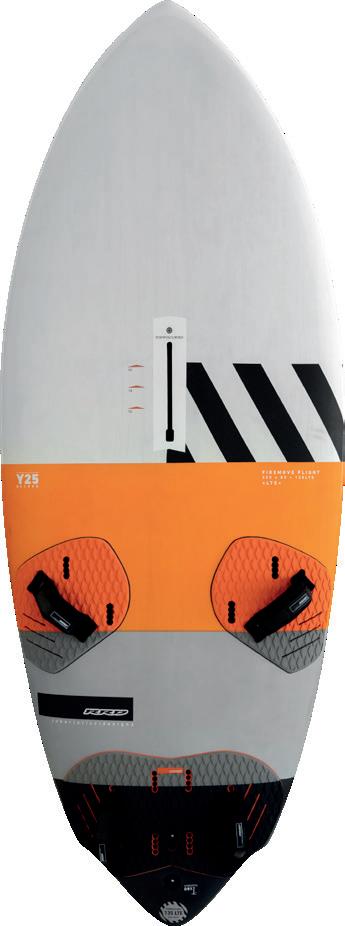

FIREMOVE FLIGHT

WS FOIL FREE RIDE / FREEMOVE WS BOARDS

One board to opt for a foil or windsurf session, the FIREMOVE FLIGHT 135 is a convertible windsurf/foil shape that gets you in the water with minimal conditions. Its max width with pronounced curved outline throughout the whole length of the board, make it a real modern “ONE FOR ALL” kind of board. Just add one sail size and forget about waiting on the beach whether it is windsurfing or windfoiling. Choose a simple solution that covers all your needs.

• Windsurf / windfoil convertible

• Shortest freeride board in the market

• Extra control and comfort in both windsurf and windfoil mode

•Available in 3 technologies: the LTD, LTE and E-TECH: LTD: built with Biaxial Carbon Innegra fibers deck and glass bottom. Light and stiff. LTE: light and tough single shot technology, wood deck and bottom layup. E-Tech: HD glass epoxy skin on top and bottom with glass crossed fibers. Super durable. FE ATU RE S

•Pronounced curved outline with a winger tail and “retro style” pin nose for best foiling performance.

•Maximum width of 85 cm to enhance performance for both freeride hydrofoiling and quick planing freeride windsurfing.

•Specific deep tuttle foil box.

•Multiple straps set up: outboard for blast and jibe windsurfing and speed hydrofoil use; inboard for added maneuverability and freeride foiling.

INCLUDED FINS

MFC LIQUID PRO G-10 TUTTLE HEAD (LTD/LTE)

RRD FREERIDE TUTTLE HEAD (E-TECH)

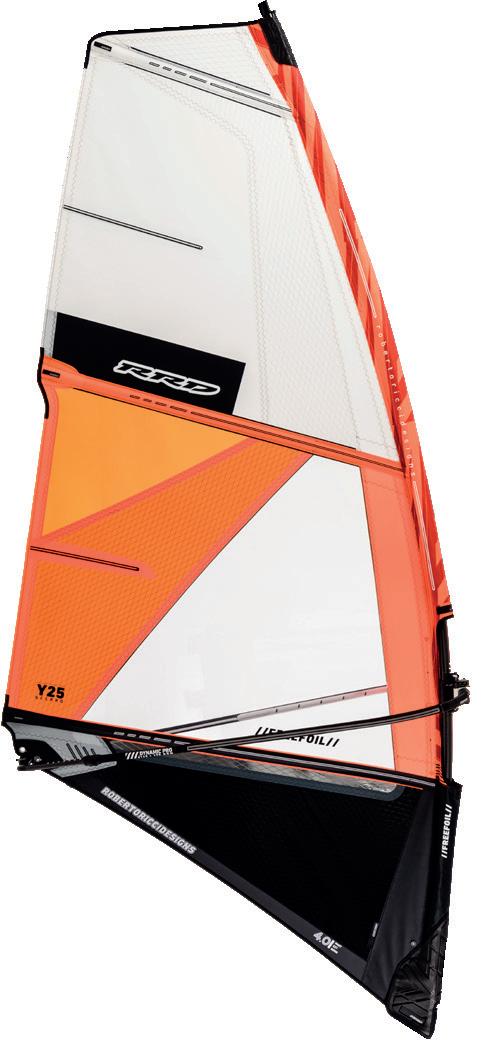

RECOMMENDED SAILS FIRE COMPACT FIRE FREEFOIL COMPACT FREEFOIL

FM/FLIGHT

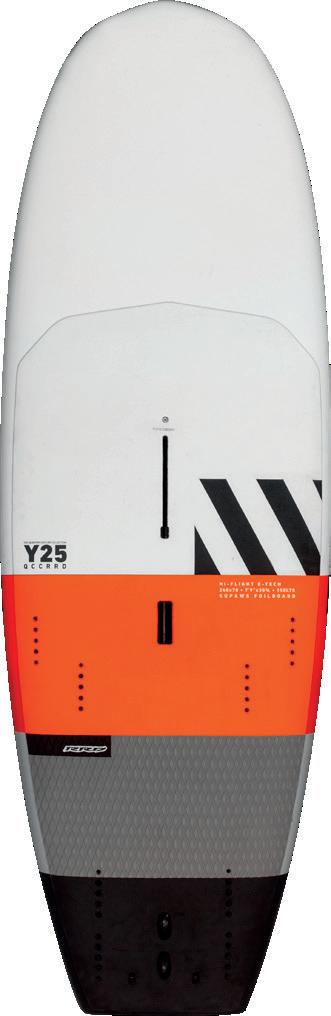

HI-FLIGHT

WS / SUP FOIL BOARD

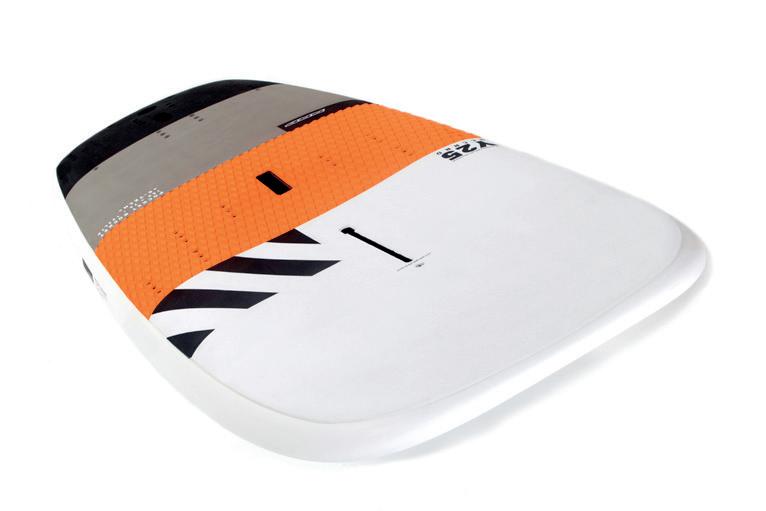

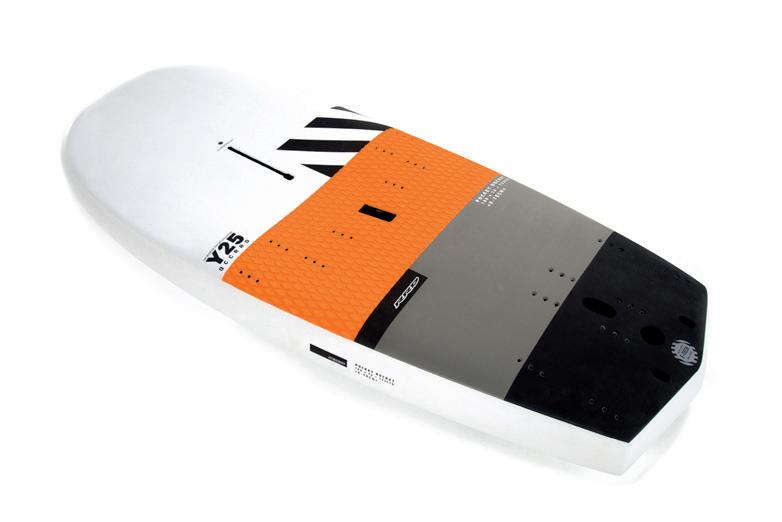

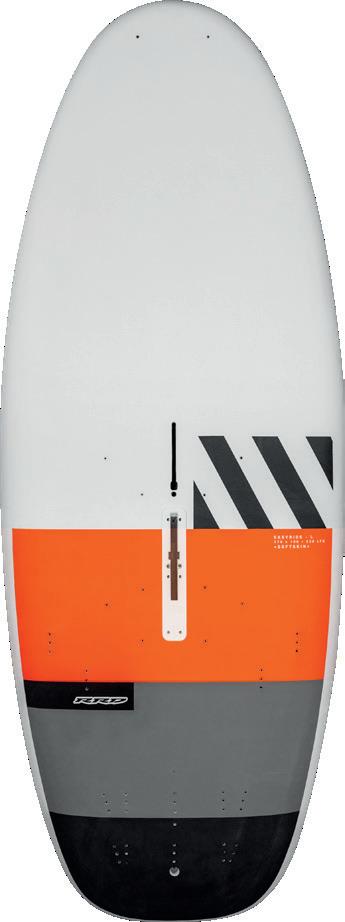

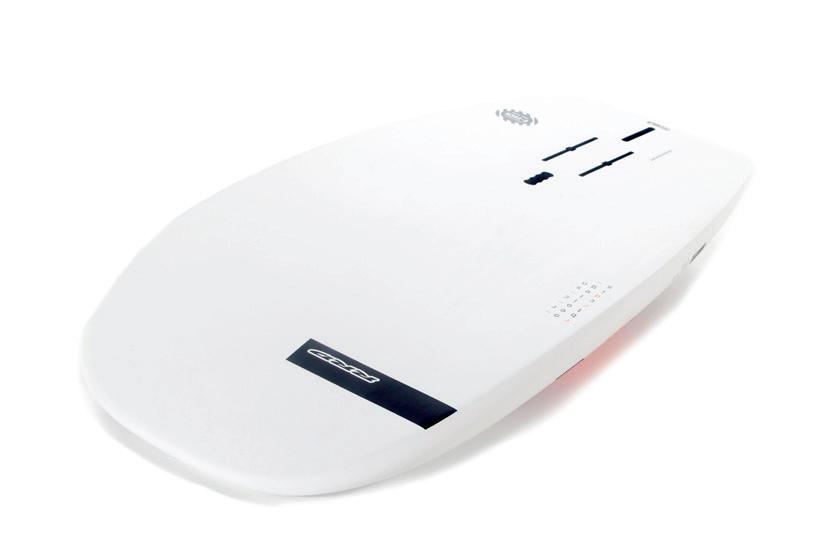

The HI-FLIGHT allows a super easy approach to sup and windsurf foiling and progress further with controlled and accessible performance. Its bigger shape gives an extra stability when paddling or when using it with a windsurf sail. Intuitive and user friendly it guides you naturally on your way in the exhilarating world of foiling. The HI-FLIGHT is ideal to make you discover the extraordinary feeling of flying whether you using it for sup or windfoiling.

• Easy approach to sup and ws foiling

• Marked beveled rails from nose to tail for smooth touchdowns

• Variable EVA grip texture/concave deck shape to find the correct position of your feet

•A straight rocker line with a dead flat tail section, helps getting immediate speed

•Marked beveled edge to keep momentum when foiling and reduce the impact resistance on touch downs

•A pronounced concave deck marks the limit of your front feet positioning when riding strapless

•Two US box slots for sup foiling.and a deep tuttle box for windfoiling

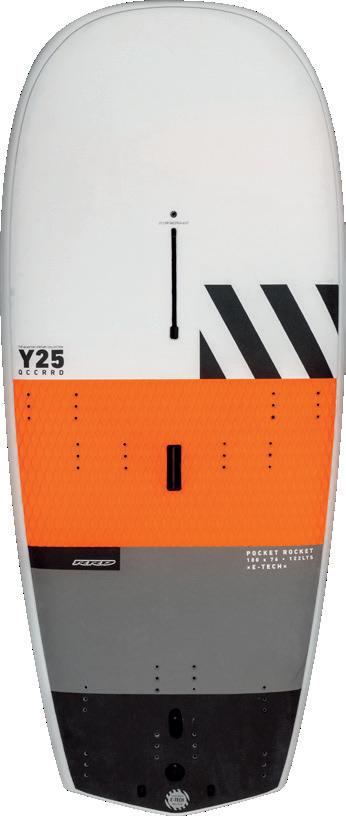

E-TECH

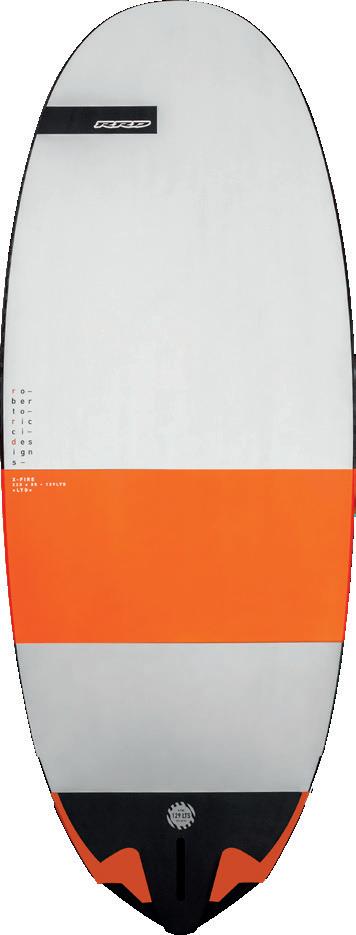

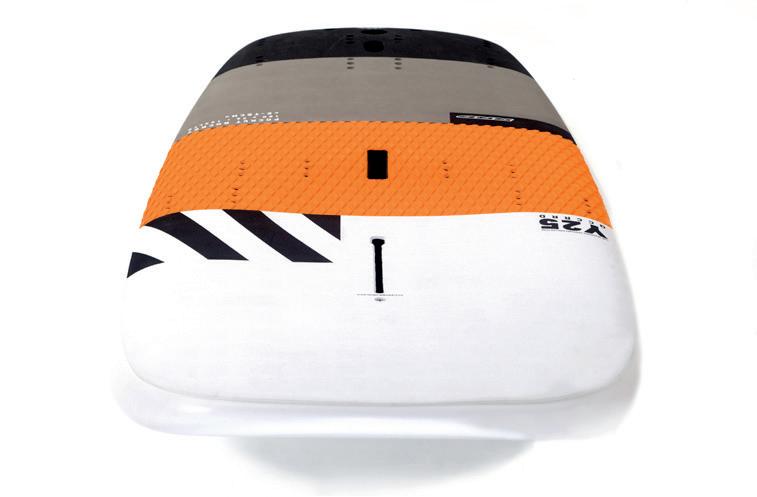

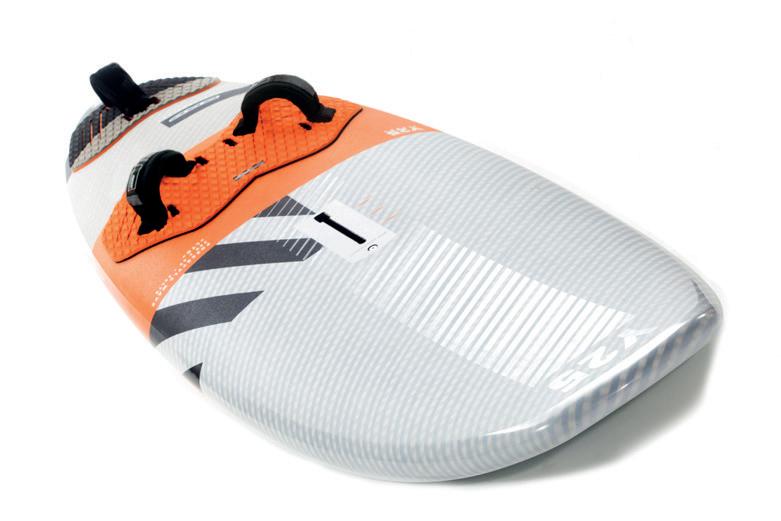

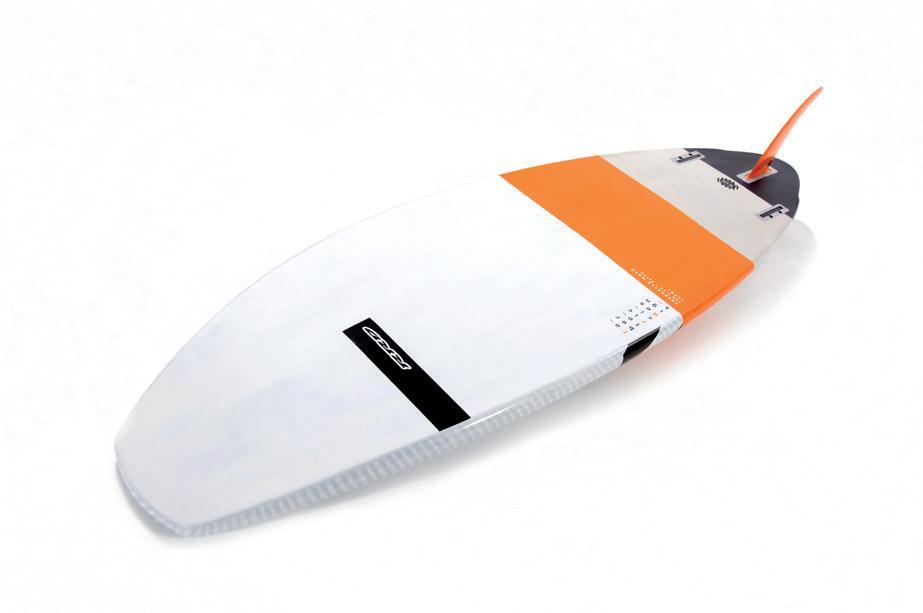

POCKET ROCKET

COMPACT WS/SUP/WING/FOIL BOARD

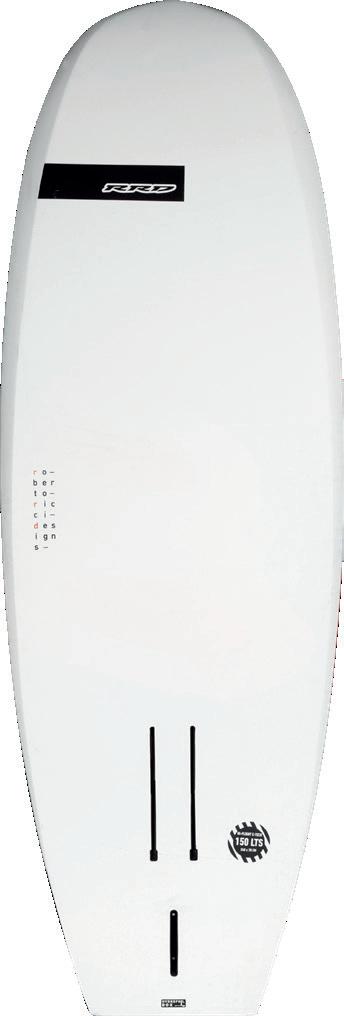

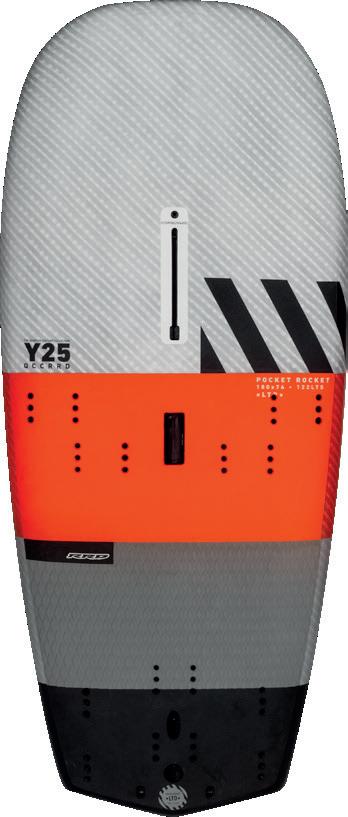

The Pocket Pocket is an innovative and unique board for windfoiling; only 180 cm in length, it is the most fun and accessible foil board we have developed. It helps to take off earlier, stays up foiling longer and with its 122 lts of volume perfectly floats when uphauling a big sail. Not to mention the practical side of things while you pack up and load the gear in your car! The Pocket Rocket 180 fits inside the booth of any car (even inside a Fiat Panda!) and together with your hydrofoil and compact rig, you can go to the beach as if you have your kite gear and not a windfoiling machine.

• Only 180 cm for superior foil rides and transport comfort

• From intermediate to advanced level

• For the best strapless/harnessless rides

• Great for advanced SUP foiling and best Wingfoil board

•Unique carry handle on the bottom for easy entry into the water

•Board handle on the deck

•Special concave shape on the deck for a comfortable and performing strapless ride

•A deep tuttle box for windfoiling and US box slots for sup foiling.

LTD / E-TECH

POCKET

ROCKET

COMPACT LIFE

MODERN WINDSURFING? COMPACT WINDFOILING

When we first rode the Pocket Rocket 180 cm we immediately understood that we had our feet onto a new real jewel. The lack of a nose in front of the mast track, allowed to be more stable and keep foiling even in the lightest winds without the need of a big sail. It was enough to use a 5,2 Gamma 3 batten wave sail with only 10-15 knots of wind, having a blast. Not to mention the practical side of things while you pack up and load the gear in your car! The Pocket Rocket 180 perfectly fits inside the booth of any car and together with your hydrofoil and compact rig, you can go to the beach looking like you have your kite gear and not a windfoiling machine.

ROBERTO RICCI CASTIGLIONE DELLA PESCAIA ITALY

PAOLO MIGLIORINI LAKE GARDA SESSION

What a session!

It was late afternoon in Lake Garda and still very windy as I was full powered with my favorite sail, the 4.0 Compact Freefoil. I was flying above the water!

I rode upwind to Hotel Pier and then back downwind to Torbole. Anything is possibile, this is the essence of freeriding. This is foil revolution!

HYDROFOIL RANGE OF USE

BOARD SPEED RANGE

510KNOTS15KNOTS20KNOTS25KNOTS KNOTS30KNOTS

WH COMP SET

HI PERFORMANCE WINDHYDROFOIL

Hi performance full carbon 95 cms mast, 110 cms Alu fuselage and hybrid carbon wings (front wing 726 sqcms/80 cms wingspan, rear wing 281 sqcms/50 cms wingspan). This carbon foil takes a step forward in controlling at higher board speed. It goes up to your personal speed limit with smaller full carbon wings. As optional we provide 2 x additional mast sizes (105 and 85 cms), fuselages, full carbon wings to have all the set ups needed for pure racing.

• Full pre preg PITCH CARBON mast for superior stiffness

• Variety of optional components to improve performance and suit any rider’s needs

• Control at hi speeds

•4 separable pieces: mast with deep tuttle head and carbon flat plate base, fuselage, front and rear wings.

•WH hybrid carbon front wing developed for hi performance windfoiling. Easy to control at higher speed and best upwind angle.

•WH hybrid carbon rear wing designed with thin profile and side winglets. Best stability of ride and control from 8 to over 25 knots of speed. The perfect stabilizer for windfoiling.

•Special Freerace Full Carbon 95 cms mast. Hi pressure/temperature compression moulding, using a 30% state of the art pitch carbon M40 fibers layup mixed up with UD carbon fibers. The result is a perfect mix of dynamic stiffness that adapts to the riders skills from intermediate to advanced level.

•Plastic connector at the bottom of the mast allows it to fit to any fuselages from kite to surf foils, and by separating aluminum parts contact it avoids oxidation and corrosion typical when carbon touches aluminum. Longer lifetime, no stuck pieces.

•WH alu fuselage with narrow streamlined leading edge and long&wide wings attachment area. Stiff connection that takes you to hi performance.

AVAILABLE AS OPTIONALS:

WH COMP PREPREG MAST 85

WH COMP PREPREG MAST 105

WH ALU FUSELAGE 80

WH ALU FUSELAGE 90

WH ALU FUSELAGE 100

WH ALU FUSELAGE 120

WH HYBRID CARBON FRONT WING 85/768

WH- HYBRID CARBON REAR WING 38/214

WH-FULL CARBON FRONT WING 80/724

WH-FULL CARBON FRONT WING 85/768

WH-FULL CARBON FRONT WING 100/1053

WH-FULL CARBON REAR WING 50/281

WH-FULL CARBON REAR WING 38/214

DELIVERED WITH:

WH COMP PREPREG MAST 95

WH ALU FUSELAGE 110 CMS

WH COMP SET FULL CARBON WINGS

WH HYBRID CARBON FRONT WING 80/726

WH- HYBRID CARBON REAR WING 50/281

WH ALU SET

FREERIDE WINDHYDROFOIL

A modern and evolved freeride foil with an 85 cms ALU mast and 120 cms fuselage and hybrid carbon wings. Easy to learn on and progress with controllable performances. It guarantees a solid and fast flight and long “floating/foiling” characteristics even when the wind drops. Super easy to come off the water under the slightest pumping action on the rig. Can go up to 22 knots of top speed. A true pure new school windsurfing experience!

• Freeride foiling adding performance

• 120 cm long fuselage for superior stability and easy jibing

• For all level riders, preferred for light wind use

•6 separable pieces: mast, plate, tuttle head, fuselage, front and rear wings

•WH hybrid carbon front wing developed for hi performance windfoiling.

Easy to control at higher speed and best upwind angle.

•WH hybrid carbon rear wing designed with thin profile and side winglets.

Best stability of ride and control from 8 to 22 knots of speed. The perfect stabilizer for windfoiling.

•Wider and stiffer Universal ALU mast with extra internal wall thickness and reduced outside profile.

The top combination for speed potential and superior control.

The most evolved ALU mast in the market today.

•Plastic connector at the bottom of the mast allows it to fit to any fuselages from kite to surf foils, and by separating aluminum parts contact it avoids oxidation and corrosion typical when aluminum touches aluminum. Longer lifetime, no stuck pieces.

•WH alu fuselage with narrow streamlined leading edge and long&wide wings attachment area. Stiff connection that takes you to hi performance.

•Stainless steel (aisi 316) Helicoil trhreads on mast and fuselage for longest durability and easier to unscrew.

AVAILABLE AS OPTIONALS:

WH ALU FUSELAGE 80 Y25

WH ALU FUSELAGE 90 Y25

WH ALU FUSELAGE 100 Y25

WH ALU FUSELAGE 110 Y25

85/768 Y25

38/214 Y25

DELIVERED WITH:

REMOVABLE TUTTLE HEAD

REMOVABLE UNIVERSAL PLATE

UNIVERSAL MAST 85 CMS

WH ALU FUSELAGE 120 CMS

WH HYBRID CARBON FRONT WING 80/726 Y25

WH- HYBRID CARBON REAR WING 50/281 Y25

WH HYBRID CARBON FRONT WING

WH- HYBRID CARBON REAR WING

UNIVERSAL WH ALU SET

ALL TERRAIN WINDHYDROFOIL

CONVERTIBLE INTO SUP/SURF/KITE HYDROFOIL

Learn how to foil and jibe in 2 days! Spectacular lift starting at 8 knots of board speed on the water. You can go all the way up to 18 knots of top speed with pleasure, comfort and exhilarating fun. Is the most versatile hydrofoil in the range. A front wing of 1500 sqcms/82 cms wingspan allows this foil to be converted into a Kite/ SUP-Surf foil with the purchase of a shorter fuselage (from 100 to 76 cms).

• Freeride foil to start and quickly improve

• 100 cm long fuselage for superior stability

• Convertible into a multisport foil. One foil set to do it all!

•Universal hybrid carbon front wing with thicker profile.

•Universal hybrid carbon rear wing with negative dihedral (anhedral) design to keep foiling with ease when jibing. It also helps pumping the board with your feet.

•Wider and stiffer Universal ALU mast with extra internal wall thickness and reduced outside profile, the top combination for speed potential and superior control. The most evolved ALU mast in the market today.

•Plastic connector at the bottom of the mast allows to fit it to any fuselages from kite to surf foils, and by separating aluminum parts contact it avoids oxidation and corrosion typical when aluminum touches aluminum. Longer lifetime.

•WHU alu fuselage with extra wide head area to carry and support super wide wings (up to 120 cms wingspan and 3000 sqcms).

•Stainless steel (aisi 316) helicoil threads on mast and fuselage for the longest durability and easier to unscrew.

•Removable universal plate allows to change to any mast length for perfect trim and skills. It makes your packing more compact (no plate mounted sideways inside your bag) and allows to convert your connection into any board attachment system (4 way screws, tuttle and powerbox). Tuttle head comes standard on this set.

UNIVERSAL MAST 85 CMS WHU ALU FUSELAGE 100 CMS

UNIVERSAL FRONT WING 82/1582 Y25

UNIVERSAL REAR WING 52/373 Y25

FOIL TECH SPEC

FRONT AND REAR WINGS LAYUP:

Hi density heat stabilized 2phase / expansion core.

Hi pressure / temperature composite technology of construction.

Best strength/durability / lightweight available today.

1b 1a 2 3 4

Connection areas between wings and fuselage built in solid carbon fibers.

Hi pressure / temperature composite technology of construction.

Best strength / durability / lightweight available today.

Connection areas between wings and fuselage built in solid carbon fibers.

MAST:

Hi quality extruded aluminum profile with maximum internal wall thickness.

Wide chord profile and reduced outside overall thickness (stiffness, control and maximum speed potential).

Most evolved mast profile in the market

•Stainless steel (aisi 316) helicoil threads (no oxidation between screws and thread)

•Fits all foiling disciplines: wind, sup, surf and kite foils.

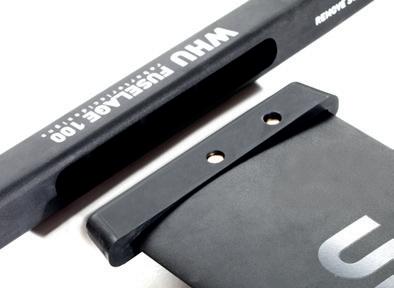

REMOVABLE PLATE CONNECTOR:

CNC solid piece for max strength and perfect fitting with mast profile.

Strong and tight connection between mast and plate with 3 screws and high collar streamlined profile.

Allows to change masts length for perfect trim / users level.

Can be assembled with any board connection.

WING CONNECTION:

Extra wide connecting area on front wing to support extra large wingspan wings.

Assembled with 3 x screws, simple and easy to assemble/disassemble.

No friction of connecting parts, no wearout, no hammer needed.

MAST /FUSELAGE CONNECTION:

Plastic connector to avoid oxidation between mast and fuselage.

3 x screws for best connection: front screw hole with stainless steel helicoil, middle and rear screw holes on brass insert on mast. No oxidation.

ONE F DOES SUP SURF KITE WIND FOIL

OIL IT ALL

UNIVERSAL WH ALU SET+ CONVERSION KIT

into a Kite/Sup-Surf foil with the purchase of a shorter fuselage (from 100 to 76 cm) and simply by removing the tuttle head.

WIND SURFING SAIL COLLECTION

TAKEYOURTRIM

JOHN SKYE ABOUT THE Y25 SAIL COLLECTION

Y25 is something special for us. Not only a quarter century, but probably the cleanest and most refined sail collection we have ever produced. We took every range, every sail, every size and stripped out all that was not totally essential, leaving behind the purest range conceivable. We now split our main collection into 3 easy to understand line-ups, making everything clearer and simpler.

On top of this, all our most popular sails are also available in our industry leading Compact Series technology. This is our unique folding sail system and collapsible rig that allows a full quiver of sails to fit inside a back pack. Huge advances in both the performance and the technical finish, means that more than ever before we offer no compromise, test winning, high performance rig, with industry changing levels of convenience.

New for this year we add our Foil sail range. 3 sails dedicated to the art of flying. The X-wing foil is our full foil race machine, designed to fly in virtually zero wind. The F-Wing is our hybrid sail, allowing both fast windfoiling and freerace windsurfing all in one easy to rig package. Finally we introduce the Freefoil sail, a small light, powerful, yet playful, foiling engine. Designed to allow the smallest sail to be used in the lightest of winds, it is now possible to foil with a sub 6m sail in 10-12kts, something that has truly game changing possibilities.

Like always on top of this is our unique Italian Style. With a spectacular new colourway, whose clean lines are defined with bold colour blocks, that looks great on its own, but when coupled with the latest board sets the rider apart.

Simply. Stunning.

JOHN SKYE & CYRIL MOUSSILMANI SOUTH AFRICA

5 8 11 9 12 10 13 2 6 3 4 7

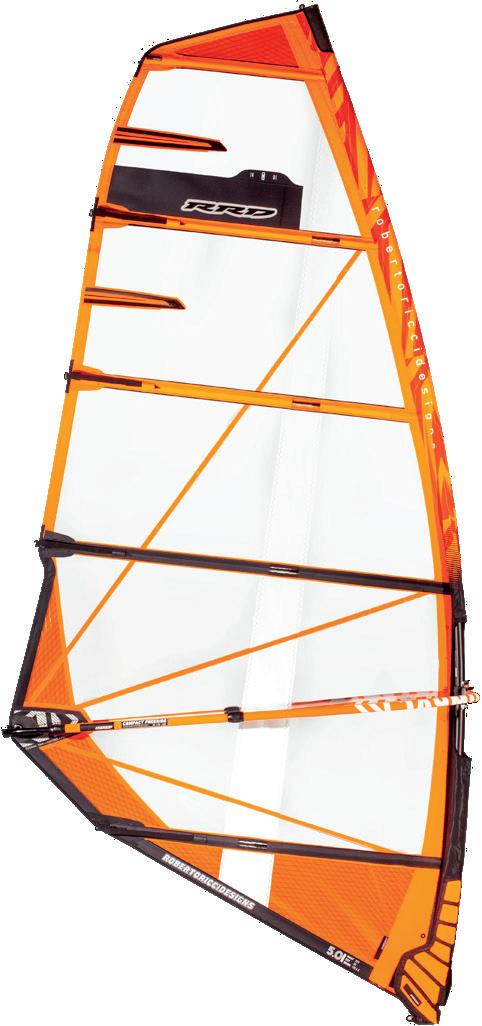

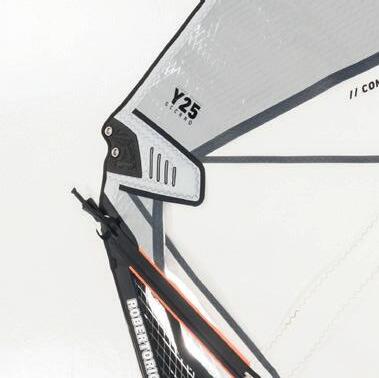

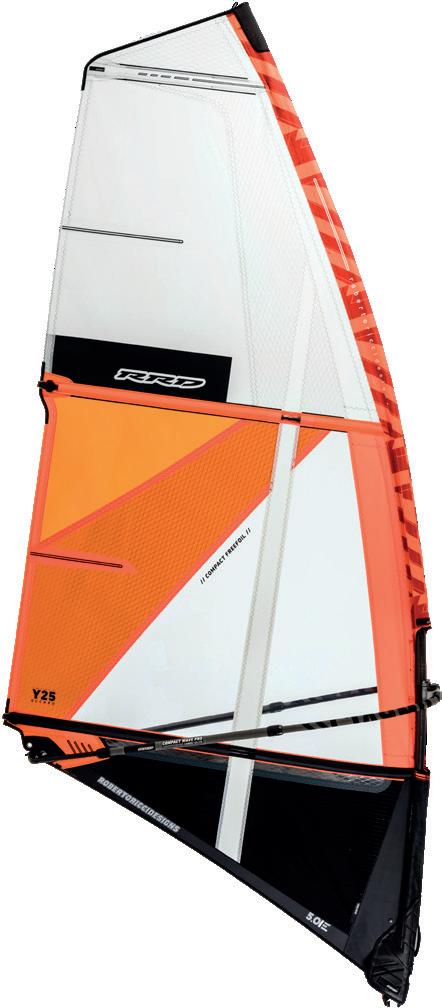

SAIL TECHNOLOGY

1. HEAD CURVE

By reducing the area in the head of the sail with a shortened top batten the sail feels lighter and more responsive in the hands.

2. 3D EVA HEAD PIECE

Anti chafe protection.

3. 2MM “SCRIM”

For ultimate weight saving in the tops of select sails.

4. 5MM DIMENSION POLYANT X-PLY

For increased durability and resistance. Used extensively along load lines in our cross panel construction.

5. PU BATTEN END CHAFE PROTECTOR

Batten tip protection for avoiding chafing whilst rigging.

6. CROSS PANEL CONSTRUCTION

By following the load lines with both the panel layout and also the warp direction of the X-ply we create a strong and powerful framework to the sail, reducing stretch and allowing lighter materials to be used on the perimeter. The result is great performance and quick response on the water.

7. EXTENDED CLEW REINFORCEMENT

Reinforcement patch extends into the main window to spread the loads across multiple sail panels for increased durability.

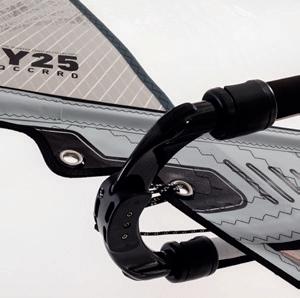

8. POWER CLEW

Twin eyelets for huge tunable range. Outer clew = power and drive

• Inner Clew =maneuverability and control.

9. EXTREME POWER CLEW

Extreme variation of POWER CLEW giving even larger range of tuning for windfoil/Windsurf adaptability.

10. BOOM CUTOUT INDICATOR

To help position the boom at the correct height every session.

11. ITS “INTEGRATED TRIM SYSTEM”

Integrated rigging guide to guarantee perfect tuning every session.

12. 3D EVA MOULDED TACK FAIRING

Offering protection to the board and enclosing pulley blocks and ropes inside.

13. DOUBLE SEAMS

To enhance sail strength and increase durability on select models in key strength areas.

VOGUE CONTROL WAVE

The Vogue is the sail for ripping in the waves or handling the toughest conditions. You want to be free to express yourself whether its in the air or on the wave and with its superb balance and control, the Vogue Y25 lets you take your sailing wherever you want to go.

• Ultimate sail for control when the conditions get extreme

• Neutral and balanced, with added power in the front section for Y25

• For advanced wave riders and general highwind use

•New Y25 design with reworked luff curve and shaping for improved handling.

•New Y25 modified luff panel for subtle increase in power.

•Available in VOGUE PRO with a clear monofilm window for maximum visibility.

•Available in VOGUE HD with 100% X-ply for the ultimate in strength. The window is made with a ‘high visibility” X-ply, featuring wider spaced X-ply yarns as well as a vertical warp yarn to prevent glue slip during production.

•Power-Clew system for huge on the water range.

•Performance Construction for the optimum strength to weight ratio.

MODEL SIZES BOOM LUFF REC. MAST BATTENS HEAD ART CODE

STYLE PRO

The Style Pro is our 100% freestyle sail, developed by our world cup team to continuously push the limits of freestyle. In a constantly evolving world our ‘nonstop research and development program’ is the key to making this sail what it is today. Whether you are working on your first spock or mastering the shifty shaka, the Style Pro makes everything possible.

• Pure freestyle sail with power, pop and superb ducking

• Modified power luff zone and lower clew for better ducking control

• For freestylers of all levels up to world class pro

•Increased power in the luff zone for more boost.

•Lower clew height for improved ducking control

•High aspect ratio design for quick rotations in the moves.

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

TRYORDIE

FRANCESCO CAPPUZZO

The Move is possibily the most versatile sail in our line up. Designed to excel in everything from flat water to bump and jump and waves. Lots of power but with a soft delivery that makes things easy and 5 battens for stability. If you want 1 sail for all, the Move is for you.

• Multiple times test winner, the ultimate blend for high wind windsurfing, wave and bump and jump

• 5 battens throughout entire range, with plenty of soft forgiving power on tap

• Ideal for use with FSW boards, as well as freemove and even wave

•New for Y25, 5 battens throughout the entire range for improved maneuverability in the large sizes.

•Large Dacron luff panel for lots of manageable power.

•Test winner around the world largely thanks to its outstanding versatility.

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

•Integrated trim system for perfect rigging every time.

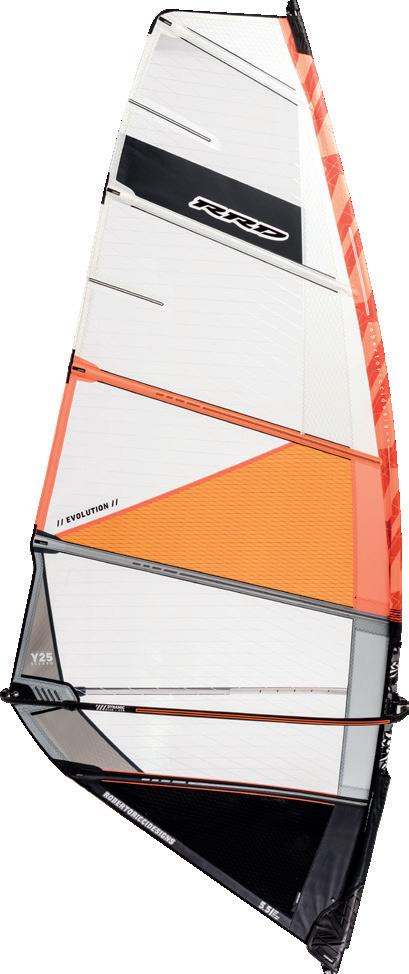

EVOLUTION FREERIDE

For those looking to evolve their sailing the Evolution is the perfect solution. Taking you from beginning to advanced with its 4 and 5 batten design, optimised for ease of use. A large soft panel at the front gives plenty of smooth controllable power to get you up and moving and enjoying windsurfing quickly and effortlessly.

• Replacing the Xtra as our entry level freeride sail

• Designed for ease of use, early planing and plenty of soft easy to control power

• Perfect for all levels from early intermediate up to advanced freeride

FE ATU RE S

•Large luff panel for plenty of soft user friendly power.

•Wide tuning range – Adaptable and versatile in rigging

•5.5 and larger – 5 battens for improved stability and handling.

•5.0 and smaller – 4 battens for light weight and increased maneuverability.

•Integrated trim system for perfect rigging every time.

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

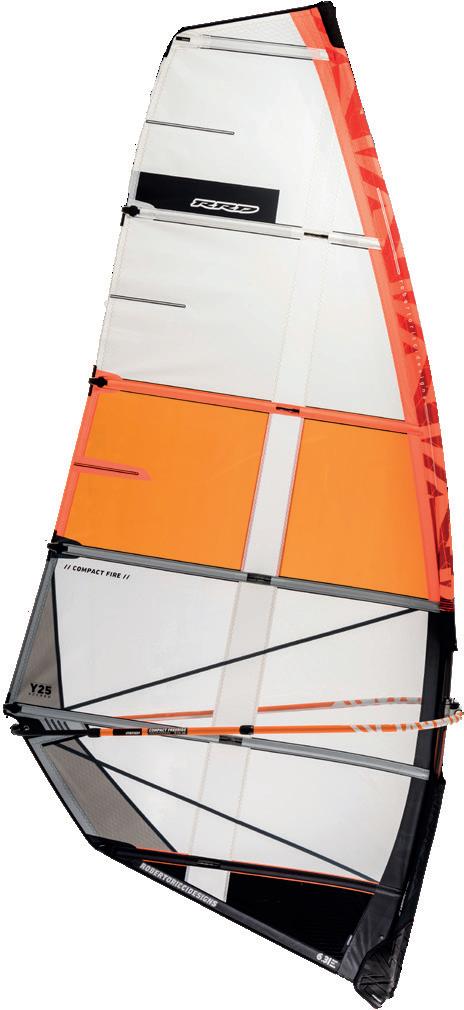

FIRE

PERFORMANCE FREERIDE

The ultimate in performance freeride. A completely redeveloped range of sails, changing from a 5 batten bump and jump, through to a 7 batten twin cam power house, each size tailor made for its conditions. Lots of low end juice to get you up and moving quickly and plenty of control at the top end to hit top speeds with the GPS. This really is the perfect freeride solution.

• Taking advanced performance freeride and freerace to new levels

• Morphing from 5 batten bump and jump to a twin cam powerhouse

• For performance freeriders looking for the perfect freeride sail, whatever the conditions

FE ATU RE S

•New Y25 redeveloped range for optimum performance whatever the wind.

•5.0-5.7 – 5 battens – Improved control and maneuverability.

•6.3-6.8 - 6 battens – Increased stability and drive.

•7.2-7.6 – 7 battens – Increased top end control and speed.

•7.8-9.0 – 7 battens 2 cams – Low end power for early planing, with maximum stability at the top end.

•Negative leech curve – More control

•Tube rod battens in larger sizes- increased top end control.

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

•Integrated trim system for perfect rigging every time.

WINDSURFBOAANDREA ROSATI

The beauty of windsurfing lies in the simplicity of having fun. No matter if you are riding a perfect peeling wave, planing at full speed or enjoying the carving sensation of a simple jibe, the true essence is windsurfing. Do it always with a smile!

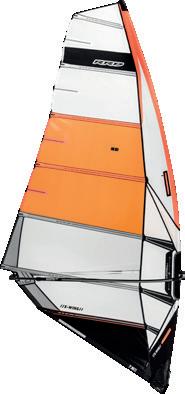

X-WING PURE RACE

Now in its 2nd year the X-wing is our pure race sail, with a no compromise design aimed only at the top of the podium. Low end drive, mixed with an incredible top end speed and control makes the X-Wing a dream around the race course and on GPS speed tracks. With a huge number of hours from our team dedicated to squeezing every drop of performance from the sail, the X-Wing is destined for great things.

• The ultimate slalom sail for winning races at every level

• Constant refinement in materials, battens spec and tuning

• For riders that want to go fast and win races

•New for Y25 refined shaping in the lower half of the sail for a smoother entry profile and more balanced power delivery.

•New for Y25 modified outline in the base of the sail for increased low end drive.

•New for Y25 overlapping batten pockets for weight reduction in the top of the sail.

•New for Y25 is the Dynamic Pro COMP mast with a refined mast bend curve to improve drive and acceleration around the course and out of the gybes

•7.0-9.2 – SDM mast for improved reflex and performance in lighter winds.

•5.2-6.2 – RDM mast for control and comfort in high winds.

•Triple Power-Clew system for huge tuning range

•Performance Construction for the optimum strength to weight ratio.

•Integrated trim system for perfect rigging every time.

5.2/5.6/6.2/7.0/7.8/8.6/9.2

DETAILED FEATURES

1. Triple Power Clew – With 3 eyelet positions, all with similar boom lengths, we give options to ride the sail more neutral or more lifty, depending on your style and set up.

2. Progressive Leech Twist – A progressive twist gives exceptional levels of control, allowing incredible acceleration in every gust.

3. Refined Draft Profile – By reducing the shaping in the lower cams, whilst maintaining depth in the upper cams, we created a more even and progressive foil shape. This refined profile drastically improves the balance and handling, whilst at the same time improving cam rotation.

4. Custom battens - The mixed use of full 100% carbon battens together with softer more flexible glass fiber battens gives response and power where needed, lower down in the sail, and maximum control in the upper sections of the sail, again improving the balance and allowing for better top end speed.

5. 7 Batten configuration - Thanks to the control and ease of handling, The X-wing features 7 battens in all sizes, reducing the weight and improving the response.

6. Increased foot area - By modifying the outline and increasing the area in the foot, we were able to increase the low end of the sail, giving extra power out of the gybes and in racing situations.

FREEFOIL FREE FOILING

The purest form of windfoiling. The smallest sail possible, packed with power to get you flying, but with control to handle everything once you get up in the air. This is freefoiling, and the Freefoil Y25 is the answer to your dreams.

• For foilers that want to be free

• Low end power to get flying. Neutral control in the gusts

• For all foilers from starter to advanced free foilers

•Large Dacron luff panel for low end power, and extreme depower.

•3 battens in the smaller sizes for light weight,maneuverability and the most free feeling possible.

•Additional batten below the boom in the large sizes for improved pump-ability and low end.

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

4.0/5.0/5.8/6.4

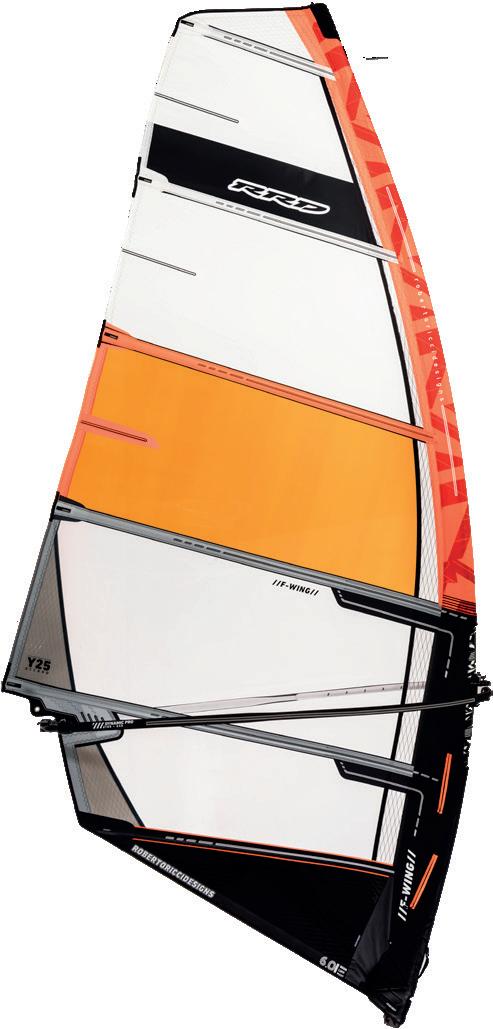

F-WING

FOIL / TWIN CAM

If you want to fly fast and control easily this is the sail for you. Utilizing 2 cams, the F-wing locks the power low and forward making it a dream for foiling. When the wind picks up, you can increase the downhaul a fraction, remove the foil and enjoy a classic twin cam freerace design. For those that like to go fast on and off the foil.

• Hybrid twin cam for foiling and windsurfing

• Low end power and extreme power clew for huge range of use

• For freerace lovers looking to have it all

•Improved rotation for light wind foiling use.

•Reduced shape in the lower section for improved maneuverability.

•Extreme Power Clew for an incredible tuning range.

•2 cams below the boom for maximum power, whilst keeping the upper sleeve narrow for quick water starting.

•Performance Construction for the optimum strength to weight ratio.

6.0/6.6/7.2/7.8

EDOARDO VIVIAN

JOHN

SKYE

MATTEO GUAZZONI

ROBERTO RICCI

WIND SURFING COMPACT SAIL COLLECTION

4 years ago we introduced the worlds first truly portable performance rig that fitted neatly into a back pack. That included everything you needed; sail, mast, boom, base, all you had to add was the board. Now 4 years of development later, we offer a full quiver in a back pack, with a level of performance and finish that is not only winning tests globally, but would have been impossible to imagine 5 years ago. The Future is here and the future is Compact.

WHAT IS IT?

For whatever reason, space is always critical, and that is why the Compact Series was born. In a sense it is the ultimate in simplicity. Everything you need to power your board and enjoy windsurfing, all fitting inside a back pack. The mast comes in multiple sections not only reducing the size, but also allowing different lengths for different sail size. The boom neatly splits in 2 for transportation and included in the back pack is the extension.

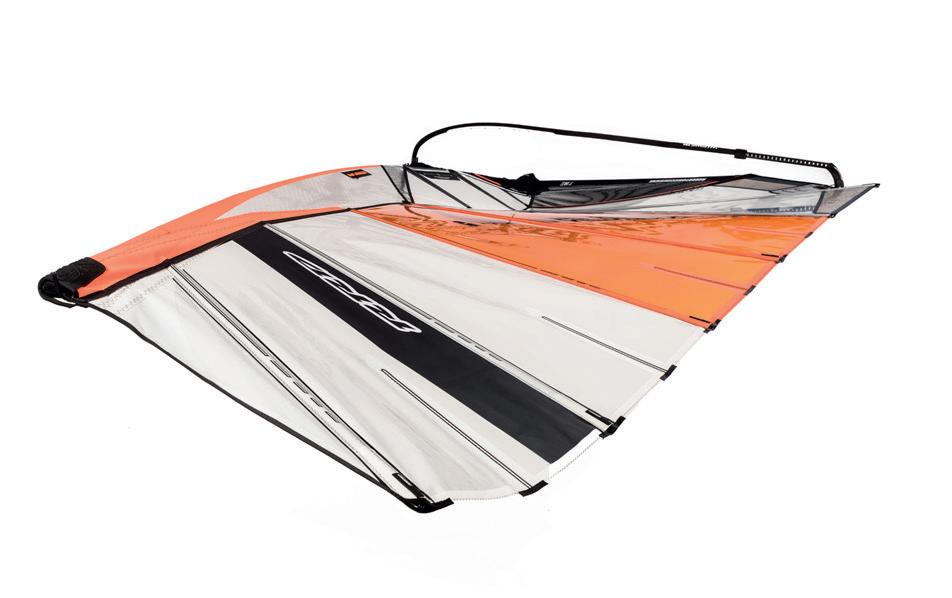

That just leaves the sails, which are carefully designed to fold in half for ultra portability. (1) Our unique batten system allows quick release of the tension and a split in the centre allows for easy folding. (2) A Dacron strip running now the middle of the sail gives a heavy duty folding section, allowing the sail to fold and roll and pack up half the size. Each backpack can fit up to 3 sails inside.

HOW DOES IT WORK?

1-CHOOSE YOUR SAIL STYLE.

•Compact Vogue – Wave sailing and high winds. Sizes from 5.3-3.5

•Compact Freefoil – Foiling in all winds.

Sizes from 6.4-4.0

•Compact Fire – Performance freeriding.

Sizes from 6.8-5.0

•Compact X-Tra - Easy freeriding.

Sizes from 5.0 to 7.0

•Compact Grom – Performance youth. Sizes from 4.4-2.6

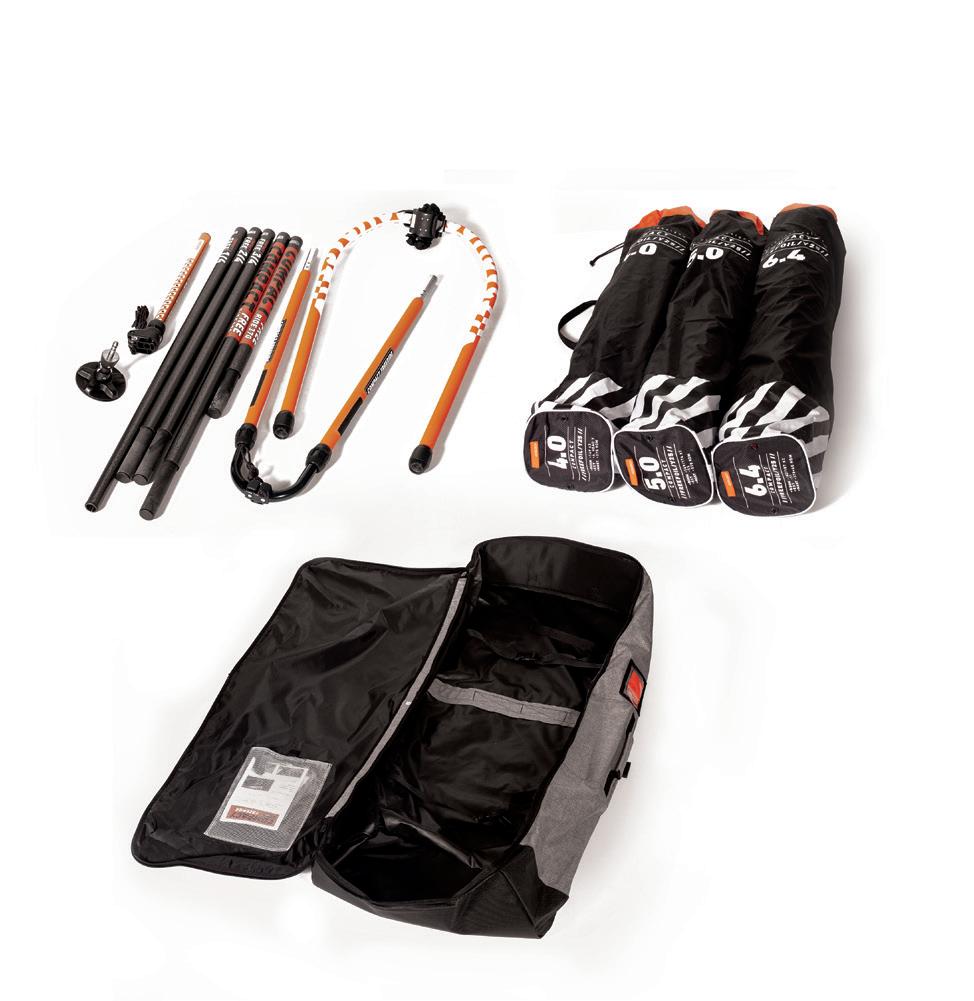

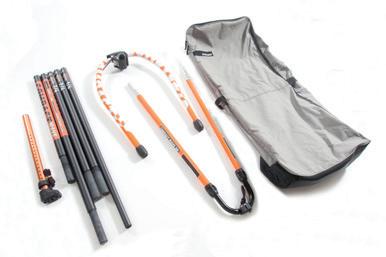

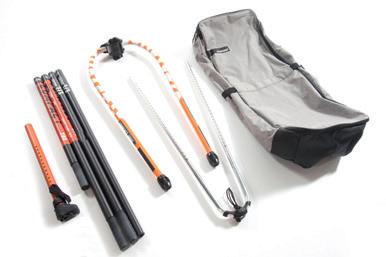

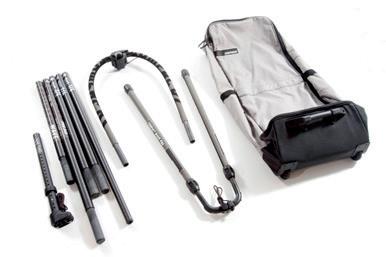

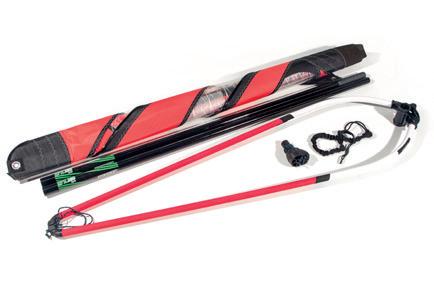

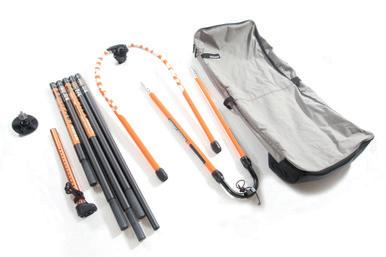

2-CHOOSE YOUR RIG PACK.

•Compact wave rig pack – for Compact Vogue

•Compact Freeride rig pack – for Compact Freefoil, Compact Fire and Compact X-TRA.

•Compact Grom rig pack – for Compact Grom.

Both the Compact Wave and Compact Freeride rig packs are available in 2 technologies.

•HD – features C80 mast and Alloy boom and extension.

•PRO – features C100 mast, full carbon boom and full carbon extension. The bag also includes wheels for easier transportation.

**All our rig packs are fully compatible with all previous and all future Compact Series sails. **

3-CHOOSE YOUR SAIL SIZES TO FIT YOUR NEEDS.

Each back pack can fit 3 sails inside so you can choose the sizes that fit you. For example a wave quiver for the heavier rider could be 5.3/4.6/4.0. A freeride quiver for the lighter rider could be 6.8/5.7/5.0

**New for Y25 we added a conversion extender pack, to extend your Wave rig pack and make it compatible with Compact Freeride rigs. This allows for example the addition of a 5.7 Compact Fire to a Compact Vogue quiver. Available in both HD and PRO versions, this gives even more versatility to the Compact Series Program. Recommended more for the lighter rider or the smaller sizes of freeride sails, when used for larger sizes or with heavier riders performance can suffer slightly.

COMPACT VOGUE CONTROL WAVE

The Compact Vogue Y25 takes everything you love about the Vogue, our flagship wave sail, and makes it compact. Control and incredible handling, but in a sail that fits in a back pack. Equally suited to the adventurous ones searching new spots as to the enthusiast who lacks space. No performance compromises, just convenience.

• All the performance of the Vogue, but folding up in a backpack

• New batten angle and spacing to give better overall performance, power and stability

• Pure waveriders or highwind sailors that want the convenience of the compact series

FE ATU RE

•Modified battens angles for more support in the top half of the sail and better control at the high end.

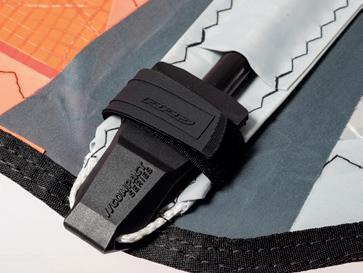

•NEW quick release Compact Series batten tensioner to speed up rigging and derigging.

•Modified luff curve for a smoother power delivery in the low end.

•Available in 5.3, 4.6, 4.0, 3.5 to make the perfect quiver to cover everything.

•Kevlar reinforced anti stretch seams incorporated into the batten pocket construction

•Diagonal load bearing seams to control Dacron stretch in the main power zone

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

3.5/4.0/4.6/5.3

BESTREGARDS

ANDREA ROSATI SCARBOROUGH

COMPACT FREEFOIL FREE FOILING

All the joys of the Freefoil, but with maximum convenience. Coupled with the Pocket Rocket ultra short board, this combo is perhaps the smallest gear available to get Windfoiling.

Modern windsurfing? Compact windfoiling.

• All the attributes of the Freefoil, all the convenience of the compact series

• Light, lots of power, whilst staying neutral in the gust

• Perfect for comfortable foiling

• For first time foilers to advanced freefoilers

• Perfect portability when combined with the Pocket Rocket

FE

•Large Dacron luff panel for low end power, and extreme depower.

•3 battens in the smaller sizes for light weight, maneuverability and the most free feeling possible.

•Additional batten below the boom in the large sizes for improved pump-ability and low end.

•NEW quick release Compact Series batten tensioner to speed up rigging and derigging.

•Kevlar reinforced anti stretch seams incorporated into the batten pocket construction

•Diagonal load bearing seams to control Dacron stretch in the main power zone

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

4.0/5.0/5.8/6.4

COMPACT FIRE

PERFORMANCE FREERIDE

Our top performance freeride sail, available as a Compact Series sail. All the winning performance of the original Fire, but can be folded into a backpack with 2 other sails, to make a dream portable quiver. The future of performance portability.

• Loaded with performance whilst packing up small

• Lots of low end power and top end stability, makes this the perfect performance freeride sail

• For use on Freeride, Freemove, Airwindsurf, for all level of riders

FE ATU RE S

•5.0-5.7 – 5 battens – Improved control and maneuverability.

•6.3-6.8 - 6 battens – Increased stability, drive and control.

•NEW quick release Compact Series batten tensioner to speed up rigging and derigging.

•Kevlar reinforced anti stretch seams incorporated into the batten pocket construction.

•Diagonal load bearing seams to control Dacron stretch in the main power zone.

•Power-Clew system for huge on the water range.

•Performance Construction for the optimum strength to weight ratio.

5.0/5.7/6.3/6.8

NOCOMPROMISE

A 5 batten freeride sail that fits in a back pack with an ease of use and lightness that make windsurfing as easy as possible. Available in 3 sizes 5.0/6.0/7.0 and designed to fit the Compact freeride rig pack, you can load 3 sails and rig into a back pack for easy storage and easy portability. This is the future.

• Large tuning range – Adapted and versatile in rigging

• The easiest and most accessible compact freeride sail

• The lightest for all level of riders

•3 sizes to choose to create your perfect quiver. 5.0/6.0/7.0

•NEW Compact Series Batten tensioner – for even easier and quicker rigging

•Kevlar reinforced anti stretch seams incorporated into the batten pocket construction

•Diagonal load bearing seams to control Dacron stretch in the main power zone

•2 part batten with high grade aluminum joint - Providing a durable connection and ease of use when folding

•Performance construction – Complex mix of materials throughout the sail to give the perfect blend of light weight, strength and style

5.0/6.0/7.0

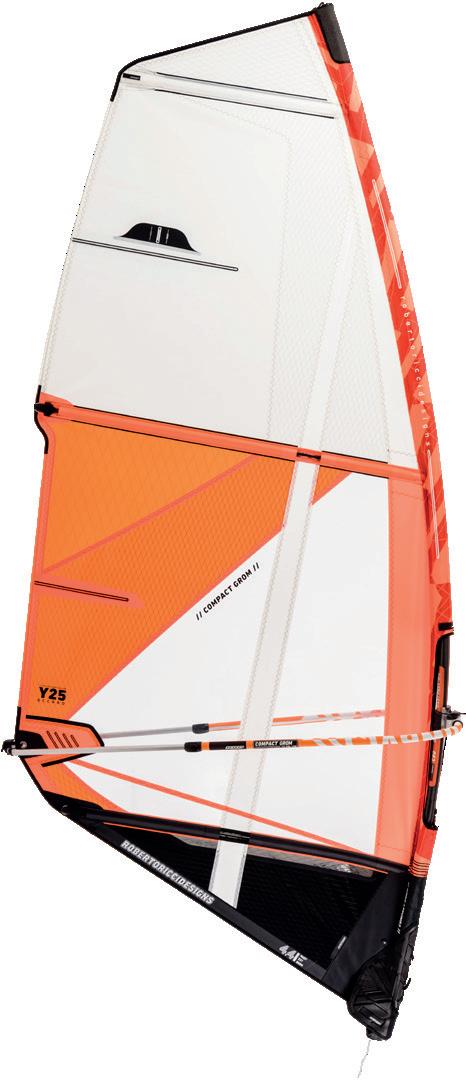

COMPACT GROM PERFORMANCE YOUTH

The kids are the future and we wanted a compact solution for everyone. Parents can no longer have the excuse that they cant fit the gear in the car. Everything a kid needs to hit the water in a portable backpack. Big performance. Small package.

• Designed for the future of our sport. High performance kids sail

• Light, low clew and soft. Every detail thought through to make the learning and advancing of windsurfing easier

• For all intermediate kids and upwards

• Designed to be used with the compact system or standard rig components

FE

ATU RE S _

•Dacron luff panel for smooth power delivery.

•Lower boom cutout and clew for better balance when used by small kids.

•Can be used with the Compact Grom rig pack or standard rig components

•NEW quick release Compact Series batten tensioner to speed up rigging and derigging.

•Kevlar reinforced anti stretch seams incorporated into the batten pocket construction

•Diagonal load bearing seams to control Dacron stretch in the main power zone

•Power-Clew system for huge on the water range

•Performance Construction for the optimum strength to weight ratio.

2.6/3.2/3.8/4.4

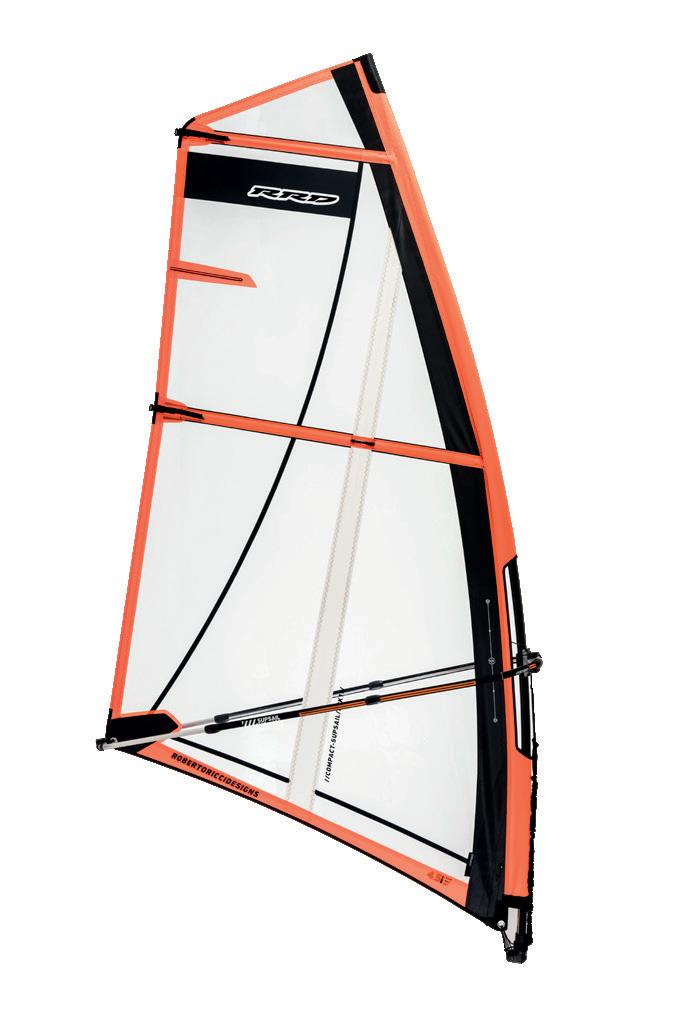

COMPACT SUP SAIL

WINDSUPPING

The ever popular Supsail just got compact. We applied all our development in the compact series to the Supsail to make possibly the smallest rigid windsurf rig ever. If you want a sail to pack up small and take advantage of those summer breezes the compact Supsail is the perfect solution.

• The ever popular Supsail just got even more portable

• Utilising our compact technology we made the Supsail fit in a backpack

• For families and suppers who want to continue to enjoy the water when the wind picks up

•Simple design – 1 or 2 batten design for simplicity and ease of rigging

•Reduced rig pack size, can easily be carried on the back.

•Mechanical UJ – Specially designed for use with a SUP.

•Smallest size fits in less than 70cm high backpack.

1.5/2.5/3.5/4.5/5.5

0.8/1.0/1.2/1.5/2.0/2.5/3.0/3.5

KID JOY MK7

LEARNER KIDS

First impressions count. When a kid feels the power of the wind for the time they can be hooked for life. That is why the Kid Joy makes this as easy to do as possible. All the focus is on producing a light and manageable rig that will see them flying across the water as quickly and effortlessly as possible.

FEATURES:

• Split luff tube design

• Fixed length boom for minimum weight

• Colour coded for easy recognition on the water

• Small sizes feature stylish custom printed X-ply

3.5/4.0/4.5/5.0/5.5/6.0

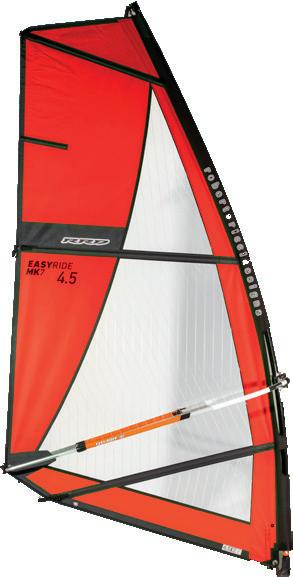

EASY RIDE MK8

LEARNER

The Easy Rider makes life as easy as possible for those learning the sport. Lighter weight for easy uphauling and a complete package that means everything is as simple and easy as possible to get on the water and progress.

FEATURES:

• All sizes with a batten below the boom (4.0-6.0) feature a low boom cutout and low eyelet to fit a double boom system for teaching kids on the fly

• Colour coded for easy recognition on the water.

• Heavy duty construction for use and abuse.

WIND SURFING ACCESSORY COLLECTION

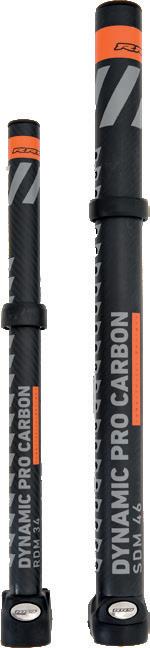

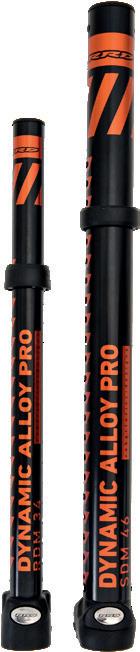

•Euro Pin compatibility - Every extension and mast foot is designed to fit the industry standard “Euro Pin”

•Quick release button – Our base unit features a large quick release button for ease of use and also security on the water

•Pulley/cleat system – Our pulley/cleat system is simple, but highly effective. No gimmicks, just making rigging reliable, quick and easy

•2 sizes – Each model is available in 2 sizes. Our small version extends to 34cm making it fit 100% of our sails when coupled with the correct mast. Plus a 46cm for maximum range

•SDM/RDM – All models and all sizes available in both SDM and RDM

DYNAMIC PRO DYNAMIC

CARBON ALLOY

34-46

RDM/SDMRDM/SDM

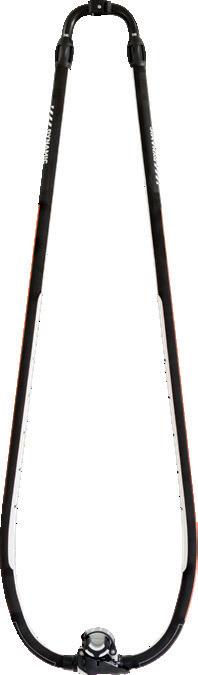

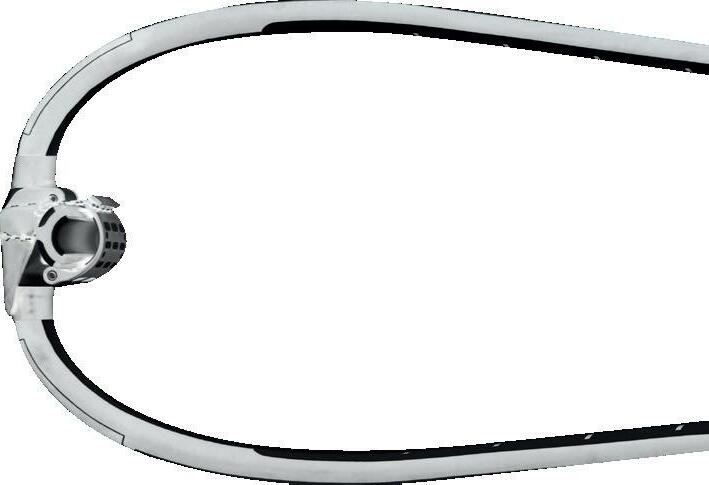

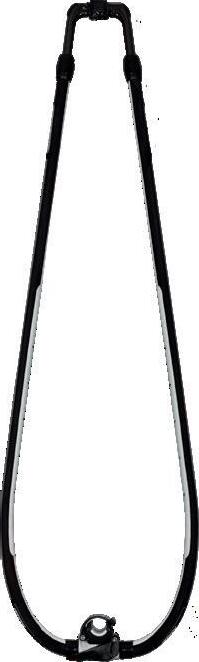

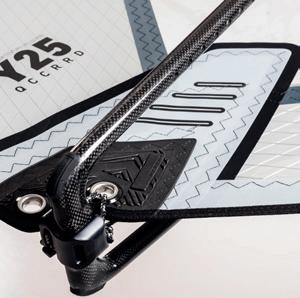

BOOM HEAD: The most versatile boom head on the market. A removable adaptor allows the front end to fit any mast, whether its SDM or RDM. Our front end offers the perfect mix of strength and stiffness, whilst remaining comfortable to use and forgiving on the mast.

BOOM CURVES: Every boom length has a specific bend curve to perfectly suit its range of use and making riding as comfortable as possible.

CUSTOM TAIL BENDS: Like the boom curves, the tail bends are custom designed for each boom length. Wide for power on the larger sizes. Narrow for control on the small sizes.

CUSTOM PULLEY/CLEAT SYSTEMS: Quick and simple loop go system on all wave and freeride booms, whilst the race booms feature high quality pulley heels for top performance when used with adjustable outhaul systems.

INTERNAL TEXTURED GRIP: Giving new levels of grip on the inside of the boom.

CARBON TAIL PROTECTION: Rubber protection on all our carbon tail ends.

LONG LASTING GRAPHICS: All our graphics are designed to last. That means no detail areas of the boom get worn.

HARNESS LINE INDICATOR: Markings on the inside of the boom to help align the harness lines.

140 RDM BOOM (140-190) 150 RDM BOOM (150-200) 140 BOOM (140-190)

BOOM (160-220) 180 BOOM 200 BOOM

(160-220)

(120-170)

(140-200)

(180-240)

(200-260)

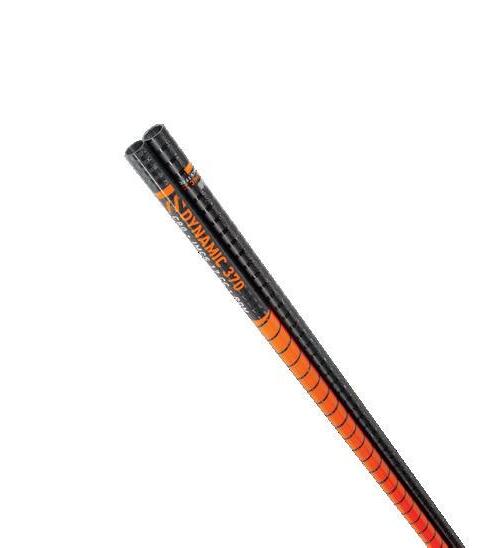

MAST

Made in Europe out of the best quality pre-preg carbon T700 and T800, our masts offer an incredibly high reflex response. Designed with a progressive constant curve, our masts are not only ideally suited to RRD sails, but also fit the majority of other brands.

The larger sizes of mast feature our “Feather tip” layup which reduces the weight by nearly 20% in the top section of the mast, which not only saves nearly 10% overall weight, but more significantly brings the centre of gravity down, multiplying that saving even further, and giving an incredible light feel.

The smaller RDM masts feature additional reinforcement making them incredibly strong when used in waves or high wind enviroments.

New for Y25 is the Dynamic Pro Comp. This is the lightest and highest performance mast available, designed specifically for our race and freestyle programs. Ultra light and incredible reflex.

•Plexiglass protection – A customised Plexiglass tape not only adds Italian style, but also provides additional protection to the bottom section of the mast, where the majority of the abuse occurs.

•Virtual IMCS – Through testing we found that although IMCS ratings (stiffness) are equal in different carbon contents, the feel on the water is not the same. We therefore developed our own Virtual IMCS system, that makes small modifications to the stiffness of the mast depending on the carbon %. The result means that no matter what your budget, you know you will get the perfect performance from our sails.

370 DYNAMIC PRO COMP RDM

400 DYNAMIC PRO COMP RDM 430 DYNAMIC PRO COMP SDM

460 DYNAMIC PRO COMP SDM

490 DYNAMIC PRO COMP SDM

520 DYNAMIC PRO COMP SDM

DYNAMIC PRO RDM

DYNAMIC 80 RDM

DYNAMIC 80 RDM 400 DYNAMIC 80 RDM 430 DYNAMIC 80 RDM 460 DYNAMIC 80 RDM

400 DYNAMIC SDM 430 DYNAMIC SDM

460 DYNAMIC SDM

490 DYNAMIC SDM

AVANT RDM

AVANT SDM

FLOW RDM

ACCESSORIES

STD TENDON JOINT MAST BASE

With hi-density tendon joint, this universal is equipped with a new monocoque stainless steel base that includes the pin system to be locked into the extension.

STD POWER JOINT BOGE MAST BASE

With the boge shock absorber joint, this universal is equipped with a pin system to be locked into the extension.

ADJUSTABLE HARNESS LINES

Adjustable harness lines with PU tubing. Featuring long lasting heavy duty plastic buckle and quick release webbing.

ADJUSTABLE HARNESS LINES PRO

Adjustable harness lines with PU tubing. Featuring long lasting heavy duty plastic buckle and quick release webbing. Can be fitted and removed without dismantling the boom.

FIXED HARNESS LINES

High quality fixed length lines with durable PU tubing.

STD CARDAN PIN MAST BASE

Specifically designed for the use of a sail on a SUP board. The combination of a mechanical universal joint and a rubber joint, allows to attach the rig while lying flat on the water directly to the board.

TENDON PRO UNIVERSAL JOINT

Comes with the most durable best quality tendon, for the longest life and stiffness needed. The base includes the pin system to be locked into the extension.

22AHXSP 22AHSP 22AHMP 22AHLP

MAST BASE CONE PROTECTOR

ROOF RACK STRAPS UPHAUL STD / UPHAUL PRO

WINDSURFING FINS

CAD designed to specifically fit the various board programs of our range and to offer alternative sizes to our riders. Produced with a power box or tuttle box system they are all made with G-10 panels and handfoiled to offer the best strength-foil and accuracy-price ratio.

They come in 3 different programs:

1) Freestyle Wave, a single fin line specifically designed for our Freestyle Wave range

2) Freemove line, designed to work at their best, both with our Firemove, Fireride line of boards and suited also for our 360 Evolution boards range

3) Razor line, a pure blooded slalom –racing fin design for our Firestorm and X-Fire boards line

Available with a Powerbox or Tuttle box sytem.
