LEADING THE WAY FOCUS ON TESTING AND INNOVATION

AS A PIONEERING BUSINESS, OUR VISION IS TO REDEFINE THE FUTURE OF ‘RACKS.’

Embracing innovation and pushing boundaries, we are determined to challenge the conventional norms and introduce cutting-edge products that revolutionise cargo transportation for tough worksites and weekend adventures.

For customers who rely on their vehicles every day, we create reliable, practical cargo solutions that work as hard as they do. From tools and ladders to jobsite gear, our products help keep equipment secure, organised and ready for the next job.

OUR COMMITMENTS

UNWAVERING COMMITMENT TO SAFETY AND QUALITY

At Rhino-Rack, we are committed to educating our customers on the safe use and enjoyment of our products. Our products undergo rigorous crash testing and vehicle load rating, ensuring durability and reliability. We take the safety of our customers, and others on the road, as our number one priority.

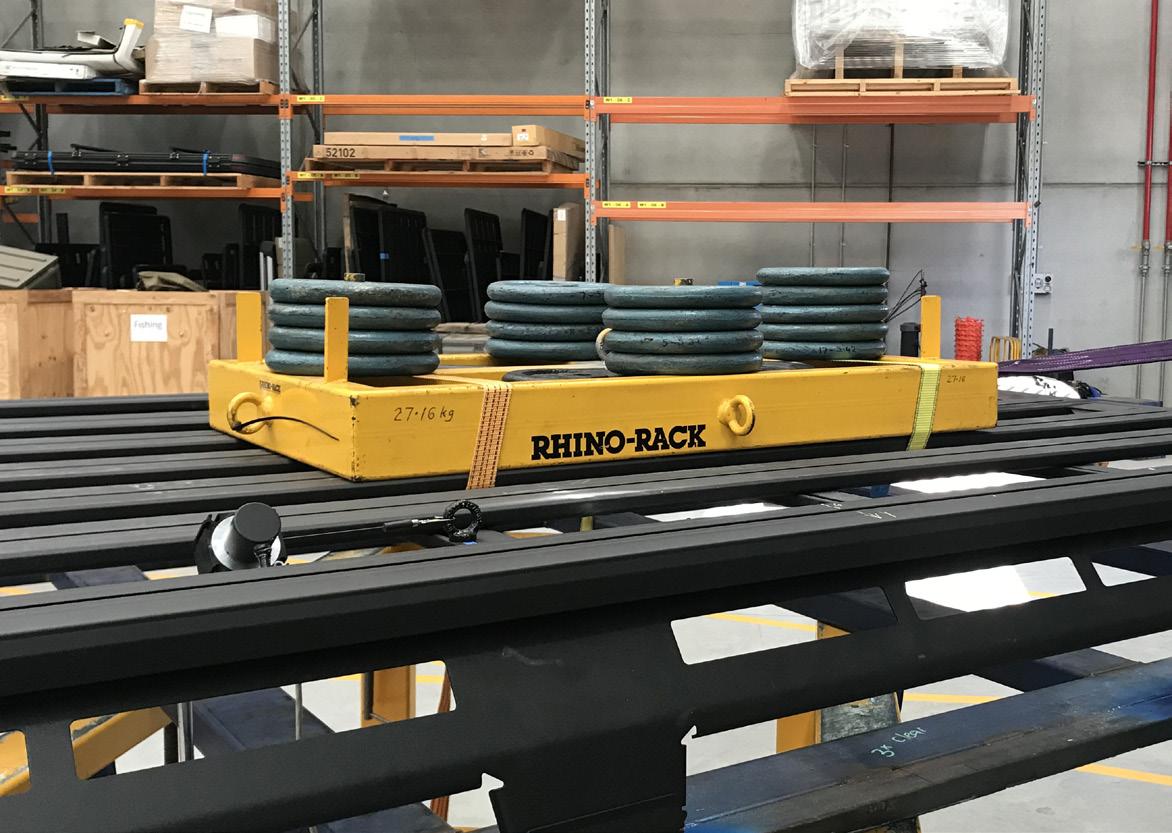

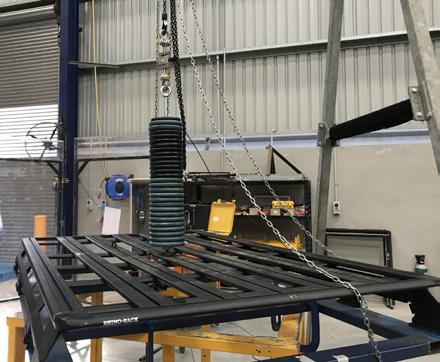

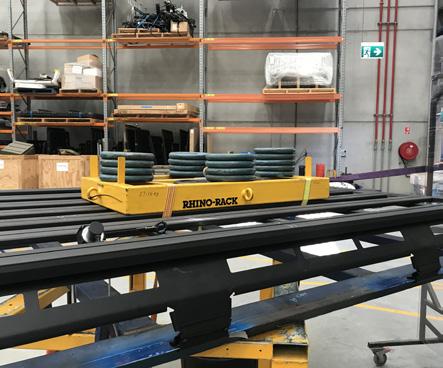

CRASH CITY TESTING

AT RHINO-RACK, OUR TOP PRIORITY IS TO ENGINEER PRODUCTS OF THE UTMOST QUALITY TO GUARANTEE YOUR SAFETY AND SATISFACTION.

We subject all Rhino-Rack products to rigorous safety standards testing, adhering to the ISO standard. This includes comprehensive City Crash Testing to ISO11154 and Static Load Testing to ISO11154.

We also put our prototypes to the test in real-world Aussie conditions, experimenting with functions that enhance the safety, ease of use, and overall enjoyment of our equipment.

Rest assured, we go the extra mile to ensure that our products meet and exceed your expectations.

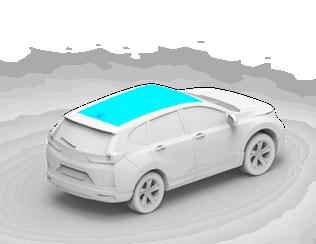

VEHICLE LOAD RATING

IT IS VITAL FOR YOU TO UNDERSTAND THE CAPACITY OF YOUR VEHICLE’S ROOF, TUB, AND STORAGE SOLUTIONS.

We have developed a comprehensive load rating calculator to help you understand your load rating.

THERE ARE THREE LOAD RATINGS THAT APPLY IN DIFFERENT SITUATIONS. THESE ARE:

• On-road refers to the load rating of a vehicle when traveling on a sealed road

• A static rating is the load rating of a stationary vehicle and is necessary if you’re using, for example, a rooftop tent

• The off-road load rating refers to a vehicle traveling on an unsealed road that does not contain a surface protection layer. Sometimes manufacturers will list the load ratings in the vehicle owner’s manual, however, you can calculate the off-road load rating yourself using the formula provided in your product fitting instructions.

It is important to remember the on-road rating does not take into consideration the weight of the roof racks. According to our instructions, the on-road rating + weight of the racks is called roof allowance. But remember, if you buy an accessory or holder and attach it to your rack or tray, you must also include the weight of these items in the load.

It is very unsafe to overload your vehicle. Failure to follow the load ratings in each circumstance could result in damage to your vehicle, potential loss of your load, voiding warranty or insurance, or cause traffic accidents. It’s illegal to overload your vehicle.

To get started calculating your load rating, you’ll need to make note of your vehicle’s load rating from your vehicle owner’s manual as well as the Rhino-Rack roof rack system you have installed on your vehicle. Once you have this information you can begin by entering your vehicle details into the load rating page at our https://www.rhinorack.com/load-rating-calculator

STATIC

When the vehicle is parked or stationary

ON-ROAD

Driving on paved or sealed roads

OFF-ROAD

Driving on unsealed or dirt roads

OUR STORY

RHINO-RACK CELEBRATES 30 YEARS OF INNOVATION AND HELPING COUNTLESS PEOPLE MAKE SPACE FOR ADVENTURE.

Our

RockyMounts was created and founded by Bobby Noyes, making solid, well designed and dependable bike racks.

Toyota OEM Partnership starts.

Rhino-Rack pioneers its first CSL roof mounting ladder rack for Telstra, Australia’s largest telecommunications company.

Rhino-Rack have a Trade Fleet program with Telstra.

Maxtrax is founded, producing the world’s best recovery tracks.

Brad McCarthy, founder of Maxtrax, recognized the need for a system that makes vehicle recovery and extraction a safe, simple, one-person task and eliminates the need for any outside assistance such as towing, snatching, or winching.

Rhino-Rack opened its first warehouse in Denver, Colorado.

Designed and launched our iconic Pioneer™ Platform range.

Ford FLA and VW Partnership Starts.

Ford OEM Partnership begins.

Volkswagen OEM Partnership begins.

Richard Cropley founded Rhino-Rack®.

first racks were sold in Haberfield, NSW.

Founded and developed by Ty Hermans and the Evolve Group in 2012, TRED launches a range of recovery boards, making highquality, reliable outdoor and recovery gear for the explorers of this world.

Polaris OEM and Military Partnerships starts (US, France, Australia, Canada and New Zealand).

All plastic removed from the Pioneer™ packaging.

Our latest Rhino-Rack® Pioneer™ Platform is awarded a Gold Award at the 2020 Good Design Awards.

Ineos OEM and Porsche Partnership starts. Rhino-Rack is acquired by the Clarus Corporation.

Rhino-Rack celebrates its 30th anniversary. Rivian Partnerships starts.

Launch of world’s leading tray with Pioneer 6, launch of universal Sportz crossbar range.

Rhino-Rack acquires RockyMounts

TRADE SOLUTIONS

DISCOVER

A COORDINATING ECOSYSTEM OF TRADE PRODUCTS, DESIGNED TO ADAPT WITH MORE SPACE, STRENGTH AND VERSATILITY THAN EVER BEFORE.

With dedicated brands, customised products and the use of the latest technologies, you can rely on Rhino-Rack to transform your vehicle for work, play or anything in between.

WORK SOLUTIONS

Ladder carrier

Conduit carrier

Cargo case

TRAY SYSTEMS

Pioneer 6

Pioneer Tradie

BAR SYSTEMS

Sportz Bar

Heavy Duty Bar

Reconn Bar

FIT

Bare Roof

Raised Rail

Solid Rail

Gutter

ACCESSORIES EXTEND & SECURE

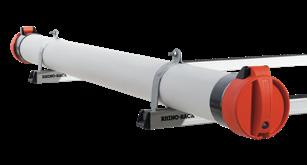

CONDUIT CARRIER

P30-100, P46-100

CONDUIT END CAP - 150MM BC150

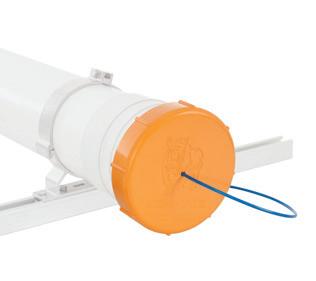

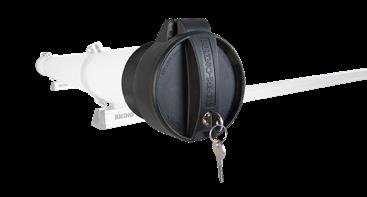

CONDUIT LOCKING END CAPS

LSE100, LSE101

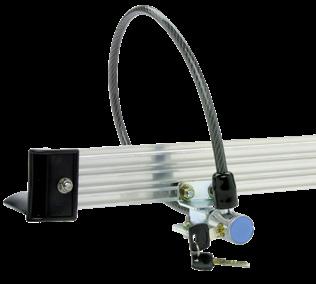

LADDER CABLE LOCK RLLB, RLLR

CSL LADDER RACK

CSL26M, CSL30M, CSL35M, CSL40M

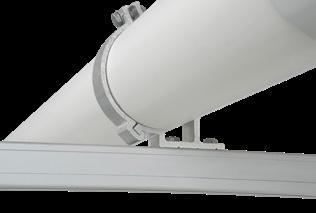

CONDUIT CLAMP SET – 100MM BC2, BC3

MULTI-SLIDE LADDER RACK

MS26M, MS30M, MS35M, MS40M

LADDER STRAP RLS5

LADDER ROLLERS 470MM LR470 680MM LR680

CONDUIT CLAMP SET – 150MM

BC2-150, BC3-150

INTERNAL LADDER RACK

ILRRACK, HIACE ILRH6GK1, i LOAD ILRHILK1

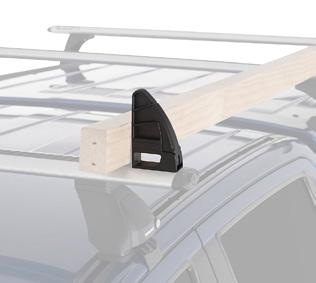

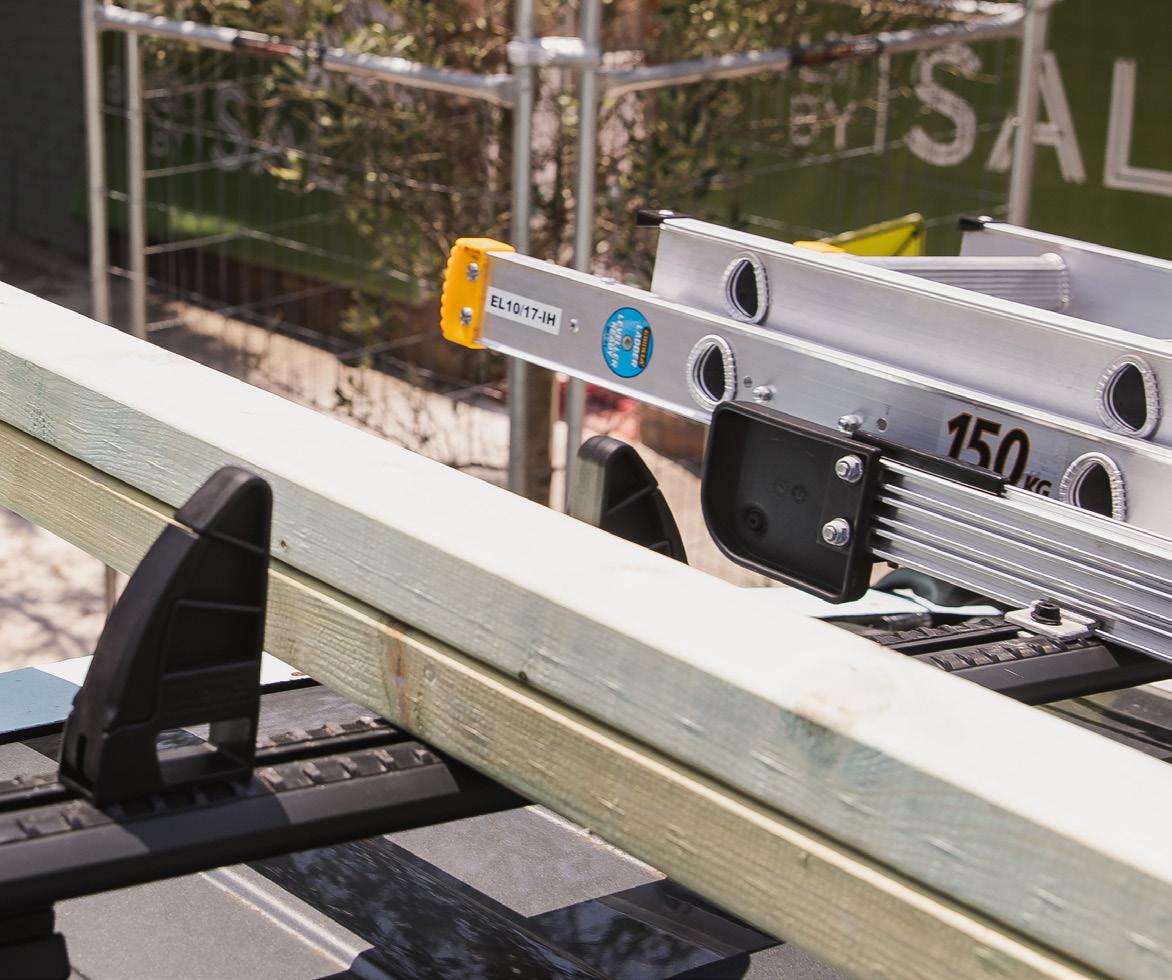

LOAD HOLDERS

RLH1, RLH2

CONDUIT END CAP – 100MM BCW

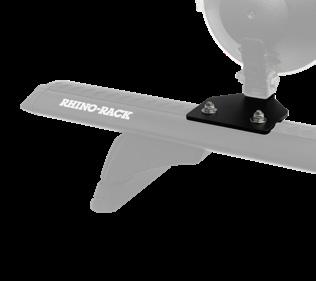

WORK LIGHT BRACKET RWLB

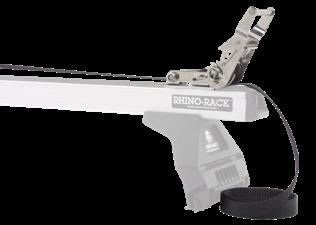

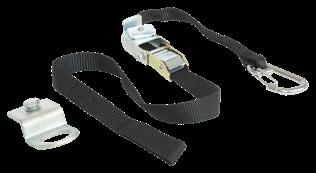

RATCHET GRAB WITH 2.0M STRAP RRG

CONDUIT END CAP & SLEEVE BEC, BEC150

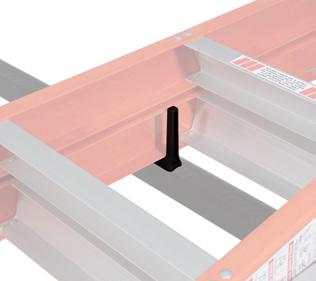

LADDER PEG/LOAD HOLDER S602, RLH

EYE BOLT KIT FOR HD BAR REB

SUNSEEKER

2.5M AWNING WITH STOW IT

32140

CONDUIT CARRIER

(3.0M/100MM)

P30-100

3.0M MULTI-SLIDE LADDER RACK

MS30M STOW IT UTILITY HOLDER - REGULAR

SUNSEEKER

2.5M AWNING WITH STOW IT

32140

CONDUIT CLAMP SET 3 PIECE

BC3

3.0M CSL LADDER RACK

CSL30M

470MM LADDER ROLLER

LR470

43123

STOW IT UNIVERSAL ADAPTOR USIT

STOW IT BASE BRACKETS

680MM LADDER ROLLER LR680

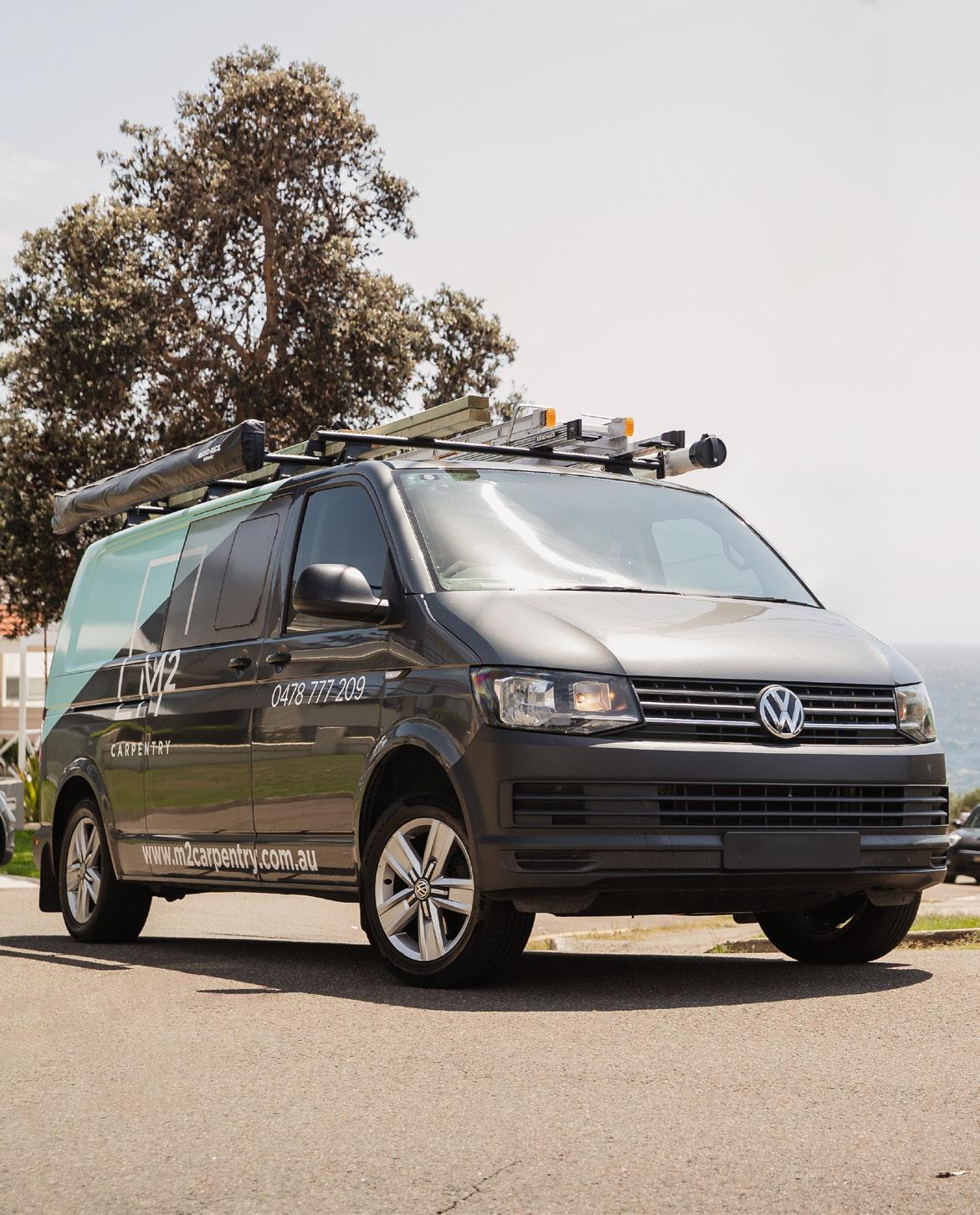

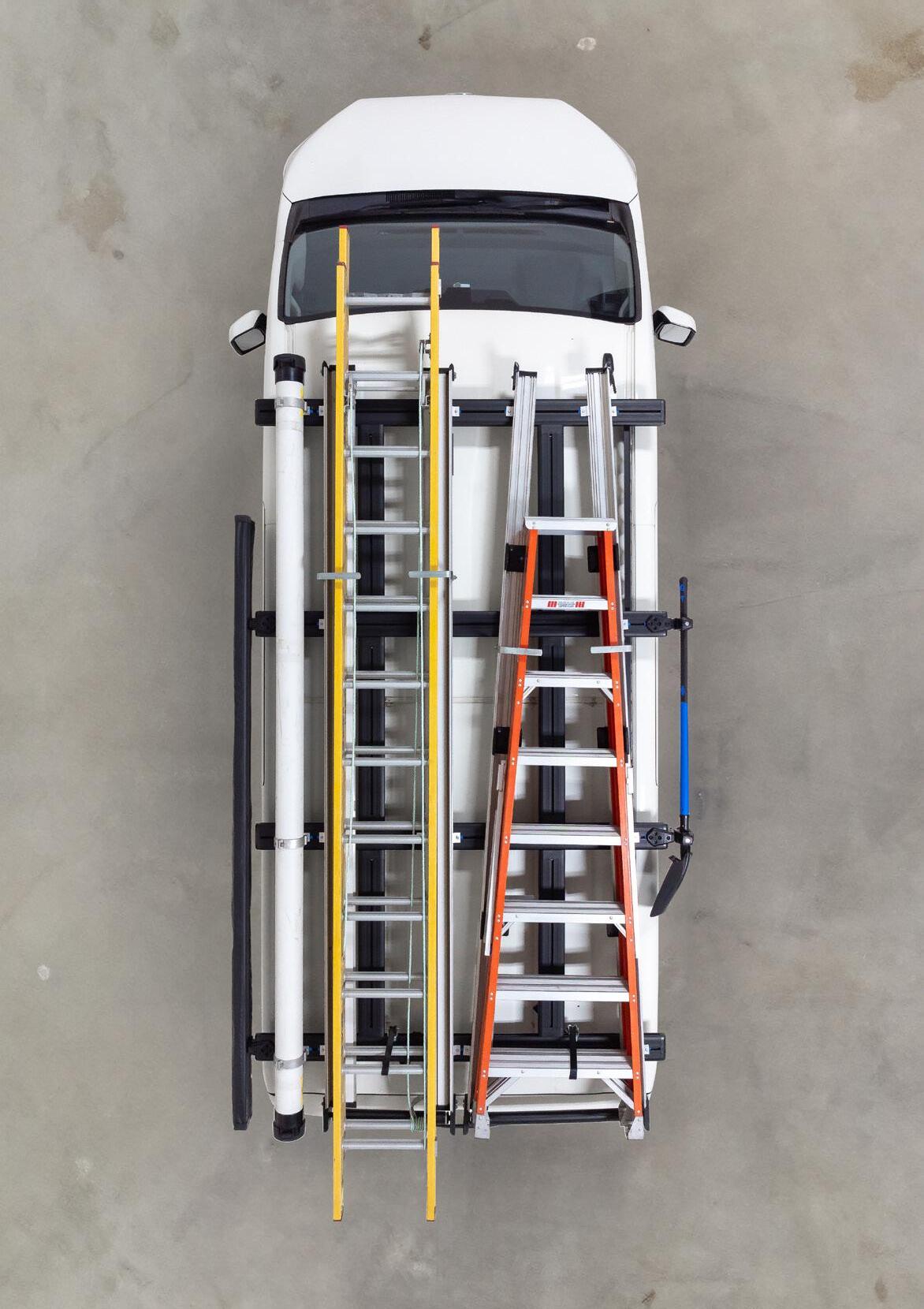

VERSATILE SOLUTIONS FOR ALL KINDS OF FITS

RHINO-RACK EQUIPS COMMERCIAL VEHICLES WITH THE RIGHT ACCESSORIES, ENSURING RELIABILITY AND PERFORMANCE ACROSS EVERY JOB.

Achieved through relentless innovation, user-centred design, flexibility and simplicity, rugged aesthetics, and enduring quality.

RHINO-RACK FITS MORE THAN 8000 VEHICLES FITS FOR ALL ROOF TYPES ON THE MARKET

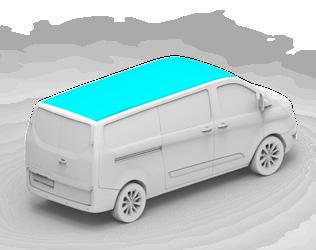

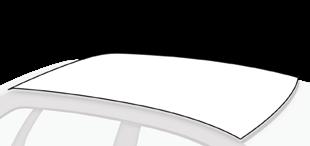

BARE ROOF

FIXED POINT MOUNT

MAXIMISE VEHICLE SPACE

LID/ROLLER SHUTTER

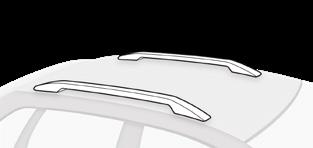

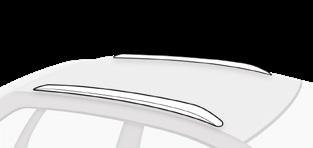

RAISED RAIL

GUTTER MOUNT

FLUSH RAIL

CROSSBARS

PRACTICAL, VERSATILE CARRYING SOLUTIONS DESIGNED TO SUIT EVERY VEHICLE AND SETUP.

Whether you choose Sportz, Heavy Duty or Reconn Bars, there’s a crossbar system built to support your vehicle, your gear and every adventure ahead. Our crossbars seamlessly accommodate a diverse range of accessories, ensuring you’re well-equipped for any adventure.

TRAYS

BUILT FOR DEMANDING WORKSITES, WEEKEND PROJECTS AND EVERYTHING IN BETWEEN.

Whether it’s ladders, conduit, tools or bulky equipment, Pioneer Platforms provide a strong and versatile foundation to help tradies carry more with confidence.

SPORTZ BARS

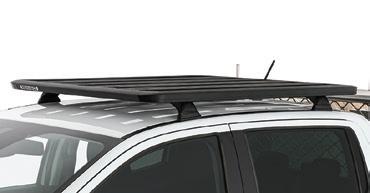

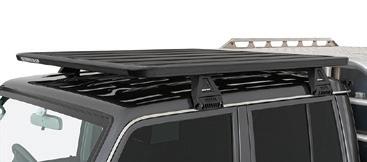

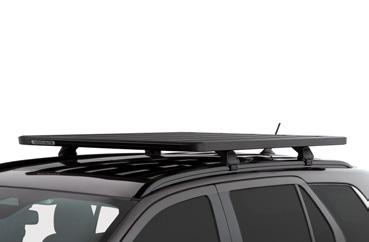

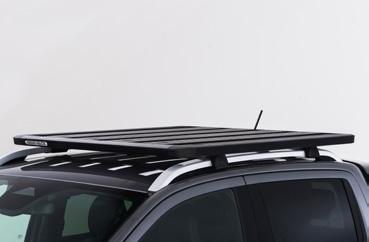

PIONEER 6 PLATFORM

HEAVY DUTY BARS

RECONN-DECK BARS

PIONEER 6 TRADIE PLATFORM

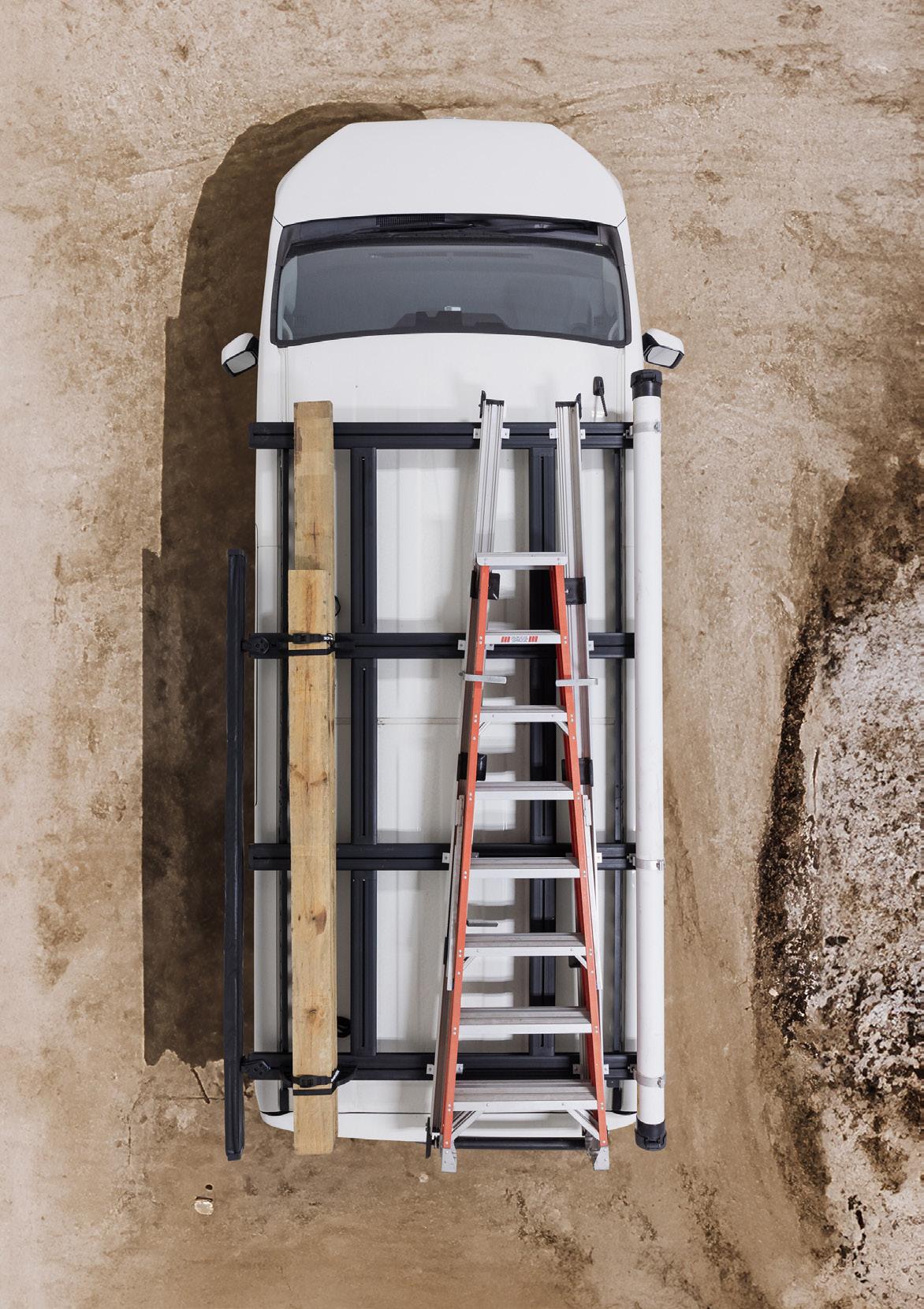

YOUR ULTIMATE RIG

RHINO-RACK BACKBONE

For unbeatable performance and looks, the Pioneer™ platform with a Backbone mounting system is the go-to for your ultimate rig! Backbone™ mounting systems are a vehicle specific solution.

PIONEER MOUNTING

SYSTEMS

A Pioneer™ mounting system generally consists of a platform and Backbone™ combination tailored to suit your vehicle’s make and model. Depending on your roof type and your specific needs, you will be able to identify the mounting system options available.

To ensure we continue to offer our users the best solution on the market, Pioneer™ continues its legacy through its compatibility with our industry leading mounting systems. The integrated underbars on Pioneer platforms now mount directly with our RX Legs. Please check your vehicle user manual for your vehicle’s load carrying capacity.

EASY & FLEXIBLE

TO ALLOW ALL THE VERSATILITY YOU NEED

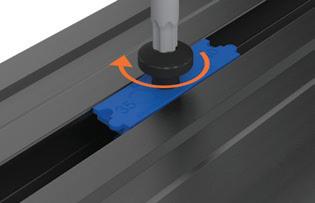

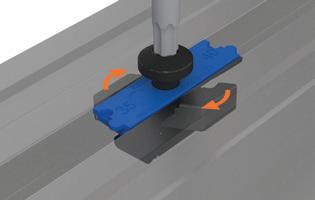

Our innovative ZwiflocTM fastening system allows compatible accessories to be placed anywhere on the channels without the need to move other accessories around.

The patented ZwiflocTM hardware simply drops into the channel, so there is no need to position via a traditional channel aperture. Compatible with all Pioneer TM systems and Reconn-Deck TM bars.

ZwiflocTM simply drops into your Reconn-Deck bar or Pioneer, and sits flush within the channel.

Tighten the bolt to engage.

High tensile M6 nut rotates within the housing cage to lock in under the channel lip.

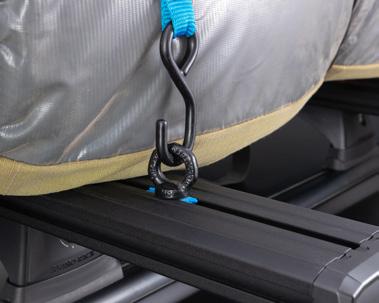

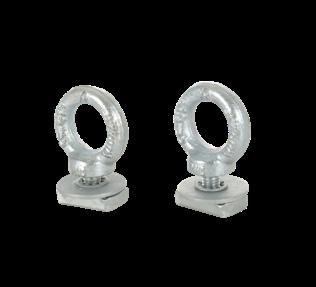

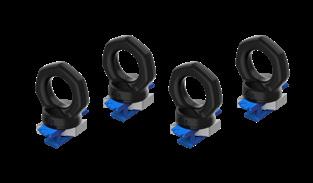

EYE BOLTS WITH ZWIFLOC TM

DROP IN ANYWHERE

The Eye Bolts with Zwifloc™ are designed to provide versatile tie down points for your Pioneer platform, Reconn-Deck or Vortex crossbars. The kit includes 4 Eye Bolts, each with the patented Zwifloc™ channel nut, which allows quick and easy installation anywhere without moving other accessories.

SIMPLY TWIST IN AND TWIST OUT

The patented Zwifloc™ channel nut gives you the flexibility to add, remove or reposition the eye bolts anywhere on a Pioneer platform or Reconn-Deck system.

Personalise your accessory layout. No need to slide the eye bolts into position or move other accessories around - simply place them wherever you need them to be.

Or visit

to find all the products that include Zwifloc channel nuts.

MULTI-FUNCTIONAL

TO SUIT EVERY ADVENTURE

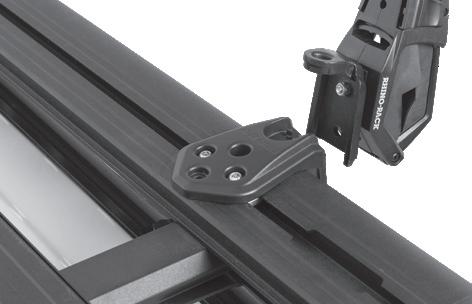

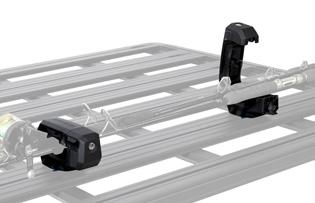

Start your journey with the STOW iT Base Bracket, which includes two Base Brackets and all mounting hardware, including ZwiflocTM channel nuts.

The STOW iT Base Bracket mounts directly to your Pioneer Platform or crossbar and is the core of this mounting system, allowing you to easily change the adaptor to suit your accessory needs.

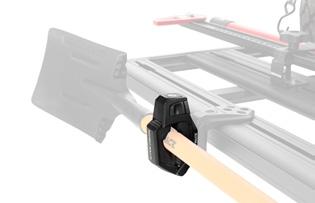

STOW IT UTILITY HOLDER (REGULAR) | RSIT2

STOW IT ROLLER ADAPTOR | OSIT

STOW IT BASE BRACKET | SSIT2

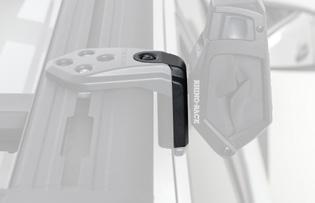

STOW IT AWNING ADAPTOR | BSIT

STOW IT UNIVERSAL ADAPTOR | USIT

STOW IT UTILITY HOLDER (LARGE) | LSIT

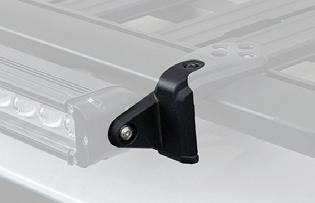

STOW IT LIGHT BAR ADAPTOR | ISIT

EYE BOLTS WITH ZWIFLOC™ (4) | PEB4

HERE Or visit rhinorack.com/stow-it to learn more.

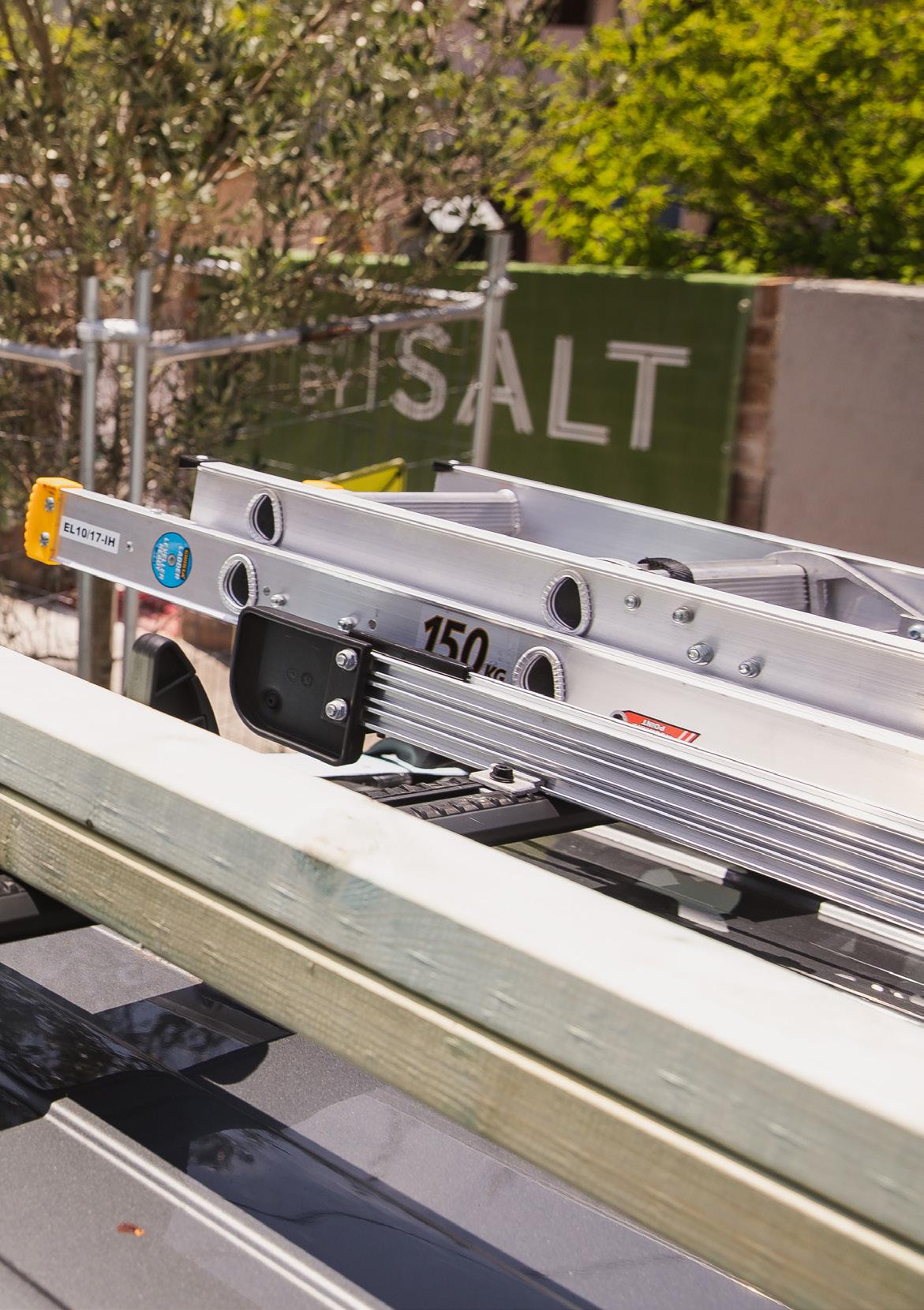

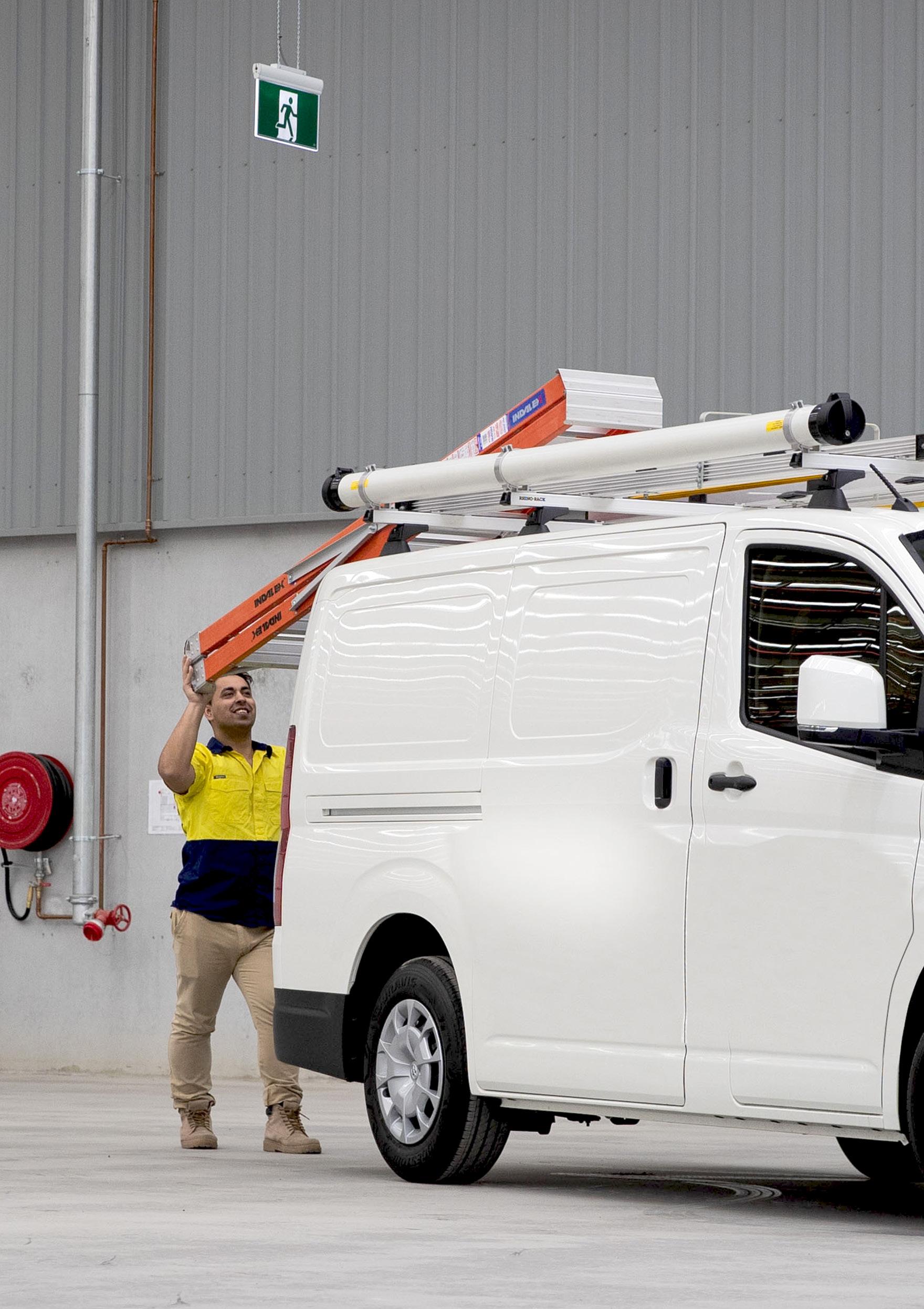

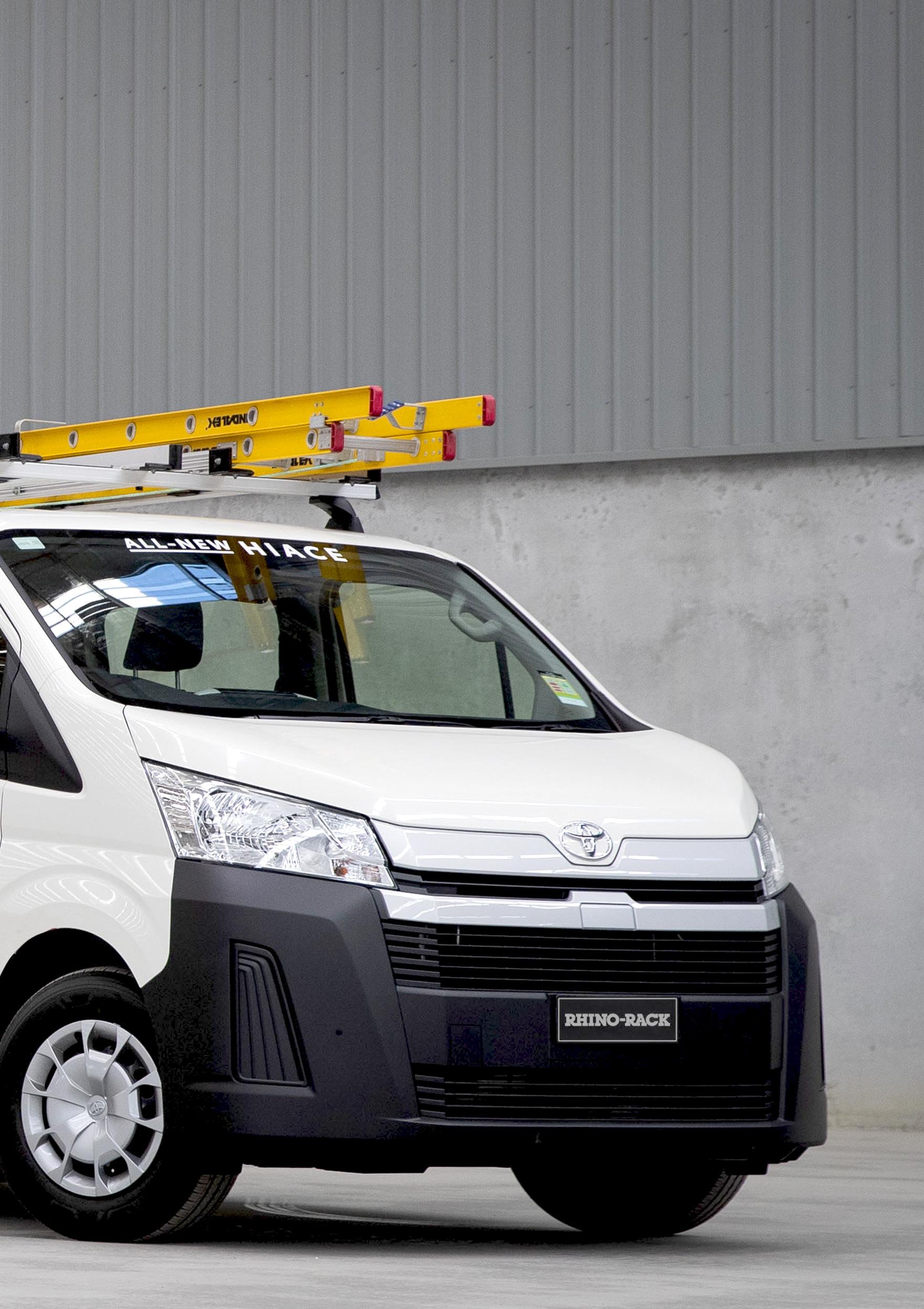

THE STRONGEST, MOST VERSATILE LADDER RACKS

FROM ELECTRICIAN, PLUMBER, BUILDER OR HANDYMAN, RHINO-RACK HAS WORLD CLASS LADDER CARRYING SOLUTIONS FOR VANS, 4WDS, SUVS AND UTES. BUILT TOUGH FOR EXTREME CONDITIONS, OUR LADDER RACKS ALLOW YOU TO LOAD AND UNLOAD QUICKLY, EASILY AND SAFELY.

FEATURES

• Constructed from non-corrosive materials capable of withstanding all manner of extreme environments and weather conditions

• PVC guide strips on inside of rails to protect ladder from damage

• RLS5 ladder strap included to secure ladder to crossbars

• Versatile fit to a wide variety of vans, wagons, utes and 4WD’s

• Includes ladder hoop

• Australian designed and built

• City Crash Tested - ISO/PA11154:2006 ( E )

• Frontal Impact Tested - ADR69/00 20g

• Vibration Tested - IEC68-2-64

SCAN HERE

Or visit

rhinorack.com/en-au/products/work-solutions/work-solutions/ladder-rack-rails to find which ladder rack best suits your set-up.

COMPACT SLIDE LOADER

FIXED RAILS WITH REAR ROLLER

This versatile system fits a wide variety of vans, wagons, utes and 4WD’s. Mounted to Rhino-Rack’s Heavy Duty Crossbars, the CSL ladder rack system is available in a variety of widths to allow for both extension and step ladders.

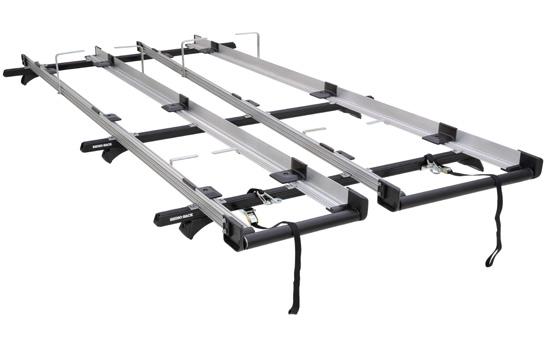

MULTI-SLIDE SYSTEM

SLIDING SUPPORTS

The Multi-Slide systems have a rear roller that allows for stress free loading and unloading to help guide the ladder on to the ladder rails which have several polypropylene plastic guides to protect the ladder. Also installed on Heavy Duty Crossbars, a RLS5 strap is included to safely secure the ladder.

CONTINUOUS CONTACT SURFACE

For easier loading and unloading minimising movement and damage.

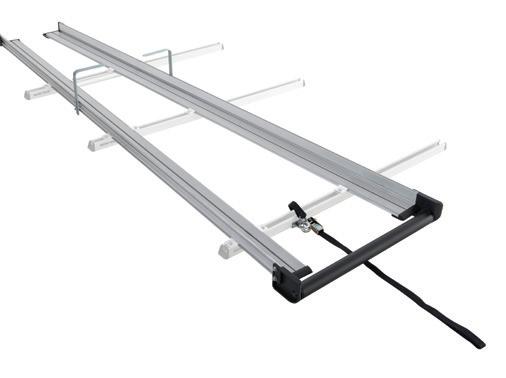

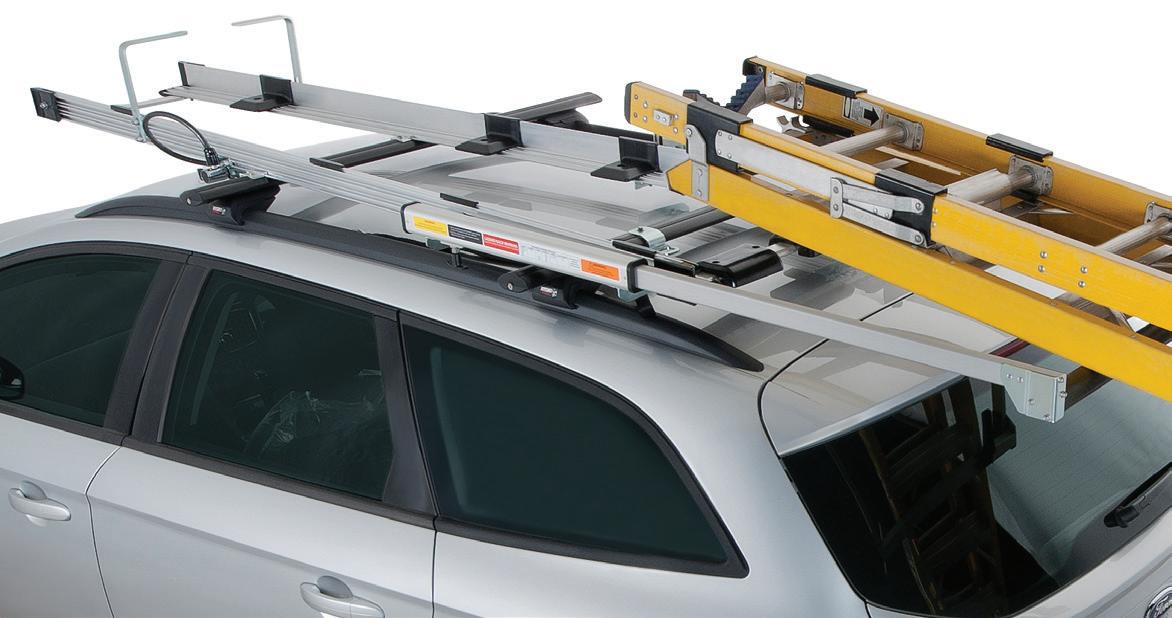

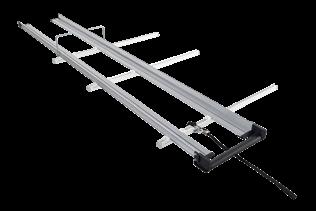

CSL LADDER RACKS

CSL26M, CSL30M, CSL35M, CSL40M

LADDER PADS

Guides made from UV stabilised polypropylene help protect ladders on the rails and provide level contact.

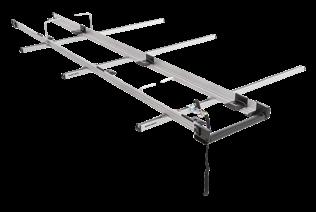

MULTI-SLIDE LADDER RACKS

MS26M, MS30M, MS35M, MS40M

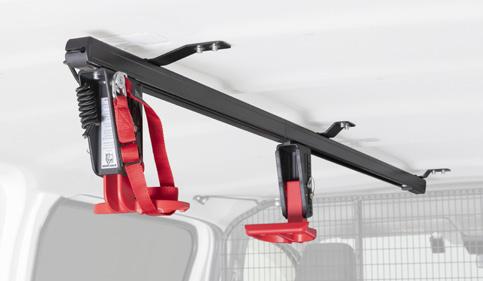

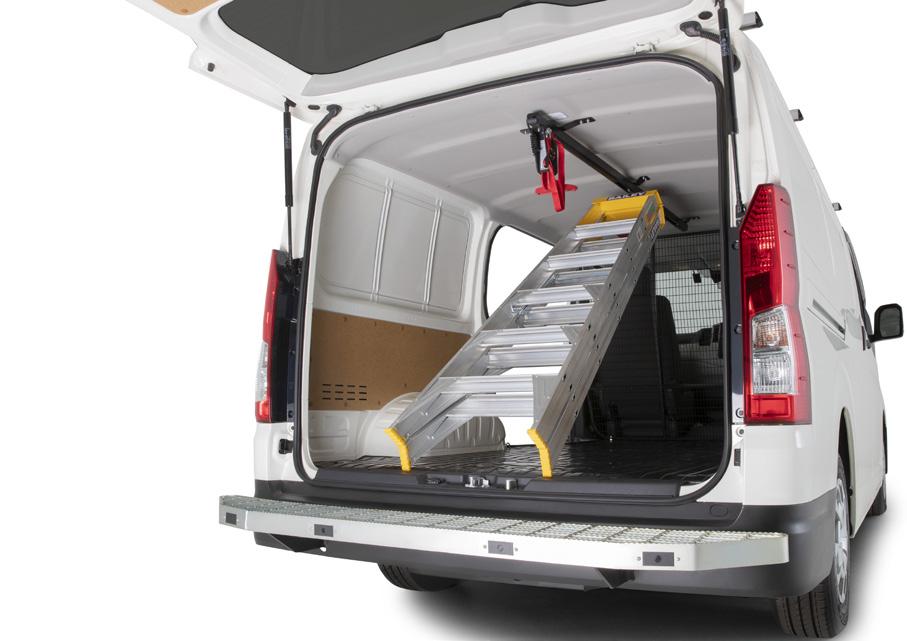

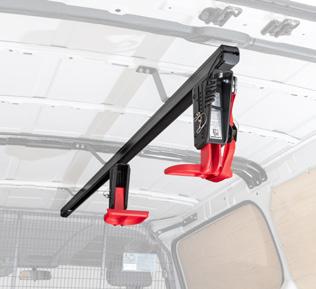

LADDER RACK

MOUNTED INSIDE VAN

Internal Ladder Racks provide secure transportation without taking up valuable floor space and reducing the risk of ladder theft. They are height adjustable, storing a ladder up to a height of 1.8m. When not being used hanging sections pivot upwards to increase head clearance in the van.

INTERNAL LADDER RACK ILRRACK

BRACKET KITS:

TOYOTA HIACE (GEN 6) ILRH6GK1, HYUNDAI i LOAD (08) ILRHILK1

SECURE STORAGE

Reduces risk of theft and exposure to elements. Mounts ladders above load space for improved organisation and cargo capacity.

ADJUSTABLE

Ladder supports can be rotated when not in use to increase clearance and cargo space.

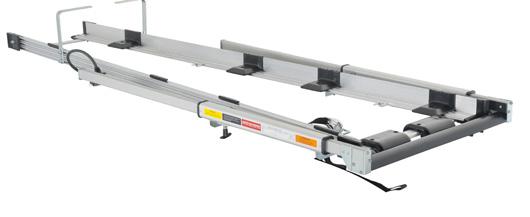

SLIDE OUT LADDER LOADER

SLIDING MECHANISM FOR SAFER & EASIER ACCESS

Similar to the Multi-Slide ladder rack with the added feature of a slide out mechanism at the rear. Combining ergonomic design with structuralgrade materials, it provides a fast, simple, one-person solution for lifting ladders. It allows ladders to be loaded and unloaded from high-roof vehicles quickly, easily, and safely, reducing the risk of back strain and liftingrelated injuries.

SLIDE OUT LADDER LOADER T7-SLRS

SLIDE OUT MECHANISM

Extending rail allows easy sliding of ladder on and off away from the back of the vehicle.

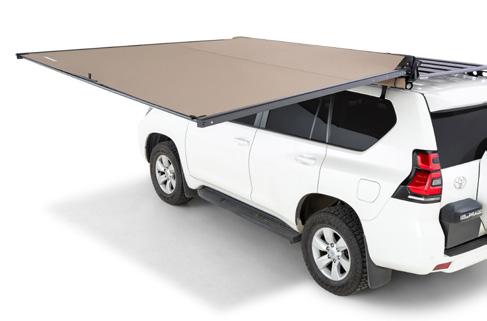

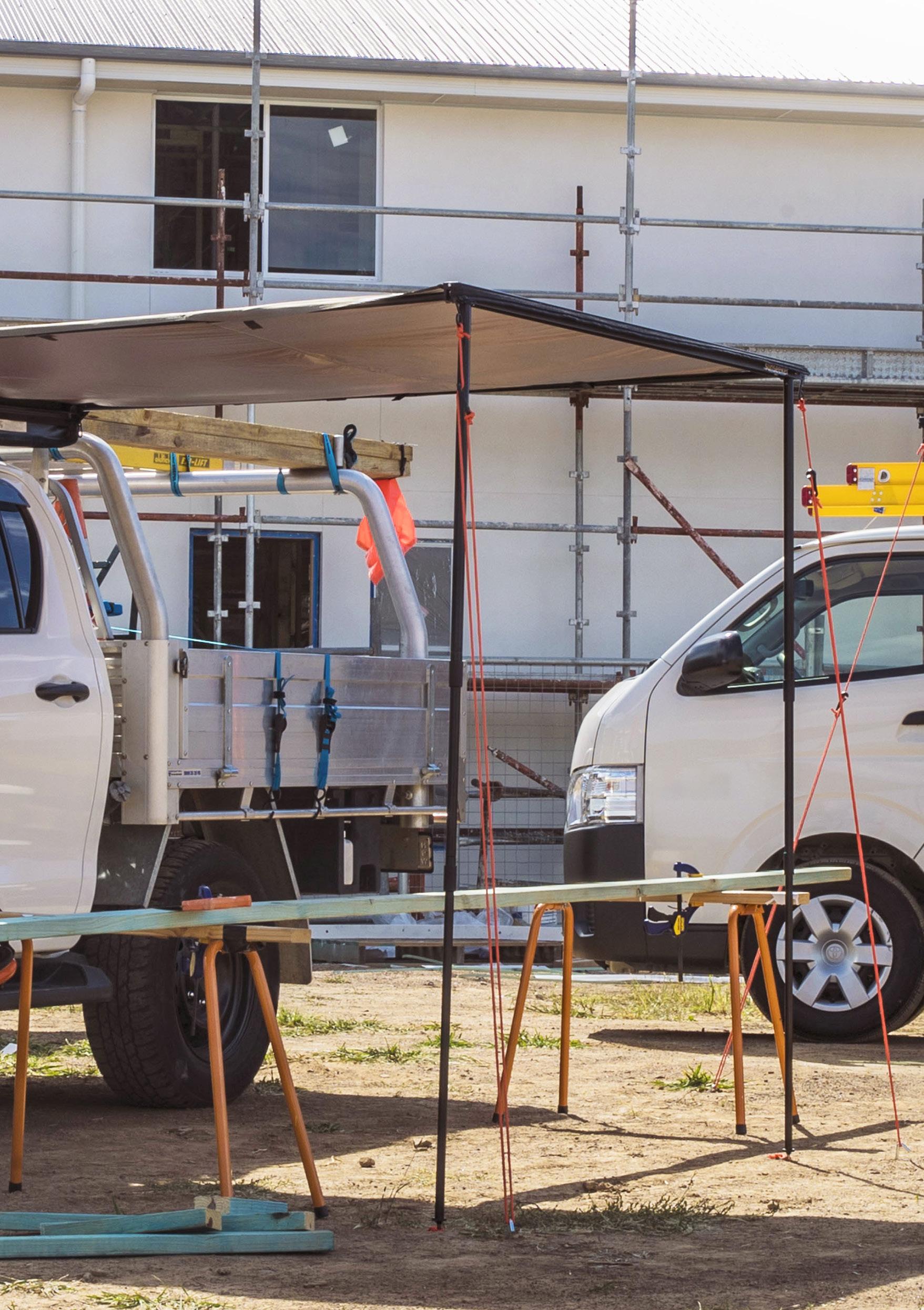

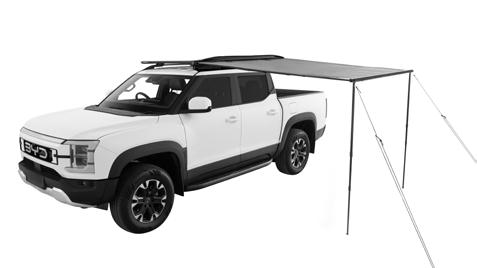

AWNING RANGE

OUR RANGE OF AWNINGS AND ACCESSORIES ARE BUILT FOR TOUGH CONDITIONS, DELIVERING DEPENDABLE PROTECTION FROM THE ELEMENTS WHILE ON SITE AT WORK OR ON A BREAK.

With seamless compatibility across Rhino-Rack systems, one person operation, and no ropes or tripping hazards – it’s the easy way to roll out and reset.

• Coverage options from 2m 2 to 12.3m 2 (43ft 2 to 132ft 2 )

• Premium 280 gsm ripstop polycotton fabric with 2000 mm waterhead pressure and UV50+ protection

• Compact, lightweight options including integrated storage pockets and roll-back roof access (Shower Tent)

• PVC or polyester storage bags for protection when stowed

• Easy to install. All awnings come with mounting brackets, guy ropes, pegs, and optional poles

• Side walls available separately for added shade and privacy

• Compatible with Zwifloc™ for seamless integration

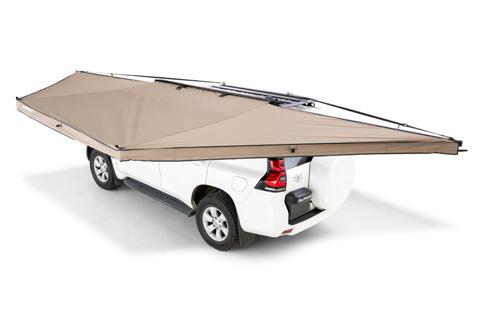

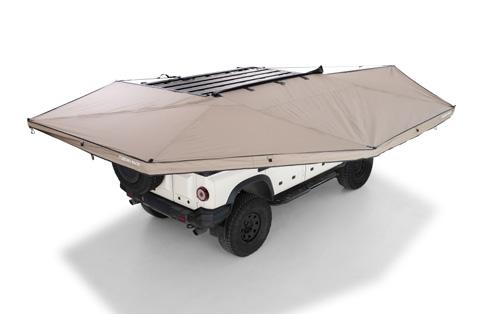

FREESTANDING BATWING 270° | 32145 (Left), 32146 (Right)

Extends up to 2m/78” from edge of vehicle and wraps around the side (left or right options) and rear of the vehicle providing 12.3m 2/132ft 2 coverage

FREESTANDING BATWING 180° | 32147

Extends up to 2m/78” from edge of vehicle providing 8.4m 2/90ft 2 coverage

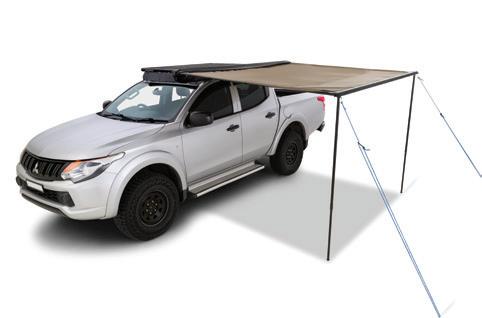

SUNSEEKER 2.0M AWNING | 32143

Extends 2m/78“ from edge of vehicle providing quick and easy 4m 2/43ft 2 coverage whenever you need it

SUNSEEKER 2.5M AWNING | 32144

Extends 2.5m/98“ from the edge of the vehicle providing quick and easy 5m 2/53ft 2 coverage whenever you need it

FREESTANDING SUNSEEKER 2M | 32148

Extends 2m/78” from edge of vehicle when opened, providing 4m 2/43ft 2 coverage

SCAN HERE

Or visit rhinorack.com/en-au/products/sport-awnings/awnings for more details on our range of awnings and accessories.

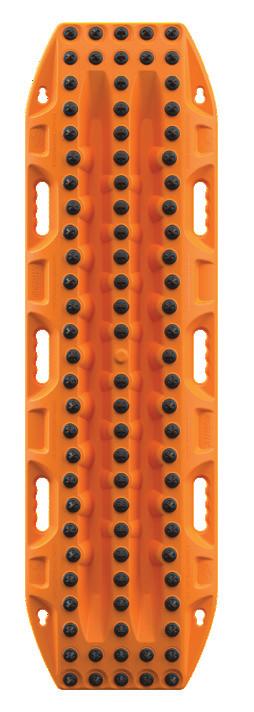

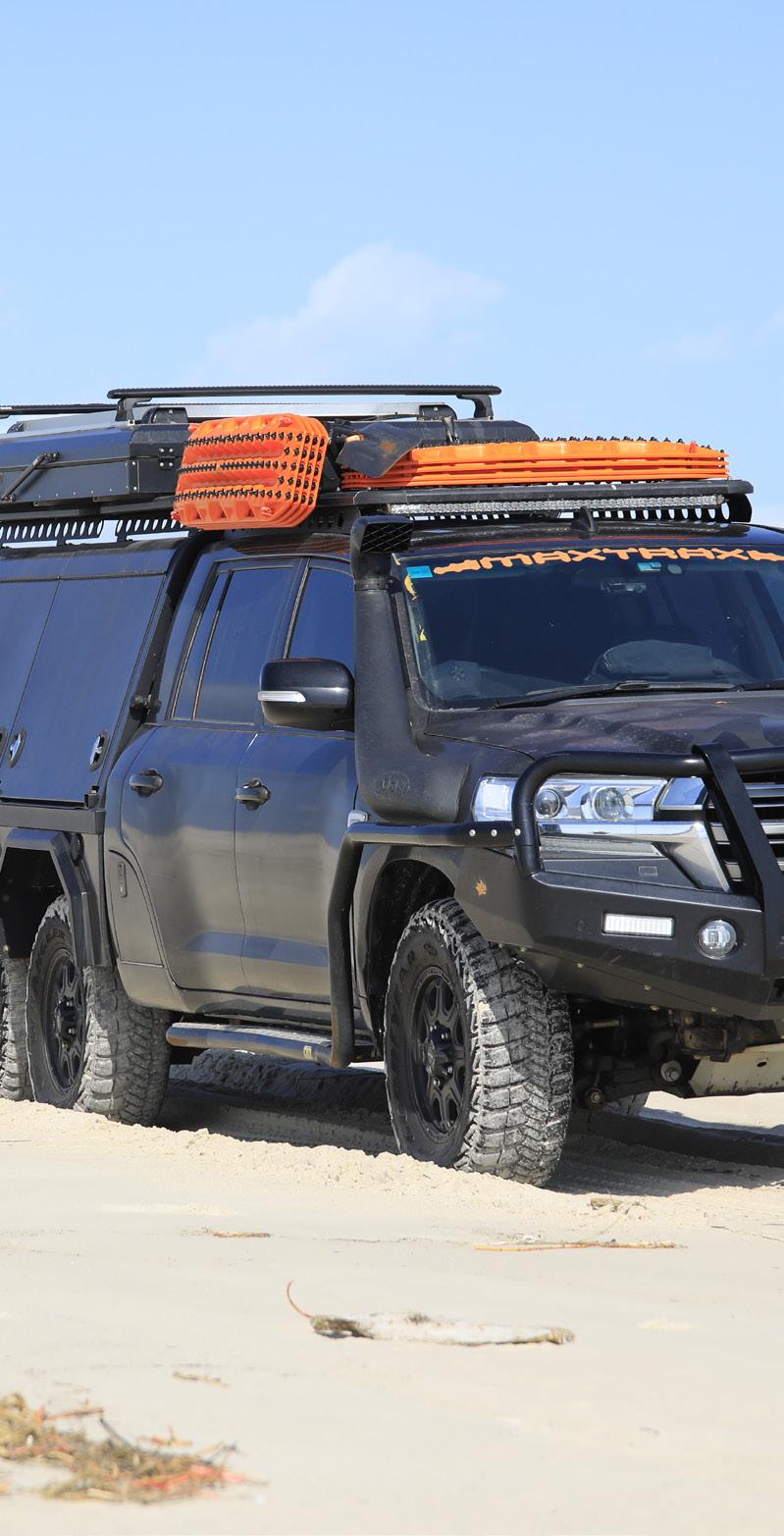

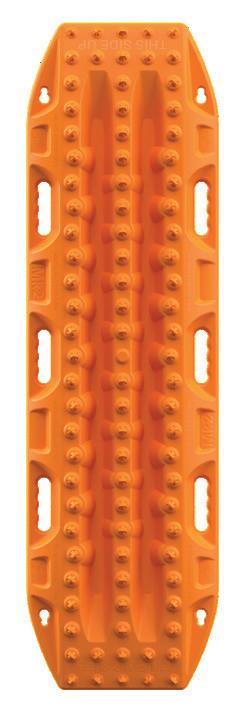

SAFE & SIMPLE RECOVERY SYSTEM

Maxtrax has designed the ultimate recovery system with safety as the top priority. After decades of offroading in all Aussie conditions, we’ve created the safest recovery gear, perfect for both work and weekends.

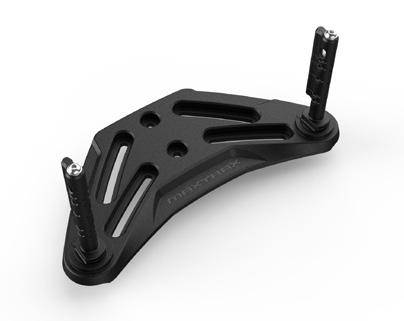

RECOVERY TRACK MOUNTING KIT WITH UNIVERSAL PINS | MTXFRMUMPU

Built tough for off-road conditions the brackets mount easily to your roof platform, crossbars, canopy or camper trailer, to lock your boards in tight — keeping your gear secure, organised, and always within reach.

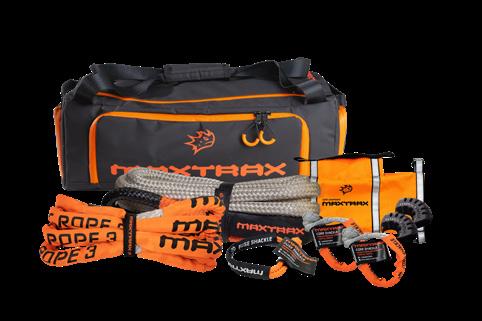

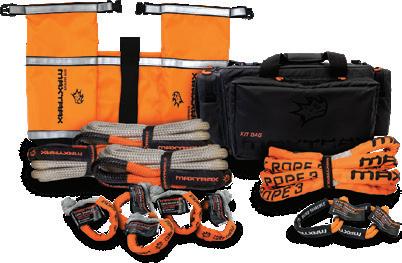

CROSSOVER RECOVERY KIT | MTXRKCO

Designed specifically for smaller GVM vehicles, this has everything you need to handle offroad and beach recoveries with confidence. The kit includes the key components to get you out of sticky situations safely.

BUSH RECOVERY KIT | MTXRKCBD

Designed for use on bush tracks where winching with the use of trees may be common. Tackle challenging recoveries with a variety of connectable ropes neatly stored in a Maxtrax Recovery Kit Bag.

MKII

TRADE

ITEM CODE DESCRIPTION BARCODE

43196 PIONEER FOLDING AERIAL MOUNT

9321911218119

BC150 END CAP 150MM (1EA) 9321911012427

BC2 K & C BAZOOKA CLAMP (2PCS) 9321911011086

BC2-150 150MM K & C BRACKET CLAMPS (2PCS) 9321911108328

BC3 BAZ CLAMP SET (3PCS) K & C 9321911011093

BC3-150 150MM K & C BRACKET CLAMPS (3PCS) 9321911108335

BCW 100MM BAZ END CAP - INCL WIRE (1EA) 9321911012434

BEC 100MM END CAP SETS (2*BCW, 2*P005) 9321911015343

BEC150 150MM END CAP SETS (2*BC150, 2*P008) 9321911012441

CSL26M CSL 2.6M LADDER RAIL SET 9321911295929

CSL30M CSL 3.0M LADDER RAIL SET 9321911295936

CSL35M CSL 3.5M LADDER RAIL SET 9321911295943

CSL40M CSL 4.0M LADDER RAIL SET 9321911295950

LSE100 LOCK SAFE ENDCAP (100MM CONDUIT) PR 9321911171292

LSE101 LOCK SAFE ENDCAP ORG (100MM CONDUIT) PR 9321911215408

MS26M MULTISLIDE 2.6M LADDER RAIL SET 9321911295882

MS30M MULTISLIDE 3.0M LADDER RAIL SET 9321911295899

MS35M MULTISLIDE 3.5M LADDER RAIL SET 9321911295905

MS40M MULTISLIDE 4.0M LADDER RAIL SET 9321911295912

P30-100 3.0M X 100MM W\- BLACK LOCKING END CAPS 9321911017897

P30-150 3MTR X 150MM CONDUIT WITH 2 X BC150 9321911017903

P46-100 4.6M X 100MM W\- BLACK LOCKING END CAPS 9321911017873

P46-150 4.6M X 150MM CONDUIT WITH 2 X BC150 9321911017880

REB EYE BOLT (PR) 9321911000516

RLH LOAD HOLDER 125MM (PR) 9321911000523

RLH1 LOAD HOLDER ADJUSTABLE HD (PR) 9321911111526

RLH2 LOAD HOLDER ADJUSTABLE VORTEX (PR) 9321911111533

RLLB CABLE LADDER LOCK TO SUIT CROSSBAR 9321911010577

RLLR CABLE LADDER LOCK TO SUIT RAIL 9321911010560

RLS5-15 STRAP TYPE 5 WITH Z BRKT (1EA) 9321911118969

RRG RATCHET GRAB WITH 2.0M STRAP(1EA) 9321911001759

RWLB RHINO CROSSBAR WORK LIGHT BRKT 9321911014100

S602 LADDER PEG/LOAD HOLDER (2PCS) 9321911003340

S604 TIEDOWN EYE NUTS (2PCS) 9321911003364

SRG SPORTZ RATCHET GRAB 9321911007942

TRAYS

62109 PIONEER 6 PLATFORM 1300 X 1240 Assembled 9321911309671

62110 PIONEER 6 PLATFORM 1300 X 1380 Assembled 9321911309855

62111 PIONEER 6 PLATFORM 1300 X 1430 Assembled 9321911309862

62100 PIONEER 6 PLATFORM 1500 X 1240 Assembled 9321911309589

62101 PIONEER 6 PLATFORM 1500 X 1380 Assembled 9321911309596

62113 PIONEER 6 PLATFORM 1500 X 1430 Assembled 9321911309886

62108 PIONEER 6 PLATFORM 1800 X 1430 Assembled 9321911309664

62102 PIONEER 6 PLATFORM 1900 X 1240 Assembled 9321911309602

62103 PIONEER 6 PLATFORM 1900 X 1380 Assembled 9321911309619

62107 PIONEER 6 PLATFORM 2100 X 1240 Assembled 9321911309657

62104 PIONEER 6 PLATFORM 2100 X 1430 Assembled 9321911309626

62105 PIONEER 6 PLATFORM 2700 X 1472 Assembled 9321911309633

62112 PIONEER 6 PLATFORM 900 X 1430 Assembled 9321911309879

65100 PIONEER 6 TRADIE PLATFORM 1500MM X 1240MM Assembled 9321911313050

65101 PIONEER 6 TRADIE PLATFORM 1500MM X 1380MM Assembled 9321911313067 65102 PIONEER 6 TRADIE PLATFORM 1900MM X 1240MM Assembled 9321911313074 65104 PIONEER 6 TRADIE PLATFORM 2100MM X 1430MM Assembled 9321911313081 65107 PIONEER 6 TRADIE PLATFORM 2100MM X 1240MM Assembled 9321911313098

65109 PIONEER 6 TRADIE PLATFORM 1300MM X 1240MM Assembled 9321911313104

62100F PIONEER 6 PLATFORM 1500 X 1240 F/P

62101F PIONEER 6 PLATFORM 1500 X 1380

62107F PIONEER 6 PLATFORM 2100 X 1240 F/P

9321911309756 62108F PIONEER 6 PLATFORM 1800 X 1430 F/P

62109F PIONEER 6 PLATFORM 1300 X 1240 F/P

62110F PIONEER 6 PLATFORM 1300 X 1380 F/P

62111F PIONEER 6 PLATFORM 1300 X 1430 F/P

62112F PIONEER 6 PLATFORM 900 X 1430 F/P

62113F PIONEER 6 PLATFORM 1500 X 1430 F/P

62114F PIONEER 6 PLATFORM 1500 X 1590 F/P

62115F PIONEER PLATFORM 1100 X 1430 F/P

9321911309763

9321911309770

9321911309909

9321911309916

9321911309923

9321911309930

9321911310509

SPECIFICATIONS

BACKBONES

ITEM CODE VEHICLE

RR5B1 CHEVROLET SILVERADO 1500 GEN4 4DR UTE CREW CAB & RAM 1500 GEN5, DT UTE CREW CAB

RR1B1 DODGE RAM 1500/2500/3500 GEN 4, DS 4DR UTE CREW CAB

RFEB1 FORD EVEREST UA 5DR SUV WITH FLUSH RAILS

RFRB3 FORD RANGER GEN 2 (P703) 4DR UTE DOUBLE CAB & VW AMAROK GEN2 DOUBLE CAB

RFRB1 FORD RANGER PX/PX2/PX3 4DR UTE DOUBLE CAB & MAZDA BT-50 GEN 1 DUAL CAB

RFRB2 FORD RANGER WILDTRAK PX/PX2/PX3 4DR UTE DOUBLE CAB (WITH ROOF RAILS)

RIDB1 HOLDEN COLORADO 4DR UTE CREW CAB & ISUZU D-MAX GEN2 4DR CREW CAB

RIDB2 ISUZU D-MAX GEN3, (X-TERRAIN) 4DR UTE CREW CAB (WITH FLUSH RAILS) & BARE ROOF MAZDA BT-50 GEN2 DUAL CAB

RIMB1 ISUZU MU-X GEN1, LS-T, LS-U, LS-M 5DR SUV

RIMB2 ISUZU MU-X GEN2, LS-M, LS-T & LS-U 5DR SUV

RJKB2 JEEP WRANGLER JK 2DR 4WD HARD TOP

RJKB1 JEEP WRANGLER JK 4DR 4WD HARD TOP

RJLB1 JEEP WRANGLER JL 4DR 4WD HARD TOP

RLDB1 LAND ROVER DEFENDER 110 L663 5DR SUV WITH FACTORY TRACK & LR DEFENDER 130 L663 5DR SUV WITH FACTORY TRACK

RMPB1 MITSUBISHI PAJERO NS-NX 4DR 4WD LWB (WITH ROOF RAILS)

RMTB1 MITSUBISHI TRITON GEN5 MQ/MR 4DR UTE DOUBLE CAB

RNNB2 NISSAN NAVARA NP300 4DR UTE DUAL CAB

RGMB2 NISSAN PATROL GU, Y61 4DR 4WD LWB & TOYOTA LANDCRUISER 80 SERIES 4DR 4WD

RNPB1 NISSAN PATROL Y62 5DR 4WD BARE ROOF AND WITH ROOF RAILS

RFJB1 TOYOTA FJ CRUISER XJ10 2DR SUV 1

RTFB1 TOYOTA FORTUNER AN150/AN160 5DR SUV WITH FLUSH RAILS

RTHB3 TOYOTA HIACE GEN 6 2DR VAN LWB

RTHB1 TOYOTA HILUX GEN 7 4DR UTE DUAL CAB & GEN 8 HILUX DUAL CAB

RTLB2 TOYOTA LANDCRUISER 100 SERIES 4DR 4WD

RTLB3 TOYOTA LANDCRUISER 200 SERIES 4DR 4WD BARE ROOF & ROOF RAILS

RTLB1 TOYOTA LANDCRUISER 200 SERIES 5DR 4WD BARE ROOF & ROOF RAILS

RTLB5 TOYOTA LANDCRUISER 300 SERIES 5DR 4WD BARE ROOF & ROOF RAILS

RGMB1 TOYOTA LANDCRUISER 76 SERIES 4DR 4WD

RTLB4 TOYOTA LANDCRUISER 79 SERIES 4DR 4WD DOUBLE CAB

RTPB2 TOYOTA PRADO 120 SERIES 5DR 4WD WITH BARE ROOF & ROOF RAILS

RTPB1 TOYOTA PRADO 150 SERIES 5DR 4WD BARE ROOF & BARE RAILS

RVAB1 VOLKSWAGEN AMAROK GEN 1 4DR UTE DUAL CAB

SPECIFICATIONS

CROSSBARS

ITEM CODE COMPATIBILITY

SZ118B ALL LEGS

SZ126B ALL LEGS

SZ137B ALL LEGS

SZ150B ALL LEGS

SZ165B ALL LEGS

SZ180B ALL LEGS

RB1120B ALL LEGS

RB1250B ALL LEGS

RB1375B ALL LEGS

RB1500B ALL LEGS

RB1650B ALL LEGS

RB1800B ALL LEGS

RB2000B ALL LEGS

9321911313401 1180MM

9321911313418 1260MM

9321911313425 1370MM

9321911313432 1500MM

9321911313449 1650MM

9321911313456 1800MM

9321911119287 1120MM

9321911000103 1250MM

9321911000110 1375MM

9321911000134 1500MM

9321911008703 1650MM

9321911000158 1800MM

9321911007188 2000MM

RDB126 RCH / RCL / RLT600 9321911299873 1260MM

RDB150 RCH / RCL / RLT600 9321911299880 1500MM

RDB165 RCH / RCL / RLT600 9321911299897 1650MM

SPECIFICATIONS

LEGS

ITEM CODE VEHICLE

2500 WITH BARE ROOF

ROC25 WITH BARE ROOF

RCH/RCL WITH FIXED MOUNT POINTS OR TRACKS

RLTF/RLTP WITH FIXED MOUNT POINTS OR TRACKS

RV WITH FIXED MOUNT POINTS OR TRACKS

SG WITH GUTTER

RL WITH GUTTER

SX100 WITH RAISED RAILS

RX100 WITH RAISED RAILS

RX200 WITH FLUSH RAILS

RX300 WITH FIXED MOUNT POINTS OR TRACKS

Stealthbar WITH RAISED RAILS

WARRANTY (YRS) ADDED HEIGHT WEIGHT (INCLUDES 2 BARS AND 4 LEGS)

Vehicle dependant

WARRANTY (YRS) ADDED HEIGHT

Vehicle dependent

Average weight throughout our crossbar range 4 to 6kg

WEIGHT (INCLUDES 2 BARS AND 4 LEGS)

Average weight throughout our crossbar range 4 to 6kg

5 Vehicle dependent Average weight throughout our crossbar range 4 to 6kg

Vehicle dependent

Average weight throughout our crossbar range 4 to 6kg

SPECIFICATIONS

LADDER PACKS

PACK CODE DESCRIPTION FITS

710-RSL-00001 TECH LADDER PACK

710-RSL-00002 TECH LADDER PACK

710-RSL-00004 TECH TWIN EXT LADDER PACK W/ CONDUIT

TOYOTA RAV4 Gen 5 (XA50) 5dr SUV With Flush Rail 19 to 25

KIA SPORTAGE Gen 4 (QL) 5dr SUV With Flush Rail 16 to 21

TOYOTA HIACE Gen 6 (H300) 2dr Van LWB 19 On

710-RSL-00005 TECH EXT AND STEP LADDER PACK W/ CONDUIT TOYOTA HIACE Gen 6 (H300) 2dr Van LWB 19 On

710-RSL-00006 TECH TWIN EXT LADDER PACK

TOYOTA HIACE Gen 6 (H300) 2dr Van LWB 19 On

710-RSL-00007 TECH EXT AND STEP LADDER PACK

TOYOTA HIACE Gen 6 (H300) 2dr Van LWB 19 On

710-RSL-00008 TECH EXT LADDER PACK W/ CONDUIT

FORD RANGER Gen 3 (PX/PX2/PX3) 4dr Ute Double Cab 11 to 22

710-RSL-00009 TECH EXT LADDER PACK W/ CONDUIT EXCL BAR LEG

710-RSL-00010 TECH LADDER PACK W/ CONDUIT EXCL BAR LEG

710-RSL-00011 TECH LADDER PACK

TOYOTA HILUX Gen 8 (N80) 4dr Ute Double Cab 15 to 25

TOYOTA HILUX Gen 9 (N90) 4dr Ute Double Cab 26 On

FORD RANGER Gen 3 (PX/PX2/PX3) 4dr Ute Double Cab 11 to 22

FORD RANGER Gen 4 (P703) 4dr Ute Double Cab 22 On

FORD EVEREST Gen 3 (U704) 5dr SUV With Flush Rail 22 On

PACK ITEMS:

RCP LOCKING LEG LOW (4PCS)

BASE KIT RAV4 GEN5 (4PCS)

STRAP TYPE 5 WITH Z BRACKET (1EA) BULK

RCP LOCKING LEG LOW (4PCS)

BASE KIT GENERIC SWIVEL M6 (4PCS)

STRAP TYPE 5 WITH Z BRACKET (1EA) BULK

SUB ASSEMBLY FRONT OR REAR WEDGES

SPACER KIT

BAZ CLAMP SET (3PCS) K & C

LADDER ROLLER 470MM

MULTISLIDE 3.5M LADDER RAIL SET

4.6M X 100MM WITH ORANGE LOCKING END CAPS

QUICK MOUNT 5MM HD SPACER

SPACER KIT

BAZ CLAMP SET (3PCS) K & C

LADDER ROLLER 470MM

LADDER ROLLER 680MM

MULTISLIDE 3.5M LADDER RAIL SET

4.6M X 100MM WITH ORANGE LOCKING END CAPS

SPACER KIT

LADDER ROLLER 470MM

MULTISLIDE 3.5M LADDER RAIL SET

QUICK MOUNT 5MM HD SPACER

ALLOY BAR 1650MM SIL (1EA)

SPACER KIT

LADDER ROLLER 470MM

LADDER ROLLER 680MM

MULTISLIDE 3.5M LADDER RAIL SET

QUICK MOUNT 5MM HD SPACER

ARB ADAPTOR FOR AERO (2PCS)

PAD & CLAMP KIT FOR RHINO 2500 MULTI FIT

FOREST RIVER CARTON 158X21X19

LADDER ROLLER 470MM

MULTISLIDE 2.6M LADDER RAIL SET

2500 SPACERS (2 ADAPTORS & 8 SPACERS) 42MM

M8 X 20 STEEL T BOLT MECH GALV (BP 4)

LADDER ROLLER 470MM

MULTISLIDE 2.6M LADDER RAIL SET

2500 SPACERS (2 ADAPTORS & 8 SPACERS) 42MM

M8 X 20 STEEL T BOLT MECH GALV (BP 4)

K & C BAZOOKA CLAMP (2PCS)

FOREST RIVER CARTON 158X21X19

LADDER ROLLER 470MM

MULTISLIDE 2.6M LADDER RAIL SET

M8 X 20 STEEL T BOLT MECH GALV (BP 4)

RX200 RAIL MOUNT LEG KIT - OVERHANG (4PCS)

RX2FK FIT KIT - FORD EVEREST U704 FLUSH RAIL

SPORTZ RLS5

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

2.2M SLIDE OUT LADDER RACK SYSTEM

SPORTZ BAR 1260MM BLACK

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

2.2M SLIDE OUT LADDER RACK SYSTEM

SPORTZ BAR 1260MM BLACK

ALLOY BAR 1650MM SIL (1EA)

RCP LOCKING LEG HIGH M8 (6PCS)

BASE KIT HIACE GEN6 LWB (6PCS)

PAIR OF CABLE LADDER LOCKS

STRAP ASSEMBLY HIACE

QUICK MOUNT 5MM HD SPACER

ALLOY BAR 1650MM SIL (1EA)

RCP LOCKING LEG HIGH M8 (6PCS)

BASE KIT HIACE GEN6 LWB (6PCS)

PAIR OF CABLE LADDER LOCKS

STRAP ASSEMBLY HIACE

RCP LOCKING LEG HIGH M8 (6PCS)

BASE KIT HIACE GEN6 LWB (6PCS)

PAIR OF CABLE LADDER LOCKS

STRAP ASSEMBLY HIACE

ALLOY BAR 1650MM SIL (1EA)

RCP LOCKING LEG HIGH M8 (6PCS)

BASE KIT HIACE GEN6 LWB (6PCS)

PAIR OF CABLE LADDER LOCKS

STRAP ASSEMBLY HIACE

2500 LEG KIT VA BAR (2PCS) HALF

CABLE LADDER LOCKS

SPORTZ PIPE CLAMPS 100MM (PR)

CONDUIT KIT 3M ORANGE

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

SPORTZ BAR 1370MM BLACK

CABLE LADDER LOCKS

SPORTZ PIPE CLAMPS 100MM (PR)

CONDUIT KIT 3M ORANGE

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

CABLE LADDER LOCKS

CONDUIT KIT 3M ORANGE

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

VA FIT KIT FOR 1 X A127 CONDUIT BRACKET

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

SPORTZ BAR 1370MM BLACK

2.2M SLIDE OUT LADDER RACK SYSTEM

LADDER PACKS

PACK CODE DESCRIPTION FITS

710-RSL-00012 TECH LADDER PACK

710-RSL-00013 TECH LADDER PACK

KIA SPORTAGE Gen 5 (NQ5) 5dr

SUV With Flush Rail 22 On

HYUNDAI TUCSON Gen 4 (NX4) 5dr

SUV With Flush Rail 21 On

TOYOTA RAV4 Gen 6 (XA60) 5dr

SUV With Flush Rail 26 On

PACK ITEMS:

RX200 RAIL MOUNT LEG KIT - OVERHANG (4PCS)

RX2FK FIT KIT - HYUNDAI TUCSON NX4 FLUSH RAIL

STRAP TYPE 5 WITH Z BRACKET (1EA) BULK

RX200 RAIL MOUNT LEG KIT - OVERHANG (4PCS)

RX2FK018 FITMENT KIT RX200 FLUSH RAILS

STRAP TYPE 5 WITH Z BRACKET (1EA) BULK

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

2.2M SLIDE OUT LADDER RACK SYSTEM

SPORTZ BAR 1260MM BLACK

SUB ASSEMBLY M8 CAST LOCKING TAB KIT

2.2M SLIDE OUT LADDER RACK SYSTEM

SPORTZ BAR 1260MM BLACK

Rhino-Rack has made reasonable efforts to ensure that the information within this publication is correct at the time of printing. Although Rhino-Rack monitors the quality of the information and updates the information regularly, human or mechanical error, or changes in circumstances after the time of publication may be possible and may impact the accuracy of the information. Rhino-Rack does not warrant that any information or data in this publication is accurate, complete, current or suitable for any purpose. To the maximum extent permitted by law, Rhino-Rack disclaims all liability for any loss, damage, expense and costs incurred by any person arising out of accessing, downloading, using or relying on any materials in this publication.
