Blind Corner Solutions

NO SPACE WASTED

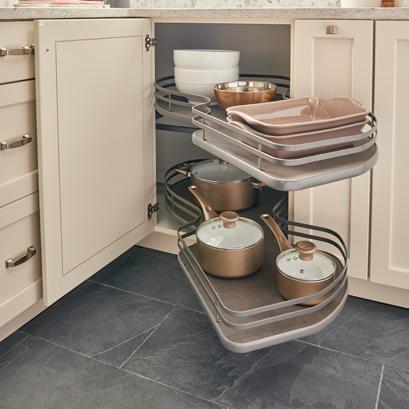

Let Rev-A-Shelf ® end your blind corner dilemma with our line of innovative organizational accessories. Specially designed to maximize the storage capacity of your cabinets, each product incorporates revolutionary pivot, slide and pull technologies that allow access to every inch of the organizers. While functional and practical, our blind corner solutions are aesthetically pleasing and available in an array of finishes and colors.

• Designed for 15”, 18” and 21” blind corner cabinet openings

• Single and double solid bottom shelves, orion gray

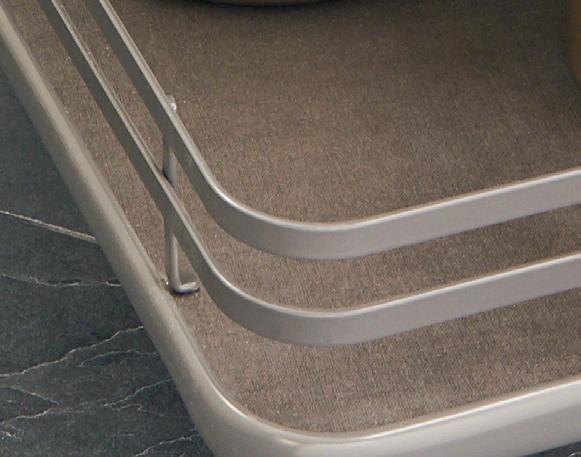

• Textured linen finish with orion gray flat wire accents

• Left or right handed mounting

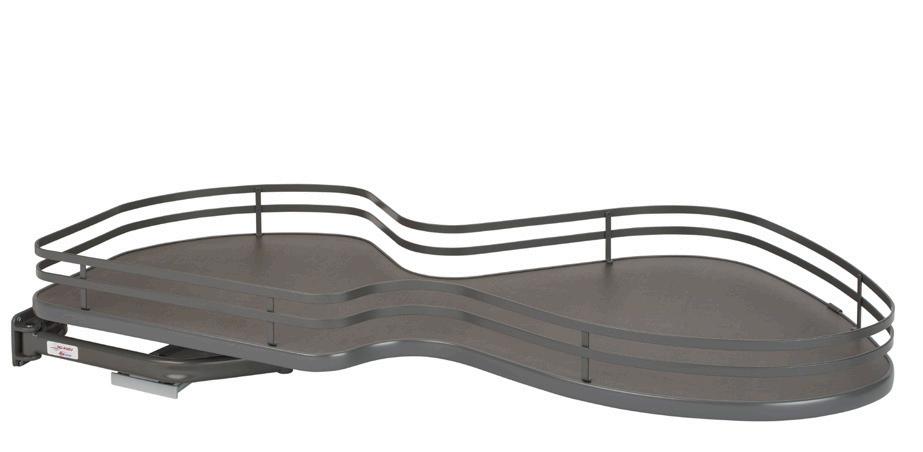

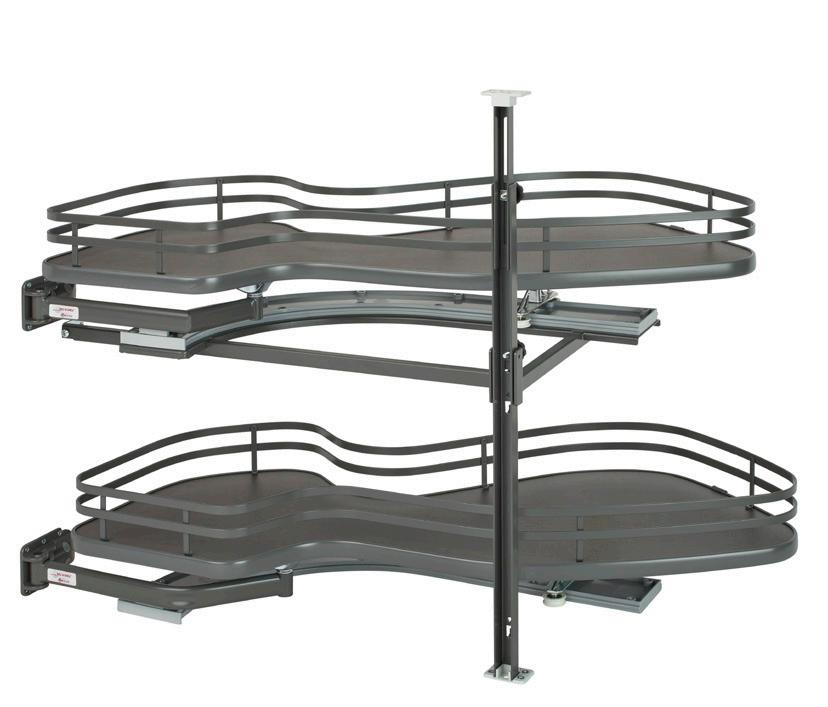

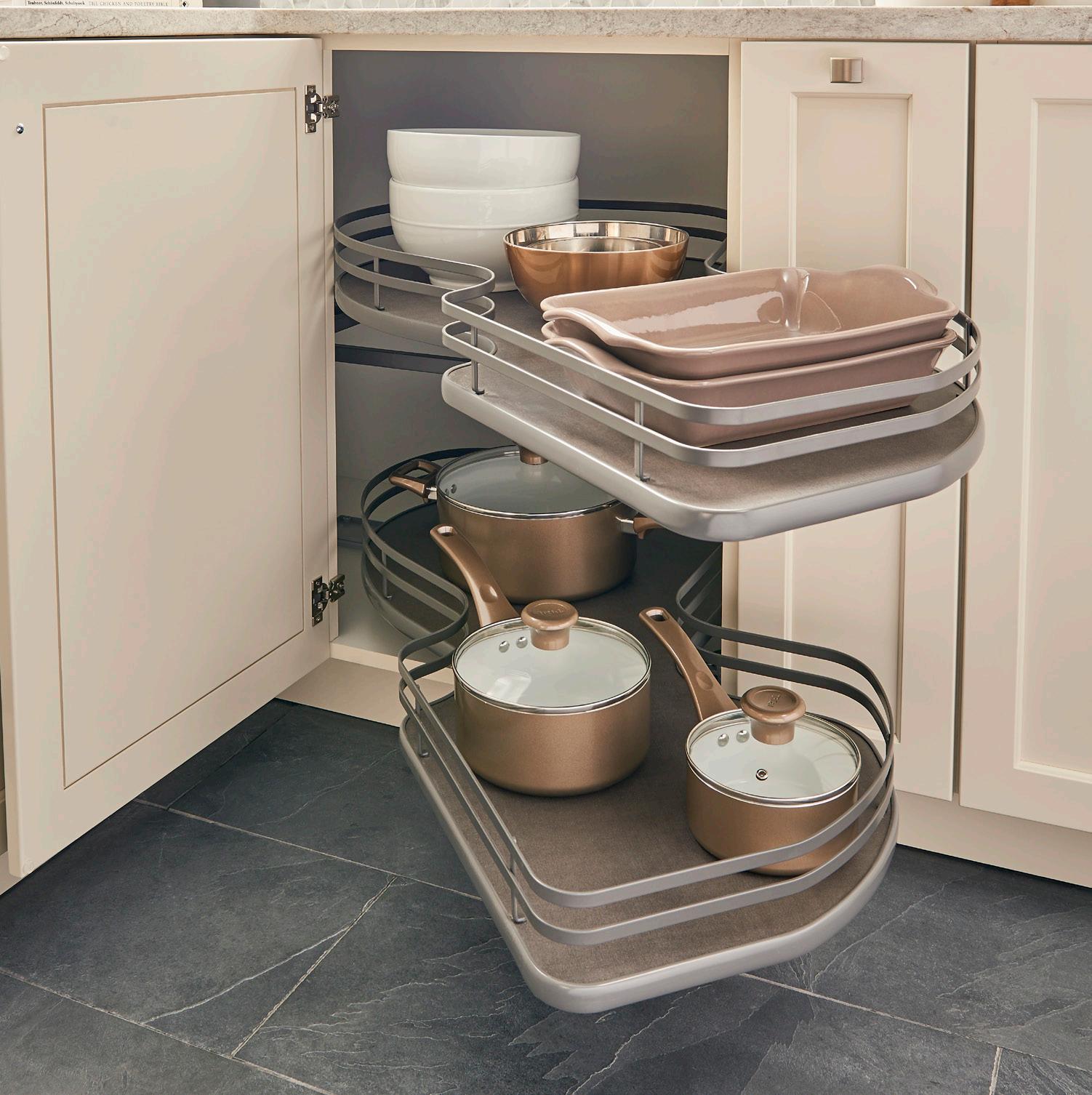

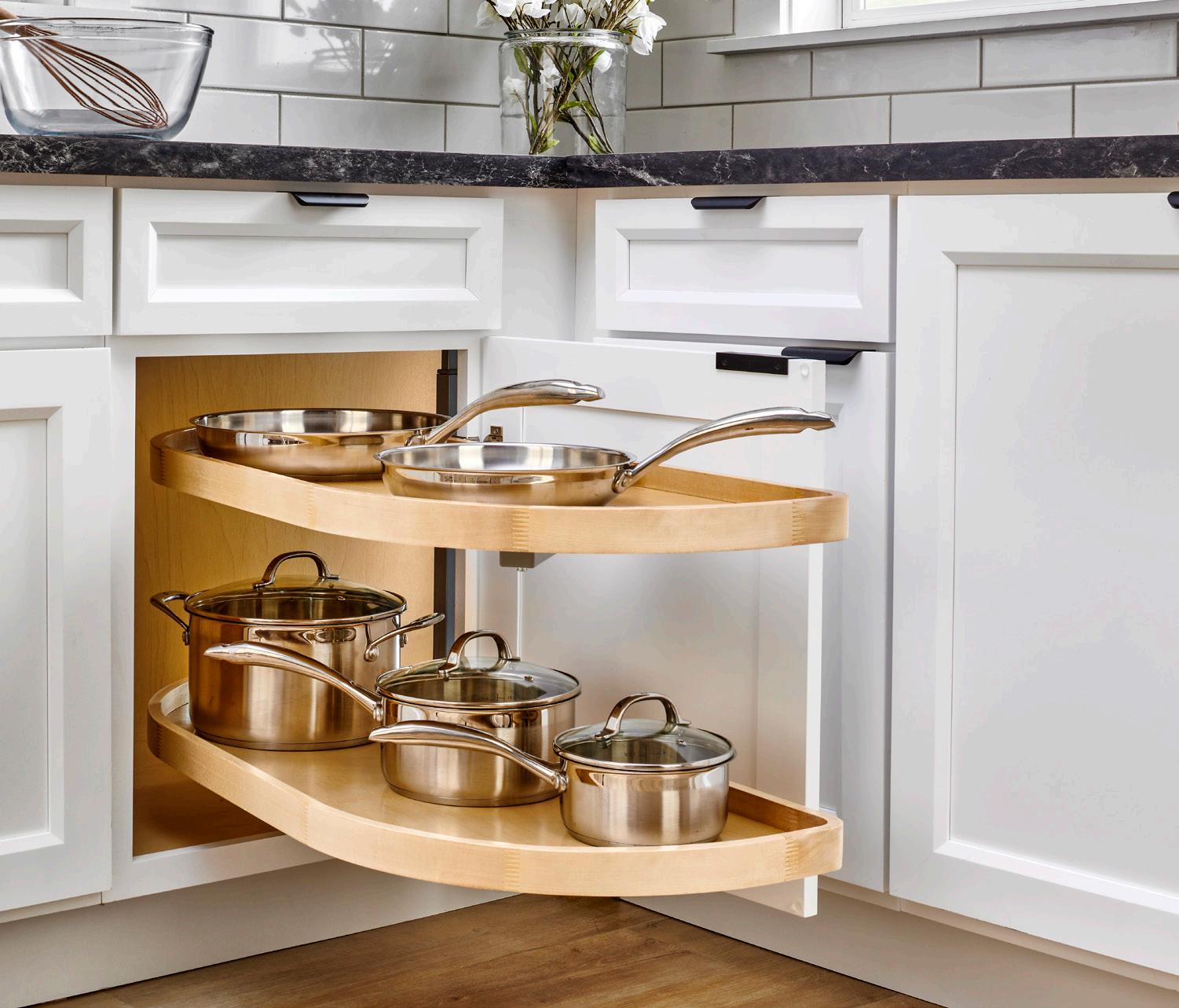

The Cloud Contemporary Blind Corner

• Mounts to cabinet floor (single) and side walls (double)

• Mounted telescopic post system (double)

• 45 lb. capacity (per shelf)

• Soft-close available (sold separately)

• TSCA Title VI compliant

Single blind corner optimizer for left opening/ blind right corner Double blind corner optimizer for right opening/ blind left corner

5371-15 361 sq. in.

5371-18 471 sq. in.

5371-21 527 sq. in.

5372-15 722 sq. in.

5372-18 942 sq. in.

5372-21 1054 sq. in.

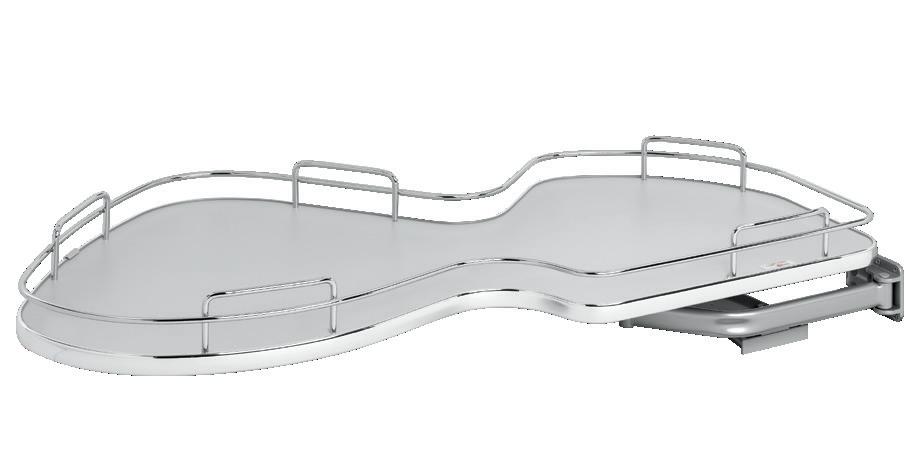

5371-21-FOG-L Single Blind Corner Organizer for Left Opening/Blind Right Cabinet (21” Shelf shown)

5372-15-FOG-L

Single Blind Corner Organizer for Left Opening/Blind Right Cabinet (15” Shelves shown)

Single Blind Corner for Right Opening/Blind Left Cabinets

Single Blind Corner for Left Opening/Blind Right Cabinets

5371-21/5372-21

Double Blind Corner for Right Opening/Blind Left Cabinets

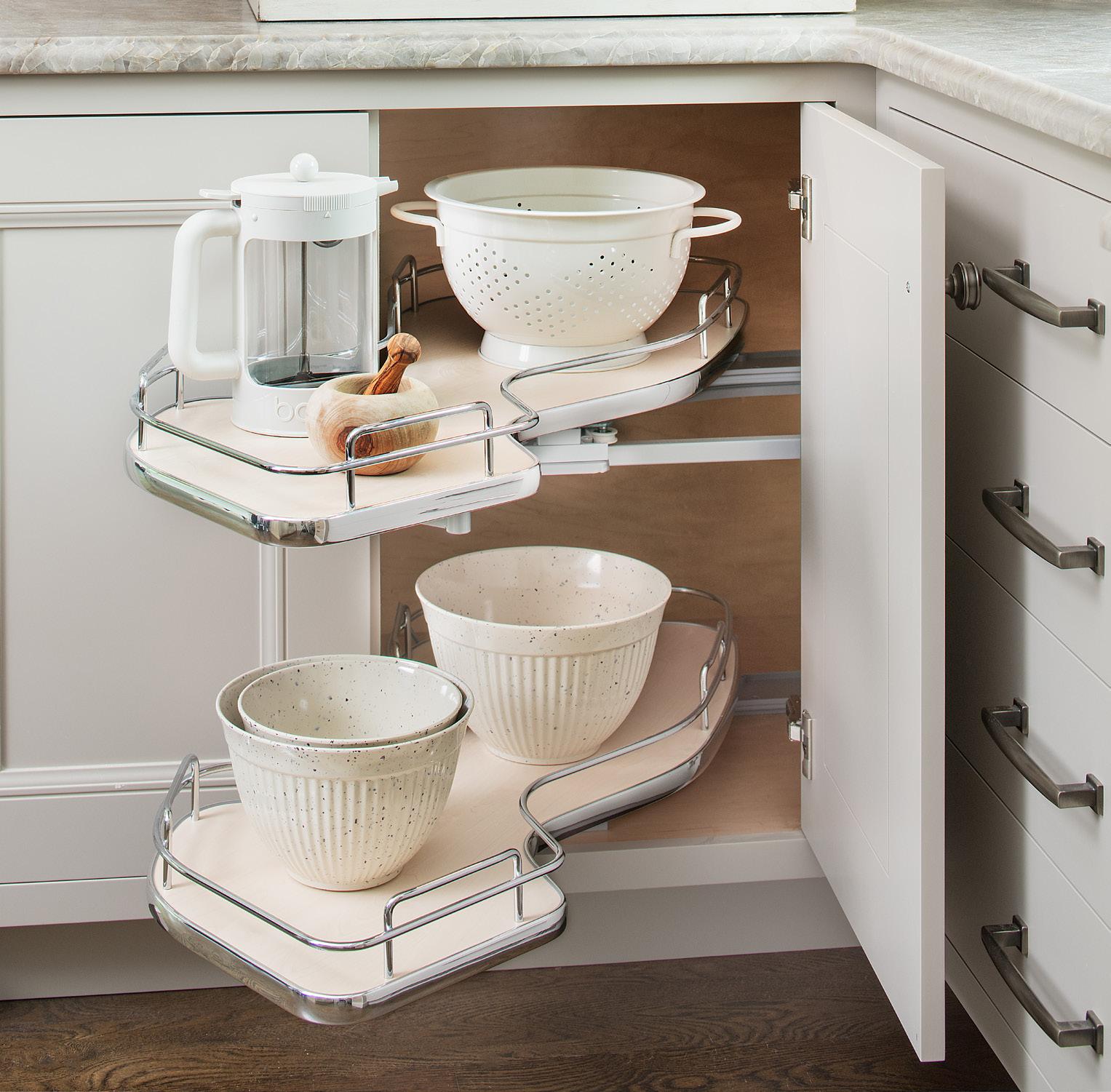

• Designed for 15”, 18” and 21” blind corner cabinet openings

• Single and double solid bottom shelves, natural maple or gray

• Chrome round wire accents

• Left or right handed mounting

The Cloud Contemporary Blind Corner

• Mounts to cabinet floor (single) and side walls (double)

• Mounted telescopic post system (double)

• 45 lb. capacity per shelf

• Soft-close available (sold separately)

• TSCA Title VI compliant

Single blind corner optimizer for left opening/ blind right corner Double blind corner optimizer for right opening/ blind left corner

PRODUCT # SURFACE AREA

5371-15 361 sq. in.

5371-18 471 sq. in.

5371-21 527 sq. in.

5372-15 722 sq. in.

5372-18 942 sq. in.

5372-21 1054 sq. in.

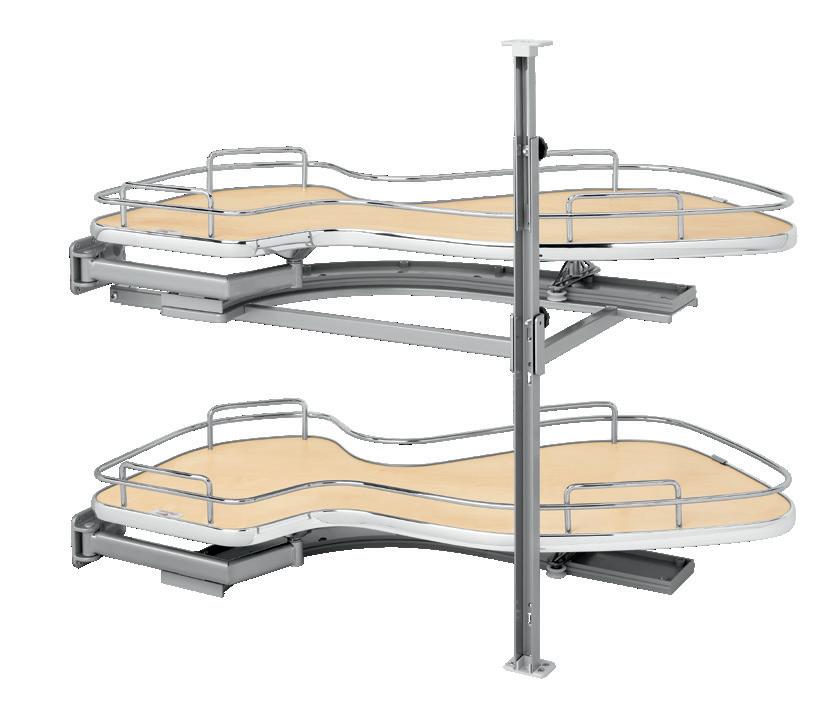

5371-21-GR-R

Single Blind Corner Organizer for Right opening/blind left cabinet (21” Gray Shelf shown)

5372-15-MP-L

Single Blind Corner Organizer for Left opening/blind right cabinet (15” Maple Shelves shown)

NOTE: ** Insert “MP” for Maple Shelf or “GR” for Gray Shelf

Single Blind Corner for Right Opening/Blind Left Cabinets

Single Blind Corner for Left Opening/Blind Right Cabinets

5371-15/ 5372-15 34" (864 mm) 15" (381 mm) 7” (180 mm) 4-1/8” (106 mm)

5371-18/5372-18 38" (965 mm) 18" (457 mm) 9-3/16” (233 mm) 3-9/16” (91 mm)

5371-21/5372-21 40" (1016 mm) 21" (533 mm) 9-1/4” (235 mm) 3-7/8” (98

Double Blind Corner for Right Opening/Blind Left Cabinets

Double Blind Corner for Left Opening/Blind Right Cabinets

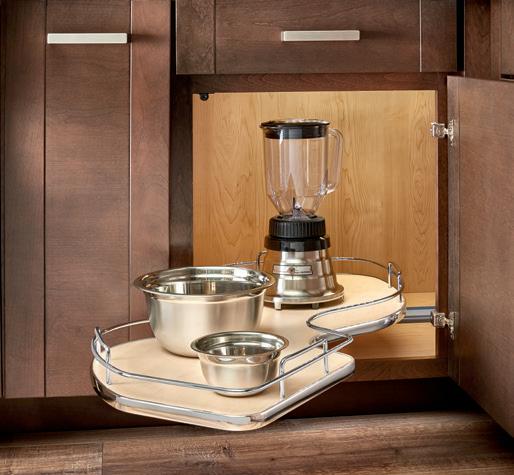

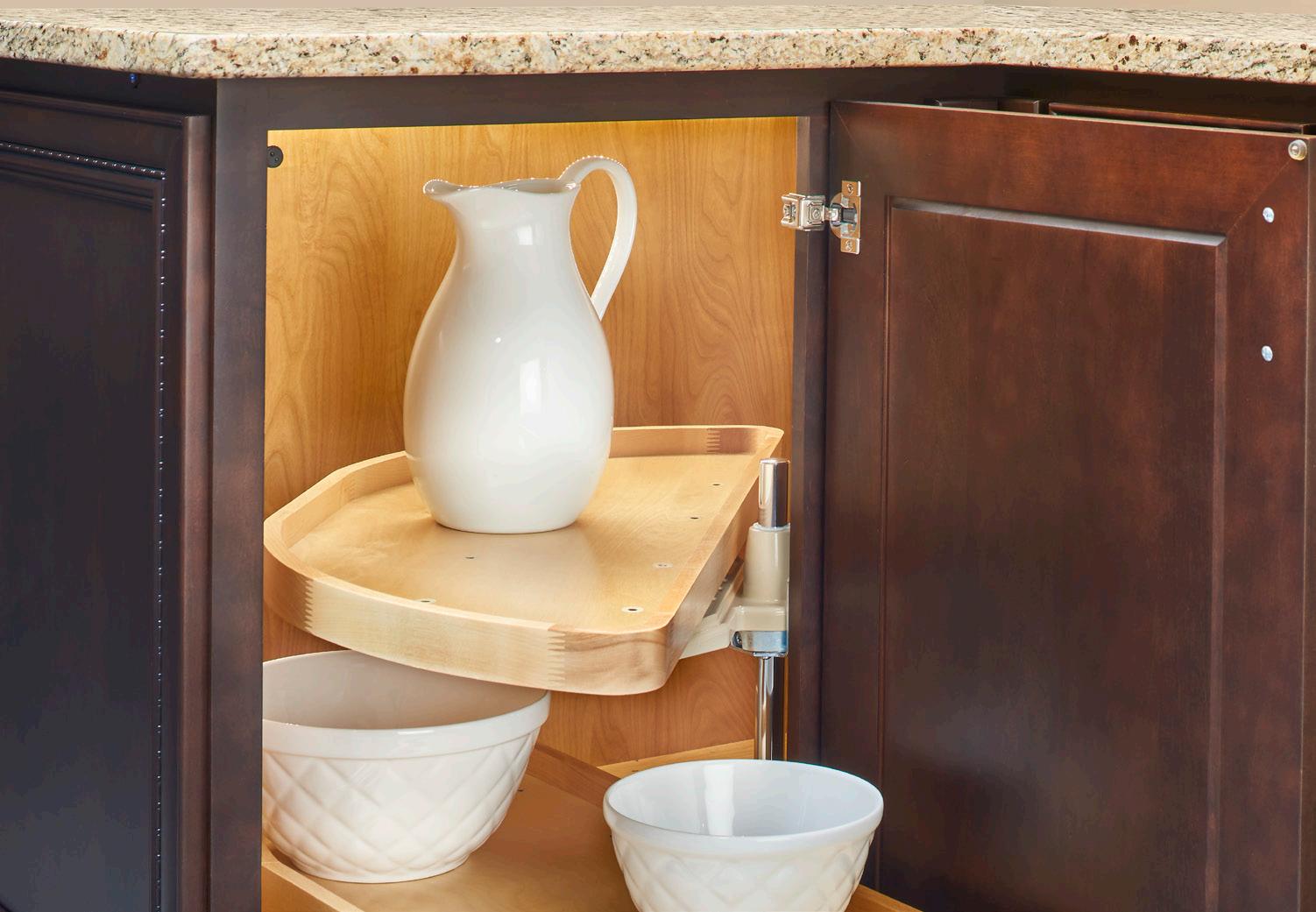

Girasolo Blind Corner Optimizer 587 Series

• Designed for 12”, 15” or 18” blind corner cabinet openings

• Easy installation

• Chrome-plated round wire railing

• Single or two-tier 5/8” thick maple-faced melamine shelf bottom

• Pulls directly forward, eliminating clearance issues from adjacent appliances

• Left or right-handed mounting

• Mounts to cabinet floor, side or top; depending on application

• Mounted telescopic post system

• 30 lb. capacity per shelf

• Soft-close pivot hardware system

• Adjustable shelf heights

• TSCA Title VI compliant

A = Width of shelf B = MCO C = Inside front of cabinet

* Insert L for Left Opening/Blind Right Cabinets or R for Right Opening/Blind Left Cabinets

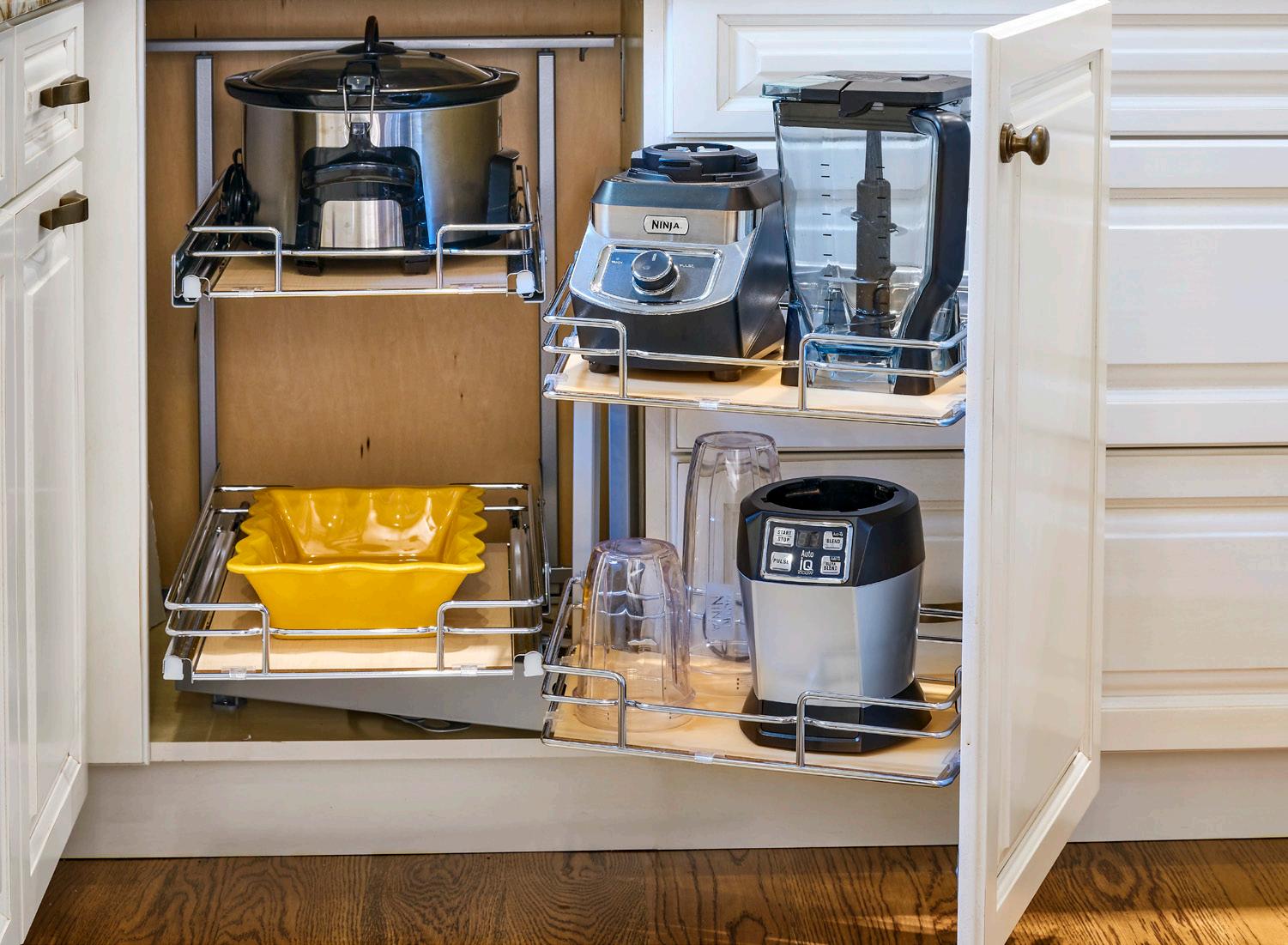

Two-Tier “Girasolo” Blind Corner Optimizer

Maple Girasolo Blind Corner Optimizer 4WLS Series

• Designed for 12”, 15” or 18” blind cabinet openings

• Single or two-tier 5/8” thick natural maple shelf bottom

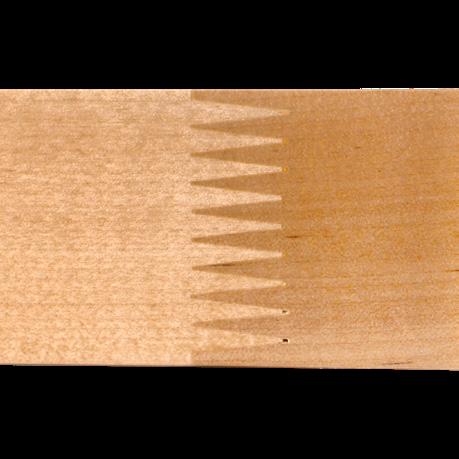

• 1-5/8” solid wood frame with a finger joint rim

• Pulls directly forward, eliminating clearance issues from adjacent appliances

• Left or right-handed mounting

• Mounts to cabinet floor, side and top

• Mounted telescopic with a softclose pivot hardware system

• Easy installation

• 33 lb. capacity per shelf

• Soft-close pivot hardware system

• Adjustable shelf heights

• TSCA Title VI compliant

* Insert L for Left Opening/Blind Right Cabinets or R for Right Opening/Blind Left Cabinets

Single-Tier “Girasolo” Blind Corner Optimizer

• Designed for full-height 15” and 18” blind corner cabinet openings

• Two or three-tier wire frame

• (4) or (6) solid-bottom shelves, natural maple, gray or textured linen

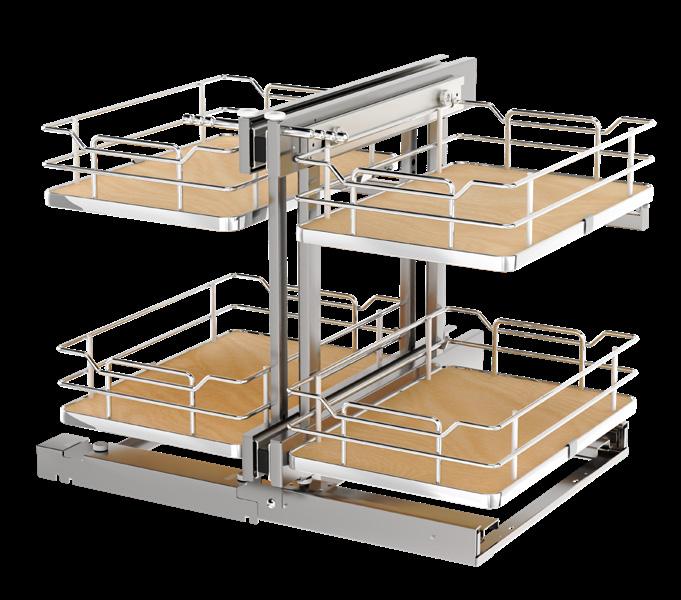

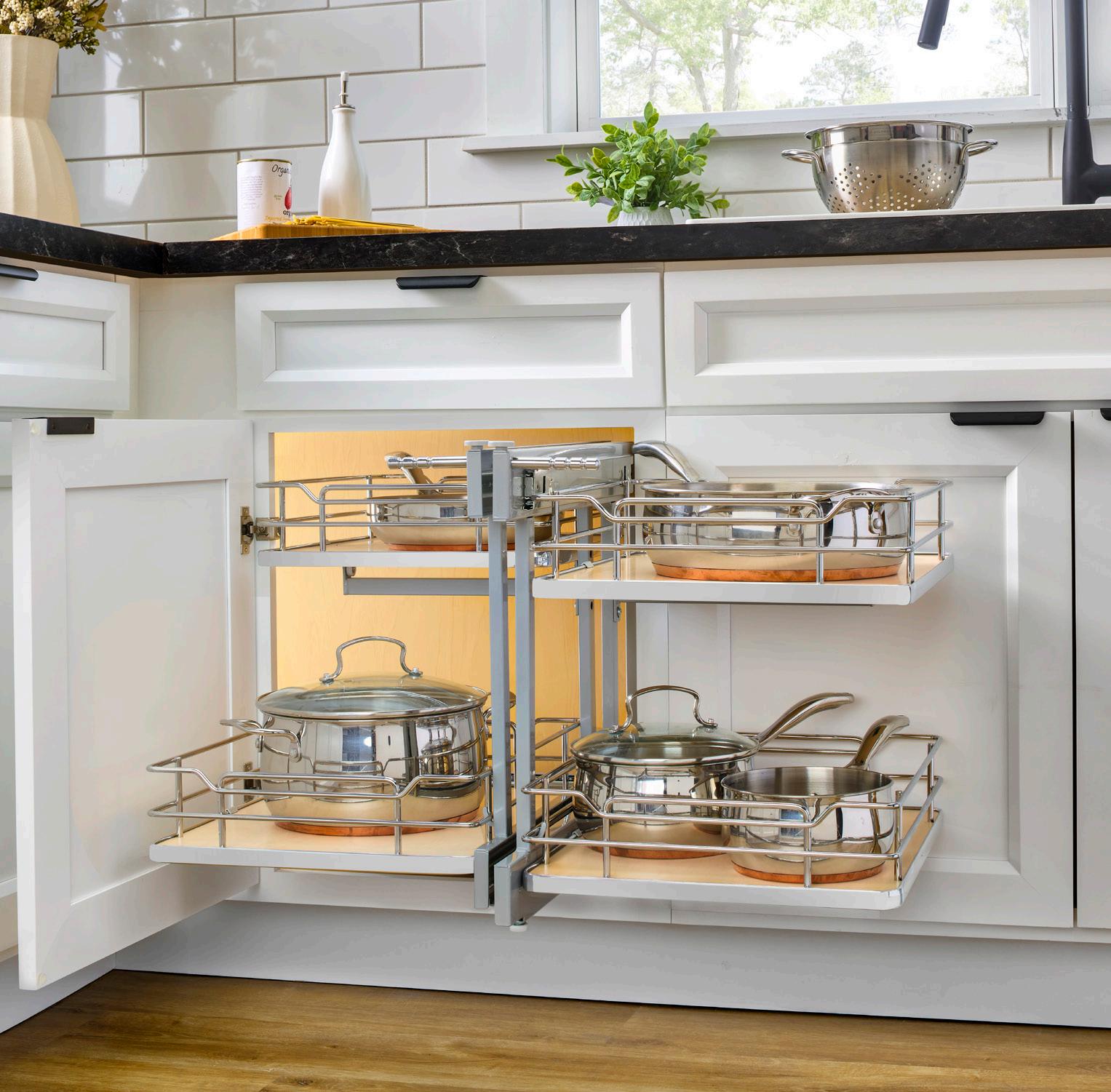

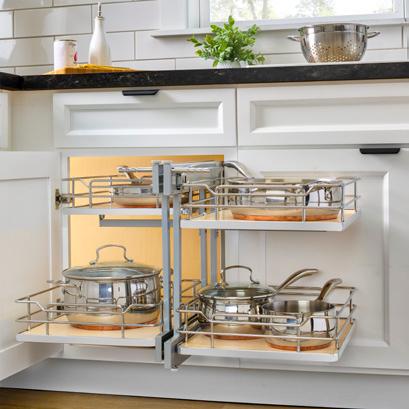

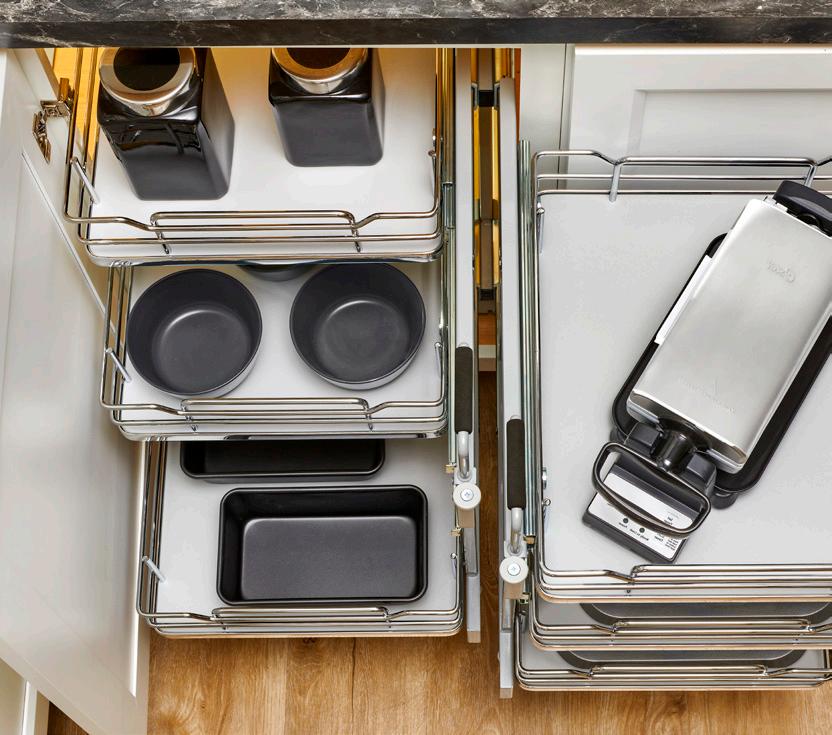

Elite Solid Bottom Blind Corner Optimizer

• Up to (4) independently sliding upper shelves

• Chrome-plated round wire or orion gray flat wire

• Soft-close slides

• Universal mounting, non-handed

• Mounts to cabinet floor

• 15 lb. (per shelf) capacity

• Increased over-travel to provide 3-1/2” clearance for adjacent appliances

• TSCA Title VI compliant

Sliding top shelves work independently from the lower shelves

53PSPE3-15SC-GR

Elite Three-Tier Blind Corner Optimizer (Gray finish shown)

PRODUCT # SURFACE AREA

53PSPE-15SC-** 194 in² per shelf

53PSPE-18SC-** 243 in² per shelf

53PSPE3-15SC-** 194 in² per shelf

53PSPE-15SC-MP

Elite Two-Tier Blind Corner Optimizer (Maple finish shown)

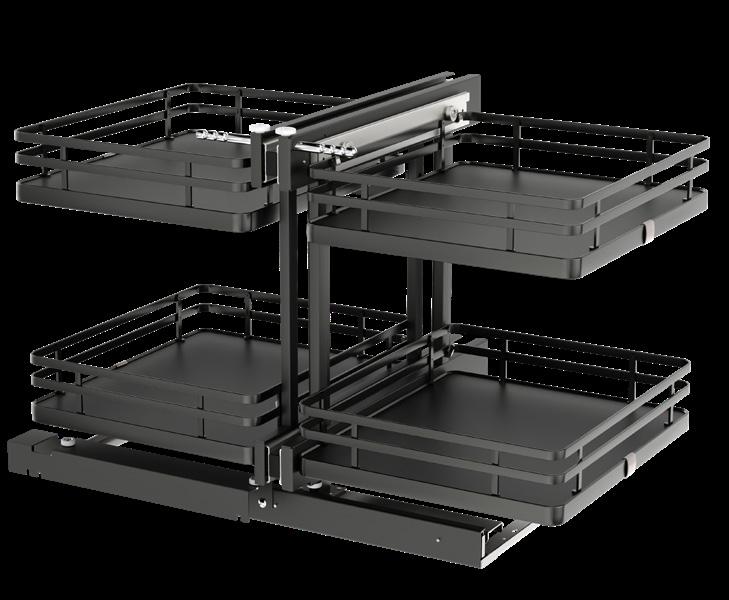

53PSPE-18SC-FOG Elite Two-Tier Blind Corner Optimizer (Orion Gray finish shown)

SPACE BETWEEN SHELVES

Two-tier soft-close = 11” (279 mm)

Three-tier soft-close = 7-15/16” (202 mm)

Two-tier non soft-close = 10-9/32” (261 mm)

15" (381 mm) Min. Cabinet Width opening (15) 18" (457 mm) Min. Cabinet Width opening (18) Both Models: 21-21/32" (550 mm) Minimum Inside Cabinet Depth 23-3/4" (603 mm) Minimum Cabinet Height opening (53PSPE) 26-3/4” (679 mm) Minimum Cabinet Height opening (53PSPE3)

53PSPE3-18SC-** 243 in² per shelf 11-1/2” (15-CR) 14-1/2” (18-CR) 3-1/2”

NOTE: ** Insert “MP” for Maple Shelf or “GR” for Gray Shelf

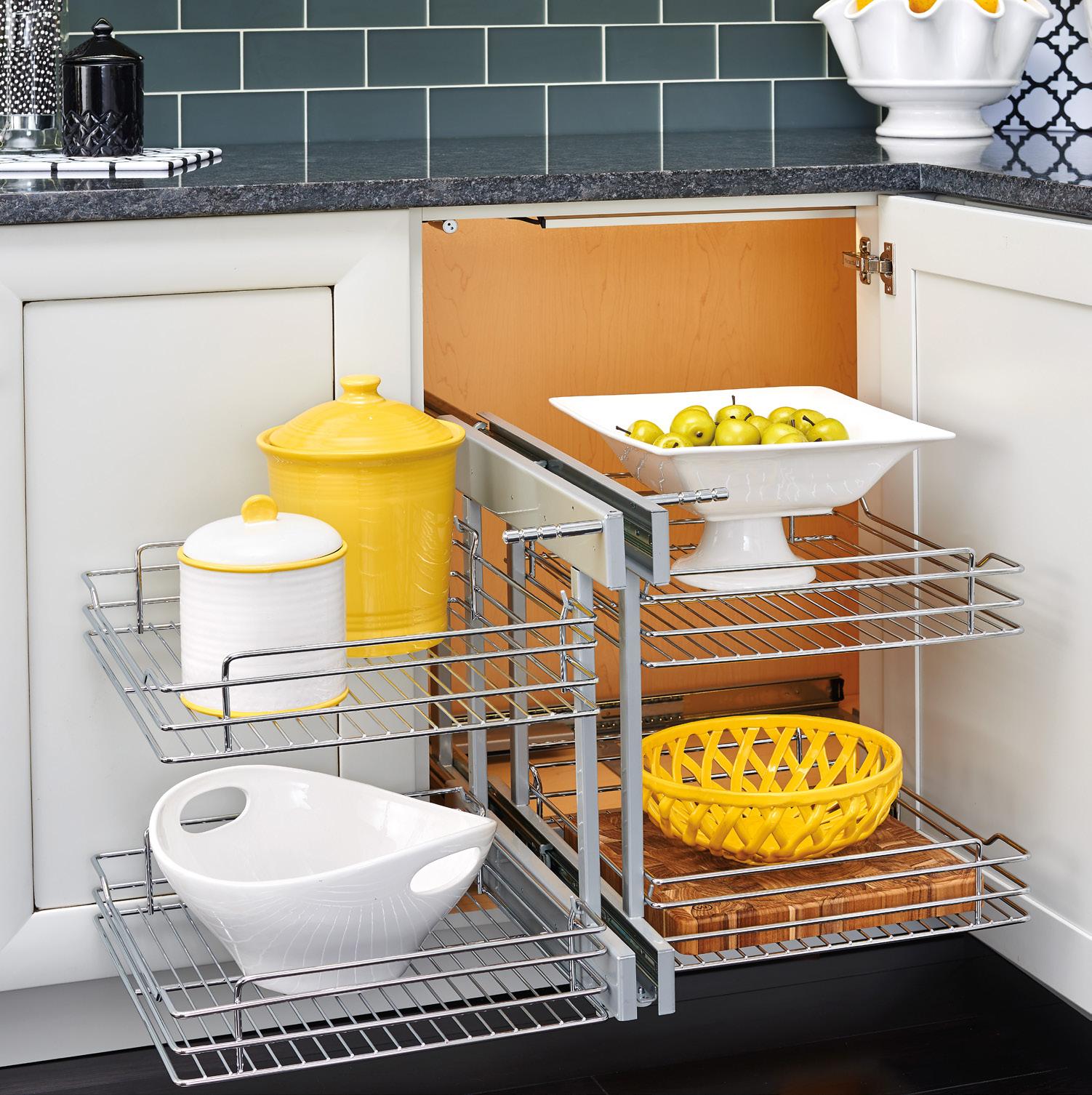

• Designed for 15” and 18” blind corner cabinet openings

• Two or three-tier wire frame

For video visit: rev-a-shelf.com/videos

• (4) or (6) wire bottom shelves with round wire accents

• (2) slide configurations:

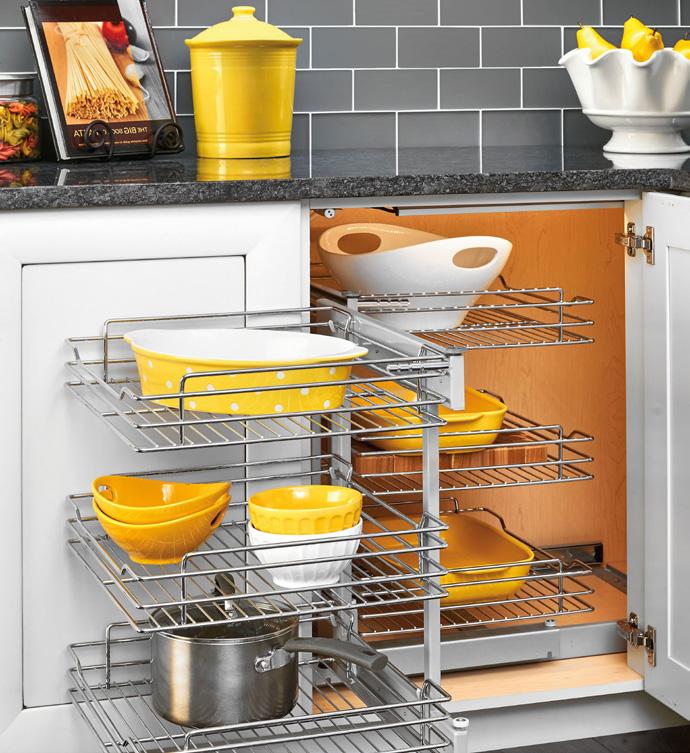

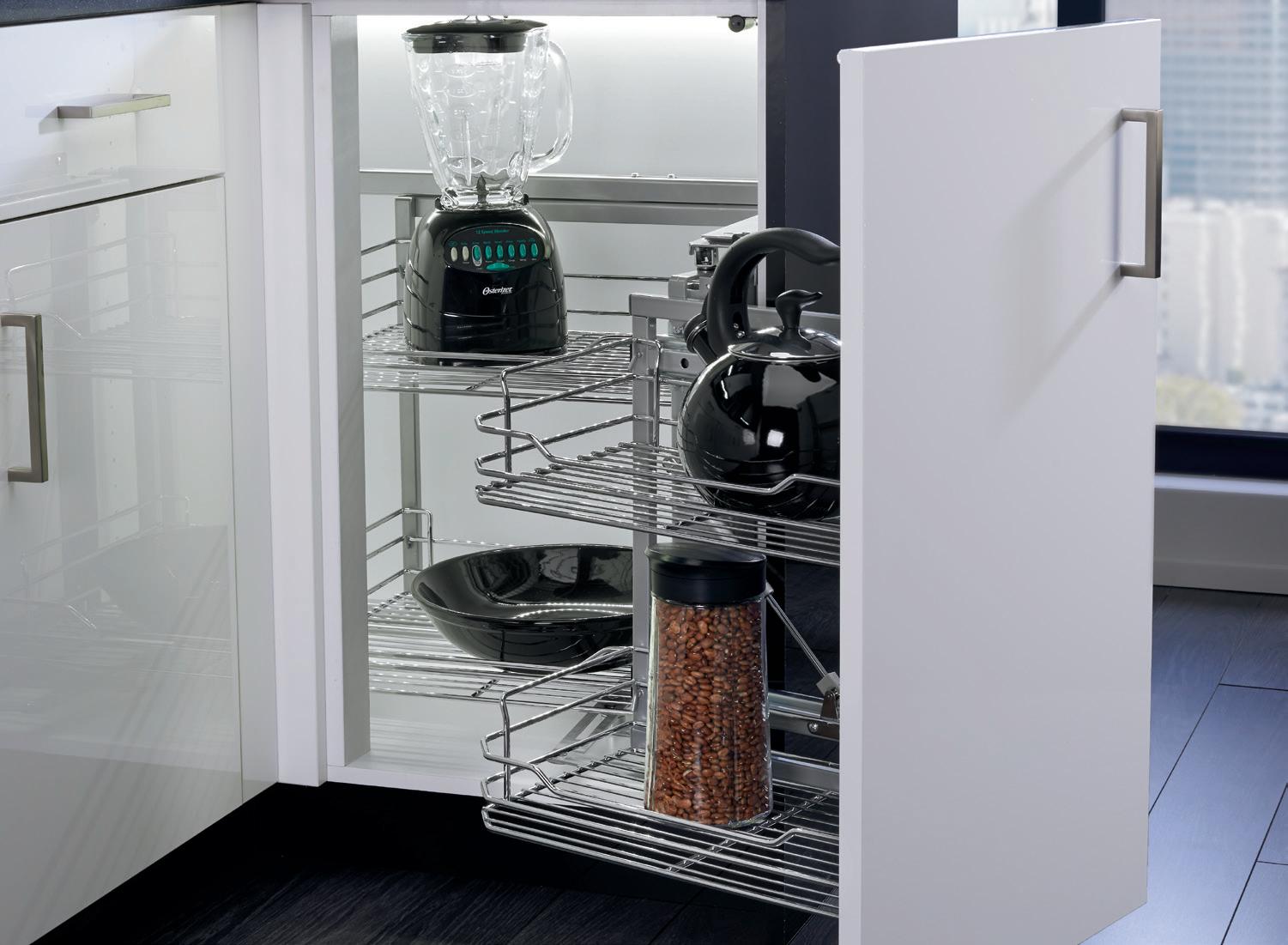

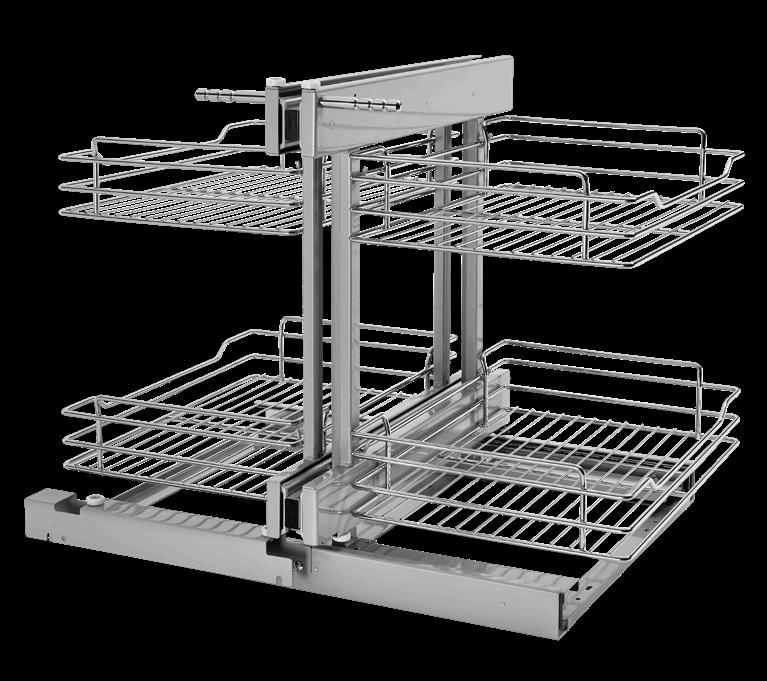

Wire Bottom Blind Corner Optimizer

- Full-extension ball - bearing slides

- Full-extension, ball - bearing slides w/ soft-close

• Universal mounting, non-handed

• Mounts to cabinet floor

• Increased over-travel to provide 3-1/2” clearance for adjacent appliances

• 15 lb. capacity (per shelf)

5PSP-15-CR Two-Tier Blind Corner Optimizer (15” Non soft-close version shown)

5PSP3-18SC-CR

Three-Tier Blind Corner Optimizer w/ Soft-Close (18” version shown)

PRODUCT

5PSP-15-CR 194 in² per shelf

5PSP-18-CR 243 in² per shelf

5PSP-15SC-CR 194 in² per shelf

5PSP-18SC-CR 243 in² per shelf

5PSP3-15SC-CR 194 in² per shelf

5PSP3-18SC-CR 243 in² per shelf

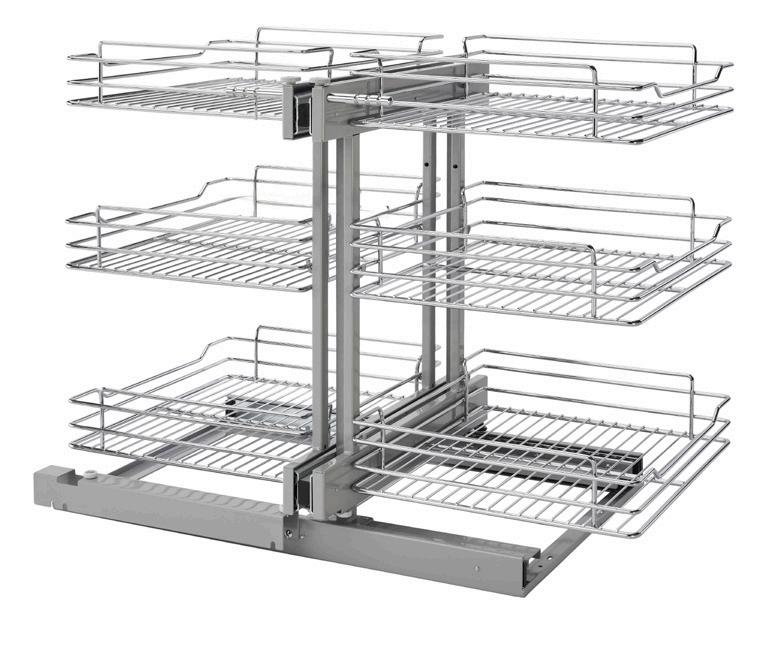

Three-Tier Wire Bottom Blind Corner

Two-Tier Wire Bottom Blind Corner Optimizer - Non-Handed w/ Soft-Close

Two-Tier Wire

partially extended

SPACE BETWEEN SHELVES

Two-tier soft-close = 11” (279 mm)

Three-tier soft-close = 7-15/16” (202 mm)

15" (381 mm) Min. Cabinet Width opening (15) 18" (457 mm) Min. Cabinet Width opening (18)

Both Models:

21-21/32" (550 mm) Minimum Inside Cabinet Depth 22" (559 mm) Minimum Cabinet Height opening (5PSP) 25” (635 mm) Minimum Cabinet Height opening (5PSP3)

Two-tier non soft-close = 10-9/32” (261 mm) 11-1/2” (15-CR) 14-1/2” (18-CR) 3-1/2” 3/8”

• Designed for face frame 18” blind corner cabinet openings (frameless 18-7/8” min.)

• Two-tier metal frame

• (2) solid bottom shelves with StylinoxTM anti-skid finish, natural maple

• Chrome round wire accents

• Soft-close slides

• Left or right handed mounting

• Mounts to cabinet door, floor and side walls

• Adjustable mounting brackets

• 60 lb. capacity per shelf

• Shelves operate independently

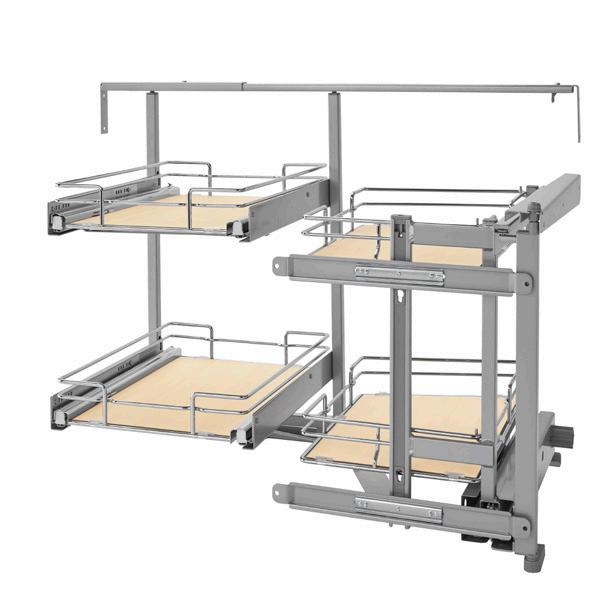

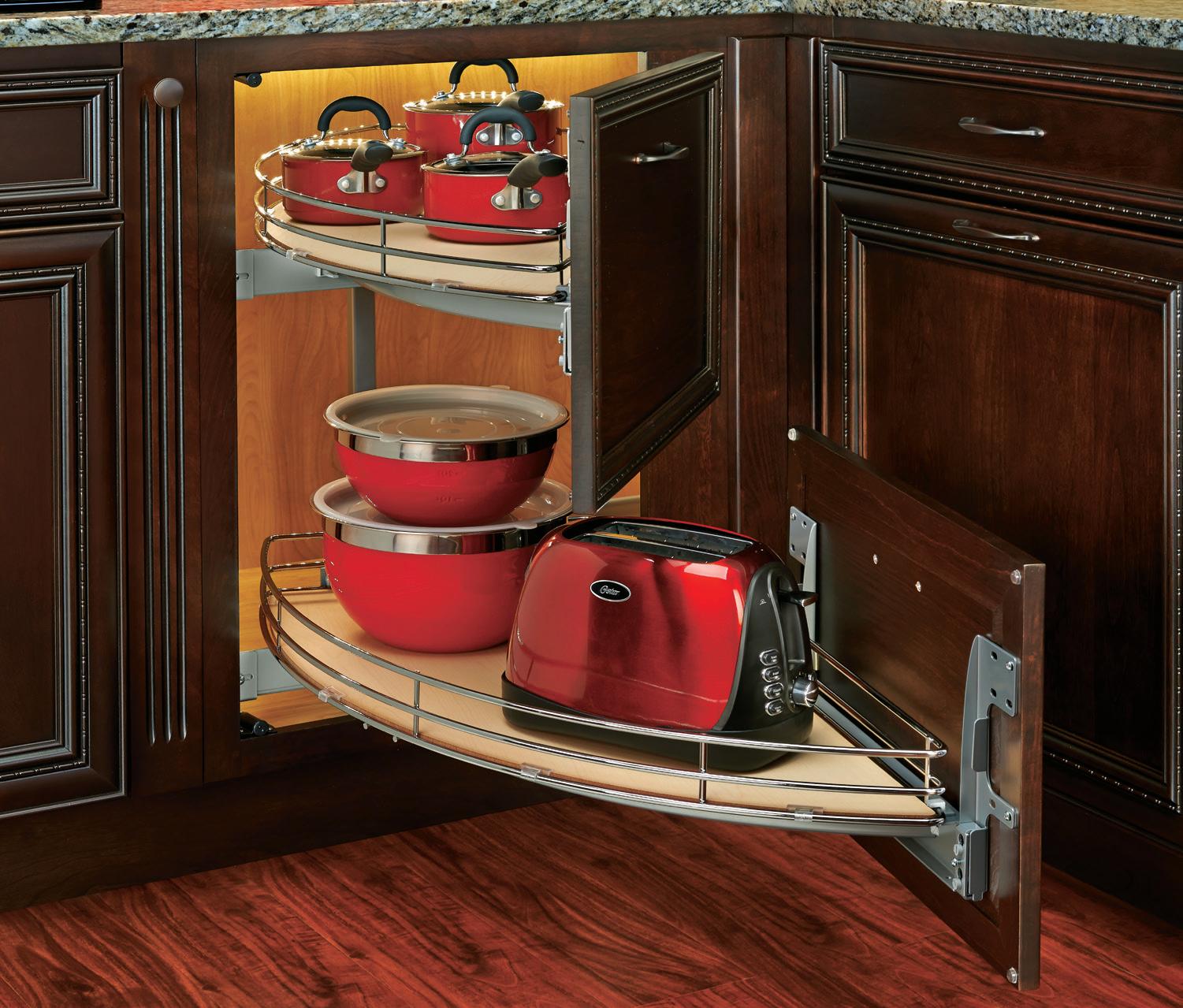

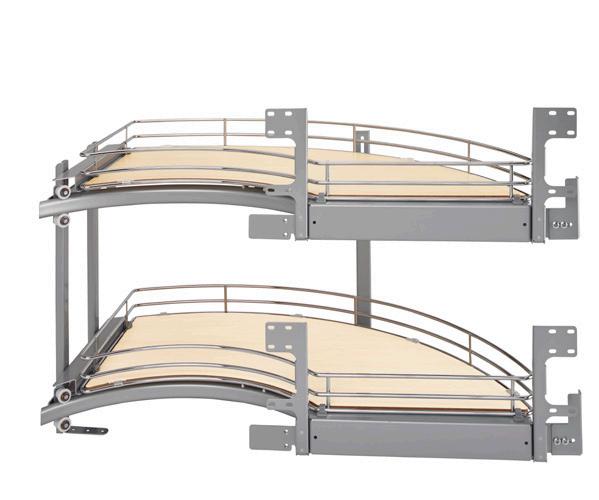

The Curve Contemporary Blind Corner

582-18-RMP Two-Tier Blind Corner Organizer (Right Door for Blind Left Corner Cabinet Shown)

PRODUCT # SURFACE AREA

582-18*

• TSCA Title VI compliant Two-Tier Blind Corner

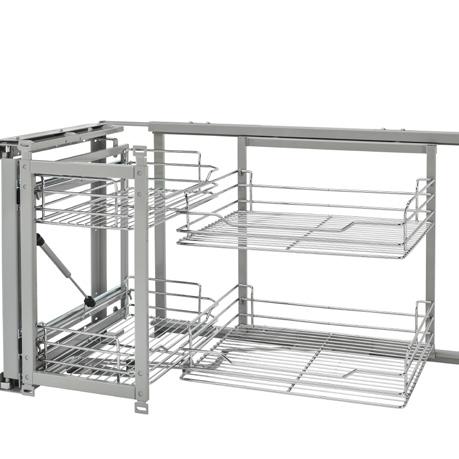

Wire Bottom Two-Tier Blind Corner Optimizer

5707 Series

• Designed for 15” and 18” blind corner cabinet openings

• Two-tier chrome wire bottom shelves

• Full-extension, ball-bearing slides w/ soft-close

• Mounts to cabinet door, floor and side walls

• Rear shelves slide forward as cabinet door opens

• Mounts to cabinet door, floor and side walls

• Universal mounting, nonhanded

• Front shelves feature 23 lb. capacity and rear shelves feature 36 lb. capacity per shelf

• Door tilt adjustment screws for precise alignment

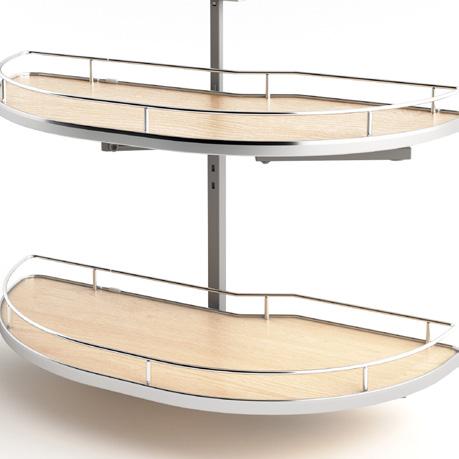

Half-Moon Lazy Susan Lazy Susans

• Designed for 12”, 15” and 18” blind corner cabinet openings

• Double solid bottom shelves, natural or wood classic

• Wood Classic features solid rim and Natural features steam bent rim

• Non-handed

• Pivot and slide hardware

• 90° hinge euro brackets and standard mounting brackets

• Chrome-plated shafts

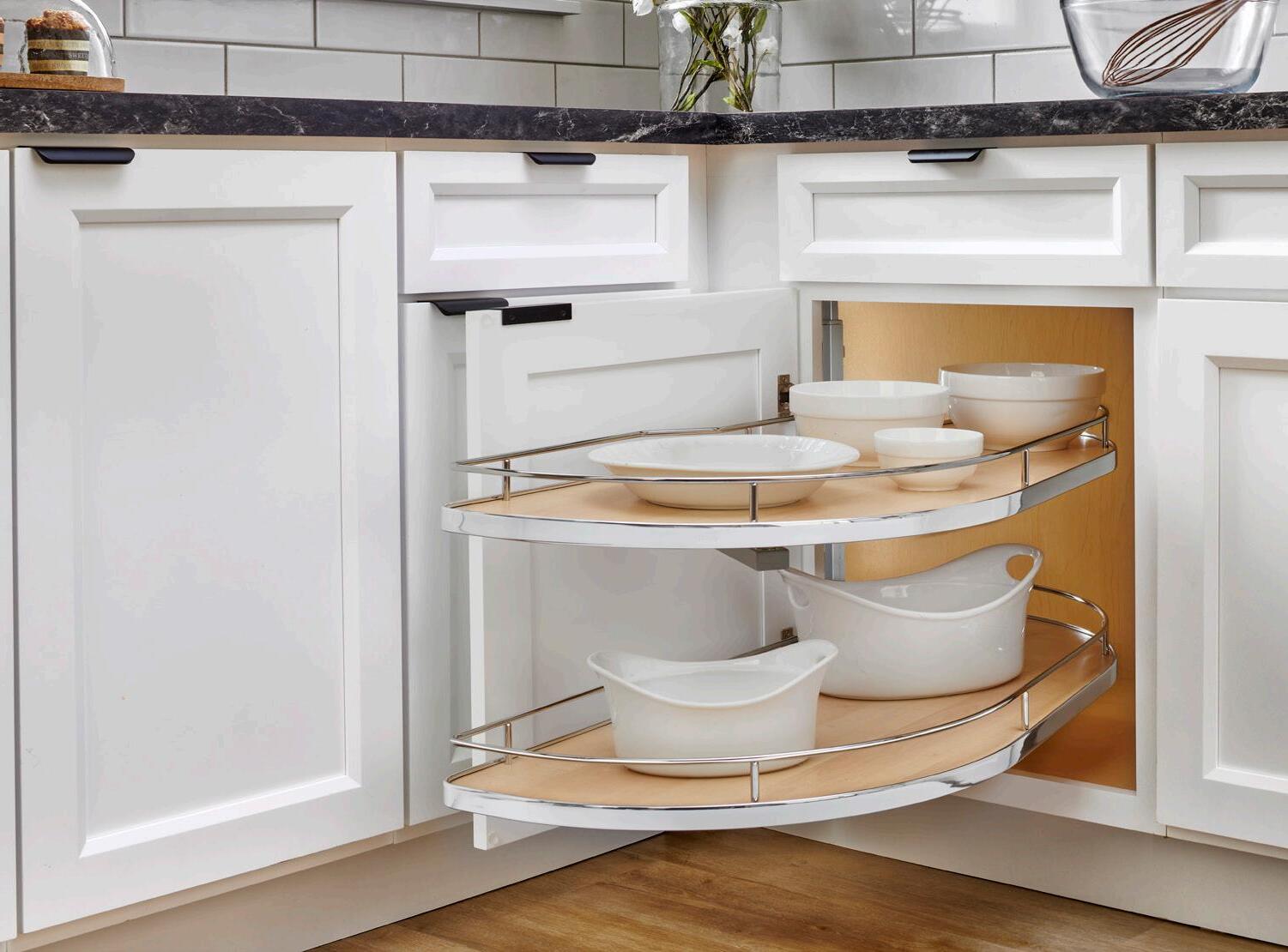

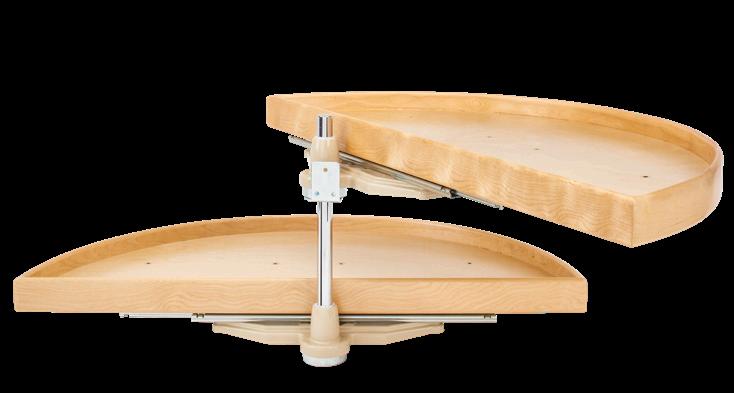

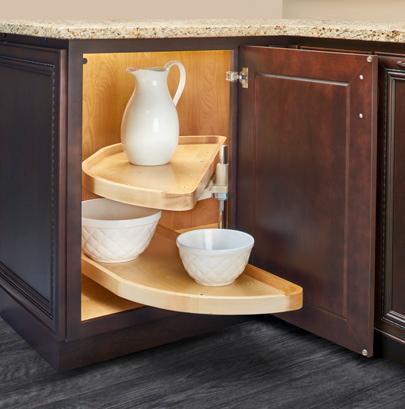

• TSCA Title VI compliant (2) Shelf Wood Classic Half-Moon Lazy Susans w/ Pivot and Slide

LD-4NW-882-38-1

Wood Half-Moon Lazy Susan w/ Pivot and Slide (38” version shown)

Solid Bottom Two-Tier Blind Corner Optimizer

• Designed for 18” blind corner cabinet openings

• Two-tier metal frame

• (4) solid bottom shelves with StylinoxTM anti-skid finish, natural maple

• Chrome round wire accents

• Soft-close slides

• Left or right handed mounting

• Mounts to cabinet door, floor and side walls

• Adjustable mounting brackets

• 20 lb. capacity per shelf

• Rear shelves slide forward as door opens

• TSCA Title VI compliant

NOTE: This product was designed for frameless cabinets. Modifications are required to install in a face frame cabinet. This product CANNOT be installed in an inset cabinet.
