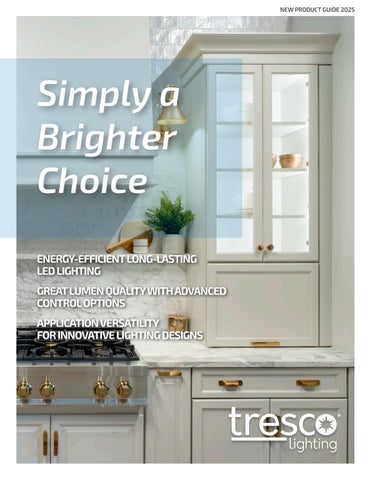

Simply a Brighter Choice

ENERGY-EFFICIENT LONG-LASTING LED LIGHTING

GREAT LUMEN QUALITY WITH ADVANCED CONTROL OPTIONS

APPLICATION VERSATILITY FOR INNOVATIVE LIGHTING DESIGNS

We are leading the transformation to low-voltage solutions in retail, hospitality, and residential environments with innovative power and control systems that easily connect with components to enhance our lives.

Our products simply and intuitively work.

Understanding Color Temperature (CCT)

Color temperature is the rating a particular color renders on the Kelvin scale. These color temperatures alter how an object or room is perceived when illuminated and Tresco® offers a wide range to choose from. To find the appropriate color temperature for your application, please reference the table below:

Flexible Lights

With our FlexTape® or Neoloop lighting, you can have the flexibility you need without sacrificing the quality you demand. Whether backlighting a sign, edge lighting a display, or accent lighting Air Force One, Tresco®’s line of flexible lights are all you need.

Layout Design Services

Puck Lighting

Our OptiPockit and legacy puck lights are available in a variety of configurations. Whether recessed or surface-mounted, linkable or nonlinkable, Tresco® has the perfect puck for you.

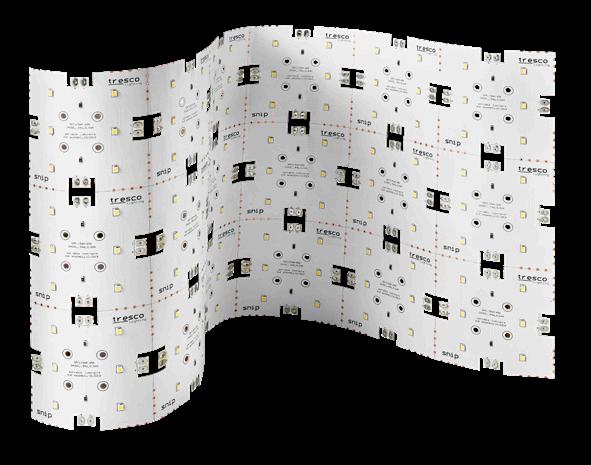

Panel Lighting

Take your designs to new levels with panel lighting. From countertops and shelves to artwork and signs, backlighting provides both decorative and utility lighting in one application.

Visit trescolighting.com/layout

Fill out the form and upload your drawings

Receive your professionally engineered schematic and matching parts list

Try our new Product Configurator - This service will guide you through selecting the lighting and components needed for your project (trescolighting.com/productconfigurator).

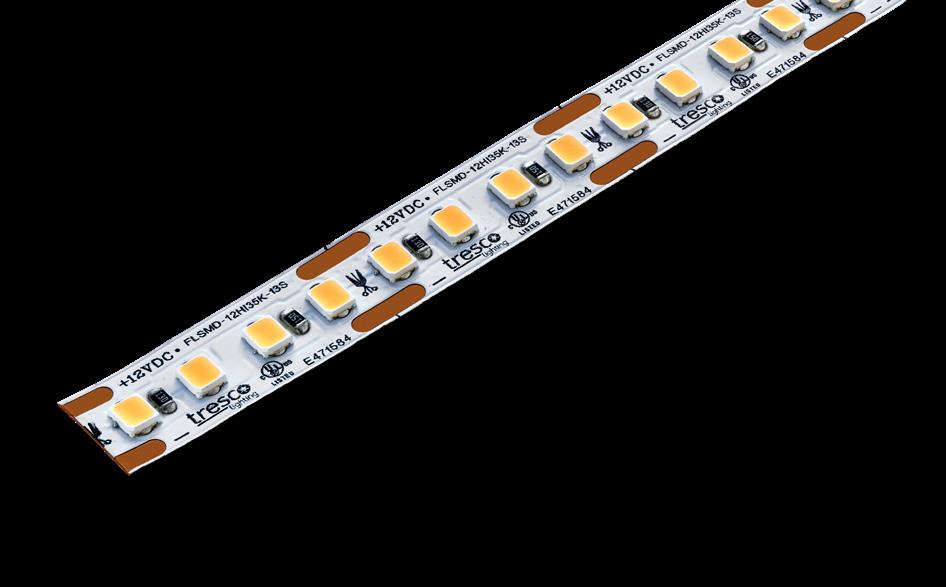

Features & Benefits

• High LED density for uniform lighting

• Proprietary LEDs that ensure accurate color temperature < 3 SDCM

• Consistent cut points and larger copper pads for easy installs

• Eco-friendly paper packaging with simplified installation instructions

• Spools are sized to provide even light along the entire run

• Clear view tape connector eliminates shadowing in FlexTape® layouts

Extrusions and Diffusers for FlexTape® available at trescolighting.com/extrusions

1-800-227-1171 | trescolighting.com

7/16” Cut Points (11

LO 1.5W/ft. 187lm/ft.

MD 2.8W/ft. 337lm/ft.

HI 4.3W/ft. 511lm/ft.

30K L-FLSMD-12LO30K-20S-1

35K L-FLSMD-12LO35K-20S-1

50K L-FLSMD-12LO50K-20S-1

30K L-FLSMD-12MD30K-16S-1

35K L-FLSMD-12MD35K-16S-1

50K L-FLSMD-12MD50K-16S-1

30K L-FLSMD-12HI30K-13S-1

35K L-FLSMD-12HI35K-13S-1

50K L-FLSMD-12HI50K-13S-1

27K L-FLSMD-24LO27K-20S-1

30K L-FLSMD-24LO30K-20S-1

20’ Spool

16’ Spool

13’ Spool

LO 1.5W/ft. 190lm/ft.

MD 3.0W/ft. 390lm/ft.

4.3W/ft. 564lm/ft.

No Solder Connectors

L-FLTPE-LNK-2-DFE-1

L-FLTPE-LNK-6-DFE-1

L-FLTPE-LNK-24-DFE-1

96” L-FLTPE-LNK-96-DFE-1

35K L-FLSMD-24LO35K-20S-1

50K L-FLSMD-24LO50K-20S-1

65K L-FLSMD-24LO65K-20S-1

27K L-FLSMD-24MD27K-16S-1

30K L-FLSMD-24MD30K-16S-1

35K L-FLSMD-24MD35K-16S-1

50K L-FLSMD-24MD50K-16S-1

65K L-FLSMD-24MD65K-16S-1

27K L-FLSMD-24HI27K-13S-1

30K L-FLSMD-24HI30K-13S-1

35K L-FLSMD-24HI35K-13S-1

50K L-FLSMD-24HI50K-13S-1

65K L-FLSMD-24HI65K-13S-1

20’ Spool

16’ Spool

13’ Spool

*FlexTape® SMD Replaces previous FlexTape® models

Photometric Data

Description

FlexTape® to FlexTape® Connectors and 24” and 96” with Wire Splice

L-FLTPE-TEE-DFE-1 FlexTape® Tee Connector

L-FLTPE-CLRTEE-DFE-1 FlexTape® Clear Tee Connector

L-FLSMD-12MD35K-16S-1 Tested

L-FLTPE-CON90-DFE-1 FlexTape® 90° Connector

L-FLTPE-BTB-DFE-1

L-FLTPE-LNKCON-DFE-1

FlexTape® Back-To-Back Connector

FlexTape® to Link Cord Connector

3/8” (10 mm)

mm)

Features & Benefits

• Optipockit SL (select) allows the installer to set the color temperature and the lumen output pre-installation, simplifying lighting layouts

• The OptiPockit DM (dimmable) can be dimmed with our FREEDiM controllers, in-line dimmers for plugin applications and aftermarket dimmers for hardwired power supplies

• Recess mount with nickel, black and white trims or surface mount with accessories

• Typical applications: in cabinet, under cabinet, and store displays

Find out more information about OptiPockit Puck Lighting at trescolighting.com/OptiPockit

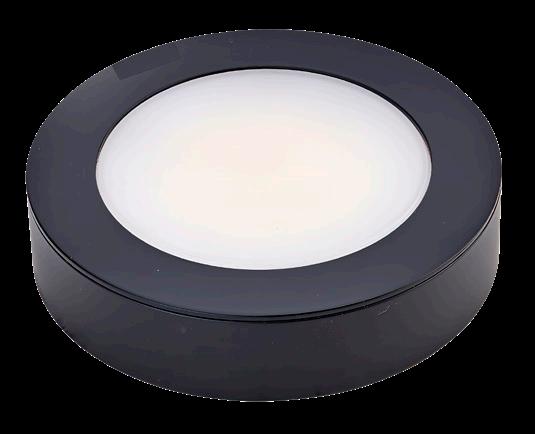

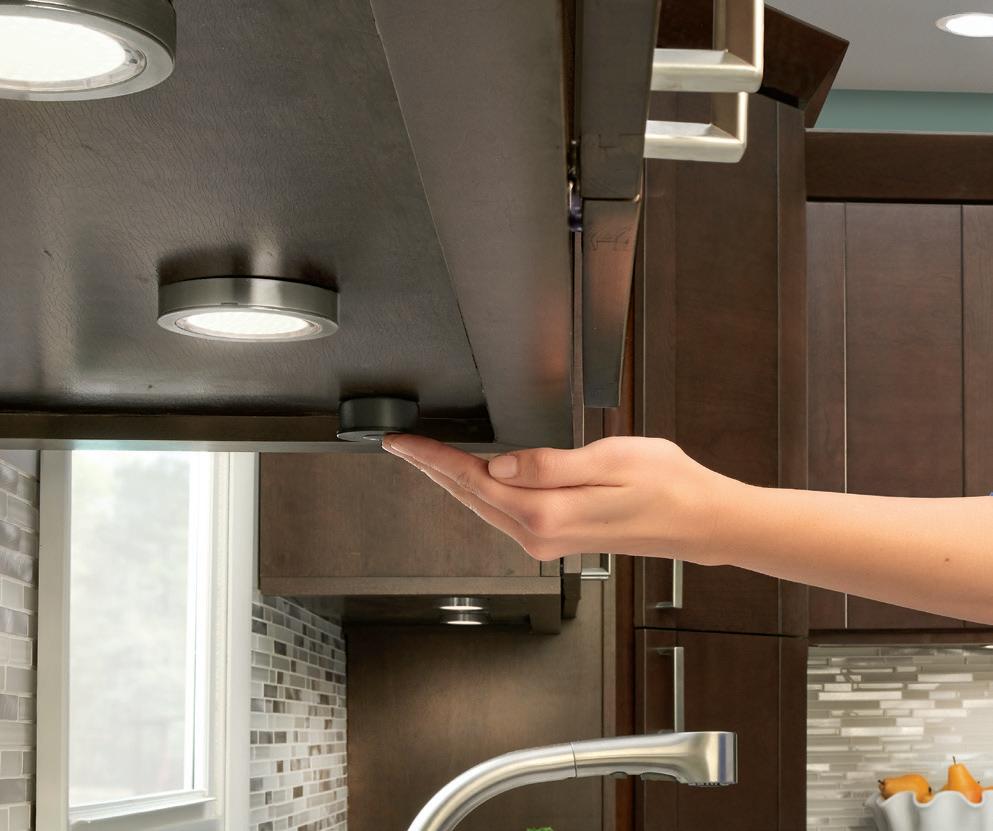

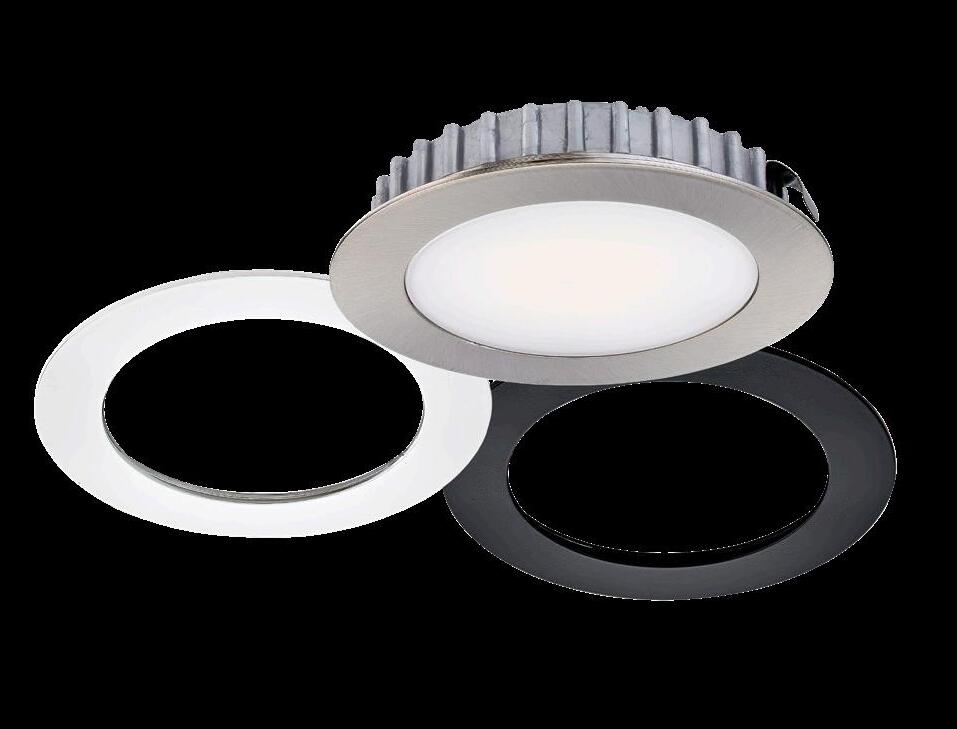

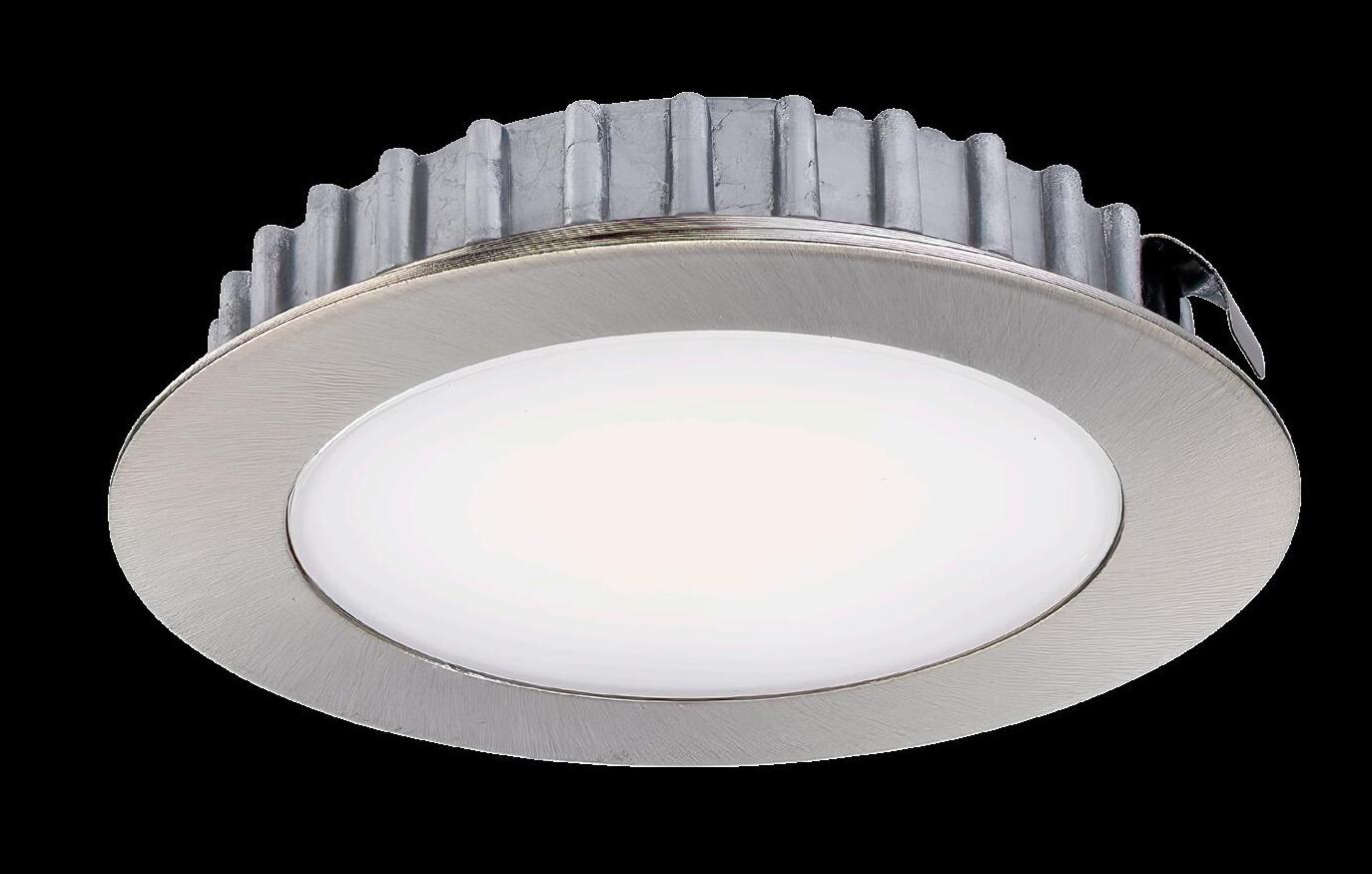

OptiPockit Recessed LED Puck Light

74 Lm/W | 110º Beamspread | CRI 90 | Nickel, Black, White finishes

2 1/4” Diameter

9/16” (14.3 mm)

2-1/2” Diameter (64 mm)

Recess Mount Hole (57 mm) 79” Wire Lead (2 M)

12V 24V

OptiPockit SL (Selectable Power & CCT)

12V 24V

OptiPockit DM (Full Range Dimming)

30K L-OPSL-12RC-NBW-1 35K 50K

30K L-OPDM-12R30K-NBW-1

35K L-OPDM-12R35K-NBW-1

50K L-OPDM-12R50K-NBW-1

27K L-OPDM-24R27K-NBW-1

30K L-OPDM-24R30K-NBW-1

35K L-OPDM-24R35K-NBW-1

50K L-OPDM-24R50K-NBW-1

*OptiPockit DM replaces Power Pockit and other Pockit and EquiLine puck lights. † Lumens dependant on color temp desired.

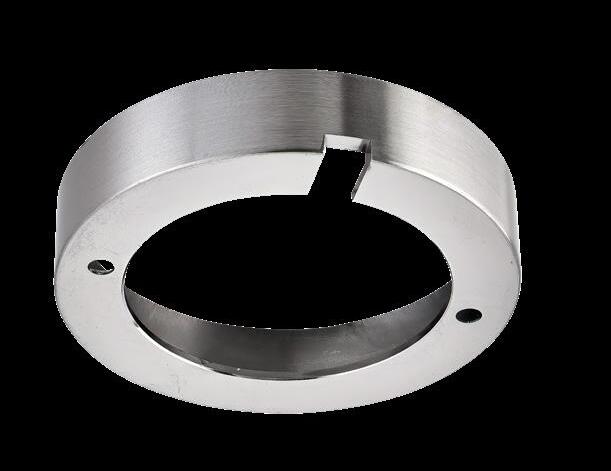

OptiPockit Surface Mount Accessories

2-1/2” Diameter (64 mm)

9/16” (14.3 mm)

OptiPockit (Round Trim Surface Mount Ring)

2-1/2” (64 mm)

Photometric Data

(3W, 30K setting) Tested

9/16” (14.3 mm)

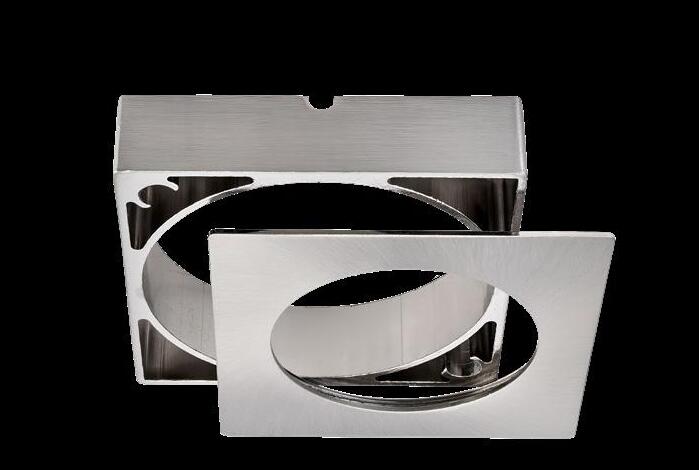

OptiPockit (Square Surface Mount Ring and Square Trim Ring)

L-OPAC-SAR-NI-1 Nickel

L-OPAC-SAR-BL-1 Black

L-OPAC-SAR-WH-1 White

L-OPAC-TKS-NI-1 Nickel

L-OPAC-TKS-BL-1 Black

L-OPAC-TKS-WH-1 White

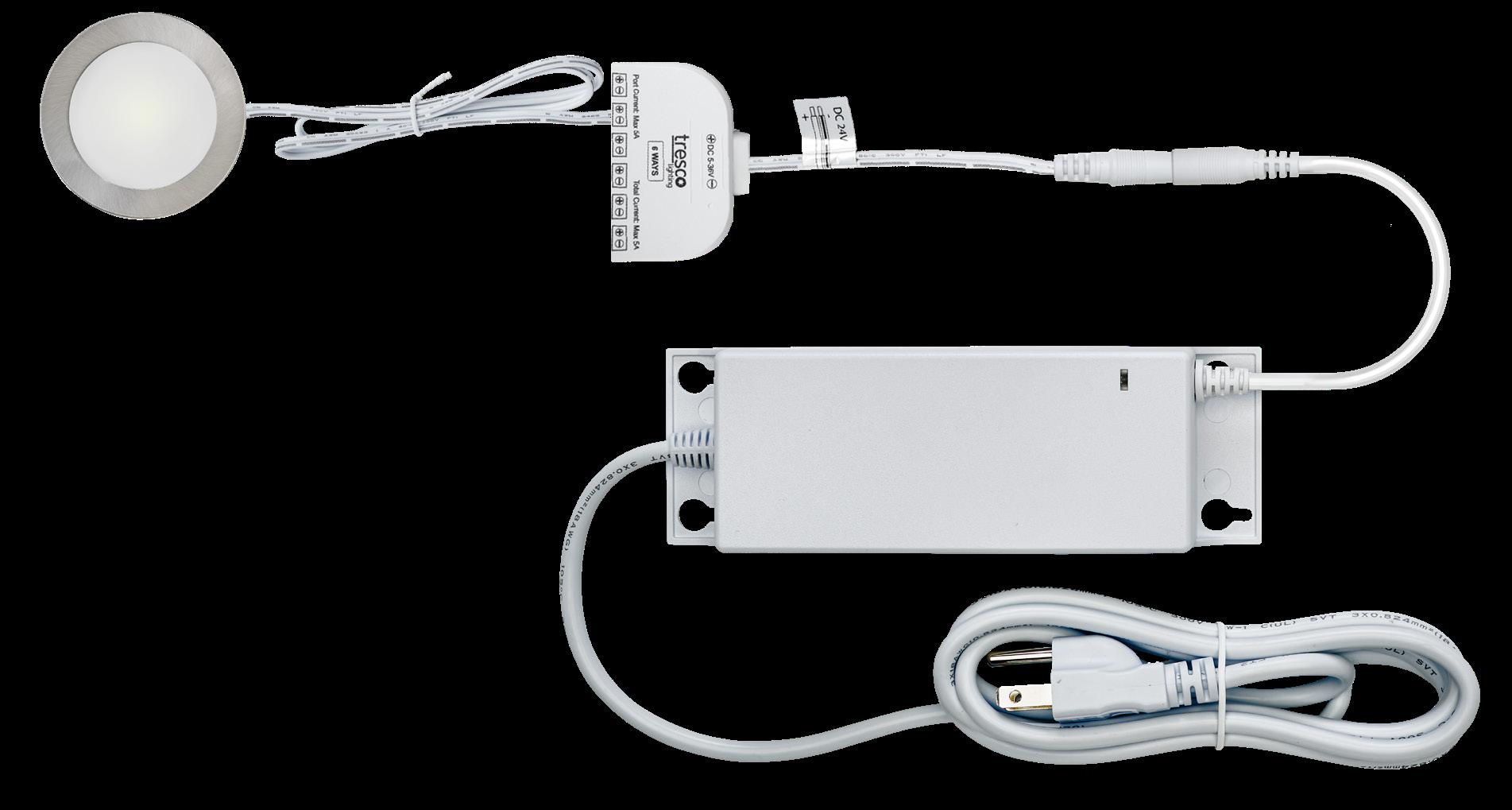

MINI power ports for easy installation, with an additional independent MINI port that enables dual control options on the 60W and 96W PowerSync models

Indicator light changes from green to red, signaling potential power supply damage

60W and 96W PowerSync power supplies feature a 5-amp terminal block, supporting higher-wattage applications for enhanced reliability and performance

• Centralized control ports (pink) allow for easy integration of controllers with your lighting system

• Additional controllers and accessories coming soon

• Up to 20 PowerSync models can be linked through centralized ports (feature coming soon)

• A/C power cord can be cut and shortened* for a tidy, tailored installation

* Unplug the cord before cutting

(19

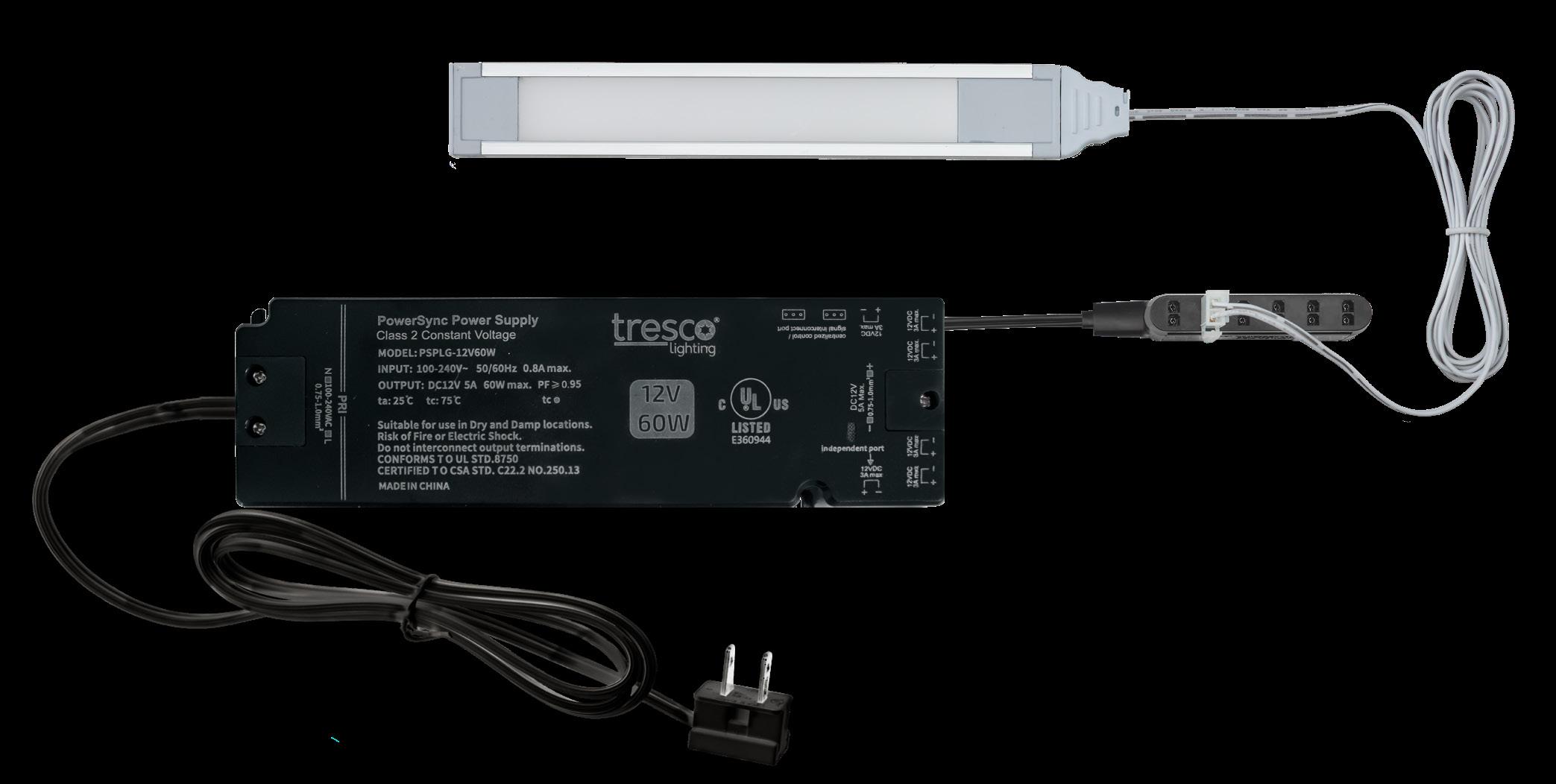

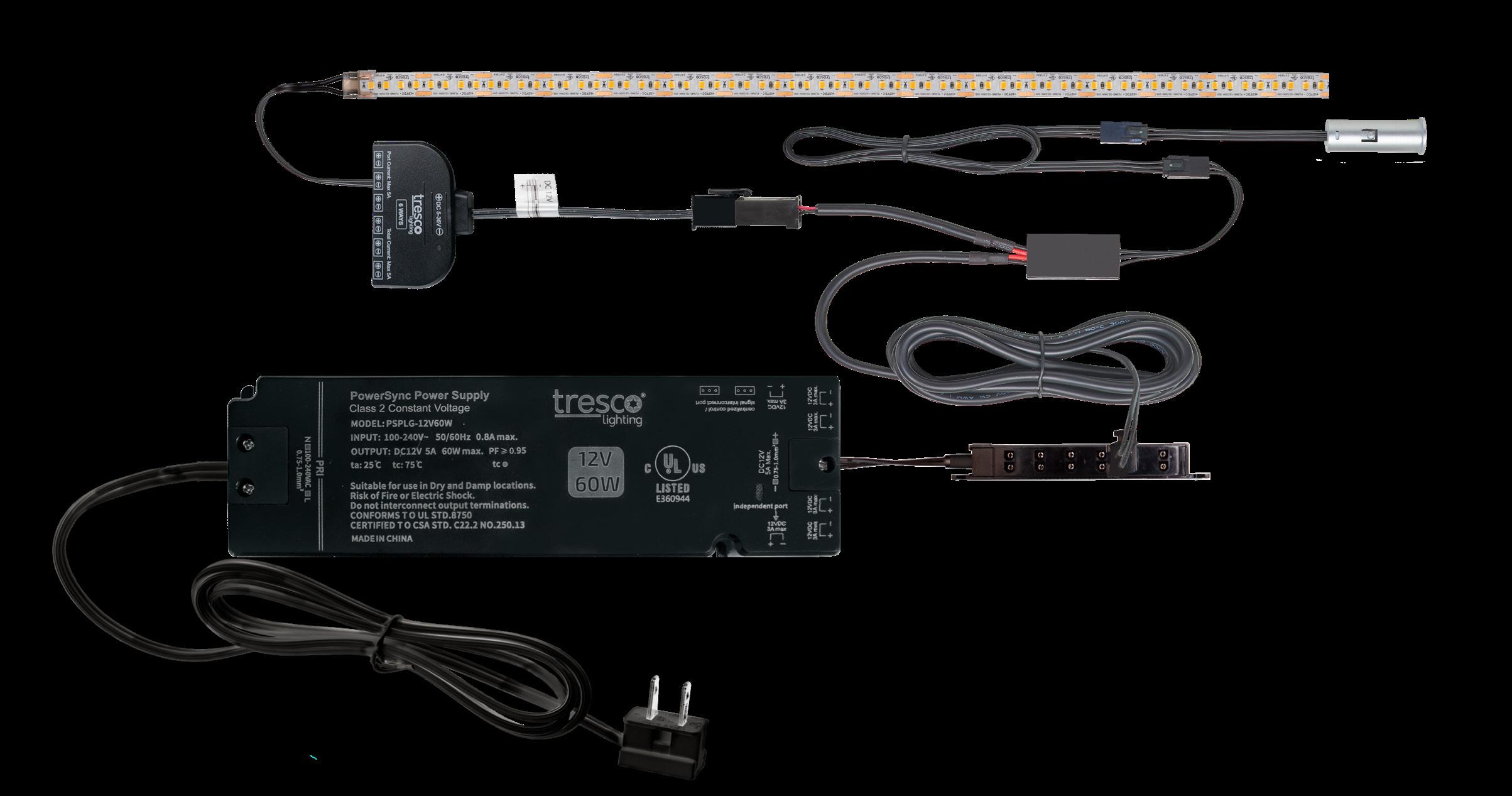

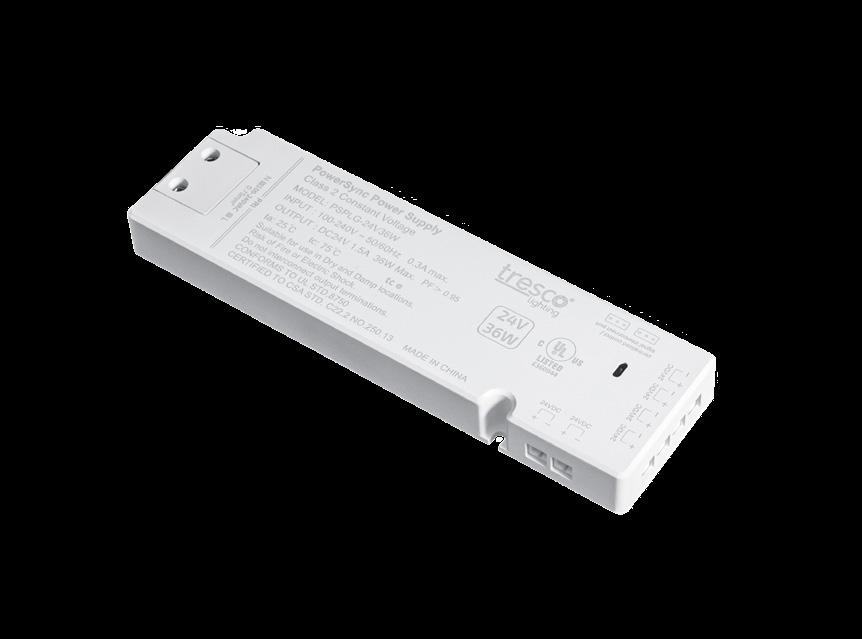

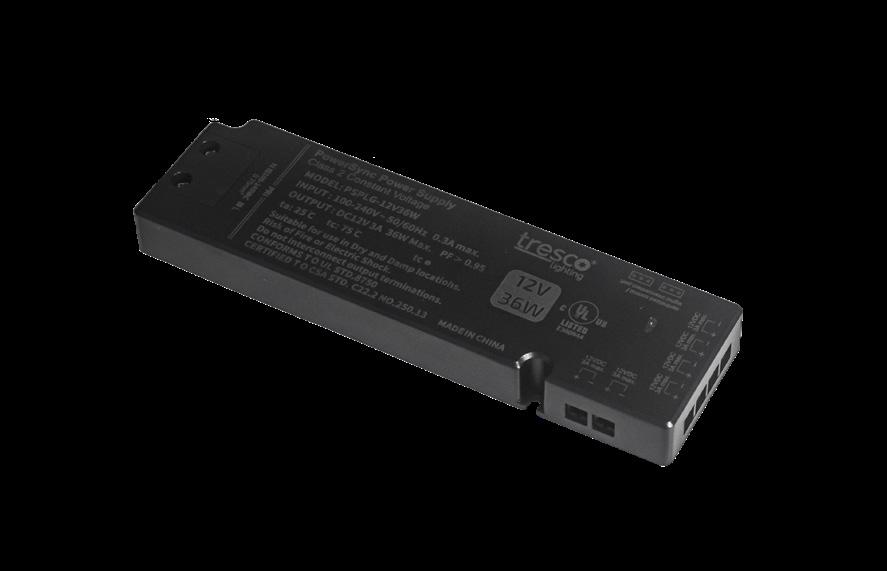

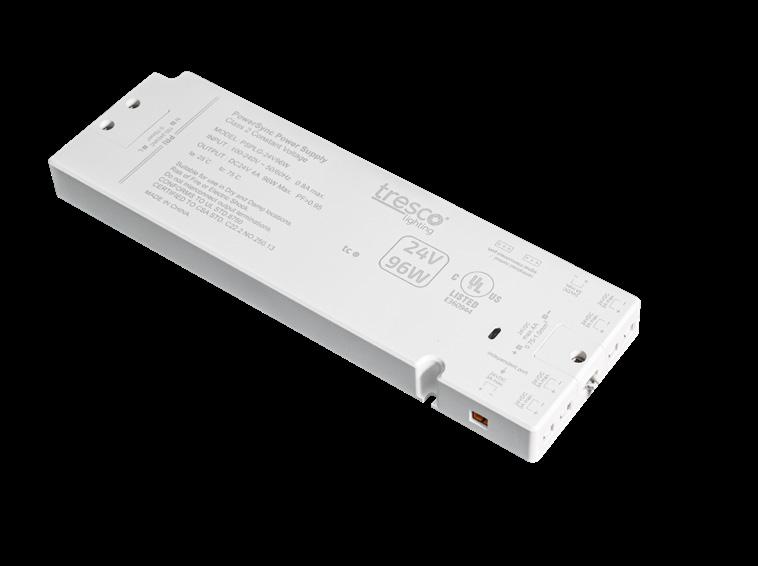

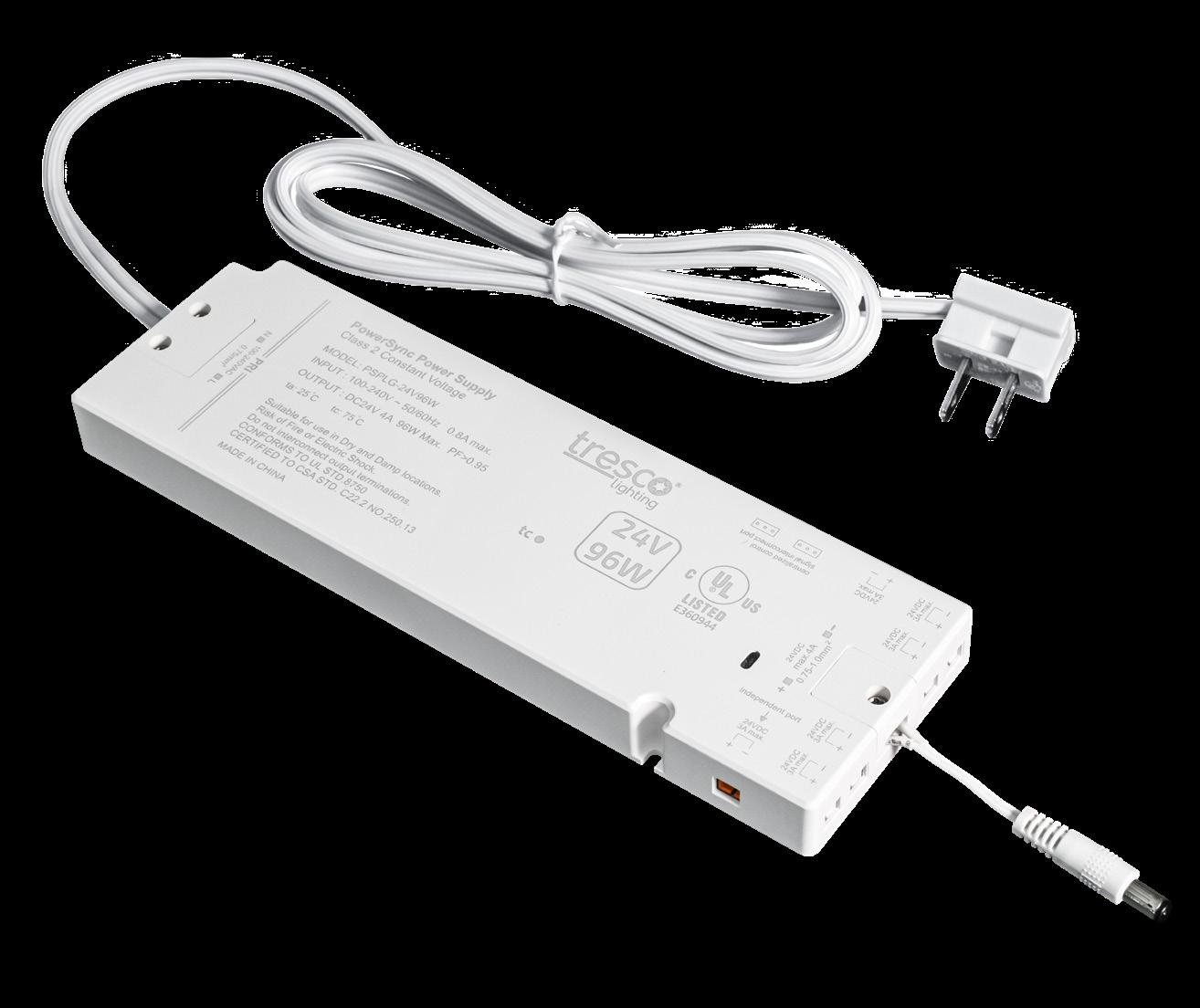

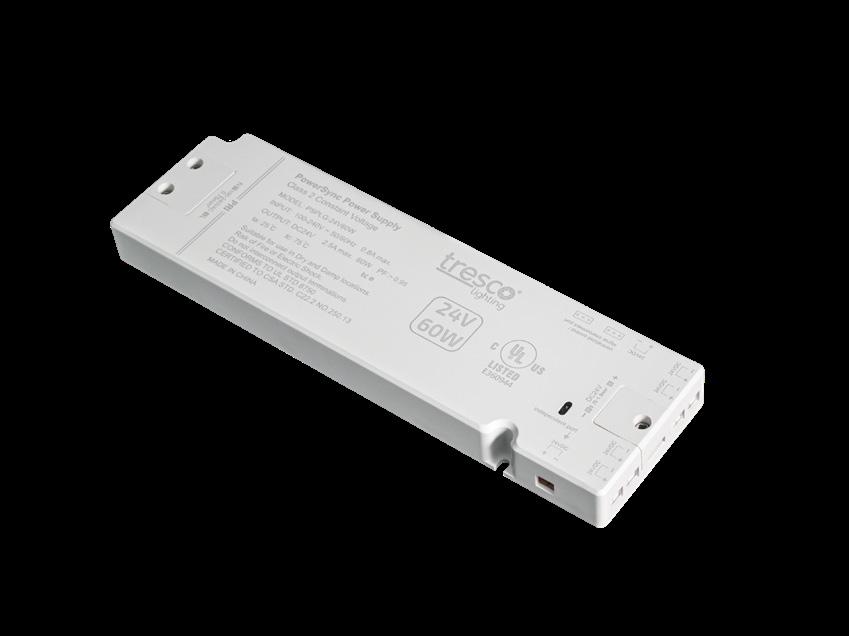

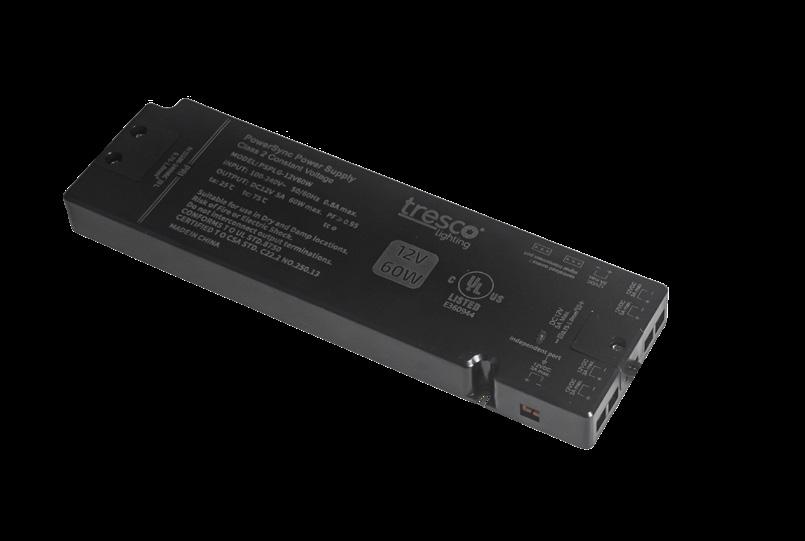

PowerSync 12V and 24V Plug-In Power Supplies

3/4” (19 mm)

L-PWCON-24MLT6-DFE-1

L-PSPLG-12V36W-1

Volt 36 Watt Power Supply with Six MINI Ports and a 5 AMP Terminal Block

Volt 60 Watt Power Supply with Six MINI Ports

L-PSPLG-24V60W-1

Volt 36 Watt Power Supply with Six MINI Ports

Volt 60 Watt Power Supply with Six MINI Ports and a 5 AMP Terminal Block

L-PSPLG-24V96W-1 24 Volt 96 Watt Power Supply with Six MINI Ports and a 5 AMP Terminal Block

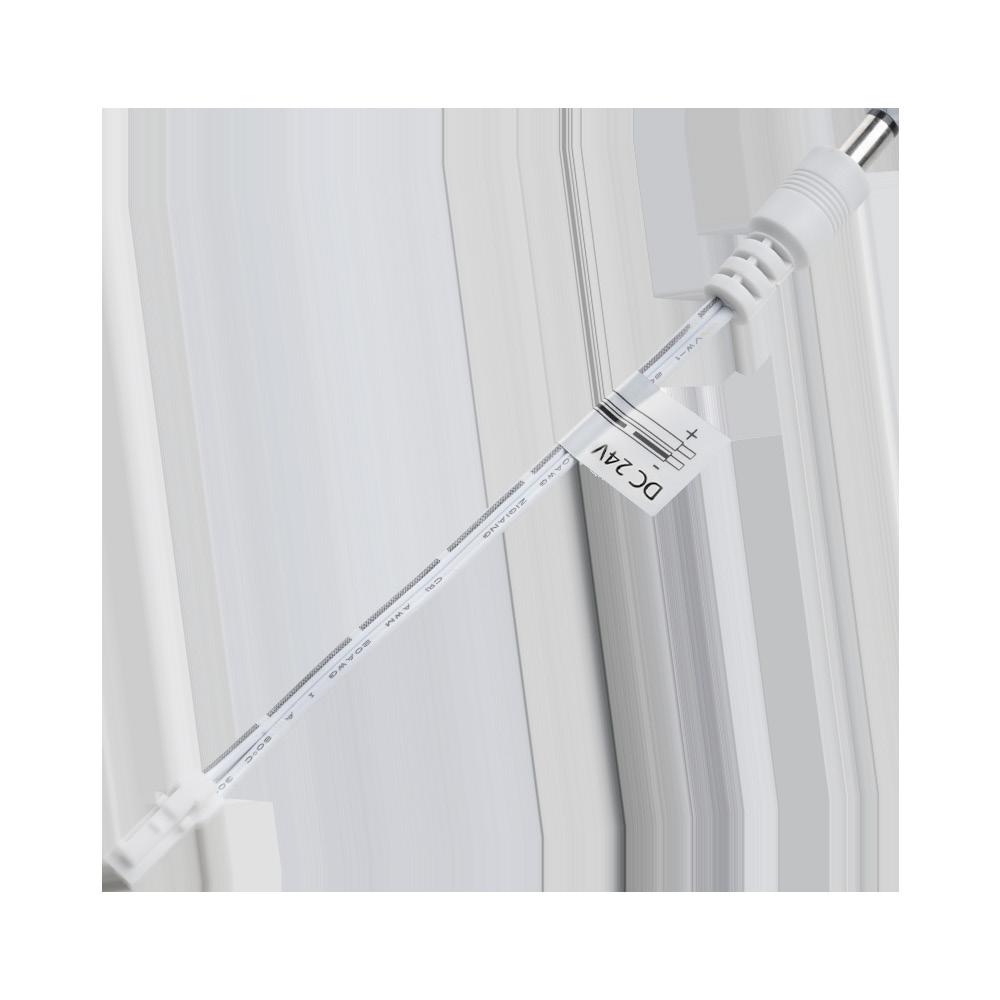

Power to Light Starter Extension Cord with Wire Splice

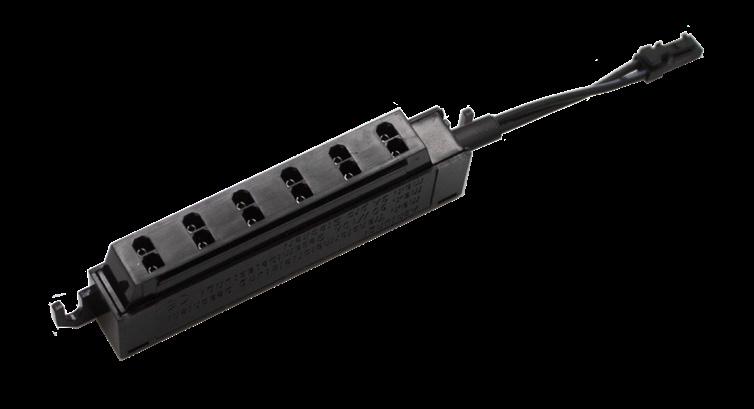

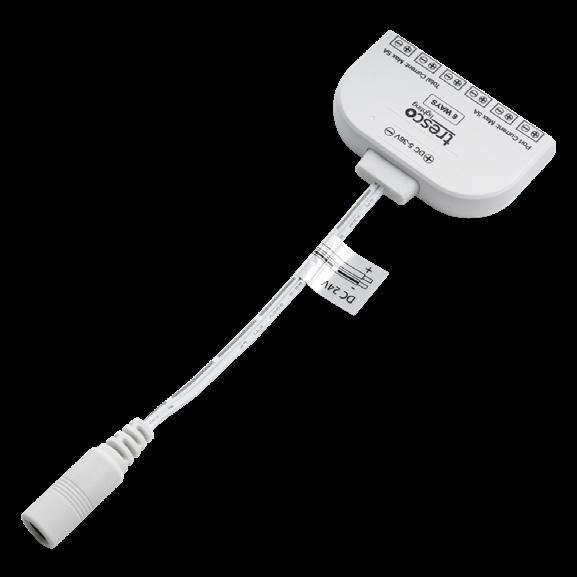

Power to Light Splitter Cord with Six MINI Ports

Power to Light Starter Extension Cord with Wire Splice

Power to Light Splitter Cord with Six MINI Ports

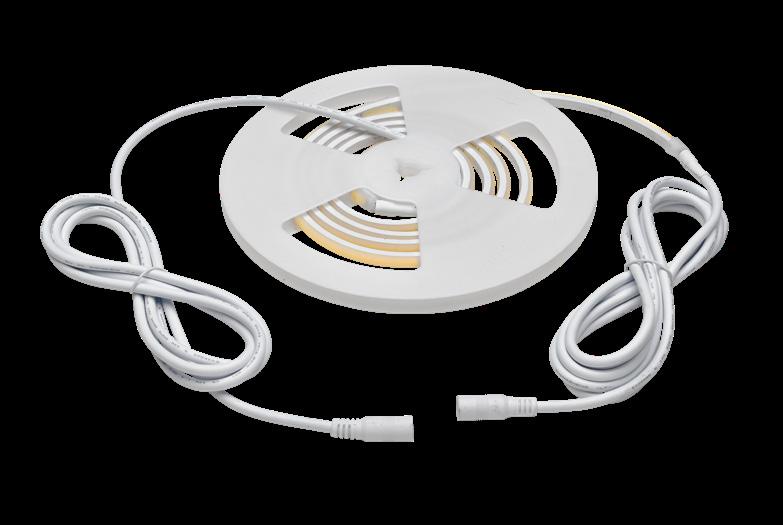

Features & Benefits

• Evenly diffused LED lighting offers ease of installation

• Fixture on a roll that eliminates the need for extrusions, lenses, and connector cables

• N1: Narrow profile with horizontal bend, ideal for recessed applications that form curves along a flat surface

• N2: Curved diffusion top offering wide light distribution ideal for surface application with a vertical bend

• N4: Narrow and shallow profile with horizontal bend, designed with PCB reinforcement for reliable recessed applications

• Light-Emitting Surface

- N1: 6mm

- N2: 10mm

- N4: 6.34mm

• Recessed Depth - N1: 12mm

- N2: 11mm

- N4: 6.34mm

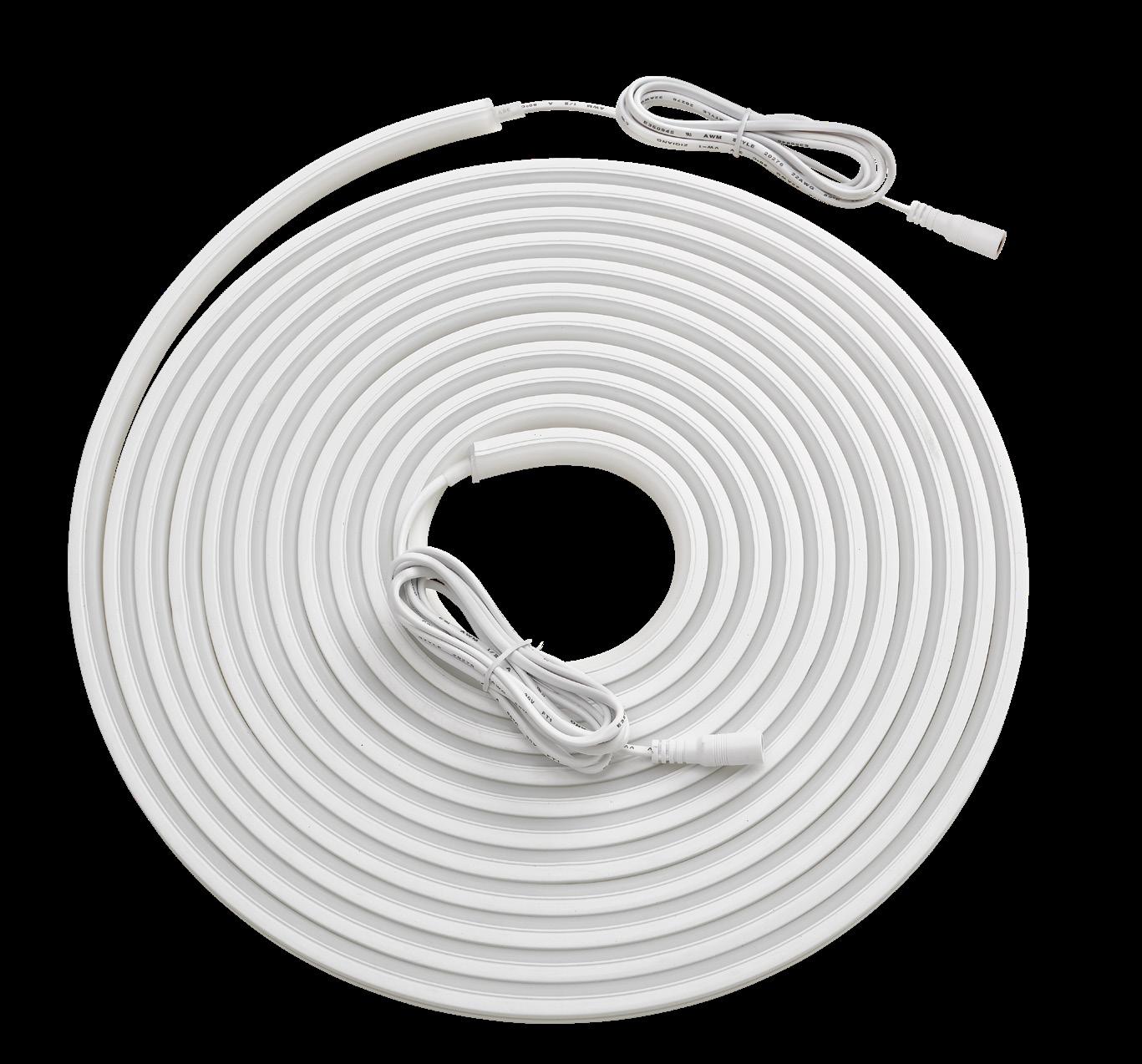

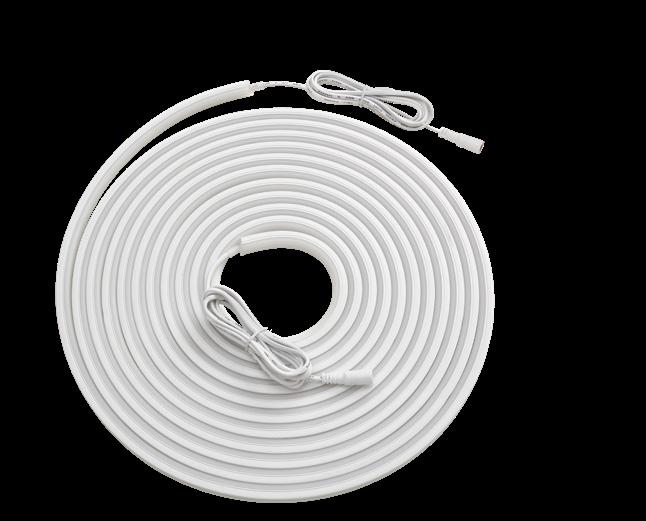

Neoloop N1

3 W/FT | 51 lm/W | 120º Beamspread | CRI >90 24V

Cut Points

12V: 1” (25 mm)

24V: 1 31/32” (50 mm)

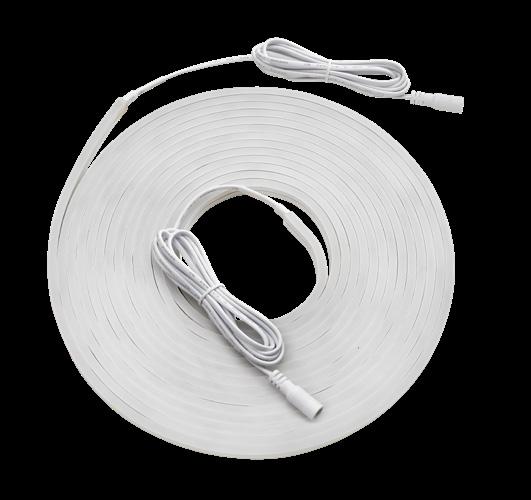

Neoloop N2

12V

49.2W/Roll 2,509

78W/Roll 3,978

3 W/FT | 86 lm/W | 120º Beamspread | CRI >90

Cut Points

12V: 1” (25 mm)

24V: 1 31/32” (50 mm)

Neoloop

12V

78W/Roll 3,978

27K L-N1-12V3WM-27K-5M-1

30K L-N1-12V3WM-30K-5M-1

35K L-N1-12V3WM-35K-5M-1

48K L-N1-12V3WM-48K-5M-1

27K L-N1-24V3WM-27K-8M-1

30K L-N1-24V3WM-30K-8M-1

35K L-N1-24V3WM-35K-8M-1

11W/Roll 1,474

27K L-N2-12V3WM-27K-5M-1

30K L-N2-12V3WM-30K-5M-1

35K L-N2-12V3WM-35K-5M-1

48K L-N2-12V3WM-48K-5M-1

27K L-N2-24V3WM-27K-8M-1

30K L-N2-24V3WM-30K-8M-1

35K L-N2-24V3WM-35K-8M-1

48K L-N2-24V3WM-48K-8M-1

2.2 W/FT | 134 lm/W | 120º Beamspread | CRI >90 | 2-in Cut Points 24V

15.4W/Roll 2,063

Cut Points 24V: 2” (51 mm)

17.6W/Roll 2,358

30K L-N4-24V3WM-30K-60-1

35K L-N4-24V3WM-35K-60-1

40K L-N4-24V3WM-40K-60-1

50K L-N4-24V3WM-50K-60-1

30K L-N4-24V3WM-30K-84-1

35K L-N4-24V3WM-35K-84-1

40K L-N4-24V3WM-40K-84-1

50K L-N4-24V3WM-50K-84-1

35K L-N4-24V3WM-35K-96-1

30K L-N4-24V3WM-30K-96-1 8

40K L-N4-24V3WM-40K-96-1

50K L-N4-24V3WM-50K-96-1

35K L-N4-24V3WM-35K-192-1

35.2W/Roll 4,716

control accessories can be found on page 14

30K L-N4-24V3WM-30K-192-1 16

40K L-N4-24V3WM-40K-192-1

50K L-N4-24V3WM-50K-192-1

Powering the Future with Industry-Leading Solutions

We are enhancing our product line with updates and upgrades to better serve our customers. To ensure seamless compatibility, we offer both new-to-legacy (N2O) and legacy-to-new (O2N) power adapters.

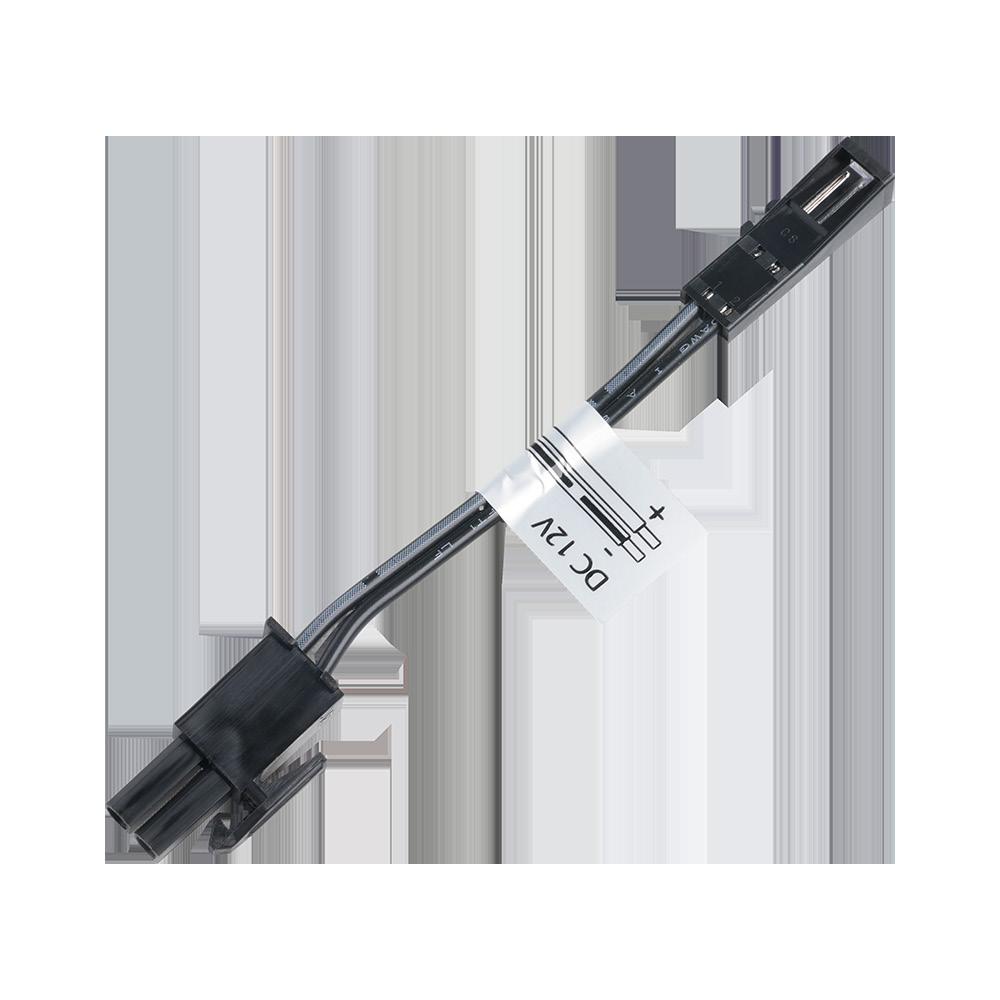

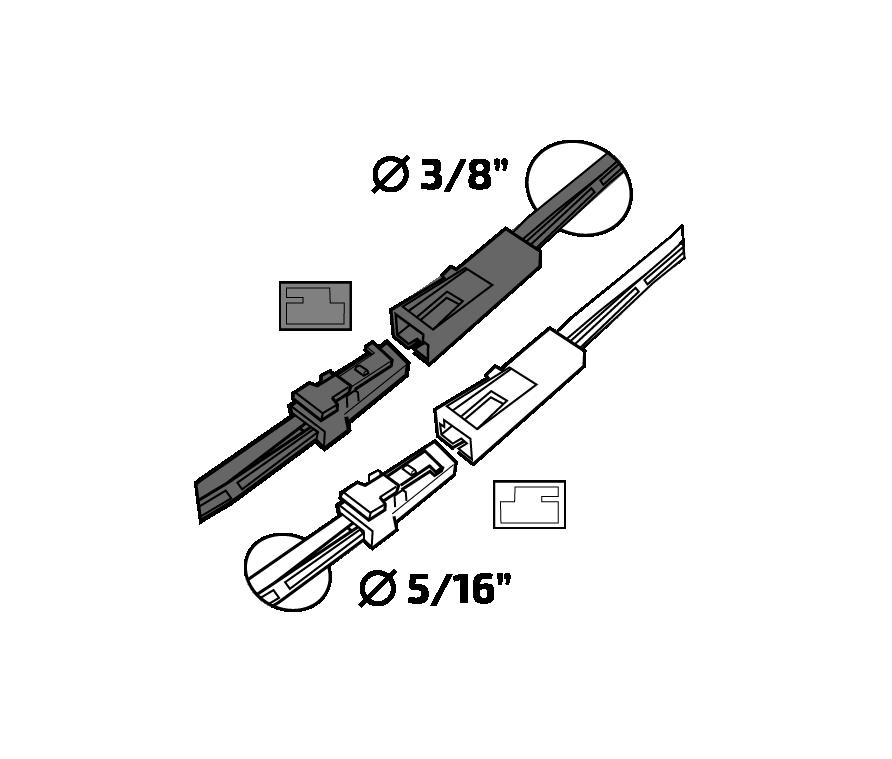

Power Adapters For New PowerSync Power Supplies to Legacy Lighting

Part # Description

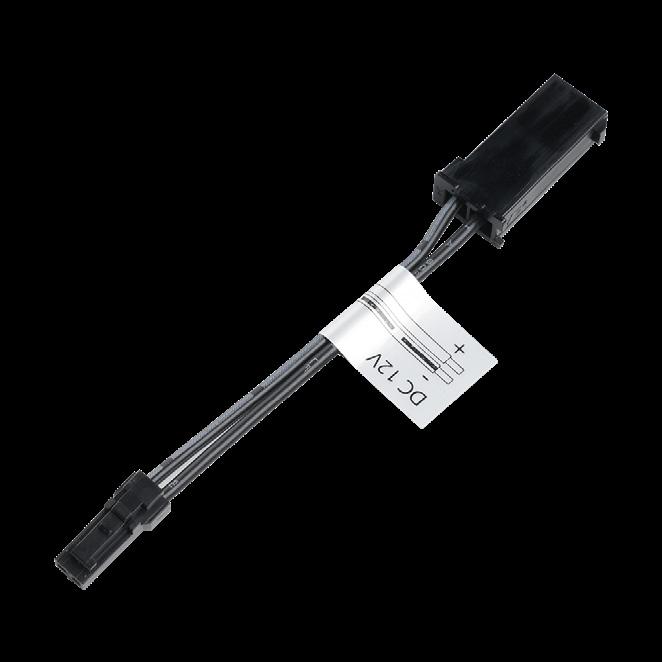

L-PWADP-12N2O-DFE-1 MINI to AMP

New PowerSync Power Supply L-PSPLG-12V60W-1

L-PWADP-12N2O-MLT6-DFE-1 MINI to Six Port AMP

L-PWADP-24N2O-DFE-1 (use with L-1BRL5-1 for multiple lights) MINI to AMP

Eurolinx 2.0 Legacy Linear Light

L-EUL3W2-197CAL-1

New to Old L-PWADP-12N2O-MLT6-DFE-1

Power Adapters For Legacy Power Supplies to New Lighting

Part # Description

OptiPockit New Puck Light

L-OPDM-24R30K-NBW-1 and L-OPSL-24RC-NBW-1

L-PWADP-12O2N-DFE-1 AMP to MINI

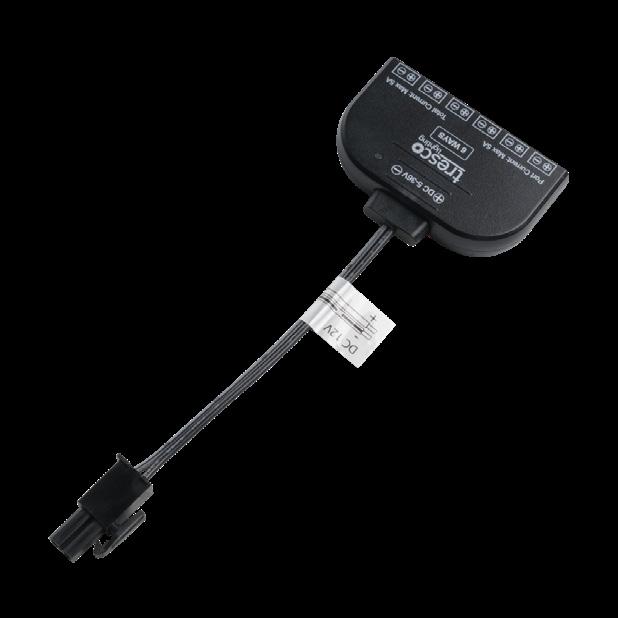

L-PWADP-12O2N-MLT6-DFE-1 AMP to Six Port MINI

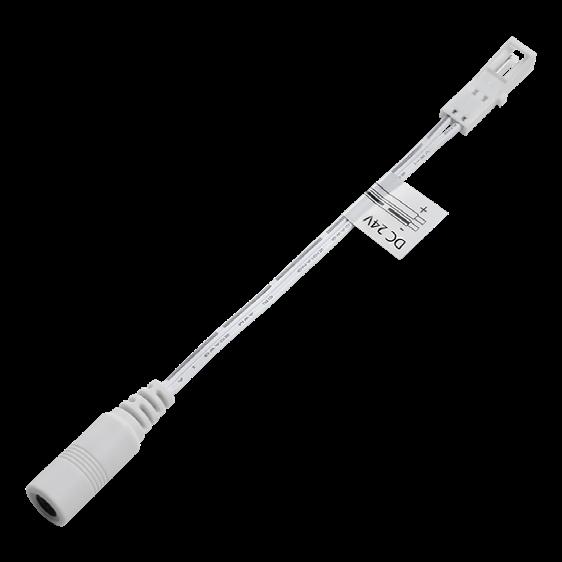

L-PWADP-24O2N-DFE-1 Barrel to MINI

L-PWADP-24O2N-MLT6-DFE-1 Barrel to Six Port MINI

Old to New L-PWADP-24O2N-MLT6-1

Legacy Power Supply L-24DCELT96-1

Linked Controllers

Controls all Tresco® single color, dimmable low voltage lights.

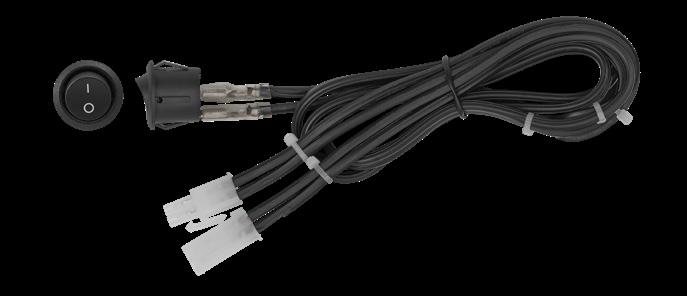

Round Switch

L-RDSW-1M-BL-1

Motion Sensor

L-RSMOT-NI-1

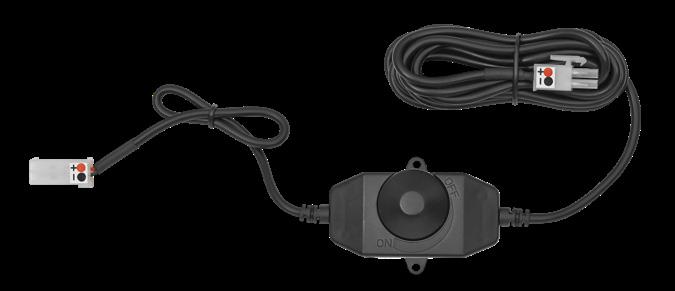

Rotary Dimmer

L-LED-DIMCON-BL-1

New FlexTape® SMD

L-FLSMD-12LO30K-20S-1

New PowerSync Power Supply

L-PSPLG-12V60W-1

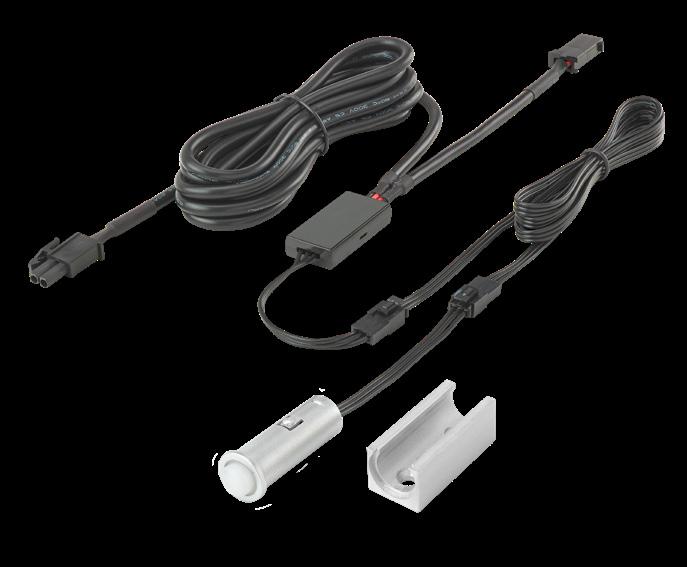

Single Door Sensor

L-PWADP-12O2N-MLT6-1

L-RSDS-NI-1

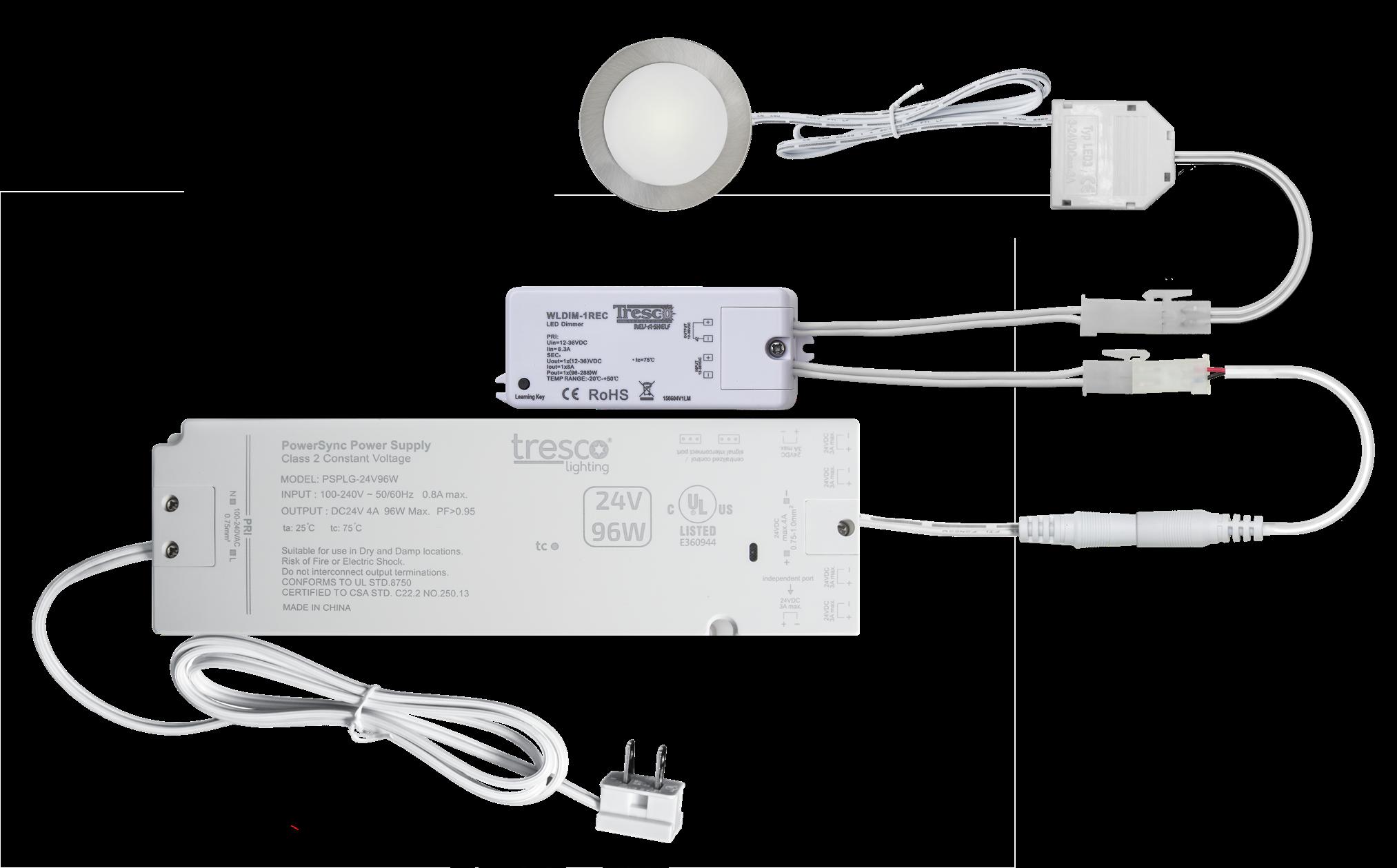

FREEDiM Wireless Control

Control multiple zones easily with multiple receivers in a single power supply or throughout a room. Enjoy seamless one-button pairing with dimmers.

FREEDiM Receiver

L-WLD-1REC-1 with 3 port and AMP to Barrel connectors included

OptiPockit New Puck Light

L-OPDM-24R30K-NBW-1 and L-OPSL-24RC-NBW-1

Wireless Door Receiver and Emitters also available

New PowerSync Power Supply

L-PSPLG-24V96W-1

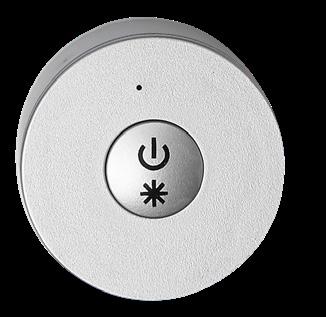

Micro Dimmers

L-WLD-1RND-NI-1

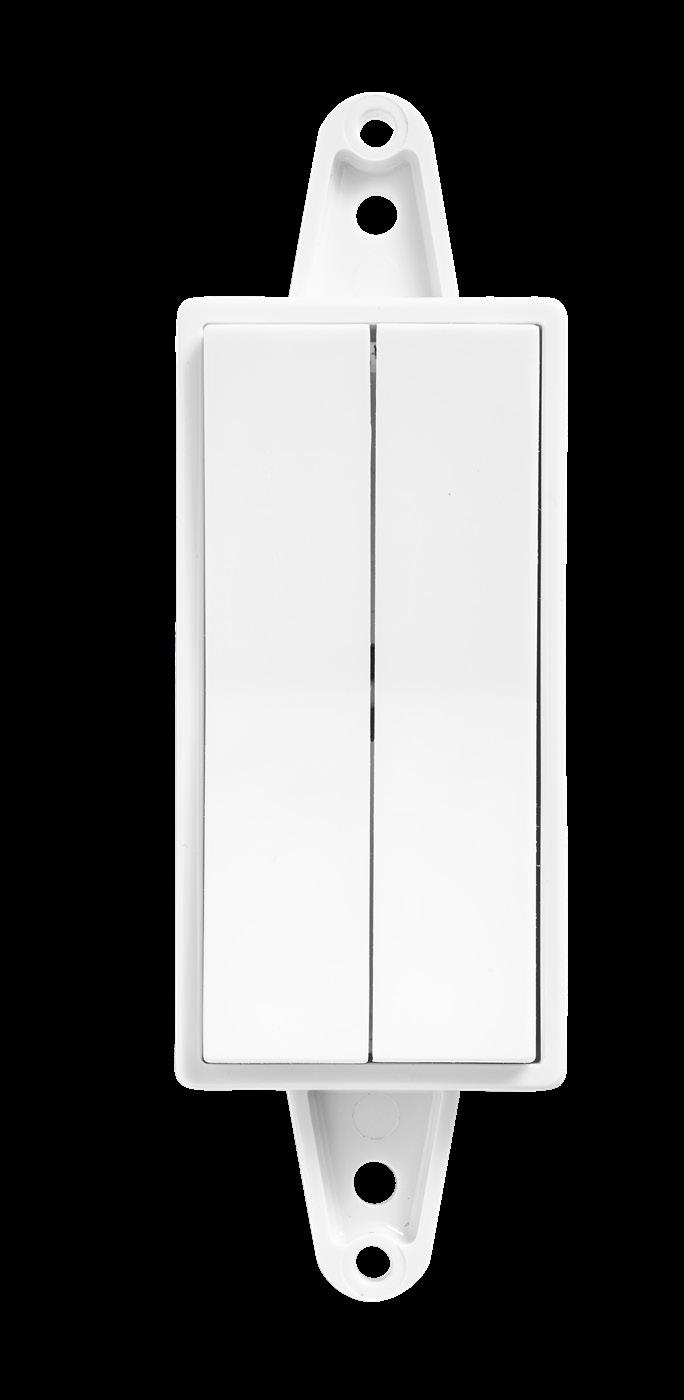

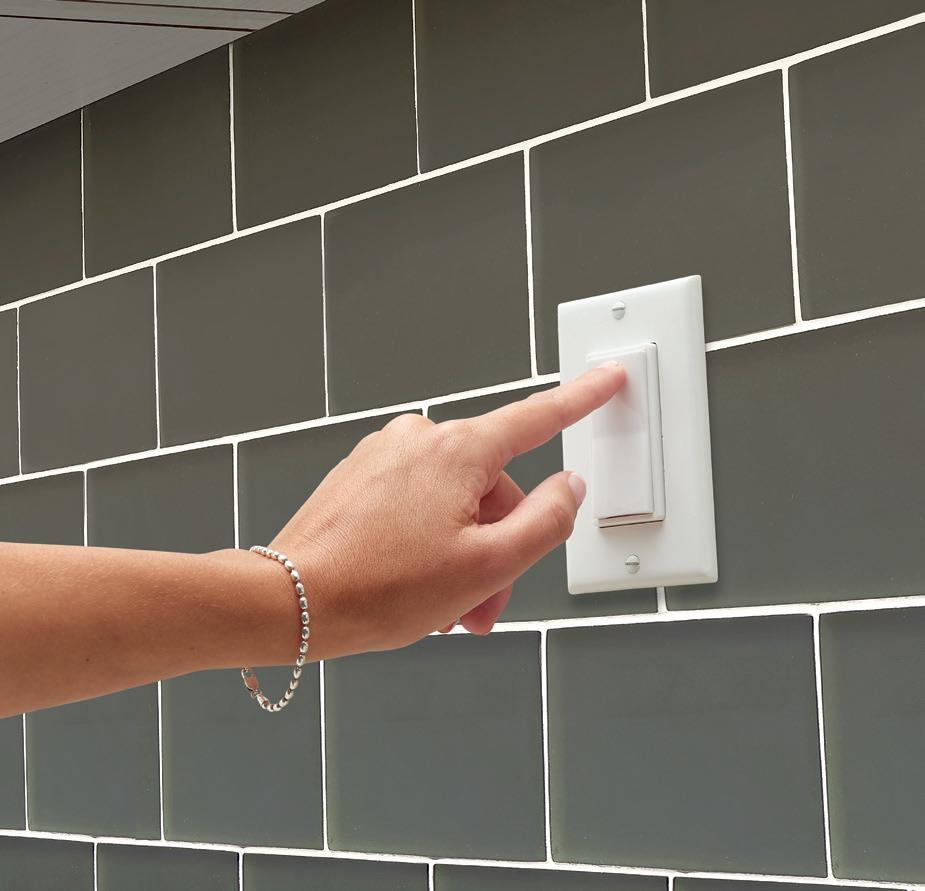

Deco Wall Dimmers

L-WLD-2WAL-WH-1

Features & Benefits

• Use FREEDiM Wireless Control System to customize the way you interact with your lighting

• Receivers connect to your power supply and signals from emitters, like dimmers or motion sensors, to turn the lights on or off and dim the brightness of your lights

• Pair multiple emitters to one dimmer to have control from multiple locations in your space. Connect one emitter to multiple receivers so that all lights are controlled simultaneously

Receivers

L-WLD-1REC-1 12/24 VDC FREEDiM Series Receiver 8

L-WLDSREC-1

FREEDiM Series Wireless Controllers

Part

L-WLD-1WAL-WH-1

L-WLD-2WAL-WH-1

L-WLD-1RND-NI-1

L-WLDS-NI-1

Deco Wall Dimmer, White

Two-Zone Deco Wall Dimmer, White

Micro Dimmer, Nickel

Wireless Door Sensor, Nickel

Legacy Power Supplies >.95 pf Class 2

L-WLD-1REC-1

L-WLDSREC-1

L-24DCELT48-BL-1

L-24DCELT96-1

KBIS 2025 Product List & Key Features

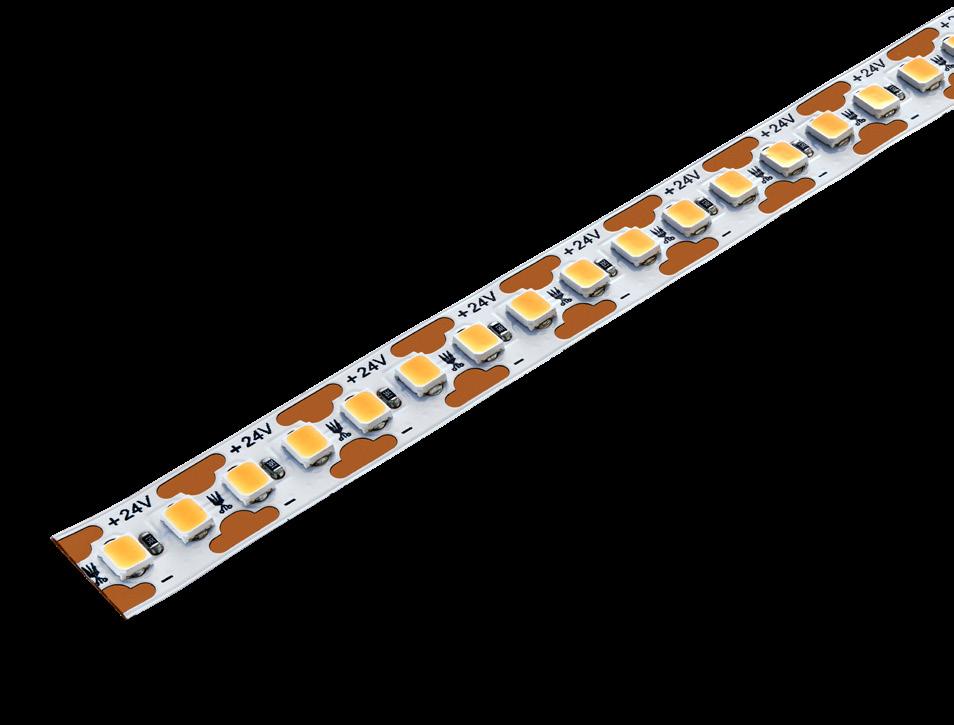

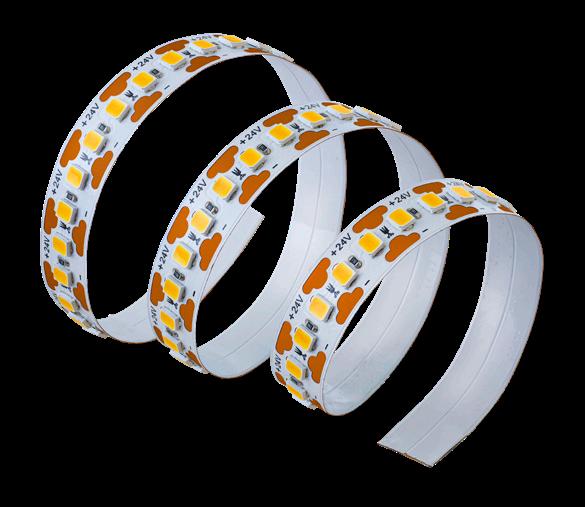

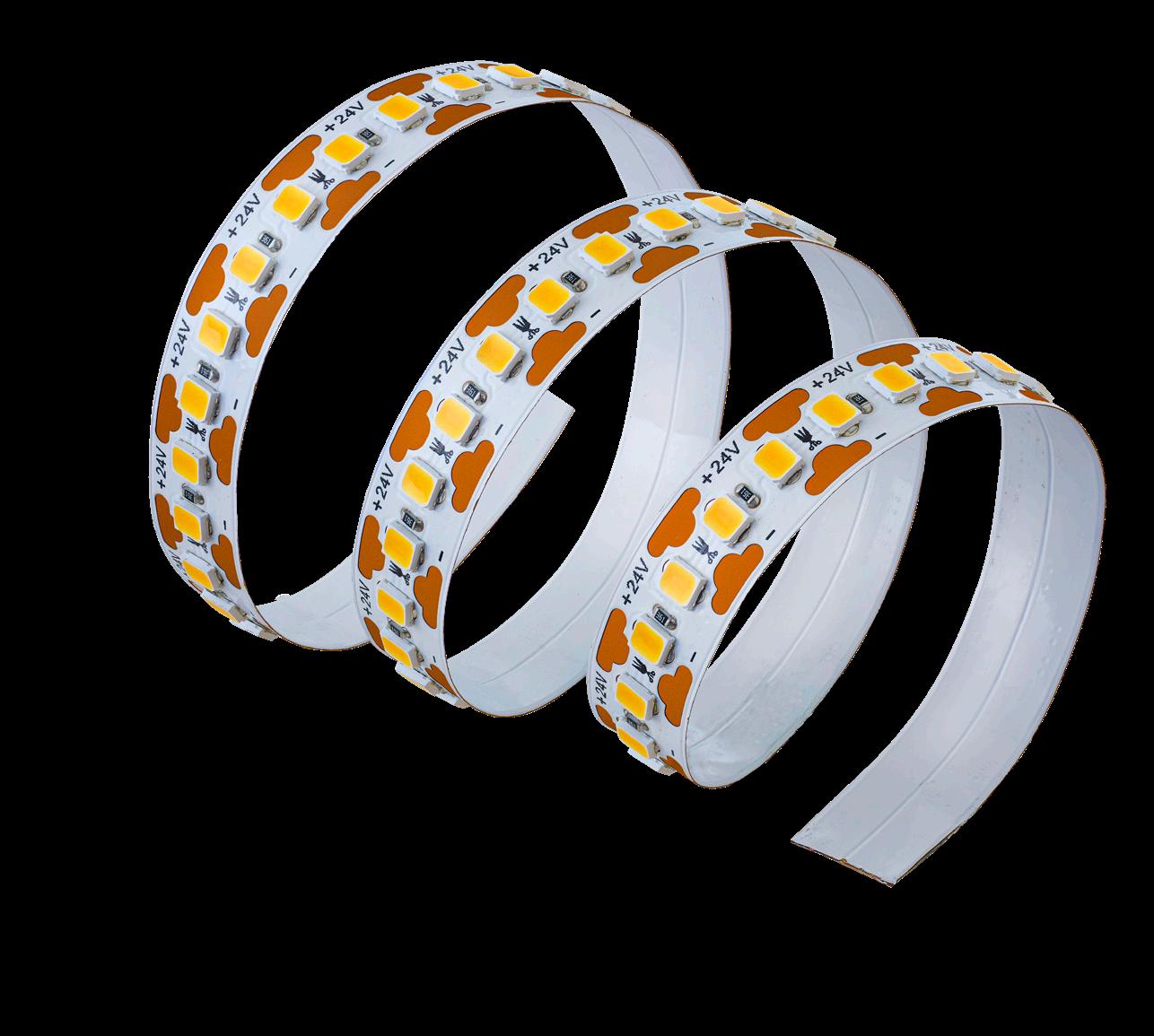

FlexTape® SMD 24VDC

• High density LED tape for smooth, even illumination without pixelization 137lm/W with HI (4.3 W/ft), MD (3W/ft), and LO (1.5W/ft) outputs

• Available in 5 color temperatures: 2700K, 3000K, 3500K, 5000K, 6500K. Industry leading color consistency measured to less than 3 SDCM

• Less waste and shadowing with .44-in cut points across all three outputs

• Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification

• 5-year warranty, 50,000 hour rated life, and 110-degree beam spread

FlexTape® SMD 12VDC

• High density LED tape for smooth, even illumination without pixelization

• 122lm/W with HI (4.3W/ft), MD (2.8W/ft), and LO (1.5W/ft) outputs

• Available in 5 color temperatures: 2700K, 3000K, 3500K, 5000K, 6500K. Industry leading color consistency measured to less than 3 SDCM*

• Less waste and shadowing with 1-in cut points across all three outputs

• Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification

• 5-year warranty, 50,000 hour rated life, 110-degree beam spread, and <3 SDCM color consistency

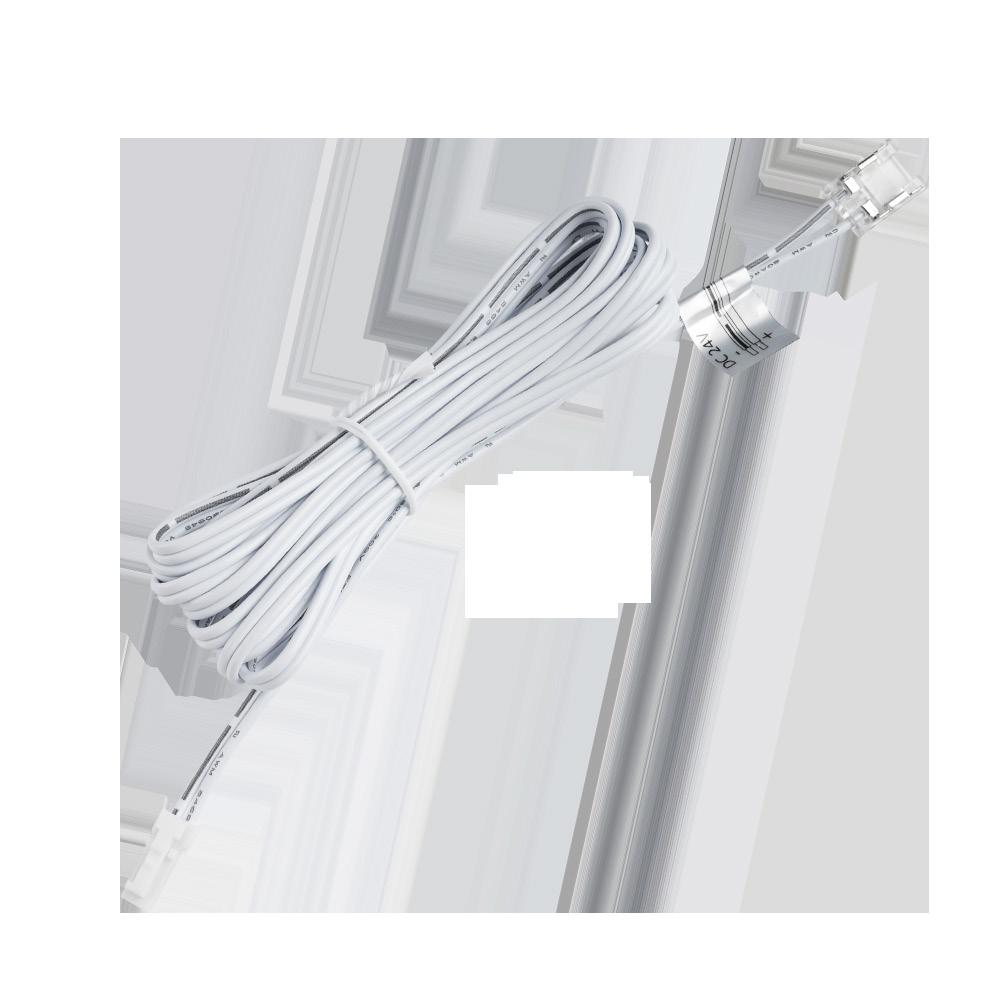

FlexTape® Cords

New clear view tape connectors provide solid power connection without creating shadows

• Starter cords and link cords over six inches include 2-wire clear splicer allowing wires to be trimmed to fit in the field

• Clear view back-to-back connector allows tape to be spliced mid-run without shadowing

• Clear view tape connectors and 2-Wire Splicers allow field adaptability with wire management for a clean and reliable installation

FlexTape® Cords Cont.

OptiPockit SL 12V & 24V

• Selectable wattage and color temperature and changeable trim options, OptiPockit SL offers simple flexibility with minimum parts

• Nominal 57lm/W depending on settings. Select 3000K, 3500K, or 5000K CCT with HI (4.5W), MD (2.7W), or LO (1.3W) outputs (Based on 24V model)

• Available in 24 & 12VDC with new MINI power connector. White cord & connector for 24V applications. Black cord & connector for 12V applications Packaged with a round, nickel trim ring attached and output set at MD 3500K. Box includes a black and a white round trim ring and adapter to legacy power supplies

• Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification

• 5-year warranty, 50,000 hour rated life, and 100-degree beam spread

OptiPockit DM 12V & 24V

• Efficient puck light with smooth dimming down to 1%. Robust housing design for cool operating temperatures for long life Delivers 92lm/W without LED pixelization. Available in 3 CCT (12V) or 4 CCT (24V)

• Available in 24 & 12VDC with new MINI power connector. White cord & connector for 24V applications. Black cord & connector for 12V applications

• Packaged with a round, nickel trim ring attached. Box includes a black and a white round trim ring and adapter to legacy power supplies

• Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification

• 5-year warranty, 50,000 hour rated life, and 100-degree beam spread

Dimmable, 24VDC Round, 3W, 5000K,

OptiPockit Accessories

• Surface Adapter Ring (SAR) pair with round trims included with OptiPockit DM or SL for surface mount applications. Order by color

• Trim Kit Square converts OptiPockit DM or SL to a square trim and includes surface adapter. Order by color

• Consult your local Tresco®/Rev-A-Shelf® salesperson to discuss other trim finishes unique to your market

OptiPockit Accessories Cont.

PowerSync Plug-in Power Supplies

• High power factor, plugin power supplies with molded 3A MINI power ports. Case color depends on voltage: 24VDC (White), 12VDC (Black)

• On board diagnostics with status indicator light that is solid green under normal operating conditions. Turns red in overload conditions or wrong voltage

• Trim to fit 120V power cord eliminates excess cord for a tangle free installation

• High visibility labels on power supply case and packaging for easy identification of voltage and wattage

• Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification

• 5-year warranty. Includes Central Control Ports and Isolated Power Port for expanded features coming 2025

Power Connector Cords

• Power connector cords are voltage specific and are easily identified with white connectors & wires for 24VDC or black connector & wire for 12VDC Starter extension cords (SXT) include a 2-Wire Splicer that allows the installer to trim to fit in the field requiring less parts and a tangle free installation

• MLT6 connectors allow multiple lights to be connected together at point of install and single power run back to power supply

Power Adapter Cords

Make use of our legacy power supplies or new PowerSync Power supplies with our Old-To-New (O2N) or New-To-Old (N2O) adapters

• Use O2N to connect a legacy power supply with a new Tresco® light

• Use N2O to connect a new PowerSync power supply to a legacy Tresco® light

• All PowerSync power supplies ship with a N2O adapter to work with current Tresco® lights and controllers

Wall Plug-in Power Supplies

• Selectable wattage and color temperature and changeable trim options, OptiPockit SL offers simple flexibility with minimum parts

• Nominal 57lm/W depending on settings. Select 3000K, 3500K, or 5000K CCT with HI (4.2W), MD (3W), or LO (1.7W) outputs (Based on 24V model)

• Available in 24 & 12VDC with new MINI power connector. White cord & connector for 24V applications. Black cord & connector for 12V applications

• Packaged with a round, nickel trim ring attached and output set at MD 3500K. Box includes a black and a white round trim ring and adapter to legacy power supplies

• Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification

• 5-year warranty, 50,000 hour rated life, and 101-degree beam spread

Cross Reference Index Legacy to New Product

12VDC EquiLine Tape LED 1.5W - Cross To 12VDC FlexTape® SMD LO - 187 lm/FT - 1.5W/FT - 127 lm/W 12VDC FlexTape® is only available in 3000K, 3500K, and 5000K CCTs. See 24VDC FlexTape® for 2700K or 6500K options.

L-TPELED-27SER-1

L-TPELED-30SER-1

L-TPELED-35SER-1

L-TPELED-48SER-1

L-TPELED-65SER-1

090713025339 L-FLSMD-24LO27K-20S-1 090713037691 FlexTape® SMD, 24VDC, Low Light & Wattage, 2700K, 16 Foot Spool

090713000558 L-FLSMD-12LO30K-20S-1 090713037608 FlexTape® SMD, 12VDC, Low Light & Wattage, 3000K, 20 Foot Spool

090713034218 L-FLSMD-12LO35K-20S-1 090713037615

SMD, 12VDC, Low Light & Wattage, 3500K, 20 Foot Spool

090713025667 L-FLSMD-12LO50K-20S-1 090713037622 FlexTape® SMD, 12VDC, Low Light & Wattage, 5000K, 20 Foot Spool

090713023236 L-FLSMD-24LO65K-20S-1 090713037738

SMD, 24VDC, Low Light & Wattage, 6500K, 16 Foot Spool

12VDC EquiLine Tape LED 3W - Cross To 12VDC FlexTape® SMD MD - 337 lm/FT - 2.8W/FT - 120 lm/W 12VDC FlexTape® is only available in 3000K, 3500K, and 5000K CCTs. See 24VDC FlexTape® for 2700K or 6500K options.

L-TPELED-27HER-1

L-TPELED-30HER-1

L-TPELED-35HER-1

L-TPELED-48HER-1

090713025315 L-FLSMD-24MD27K-16S-1 090713037745 FlexTape® SMD, 24VDC, Medium Light & Wattage, 2700K, 16 Foot Spool

090713000541 L-FLSMD-12MD30K-16S-1 090713037639 FlexTape® SMD, 12VDC, Medium Light & Wattage, 3000K, 16 Foot Spool

090713005713 L-FLSMD-12MD35K-16S-1 090713037646 FlexTape® SMD, 12VDC, Medium Light & Wattage, 3500K, 16 Foot Spool

090713025650 L-FLSMD-12MD50K-16S-1 090713037653 FlexTape® SMD, 12VDC, Medium Light & Wattage, 5000K, 16 Foot Spool

L-TPELED-65HER-1 090713034225 L-FLSMD-24MD65K-16S-1 090713037783

SMD, 24VDC, Medium Light & Wattage, 6500K, 16 Foot Spool

12VDC EquiLine Tape LED 4.4W - Cross To 12VDC FlexTape® SMD HI - 511 lm/FT - 4.3W/FT - 119 lm/W 12VDC FlexTape® is only available in 3000K, 3500K, and 5000K CCTs. See 24VDC FlexTape® for 2700K or 6500K options.

L-TPELED2-27VER-1

L-TPELED2-30VER-1

L-FLSMD-24HI27K-13S-1

L-TPELED2-35VER-1 090713033846 L-FLSMD-12HI35K-13S-1

L-TPELED2-48VER-1 090713033853 L-FLSMD-12HI50K-13S-1

L-TPELED2-65VER-1

SMD, 24VDC, High Light & Wattage, 2700K, 13 Foot Spool

12VDC, High Light & Wattage, 3000K, 13 Foot Spool

SMD, 12VDC, High Light & Wattage, 3500K, 13 Foot Spool

SMD, 12VDC, High Light & Wattage, 5000K, 13 Foot Spool

L-FLXTPE-30RS-1 090713033792 L-FLSMD-24LO30K-20S-1

SMD, 24VDC, Low Light & Wattage, 3000K, 16 Foot Spool L-LED-FLXTPE-NROLL-1

L-LED-FLXTPE-CROLL-1

090713015781 L-FLSMD-24LO35K-20S-1 090713037714

090713015729 L-FLSMD-24LO50K-20S-1 090713037721

L-LED-FLXTPE-DROLL-1 090713015743 L-FLSMD-24LO65K-20S-1 090713037738

SMD, 24VDC, Low Light & Wattage, 3500K, 16 Foot Spool

® SMD, 24VDC, Low Light & Wattage, 5000K, 16 Foot Spool

® SMD, 24VDC, Low Light & Wattage, 6500K, 16 Foot Spool

L-FLXTPE-30RH-1 090713033785 L-FLSMD-24MD30K-16S-1 090713037752

L-LED-FLXTPE-NRHO-1 090713015774 L-FLSMD-24MD35K-16S-1 090713037769

SMD, 24VDC, Medium Light & Wattage, 2700K, 16 Foot Spool

24VDC, Medium Light & Wattage, 3000K, 16 Foot Spool

SMD, 24VDC, Medium Light & Wattage, 3500K, 16 Foot Spool L-LED-FLXTPE-CRHO-1 090713015712 L-FLSMD-24MD50K-16S-1

L-LED-FLXTPE-DRHO-1

12VDC FlexTape® LED 4.4W Cont.

Part

L-FLXTPE-NRV-1

L-FLXTPE-CRV-1

L-FLXTPE-DRV-1

090713014319 L-FLSMD-24HI35K-13S-1

090713014289 L-FLSMD-24HI50K-13S-1

090713014296 L-FLSMD-24HI65K-13S-1

090713037813

SMD, 24VDC, High Light & Wattage, 3500K, 13 Foot Spool

090713037820 FlexTape® SMD, 24VDC, High Light & Wattage, 3000K, 13 Foot Spool

090713037837

FlexTape® SMD, 24VDC, High Light & Wattage, 6500K, 13 Foot Spool

12VDC FlexTape® LED 5.5W - Cross To 24VDC FlexTape® SMD HI - 564 lm/FT - 4.3W/FT - 132 lm/W

Legacy Part

L-FLXTPE-27RU-1

L-FLXTPE-30RU-1

L-FLXTPE-35RU-1

L-FLXTPE-48RU-1

090713025209 L-FLSMD-24HI27K-13S-1

090713037790 FlexTape® SMD, 24VDC, High Light & Wattage, 2700K, 13 Foot Spool

090713033808 L-FLSMD-24HI30K-13S-1 090713037806 FlexTape® SMD, 24VDC, High Light & Wattage, 3000K, 13 Foot Spool

090713025223 L-FLSMD-24HI35K-13S-1 090713037813 FlexTape® SMD, 24VDC, High Light & Wattage, 3500K, 13 Foot Spool

090713025230 L-FLSMD-24HI50K-13S-1 090713037820 FlexTape® SMD, 24VDC, High Light & Wattage, 3000K, 13 Foot Spool

L-FLXTPE-65RU-1 090713025247 L-FLSMD-24HI65K-13S-1 090713037837 FlexTape® SMD, 24VDC, High Light & Wattage, 6500K, 13 Foot Spool

12VDC FlexTape® Starter Cords

Tresco Lighting® recommends 24VDC products for all crossovers. Please note that all products below are available in 12VDC for a limited time. To order 12VDC products, substitute 12 in place of 24 in the product part number.

Legacy Part # UPC KBIS Part # KBIS UPC KBIS Description

L-LED-TPEPKT-2M-1 090713016863 L-FLTPE-12SLD-79-DFE-1 090713038063 FlexTape® Power Connector, 12VDC, Starter Cord, 79-IN, Includes 2-Wire Splicer

L-LED-TPEPKT-2M-TEE-1 090713016887 L-FLTPE-12SLD-79-DFE-1 090713038063 FlexTape® Power Connector, 12VDC, Starter Cord, 79-IN, Includes 2-Wire Splicer

L-TPEPKT-2IN-1 090713034232 L-FLTPE-12SLD-79-DFE-1 090713038063

FlexTape® Power Connector, 12VDC, Starter Cord, 79-IN, Includes 2-Wire Splicer

L-TPELNK-8T8-1 090713019697 L-FLTPE-8T8-DFE-1 090713038032 FlexTape® Connector, Back-To-Back Straight (Bag of 5)

24VDC FlexTape® Starter Cords

L-24B2SPKT-2M-1

090713005508 L-FLTPE-24SLD-79-DFE-1 090713038094

L-24B2SPKT-2M-TEE-1 090713024806 L-FLTPE-24SLD-79-DFE-1 090713038094

Power Connector, 24VDC, Starter Cord, 79-IN, Includes 2-Wire Splicer

L-24B2SPKT-305MM-1 090713017686 L-FLTPE-24SLD-79-DFE-1 090713038094 FlexTape® Power Connector, 24VDC, Starter Cord, 79-IN, Includes 2-Wire Splicer

L-24B2SPKT-3M-1 090713017846 L-FLTPE-24SLD-79-DFE-1 090713038094 FlexTape® Power Connector, 24VDC, Starter Cord, 79-IN, Includes 2-Wire Splicer

FlexTape® Link Cords and Connectors

FlexTape® Link Cords and Connectors are not voltage specific.

L-LED-TPELNK-5-1 090713016818 L-FLTPE-LNK-2-DFE-1

L-LED-TPELNK-15-1

090713037998 FlexTape® Connector, Link Cord, 2-IN

090713016788 L-FLTPE-LNK-6-DFE-1 090713038001 FlexTape® Connector, Link Cord, 6-IN

L-LED-TPELNK-25-1 090713016801 L-FLTPE-LNK-24-DFE-1 090713038018 FlexTape® Connector, Link Cord, 24-IN, Includes 2-Wire Splicer

L-LED-TPELNK-60-1

090713016825 L-FLTPE-LNK-24-DFE-1

L-LED-TPELNK-120-1 090713015910 L-FLTPE-LNK-96-DFE-1

L-LED-TPELNK-180-1

L-LED-TPELNK-CON90-1

L-LED-TPELNK-TEE-1

090713015910 L-FLTPE-LNK-96-DFE-1

090713016832 L-FLTPE-CON90-DFE-1

L-FLTP-CLRTEE-DFE-1

090713038018

090713062099

090713038025

090713062105

L-FLTP-LNKCON-DFE-1 090713062112

090713016856 L-FLTPE-TEE-DFE-1

090713038124

FlexTape® Connector, Link Cord, 24-IN, Includes 2-Wire Splicer

FlexTape® Connector, Link Cord, 96-IN, Includes 2-Wire Splicer

FlexTape® Connector, Back-To-Back Clear View 90° (Bag of 5)

FlexTape® Connector, Back-To-Back Clear View TEE (Bag of 5)

FlexTape® Connector, Wire-To-Tape, Clear View (Bag of 5)

FlexTape® Connector, Back-To-Back TEE (Bag of 5)

Cross Reference Index Legacy to New Product

12VDC EquiLine Puck Light - Cross To OptiPockit SL - Selectable Wattage & Selectable Color Temperature

Tresco Lighting® recommends 24VDC products for all crossovers. Please note that all products below are available in 12VDC for a limited time. To order 24VDC products, substitute 24 in place of 12 in the product part number. Legacy

L-POC-3EQFR-CBL-1

L-POC-3EQFR-CNI-1

L-POC-3EQFR-WBL-1

L-POC-3EQFR-WNI-1

090713021171

L-OPSL-12RC-NBW-1 090713037844

090713021195 L-OPSL-12RC-NBW-1

090713021164

L-OPSL-12RC-NBW-1

090713021188 L-OPSL-12RC-NBW-1

090713037844

OptiPockit Select, 12VDC, Round Changeable Trim NI/BL/WH

12VDC 3W Power Pockit Series - Cross To OptiPockit DM - 3W Dimmable Puck w/ Interchangeable Finish Trims

Antique Brass (AB), Chrome (CH), and Oil-Rubbed Bronze (ORB) finishes have been discontinued. Tresco Lighting® recommends 24VDC products for all crossovers. Please note that the recommend cross below is in 24VDC. If you wish to remain with 12VDC, you will need to substitute 12 in place of 24 in the part numbers below.

L-POC-3LEDSFR-CAB-1 090713019017

L-POC-3LEDSFR-CBL-1 090713019024

L-POC-3LEDSFR-CCH-1 090713019031

L-POC-3LEDSFR-CNI-1 090713019048

L-OPDM-24R50K-NBW-1 090713037929

L-POC-3LEDSFR-CWH-1 090713019055 L-OPDM-24R50K-NBW-1 090713037929

L-POC-3LEDSFR-NNI-1 090713012698 L-OPDM-24R35K-NBW-1 090713037912

L-POC-3LEDSFR-NBL-1 090713012582 L-OPDM-24R35K-NBW-1

090713037912

L-POC-3LEDSFR-WAB-1 090713019062 L-OPDM-24R30K-NBW-1 090713037905

L-POC-3LEDSFR-WBL-1 090713019079 L-OPDM-24R30K-NBW-1 090713037905

L-POC-3LEDSFR-WCH-1 090713019086 L-OPDM-24R30K-NBW-1 090713037905

L-POC-3LEDSFR-WNI-1

L-POC-3LEDSFR-WORB-1

L-POC-3LEDSFR-WWH-1

090713019093 L-OPDM-24R30K-NBW-1

090713019109 L-OPDM-24R30K-NBW-1

090713019116

L-OPDM-24R30K-NBW-1

090713037905

OptiPockit Dimmable, 24VDC Round, 3W, 5000K, NI/WH/BL Trims

OptiPockit Dimmable, 24VDC Round, 3W, 3500K, NI/WH/BL Trims

OptiPockit Dimmable, 24VDC Round, 3W, 3000K, NI/WH/BL Trims

12VDC EquiLine Puck Lights - Cross To OptiPockit DM - 3W Dimmable Puck w/ Interchangeable Finish Trims Tresco Lighting® recommends 24VDC products for all crossovers. Please note that all products below are available in 12VDC for a limited time. To order 24VDC products, substitute 24 in place of 12 in the product part number. Legacy

L-POC-3EQFR-CBL-1

L-POC-3EQFR-CNI-1

L-POC-3EQFR-WBL-1

90713021171

90713021195

90713021164

90713021188

L-OPDM-12R50K-NBW-1

L-OPDM-12R30K-NBW-1

90713037882

90713037868

OptiPockit Dimmable, 12VDC Round, 3W, 5000K, NI/WH/BL Trims

OptiPockit Dimmable, 12VDC Round, 3W, 3000K, NI/WH/BL Trims

OptiPockit Dimmable, 12VDC Round, 3W, 5000K, NI/WH/BL Trims

OptiPockit Accessories - Round Surface Mount Adapters & Square Trim Kits (for Recessed or Surface Mount) Legacy

L-SMR-2LED-BL-1

090713019512

L-SMR-2LED-NI-1 090713019529

L-OPAC-SAR-BL-1 090713037943

L-OPAC-SAR-NI-1 090713037936

L-OPAC-SAR-WH-1 090713037950

L-OPAC-TKS-NI-1 090713037967

L-OPAC-TKS-BL-1 090713037974

L-OPAC-TKS-WH-1 090713037981

OptiPockit Accessory, Surface Adapter Round, Black Finish

OptiPockit Accessory, Surface Adapter Round, Nickel Finish

OptiPockit Accessory, Surface Adapter Round, White Finish

OptiPockit Accessory, Trim Kit Square - Includes Surface Adapter, Nickel Finish

OptiPockit Accessory, Trim Kit Square - Includes Surface Adapter, Black Finish

OptiPockit Accessory, Trim Kit Square - Includes Surface Adapter, White Finish

12VDC EquiLine Plug-In Power Supplies

Tresco Lighting® recommends 24VDC products for its efficiency, higher resistance to voltage drop, and higher capacity power supplies. 24VDC is just as safe as 12VDC systems and installs in the same manner. Tresco Lighting® will continue to support 12VDC systems in 2025 with a limited product offering and available stock. Please contact your Rev-A-Shelf® sales representative or Tresco® Customer Support for more information on the benefits of converting to all 24VDC products.

L-DC-ELT6WP-CON-1

090713013916 L-WLPLG-12V15W-1 090713062136 Wall Plug-In Power Supply, Single 12V 15W

L-DC-ELT15WP-CON-1 090713013886 L-WLPLG-12V15W-1 090713062136 Wall Plug-In Power Supply, Single 12V 15W

L-DC-EQ30-1 090713000237 L-PSPLG-12V36W-1 090713037547 PowerSync Plug-in Power Supply, 12VDC, 36W, Six MINI Power Ports

L-DC-EQ60-1 090713000244 L-PSPLG-12V60W-1 090713037554 PowerSync Plug-in Power Supply, 12VDC, 60W, Six MINI Power Ports and One 5A Terminal Block

12VDC Plug-In Power Supplies

Tresco Lighting® recommend 24VDC products for its efficiency, higher resistance to voltage drop, and higher capacity power supplies. 24VDC is just as safe as 12VDC systems and installs in the same manner. Tresco Lighting® will continue to support 12VDC systems in 2025 with a limited product offering and available stock. Please contact your Rev-A-Shelf® sales representative or Tresco® Customer Support for more information on the benefits of converting to all 24VDC products.

Legacy Part # UPC

L-DC-SLELT30-1 090713000138 L-PSPLG-12V36W-1 090713037547 PowerSync Plug-in Power Supply, 12VDC, 36W, Six MINI Power Ports

L-DC-SLELT60-1 090713000145 L-PSPLG-12V60W-1 090713037554

24VDC Plug-In Power Supplies

PowerSync Plug-in Power Supply, 12VDC, 60W, Six MINI Power Ports and One 5A Terminal Block

Legacy Part # UPC KBIS Part # KBIS UPC KBIS Description

L-24DCELT15WP-1

090713028484 L-WLPLG-24V15W-1 090713062143

Wall Plug-In Power Supply, Single 24V 15W L-PSPLG-24V36W-1 090713037561 PowerSync Plug-in Power Supply, 24VDC, 36W, Six MINI Power Ports

L-24DCELT48-BL-1 090713004181 L-PSPLG-24V60W-1 090713037585 PowerSync Plug-in Power Supply, 24VDC, 60W, Six MINI Power Ports

L-24DCELT96-1 090713028460 L-PSPLG-24V96W-1 090713037592 PowerSync Plug-in Power Supply, 24VDC, 96W, Six MINI Power Ports

12VDC

Power Connection Cords

L-LED-LINKD-180-1

L-LED-LINKD-245-1

L-LED-LINKD-25-1

L-LED-LINKD-60-1

L-LED-LINKD-8-1

090713011080 L-PWCON-12SXT-96-DFE-1

090713022833 L-PWCON-12SXT-96-DFE-1

090713015927 L-PWCON-12SXT-96-DFE-1

090713011073 L-PWCON-12SXT-96-DFE-1

090713022840 L-PWCON-12SXT-96-DFE-1

090713038087

Power Connector, 12VDC, Starter Extension Cord, 96-IN, Includes 2-Wire Splicer

090713038087 Power Connector, 12VDC, Starter Extension Cord, 96-IN, Includes 2-Wire Splicer

090713038087

Power Connector, 12VDC, Starter Extension Cord, 96-IN, Includes 2-Wire Splicer

090713038087 Power Connector, 12VDC, Starter Extension Cord, 96-IN, Includes 2-Wire Splicer

L-LED-TPELNK-120-1 090713016764 L-FLTPE-LNK-96-DFE-1 090713062099 FlexTape® Connector, Link Cord, 96-IN, Includes 2-Wire Splicer

L-LED-TPELNK-15-1 090713016788 L-FLTPE-LNK-6-DFE-1 090713038001 FlexTape® Connector, Link Cord, 6-IN

L-LED-TPELNK-180-1 090713016795 L-FLTPE-LNK-96-DFE-1 090713062099 FlexTape® Connector, Link Cord, 96-IN, Includes 2-Wire Splicer

L-LED-TPELNK-25-1 090713016801 L-FLTPE-LNK-24-DFE-1 090713038018 FlexTape® Connector, Link Cord, 24-IN

L-LED-TPELNK-5-1 090713016818 L-FLTPE-LNK-2-DFE-1 090713037998 FlexTape® Connector, Link Cord, 2-IN

L-LED-TPELNK-60-1 090713016825 L-FLTPE-LNK-24-DFE-1 090713038018 FlexTape® Connector, Link Cord, 24-IN

L-LED-TPELNK-CON90-1 090713016832 L-FLTPE-CON90-DFE-1 090713038025 FlexTape® Connector, Back-To-Back 90° (Bag of 5)

L-LED-TPELNK-TEE-1 090713016856 L-FLTPE-TEE-DFE-1 090713038124 FlexTape® Connector, Back-To-Back TEE (Bag of 5)

L-TRANS-MNT-BL-1 090713005737 L-PWCON-12MLT6-DFE-1 090713038100 Power Connector, 12VDC, Six MINI Connectors

Cross Reference Index Legacy to New Product

24VDC Power Connection Cords

L-1BRL5-1

L-24BBEXT-1M-1

L-24BBEXT-2M-1

L-24BBEXT-3M-1

090713033778 L-PWCON-24MLT6-DFE-1 090713038117

090713024790 L-PWCON-24SXT-96-DFE-1 090713038056

090713024943 L-PWCON-24SXT-96-DFE-1 090713038056

090713004174 L-PWCON-24SXT-96-DFE-1 090713038056

Power Adapters - Connect Legacy and New Products

Legacy Part #

L-24VDC3INADP-WH-1

090713028576

L-PWADP-24O2N-DFE-1

Power Connector, 24VDC, Six MINI Connectors

Power Connector, 24VDC, Starter Extension Cord, 96-IN, Includes 2-Wire Splicer

090713038186

L-PWADP-24N2O-DFE-1 090713038131

L-PWADP-12O2N-DFE-1 090713038162

L-PWADP-12O2N-MLT6-DFE-1 090713038179

L-PWADP-12N2O-DFE-1 090713038155

L-PWADP-12N2O-MLT6-DFE-1 090713062150

L-PWADP-24O2N-MLT6-DFE-1 090713038148

Power Adapter, 24VDC, Barrel to MINI, Single Port

Power Adapter, 24VDC, MINI to Barrel, Single Port

Power Adapter, 12VDC, AMP to MINI, Single Port

Power Adapter, 12VDC, AMP to MINI, Six Port

Power Adapter, 12VDC, MINI to AMP, Single Port

Power Adapter, 12VDC, MINI to AMP, Six Port

Power Adapter, 24VDC, Barrel to MINI Six Port

Lighting Applications

TASK LIGHTING

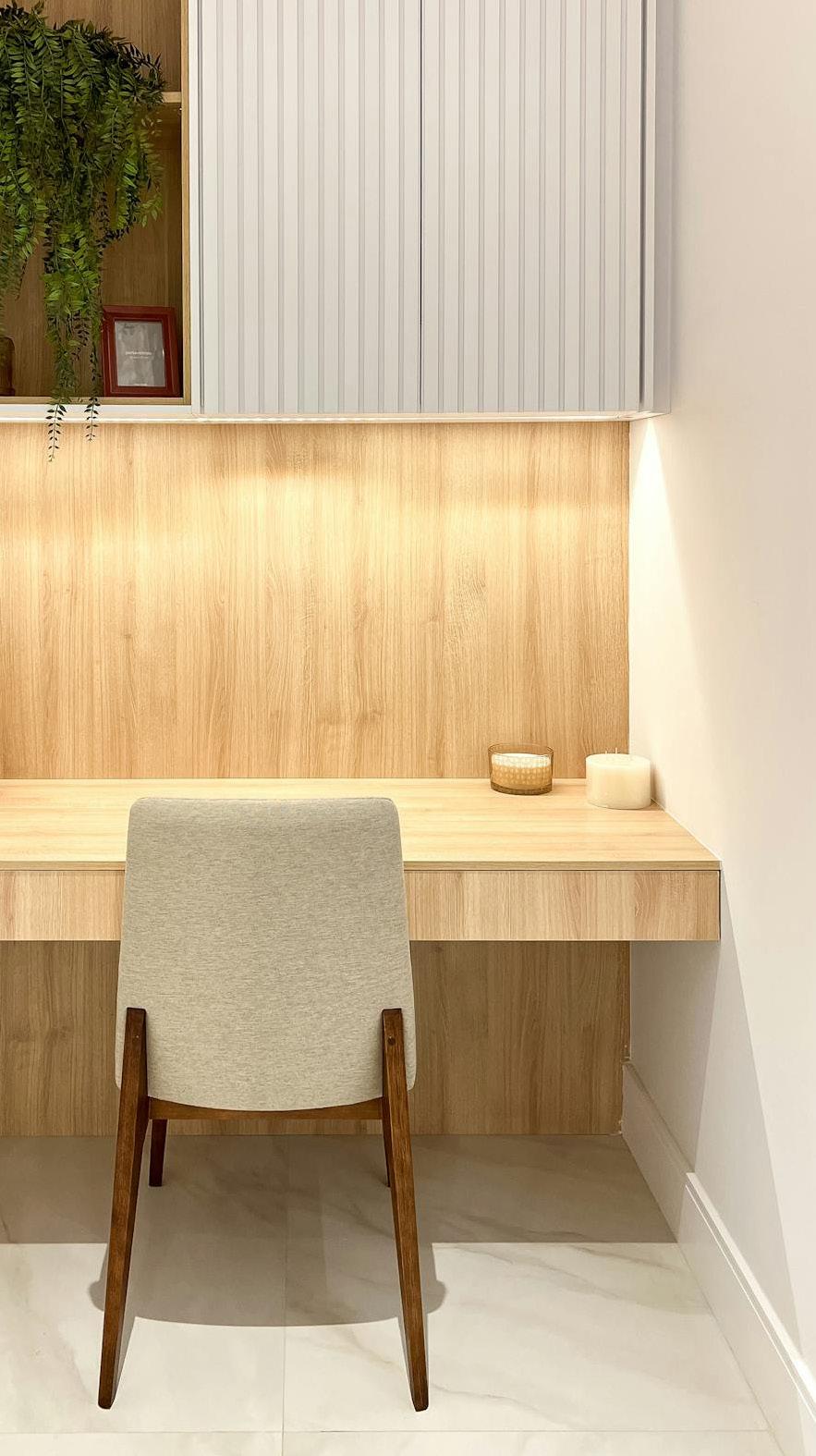

Home Office

Engineered to illuminate workspaces where precision is key—whether reading, writing, or using a computer. Designed for focused, direct lighting, it minimizes eye strain, enhances productivity, and eliminates glare and shadows.

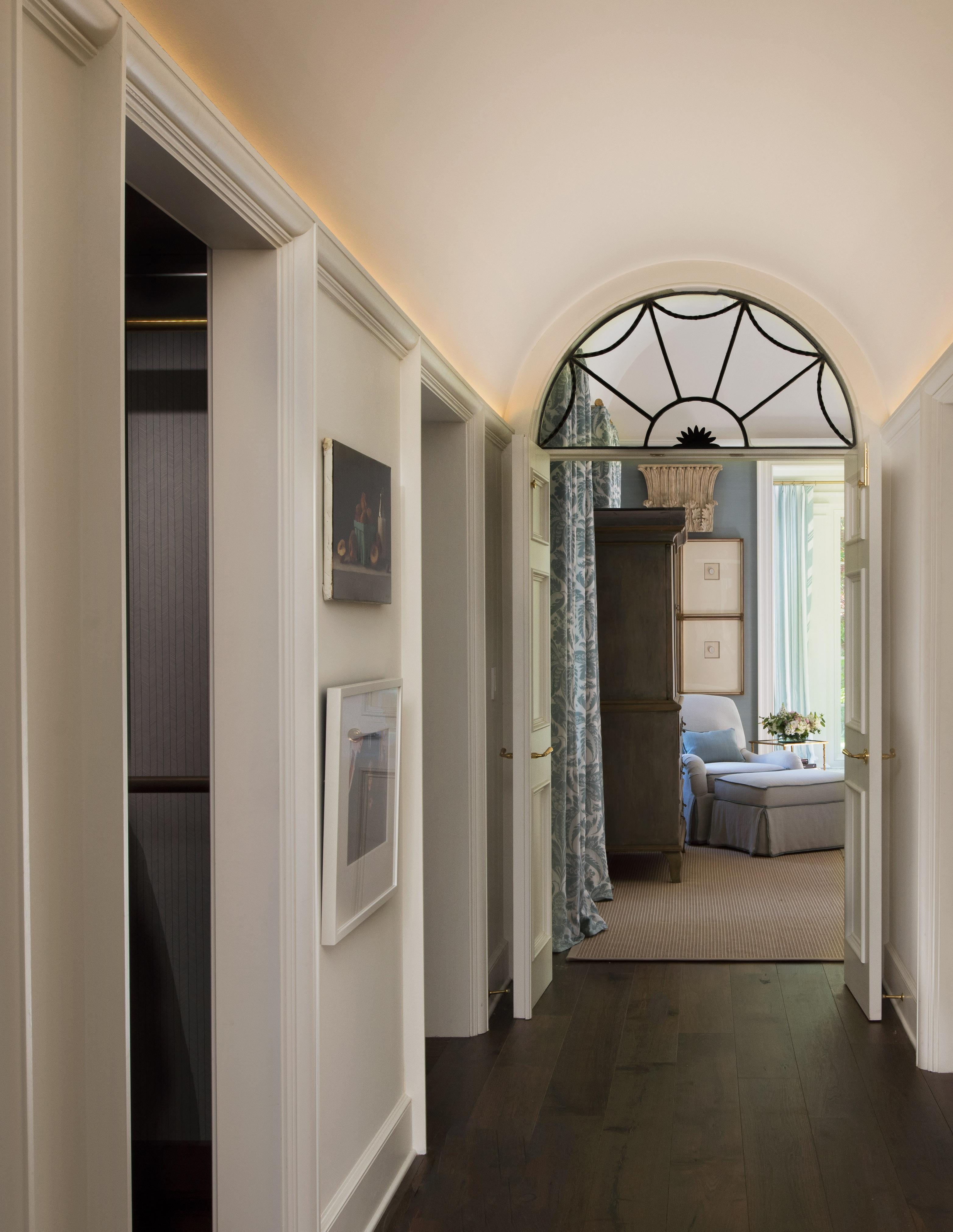

ACCENT LIGHTING

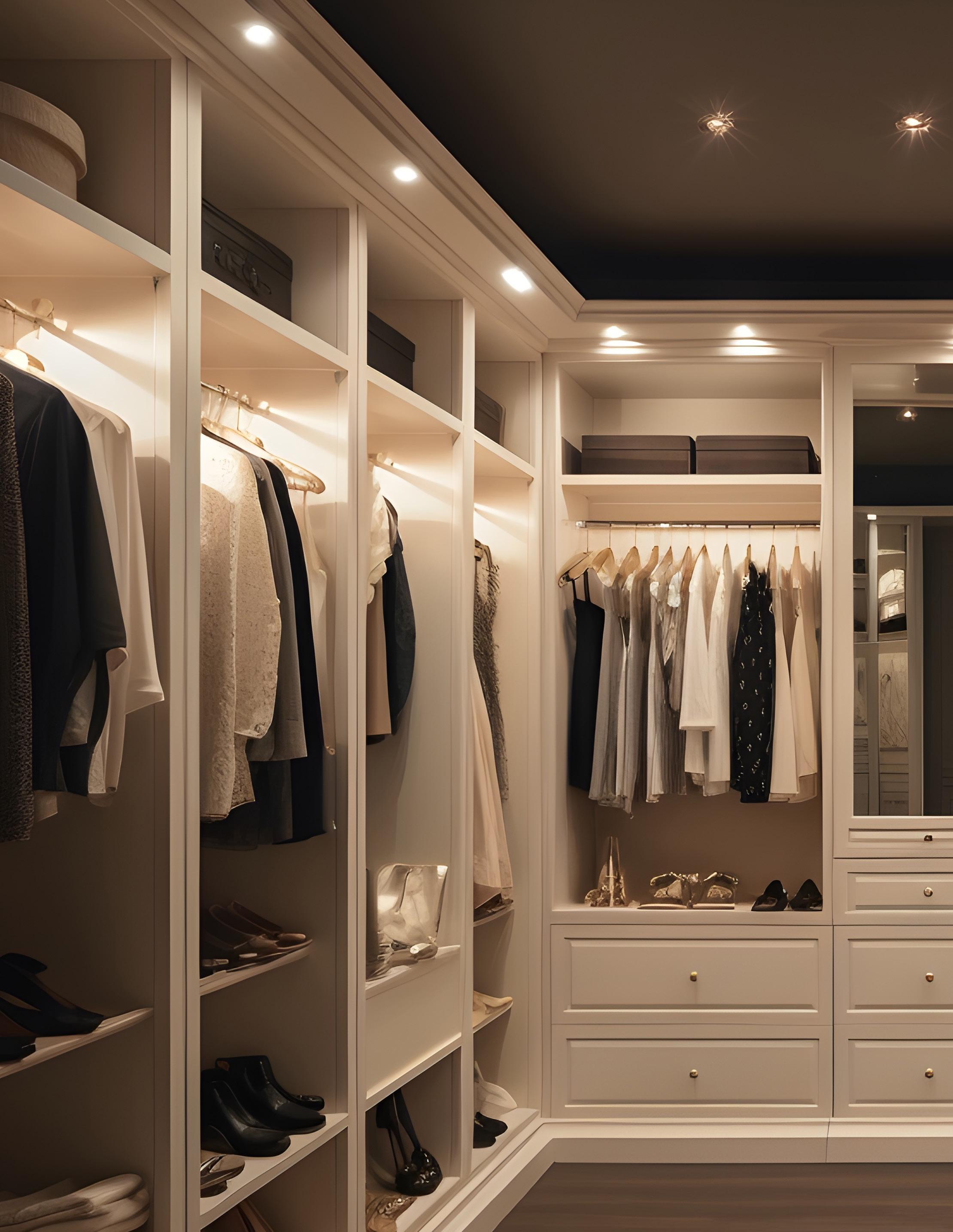

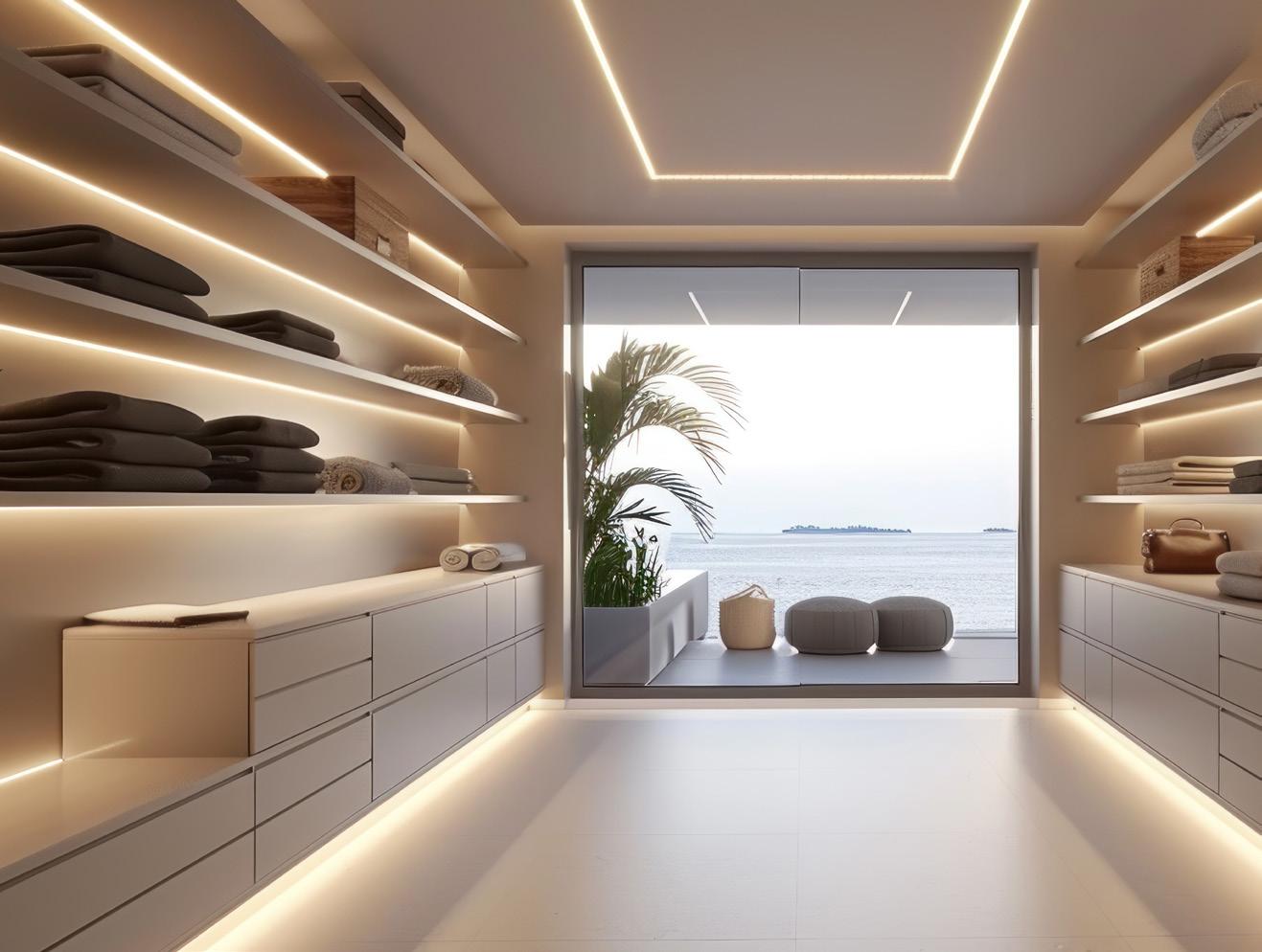

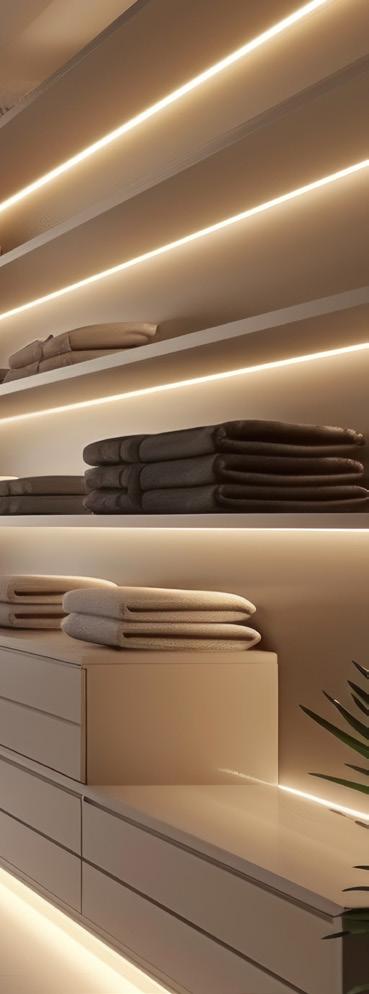

Closets

Designed to highlight specific areas, objects, or architectural features, accent lighting adds visual interest, sets the mood, and draws attention to key décor elements. Unlike general or task lighting, it provides focused, directional illumination.

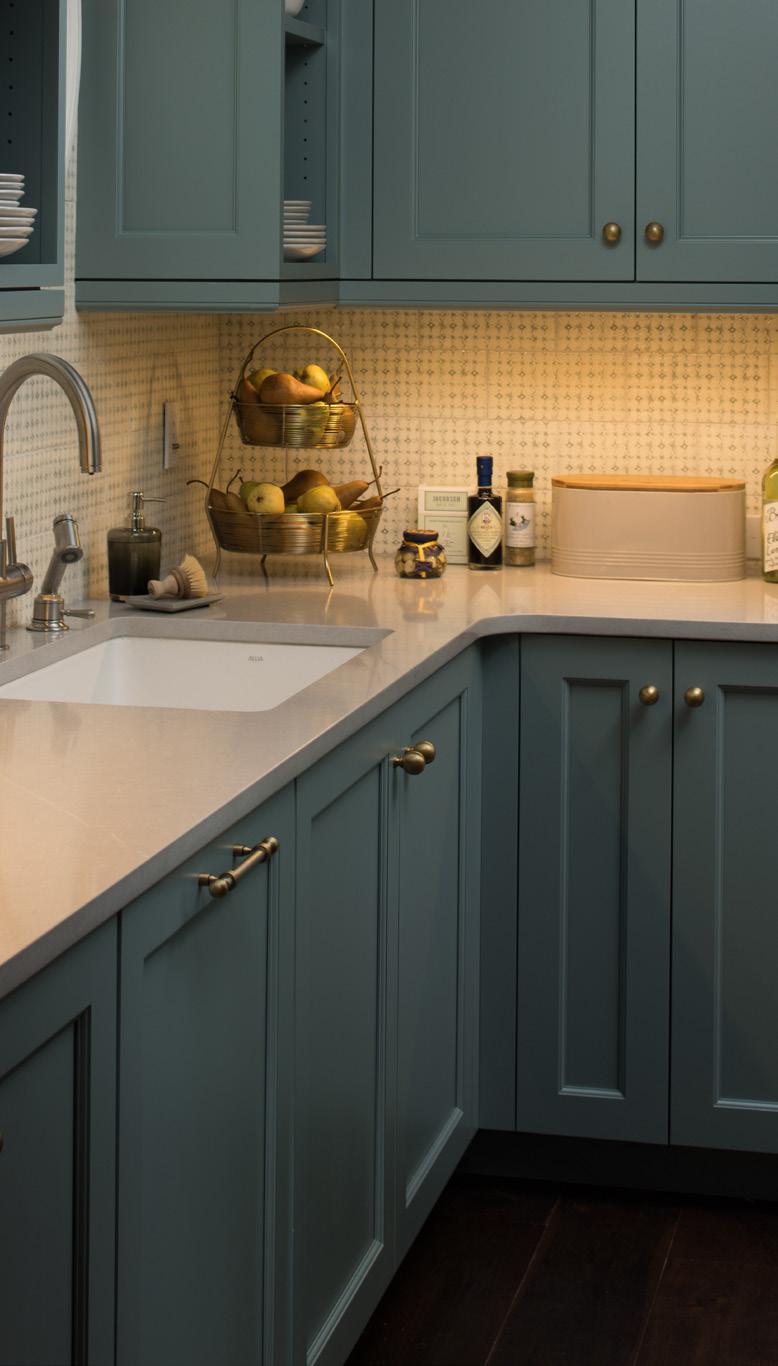

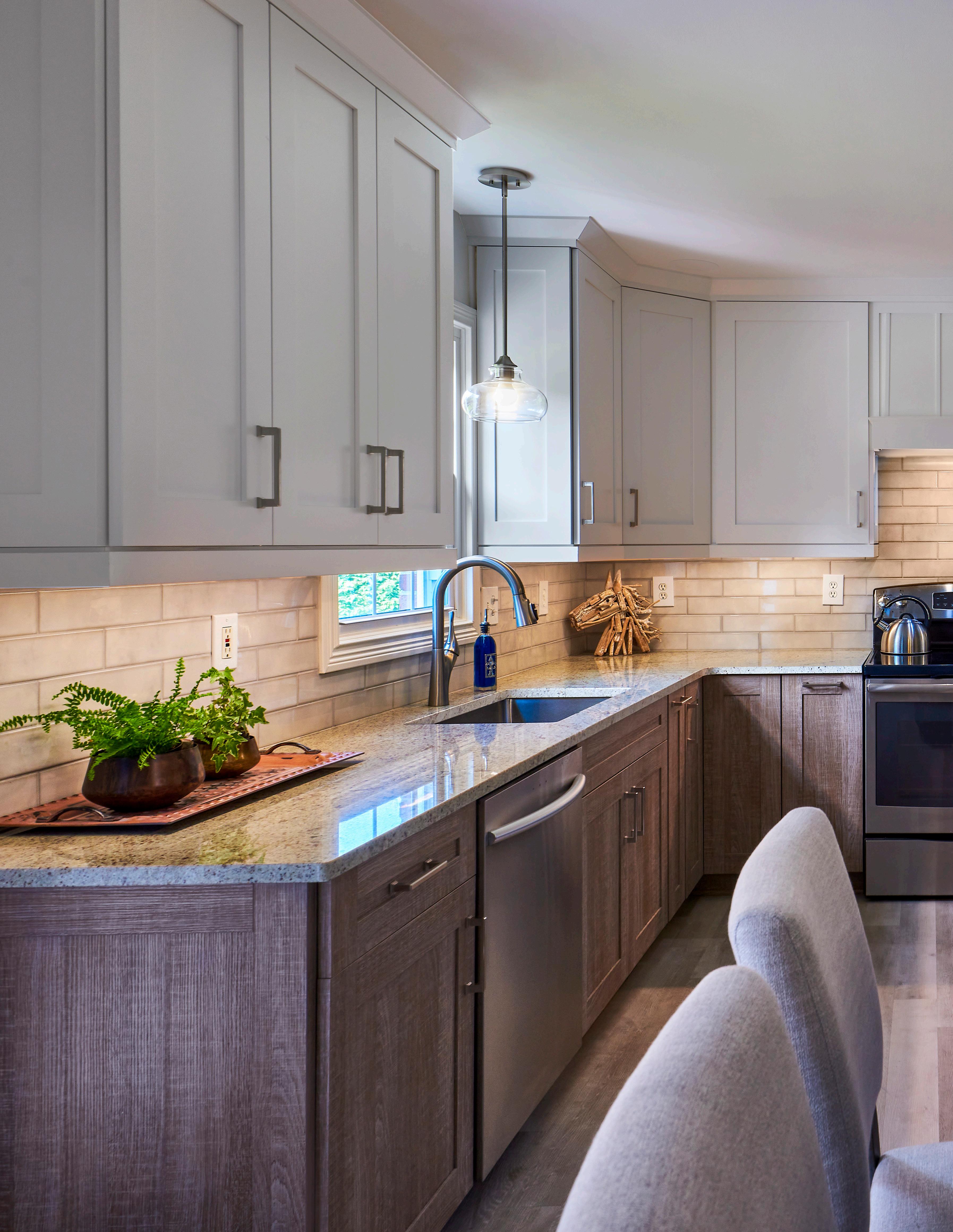

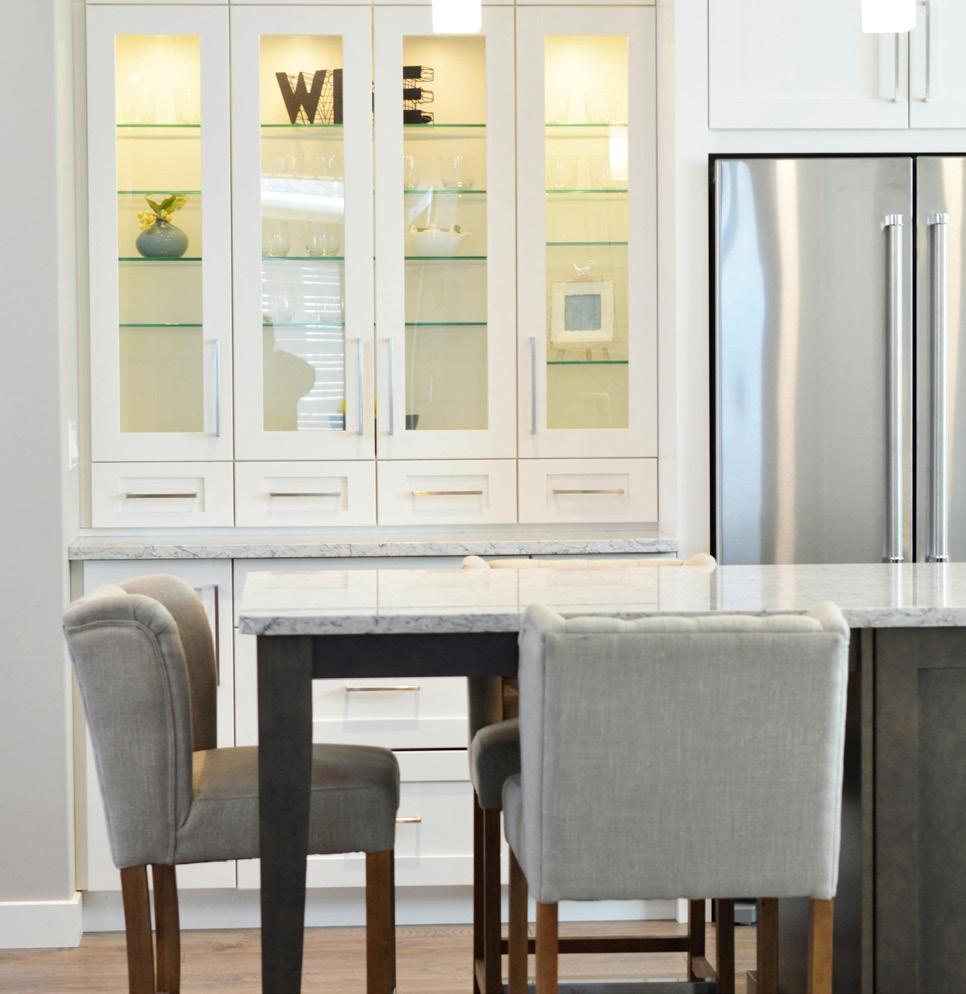

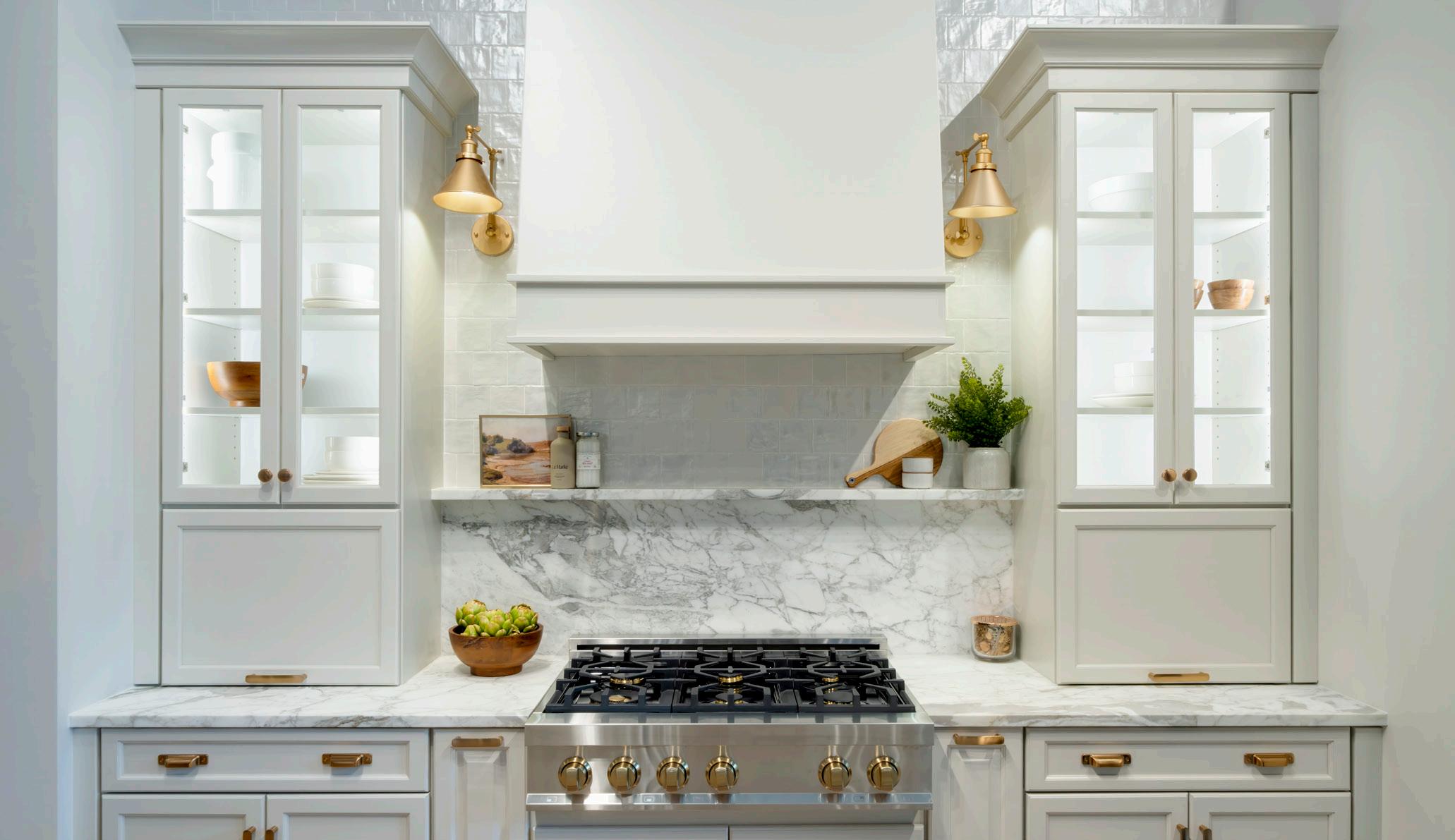

AMBIENT LIGHTING Kitchens

Provides balanced illumination throughout a space without glare, serving as the foundational layer of lighting. Ambient lighting creates a comfortable brightness that enhances visibility, allowing for easy movement and everyday activities without eye strain.
