THE TRADITION GOES ON

Edsbyn, situated in the heart of the Swedish forest country, about 300 km NW of Stockholm, has long been a centre for forestry craft industry associated with timber and wood industries. In the past, forestry workers from the surrounding villages travelled to Edsbyn to purchase their tools or to have them repaired by the local blacksmith. This lead to a natural development of the tool industry in the region. In the middle of the 20th century, Edsbyn had several small industries, making axes, saws, and different hand tools for forestry workers. Today, G-Man Tools AB proudly carries on the tradition of saw making, maintaining the high quality, by using Swedish raw material and modern manufacturing techniques.

The company was officially founded on July 12,1984, under the name of Edsbytool AB. The basic business concept was to build on and develop the skill and tradition existing in the region in production and marketing of saws and saw blades for wood. In 1987, Edsbytool joined forces with A/S Grorud Jernvarefabrik of Norway. The Norwegian production and sales were moved to Edsbyn and since their saws were widely known under the trade mark of G-MAN, the company also changed its name to the present G-MAN TOOLS AB. This meant a rapid increase of volume and turnover, and since then a steady increase of sales has lead to a consolidation of the company, which at present employs 30 persons.

During the last few years, considerable investments in machinery and buildings have been made, in order to be well prepared for the future. Export business has always been very important and today, about 80% of the production is exported to more than 45 different markets all over the world. All operations are carried out in our own building, located in Ovanåker, Edsbyn.

ECOSAW SYSTEM

PUSHING OUR SUSTAINABILITY GOALS EVEN FURTHER…

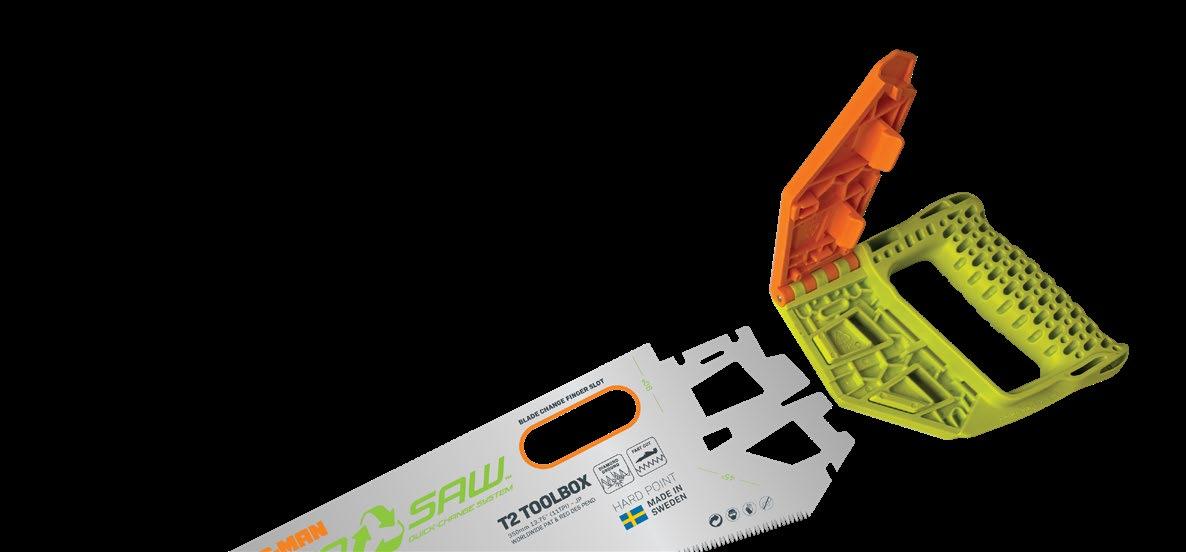

ECOSAW by G-Man is a next-generation fully sustainable handsaw system using patented blade-change technology. Featuring a lightweight, long-life handle, multi-point locking, and four popular interchangeable blade options. All components and packaging are 100% recyclable-perfect for tradeprofessionals and DIY enthusiasts.

Constructed from tough polypropylene, the ECOSAW long-life handle delivers precise handsaw performance as you would expect from G-Man. Advanced design and refined ergonomics result in a significant reduction of non-recyclable plastic waste compared to conventional handsaws.

Engineered for performance. Sustainable. No compromise.

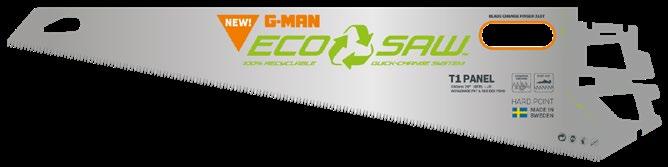

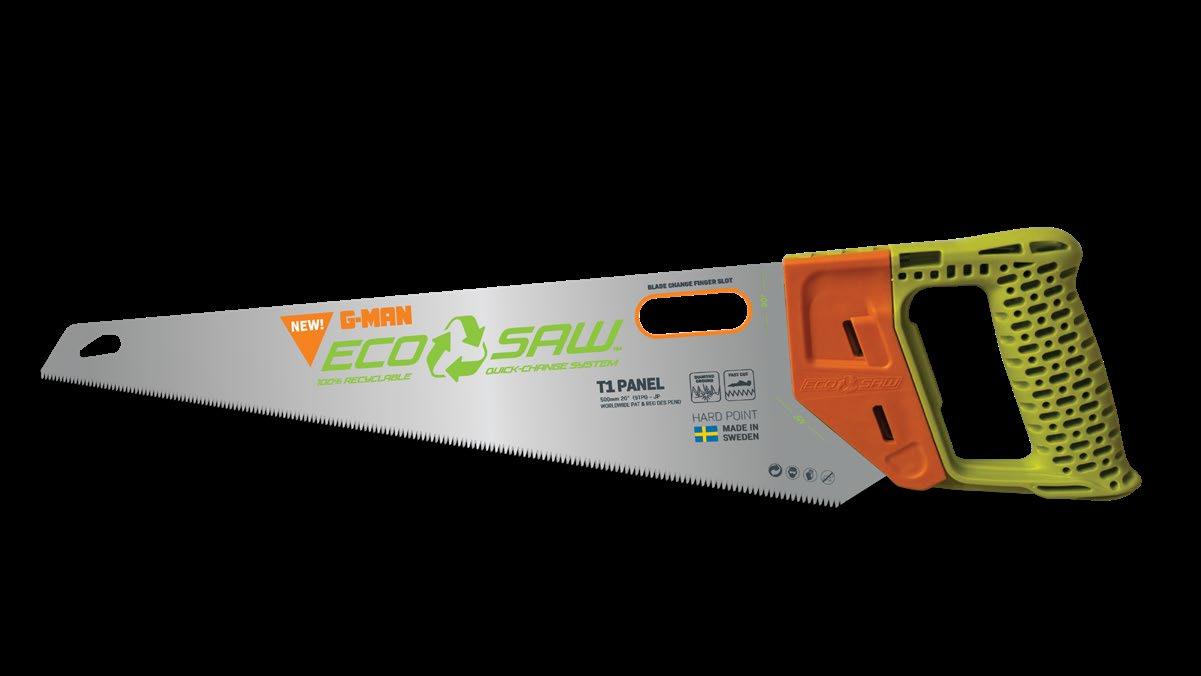

T1 PANEL

Popular General Purpose PANEL Blade.

Perfect For: Softwoods, Hardwoods, Plywood, PVC & Plastics.

Art. no T1/500/JP9

Length 20” - 500 mm

T2 TOOLBOX

Handy TOOLBOX Size Blade.

Perfect For: Softwoods, Hardwoods, Plywood, Laminates, PVC & Plastics.

Art. no T2/350/JP11

Length 13.75” - 350 mm

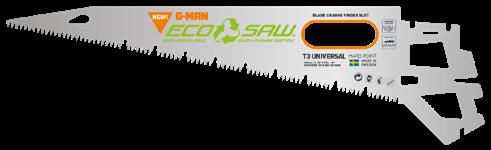

T3 UNIVERSAL

A UNIVERSAL Multi-use Blade.

Perfect For: Pruning, Timbers, Plasterboards & PIR Insulation Boards.

Art. no T3/335/GT7

Length 13.25” - 335 mm

WORLDWIDE

BENEFITS – MERCHANT & ENVIRONMENTAL

100% RECYCLABLE PRODUCT

100% RECYCLABLE (SPACE-SAVING) PACKAGING

65% REDUCTION IN:

WAREHOUSE SPACE, IN-STORE SHELF SPACE, LOGISTICS AND FREIGHT COSTS

65% REDUCTION IN CO2 EMISSIONS

FEATURES – END USER

HIGH PERFORMANCE CUTTING

QUICK & EASY BLADE CHANGE

IMPACT RESTISTANT LONG-LIFE HANDLE

SECURE MULTI-POINT LOCKING

PREMIUM QUALITY 1,0mm HARDPOINT STEEL

BLADE CHANGE FINGER SLOT

ERGONOMIC COMFORT GRIP

ACCURATE 45° & 90° MARKING

FAST – VERSATILE – SUSTAINABLE

T4 TENON

Superfine TENON Blade.

Perfect For: Softwoods, Hardwoods, Plywood’s & Laminates.

Art. no T4/325/R13 Length 12.75” - 325 mm

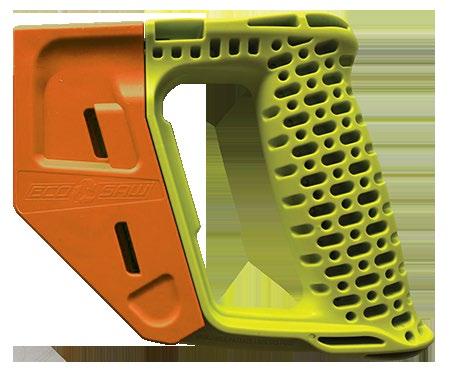

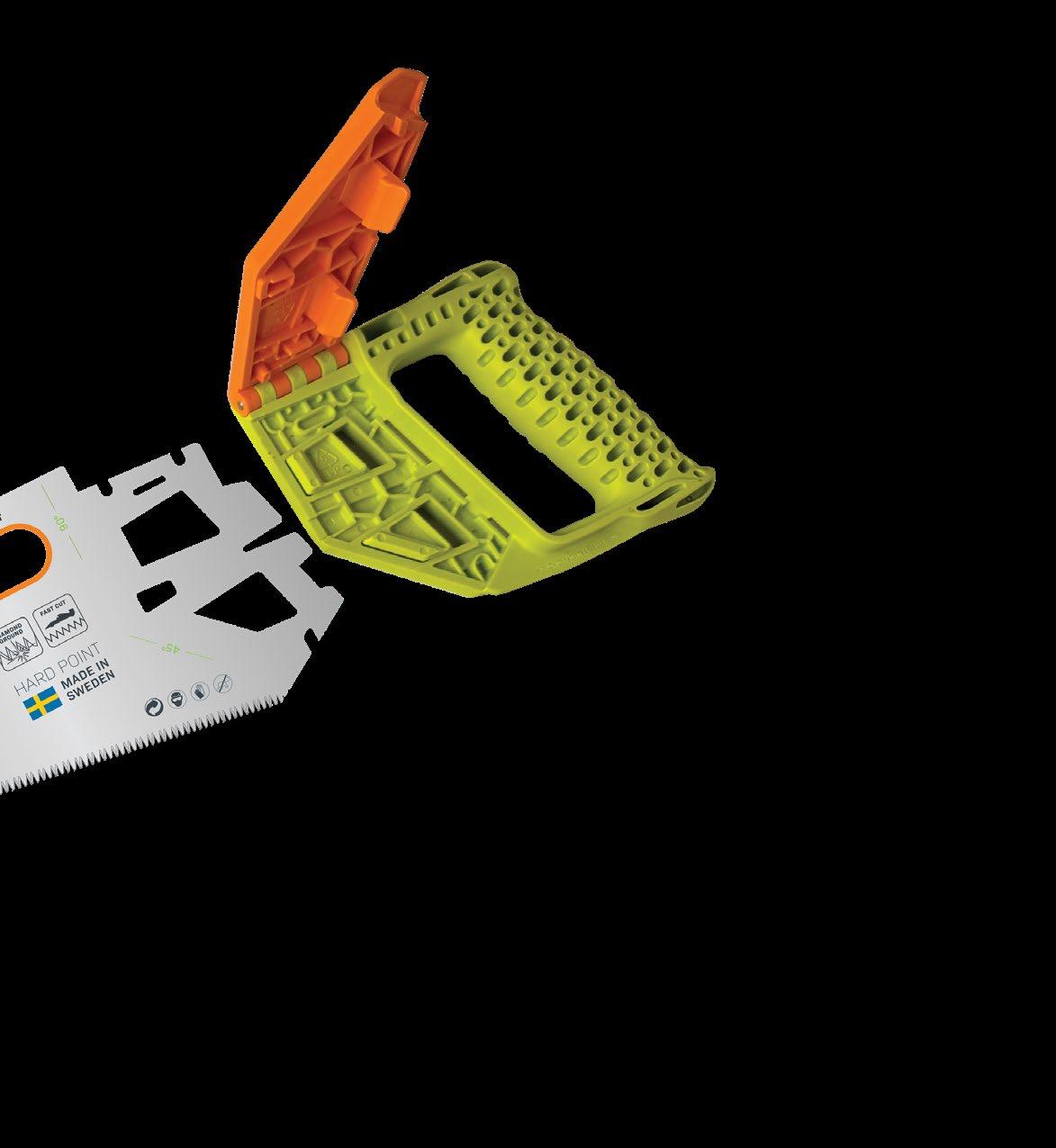

ECOSAW SYSTEM HANDLE

Ergonomic, quick-change handle.

Compatible with all ECOSAW SYSTEM blades.

Art. no ECO/H/01

QUICK RELEASE

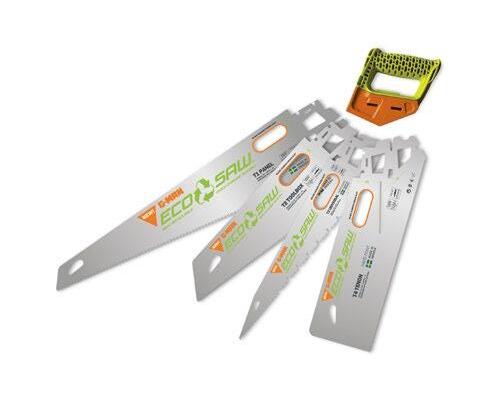

ECOSAW SYSTEM – FULL KIT

Professional 5 piece KIT containing:

1 x T1 PANEL 20” – 500mm

1 x T2 TOOLBOX 13.75” – 350mm

1 x T3 UNIVERSAL 13.25” – 335mm

1 x T4 TENON 12.75” – 325mm

1 x ECOSAW SYSTEM HANDLE

The perfect set for skilled professionals and keen DIY enthusiasts.

Art. no ECO/KIT/5PC

FOR A SUSTAINABLE FUTURE

G-Man Tools produce saws and saw blades, and we distribute our products all over the global market. Sustainability is a global challenge, so we collaborate, think and innovate to implement more sustainable manufacturing practices and to reduce our carbon footprint, and we believe a good business plan today involve sustainability goals.

Our environmental goals towards 2027 is to reduce our energy consumption with 50% and our water consumption with 85%, measured from 2022, as well as to

35%, and by implementing circular water in our production we reduced our water consumption with 50%. As a result of collaboration and implementation of sustainable raw materials, we began to produce a new bio-composite handle for our saws.

The new handle is made from almost 100% bio-based materials (wood fibers and bio-based plastic), and by using the bio-composites we have reduced our carbon footprint with 65%. The wood fibers in the bio-composite material comes from sustainable forest industries

WOOD FIBER HANDLE – 65 % LOWER CARBON FOOT PRINT

Today, all our hand saw’s have bio-composite handles, and the goal is to equip all of our products with a bio-composite handle.

Water based lacquer

Recycled – soft grip material

Wood fiber plastic

Supplied in re-cycled corrugated cardboard boxes

RAW MATERIAL

Wood fiber 30-55 % from spruce. Rest products from saw mills.

Milled fibers, termo-mechanical mass, sulfatmass.

RAW MATERIAL Polymers Recycled plastic

MAKES BIO COMPOSITE MATERIAL

Locally produced (Sweden)

Metal waste

Plastic waste

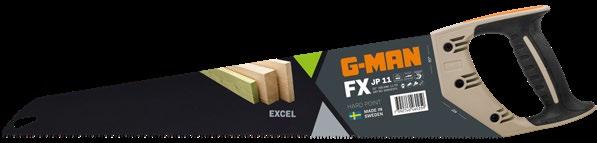

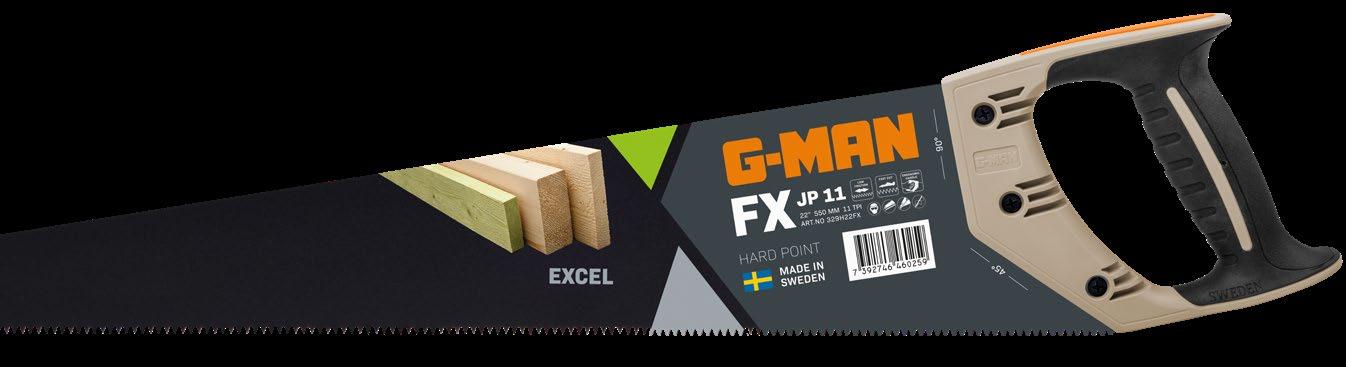

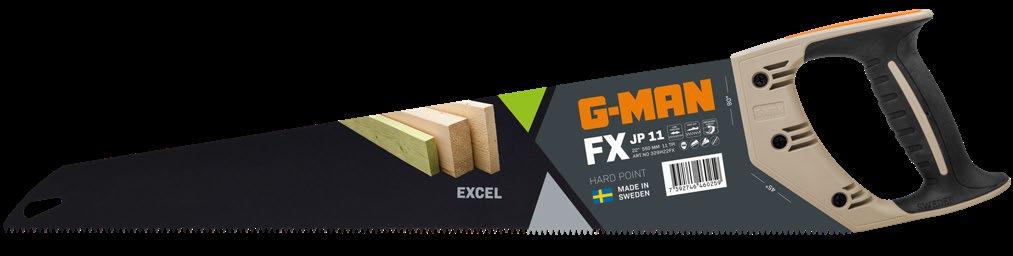

FX LINE

Our FX line offers 6 hand saws of a superb quality. The saws come with our ergonomic soft grip handle. The FX line has also thicker material in the blade which reduces vibrations and offers extra stability and precision.

Three models have a special type of toothing (JP) with 3 cutting edges. Together with a special setting and low-friction coating, these saws represent the top of our hand saw line.

JP 9 JP 11

Length 22” - 550 mm

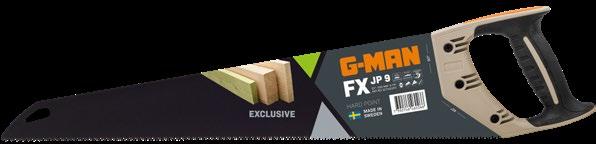

327H EXCLUSIVE FX

A hand saw with 9 razor sharp teeth per inch. The special 3-edge toothing combines a superb cutting ability with a smooth and clean cut.

GT JP 9 JP 11 Art. no 327H22FX

Length 22” - 550 mm

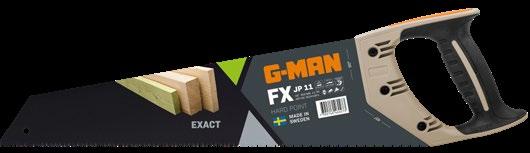

352H EXACT FX

Special saw for fine carpentry and cabinet making. Fine-toothed with 11 razor sharp teeth with 3 cutting edges.

JP 9 JP 11 Art. no 352H18FX

Length 18” - 450 mm

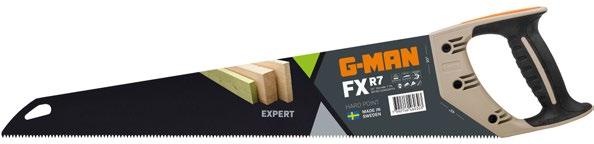

319H EXPERT FX

Available with two types of double-ground toothings. Universal toothing (U7) for both cross-cutting and rip cutting. Ideal as an all-purpose saw. Alternatively with straight toothing (R7) for fast cross-cutting.

R7 R5 R3,5

Art. no 319H22R7FX Length 22” - 550 mm

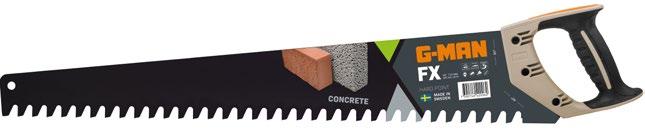

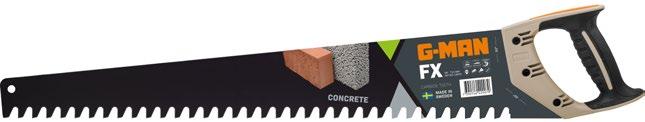

167H CONCRETE

Special saw for cellular blocks and lightweight materials. Coarse, hardpoint teeth. Supplied with our soft grip handle for comfortable and safe grip.

Art. no 167H Length 28” - 710 mm

168TS CONCRETE

Special saw for cellular blocks and lightweight materials. Coarse, sintered carbide hardmetal-tipped teeth. Supplied with our soft grip handle for comfortable and safe grip.

Art. no 168TS

Length 28” - 710 mm

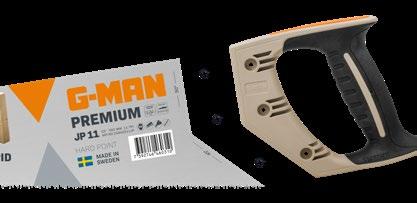

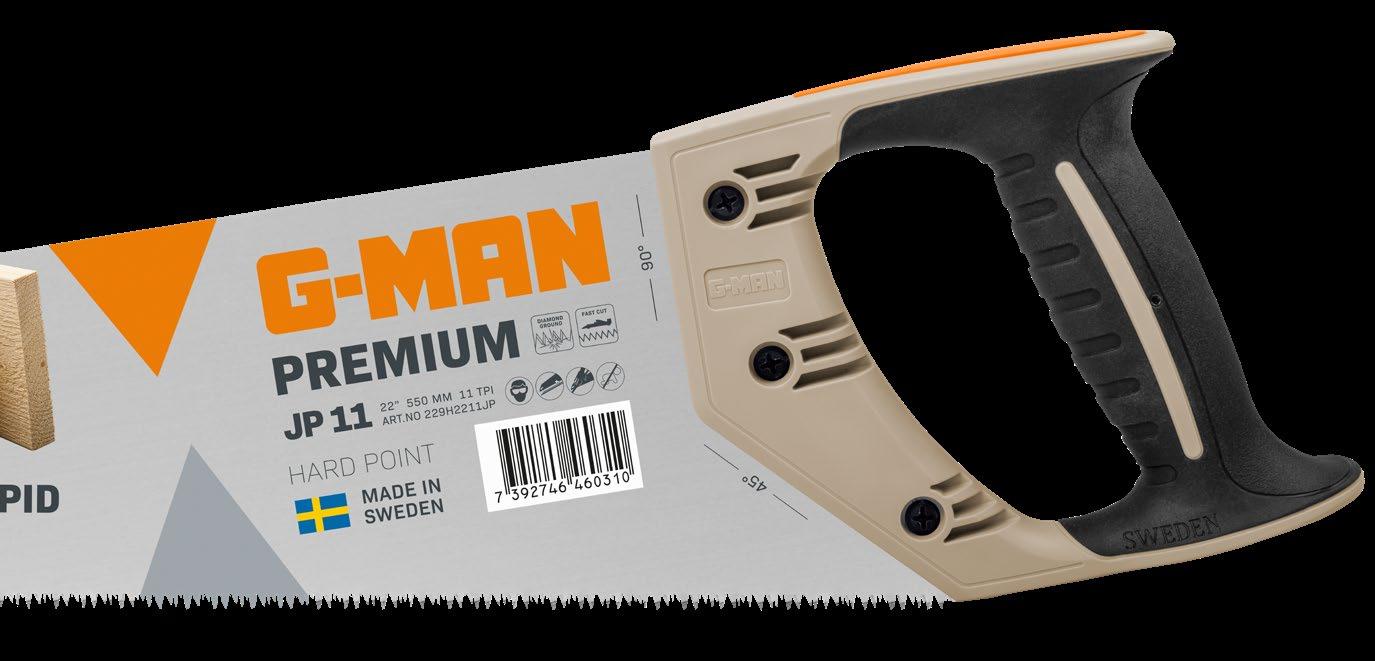

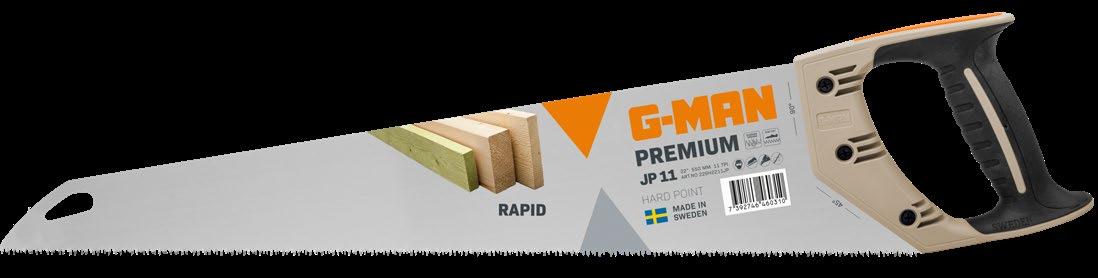

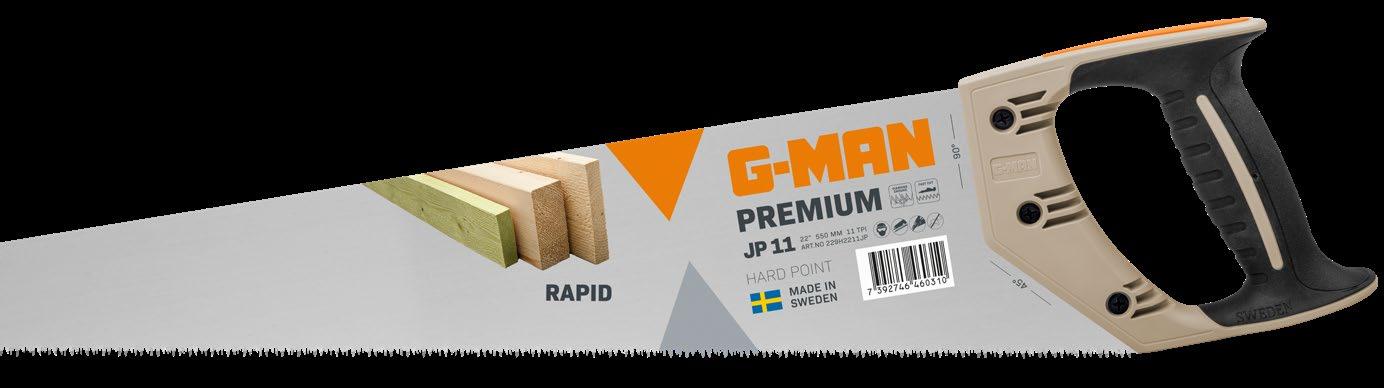

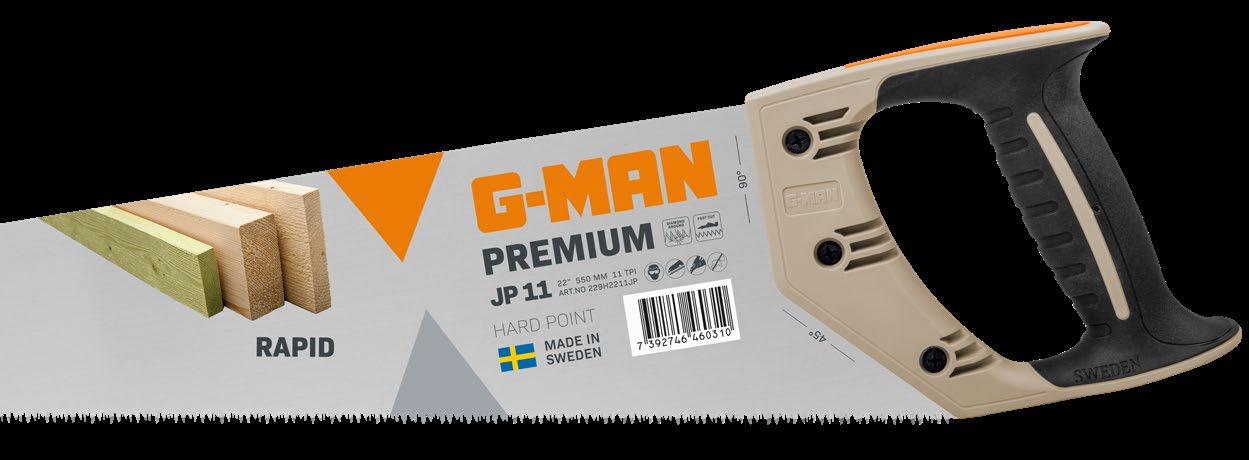

PREMIUM LINE

Our Premium line offers 9 hand saws of an excellent quality. The saws come with our new ergonomic soft grip handle. Three models have a special type of toothing (JP) with 3 cutting edges. In this line of saws you will also find special saws for cutting laminate, PVC and insulation materials.

JP 9 JP 11

Art. no 229H2211JP

Length 22” - 550 mm

GT JP 9 JP 11

Art. no 229H229JP

Length 22” - 550 mm

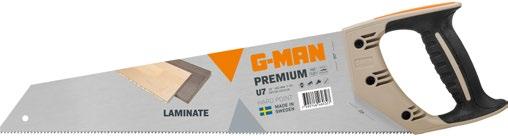

252H LAMINATE

Special saw for cutting wood and laminate floors. With our double ground universal toothing.

Art. no 252H18

Length 18”- 450 mm

222H ALLROUNDER

Art. no 222H22U7

R13 R7 R5 R3,5

Length 22” - 550 mm

Art. no 222H22R7

Length 22” - 550 mm

Art. no 229H2011JP

Length 20” - 500 mm

Art. no 229H209JP

Length 20” - 500 mm

Art. no 229H1611JP

Length 16” - 400 mm

Art. no 229H169JP

Length 16” - 400 mm

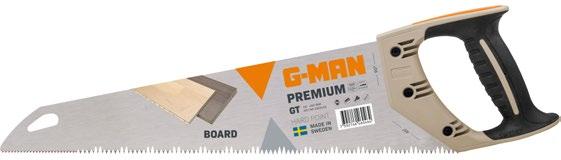

260H BOARD

Specially group-toothed saw, ideal for cutting of chipboard, block board and other hard board materials.

R3,5 GT JP 9 JP 11 Art. no 260H18

Length 18” - 450 mm

Art. no 260H24

Length 24” - 600 mm

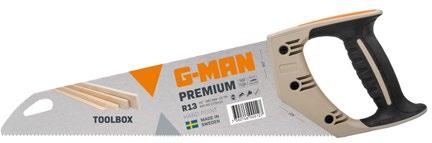

275H TOOLBOX

15 inch, R13 toothing for dry wood, medium cutting. Supplied with a 2-component plastic handle.

Art. no 275H15

Length 15” - 350 mm

152H PLASTIC

Ideal for cutting pvc pipes and other plastic material.

Art. no 152H2011

Length 20” - 500 mm

255H22WA INSULATION

Sawing insulation material, mineral wool. Wave formed edge. Hardpoint finish.

Art. no 255H22WA

Length 22” - 550 mm

158H VENEER

Sawing of plywood, veneer etc. Extra thin and wide blade for accurate cut. Hardpoint blade with curved, toothed front-end. Straight toothing 13 teeth/inch.

Art. no 158H

Length 12 1/2” - 320 mm

153H TENON

Very fine toothing for use in mitre boxes and for other precision jobs. Extra thin and wide blade for an accurate cut. Aluminium alloyed back and our comfortable plastic handle. Straight toothing 13 teeth/inch. Hardpoint finish.

Art. no 153H12

Length 12” - 300 mm

Art. no 153H14

Length 14” - 350 mm

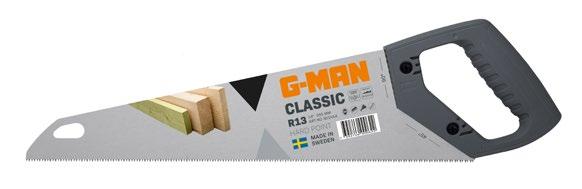

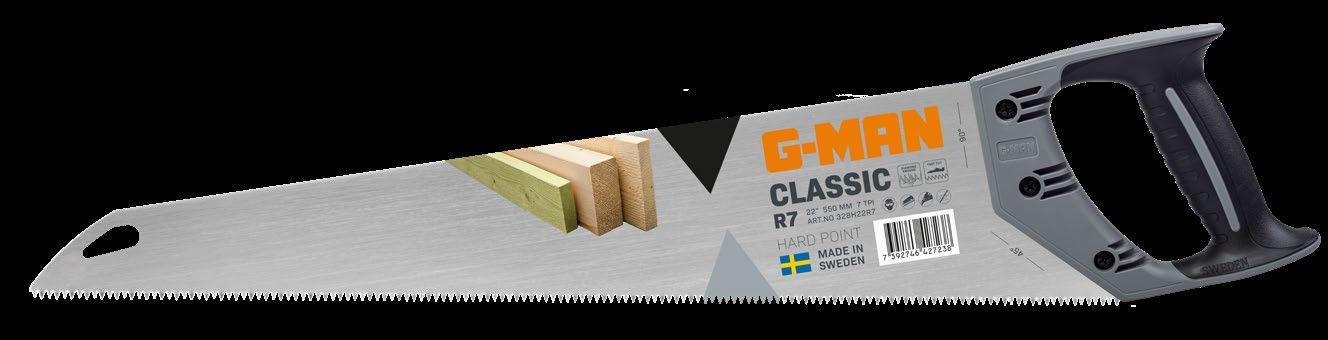

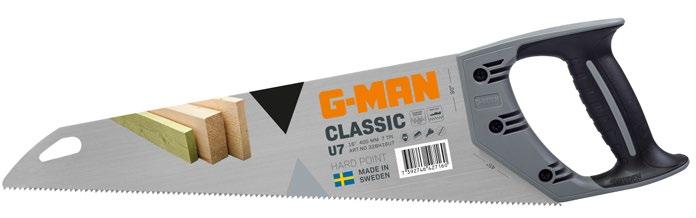

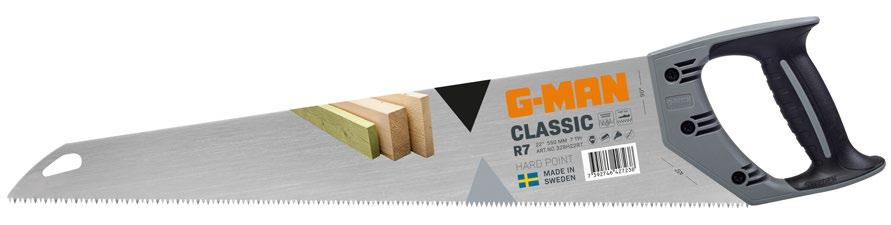

CLASSIC LINE

We also produce an assortment of handsaws for the do-it yourself user and daily carpentry work. A classic, traditional hand saw which we offer in 12 different variations from 16 up to 24 inch length with tooth shapes R7 and U7.

MINI SAW

301H14

A professional mini saw for the toolbox, car or the apartment. With very fine teeth for smooth sawing in number of material. Hard pointed teeth. 13 TPI.

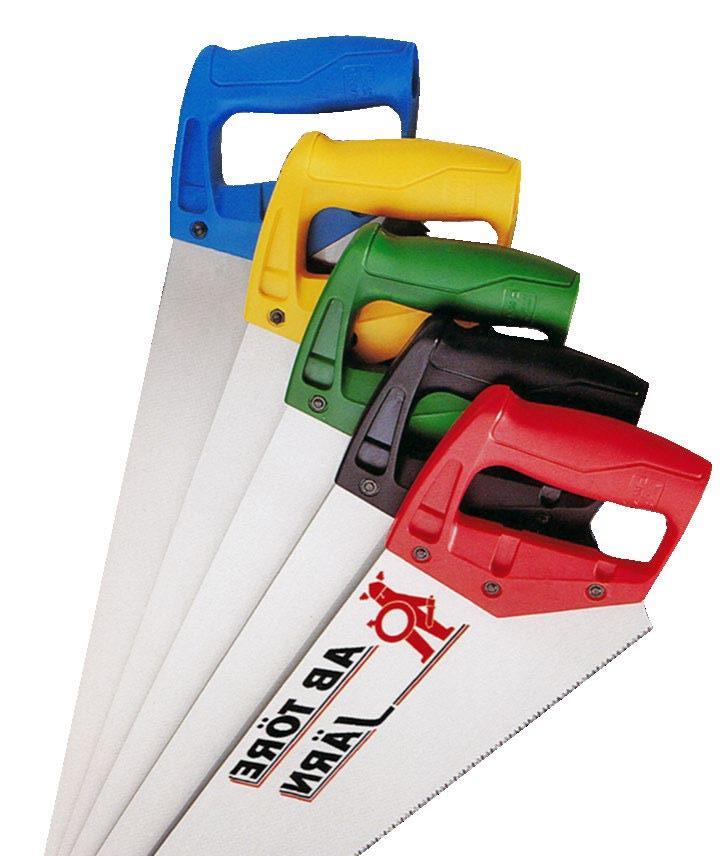

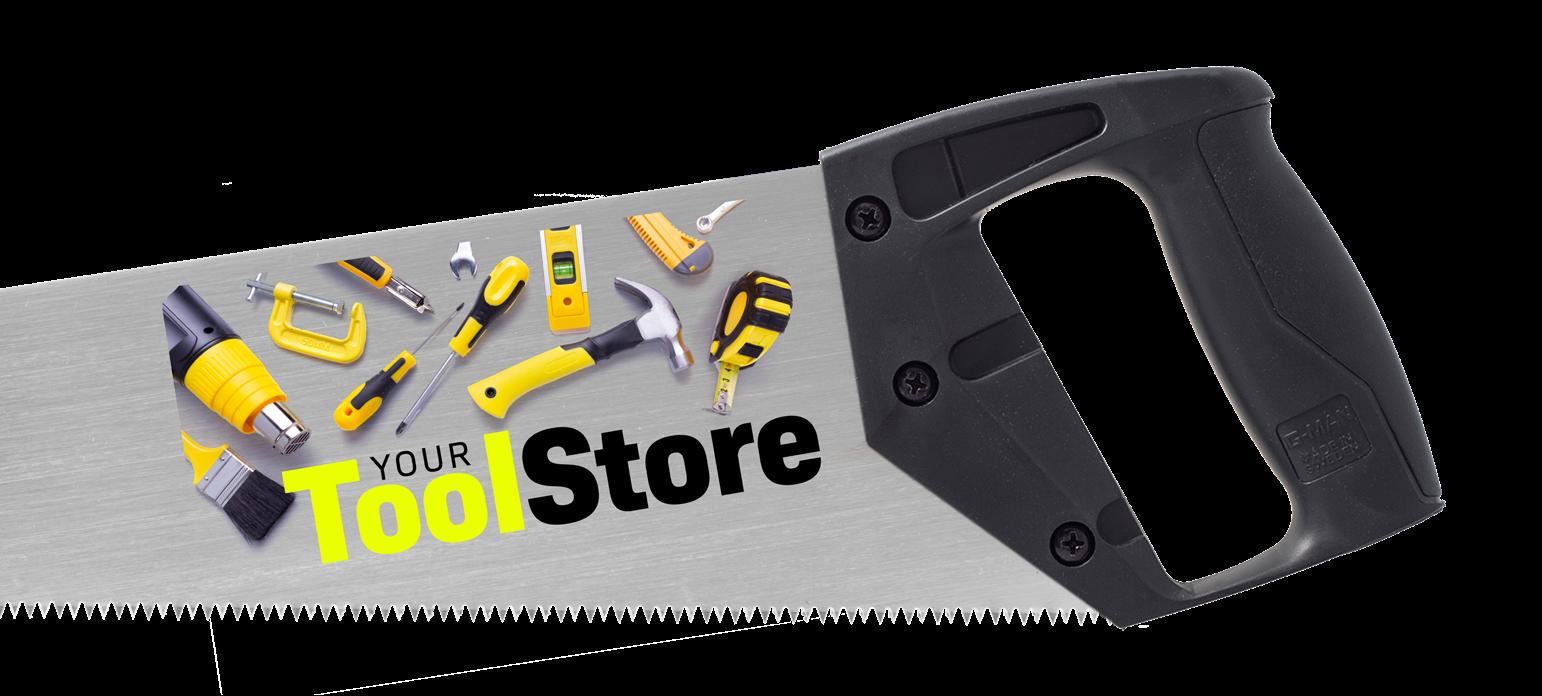

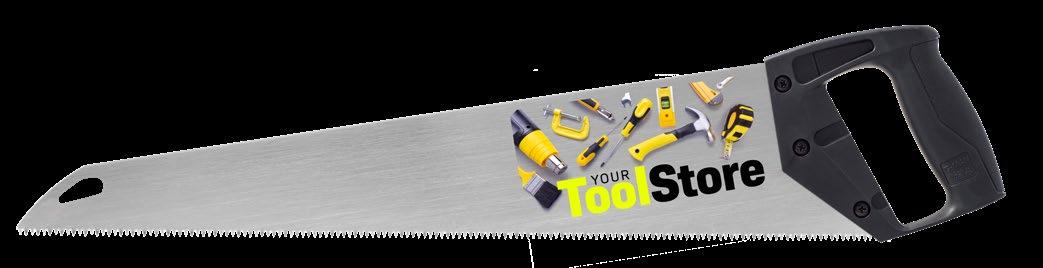

PROMOTE YOUR BRAND ON OUR SAW

328H22U7 Universal

– With your design

Handle colors available, black, blue, red, green and orange.

Printing area 200x70 mm

Supplied in 25-pack Length 22”-550 mm

Printing area 200x70 mm

Handle colors available, black, blue, red, green and orange. Grip handle.

SPECIAL SAWS

An assortment of saws for special applications such as hack saws, pull saws, multi saws and junior hacksaws.

SPECIAL SAWS FOR WOOD

150H COMPASS SAW

For cutting holes, slots, etc. Plastic handle. Extra thick blade for increased stability. Universal toothing 7 teeth/inch. Hardpoint finish.

265 PULL SAW

Cuts on pull stroke. Rubber grip for secure grip. Thickness of blade 0,6 mm. 16 teeth per 30 mm.

Art. no 265

390 PULL SAW

Double-toothed, with one cross-cut toothing with 15 teeth per inch and one progressive toothing for split sawing. Blade thickness 0,50 mm.

Art. no 390 Length 240 mm

245 FOLDABLE INSULATION SAW

Compact and foldable. Wavy serrated edge for cutting insulation, Ergonomic handle with metal core for stability and comfort. The saw blade locks in both recessed and unfolded positions for safe handling.

Art.No 245H10 Length 250 mm

SPECIAL SAWS FOR METAL

12 HACK SAW

A combination saw for both wood and metal. The saw is supplied with our wooden blade no. G10H and with a Bi-metal hack saw blade. The blades can be adjusted at any angle to allow cutting in narrow spaces.

Art. no 12

Length 12” -300 mm

10 HACK SAW

of durable, compact construction. Comfortable handle made of impact resistant ABS-plastic. Blade can be adjusted to 4 different positions at 90° intervals. Assembled with carbon steel blade.

Art. no 10

Length 12” - 300 mm 24 teeth/inch

3000-01GM HACK SAW

Professional hack saw with soft-grip. Supplied with Bi-metal blade 3003-3024.

Art. no 3000-01

Length 12” - 300 mm 24 teeth/inch

3000-10 JUNIOR HACKSAW FRAME

3000-12 JUNIOR HACKSAW FRAME

JUNIOR HACK SAW BLADES CARBON STEEL

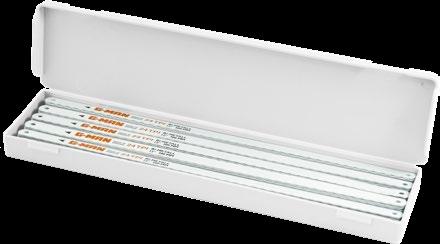

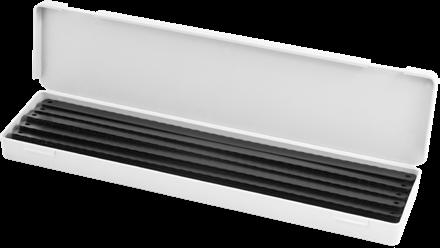

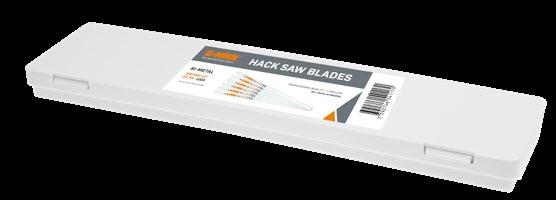

HACKSAW BLADES

We offer our hacksaw blades in two different qualities – carbon steel and bi-metal. Bi-metal blades – blades of this type have a cobalt alloy high speed steel cutting edge welded to a flexible spring steel back. This combination creates a sawblade with exceptional cutting performance and wear resistance.

3040 HACKSAW BLADES

Spare blade of carbon steel quality. Supplied in packages of 2 or 100 blades.

3003 HACKSAW BLADES

Spare blades of bi-metal. Supplied in packages of 2 or 100 blades.

3003-3018GM

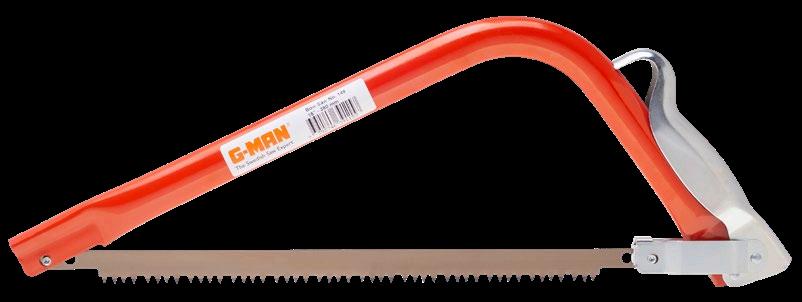

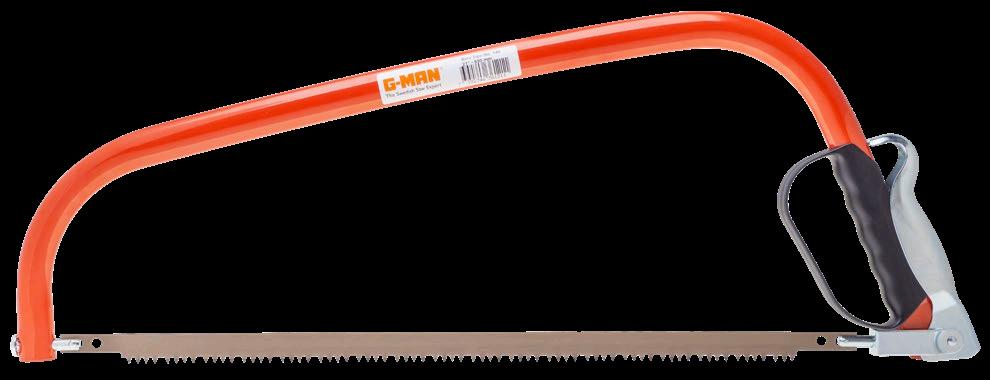

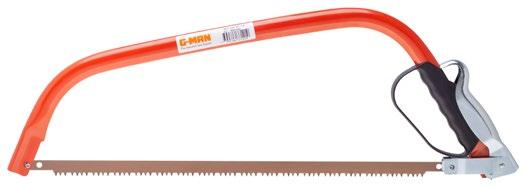

BOW SAWS & BLADES

The bow saw frames are made from high tensile steel tubing, stove enamelled in orange colour, with zinc-plated tension levers. They are also fitted with saftey rivets that do not fall out when changing the blade. Assembled with re-useable plastic blade guards.

The saw blades for wood are available with 5 different tooth shapes. Most of the blades are produced in hardpoint finish, rust protected and individually packed in attractive carton sleeves.

G-MAN bow saws are available in sizes and variations for all needs. From the small mini saw 149 for garden and camping use to the large model 140, suitable for carpentry work on building sites and for firewood cutting.

Most of our bow saws can also be obtained with a plastic knuckle guard for comfortable and safe grip.

The saw blades for wood are available with 5 different tooth shapes.

Most of the blades are produced in hardpoint finish and are rust protected

Standard range of saw blades (H = Hardpoint finish)

G5H Extra fine, special setting, straight-tooth form for pruning and seasoned wood.

G10H Fine, straight-tooth form for pruning and seas oned wood.

G40H Coarse, straight-tooth form for seasoned wood.

G30SH Fine raker toothing for fresh/green wood.

G30BH Coarse raker toothing for fresh/green wood.

G5021 Meat saw blade.

G6024 Metal saw blade, extra fine toothing 24 teeth/inch for cutting of thin and soft metal.

145

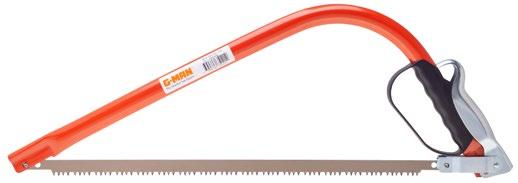

Light-weight model with low front end, which makes it ideal for camping and garden pruning. Comes with our blade G10H as standard. Assembled with knuckle guard.

Art. no 145-21

Length 21” - 530 mm

147

All-purpose bow saw. Light-weight model with high front end. Comes with our blade G10H as standard. Assembled with knuckle guard.

Art. no 147-18

Length 18” - 450 mm

Art. no 147-21

Length 21” - 530 mm

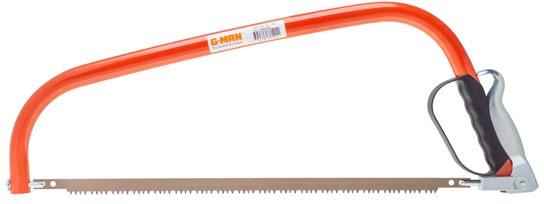

140

Light-weight model with tapered frame. Suitable for carpentry work on building sites, clearing jobs and for firewood cutting. As standard supplied with blade G10H in 24 and 30 inch saws and with blade G40H for the 36 inch saws. Assembled with knuckle guard for all lengths except for 36”.

Art. no 140-24

Length 24” - 610 mm

146 GARDEN SAW

Art. no 140-30 Length 30” - 760 mm

Specially designed for tree pruning. Assembled with our G10H blade as standard. Blade can be adjusted at any angle to allow cutting close to the trunk.

Art. no 146-21

Length 21” -530 mm

149 MINI BOW SAW

Can handle most odd jobs, but also normal garden and camping use. Supplied with our blade G10H as standard.

Art. no 149-15

Length 15” - 380 mm

148 MEAT SAW

in chrome plated finish. For both fresh and deepfrozen meat. Supplied with meat saw blade and knuckle guard.

Art. no 148-21

Length 21” - 530 mm

Art. no 140-36 Length 36” - 915 mm

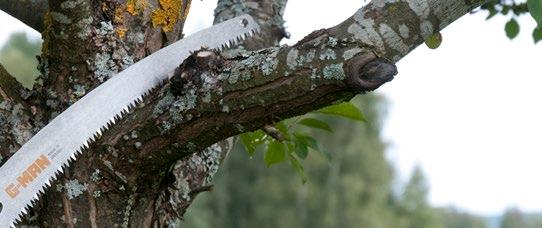

TREE PRUNING

Tree pruning is an art that requires knowledge, precision, and the right tools to achieve a good result. Pruning trees and bushes is an important part of garden maintenance and contributes to the plants’ health and growth.

Properly executed tree pruning enhances both air circulation and light penetration, which in turn leads to a healthier plant with more abundant flowering and fruit yield.

CHOOSING THE RIGHT TOOLS AND SPECIALIZED SAWS

Effective tree pruning begins with the right tools. From hand-held pruners to specialized saws for working high up in the trees, your choice of tools makes a big difference. When it comes to tree pruning, specialized saws, where precision and caution are crucial to avoid damaging the bark, are also an important part of speeding up the tree’s recovery. Each tool has its specific use, from fine-tuning small branches to removing thick branches.

Unlike traditional hand saws, curved saws have an ergonomic advantage, allowing the user to reach and maintain a comfortable working position under the tree while performing the work. 6 TPI 7 TPI 9 TPI

For tree pruning with a saw, there are curved saws and saws with different sizes of teeth designed to efficiently cut through either fresh branches or dry twigs. A good guideline is to choose small teeth for small branches and large teeth for large branches. Smaller and finer teeth are suitable for thinner branches when you want to ensure a clean and precise cut. This, in turn, facilitates the healing process.

G-MAN Tools offers a wide range of specialized saws adapted for different types of pruning work, from densely grown hedges to high tree branches.

MAKING THE RIGHT CUT

Making the right cut is crucial to avoid damaging your trees and shrubs. Every cut on a tree is like an open wound that needs to heal. Incorrect cuts can lead to diseases and damage that, in the worst case, can kill the tree. When removing a branch, it is important to make the cut close to the stem’s bark ridge, where the plant’s protective mechanisms are most effective. This prevents infections and speeds up healing. Additionally, it is important not to leave any stubs as they can be entry points for diseases.

Topping involving removing the upper parts of the tree crown, should be avoided as it can seriously damage the tree and lead to weak growth.

SUSTAINABILITY AND ENVIRONMENT

Sustainable tree pruning includes not only the choice of manual tools instead of motorized options to reduce environmental impact but also ensuring that each tree pruning is carried out gently. Manual saws provide precision and reduce the risk of damage to the tree compared to a motorized saw that can cut too fast and make ugly cuts. When choosing a saw, you need to consider that a saw with sharp teeth is not always the best choice but choose teeth based on the size of the branch to be pruned. Small branches, small teeth, and large branches, large teeth.

G-MAN Tools saws are ”made in Sweden” with their design and teeth that are tip-hardened to increase the durability and lifespan of the tool.

SOME TIPS FOR TREE PRUNING

Make sure not to save more than one leader shoot to get a finer tree crown

Save the branches that grow outwards and remove those that grow inwards to get an airier tree crown.

Don’t let the branches fight for space; remove those that grow in the same direction or that chafe and sit too close to each other.

The strongest branches are usually those that grow out from the trunk. Those that grow towards the trunk should be removed.

Remove dead and dry branches or if you see branches that appear sick or damaged.

CLEANING AND MAINTENANCE OF THE SAW BLADE

To ensure that your saw lasts for many years, you can follow these tips:

• Wash the saw blade with warm water

• Make sure to dry it thoroughly

Moisture and rain increase the risk of fungal attacks, so tree pruning is best done on a sunny and fine day.

• Rub a little oil on the saw blade with a cloth

• Store the saw in a dry place

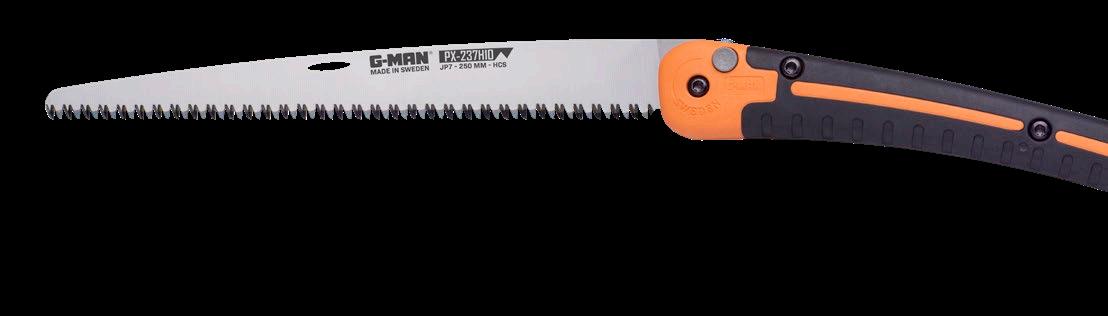

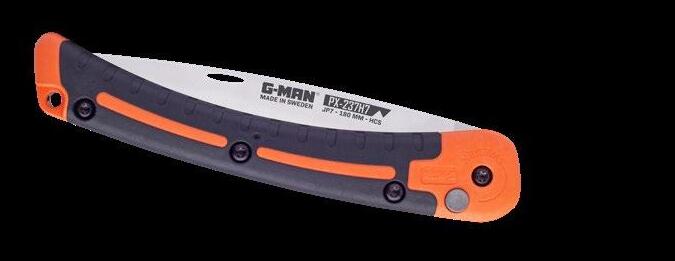

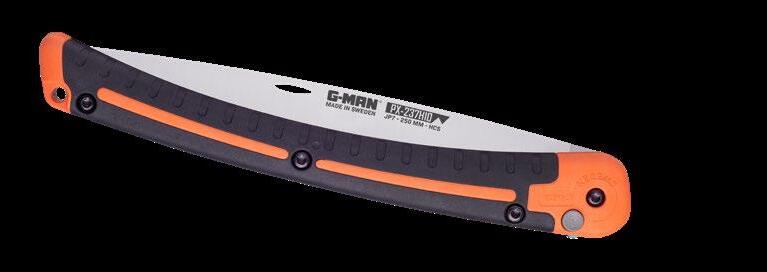

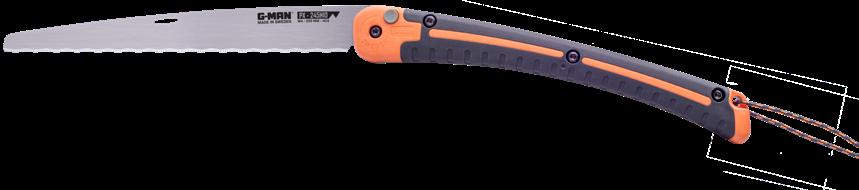

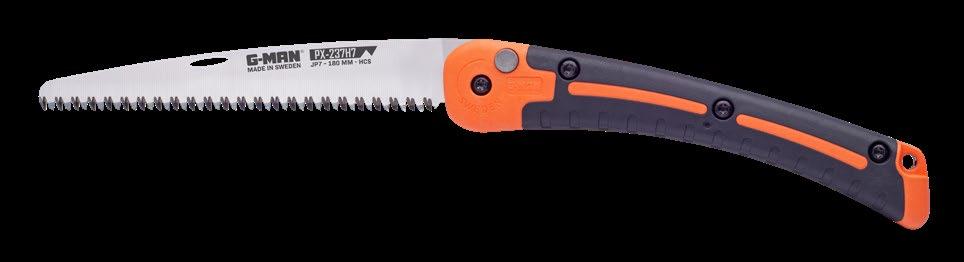

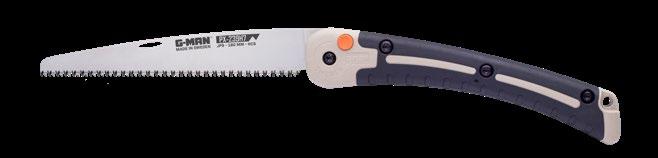

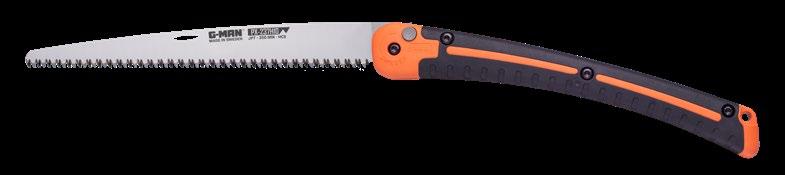

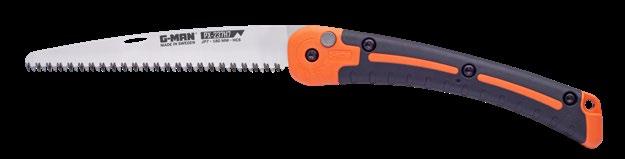

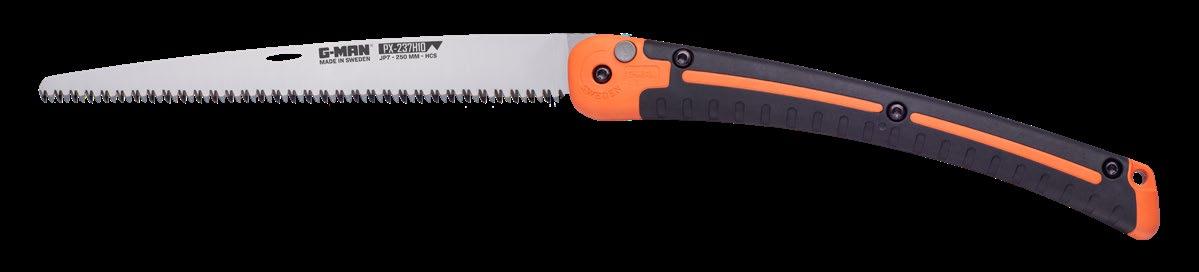

PX LINE PRUNING SAWS

A traditional folding saw designed for frequent and heavy use. It’s ideal for those who require a sturdy yet compact tool for pruning and gardening. The handle has an ergonomic soft grip and a metal core which makes it rigid and reliable. The blade locks in both the unfolded and folded position making it safe both while sawing and during transportation.

The handle is made from nearly 100% bio-based materials (wood fibers and bio-based plastic), and by using the bio-composites we have reduced our carbon footprint with 65%. The wood fibers in the bio-composite material are sourced from certified, sustainable forestry, and the material is designed for easy to recycling.

180°

PX LINE comes with three different tooth pitches (Teeth per inch) 6 TPI, 7 TPI and 9 TPI. You can also choose between two different blade lengths 180 mm and 250 mm. All working on pull-stroke. The taper ground blade reduces friction increasing cutting efficiency and providing a very smooth cut to help protect the cut surface from infection by pathogens.

ART. NO 236H7

Total length: 400 mm

Blade length: 180 mm

Weight: 225 gram HARDP

ART. NO 236H10

Total length: 540 mm

Blade length: 250 mm

Weight: 295 gram

ART. NO 237H7

Total length: 400 mm

Blade length: 180 mm

Weight: 225 gram

HARDP OINT

ART. NO 237H10

Total length: 540 mm

Blade length: 250 mm

Weight: 295 gram

ART. NO 239H7

Total length: 400 mm

Blade length: 180 mm

Weight: 225 gram

ART. NO 239H10

Total length: 540 mm

Blade length: 250 mm

Weight: 295 gram HARDP

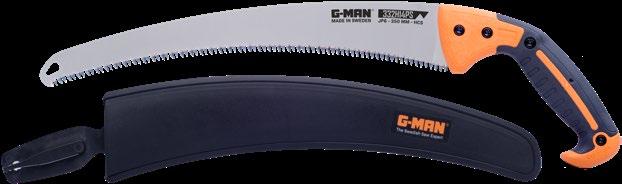

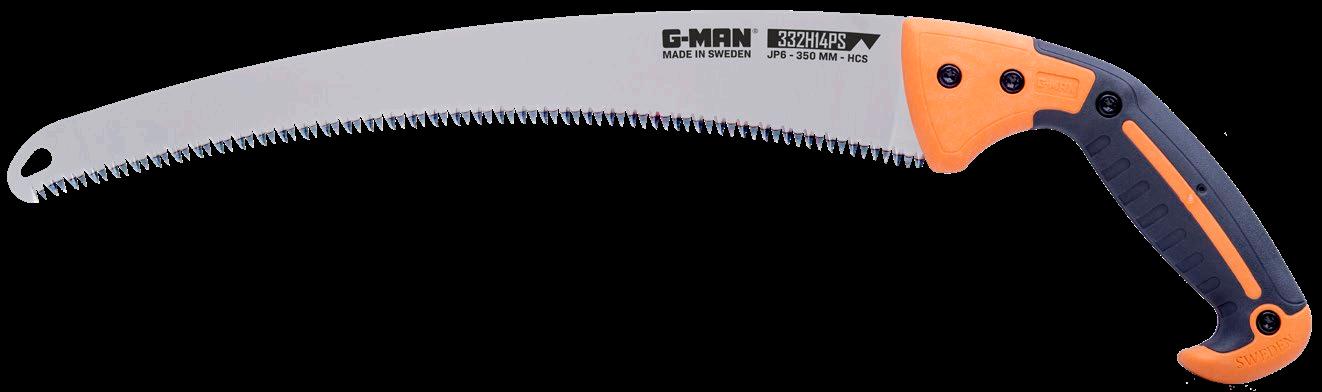

CURVED PROFESSIONAL PRUNING SAW

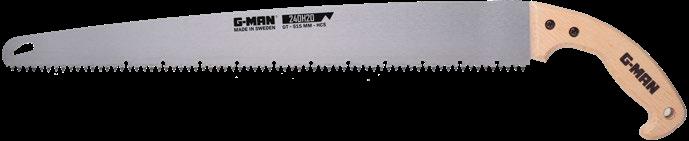

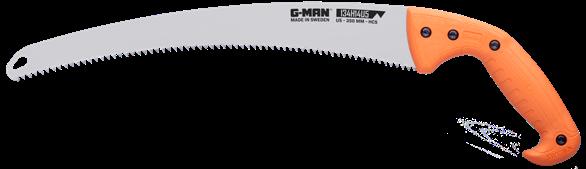

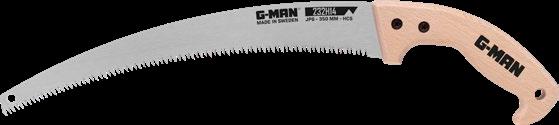

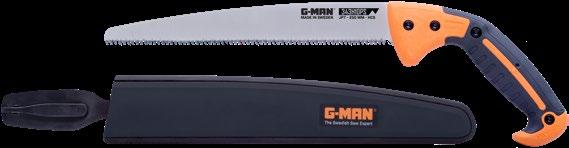

232H PS PRUNING SAW

Professional curved pruning saw with extremely sharp 3-edge toothing. Supplied with our 2-component handle (-P) combined with a holster (-S). 6 teeth per inch.

Art. no 232H14PS Length 14” – 350 mm

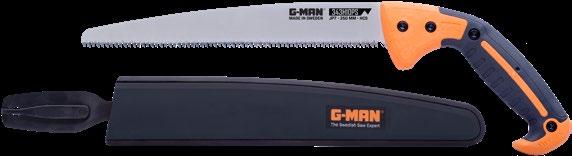

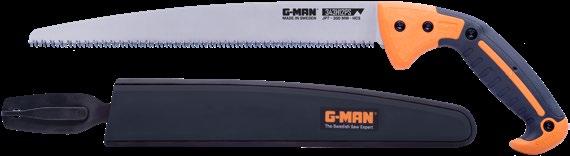

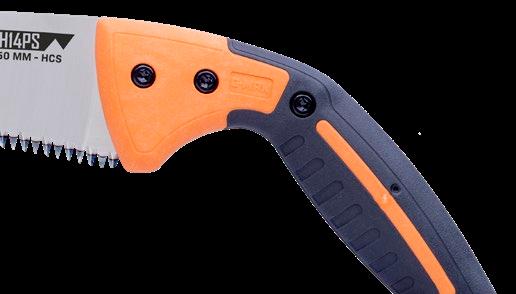

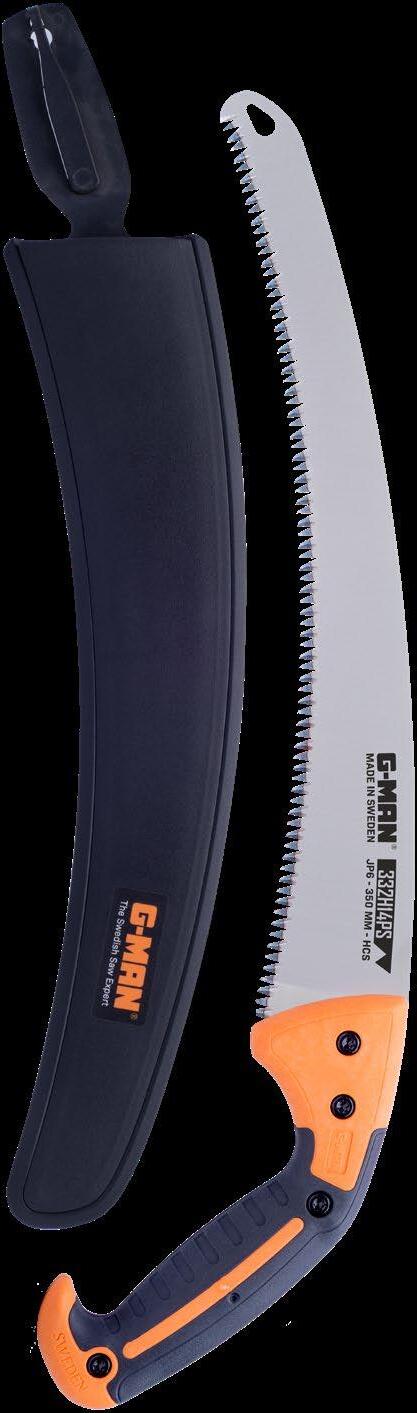

343H PS PRUNING SAW

A specially developed pruning saw with a 2-component handle. The blade has hollow ground finish which ejects saw dust and reduces friction during sawing. The 3-edge teeth are precision ground all the way from the top (tip) down to the bottom (gullet). The rounded narrow nose, makes it easy to reach into tight spaces, without damaging the bark. Supplied in hard point finish. 7 teeth per inch.

344H PS PRUNING SAW

A specially developed pruning saw. The concave blade in combination with a extra fine 3 edge-toothing offers a superb cutting performance. Supplied with holster, hardened 9 teeth per inch.

134H CLASSIC CURVED PRUNING SAW

A traditional curved saw designed for pruning. Supplied with an ergonomic plastic handle. The course 5 teeth per inch offers fast and effective cutting. The added distance between the teeth makes room for the saw dust to be removed from the kerf. This problem often occurs on similar, smaller toothed models. Art. no

Length 14” - 350 mm

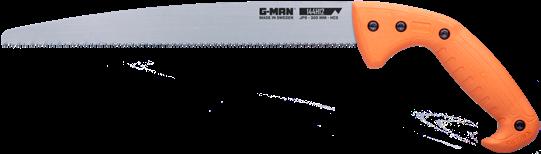

144H CLASSIC PRUNING SAW

A traditional saw designed for pruning. Supplied with an ergonomic plastic handle. The fine 9 teeth per inch offers fast and clean cutting. Excellent for cutting smaller branches and dry wood.

Art. no 144H12

Art.

Art. no 343H10PS Length 10” - 250 mm

Art. no 343H12PS Length 12” - 300 mm

332H CURVED PROFESSIONAL PRUNING SAW

A professional saw for tree pruning. Concave ground blade for reduced friction and smooth cut surface. The handle is made of beech wood. Comes with our 3-phase toothing for fast and clean cuts.

232H PRUNING SAW

A pruning saw with curved blade. Comfortable and strong beech-wood handle. Comes with a 3-edge toothing offering a superb cutting performance and a very smooth cut.

143H PRUNING SAW

A straight pruning saw with a 3-edge toothed blade, hollow ground finish and comfortable strong beachwood handle. Hardpoint finish.

240H BRUTUS

Extra long pruning saw for course and fast cutting. Straight toothing cuts in both directions, extra gaps for clearing the saw dust. Hard-point finish.

233H U PRUNING SAW

A pruning saw with curved blade and a comfortable umbrella handle. Comes with a newly designed 3-edge toothing offering a superb cutting performance and a very smooth cut.

143H U PRUNING SAW

A straight pruning saw with a 3-edge toothed blade, hollow ground finish. Delivered with comfortable umbrella handle. Hardpoint finish.

12” - 300 mm

EXTENSION

POLE

2-piece soft grip handle for comfortable grip. The lowweight facilitates handling and reduces risk for work injuries.

Fits our models with tubular handle: – 333H – 233H – 350LH – 470LH – 485LH

EXTENSION POLE

Art. no 400 EX

Extension pole with a locking device. Oval tube in aluminium extendable from 2 meters up to 4 meters.

Art. no 550 EX

Extension pole with a locking device. Oval tube in aluminium extendable from 2 meters up to 5,5 meters.

333H CURVED PROFESSIONAL PRUNING SAW

A professional saw for tree pruning. Concave ground blade for reduced friction and smooth cut surface. Tube handles that can be mounted on extension shafts. Comes with a 3-edge toothing for fast and clean cuts.

Art. no 333H14 Length 14” - 350 mm

233H PRUNING SAW

A pruning saw with curved blade and tubular handle. Comes with a newly designed 3-edge toothing offering a superb cutting performance and a very smooth cut. Can be hand-held or mounted onto an extension pole.

TPI

Art. no 233H14 Length 14” - 350 mm

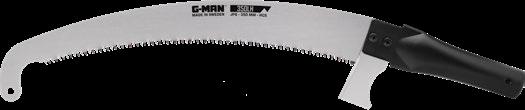

350LH G-MAN SAMURAI

Professional model with specially ground teeth which gives a superb cutting performance and a very smooth cut. The blade has impulse hardened teeth. Hook at front end prevents the blade from sliding out of the kerf. The handle is also provided with a push knife to clear small branches or to make a sharp cut in the bark.

Art. no 350LH Length 14” - 350 mm

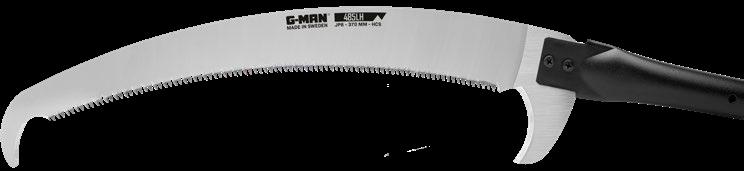

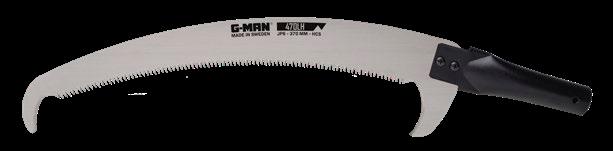

470LH VIKING

Professional pole saw with 1,5 mm thick blade for firm and accurate cutting. The saw comes with a sharp hook in the front and a sharp push knife at the back. That can be used for clearing small branches. Hard pointed teeth.

6

TPI

485LH

RANGER

A professional saw for tree pruning with an extra thick blade. The saw blade has a sharpened hook and knife that is used to push off smaller branches. Concave ground blade for reduced friction and smooth cutting surface. Tube handle that can be mounted on extension shaft. Comes with our 3-edge toothing for fast and clean cuts. 6 TPI

Art. no 470LH Length 14, 5” - 370 mm Art. no 485LH 14, 5” - 370 mm

GUIDE FOR RECIPROCATING BLADES

Use our guide to choose the right reciprocating blade:

RECIPROCATING BLADES

The range of reciprocating saw blades has been continually extended ever since production commenced in 1988. More than fifty different types are currently available and are divided into three basic categories.

Bi-metal blades

Blades of this type have a cobalt alloy high speed steel cutting edge welded to a flexible spring steel back. This combination creates a sawblade with exceptional cutting performance and wear resistance. The range includes blades for various applications such as metal, wood and heavy-duty demolition work.

Tungsten carbide blades

Suitable for cutting hardwearing materials such as cast iron, building brick, Plexiglas and similar materials.

Carbon steel blades

Used for the easy and accurate sawing of plain wood. Blades made from stainless steel are also available for use with meats.

Article No.

1010-1024

1010-1514

1010-1518

1010-1524

1010-1590

1010-2010

1010-2014

1010-2018

1010-2024

1010-2090

1010-2514

1010-2518

1010-3014

1010-3018

1011-2377

1011-1586

1011-2086

1013-1585

1013-1590

1013-2085

1013-2090

1013-2585

1013-3085

1013-3090

1014-3006

1014-4306

1015-2285

1015-2210

1015-3085

1015-3010

1016-1588

1016-2088

1016-3088

1020-2090

1020-2390

1023-3006

1031-2086

1034-2006

1034-2506

1034-3006

1035-2490

1041-3003

1043-4003

1045-2000

1045-3000

1051-2050

1051-3050

1052-1586

1052-2386

1052-3086

1053-2302

1053-3002

1053-4002

1054-4502

1055-1218

1055-1518

1055-1508

1055-2308

1055-3008

1057-1508

1057-2308

1011-2378

100x19x0,9 mm

150x19x0,9 mm

200x19x0,9 mm

250x19x1,3 mm

250x19x0,9 mm

300x19x0,9 mm

230x25x1,1 mm

150x19x1,3 mm

200x19x1,3 mm

150x19x1,3 mm

200x19x1,3 mm

250x19x1,3 mm

300x19x1,3 mm

300x32x1,6 mm

430x32x1,6 mm

225x22x1,6 mm

300x22x1,6 mm

150x19x1,3 mm

200x19x1,3 mm

300x19x1,3 mm

200x19x0,9 mm

300x60x1,2 mm

200x19x1,3 mm

240x34x1,5 mm

250x34x1,5 mm

300x34x1,5 mm

240x19x1,5 mm

300x25x1,3 mm

400x25x1,3 mm

200x19x1,27 mm

300x19x1,27 mm

200x19x1,1 mm

300x19x1,1 mm

152x25x1,25 mm

228x25x1,25 mm

305x25x1,25 mm

235x20x1,2 mm

300x20x1,2 mm

400x20x1,2 mm

450x50x1,5 mm

116x17x1 mm

151x18x1 mm

150x25x1,25 mm

225x25x1,25 mm

300x25x1,25 mm

150x20x1,35 mm

225x20x1,35 mm

230x25x1,25 mm

Tooth Profile

Fine toothed Course toothed Fine toothed Fine toothed

Progressive toothed Course toothed Course toothed Fine toothed Fine toothed

Progressive toothed Course toothed Fine toothed Course toothed Fine toothed

Progressive 2+2 toothing

Progressive toothed

Progressive toothed Progressive toothed Progressive toothed Progressive toothed

Progressive toothed Course toothed Course toothed

Progressive toothed Course toothed

Progressive toothed Progressive toothed

Progressive toothed

Progressive toothed Progressive toothed 3-edge

Progressive grinded toothed Conical ground

Conical ground

Conical ground Course toothed Fine toothed Fin

Wave toothed Wave toothed

Grit

Hardmetal progressive toothed Hardmetal progressive toothed Hardmetal progressive toothed Course toothed Course toothed Course toothed Course toothed Fine toothed Fine toothed

Hardmetal medium toothed

Progressive 2+2 toothing

Tooth material

CARBIDE TEETH

BIM

1,5-4 mm

2-8 mm

1,5-4 mm

2-4 mm

3-100 mm 3-12 mm

2-8 mm

1,5-4 mm

2-4 mm

3-150 mm

2-8 mm

1,5-4 mm

2-8 mm

1,5-4 mm 1,5-4 mm 1-100 mm 4-150 mm

mm 3-100 mm 4-150 mm 3-150 mm 4-200 mm 4-250 mm 3-250 mm

mm 3-250 mm 3-100 mm 3-150 mm 3-250 mm 3-150 mm

3-170 mm

25-300 mm 10-150 mm

25-150 mm

25-200 mm

25-300 mm

25-200 mm

35-250 mm

35-350 mm

3-150 mm

3-250 mm

2-150 mm

2-250 mm

6-100 mm

6-170 mm

6-250 mm

30-170 mm

30-250 mm

30-350 mm

30-400 mm

2-4 mm

2-4 mm 4-100 mm 4-170 mm

RECIPROCATING

BLADES BI-METAL

Thin wall pipes and sheet metals 2–4 mm thick. 24 teeth/inch. Tooth pitch 1,1 mm. 5-pack/50-pack.

Art. no

Dimension

Overall length x width x thickness

1010-1024GM 100 x 19 x 0,9 mm

1010-1524GM 150 x 19 x 0,9 mm

1010-2024GM 200 x 19 x 0,9 mm

Metals; pipes and solid materials 4–8 mm thick. Also suitable for stainless steel and nail-embedded wood. 14 teeth/inch. Tooth pitch 1,8 mm.

5-pack/50-pack.

Metals; pipes and solid materials 3–6 mm thick. 18 teeth/inch. Tooth pitch 1,4 mm. 5-pack/50-pack.

Art. no

Dimension Overall length x width x thickness

1010-1514GM 150 x 19 x 0,9

1010-2014GM 200 x 19 x 0,9

1010-2514GM 250 x 19 x 0,9

1010-3014GM

Art. no

x 19 x 0,9

Dimension Overall length x width x thickness

1010-1518GM 150 x 19 x 0,9

1010-2018GM

1010-2518GM

1010-3018GM

Metals; pipes and solid materials 5–10 mm thick. Nail-embedded wood. 10/14 teeth/inch. Tooth pitch 1,8/2,5 mm. 5-pack/50-pack.

Art. no

x 19 x 0,9

Dimension

Overall length x width x thickness

1010-1590GM 150 x 19 x 0,9

1010-2090GM 200 x 19 x 0,9

Art. no

Dimension

Overall length x width x thickness

1010-2010GM 200 x 19 x 0,9

Metals; pipes and solid materials thicker than 6 mm. Nail-embedded wood. 10 teeth/inch. Tooth pitch 2,5 mm. 5-pack/50-pack.

Wood and metal. Progressive toothing. 8-14 teeth/inch. Tooth pitch 1,8/3,2 mm. 6-12 teeth/inch. Tooth pitch 2,1/4,3 mm. 5-pack/50-pack.

1011-1586GM

Metals; pipes and solid materials 5–10 mm thick.

Nail-embedded wood. Cast iron pipes. 10/14 teeth/inch. Tooth pitch 1,8/2,5 mm. 5-pack/50-pack.

1013-1585GM

x 19 x 1,3

1013-2585GM

1013-3085GM

Wood and plastics. Fast cutting. 5/8 teeth/inch. Tooth pitch 3,2/5,1 mm. 5-pack/50-pack. Art. no

Heavy metals; pipes and solid materials. Perpendicular/fine cutting. Max Ø 175 mm. 14/18 teeth/inch. Tooth pitch 1,8/1,4 mm. 8-10 teeth/inch. Tooth pitch 3,2/2,5 mm. 5-pack/50-pack.

x 19 x 1,3

Lightweight concrete.Demolition work. Nail-embedded wood. 6 teeth/inch. Tooth pitch 4,2 mm. 1-pack.

1011-2377GM

x 19 x 1,3

RECIPROCATING BLADES BI-METAL

Demolition work. Nail-embedded wood. Fast cutting. 6 teeth/inch. Tooth pitch 4,2 mm. 5-pack/50-pack.

Art. no

1015-2285GM

1015-3085GM

length x width x thickness

x 22 x 1,6

Demolition work. Nail-embedded wood. Straight cuts in metals; pipes and solid materials thicker than 6 mm. 10 teeth/inch. Tooth pitch 2,5 mm. 5-pack/50-pack.

Art. no

1015-2210GM

1015-3010GM

x 22 x 1,6

Straight and efficient cutting in nail-embedded wood and metals; pipes and solid materials thicker than 6 mm. 8/12 teeth/inch. Tooth pitch 2,1/3,2 mm. 5-pack/50-pack.

Art. no

1016-1588GM 150 x 19 x 1,3

1016-2088GM

x 19 x 1,3

1016-3088GM 300 x 19 x 1,3

Renovation of wooden pallets etc. Nail-embedded wood. 10/14 teeth/inch. Tooth pitch 1,8/2,5mm. 50-pack.

Art. no

length x width x thickness

1020-2090GM 200 x 19 x 0,9

1020-2390GM 230 x 19 x 0,9

Rubber, cellular plastic, leather. 2-pack.

Art. no

1045-2000GM

x width x thickness

x 19 x 1,3

1045-3000GM 300 x 19 x 1,3

RECIPROCATING BLADES CARBON STEEL

Wood. Very fast and clean cutting. 6-10 teeth/inch. Tooth pitch 2,5-4,2 mm. Progressive toothing. 5-pack/50-pack.

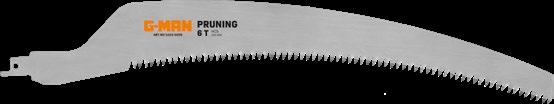

Wood. Very fast cutting. Pruning and cutting in damp wood and trees. 6 teeth/inch. Tooth pitch 4,2 mm. 2-pack.

Art. no

Overall length x width x thickness

1031-2086GM 200 x 19 x 1,3

Art. no

1034-2006GM

1034-2506GM

Wood. Fast cutting. Pruning and cutting in damp wood and trees. 4/5 teeth/inch. Tooth pitch 5,0/6,5 mm. 5-pack/50-pack.

Wood, very fast cutting. Pruning and cutting in damp wood and fresh trees. 6 teeth/inch. Tooth pitch 4,2 mm. 2-pack.

Art. no

1035-2490GM

Art. no

Meat cutting (stainless steel quality blade). 4 teeth/inch. Tooth pitch 6,5 mm. 1-pack.

Art. no

1041-3004GM

1043-4003GM

RECIPROCATING BLADES TUNGSTEN CARBIDE

Art. no

length x width x thickness

1051-2050GM 200 x 19 x 1,1

1051-3050GM 300 x 19 x 1,1

Art. no

length x width x thickness

1055-1218GM 116 x 17 x 1

1055-1518GM 151 x 19 x 1

Art. no

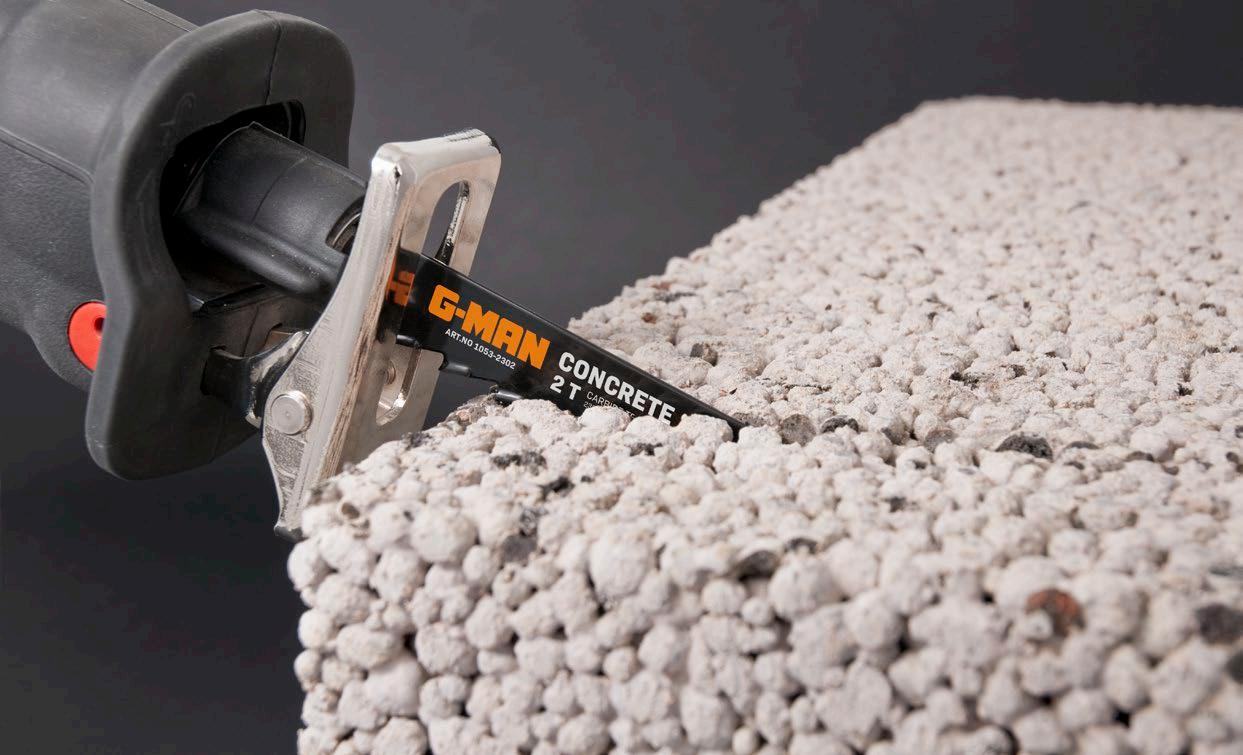

Bricks, lightweight concrete, LECA bricks. 2 teeth/inch. Tooth pitch 12,7 mm. 1-pack.

length x width x thickness

1053-2302GM 235 x 20 x 1,2

1053-3002GM 300 x 20 x 1,2

1053-4002GM 400 x 20 x 1,2

Cast iron, tiles, ceramics. Tungsten Grit. 5-pack/50-pack. Art. no

Bricks, lightweight concrete, LECA bricks. 2 teeth/inch. Tooth pitch 12,7mm. 1-pack.

length x width x thickness

1054-4502GM 450 x 50 x 1,4

Stainless steel. 18 teeth/inch. 1-pack.

Art. no

Wood and metal. 6-8 teeth/inch. 1-pack.

Dimension

Overall length x width x thickness

1052-1586GM 152x25x1,25

1052-2386GM 228x25x1,25

1052-3086GM 305x25x1,25

Metals, incl. high alloy steel and cast iron. 8 teeth/inch. 1-pack.

Vehicle Rescue. High and ultra high alloy steel. 8 teeth/inch. 1-pack.

Art. no

Dimension

Overall length x width x thickness

1055-1508GM 150 x 25 x 1,25

1055-2308GM 230 x 25 x 1,25

1055-3008GM 300 x 25 x 1,25

Art. no

Dimension

Overall length x width x thickness

1057-1508GM 150 x 20 x 1,35

1057-2308GM 230 x 20 x 1,35

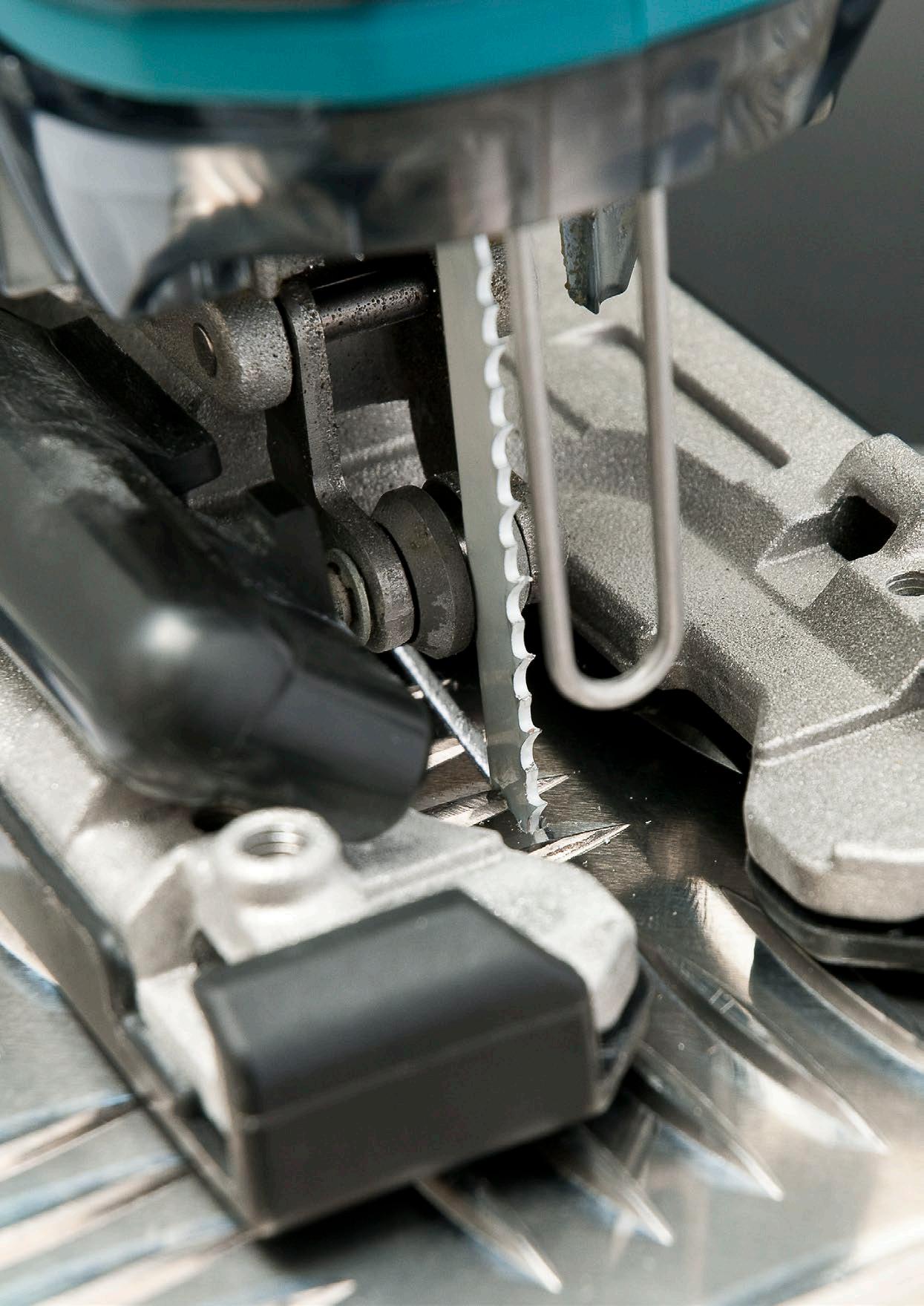

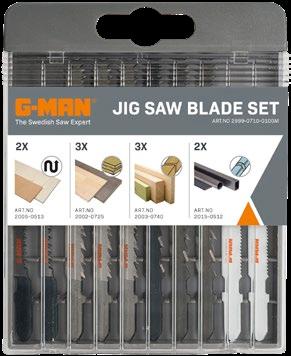

JIGSAW BLADES

G-MAN jigsaw blades are specially designed for a wide variety of applications:

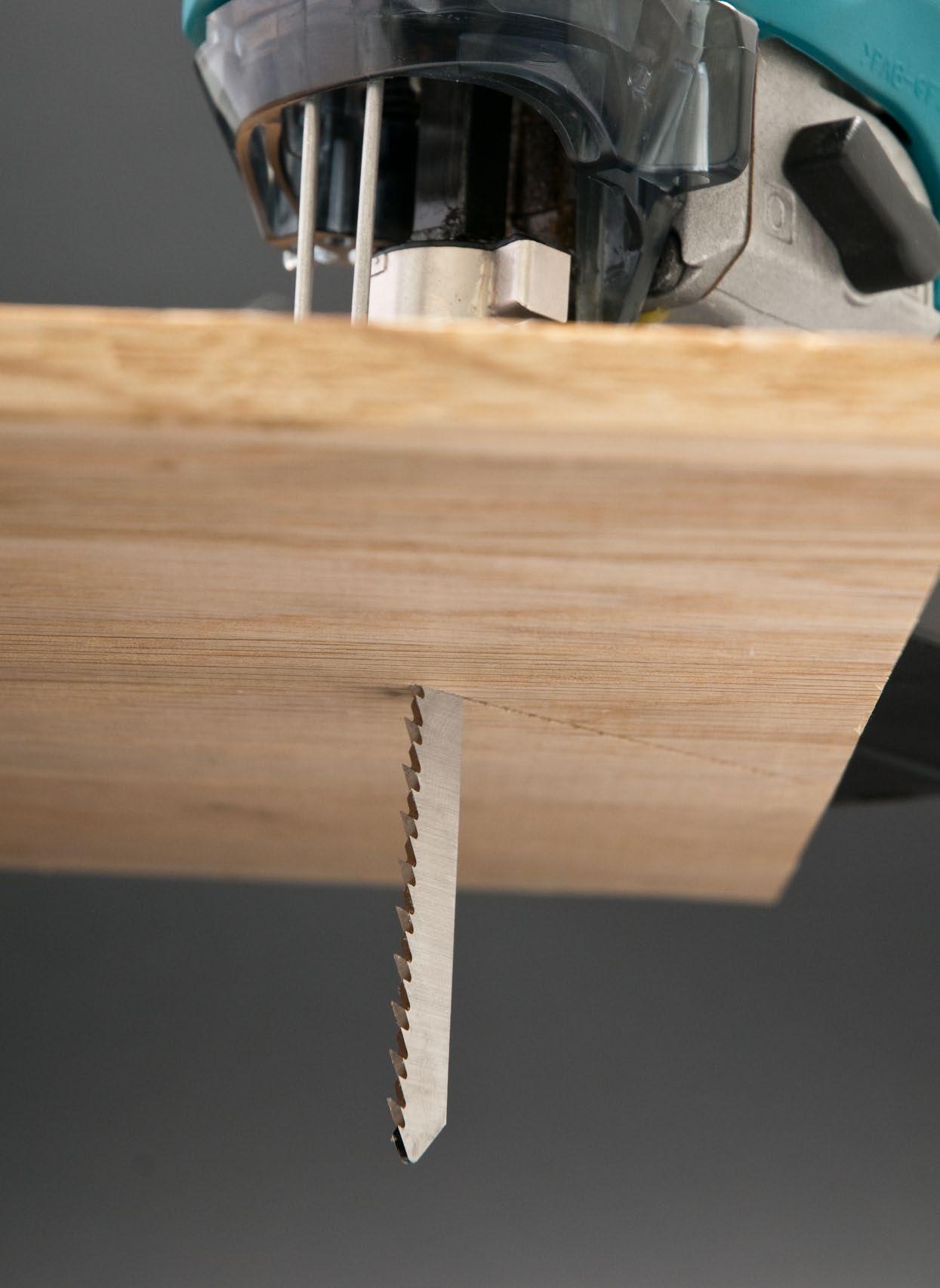

Carbon steel blades with cross sharpened and set teeth enable faster cutting than blades with milled and set teeth. Suitable for both wood and plastics.

Carbon steel blades with cross sharpened teeth and conical ground are used for accurate and clean cuts in both wood and plastics.

Bi-metal blades are available for cutting metals, clean wood and nail-embedded wood.

Tungsten carbide blades are intended for use with hardwearing materials such as tiles, plaster, fibreglass, eternite and building brick, etc.

GUIDE FOR JIGSAW BLADES

Use our guide to choose the right jigsaw blade.

Decription

Article No.

2002-0725

2002-0740

2002-0799

2002-0840

2002-1040

2002-0900

2005-0513

2007-0725

2009-0740

2013-1500

2003-0740

2003-1240

2003-1540

2004-0740

2015-0512

2015-0520

2015-0700

2015-0725

2015-0730

2015-1012

2015-1100

2015-1020

2015-2010

2016-0740

2017-0725

2008-0823

2019-0502

2019-0740

2019-1040

2000-T101AIF

75x8x1,5 mm

85x8x1,5 mm

105x10x1,5 mm

93x9x1,5 mm

50x5x1,3 mm

75x8x1,3 mm

75x8x1,7 mm

150x8x1,0 mm

75x8x1,3 mm

125x9x13 mm

155x9x1,5 mm

75x6x1,3 mm

50x8x1,0 mm

75x8x1 mm

75x8x1,65 mm

75x8x1,0 mm

100x8x1,0 mm

108x10x1,25 mm

100x8x1,0 mm

155xx8x1,0 mm

75x8x1,3 mm

82x9x1,0 mm

55x8x1,0 mm

70x8x1,3 mm

100x8x1,3 mm

75x8x1,0 mm

Tooth Profile

Conical ground

Reverse toothed

Conical ground

Progressive toothing

Conical ground

Double toothed

Conical ground

Wave toothed

Ground and set teeth

Fine toothed

Course toothed

Progressive toothing

Course toothed

Fine toothed

Progressive toothing

Course toothed

Fine toothed

Course toothed

Fine toothed

Grit

Course toothed

Straight toothed

Tooth material

3-30 mm 10-50 mm

3-30 mm 8-65 mm 8-65 mm 2-40 mm 2-15 mm

2,5-35 mm 10-45 mm 1-120 mm 5-50 mm 5-120 mm 5-150 mm

5-50 mm 1,2-3 mm

2,5-6 mm 3-15 mm

3-30 mm 3-30 mm 1-30 mm 3-30 mm

2,5-6 mm 2-160 mm

5-50 mm 3-30 mm

1,5-3 mm 5-15 mm

5-20 mm 5-80 mm

2-30 mm

JIGSAW BLADES CARBON STEEL, CROSS SHARPENED TEETH, CONICAL GROUND SHANK FOR BOSCH A.O.

Clean cutting in wood, plywood, chipboards and plastics. 10 teeth/inch. Tooth pitch 2,5 mm. 6 teeth/inch. Tooth pitch 4,0 mm. 10 teeth/inch. Reversed tooth pitch 2,5 mm. 5-pack.

Art. no

2002-0725GM (T101B)

2002-0740GM (T101D)

2002-0799GM (T101BR) 75 x 8 x 1,5 (Reversed toothing)

Fast and clean cutting in wood, chipboards and plastics. 6 teeth/inch. Tooth pitch 4,0 mm. 5-pack.

Art. no

2002-0840GM (T301CD)

2002-1040GM (T301DL)

Progressive toothed and conical ground for fast cuts in soft wood, chipboards etc. 5-pack.

Clean contour cutting in wood, plywood and plastics. 20 teeth/inch. Tooth pitch 1,3 mm. 5-pack.

Art. no

2002-0900GM (T234X)

Contour cutting in wood, plywood and chipboards. (The blade has a toothed back). 10 teeth/inch. Tooth pitch 2,5 mm. 5-pack.

Art. no

2005-0513GM (T101AO)

Art. no

2007-0725GM ( – )

length x width x thickness

x 9,5 x 1,5

x 5 x 1,3

Art. no Dimension Overall length x width x thickness

Precise parallell cuts in wood, chipboards and plastics. 6 teeth/inch. Tooth pitch 4,0 mm. 5-pack.

2009-0740GM (T101DP) 75 x 8 x 1,7

JIGSAW BLADES CARBON STEEL, WAVY TEETH

Rubber, cellular plastic, leather. 2-pack.

JIGSAW BLADES CARBON STEEL, CROSS SHARPENED, SET TEETH

Fast and coarse cutting in wood, plywood and chipboards. 6 teeth/inch. Tooth pitch 4,0 mm. 5-pack.

Fast and coarse cutting in wood, plywood and chipboards. Contour cutting. 6 teeth/inch. Tooth pitch 4,0 mm. 5-pack.

Clean cutting in metal profiles and sheet metals thinner than 4 mm. 21 teeth/inch. Tooth pitch 1,2 mm. 24 teeth/inch. Tooth pitch 1,0 mm. 5-pack.

2015-0512GM (T118AF)

2015-1012GM (T318AF)

Clean cutting in metal profiles and sheet metals 3–6 mm thick. Sandwich materials. 13 teeth/inch. Tooth pitch 2,0 mm. 5-pack.

Progressive bi-metal blade for metal sheet between 3-15 mm, tubes and profiles <30 mm. 10-12 teeth/inch. 5-pack.

Art. no Dimension

Overall length x width x thickness

2015-0520GM (T118BF) 50 x 8 x 1,0

2015-1020GM (T318BF) 155 x 8 x 1,0

Progressive bi-metal blade for nail inbeded wood, profiles and tubes between 3-10 mm. 5-10 teeth/inch. 5-pack.

Art. no Dimension Overall length x width x thickness

2015-0700GM (T123XF) 75 x 8 x 1,0

Nail-embedded wood, plastics, aluminium. Soft metals 5–10 mm thick. 8 teeth/inch. Tooth pitch 3,0 mm. 5-pack.

Art. no Dimension

Overall length x width x thickness

2015-1100GM (T345XF) 108 x 10 x 1,25

Art. no Dimension Overall length x width x thickness

2015-0730GM (T127DF) 75 x 8 x 1,0

Fast and coarse cutting in wood, plywood, chipboards glued panels. 6 teeth/inch. Tooth pitch 4,0 mm. 10 teeth/inch. Tooth pitch 2,5 mm. 10 teeth/inch. Tooth pitch 2,5 mm. 5-pack.

Art. no Dimension Overall length x width x thickness

2016-0740GM (T144DF) 75 x 8 x 1,3

2017-0725GM (T101BF) 75 x 8 x 1,3

2015-0725 (T101A1F) 75 x 8 x 1,65

JIGSAW BLADES TUNGSTEN CARBIDE

Stainless steel. 23 teeth/inch. Tooth pitch 1,1 mm. 1-pack.

Art. no

2008-0823GM

x 9 x 1

Art. no

2019-0502GM (T130RIFF)

x 8 x 1,0

Coarse cutting in hard wood, plaster, fibreglass and bricks. 6 teeth/inch. Tooth pitch 4,0 mm. 1-pack.

Art. no

2019-0740GM (T141HM)

2019-1040GM (T341HM)

JIG SAW BLADE SET

2999-0710-010GM

Art. no Pcs.

2005-0513GM 2

2002-0725GM 3

2003-0740GM 3

2015-0512GM 2

x 8 x 1,3

Ceramics, tiles, glass. Tungsten Grit. 1-pack.

AIRSAW BLADES

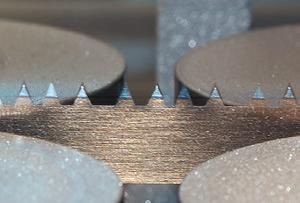

G-MAN air saw blades for use with pneumatic tools are available with three different shanks. All blades are of bi-metal quality. High speed cutting edge welded to a flexible spring steel back.

Four different tooth pitches are available. The finer tooth pitch being used mainly for cutting sheet metal e. g. in bodywork. Select the courser pitches for sawing softer materials such as aluminium and plastics.

2500 SHANK FOR SIG, FLEX A. O.

Aluminium. Soft metals and plastics / Sheet metals. 10-pack/50-pack.

2510 STANDARD SHANK

Aluminium. Soft metals and plastics / Sheet metals. 10-pack/50-pack.

2515 STANDARD SHANK WITH HOLE

Aluminium. Soft metals and plastics / Sheet metals. 10-pack/50-pack.

2515-0932GM

OSCILLATING SAW BLADES

Accessories for oscillating machines.

We are adding the Starlock blades to our range. The starlock shank can be used with all latest machine models manufactured by Bosch, Makita, Rigid, Milwaukee, Fein as well with all previous models of market standard power tool manufacturers. The patented 3-D shape Starlock shank ensures a secure fit.

STANDARD HCS WOOD

Narrow, waisted blade for fast chip and removal and sawing progress. Side set toothing. For wood, plastic and plaster. High carbon steel with tooth hardened teeth.

Art. no 450-35-01 50x35 mm. 1-pack.

PRECISION HCS WOOD

Wide blade, waisted for fast chip removal. Set 3-edge toothing for all kind of wood, plastic and plaster. High carbon steel with tooth hardened teeth.

Art. no 454-65-01 50x65 mm. 1-pack.

LONG-LIFE BIM WOOD & NAILS

Narrow saw blade. Side set toothing. For wood, plastic, brick, residues and plaster. Bi-metal blade for longer lifetime.

Art. no 451-10-01 30x10 mm. 1-pack.

UNIVERSAL BIM METAL/WOOD

Wide blade for fast chip removal and sawing progress. Wavy set universal toothing. For wood, plastic, plaster and thin sheet metals, aluminium and non-ferrous metals. Bi-metal blade for longer lifetime.

Art. no 453-44-01 55x44 mm. 1-pack.

FINE BIM METAL

Narrow, waisted blade for fast chip removal and sawing progress. Fine toothing for precise and clean cuts. For aluminium, thin sheet metals, non-ferrous metals and fibreglass. Bi-metal for long lifetime.

Art. no 456-30-01

50x30 mm. 1-pack.

G-MAN TOOLS AB

Box 110 S-828 22 Edsbyn, Sweden

Tel +46 271-583 40

info@g-man.se www.g-man.se
