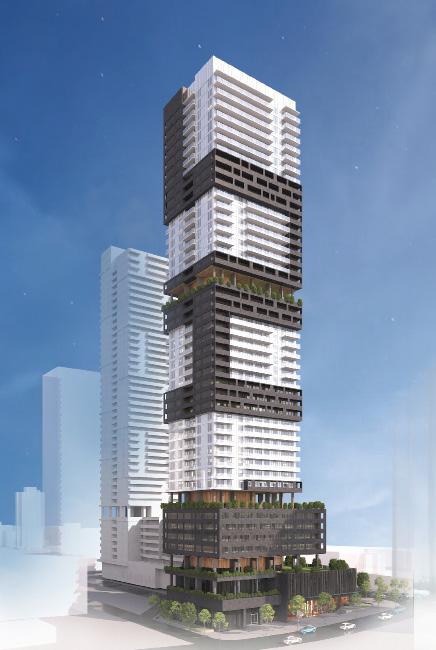

424 Residential Units, 44 storey High Rise Building
Client: ML Emporio Properties Ltd.
Role Description: Involved in design development through to detailed working drawings, ensuring cohesive and buildable solutions. Produces highquality renderings to support project visualization and stakeholder engagement. Prepares comprehensive rezoning and building permit packages.
GROUND FLOOR PLAN

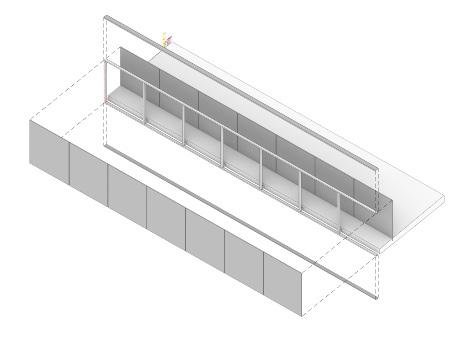

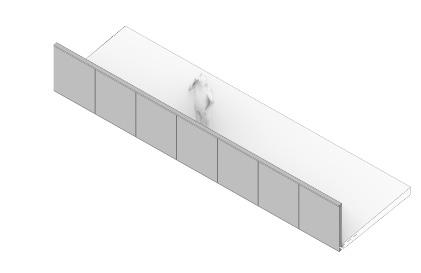

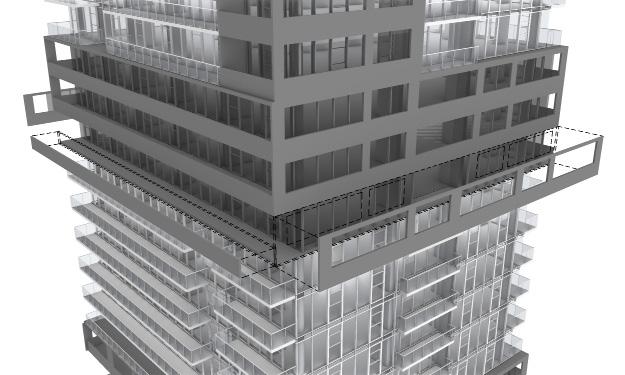

Worked on construction documentation and façade assembly detailing for a high-rise residential project, focusing on the coordination of envelope systems, balcony interfaces, and material junctions. Developed detailed BIM models and technical drawings to illustrate panel systems, aluminum channels, and sub-structure connections while ensuring alignment with design intent, building codes, and consultant inputs.
Port Moody, British Columbia

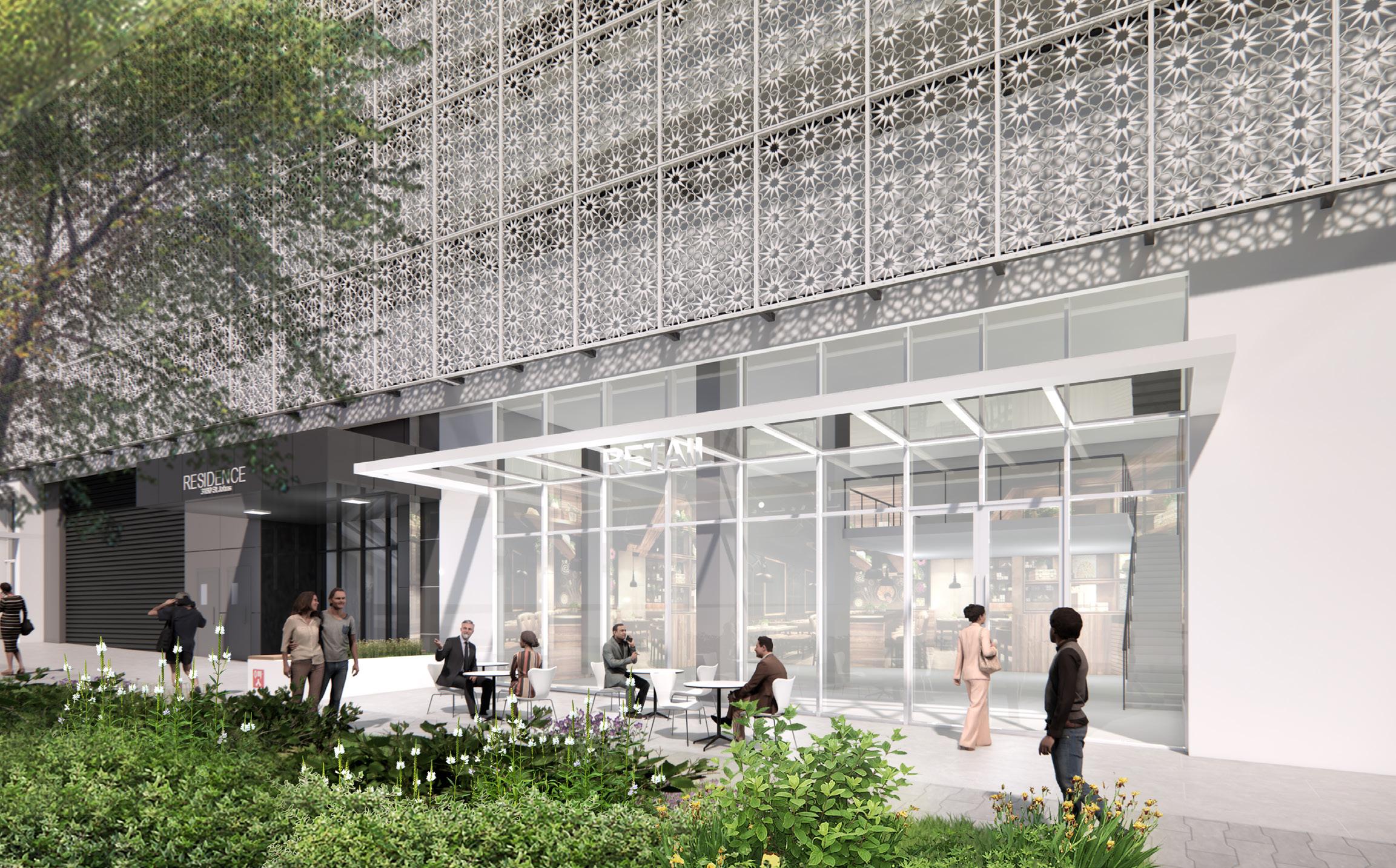

JAMATKHANA 02
Cultural & Mixed-Use Residential
Gross Site Area: 41,006 sq ft
128 Residential Units consisting 115 market rental unit and 13 affordable rental units
12 Storey building with three above ground parkade
Client: Anthem Properties Ltd
Role Description: Conducts detailed building code analysis and area calculations. Collaborates with multidisciplinary consultants to coordinate and integrate design solutions. Prepares comprehensive rezoning packages, including detailed drawings, 3D models, and high-quality renderings.
ARCHITECTURAL DRAWING SET
SITE PLAN
Kelowna, BC
creating an iconic design
Invite Only Competition- Winner, ARC Studio
RIVIERA03

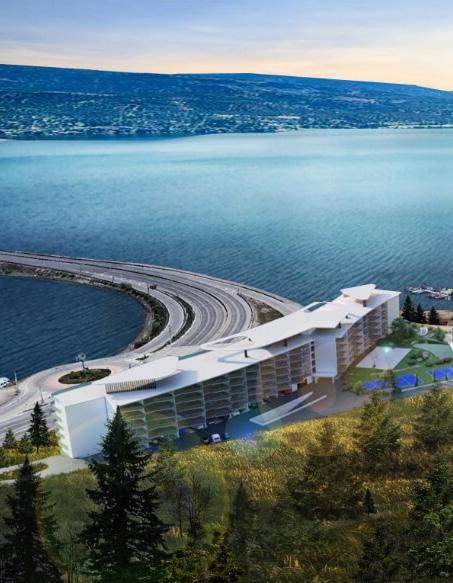

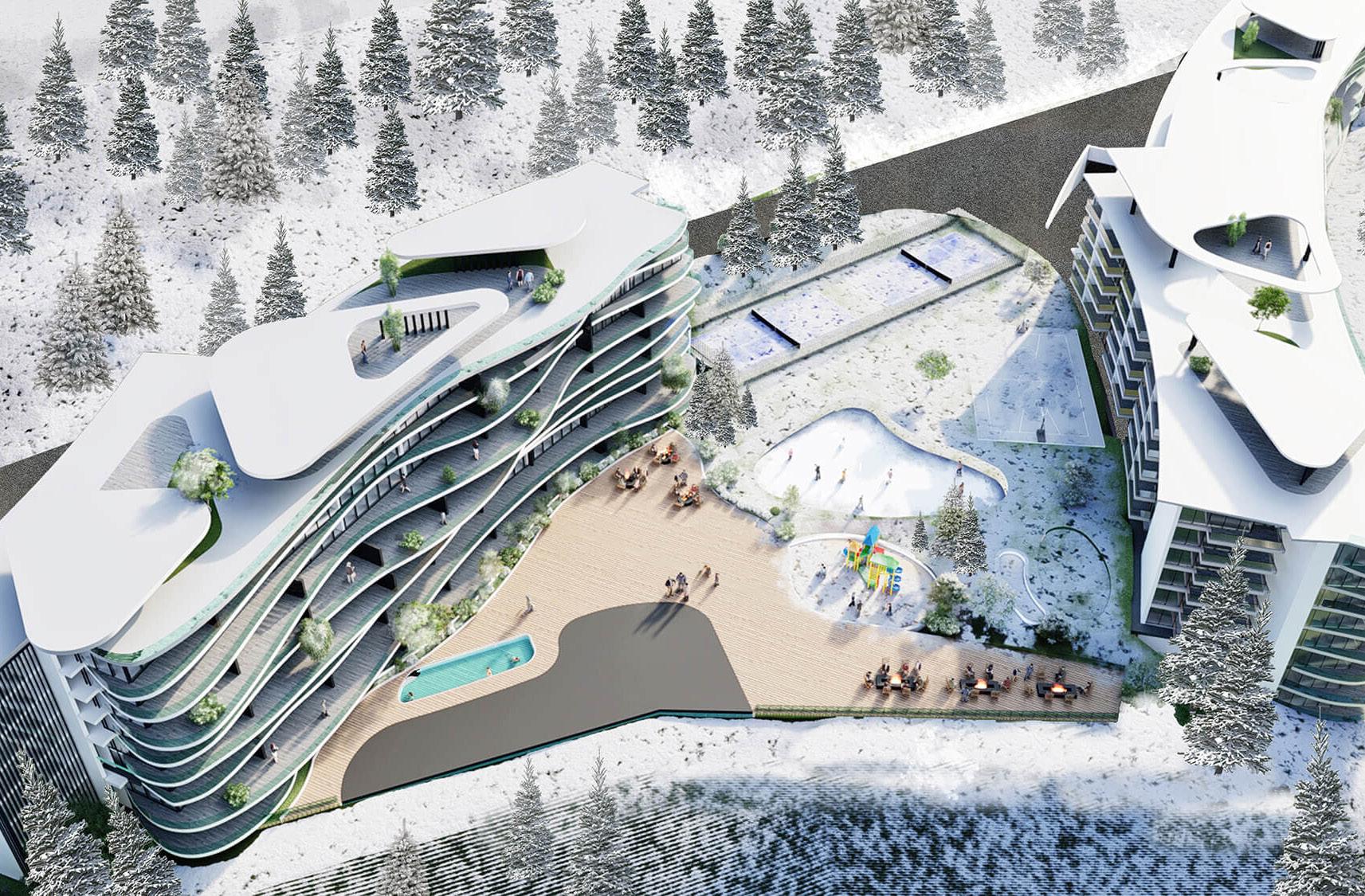

Inspired by its location on the west bank of the Okanagan Lake across from downtown Kelowna, Riviera is a multi-family residential project envisioned as a distinctive resort-style development in the Kelowna region. The development will be an iconic scheme that features luxurious lakeside living, emphasizing lifestyle and exclusivity and an overall unique user experience.

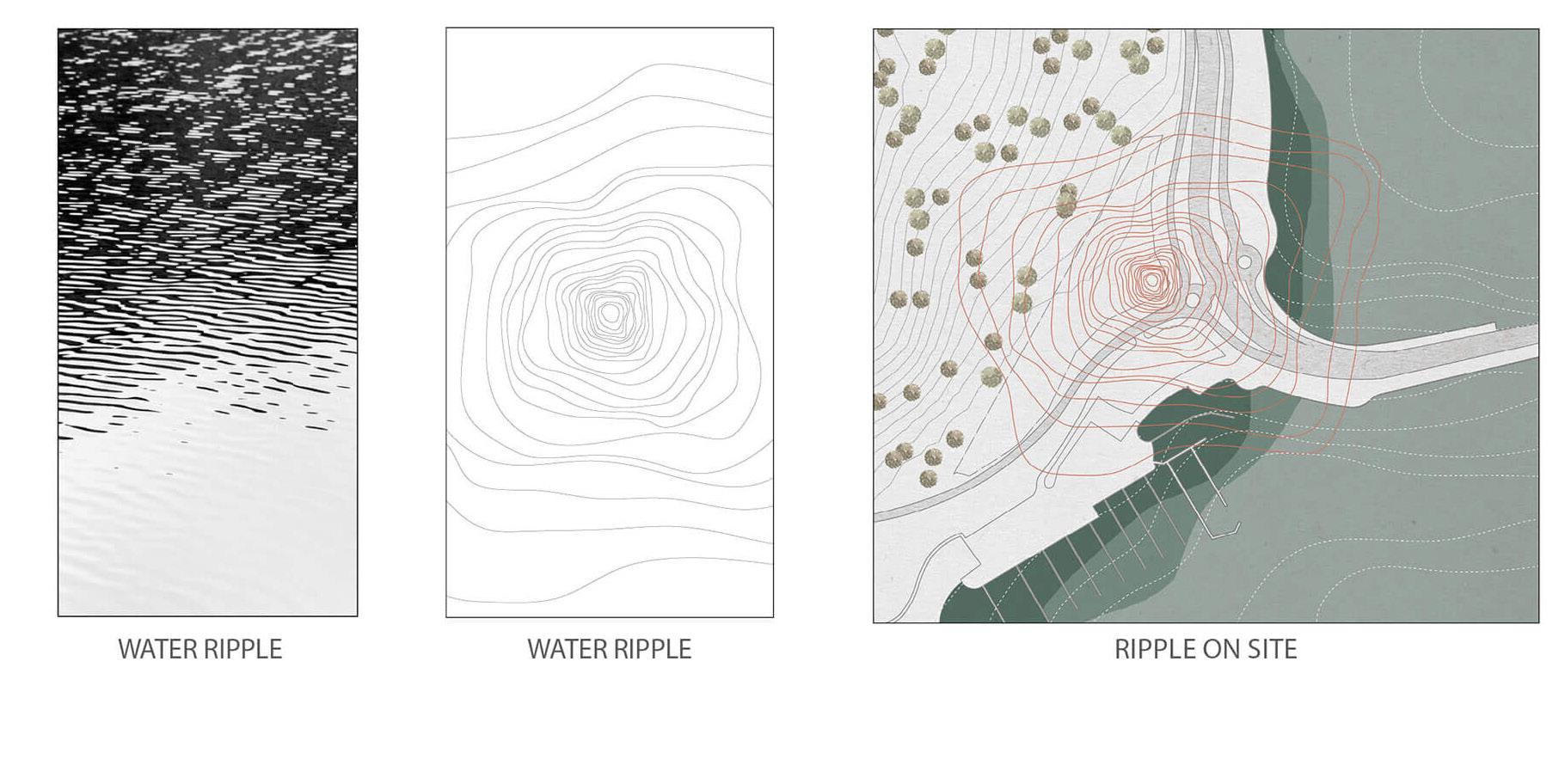

The ripple facade emulates the beuty of the wave on Lake Okanagan and elegantly connects Kelowna residents to West Kelowna.

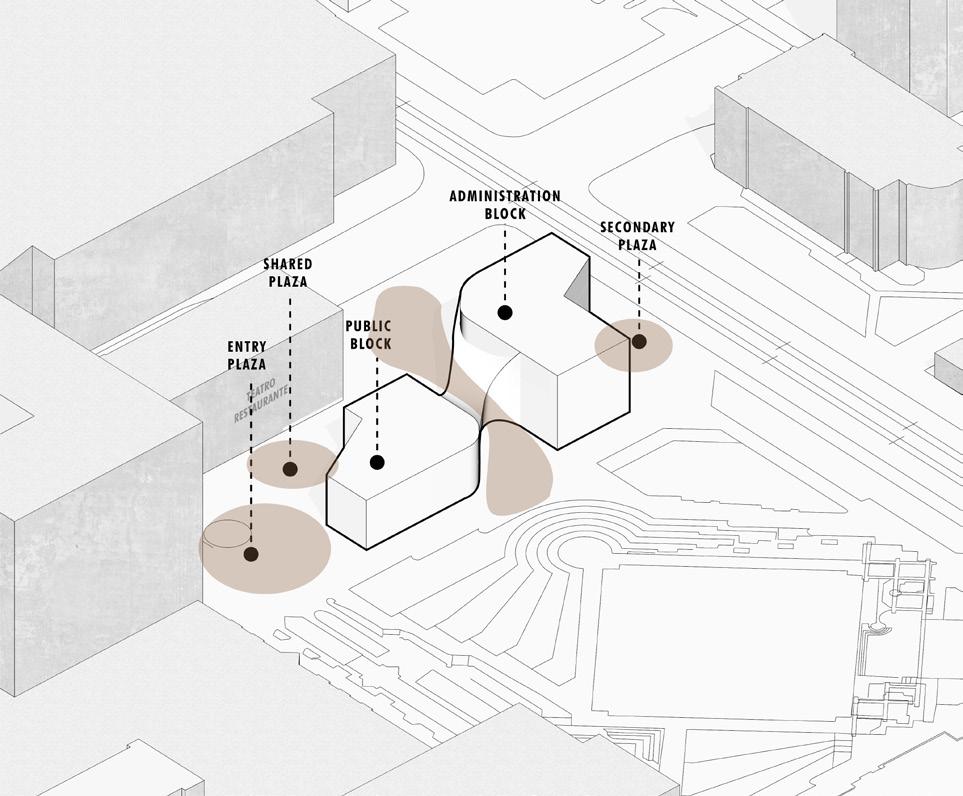

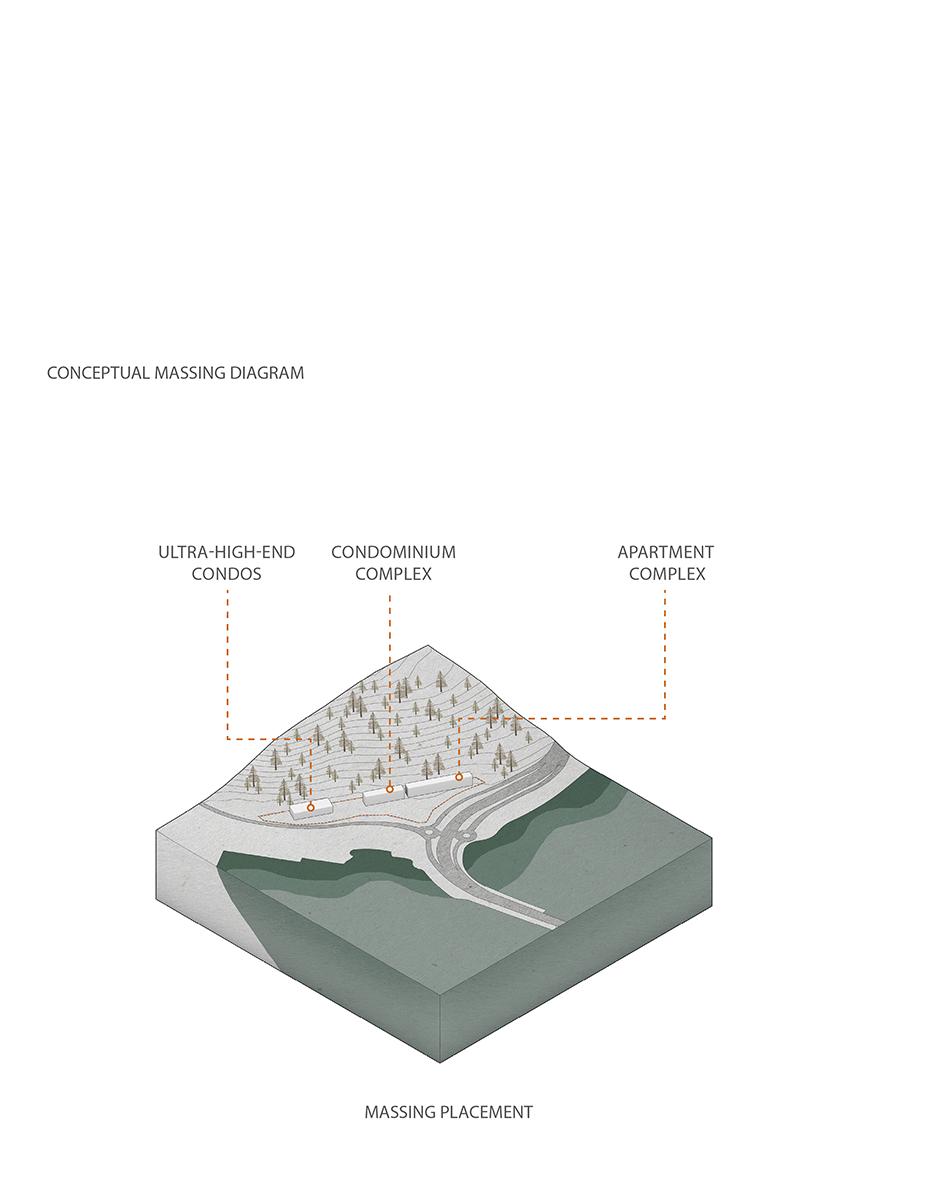

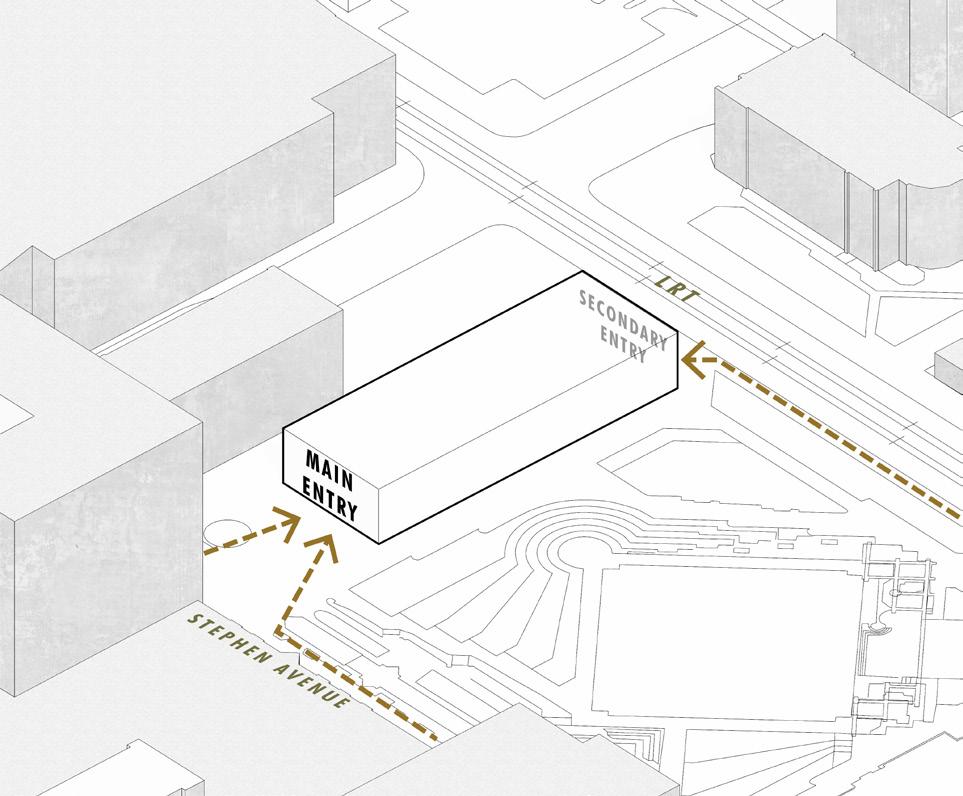

MASSING PLACEMENT

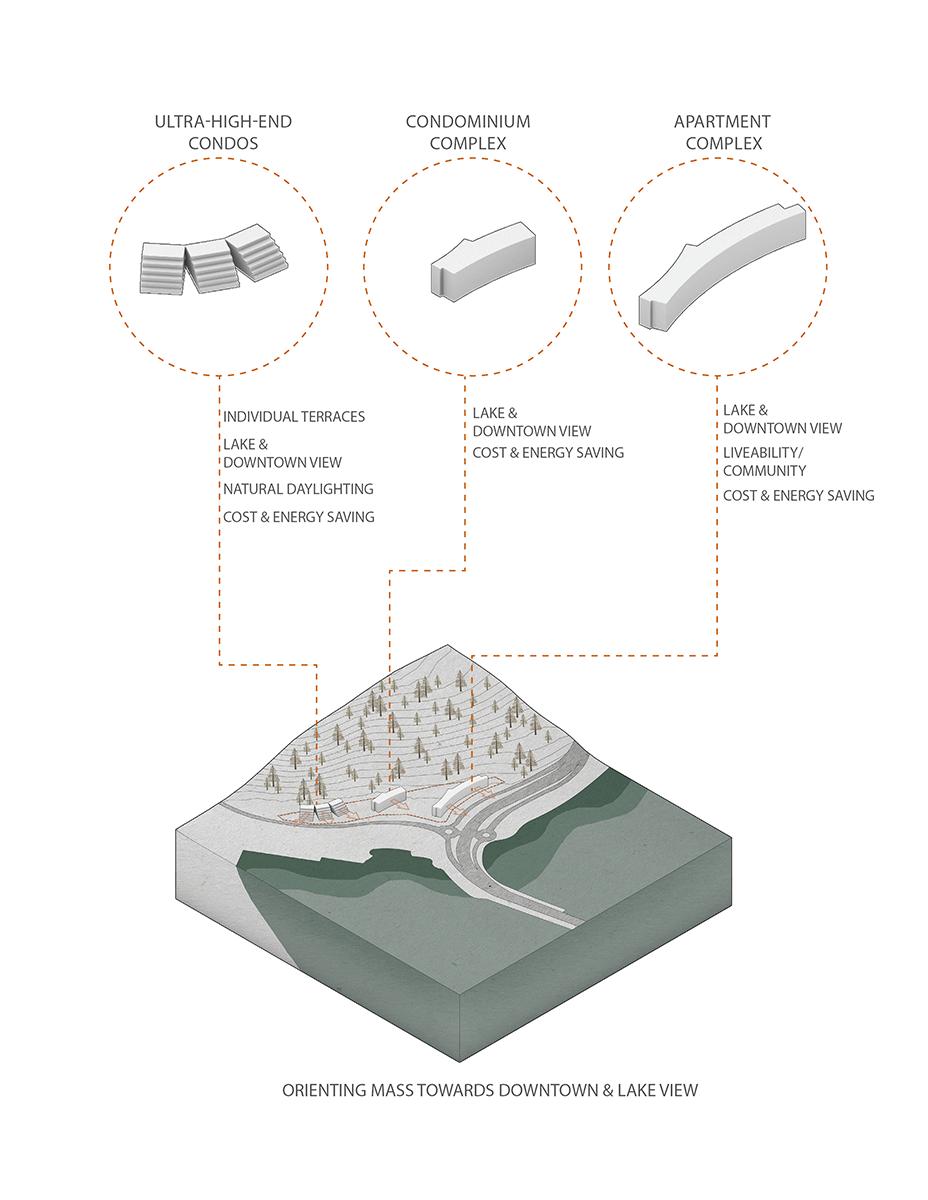

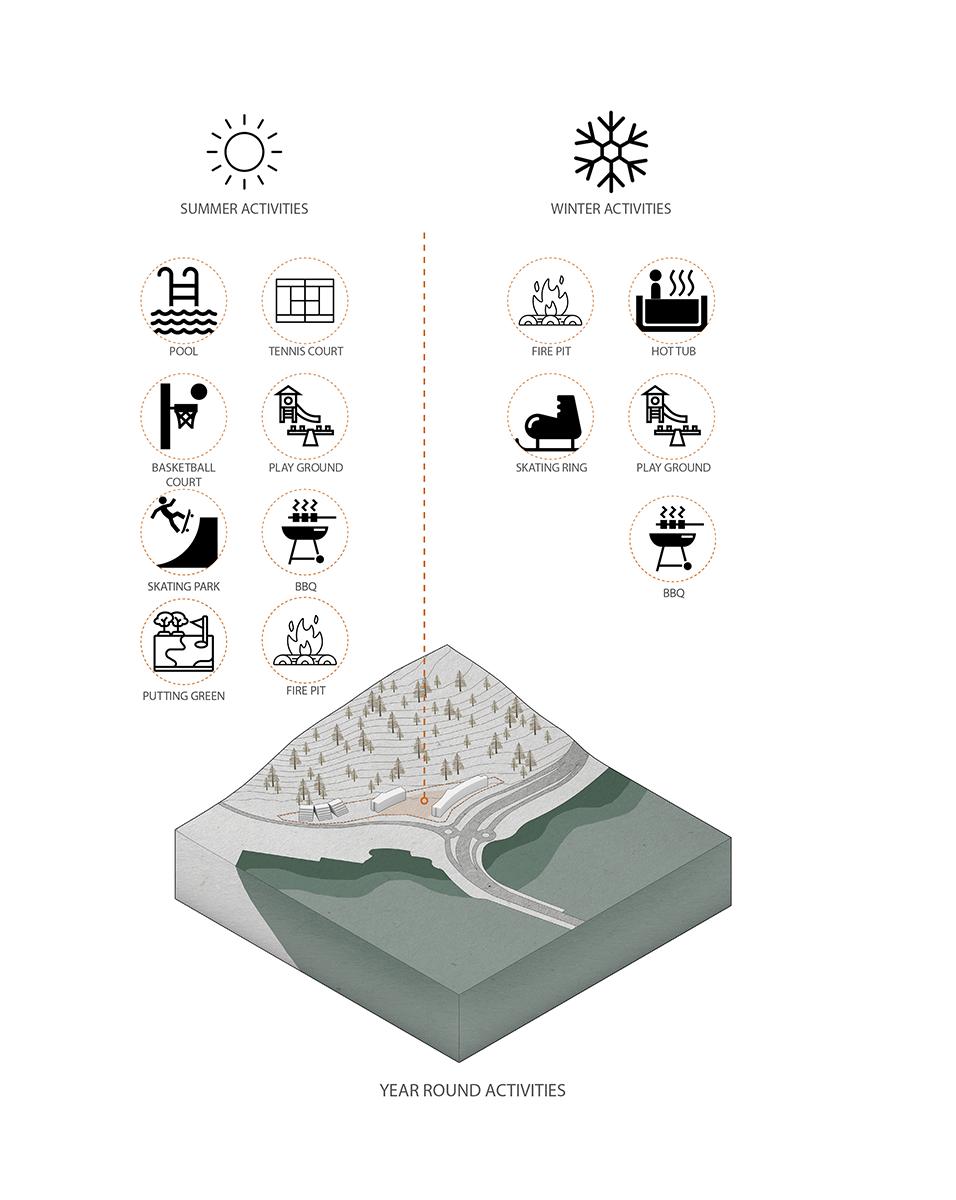

YEAR AROUND ACTIVITIES ORIENTING MASS TOWARDS DOWNTOWN & LAKWE VIEW
FACADE CONCEPT
Edmonton, Alberta

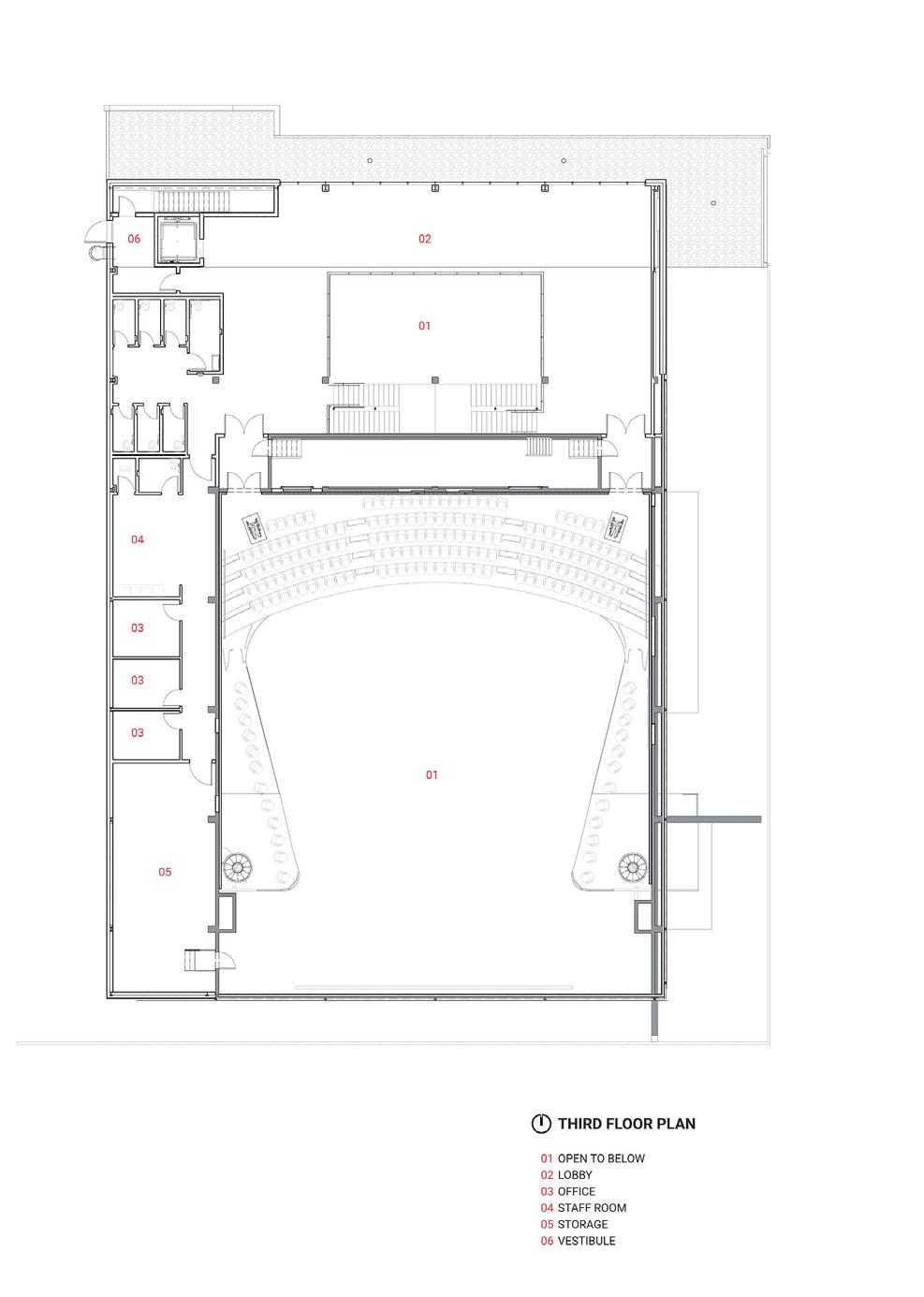

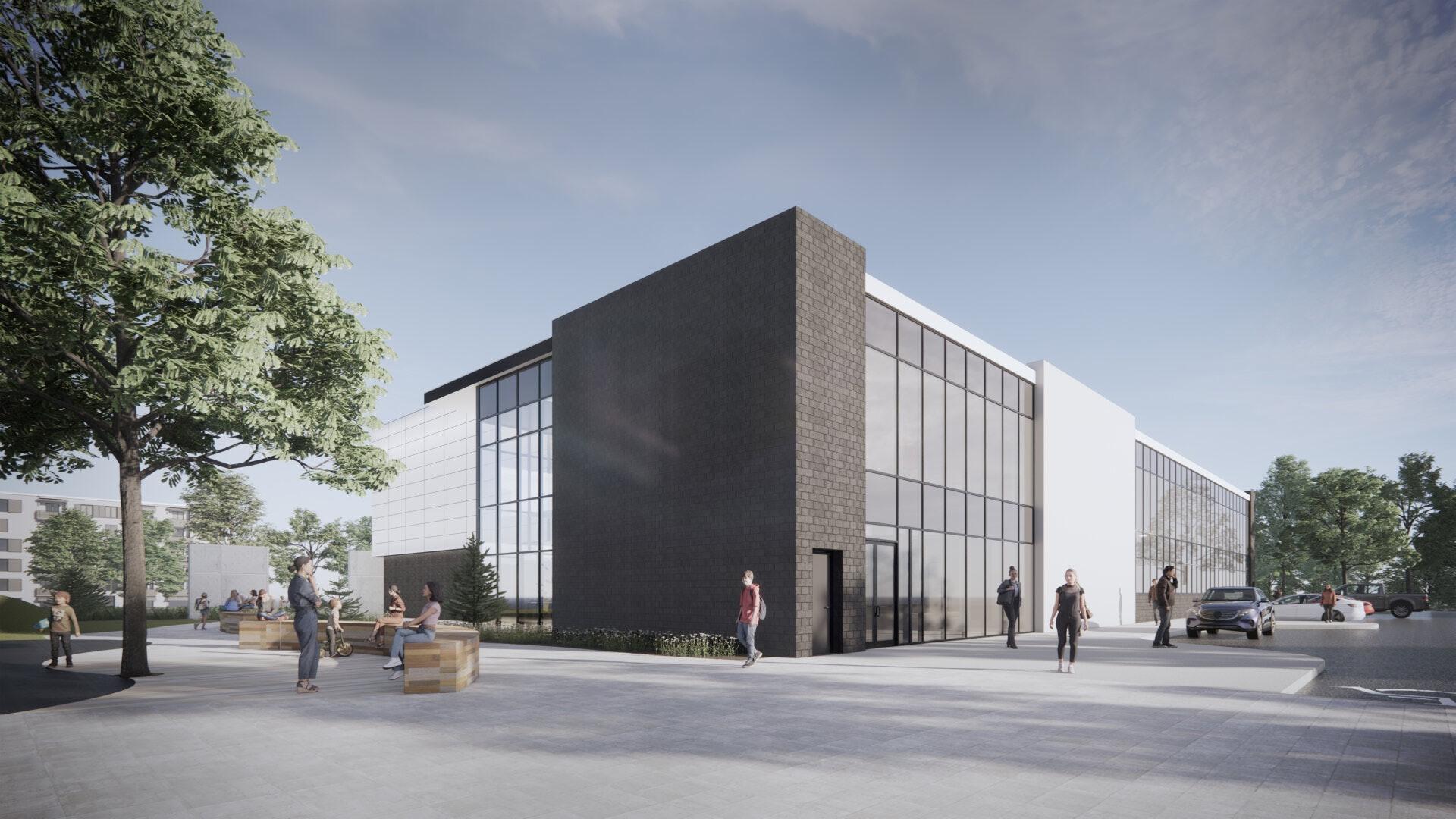

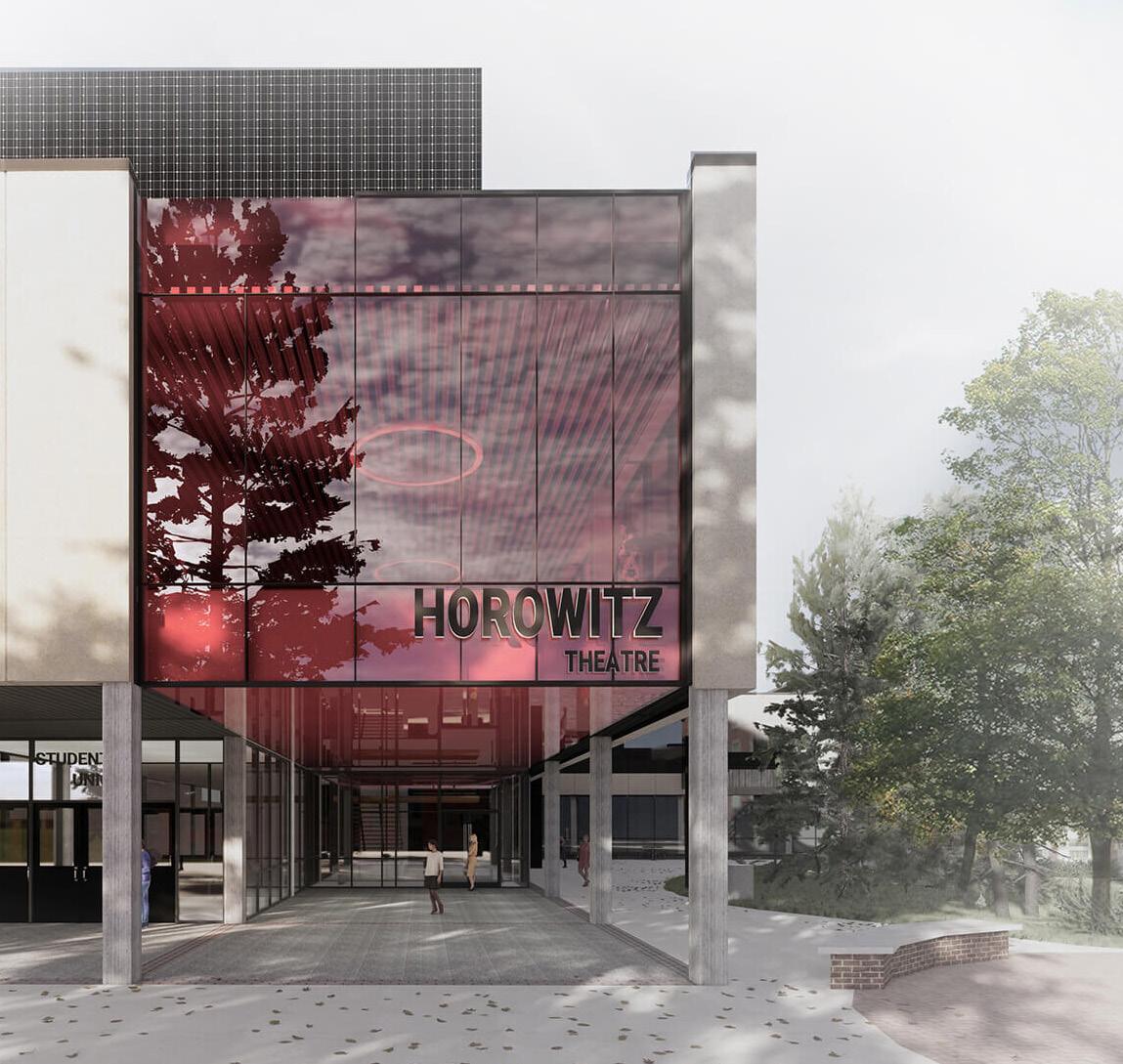

HOROWITZ THEATRE04
enhancing key connections _revitalizing a historic theatre University of Alberta – Students’ Union

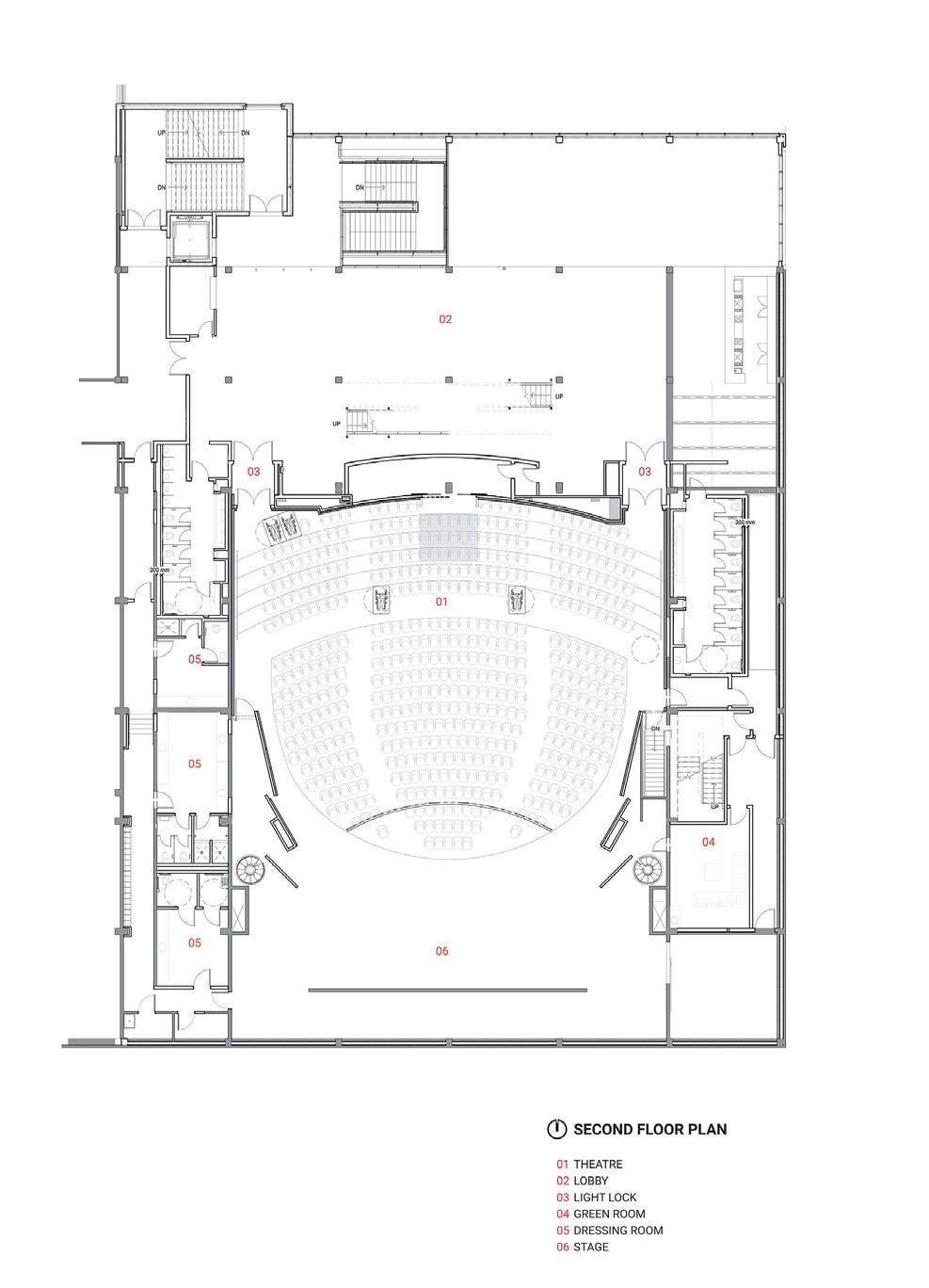

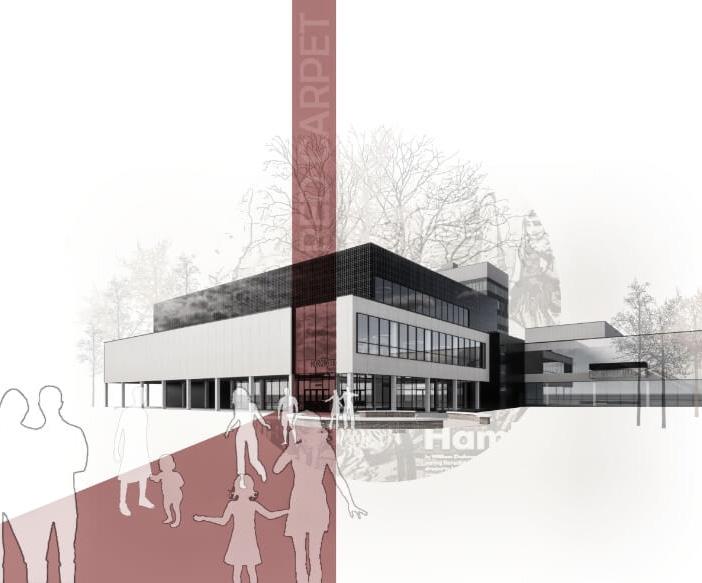

CONCEPT

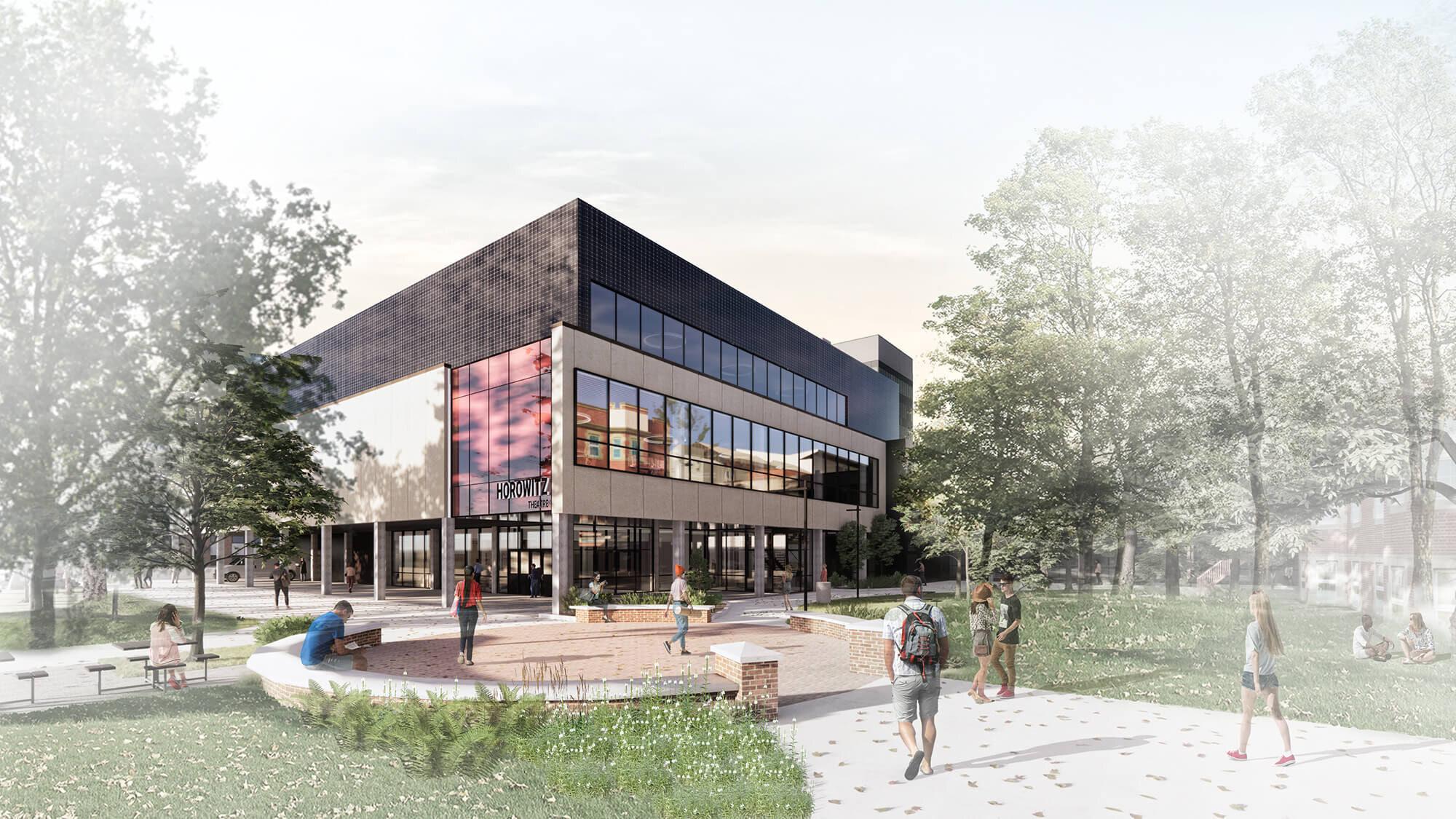

Arc Studio’s role in the revitalization of this historical Theatre was to enhance a key point of connections between campus, alumni, and the larger community. Restoration and expansion of the space were executed by bringing the design and technical elements of the Theatre up to date and judiciously expanding the flexibility and size of the pre-performance spaces to allow for a wider range of activities and programming.
The objective for this redeveloped Theatre was an efficient and competitive operation, additional / expanded performing spaces, and an overall enriched patron experience.

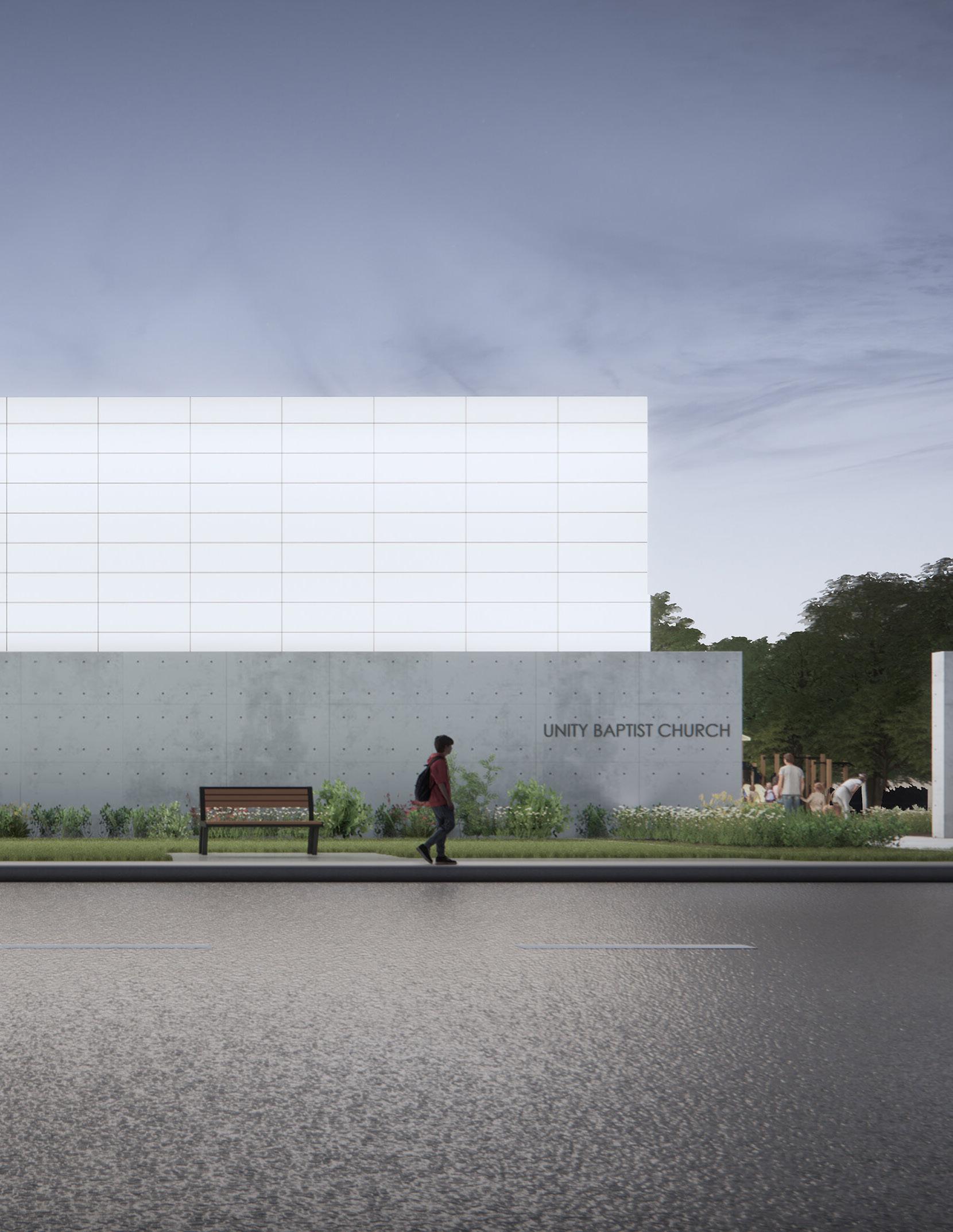

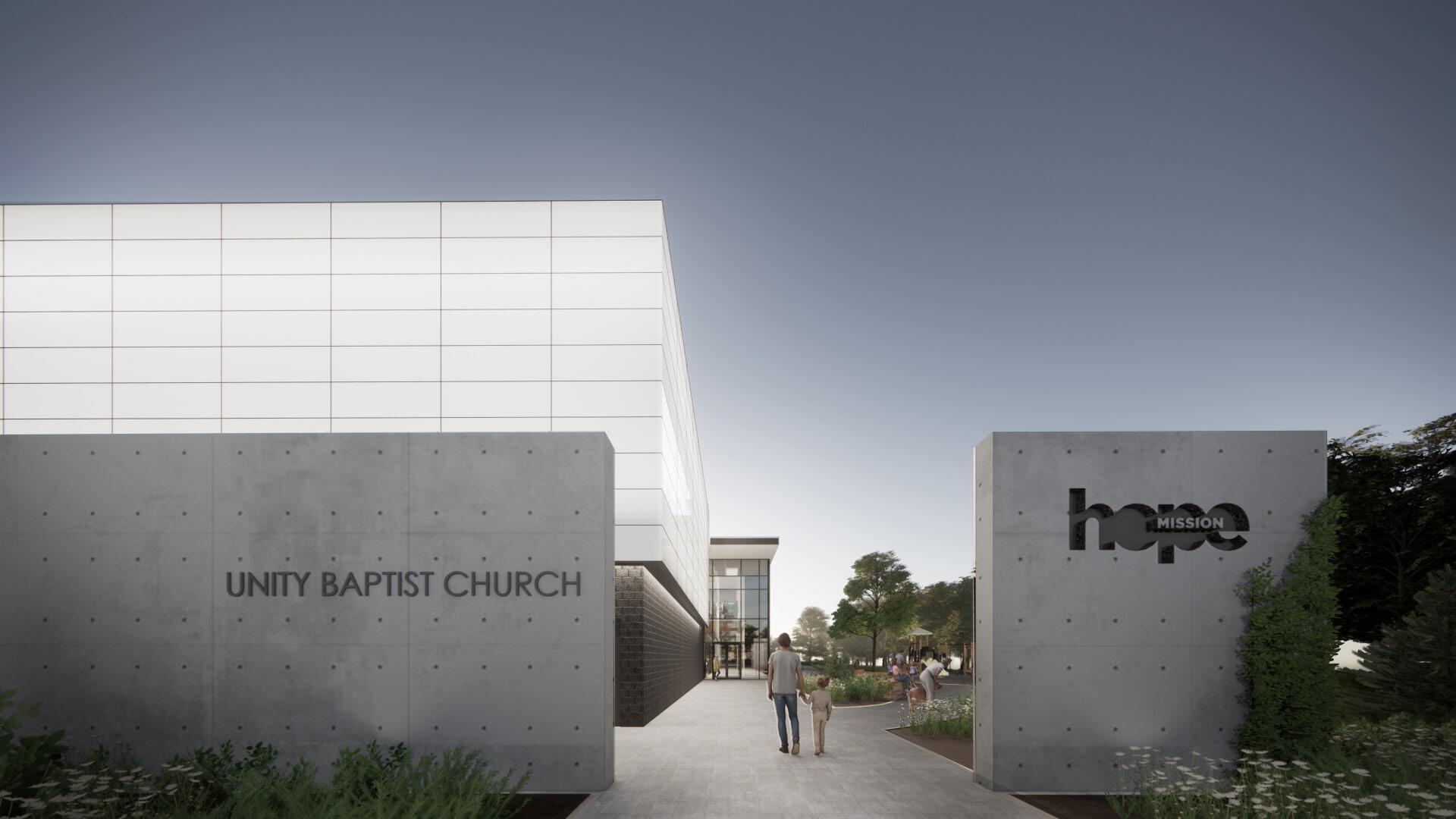

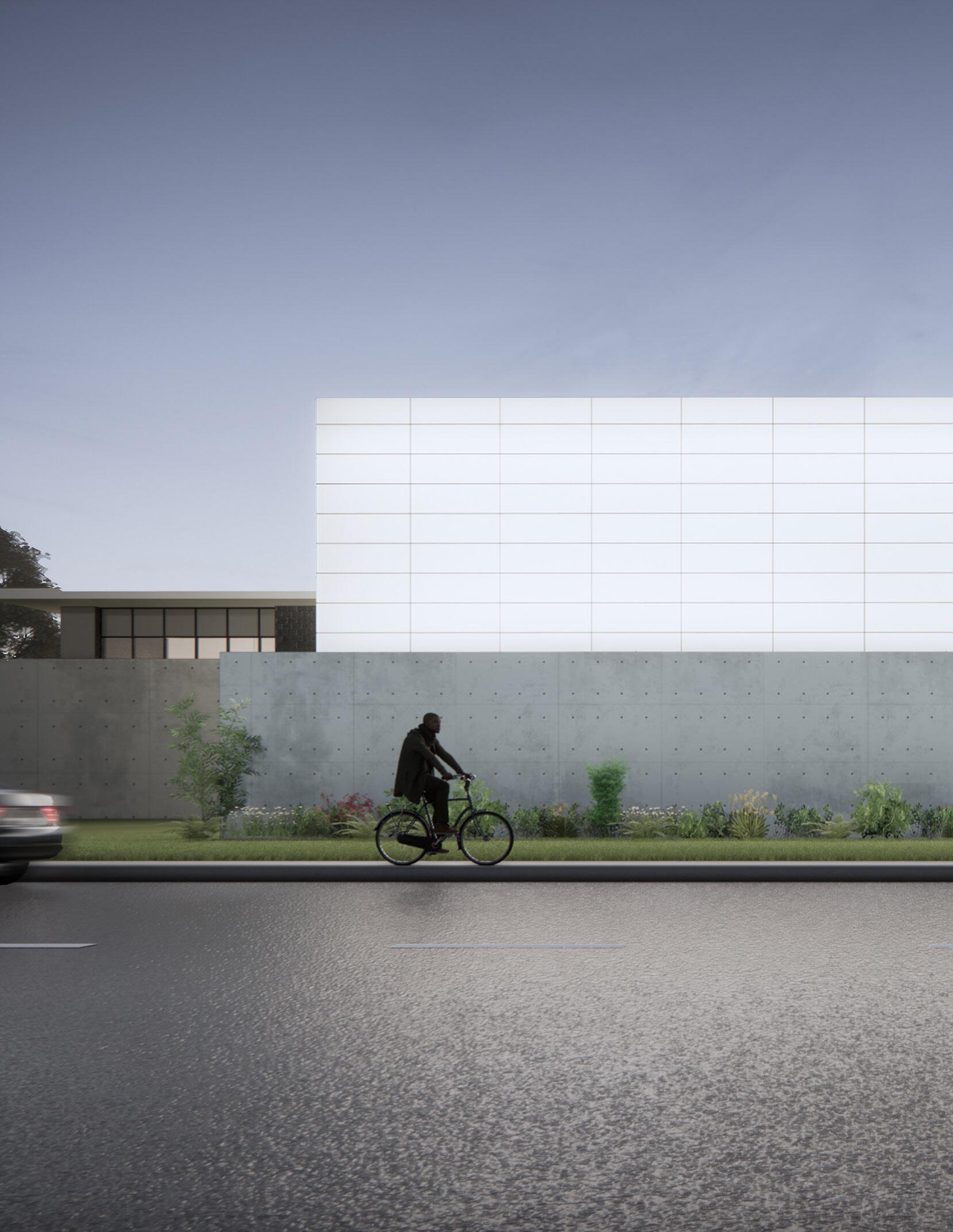

HOPE MISSION
COMMUNITY CENTRE05
a shared place for local outreach and a congregation’s home
Red Deer, Alberta

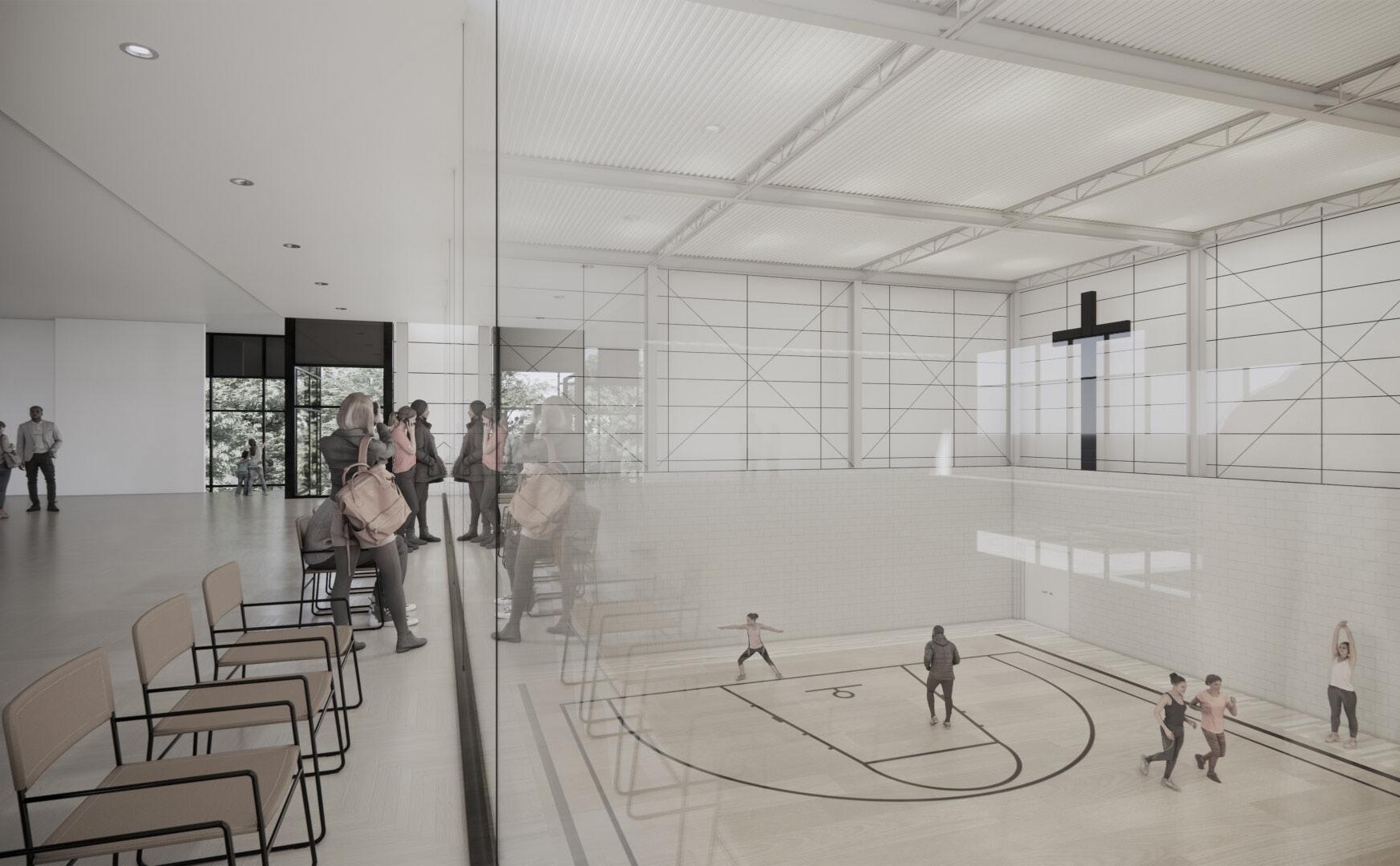

The building features a generous two-storey volume lobby and viewing gallery, an administration office block, an extensive commercial kitchen, and a variety of different-sized classrooms throughout the second floor. A thick exposed concrete wall separates the gymnasium from the rest of the building and anchors the building as its central spine.
The exterior site is enhanced to support the new variety of uses and includes a new playground space, expanded community gardens, a playing field, a substantial increase in planted vegetation and trees, and a notably extended entrance procession off of Northey Avenue.
Downtown, Calgary
AMALGAMATION06
Competition Entry_ Individual_ Honorable mention
CBDX Cities for All
This international design ideas competition—the first in the CBDX series—asked, What does a city for all look like? How does it operate and function? How can it come into being? What place, structure, thing, system, process, or relationship must be forged to engender a more just and equitable ‘city for all’? And in particular—this is perhaps the most crucial question—the competition asked, How are these aims navigated by, through, and with the current uncertainty wrought by the ongoing global pandemic and the long-term existential threats of environmental degradation and climate change?
MAIN IDEA

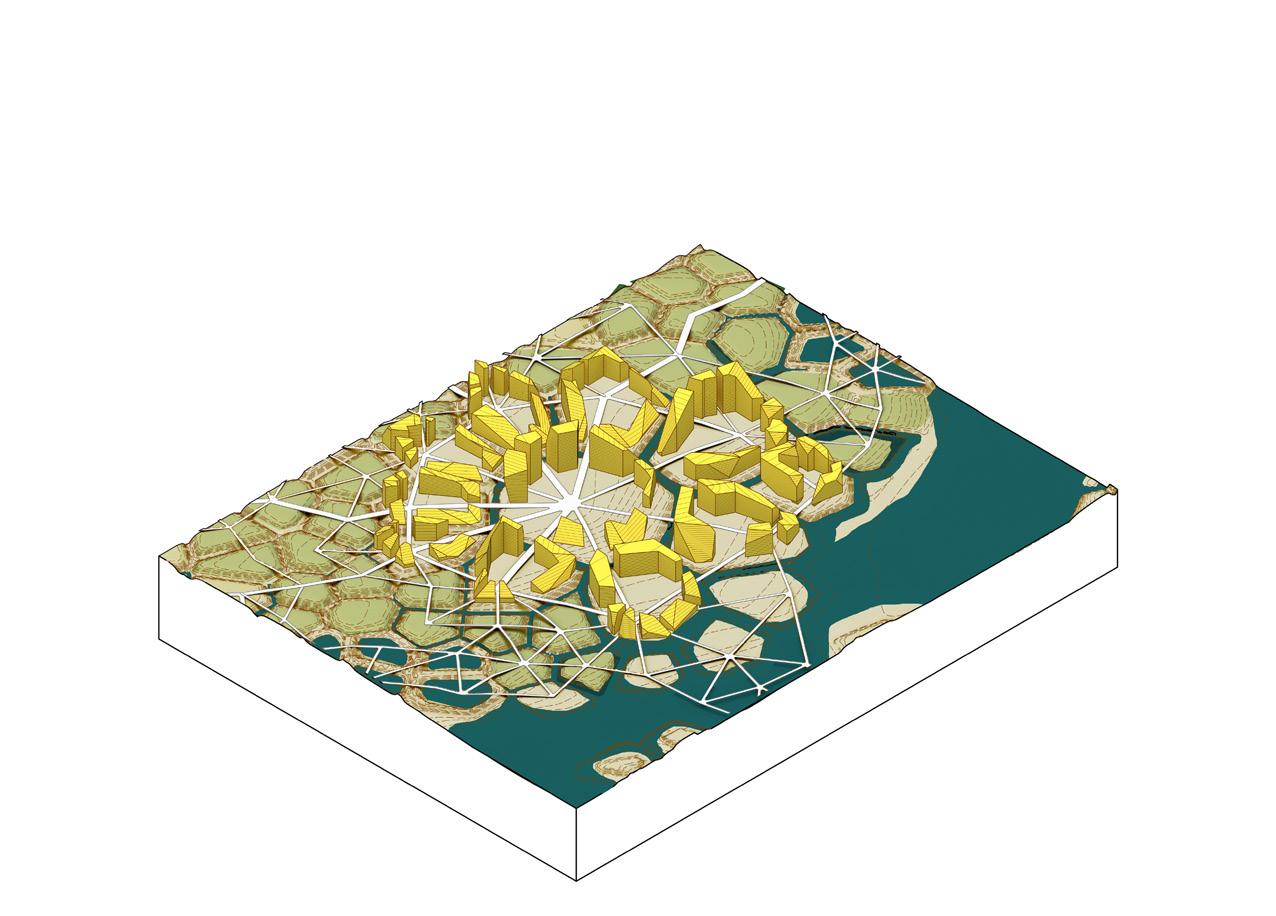

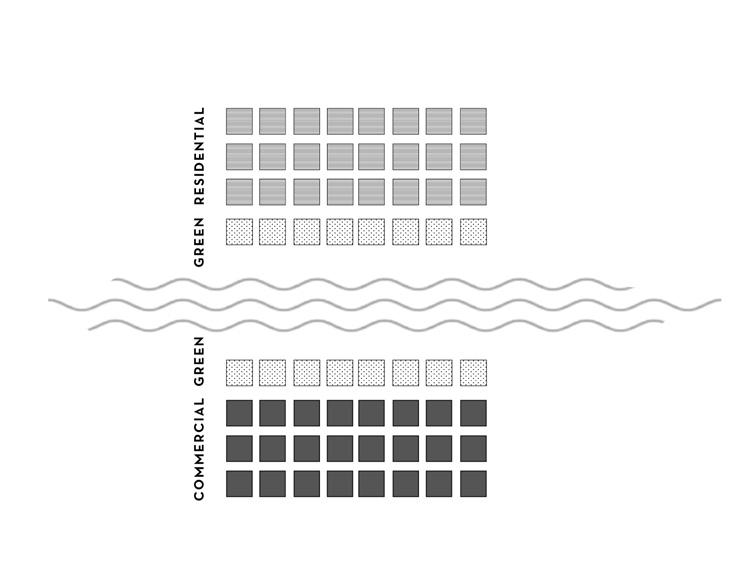

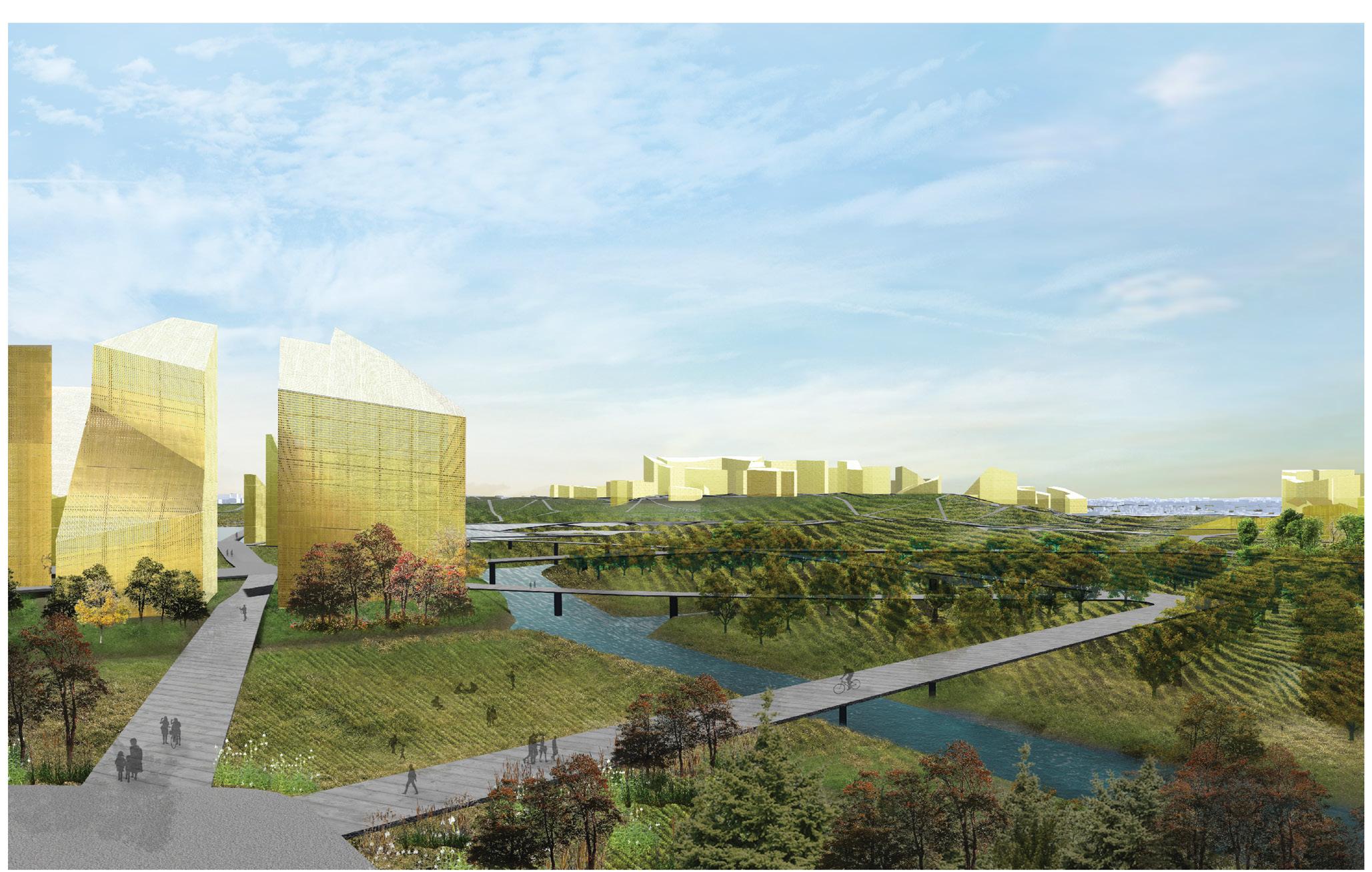

A city relies on the interlinked set of networks, strategically placed to allow better connectivity and communication. Based on this strategy the pattern was derived which opens up at several locations to promote various relations to flourish. The core concern of this proposal was to deal with the flooding problem in Calgary. The main purpose is to create the canal systems which will absorb the water like sponge, rather than blocking it.

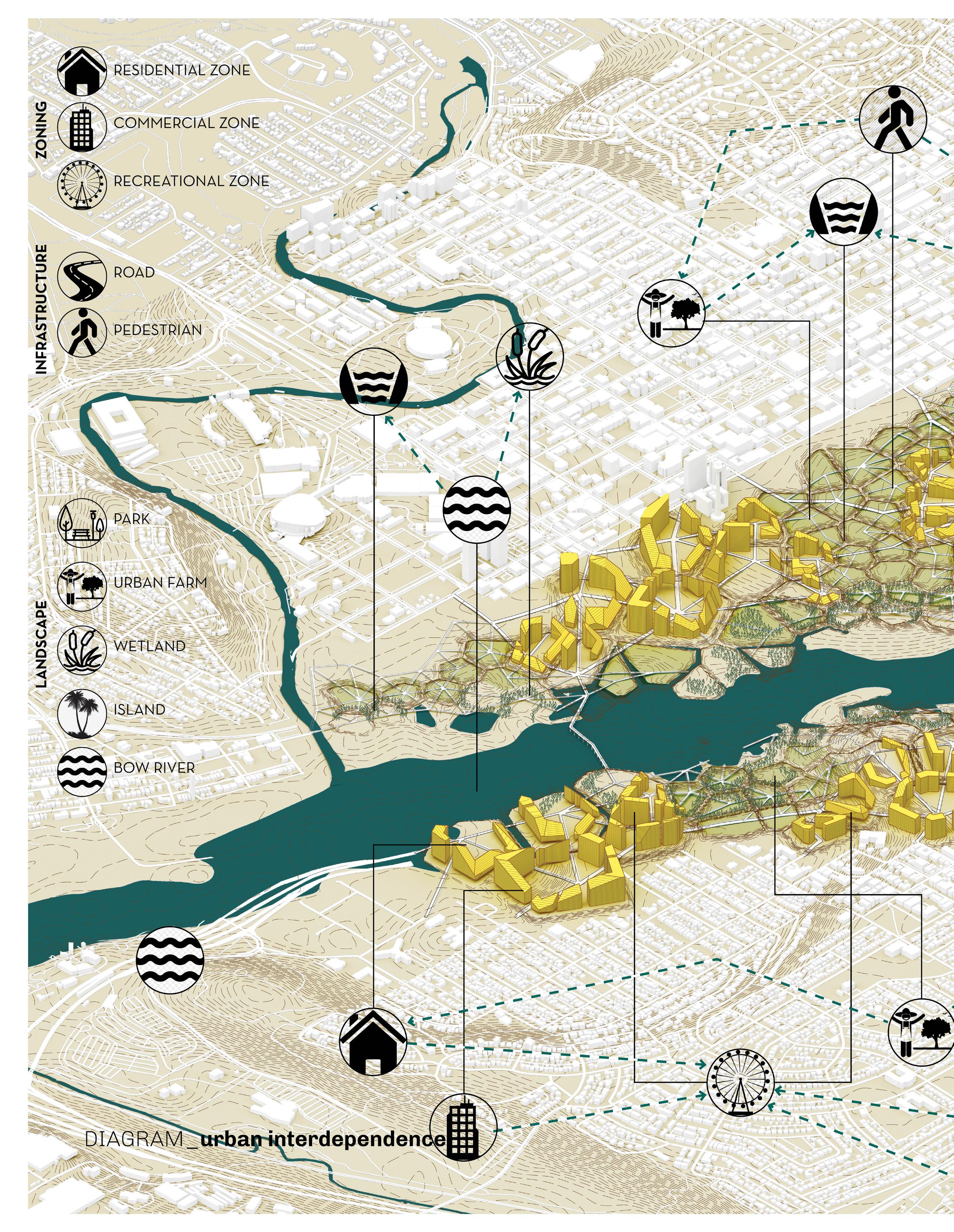

URBAN FABRIC STUDY OF DOWNTOWN, CALGARY
EXISTING URBAN FABRIC
PROPOSED URBAN FABRIC BRIEF

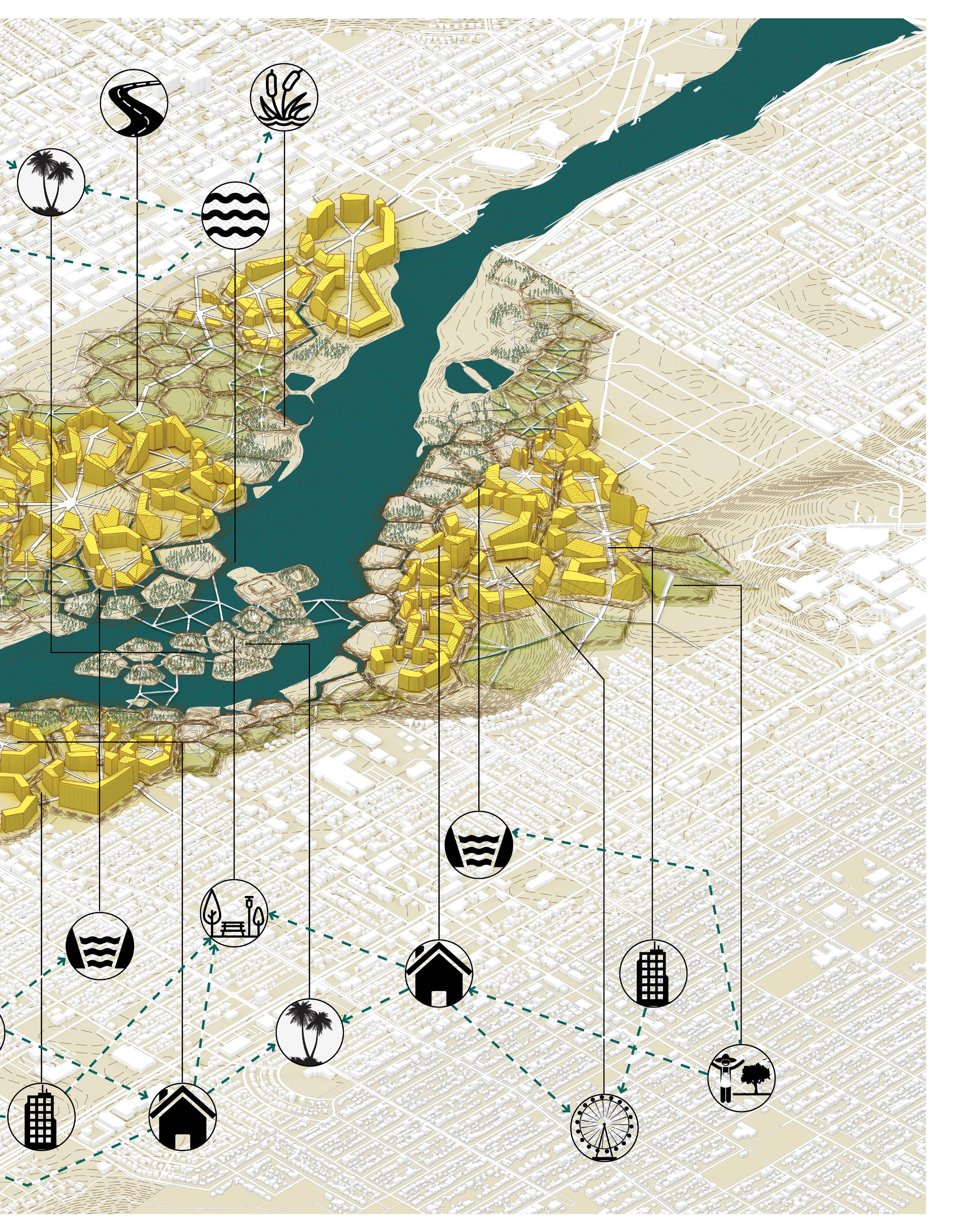

URBAN GENEALOGY

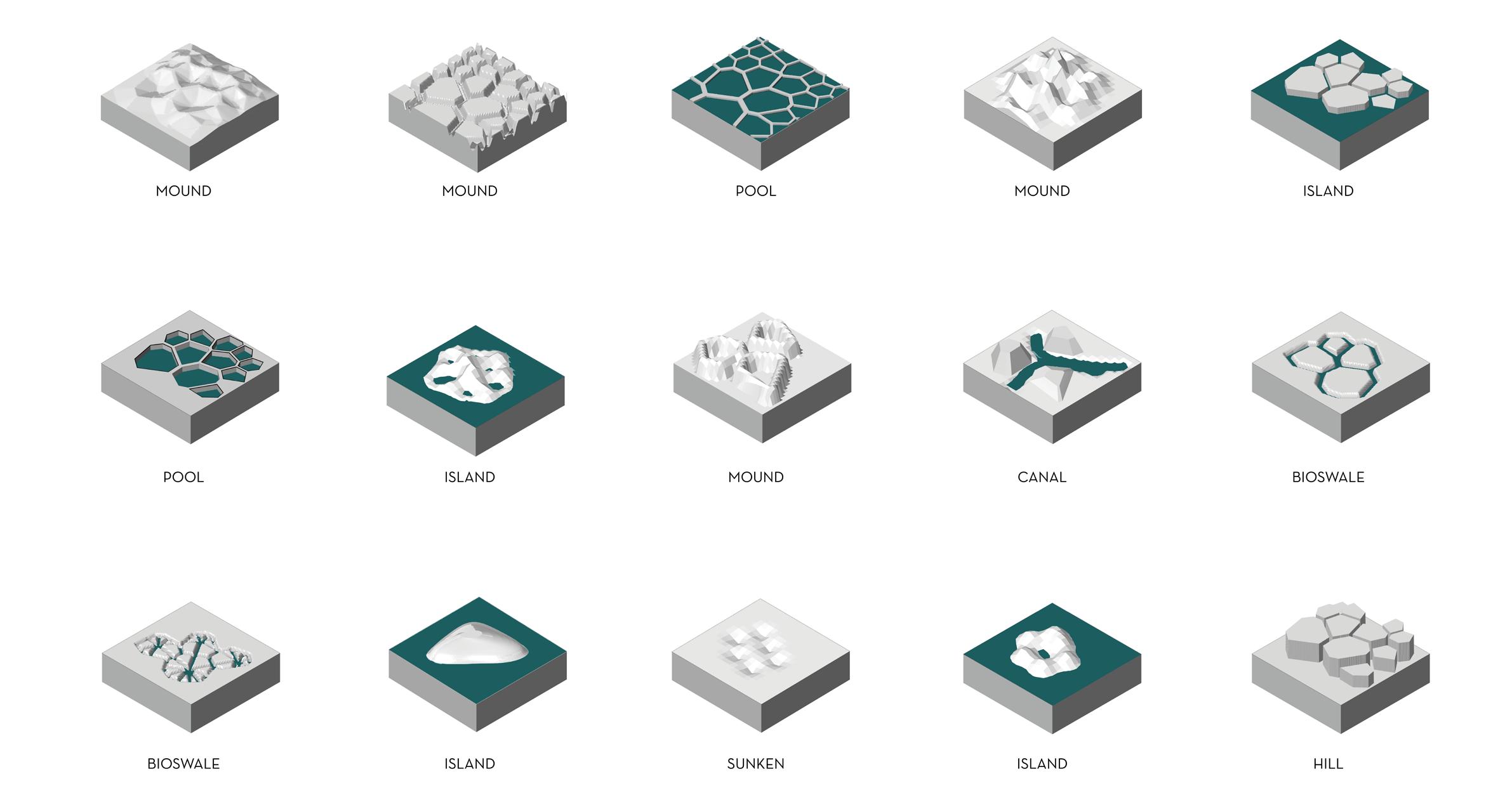

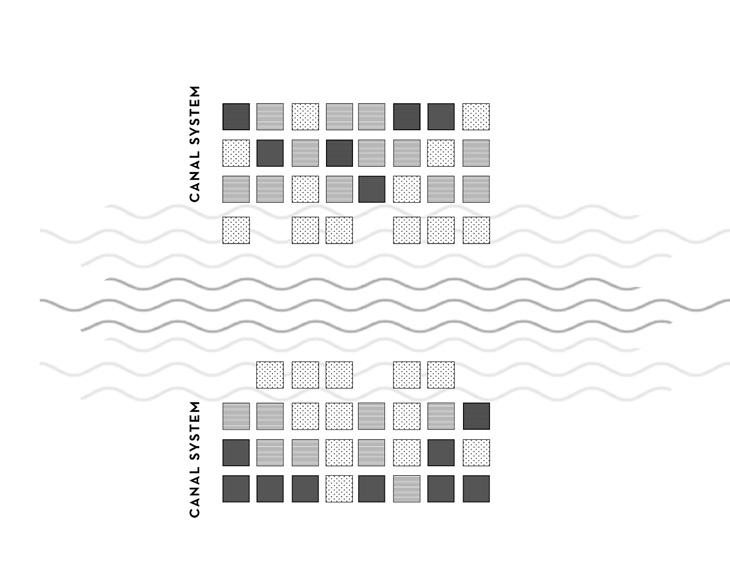

CANAL SYSTEM (Proposed Terrain)
Regular Days
During Flood

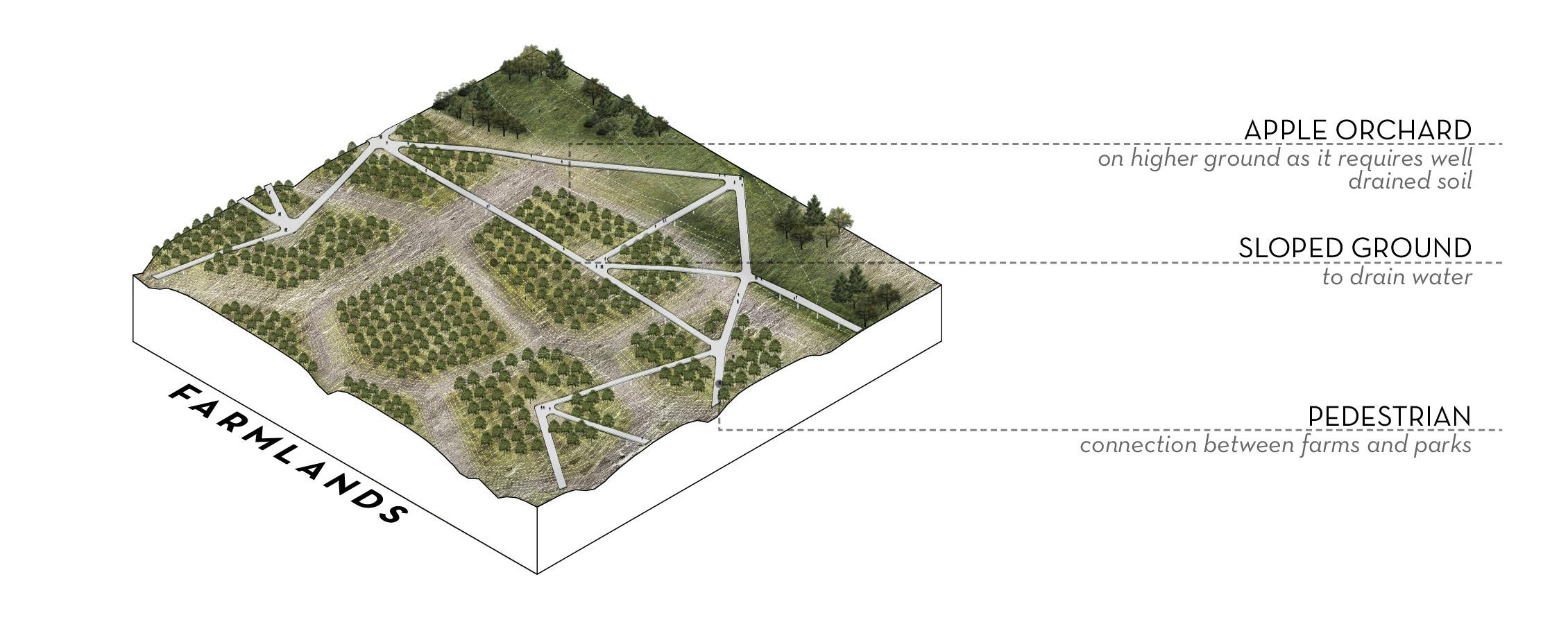

Every block has their separate central plazas where people can gather for different activities and occasions. The pedestrians connect these urban zones with the other zones providing accessibility throughout the city. The farms are placed on a higher ground as apple orchards requires well drained soil. As this is on a sloped ground, it allows the flood water to get drained easily.
Building typologies placed on the site responding to their surroundings
Site Plan
Olumpic Plaza, Downtown, Calgary
PORTRAIT OF CALGARY 07
Partner_Anagha Patil, Comprehensive Studio
Group of two_ Prof. John Iwanski
Duration: 4 months

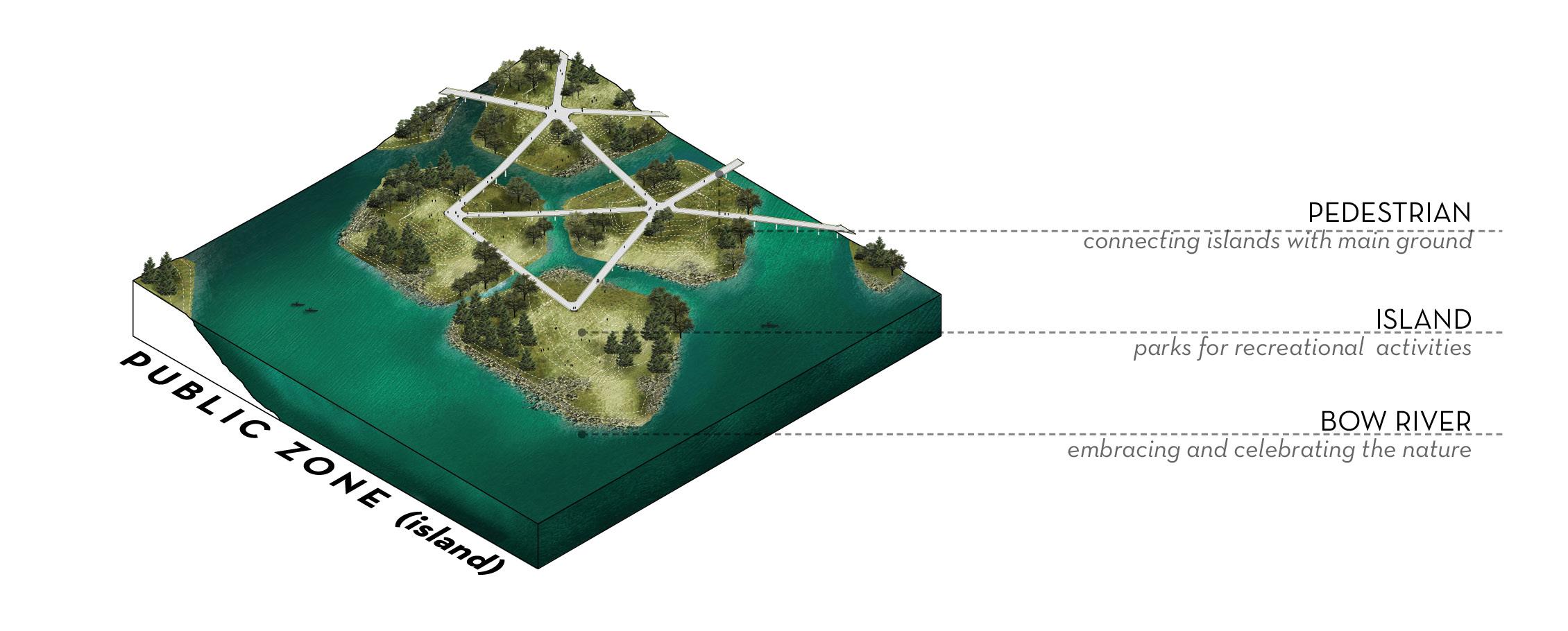

CONCEPT

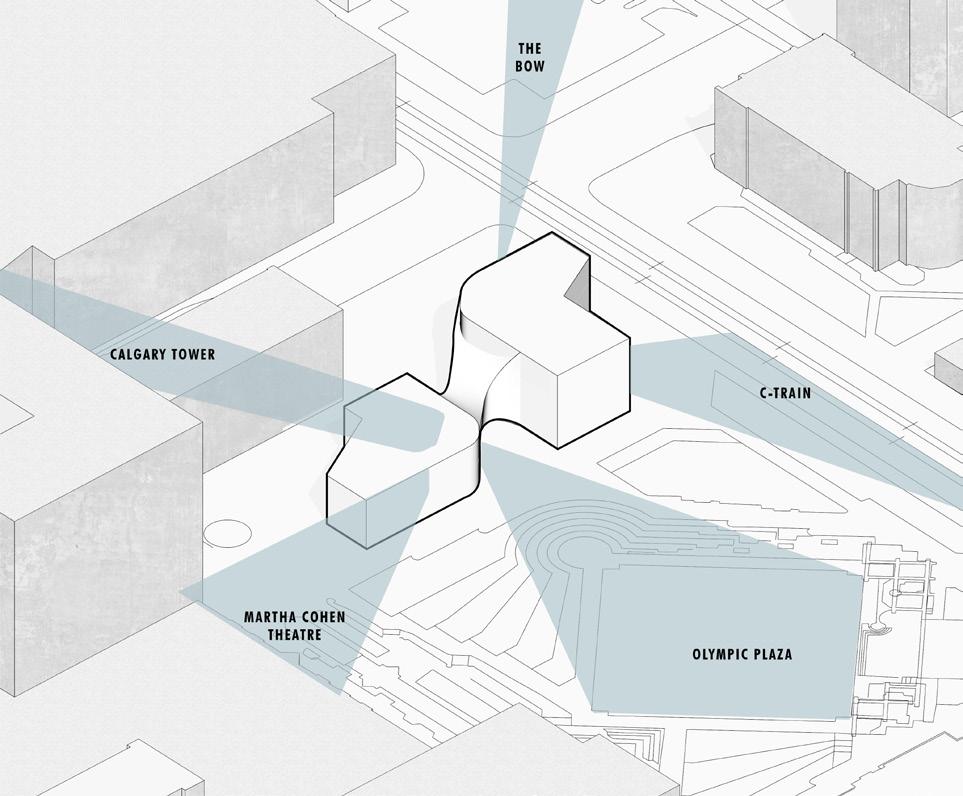

“Calgary’s portrait is curated by the bow river, vein of the city, holding it together. The city’s image is best rendered through the centre of downtown, capturing Calgary from its kernel.”

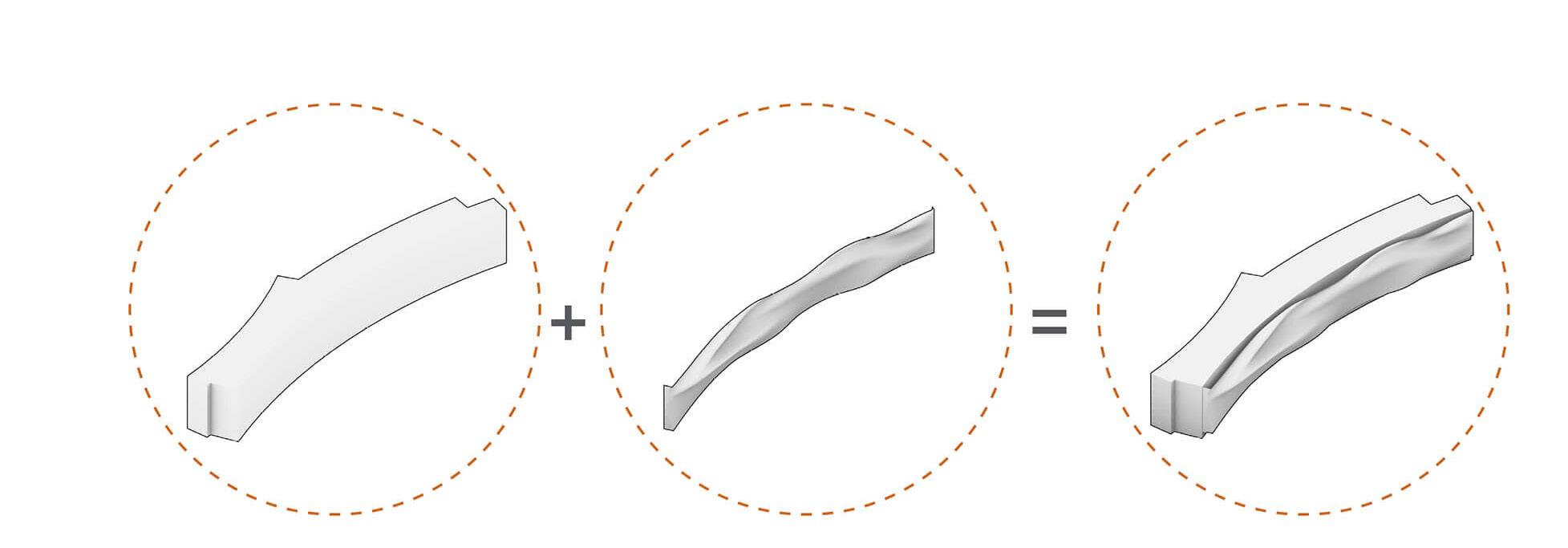

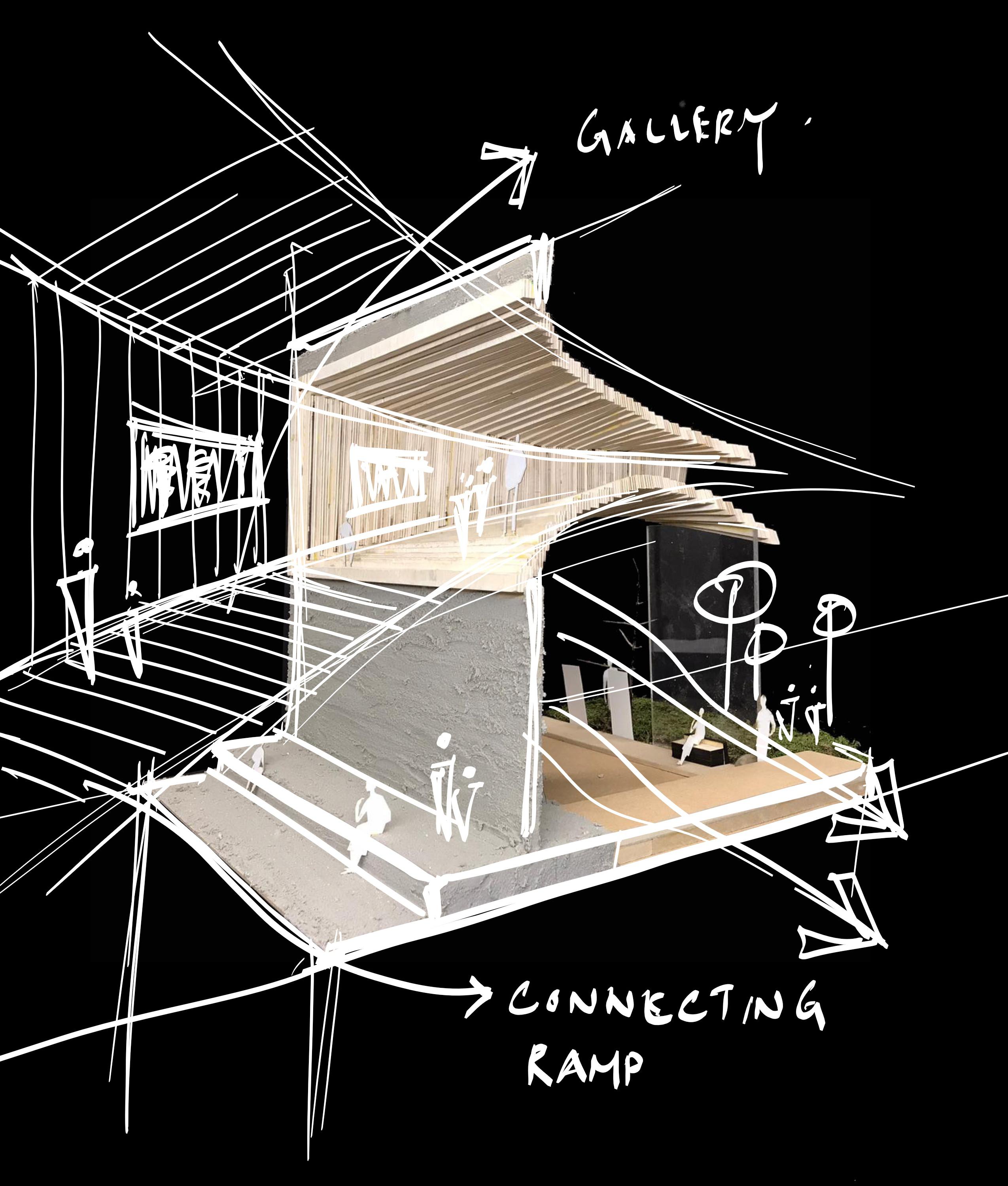

FORM DEVELOPMENT

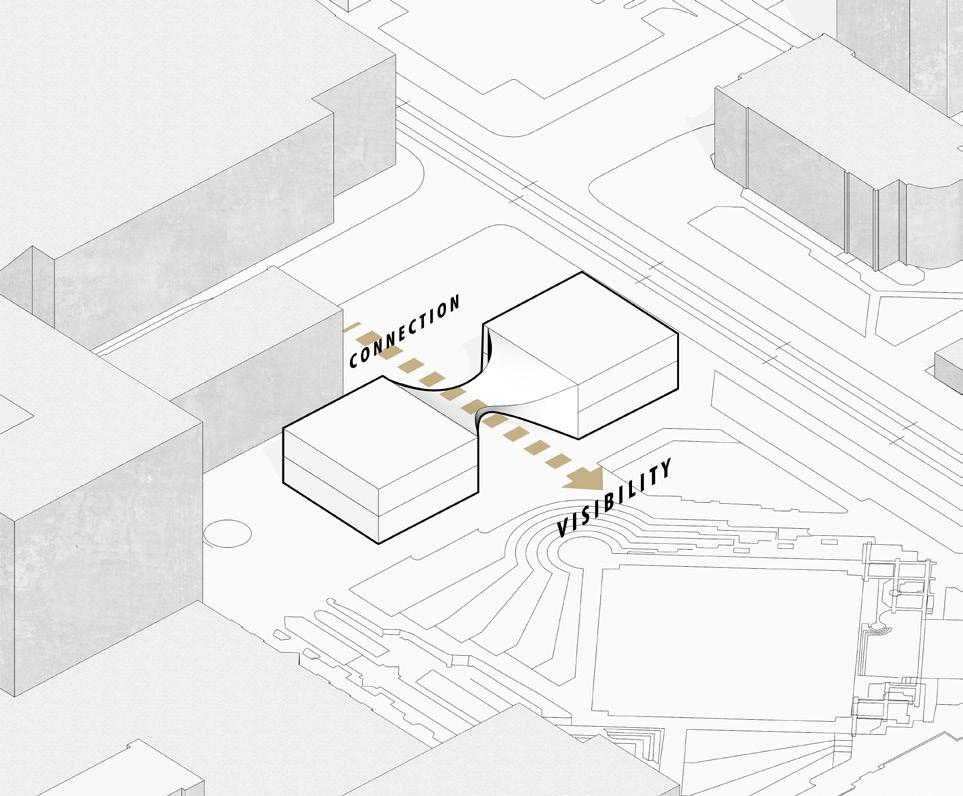

representing the land of Calgary creating a visible connection from
to create dialogue with the surrounding framing the important structures which represents the city

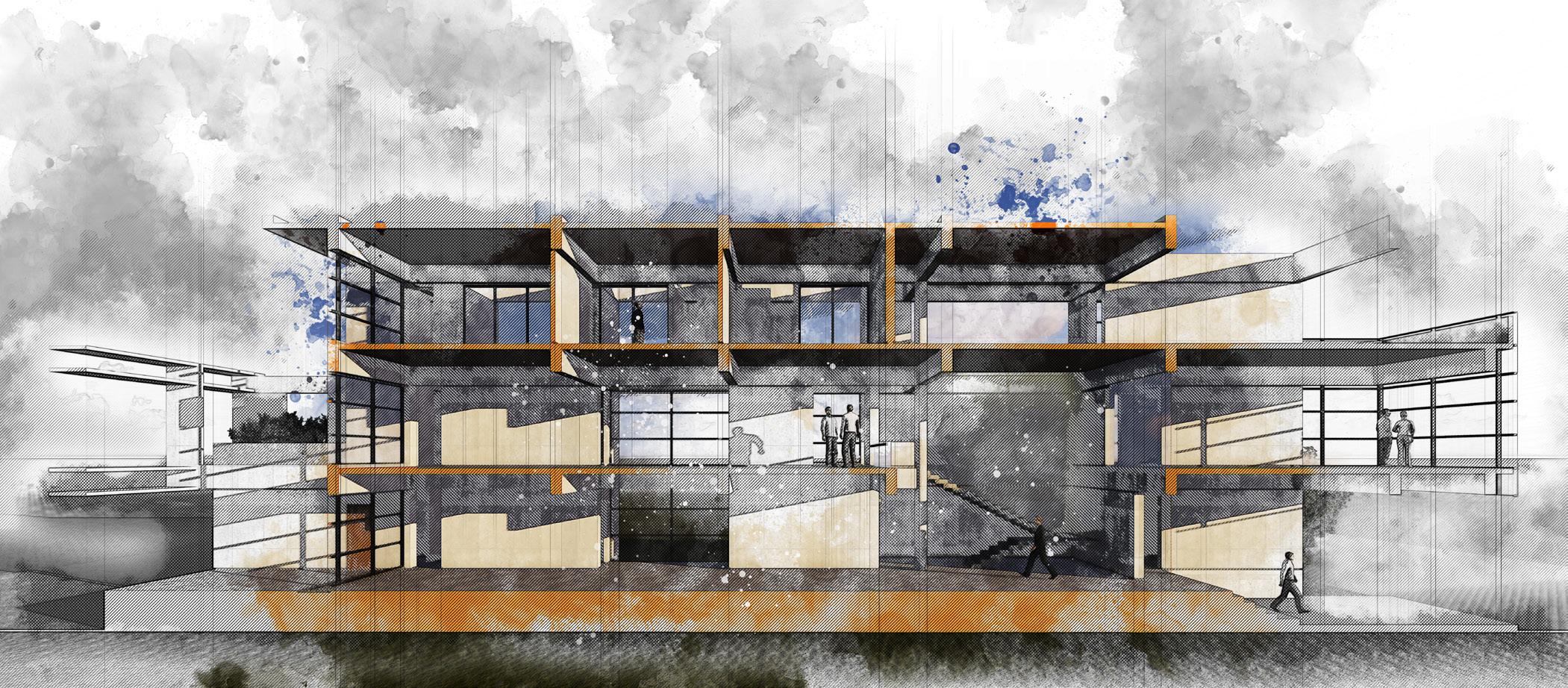

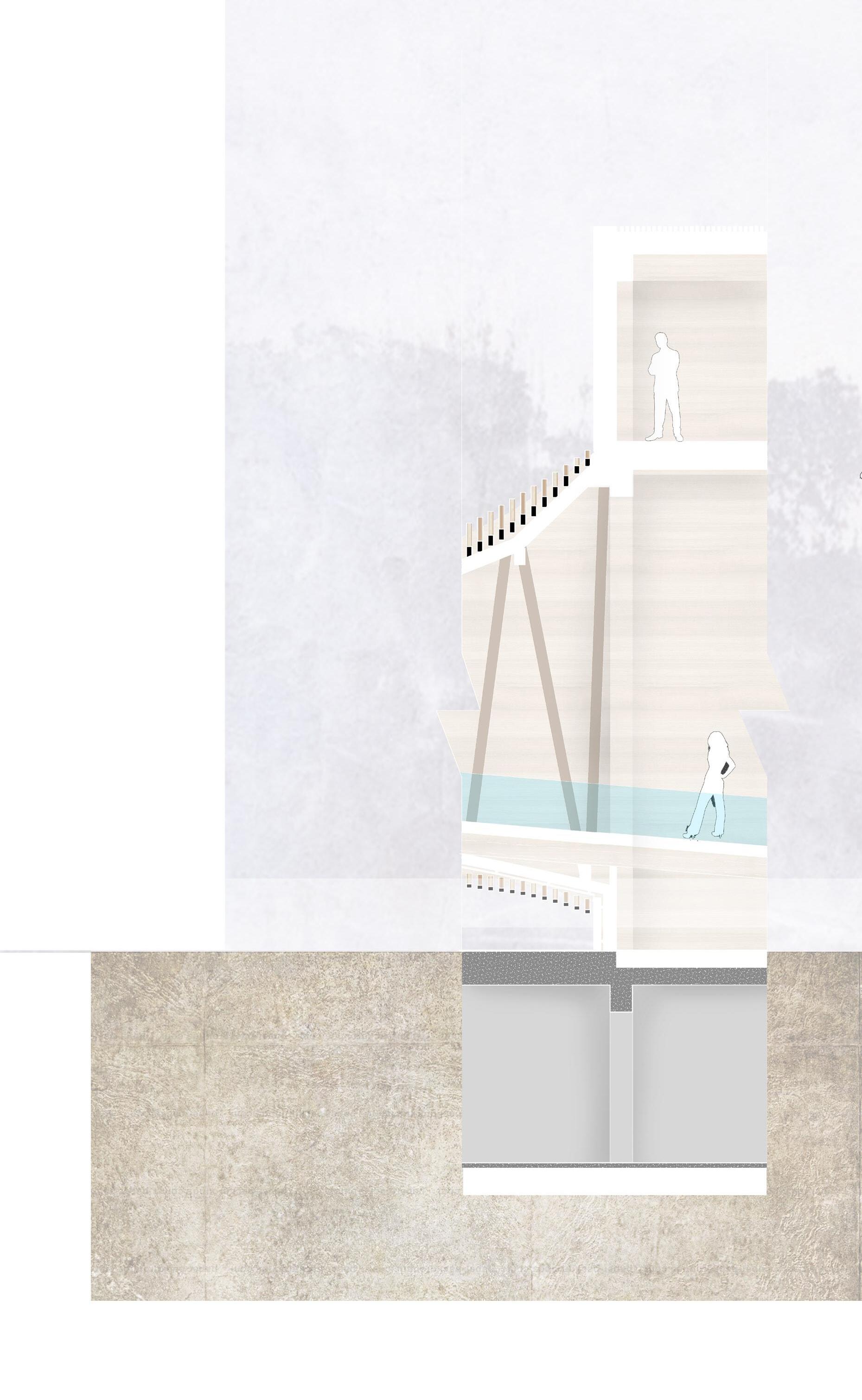

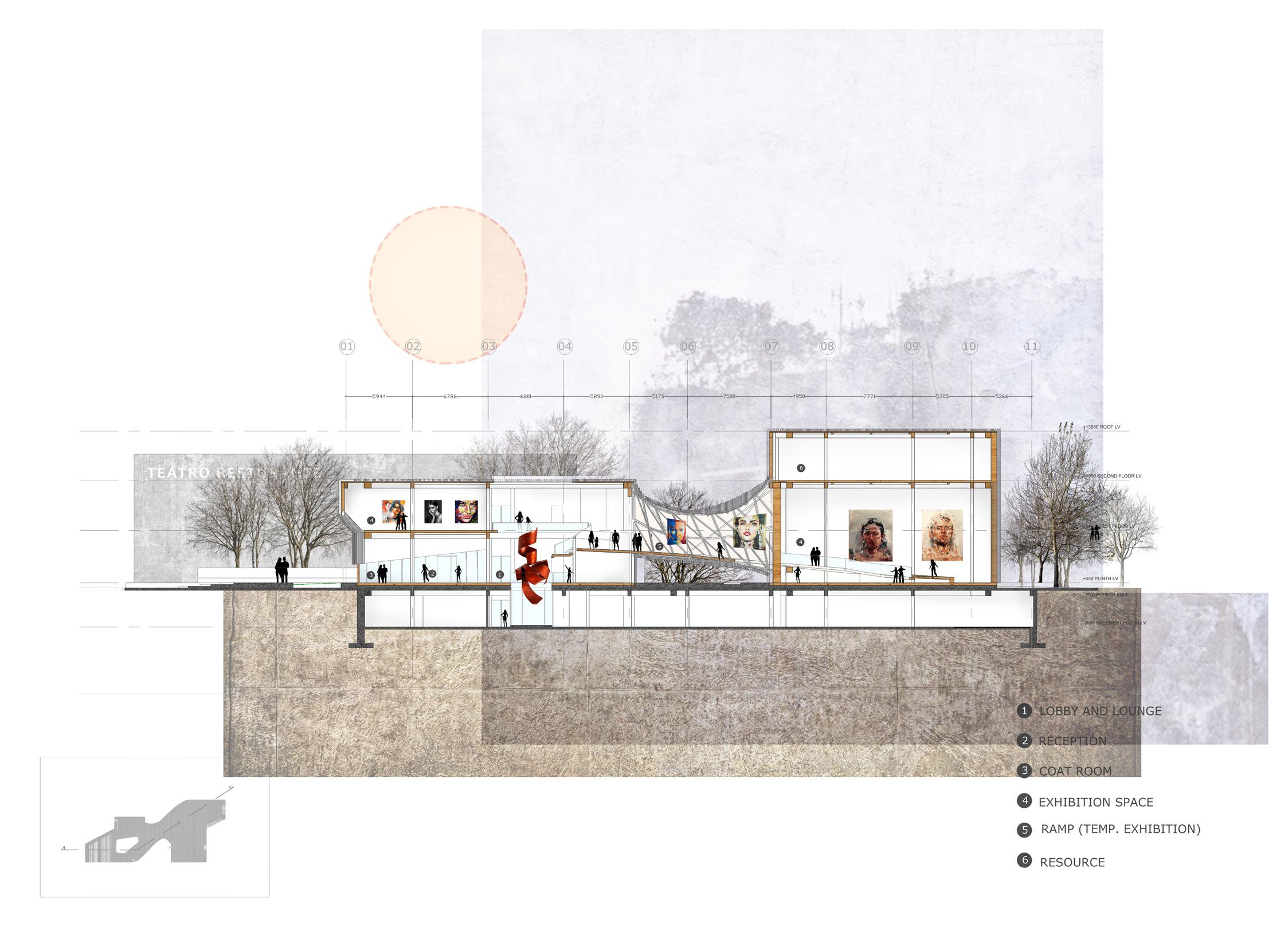

section aa’ SECTION AA’
2”x4” Kayu Battens on 2x4 Open Jointed Woodsteeper
CLT Roof with Insulation and Control Layers
Glulam Beam
Glulam Column
CLT Wall with Insulation and Control Layers
2”x4” Kayu Battens on 2.4m x2.4m Plywood Panel
Glulam Beam
2”x4” Kayu Battens
CLT Panels on Truss
Wooden Truss Beam
Wooden Truss
Glass Railling
CLT Ramp (200 mm)
Air Duct Below The Ramp
Wooden Truss Beam Supporting The Ramp
Raised Flooring on Concrete Slab
Concrete Beam
Concrete Column
Concrete Floor for Parking

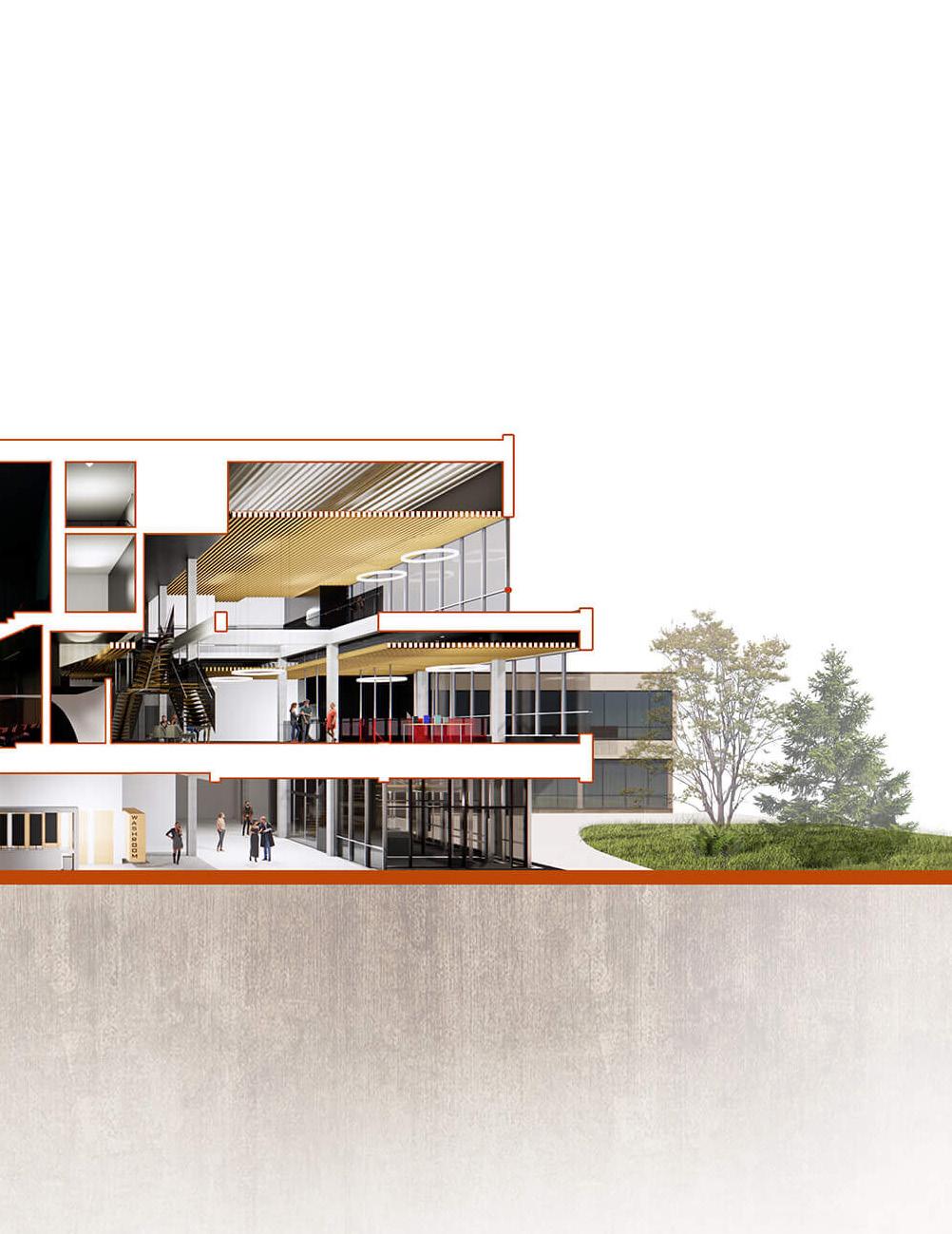

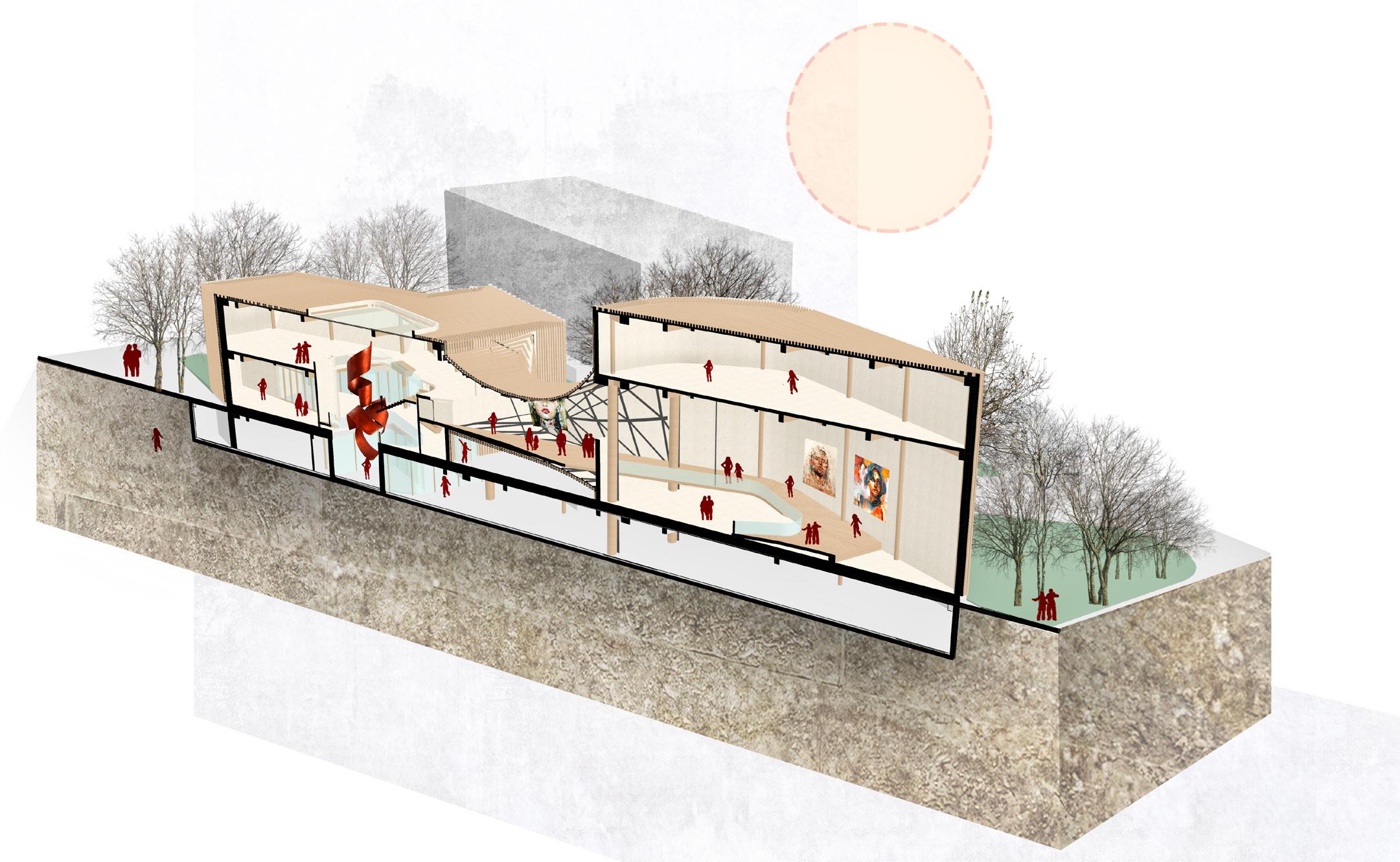

TECTONIC SECTION
RENDERS

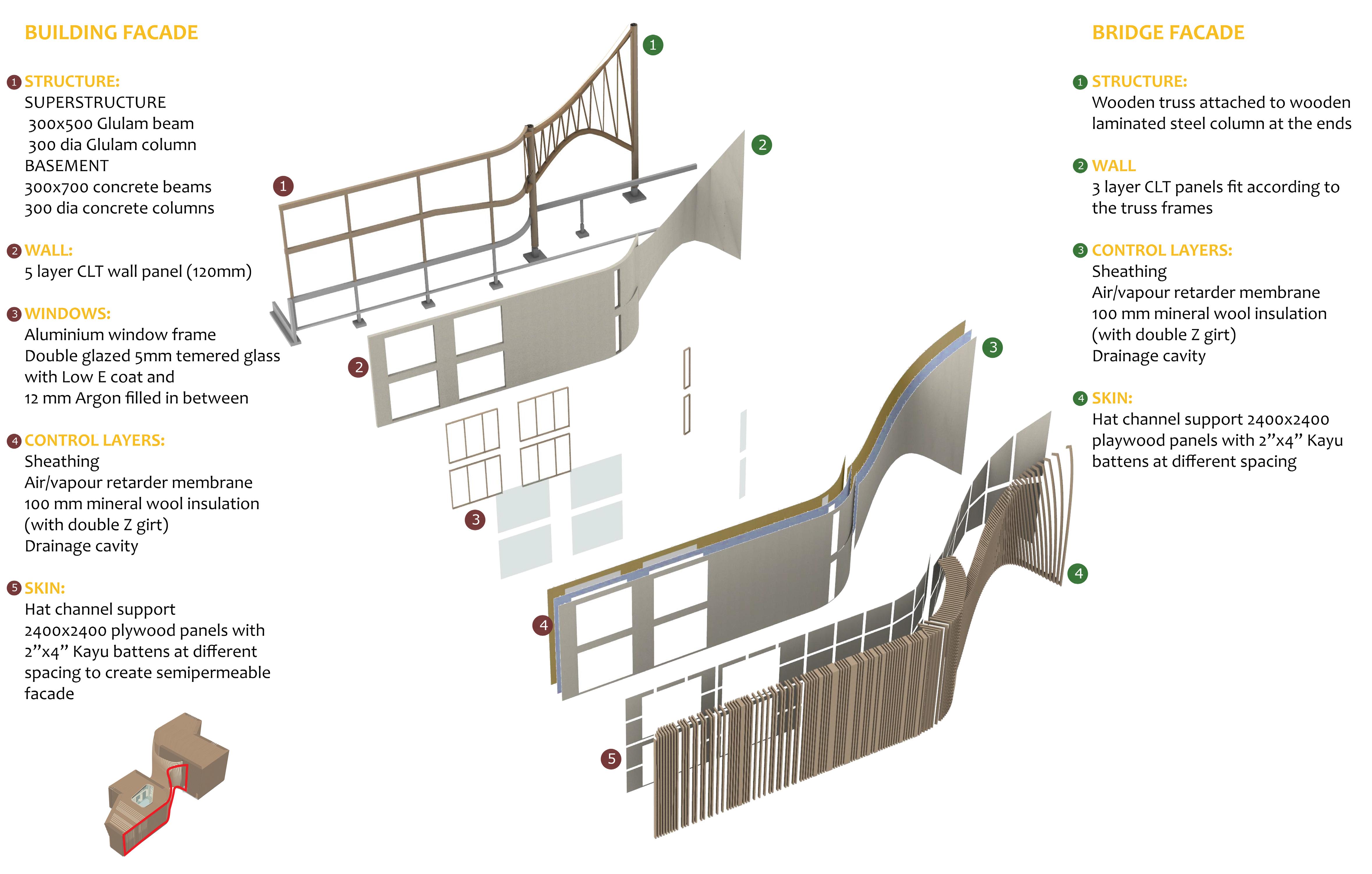

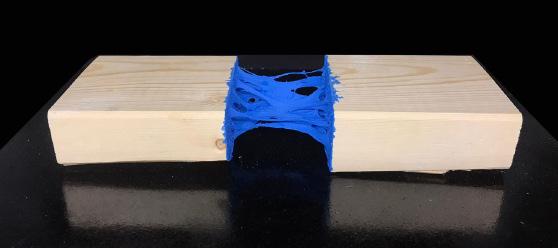

TECTONIC ASSEMBLY
TECTONIC ASSEMBLY
Framing Calgary Tower Through The Skylight

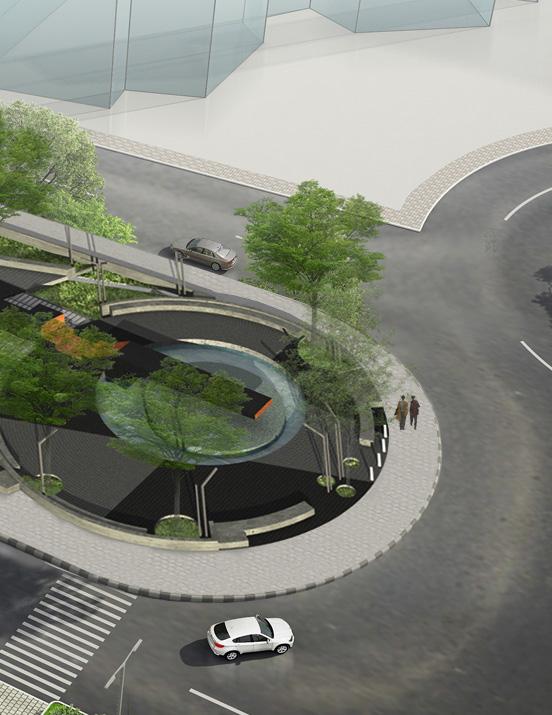

Motijheel, Dhaka, Bangladesh
MOTIJHEEL GOVT. PARK
Work Experience,Doors Architectural Consultants Ltd.
Worked on Concept phase, design development and presentation drawings & Animation

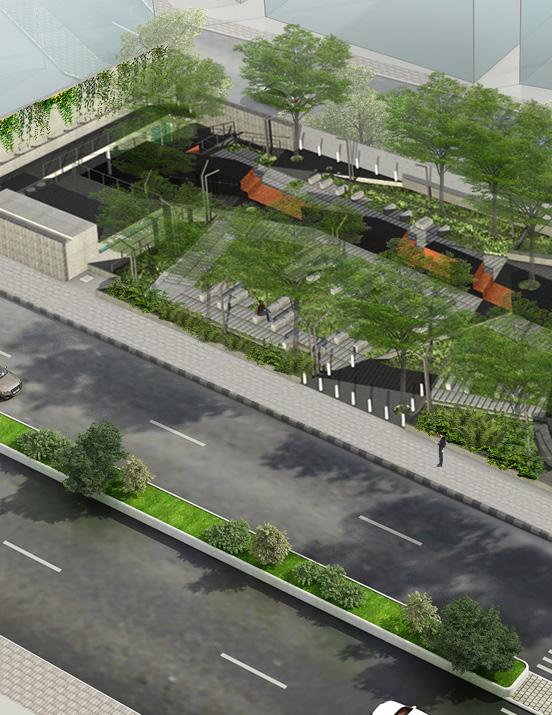

Motijheel Govt. Park is situated in the heart of commercial area of Dhaka. The main concept is to provide a breathing space for the corporate people and the locals. The seating spaces are mainly placed in the middle of the site, where the big trees are surrounding them. Big trees and bushed are placed so that they create a noise and visual barrier from the busy city.
My role in this project was to create drawings, making physical models, materials for visual presentations and animation.
SECTION_X3

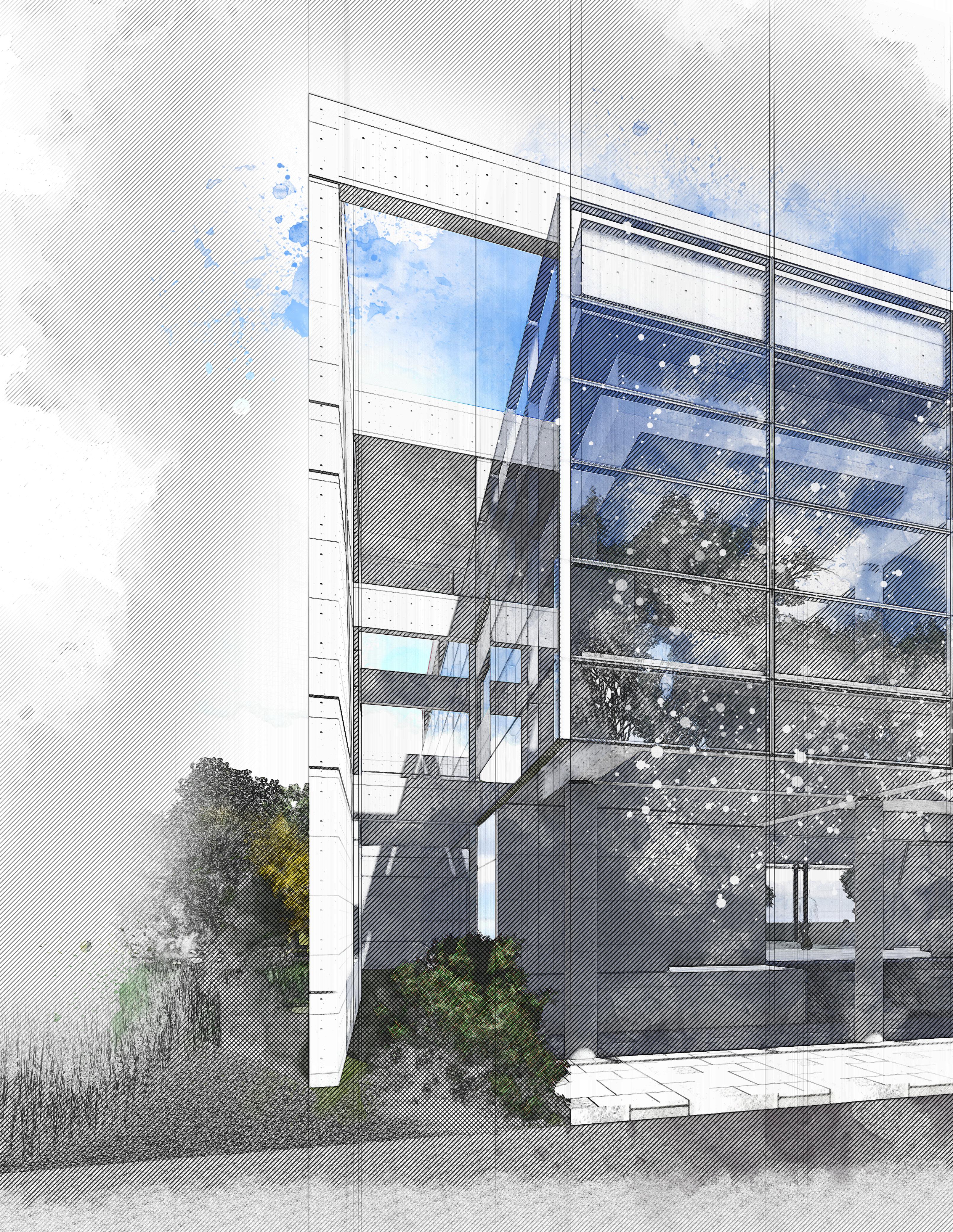

Gazipur, Bangladesh
Work Experience, Doors Architectural Consultants Ltd.

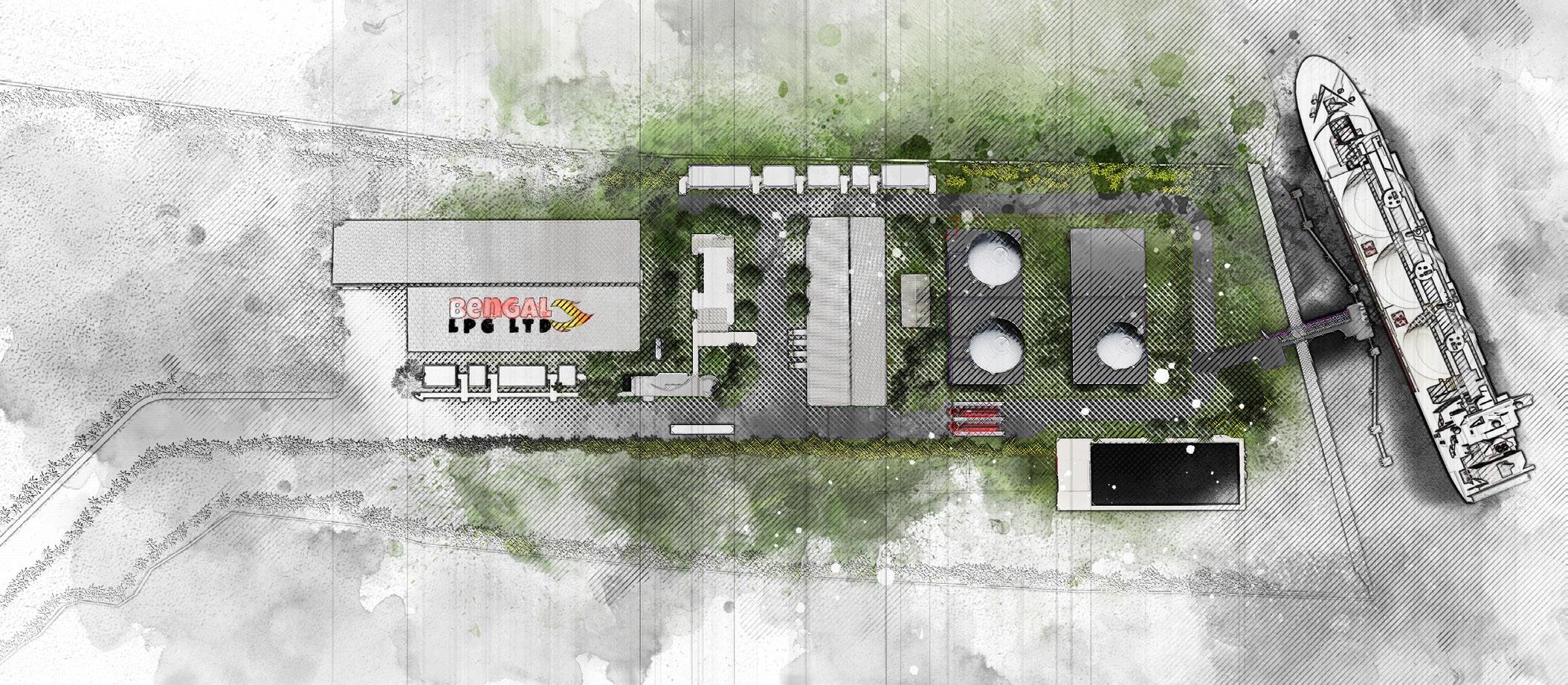

LPG office is a small part in the whole master plan for LPG project. This office building facilitates meetings rooms, office rooms, cafeteria and internal open workstation for employees. The second floor is reserved for clients and potential buyers. My role in this project was to create architectural drawings, making physical models, materials for visual presentations and animation.
