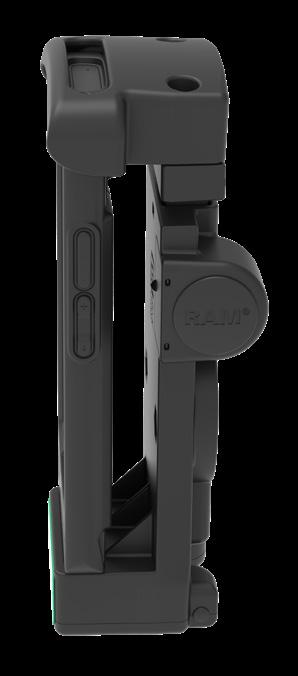

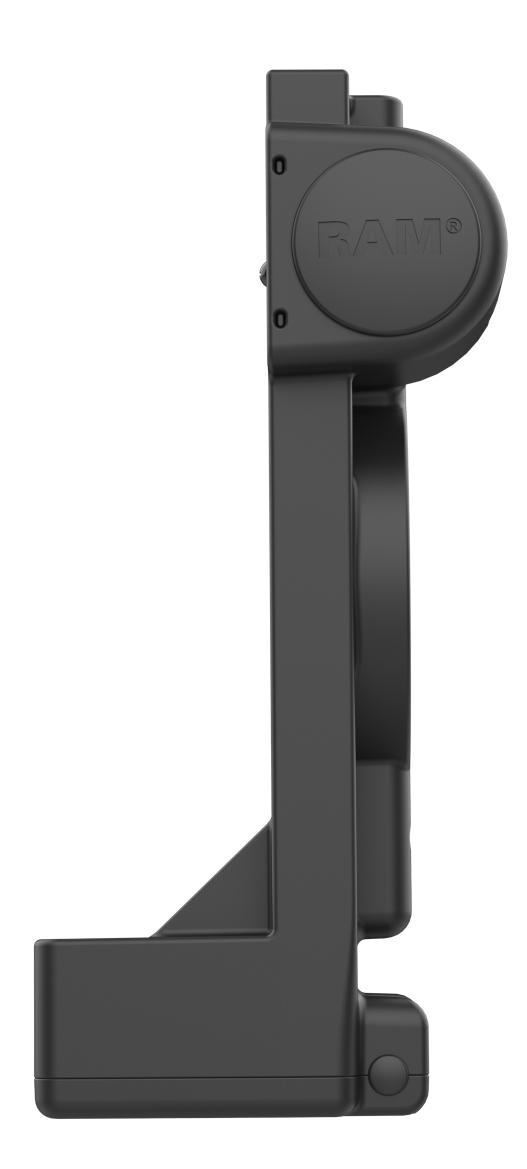

GDS® Vehicle Docks for Zebra Handheld PCs with IntelliSkin®
AVAILABLE SKUS
RAM-GDS-DOCK-V12-ZE16CPU
GDS® Powered Dock for Zebra EC50/55
RAM-GDS-DOCK-V12-ZE2434CPU
GDS® Powered Dock for Zebra TC22/27
RAM-GDS-DOCK-V12-ZE2434CPU
GDS® Powered Dock for Zebra TC53/58
PRIMARY MARKETS
RAM-GDS-DOCK-V12-ZE35CPU
GDS® Powered Dock for Zebra TC73/78
WAREHOUSE & MANUFACTURING
IntelliSkin®

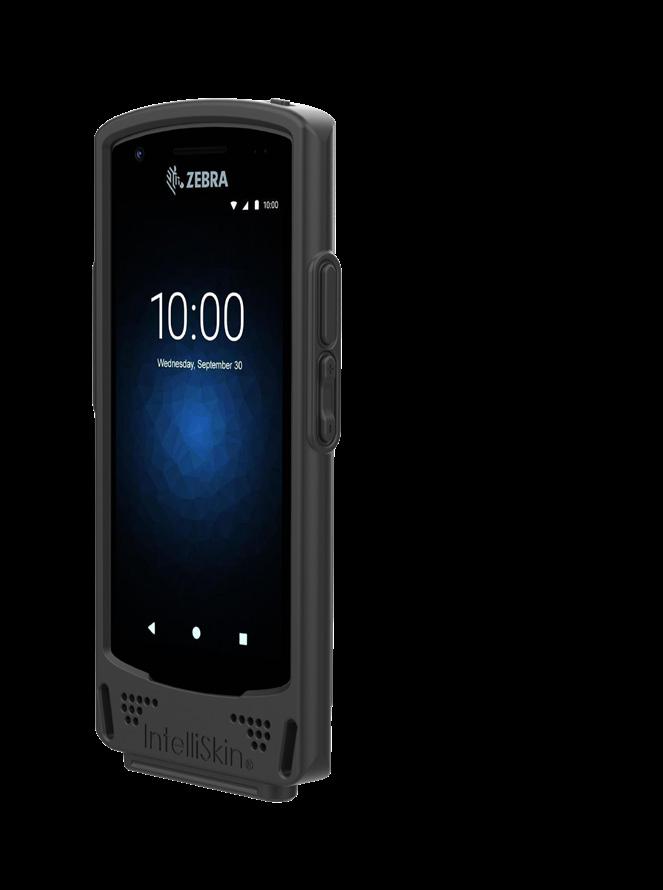

RAM-GDS-SKIN-ZE16-NG
IntelliSkin® for EC50/EC55 EC50/EC55
Docks

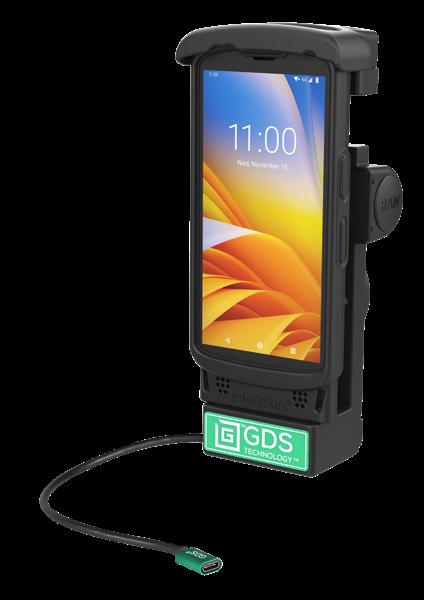

RAM-GDS-DOCK-V12-ZE16CPU
Powered
RAM-GDS-DOCK-V12-ZE16CPDU
Powered, Single USB Type-A
RAM-GDS-DOCKL-V12-ZE16CPU
Powered, Key-Locking
RAM-GDS-DOCKL-V12-ZE16CPDU
Powered, Key-Locking, Single USB Type-A
RAM-GDS-DOCKL-V12-ZE16CPDHU
Powered, Key-Locking, Single USB Type-A, Heated
TC73/TC78
IntelliSkin®
RAM-GDS-SKIN-ZE35-NG
IntelliSkin® for TC73/TC78
Docks

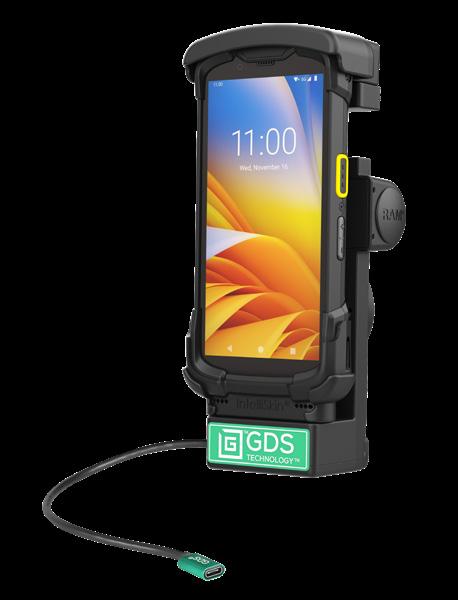

RAM-GDS-DOCK-V12-ZE35CPU
Powered
RAM-GDS-DOCK-V12-ZE35CPDU
Powered, Single USB Type-A
RAM-GDS-DOCKL-V12-ZE35CPU
Powered, Key-Locking
RAM-GDS-DOCKL-V12-ZE35CPDU
Powered, Key-Locking, Single USB Type-A
RAM-GDS-DOCKL-V12-ZE35CPDHU
Powered, Key-Locking, Single USB Type-A, Heated
IntelliSkin®
RAM-GDS-SKIN-ZE24
IntelliSkin® for TC22/TC27 TC22/TC27 & TC53/TC58
RAM-GDS-SKIN-ZE34
IntelliSkin® for TC53/TC58
Docks

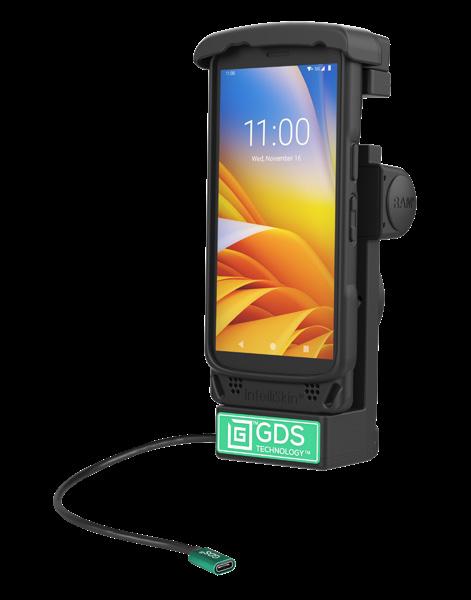

RAM-GDS-DOCK-V12-ZE2434CPU
Powered
RAM-GDS-DOCK-V12-ZE2434CPDU
Powered, Single USB Type-A
RAM-GDS-DOCKL-V12-ZE2434CPU
Powered, Key-Locking
RAM-GDS-DOCKL-V12-ZE2434CPDU
Powered, Key-Locking, Single USB Type-A
RAM-GDS-DOCKL-V12-ZE2434CPDHU
Powered, Key-Locking, Single USB Type-A, Heated
AVAILABLE FEATURES
POWERED KEY-LOCKING
HEATED PINS
CLICK OR SCAN TO VIEW ALL PRODUCTS SINGLE USB PERIPHERAL
Patented & Pats Pend.
rammount.com/ip
GDS® Vehicle Docks for Zebra Handheld PCs with IntelliSkin®

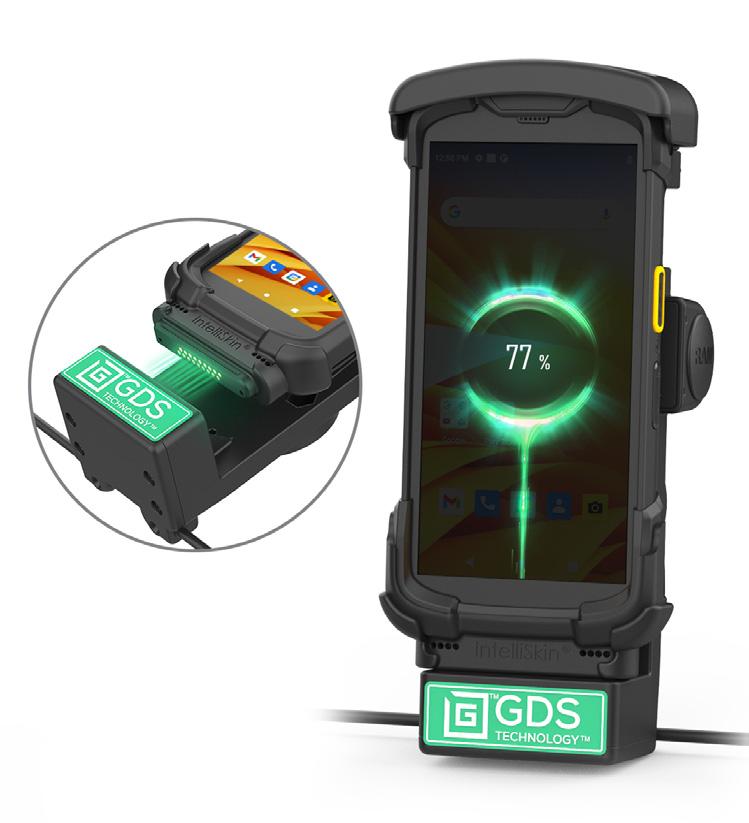

Fast & Convenient Charging

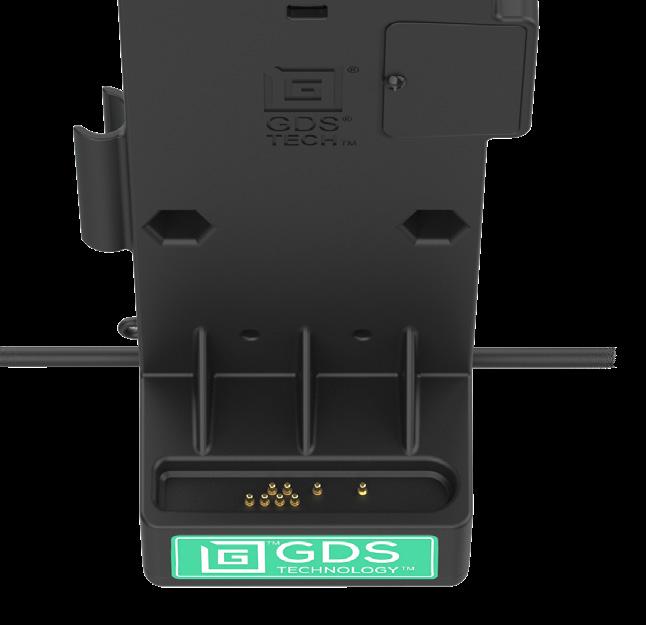

By upgrading to the GDS®/IntelliSkin® system, your devices will charge up to 30% faster when paired with compatible chargers. The pogo pad/pin design allows for an easy workflow without fumbling with cords — simply dock the IntelliSkin®-wrapped device to charge.

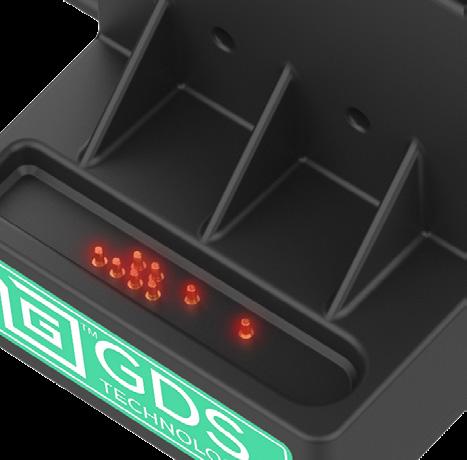

Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments such as cold storage warehousing.

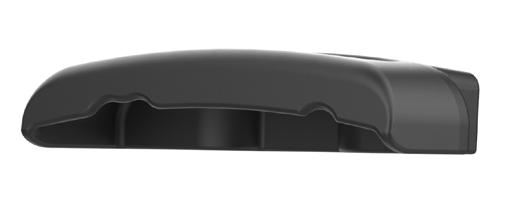

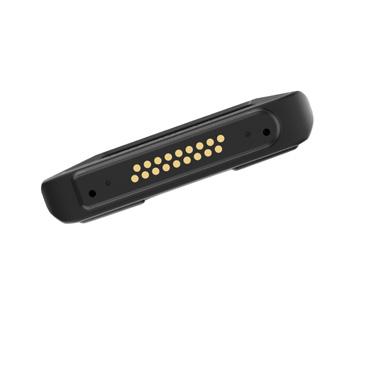

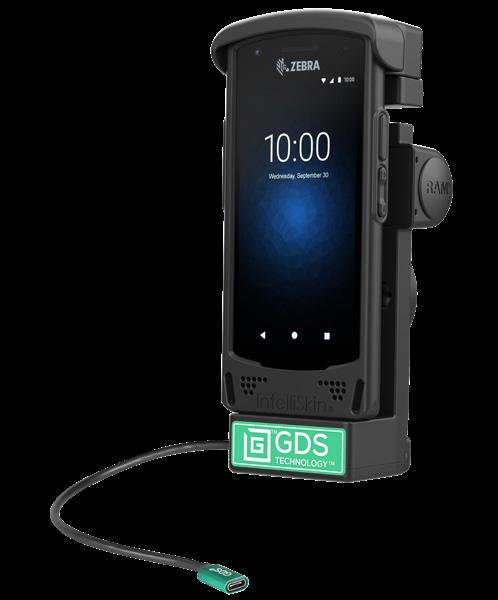

Each IntelliSkin® is uniquely built to protect the device using soft, shock-absorbing rubber with an internal USB-C connector that protects the device and it’s ports while converting the connection point to flat pogo pad docking contacts that are easy to clean.

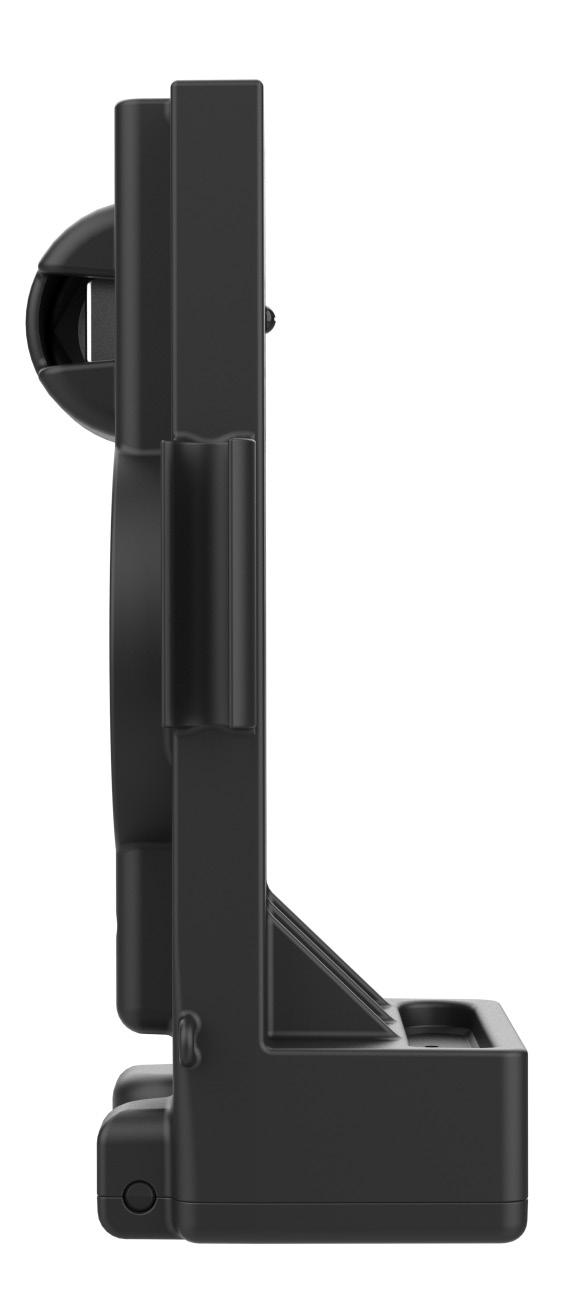

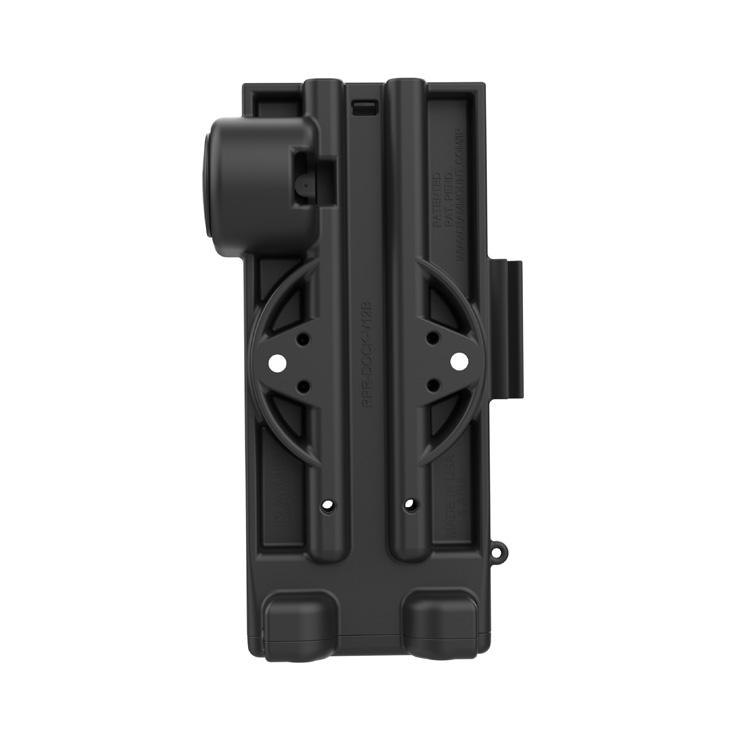

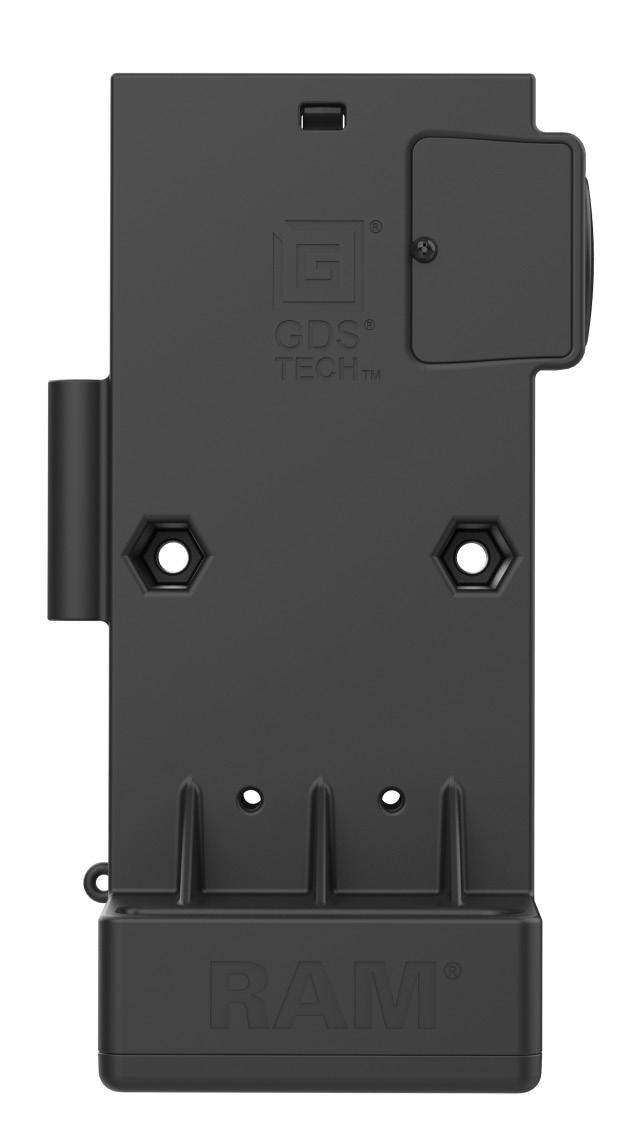

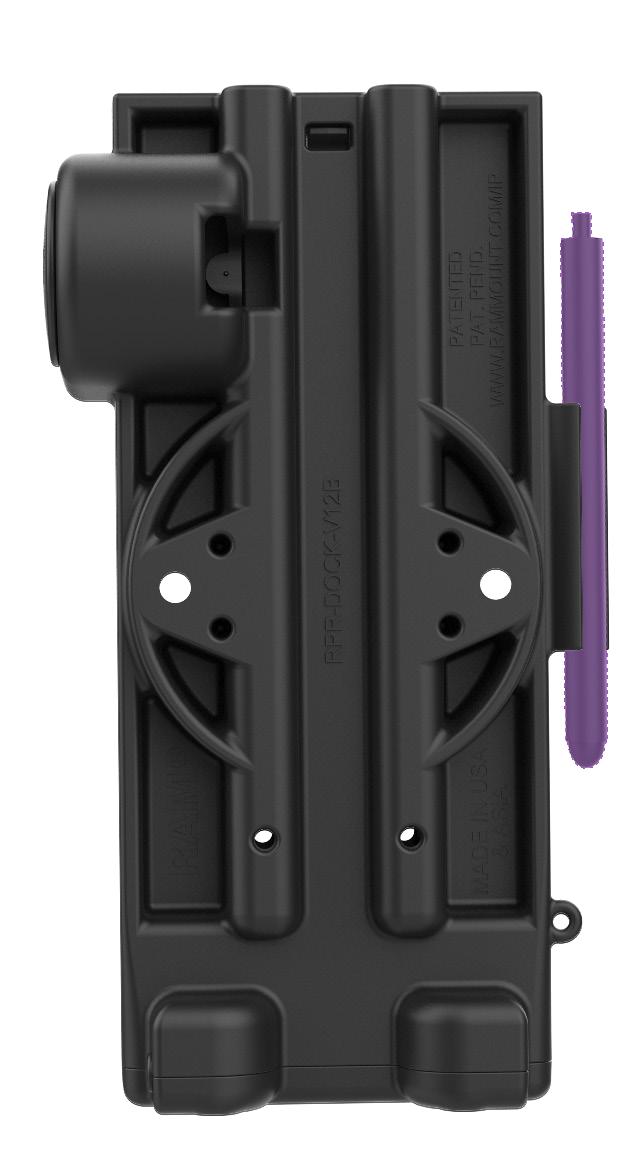

Utilizing the 2-hole mounting pattern on the back of the dock unlocks hundreds of mounting components to customize your mount to your needs and environment. Additional dock space is provided to accommodate extended battery packs as well as the OEM hand strap accessory.
SPECIFICATIONS
EC50/EC55 Top Cup
SPECIFICATIONS
DIMENSIONS 7.97” (H) x 3.58”(W) x 2.85”(D) 20.24 cm (H) x 9.09cm (W) x 7.24cm (D)
HARDWIRE POWER SUPPLIES
RAM-GDS-CHARGE-V3C-2U
RAM-GDS-CHARGE-V3CH-2U
RAM-GDS-CHARGE-USBC2W
CERTIFICATIONS
RoHS, WEEE, CE, UKCA
INPUT VOLTAGE
5V-15V
POWER CONNECTOR TYPE
USB Type-C
POWER CABLE LENGTH 39.3 inches (100
PERIPHERAL POWER OUTPUT
900mA(max.)
DATA CONNECTOR TYPE
USB Type-A
DATA CABLE LENGTH
39.3 inches (100 cm)
GDS® Vehicle Docks for Zebra Handheld PCs with IntelliSkin®
COMPATIBLE MOUNTS
Patented & Pats Pend. rammount.com/ip
Static & Light Duty Mounting

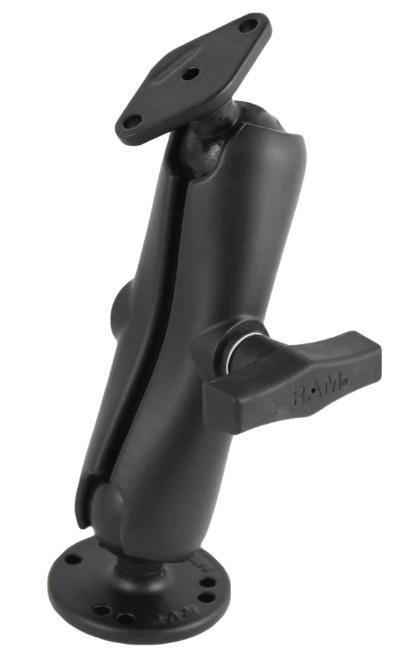

RAM-138U
RAM® Double Ball Mount with Diamond Plate Adapter - C Size with Standard Arm
Alternate Bases

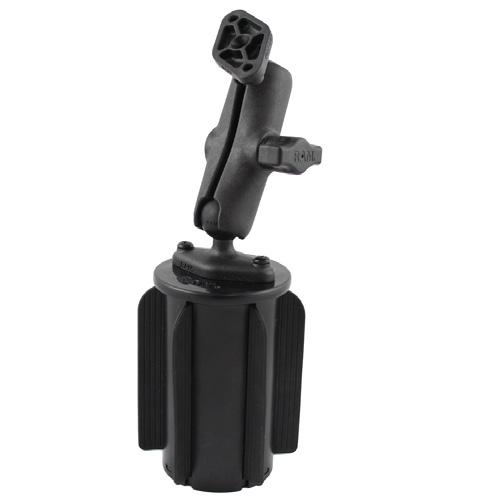

RAP-299-3-B-102U
RAM-A-CAN™ II Universal Cup Holder Base with Double Ball Mount
Forklift & Heavy Duty Mounting

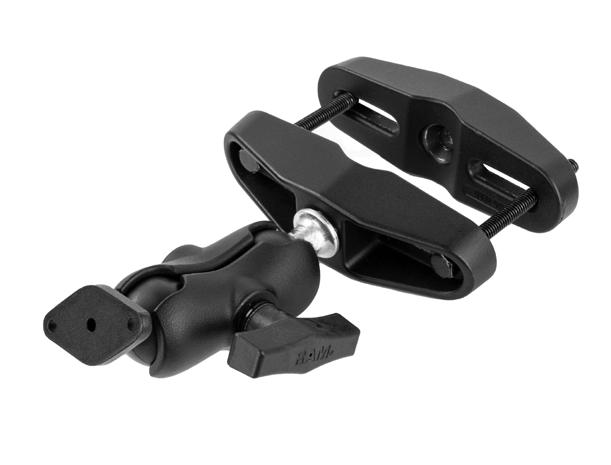

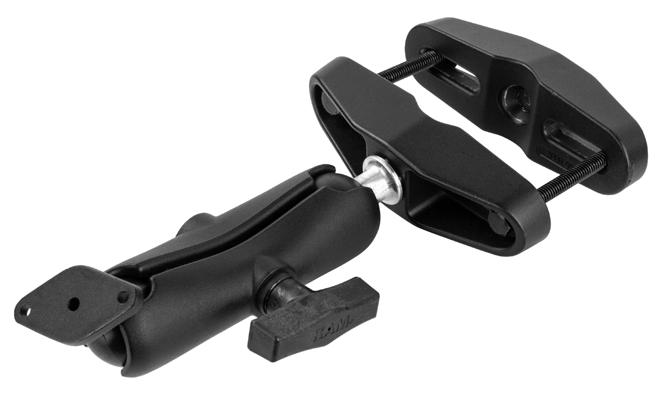

RAM-102U-247
RAM® Square Post Clamp Mount for Posts 1.75” - 4” Wide - C Size with Standard Arm
RAM-102U-B-247
RAM® Square Post Clamp Mount for Posts 1.75” - 4” Wide - C Size with Short Arm

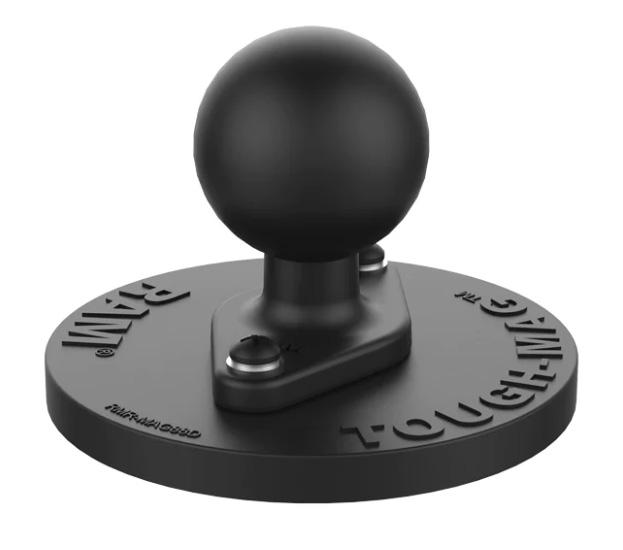

RAM-238-MAG88U
RAM® Tough-Mag™ 88MM Diameter Diamond Ball Base - C Size

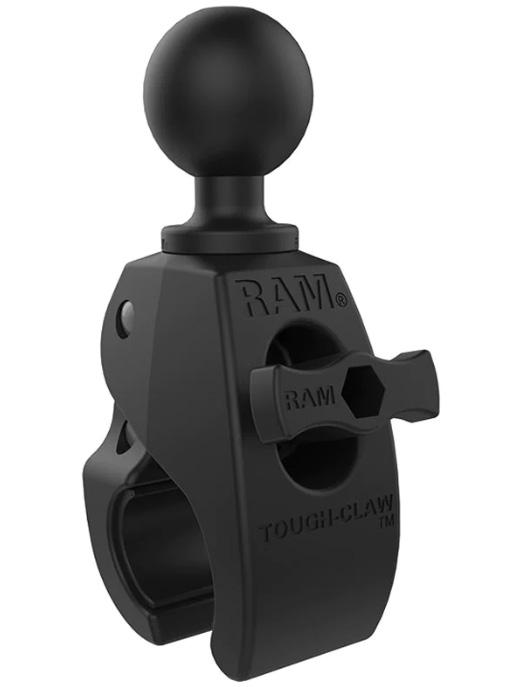

RAP-404U
RAM® Tough-Claw™ Medium Clamp Ball Base - C Size

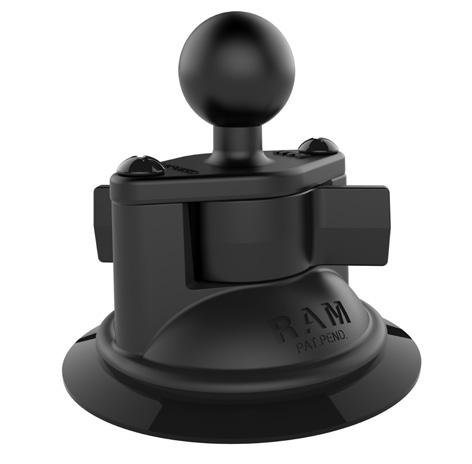

RAM-B-224-1U
RAM® Twist-Lock™ Suction Cup Base with Ball

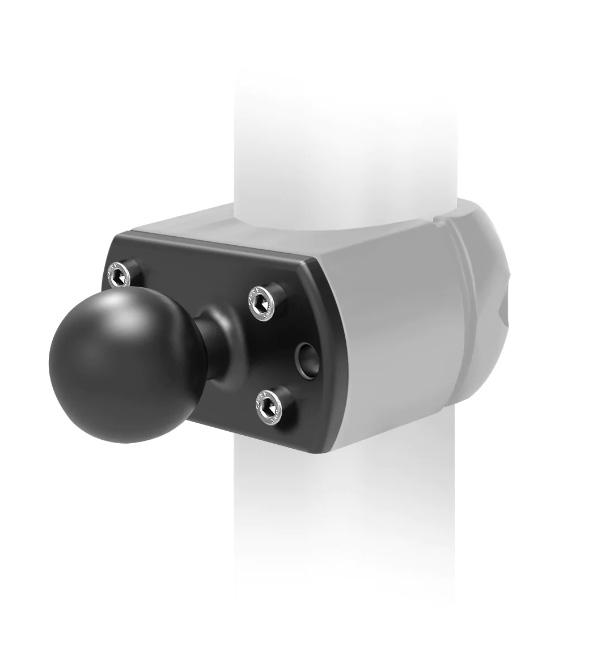

RAM-202U-CRO1
RAM® Ball Base for Crown Work Assist® - C Size
ACCESSORIES

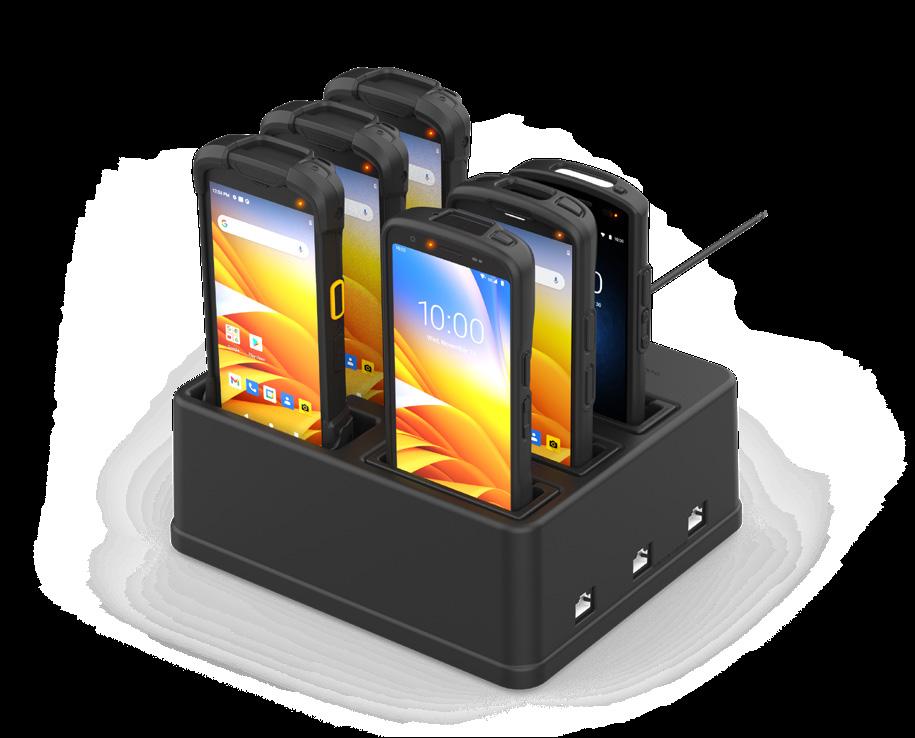

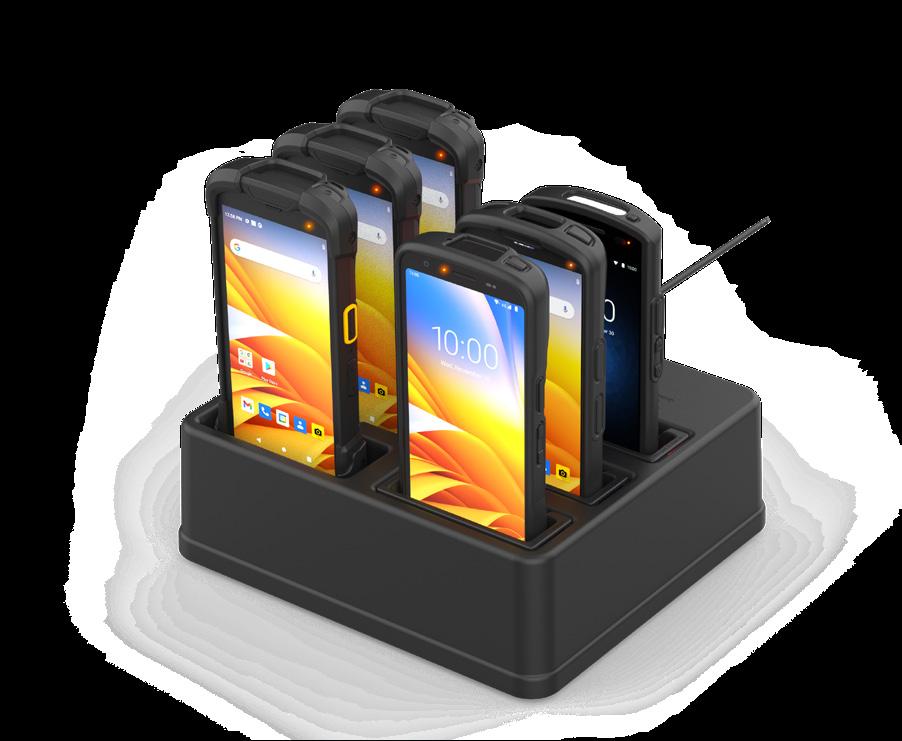

RAM-GDS-DOCK-6G15P
GDS® 6-Port Powered Dock for Zebra Handhelds with IntelliSkin®
RAM-GDS-DOCK-6G15P-RJ45
GDS® 6-Port Power and RJ45 Dock for Zebra Handhelds with IntelliSkin®

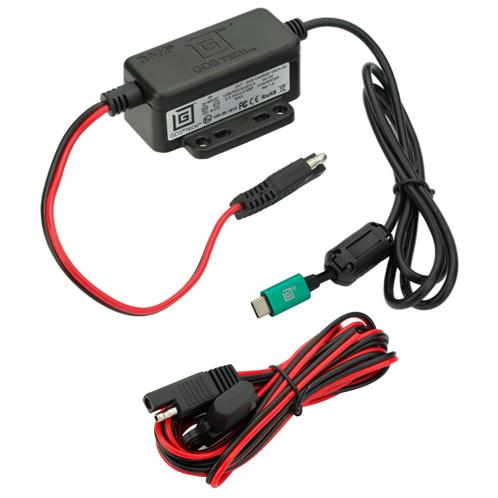

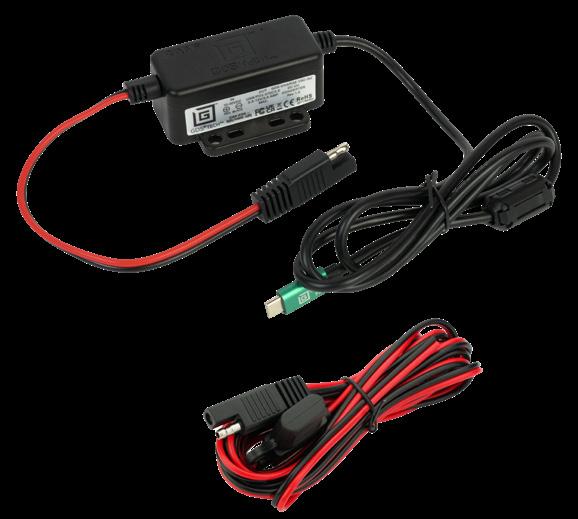

RAM-GDS-CHARGE-V3C-3U
GDS® Modular 10-30V Power Delivery
Hardwire Charger with Male USB Type-C
Patented & Pats Pend. rammount.com/ip

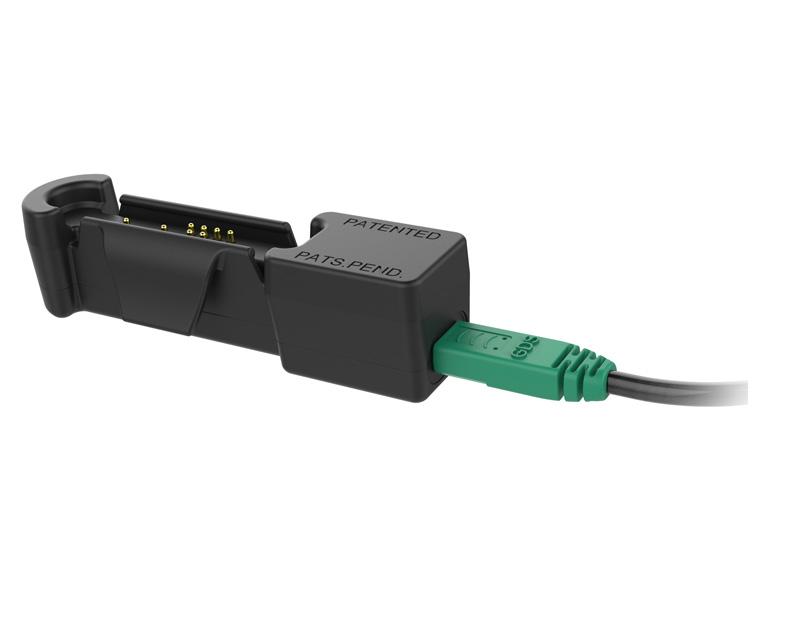

RAM-GDS-AD3CU
GDS® Snap-Con™ GDS® to Type-C USB Adapter
RAM-GDS-CHARGE-V3CH-2U
GDS® Modular 30-64V Power Delivery
Hardwire Charger with Male USB Type-C

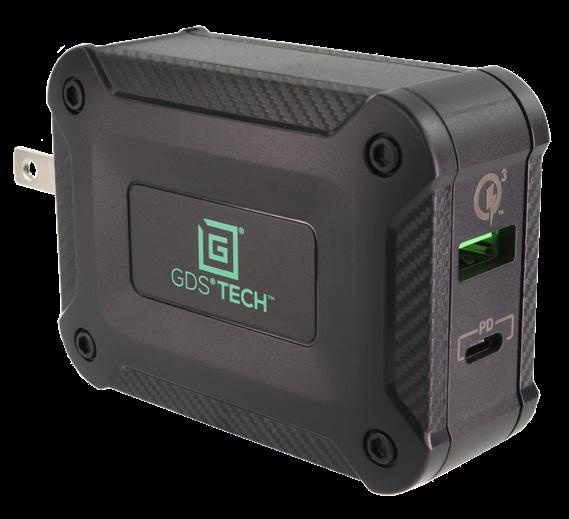

RAM-GDS-CHARGE-USBC2W
GDS® Type-C and Type-A 48W
Premium 2-Port Wall Charger
