RAM® Quick-Grip™ Pro
PAGE LABEL
OVERVIEW
Supports small and large phones, rugged cases, and select Handheld PCs
Supports most phones with or without a case

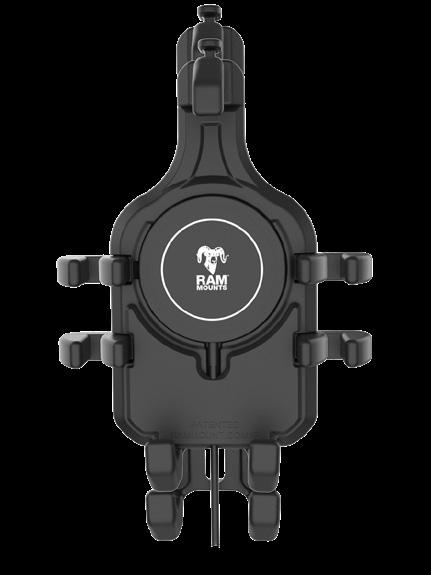

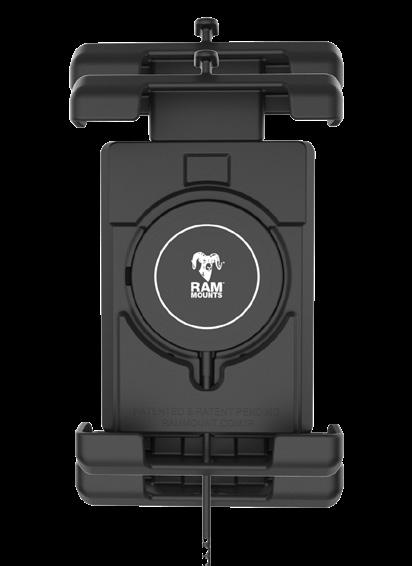

Upgrade holder with RAM® Qi2 Wireless Charger

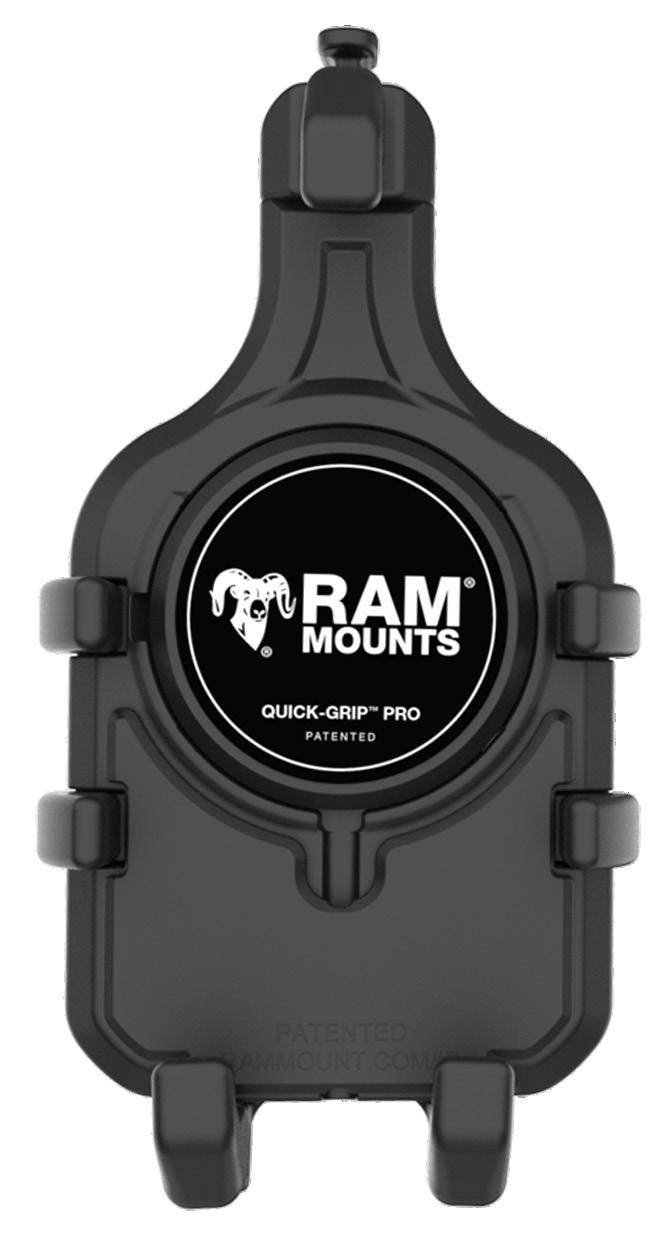

RAM-HOL-PD7U

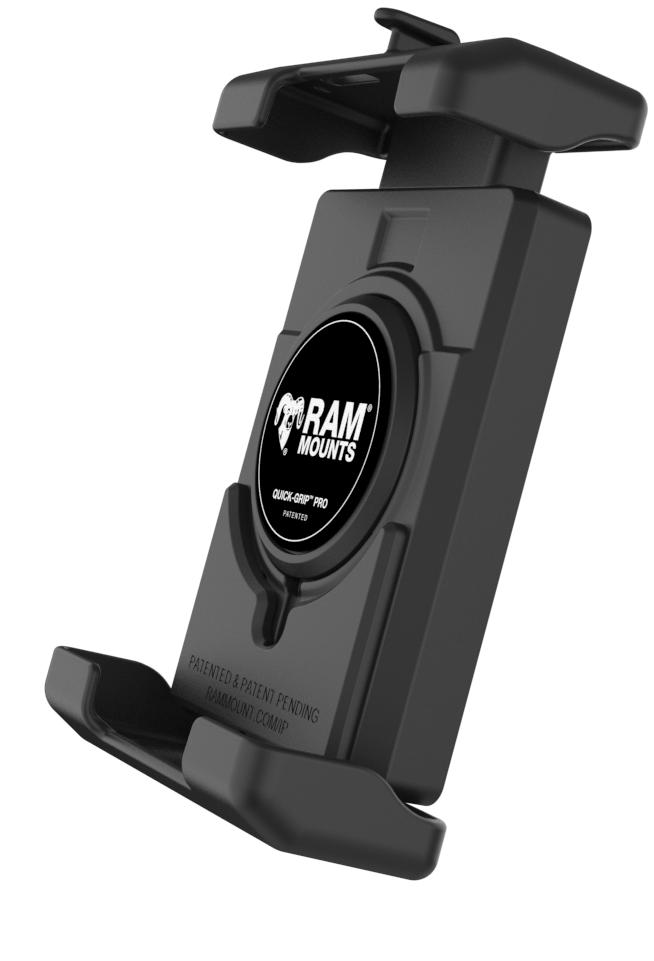

RAM-HOL-PD5U
RAM® Quick-Grip™ Pro XL Phone Holder
RAM® Quick-Grip™ Pro Phone Holder
CLICK OR SCAN
TO VIEW ALL PRODUCTS
Patented & Pats Pend. rammount.com/ip
RAM® Quick-Grip™ Pro
FEATURES & BENEFITS
Universal Fitment
RAM® Compatible™
Adjustable bottom allows users to properly align their phone, while the spring-loaded top enables one-handed device insertion and removal.

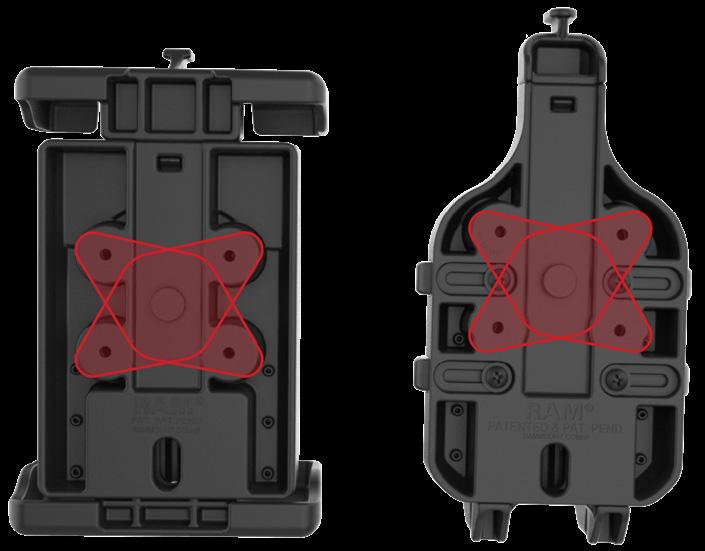

The holders’ 2-hole AMPS pattern on the back connects to any RAM® Diamond Ball base. You can complete your solution by building a custom solution or exploring popular kits built by RAM® experts.

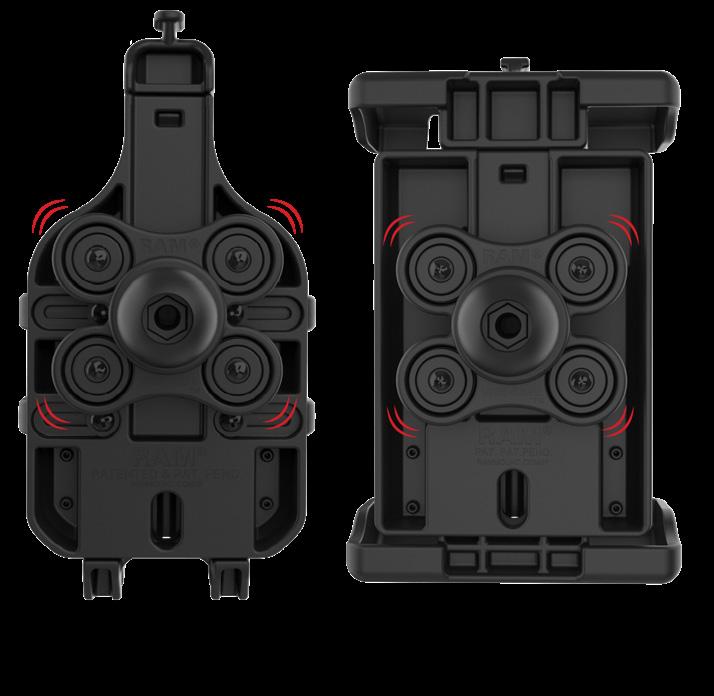

Vibration Damping

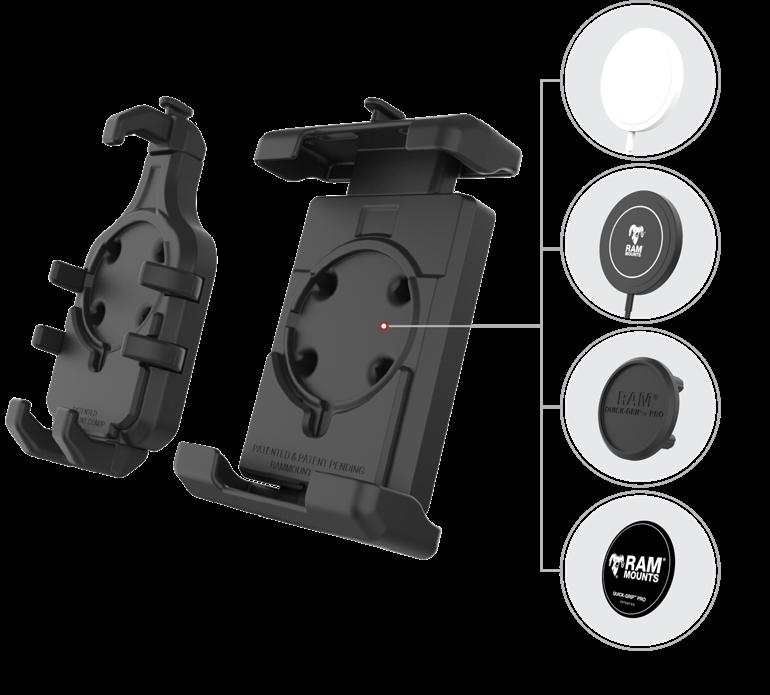

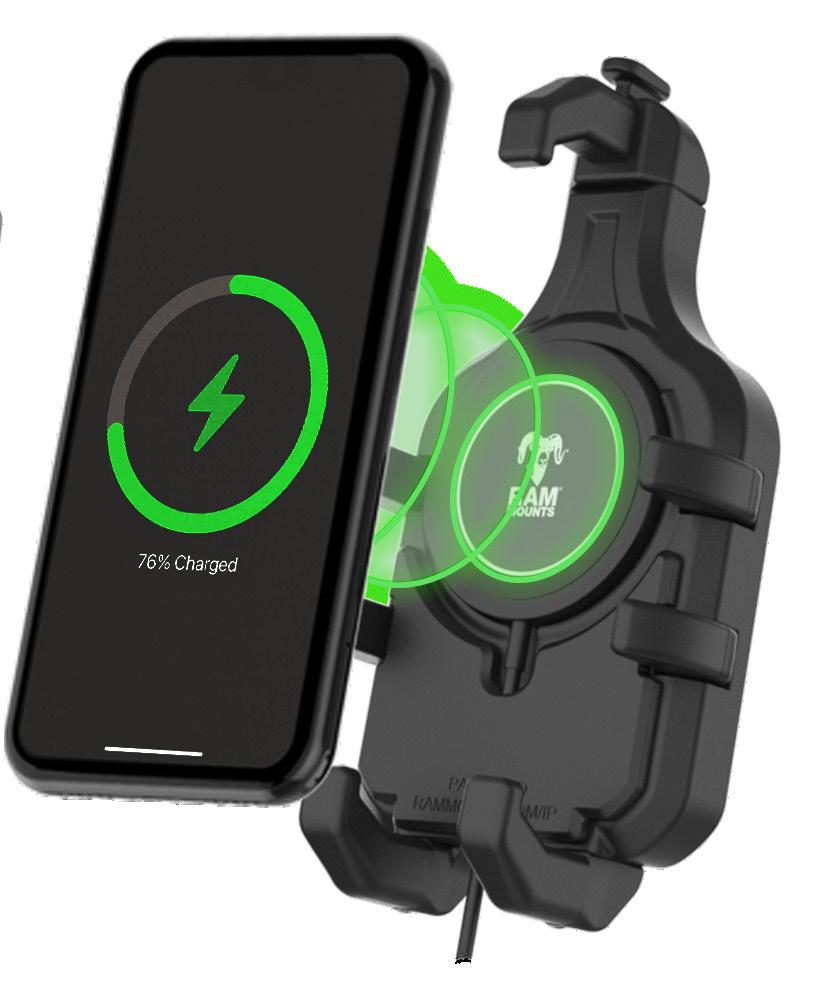

Wireless Charging
Low-profile, integrated vibration damper protects electronic devices from a wide range of vibration frequencies. *
Integrated accessory cavity fits the RAM® Qi2 15W Wireless Charger and Apple MagSafe charger. Not interested in charging? No problem! The included antislip cover or RAM® decal ensures a flush device fit when the wireless charger puck is not installed.
*A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damge to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® Mounts lifetime warranty is limited to RAM® Mounts and components. The warranty does not include any device mounted or attached to a RAM® Mount, such as a phone, GPS, camera, computer, or other device. 2
RAM® Quick-Grip™ Pro

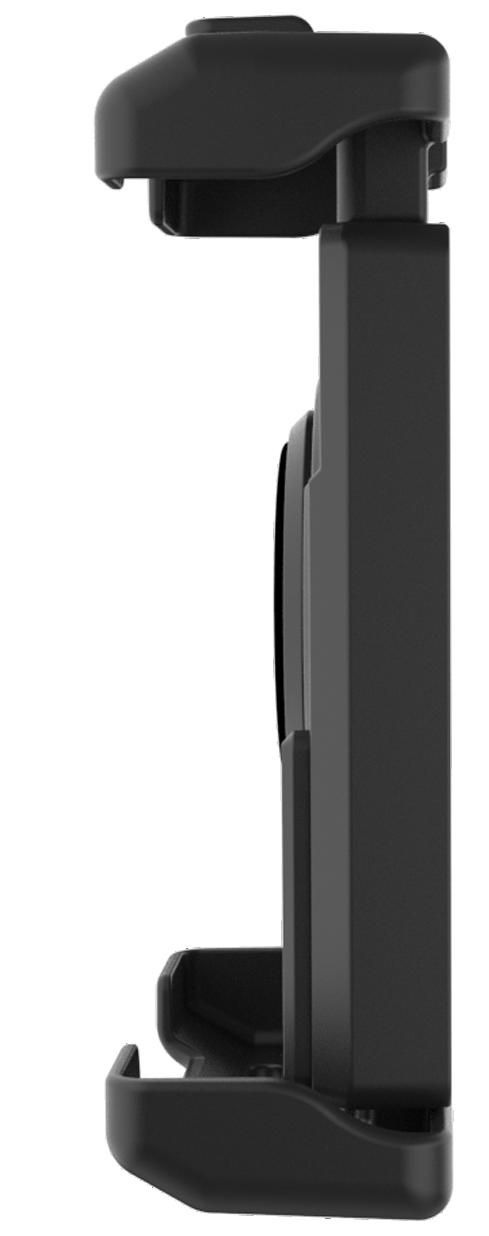

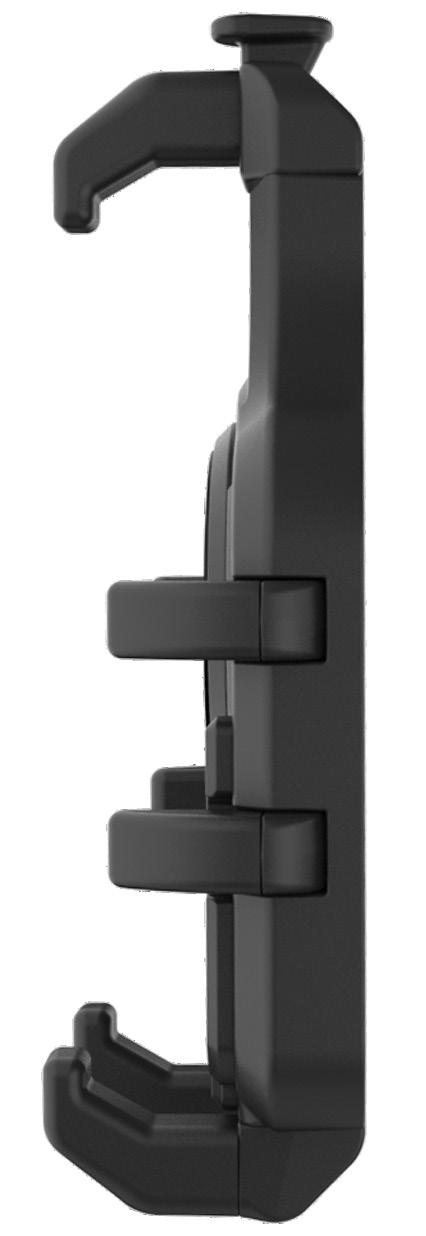

DIMENSIONS
NOTE FOR VIBE DAMPERS Kits containing vibration damper and ball add 2.08” in dimension to the holder.
6.79”

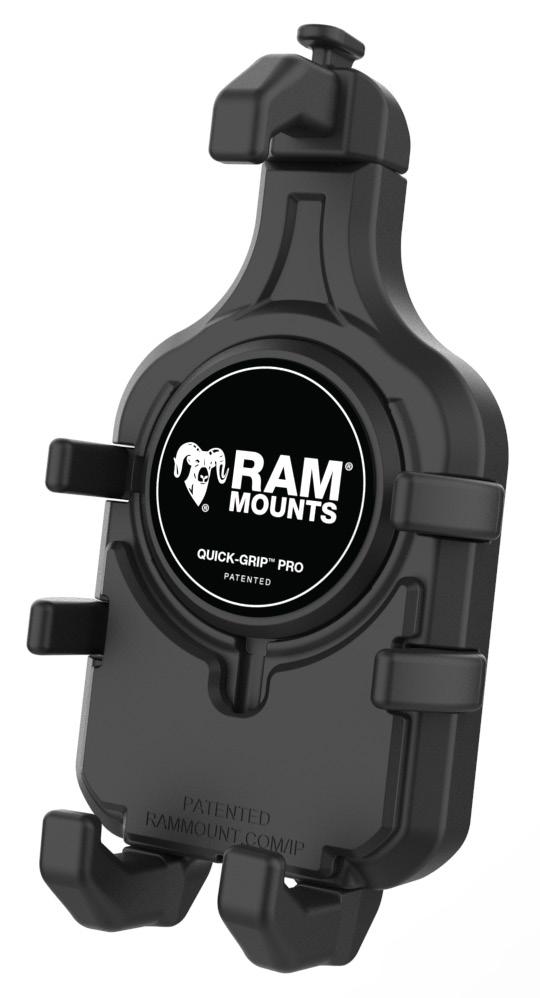

RAM-HOL-PD5U RAM® Quick-Grip™ Pro Phone Holder
COMPATIBLE PHONE DIMENSIONS Height Range: 5.5” - 7.75” Width Range: 2.625” - 3.75” Max Depth: .67”
3.44”
1.77”
6.06”

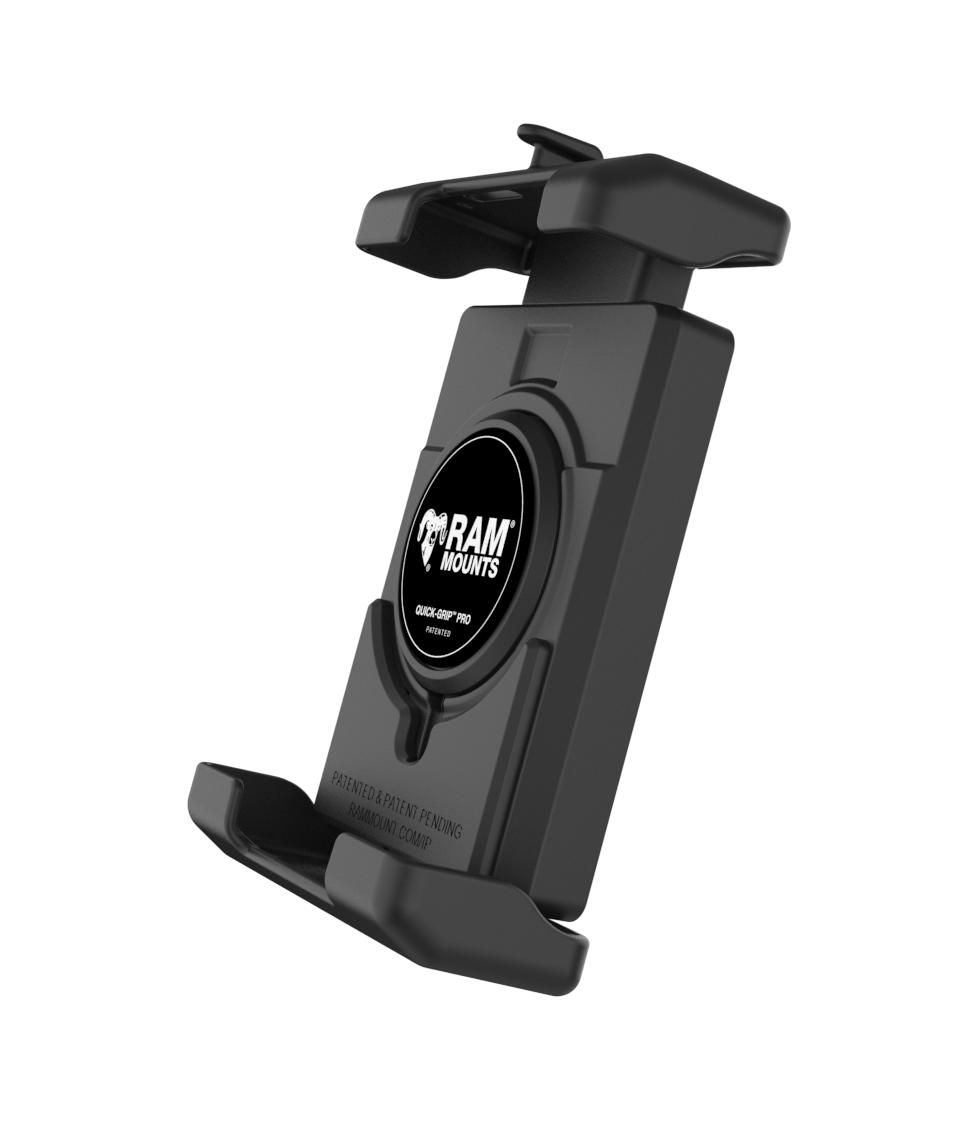

RAM-HOL-PD7U RAM® Quick-Grip™ Pro XL Phone Holder
COMPATIBLE PHONE DIMENSIONS Height Range: 5.375” - 7” Width Range: 2.75” - 3.5” Max Depth: .75”
3.86”
1.70” Patented & Pats Pend. rammount.com/ip
3
RAM® Quick-Grip™ Pro

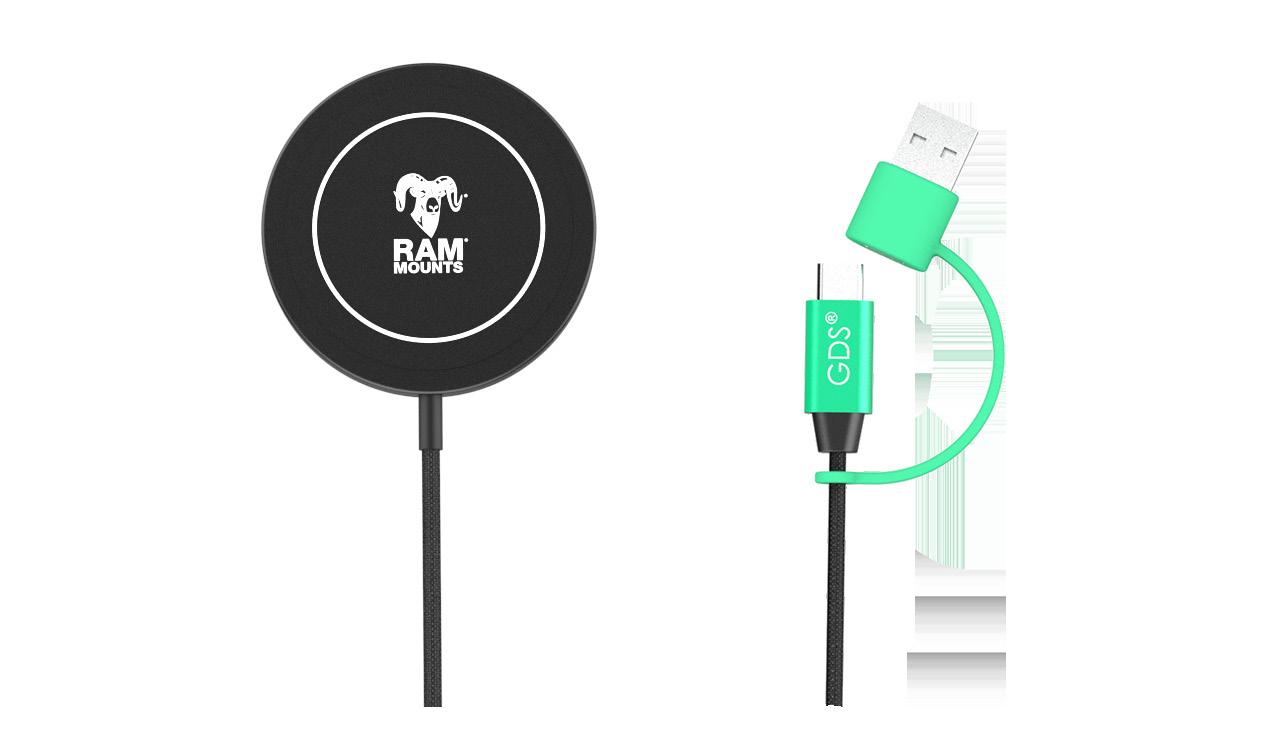

WIRELESS CHARGER SPECIFICATIONS
Charger supports up to 8mm charging distance between puck and device
SPECIFICATIONS
4
POWER OUTPUT
OUTPUT CONNECTOR
REGULATORY
CERTS
BPP - 5W EPP - 7.5W MPP - 15W
USB Type-C Male with USB-A Adapter
IP RATING
OUTPUT CABLE LENGTH
Overcurrent Protection Short Circuit Protection Overtemperature Protection RoHS Compliance WEEE Compliance
IP67
1 Meter
IP67 SAE J1455 FCC Certification CE Certification E-Mark Certification RCM Certification
RAM® Quick-Grip™ Pro
AVAILABLE QUICK-GRIP™ PRO SKUS
Vibration Damping
Arm Length
Base Type
Included Wireless Charger
RAM-HOL-PD5U
—
—
—
—
RAM-HOL-PD5BU
—
—
Diamond Ball
—
RAM-HOL-PD5BVU
•
—
Ball
—
RAM-B-166-PD5U
—
Medium
Twist-Lock™ Suction Cup
—
RAM-B-149Z-A-PD5U
—
Short
U-Bolt
—
RAM-B-149Z-PD5U
—
Medium
U-Bolt
—
RAM-B-149Z-A-PD5VU
•
Short
U-Bolt
—
RAM-HOL-PD5V-400-1U
•
—
Tough-Claw™
—
RAM-B-176-A-PD5U
—
Short
Fork Stem
—
RAM-HOL-PD5B-W2MU
—
—
Diamond Ball
•
RAM-B-166-PD5-W2MU
—
Medium
Twist-Lock™ Suction Cup
•
Part #
Patented & Pats Pend. rammount.com/ip
5
RAM® Quick-Grip™ Pro
AVAILABLE QUICK-GRIP™ PRO XL SKUS
Vibration Damping
Arm Length
Base Type
Included Wireless Charger
RAM-HOL-PD7U
—
—
—
—
RAM-HOL-PD7BU
—
—
Diamond Ball
—
RAM-HOL-PD7BVU
•
—
Ball
—
RAM-B-166-PD7U
—
Medium
Twist-Lock™ Suction Cup
—
RAM-B-149Z-A-PD7U
—
Short
U-Bolt
—
RAM-B-149Z-PD7U
—
Medium
U-Bolt
—
RAM-B-149Z-A-PD7VU
•
Short
U-Bolt
—
RAM-HOL-PD7V-400-1U
•
—
Tough-Claw™
—
RAM-B-176W1-A-PD7U
—
Short
Fork Stem
—
RAM-HOL-PD7B-W2MU
—
—
Diamond Ball
•
RAM-B-166-PD7-W2MU
—
Medium
Twist-Lock™ Suction Cup
•
Part #
6
Patented & Pats Pend. rammount.com/ip
