Buyers Guide: RAM® Powered Docks for Zebra TC501 & TC701

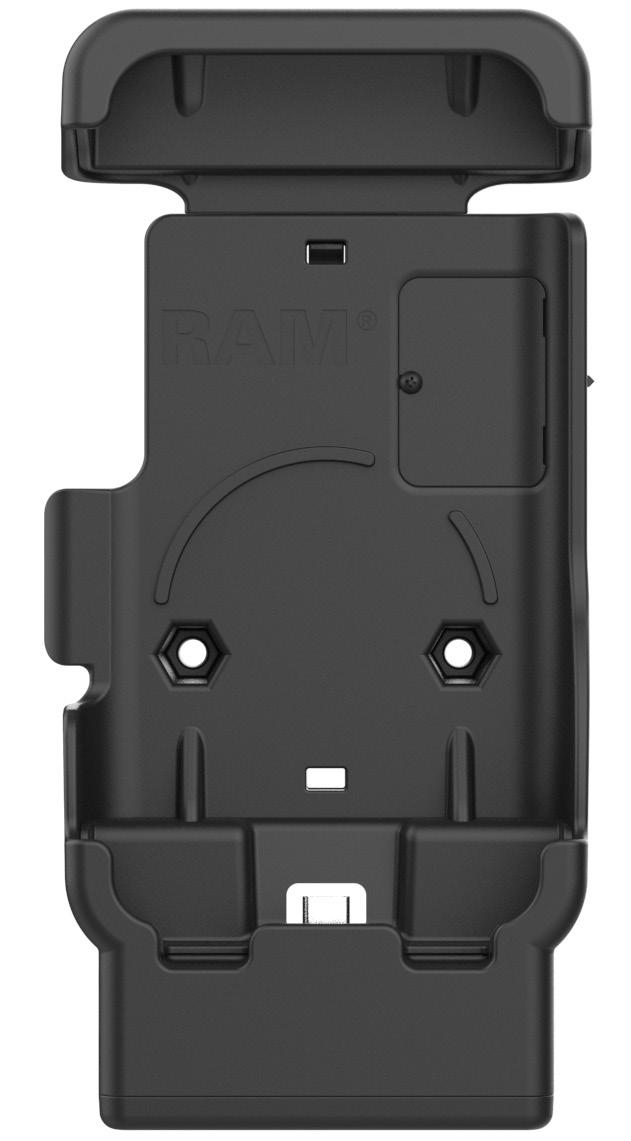

RAM® Powered Docks for Zebra TC501 & TC701
OVERVIEW
PRIMARY MARKETS
TC501
RAM-HOL-ZE41-2U
RAM® Powered Dock with Pogo Pins for TC501
RAM-HOL-ZE41L-2U

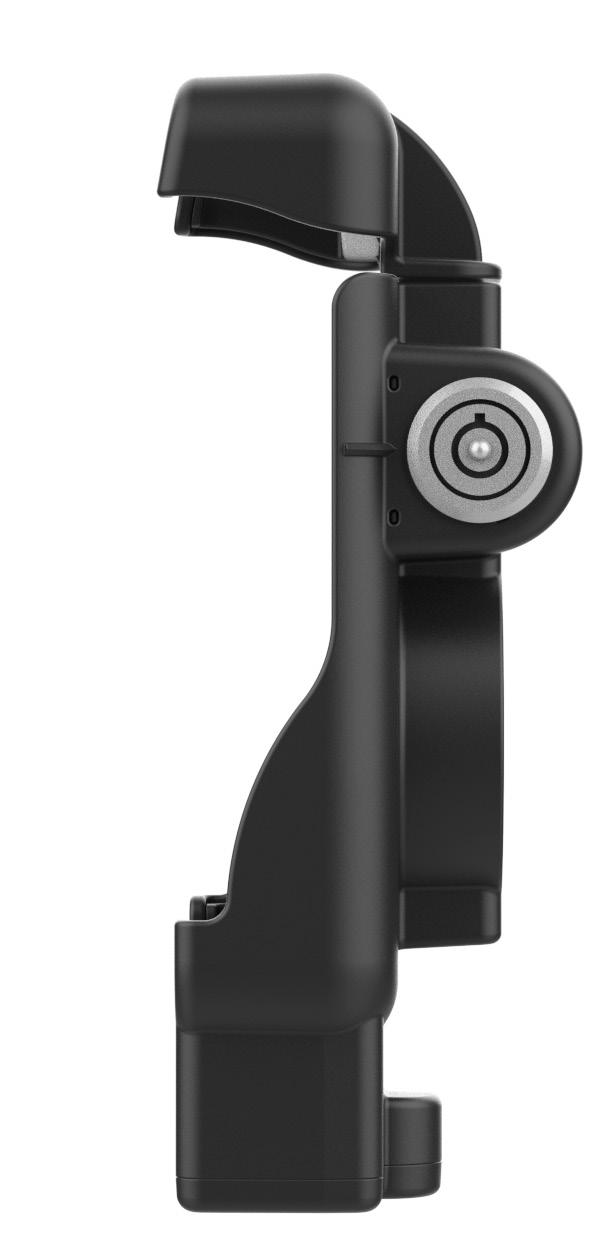

RAM® Locking Powered Dock with Pogo Pins for TC501
RAM-HOL-ZE41C-2U
RAM® Powered Dock with USB-C for TC501
RAM-HOL-ZE41KL-C-2U
RAM® Locking Powered Dock with Pogo Pins for TC501
TC701
RAM-HOL-ZE41-1U
RAM® Powered Dock with Pogo Pins for TC701
RAM-HOL-ZE41L-1U
RAM® Locking Powered Dock with Pogo Pins for TC701
RAM-HOL-ZE41C-1U
RAM® Powered Dock with USB-C for TC701
RAM-HOL-ZE41KL-C-1U
RAM® Locking Powered Dock with USB-C for TC701
TC501 & TC701
RAM-HOL-ZE41-NPU
RAM® Cradle for TC501/TC701
RAM-HOL-ZE41KL-NPU
RAM® Locking Cradle for TC501/TC701
Patented and Pats. Pending | rammount.com/ip
RAM® Powered Docks for Zebra TC501 & TC701
FEATURES & BENEFITS

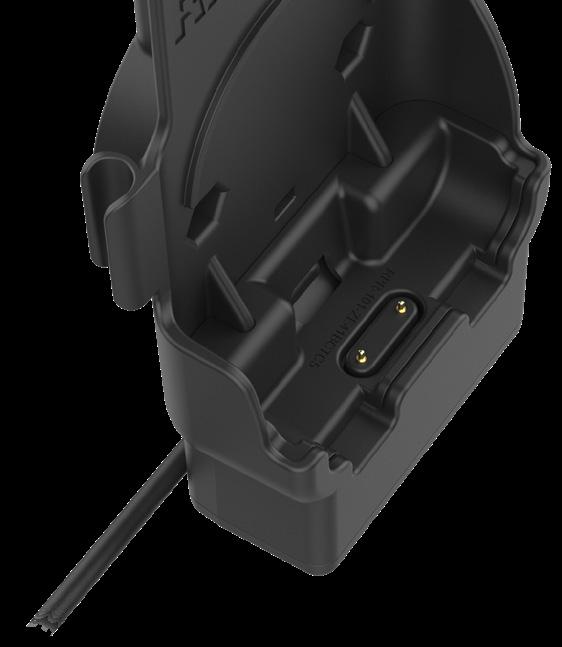

Pogo Pin Charging
Version of the RAM® powered dock that protects the charge port and enhances the ruggedness by utilizing the device’s pogo pad docking contacts with integrated pogo pin connectors.

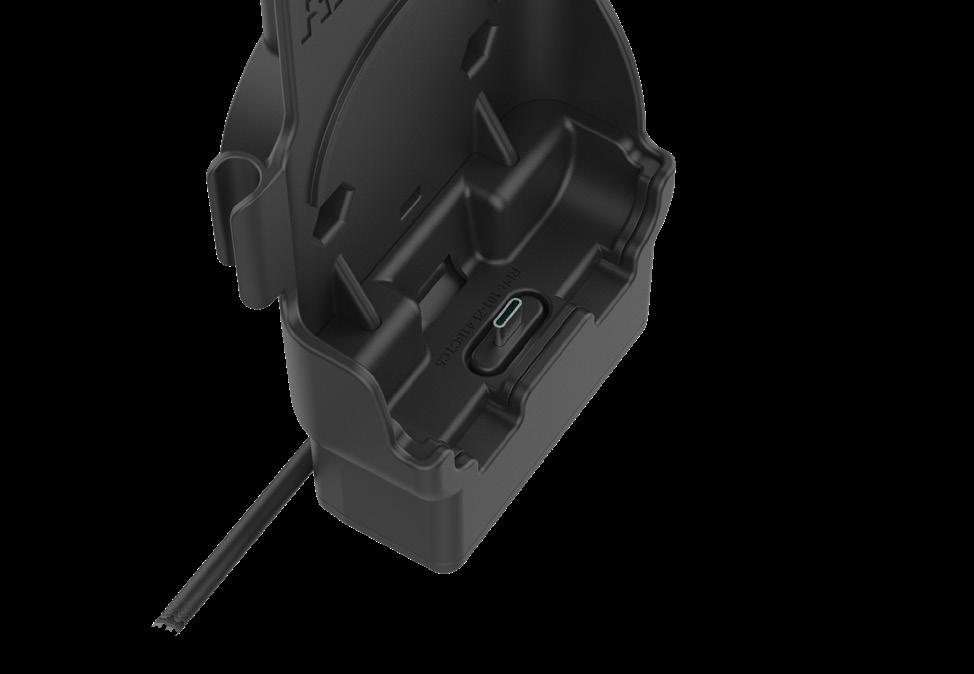

USB-C Connectivity
Version of the RAM® powered dock with an integrated USB-C male connector for charging and data transfer, supporting capabilities such as Workstation Connect. The design allows operators to dock devices quickly and confidently, minimizing fumbling and reducing the risk of USB-C connector damage.

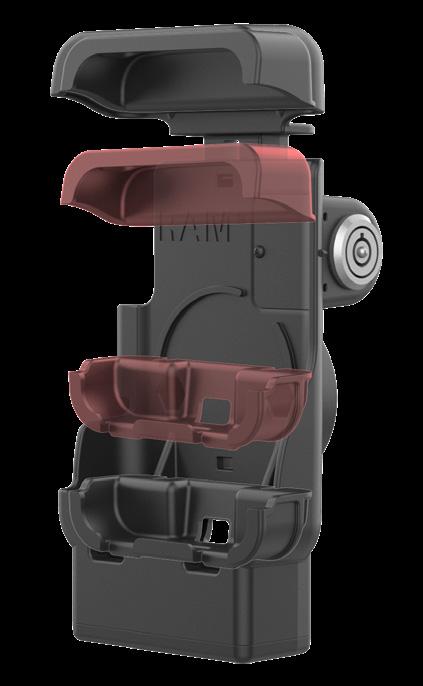

Removable Inserts
Each SKU includes custom inserts clearly indicating which device—TC501 or TC701—fits, ensuring proper installation and secure fitment.

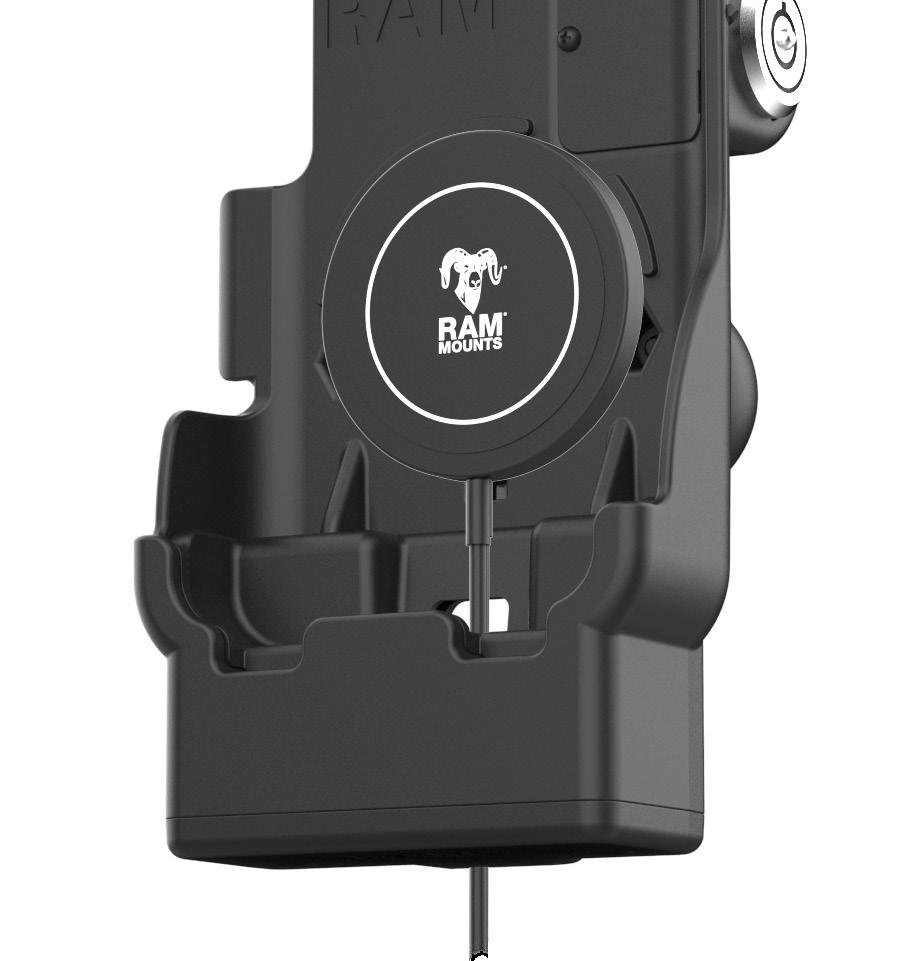

Wireless Charger Compatible
When TC501/TC701 Wireless Charging Battery is installed, you can add a RAM® Wireless Charger that integrates directly on to the dock body for seamless add-on wireless charging capabilities.
Wireless Charging Compatible
SPECIFICATIONS
HARDWARE
(2) #8-32 x 3/4” Machine Screws
(2) #8-32 x 5/8” Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

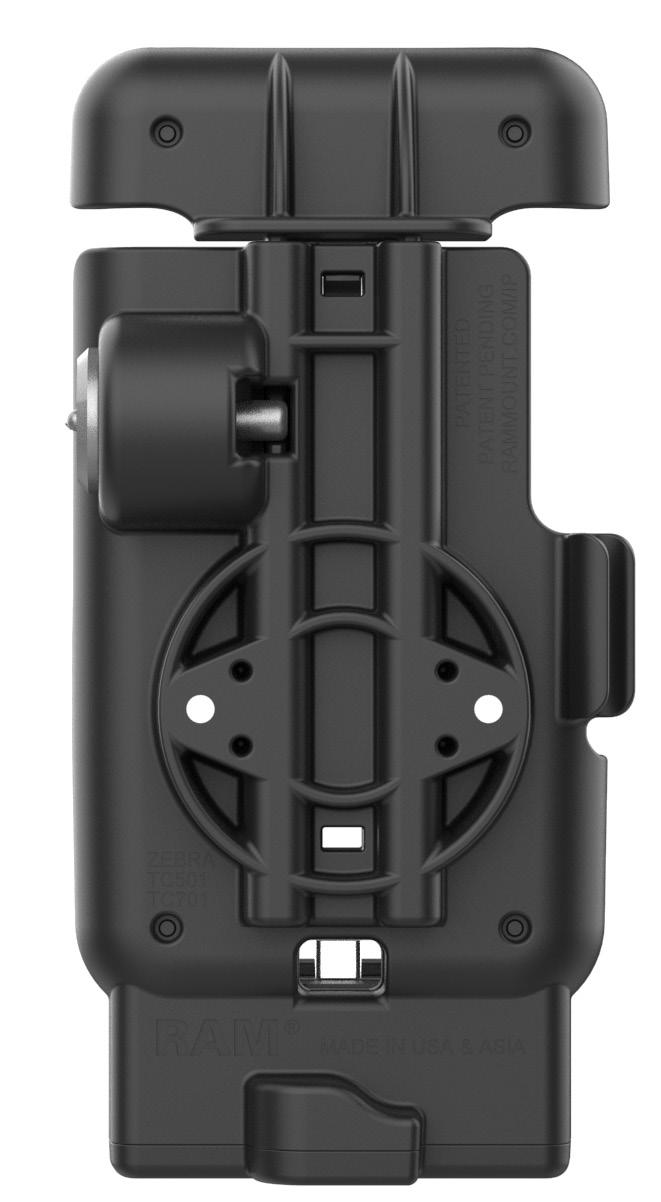

RAM® Powered Docks for Zebra TC501 & TC701
DIMENSIONS & SPECS
HOLE PATTERN
2-Hole AMPS: 1.912”
MATERIALS High strength composite
HOLDER TYPE
Spring-loaded
INPUT VOLTAGE
5V @ 1.6A (Pogo Pin docks only)
POWER OUTPUT
9W (Pogo Pin docks only)
INPUT CONNECTOR
5.5mm DC Connector (Pogo Pin Docks)
USB Type-C Female (USB-C Direct Docks)

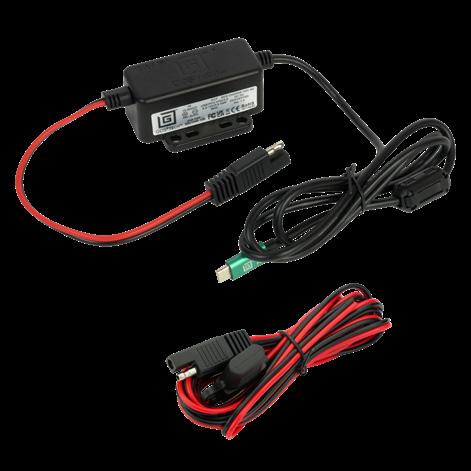

RAM-GDS-CHARGE-V3C-3U
RAM® Powered Docks for Zebra TC501 & TC701
ACCESSORIES & MORE
GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C For USB-C Dock Only For Pogo Pin Dock Only

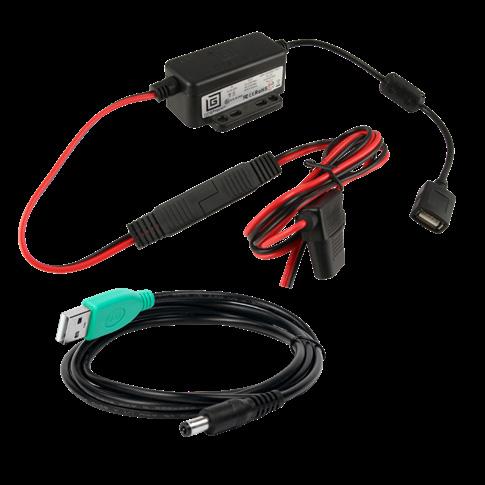

RAM-GDS-CHARGE-M55-V7B1U
GDS® Modular 10-30V Hardwire Charger with USB-A to DC Cable
