GDS® Uni-Conn™ Vehicle Dock
ONE DOCK TO CONNECT THEM ALL™
Table of Contents
How It Works
Features & Benefits
Available Release Button
Dock SKUs
Apple Compatibility
Samsung Compatibility
Zebra Compatibility
Specifications
Mounts
Accessories
CLICK OR SCAN TO VIEW ALL PRODUCTS
Primary Markets
TRANSPORTATION

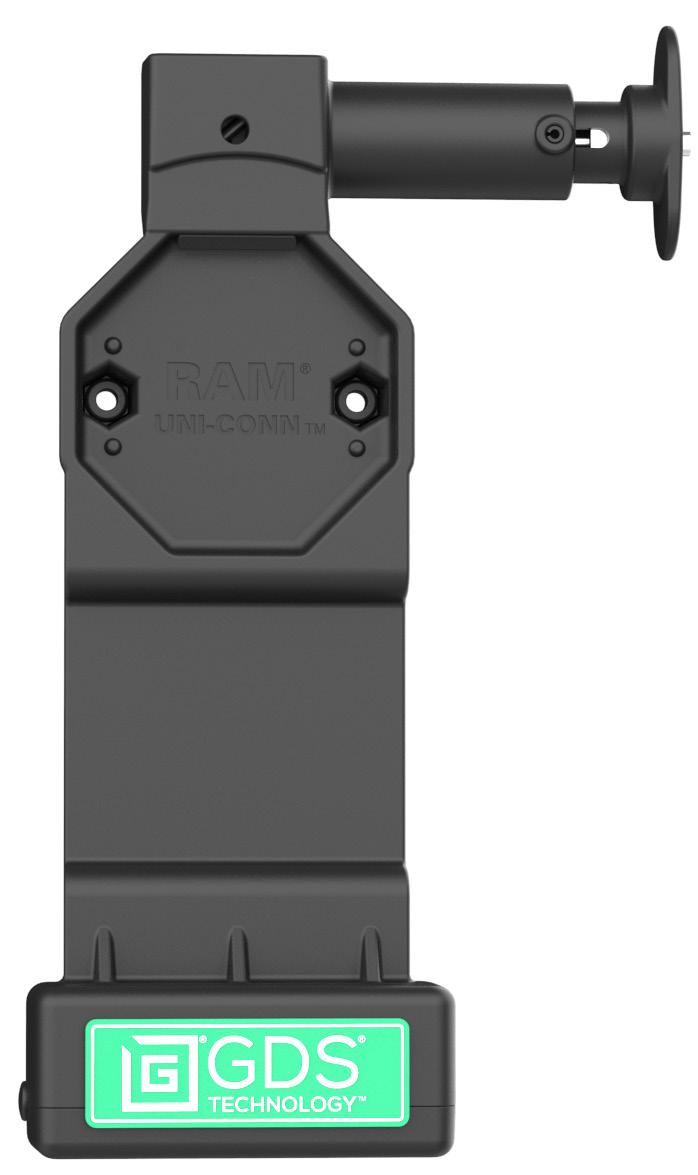

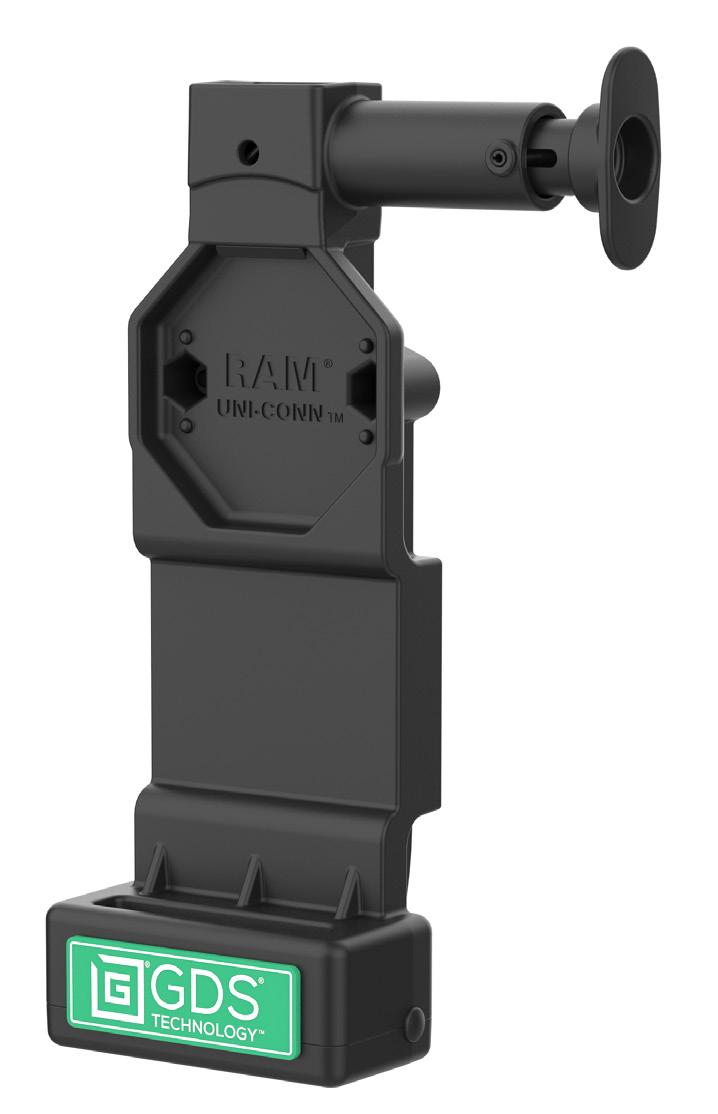

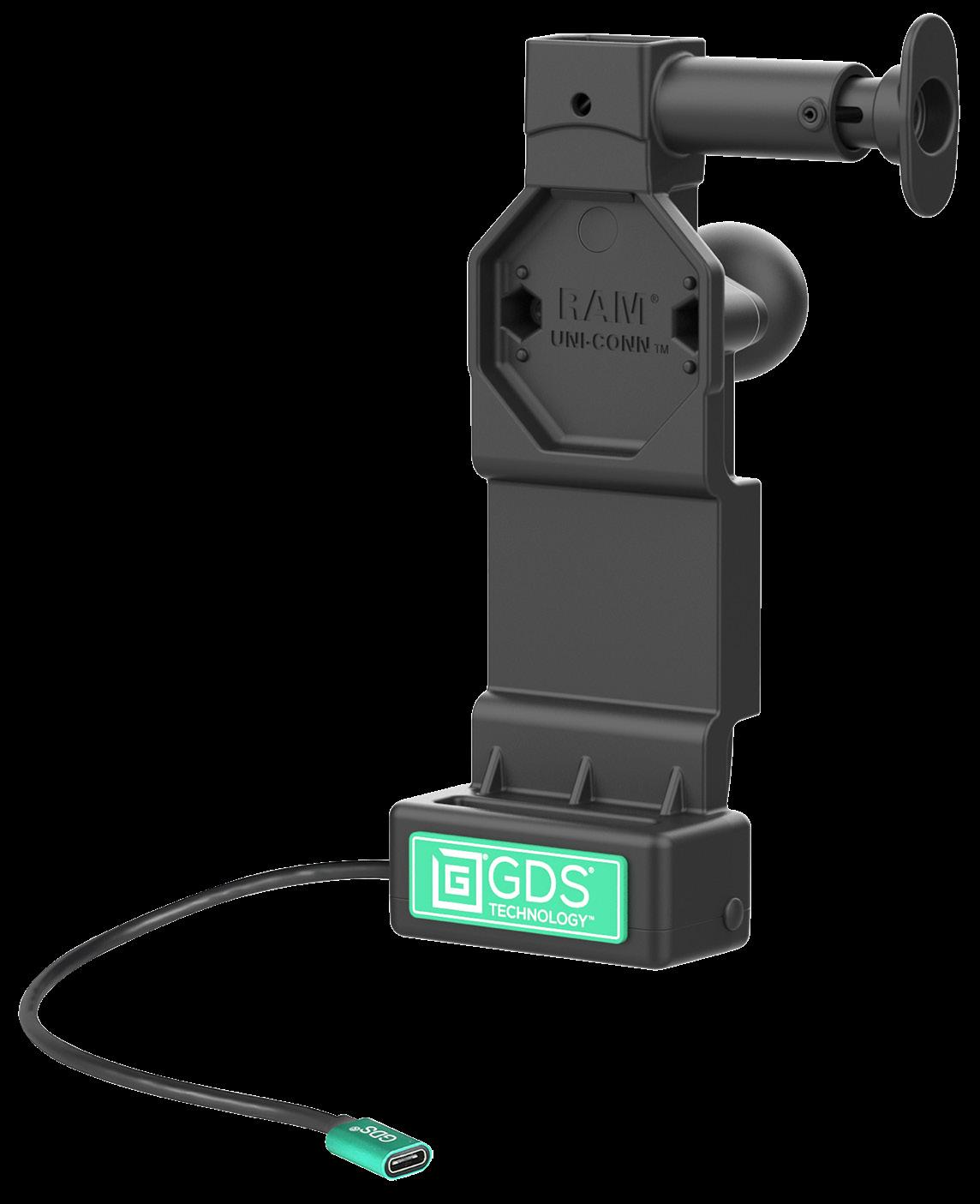

RAM-GDS-DOCK-U4CPU
GDS® Uni-Conn™ Dock with Release Button

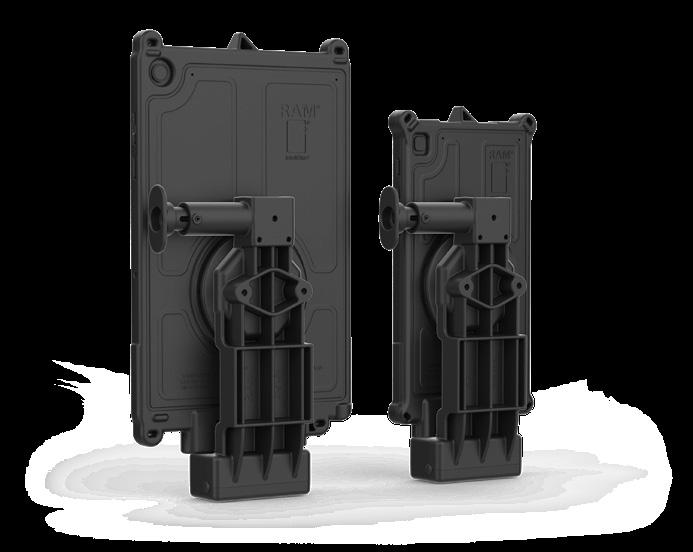

GDS® Uni-Conn™ Vehicle Dock

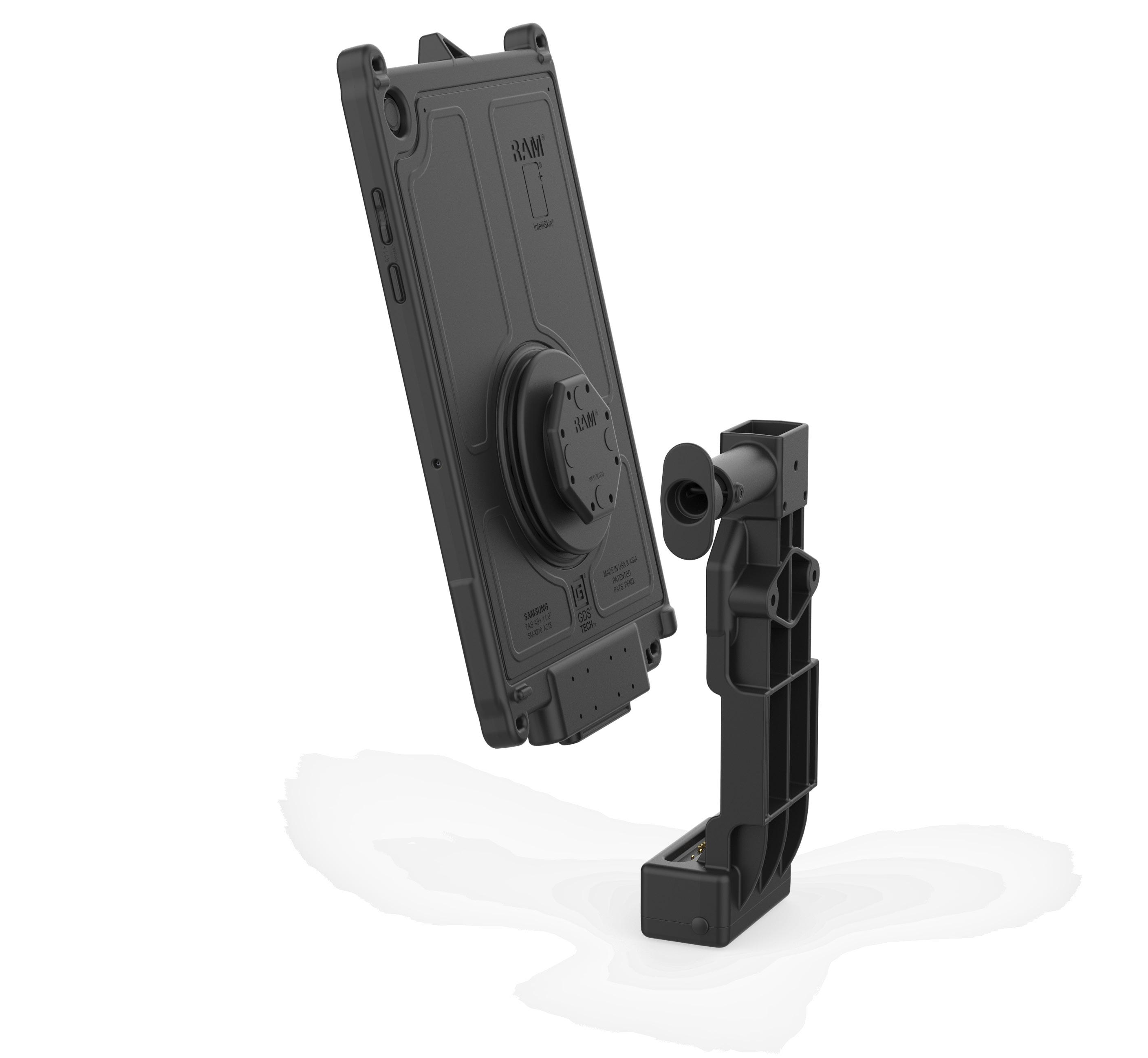

HOW IT WORKS

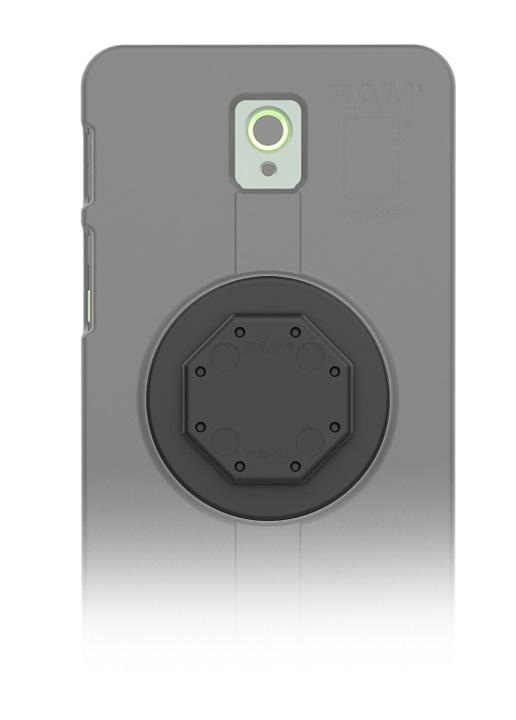

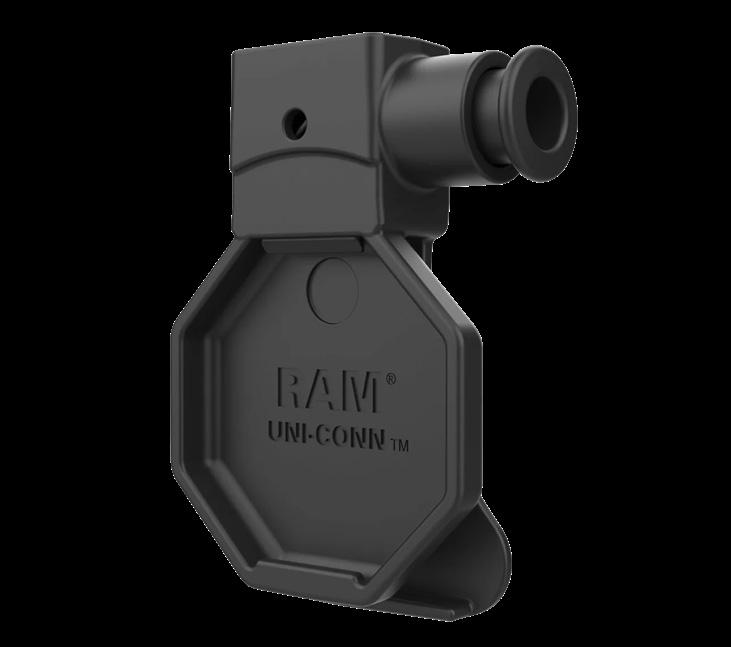

Standard Adapter

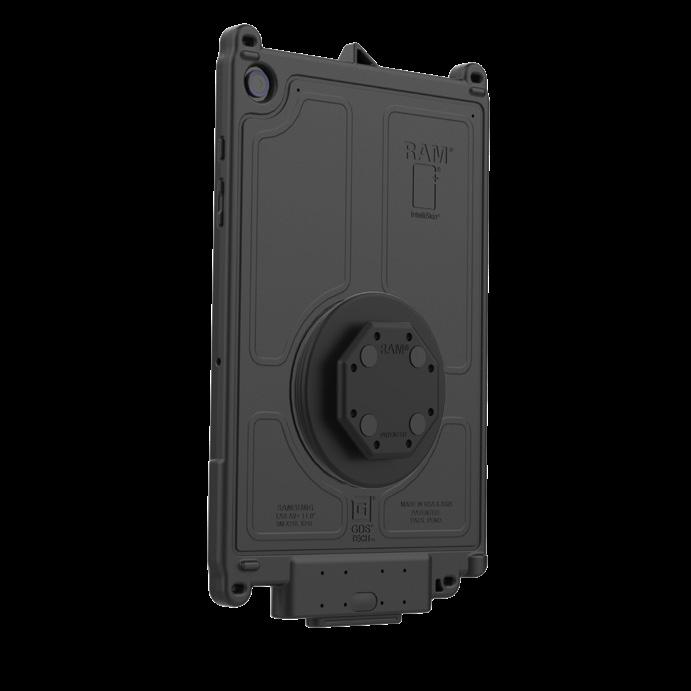

RAM-GDS-U1U
GDS® Uni-Conn™ Adapter
Enables snap-in compatibility with IntelliSkin® for newer device models.
Set the IntelliSkin®-wrapped device into the bottom connector of the dock and push forward to click into place.

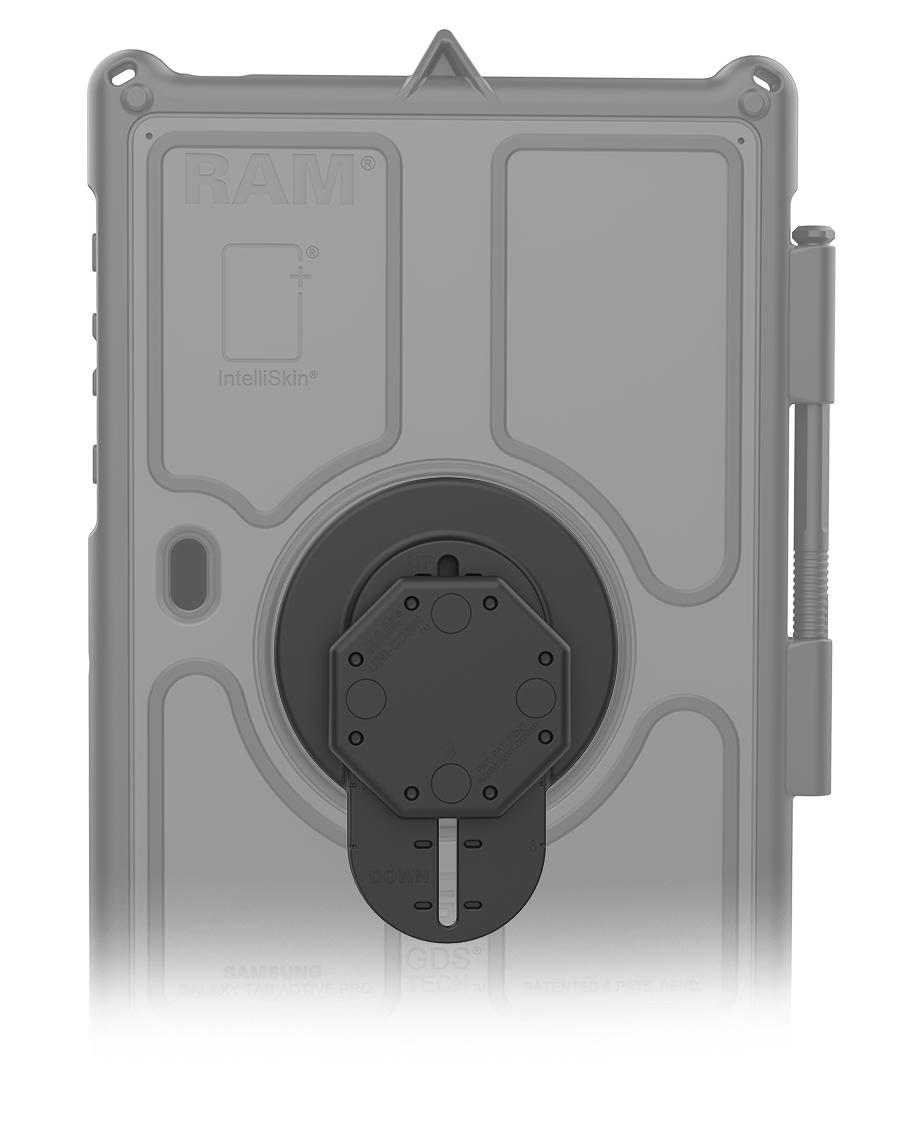

Adjustable Adapter
RAM-GDS-U1AU
GDS® Uni-Conn™ Adjustable Adapter
Enables snap-in compatibility with IntelliSkin® for all device models.
Easily remove the device with the push-to-release button.

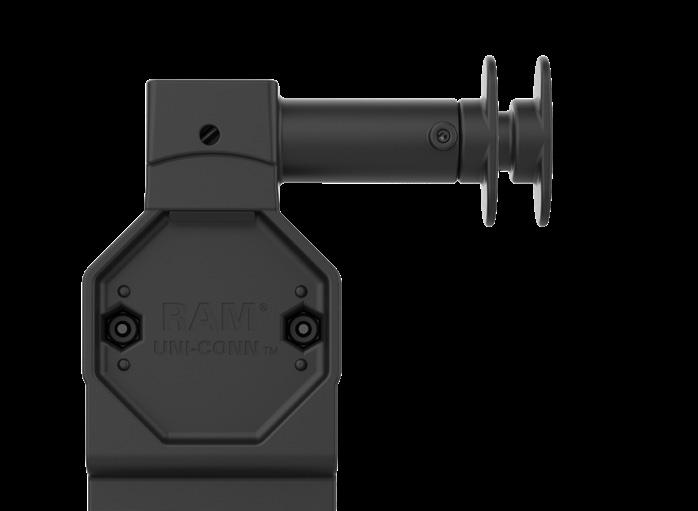

GDS® Uni-Conn™ Vehicle Dock

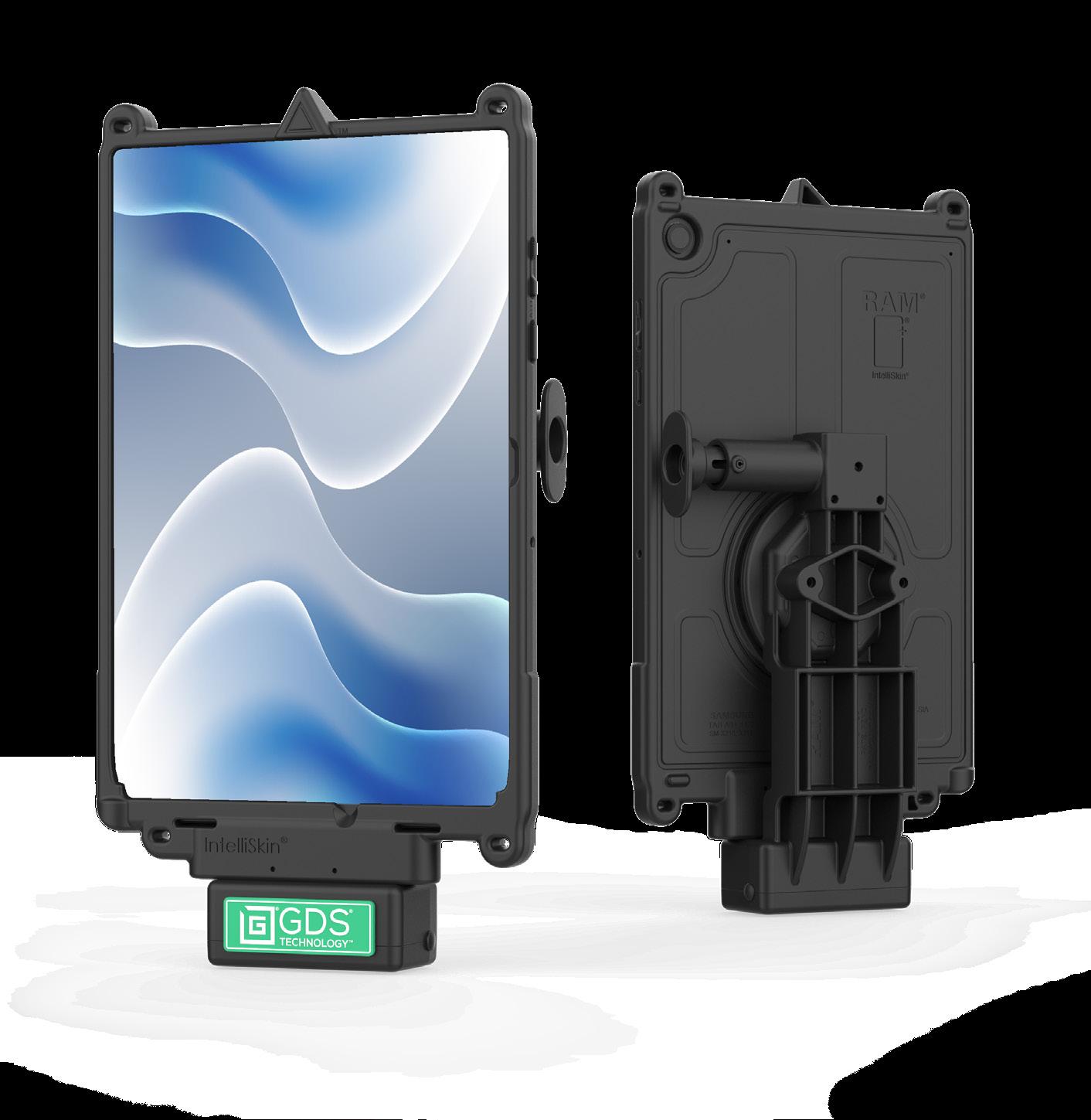

Next Gen Durability with GDS® Tech™ & IntelliSkin®
The one-of-a-kind IntelliSkin® and GDS® Tech™ system is designed to not only protect the device but protect the device port by converting the connection point to ruggedized pogo pin contacts. This docking technology was designed to meet demanding industry standards in durability.

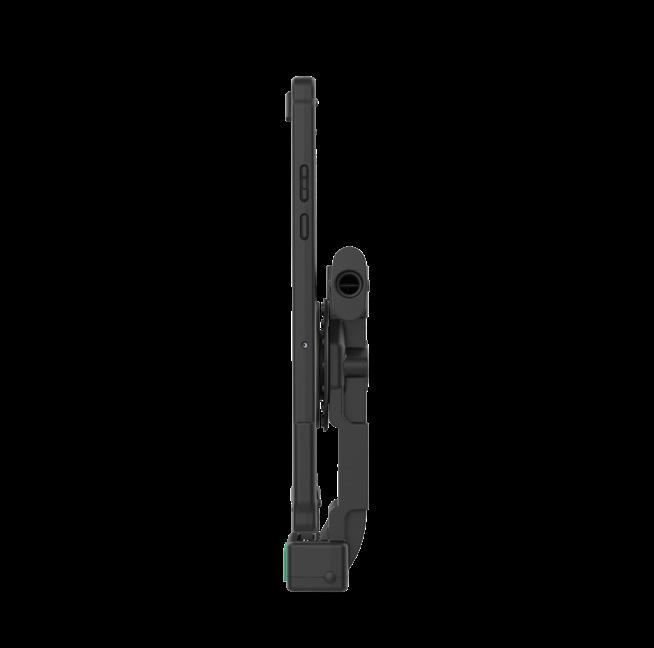

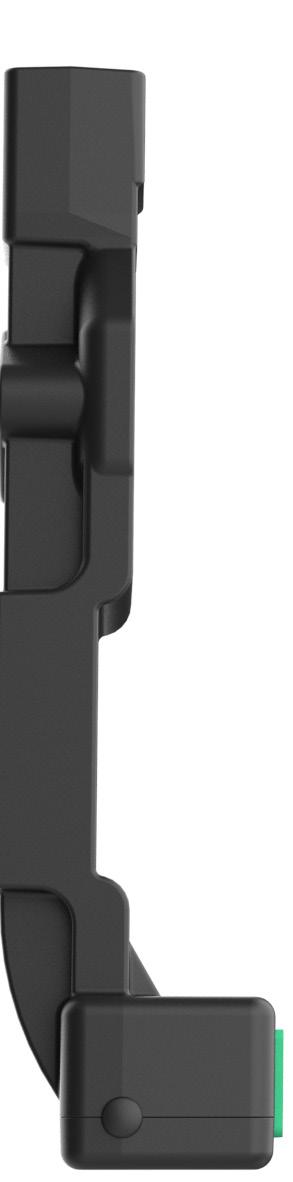

Low Profile
With the device secured from the back and a small portion of the bottom, no additional component of the dock is obstructing the view of the operator.

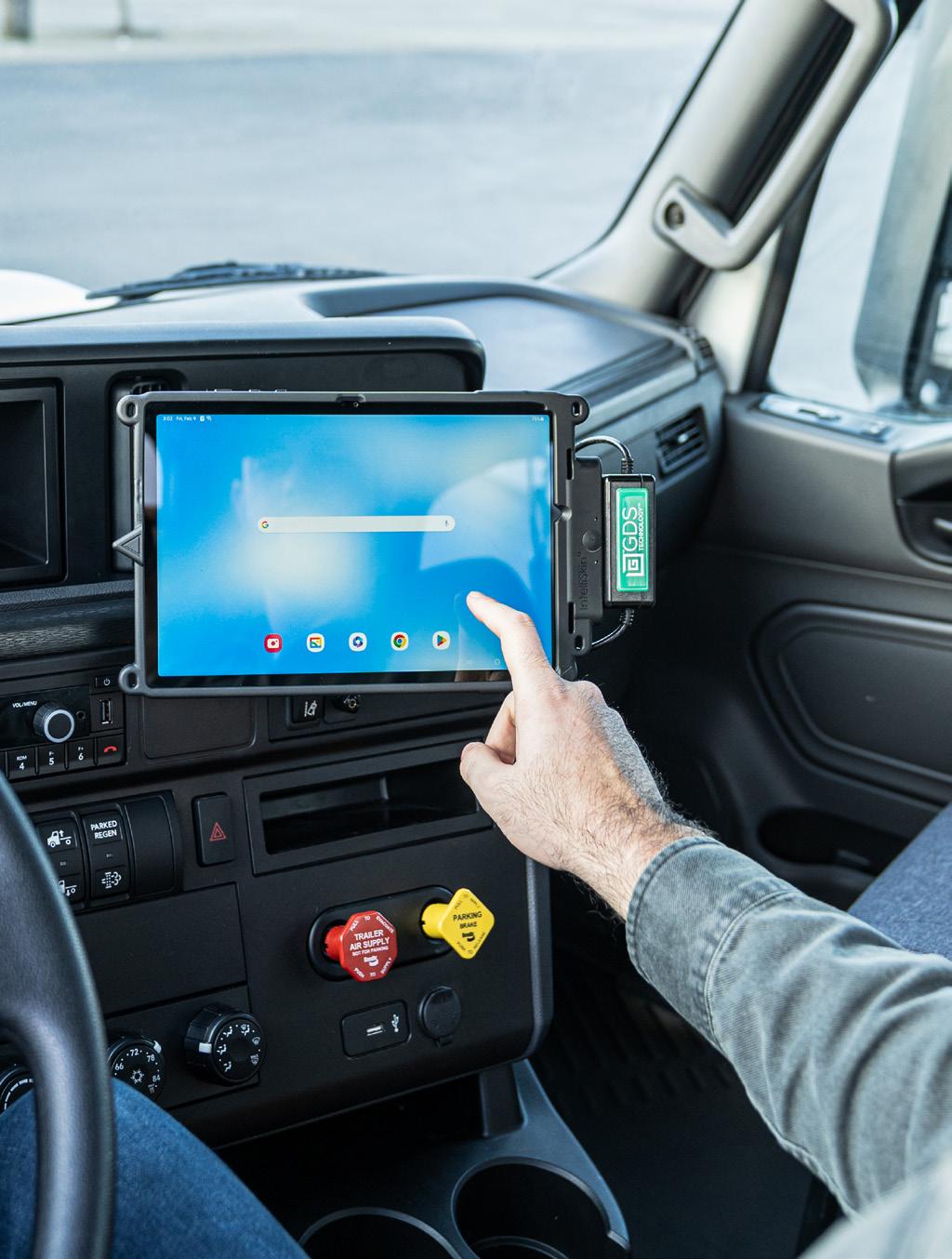

Easy to Dock
When docking, simply align the bottom of the IntelliSkin® to the bottom connector of the dock and gently push forward until you hear a click. When undocking, press the Uni-Conn™ release button to release the tablet.
Seamless Device Upgrades
With the GDS® Uni-Conn™ Adapters, a new IntelliSkin® is all that is needed when upgrading devices in your fleet. Keep your existing mount and chargers— eliminating installation costs and the need for hardware replacements.
GDS® Uni-Conn™ Vehicle Dock
AVAILABLE RELEASE BUTTON DOCK SKUS
Required RAM-GDS-U1U GDS® Uni-Conn™ Adapter for IntelliSkin®
Uni-Conn™ Docks Power Peripheral Ports Lock
RAM-GDS-DOCK-U4CPU
RAM-GDS-DOCKL-U4CPU
RAM-GDS-DOCK-U4CDU • (1) USB-A
RAM-GDS-DOCKL-U4CDU • (1) USB-A
RAM-GDS-DOCK-U4CP-CU
RAM-GDS-DOCKL-U4CP-CU
(1) USB-C
(1) USB-C
RAM-GDS-DOCK-U4CD2U • (2) USB-A
RAM-GDS-DOCKL-U4CD2U • (2) USB-A
RAM-GDS-DOCK-U4CP-CAU
RAM-GDS-DOCKL-U4CP-CAU
(1) USB-C & (1) USB-A
(1) USB-C & (1) USB-A
GDS® Uni-Conn™ Vehicle Dock
APPLE COMPATIBILITY CHART
Apple iPads
iPad Pro 11 1-4 Gen, Air 11" (M2 & M3)
iPad Air 11 (M2 & M3)
iPad Pro 11 (M4 & M5)
iPad 10th Gen
IntelliSkin® Style
Next Gen
Next Gen (LED)
Thin-Case™
Thin-Case™
Next Gen
Next Gen (LED)
Thin-Case™
Next Gen
IntelliSkin® Part Number
GDS® Uni-Conn™ Adapter
RAM-GDS-SKIN-AP32-NG Adjustable (Setting #5 | Arrow ↑)
RAM-GDS-SKIN-AP32-NG-LED Adjustable (Setting #5 | Arrow ↑)
RAM-GDS-SKIN-AP45-M2-TCD Standard
RAM-GDS-SKIN-AP45-M4-TCD Standard
RAM-GDS-SKIN-AP40-NG Adjustable (Setting #5 | Arrow ↑)
RAM-GDS-SKIN-AP40-NG-LED Adjustable (Setting #5 | Arrow ↑)
RAM-GDS-SKIN-AP40-TCD Standard iPad mini 6
Thin-Case™
iPad Pro 13, Air 13 & Pro 12.9
iPad Pro 12.9 3 – 6 Gen
Next Gen
Thin-Case™
For full device compatibility, click to view the Compatibility Guide.
RAM-GDS-SKIN-AP36-NG Adjustable (Setting #1 | Arrow ↑)
RAM-GDS-SKIN-AP36-TCD Standard
RAM-GDS-SKIN-AP47-NG Adjustable (Setting #8 | Arrow ↓)
RAM-GDS-SKIN-AP37-TCD Standard
GDS® Uni-Conn™ Vehicle Dock
SAMSUNG COMPATIBILITY CHART
Samsung Tablets
Tab A11+
Tab A11
Tab A9+
Tab A9
Tab Active5 Pro & 4 Pro
Tab Active3
Tab Active5
Tab S10, S10 FE, S9, & S9 FE
Tab S10+, S9+ & S9 FE+
IntelliSkin® Style
Next Gen
Next Gen (LED)
Thin-Case™
Next Gen
Next Gen
Next Gen (LED)
Thin-Case™
Next Gen
Next Gen
Next Gen
Hard Case
Thin-Case™
Next Gen
Hard Case
Thin-Case™
Next Gen
Thin-Case™
For full device compatibility, click to view the Compatibility Guide
IntelliSkin® Part Number
GDS® Uni-Conn™ Adapter
RAM-GDS-SKIN-SAM88-NG-1 Standard
RAM-GDS-SKIN-SAM88-NG-LED-1 Standard
RAM-GDS-SKIN-SAM88-TCD-1 Standard
RAM-GDS-SKIN-SAM95-NG-1 Standard
RAM-GDS-SKIN-SAM88-NG Standard
RAM-GDS-SKIN-SAM88-NG-LED Standard
RAM-GDS-SKIN-SAM88-TCD Standard
RAM-GDS-SKIN-SAM95-NG Standard
RAM-GDS-SKIN-SAM54-NG-1 Adjustable (Setting #6 | Arrow ↑)
RAM-GDS-SKIN-SAM74-NG Standard
RAM-GDS-SKIN-SAM89-HC Standard
RAM-GDS-SKIN-SAM93-TCD Standard
RAM-GDS-SKIN-SAM90-NG Standard
RAM-GDS-SKIN-SAM89-HC Standard
RAM-GDS-SKIN-SAM93-TCD Standard
RAM-GDS-SKIN-SAM86-NG Standard
RAM-GDS-SKIN-SAM96-TCD Standard
GDS® Uni-Conn™ Vehicle Dock

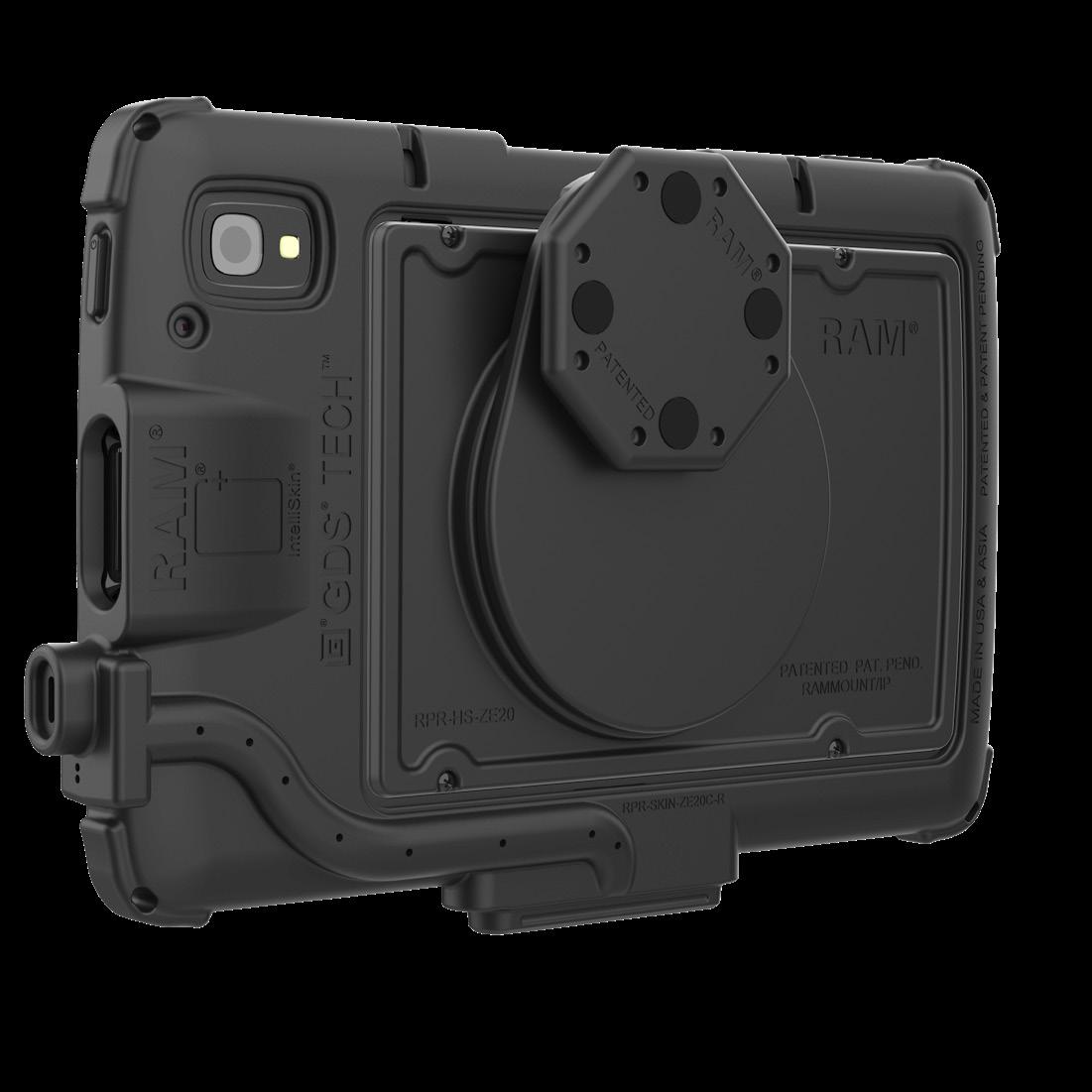

ZEBRA COMPATIBILITY CHART
Required
RAM-GDS-U1-ZE20U
GDS® Uni-Conn™ Adapter for Zebra ET4x 8" with IntelliSkin®
Zebra Devices
*ET40 / ET45 (8 inch)
*ET40 / ET45 (10 inch)
ET401 (8 inch)
ET401 (10 inch)
IntelliSkin® Style
Next Gen
Next Gen
Next Gen
Next Gen
IntelliSkin® Part Number
GDS® Uni-Conn™ Adapter
RAM-GDS-SKIN-ZE20C-NG Requires RAM-GDS-U1-ZE20U
RAM-GDS-SKIN-ZE21C-NG Requires RAM-GDS-U1-ZE21U
RAM-GDS-SKIN-ZE42-NG Requires RAM-GDS-U1-ZE20U
RAM-GDS-SKIN-ZE43-NG Requires RAM-GDS-U1-ZE21U
*GDS® Uni-Conn™ Docks for ET401 with new IntelliSkin® are backwards compatible with ET40 / ET45 devices.
GDS® Uni-Conn™ Vehicle Dock
Specifications
HARDWARE
(2) #8-32 x 5/8” Machine Screws (2) #8-32 Nylock Nuts (1) Cable Clamp Kit
MATERIALS
GDS® Uni-Conn™ Vehicle Dock
MOUNTS

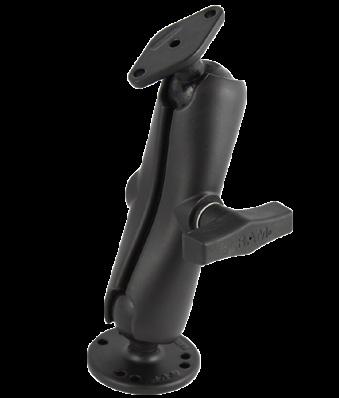

RAM-138U
RAM® Double Ball Mount with Diamond Plate Adapter - Medium
RAM-101U-235-1
RAM® Double U-Bolt Rail Mount for Larger Rails

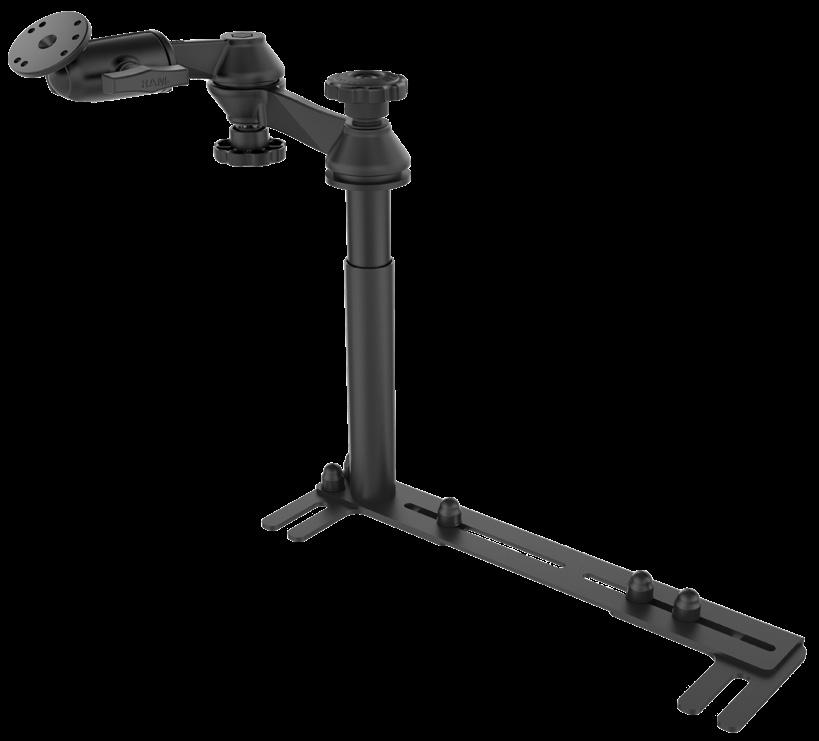

RAM-VB-196-SW2
RAM® No-Drill™ Universal Vehicle Floor Mount

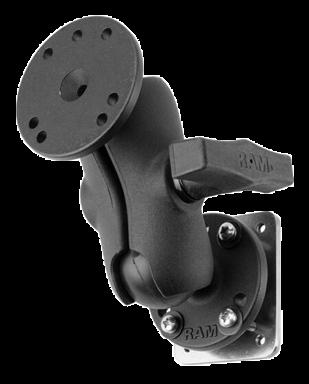

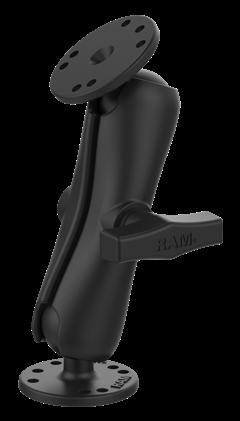

RAM-101U
RAM® Double Ball Mount with Two Round PlatesC Size Medium

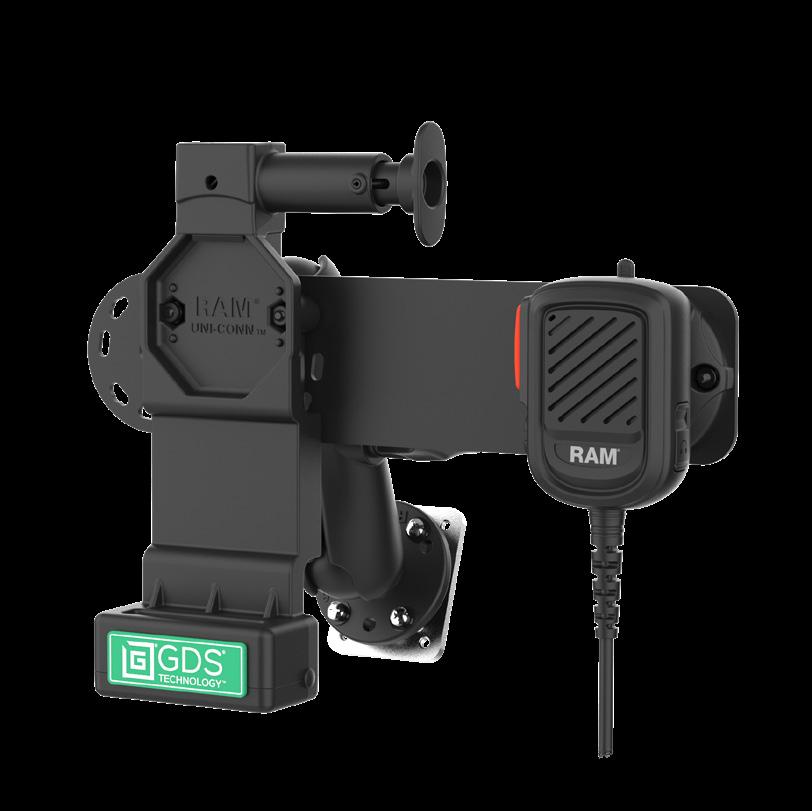

RAM-GDS-U4-RSM-A04
GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello
RAM-101-B-225B2U
RAM® Drill-Down Dashboard Mount with Backing PlateC Size Short
RAM-GDS-U4-RSM-A05
GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for Kodiak
GDS® Uni-Conn™ Vehicle Dock
ACCESSORIES

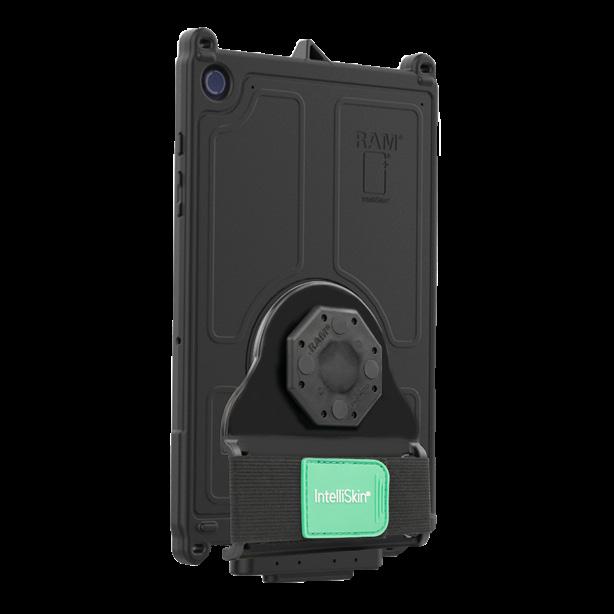

RAM-GDS-U1HSU
GDS® Uni-Conn™ Adapter with Hand Strap for IntelliSkin®

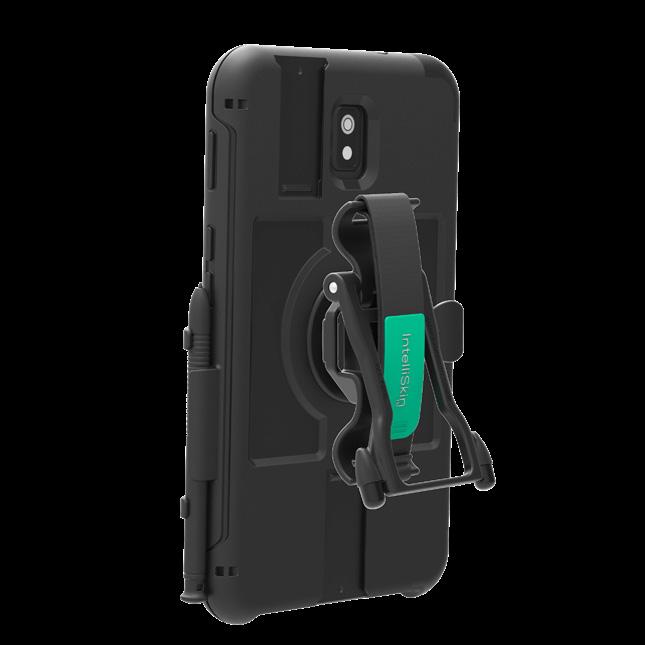

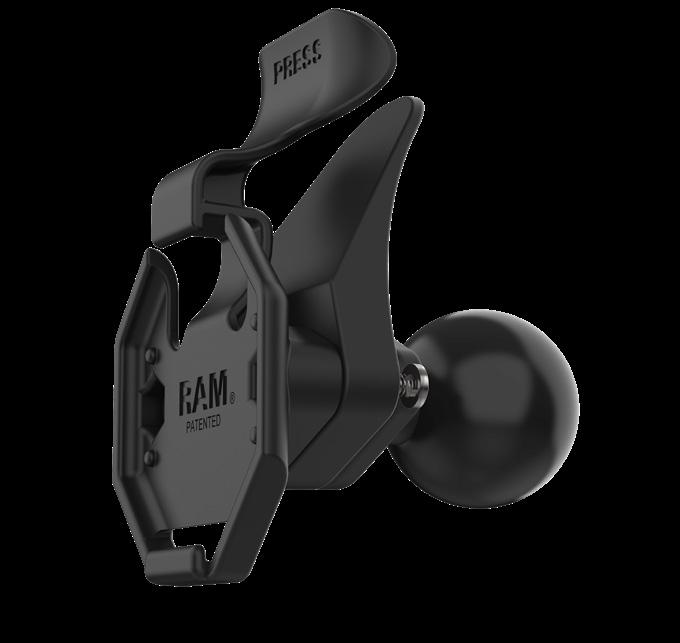

RAM-HOL-BC-U1U
RAM® Belt Clip Holder with Release Button for GDS® Uni-Conn™ Button

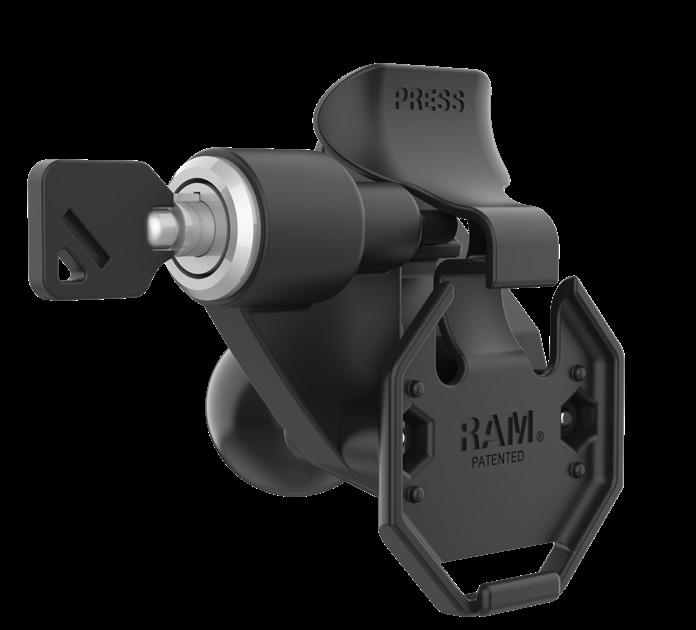

RAM-HOL-U1LLU
RAM® Left Locking Holder for Tablets with GDS® Uni-Conn™ Button
RAM-HOL-U1LRU
RAM® Right Locking Holder for Tablets with GDS® Uni-Conn™ Button

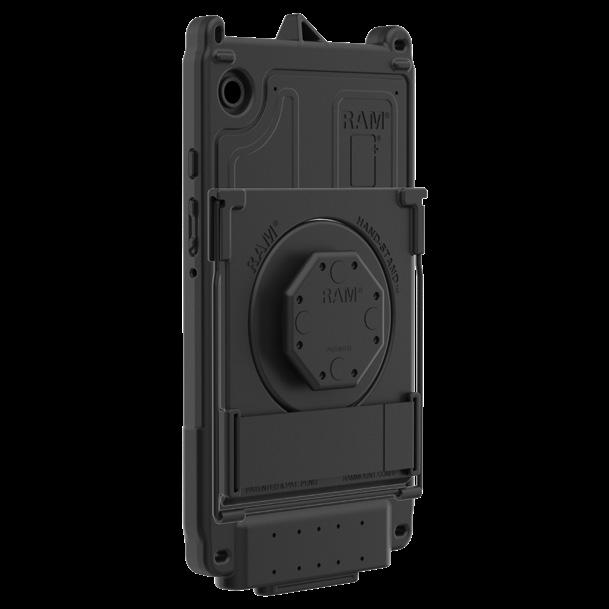

RAM-HS1-OT3U
GDS® Hand-Stand™ for IntelliSkin® with Uni-Conn™ Adapter
RAM-HOL-U1U
RAM® Holder for Tablets with GDS® Uni-Conn™ Button
RAM-GDS-U1HSKU
GDS® Hand-Stand™ with Uni-Conn™ Adapter
