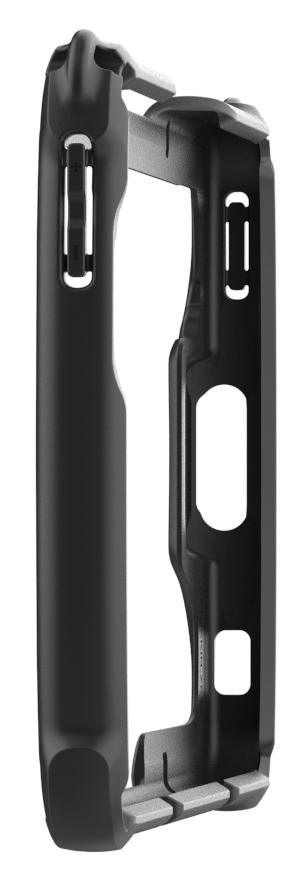

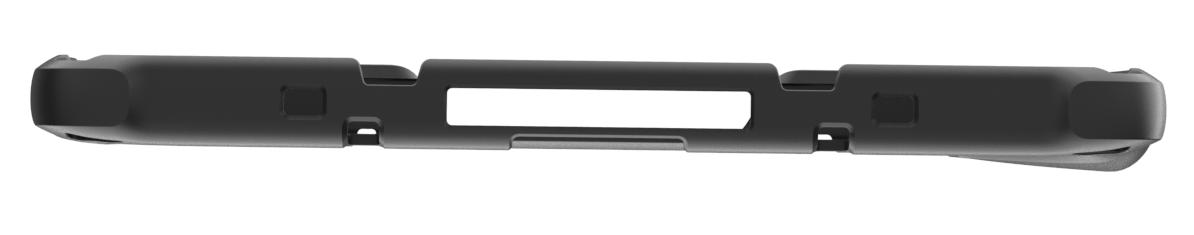

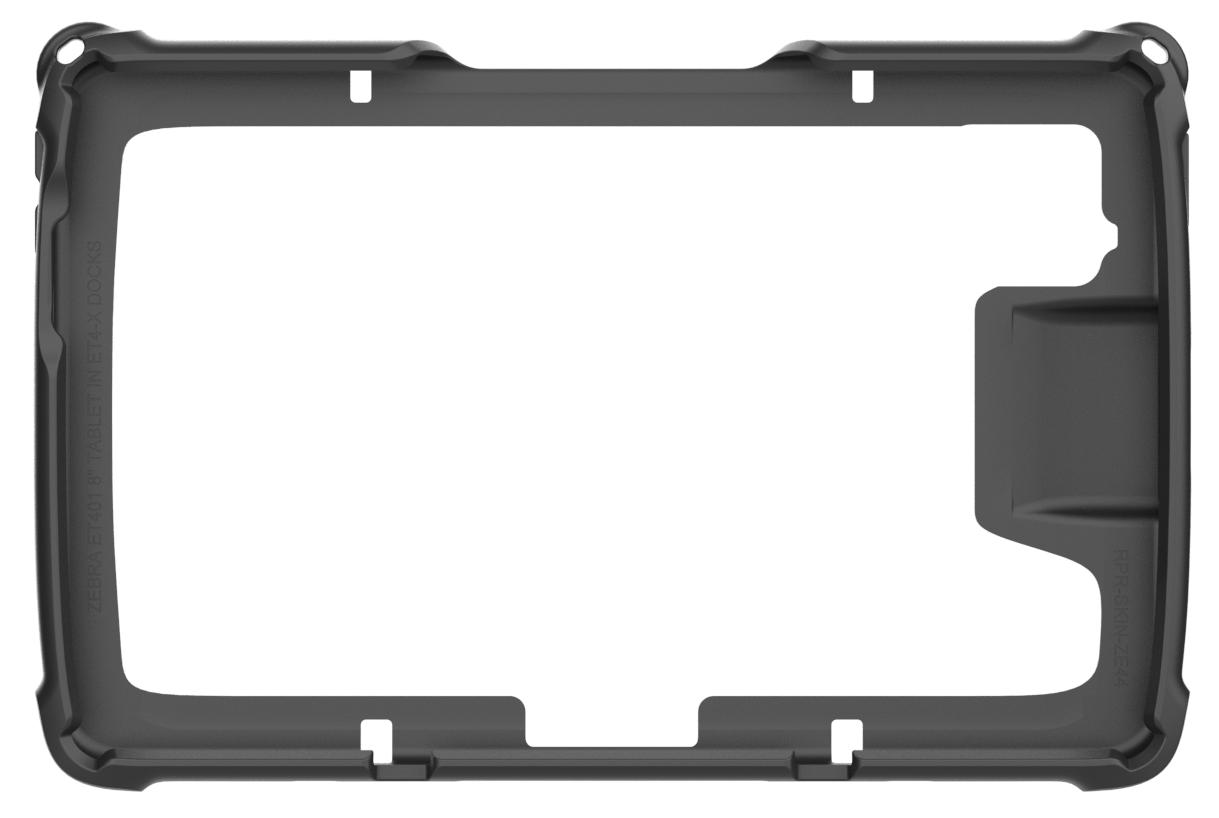

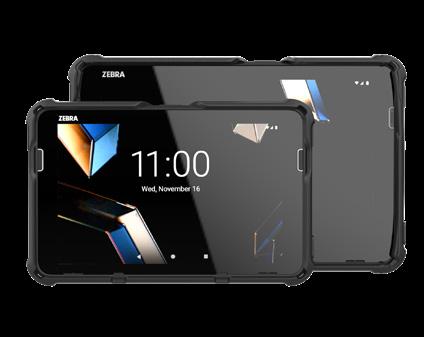

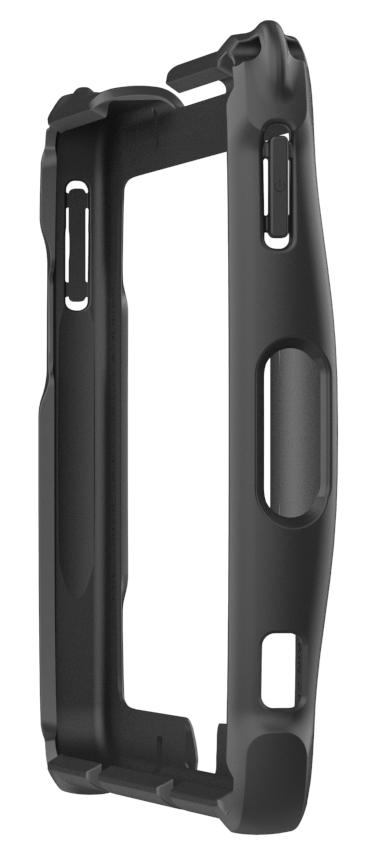

RAM-SKIN-ZE44
RAM® Skin™ for Zebra ET401 8” Tablet
RAM-SKIN-ZE45
RAM® Skin™ for Zebra ET401 10” Tablet

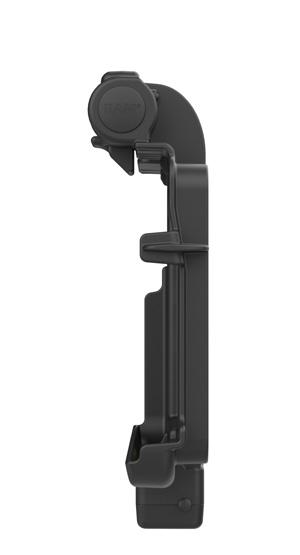

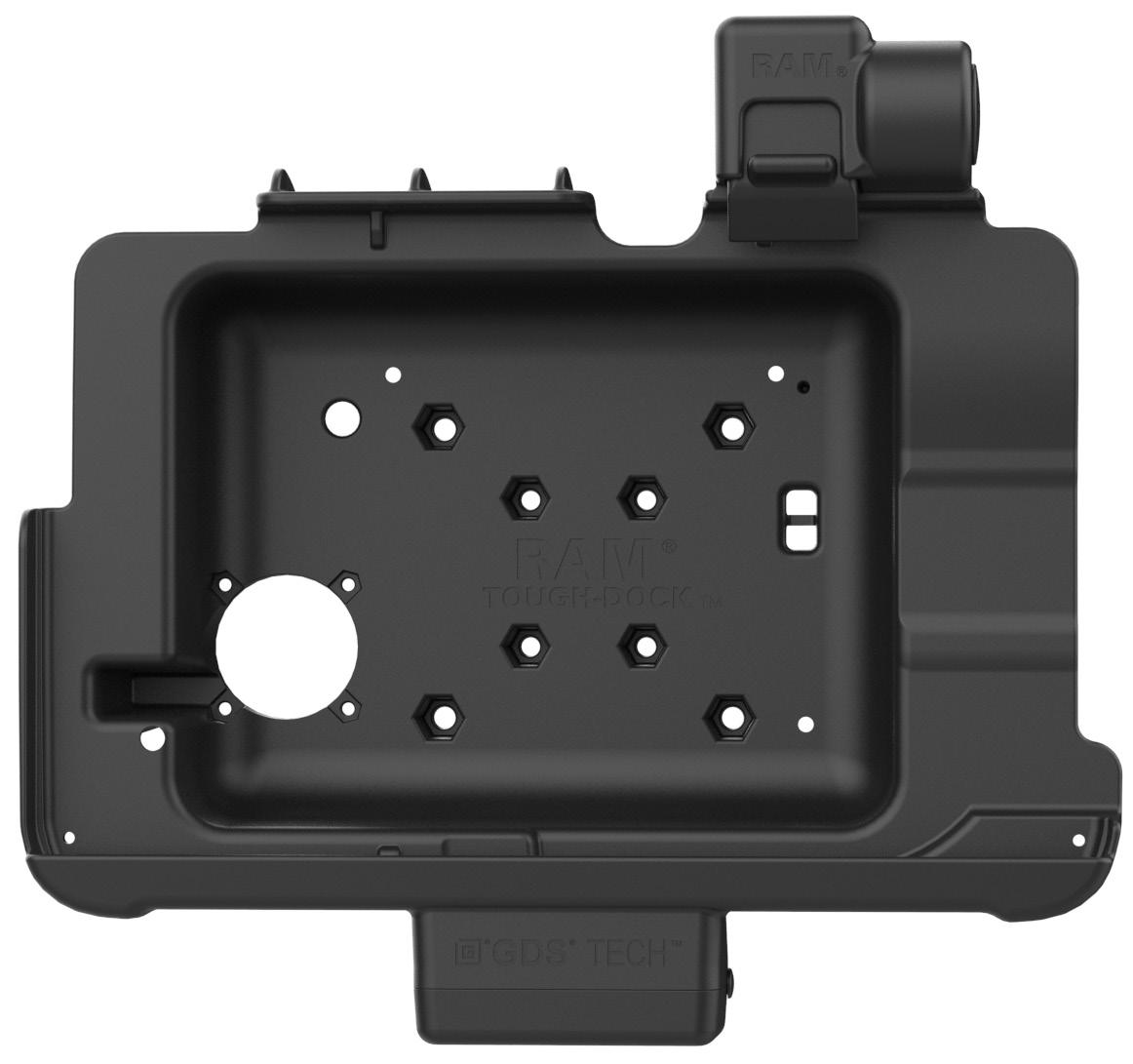

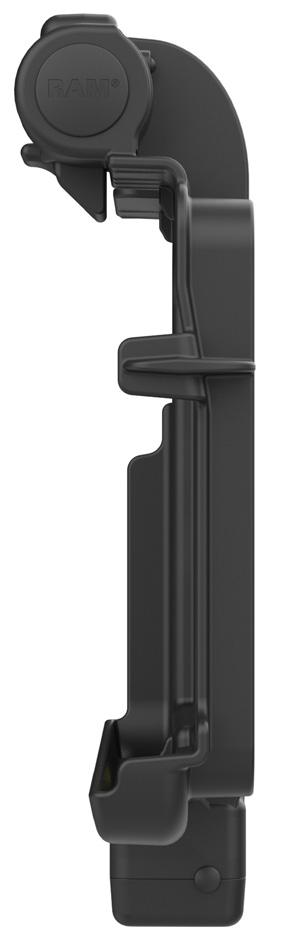

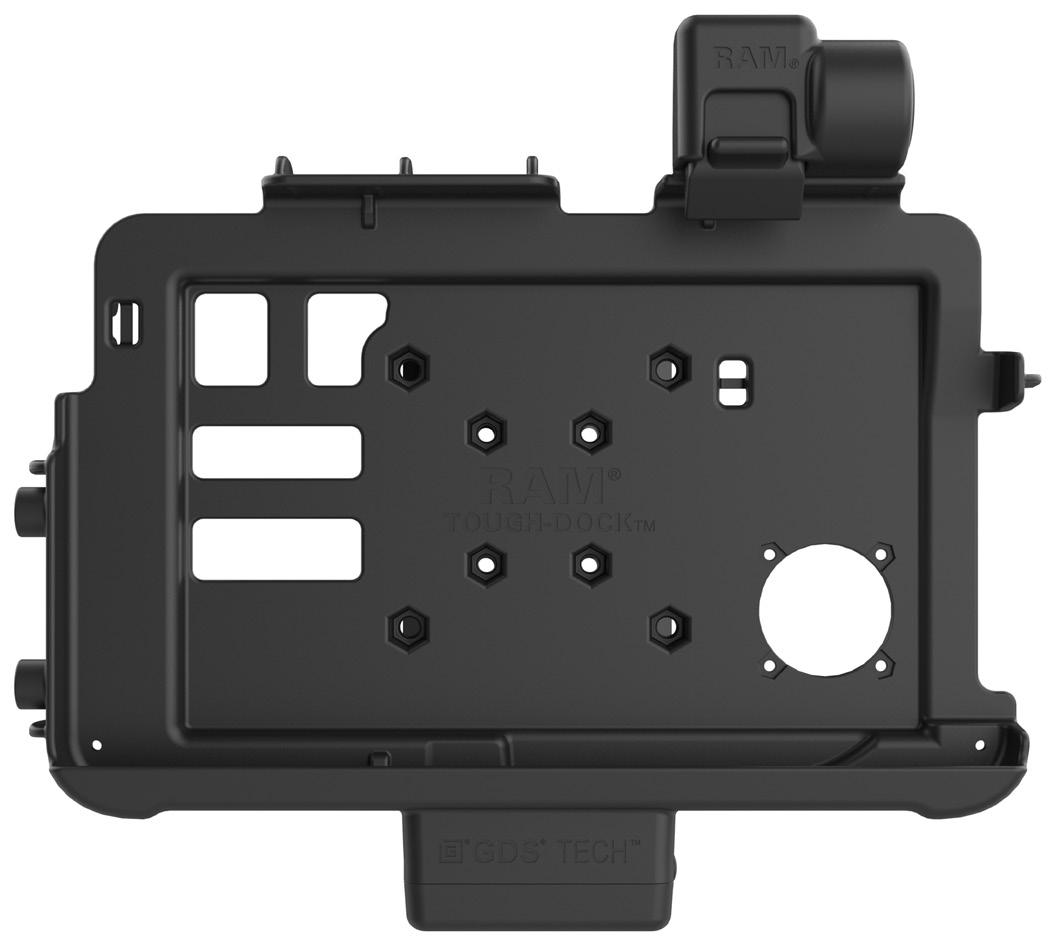

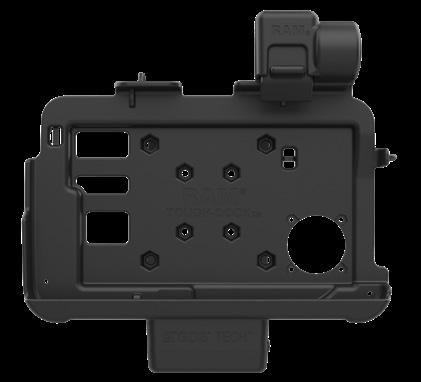

RAM-HOL-ZE44PU
RAM® Tough-Dock™ with Latch for Zebra ET401 & ET40/ET45 8”
RAM-HOL-ZE45PU
RAM® Tough-Dock™ with Latch for Zebra ET401 & ET40/ET45 10”
RAM-HOL-ZE46PU
RAM® Thin-Dock™ for Zebra ET401 & ET40/ET45 8” Tablet
RAM-HOL-ZE47PU
RAM® Thin-Dock™ for Zebra ET401 & ET40/ET45 10” Tablet

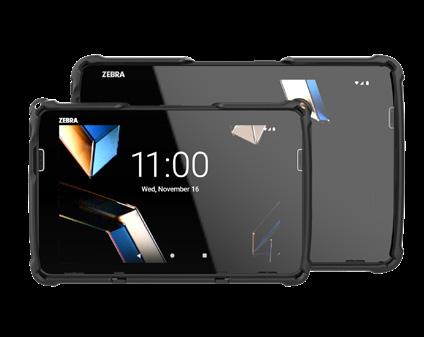

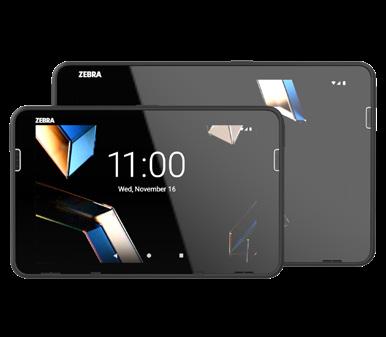

ET401 in RAM with No Case

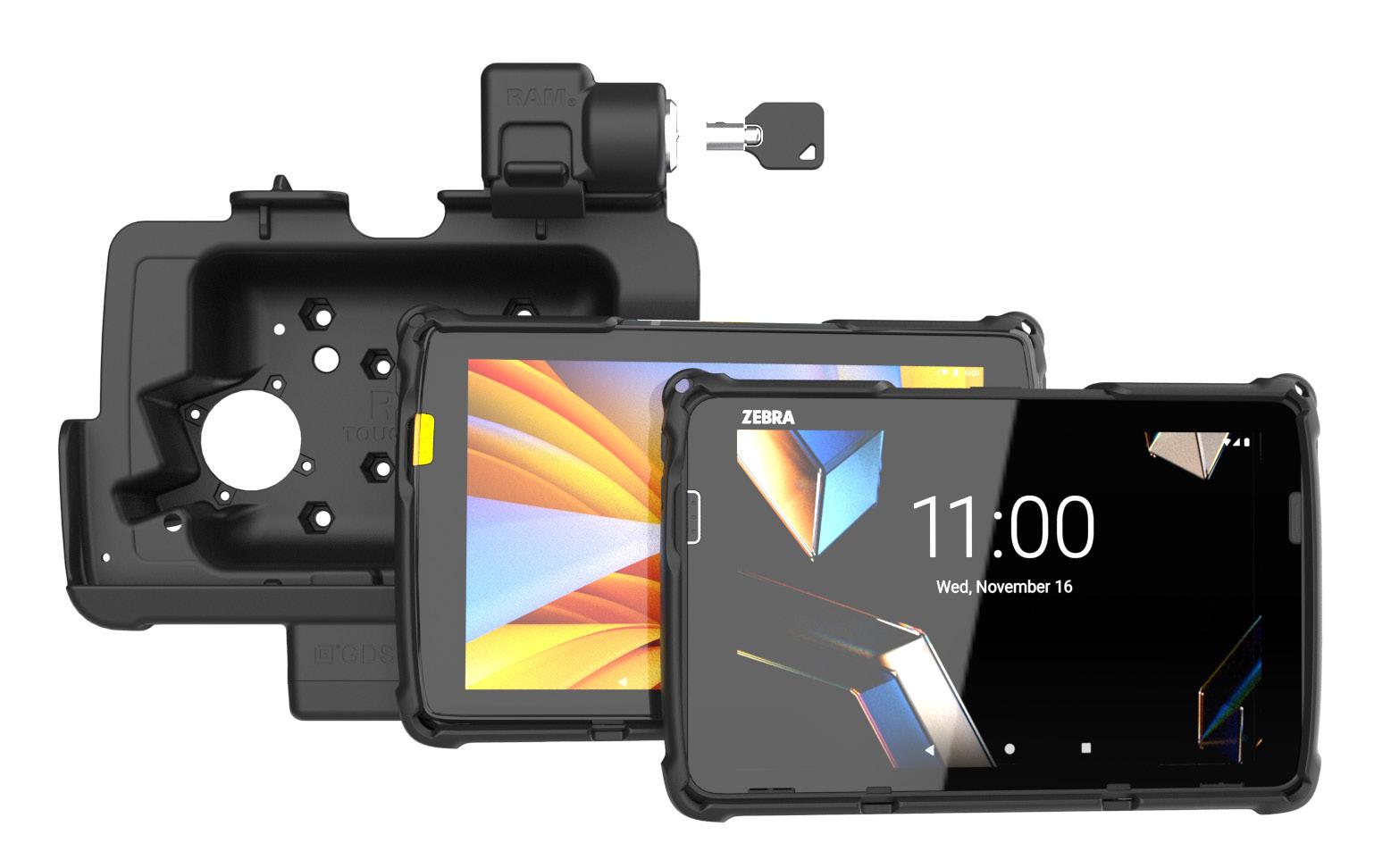

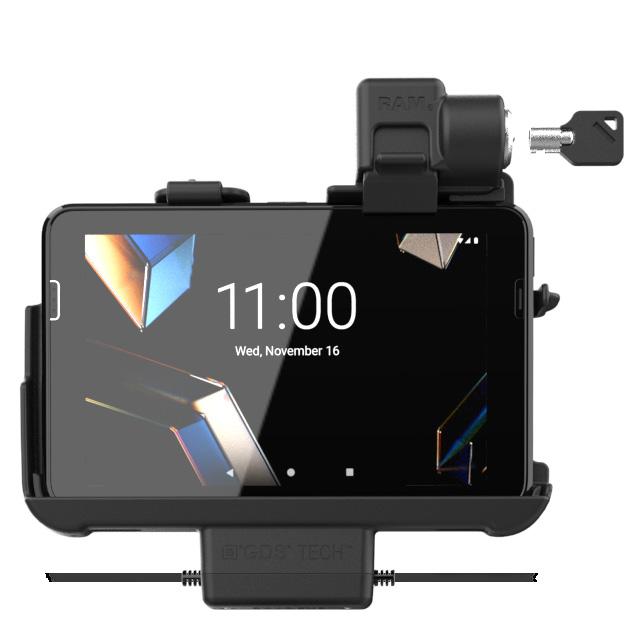

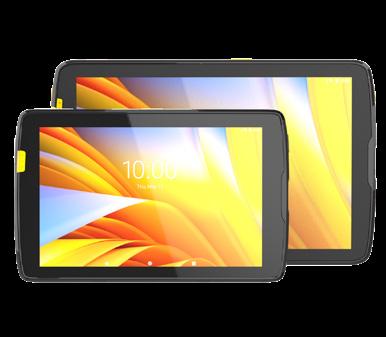

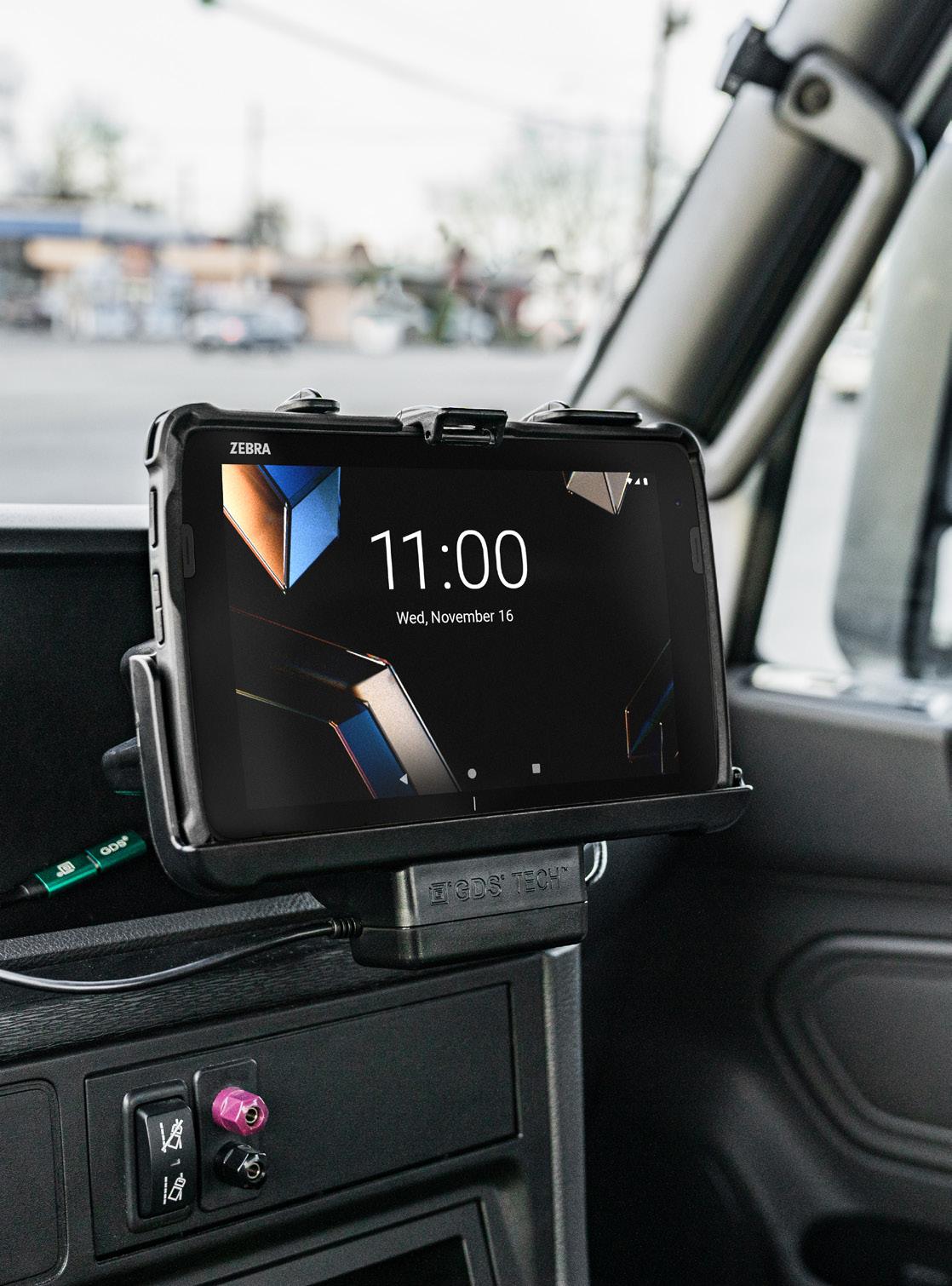

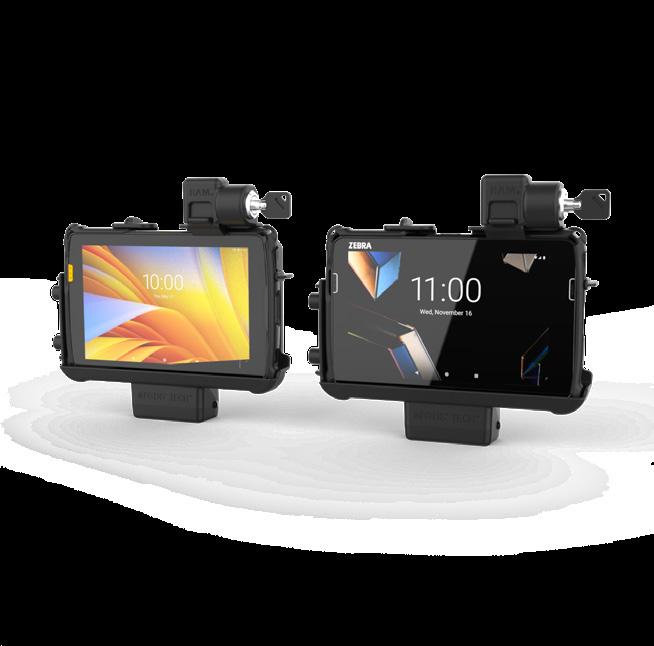

ET401 in RAM® Tough-Dock™ with RAM® Skin™ (Backwards Compatible with ET40/ET45)
TRANSPORTATION
WAREHOUSING
FEATURES & BENEFITS

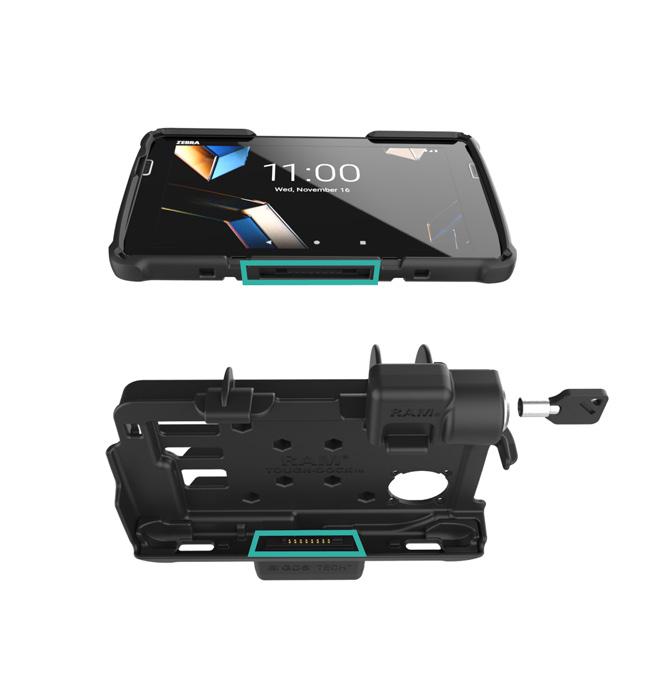

RAM® pogo pin docks align perfectly to the devices docking contacts to deliver a seamless, driver-focused experience with reliable charging and connectivity without fumbling with cords.

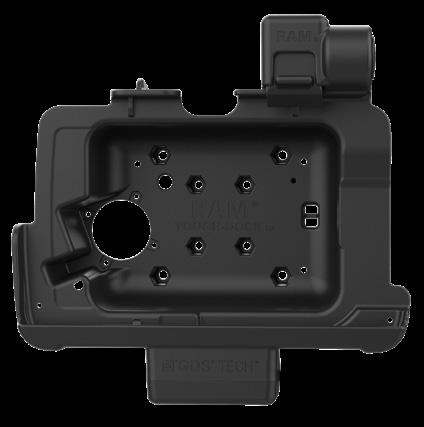

RAM® Tough-Dock™ vehicle docks offer added depth to accommodate battery cover accessories while the RAM® Thin-Dock™ offers a slim, lower profile device mounting experience.

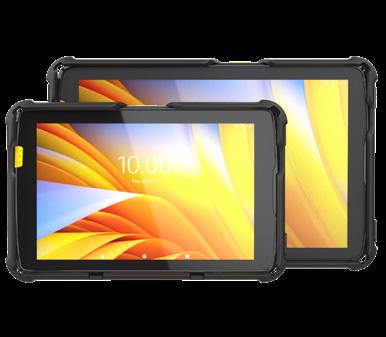

Designed for precise fitment, the Tough-Dock™ and Thin-Dock™ pogo pin vehicle docks work with ET40/ET45 tablets in a Zebra boot and ET401 tablets with a RAM® Skin™.
Dedicated housings on the back of both dock styles are used for adding dock accessories such as temperature regulating modules and the RAM® NFC/RFID extender.
Buttons Fully Accessible
Thermoplastic
Polyurethane (TPU) Integrated soft, shockabsorbing rubber

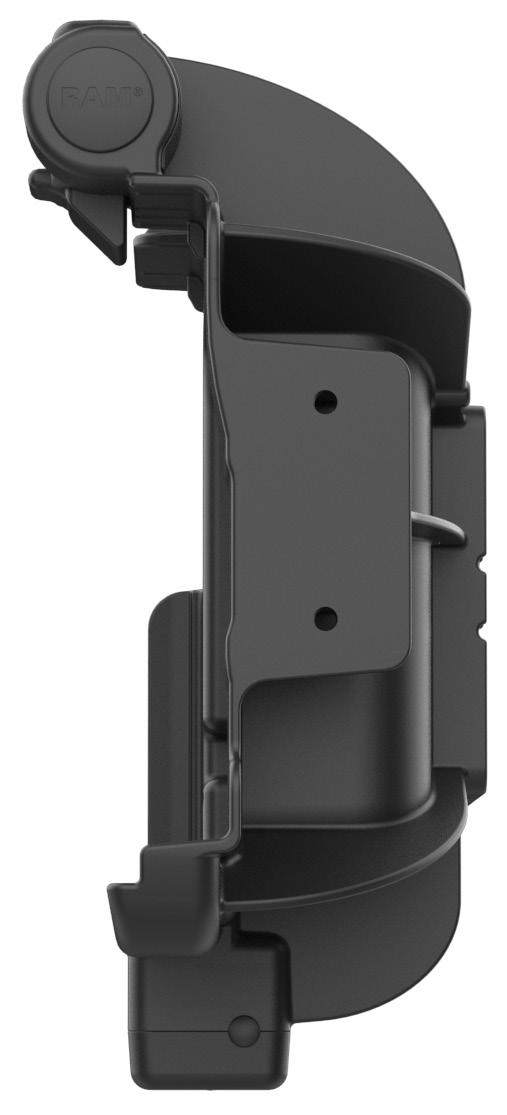

DIMENSIONS (TOUGH-DOCK™ POGO PIN DOCKS)
HARDWARE
Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(2) #10-24 Nylock Nuts
(2) Small Cable Ties
OUTPUT CONNECTOR
(2) USB 2.0 Type A (dual USB-A SKUs only)
(1) USB 2.0 Type A + (1) USB-C (dual USB-A/C SKUs only)
(1) USB 2.0 Type A (single USB SKUs only)
Patented and Pats. Pending | rammount.com/ip

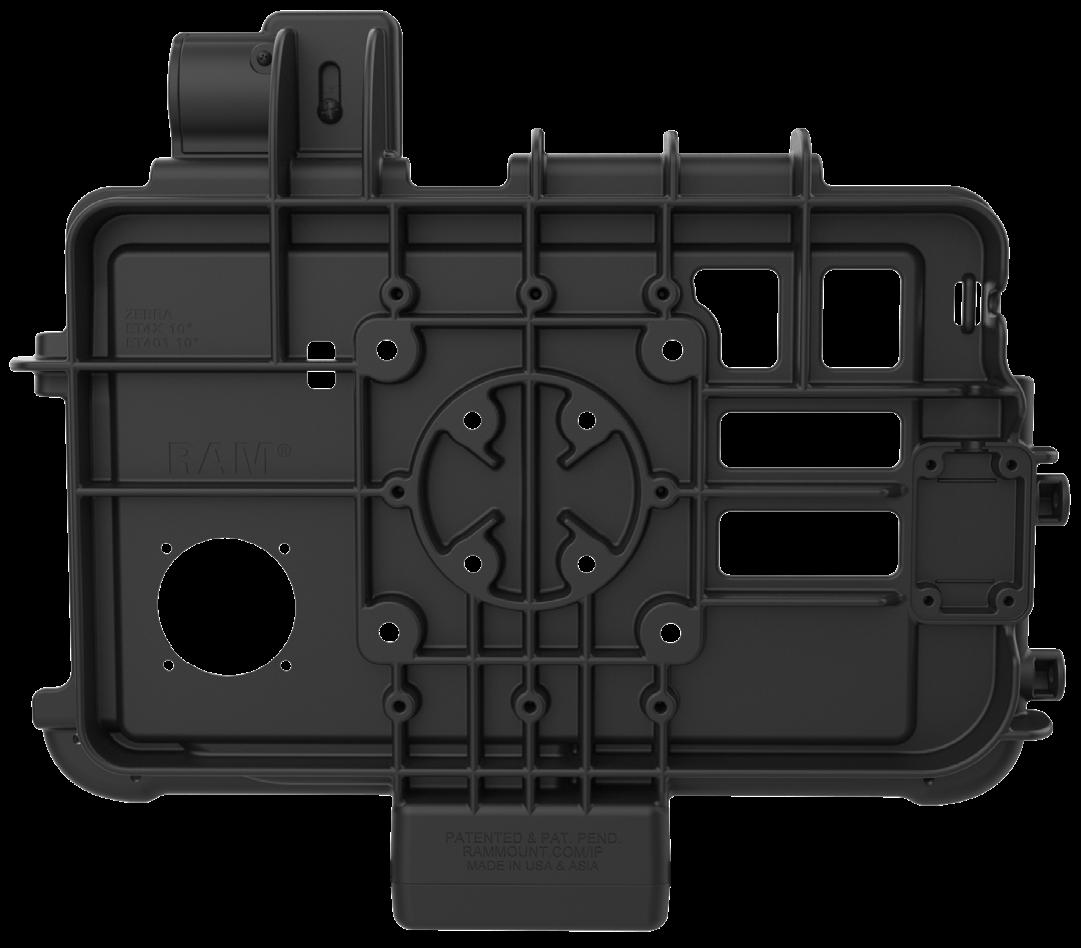

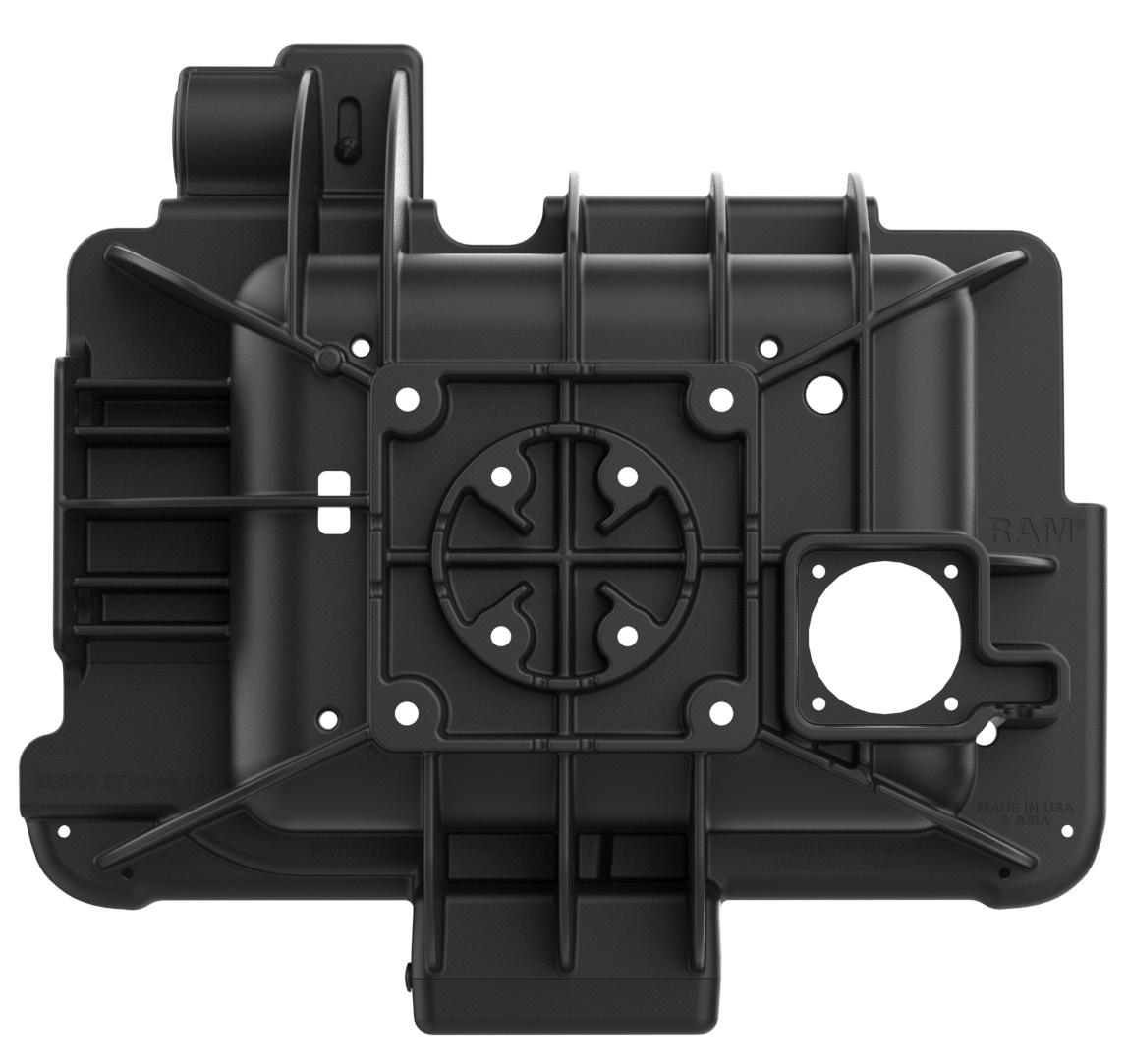

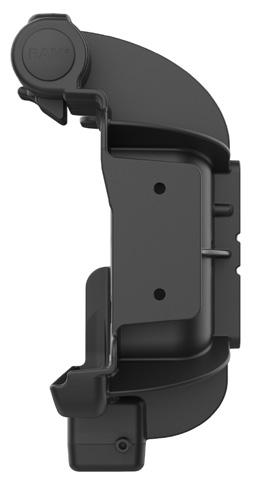

DIMENSIONS (THIN-DOCK™ POGO PIN DOCKS)
VESA & AMPS
75 x 75 mm VESA and 4-Hole AMPS RAM® NFC Reach™ Temperature Modules
Specifications
HARDWARE
Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(2) #10-24 Nylock Nuts
(2) Small Cable Ties
(2)
(1) USB 2.0 Type A + (1) USB-C (dual USB-A/C SKUs only)
(1) USB 2.0 Type A (single USB SKUs only)

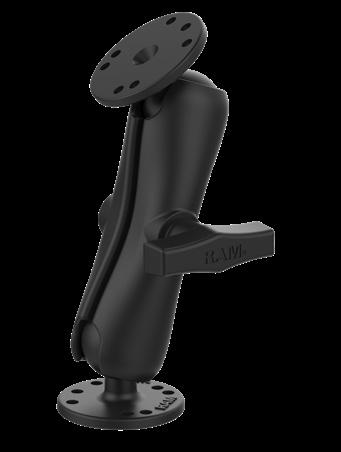

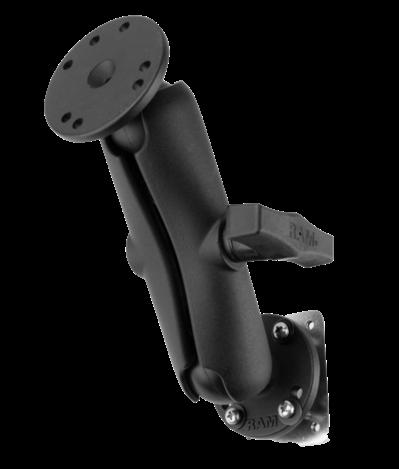

RAM-101U
RAM® Double Ball Mount with Two Round Plates - C Size Medium
RAM-D-2461U-C-247-4
RAM® 4” Square Post Clamp Mount with 75x75mm VESA Plate
RAM-101-225B2U
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Medium

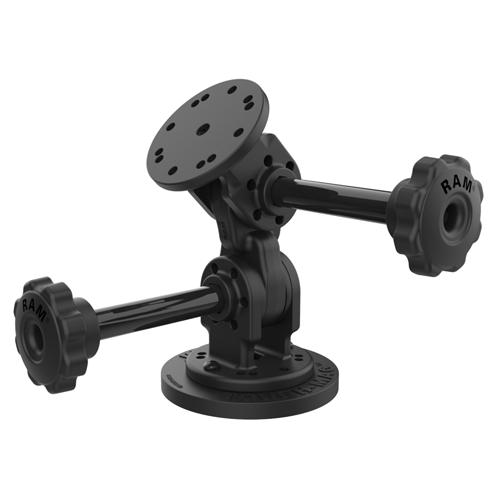

RAP-101-PV4-2P-MAG88U
RAM® Dual 90-Degree Pivot Magnetic Mount with Knob

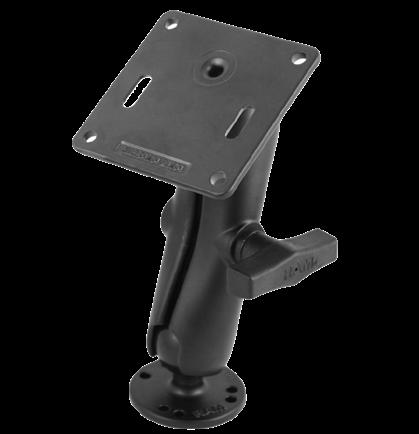

RAM-101U-2461
RAM® Double Ball Mount with 75x75mm VESA Plate

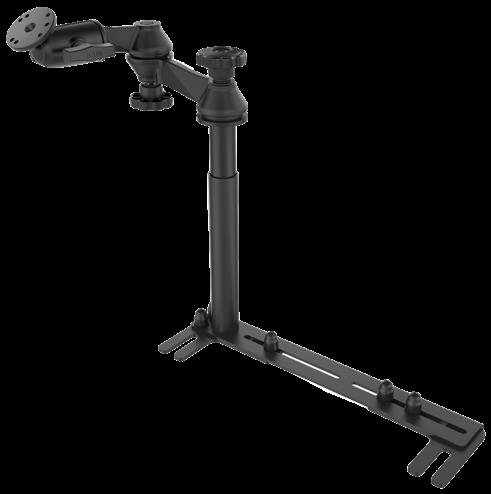

RAM-VB-196-SW2
RAM® No-Drill™ Universal Vehicle Floor Mount
Patented and Pats. Pending | rammount.com/ip

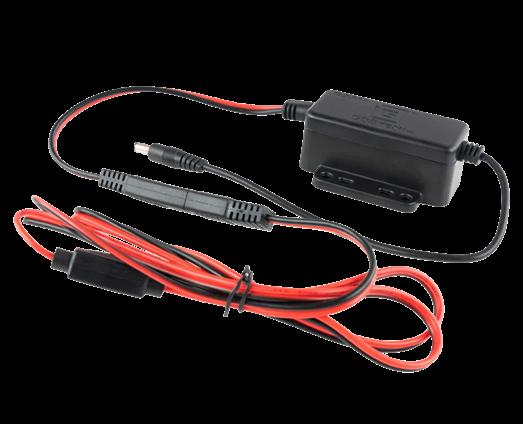

RAM-GDS-CHARGE-V9U
GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm

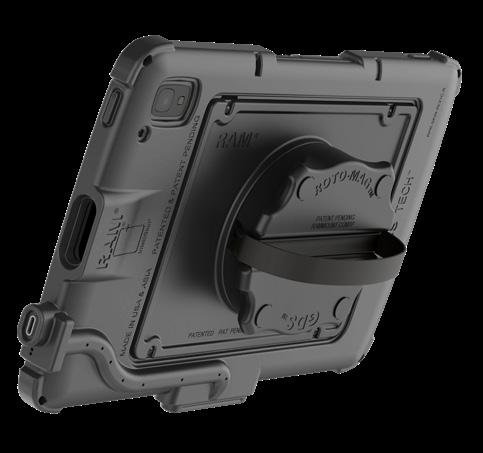

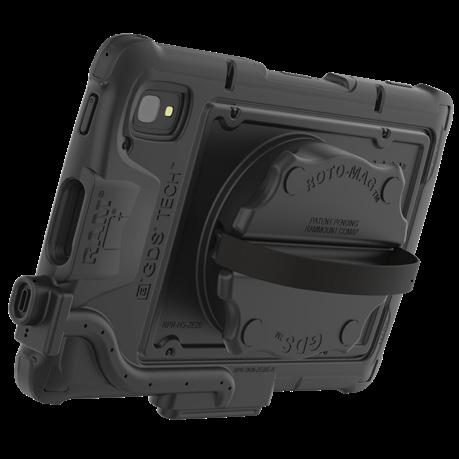

RAM-GDS-ROTO2-ZE21U
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET4x 10” Tablet

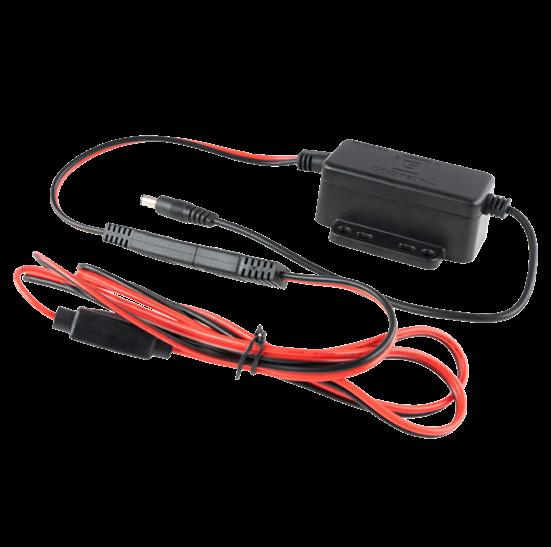

RAM-GDS-CHARGE-V10-1U
GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm

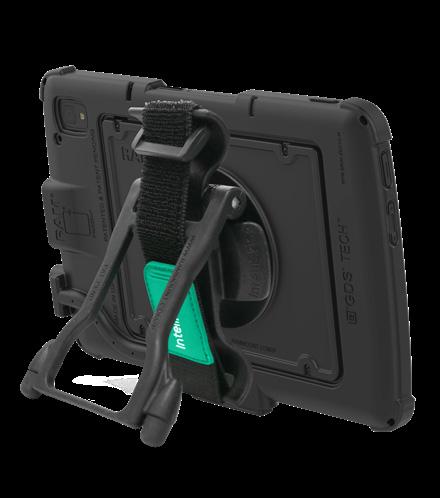

RAM-GDS-HS1-ZE21U
GDS® Hand-Stand™ for Zebra ET4x 10” Enterprise Tablet

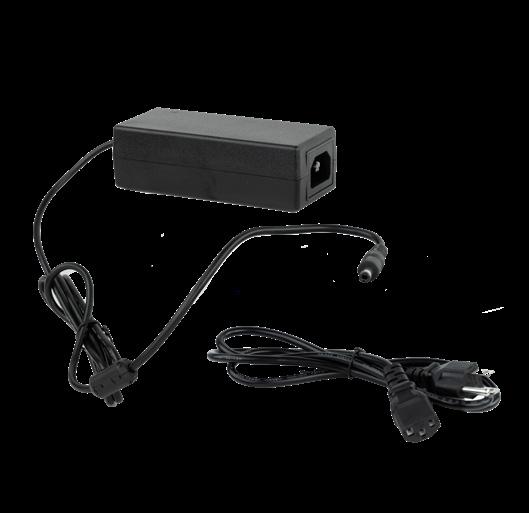

RAM-GDS-CHARGE-ACDC-60
GDS® Power Supply 60W with Male DC 5.5mm
RAM-GDS-ROTO2-ZE20U
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET4x 8” Tablet

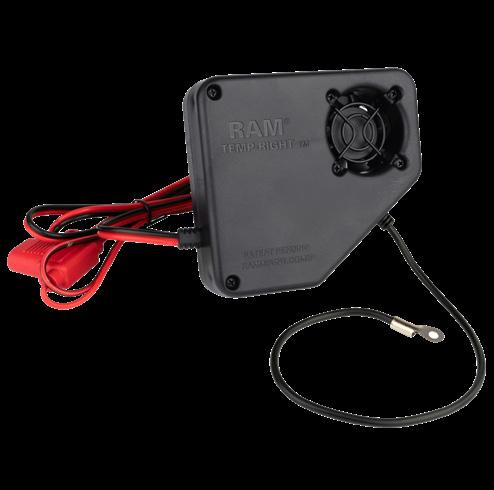

RAM-DOCK-HEATER1-DU
RAM® Temp-Right™ Dock Heating Module for Zebra ET4x

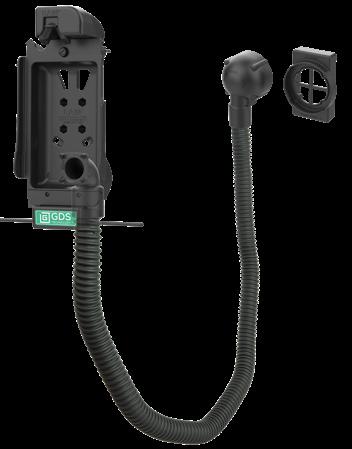

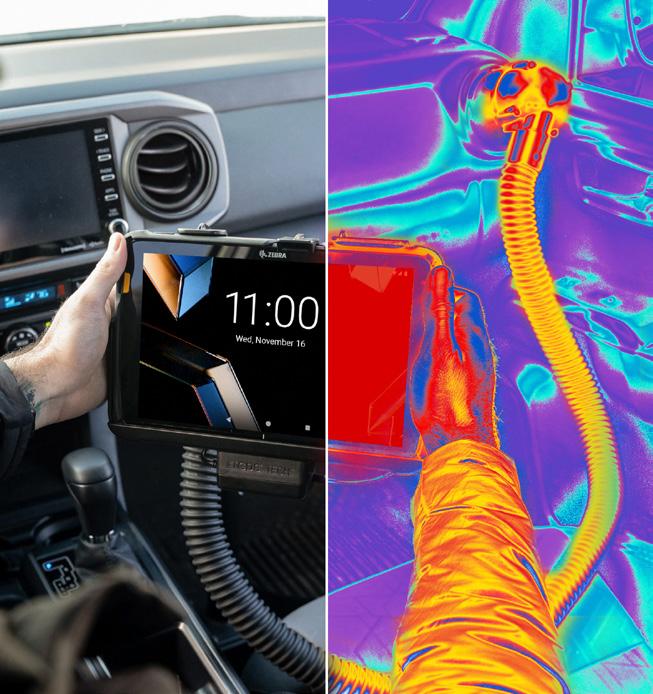

RAM-VENT1-RCT-50U
RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
Patented and Pats. Pending | rammount.com/ip
