IntelliSkin® & GDS® Docks™ for Zebra ET4x
OVERVIEW
AVAILABLE SKUS
RAM-GDS-SKIN-ZE42-NG

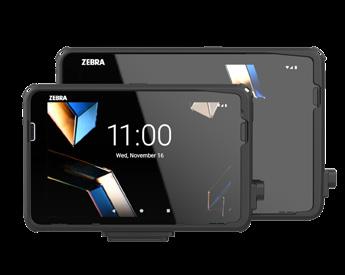

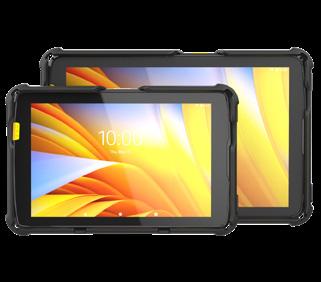

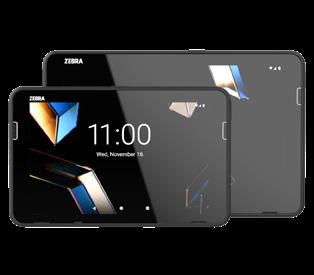

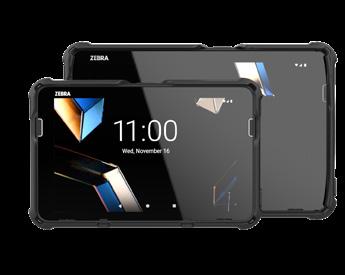

IntelliSkin® Next Gen for Zebra ET401 8” Enterprise Tablet
RAM-GDS-SKIN-ZE43-NG
IntelliSkin® Next Gen for Zebra ET401 10” Enterprise Tablet
RAM-GDS-DOCKNLL-ZE20PU

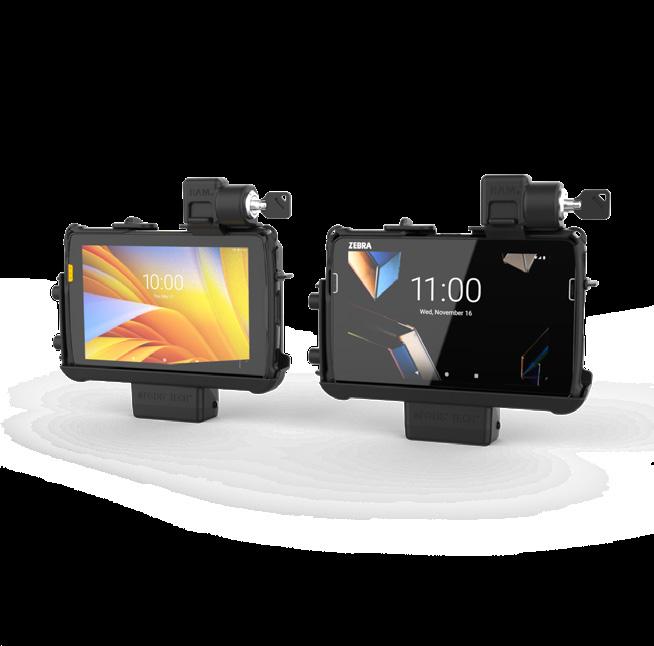

GDS® Powered Dock with Latch for Zebra ET401 & ET40/ET45 8” with IntelliSkin®
RAM-GDS-DOCKNLL-ZE21PU
GDS® Powered Dock with Latch for Zebra ET401 & ET40/ET45 10” with IntelliSkin®
RAM-GDS-DOCK-ZE46PU
GDS® Thin-Dock™ for Zebra ET401 & ET40/ET45 8” with IntelliSkin®
RAM-GDS-DOCK-ZE47PU
GDS® Thin-Dock™ for Zebra ET401 & ET40/ET45 10” with IntelliSkin®
RAM-GDS-DOCK-U4CPU

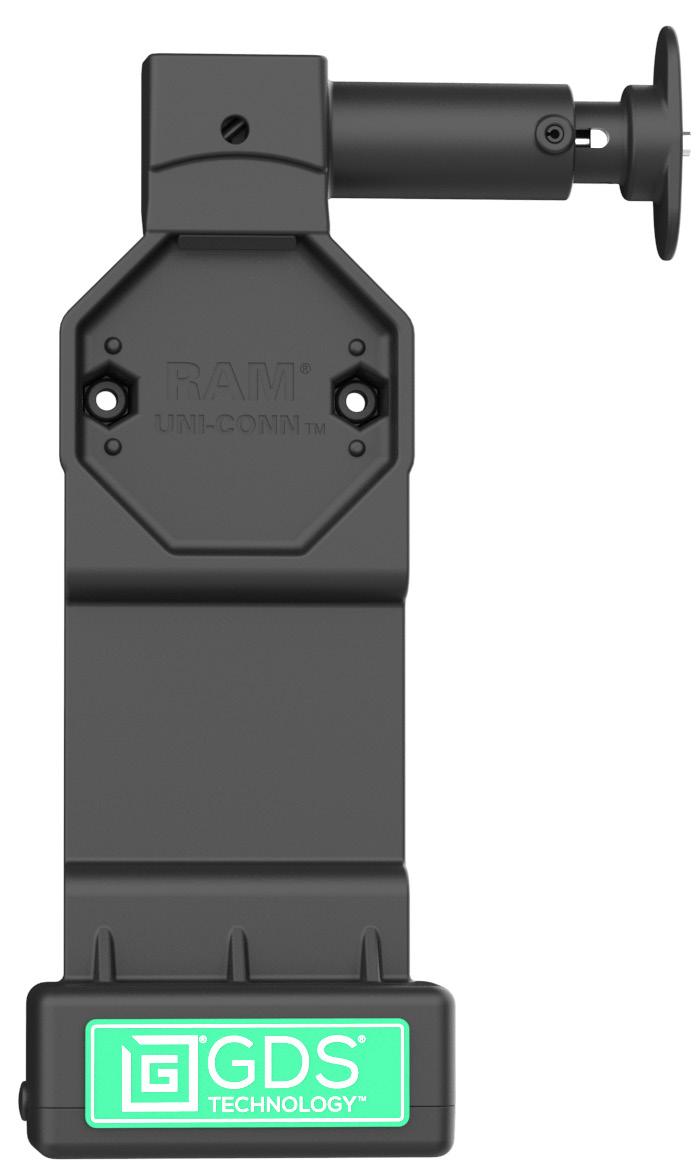

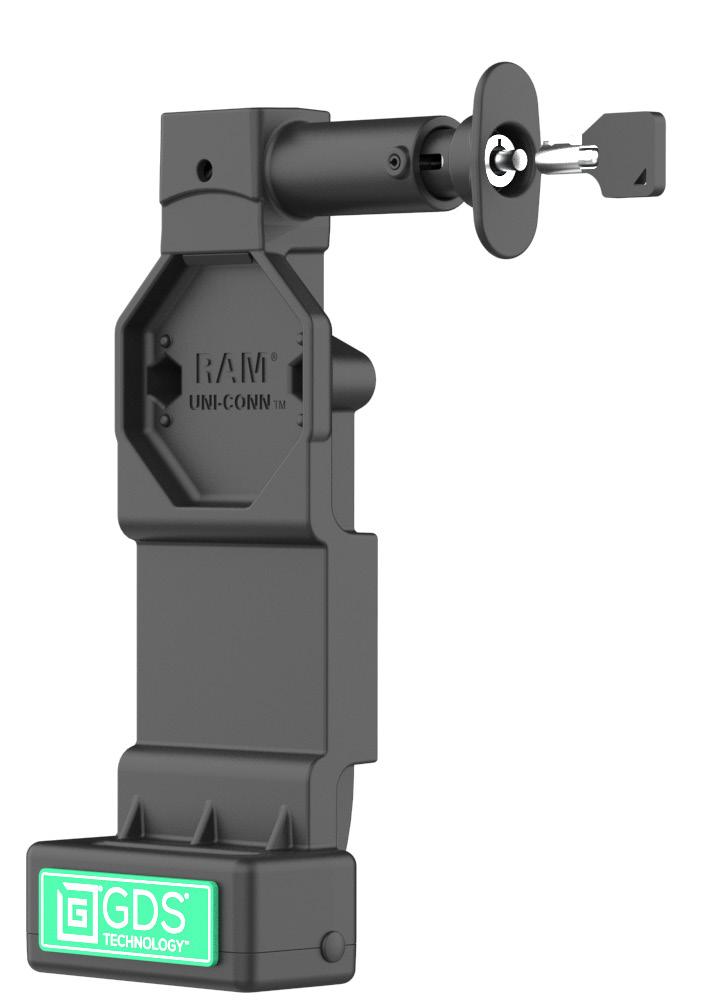

GDS® Uni-Conn™ Dock with Release Button

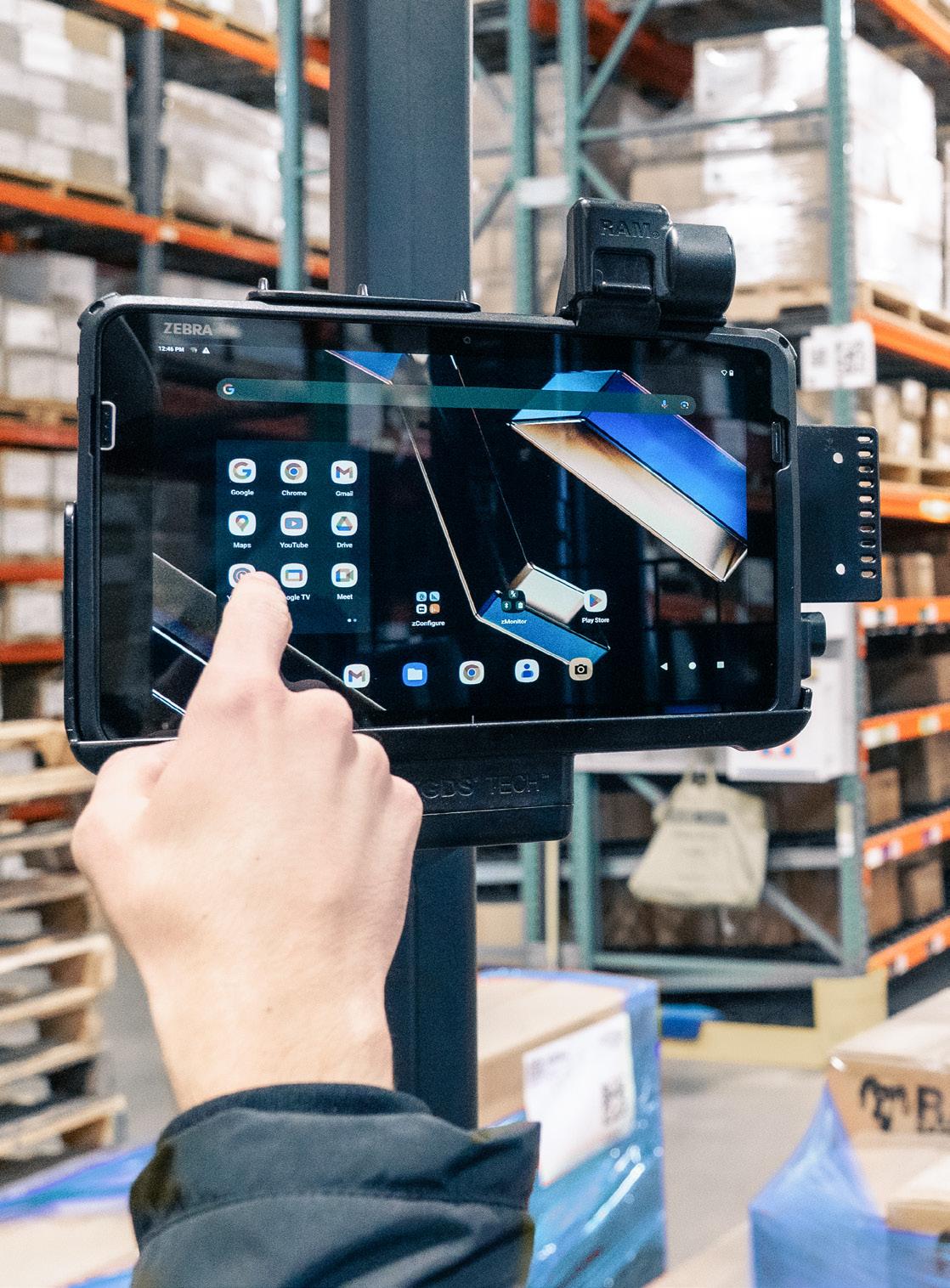

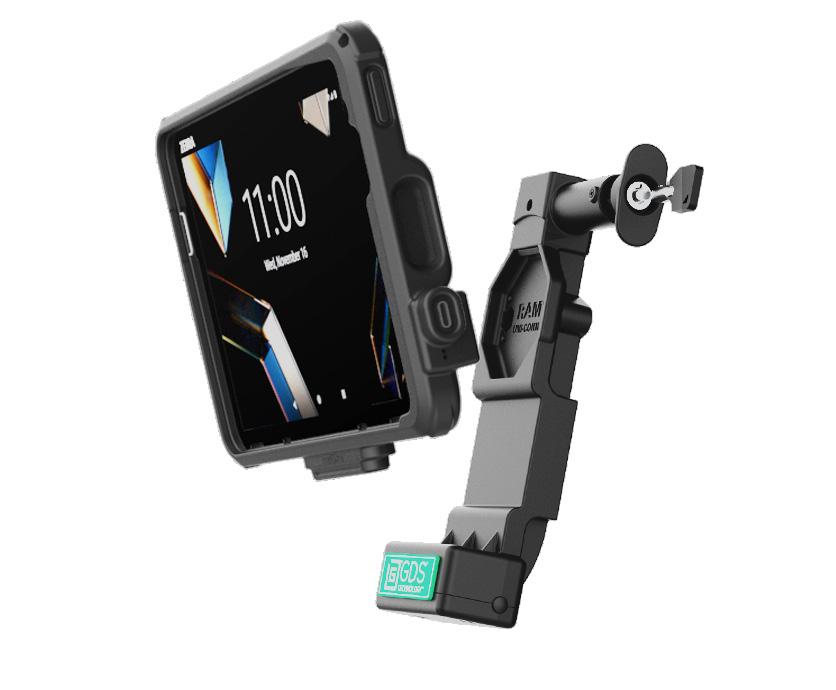

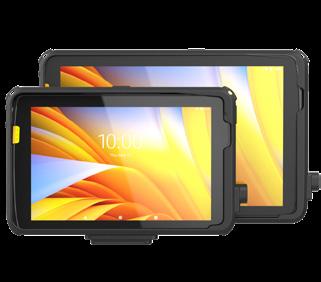

ET401 in GDS® Uni-Conn™ with IntelliSkin®

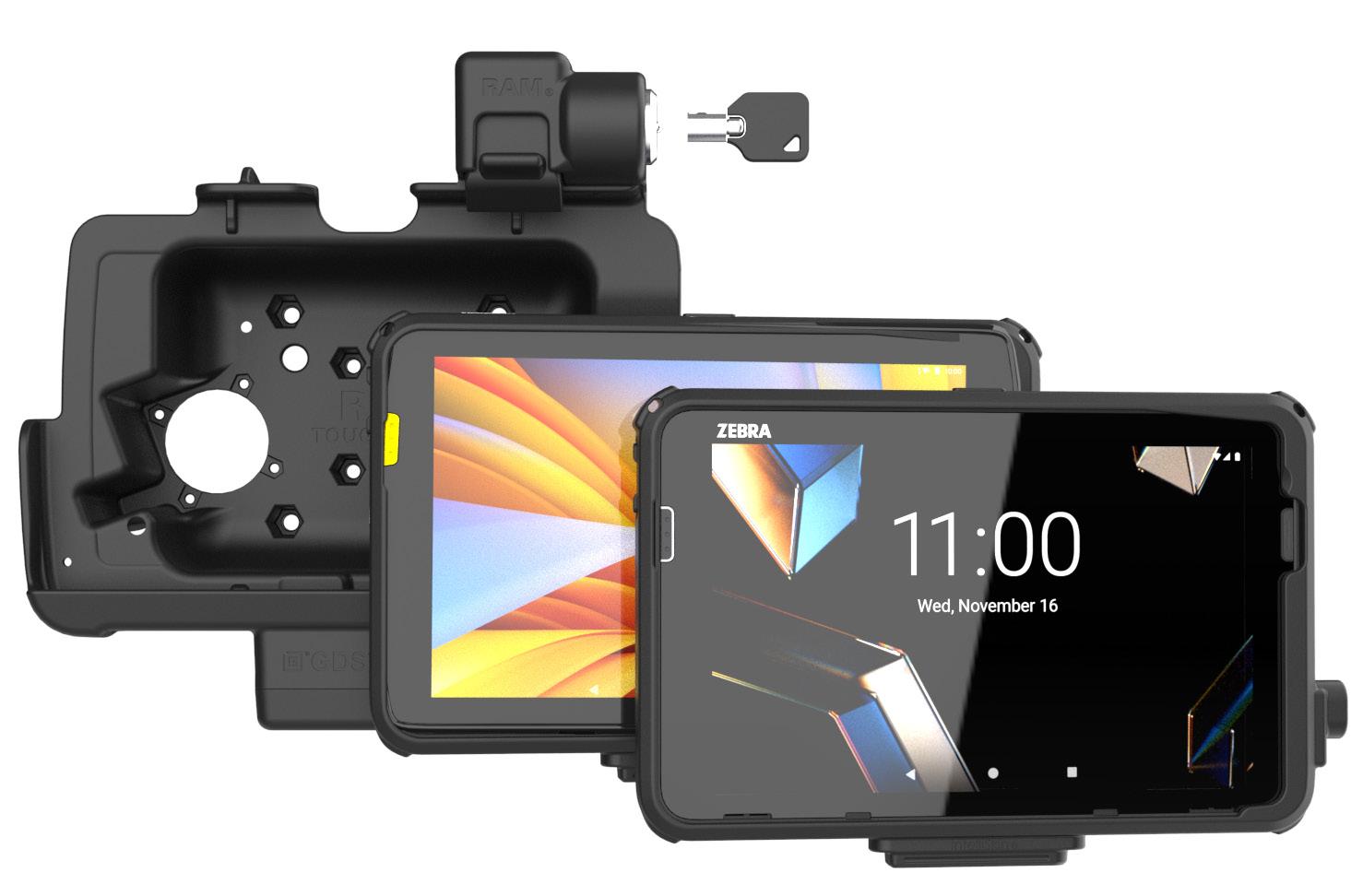

ET401 in GDS® Tough-Dock™ with IntelliSkin® (Backwards Compatible with ET40/ET45)
PRIMARY MARKETS
MATERIAL HANDLING FIELD/UTILITY SERVICE
IntelliSkin® & GDS® Docks™ for Zebra ET4x
FEATURES & BENEFITS

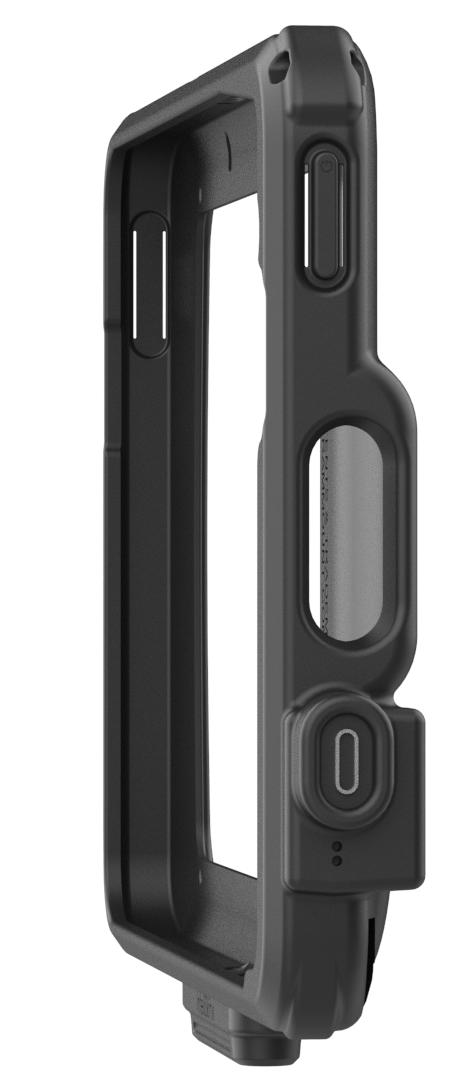

Enhanced Durability with IntelliSkin®

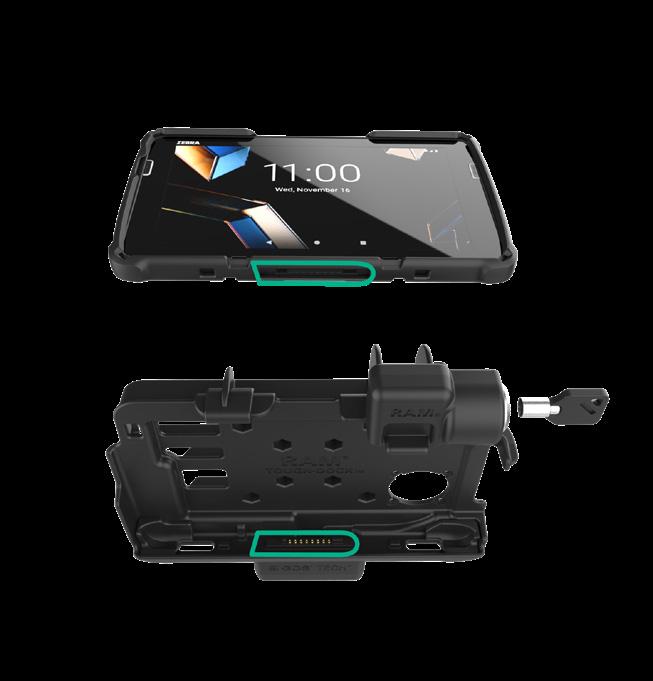

IntelliSkin® adds enhanced protection to Zebra ET401 and ET40/ET45 tablets by combining rugged drop protection and converting the USB-C port into standardized pogo pad docking contacts for reliable charging and data sync.

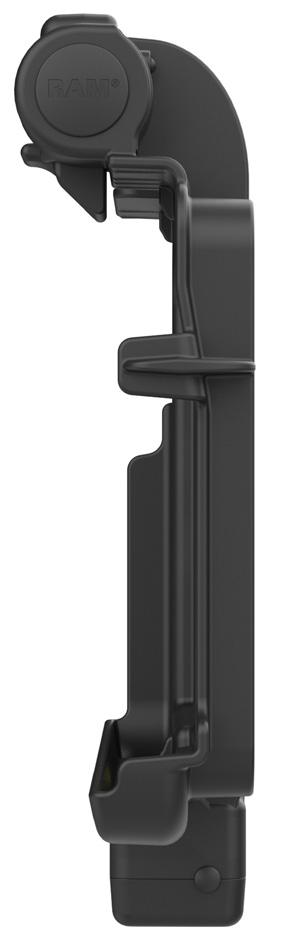

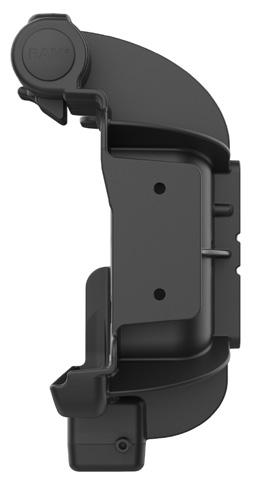

Tough-Dock™ vs Thin-Dock™
GDS® Tough-Dock™ vehicle docks offer added depth to accommodate battery cover accessories while the GDS® Thin-Dock™ offers a slim, lower profile device mounting experience.
Backwards Compatible
Designed for precise fitment, the Tough-Dock™ and Thin-Dock™ work with both ET40/ET45 and ET401 tablets in an IntelliSkin®.
Add-on Accessory-Ready

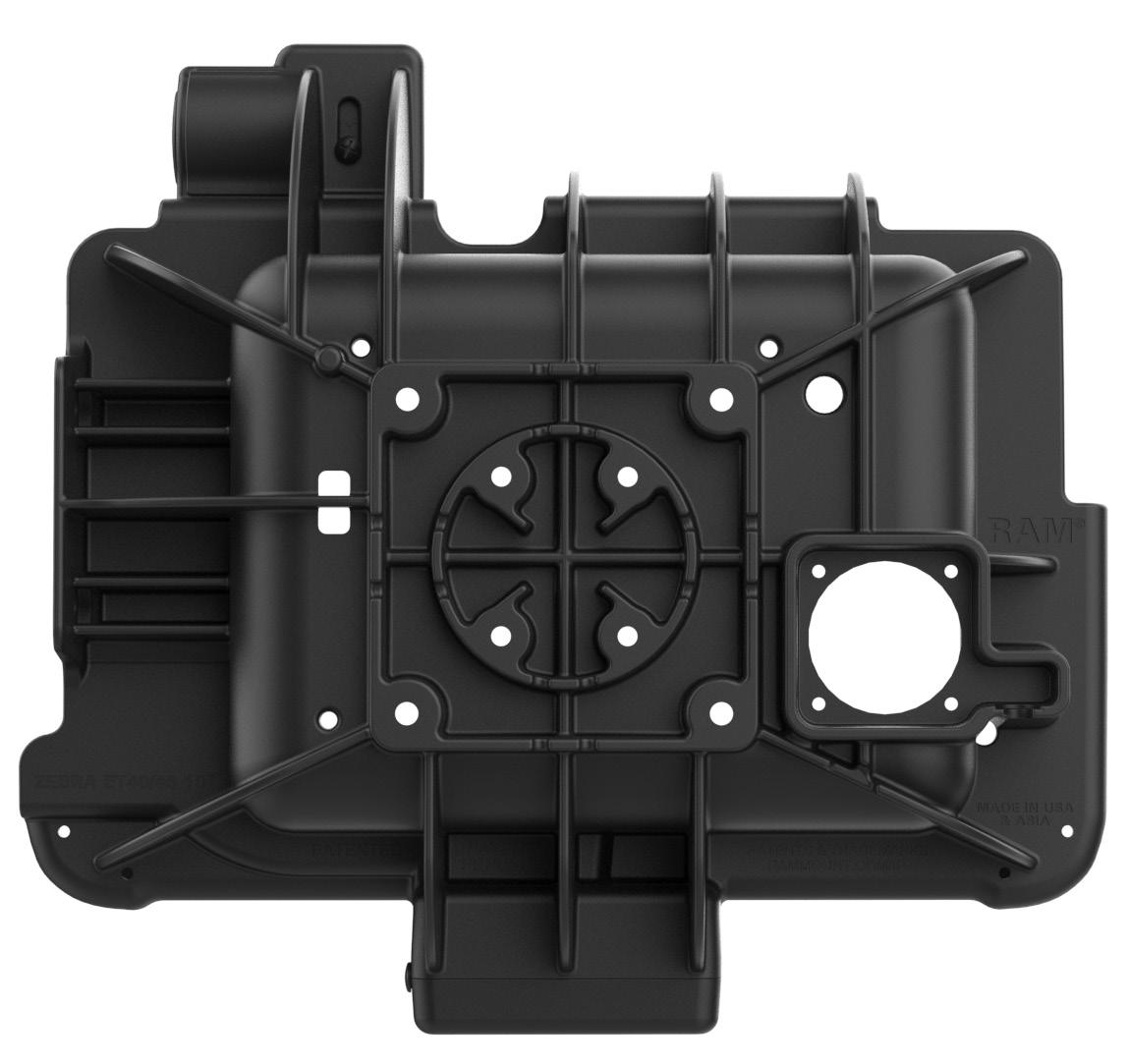

Dedicated housings on the back of both dock styles are used for adding dock accessories such as temperature regulating modules and the RAM® NFC/RFID extender.
IntelliSkin® & GDS® Docks™ for Zebra ET4x
DEVICE & DOCK COMPATIBILITY
- 8” & 10”
GDS® Uni-Conn™
Requires RAM-GDSU1-ZE20 (8-inch) or RAM-GDS-U1-ZE21U (10-inch)
Requires RAM-GDSU1-ZE20 (8-inch) or RAM-GDS-U1-ZE21U (10-inch)
Patented and Pats. Pending | rammount.com/ip

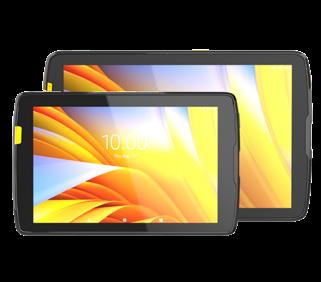

ET40/ET45
ET401 - 8” & 10”
No Case Zebra Boot IntelliSkin® No Case Zebra Boot
IntelliSkin®

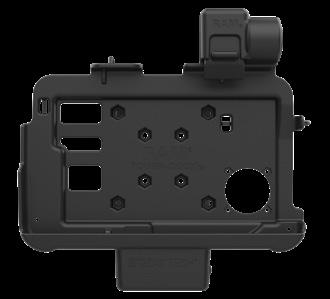

GDS® Tough-Dock™
GDS® Thin-Dock™
IntelliSkin® & GDS® Docks™ for Zebra ET4x

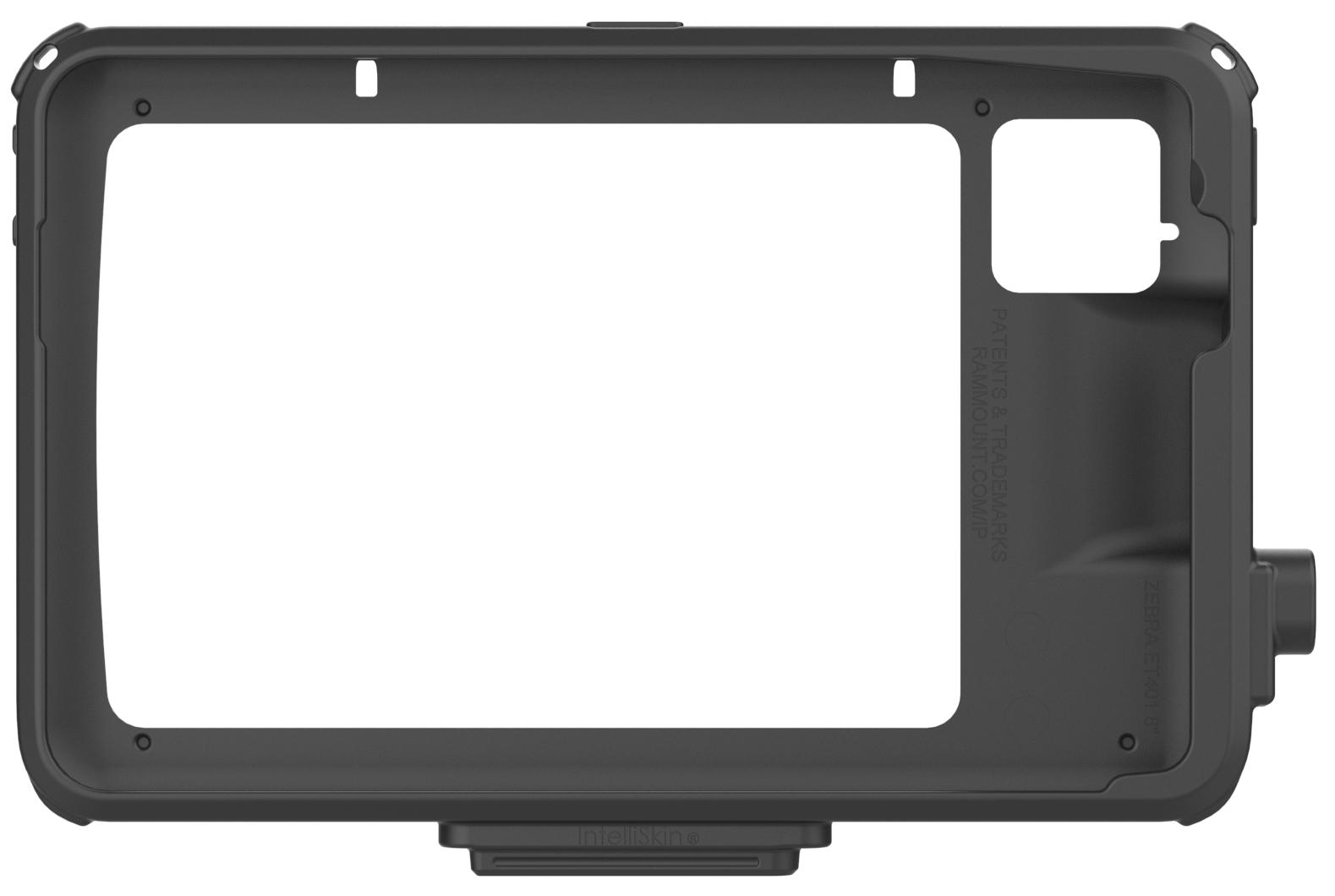

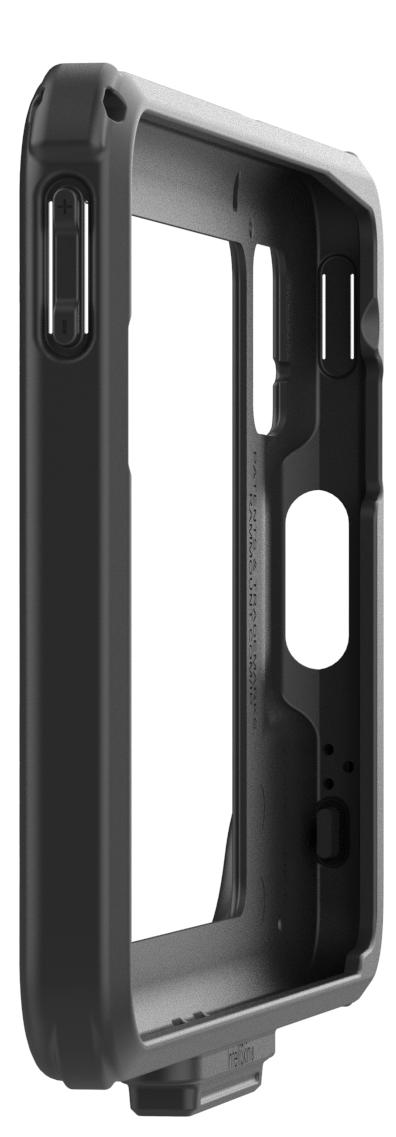

DIMENSIONS (INTELLISKIN®)
Buttons Fully Accessible
5.97 in (8” Tablet)
7.07 in (10” Tablet)
0.86 in (8” Tablet)
in (10” Tablet)
9.09 in (8” Tablet)
10.80 in (10” Tablet)
Thermoplastic Polyurethane (TPU)
Integrated soft, shock-aborbing rubber
Hole for Ergonomic Accessories

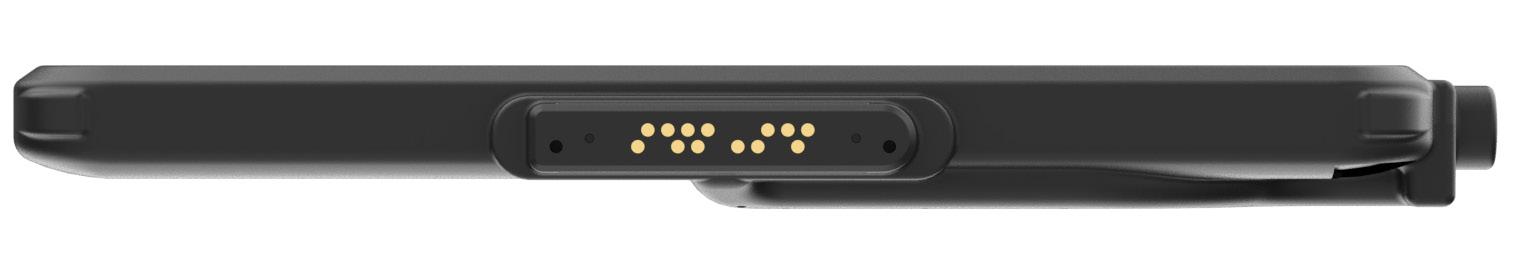

Pogo Pads
Protect the device’s port from constant plugging and unplugging. Flat for easy cleaning.
USB-C P ort
Integrated connector allows for charging, even when a GDS ® Dock ™ is unavailable.
Patented and Pats. Pending | rammount.com/ip
IntelliSkin® & GDS® Docks™ for Zebra ET4x

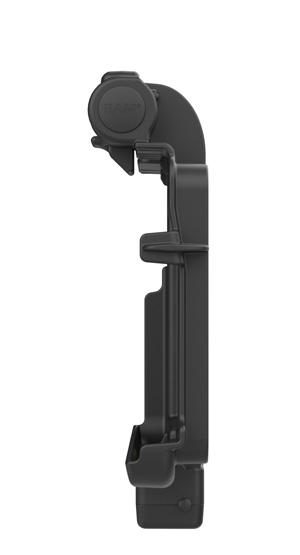

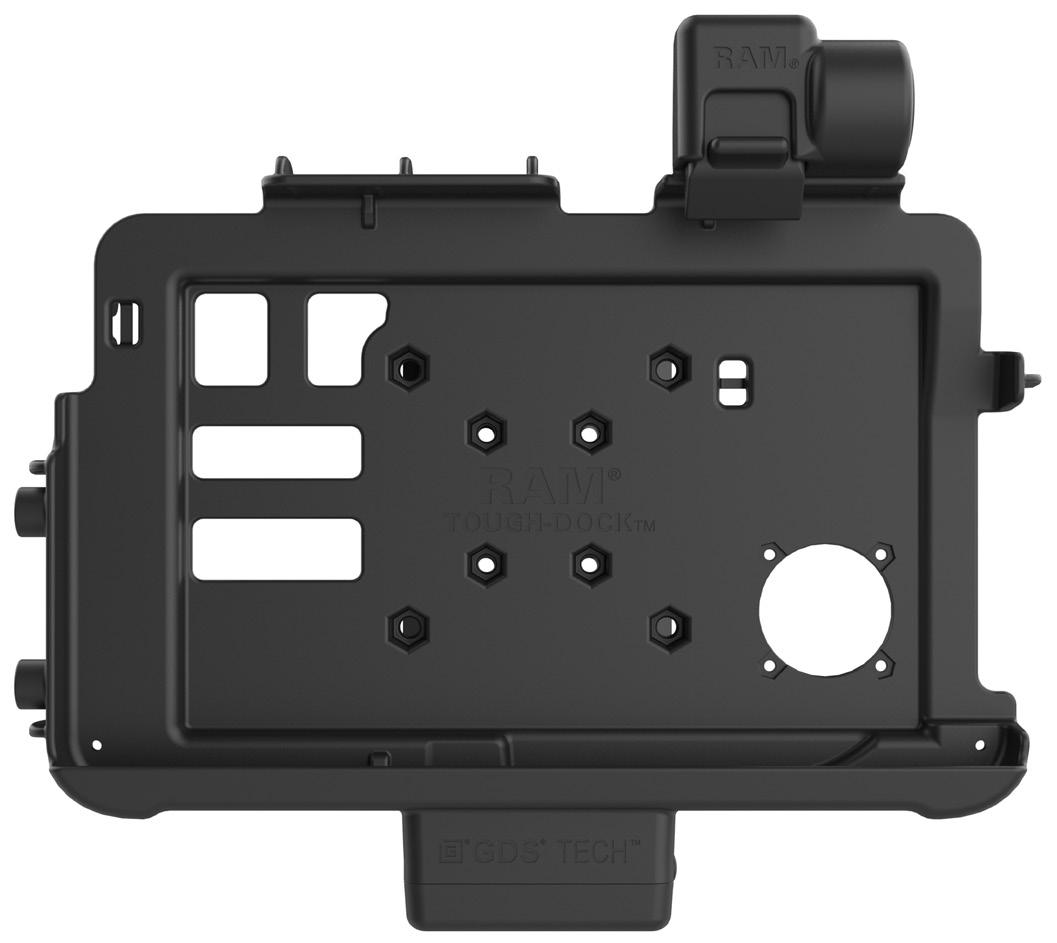

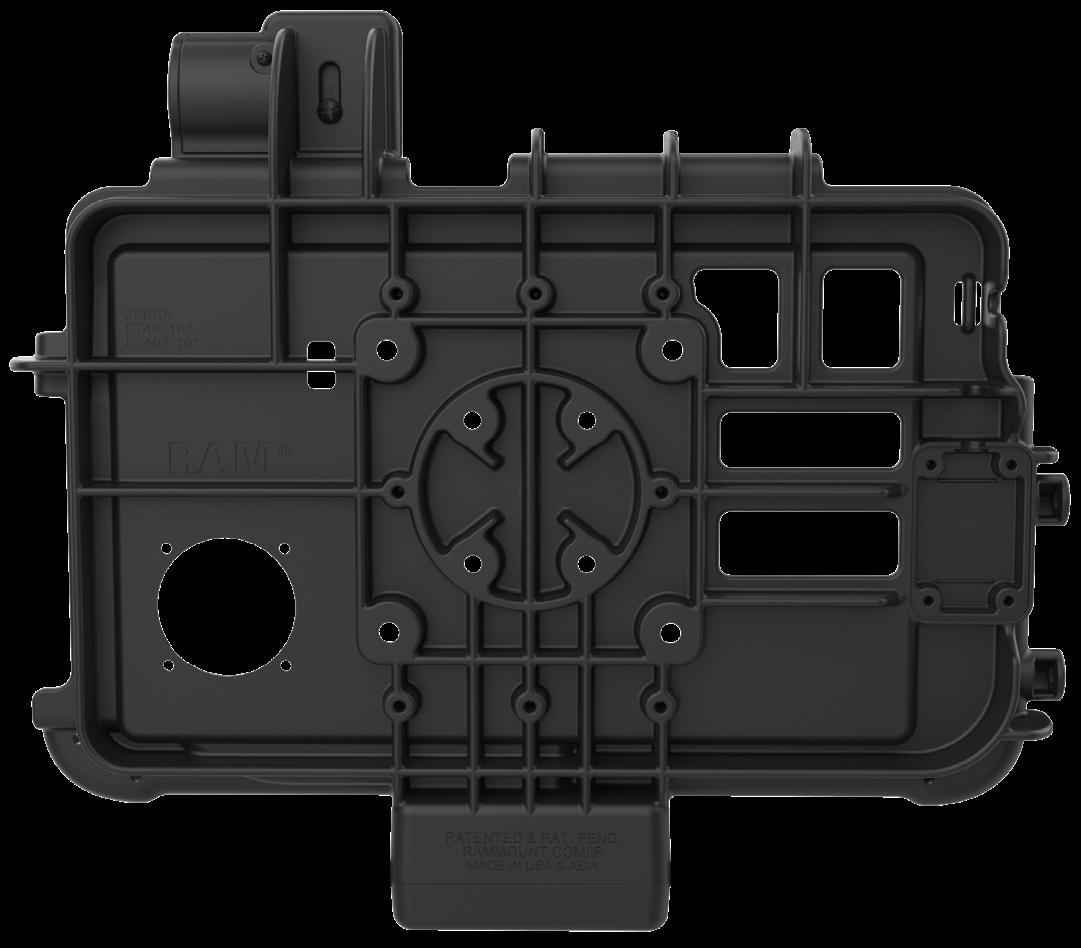

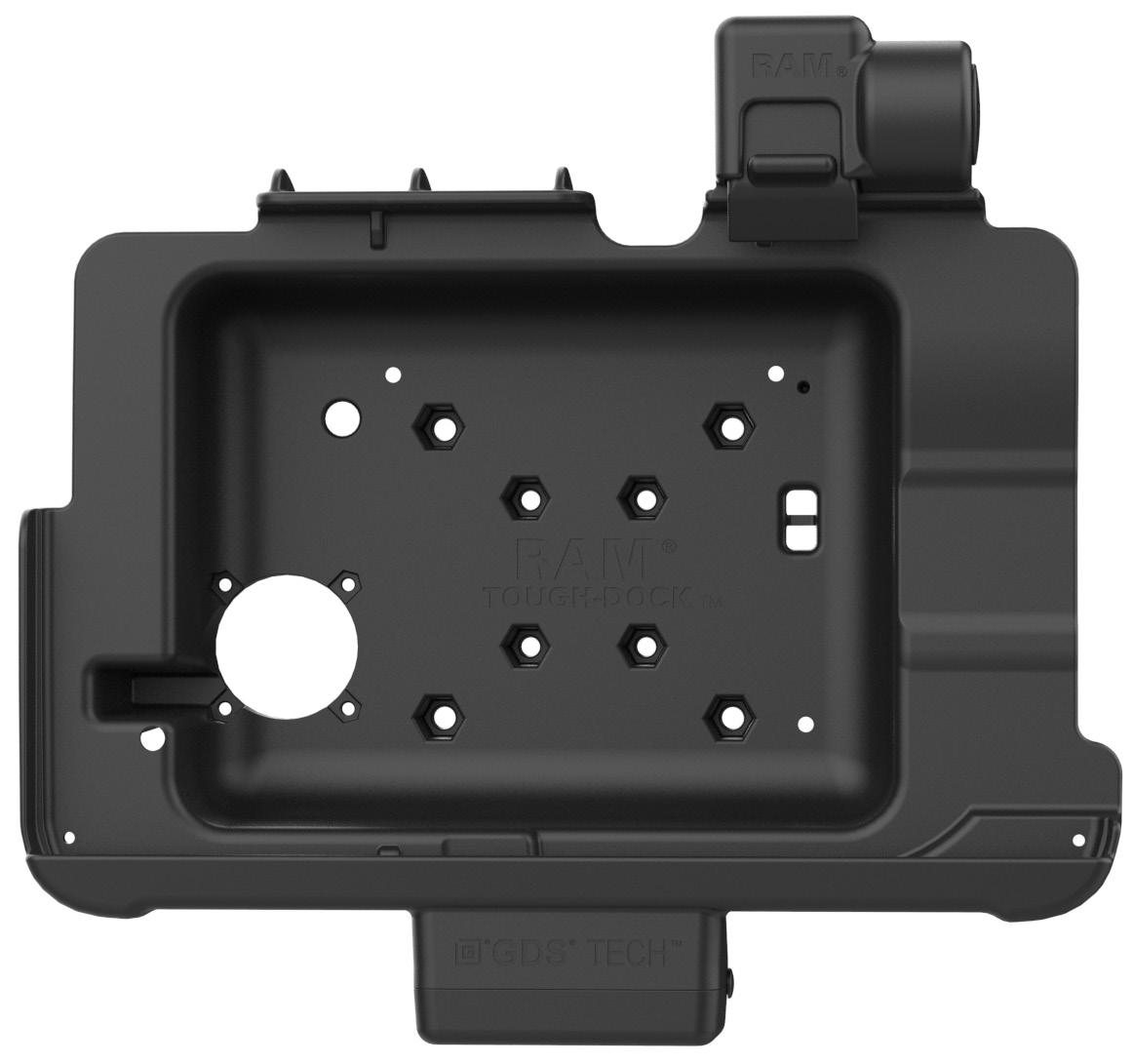

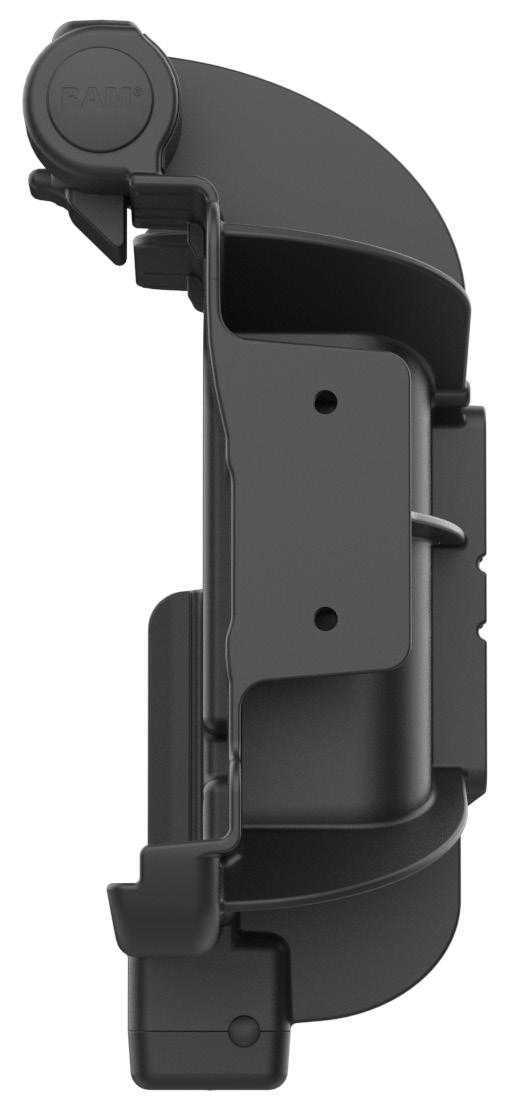

DIMENSIONS (GDS® TOUGH-DOCK™)
in (8” Tablet)
in (10” Tablet)
SPECIFICATIONS
HARDWARE
Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(2) #10-24 Nylock Nuts
(2) Small Cable Ties
(single & dual USB w/ lock SKUs)
lbs (Power + Key-lock)
OUTPUT CONNECTOR
(2) USB 2.0 Type A (dual USB-A SKUs only)
(1) USB 2.0 Type A + (1) USB-C (dual USB-A/C SKUs only)
(1) USB 2.0 Type A (single USB SKUs only)
Patented and Pats. Pending | rammount.com/ip
IntelliSkin® & GDS® Docks™ for Zebra ET4x

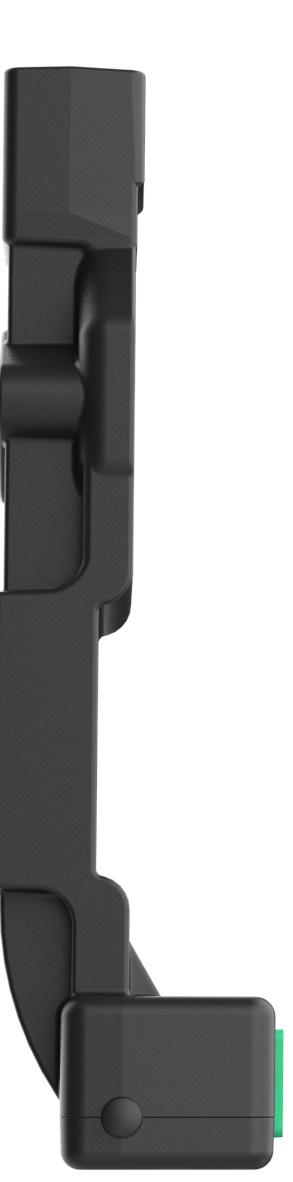

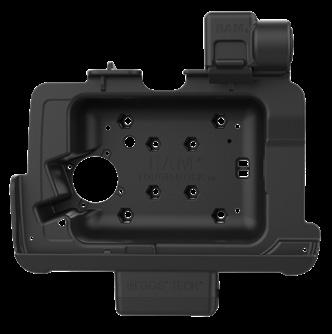

DIMENSIONS (GDS® THIN-DOCK™)
in (10” Tablet)
SPECIFICATIONS
Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(2) #10-24 Nylock Nuts
(2) Small Cable Ties OUTPUT CONNECTOR
(2) USB 2.0 Type A (dual USB-A SKUs only)
(1) USB 2.0 Type A + (1) USB-C (dual USB-A/C SKUs only)
(1) USB 2.0 Type A (single USB SKUs only)
IntelliSkin® & GDS® Docks™ for Zebra ET4x

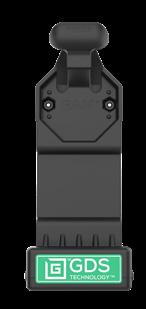

DIMENSIONS (GDS® UNI-CONN™)
SPECIFICATIONS
HARDWARE
(2) #8-32 x 5/8” Machine Screws (2) #8-32 Nylock Nuts (1) Cable Clamp Kit
HOLE PATTERN 2-Hole AMPS: 1.912”
MATERIALS High strength composite
VOLTAGE 5V - 12V @ 3A
POWER OUTPUT 15W
INPUT CONNECTOR USB Type-C Female
CABLE LENGTH
Requires RAM-GDS-U1-ZE20 (8-inch) or RAM-GDS-U1-ZE21U (10-inch)
IntelliSkin® & GDS® Docks™ for Zebra ET4x
COMPATIBLE MOUNTS
RAM-101U

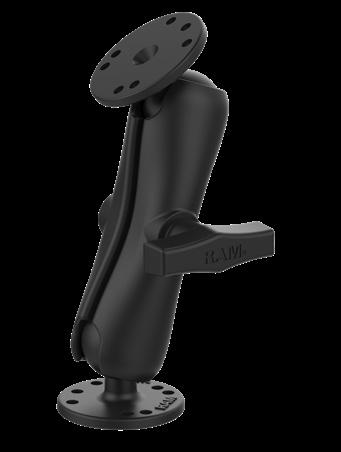

RAM® Double Ball Mount with Two Round PlatesC Size Medium
RAM-D-247-C-254-DIS1U
RAM-KB2-USB Pair with GDS® Keyboard™ with Track Pad

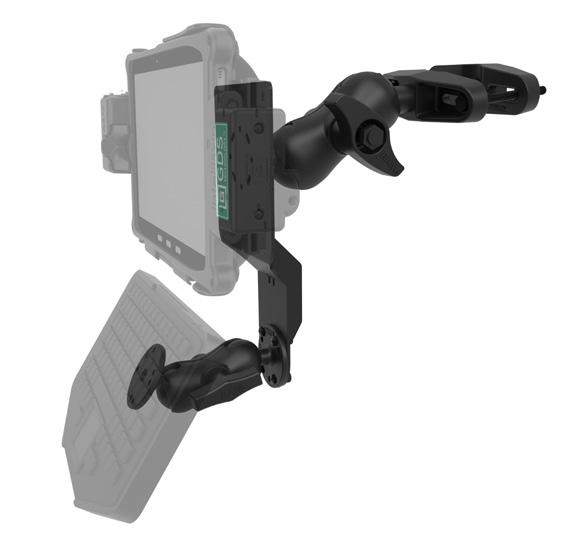

RAM® Universal Forklift Post Mount with Round Plate & Accessory Option
RAM-101-225B2U

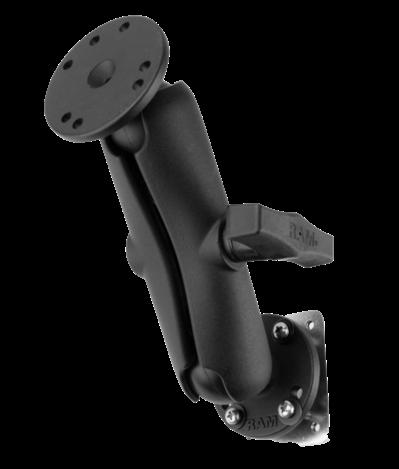

RAM® Drill-Down Dashboard Mount with Backing PlateC Size Medium
RAP-101-PV4-2P-MAG88U

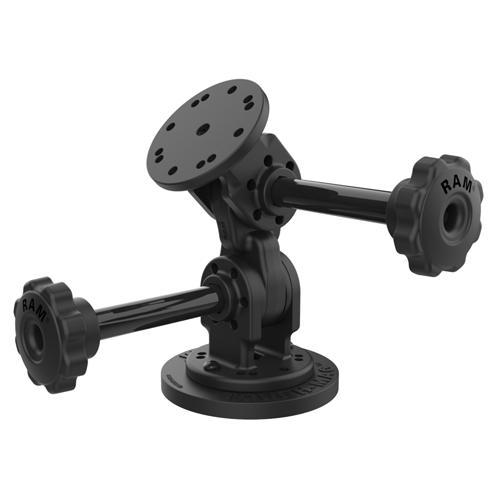

RAM® Dual 90-Degree Pivot Magnetic Mount with Knob
RAM-101U-2461

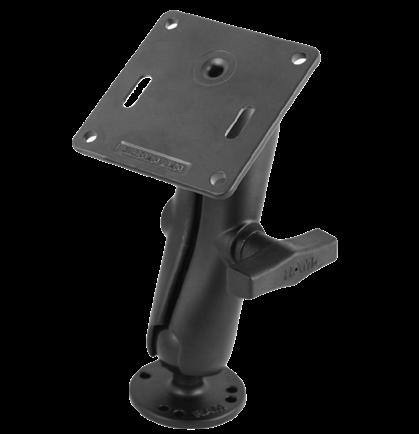

RAM® Double Ball Mount with 75x75mm VESA Plate
RAM-VB-196-SW2

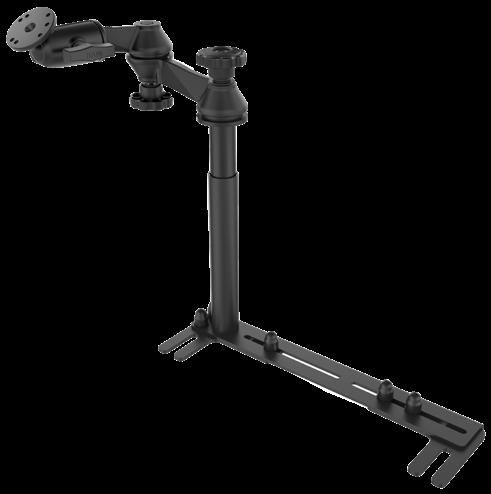

RAM® No-Drill™ Universal Vehicle Floor Mount
Patented and Pats. Pending | rammount.com/ip
IntelliSkin® & GDS® Docks™ for Zebra ET4x
CHARGING ACCESSORIES

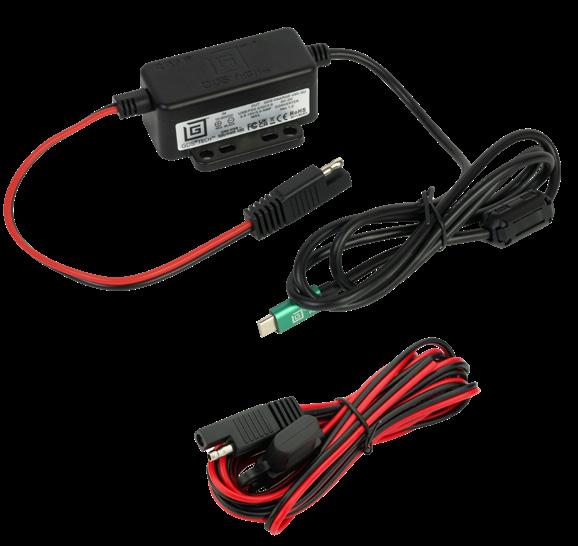

RAM-GDS-CHARGE-V3C-3U

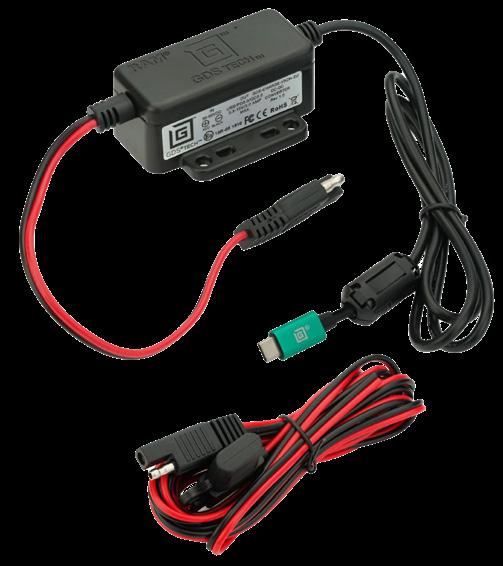

GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C
RAM-GDS-CHARGE-V3CH-2U
GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C
RAM-GDS-DOCK-6G16P
GDS® Power Supply 60W with Male DC 5.5mm Patented and Pats. Pending | rammount.com/ip
IntelliSkin® & GDS® Docks™ for Zebra ET4x
ACCESSORIES

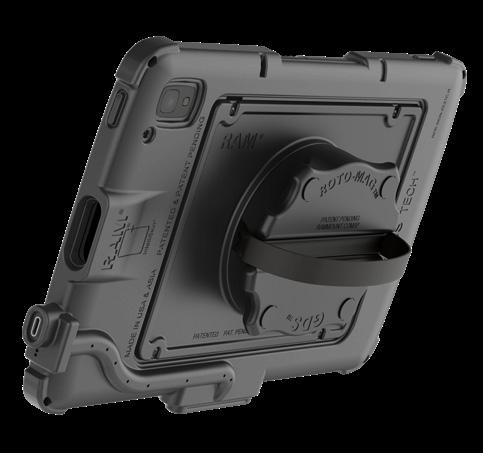

RAM-GDS-ROTO2-ZE20U

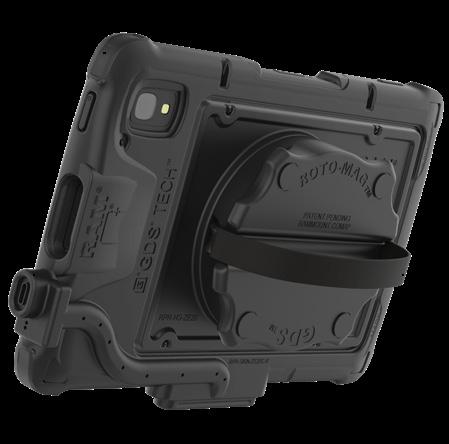

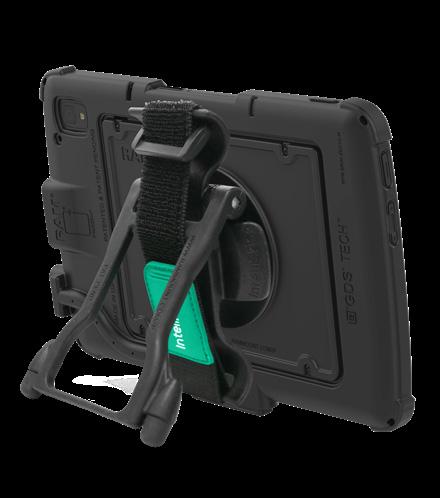

GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET4x 8” Tablet
RAM-GDS-ROTO2-ZE21U
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET4x 10” Tablet
RAM-VENT1-RCT-50U

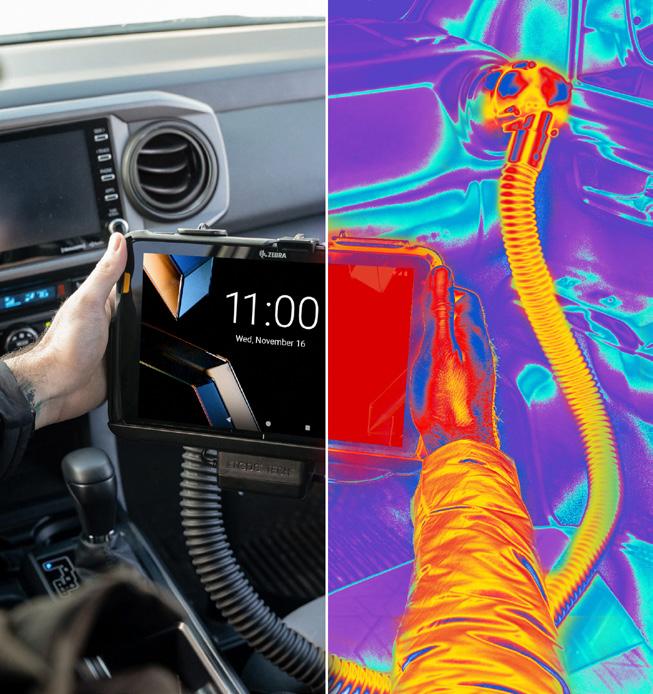

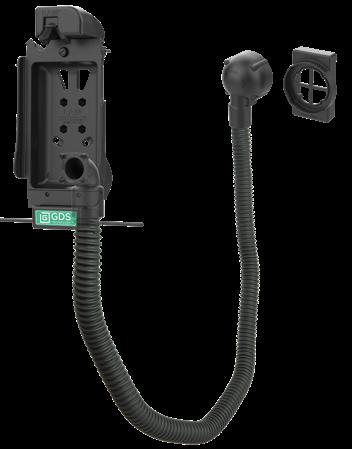

RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
RAM-GDS-HS1-ZE21U
GDS® Hand-Stand™ for Zebra ET4x 10” Enterprise Tablet

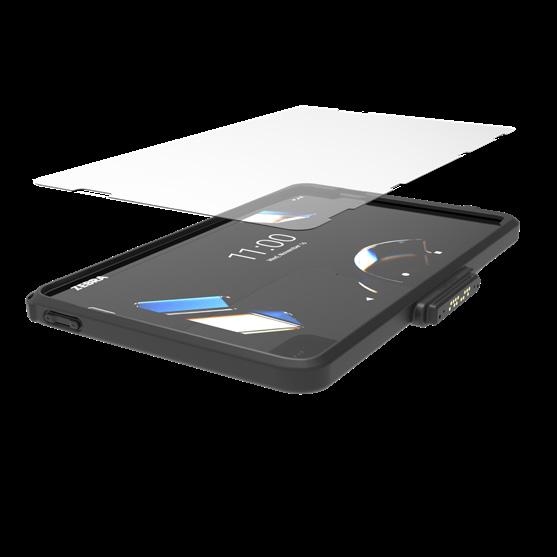

RAP-SKIN-SP-11

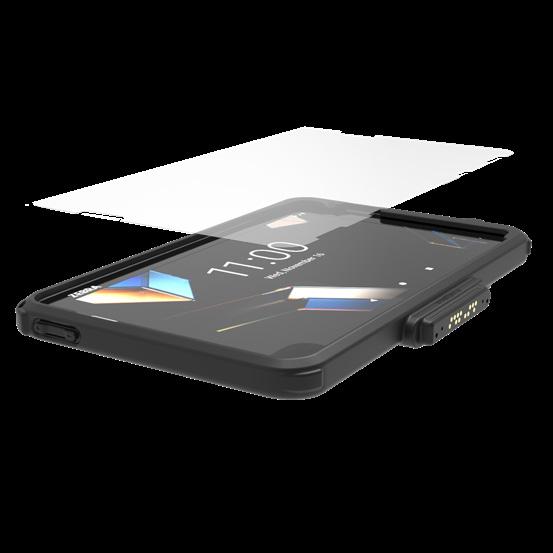

RAM® Screen Protector for Zebra ET401 & ET4x 8”
RAM-DOCK-HEATER1-DU

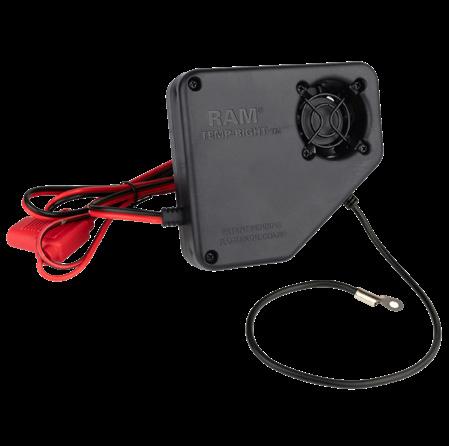

RAM® Temp-Right™ Dock Heating Module for Zebra ET4x
RAP-SKIN-SP-12
RAM® Screen Protector for Zebra ET401 & ET4x 10”
