ARCHITECTURE THESIS INTENT

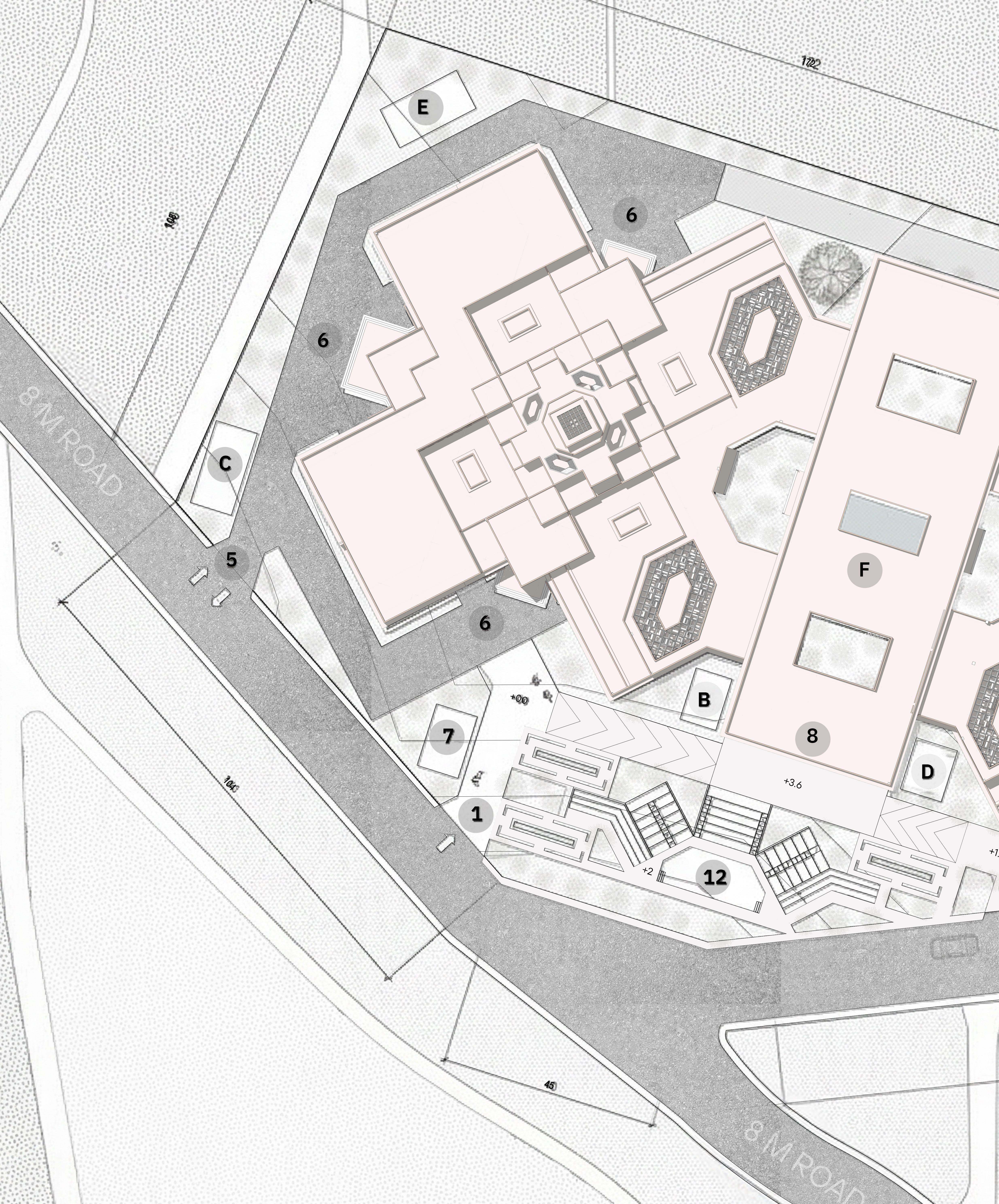

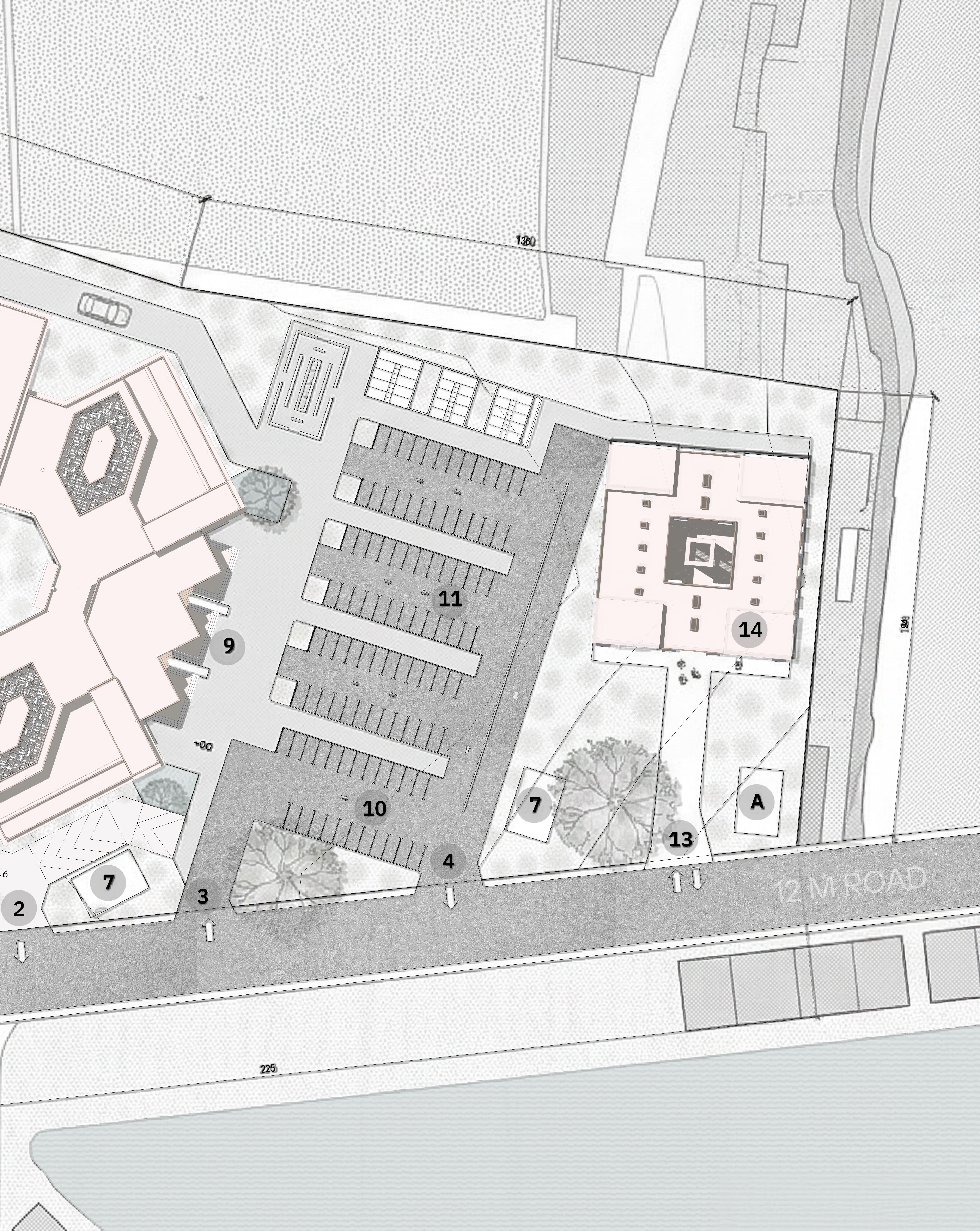

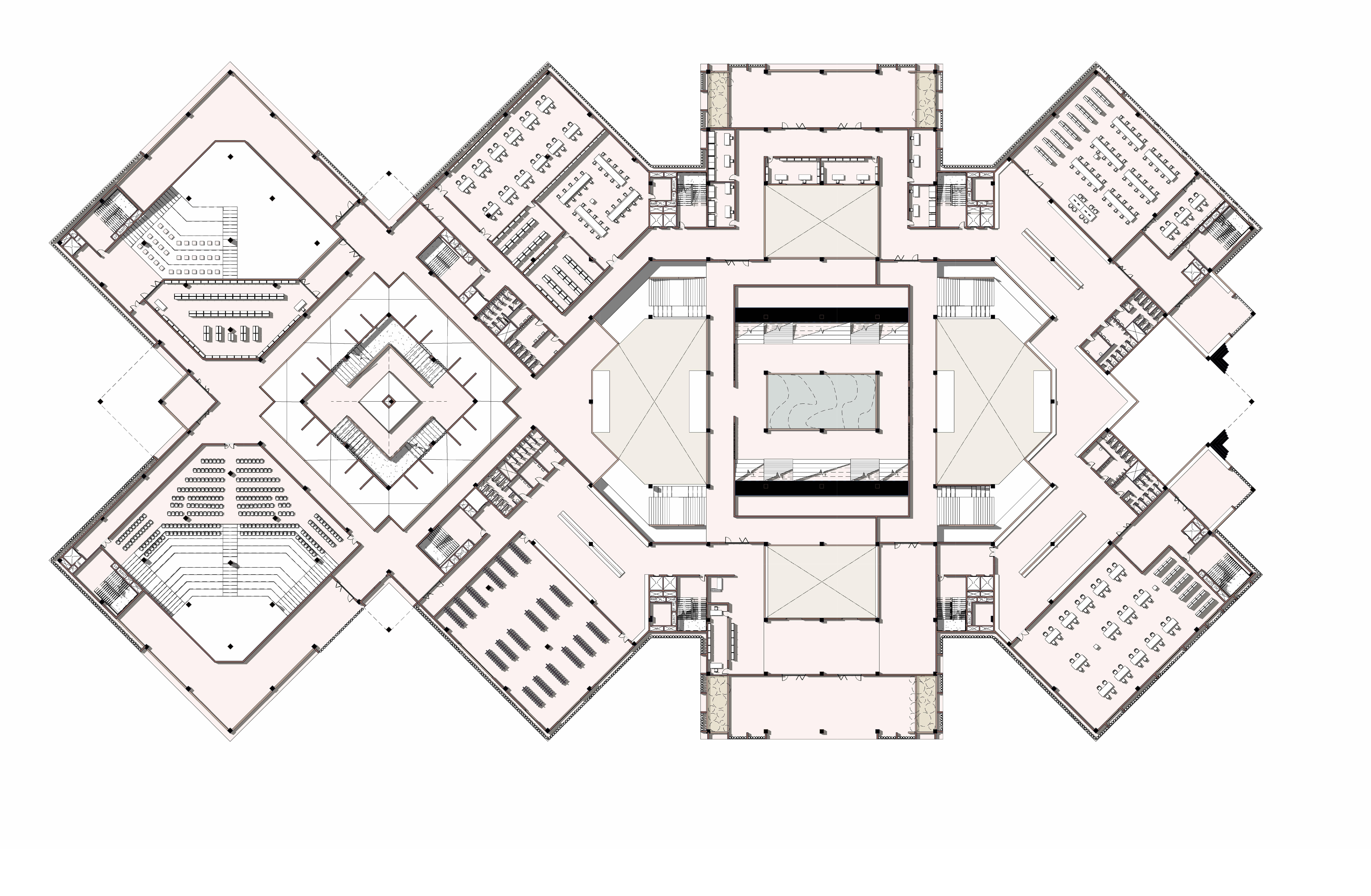

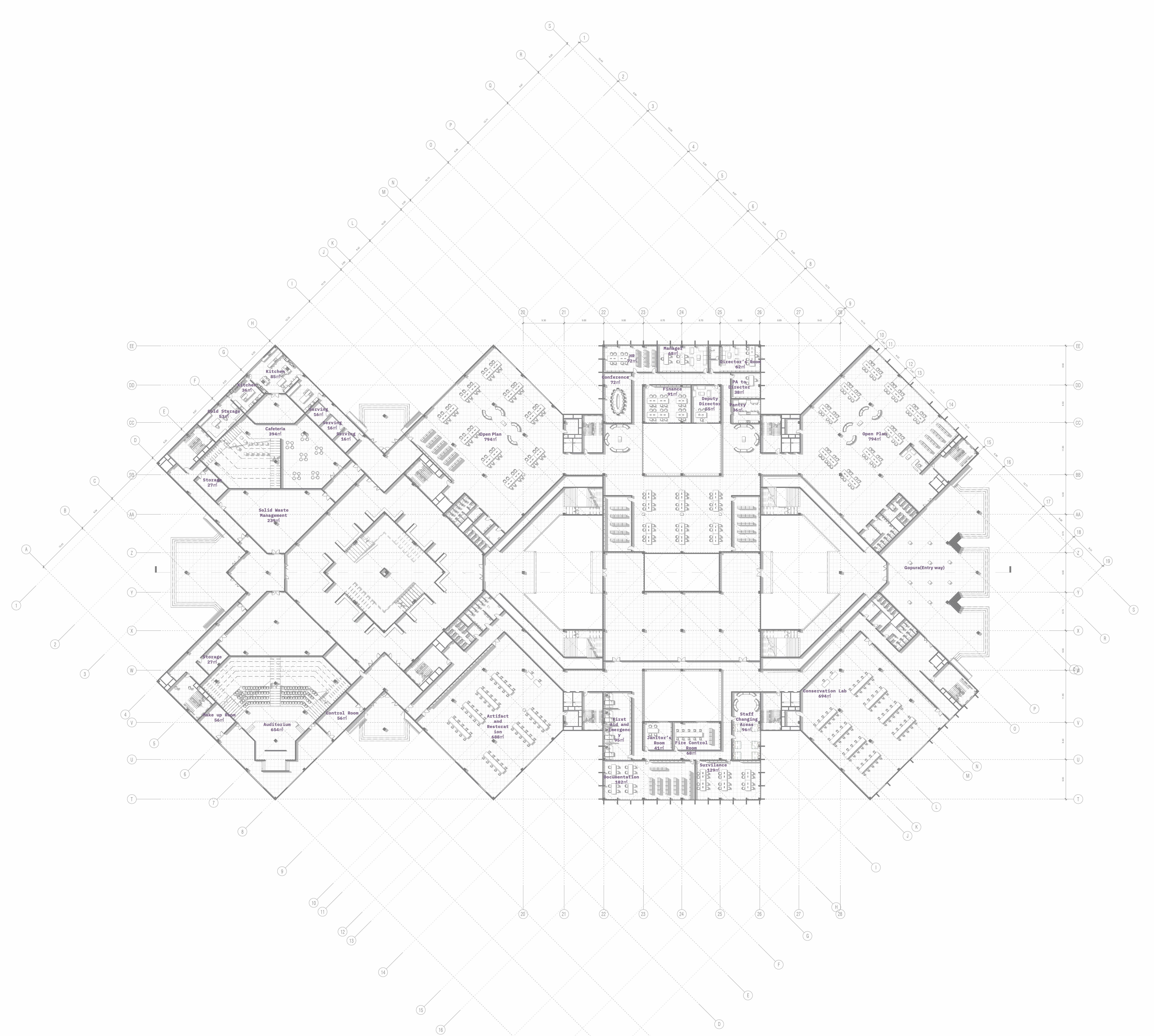

1.Pedestrian Entry
Pedestrian Exit
Vehicular Entry
Vehicular Exit
Service Entry & Exit
Service Dock
Security Kiosk

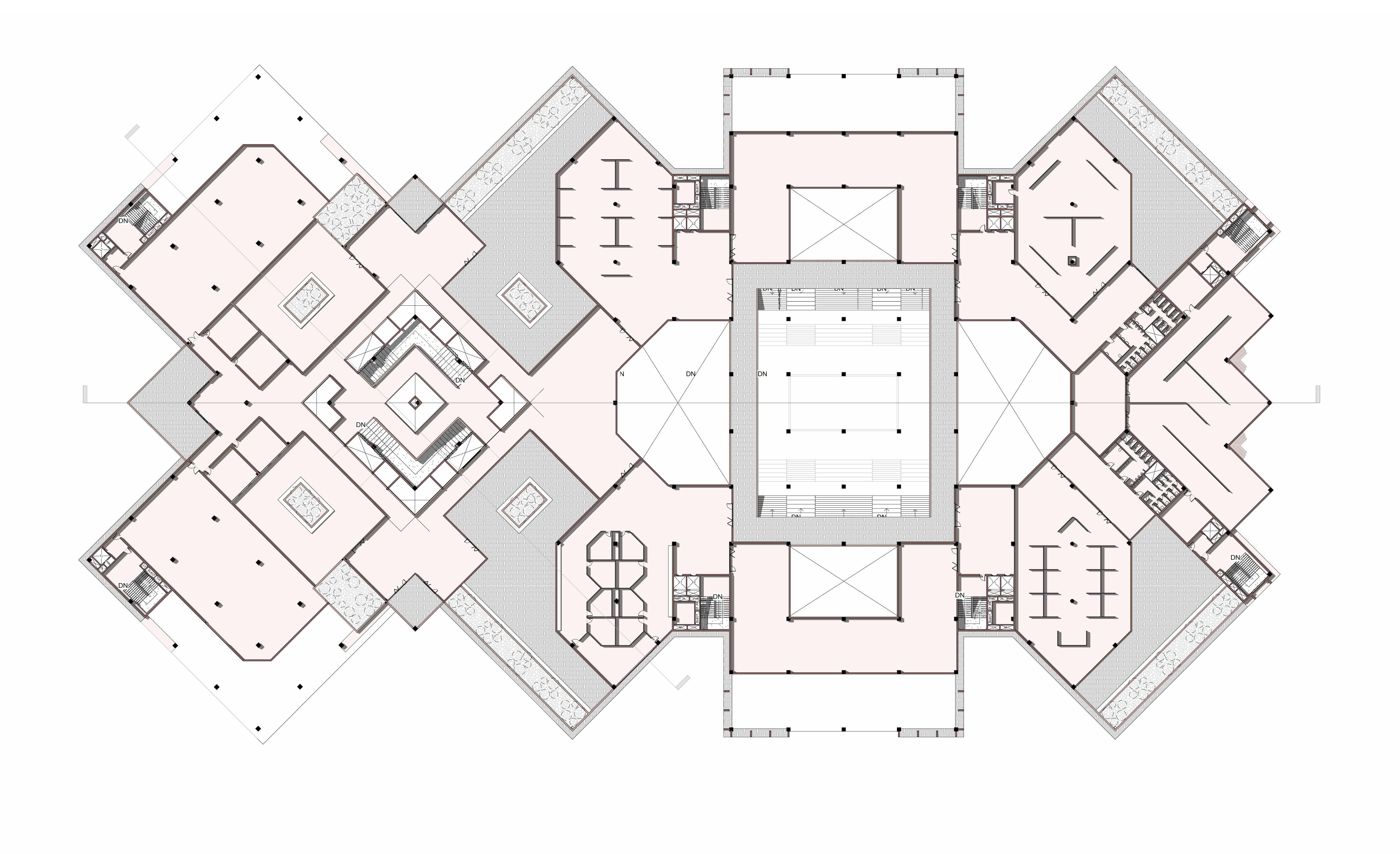

Museum Entry- First FLoor
OSR- Public Amphitheatre & Plazzas
Accomodation Entry & Exit
(Open Space Reservation): Minimum 10% | Setbacks (Local Bye-Laws): Front-6m , Rear-5m,Side - 4m

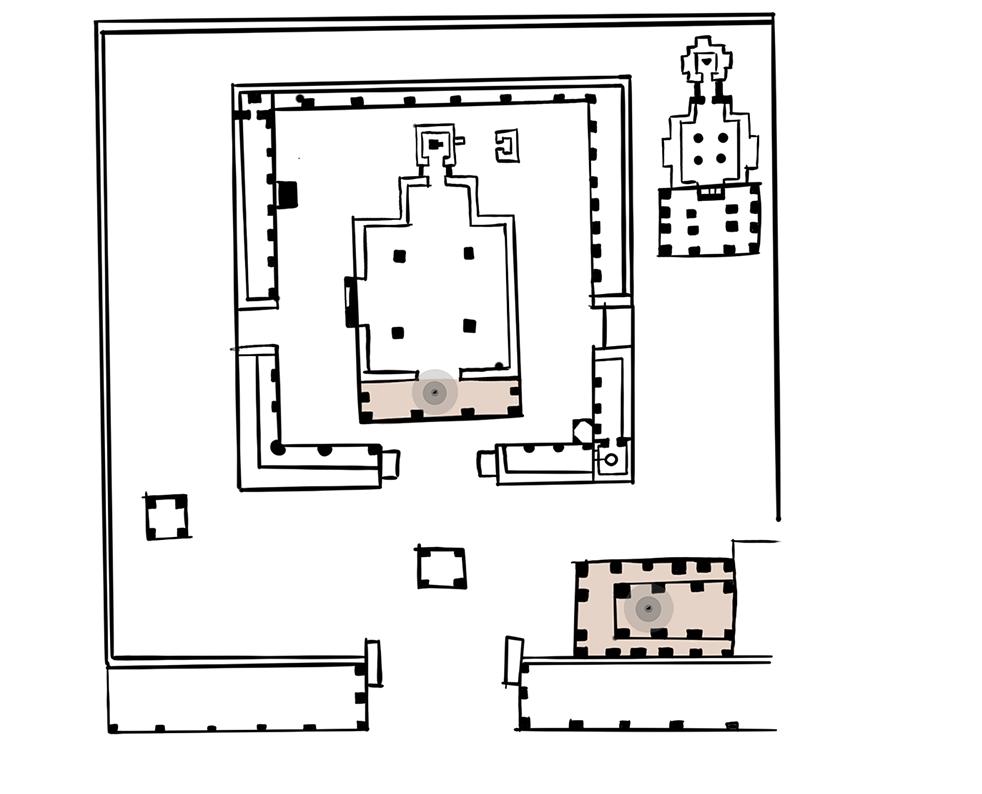

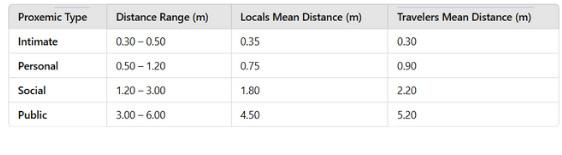

CULTURAL INFLUENCES ON PROXEMIC DISTANCES

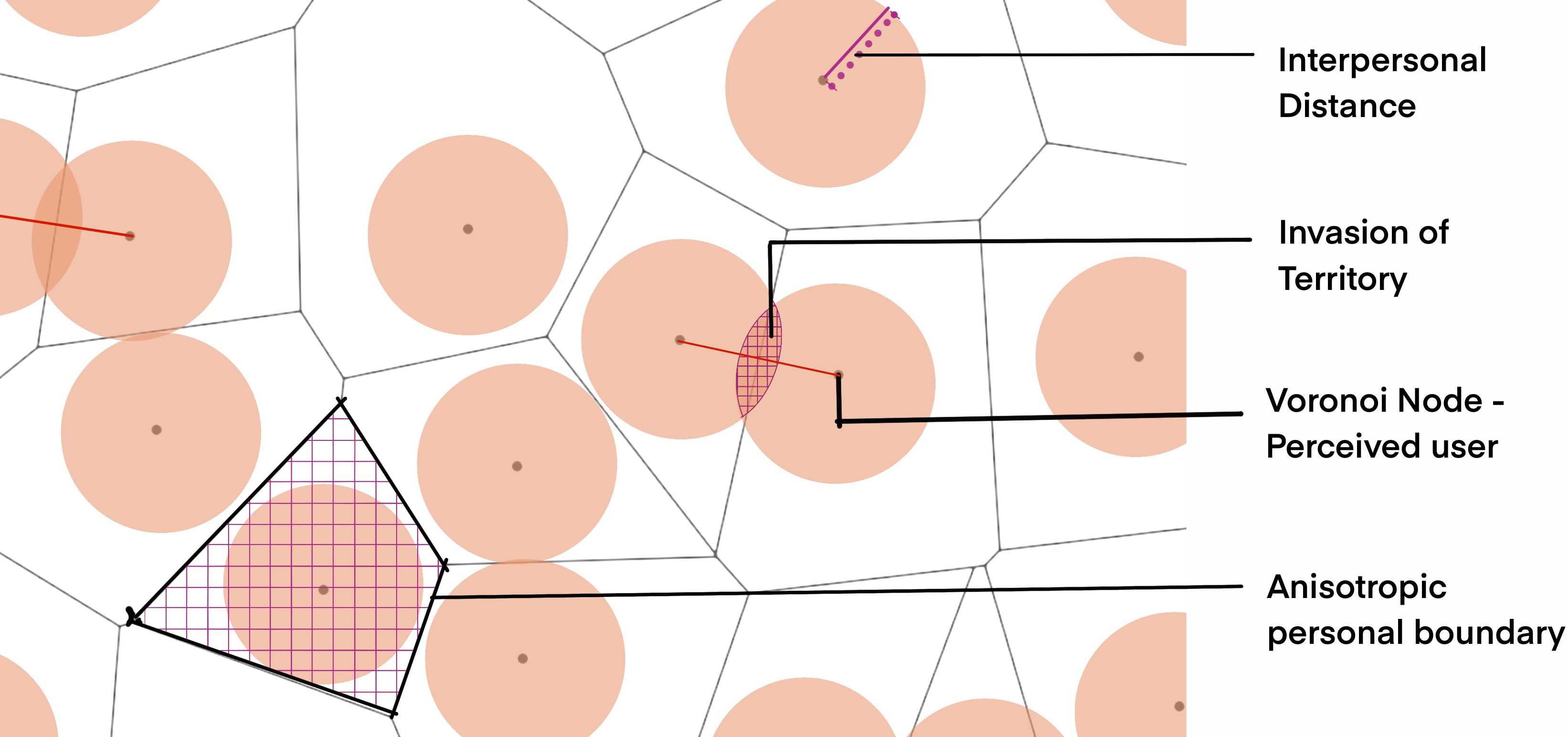

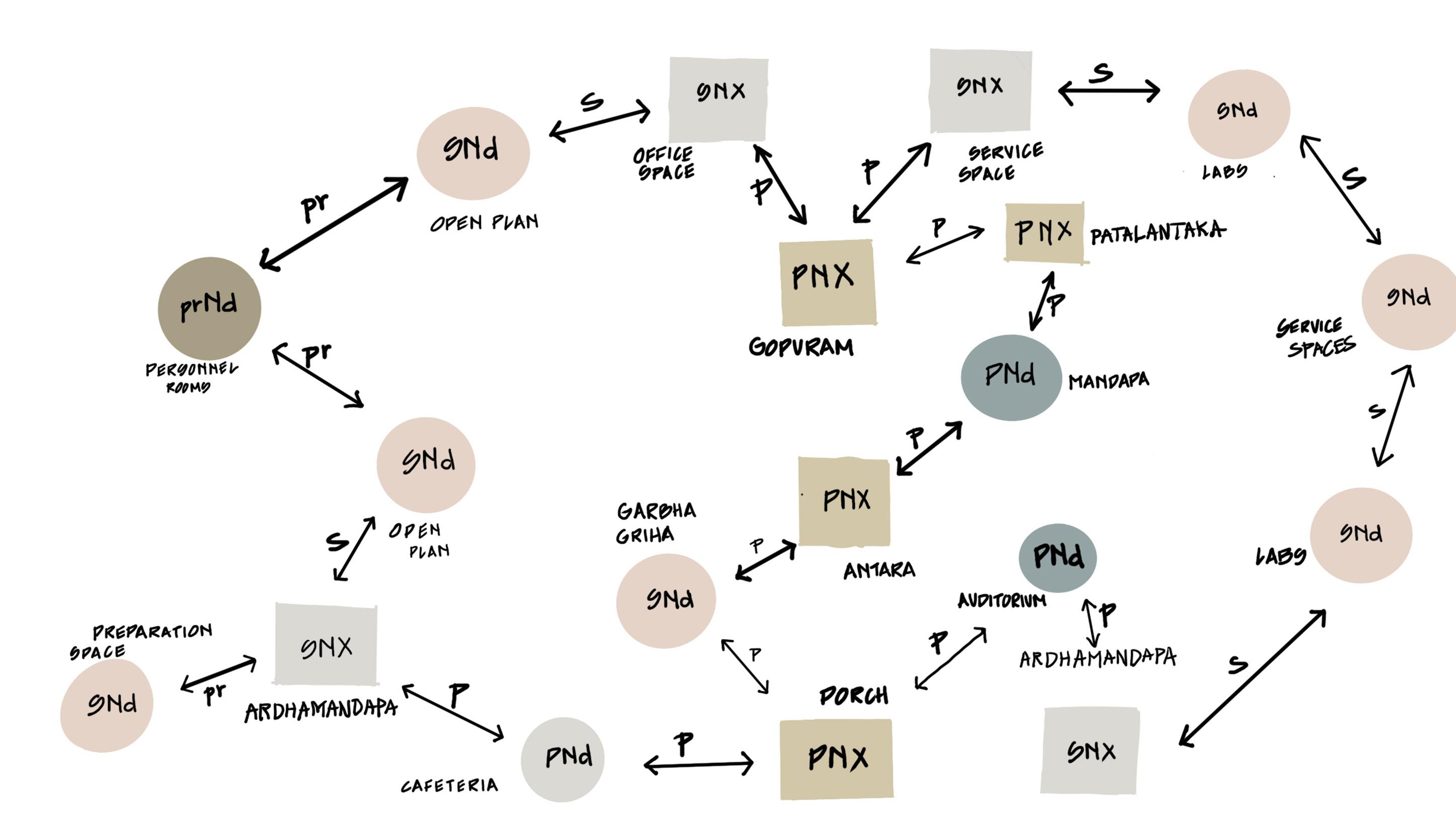

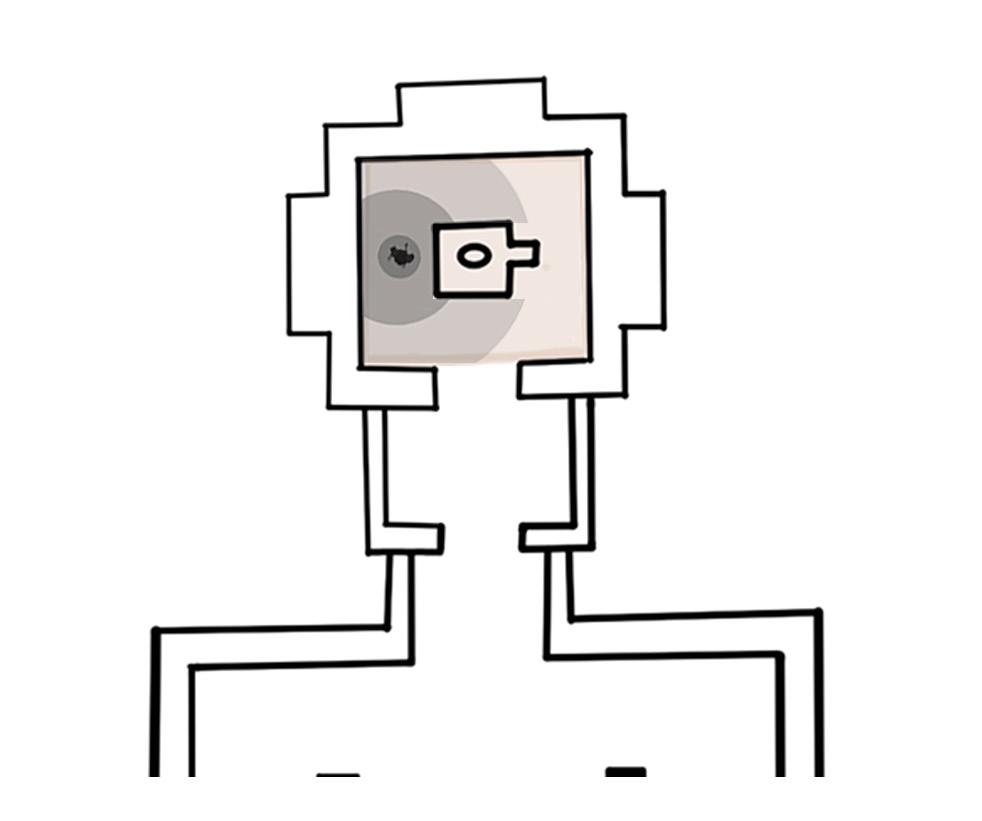

DERIVED PROXEMIC DISTANCE DIAGRAM
SERVICES
A. STP
B. COOLING TOWER
C. ELECTRICITY YARD
E. COOLING TOWER

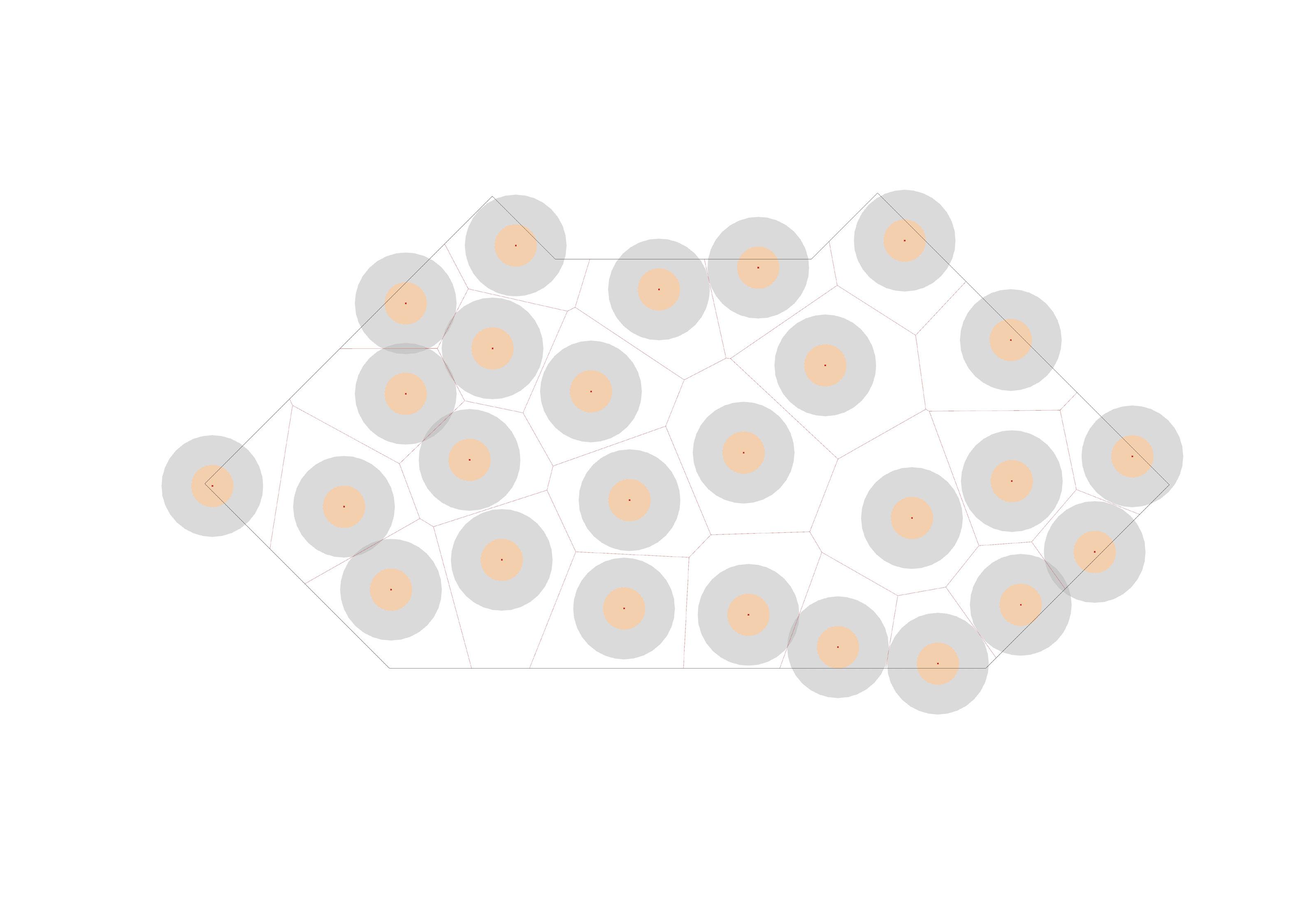

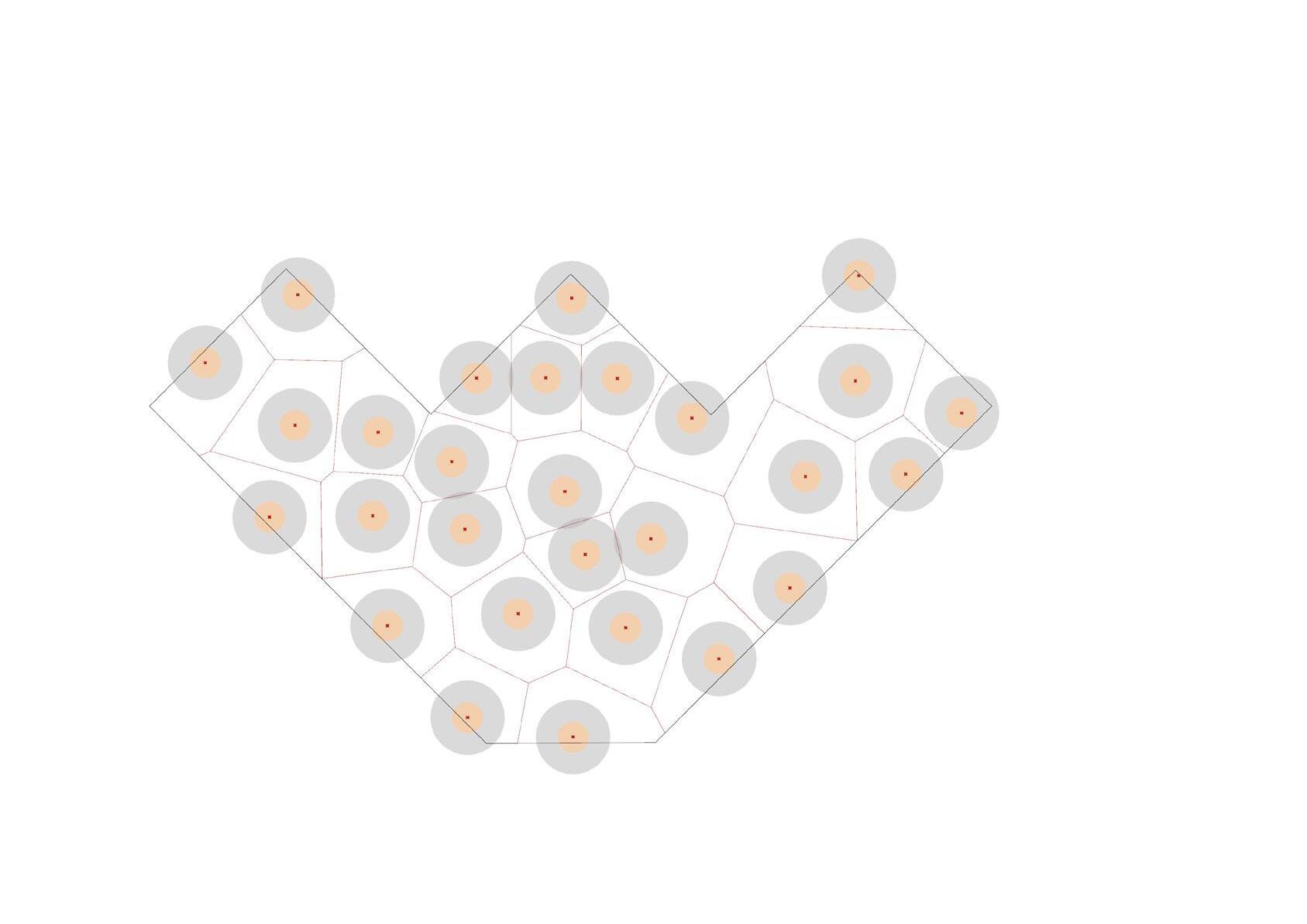

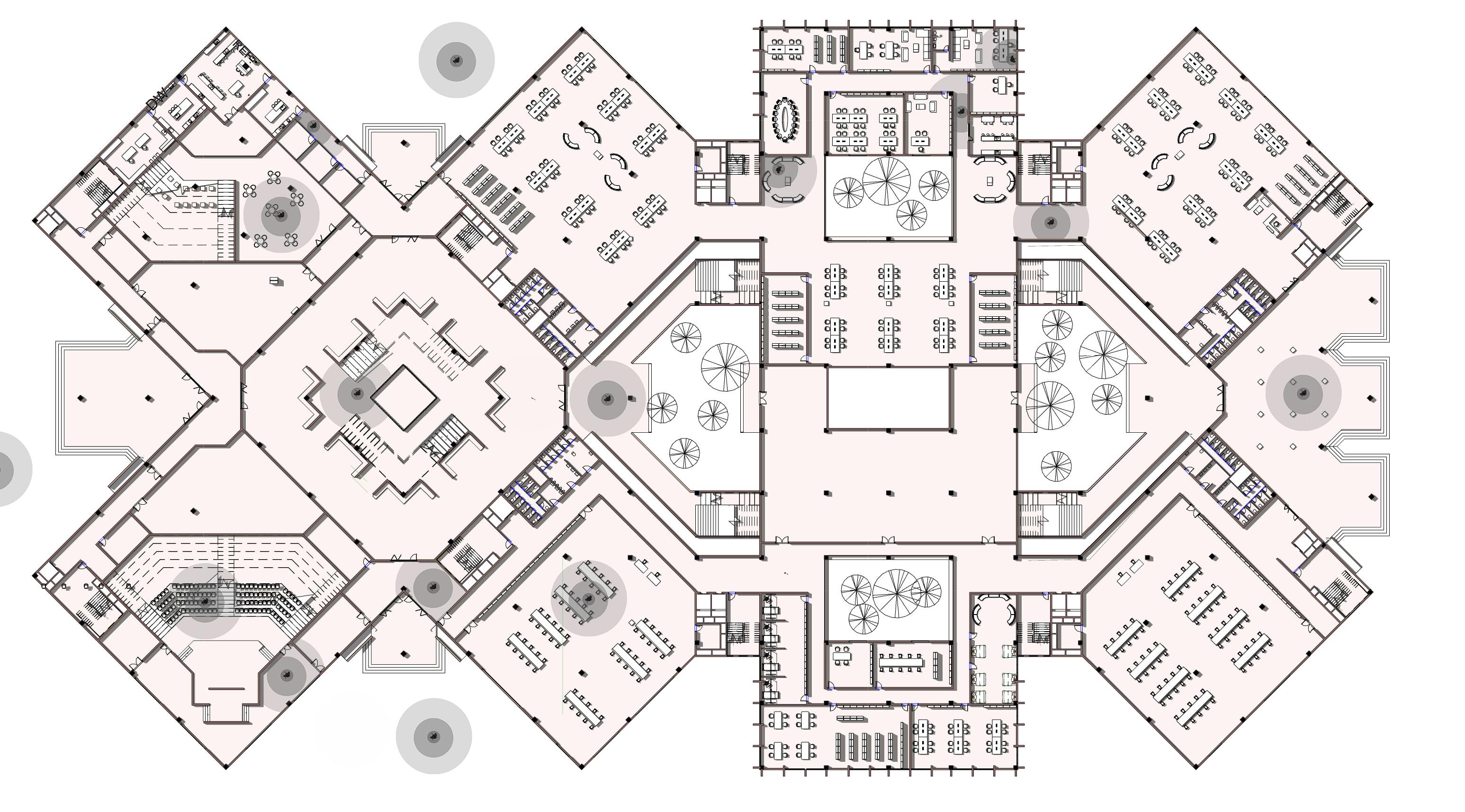

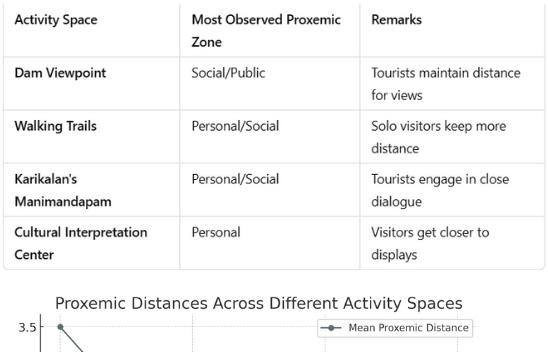

Visitor behaviour was mapped across varying proxemic zones within key activity spaces
script

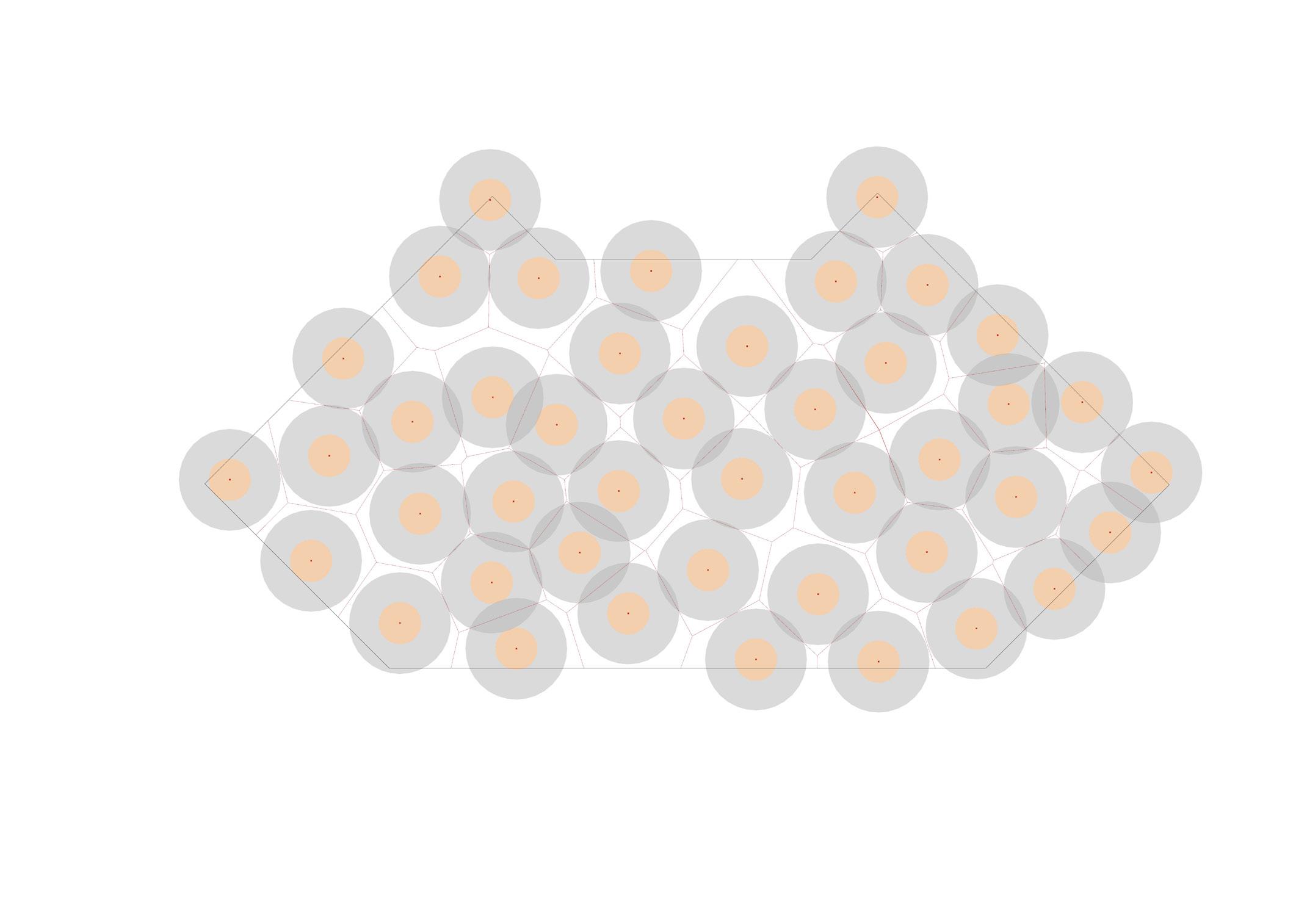

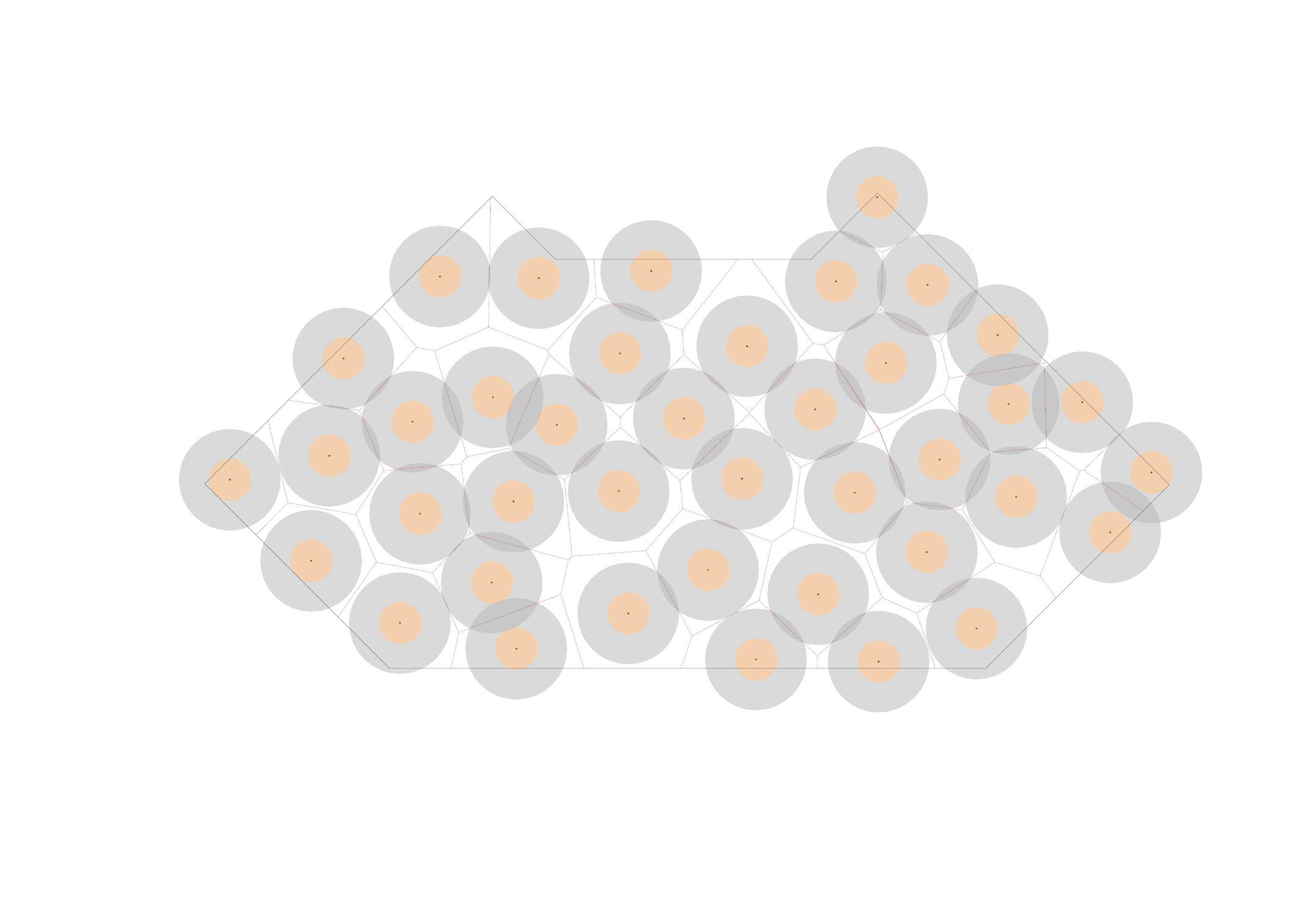

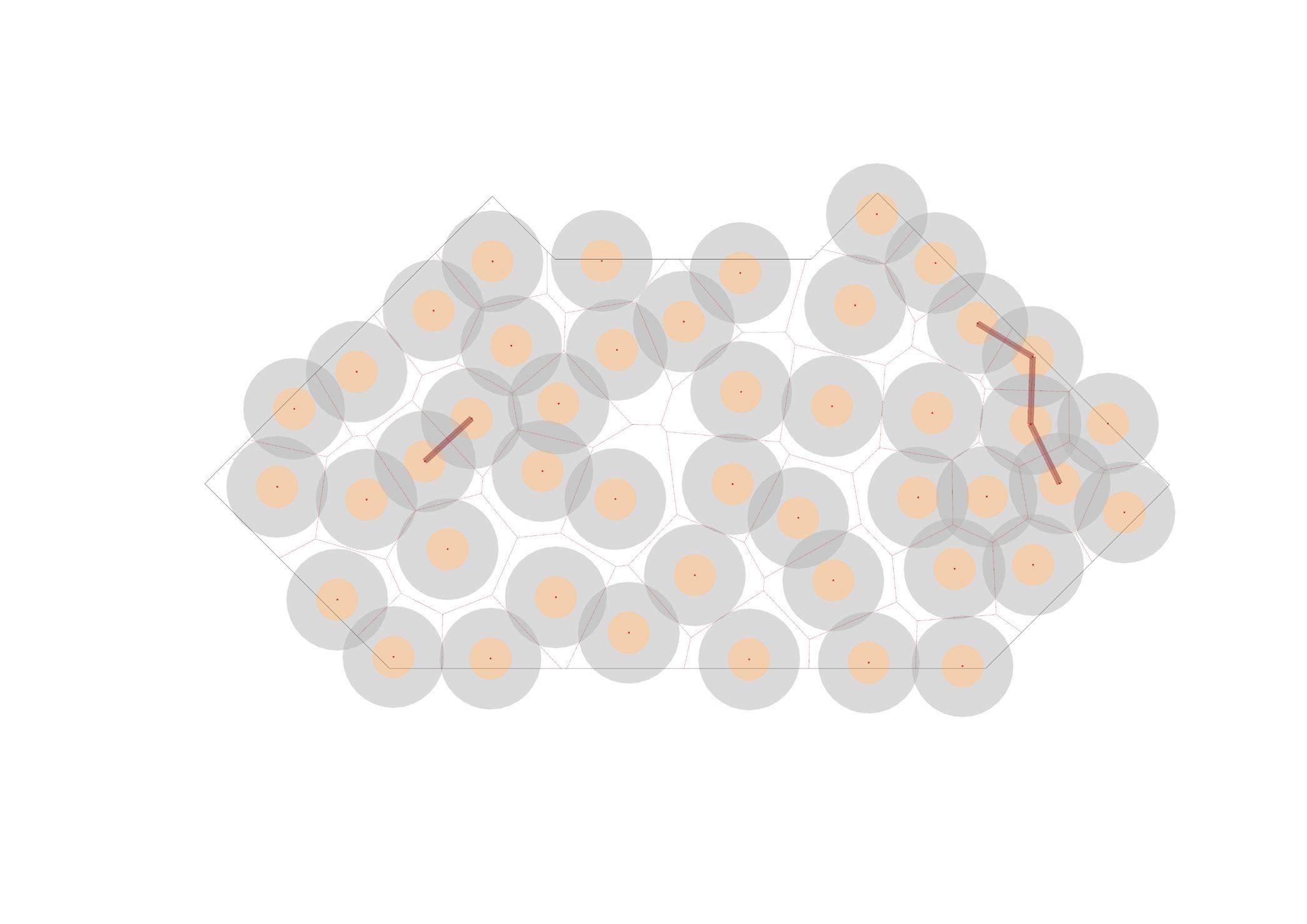

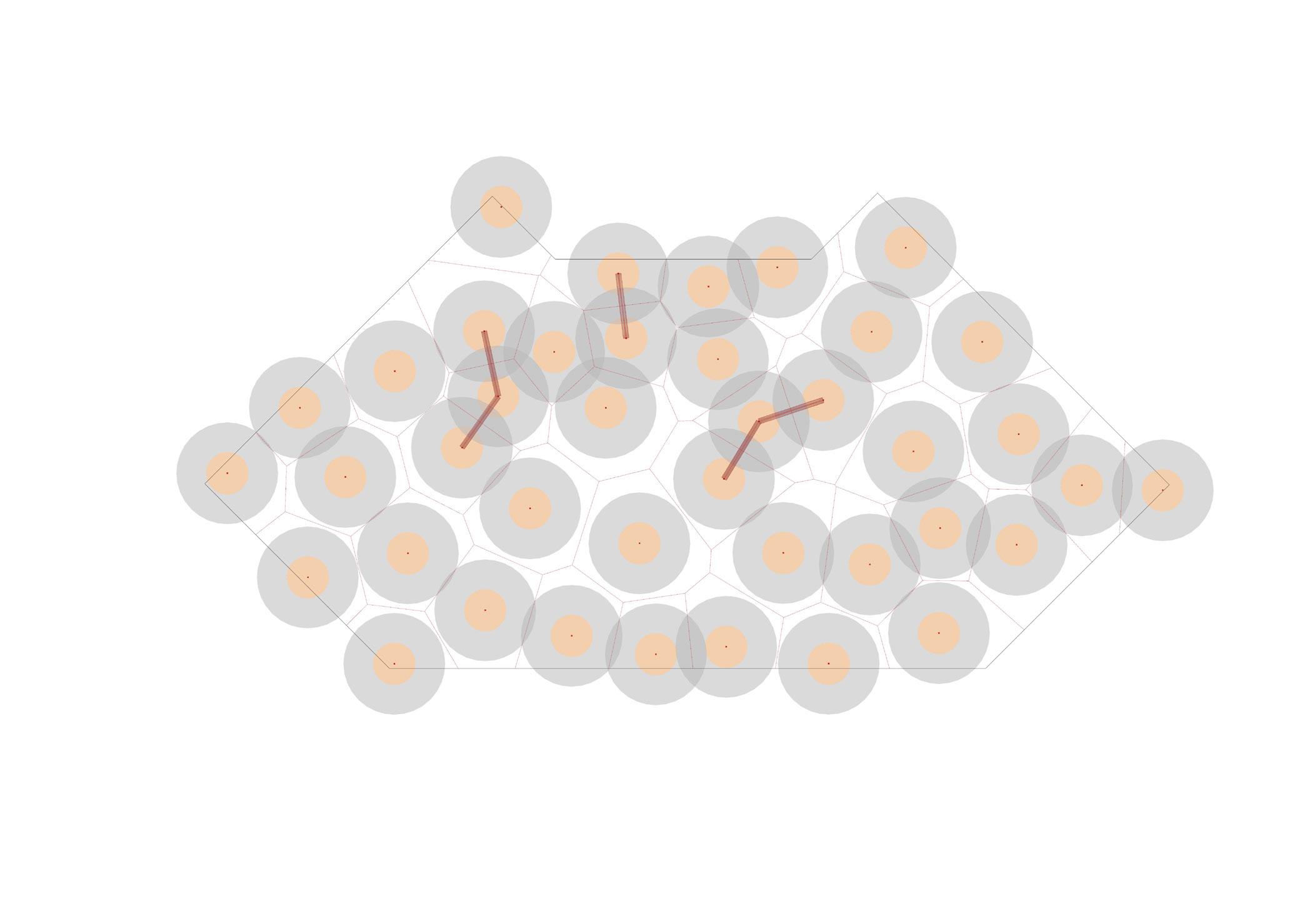

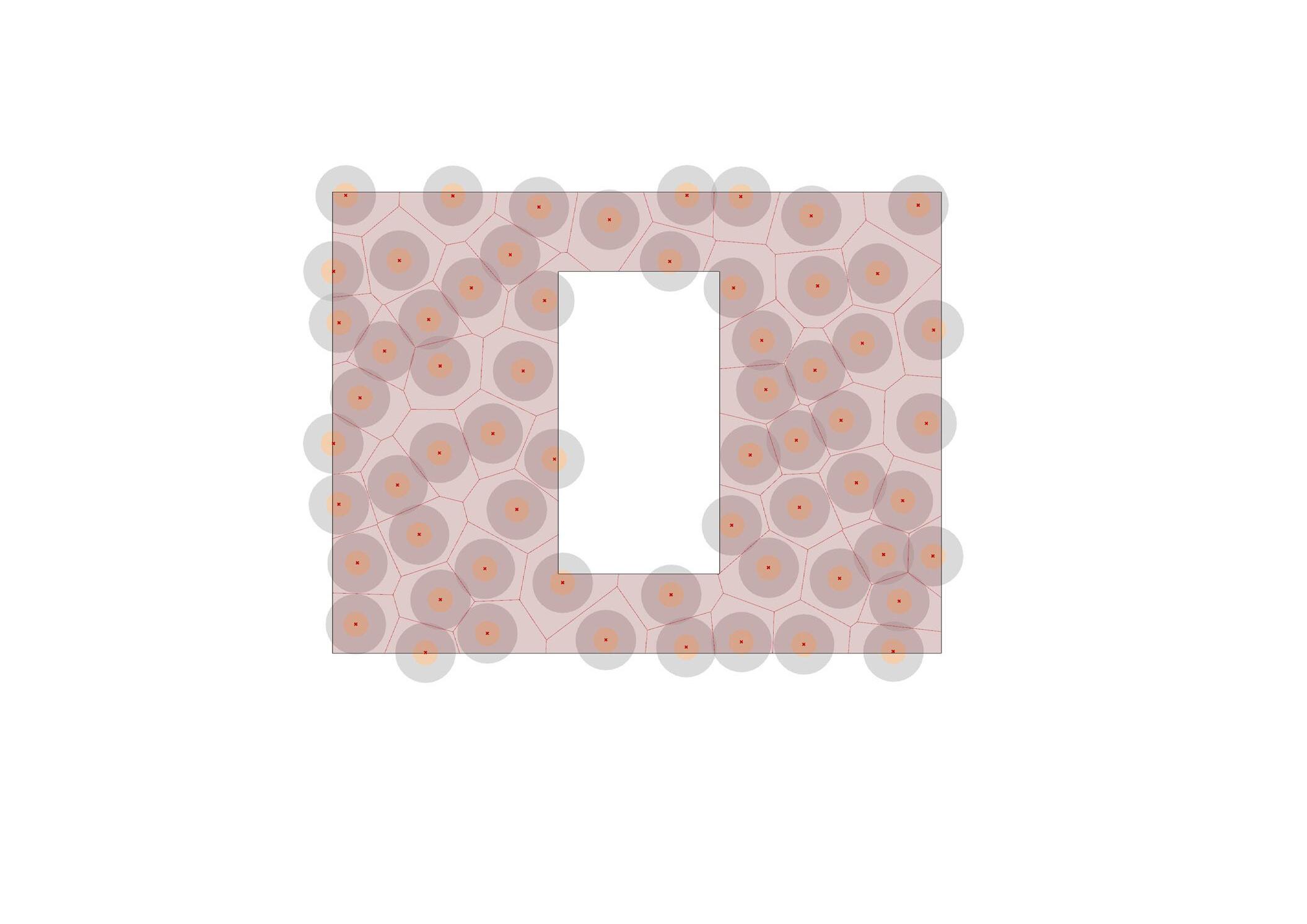

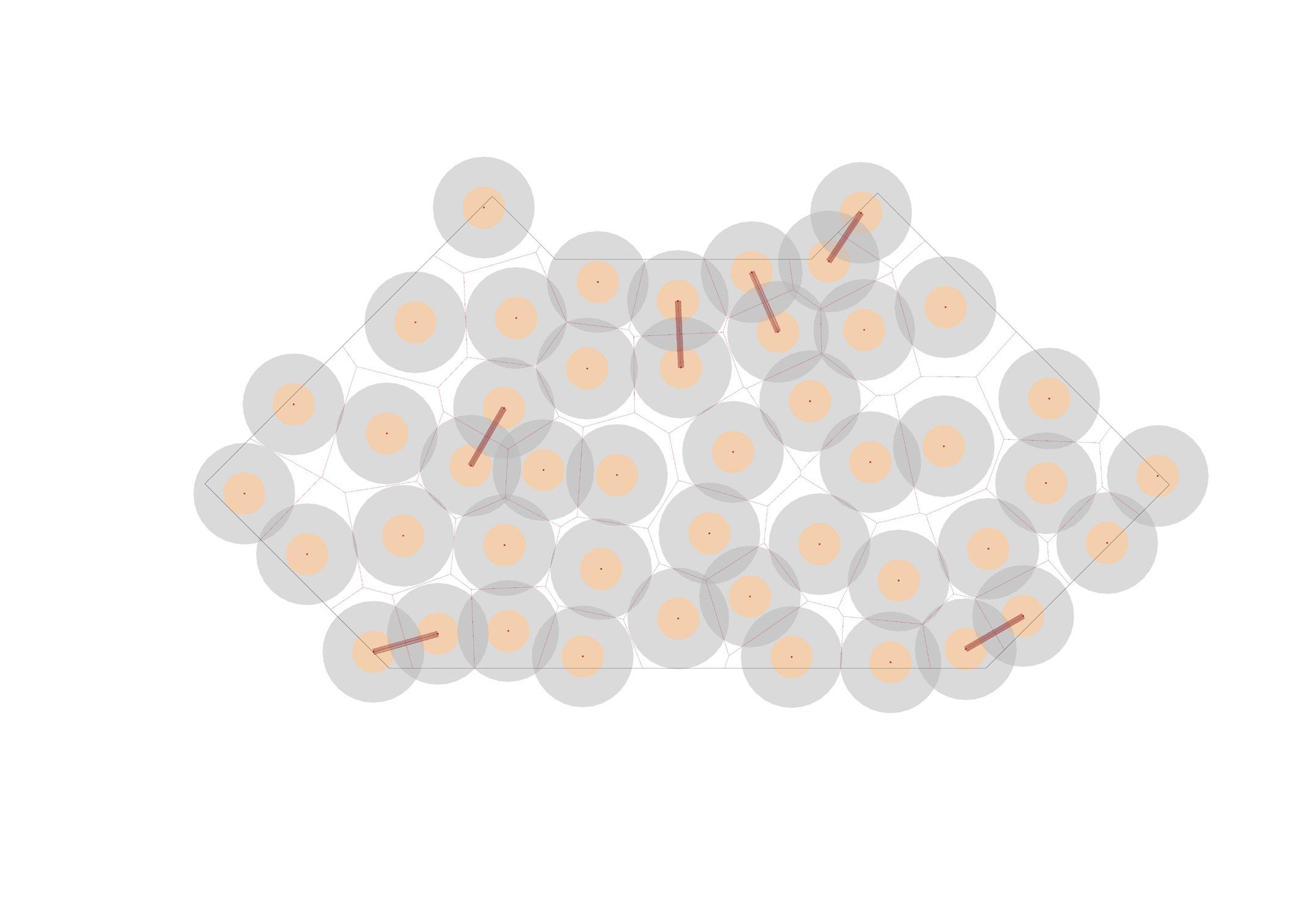

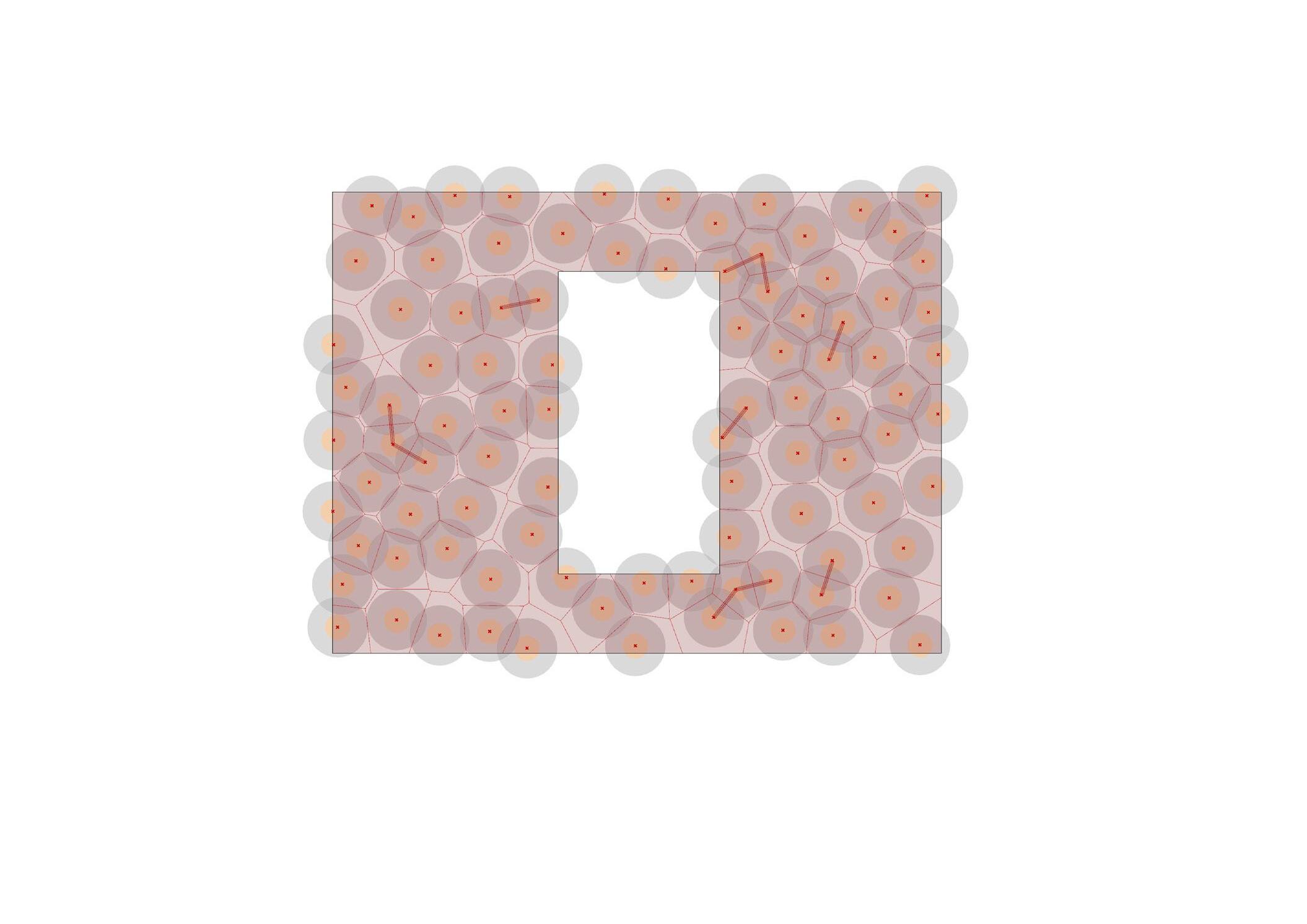

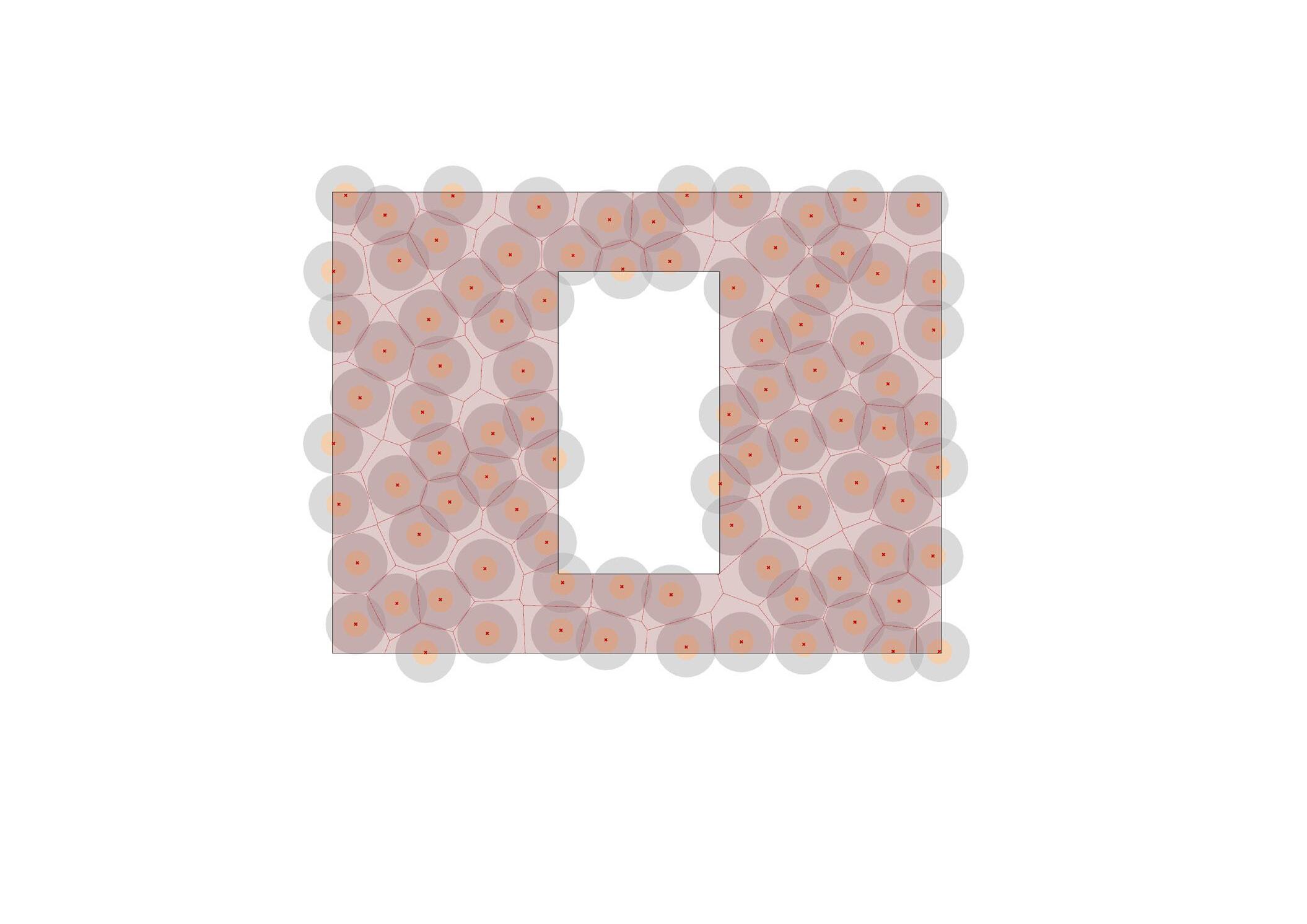

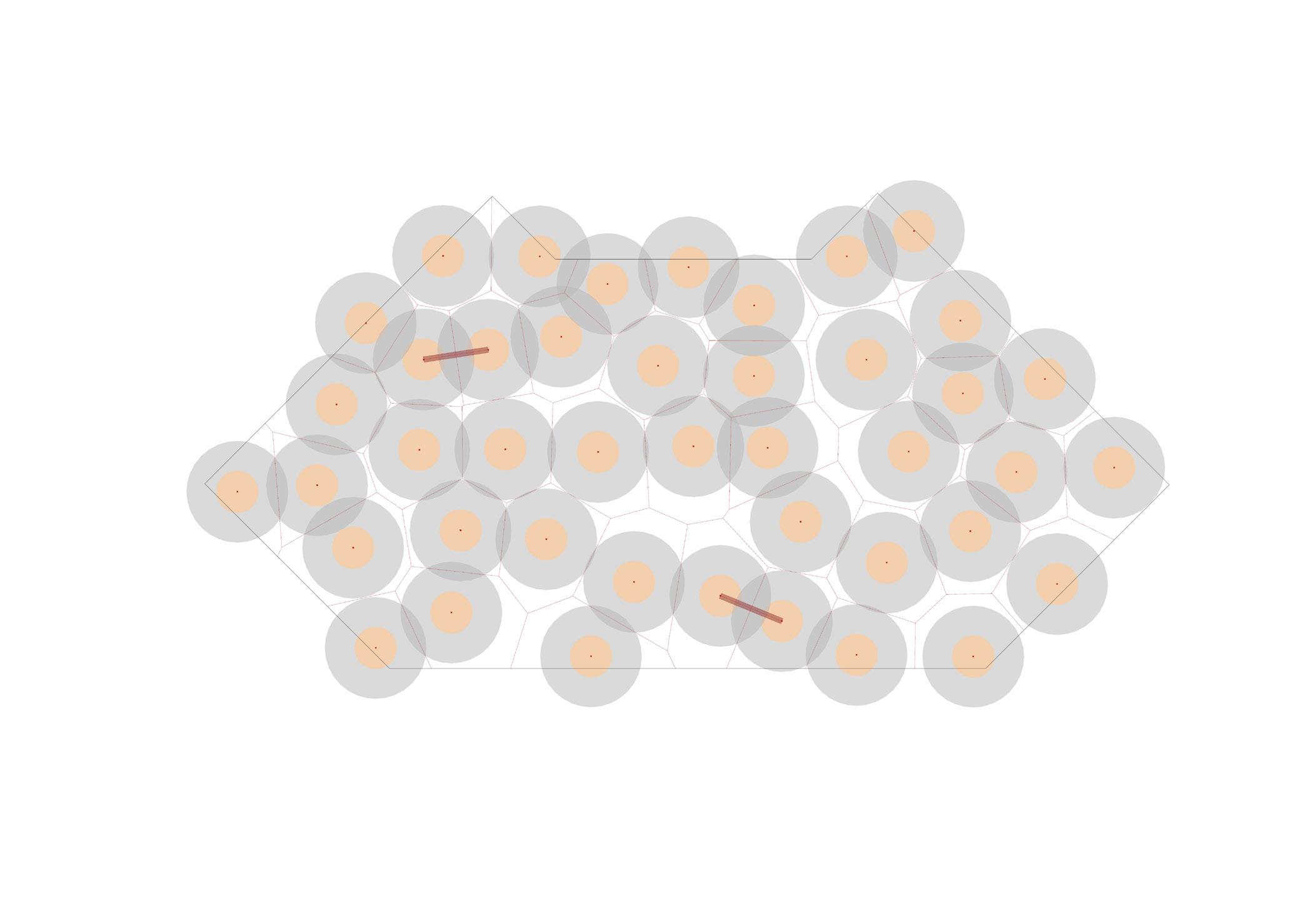

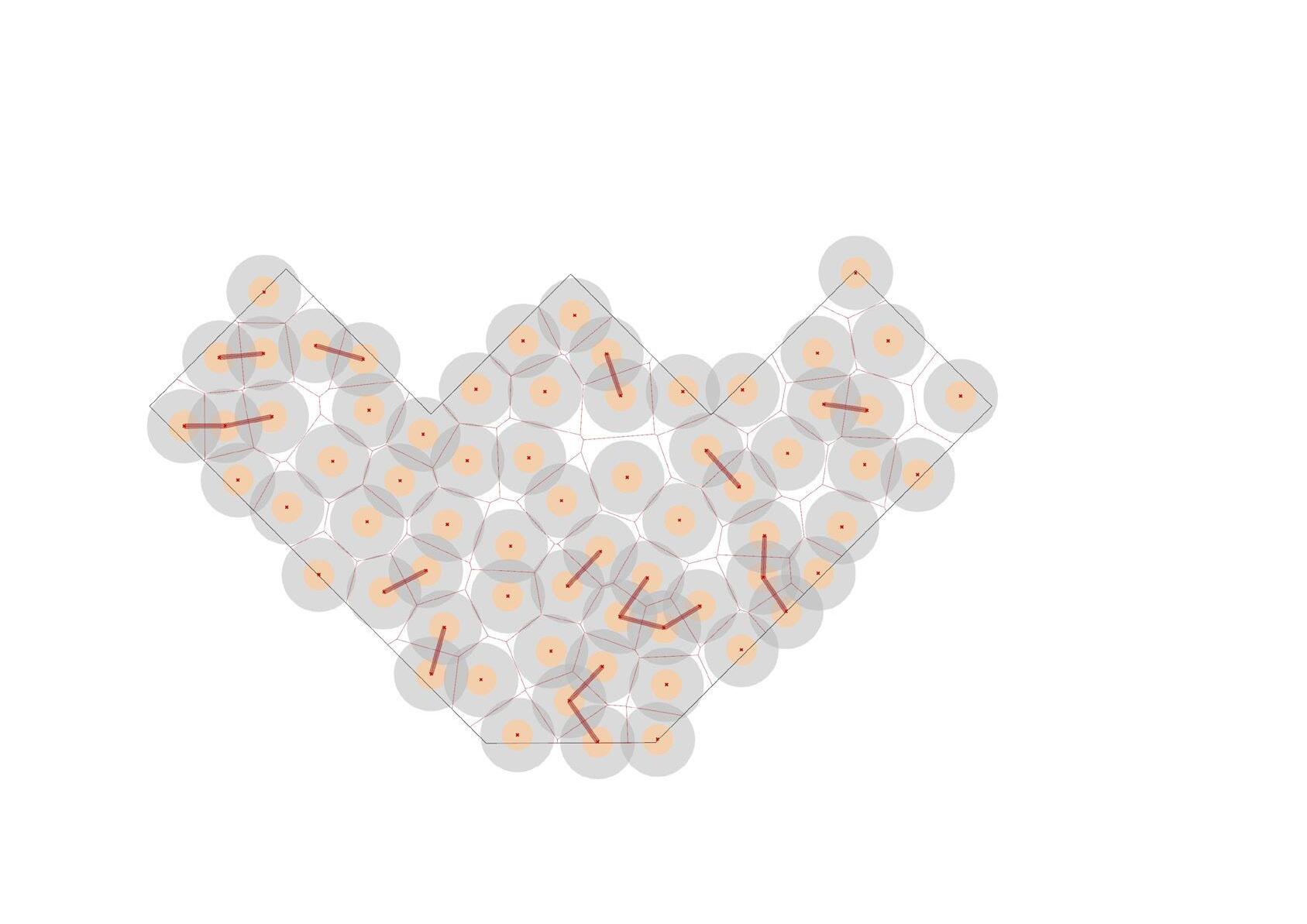

Optimal Occupancy without personal space intrusion

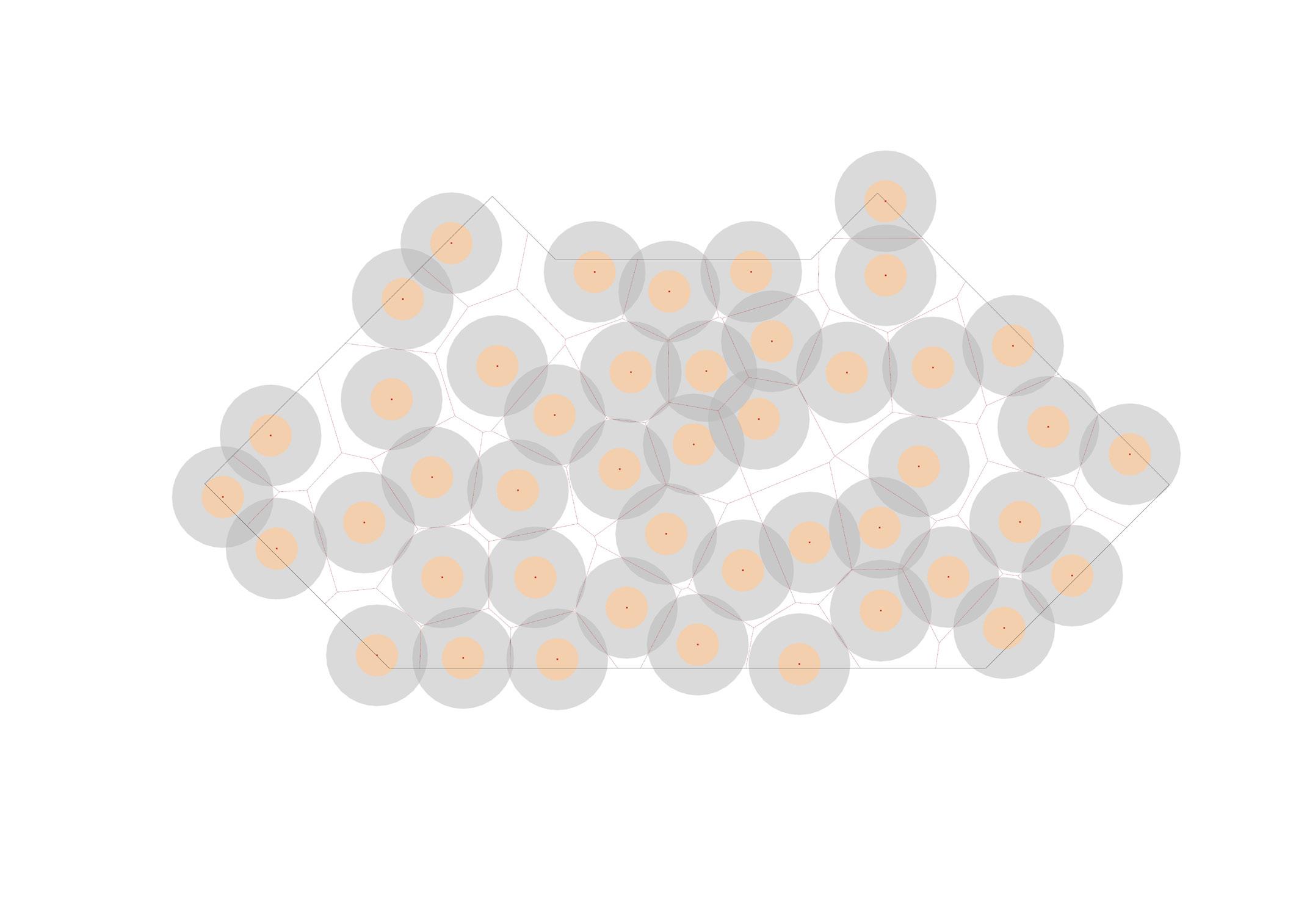

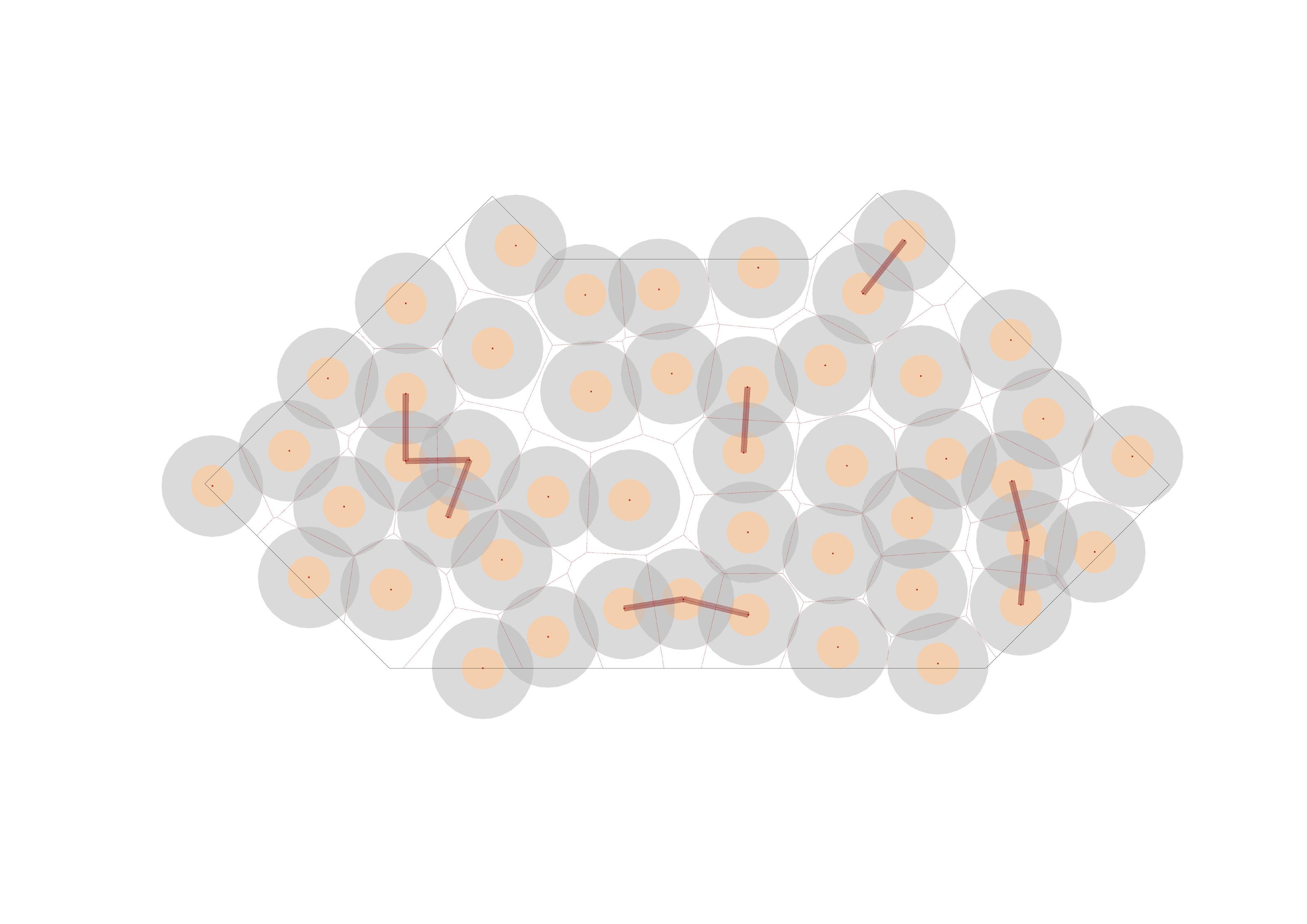

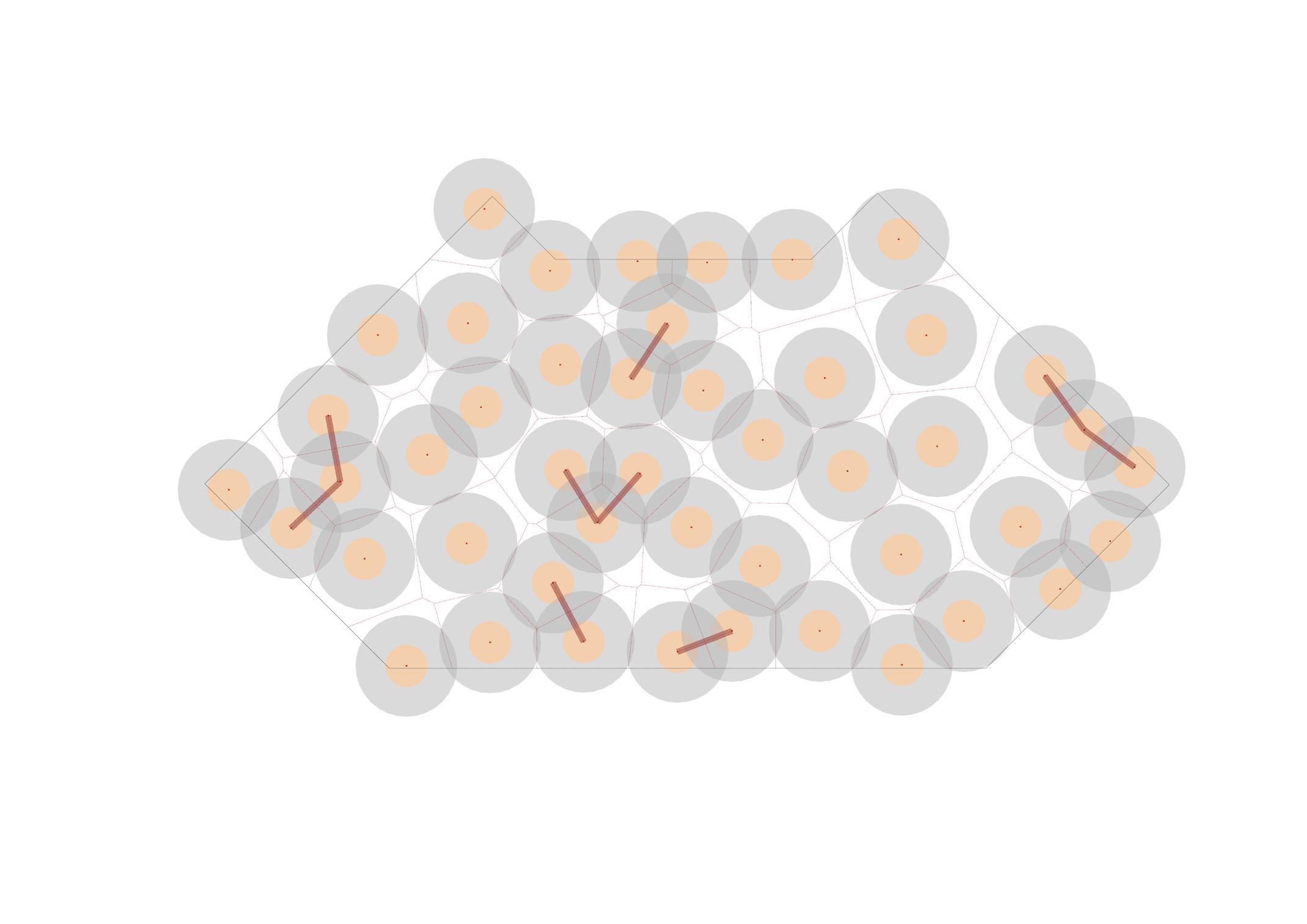

Occupancy with having personal space intruded At an occupancy of 46, personal space overlap becomes unavoidable.

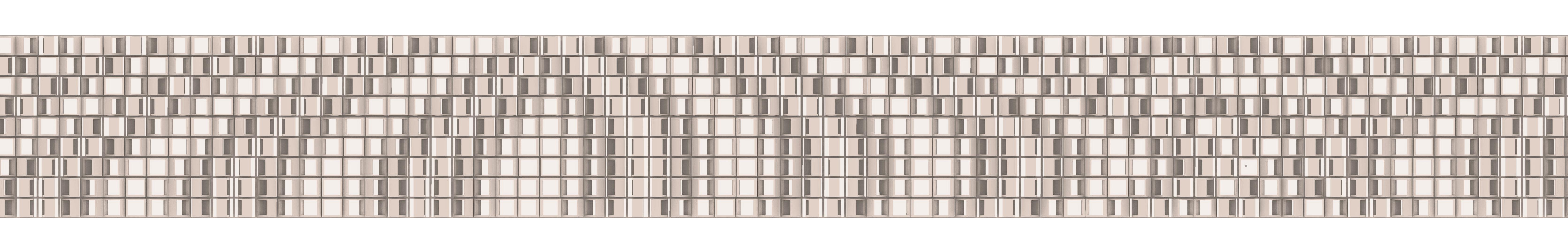

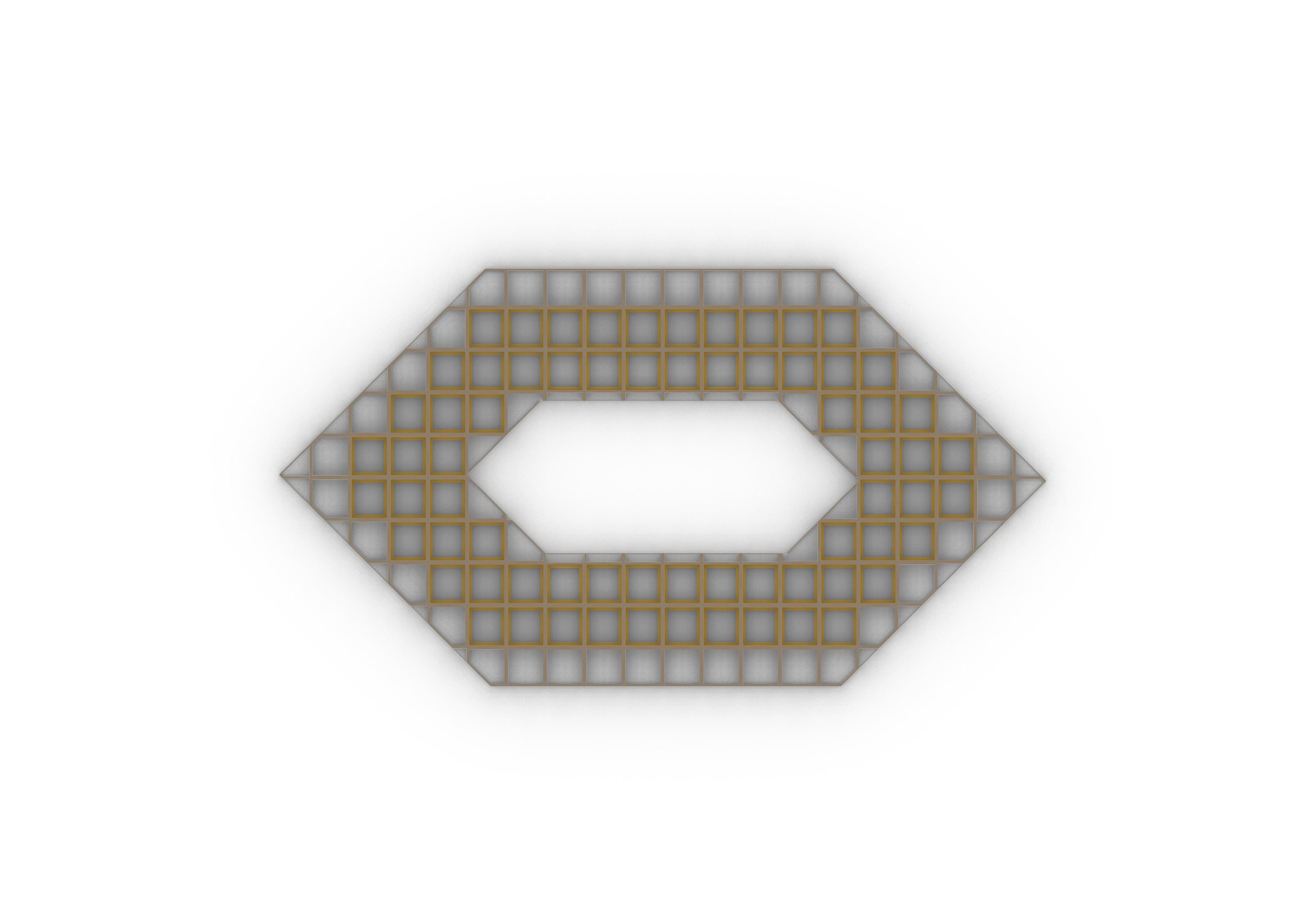

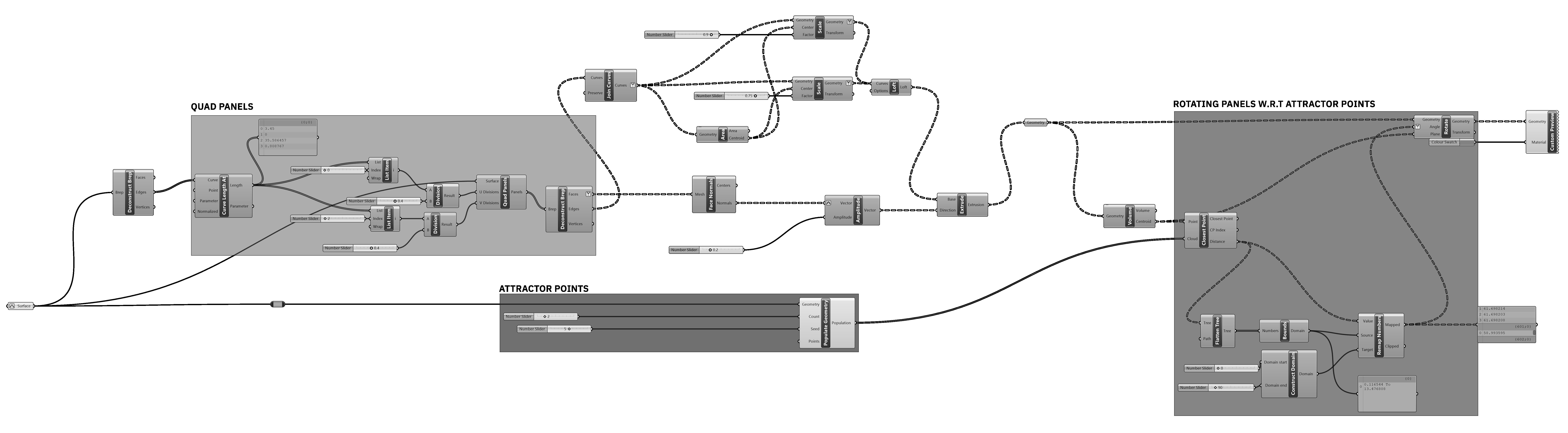

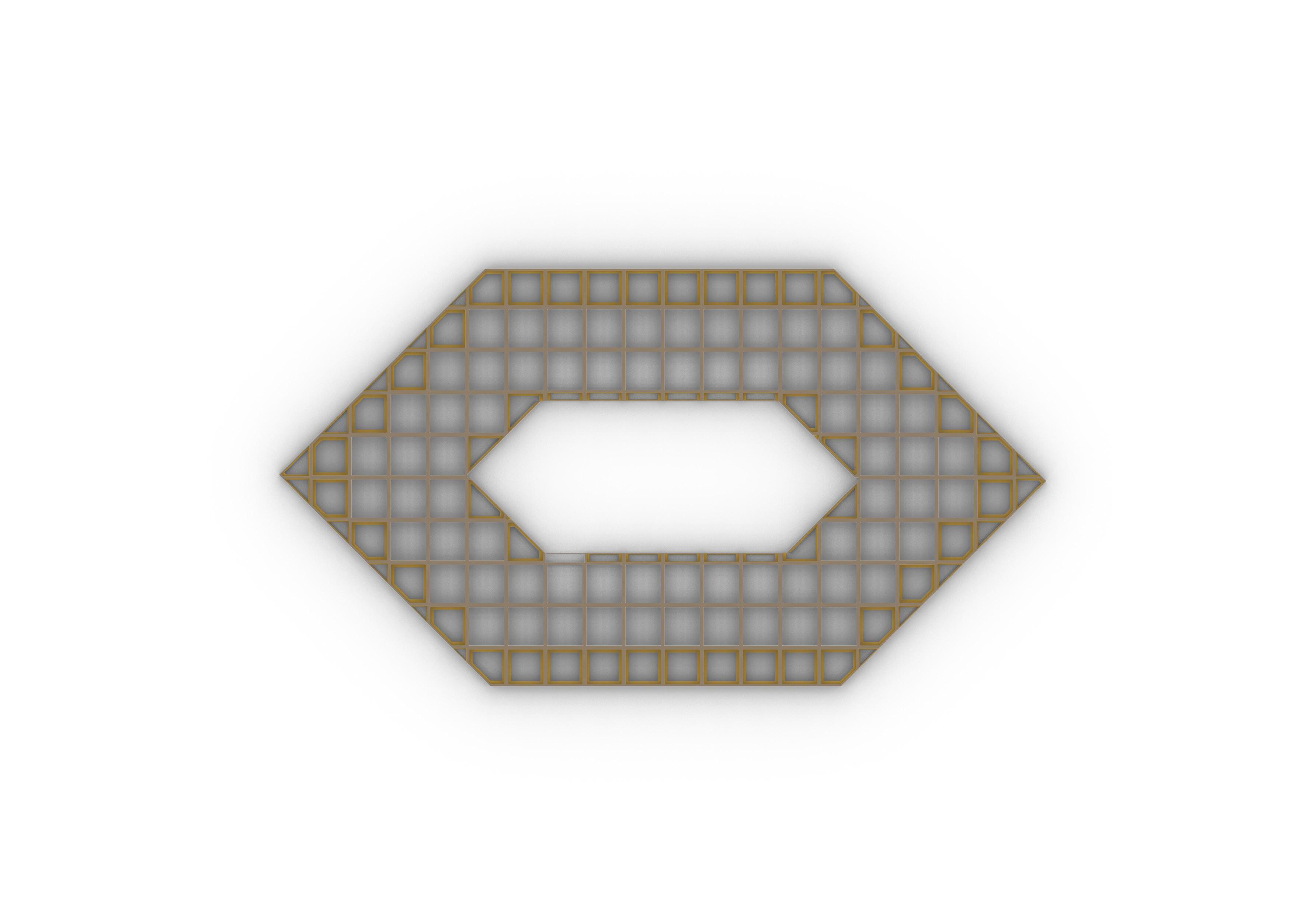

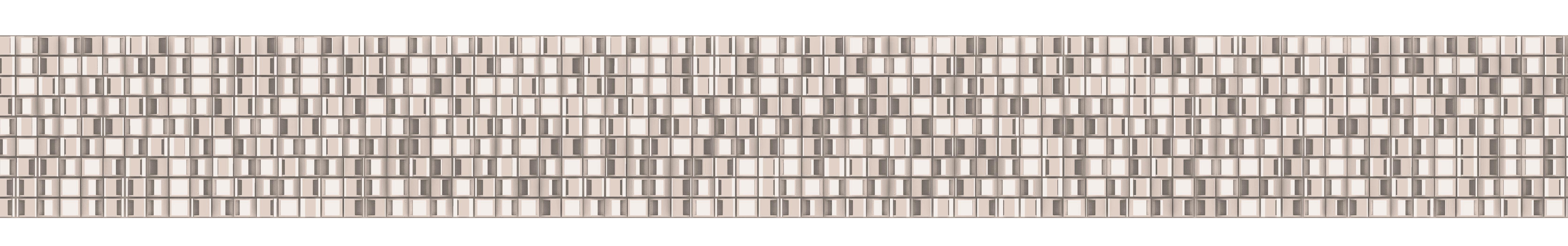

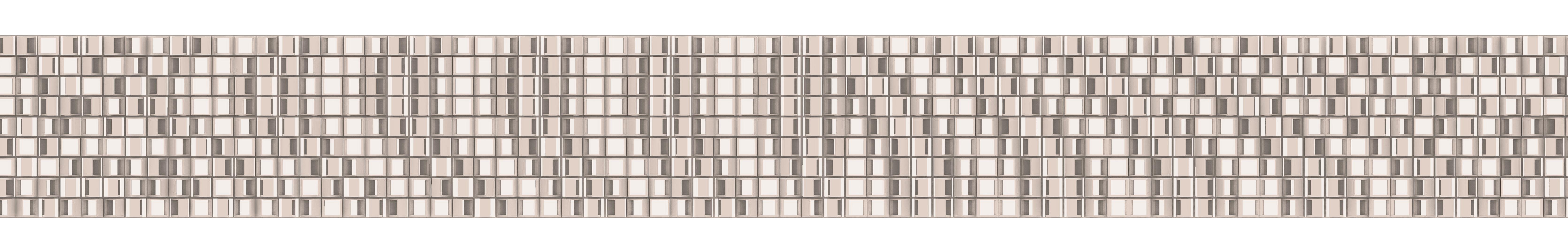

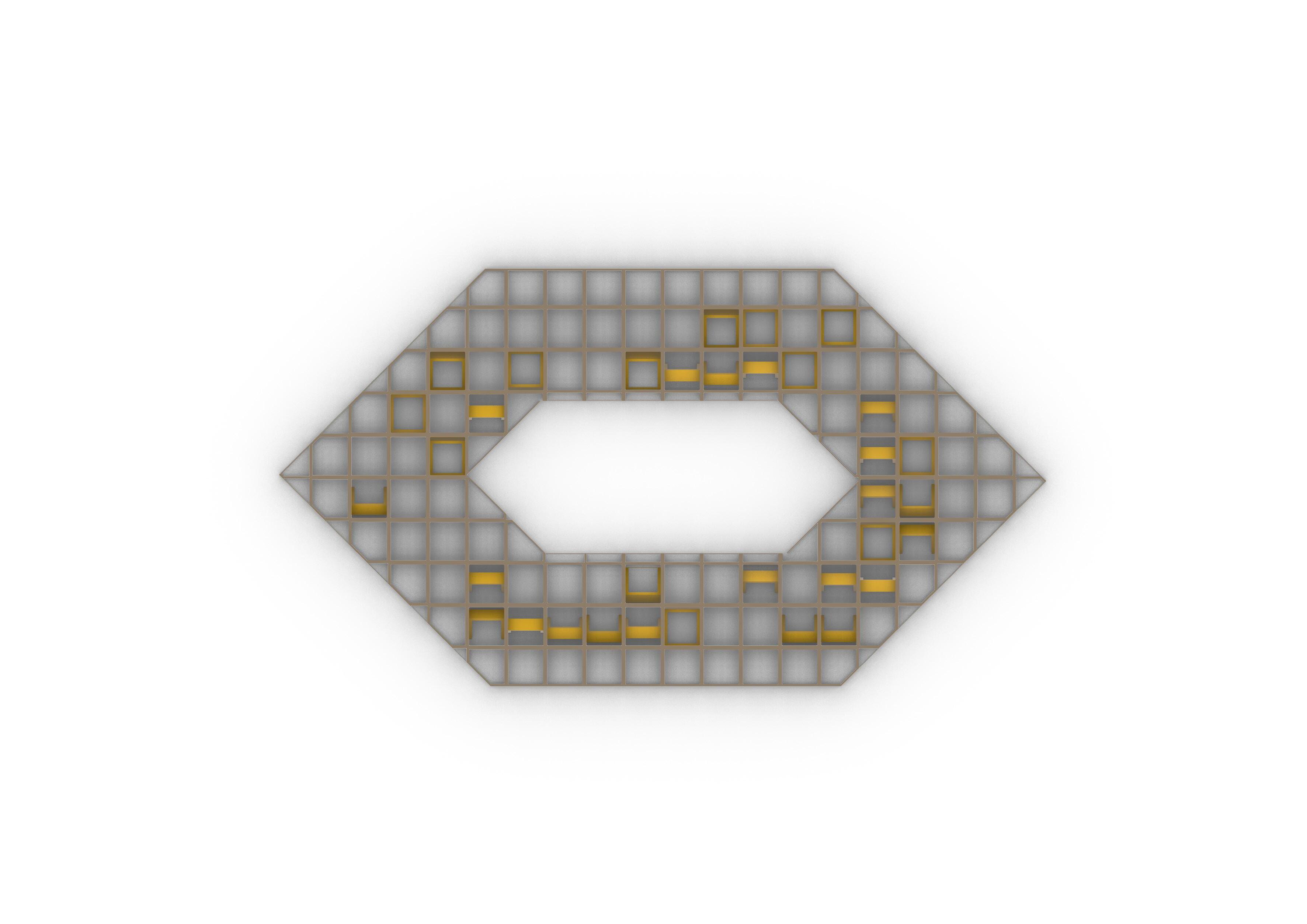

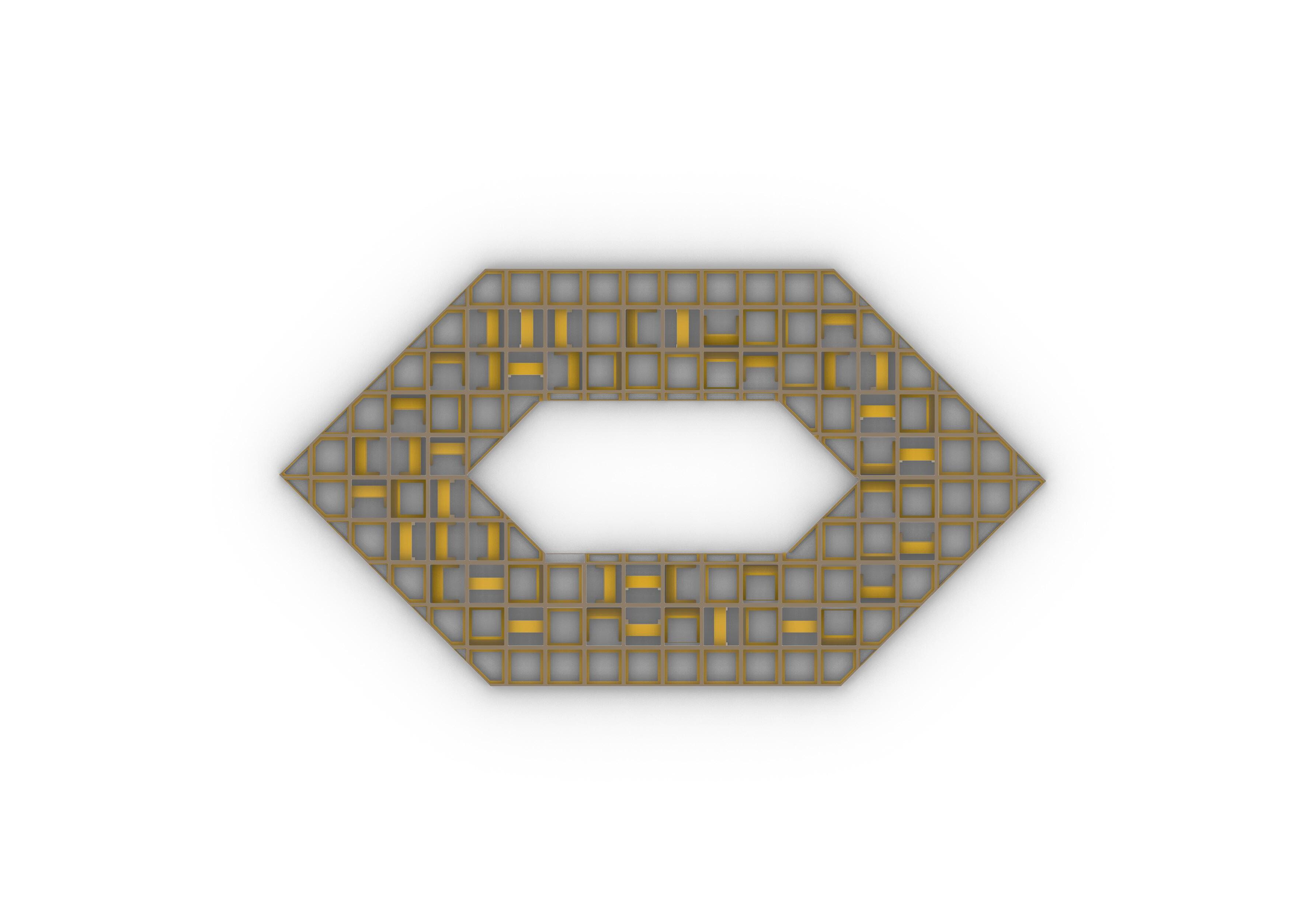

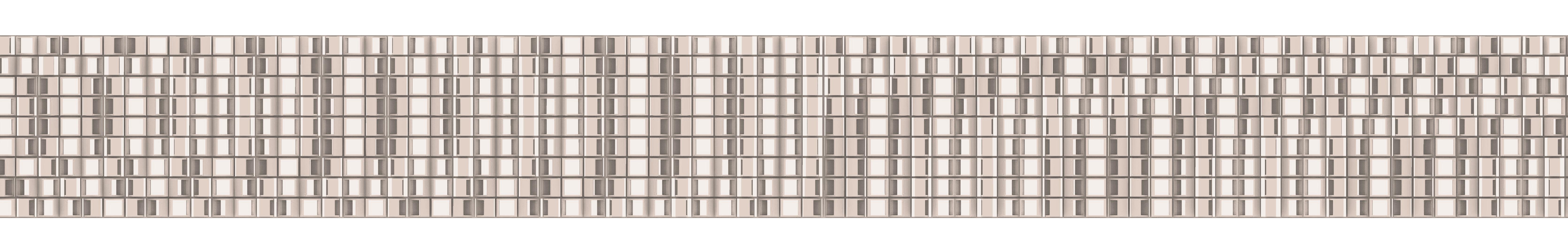

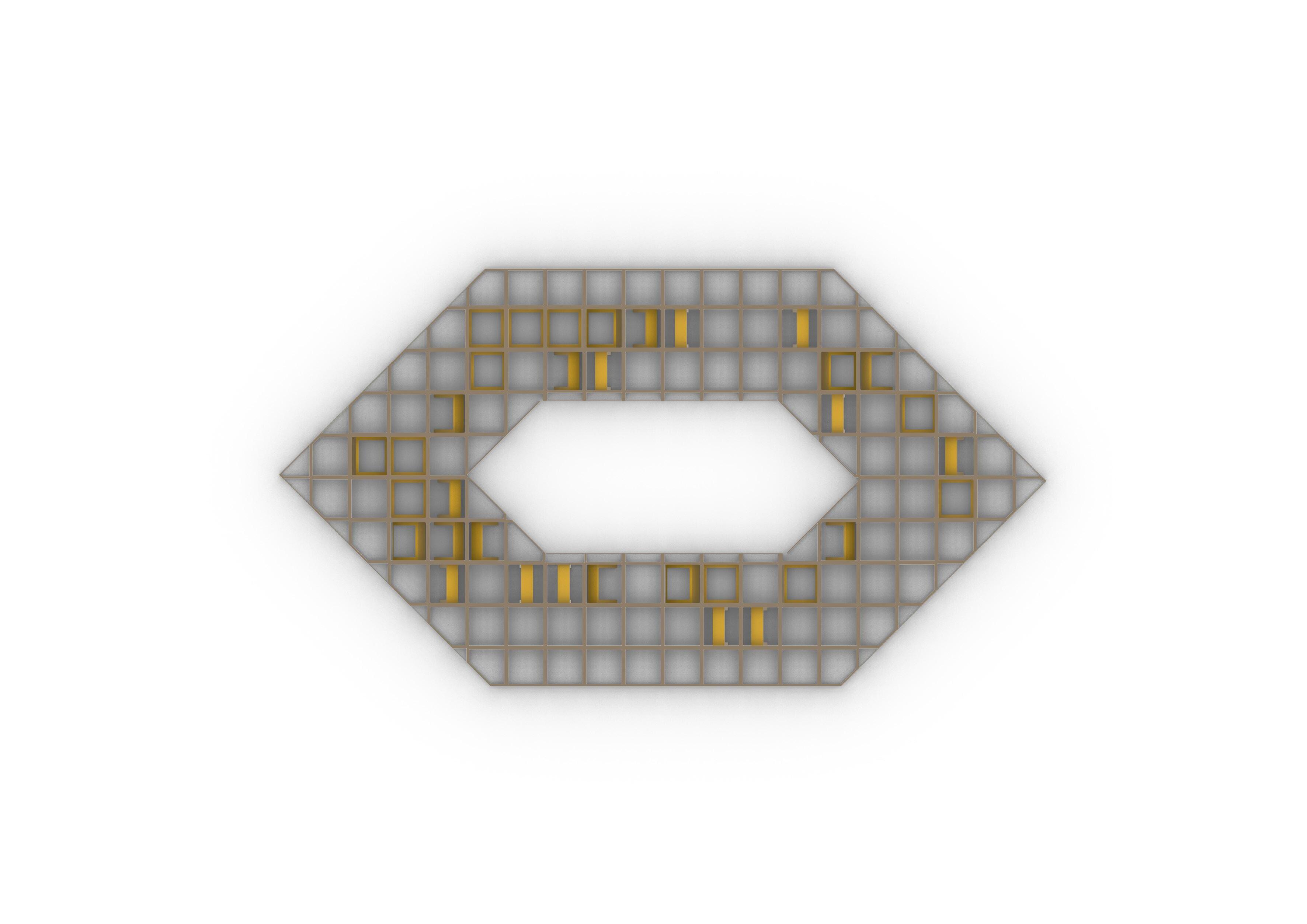

A uniform field of modular elements is generated using a parametric grid.Spatial variation emerges through distance-based rotation influenced by an attractor point.
ITERATIONS
One attractor point
More than 3 attractor points
2 attractor points with different seed value
FOCAL SKYLIGHTS
SOCIAL GALLERY
WORKSHOP SPACES
OFFICE SPACES

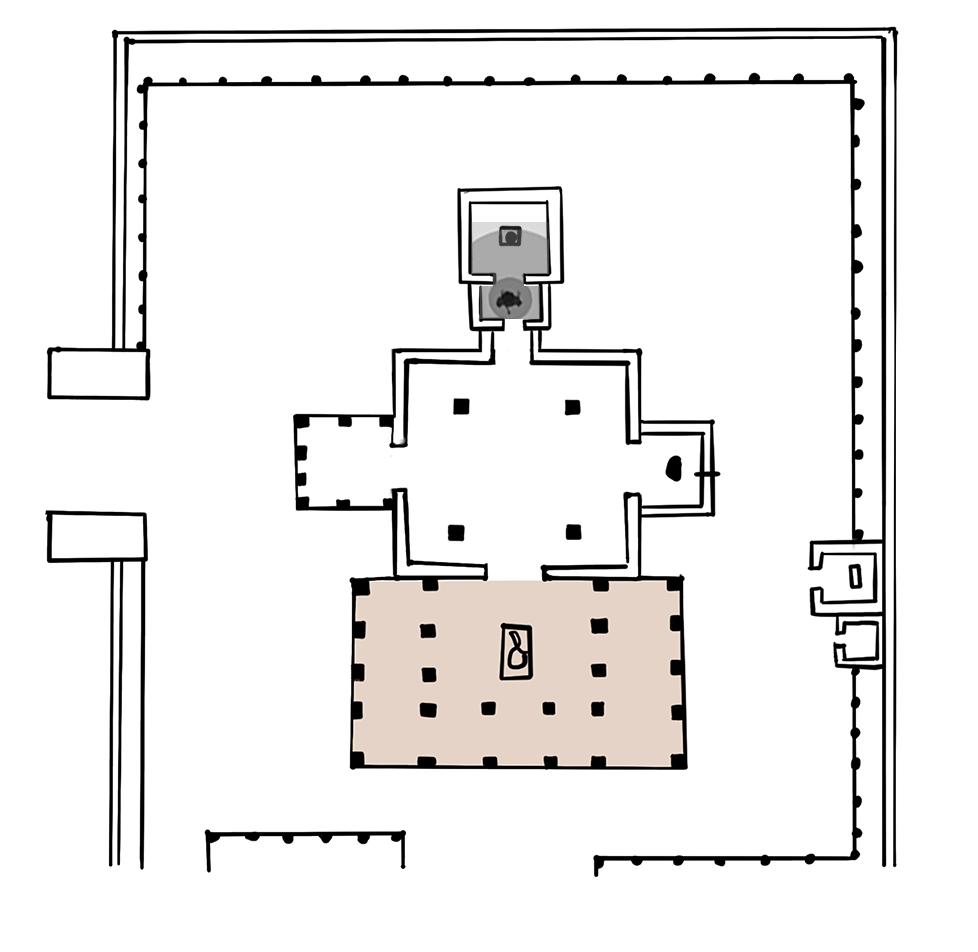

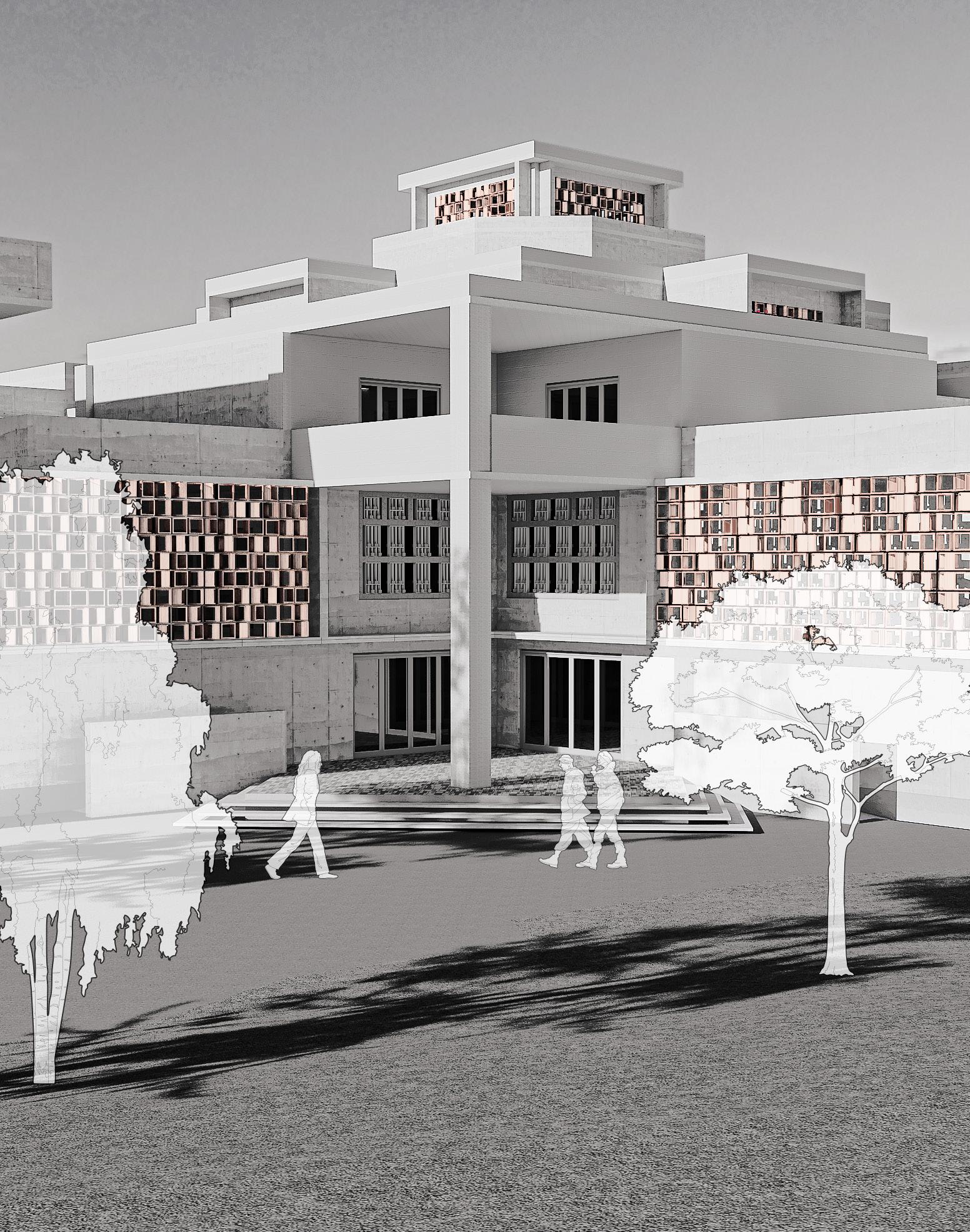

GOPURA(ENTRYWAY)
STATIC PANELS

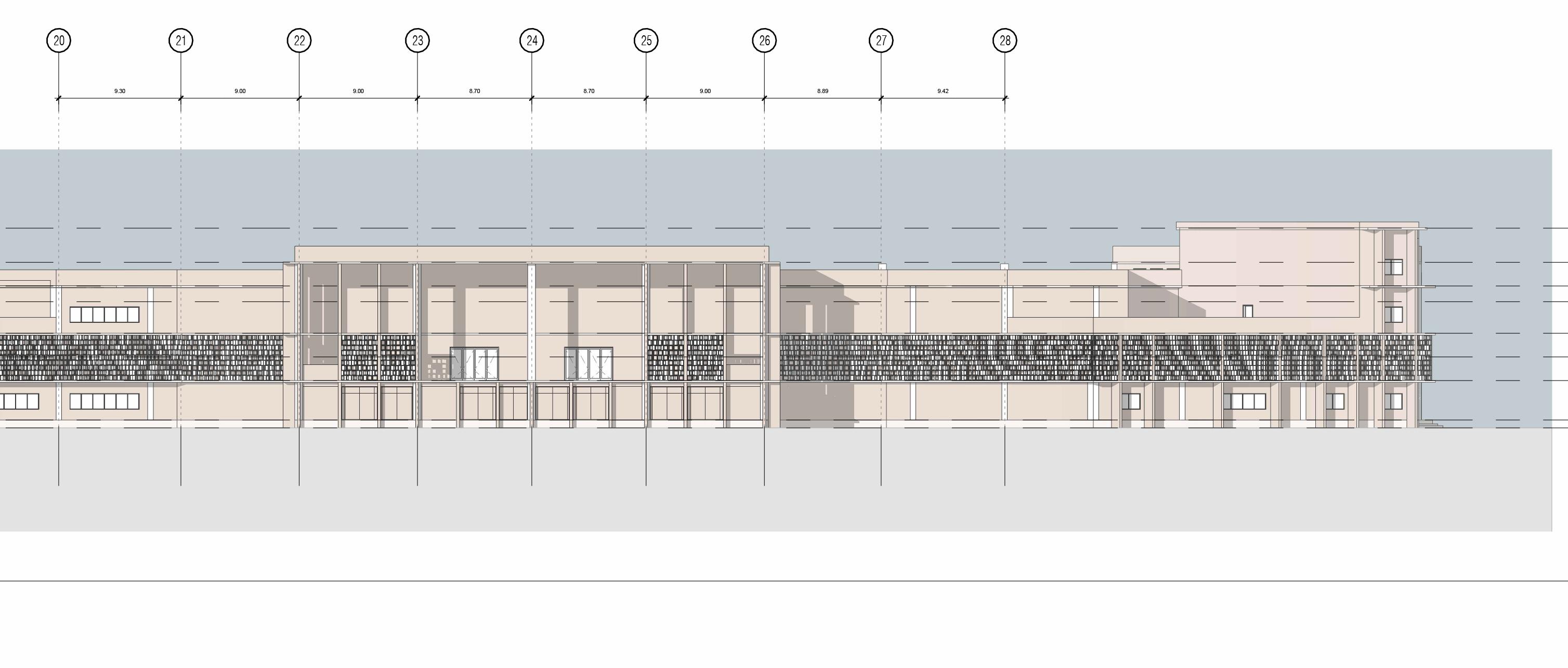

DYNAMIC PANELS
Panel rotation is parametrically mapped to the solar incidence angle, enabling controlled modulation of light to the space.
PANELS ITERATED TO HAVE XZ AXIS ROTATION
PANELS ITERATED TO HAVE YZ AXIS ROTATION
ITERATIONS
