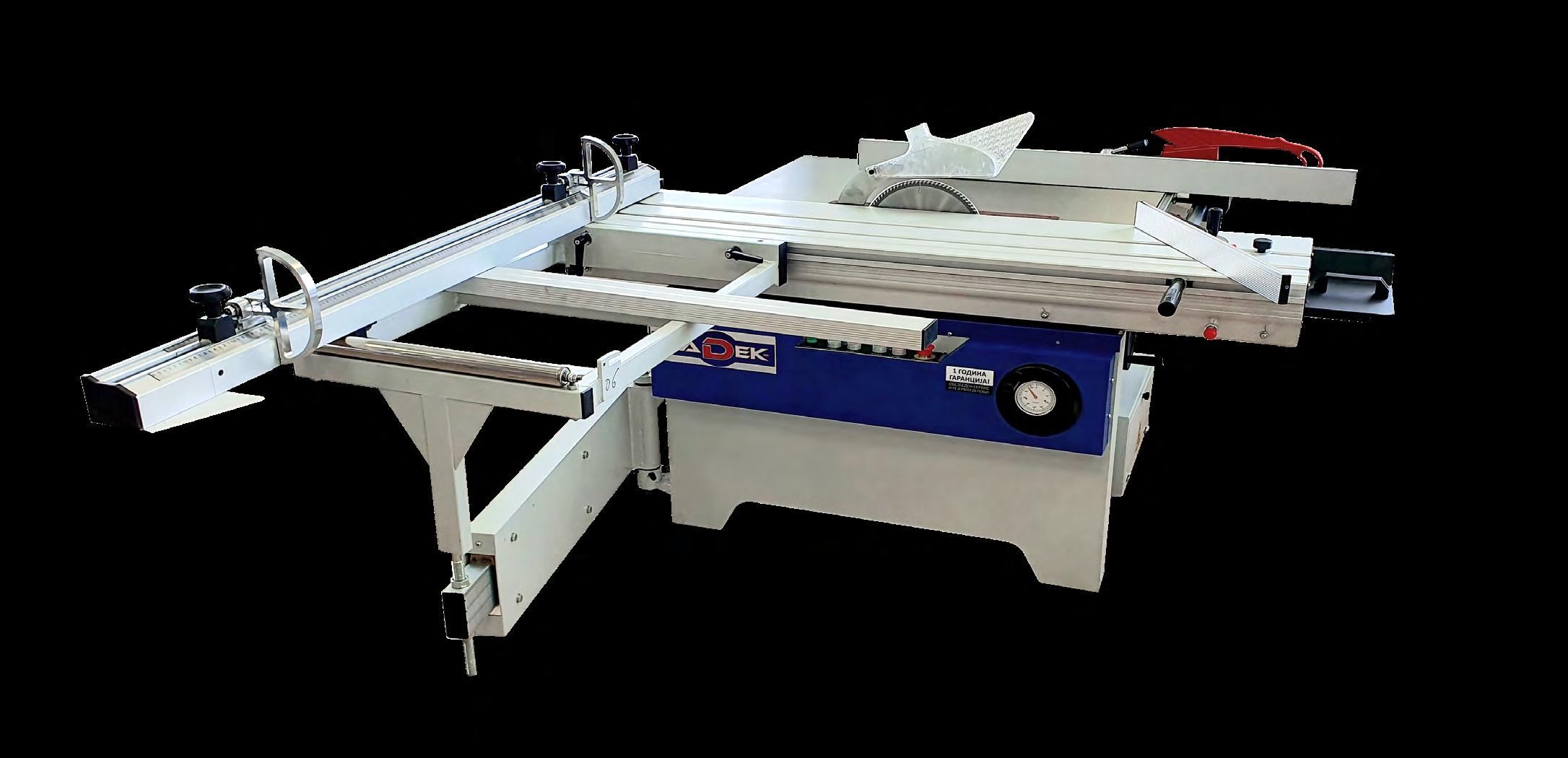

PANEL SAW MACHINE
A professional series panelv saw machine with a scoring unit designed for longitudinal, cross and angular cutting of panel materials (MDF, particle board, plywood, plastics…) as well as solid wood. It is an essential machine in all small, medium and industrial productions. It is equipped with manual tilt and height adjustment, scoring unit adjustment, an extendable front fence, a dust cover and an auxiliary fence with a protractor.

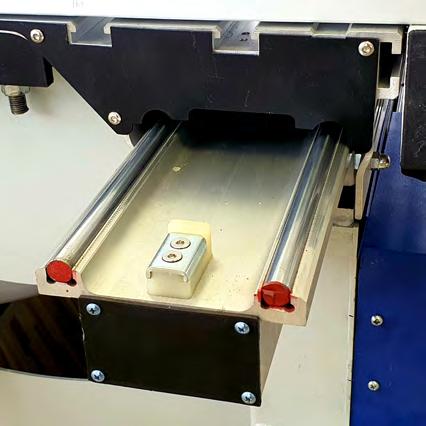

Premium sliding table system ensuring ultra-smooth movements with high precision, without lubrication or special maintenance. Widely recognized as the top choice for high-end format saws.
Main motor power
Scoring saw power
Sliding table dimensions
Main blade diameter
Main motor speed
Scoring saw diameter
Scoring saw speed
Main blade shaft diameter
Scoring saw shaft diameter

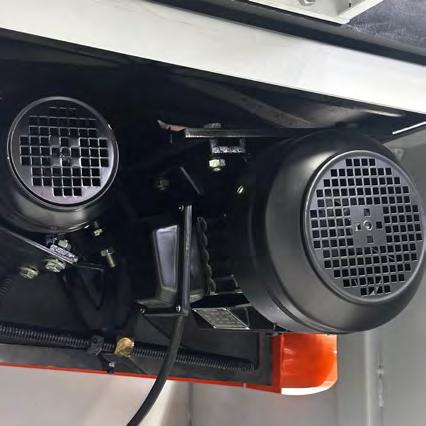

powerful, high-quality motors with a working power of 4kW and 0.75kW, deliver exceptional performance. Ensure stable operation, precise cutting, and reliability even under intensive use.

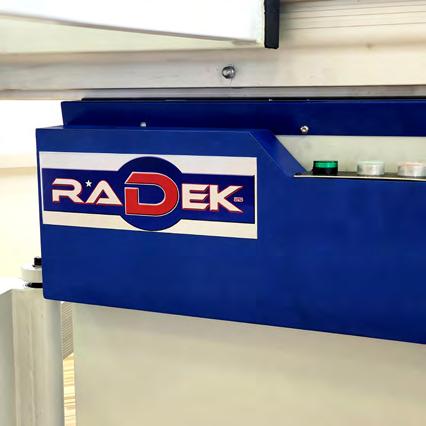

reliable, robust construction eliminates vibrations, ensuring stable operation and longevity. It is built to high standards of quality and durability.
rpm

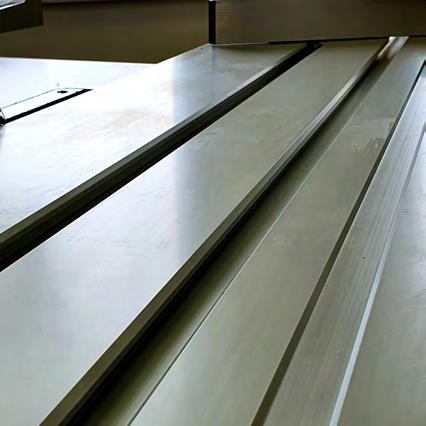

sliding table measuring 1600mm in length, combined with an ergonomic design, makes this panel saw the perfect pick for operations requiring high-precision cutting.

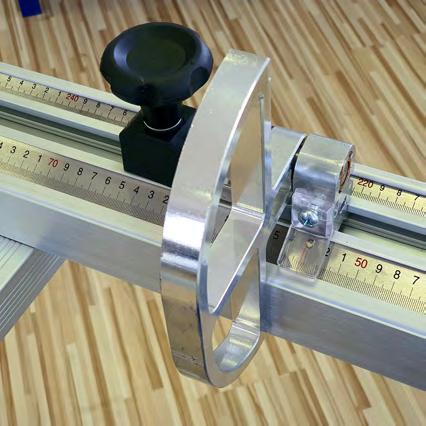

Two stops equipped with magnifiers and clamps allow for precise adjustments to the preferred dimensions. Their stability and accuracy enable repeatability during cutting, which is especially important in serial production and working with sensitive materials.
Distance from blade to rear fence
Main blade and scoring saw tilt
Machine dimensions
Packing dimensions
Weight
45° – 90°
1600x2450x900mm
1120x1250x980mm / 430x1830x260mm
450kg
Machine features height and tilt adjustment for precise angle cutting. This enables precise cutting at different angles, which increases flexibility and quality of workmanship in different types of materials.
PREMIUM SLIDING SYSTEM
The
POWERFUL MOTORS
The
ROBUST CONSTRUCTION
The
THE IDEAL CUTTING TABLE
PRECISION STOPS
ANGLE CUTTING
