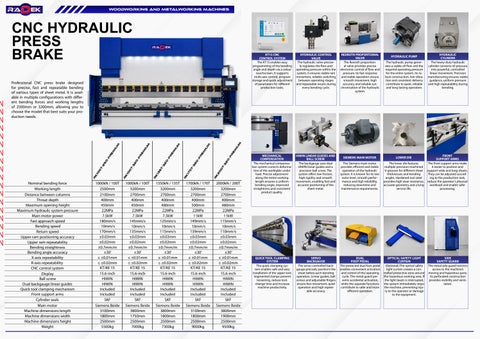

CNC HYDRAULIC PRESS BRAKE
Nominal bending force Working length Distance between columns Throat depth Maximum opening height Maximum hydraulic system pressure Main motor power Fast approach speed Bending speed Return speed Upper ram positioning accuracy Upper ram repeatability Bending straightness Bending angle accuracy X-axis repeatability R-axis repeatability CNC control system Display Ball screw Dual backgauge linear guides Quick tool clamping mechanism Front support arms Cylinder seals Main motor Machine dimensions length Machine dimensions width Machine dimensions height Weight
1000kN / 100T 2500mm 2100mm 400mm 450mm 22MPa 7.5kW 180mm/s 10mm/s 170mm/s ±0.03mm ±0.02mm ±0.7mm/m ±30’ ≤ ±0.01mm ≤ ±0.02mm KT/KE 15 15.6-inch HIWIN HIWIN Included Included SKF Siemens Beide 3100mm 1800mm 2500mm 5500kg
1000kN / 100T 3200mm 2700mm 400mm 450mm 22MPa 7.5kW 145mm/s 10mm/s 135mm/s ±0.03mm ±0.02mm ±0.7mm/m ±30’ ≤ ±0.01mm ≤ ±0.02mm KT/KE 15 15.6-inch HIWIN HIWIN Included Included SKF Siemens Beide 3800mm 1750mm 2500mm 7000kg
1700kN / 170T 3200mm 2700mm 400mm 500mm 22MPa 11kW 149mm/s 10mm/s 139mm/s ±0.03mm ±0.02mm ±0.7mm/m ±30’ ≤ ±0.01mm ≤ ±0.02mm KT/KE 15 15.6-inch HIWIN HIWIN Included Included SKF Siemens Beide 3100mm 1800mm 2500mm 9000kg
REXROTH PROPORTIONAL VALVE The Rexroth proportional valve provides precise electronic control of flow and pressure. Its fast response and stable operation ensure smooth movement, high accuracy and reliable synchronisation of the hydraulic system.
MECHANICAL COMPENSATION The mechanical compensation system corrects deformation of the worktable under load. Precise adjustment along the entire working length ensures a uniform bending angle, improved straightness and consistent product quality.
HIWIN LINEAR GUIDES AND BALL SCREW The backgauge uses dual HIWIN linear guides and a precision ball screw. The system offers low friction, high rigidity and smooth movement, enabling fast and accurate positioning of the sheet metal.
The Siemens main motor provides efficient and stable operation of the hydraulic system. It is known for its low noise level, smooth performance and high reliability, reducing downtime and maintenance requirements.
QUICK TOOL CLAMPING SYSTEM The quick clamping system enables safe and easy installation of the upper tool. Segmented clamps prevent loosening, reduce toolchange time and increase machine productivity.
SERVO BACKGAUGE The servo-controlled backgauge precisely positions the sheet before each bending operation. Linear guides, ball screws and adjustable fingers ensure fast movement, quiet operation and high repeatable accuracy.
DUAL FOOT PEDAL The protected dual foot pedal enables convenient activation and control of the operating cycle. The metal guard prevents accidental activation, while the separate functions contribute to safer and more efficient operation.
HYDRAULIC PUMP The hydraulic pump generates a stable oil flow and the required operating pressure for the entire system. Its robust construction, low vibration and consistent delivery contribute to quiet, reliable and long-lasting operation.
HYDRAULIC CYLINDER The heavy-duty hydraulic cylinder converts oil pressure into powerful, controlled linear movement. Precision manufacturing ensures stable guidance, uniform pressure and high repeatability during bending.
