FIBER LASER (RK-153FL-PRO (TC)) - BROCHURE

FIBER LASER

RK-153FL-PRO (TC)

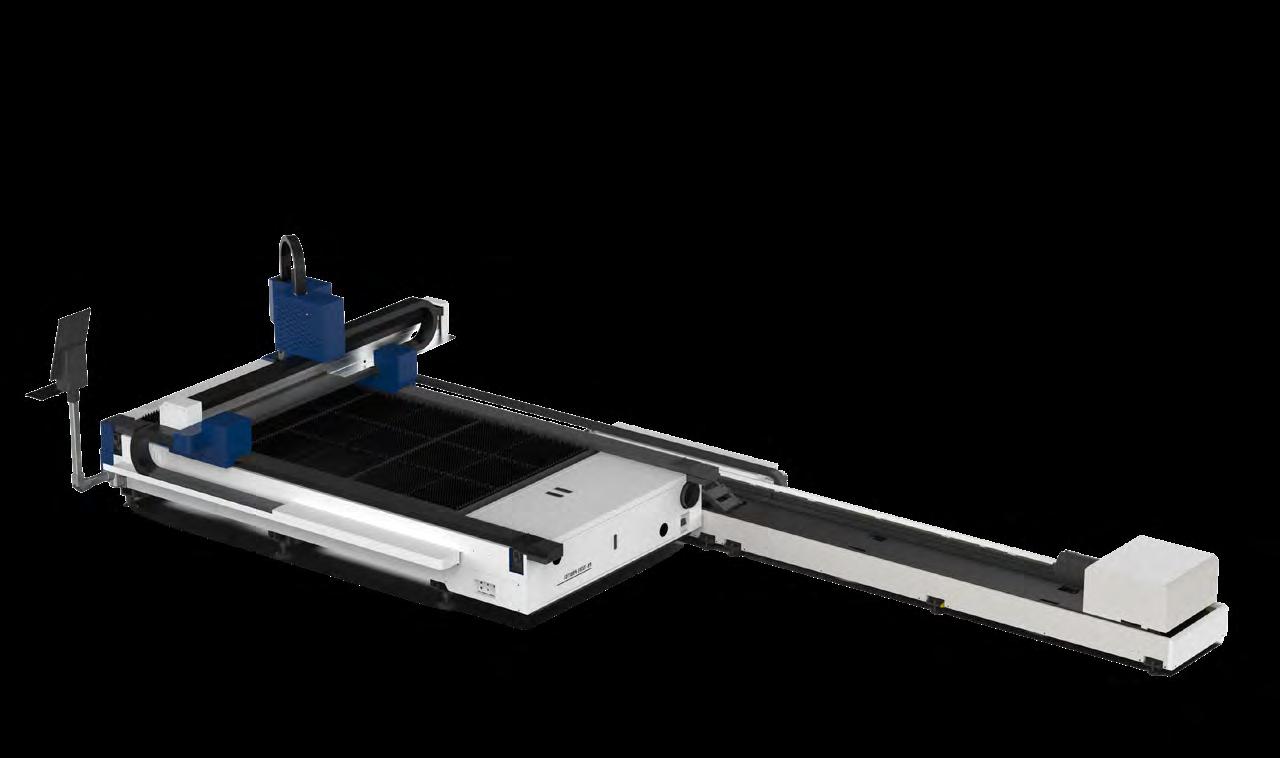

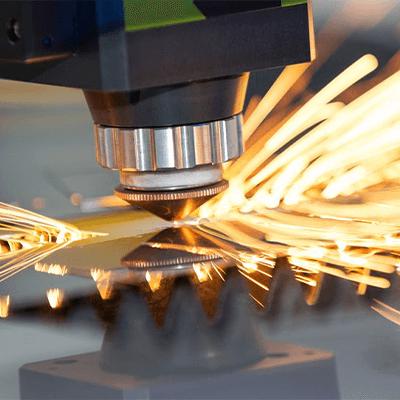

Fiber laser technology represents the fastest and most advanced method of cutting metal without additional processing. The cutting speed is significantly higher compared to other technologies, greatly increasing efficiency and productivity in production. In addition to sheet metal cutting, the machine is equipped with a profile cutting system (tubes and structural profiles), featuring automatic centering for precise positioning and processing of various shapes such as square, round, and structural profiles. It is equipped with a MAX laser source, RAYTOOLS laser head, CYPCUT control system, FUJI servo motors, industrial cooling chiller, ventilation system, and voltage stabilizer — a combination of premium components that ensures stable operation, high precision, and consistent quality. The best configuration for the best results and maximum efficiency in industrial production.

WHERE IT IS USED

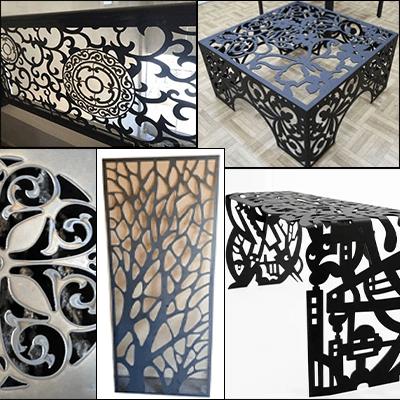

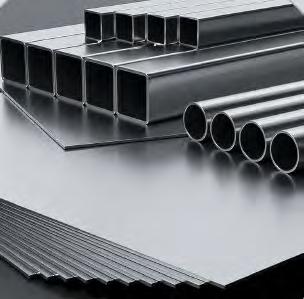

Fiber laser technology is ideal for cutting steel, stainless steel, aluminum, copper, brass, and other materials. It is widely used in various industries such as the production of fences, decorative elements, constructions, urban equipment, machine parts, ventilation systems, and much more.

Working area

Optional working area

Laser power

Optional laser power

Type of drive motors

Y-axis motor power

X-axis motor power

Z-axis motor power

Laser source type

Laser head type

Positioning accuracy

Repeat positioning accuracy

Processing speed

Movement speed

Maximum structure load capacity

Max. cutting thickness 1500W

Max. cutting thickness 3000W

Max. cutting thickness 4000W

Max. cutting thickness 6000W

Operating system

Ventilation system

Cooling chiller

Voltage stabilizer

Machine dimensions

Packaging dimensions

Weight

1500 × 3000 mm

2000 × 4000 mm

1500W

3000W, 4000W, 6000W

Servo motor

850W

750W

400W

Max

Raytools

±0.05 mm/m

±0.02 mm

0–30 m/min

0–100 m/min

700 kg

12–16 mm

16–20 mm

18–22 mm

20–25 mm

Cypcut

Included

Included

Included

4600 × 2450 × 1700 mm

4580 × 2250 × 1800 mm

1800 kg

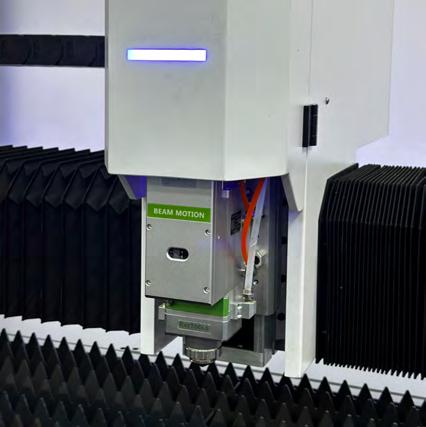

Raytools automatic focus laser head, a leading brand known for quality, durability, and precision. It enables continuous and stable operation even during the most demanding tasks, ensuring maximum cutting precision and speed.

The industrial chiller cools the liquid heated during laser operation. It constantly maintains the liquid temperature and ensures protection and uninterrupted laser performance.

The machine is equipped with a pneumatic self-centering clamp that ensures strong and precise fixing of round and square tubes without slipping. It supports processing of profiles with different dimensions and lengths, ensuring stability during operation and consistent cutting quality.

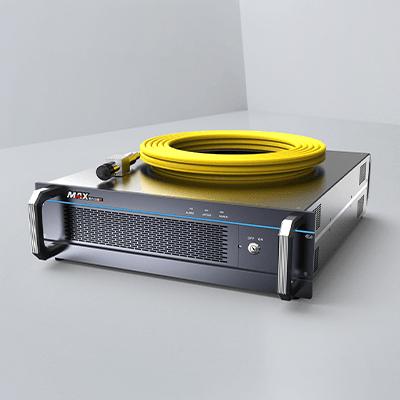

LASER SOURCE

MAX laser source with a lifespan of 100,000 working hours, proven to be one of the most durable and long-lasting solutions compared to other brands. It ensures reliable and stable operation, increasing the overall efficiency of the machine.

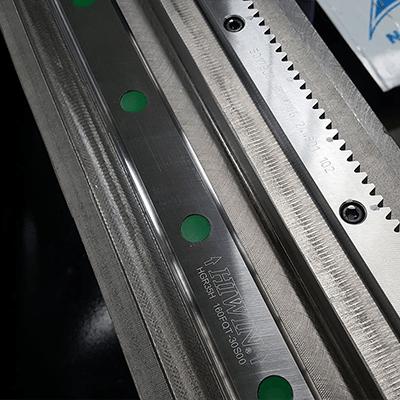

X AND Y AXIS MOVEMENT

Axis movement is performed through linear guides and rack-and-pinion transmission, recognized as the best and most widely used movement system in CNC machines. It enables smooth operation, low noise levels, and significant reduction of additional loads, increasing durability and service life.

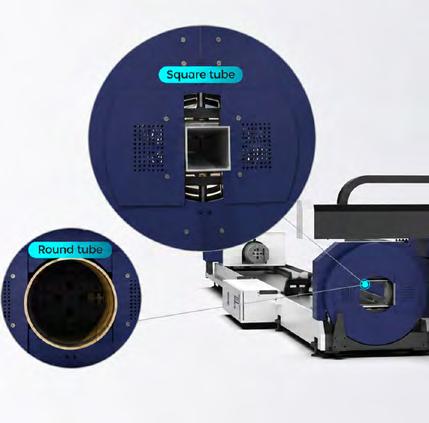

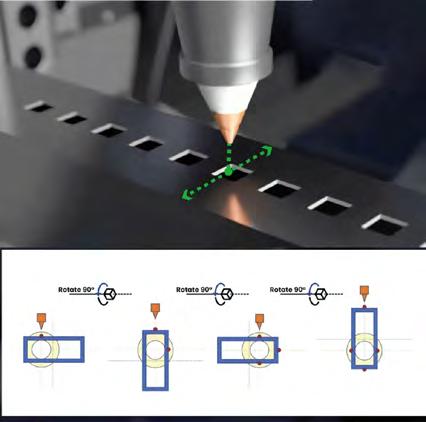

AUTOMATIC PROFILE CENTERING

In combination with the automatic centering system, the machine enables precise positioning of different profile types such as H, U, L, and other structural shapes. This significantly increases cutting accuracy, reduces the need for manual corrections, and enables faster and more efficient processing in mass production.

POWER

Optional laser power for this model includes 1500W, 3000W, 4000W, and 6000W. The ability to choose different power levels allows adaptation according to the cutting requirements of various materials and thicknesses.

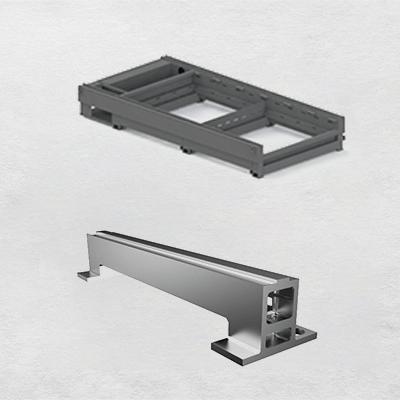

CONSTRUCTION

Massive construction that provides high rigidity and excellent resistance to static and dynamic loads. Manufactured on high-precision CNC metalworking centers, guaranteeing precision, quality, and long machine lifespan.

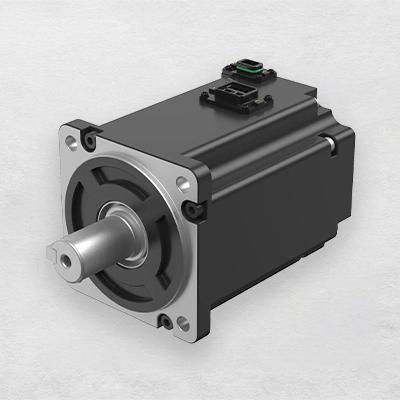

HIGH-PRECISION SERVO MOTORS

Specially designed for high demands and performance. They guarantee precise bridge positioning without deviations or errors, while maintaining high movement speed.

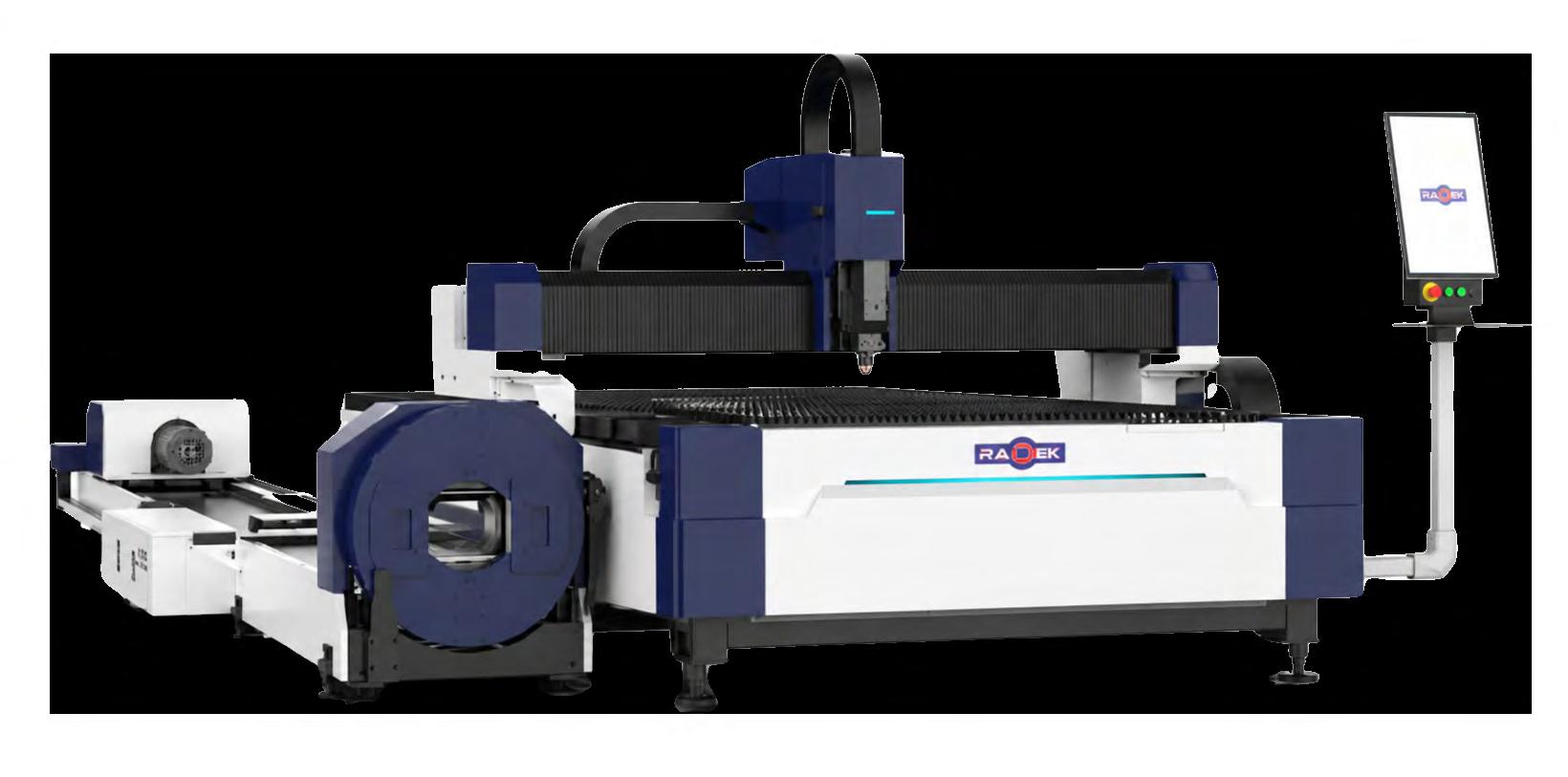

ONE MACHINE – TWO FUNCTIONS

The machine enables cutting of both sheet metal and profiles (tubes) on a single platform, without the need for additional equipment. This makes it an ideal solution for companies seeking greater production flexibility with minimal investment.
