FIBER LASER
RK-153FL-PRemium (tc) 12Kw

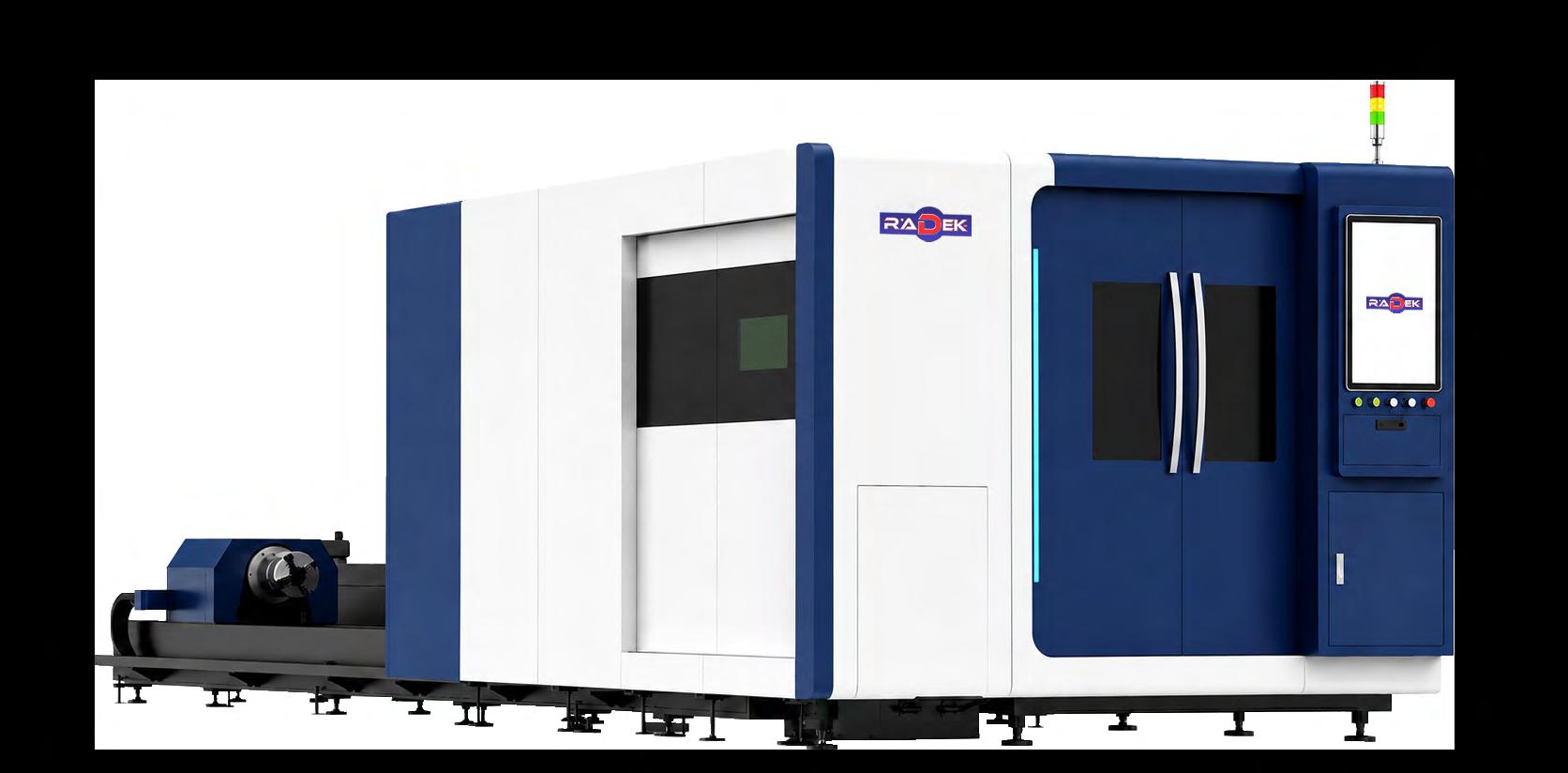

Industrial enclosed-type fiber laser with 12 kW power, designed for fast, precise, and highly efficient metal cutting without the need for additional processing. Fiber laser technology represents the most advanced and fastest method for sheet metal process ing, offering significantly higher speed and productivity compared to other cutting technologies.
The machine is equipped with a MAX laser source, BOCI laser head, SHIMPO reducers, SCHNEIDER servo motors and electrical components, HANLI industrial cooling chiller, intelligent ventilation system, and voltage stabilizer. The enclosed construction provides greater safety, better control of dust and smoke, and more stable working conditions in industrial production.
In addition to sheet metal cutting, the machine is also equipped with a profile cutting system (tubes and structural profiles), fea turing automatic centering for precise positioning and processing of various shapes such as square, round, and structural profiles. A combination of high power, stable construction, and premium components for maximum performance, precision, and cutting quality.
Working area
Optional working area
Laser power
APPLICATION

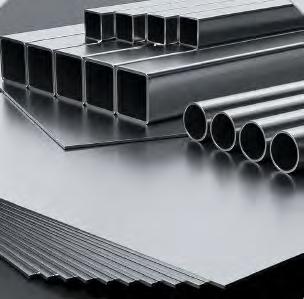

The fiber laser is ideal for cutting steel, stainless steel, aluminum, copper, brass and more. It is used in industries such as fence manufacturing, decorative elements, construction, urban equipment, machine parts, ventilation and others.
Optional laser power
Type of drive motors
Y-axis motor power
X-axis motor power
Z-axis motor power
Laser source type
Laser head type
Positioning accuracy
Repeat positioning accuracy
Processing speed
Movement speed
Maximum structure load capacity
Maximum cutting thickness for steel
Maximum cutting thickness for stainless steel
Maximum cutting thickness for aluminum
Maximum cutting thickness for copper
Operating system
Ventilation system
Cooling chiller
Voltage stabilizer
Machine dimensions
Packaging dimensions
Weight
1500x3000mm
2000x4000mm
12000W
30000W
Servo motors
4400W
1800W
750W
Max
BOCI
±0.05mm
±0.02mm
0-30m/min
0-200m/min
3000kg
40-50mm
35-50mm
35-50mm
16-20mm
FSCUT
Included
Included Included
8440x2270x2340mm
9000x2270x2340mm
6103kg
LASER HEAD

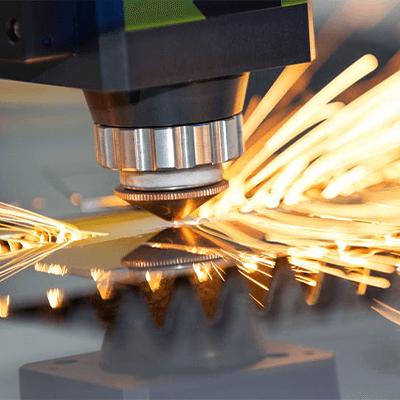

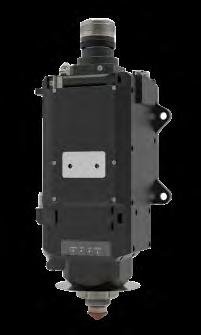

Raytools brand laser head with automatic focusing, a leading name in quality, durability and precision. Ensures continuous and stable operation even during the most complex tasks, with maximum cutting precision and speed.
X AND Y AXIS MOVEMENT

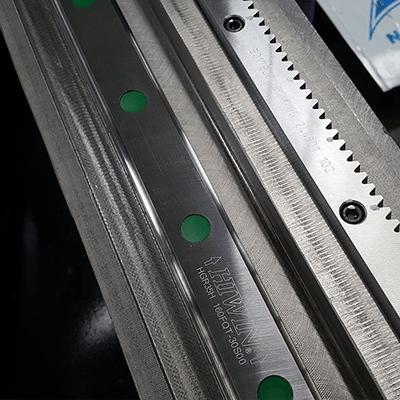

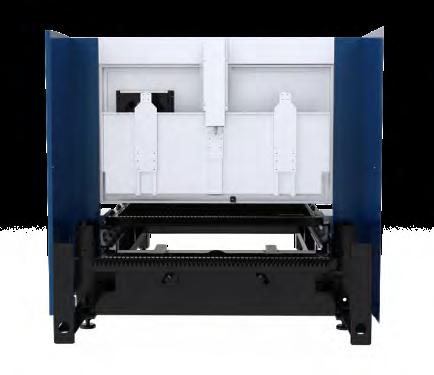

The movement of the axes is carried out through linear guides and a rack-and-pinion system, which is the most commonly used and proven system in CNC machines. It enables smooth operation, low noise levels, and significantly reduces additional loads, increasing their lifespan and durability.

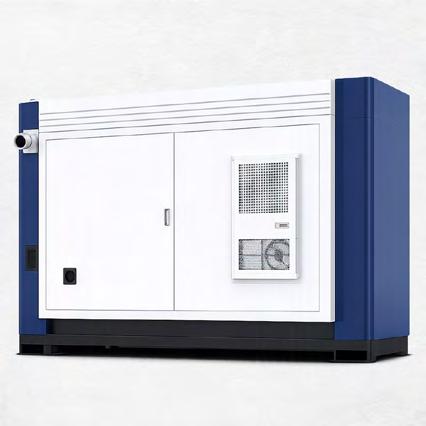

The electrical cabinet with temperature and humid ity control ensures stable operating conditions for all electronic components. This increases system reliability, extends service life, and maintains consistent per formance during long-term operation.
LASER SOURCE

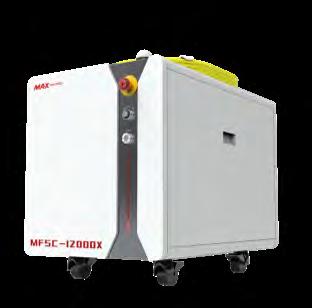

MAKS brand laser source with 100,000 operating hours, proven to be the most durable and long-lasting compared to other brands. Delivers reliable and stable performance, enhancing the overall efficiency of the machine.
CONSTRUCTION

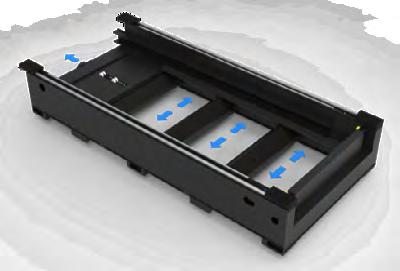

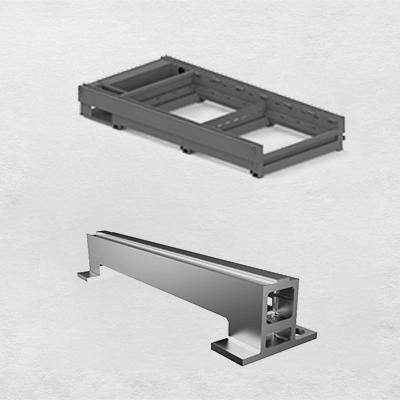

A massive structure providing a high level of rigidity and excellent resistance to static and dynamic loads. Manufactured using high-precision CNC machining centers for metal, ensuring precision, quality and machine durability.
The modular Z-axis is designed for high precision and long-term stability, with excellent sealing against dust and contaminants. This system enables easy main tenance and quick replace ment of parts with minimal production downtime.
The optional laser power for this model is 30000W. The ability to choose different power levels allows adapta tion according to the cutting requirements of various materials and thicknesses. POWER OPTIONS
INTELLIGENT DUST EXTRACTION SYSTEM
The dust extraction system automatically regulates extraction according to the cutting position, enabling zoned and precise suction. This results in more effi cient smoke and particle removal, a cleaner working environment, and better cutting quality in continuous production.
ONE MACHINE – TWO FUNCTIONS
The machine enables cutting of both sheet metal and profiles (tubes) on a single platform, without the need for additional equipment. This makes it an ideal solu tion for companies seeking greater production flexibility with minimal investment.
HIGH-PRECISION SERVO MOTORS

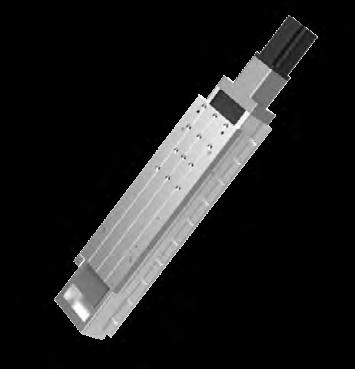

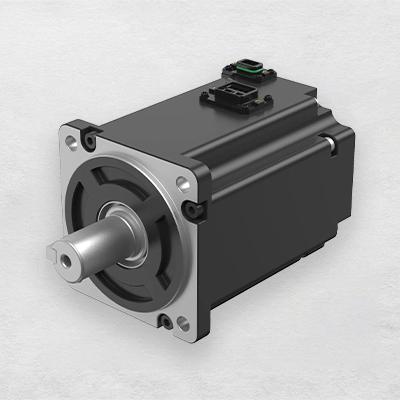

Specially designed for high demands and performance. Ensure precise positioning of the bridge without deviations or errors and enable high-speed movement. Integrated with high-precision drivers, these servo motors provide stable dynamics and perfect repeatability even during complex and highspeed cutting operations.
VISUAL SAFETY MONITORING

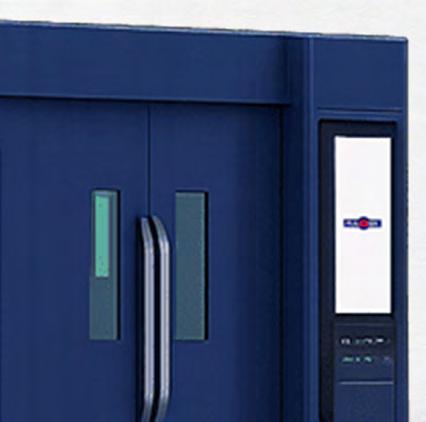

The enclosed design with automatic lift doors provides better sealing of the working area, significantly reduc ing smoke and dust. This contributes to a cleaner work environment, higher safety, and improved extraction system efficiency.

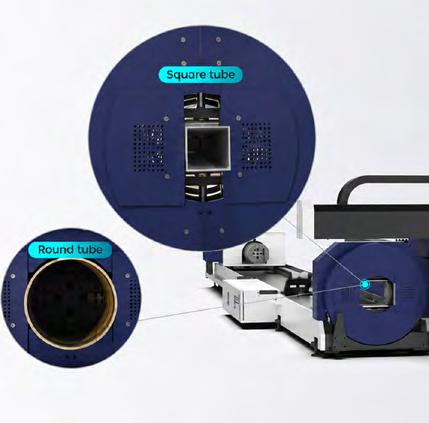

The machine is equipped with a pneumatic self-cen tering clamp that ensures strong and precise fixing of round and square tubes without slipping. It supports processing of profiles with different dimensions and lengths, ensuring stability during operation and consis tent cutting quality.
INDUSTRIAL CHILLER

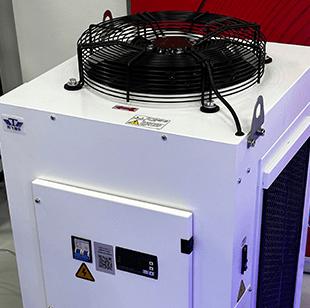

The industrial chiller cools the liquid heated during laser operation, maintaining a constant temperature and ensuring protection and uninterrupted laser operation.
The enclosed design with an automatic lift door provides better sealing of the working area, significantly reducing smoke and dust. This contributes to a cleaner work environment, higher safety, and improved efficiency of the extraction system.

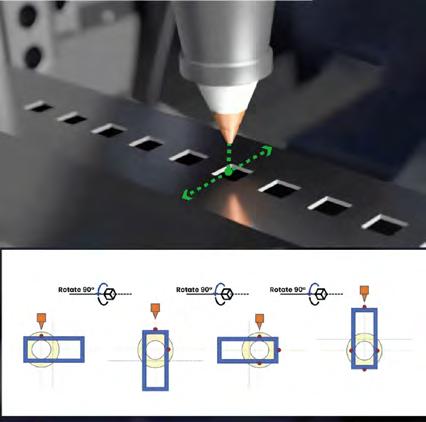

In combination with the automatic centering system, the machine enables pre cise positioning of different profile types such as H, U, L, and other structural shapes. This significantly increases cutting accuracy, reduces the need for manual corrections, and enables faster and more efficient processing in mass production. AUTOMATIC PROFILE
PNEUMATIC CLAMP
Cutting Parameters
ALUMINUM
Cost-Benefit Analysis
Laser source (kW)
Chiller (kW)
Air compressor (kW)
Machine tool / host (kW)
Dust removal (kW)
Consumables and gas consumption (CNY/h)
Total power (kW)
Total power consumption (kW/h)
Total operating cost (RMB/h)
Additional Notes:
Auxiliary gas consumption depends on the material thickness; the listed values are based on cutting 16
steel with oxygen and 1 mm stainless steel with nitrogen.
