FIBER LASER

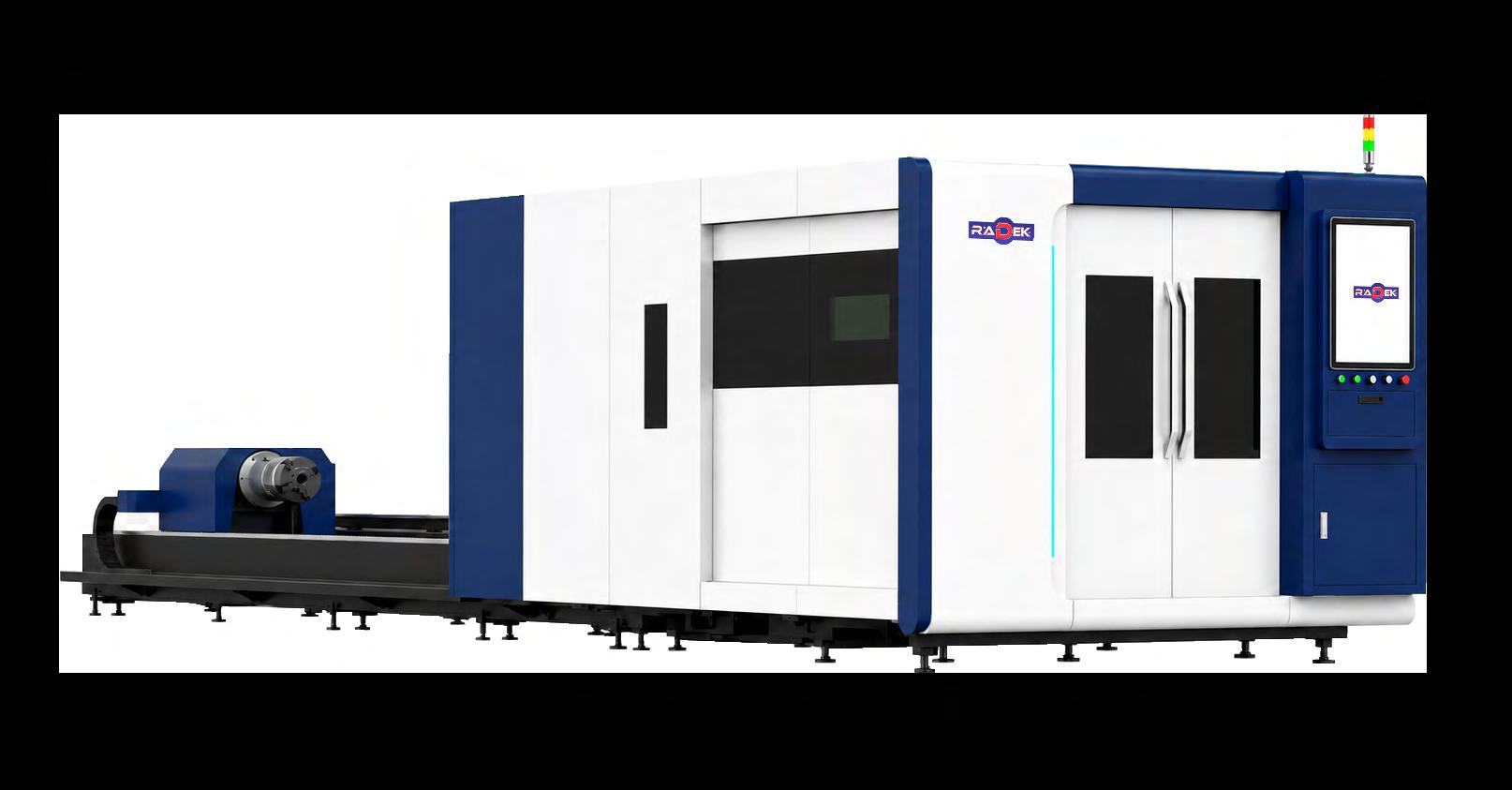

Industrial enclosed-type fiber laser with 6 kW power, designed for fast, precise, and highly efficient metal cutting without the need for additional processing. Fiber laser technology represents the most advanced and fastest method for sheet metal process ing, offering significantly higher speed and productivity compared to other cutting technologies.
The machine is equipped with a MAX laser source, RAYTOOLS laser head, SHIMPO reducers, SCHNEIDER servo motors and electri cal components, HANLI industrial cooling chiller, intelligent ventilation system, and voltage stabilizer.
The enclosed construction provides greater safety, better control of dust and smoke, and more stable working conditions in industrial production.
In addition to sheet metal cutting, the machine is also equipped with a profile cutting system (tubes and structural profiles), fea turing automatic centering for precise positioning and processing of various shapes such as square, round, and structural profiles. A combination of high power, stable construction, and premium components for maximum performance, precision, and cutting quality.
Working area
Optional working area
Laser power
WHERE IT IS USED

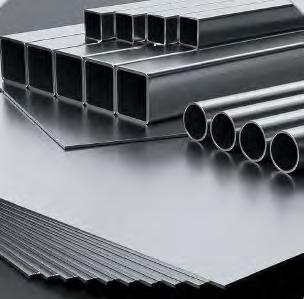

Fiber laser technology is ideal for cutting steel, stainless steel, alu minum, copper, brass, and other materials. It is widely used in vari ous industries such as the produc tion of fences, decorative elements, constructions, urban equipment, machine parts, ventilation systems, and much more.
Optional laser power
Type of drive motors
Y-axis motor power
X-axis motor power
Z-axis motor power
Laser source type
Laser head type
Positioning accuracy
Repeat positioning accuracy
Processing speed
Movement speed
Maximum structure load capacity
Maximum cutting thickness for steel
Maximum cutting thickness for stainless steel
Maximum cutting thickness for aluminum
Maximum cutting thickness for copper
Operating system
Ventilation system
Cooling chiller
Voltage stabilizer
Machine dimensions
Packaging dimensions
Weight
1500x3000mm
2000x4000mm
6000W
12000W
Servo motors
1800W
850W
400W
Max
Raytools BM06K
±0.05mm
±0.02mm
0-30m/min
0-130m/min
1100kg
30mm
20mm
16mm
12mm
FSCUT
Included
Included
Included
8520x2270x2180mm
9000x2270x2180mm
5320kg
LASER HEAD

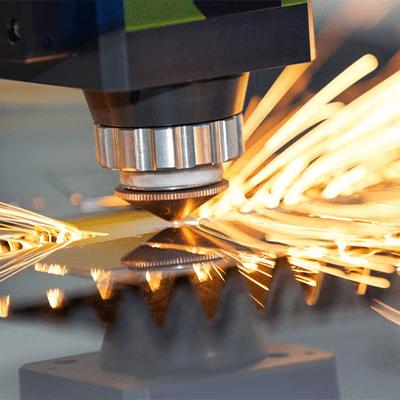

Raytools automatic focus laser head, a leading brand known for quality, durability, and precision. It enables continuous and stable oper ation even during the most demanding tasks, ensuring maximum cutting precision and speed.

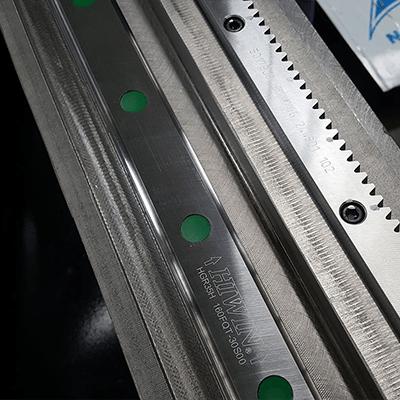

The movement of the axes is carried out through linear guides and a rack-and-pinion system, which is the most commonly used and proven system in CNC machines. It enables smooth operation, low noise levels, and significantly reduces additional loads, increasing their lifespan and durability.
The electrical cabinet with temperature and humidity control ensures stable operating conditions for all electronic components. This increases system reliability, extends service life, and maintains consistent performance during long-term operation.
LASER SOURCE
MAX laser source with a lifespan of 100,000 work ing hours, proven to be one of the most durable and long-lasting solutions compared to other brands. It ensures reliable and stable operation, increasing the overall efficiency of the machine.
CONSTRUCTION

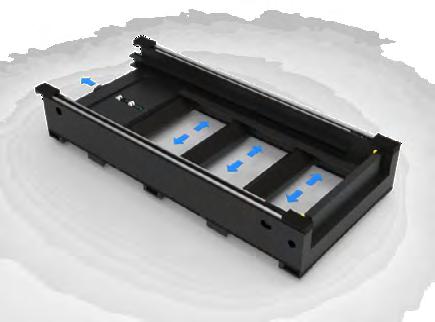

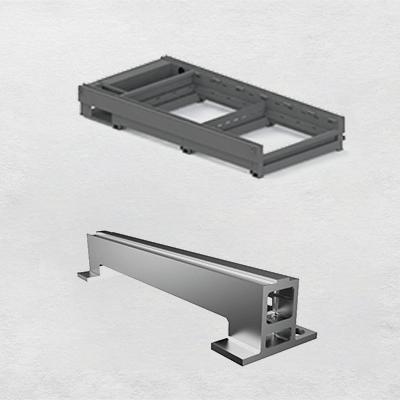

A massive structure providing a high level of rigidity and excellent resistance to static and dynamic loads. Manufactured using high-precision CNC machining centers for metal, ensuring precision, quality and machine durability.
The modular Z-axis is designed for high precision and long-term stability, with excellent sealing against dust and contaminants. This system enables easy maintenance and quick replacement of parts, with minimal production downtime.
The optional laser power for this model is 12000W. The ability to choose different power levels allows adapta tion according to the cutting requirements of various materials and thicknesses. POWER
HIGH-PRECISION SERVO MOTORS

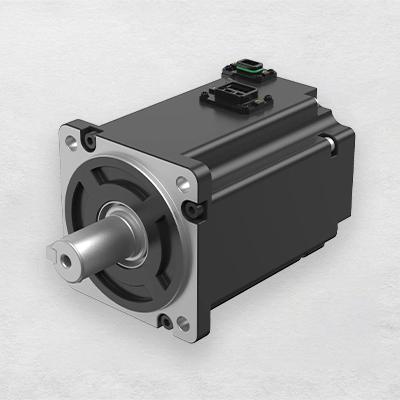

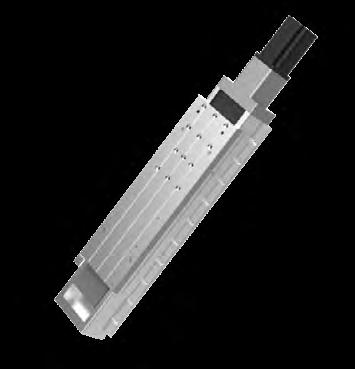

Specially designed for high demands and performance. They guarantee precise bridge positioning without deviations or errors, while maintaining high movement speed.

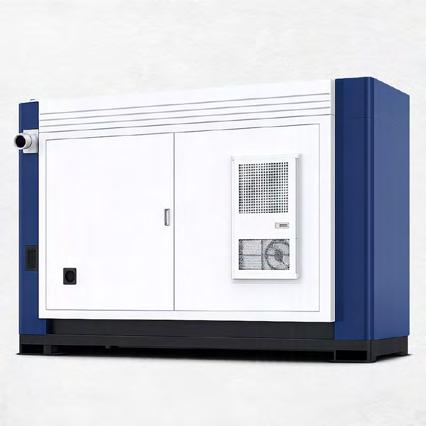

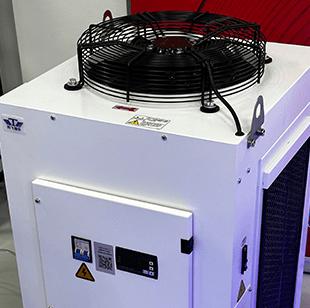

The industrial chiller cools the liquid heated during laser operation. It constantly main tains the liquid temperature and ensures protection and uninterrupted laser perfor mance.
INTELLIGENT DUST EXTRACTION SYSTEM
The dust extraction system automatically regulates extraction according to the cutting position, enabling zoned and precise suction. This results in more efficient removal of smoke and particles, a cleaner working environment, and better cutting quality in continuous production.
ONE MACHINE – TWO FUNCTIONS
The machine enables cutting of both sheet metal and profiles (tubes) on a single platform, without the need for additional equipment. This makes it an ideal solution for companies seeking greater production flexibility with minimal investment.
VISUAL SAFETY MONITORING

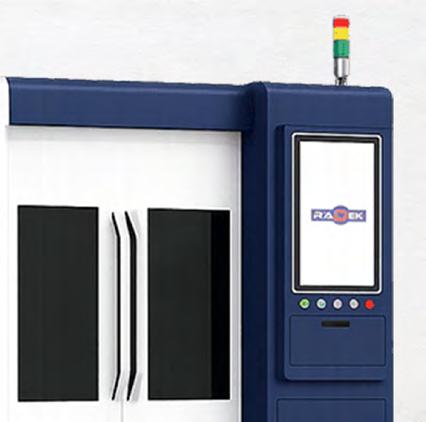

The machine is equipped with a visual monitoring system that provides full real-time process control. By reducing “blind spots,” operator safety is increased while ensuring stable and reliable operation in all cutting modes.

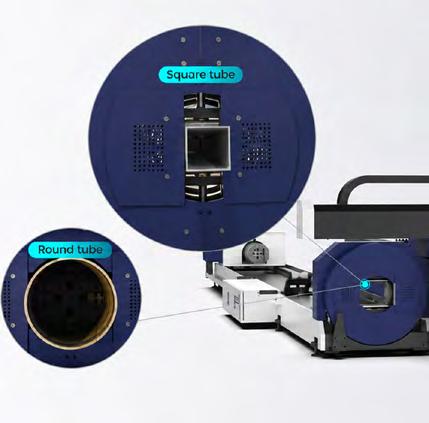

The machine is equipped with a pneumatic self-centering clamp that ensures strong and precise fixing of round and square tubes without slipping. It supports processing of profiles with different dimensions and lengths, providing stability during operation and consistent cutting quality.

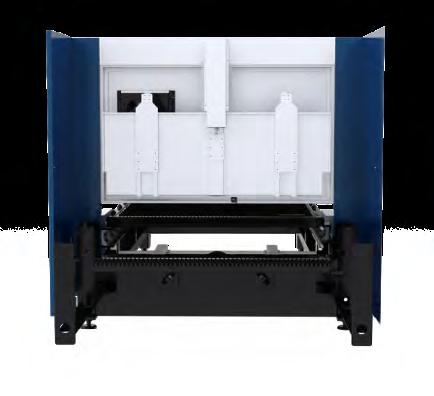

The enclosed design with an automatic lift door provides better sealing of the working area, significantly reducing smoke and dust. This contributes to a cleaner work environment, higher safety, and improved efficiency of the extraction system.

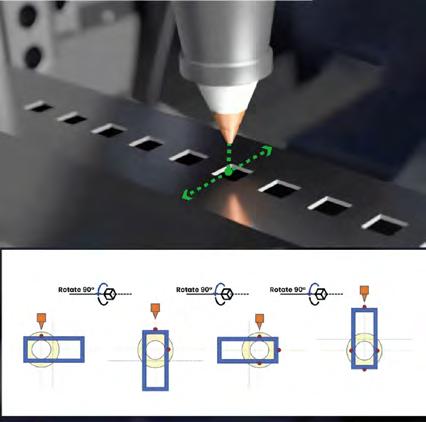

In combination with the automatic centering system, the machine allows precise positioning of different profile types such as H, U, L, and other structural shapes. This significantly increases cutting accuracy, reduces the need for manual corrections, and enables faster and more efficient processing in mass production. AUTOMATIC PROFILE
X AND Y AXIS MOVEMENT
CHILLER
PNEUMATIC CLAMP
Cutting Parameters
STAINLESS STEEL
(mm)
Cutting speed (m/min)
CARBON STEEL
Cutting speed (m/min)
Cutting speed (m/min)
ALUMINUM BRASS
Cutting speed (m/min)
Cost-Benefit Analysis
Laser source (kW)
Chiller (kW)
Air compressor (kW)
Machine tool / host (kW)
Dust removal (kW)
Consumables and gas consumption (CNY/h)
Total power (kW)
Total power consumption (kW/h)
Total operating cost (RMB/h)
Additional Notes:
Auxiliary gas consumption depends on the material thickness; the listed values are based on cutting 16 mm carbon steel with oxygen and 1 mm stainless steel with nitrogen.
