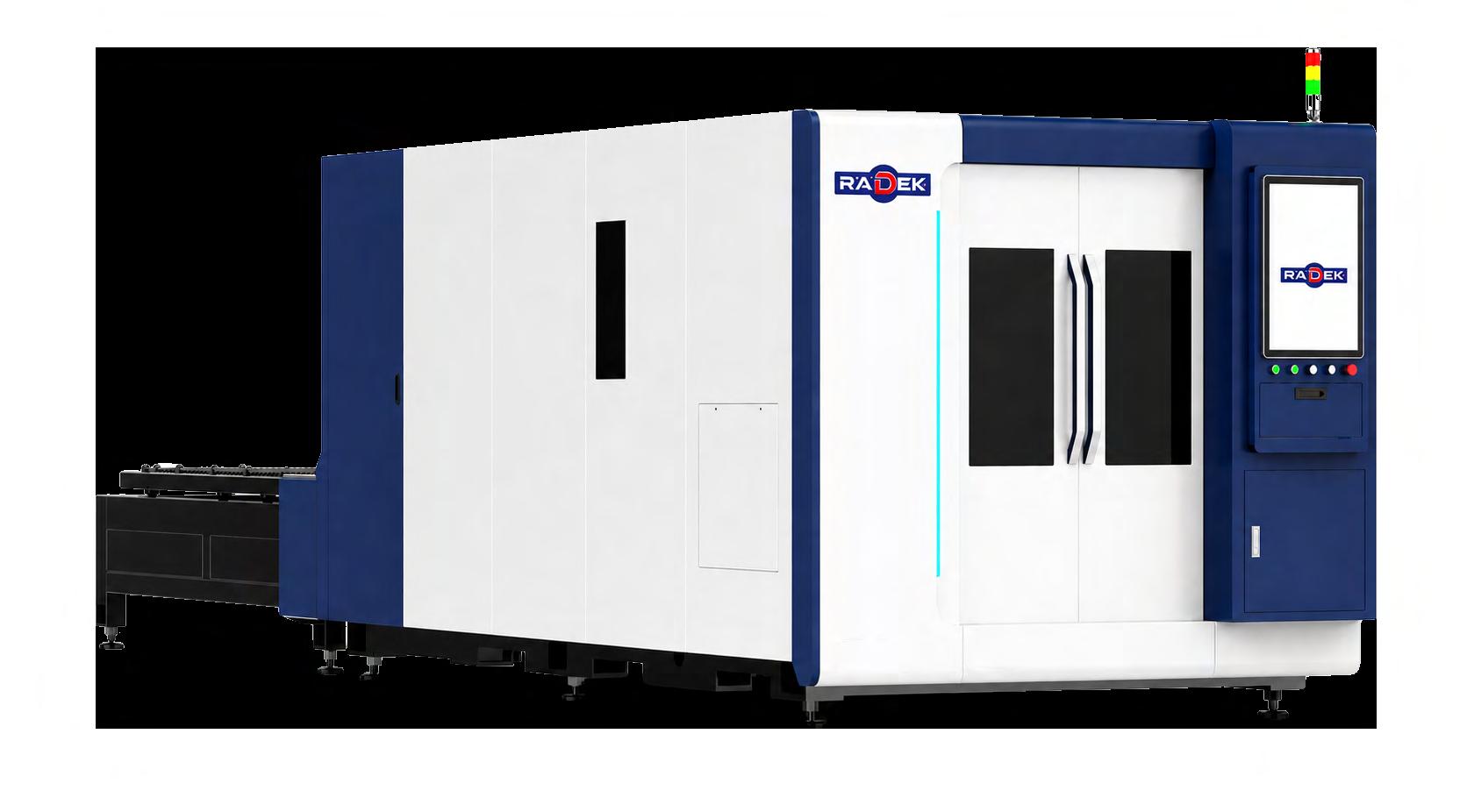

FIBER LASER
Industrial enclosed-type fiber laser with 6 kW power, designed for fast, precise, and highly efficient metal cutting without the need for additional processing. Fiber laser technology represents the most advanced and fastest method for sheet metal processing, offering significantly higher speed and productivity compared to other cutting technologies.
The machine is equipped with a MAX laser source, RAYTOOLS laser head, SHIMPO reducers, SCHNEIDER servo motors and electrical components, HANLI industrial cooling chiller, intelligent ventilation system, and voltage stabilizer.
The enclosed construction provides greater safety, better control of dust and smoke, and more stable working conditions in industrial production.
A combination of high power, stable construction, and premium components for maximum performance, precision, and cutting quality.
Working area
Optional working area
Laser power
WHERE IT IS USED

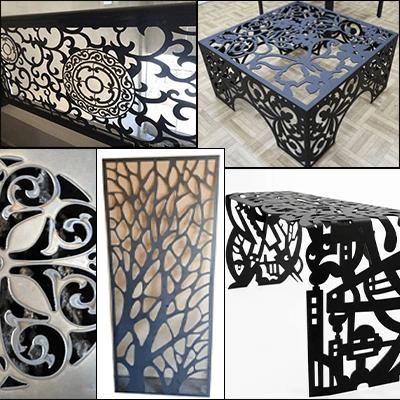

Fiber laser technology is ideal for cutting steel, stainless steel, aluminum, copper, brass, and other materials. It is widely used in various industries such as the production of fences, decorative elements, constructions, urban equipment, machine parts, ventilation systems, and much more.
Optional laser power
Type of drive motors
Y-axis motor power
X-axis motor power
Z-axis motor power
Laser source type
Laser head type
Positioning accuracy
Repeat positioning accuracy
Processing speed
Movement speed
Maximum structure load capacity
Maximum cutting thickness for steel
Maximum cutting thickness for stainless steel
Maximum cutting thickness for aluminum
Maximum cutting thickness for copper
Operating system
Ventilation system
Cooling chiller
Voltage stabilizer
Machine dimensions
Packaging dimensions
Weight
1500 × 3000 mm
2000 × 4000 mm
6000W
12000W
Servo motors
1800W
850W
400W
Max
Raytools BM06K
±0.05 mm
±0.02 mm
0–30 m/min
0–130 m/min
1100 kg
30 mm
20 mm
16 mm
12 mm
FSCUT
Included
Included
Included
8520 × 2270 × 2180 mm
9000 × 2270 × 2180 mm
5320 kg

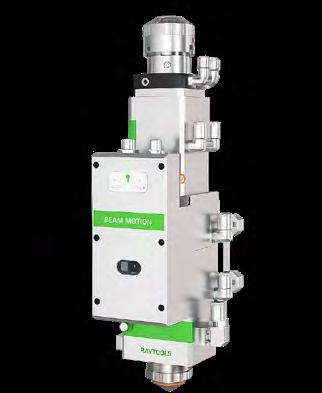

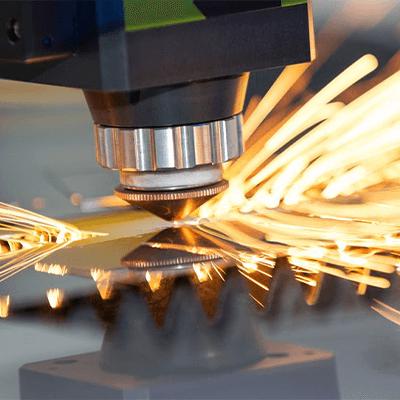

LASER HEAD
Raytools automatic focus laser head, a leading brand known for quality, durability, and precision. It enables continuous and stable operation even during the most demanding tasks, ensuring maximum cutting precision and speed.

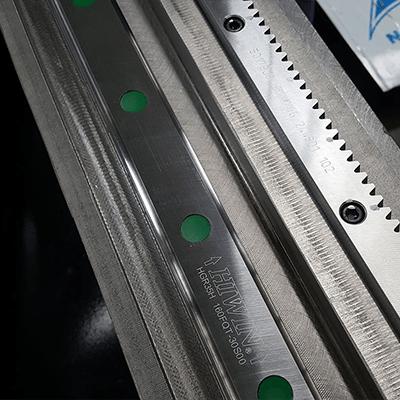

Axis movement is performed through linear guides and rack-and-pinion transmission, recognized as the best and most widely used movement system in CNC machines. It enables smooth operation, low noise levels, and significant reduction of additional loads, increasing durability and service life.

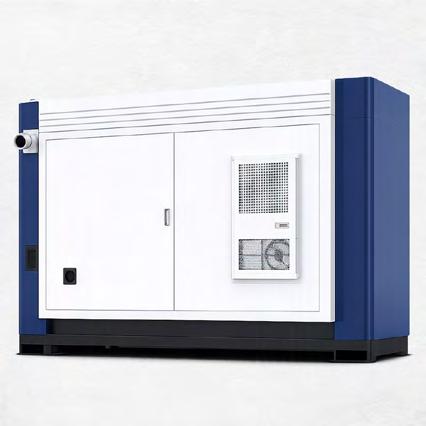

TEMPERATURE-CONTROLLED ELECTRICAL CABINET
The electrical cabinet with temperature and humidity control ensures stable operating conditions for all electronic components. This increases system reliability, extends service life, and maintains consistent performance during long-term operation.

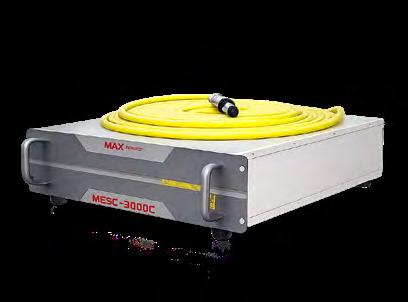

LASER SOURCE
MAX laser source with a lifespan of 100,000 working hours, proven to be one of the most durable and long-lasting solutions compared to other brands. It ensures reliable and stable operation, increasing the overall efficiency of the machine.

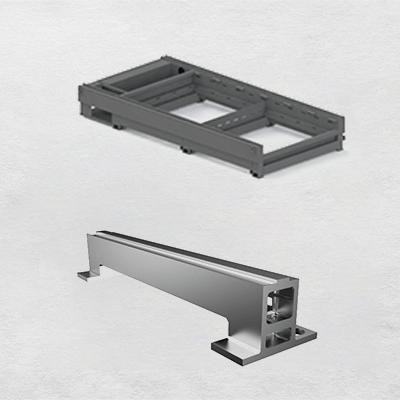

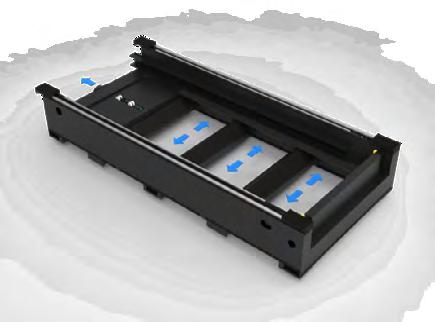

CONSTRUCTION
Massive construction that provides high rigidity and excellent resistance to static and dynamic loads. Manufactured on high-precision CNC metalworking centers, guaranteeing precision, quality, and long machine lifespan.

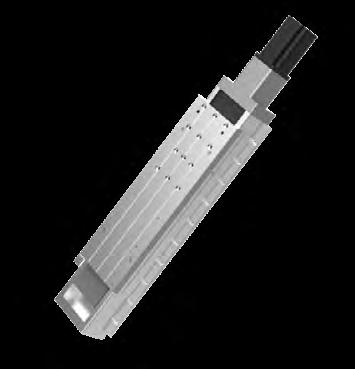

The modular Z-axis is designed for high precision and long-term stability, with excellent sealing against dust and contaminants. This system enables easy maintenance and quick replacement of parts with minimal production downtime.
The optional laser power for this model is 12000W. The ability to choose different power levels allows adaptation according to the cutting requirements of various materials and thicknesses. POWER

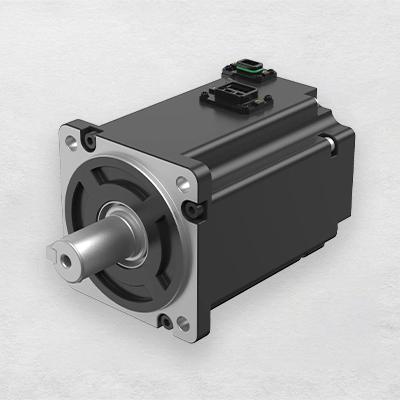

HIGH-PRECISION SERVO MOTORS
Specially designed for high demands and performance. They guarantee precise bridge positioning without deviations or errors, while maintaining high movement speed.

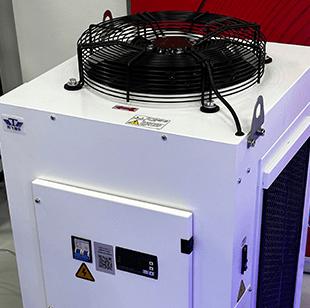

CHILLER
The industrial chiller cools the liquid heated during laser operation. It constantly maintains the liquid temperature and ensures protection and uninterrupted laser performance.
INTELLIGENT DUST EXTRACTION SYSTEM
The dust extraction system automatically regulates extraction according to the cutting position, enabling zoned and precise suction. This results in more efficient smoke and particle removal, a cleaner working environment, and better cutting quality in continuous production.

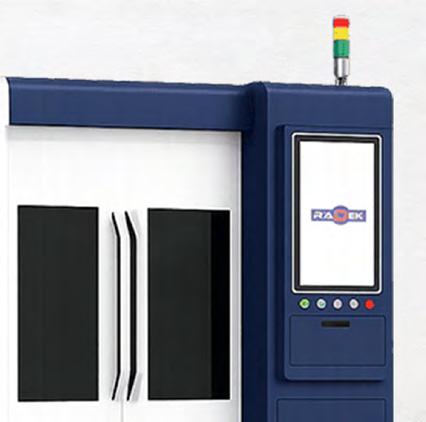

VISUAL SAFETY MONITORING
The machine is equipped with a visual monitoring system that provides full real-time process control. By reducing “blind spots,” operator safety is increased while ensuring stable and reliable operation in all cutting modes.

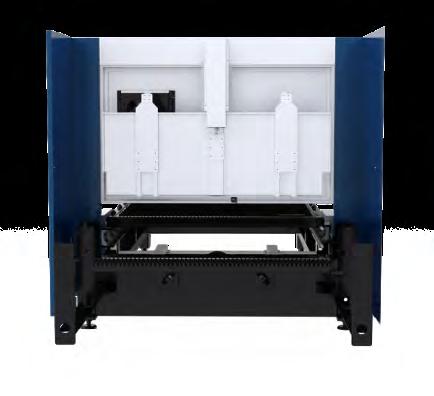

FULLY ENCLOSED LIFT DOOR
The enclosed design with automatic lift doors provides better sealing of the working area, significantly reducing smoke and dust. This contributes to a cleaner work environment, higher safety, and improved extraction system efficiency.
X AND Y AXIS MOVEMENT
Cutting Parameters
STAINLESS STEEL
(mm)
Cutting speed (m/min)
CARBON STEEL
Cutting speed (m/min)
Cutting speed (m/min)
ALUMINUM
Cutting speed (m/min)
Cost-Benefit Analysis
Laser source (kW)
Chiller (kW)
Air compressor (kW)
Machine tool / host (kW)
Dust removal (kW)
Consumables and gas consumption (CNY/h)
Total power (kW)
Total power consumption (kW/h)
Total operating cost (RMB/h)
Auxiliary gas consumption depends on the material thickness; the listed values are based on cutting 16 mm carbon steel with oxygen and 1 mm stainless steel with nitrogen.
