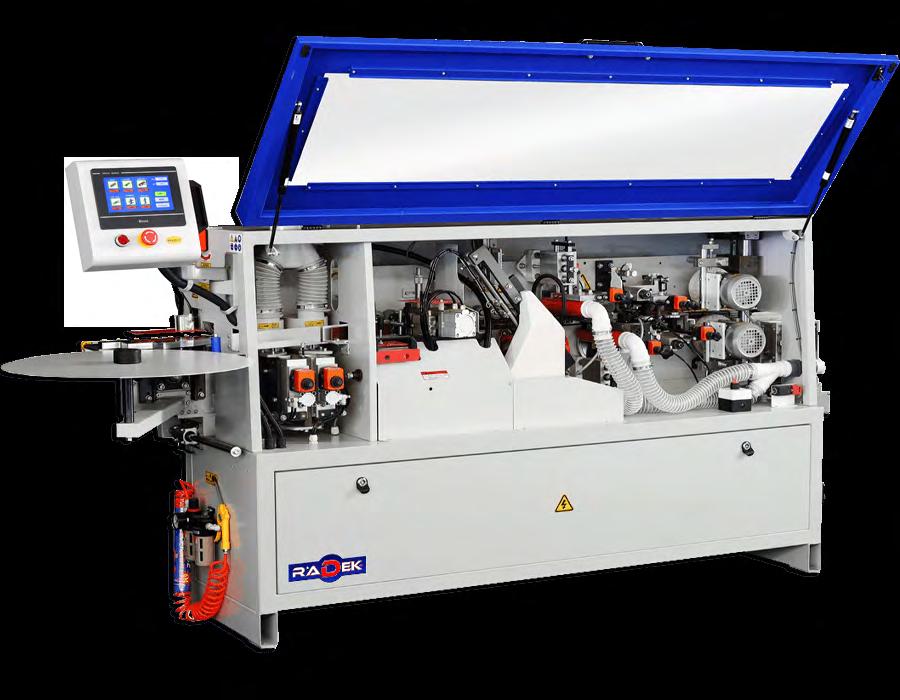

EDGE BANDING MACHINE
RK-5sm-compact
A compact edge banding machine with a perfect assembly of individual components to ensure flawless finishing. All machine parts are manufactured with absolute precision on high-end Japanese machines and inspected by expert engineers under strict quality control. A large touchscreen display detects errors and provides a quick resolution guide whenever a problem arises. It is ideal for small, medium and industrial-scale production.

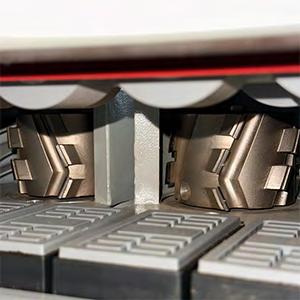

PRE-MILLING UNIT
ADHESIVE APPLICATION

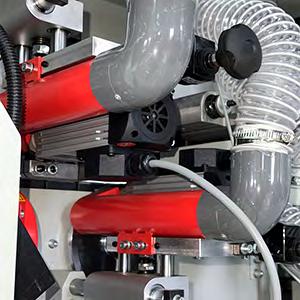

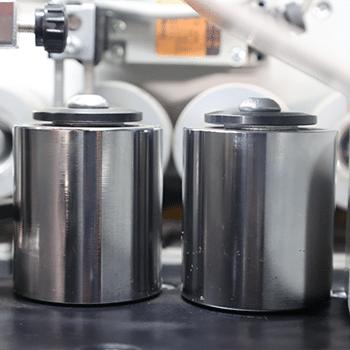

PNEUMATIC ROLLERS

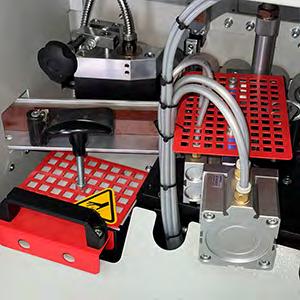

END CUTTING

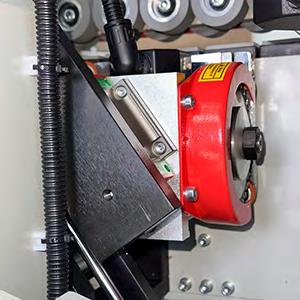

TRIMMING UNIT
Designed to eliminate cutting damage and guarantee a flat surface ideal for gluing. Made with diamond cutters that rotate in different directions.
The canister is coated with Teflon and features a quick-detach system. It is designed for adhesive granules that require just 15 minutes to heat up.
Two pneumatic rollers apply pressure to the tape with adjustable regulators.
Precise cutting of panel edges with two saw blades and high spindle speeds (12,000 RPM)
Precise processing of the upper and lower panel parts with two radius routers (R1, R2, R3) and high spindle speeds (12,000 RPM).
Panel width Panel thickness Edge band thickness Panel length Processing speed Operating pressure Total power Machine dimensions Packing dimensions Weight
minimum 80mm 10-50mm 0.4-3mm minimum 70mm 7m/min 6 bar 6.15kW 2730x1080x1230mm 2422x645x1245mm 780kg

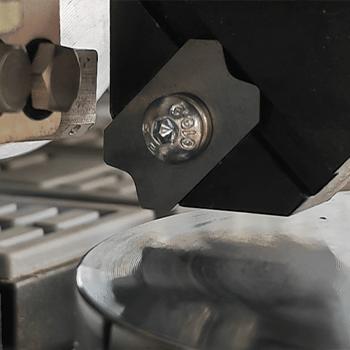

RADIUS SCRAPING UNIT

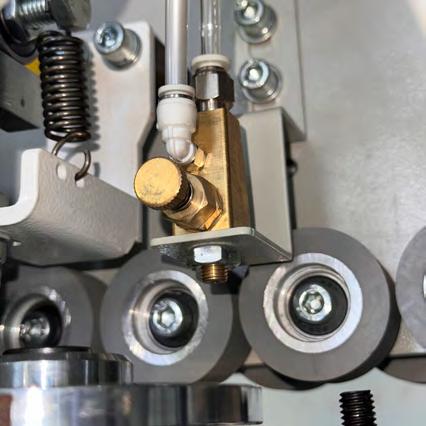

SPRAYING UNIT

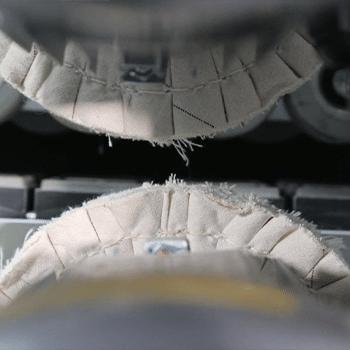

BUFFING UNIT
Scrapers with a radius for edge finishing to ensure smoothness.
Allows the application of adhesive residue cleaning agents on the panel. Ensures a clean and professional edge finish, ready for final processing or assembly.
Final panel finishing by polishing for an even smoother surface.
FLAWLESS FINISH!
