EDGE BANDING MACHINE (RK-5ALL-PREMIUM) - BROCHURE

EDGE BANDING MACHINE

OPTIONAL

The return conveyor is an intelligent solution that significantly increases productivity and reduces the need for labor. Compatible with the RK-5ALL-PREMIUM edgebander, this conveyor automatically returns the processed workpiece to the operator, allowing full operation by a single person—without any additional assistance.

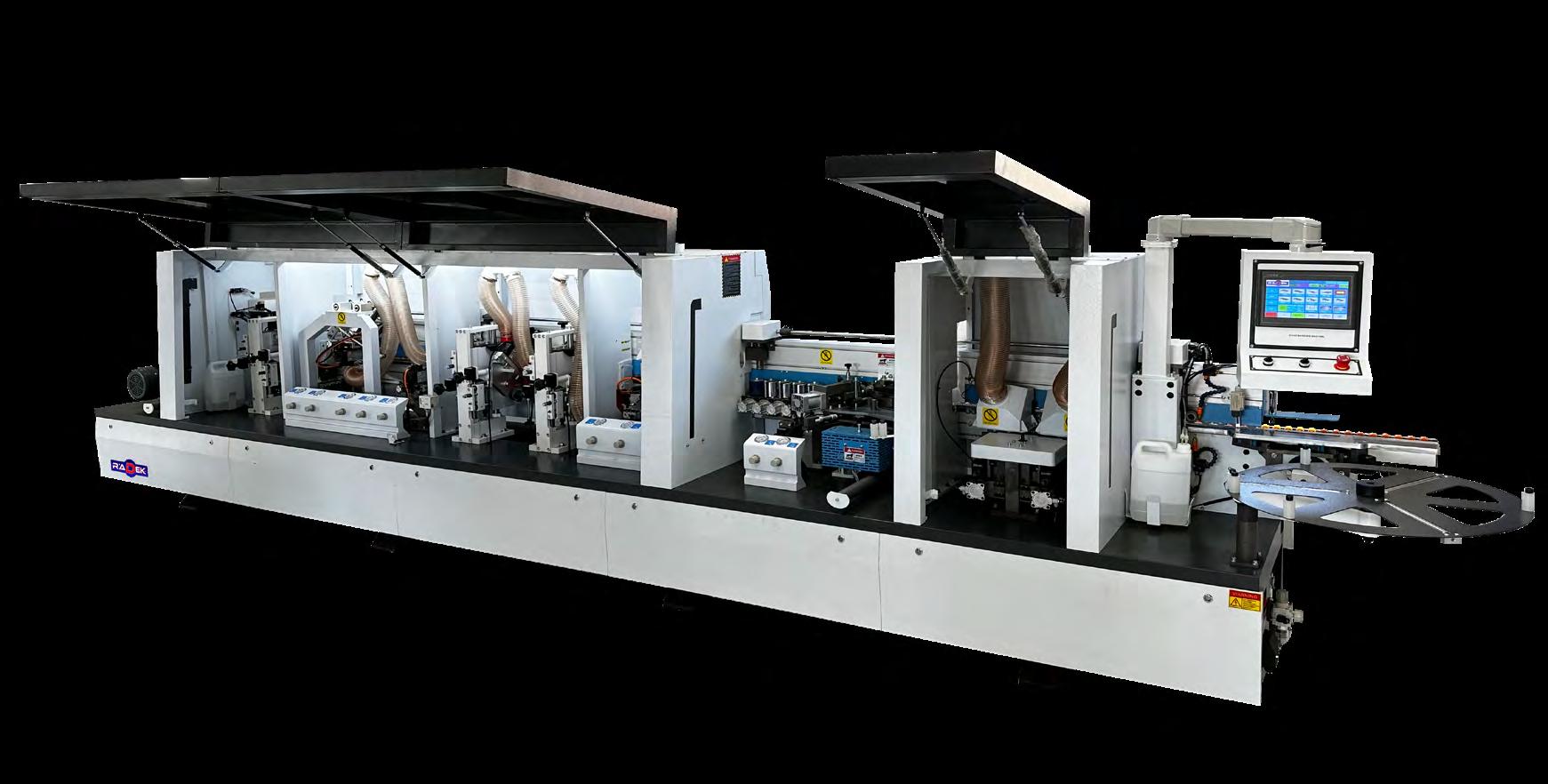

The edge banding machine from RADEK’s premium series is equipped with numerous functions to achieve a perfect finish on every produced piece. It is ideal for industries looking to improve production and increase edge banding capacity up to a speed of 23 meters per minute. A large touchscreen display allows for automatic panel thickness adjustment. Its robust construction ensures stability and reliability during operation. An additional unit with press wheels has been added to eliminate the possibility of panel movement during processing.

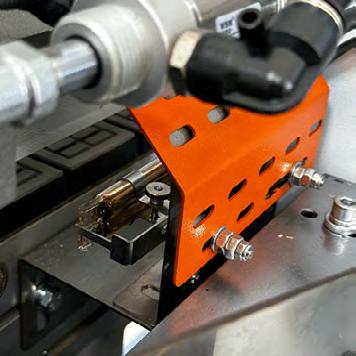

Allows the application of adhesive residue remover on the panel. Applied before the panel enters the edge banding machine, in order to prevent unwanted particles from sticking and to keep the edges clean.

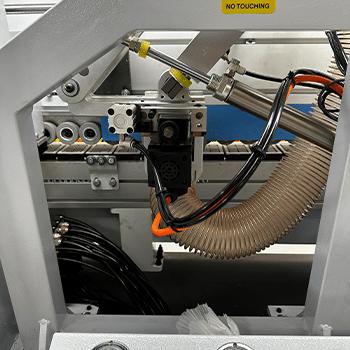

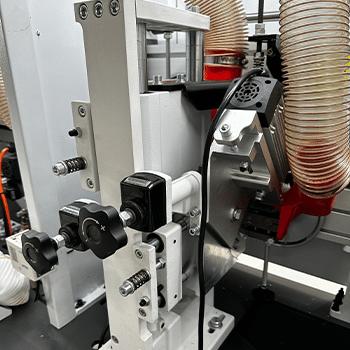

Precise processing of the upper and lower part of the panel with two flat routers and high spindle speeds (12,000 RPM).

Panel width

Panel thickness

Edge band thickness

Processing speed

Operating pressure

Pre-milling power

End cutting power

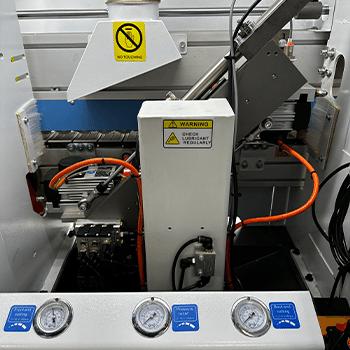

Designed to eliminate cutting damage and guarantee a flat surface ideal for gluing. Made with diamond cutters and additional blowers to remove residue from the work piece for quality tape adhesion. Control of two pre-freesers is done with high-quality pneumatic cylinders. PRE-MILLING UNIT

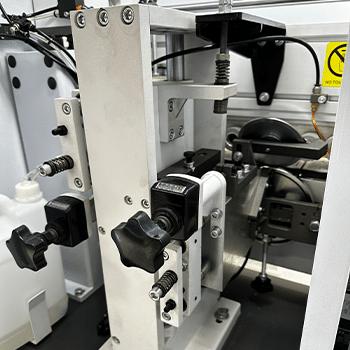

Precision treatment of the upper and lower part of the panels with two radius routers (R1, R2, R3) and high spindle speeds (12,000 RPM).

Preheats the panels, essential for high-quality edge banding, particularly important in winter. The preheating function prepares the edge banding surface, allowing better bonding with the material and higher quality.

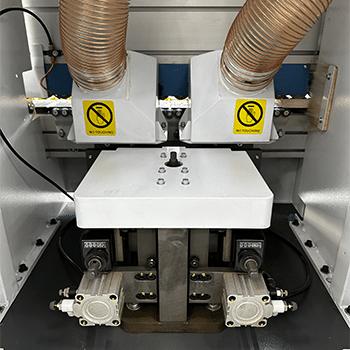

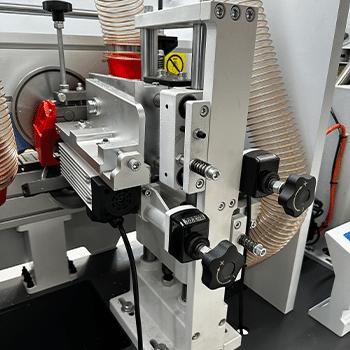

Precise corner finishing on both sides of the panel with two radius routers (R1, R2, R3) and high spindle speeds (18,000 RPM).

minimum 80mm 10-60mm

Rough trimming power

(x2)

(x2)

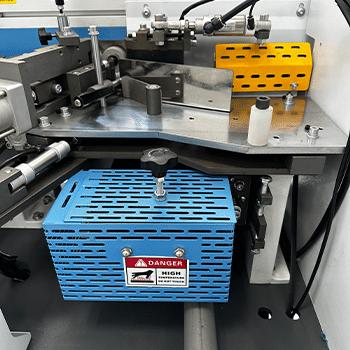

The canister is designed for adhesive granules, with a 4-liter capacity, enabling precise adjustment of adhesive quantity to avoid over or under application.

Scrapers with a radius for edge finishing to ensure smoothness.

Fine trimming power

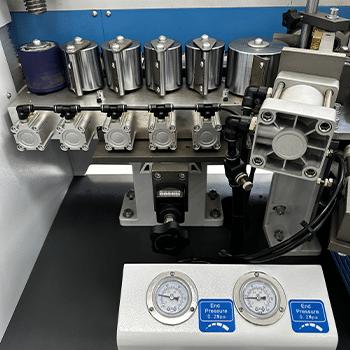

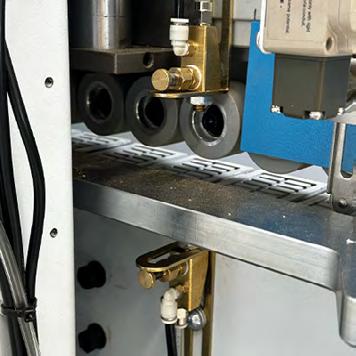

Six pneumatic rollers (4 identical, 1 larger diameter and 1 with rubber material) ensure pressure for excellent tape adhesion. This configuration ensures uniform and reliable contact with the edge, resulting in a high-quality finish.

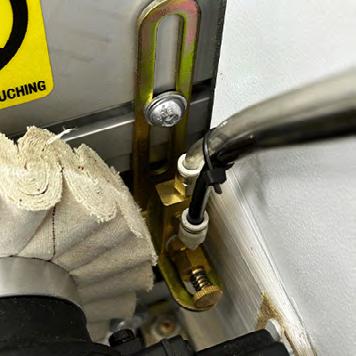

Allows the application of adhesive residue cleaning agents on the panel.

Corner rounding power

Polishing power

Conveyor power

Total power

Machine dimensions

Packing dimensions

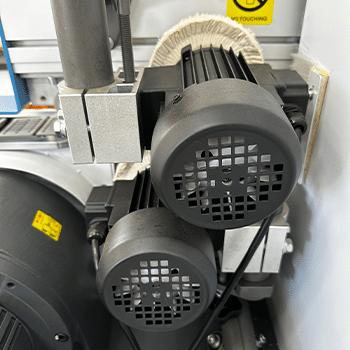

Final panel finishing by polishing for an even smoother surface.

(x2)

(x2) 4kW 16.5kW

Weight 0.75kW (x2)

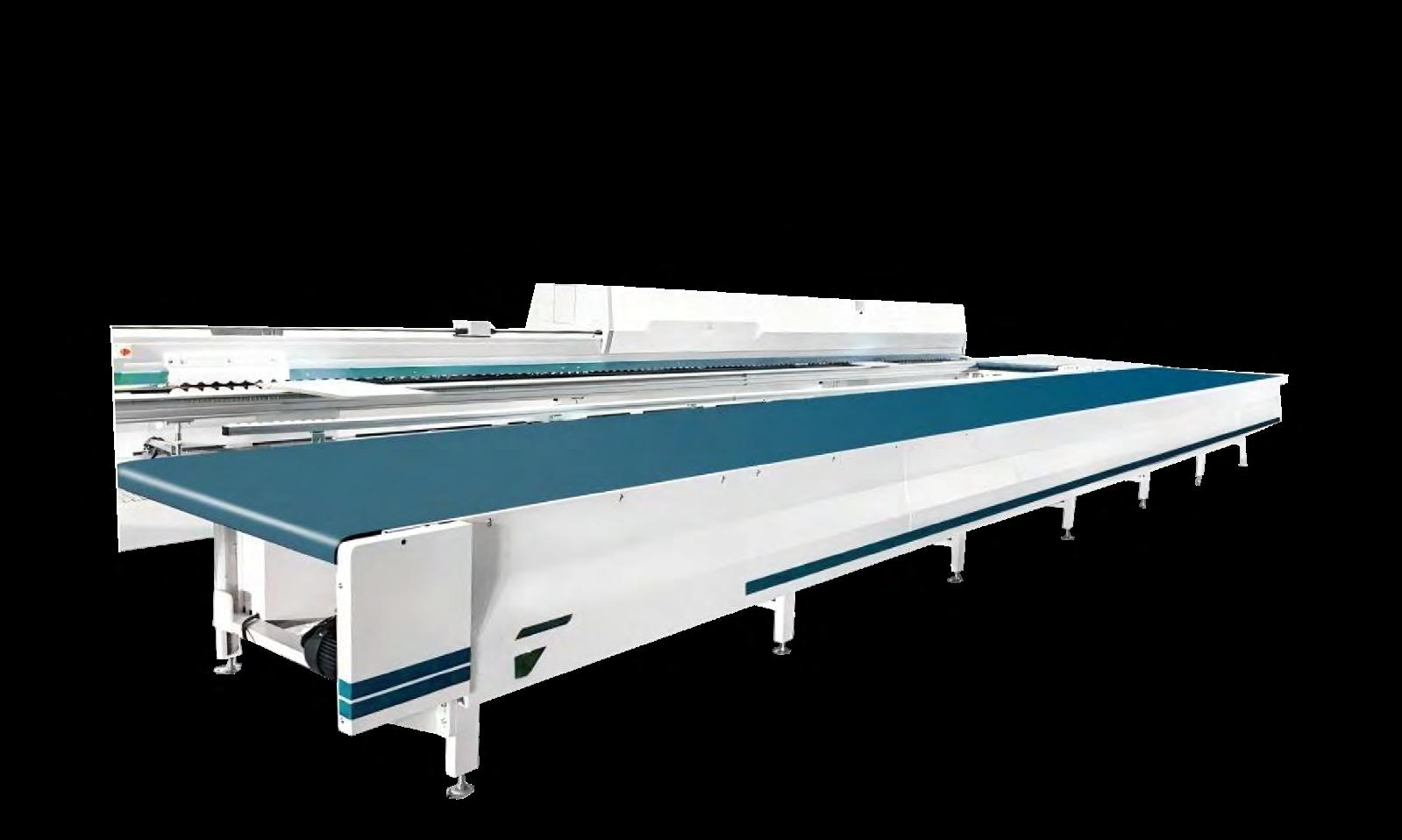

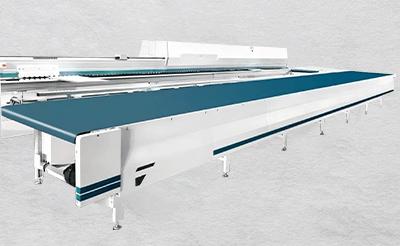

THE RETURN CONVEYOR

The return conveyor is an intelligent solution that significantly increases productivity while reducing the need for additional labor. Fully compatible with the RK-5ALL-PREMIUM edgebander, this conveyor automatically returns the processed workpiece back to the operator, enabling complete operation by just one person—without extra assistance.

With this addition, the RK-5ALL-PREMIUM becomes even more functional, especially for workshops with a limited number of operators that require continuous workflow and maximum efficiency.

Total power

Voltage

Motor

Inverter

PLC controller

Belt type

Main conveyor dimensions

Supporting structure

Main frame

Load capacity

Working speed

Weight

1.6 kW

380V, 50Hz, 3-phase

Guoyou brand

Guoyou brand

Guoyou brand

PE (dark green), 3 mm thickness

9000 × 1285 × 900 mm

Aluminum profile 40 × 80 mm

3 mm steel sheet, bent and welded, with external coating ≤ 80 kg/m
