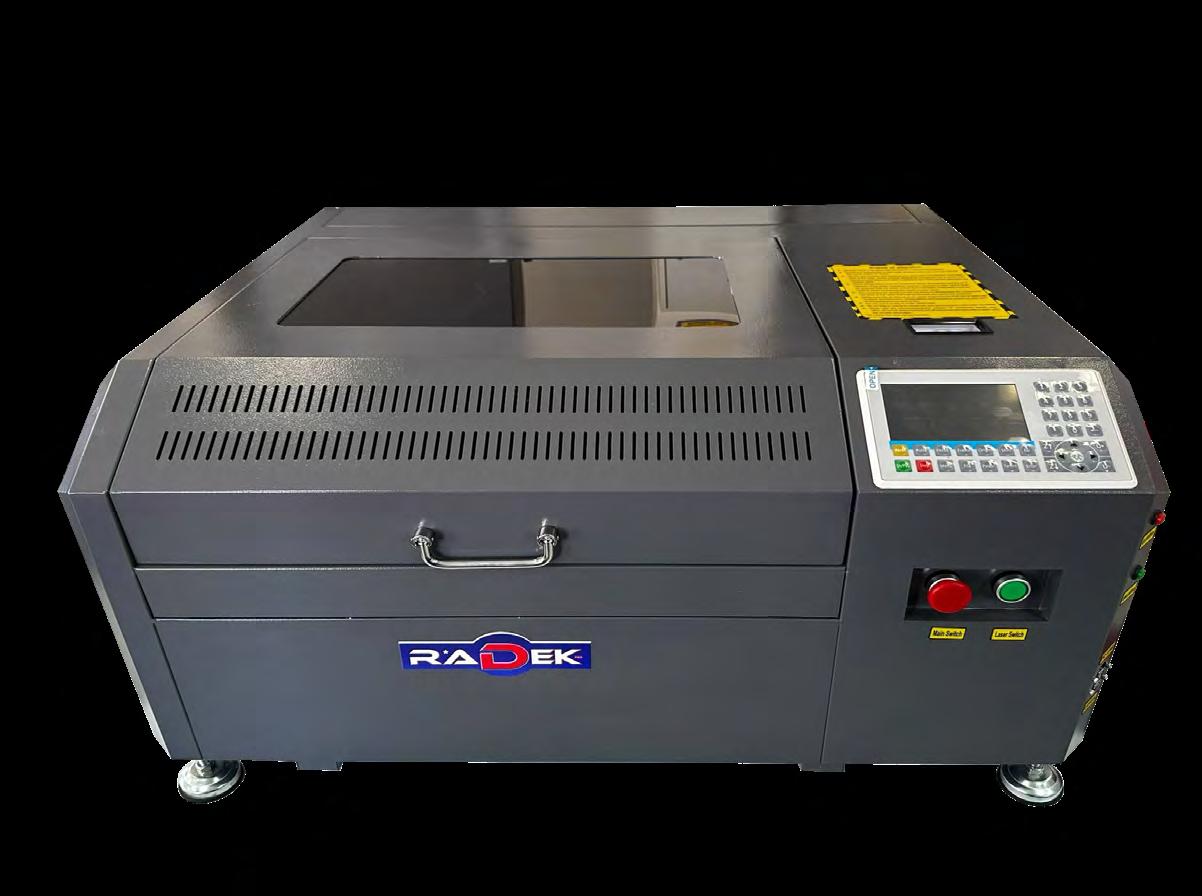

CO2 LASER (RK-4040-PRO) - BROCHURE

CO2 LASER

CO2 lasers present an excellent opportunity for starting a new business or expanding an existing one, thanks to their versatility in processing numerous materials and their application in various industries and projects.

CO2 lasers are among the greatest technological advancements, offering superior quality in processing various materials. Due to their operational safety and extremely low maintenance costs, CO2 lasers positively impact business economics. The laser beam, guided by mirrors and lenses, efficiently transmits and focuses the beam for successful engraving and cutting of materials such as wood, MDF, plywood, HDF, acrylic, leather, cardboard, rubber, marble, mirrors, coated metals and more. They are widely used across various industries, including manufacturing, small and large enterprises, crafts, packaging, printing, leather processing, clothing, automotive, musical instruments, architecture, label production, medical industries and many others.

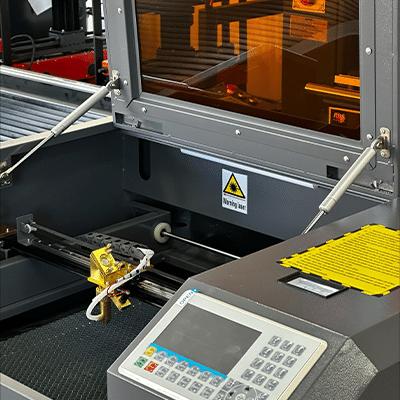

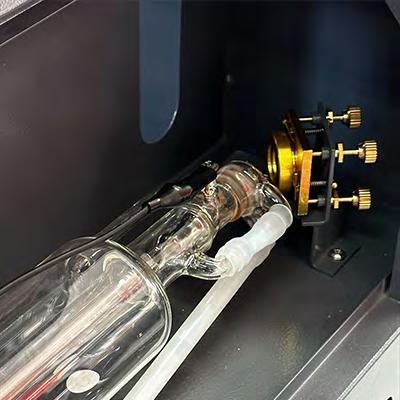

A high-quality 50W CO2 tube that allows processing materials up to 20mm thick. Provides a stable and continuous laser beam, resulting in clean and precise cuts without burning the edges.

Working area (X and Y axis)

Working area (Z axis)

Laser power

Engraving speed

Cutting speed

Positioning

Cooling system

Worktable

Linear guides

Movement motor

Software Controller

Air compressor

Ventilation

Cutting thickness

Positioning accuracy

Rotary axis

Machine dimensions

Packing dimensions

Weight

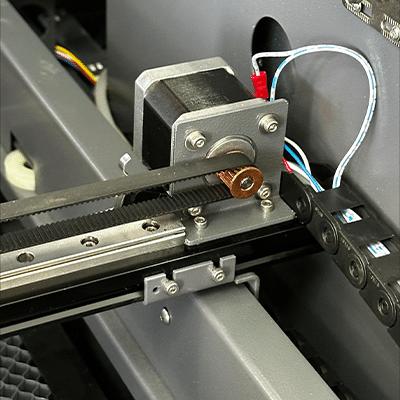

Highly precise linear guides guarantee stable and smooth movement during operation. Its durable construction ensures long-lasting accuracy and minimal maintenance, even under intensive use.

400x400mm

150mm

50W

1-400mm/s

1-400mm/s

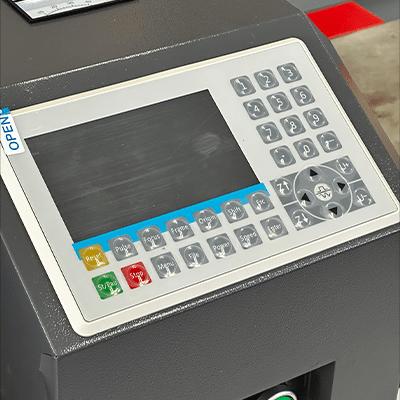

Industrial RUIDA 6445 controller with numerous options and a large display. Offers easy navigation, fast response, and precise control over all cutting parameters.

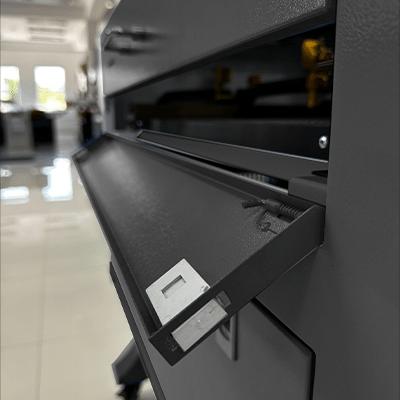

The laser includes doors that allow positioning of materials larger than the working area of the laser.

Red dot (RED DOT)

Industrial chiller CW3000

Movable platform with Honeycomb

15mm (X and Y axis)

Step motor 42

Rdworks

Ruida 6445

Included Built-in 38W

1-20mm (depending on material)

≤0.01mm

Optional 900x750x420mm

1020x880x610mm

70kg

Unlike standard CO2 lasers, RADEK lasers are fully equipped at the highest level with features such as an industrial cooling chiller, motorized movable platform (Z-axis), automatic focus, red dot pointer for positioning, honeycomb working table, a powerful compressor and a fan with a flexible hose.

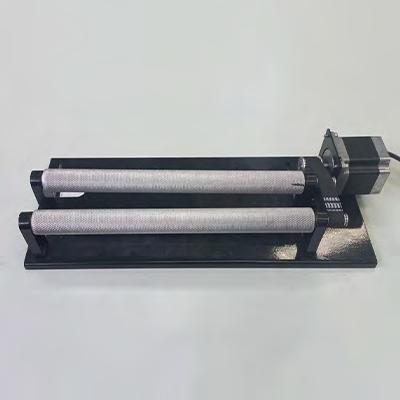

Rotary axis for engraving cylindrical products. Allows expansion of the machine’s functionality and greater flexibility for producing customized items.

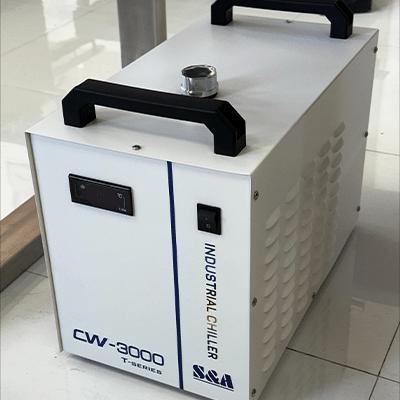

The industrial chiller functions to cool the liquid that heats up during laser operation. It maintains a constant liquid temperature, ensuring protection and smooth operation of the laser.
