Woodworking AND METALWORKING Machines
CO2 LASER

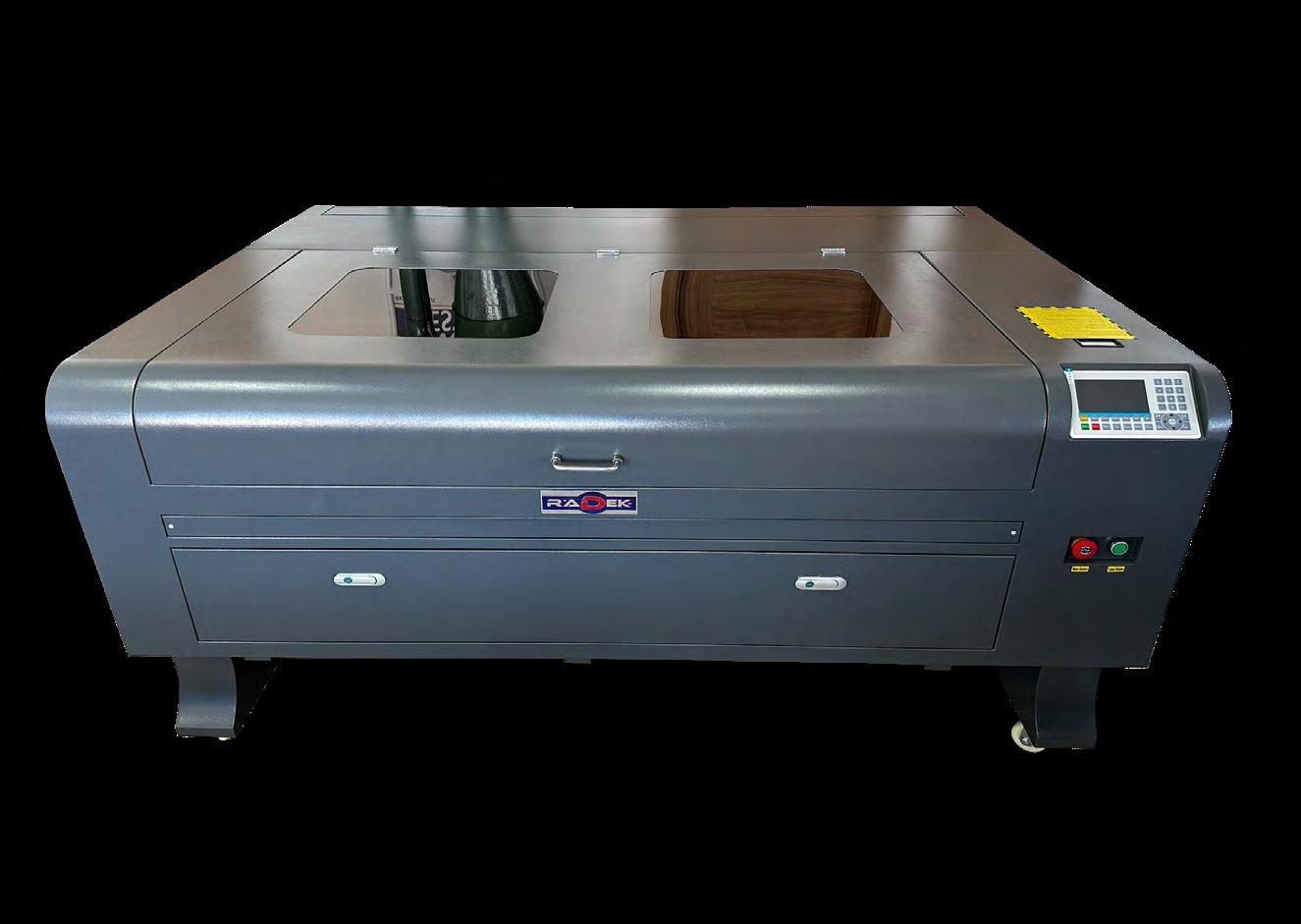

RK-1310-PRO
BUSINESS IDEA CO2 lasers present an excellent opportunity for starting a new business or expanding an existing one, thanks to their versatility in processing numerous materials and their application in various industries and projects.
CO2 lasers are among the greatest technological advancements, offering superior quality in processing various materials. Due to their operational safety and extremely low maintenance costs, CO2 lasers positively impact business economics. The laser beam, guided by mirrors and lenses, efficiently transmits and focuses the beam for successful engraving and cutting of materials such as wood, MDF, plywood, HDF, acrylic, leather, cardboard, rubber, marble, mirrors, coated metals and more. They are widely used across various industries, including industrial manufacturing, small and large businesses, craftsmen, packaging industry, printing, leather processing, clothing, automotive, musical instruments, architecture, label production, medical industry and many others.
LINEAR SYSTEM
INDUSTRIAL CONTROLLER
ACCESS DOORS
OPTIONAL FEATURE
INDUSTRIAL CHILLER

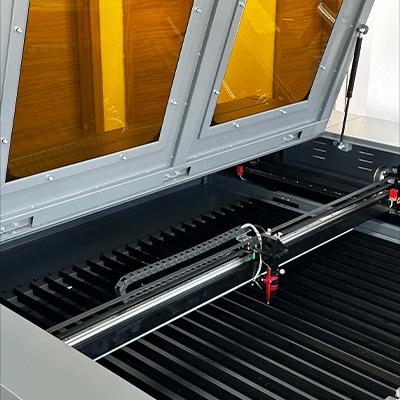

Highly precise linear guides guarantee stable and smooth movement during operation. Its durable construction ensures long-lasting accuracy and minimal maintenance, even under intensive use.

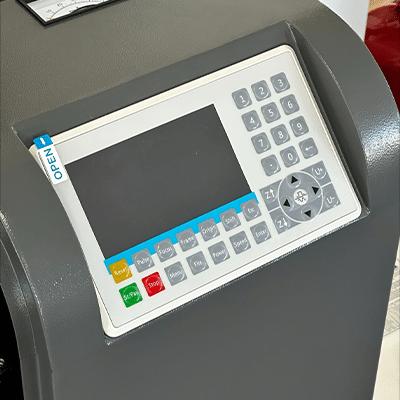

Industrial RUIDA 6445 controller with numerous options and a large display. Offers easy navigation, fast response, and precise control over all cutting parameters.

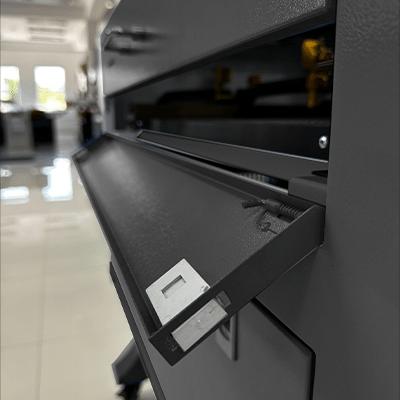

The laser machine has access doors that allow the positioning of materials larger than the working area.

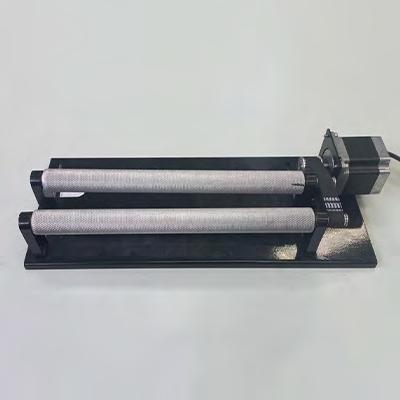

Rotary axis for engraving cylindrical products. Allows expansion of the machine’s functionality and greater flexibility for producing customized items.

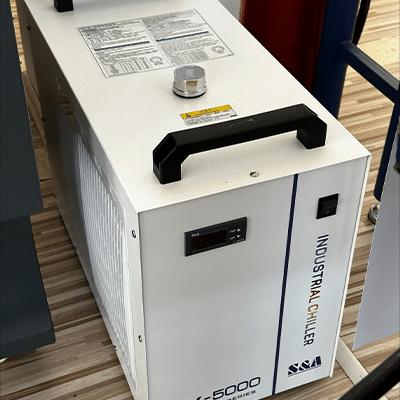

The industrial chiller functions to cool the liquid that heats up during laser operation. It maintains a constant liquid temperature, ensuring protection and smooth operation of the laser.
Working area (X and Y axis) Working area (Z axis) Laser power Engraving speed Cutting speed Positioning Cooling system Worktable Linear guides Movement motor Software Controller Air compressor Ventilation Cutting thickness Positioning accuracy Rotary axis Machine dimensions Packing dimensions Weight
1300x1000mm 350mm 100W / 130W / 150W 1-1000mm/s 1-500mm/s Automatic focus + red dot Industrial chiller CW5200 Movable platform with со Honeycomb 15mm (X and Y axis) Step motor 57 Rdworks Ruida 6445 Included 550W 1-20mm (depending on material) ≤0.01mm Optional 1850x1390x990mm 2130x1510x860mm 360kg
COMPLETE EQUIPMENT
CO2 TUBE

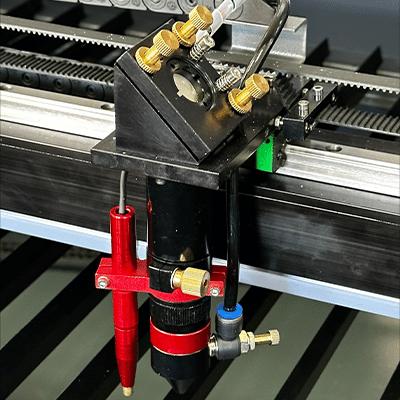

Unlike standard CO2 lasers, RADEK lasers are fully equipped at the highest level with features such as an industrial cooling chiller, motorized movable platform (Z-axis), automatic focus, red dot pointer for positioning, honeycomb working table, a powerful compressor and a fan with a flexible hose.

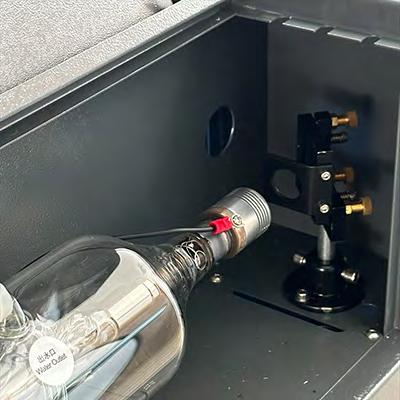

A high-quality 100W CO2 tube that allows processing materials up to 20mm thick. Optionally, a 130W or 150W tube can be installed. The tubes are from the renowned brand EFR, which has been on the market for many years and guarantees quality, durability and maximum efficiency in cutting and engraving.
EVERYTHING YOU NEED!
