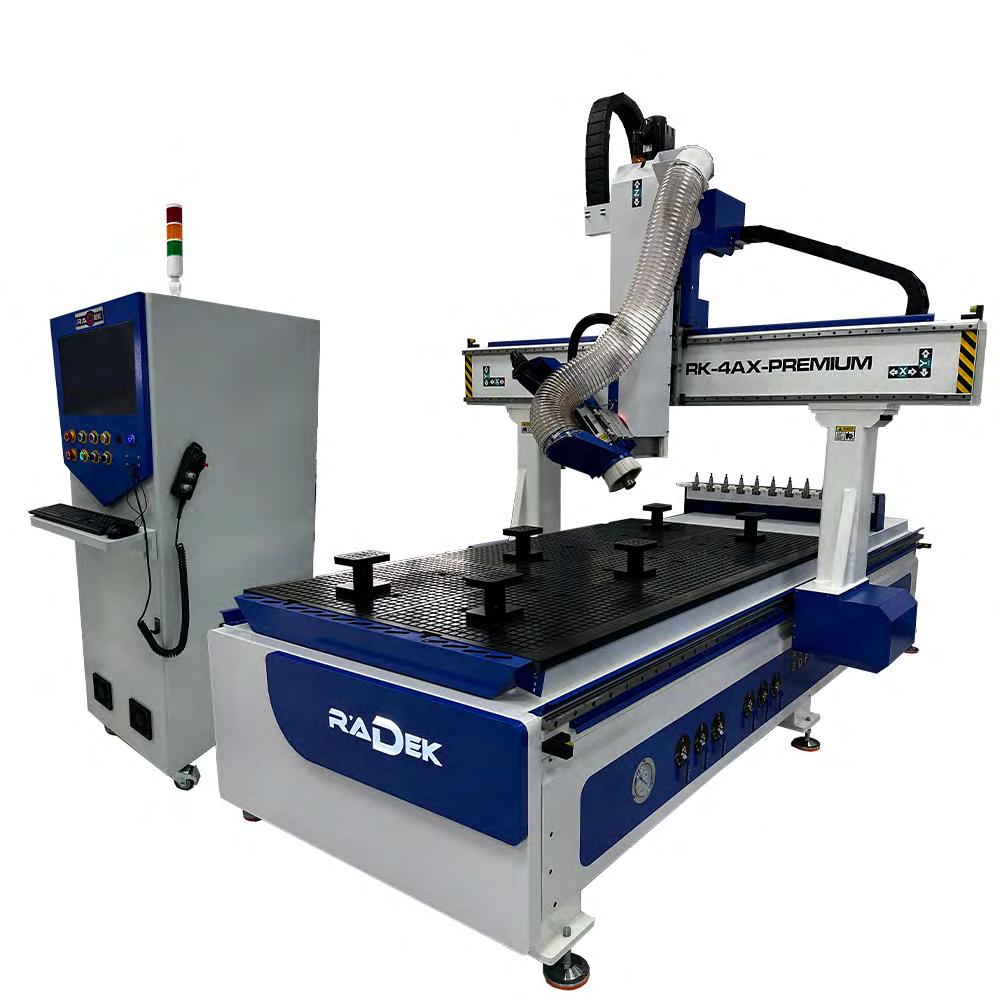

CNC ROUTER
The RADEK Premium Series 4-axis CNC router is specialized for complex products and door processing, offering cutting, vertical and horizontal drilling, carving and engraving—all in a single machine. Known for high precision, speed, productivity and flexibility, this machine is ideal for various woodworking applications.

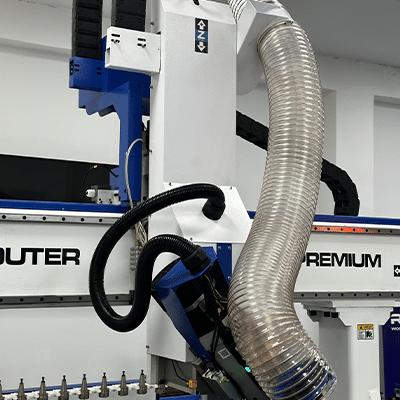

INDUSTRIAL MOTOR 9KW
motor has 24,000 RPM and air cooling, enabling flawless processing of all types and thicknesses of materials.

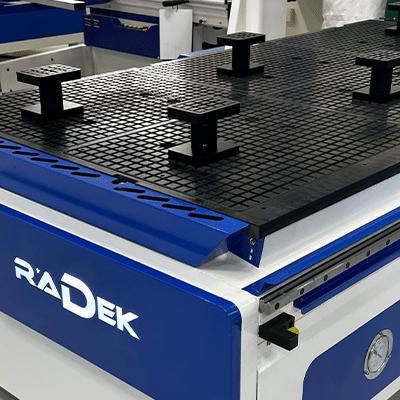

TABLE
Similar to the previous machine, this working table is designed with special wear-resistant plastic for vacuum pump usage, along with integrated “T” aluminum rails for manual securing.

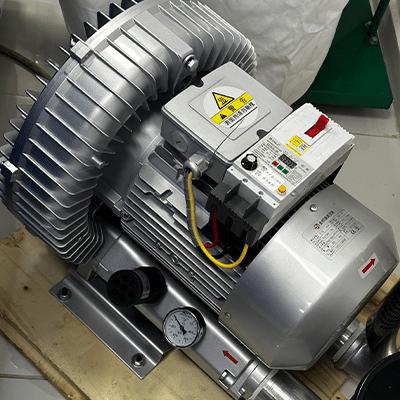

The machine is equipped with a 7.5 kW air-cooled vacuum pump. The vacuum pump capacity ranges from 320 m³/h to 550 m³/h, ensuring strong and reliable suction even for smaller panels.
Working area
Main motor power
Main motor speed
Main motor cooling type
Movement motor type
Movement motor power
Worktable
Vacuum pump power
Vacuum pump capacity
Vacuum pump cooling type
Number of vacuum zones
Tool magazine
Operating system
Processing speed
Main motor collet type
Collet clamp diameter
Machine dimensions
Weight 1300x2500x500mm

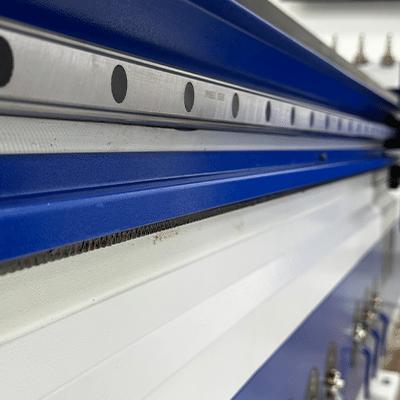

The movement is facilitated by linear guides (30mm and 25mm) and a rack and pinion system by the renowned HIWIN brand, ensuring smooth operation, low noise and long-lasting durability.

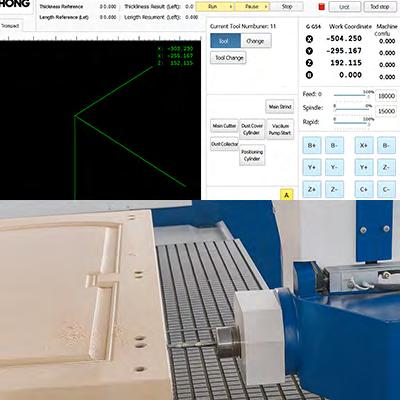

Specialized CNC software for fast and precise door machining. It offers real-time visualization, automatic measurements, and intelligent control of all operations — from hinges and locks to frames and grooves — ensuring stable, automated operation with minimal operator intervention.

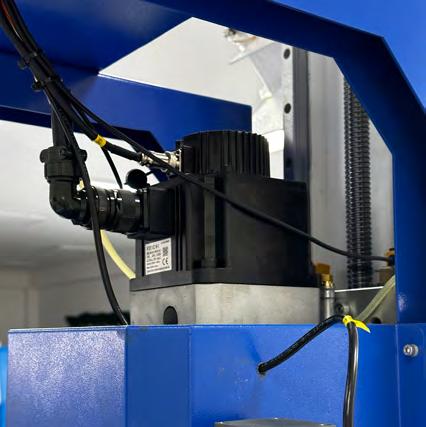

HIGH-PRECISION SERVO MOTORS
These motors guarantee precise positioning of the bridge and spindle, offering high-speed movement up to 30 meters per minute and exceptional quality and stability in demanding industrial conditions.

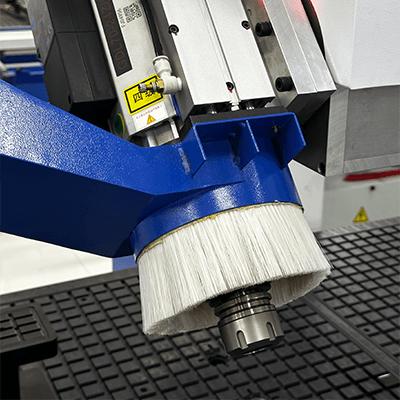

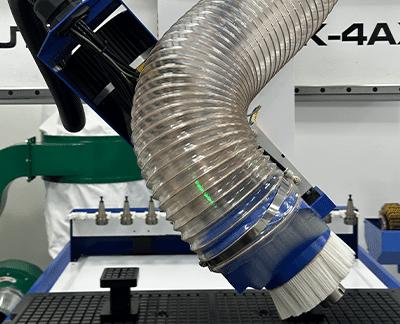

The main motor can rotate, allowing for the processing of complex products. Enables machining of irregular shapes, ideal for modeling complex designs and 2D–3D surfaces.
4TH AXIS
The
WORKING
INDUSTRIAL VACUUM PUMP
X AND
AXIS MOVEMENT
The Z axis uses a ball screw for exceptional precision, low friction, maximum protection from wear and prevention of overheating of friction elements during machine operation.
Z AXIS MOVEMENT
