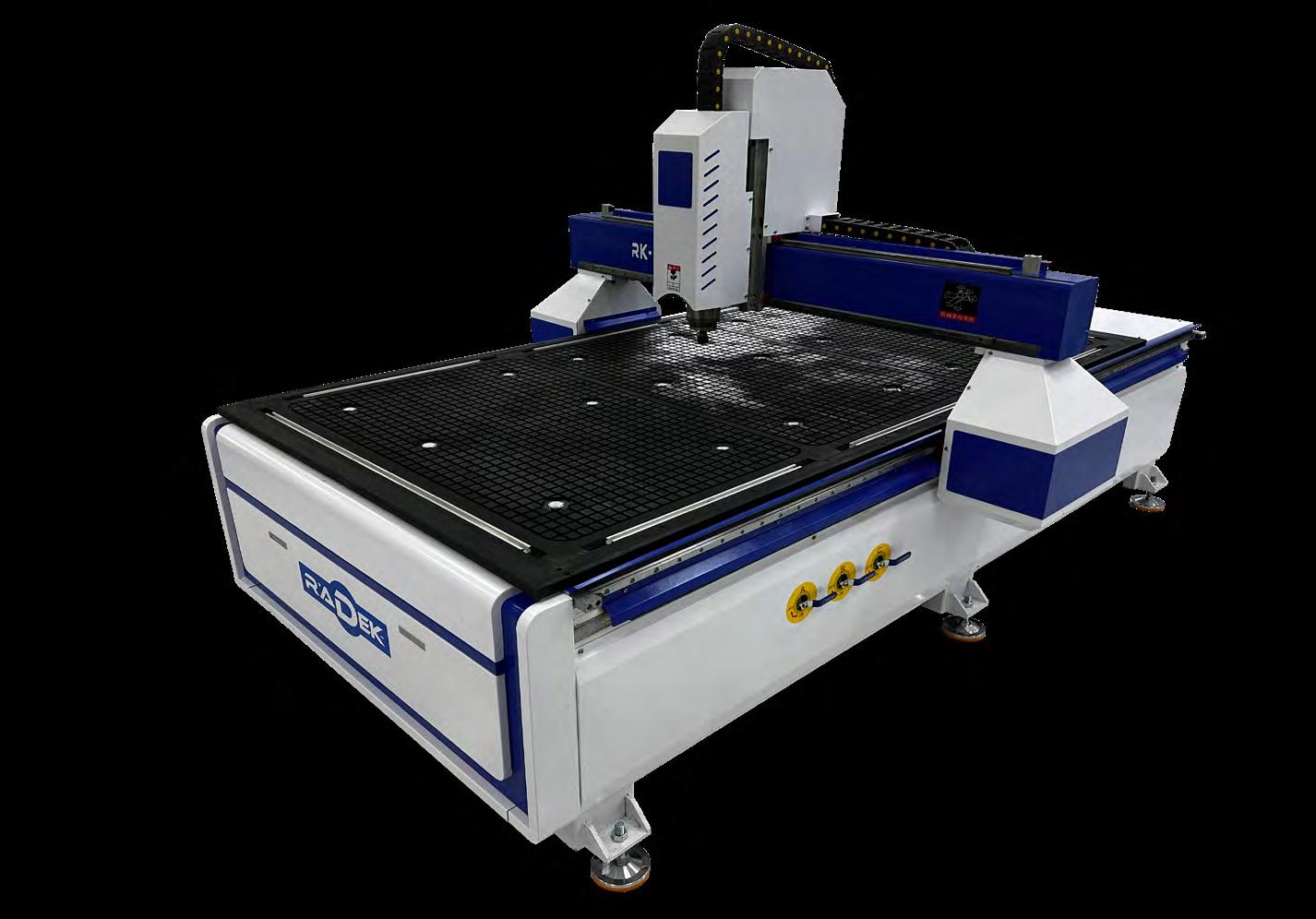

CNC ROUTER
CAPABILITIES

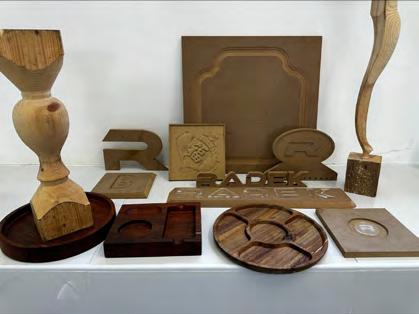

Endless possibilities for processing materials such as wood, MDF, plywood, plexiglass, foreks, lesonit and alubond.
A great opportunity to start or expand a business, widely used in industries such as furniture manufacturing, decorative elements, icons, panel leveling and logo creation.
CNC routers are increasingly used in various industries as they are one of the most important machines in any production facility. They significantly increase processing capacity and eliminate human error, ensuring consistent and unchanging work quality.
CONSTRUCTION
The construction ensures a high level of rigidity and excellent resistance to loads. Made from high-quality materials, ensuring stability and long-lasting performance even under intensive use.
Take your woodworking and panel processing projects to the next level. This CNC machine is designed for cutting, drilling and engraving, turning your ideas into reality. Equipped with an aluminum T-slot table or optional vacuum table, a vacuum pump (optional), a lubrication system, a water-cooled spindle motor, a set of vacuum table seals (optional), tool holders and cutters, leveling feet, a set of manual clamps and an NC Studio operating system.

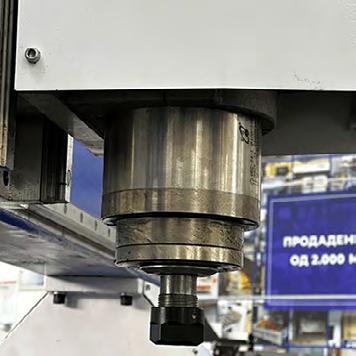

A powerful 3.2kW motor with 24,000 RPM and water cooling.

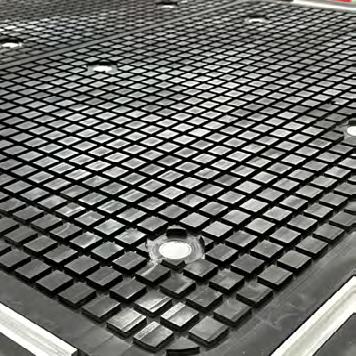

Optionally, an aluminum table with T-slots or a vacuum table designed for use with a vacuum pump made from wear-resistant plastic. It also features integrated “T” aluminum rails for manual piece fixation using clamps. WORKING TABLE

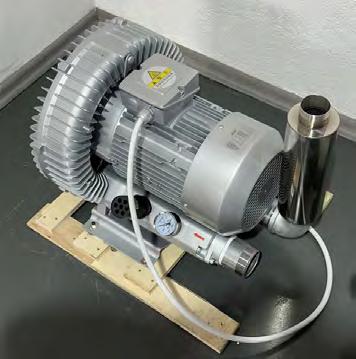

PUMP (OPTIONAL)
Equipped with a powerful 7.5kW vacuum pump with air cooling. The vacuum pump capacity is 320m³/h - 550m³/h, allowing high absorption of workpieces.

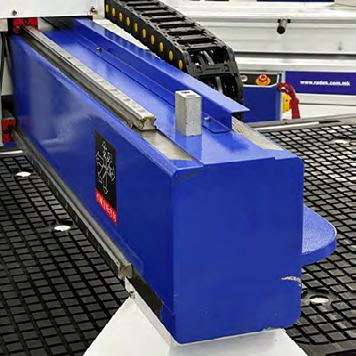

bridge structure ensures high rigidity, durability and precision. Designed to minimize vibration during operation, directly enhancing machining quality and accuracy.

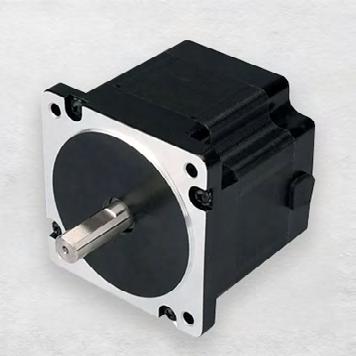

HIGH-PRECISION STEP MOTORS
Ensure precise positioning of the bridge and spindle with high-speed movement of up to 15 meters per minute. Excellent quality and stability in operations.

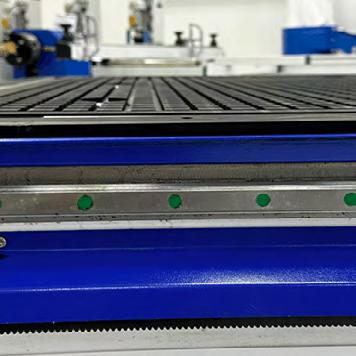

MOVEMENT ALONG X AND Y AXES
Movement of the axes is achieved via linear guides and rack-and-pinion, providing smooth operation, low noise and significantly reduced additional loads, increasing durability.
Working area
Main motor power
Main motor speed
Main motor cooling type
Movement motor type
Movement motor model
Worktable
Worktable (optional)
Vacuum pump power
Vacuum pump capacity
Vacuum pump cooling type
Number of vacuum zones
Operating system
Processing speed
Main motor collet type
Collet clamp diameter
Machine dimensions
Weight
Stepper motors
86BHH-400B-35
Aluminum table with T-slots Vacuum

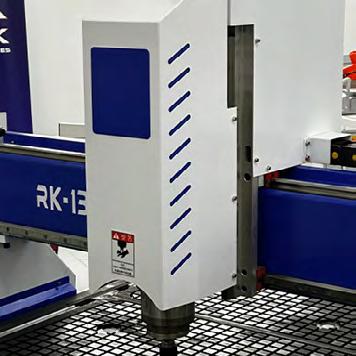

The Z-axis is equipped with a ball screw, ensuring exceptional precision, low friction, maximum protection from rapid wear and preventing overheating of elements during operation. MOVEMENT ALONG Z AXIS
NC Studio operating
easy and organized access to all machine functions.
POWERFUL MOTOR
VACUUM
The
system enables

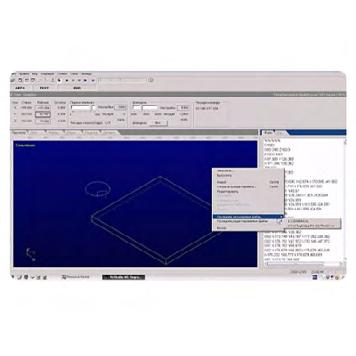

NC STUDIO OPERATING SYSTEM
The
SOLID BRIDGE
