Woodworking AND METALWORKING Machines
CNC PANEL SAW WITH AUTOMATIC LOADING
RK-320fL-PREMIUM

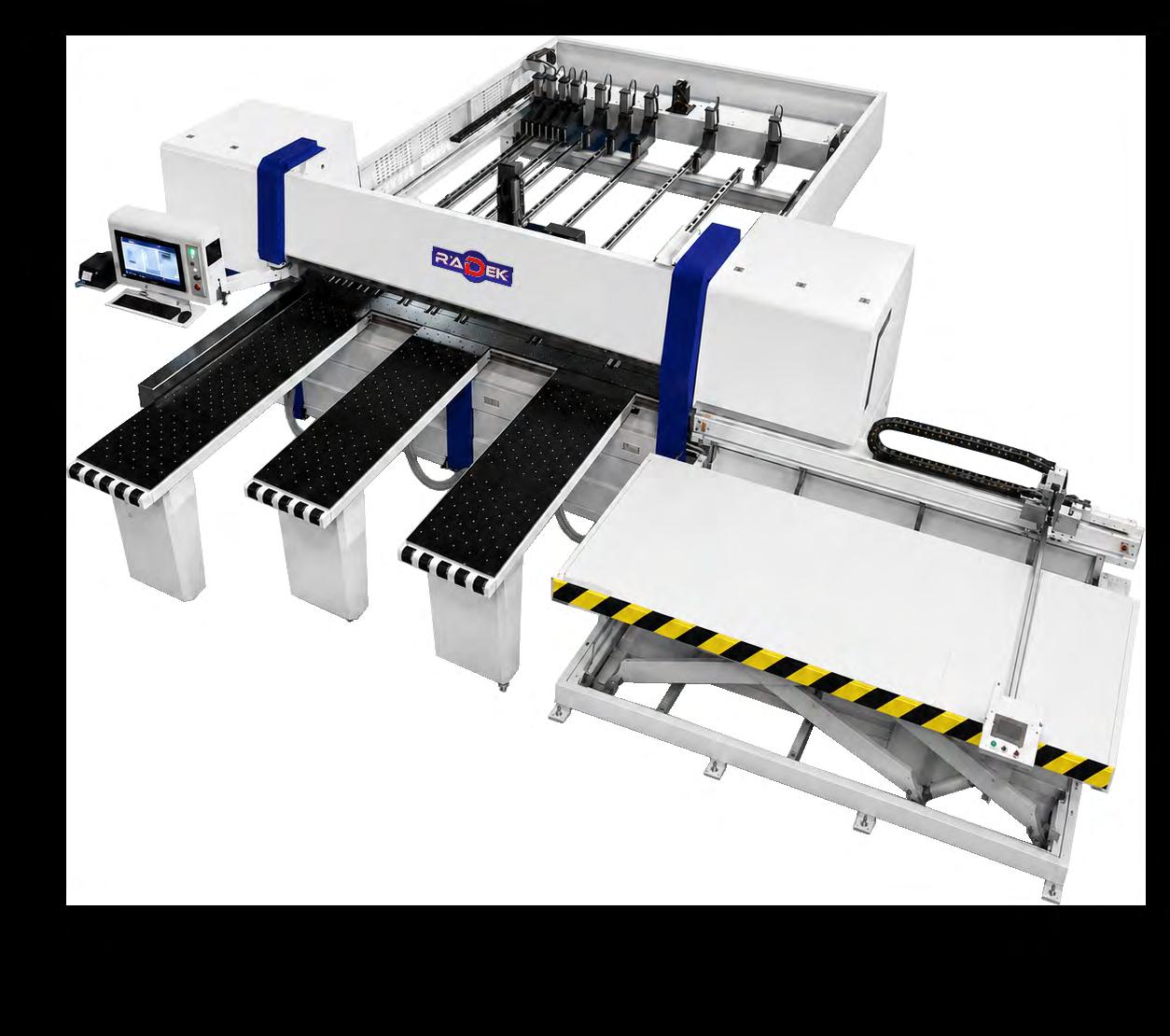

Industrial CNC panel saw with an automatic front-loading system for sheet materials. The integrated lifting table automatically positions the panels at the required height and prepares them for feeding into the cutting zone, ensuring a fast, safe, and controlled production process. This configuration is an ideal solution for production facilities where access to the rear of the machine is limited or where all material handling is organized from the front. The automatic loading system significantly reduces operator workload, shortens the time between production cycles, and enables continuous operation.
CONSTRUCTION
SAW UNIT
CONTROL
AIR TABLES
CLAMPS
Made of high-quality iron with significantly more weight than other CNC cutters on the market, effectively eliminating vibrations during operation, ensuring perfect cuts at all times.

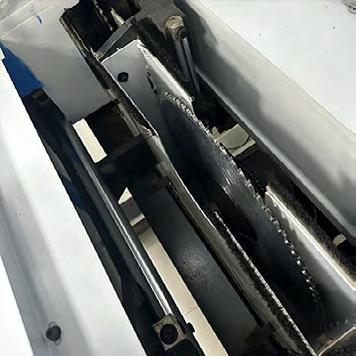

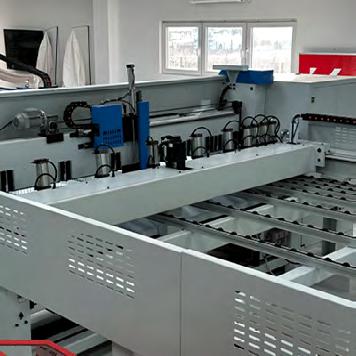

The saw unit moves along two rails controlled by high-performance servo motors, ensuring maximum speed up to 120 meters per minute. Allows fast and accurate cutting, even for complex trims and high-volume production.

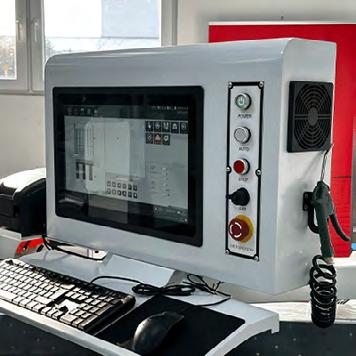

The interface is equipped with an industrial computer and has the simplest, most intuitive design, allowing operators to easily create layouts or import from optimization software. Well-defined functions for full work overview and easy adjustments.

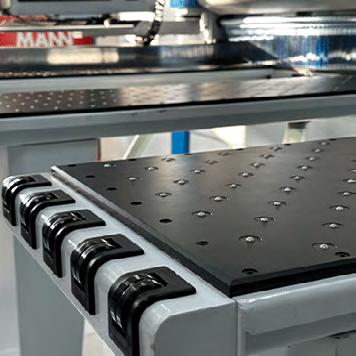

Air tables with round bearings provide efficient and easy panel movement. Additional air tables are also located in the cutting zone, facilitating work with small pieces and protecting them from damage.

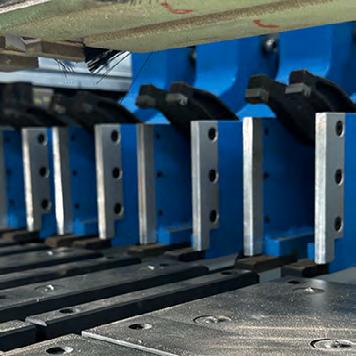

Pneumatic double-support clamps ensure stable fixation of panels without slipping. Controlled by precise servo motors without deviation or errors.

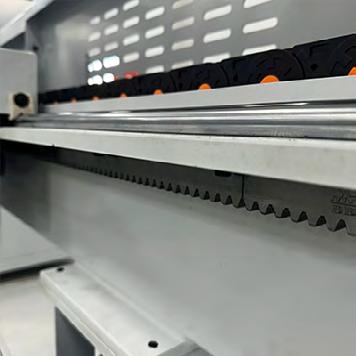

PRECISE LINEAR GUIDES German-made SLM linear guides, offering quiet operation, high precision, smooth movement and long lifespan.
PLC
ELECTRICAL COMPONENTS

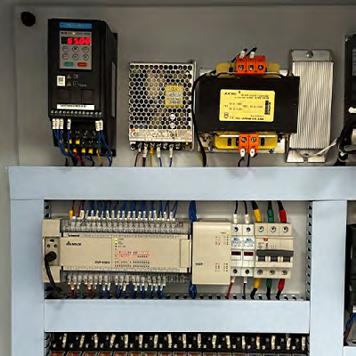

Stable and reliable PLC from the reputable DELTA brand, featuring large memory capacity and speed.

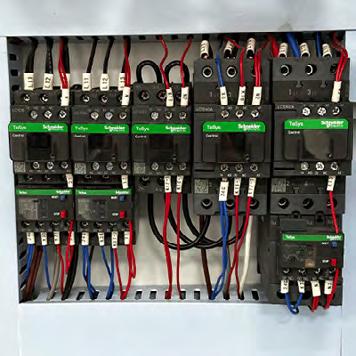

Electrical components from the renowned Schneider brand. Provides safe operation, clear identification and high levels of control and safety.
Main motor power Scoring motor power Air table motor power Main motor speed Scoring unit speed Maximum cutting length Maximum cutting width Maximum cutting thickness Main saw blade diameter Scoring blade diameter

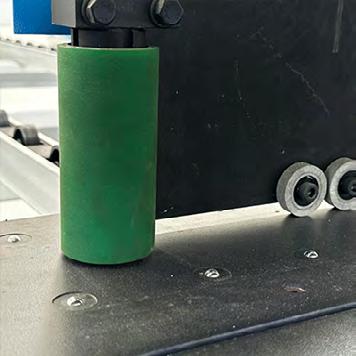

SIDE ROLLERS

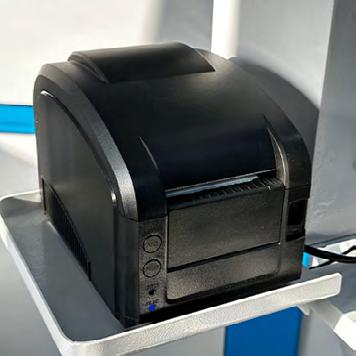

LABELING MACHINE
Additional support with side Included with the machine is rollers for precise workpiece a labeling machine for printpositioning. Ensure stability ing details on workpieces. for longer panels and preEnables clear identification vent shifting during cutting. and better organization.
18.5kW 2.2kW 4kW 4100rpm 6100rpm 3200mm (optional 4300mm) 3200mm (optional 4300mm) 120mm 450mm 200mm UNRIVALED!
Main saw shaft diameter Scoring shaft diameter Processing speed Travel speed Working pressure Total power Machine dimensions Packing dimensions

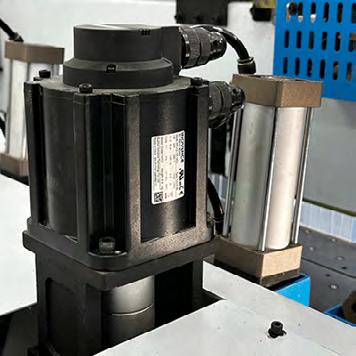

SERVO MOTORS High-performance INVT servo motors for quick and precise execution of control commands, ensuring high-quality cutting.
75mm 50mm 100m/min 120m/min 6-8 bar 30.5kW 5600x6800x1900mm + 3000x2400mm 5500x1330x1900mm 4050x600x1650mm 3100x2500mm
