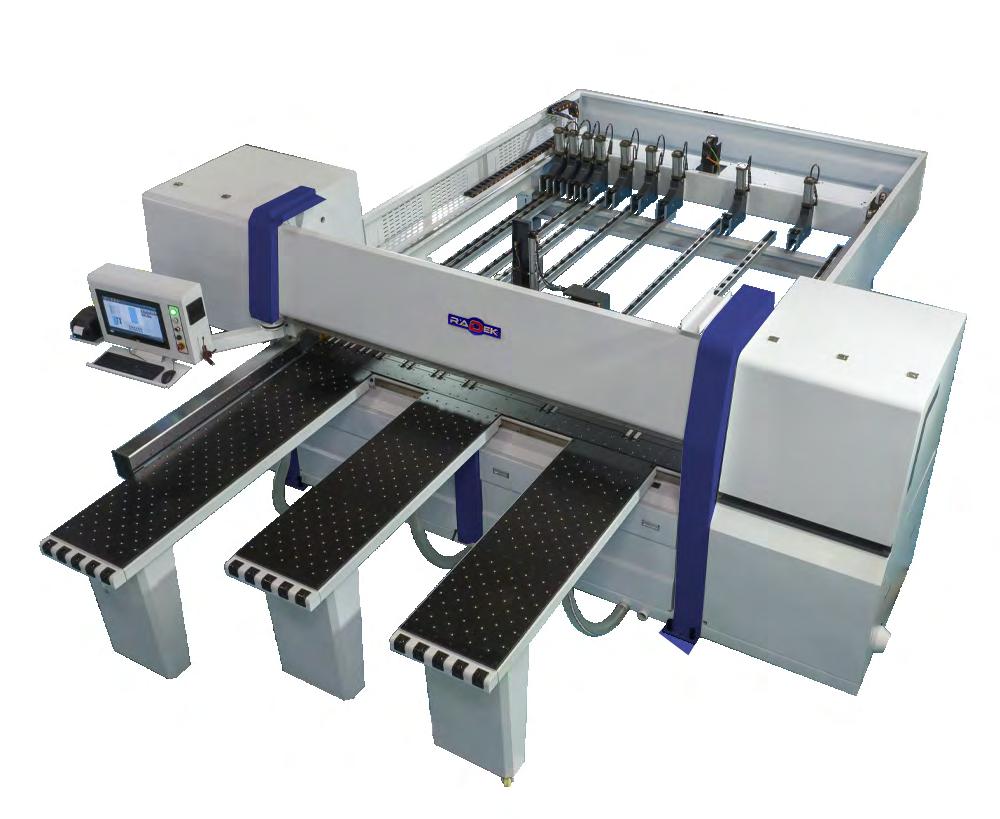

CNC PANEL SAW

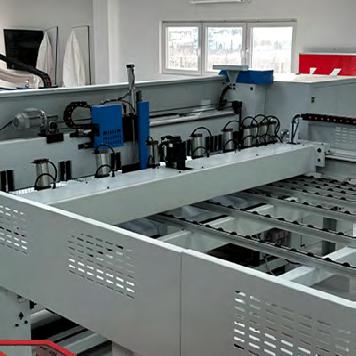

Designed for high-quality cutting with maximum performance and precision. This machine stands out from other CNC cutters on the market due to its massive structure, power, high-end components and consistent cutting quality. Manufactured under strict quality and durability standards, it is an excellent long-term investment for boosting your company’s production and efficiency. It meets every requirement with outstanding performance, precision and capacity. You’ll be impressed in every aspect—visit us and see for yourself the craftsmanship and advantages of this machine.

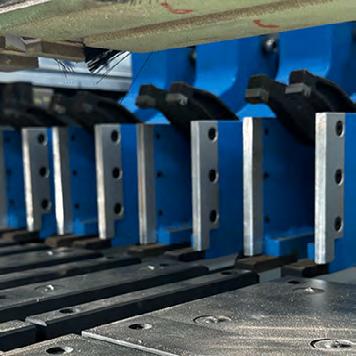

Pneumatic double-support clamps ensure stable fixation of panels without slipping. Controlled by precise servo motors without deviation or errors.

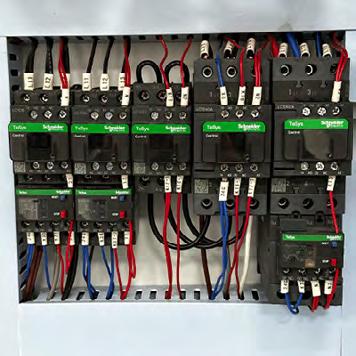

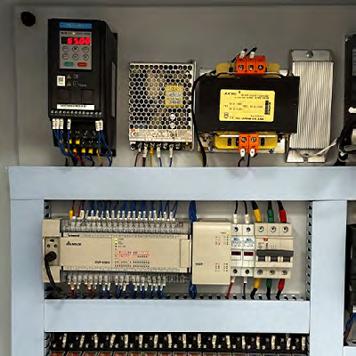

Electrical components from the renowned Schneider brand. Provides safe operation, clear identification and high levels of control and safety. ELECTRICAL COMPONENTS

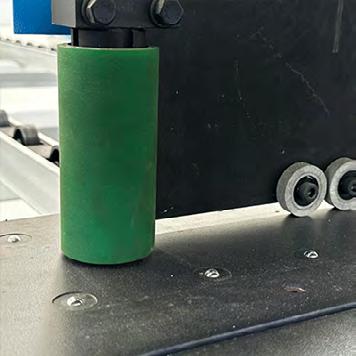

Additional support with side rollers for precise workpiece positioning. Ensure stability for longer panels and prevent shifting during cutting.

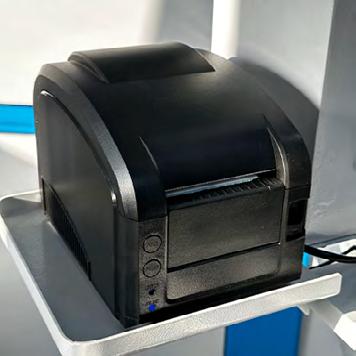

Included with the machine is a labeling machine for printing details on workpieces. Enables clear identification and better organization.
Main saw shaft diameter

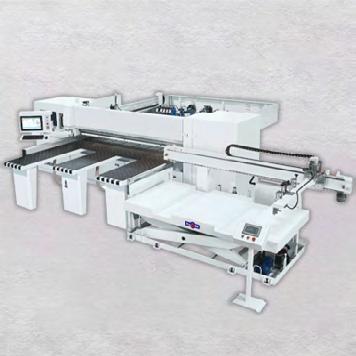

Possibility for an upgrade with a device for automatic material loading, aimed at saving time and personnel. The device consists of a lift table that automatically adjusts into position and a pusher that efficiently moves the panels without damaging them.

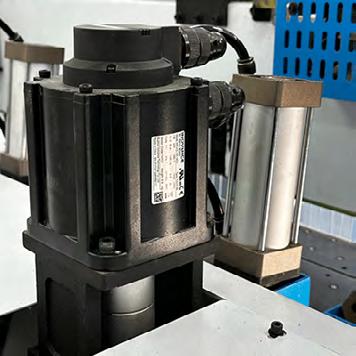

High-performance INVT servo motors for quick and precise execution of control commands, ensuring high-quality cutting.
Scoring motor power
Air table motor power
Main motor speed
Scoring unit speed
Maximum cutting length
Maximum cutting width
Maximum cutting thickness Main saw
Scoring shaft diameter
Processing speed
Travel speed
Working pressure
Total power
Machine dimensions
Packing dimensions
Weight 3200×3200/4200×4200
4050x600x1650mm
5800kg / 7200kg
Made of high-quality iron with significantly more weight than other CNC cutters on the market, effectively eliminating vibrations during operation, ensuring perfect cuts at all times.

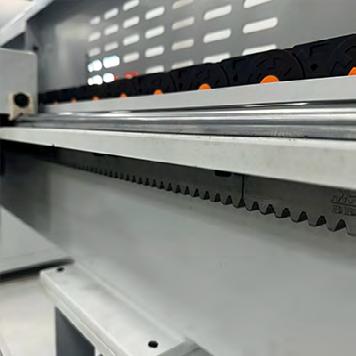

The saw unit moves along two rails controlled by high-performance servo motors, ensuring maximum speed up to 120 meters per minute. Allows fast and accurate cutting, even for complex trims
German-made SLM linear guides, offering quiet operation, high precision, smooth movement
SERVO MOTORS

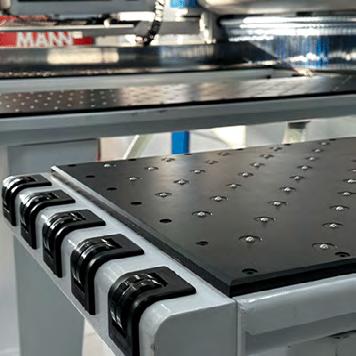

Air tables with round bearings provide efficient and easy panel movement. Additional air tables are also located in the cutting zone, facilitating work with small pieces and protecting them from damage. AIR TABLES
CLAMPS
SIDE ROLLERS
LABELING MACHINE
UPGRADE OPTION
