Woodworking AND METALWORKING Machines
CNC NESTING
RK-2128ALL-PREMIUM

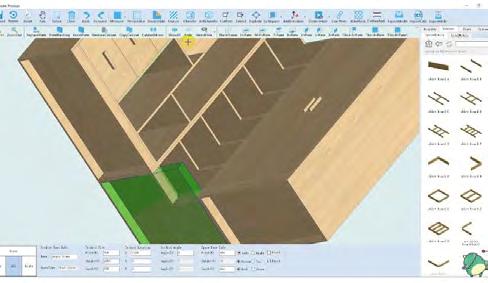

HAIXUN LICENSED SOFTWARE (OPCIONAL) Sophisticated software enabling fast and efficient design and pro duction optimization, 3D preview and instant quotation generation with detailed pricing. Compatible with RADEK CNC drilling machines.

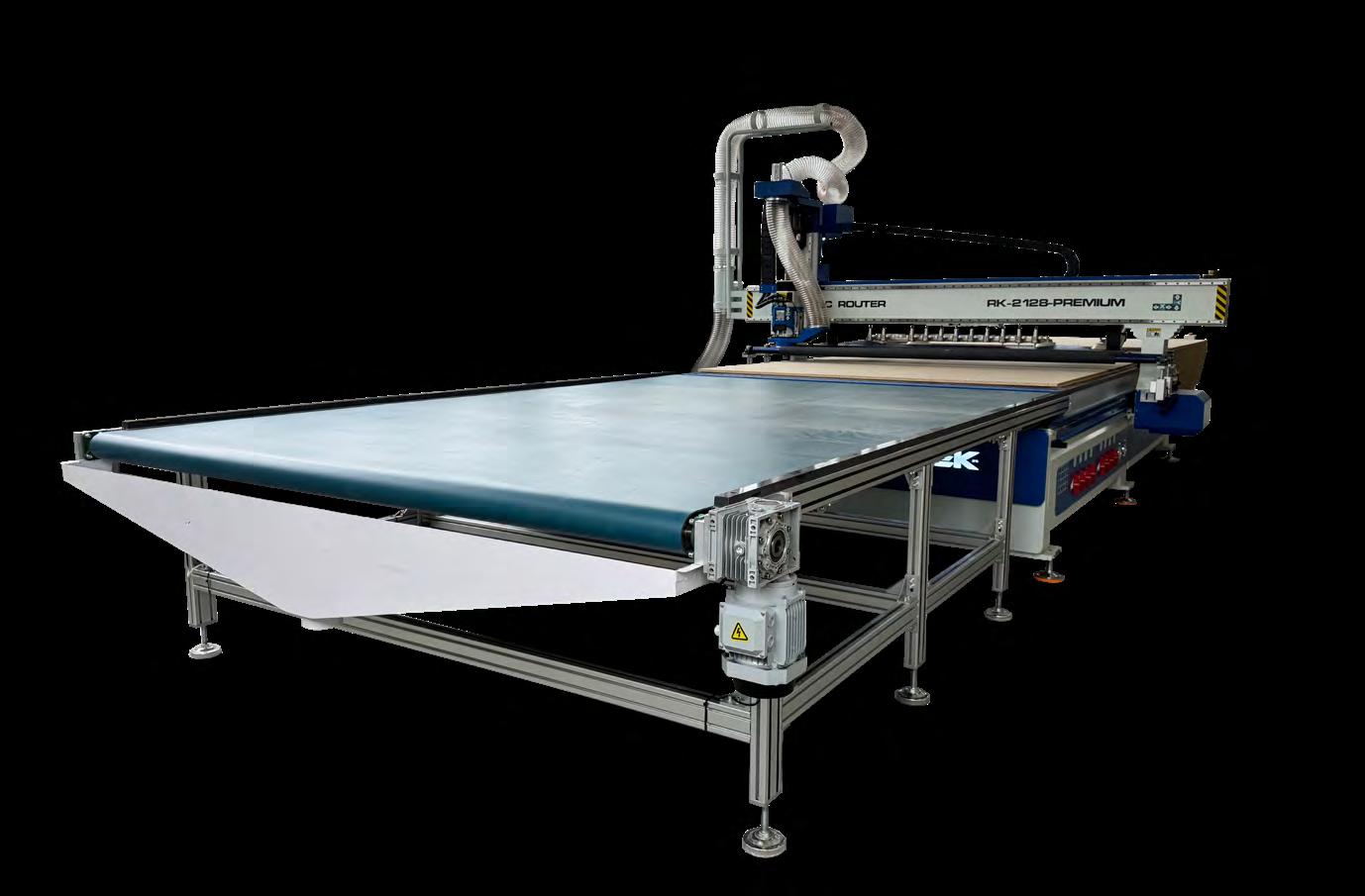

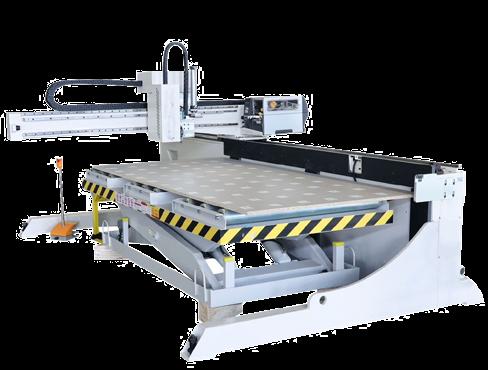

UPGRADE OPTIONS Automatic Panel Loading: Vacuum suction device on the gantry, enabling material pickup from a lifting table. Au tomatic Panel Unloading: A mechanism on the gantry that moves processed pieces onto a special conveyor belt for further handling
With a CNC nesting machine you get the most for your budget, it is known for its high precision, speed, productivity, flexible use in cutting, engraving and drilling, as well as the possibility of upgrading with a panel loading and unloading device for additional machine automation.

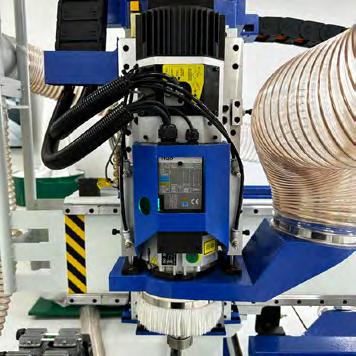

INDUSTRIAL 9KW MOTOR The motor’s manufacturing, design and accompanying parts are 100% identical in quality to world-renowned brands. It operates at 24,000 RPM and air cooling, en suring seamless processing of all material types and thicknesses.

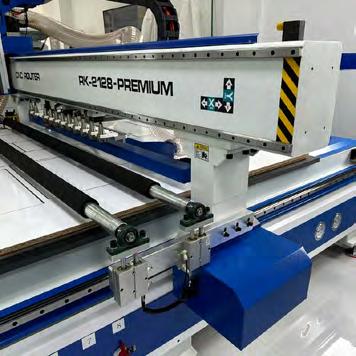

MASSIVE GANTRY CONSTRUCTION Made of high-strength rectangular steel profiles, structurally improved and reinforced internally for superior precision and durability.
Working area Main motor power Main motor speed Main motor cooling type Movement motor type Movement motor power Worktable Vacuum pump power Vacuum pump capacity Vacuum pump cooling type Number of vacuum zones Operating system Processing speed Main motor collet type Collet clamp diameter Machine dimensions Weight

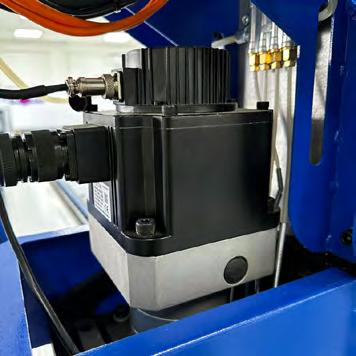

HIGH-PRECISION SERVO MOTORS Designed for high perfor mance, combined with a high-quality reducer from a leading Japanese brand, ensuring precision without deviations, with speeds up to 30 meters per minute.

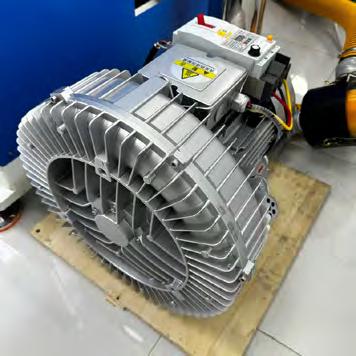

VACUUM PUMP Two 7.5kW vacuum pumps with air cooling and 320m³/h - 550m³/h capacity, enhanced with pneumatic rollers for stronger panel absorption.
2100x2800x250mm 9kW 24.000rpm Air-cooled Servo motors 1.5kW Vacuum table + aluminum rails 7.5kW (x2) 320m³/h - 550m³/h Air-cooled x8 Taiwan LNC 0-30m/min ER32 2-25mm 11800x3000x2400mm 4500kg
WORKING TABLE
X AND Y AXIS MOVEMENT

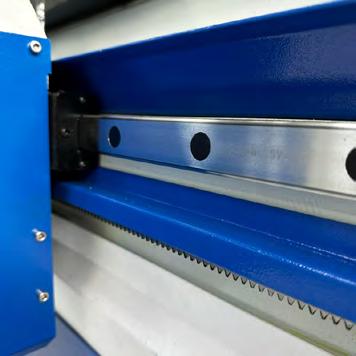

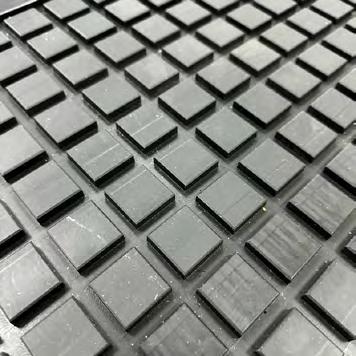

The working table is made Axis movement occurs via of special wear-resistant linear guides (30mm and plastic for use with the 25mm) and a rack-and-pin vacuum pump. Additionally, ion system from the highly it features integrated “T” reputable HIWIN brand from aluminum rails that allow for Taiwan. This is proven to be manual piece fixation using the best and most efficient clamps. movement system in most CNC machines, ensuring smooth operation, low noise levels and significantly reducing additional loads, thereby increasing durability and longevity.
Z AXIS MOVEMENT
OPERATING SYSTEM

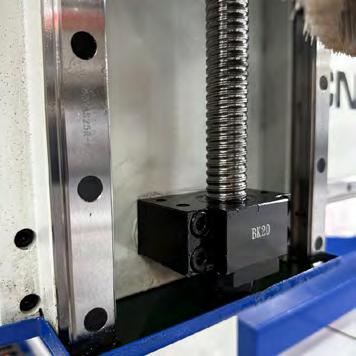

A ball screw system ensures exceptional precision, low friction and maximum du rability, reducing wear and heat buildup.

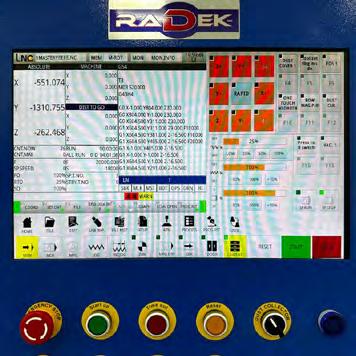

LNC operating system, en suring user-friendly machine control.
WORK COMFORT AT THE HIGHEST LEVEL!
