Woodworking AND METALWORKING Machines
CNC NESTING

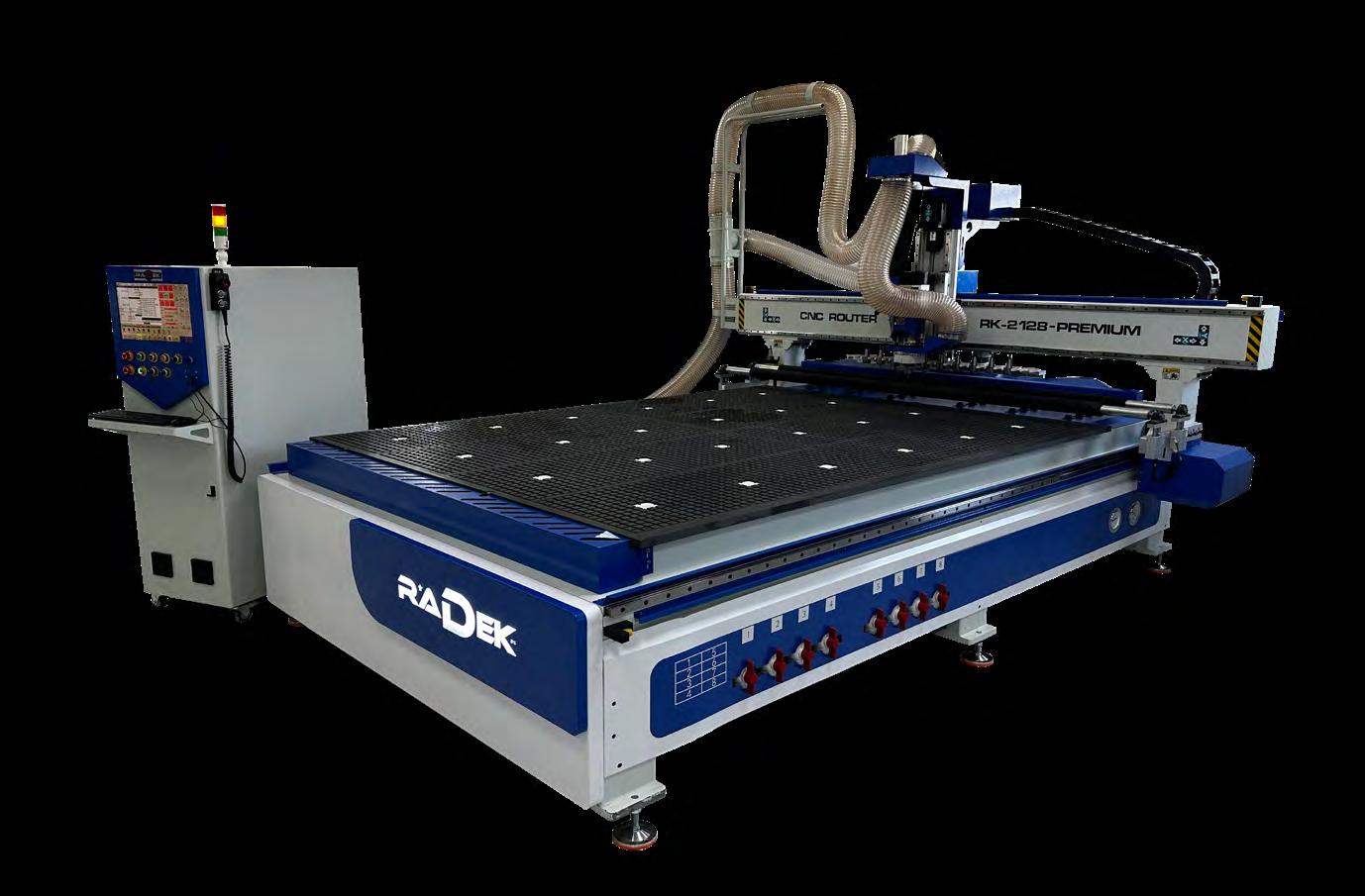

RK-2128-PREMIUM

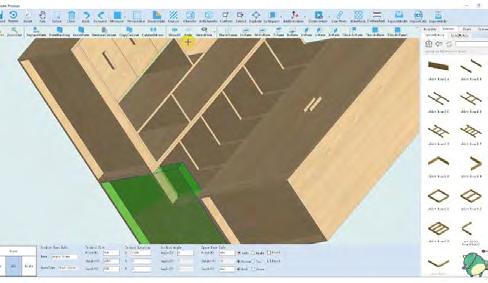

HAIXUN LICENSED SOFTWARE (OPCIONAL) Sophisticated software enabling fast and efficient design and pro duction optimization, 3D preview and instant quotation generation with detailed pricing. Compatible with RADEK CNC drilling machines.

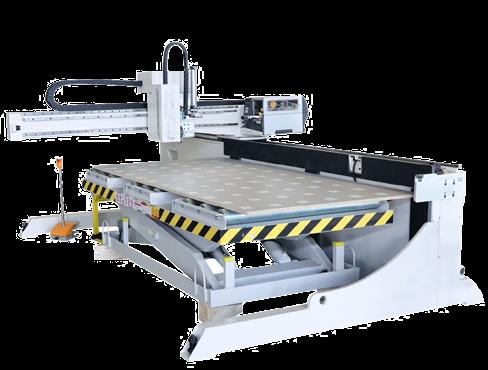

UPGRADE CAPABILITY Automatic panel loading with vacuum foot devices located on the bridge for material pickup from a lifting table. Au tomatic unloading with a device on the bridge for transferring processed pieces to a special conveyor belt.
With the CNC nesting machine, you get the best value for your budget. It is renowned for high precision, speed, productivity and flexibility when cutting, engraving and drilling. It also offers the option to upgrade with an automatic panel loading and unloading system for additional automation.

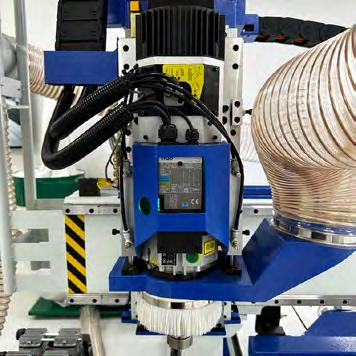

INDUSTRIAL 9KW MOTOR The motor’s manufacturing, design and accompanying parts are 100% identical in quality to world-renowned brands. It operates at 24,000 RPM with air cooling, allow ing seamless processing of all types and thicknesses of materials.

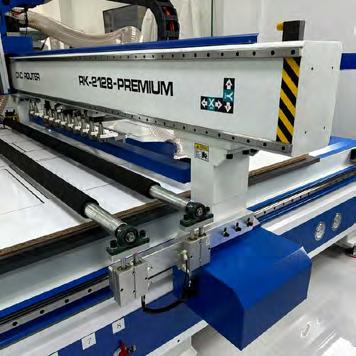

MASSIVE GANTRY CONSTRUCTION Made of rectangular steel profiles, structurally en hanced and additionally reinforced internally. This type of gantry construction ensures a high degree of rigidity, durability and guarantees high precision. The quality is significantly superior to other gantries on the market.
Working area Main motor power Main motor speed Main motor cooling type Movement motor type Movement motor power Worktable Vacuum pump power Vacuum pump capacity Vacuum pump cooling type Number of vacuum zones Operating system Processing speed Main motor collet type Collet clamp diameter Machine dimensions Weight

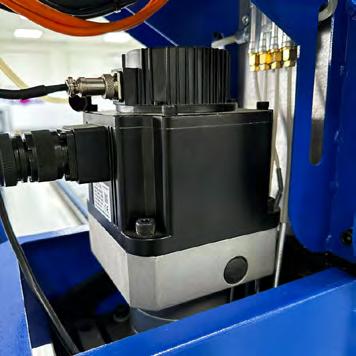

HIGH-PRECISION SERVO MOTORS Specially designed for high demands and performance in combination with a reduc er from a highly renowned Japanese brand. Guaranteed precise positioning of the bridge and spindle without deviation and error and with a high speed of movement up to 30 meters per minute. Proven quality and stability in operation and in difficult industrial conditions.

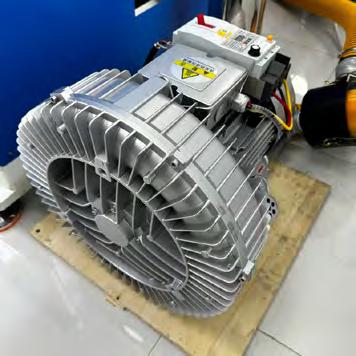

VACUUM PUMP The machine is equipped with two 7.5kW vacuum pumps with air cooling. Each pump has a capacity of 320m³/h - 550m³/h, providing high absorption even for small panels, enhanced with pneumatic rollers pressing the panels.
2100x2800x250mm 9kW 24.000rpm Air-cooled Servo motors 1.5kW Vacuum table + aluminum rails 7.5kW (x2) 320m³/h - 550m³/h Air-cooled x8 Taiwan LNC 0-30m/min ER32 2-25mm 3870х3400х2950mm 3000kg

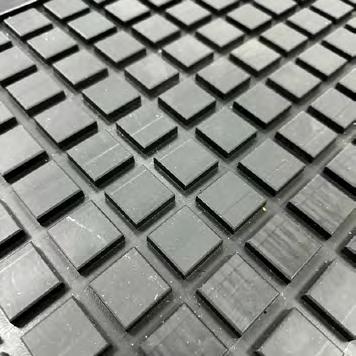

WORKING TABLE

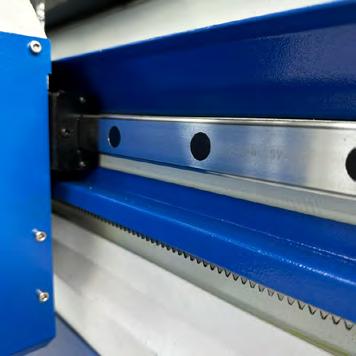

X AND Y AXIS MOVEMENT
The working table is made Axis movement occurs via of special wear-resistant linear guides (30mm and plastic for use with the 25mm) and a rack-and-pin vacuum pump. Additionally, ion system from the highly it features integrated “T” reputable HIWIN brand from aluminum rails that allow for Taiwan. This is proven to be manual piece fixation using the best and most efficient clamps. movement system in most CNC machines, ensuring smooth operation, low noise levels, and significantly reducing additional loads, thereby increasing durability and longevity.
MOVEMENT ALONG Z AXIS
OPERATING SYSTEM

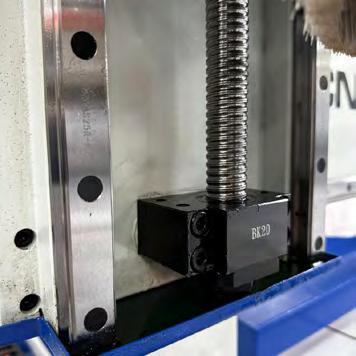

Equipped with a ball screw on the Z-axis for exception al precision, low friction, maximum protection from rapid wear, and preventing overheating of elements during operation.

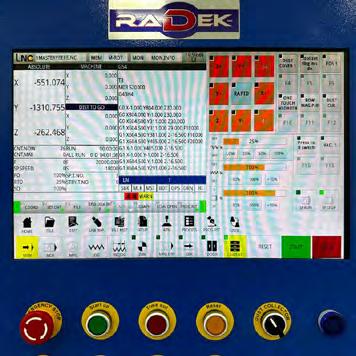

LNC operating system from a highly reputable Taiwanese brand. Allows easy and orga nized access to all machine functions.
WORK COMFORT AT THE HIGHEST LEVEL!
