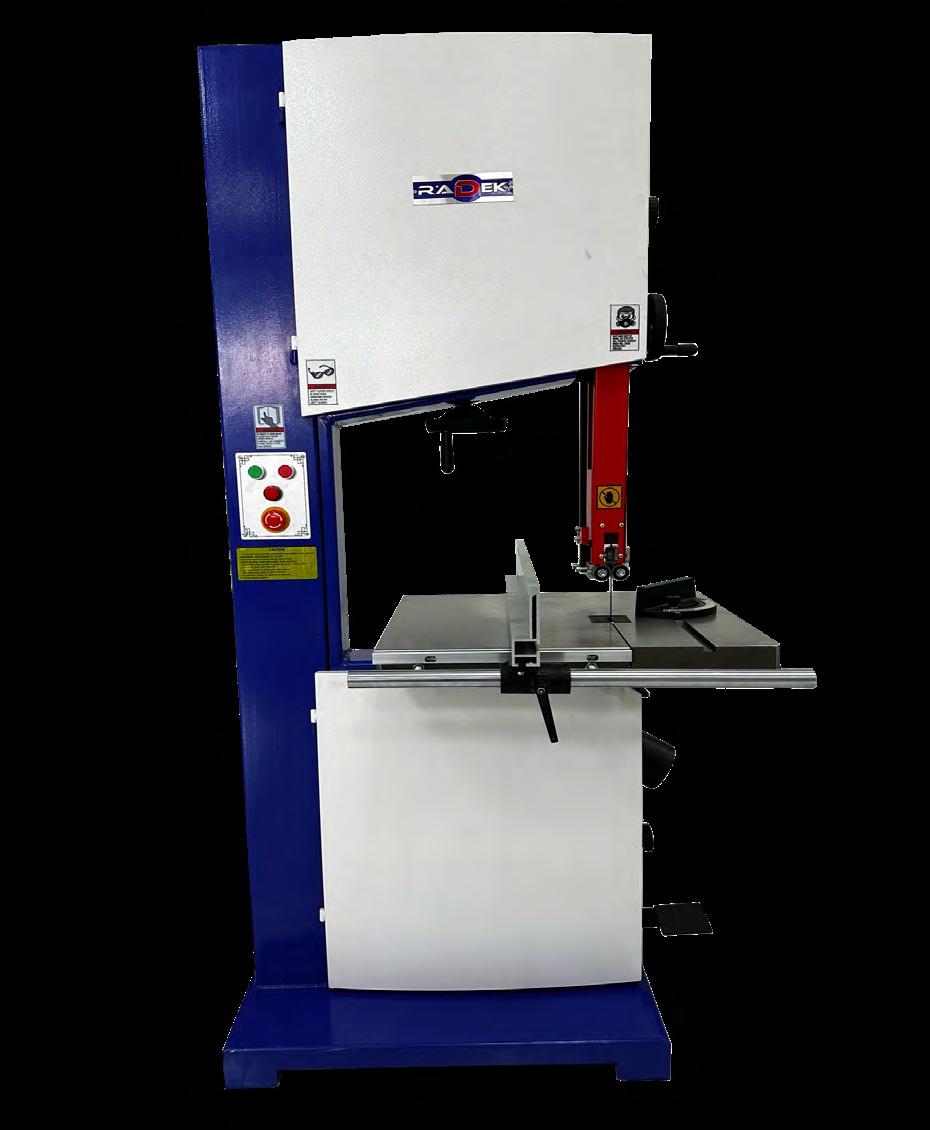

BANDSAW
The wood planer features a stable and compact construction, allowing for straight, circular and angular cutting of wood and sheet materials. An essential machine in every woodworking shop.

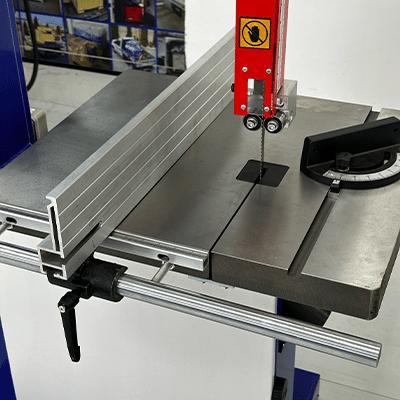

WORKING TABLE
Solid working table with an auxiliary fence and measuring scale for efficient cutting of workpieces. Provides stable support and precise positioning, enabling fast and accurate operation.

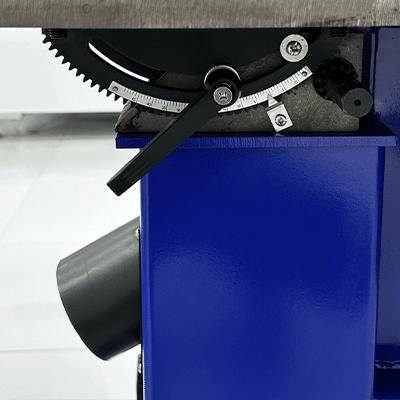

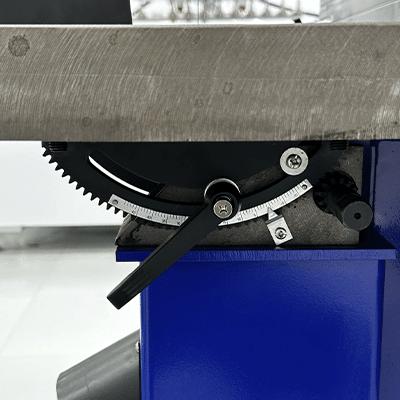

Working table adjustable for cutting at angles from 0° to 45°. Allows precise cuts at various angles, adjustable according to project requirements. TILT FUNCTION
Maximum cutting width
Maximum cutting thickness
Blade speed
Blade dimensions
Worktable dimensions
Worktable tilt
Wheel diameter
Wheel width
Motor power
Machine dimensions
Packing dimensions
Weight

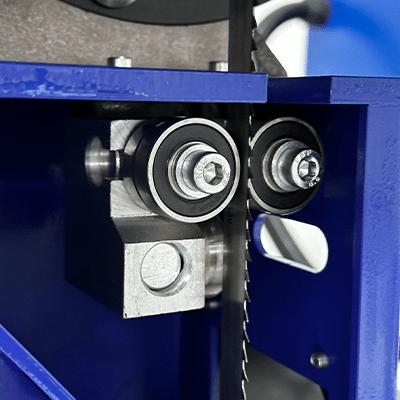

BEARINGS
Located above and below the table, ensuring stability and precision of the saw blade during cutting. Minimize vibration and friction, ensuring smooth, quiet operation and long-lasting durability.
480mm
370mm
25m/min
4020х16mm
630x525x55mm
0° - 45° Ø500
760x920x1900mm
1950x650x1050mm
278kg

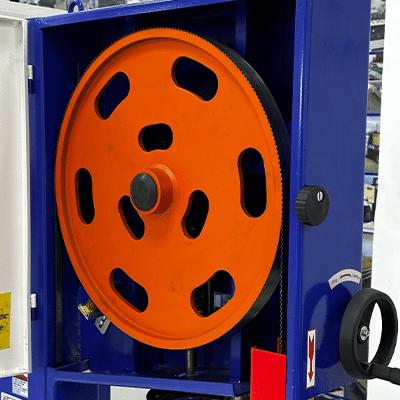

WHEELS
Massive wheels with a diameter of 500mm and a width of 35mm, fitted with a saw blade of dimensions 4020x16mm.

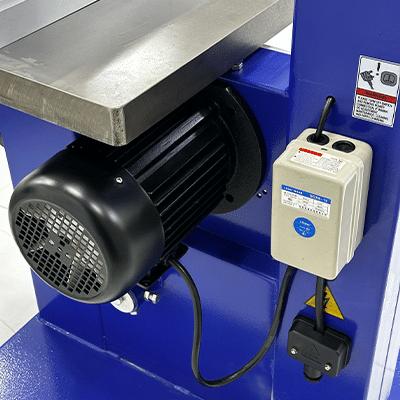

ECONOMICAL AND POWERFUL MOTOR
Powerful industrial motor ready to handle all challenges. Delivers high performance with minimal energy consumption, making it ideal for long-lasting and efficient operation.
DUST EXTRACTION
A f100 dust extraction port is installed for connection to an extractor (aspirator) to remove sawdust. These openings allow efficient dust removal, maintaining a clean and safe working environment.
