Cs-433C Caterpillar Vibratory Compactor Operation and Maintenance Manual by quality service repair manual

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

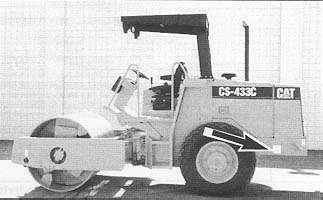

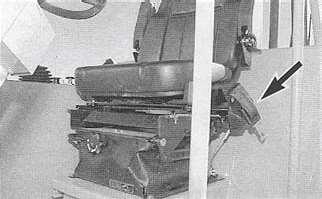

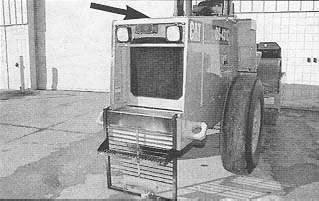

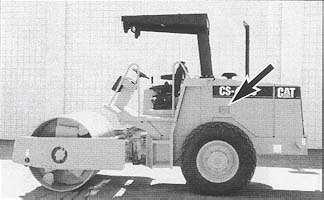

ProductIdentification,SerialNumberandCEPlate Locations

SMCS-7606

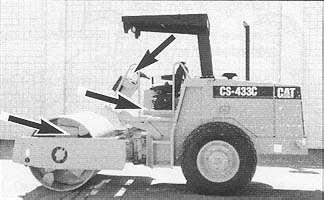

TheProductIdentificationNumber(PIN)willbeusedtoidentifyapoweredmachinethatis designedforanoperatortoride.

Caterpillarproductssuchasengines,transmissions,andmajorattachments,etc.,notdesignedfor anoperatortorideareidentifiedbySerialNumbers.

Forquickreference,recordtheidentificationnumbersinthespacesprovidedbelowthe illustration.

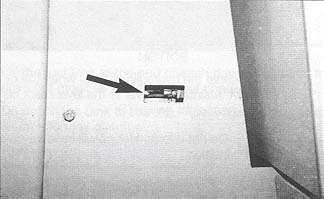

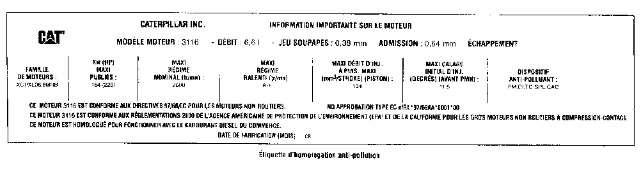

EmissionsCertificationFilm

Thisisatypicalexampleoftheemissionscertificationfilmthatislocatedontheengine.

EmissionsCertificationFilm

WedMay1909:37:34UTC+05302021

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

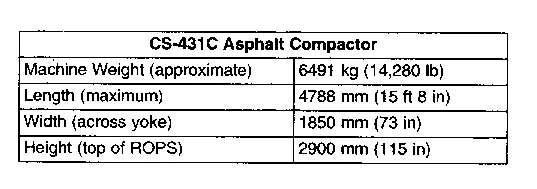

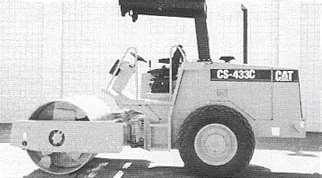

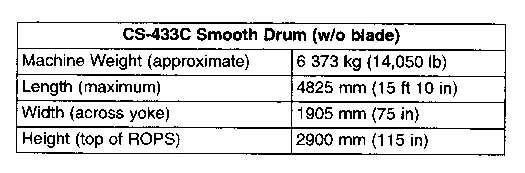

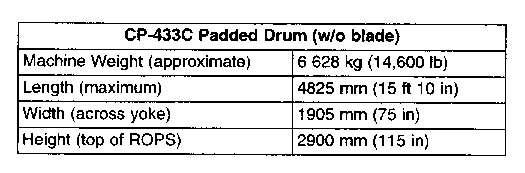

SpecificationsAndModelViews

SMCS-7606

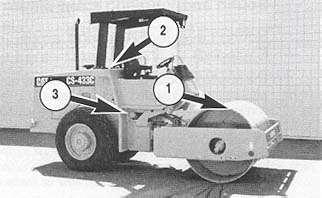

Vibratorydrum(1),hydraulictank(2)andfueltank(3).

Operator'scompartment(4),enginecompartment(5)andcentersteerpivotarea(6). Basicmachineshippingspecificationsarelistedbelow.

NOTE:Bladeaddsapproximately430kg(950lb).Acabaddsapproximately227kg(500lb).

WedMay1909:37:20UTC+05302021

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

Foreword

SMCS-7606

LiteratureInformation

Thismanualshouldbestoredintheoperator'scompartmentintheliteratureholderorseatback literaturestoragearea.

Thismanualcontainssafety,operation,transportation,lubricationandmaintenanceinformation.

Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourmachine.Guardsandcoversmighthavebeenremovedforillustrative purposes.

Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedinthispublication.Read,studyandkeepthismanualwiththe machine.

Wheneveraquestionarisesregardingyourmachine,orthispublication,pleaseconsultyour Caterpillardealerforthelatestavailableinformation.

Safety

TheSafetySectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.

ReadandunderstandthebasicprecautionslistedintheSafetySectionbeforeoperatingor performinglubrication,maintenanceandrepaironthismachine.

Operation

TheOperationinformationisareferenceforthenewoperatorandarefresherfortheexperienced one.Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.

Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.

Operatingtechniquesoutlinedintheoperationandmaintenancemanualarebasic.Skilland techniquesdevelopastheoperatorgainsknowledgeofthemachineanditscapabilities.

Maintenance

Themaintenanceinformationisaguidetoequipmentcare.Theillustrated,step-by-step instructionsaregroupedbyservicingintervals.Itemswithoutspecificintervalsarelistedunder WhenRequiredtopics.ItemsintheMaintenanceIntervalschartarereferencedtodetailed instructionsthatfollow.

MaintenanceIntervalSchedule

Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily, weekly,monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemore convenientservicingschedulesandapproximatetheindicatedservicehourmeterreading. Recommendedserviceshouldalwaysbeperformedattheintervalthatoccursfirst.

Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanis specifiedintheMaintenanceIntervalschartmightbenecessary.

Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atEvery500 ServiceHoursor3Months,alsoservicethoseitemslistedunderEvery250ServiceHoursor MonthlyandEvery10ServiceHoursorDaily.

MachineDescription

ThismachineisequippedwithaCaterpillar3054dieselengine. California Proposition65Warning DieselengineexhaustandsomeofitsconstituentsareknowntothestateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.

WedMay1909:36:13UTC+05302021

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

ReferenceMaterials

SMCS-7606

CaterpillarReferenceMaterial

ThefollowingliteraturecanbeobtainedthroughanyCaterpillardealer.

Oil

SEBD0640...OilandYourEngine

SEBU5898...ColdWeatherRecommendationsOperationandMaintenanceManual

SEBU6310...EMAEngineOilDataBook

PEHP6001...HowtoTakeaGoodOilSample

SEHS7392...StorageofDieselEngines

PEHP7504...CatEngineOilSpecSheets

PEHP7505...CatDieselEngineOilSpecSheets

PEHP1020...ProductDataSheetforCatDieselEngineOil(CF-4)(N.America&SelectedInt'l)

PEHP1026...ProductDataSheetforCatDieselEngineOil(CF-4)(InternationalOnly)

PEHP1027...ProductDataSheetforCatDieselEngineOil(CD)

PEHP0002...ProductDataSheetforCatMolybdenumGrease(MPGM)

PEHP0003...ProductDataSheetforCatLithiumGrease(MPGL)

PEHP0017...ProductDataSheetforCatSpecialPurposeGrease(SPG)

PEWP9733...CatFluidsSelector

Fuel

SEBD0717...DieselFuelsandYourEngine

SEHS7067...FuelsforCaterpillarDieselEngines

Coolant

SEBD0518...KnowYourCoolingSystem

SEBD0970...CoolantandYourEngine

Miscellaneous

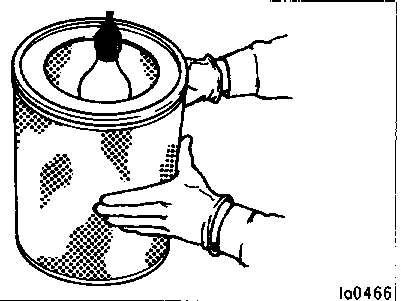

SEBF8062...GuidelineforReusablePartsCleaningandInspectionofAirFilters

SEHS9031...StorageProcedureforCaterpillarProducts

SEBU5614...SafetyManual

SEBU6981...EmmisionsWarranty

AlloftheabovepublicationsareavailablethroughyourCaterpillardealer.

AdditionalReferenceMaterial

ASTMD2896TBNMeasurements

ASTMD217-68WorkedPenetration

ASTMD2982B

ASTMD3828A

ASTMD445KinematicViscosityTesting

ASTMD893

ASTM4985-89GM-6038MSpecification

ASTMSpecscannormallybeobtainedfromyourlocaltechnologicalsociety,libraryorcollege.

SAEJ313DieselFuels

SAEJ754Nomenclature

SAEJ183Classification

SocietyofAutomotiveEngineers(SAE)SpecscanbefoundinyourSAEhandbookorcanbe obtainedfromyourlocallibrary,collegeortechnologicalsociety.

WedMay1909:36:53UTC+05302021

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

ConventionalAntifreeze/Coolant

SMCS-7606

Recommended-Caterpillar'sDieselEngineAntifreeze/Coolant

NOTE:ThefollowinginformationandrecommendationsareforCaterpillar'sDieselEngine Antifreeze/Coolantonly.

Caterpillar'sDieselEngineAntifreeze/Coolantwasspecificallydesignedfordieselenginecooling systemsandnaturalgasenginecoolingsystems.DieselEngineAntifreeze/Coolantisanalkaline type,ethyleneglycolbasedformulacontaininginorganiccorrosioninhibitorsandanti-foam agents.DieselEngineAntifreeze/Coolantwasformulatedwiththecorrectadditivelevelsto protectmetalpartsindieselengines.DieselEngineAntifreeze/Coolantwillfurnishadequate corrosionprotection,anti-foamprotection,andcylinderliner/blockpittingprotection.Usea30 percentDieselEngineAntifreeze/Coolantand70percentacceptablewater/supplementalcoolant additivesolution.

MajoradvantagesofDieselEngineAntifreeze/Coolant:

Minimalsilicatecontent-Highsilicatecoolants,usedwithsupplementalcoolantadditives,can causeabuild-upofsolidsovertime.Build-upofsolidscancauseplugging,lossofheattransfer, andwaterpumpsealdamage.DieselEngineAntifreeze/Coolantsignificantlyreducessolidresidue build-upthatcausesinhibitordropoutandwaterpumpsealdamage.

Noneedtoaddsupplementalcoolantadditiveoninitialfill-Supplementalcoolantadditivemust beaddedwithothercommerciallyavailablecoolants.

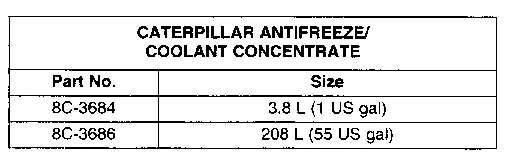

DieselEngineAntifreeze/CoolantisavailablefromyourCaterpillardealerinthefollowing quantities:

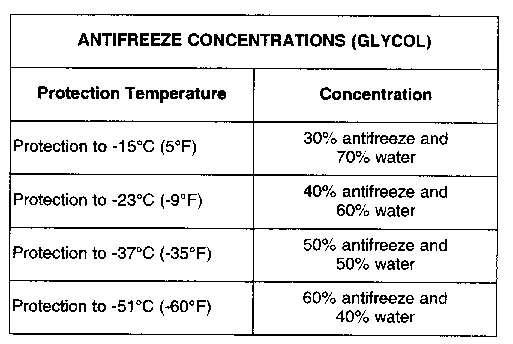

ProperAntifreezeConcentrations

UsethetabletodetermineconcentrationsofDieselEngineAntifreeze/Coolanttomixwith acceptablewaterandsupplementalcoolantadditive.

AcceptableAntifreeze/Coolant

AnylowsilicatecoolantthatmeetsTruckMaintenanceCouncil(TMC)RecommendedPractice (RP)329,TMCRP330,orASTMD4985requirementswhenusedwithsupplementalcoolant additivesisacceptable.

Caterpillarrecommendsaminimumof30percentglycolto70percentwater/supplementalcoolant additiveforpropercorrosionprotection.AllCaterpillarengineswithair-to-airaftercooling (ATAAC)requireaminimumconcentrationof30percentglycoltopreventwaterpump cavitation.

While30percentglycolistheminimumacceptablevolume,Caterpillarprefersa50percentglycol and50percentwater/supplementalcoolantadditivemixtureforoptimumperformance.

WhenusingDieselEngineAntifreeze/Coolant,nosupplementalcoolantadditiveisnecessaryon initialfillbecausesupplementalcoolantadditiveisintheDieselEngineAntifreeze/Coolant. SupplementalcoolantadditivemustbeaddedwithcommercialcoolantsmeetingASTMD4985at initialfill.SupplementalcoolantadditivemustbereplenishedwithbothCaterpillarDieselEngine Antifreeze/Coolantandothercommercialcoolantsatregularserviceintervals.Refertothechart forquantitiesofCaterpillarLiquidSCAtomixwithASTMD4985commercialcoolantsatinitial fill.

Supplementalcoolingsystemadditivecontainsalkali.Toprevent personalinjury,donotdrink,avoidcontactwiththeskinandeyes.

ThecoolingsystemMUSTcontainsupplementalcoolantadditivefor properengineprotection,regardlessofantifreezeconcentration.

NOTICE

DONOTmixCaterpillar'ssupplementalcoolantadditiveorcoolant additiveelementswithanothermanufacturer'sproducts.Selecta coolingsystemtreatmentanduseitexclusively.

Supplementalcoolantadditiveisnecessaryforproperconventionalcoolantmaintenance.Most coolantsolutionsDONOTcontainsufficientsupplementalcoolantadditivefordieselengine application.

NOTICE

Donotexceedtherecommendedsixpercentsupplementalcoolant additiveconcentration.Excessivesupplementalcoolantadditive concentrationcanformdepositsonthehighertemperaturesurfacesof thecoolingsystem,reducingtheengine'sheattransfercharacteristics. Reducedheattransfercouldcausecrackingofthecylinderheadand otherhightemperaturecomponents.Excessivesupplementalcoolant additiveconcentrationcouldalsoresultinradiatortubeblockage, overheating,and/oracceleratedwaterpumpsealwear.Neveruseboth liquidsupplementalcoolantadditiveandthespin-onelement(if equipped)atthesametime.Theuseofthoseadditivestogethercould resultinsupplementalcoolantadditiveconcentrationexceedingthe recommendedsixpercentmaximum.

Useliquidsupplementalcoolantadditiveorasupplementalcoolantadditiveelement(ifequipped) tomaintainathreetosixpercentsupplementalcoolantadditiveconcentrationinthecoolant.

NOTE:Caterpillartestkitscheckforconcentrationofnitritesinthecoolantsolution.Some manufacturers'supplementalcoolantadditivearephosphatebased.Caterpillartestkitsprovide inaccurateresultswithphosphatebasedsupplementalcoolantadditive.Commercialsupplemental coolantadditiveproductsmustcontainsilicatesandaminimumof70gramsper3.8L(1USgal) (1200ppm)nitrites.Ifanothermanufacturer'ssupplementalcoolantadditiveisused,usethat manufacturer'stestkit.Followthemanufacturer'srecommendationsforcoolingsystemtreatment andtestevaluation.

Testthecoolantperiodicallytomonitorsupplementalcoolantadditivelevels.Usethe4C-9301 TestKittocheckforCaterpillarsupplementalcoolantadditiveconcentration.Thekitalso providescoolingsystemmaintenancerecommendations.Thiskitisspecificallydesignedforuse withCaterpillarsupplementalcoolantadditives.The8T-5296TestKitcanalsobeusedtocheck forCaterpillarsupplementalcoolantadditiveconcentration.

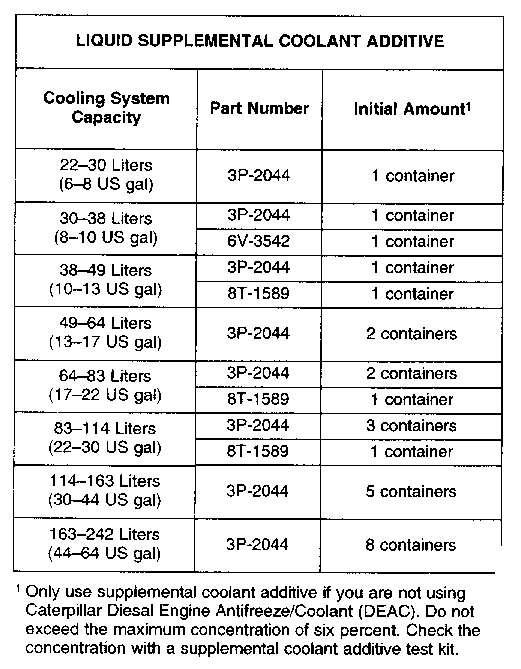

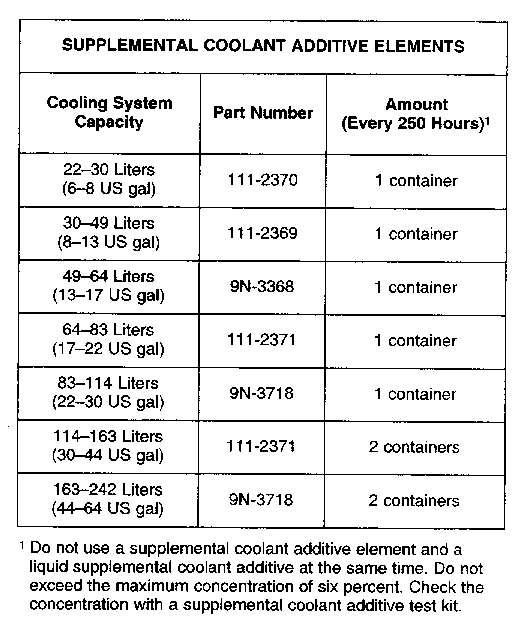

Thetablesliststhepartnumbersandquantitiesofsupplementalcoolantadditive(liquidandsolid) availablefromyourCaterpillardealer.Followtheinstructionsonthelabel.

This is the sample of the manual Click on the download link for complete Manual

Permitted-Water/SupplementalCoolantAdditive

NOTICE

Neverusewateralonewithoutsupplementalcoolantadditiveor inhibitedcoolant.Wateraloneiscorrosiveatengineoperating temperatures.

NOTICE

Amixtureofwaterandsupplementalcoolantadditivedoesnotprotect againstfreezingorboiling.

NOTICE

Acoolantmixtureofwaterandsupplementalcoolantadditivewillcool andprovidesomeprotectiontoenginecomponents,butitwillNOT providenormalengineservicelife.

NOTICE

Caterpillar'srecommendationforpropercoolantisaminimum concentrationof30percentglycoland70percentacceptablewaterand supplementalcoolantadditive(threepercentofthetotalmixture).This recommendationwillmaintaincoolingsystemcorrosionprotection.

Inapplicationswherefreezeprotectionisnotrequired,orwhereantifreezeisnotavailable,a coolantmixtureofacceptablewaterandsupplementalcoolantadditivecanbeused.A water/supplementalcoolantadditivesystemshouldmaintainasixtoeightpercentsupplemental coolantadditiveconcentration.DONOTexceedeightpercentmaximumsupplementalcoolant additiveconcentration.Supplementalcoolantadditiveconcentrationlevelsmustbemonitored.

The8T-5296TestKitcanbeusedtoevaluatethesupplementalcoolantadditiveconcentrationin water/supplementalcoolantadditivecoolant,withthefollowingmodificationstolabelinstruction Step3andStep5.

STEP3.-Addtapwatertothevialuptothe20mlmark.

STEP5.-Withthedefinedprocedures,thesixtoeightpercentconcentrationwillyielda20to27 droprange.Fewerdropsindicatealowconcentrationofsupplementalcoolantadditiveandmore dropsindicateahighconcentration.Adjusttheconcentrationappropriately.

Ifthesupplementalcoolantadditiveconcentrationisgreaterthanthemaximumofeightpercent: drainsomeofthecoolant,refillthesystemwithacceptablewater,andretesttheconcentration level.

ConventionalCoolingSystemMaintenance

Checktheantifreezesolutionfrequentlyincoldweathertoensureadequatefreezeprotection.Test theconcentrationorsubmitacoolantsampletoyourCaterpillardealerinordertomonitorthe supplementalcoolantadditiveconcentrationinyourengine'scoolantmixtureevery250service hoursormonthly,whichevercomesfirst.Supplementalcoolantadditiveoramaintenanceadditive element(ifequipped)maybeneededevery250servicehoursormonthly,whichevercomefirst.

Topreventover-inhibitingtheengine'scoolingsystem,donotuseboth supplementalcoolantadditiveliquidandasupplementalcoolant additiveelement(ifequipped)atthesametime.Useonemethod exclusively.

WhenusingCaterpillarDieselEngineAntifreeze/Coolantandsupplementalcoolantadditive,the coolingsystemshouldbedrained,cleaned,flushed,andfilledwithnewcoolantevery3000 servicehoursoreverytwoyears,whichevercomefirst.RefertothetopicMaintenanceIntervals inthismanual.

WhenNOTusingCaterpillarDieselEngineAntifreeze/Coolantandsupplementalcoolant additive,thedrain/flushproceduremustbeperformedatleasteveryyear.

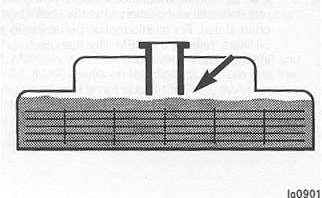

Afteryoudrainandyourefillthecoolingsystem,operatetheenginewiththeradiatorfillercap removeduntilthecoolantreachesnormaloperatingtemperatureandthecoolantlevelstabilizes. Addcoolantmixtureasnecessarytofillthesystemtotheproperlevel.

CoolingSystemCleaning

Draining,cleaning,andflushingthecoolingsystemremovessmallparticles,undesirable chemicals,scale,andotherdepositformations.Notperformingmaintenanceonthecoolingsystem caneventuallycauseengineoverheatingproblemsthatcouldresultinseveredamagetoengine andcomponents.

Cleanthecoolingsystemifthesystembecomescontaminated,iftheengineoverheats,orif foamingisobserved.

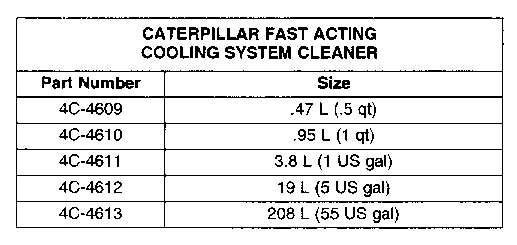

Caterpillar'sFastActingCoolingSystemCleanerisdesignedtocleanthesystemofharmfulscale andcorrosion.Thecleanerdissolvesmineralscale,corrosionproducts,lightoilcontamination, andsludge.

FastActingCoolingSystemCleanerisavailablefromyourCaterpillardealerinthequantities listed.Followtheproductlabeldirectionsforproperuse.

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

CoolingSystemSpecifications

SMCS-7606

LongLifeCoolant/AntifreezeCoolingSystemMaintenance

NOTICE

UseonlyCaterpillarproductsorcommercialproductsthathave passedCaterpillar'sEC-1specificationforpremixedorconcentrated coolants.

UseonlyCaterpillarExtenderwithLongLifeCoolant/Antifreeze.

MixingLongLifeCoolant/Antifreezewithotherproductsreducesthe LongLifeCoolant/Antifreezeservicelife.Failuretofollowthe recommendationsincludedinthissectioncanreducecoolingsystem componentlife.

Inordertomaintainthecorrectbalanceofantifreezeandadditives,careshouldbetakento maintaintheproperLongLifeCoolant/Antifreezeconcentration.Reducingtheamountof antifreezelowerstheproportionofadditive,thusloweringthecoolant'sabilitytoprotectthe coolingsystemfrompitting,cavitation,erosion,anddeposits.

ProperLongLifeCoolant/AntifreezeAdditions

NOTE:DONOTaddLongLifeCoolant/AntifreezeConcentrateasamakeupsolutionforroutine coolingsystemtop-off.AddingconcentratedLongLifeCoolant/Antifreezeincreasesthe concentrationofglycolinthecoolingsystem.

Duringnormalmaintenance,useapremixedsolutionofapprovedwaterandLongLife Coolant/Antifreezeasatop-offtothecoolingsystemtobringthecoolanttotheproperlevel.Use LongLifeCoolant/AntifreezeoracoolantthatmeetsCaterpillar'sEC-1specification.Ifacoolant thatmeetsEC-1isnotavailable,usedistilledorde-ionizedwaterasamake-up.Checktheglycol levelofthecoolingsystemwiththe1U-7298CoolantTester(°C)orthe1U-7297CoolantTester

(°F).UseLongLifeCoolant/AntifreezeConcentratetorestoretheproperglycolconcentration beforetheengineisexposedtofreezingtemperatures.

NOTICE

DonotuseconventionalcoolanttotopoffacoolingsystemusingLong LifeCoolant/Antifreeze.

Donotusesupplementalcoolantadditivesotherthanextenderin coolingsystemsfilledwithLongLifeCoolant/Antifreeze.

IfacoolingsystemusingLongLifeCoolant/Antifreezehasbeentoppedoffwithasmallamount ofconventionalcoolantorifasupplementalcoolantadditivewasaddedtothesystembymistake, thesystemwillnotbeharmed.

Shouldthecoolingsystembecomecontaminatedwithconventionalcoolantorsupplemental coolantadditiveexceeding10percentofthecoolingsystem'stotalcapacity,performoneofthe followingactions:

*DrainthecoolingsystemandrefillthecoolingsystemwithLongLifeCoolant/Antifreeze, or

*Maintainthecoolingsystemasifthecoolingsystemisfilledwithconventionalcoolant.

LongLifeCoolant/AntifreezeCoolingSystemCleaning

NOTE:NocleaningagentsaretobeusedwhenacoolingsystemusingLongLife Coolant/Antifreezeisdrained,flushed,andrefilled.

Cleanwateristheonlysystemcleaning/flushingagentrequiredwhenLongLife Coolant/Antifreezeisdrainedfromthecoolingsystem.

LongLifeCoolant/Antifreezecanberecycled.Thedrainedcoolantmixturecanbedistilledto separatetheethyleneglycolandwaterforreuse.ContactyourCaterpillardealerformore information.

Afterdrainingandrefillingthecoolingsystem,operatetheenginewiththeradiatorfillercap removeduntilthecoolantreachesnormaloperatingtemperatureandthecoolantlevelstabilizes. Addcoolantmixtureasnecessarytofillthesystemtotheproperlevel.

ConvertingaCoolingSystemfromConventionalCoolanttoLongLifeCoolant/Antifreeze

NOTE:WhenthecoolantischangedfromconventionalcoolanttoLongLifeCoolant/Antifreeze, aCaterpillarcleanershouldbeused.AftertheuseofCaterpillarcoolingsystemcleaners,the systemMUSTbethoroughlyflushedwithcleanwater.

ToconvertthecoolingsystemfromconventionalcoolanttoLongLifeCoolant/Antifreeze, performthefollowingprocedure:

1.Drainthecoolant.

2.Flushthesystemwithcleanwatertoremoveanydebris.

3.UseaCaterpillarcleanertocleanthesystem.Followtheinstructionsonthelabel.Caterpillar cleanerisavailablefromyourCaterpillardealer.

4.Drainthecleaner.Flushthecoolingsystemwithcleanwater.

5.Fillthecoolingsystemwithcleanwater.Operatetheengineuntilthecoolingsystem temperatureis49to66°C(120to150°F).

6.Drainandflushthecoolingsystemwithcleanwater.

7.RepeatStep5andStep6.

8.FillthecoolingsystemwithLongLifeCoolant/Antifreeze.

9.AttachalabeltothecoolingsystemtoindicatethesystemhasbeenconvertedtouseLongLife Coolant/Antifreeze.

WedMay1909:41:54UTC+05302021

PreviousScreen

Product:VIBRATORYCOMPACTOR

Model:CS-433CVIBRATORYCOMPACTOR1FS

Configuration:CS-433CCOMPACTOR-MILITARY1FS00001-UP(MACHINE)POWEREDBY3054Engine

OperationandMaintenanceManual

CS-431C,CP-433C&CS-433CVIBRATORYCOMPACTORS

MediaNumber-KEBU6729-10PublicationDate-01/03/2001DateUpdated-29/01/2002

Every10ServiceHoursorDaily

SMCS-7606

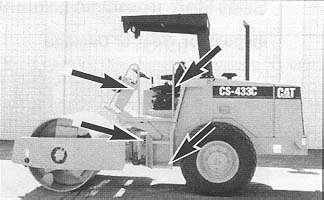

Walk-AroundInspection

InspectMachine

1.Inspectandreplacelights,brokenbulbsandlenses.

2.Inspectandremoveanytrashbuild-upinandaroundtheengine.

3.Inspectandrepairanycoolingsystemorenginecomponentleaks.

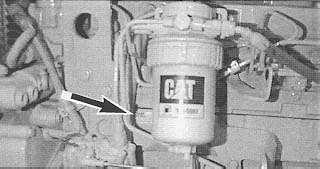

4.Checkthefuelfiltersforwater.

5.Inspectstepsandhandholdsforconditionandcleanliness.Repairorcleanifnecessary.

6.Inspectthehydraulicsystemforleaks.Inspectthetank,hoses,tubes,plugs,jointsandfittings. Correctanyleaks.

7.Besurecoversandguardsarefirmlyinplace.Inspectfordamage.

8.Inspectoperator'scompartmentforcleanlinessandremovealltrash.

9.Inspectandrepairtheinstrumentpanelwhenbrokengaugesandlightsarefound.

10.Inspecthydraulicmotorsforleaks.

11.Inspecttherubberisolationblocks,betweenthevibratorydrumandthemachineframefor damage,crackingorsplitting.RefertotheServiceManualoryourCaterpillardealerforthe completeisolationblockreplacementprocedure.

SeatBelt

InspectforWearorDamage

Alwayscheckconditionofseatbeltandmountinghardwarebeforeoperatingmachine.Replace anydamagedorwornparts.

Replacetheseatbeltafterthreeyearsofusage,regardlessofappearance.

Seatbeltandmountinghardwaremustbeinspectedforwearordamage.Replacethebeltor mountinghardwareifwornordamaged.

EngineAirIntakeSystem

CheckServiceIndicator

Yourenginemayormaynotbeequippedwithadifferentindicatordependingonyourapplication.

NOTICE

Neverservicetheaircleanerwiththeenginerunningsincethiswill allowdirttoentertheengine.

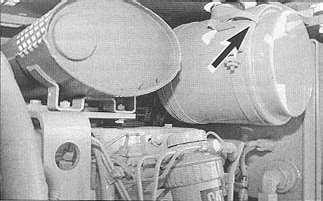

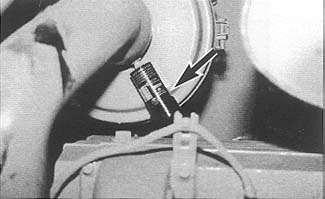

Aserviceindicatorismountedontheaircleanerorinaremotelocation.Acoloredpistonshowing inthewindowindicatestheneedforservicingtheaircleaner.Observetheaircleanerservice indicator.Cleanorreplacetheaircleanerwhenthegreendiaphragmenterstheredzoneorthered pistonlocksinthevisibleposition.Iftheaircleanerindicatorshowsredatanytime,cleanthe filterelementorinstallanewaircleanerelement.

1.Opentherightaccesscover.

2.Releasethecoverfastenersandremovetheendcoverontheaircleanerhousing.Removeand emptythedustcollectorcup.

3.Removetheaircleanercoverandelement,andcovertheairinlet.

4.Cleantheinsideoftheaircleanercoverandbodywithaclean,drycloth.Inspectsealsbetween thelowerbodyandthedustcollectorcup.Inspectsealsbetweenthelowerandupperbodiesand installnewsealsifnecessary.

5.Inspectthereplacementelementfordamage,dirtordebris.Removethecoveringfromtheair inletandinstalltheneworcleaned,undamagedelement.Installlowerbodytoupperbodyand tightenretainingclamp(s).

6.Installdustcupandtightenretainingclamp.Resettheserviceindicator.

HeavyDutyAirCleanersOnly

Servicetheaircleanerusingtheaircleanerindicatorasthebasisfordeterminingtheconditionof theelements.

Iftheaircleanerelementbecomesplugged,butdoesnotsplit,engineperformancewilldeteriorate andoutputpowerwillbereduced.

Keepsparefilterelementsonhandforreplacement.

Fortheproceduretocleanorreplacetheoptionalheavydutyaircleanerelements,refertothe topicCleaningAirCleanerElements.

CleaningAirCleanerElements

NOTICE

Donotcleanthefilterelementsbybumpingortappingthem.Engine damagecouldresult.

Donotusefilterelementswithdamagedpleats,gasketsorseals.

NOTE:Mostaircleanerfilterelementscanbecleanedwithair,waterordetergent.Havespare elementsonhandtousewhilecleaningusedelements.

Filterelementscanbecleanedwithpressureair-205kPa(30psi)maximum,pressurewater-280 kPa(40psi)maximum,ordetergentwashing.

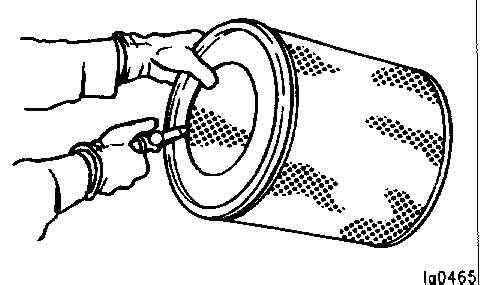

1.Directairorwateralongthepleatsinsideandoutsideoffilterelement.

Theelementcanbewashedinwarmwaterandnonsudsinghouseholddetergent.Rinseinsideand outsidethepleatsandairdryfully.

2.Inspectthefilterelementsaftercleaning.Donotuseafilterelementwithdamagedpleats, gasketsorseals.

3.Wrapandstorethecleanfilterelementsinaclean,dryplace.

4.Resettheserviceindicator.

Formoreinformationonaircleanerelementcleaning,refertoyourCaterpillardealerorOEM manufacturer.

CheckPrecleaner(IfEquipped)

Checktheprecleaner(ifequipped)foraccumulationofdirtanddebris.Removeanydirtand debrisasneeded.

NOTE:Morefrequentcleaningwillberequiredindustyapplications.

Removethewingnutandtopcoveroftheprecleanerandcheckforanaccumulationofdirtand debris.Cleanifnecessary.

Aftercleaning,installthecoverandwingnut.

EngineCrankcase

NOTICE

MakesureyoureadandunderstandtheinformationintheLubricant Specificationssectionofthismanualbeforeyouproceedwith maintenanceofthecrankcaselubeoilsystem.

CheckOilLevel

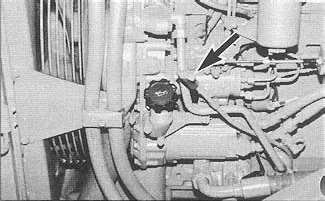

1.Checktheoillevelwiththeenginestopped.DONOTchecktheoillevelwiththeengine running.

NOTE:RefertotheRefillCapacitieschartandLubricantSpecificationstoshowtheproper amountandqualityofoiltobeusedatoilchangetime,andtodeterminethecorrectlevelonthe dipstickforyourapplication.

2.MaintaintheoillevelbetweentheADD(MIN)andFULL(MAX)marksonthedipstick. EnsurethattheengineoillevelisnotabovetheFULL(MAX)markonthedipstick.DONOT overfilltoreachaboveor,totopofFULL(MAX)markonthedipstick.

NOTE:OperatingyourenginewhentheoillevelisabovetheFULL(MAX)markcouldcause yourcrankshafttodipintotheoil.Ifthishappens,theairbubblescreatedfromthecrankshaft dippingintotheoilwillreducethelubricatingcharacteristicsofyouroilandcouldresultinthe lossofpower.

IfthedipstickdoesnothaveaFULL(MAX)mark,refertocalibratingtheoillevelgaugeby consultingyourCaterpillardealerbeforeoperatingtheengine.

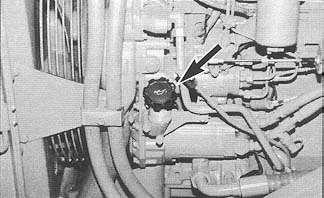

3.Removetheoilfillercapandaddoilifnecessary.Theminimumcapacity(ADDoilmark)is5.6 liter(5.9U.S.quart)forthe3054engine.SeeRefillCapacitiesandLubricantSpecificationsfor thesizeofyourenginecrankcaseandrecommendedoiltouse.

NOTE:RemotemountedorauxiliaryoilfilterswillrequireadditionaloilthanwhattheRefill Capacitieschartstates.Forallinformationpertainingtoauxiliaryoilfilters,refertotheOEM filtermanufacturer'sinstructions.

HydraulicOilSystem

CheckChargePressureIndicator

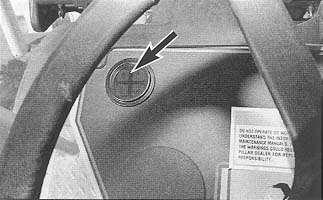

Verifythehydraulicchargepressure.WiththeenginerunningatHIGHIDLE,observethecharge pressureindicator.Iftheindicatorlightisonandthehornblows,checktheindicatoronthe hydraulicfilter.Iftheindicatorisintheredzone,replacethefilter.RefertoHydraulicOilSystem, Every1000ServiceHoursor12Months.

NOTICE

Ifthechargepressureindicatorisonandtheindicatoronthefilteris NOTintheredzone,thecauseforlowchargepressuremustbe determined.ContactyourCaterpillardealer.

CheckOilLevel

NOTICE

Takeextremecaretoinsurethecleanlinessofhydraulicoil.Keep hydraulicoilcleantoextendcomponentlifeandassuremaximum performance.DONOTOVERFILL.

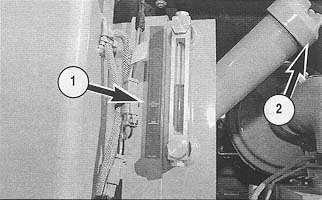

1.ObservethehydraulicoillevelwhentheoilisWARM.Maintainoilleveltothelevelmarkon thedecalnearsightgauge(1).

NOTE:Donotoverfill.Hotoilwillindicateanabovelevelcondition.

2.Iftheoillevelislow,removeoilfillcap(2).

3.Addoilthroughthefilltubewhileobservingsightgauge.Filltothelevelindicatoronthedecal. Donotoverfill.

4.Cleanandinstalloilfillcap(2).

MakesureyoureadandunderstandtheinformationintheCooling SystemSpecificationssectionofthismanualbeforeyouproceedwith maintenanceofthecoolingsystem.

CheckCoolantLevel

1.Checkthecoolantlevelwiththeenginestoppedandcool.

2.Removethefillercapslowlytorelieveanypressure.

3.Maintainthecoolantlevelwithin13mm(1/2inch)belowthebottomofthefillpipeortothe properlevelonthesightglass,ifequipped.

This is the sample of the manual Click on the download link for complete Manual
