Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
ProductIdentificationandSerialNumberLocations
TheProductIdentificationNumber(PIN)willbeusedtoidentifyapoweredmachinethatisdesigned foranoperatortoride.
Caterpillarproductssuchasengines,transmissions,andmajorattachments,etc.,notdesignedforan operatortorideareidentifiedbySerialNumbers.
Forquickreference,recordtheidentificationnumbersinthespacesprovidedbelowtheillustration.
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
SpecificationsandModelViews
Vibratorydrum(1),hydraulictank(2)andfueltank(3).

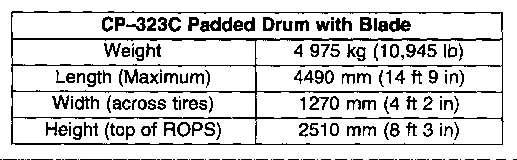

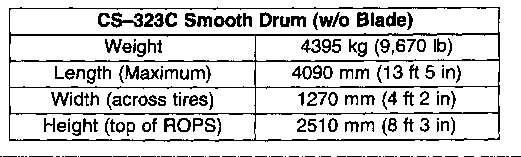

Operator'scompartment(4),enginecompartment(5)andcentersteerpivotarea(6). Basicmachineshippingspecificationsarelistedbelow.
MonFeb1300:06:08UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual
CP-323C,CS-323CVIBRATORYCOMPACTOR
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
Foreword
LiteratureInformation
Theoperationandmaintenancemanualshouldbestoredintheoperator'scompartmentinthe literatureholderorseatbackliteraturestoragearea.
Theoperationandmaintenancemanualcontainssafety,operation,transportation,lubricationand maintenanceinformation.
Somephotographsorillustrationsintheoperationandmaintenancemanualshowdetailsor attachmentsthatcanbedifferentfromyourmachine.Guardsandcoversmighthavebeenremovedfor illustrativepurposes.
Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyour machinewhicharenotincludedintheoperationandmaintenancemanual.Read,studyandkeepthe operationandmaintenancemanualwiththemachine.
Wheneveraquestionarisesregardingthemachine,ortheoperationandmaintenancemanual,please consultanyCaterpillardealerforthelatestavailableinformation.
Safety
TheSafetySectionlistsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofwarningsignsandlabelsusedonthemachine.
ReadandunderstandthebasicprecautionslistedintheSafetySectionbeforeoperatingorperforming lubrication,maintenanceandrepaironthismachine.
Operation
TheOperationSectionisareferenceforthenewoperatorandarefresherfortheexperiencedone. Thissectionincludesadiscussionofgauges,switches,machinecontrols,attachmentcontrols, transportationandtowinginformation.
Photographsandillustrationsguidetheoperatorthroughcorrectproceduresofchecking,starting, operatingandstoppingthemachine.
Operatingtechniquesoutlinedinthispublicationarebasic.Skillandtechniquesdevelopasthe operatorgainsknowledgeofthemachineanditscapabilities.
Maintenance
TheMaintenanceSectionisaguidetoequipmentcare.Theillustrated,step-by-stepinstructionsare groupedbyservicingintervals.ItemswithoutspecificintervalsarelistedunderWhenRequired topics.ItemsintheMaintenanceIntervalschartarereferencedtodetailedinstructionsthatfollow.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenient servicingschedulesandapproximatetheindicatedservicehourmeterreading.Recommendedservice shouldalwaysbeperformedattheintervalthatoccursfirst.
Underextremelysevere,dustyorwetoperatingconditions,morefrequentlubricationthanisspecified intheMaintenanceIntervalschartmightbenecessary.
Performserviceonitemsatmultiplesoftheoriginalrequirement.Forexample,atEvery500Service Hoursor3Months,alsoservicethoseitemslistedunderEvery250ServiceHoursorMonthlyand Every10ServiceHoursorDaily.
MachineDescription
ThismachineisequippedwithaCaterpillar3054dieselengine.
California
DieselengineexhaustandsomeofitsconstituentsareknowntothestateofCaliforniatocause cancer,birthdefects,andotherreproductiveharm.
Copyright1993-2023CaterpillarInc. AllRightsReserved.
MonFeb1300:05:03UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual
CP-323C,CS-323CVIBRATORYCOMPACTOR
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
ReferenceMaterials
CaterpillarReferenceMaterial
ThefollowingliteraturecanbeobtainedthroughanyCaterpillardealer.
Oil
SEBD0640OilandYourEngine
SEBU5898ColdWeatherRecommendationsOperationandMaintenanceManual
SEBU6310EMAEngineOilDataBook
PEHP6001HowtoTakeaGoodOilSample
SEHS7392StorageofDieselEngines
PEHP7504CatEngineOilSpecSheets
PEHP7505CatDieselEngineOilSpecSheets
PEHP1020ProductDataSheetforCatDieselEngine(CF-4)(N.America&SelectedInt'l)
PEHP1026ProductDataSheetforCatDieselEngineOil(CF-4)(InternationalOnly)
PEHP1027ProductDataSheetforCatDieselEngineOil(CD)
PEHP0002ProductDataSheetforCatMolybdenumGrease(MPGM)
PEHP0003ProductDataSheetforCatLithiumGrease(MPGL)
PEHP0017ProductDataSheetforCatSpecialPurposeGrease(SPG)
PEWP9733CatFluidsSelector
Fuel
SEBD0717DieselFuelsandYourEngine
SEHS7067FuelsforCaterpillarDieselEngines
Coolant
SEBD0518KnowYourCoolingSystem
SEBD0970CoolantandYourEngine
Miscellaneous
SEBF8062GuidelineforReusablePartsCleaningandInspectionofAirFilters
SEHS9031StorageProcedureforCaterpillarProducts
SEBU5614SafetyManual
AlloftheabovepublicationsareavailablethroughyourCaterpillardealer.
AdditionalReferenceMaterial
ASTMD2896TBNMeasurements
ASTMD217-68WorkedPenetration
ASTMD2982B
ASTMD3828A
ASTMD445KinematicViscosityTesting
ASTMD893
ASTM4985-89GM-6038MSpecification
ASTMSpecscannormallybeobtainedfromyourlocaltechnologicalsociety,libraryorcollege.
SAEJ313DieselFuels
SAEJ754Nomenclature
SAEJ183Classification
SocietyofAutomotiveEngineers(SAE)SpecscanbefoundinyourSAEhandbookorcanbe obtainedfromyourlocallibrary,collegeortechnologicalsociety.
*SAEhandbookscanbeobtaineddirectlyfrom:
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonFeb1300:06:56UTC+05302023
This is the sample of the manual Click on the download link for complete Manual
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine OperationandMaintenanceManual
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
Troubleshooting
Copyright1993-2023CaterpillarInc. AllRightsReserved. PrivateNetworkForSISLicensees.
MonFeb1300:10:33UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine OperationandMaintenanceManual
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine
OperationandMaintenanceManual CP-323C,CS-323CVIBRATORYCOMPACTOR
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
Every2000ServiceHoursor2Years
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionofthis manualbeforeperforminganyoperationormaintenanceprocedures.
EngineValveLash
Check/Adjust

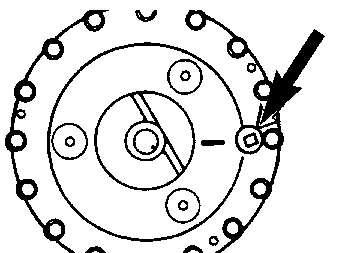

Besuretheenginecannotbestartedwhilethismaintenanceis beingperformed.Topreventpossibleinjury,donotusethe startingmotortoturntheflywheel.
Hotenginecomponentscancauseburns.Allowadditionaltime fortheenginetocoolbeforemeasuring/adjustingvalvelash.
OperationofCaterpillarengineswithimpropervalve adjustmentswillreduceengineefficiency.Thisreduced efficiencycouldresultinexcessivefuelusageand/orshortened enginecomponentlife.
NOTICE

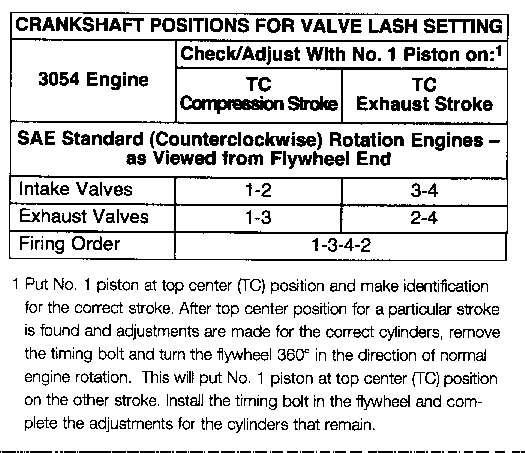

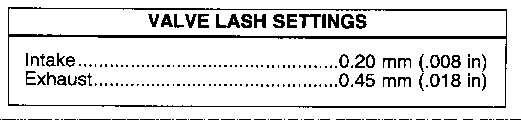

Theproceduresforenginevalvelashshouldbeperformed accordingtotheinformationintheServiceManual.

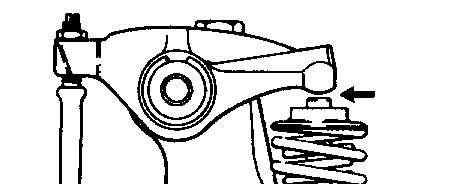

Measurethevalvelashwiththeenginestopped.Toobtainan accuratemeasurement,allowatleast20minutesforthevalves tocooltoenginecylinderheadandblocktemperature.
NOTE:
NOTICE
Donotperformthismaintenanceuntilyoureadandunderstand thematerialintheSafetyandCoolingSystemSpecifications sectionsofthispublication.
Thisprocedureistobeusedfornormalmaintenanceofcooling systemsurfacestoreturnto"likenew"condition.Forheavy build-upofscaleanddeposits,asevereacid-typecommercial cleanerormechanicalcleaningwillberequired.
MonFeb1300:10:10UTC+05302023
Product:VIBRATORYCOMPACTOR
Model:CP-323CVIBRATORYCOMPACTOR6DM
Configuration:CP-323CCS-323CVibratoryCompactor6DM00001-UP(MACHINE)POWEREDBY3054Engine
MediaNumber-KEBU6878-00PublicationDate-20/02/1996DateUpdated-10/10/2001
Every1000ServiceHoursor1Year
YoumustreadandunderstandthewarningsandinstructionscontainedintheSafetysectionofthis manualbeforeperforminganyoperationormaintenanceprocedures.
HydraulicOilFilters
ChangeChargeFilter
NOTICE
Takeextremecaretoinsurethecleanlinessofhydraulicoil. Keephydraulicoilcleantoextendcomponentlifeandassure maximumperformance.
Hydraulictankispressurized.Removethefillcapslowlyto relievepressurebeforechangingthefilter.
Thehydraulicoiltankcontainsapproximately64liters(17U.S. gal)ofhydraulicoil.
This is the sample of the manual Click on the download link for complete Manual
