Numéro :0413/ARE/2017
Date :12/06/2017
Product:VIBRATORYCOMPACTOR
Model:CB2.7VIBRATORYCOMPACTORR52
Configuration:CB2.5,CB2.7,CB2.9VibratoryUtilityCompactorR5200001-UP(MACHINE)POWEREDBYC1.5Engine
OperationandMaintenanceManual
MediaNumber-M0085473-03PublicationDate-01/02/2018DateUpdated-14/02/2018
Foreword
LiteratureInformation
Thismanualshouldbereadcarefullybeforeusingthisproductforthefirsttimeandbeforeperforming maintenance.Thismanualshouldbestoredintheproductliteratureholderorintheproductliteraturestorage area.Immediatelyreplacethismanualiflost,damaged,orunreadable.Thismanualmaycontainsafety information,operationinstructions,transportationinformation,lubricationinformation,andmaintenance information.Somephotographsorillustrationsinthispublicationshowdetailsorattachmentsthatcanbe differentfromyourproduct.Guardsandcoversmighthavebeenremovedforillustrativepurposes. Continuingimprovementandadvancementofproductdesignmighthavecausedchangestoyourproduct, whicharenotincludedinthispublication.Wheneveraquestionarisesregardingyourproduct,orthis publication,consultyourdealerforthelatestavailableinformation.
Safety
Thesafetysection,ifpresent,listsbasicsafetyprecautions.Inaddition,thissectionidentifiesthetextand locationsofsafetymessagesusedontheproduct.Readandunderstandthebasicprecautionslistedinthe safetysectionbeforeoperatingorperforminglubrication,maintenance,andrepaironthisproduct.
Operation
Theoperationsection,ifpresent,isareferenceforthenewoperatorandarefresherfortheexperienced operator.Thissectionincludesadiscussionofgauges,switches,controls,attachmentcontrols,transportation, andtowinginformation(ifapplicable).Photographsandillustrationsguidetheoperatorthroughcorrect proceduresofchecking,starting,operating,andstoppingtheproduct.Operatingtechniquesoutlinedinthis publicationarebasic.Skillandtechniquesdevelopastheoperatorgainsknowledgeoftheproductandits capabilities.
s02590205
ProductInformation
Theproductinformationsection,ifpresent,mayprovidespecificationdata,productintendeduse,product identificationplatelocations,andcertificationinformation.
Maintenance
Themaintenancesection,ifpresent,isaguidetoequipmentcare.Propermaintenanceandrepairareessential tokeeptheequipmentandsystemsoperatingcorrectly.Astheowner,youareresponsibleforthe performanceoftherequiredmaintenancelistedintheOwnerManual,OperationandMaintenanceManual, andServiceManual.TheMaintenanceIntervalScheduleliststheitemstobemaintainedataspecificservice interval.Itemswithoutspecificintervalsarelistedunderthe"WhenRequired"serviceinterval.The MaintenanceIntervalScheduleliststhepagenumberforthestep-by-stepinstructionsrequiredtoaccomplish thescheduledmaintenance.UsetheMaintenanceIntervalScheduleasanindexor"onesafesource"forall maintenanceprocedures.
MaintenanceIntervals
Usetheservicehourmetertodetermineservicingintervals.Calendarintervalsshown(daily,weekly, monthly,etc.)canbeusedinsteadofservicehourmeterintervalsiftheyprovidemoreconvenientservicing schedulesandapproximatetheindicatedservicehourmeterreading.Recommendedserviceshouldalwaysbe performedattheintervalthatoccursfirst.Underextremelysevere,dusty,orwetoperatingconditions,more frequentlubricationthanisspecifiedinthemaintenanceintervalschartmightbenecessary.Performservice onitemsatmultiplesoftheoriginalrequirement.Forexample,atevery500servicehoursor3months,also servicethoseitemslistedunderevery250servicehoursormonthlyandevery10servicehoursordaily.
ProductCapacity
Additionalattachmentsormodificationsmayexceedproductdesigncapacity,whichcanadverselyaffect productperformancecharacteristics,safety,reliability,andapplicablecertifications.Contactyourdealerfor furtherinformation.
Copyright1993-2021CaterpillarInc. AllRightsReserved.
MonAug1621:25:31UTC+05302021
Product:VIBRATORYCOMPACTOR
Model:CB2.7VIBRATORYCOMPACTORR52
Configuration:CB2.5,CB2.7,CB2.9VibratoryUtilityCompactorR5200001-UP(MACHINE)POWEREDBYC1.5Engine OperationandMaintenanceManual
MediaNumber-M0085473-03PublicationDate-01/02/2018DateUpdated-14/02/2018
Radio-EntertainmentIfEquipped
SMCS-7338
i07316460
Whendriving,alwayskeepyoureyesontheroadandhandsonthe steeringwheel,payingcarefulattentiontonormaldrivingtasks.As always,thedriverisresponsibleforsafevehicleoperation.Notkeeping youreyesontheroadandhandsonthewheelwhiledrivingcouldresult ininjurytoyouorothers.
Introduction
Informationincludedinthisownersmanualwasaccurateatthetimeofpublication.Caterpillar,however, reservestherighttoandperformancewithoutpriornotice.Checkwithyourdealerfordetailsregarding changesthatmayhaveoccurredsincetimeofprinting.
TheRadiosystemiscontrolledbyusingthebuttons,RSA,orsteeringwheelcontrols.
StereoReceivers

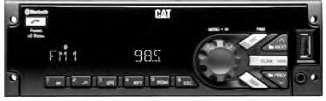

Illustration1g03566500
MP3/USB/iPod/Aux/BluetoothReceiver

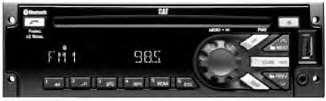

Illustration2g03566527
MP3/USB/iPod/Aux/Bluetooth/CDReceiver
Illustration3g03566571
MP3/USB/iPod/Aux/Bluetooth/CD/SATReceiver

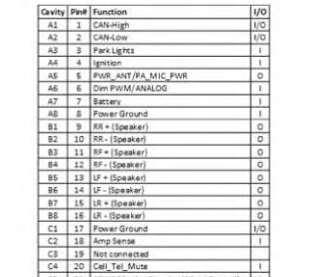

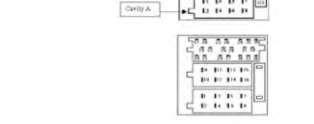

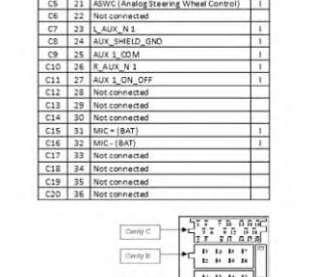

RadioPinout
Radiopinoutisshownbelow

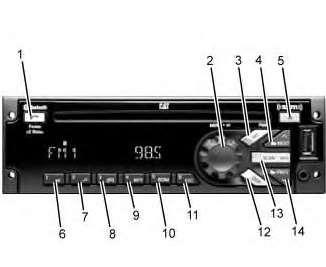

Illustration5g03566592
(1)Phone (2)Knob (3)SRC/PWR(Source/Power) (4)Next (5)Eject (6)Play/Pause (7)Browse (8)Clock/Alarm (9)RPT(Repeat) (10)RDM(Random) (11)ESC(Escape) (12)DISP(Display) (13)SCAN/ASCN(Scan/Autoscan) (14)PREV(Previous)
Options
•AnAMbandwith6AMpresets
•ThreeFMbandswithatotalof18FMpresets
•OneweatherbandwithsixWXpresets
SRC/PWR(Source/Power)
PresstoswitchtoFM->AM->WX->SXM->CD->USB/iPod->AUX->BluetoothAudio(ifequipped) andtoturnRadioON.PressandholdtoturnradioOFF.
OneHourTimer
Withtheignitionoff,pressingtheSRC/PWRbuttonwillturnonthereceiverandactivatethereceiversonehourtimer.Thereceiverwillturnoffafter1hourorbypressingandholdtheSRC/PWRbutton.
VOLUMEKNOB/OK

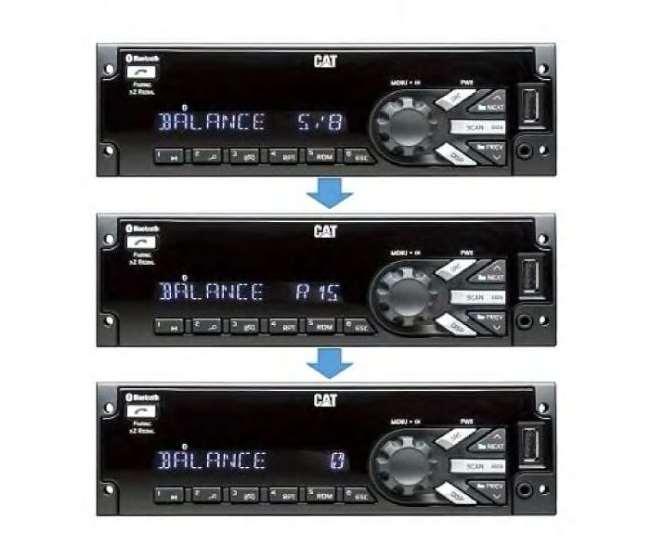

Pressforlessthan3secondstodisplayAudioControlMenu.Pressformorethan3secondstoshowtheuser menu.Rotatetoincrease/decreasevolumeorduringamenufornavigation.Presswhileinamenutoconfirm theselectedaction.
PREV(Previous/Reverse)
Presstoselectprevioustrackorstation.PressandholdforFRorTuneDown
NEXT(Next/Forward)
Presstoselectnexttrackorstation.PressandholdforFForTuneUp
EJECT
PresstoejecttheCD
Phone(ifequipped)
PressthePhonebuttonformorethan3secondstoshowtheBluetoothMenu.WhenBluetoothisenabled, pressthebuttontodisplaytheDialMenuortoacceptanIncomingCall(ifaPhoneispaired).Duringacall pressthebuttonformorethan3secondstotransferthecallfromtheradiotothePhone.
CLOCK/ALARM
PressduringAlarmactivationtocanceltheAlarm.
SCAN/ASCAN
Scansstations/CDtracks/MP3/WMAfilesandfolderandintuner,storesstationstopresets
PLAY/PAUSE
Presstopause/unpausecurrentMedia.
RPT(Repeat)
Presstorepeatcurrenttrack.Pressagaintostoprepeat.LookfortheRPTiconintheradiodisplaytoturn thisfeatureONorOFF.
BROWSE
Presstonavigateonthedeviceandselectaspecificsongorplaycontext(ApplicabletoUSBsticks,CDMP3 discsandiPod).
RDM(Random)
Presstoplaythetracksrandomly.Pressagaintostoprandommode.LookfortheRDMicontoturnoninthe radiodisplay.
ESC(ESCAPE)
PresstoexitoneMenuLevel.
IfthesystemisequippedwithBluetooth,presstheESCbuttonduringBluetoothcalloperationtorejector cancelacall.
DISP(DISPLAY)
IfvehicleignitionisON:Presstochangesourcedisplay
Pressformorethan3secondstoshowtheClockforashorttime.
Radio(Audiosource)
ToaccessAM,FM,WX,SXM(ifequipped),iPod,USB,RearAux,FrontAux,CD,orBTAudiodooneof thefollowing:
1.PresstheSRCradiobuttontoscrollthroughtheoptionsandselectdesiredoption.
2.PresstheSRCradiobuttonandthenscrollthesourcemenubyknobrotationorNEXT/PREVshort pressesandthenselectbyshort-pressingtheknob.
TheCD/MP3,USB/iPod,FrontAUX,andBTAudioshallbeaccessedonlyiftheradiomodelsupportsthose optionsandadeviceisconnected/insertedforthatspecificsource.
Note,ifadeviceisconnectedthroughdifferentsourcesatthesametime,thefunctionalitycannotbe guaranteed(DeviceDependent).Example:DeviceconnectedthroughFrontAuxandBluetoothorUSBand Bluetoothatthesametime.
AM-FM-WXRadio
Tuning:Setthedesired"TunerConfiguration"followingthestepsintheMenusection.
Iftheradioissettomanual,theradiowillallowforexecutionofthefollowingfunctions:
•ExecutemanualtuningwhentheNEXTorPREVbuttonsareshortpressed.
•ExecuteSeekwhentheNEXTorPREVbuttonsarelongpressed.
IftheradioissettoAuto,theradiowillallowforexecutionofthefollowingfunctions:
•ExecuteSeekwhentheNEXTorPREVbuttonsareshortpressed.
•ExecutemanualtuningwhentheNEXTorPREVbuttonsarelongpressed.
Manualtuning
Thecurrentfrequencywillbeincreased/decreasedby1stepof0.2MHz(USAFMmode),10kHz(USAAM mode)andonechannel(25kHz)inWXmode.
SeekingaStation
WhentheSeekfunctionisactivated,theradioincrements/decrementsthefrequencyuntilatunablestationis found.
Ifatunablestationisnotfound,theradiowilldisplay"NOSTATIONFOUND".
Presets
StoringRadioStationPresets:
1.Tunethedesiredfrequency,andthenlongpressanyofthePreset(1-6)buttonsuntiltheradioproduces abeep.
TuningRadioStationPresets
1.ShortpressanyofthePreset(1-6)buttons.Thefrequencystoredatthepresetlocationistunedwhen thebuttonisreleased.
Scan
ToinitiatetheScanfunction,shortpresstheSCAN/ASCNbutton.WhenSCANisinitiated,theradioseeks upinfrequencyandstopsonthenextstrongfrequencyfor8secondsbeforecontinuingtoseekforthenext strongstation.
Ifnostationisfoundintwopassesthroughtheband,theradiowilldisplay“NOSTATIONFOUND”and thentunetothestartingfrequency.
Autoscan
Thisfunctiontemporallystoresthestrongest6stationsofthecurrentbandinthepresetsuntiltheradiois poweredofforthesourceischanged.
AUTOSCANdoesnotstorethefrequenciesonthepresetsonnumericalorder.Frequenciesarestoredbased ontheordertheywerefoundandonthequalityofthefrequency.
ToinitiatetheAUTOSCANfunction,longpresstheSCAN/ASCANbuttonuntiltheradioperformsabeep. Thenthe"AUTOSCAN"iconwillblinkwhiletheradioisstoringthetemporarypresets.
This is the sample of the manual Click on the download link for complete Manual
WhentheAutoscanprocessfinishes,theradiowilltunetothestationstoredinPreset1andthe"AUTO SCAN"iconshallbeilluminatedwhilethemodeisactive.
Totuneanyofthe6frequenciesortostorenewpresets,followthestepsdefinedinthePresetssection.
Toexitthismodeandreturntotheoriginalpresetsexecuteanyofthefollowingactions:
1.PressandholdtheSCAN/ASCANbutton
2.PresstheSCR/PWRbutton.
3.Turnofftheradio.
4.Performanignitioncycle
5.Disconnectthebattery.
WX
TheWXbandisfortheGovernmentalweatherradioservicesfrequencies.Theradiocantunetotheseven weatherchannelsfollowingthestepsinTuning,Presets,andSCANsections.
SXM(IfEquipped)
VehicleswithavalidSiriusXM®satelliteradiosubscriptioncanreceiveSiriusXMprogramming.SiriusXM satelliteradiohasawidevarietyofprogrammingandcommercial-freemusic,coasttocoast,andindigitalqualitysound.
SiriusXM® SXMDisplay
WhenSiriusXMisactive,thechannelnumber,channelname,artistname/contentinfo,songtitle,orcategory namecouldbedisplayedonthescreen.SiriusXMmayupdatetheinformationatanytime.
Tochangethecurrentdisplayview,shortpresstheDISPbutton.
Whenanewchannelisselected,asongchangeoccurs,SXMsourceisselected(frompower-uporsource change)ortheinformationisupdated,alltheelementswillbedisplayedusingpaging.Thepagingcanbe stoppedbyshortpressingtheDISPbutton.
Displaylabels
Torecognizethedisplayedtext,theradiousesthefollowingconvention:
•ChannelNumber:CH
•ChannelName:CH
•ArtistName:ART
•ContentInfo:INFO
•SongTitle:SONG
•Categoryname:CAT
SXMCategories
SiriusXMstationsareorganizedincategories.
ThecategorylistforSXMisinthefollowingwebpage: "http://www.siriusxm.com/sxm/pdf/sirius/channelguide.pdf"
Tochangethecurrentcategory,longpresstheNEXT/PREVbuttonandtheradiowilltunethefirstchannel onnextorpreviouscategory.
CategorymodeEnable/Disabled
CategorySearchModeEnabledmeansthatonlychannelsinthecurrentCategoryaresearched.When enabled,theCATEGORYiconisturnedon.
CategorySearchModeDisabledmeansthatallchannelsaresearched.Whendisabled,theCATEGORYicon isturnedoff.
Toenable/disablethecategorybrowsemode,followthestepsintheUserMenusection
Thedefaultafterapower-upisCategoryDisabled.
SXMChannelSelection
PresetsandSCANfunctionsworkthesameasdefinedintheSCANsubsectionofAM-FM-WXRadio.
NEXTbutton
WhileinSXMtheradiowillscrolltothenextchannelavailableinnumericalorder.
PREVbutton
WhileinSXMtheradiowillscrolltothepreviouschannelavailableinnumericalorder
Note:IftheSXMserviceisnotactivated,onlythefree-to-airchannelswillbepresent.
SXMRadioID
Iftunedtochannel0,"RADIOID"labelalternateswiththeSXMradioeight-digitcode.Thiscodeisneeded toactivatetheservice.
DISPbuttondoesnotworkinchannel0.Channel0isnotavailableincategorymodeenabled.
SXMMessages
SXMBUSY-Theaudiosystemisacquiringand/orprocessingaudioand/ortextdata.Noactionisneeded.
ARTUNAVAIL-ThereisnotArtistNamerelatedwiththecurrentsong.
SONGUNAVAIL-ThereisnotSongTitlerelatedwiththecurrentsong.
CHANUNAVAIL-ThereisnoChannelNamerelatedwiththecurrentchannel.
CHECKANTENNA-SXMantennaorantennacableisnotconnectedtotheradioortheantennaisshorted.
NOSIGNAL-SXMtunermodulereportstheNoSignalcondition.UnderthisconditiononlyChannel0will workasstatedinthismanual.
CHANUNSUB-Activechannelhasbecomeunsubscribedortherequestedchannelisnotunsubscribed.
SUBSCRIPTIONUPDATED-PRESSOKTOCONTINUE-Thesubscriptionoftheradiowasupdated. Toremovethemessageandreturntothepreviousstatepres"OK"(Knob).
CHUNAVAIL-Requestedchannelisreportedunavailableforanewlyselectedchannelorthecurrently selectedchannel.Unavailablechannelsareinthelegalchannelrangebutarenotcurrentlyavailablefor displayorsubscriptionasabroadcastservice.After3secondsthepreviouschannel(ifavailable)orchannel 1willbetuned.
iPod
ThisradiosupportsthefollowingiPodmodels:
•iPodclassic(sixthgeneration)
•iPodnano(6G)
•iPodtouch(4G)
•iPhone(3G,3GS,4,and4S)
OtheriPodsmaybeplayed,butfunctionalityisnotguaranteed.
Radioprovidesupto1Aofcharge,soanydeviceconnectedtotheUSBthatrequireslessthan1Awillbe charged.
Theremaybeproblemswiththeoperationandfunctioninthefollowingsituations:
•When,connectinganiPodonwhichamorerecentversionofthefirmwareisinstalledthanis supportedbytheRadio
•When,connectinganiPodwithfirmwarefromotherprovidersisinstalled
PlayingfromaniPod
ToconnectaniPod:
1.ConnectoneendofthestandardiPodUSBcabletotheiPodsdockconnector.
2.ConnecttheotherendtotheUSBportinthefrontradiodisplay.
1.RadiowillstartplayingtheUSBandshowsthetracknumber,Song,Artist,elapsedtime,andAlbum informationwhenavailable.
2.iPodmusicinformationdisplaysontheradiosdisplayandbeginsplayingthroughthevehiclesaudio system.
3.IftheiPodisanunsupportedmodel,itcanbelistenedtointhevehiclebyconnectingtotheauxiliary inputjackusingastandard3.5mm(1/8in)stereocable.
ExpectedbehaviorwheniPodisconnected:
•TheiPodbatteryrechargesautomaticallywhilethevehicleison.
•TheiPodshutsoffandstopschargingwhenthevehicleisshutoff.
iPodMenu
UsethefollowingstepstonavigatetheiPodMenu:
1.Pressthemagnifyingglass(preset1)buttonwhileUSBsource(iPodconnected)isactivetoaccessthe iPodMenu.
2.UsetheVolumeKnoborNext/Prevbuttontonavigatethroughthedifferentoptions.
3.UsetheiPodMenutoselect.
Playlists
Usethefollowingstepstonavigateplaylists:
1.PresstoviewtheplaylistsontheiPod.
2.Selectaplaylistnametoviewalistofallsongsintheplaylist.
3.Selectthesongfromthelisttobeginplayback.
Artists
Usethefollowingstepstonavigateartists:
1.PresstoviewtheartistsontheiPod.
2.Selectanartistnametoviewalistofallalbumswithsongsbytheartist.
3.Selectanalbum.
4.Selectthesongfromthelisttobeginplayback.
Albums
Usethefollowingstepstonavigatealbums:
1.PresstoviewthealbumsontheiPod.
2.SelectanalbumnametoviewalistofallsongsonthealbumorselectAllSongstoviewallsongson theiPod.
3.Selectthesongfromthelisttobeginplayback.
Genres
Usethefollowingstepstonavigategenres:
1.PresstoviewthegenresontheiPod.
2.Selectagenrenametoviewalistofartistsofthatgenre.
3.SelectanartisttoviewalbumsorAllAlbumstoviewallalbumsofthatgenre.
4.SelectArtisttoviewalbums.
5.SelectAlbumtoviewsongs.
6.Selectthesongfromthelisttobeginplayback.
Podcasts
Usethefollowingstepstonavigatepodcasts:
1.PresstoviewthepodcastsontheiPod.
2.Selectapodcastnametobeginplayback.
Songs
Usethefollowingstepstonavigatesongs:
1.PresstoviewalistofallsongsontheiPod.
2.Selectthesongfromthelisttobeginplayback.
Composers
Usethefollowingstepstonavigatecomposers:
1.PresstoviewthecomposersontheiPod.
2.Selectthecomposertoviewalistofsongsbythatcomposer.
3.Selectasongfromthelisttobeginplayback.
AudioBooks
Usethefollowingstepstonavigateaudiobooks:
1.PresstoviewtheaudiobooksontheiPod.
2.Selecttheaudiobookfromthelisttobeginplayback.
WhenaniPhoneoriPodTouchwithiOSlowerthaniOS5.0isconnectedthroughUSBorBluetooth,the audiomaynotbeheardwhentheiPodsourceisselected.Tocorrectthissituation,selecteitherthedock connectorinthephoneordisconnectandreconnecttheAppledevice.
Note:iOSistheAppleOperativeSystem.
UsethefollowingcontrolstoplaytheiPod:
PREV(Previous)-Presstoseektothebeginningofthecurrentorprevioustrack.
Note:Ifthetrackhasbeenplayingforlessthan10seconds,itwillseekfortheprevioustrack.Iflongerthan 10seconds,thecurrenttrackstartsfromthebeginning.
NEXT(Next)-Presstoseektothenexttrack.
FF/FR(FastForward/FastReverse)-Tofastforwardorreversethroughatrack,pressandholdNextor PREVbutton.
RDM(Random)-Presstoplaythetracksrandomly.Pressagaintostopshufflemode.LookfortheRDM icontoturnonintheradiodisplay.
RPT(Repeat)-Presstorepeatcurrenttrack.Pressagaintostoprepeat.LookfortheRPTicontoturnonin theradiodisplay.
ErrorMessages-Ifan"UNSUPPORTED"messageisdisplayed,itcouldbeforoneofthefollowing reasons:
•When,theiPodconnectedisnotsupported(lookatpageXforthelistofiPodssupported).
•TheiPoddoesnotrespondtotheradiocommands,inthiscaseresettheiPod,andtryagainthe connection.
Ifan"NOMUSIC"messageisdisplayed,itcouldbeforoneofthefollowingreasons:
•TherearenotanyplayablefilesintheiPod.
PlayingfromaUSB
AUSBmassstoragedevicecanbeconnectedtotheUSBport.
TheUSBportisinthefrontoftheradiodisplay.
FivevoltsDCpowerislimitedto1ampfromthisport.DevicessuchasiPadthatrequiregreatercurrentwill notchargefromthisport.
USBMP3PlayerandUSBDrives.TheUSBMP3playersandUSBdriveconnectedmustcomplywiththe USBMasswiththeUSBMassStoragespecification:
•MS-DOSpartitiononly
•Classspecification(ESBMSC)andsupportsformatsofFAT32,FAT16,NTFS,andHFS+.
•Harddiskdrivesmaybeplayed,butarenotsupported.
•Theradiowillnotbeabletoplaywrite-protectedmusic.
•MTPplayersarenotsupported.
ThefollowingguidelinesmustbemetwhencreatingMP3files,otherwisethefilesmightnotplay:
ForMP3Files:
•Bitrates:32,40,48,56,64,80,96,112,124,160,192,224,256,320kbpsforMPEG-1AudioLayer 3.
•Samplingfrequencies:32,44.1and48kHzforMPEG-1AudioLayer3.
•Maximumnumberoffolders:Eightfolderswith255filesperfolder.
•Maximumof1,000filesonadisc.
•M3uandplsplaylistversionssupported
•RecordedonaCD-RorCD-RWwithamaximumcapacityof700MB.
ForUnprotectedWMAFiles:
•Versions:1,2,7,8,9and9.1.
•Bitrates:32-320kbps.
•Samplingfrequencies:32-48kHz.
PlayingaUSBDevice
UsethefollowingstepstonavigateandplayaUSBdevice:
1.ConnecttheUSBanditbeginstoplay.
2.UsingtheSRCButtonselectstheUSBsource.
3.RadiowillstartplayingtheUSBandwillshowthetracknumber,Song,Artist,elapsedtime,and Albuminformationwhenavailable.
Usethefollowingcontrolstoplaythedisc:
PREV(Previous)-Presstoseektothebeginningofthecurrentorprevioustrack.
Note:Ifthetrackhasbeenplayingforlessthan10seconds,itseekstotheprevioustrack.Iflongerthan10 seconds,thecurrenttrackstartsfromthebeginning.
NEXT(Next)-Presstoseektothenexttrack.
FF/FR(FastForward/FastReverse)-Tofastforwardorreversethroughatrack,pressandholdNextor PREVbutton.
RDM(Random)-Presstoplaythetracksrandomly.Pressagaintostopshufflemode.LookfortheRDM icontoturnonintheradiodisplay.
RPT(Repeat)-Presstorepeatcurrenttrack.Pressagaintostoprepeat.LookfortheRPTicontoturnonin theradiodisplay.
FolderUp-Presstoselectnextfolder.
Note:Ifplayingaspecificplayablescope,whenpressedtheradiowilljumpandstartsplayingtrack1as newlyinsertedUSB.
FolderDown-PresstoselectpreviousFolder.
Note:Ifplayingaspecificplayablescope,whenpressedtheradiowilljumpandstartsplayingtrack1as newlyinsertedUSB.
SCAN:
•ShortpresstostarttheSCANofthecurrentplayingcontext.
•LongpresstoSCANthewholedevicestartingontrack1.
ErrorMessages-Ifan"UNSUPPORTED"messageisdisplayed,theerrorcouldbeforoneofthe followingreasons:
•WhenanMTPPlayeroraUSBdevicewithunsupportedformatorpartitionisconnected.
•Whenthedeviceisdamaged.
•Whentheconnecteddevicewasnotconnectedasmassstoragedevice.
Ifan"NOMUSIC"messageisdisplayed,itcouldbebecausetherearenotMP3orunprotectedWMAfiles thatcanbeplayed.
FrontAuxiliary
Inthefrontauxiliarymode,youcanplayanexternaldevicesuchasaniPod®orMP3playerviatheauxiliary inputjackonthefrontofthereceiver.
Touseanexternaldevice,simplyconnectthedeviceviatheauxiliaryinputjack.
Frontauxiliarymodewillnotbeavailableifnodeviceisconnectedtotheauxiliaryinputjackonthefrontof thereceiver
RearAuxiliary
Inrearauxiliarymode,youcanplayanexternaldevicethatyouhaveconnectedviathereceiversrearpower auxiliaryinputlines.
Touseanexternaldevice,simplyconnectthedeviceviatheauxiliaryinputjackandselectitusingthesource button.
RearAuxsourcewillbeavailableevenwhennodeviceisattachedtotherearinput.
Bluetooth(IfEquipped)
TheradiocanconnecttoaBluetoothDevice.TousethisfunctionalityyourdevicerequiresBluetoothandto bepairedandconnectedtotheradio.
SupportsmostBluetoothdevices.
Youcanconnectupto10devicestotheradio,theradiowillconnecttothefirstavailablepaireddevice, startingfromthelastpaired/connecteddevice.
TheBluetoothMenuisavailablewhenthePhonebuttonispressedformorethan3seconds.Tonavigate throughit,rotatetheknob.
TheBluetoothMenuconsistsofthefollowingoptions:BTENABLE,CONNECTPH,DISCONNECTPH, ADDPHONE,andDELETEPH(someoptionsareonlyavailablewhenadevicehasbeenpaired previously).
Enabling/DisablingBluetooth
ToEnable/DisableBluetoothinyourRadio(ifitisnotalreadyactivated):
•Pressthephonebuttonformorethan3secondswhiletheRadioisON.TheBluetoothMenuwillbe shown.
•Rotatethevolumeknobuntilthedisplayshows:"BTDisable"or"BTEnable".Pressthevolumeknob toEnableorDisabletheBluetooth.
•PresstheVolumeKnowtoEnableorDisabletheBluetooth.
Whenthedevicewaspreviouslypaired,thePhoneIconwillbeactiveandthearrowiconswillblinkuntilthe reconnectionofthepreviouslypairedphonesisattempted(eachphonewillbeattemptedthreetimes).
PairingaBluetoothDevice
Tocompletepairingthefollowingstepsmustbefollowed:
1.EnableBluetoothontheradioandonthedevice.RefertoyourdevicesManualformoreinformation.
2.PairtheDevicetotheRadio:
PressthePhonebuttonformorethan3secondsTheBluetoothMenuwillbeshown.
RotatetheVolumeKnobuntilthedisplayshows:ADDPHONE.
PresstheVolumeKnobtoconfirmtheaction.
TheradiowilldisplayADDINGPHfor3seconds.Inthisdiscoverablemode,theBluetoothstatusiconwill blinkforupto3minutes.Ifnophonewasfound,theradiowilldisplayNOPHFOUNDandthePhoneand arrowsiconwillbedisabled.
Duringthediscoverablemode,setyourcellphonetoaddaBluetoothdeviceandlookforthename"DEA500 RADIO":
•Followtheinstructionsonyourphonetoaddaconnection.Whennecessary,usethe4-numberPIN 0000toconnecttotheradio.
•Whenthecellphonehasbeensuccessfullyadded,theradiowilldisplayPHCONNECTEDandthen theBluetoothdevicename.ThePhoneIconwillbeactiveonthedisplayandthearrowswillbe disabled.
•Whentheradioconnects,theBluetoothiconwillblink.Theblinkingiconsignifiesthatthereceiveris attemptingtodownloadthecellphonesCONTACTS(fortheDIALCONTACTSfunction).Theicon willceasetoblinkifallcontactshavebeendownloadedoriftheradiotimesoutfromreceiving contactsfromthecellphone.Seeyourphonesuserguideformoreinformation.
Note:Ifadeviceisconnectedthroughdifferentsourcesatthesametime,thefunctionalitycannotbe guaranteed(DeviceDependent).Example:DeviceconnectedthroughFrontAuxandBluetoothorUSBand Bluetoothatthesametime.
Note:TheiOSistheAppleOperativeSystem.
Note:Ifthetrackhasbeenplayingforlessthan10seconds,itseekstotheprevioustrack.Iflongerthan10 seconds,thecurrenttrackstartsfromthebeginning.
ConnectingaDevice
Ifyourdevicewaspreviouslypaired,youcansimplyconnecttothedevice:
1.PressthePhonebuttonformorethan3seconds.TheBluetoothMenuwillbeshown
2.RotatetheVolumeKnobuntilthedisplayshowsCONNECTPH.
3.Presstheknobtoconfirmtheaction.SelectthedesiredDevice(rotatetheknobandconfirmby pressingtheknob).TheradiowillshowCONNECTINGfor3seconds.
4.Whentheradioconnects,theradiowilldisplayPHCONNECTEDandtheDeviceFriendlyName,the Bluetoothiconwillblink.Theblinkingiconsignifiesthatthereceiverisattemptingtodownloadthe cellphonesCONTACTS(fortheDIALCONTACTSfunction).Theiconwillceasetoblinkifall contactshavebeendownloadedoriftheradiotimesoutfromreceivingcontactsfromthecellphone device.PhoneIconwillbeactiveonthedisplay.
DisconnectingaDevice
Ifyourdeviceisconnectedandyourequireddisconnectingitfromtheradio,followthenextactions:
1.PressthePhonebuttonformorethan3seconds.TheBluetoothMenuwillbeshown.
2.RotatetheVolumeKnobuntilthedisplayshowsDISCONNECTPH.
3.Presstheknobtoconfirmtheaction.TheradiowillshowDISCONNECTPHforashorttime.Once, thePhoneisdisconnectedtheradiowilldisplayDISCONNECTEDandthentheBluetoothdevice name.ThePhoneIconwillbeinactive.
DeletingoneorallDevices
Todeleteadevicefromtheradio,oneoralldevicespreviouslypaired:
1.PressthePhonebuttonformorethan3seconds.TheBluetoothMenuwillbeshown.
2.RotatetheVolumeKnobuntilthedisplayshowsDELETEPH.
3.Presstheknobtoenterthesubmenu.
4.Theradiowillshowadevicelist(navigatethroughitbyrotatingtheknob).Selectthedevicetobe deletedorselectDELETEALLtoeraseallthepaireddevicesinthelistbypressingtheVolumeKnob. TheradiowillshowPHDELETED.
HandsFree/BluetoothFeatures
Onceyourdeviceisproperlypaired(seeParingaBluetoothDevice)andconnected(seeConnectinga Device),theradiosupportsthefollowingHandsFreefeaturesiftheconnecteddevicehashandsfree functionality.
DialMenu
Theradiocanretrievethelastcallsandcontactinformationfromthedevice(HandsFreeprofilemustbe availableinthedeviceandsometimestheactionmustbeacceptedbytheuser).
ThedialmenuisaccessedwhenthedeviceisnotinacallandthePhonebuttonispressed.
Dial/Redial
Theusercanretrievethelastphonenumbercalledandplaceacall.PressthePhonebuttonandthelastphone numbercalledwillbedialed.
QuickDial
Theradiocanstorephonenumbersinanyoftheavailablepresetbuttons.
Tosaveaphonenumber,youcanselectthecontactusingeithertheDIALCONTACTSfeatureortheLAST CALLSfeature.Whenthedesiredcontactphonenumberisdisplayed,pressandholdanyofthePRESET buttonsuntilyouhearabeepconfirmingthephonenumberhasbeensaved.
Todialasavedphonenumber,selectQUICKDIALfromthemenuandrotatetheknobtoselectthe appropriatePRESETnumber.Presstheknobtoplaceacalltosavedphonenumber.
Tochangepresetssimplyrepeattheprocesswiththedesiredphonenumber.Presetsareoverwritten.
DialContact
Theradioisabletoreadanddisplaycellphonecontacts.PressthePhonebuttontoshowtheDIALMENU androtatetheknobuntilDIALCONTACTSisshown,presstheknobtoselectthisfeature.Rotatetheknob toselectbetweenthedifferentstoredcontacts(upto500numbersfromthephoneand250contactsfromthe SIM).PresstheOKbuttonifyouwanttodialtothelistedcontact.
Theradiowilldownloadthefollowingphonenumbersfromeachcontact(ifavailable):HOME,WORK, MOBILE,OTHER,andPREFERRED.Withinthemenuphonenumberswillbedisplayedaseither:H,W, M,O,orPplusthe10-digitnumber(XXXXXXXXXX).
Whenthetransferissuccessful,theradiowillshowtheDIALCONTACTSsubmenu.Eachtimetheradio connectstoyourphone,theDIALCONTACTSsubmenuisupdated,soyoumayneedtorepeatthismanual operationasneeded.
LastCalls
Theradioiscapableoflistingthelast10calls(DIALED,RECEIVEDANDMISSED).Rotatingtheknob willnavigatetheuserthroughtheselectedcalllist.PresstheOKbuttontoplacethecall.
Note:Ifadeviceisconnectedthroughdifferentsourcesatthesametime,thefunctionalitycannotbe guaranteed(DeviceDependent).Example:DeviceconnectedthroughFrontAuxandBluetoothorUSBand Bluetoothatthesametime.
CallOptions
ThefollowingoptionsareavailableduringaHandsFreecall.
AcceptingaCall
Whenanincomingcallisreceived,theradiowillplaytheinbangringtoneifthedevicesupportsthisfeature, otherwiseadefaultringtonewillbeplayed,theusercanadjusttheVolumeoftheringtone,whiletheringtone isplayed.Anyvolumelowerthan13,willnotbeconsideredforthenextincomingcall.Volumeabove13 willbestoredforthenextcall.
Whenanincomingcallisreceived,theradiowilldisplaythename(ifavailable)andnumberofthecaller.To acceptthecall,pressanyofthefollowingradiobuttons:Phone,Knob,orNEXT.
RejectingaCall
Whenanincomingcallisreceived,theradiowilldisplaythename(ifavailable)andnumberofthecaller.To rejectthecall,pressanyofthefollowingradiobuttons:ESCorPREV.
EndingaCall
WhenaHandsFreecallisinprogress,theradiowilldisplaythecallersnumberandtheelapsedtime.Toend acall,pressanyofthefollowingradiobuttons:Phone,ESC,orPREV.
MicrophoneMute
WhenaHandsFreecallisinprogress,pressingPause/Playwillmutetheradiosmicrophone.Pressagainto deactivatemute.
BluetoothMicrophone
ProcedurefortroubleshootingtheBluetoothCabMicrophonewhentheotherpartiescallreceptionaudiois unclear.
Illustration6g06281504 (1)UPArrow
Therearecommonconditionsthatcanaffecttheaudiovolumeofacallreceiverthatisnotthemachine operator.
1.TheUParrow(1)oftheBluetoothMicrophoneshouldalwaysbepointeduporawayfromthe operator.(SeeIllustration7)
2.Ifnot,attempttoremoveandrotatethemicrophoneandseeifthisimprovestheaudiovolumeofthe otherparty.
Iftheaudiodoesnotimprovebyspeakingclosertothemicrophone,thenitispossiblethecellwasnot pickedupbytheradio.Testforaudioimprovementbytalkingintothecellphonemicrophone.
TheBluetoothMicrophoneisnotwireless,alsochecktomakesurethattheharnessisintactandconnectedto theEntertainmentRadio.
Note:SomeBluetoothcapabilitiesarenotavailableinallcountries.Contactthedesigncontrolforalistof unregulatedregions.
CallTransfer
Ifacallisinprogress,presstheradioPhonebuttonformorethan3secondstotransferthecalltothecell phoneforprivateconversations.RepeatthisprocessifyouwanttoreturntoHandsFreemodeagain.
Note:Ifplayingaspecificplayablescope,whenpressedtheradiowilljumpandstartsplayingtrack1as newlyinsertedUSB.
BluetoothCallOutput
ProcedurefortroubleshootingtheEntertainmentRadiosettingsfornoaudiooutput.
BluetoothcallsareonlyaudibleovertheFrontLeftspeakeroutput.Thespeakeritselfcouldbebehindthe operator.ThisisassumingthephoneisproperlypairedwiththeradiooverBluetoothalready.Refertothe Owner’sManualprovidedwiththeEntertainmentRadioforassistancewithsetupandpairingofaBluetooth device.
TherearethreecommonsetupsthatcanaffectBluetoothcallsbeingheardoverthecabspeakers.The EntertainmentRadiospeakerbalancesetting,thecabwiring,andcallvolumeoftheradioorcellphone.
1.FirstchecktheBalancesettingstomakesurethattheyaresetto0.(SeeIllustration8)
2.WiththeignitionturnedtotheONpositionandtheradioturnedON,pressthevolumeknobfor2 secondsorlongertogettotheAudioControlMenu.
3.ThefirstitemthatisdisplayedisBass1/8.AdjustthevolumeknobuntilBalance5/8isseen.
4.PressthevolumeknobtoselecttheBalanceoptionwhenitisdisplayed.IftheBalanceshowsany othersettingsthan0,adjustthevolumeknobclockwiseorcounter-clockwiseuntilBalance0is displayed.Thenpressthevolumeknobagaintoconfirmtheselection.
5.Waitforthemenutotimeoutbeforeadjustinganyothersettings.Theradiowillgototheprevious mediasettingbeforethemenuwasentered.
This is the sample of the manual Click on the download link for complete Manual
